Uniprocessor Lock Implementation
This content discusses the implementation of locks in uniprocessor and multi-core systems, exploring different strategies and approaches. It covers various lock structures, acquisition and release mechanisms, and their synchronization in multi-core environments. The slides provide insights into lock management for efficient resource access control in computer systems.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

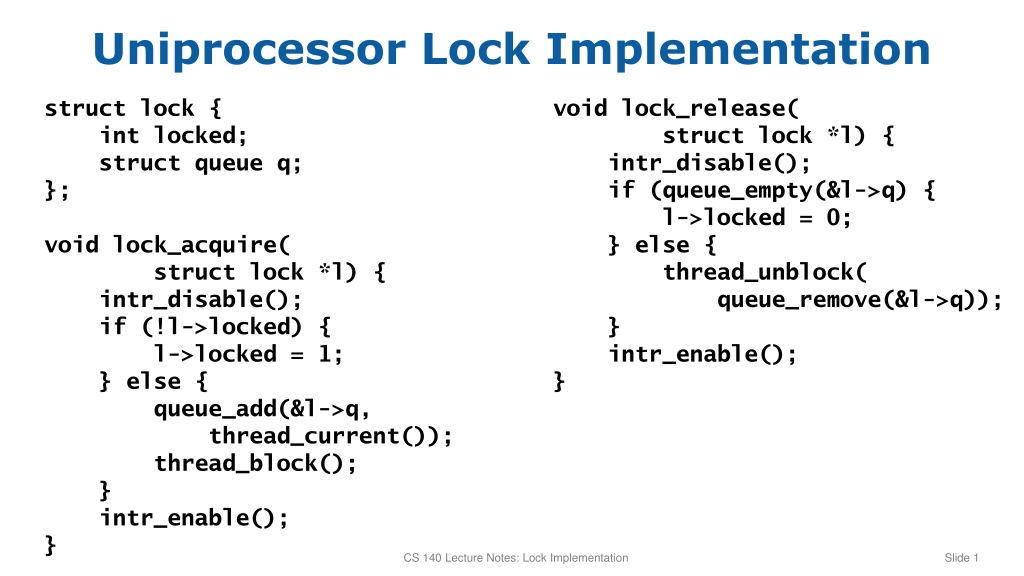

Uniprocessor Lock Implementation struct lock { int locked; struct queue q; }; void lock_release( struct lock *l) { intr_disable(); if (queue_empty(&l->q) { l->locked = 0; } else { thread_unblock( queue_remove(&l->q)); } intr_enable(); } void lock_acquire( struct lock *l) { intr_disable(); if (!l->locked) { l->locked = 1; } else { queue_add(&l->q, thread_current()); thread_block(); } intr_enable(); } CS 140 Lecture Notes: Lock Implementation Slide 1

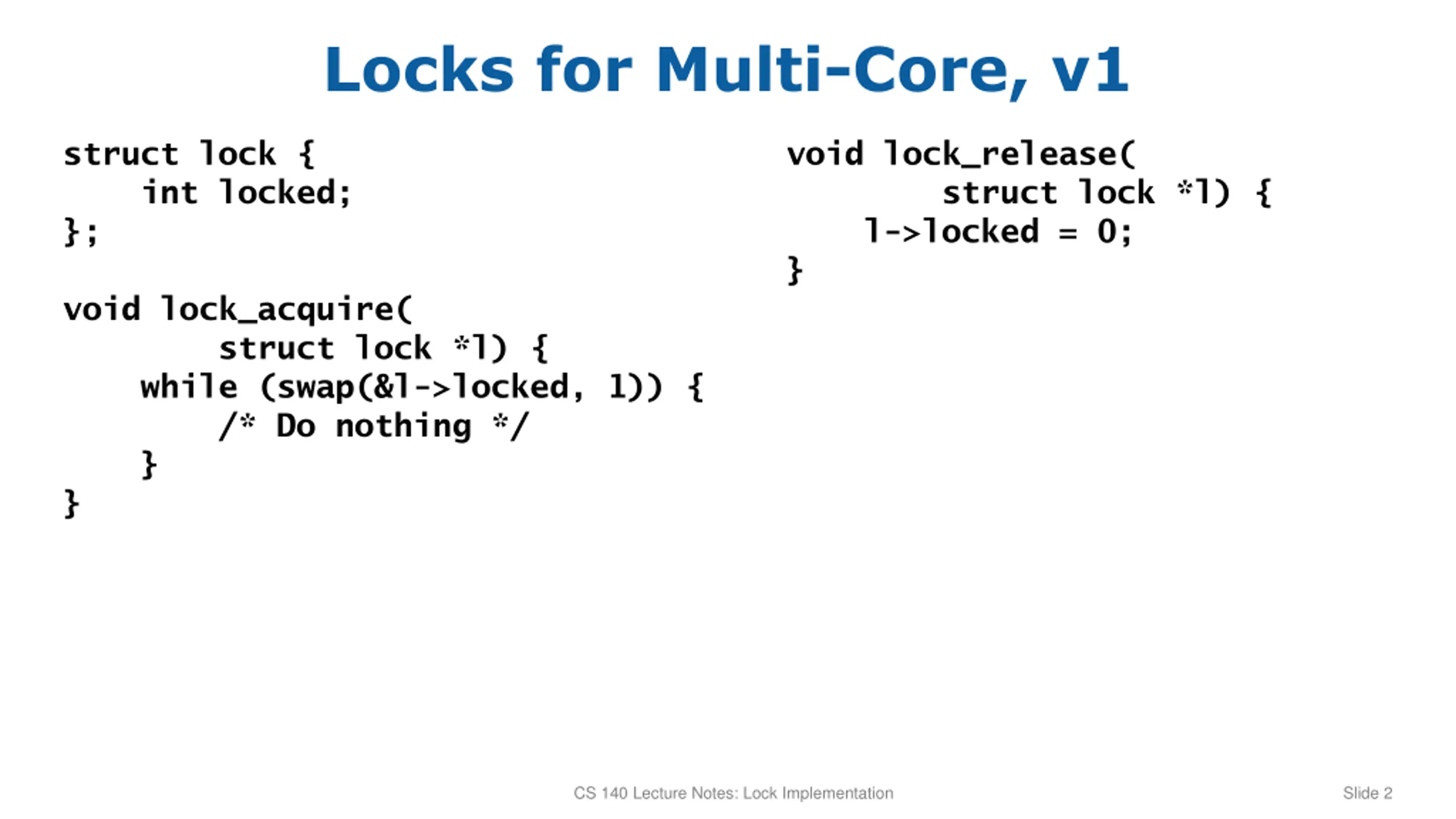

Locks for Multi-Core, v1 struct lock { int locked; }; void lock_release( struct lock *l) { l->locked = 0; } void lock_acquire( struct lock *l) { while (swap(&l->locked, 1)) { /* Do nothing */ } } CS 140 Lecture Notes: Lock Implementation Slide 2

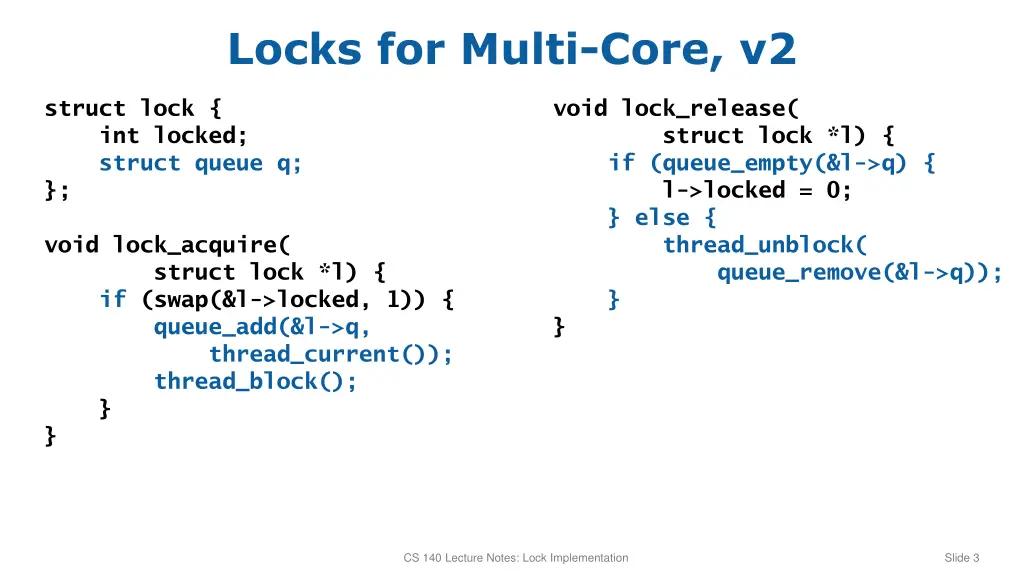

Locks for Multi-Core, v2 struct lock { int locked; struct queue q; }; void lock_release( struct lock *l) { if (queue_empty(&l->q) { l->locked = 0; } else { thread_unblock( queue_remove(&l->q)); } } void lock_acquire( struct lock *l) { if (swap(&l->locked, 1)) { queue_add(&l->q, thread_current()); thread_block(); } } CS 140 Lecture Notes: Lock Implementation Slide 3

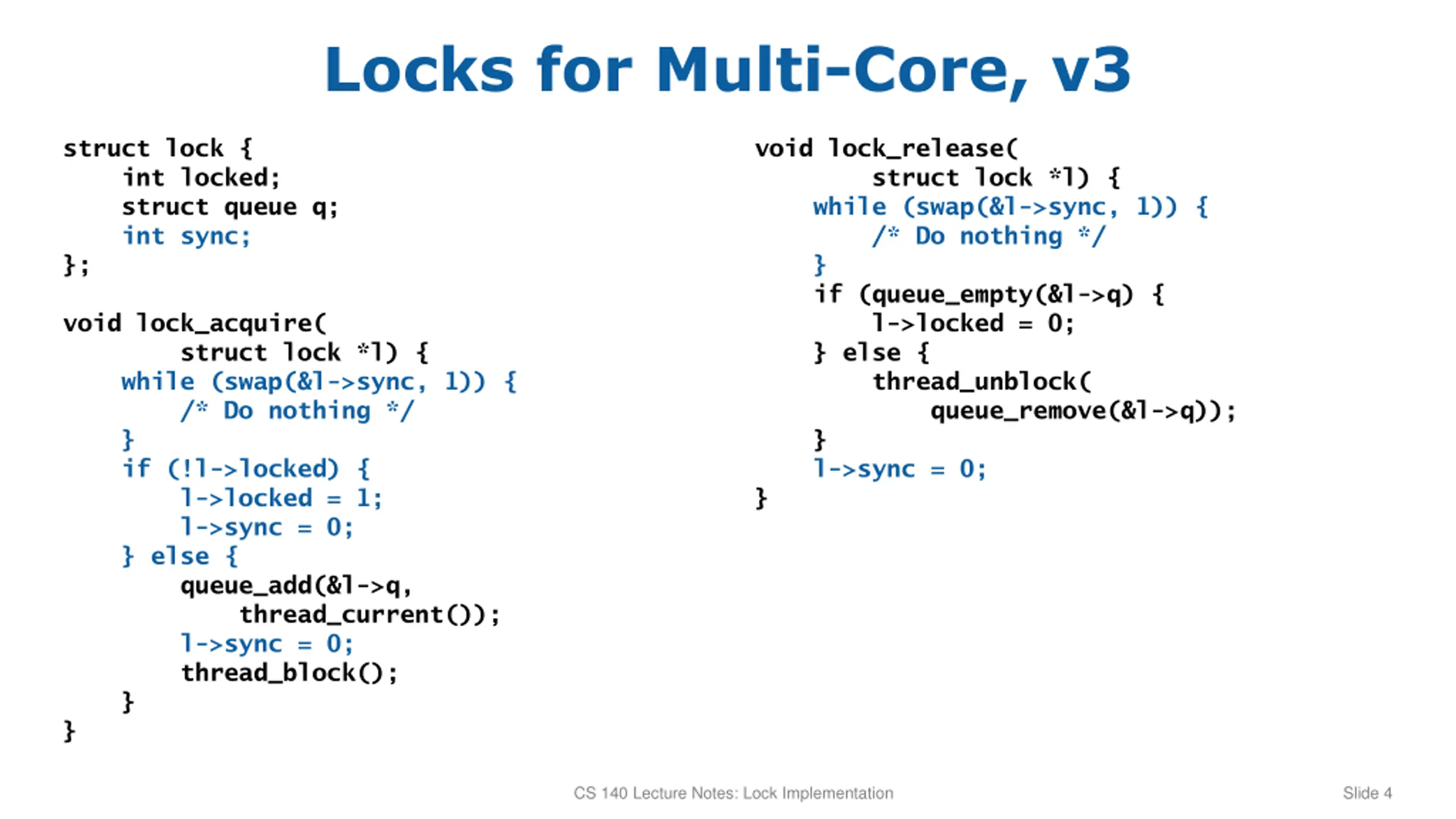

Locks for Multi-Core, v3 struct lock { int locked; struct queue q; int sync; }; void lock_release( struct lock *l) { while (swap(&l->sync, 1)) { /* Do nothing */ } if (queue_empty(&l->q) { l->locked = 0; } else { thread_unblock( queue_remove(&l->q)); } l->sync = 0; } void lock_acquire( struct lock *l) { while (swap(&l->sync, 1)) { /* Do nothing */ } if (!l->locked) { l->locked = 1; l->sync = 0; } else { queue_add(&l->q, thread_current()); l->sync = 0; thread_block(); } } CS 140 Lecture Notes: Lock Implementation Slide 4

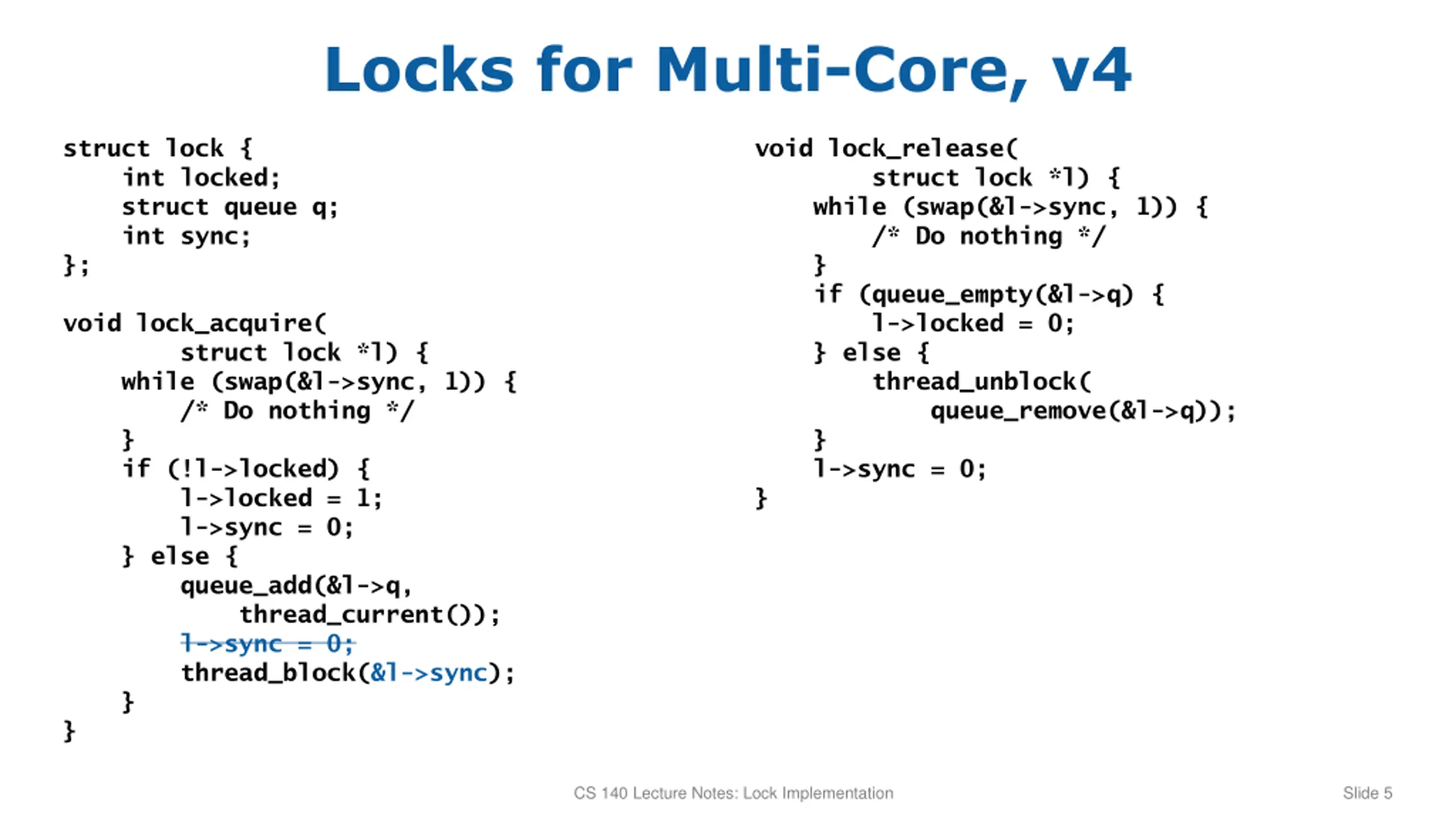

Locks for Multi-Core, v4 struct lock { int locked; struct queue q; int sync; }; void lock_release( struct lock *l) { while (swap(&l->sync, 1)) { /* Do nothing */ } if (queue_empty(&l->q) { l->locked = 0; } else { thread_unblock( queue_remove(&l->q)); } l->sync = 0; } void lock_acquire( struct lock *l) { while (swap(&l->sync, 1)) { /* Do nothing */ } if (!l->locked) { l->locked = 1; l->sync = 0; } else { queue_add(&l->q, thread_current()); l->sync = 0; thread_block(&l->sync); } } CS 140 Lecture Notes: Lock Implementation Slide 5

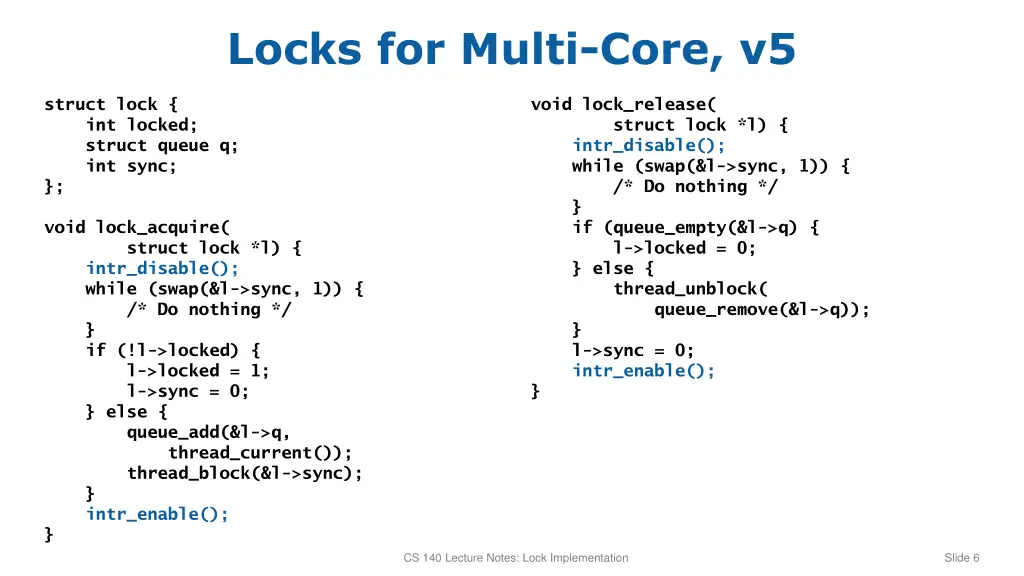

Locks for Multi-Core, v5 struct lock { int locked; struct queue q; int sync; }; void lock_release( struct lock *l) { intr_disable(); while (swap(&l->sync, 1)) { /* Do nothing */ } if (queue_empty(&l->q) { l->locked = 0; } else { thread_unblock( queue_remove(&l->q)); } l->sync = 0; intr_enable(); } void lock_acquire( struct lock *l) { intr_disable(); while (swap(&l->sync, 1)) { /* Do nothing */ } if (!l->locked) { l->locked = 1; l->sync = 0; } else { queue_add(&l->q, thread_current()); thread_block(&l->sync); } intr_enable(); } CS 140 Lecture Notes: Lock Implementation Slide 6
