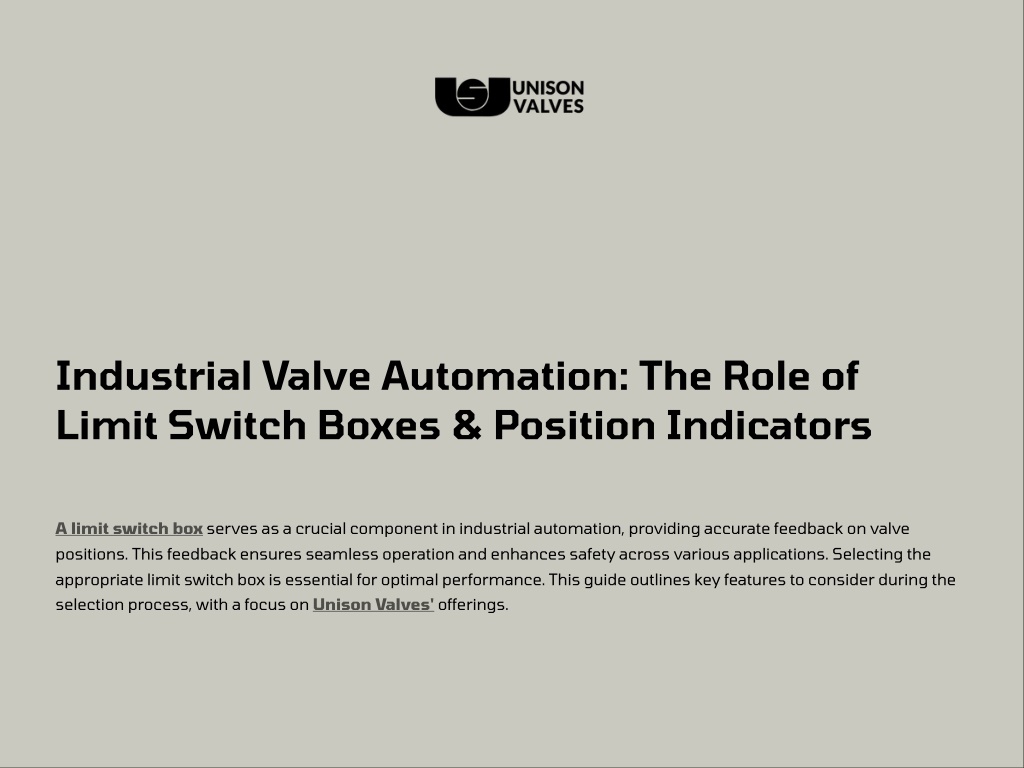

Industrial Valve Automation: The Role of Limit Switch Boxes & Position Indicators A limit switch box serves as a crucial component in industrial automation, providing accurate feedback on valve positions. This feedback ensures seamless operation and enhances safety across various applications. Selecting the appropriate limit switch box is essential for optimal performance. This guide outlines key features to consider during the selection process, with a focus on Unison Valves' offerings.

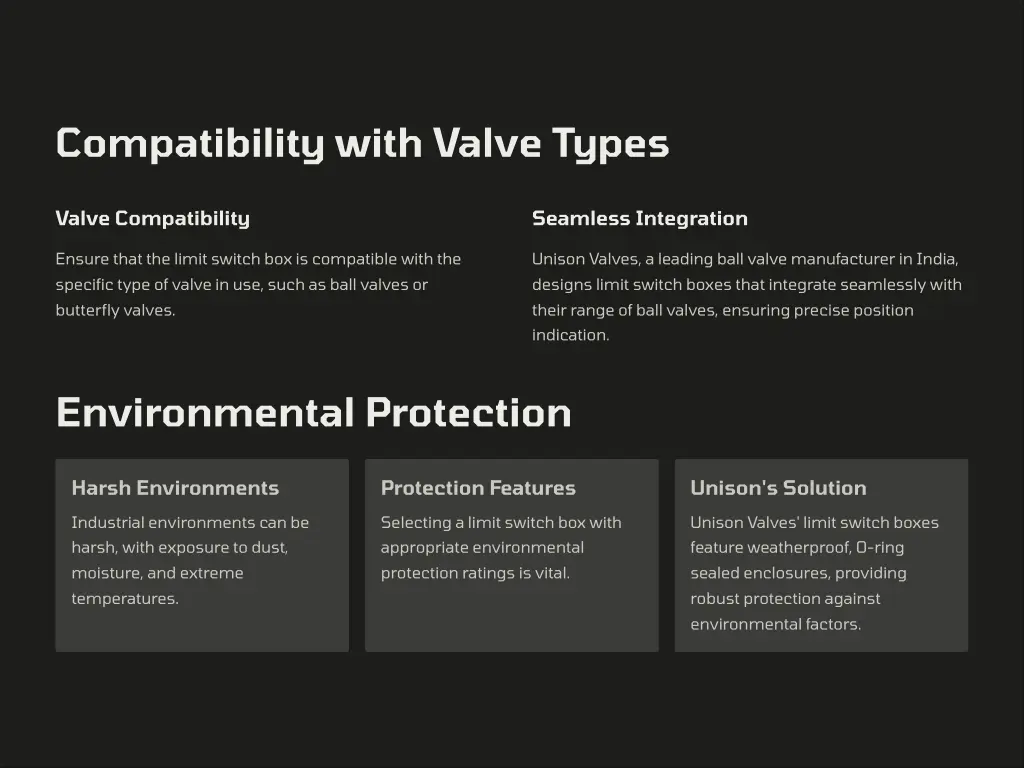

Compatibility with Valve Types Valve Compatibility Seamless Integration Ensure that the limit switch box is compatible with the specific type of valve in use, such as ball valves or butterfly valves. Unison Valves, a leading ball valve manufacturer in India, designs limit switch boxes that integrate seamlessly with their range of ball valves, ensuring precise position indication. Environmental Protection Harsh Environments Protection Features Unison's Solution Industrial environments can be harsh, with exposure to dust, moisture, and extreme temperatures. Selecting a limit switch box with appropriate environmental protection ratings is vital. Unison Valves' limit switch boxes feature weatherproof, O-ring sealed enclosures, providing robust protection against environmental factors.

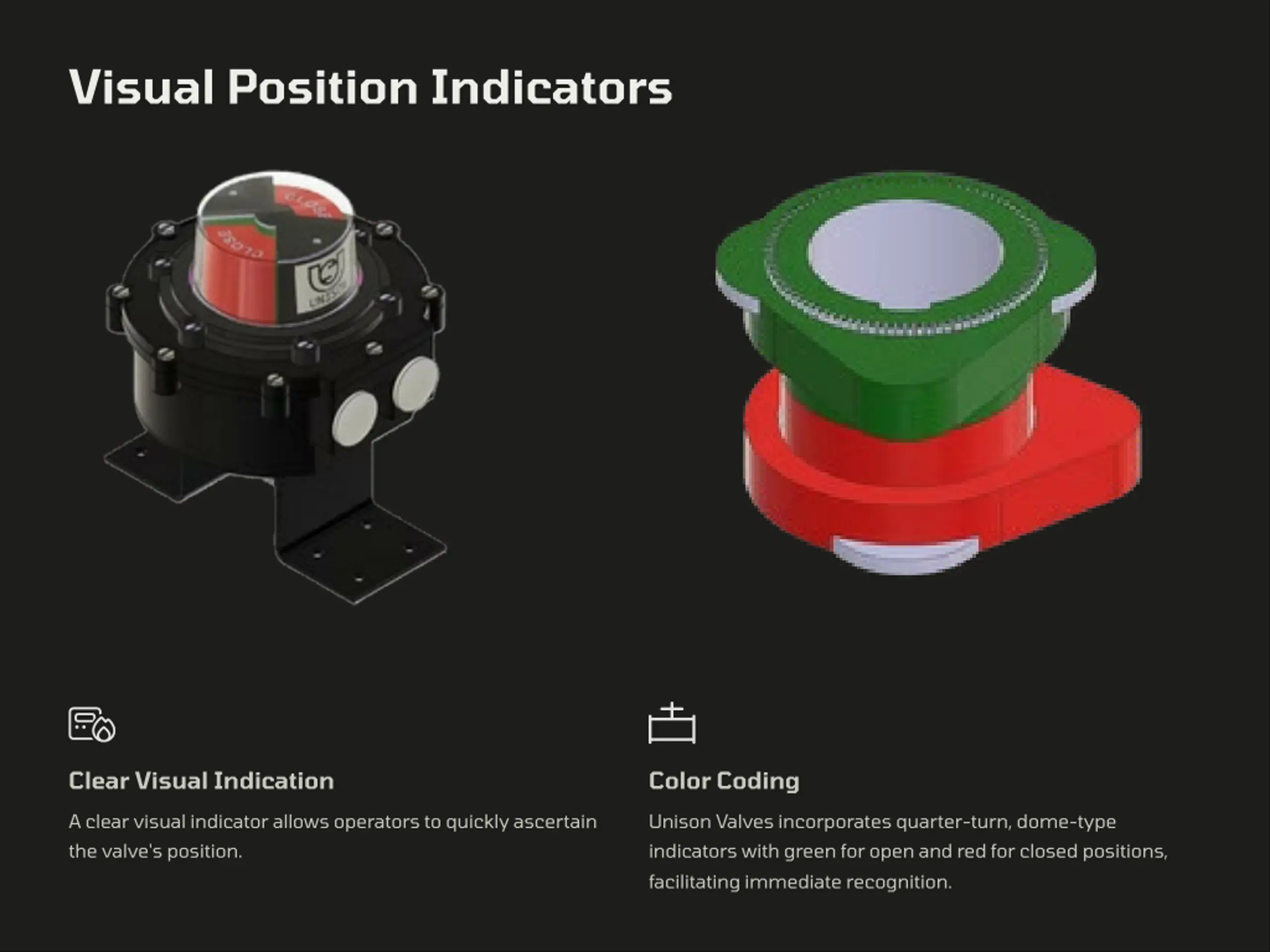

Visual Position Indicators Clear Visual Indication Color Coding A clear visual indicator allows operators to quickly ascertain the valve's position. Unison Valves incorporates quarter-turn, dome-type indicators with green for open and red for closed positions, facilitating immediate recognition.

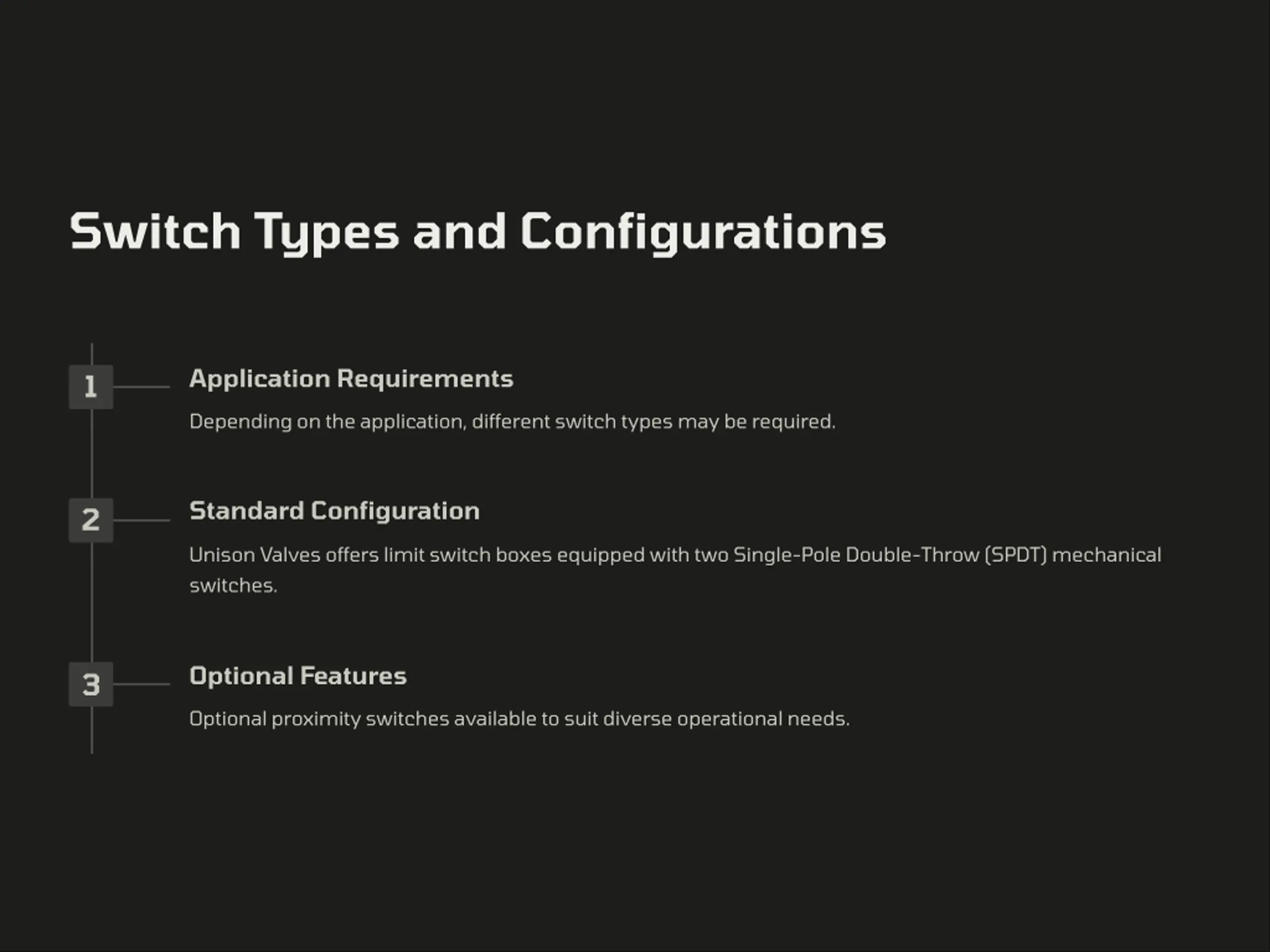

Switch Types and Configurations Application Requirements 1 Depending on the application, different switch types may be required. Standard Configuration 2 Unison Valves offers limit switch boxes equipped with two Single-Pole Double-Throw (SPDT) mechanical switches. Optional Features 3 Optional proximity switches available to suit diverse operational needs.

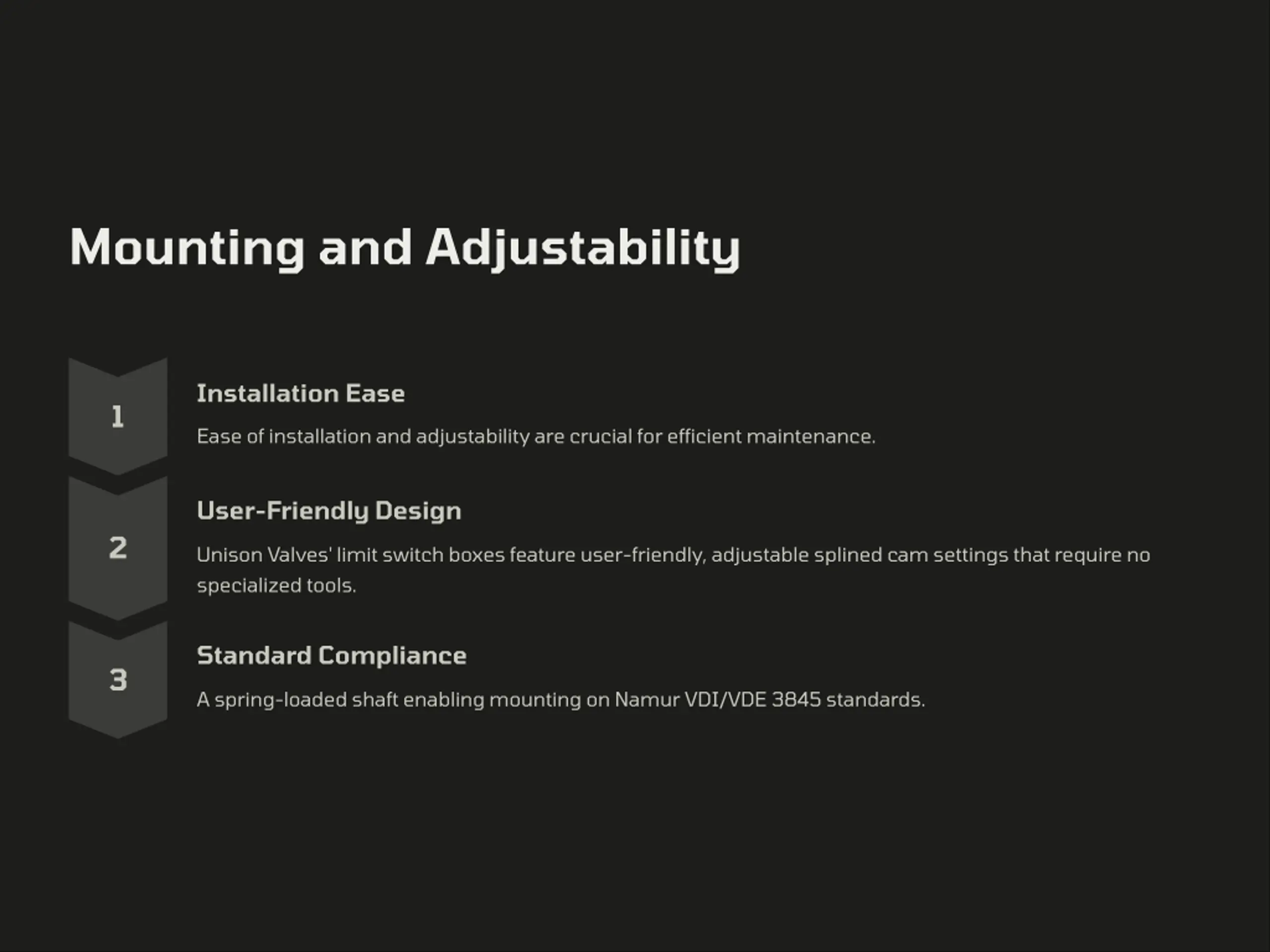

Mounting and Adjustability Installation Ease 1 Ease of installation and adjustability are crucial for efficient maintenance. User-Friendly Design 2 Unison Valves' limit switch boxes feature user-friendly, adjustable splined cam settings that require no specialized tools. Standard Compliance 3 A spring-loaded shaft enabling mounting on Namur VDI/VDE 3845 standards.

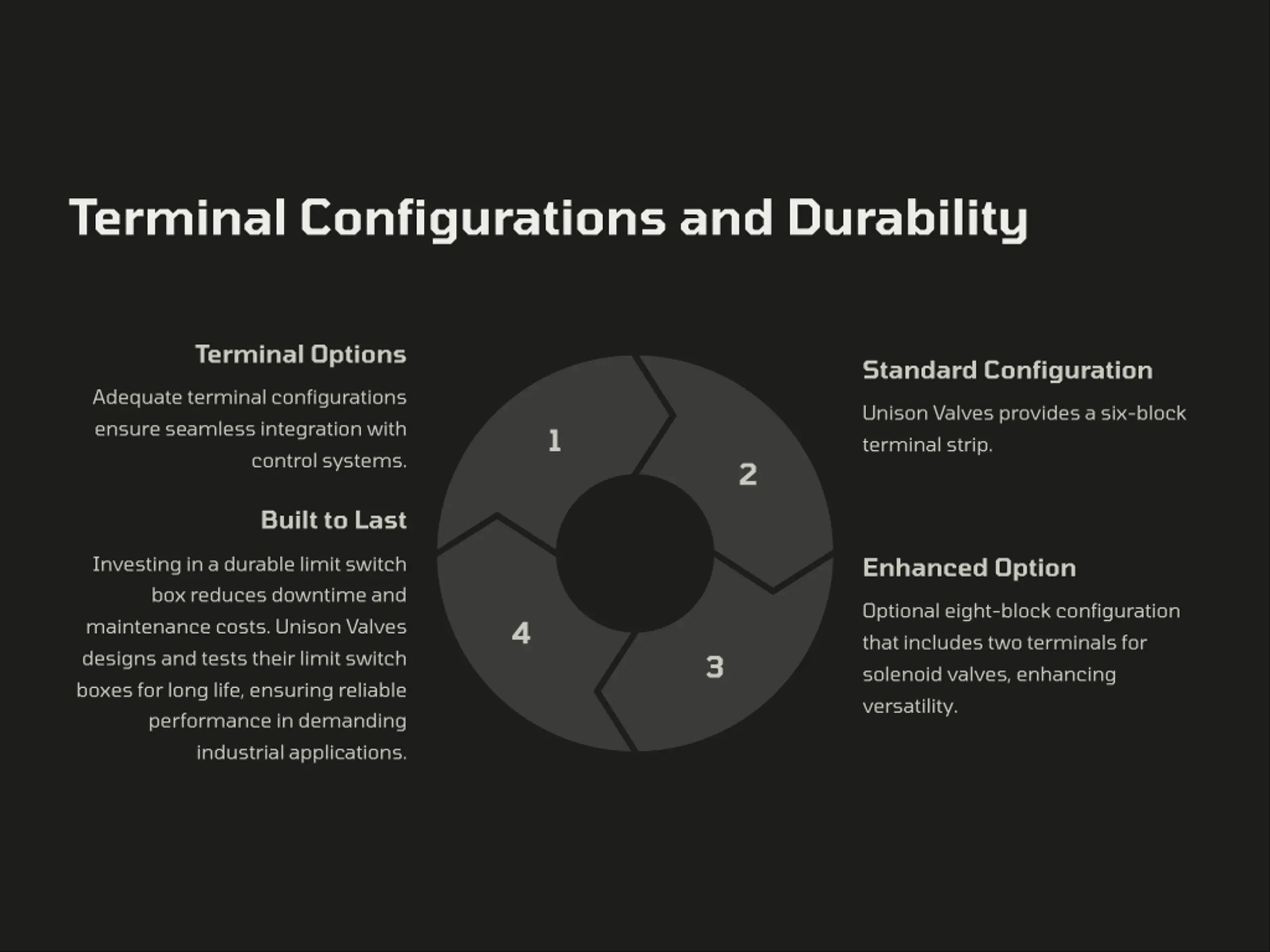

Terminal Configurations and Durability Terminal Options Standard Configuration Adequate terminal configurations ensure seamless integration with control systems. Unison Valves provides a six-block terminal strip. 1 2 Built to Last Investing in a durable limit switch box reduces downtime and maintenance costs. Unison Valves designs and tests their limit switch boxes for long life, ensuring reliable performance in demanding industrial applications. Enhanced Option Optional eight-block configuration that includes two terminals for solenoid valves, enhancing versatility. 4 3

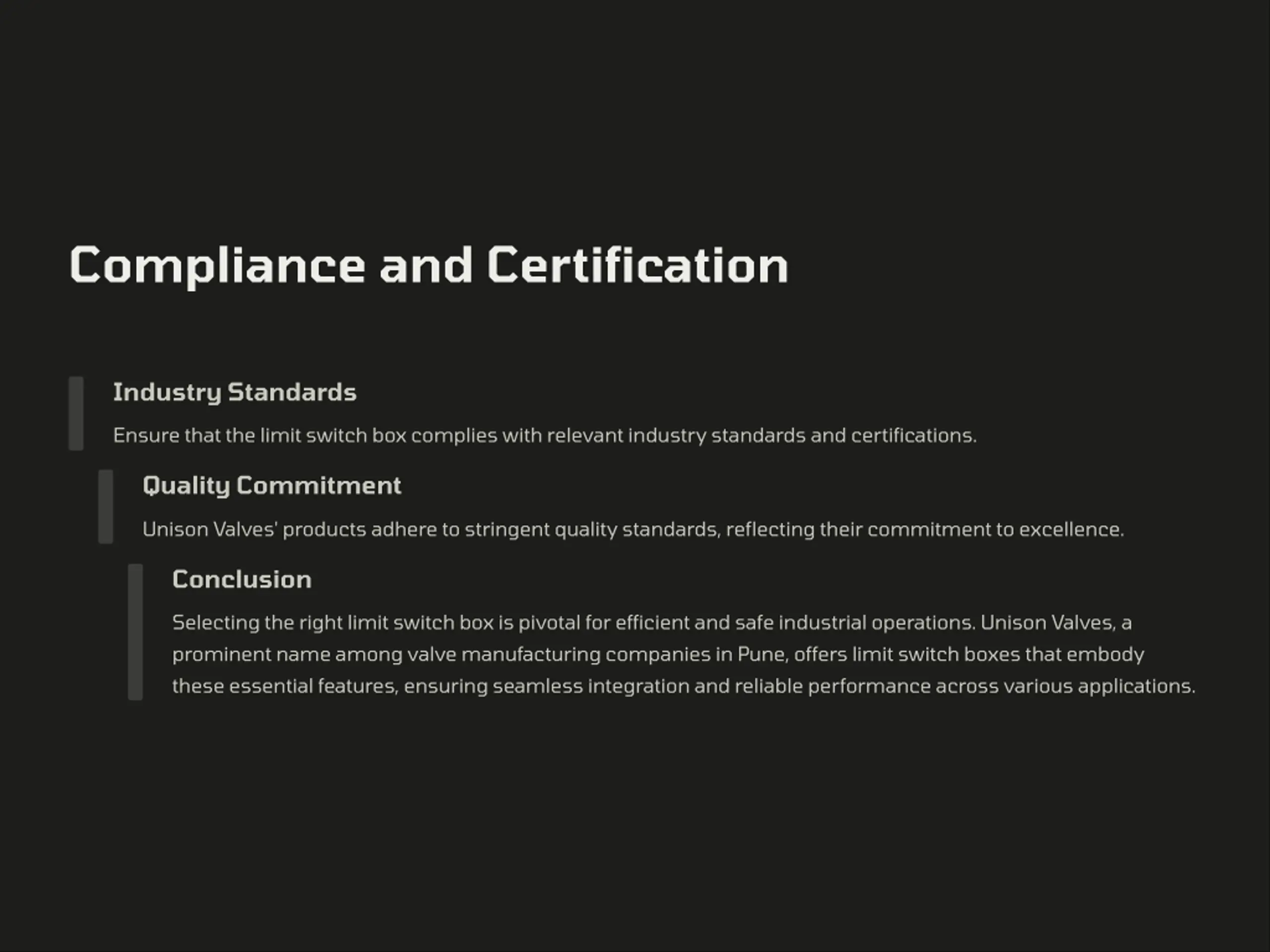

Compliance and Certification Industry Standards Ensure that the limit switch box complies with relevant industry standards and certifications. Quality Commitment Unison Valves' products adhere to stringent quality standards, reflecting their commitment to excellence. Conclusion Selecting the right limit switch box is pivotal for efficient and safe industrial operations. Unison Valves, a prominent name among valve manufacturing companies in Pune, offers limit switch boxes that embody these essential features, ensuring seamless integration and reliable performance across various applications.

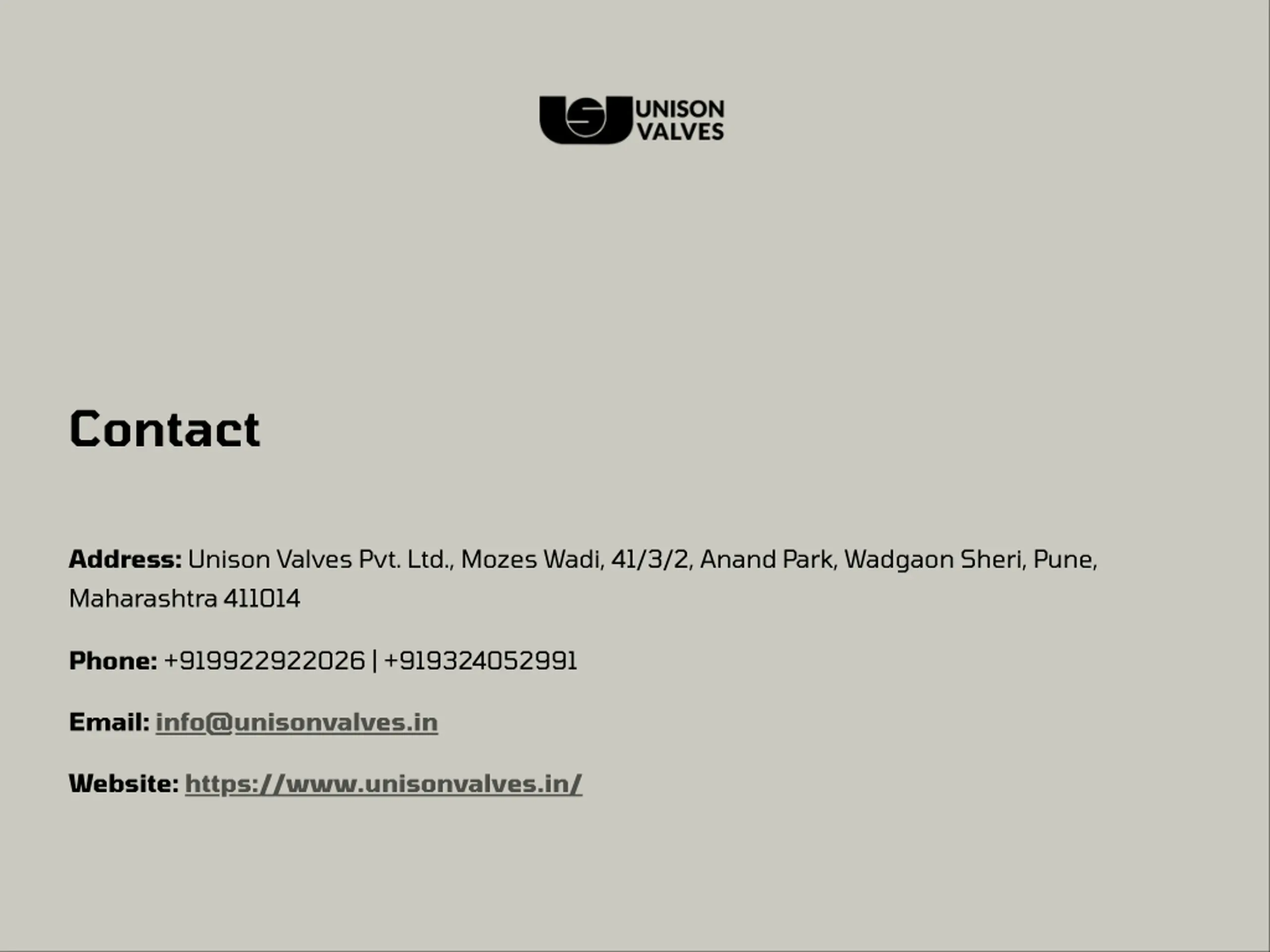

Contact Address: Unison Valves Pvt. Ltd., Mozes Wadi, 41/3/2, Anand Park, Wadgaon Sheri, Pune, Maharashtra 411014 Phone: +919922922026 | +919324052991 Email:info@unisonvalves.in Website:https://www.unisonvalves.in/
