Flow to Wells 4 Unsteady flow to a well in a leaky aquifer Groundwater Hydraulics Daene C. McKinney 1

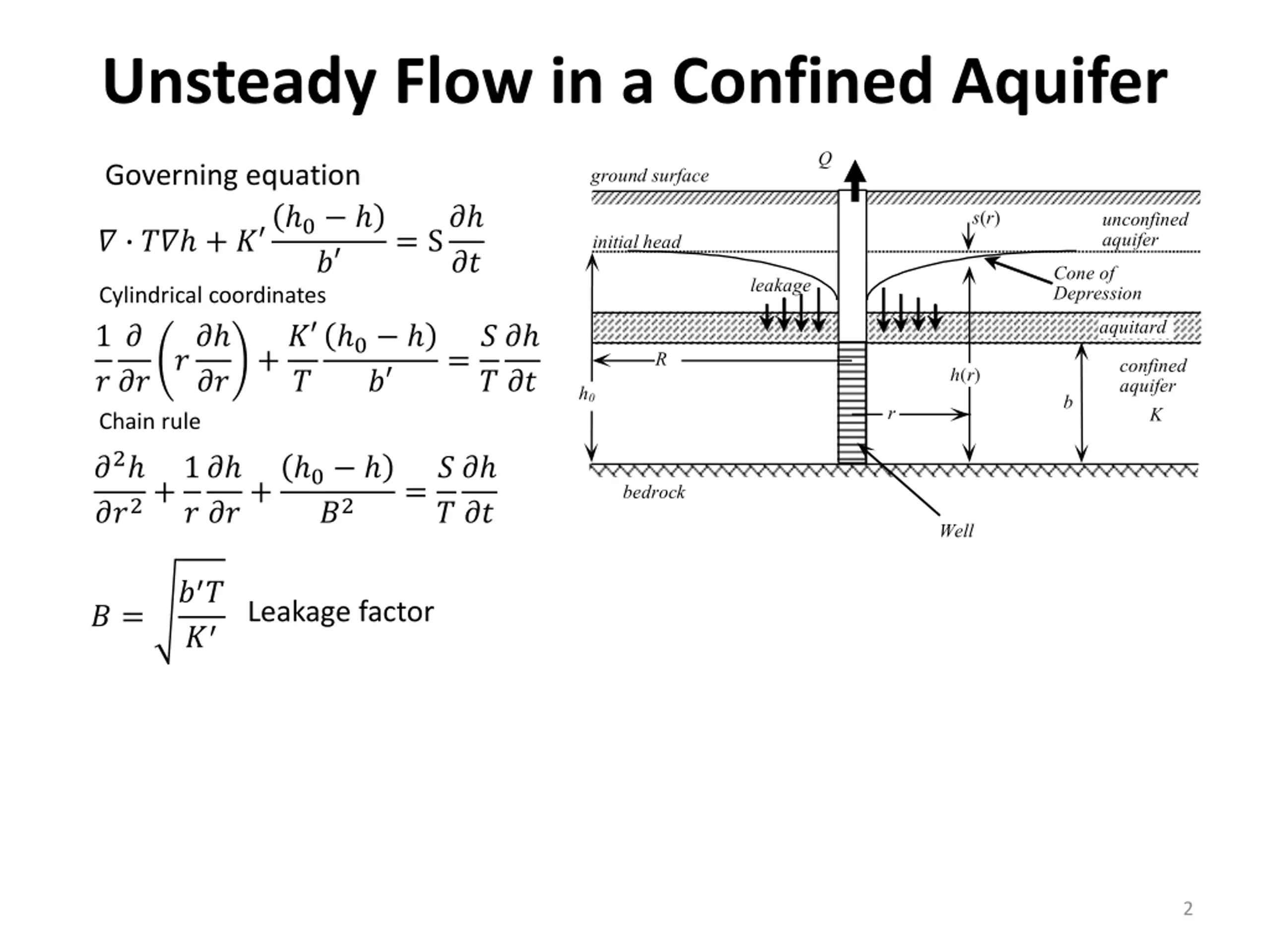

Unsteady Flow in a Confined Aquifer Q ground surface Governing equation s(r) unconfined aquifer 0 ? = S? initial head ? ?? + ? ?? Cone of Depression leakage Cylindrical coordinates aquitard confined aquifer 1 ? Chain rule ? ?? ?? ?? +? 0 ? =? ? ?? R h(r) ? ? h0 b r K ?2 ??2+1 ? ??+ 0 ?2 =? ? ?? bedrock ? ? Well ? ? ? Leakage factor ? = 2

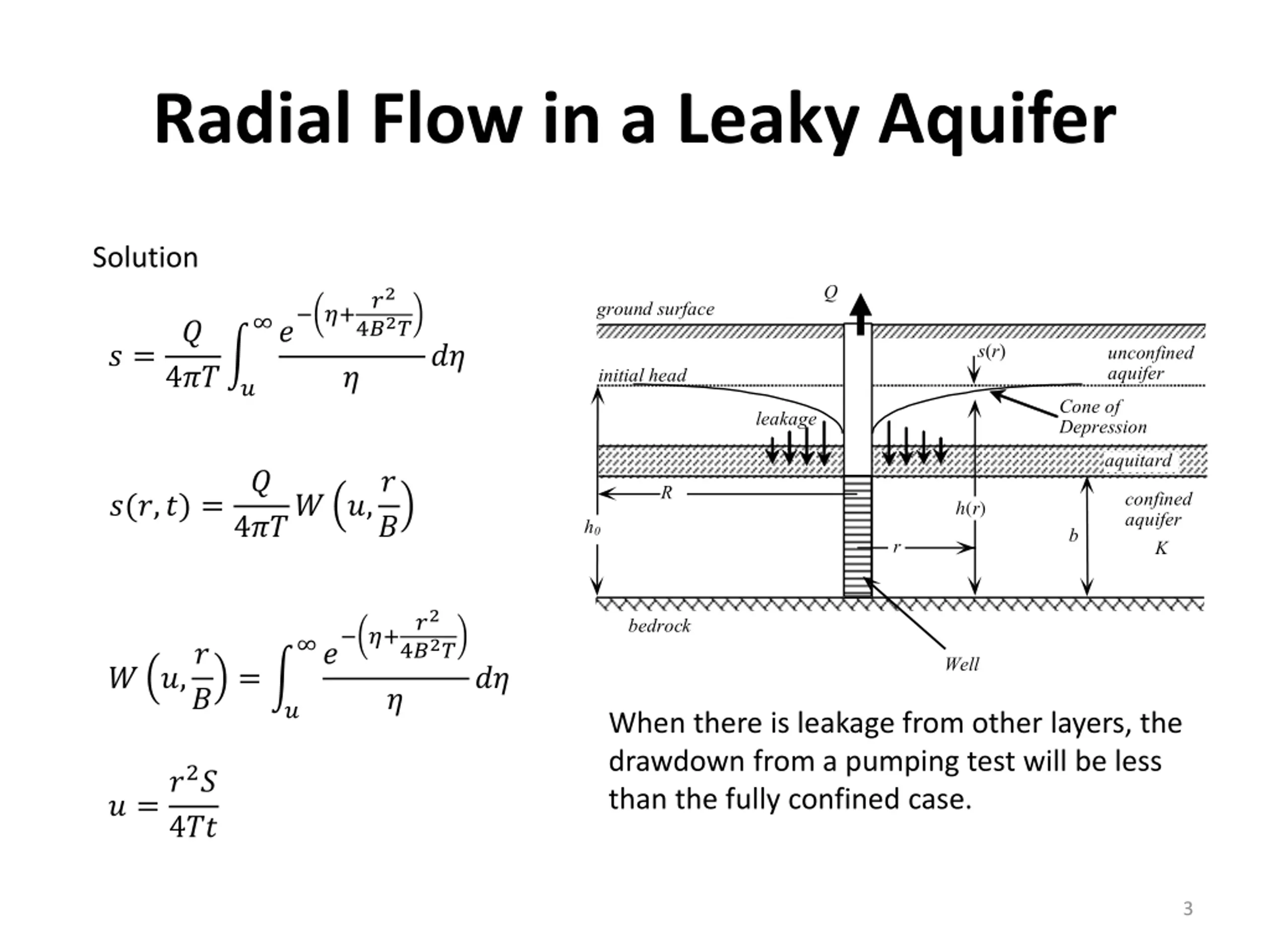

Radial Flow in a Leaky Aquifer Solution Q ? ?+?2 ground surface 4?2? ? s(r) unconfined aquifer ? = 4?? ?? initial head ? ? Cone of Depression leakage aquitard confined aquifer 4??? ?,? ? R ?(?,?) = h(r) h0 ? b r K bedrock ? ?+?2 4?2? ? ?,? Well = ?? ? ? ? When there is leakage from other layers, the drawdown from a pumping test will be less than the fully confined case. ? =?2? 4?? 3

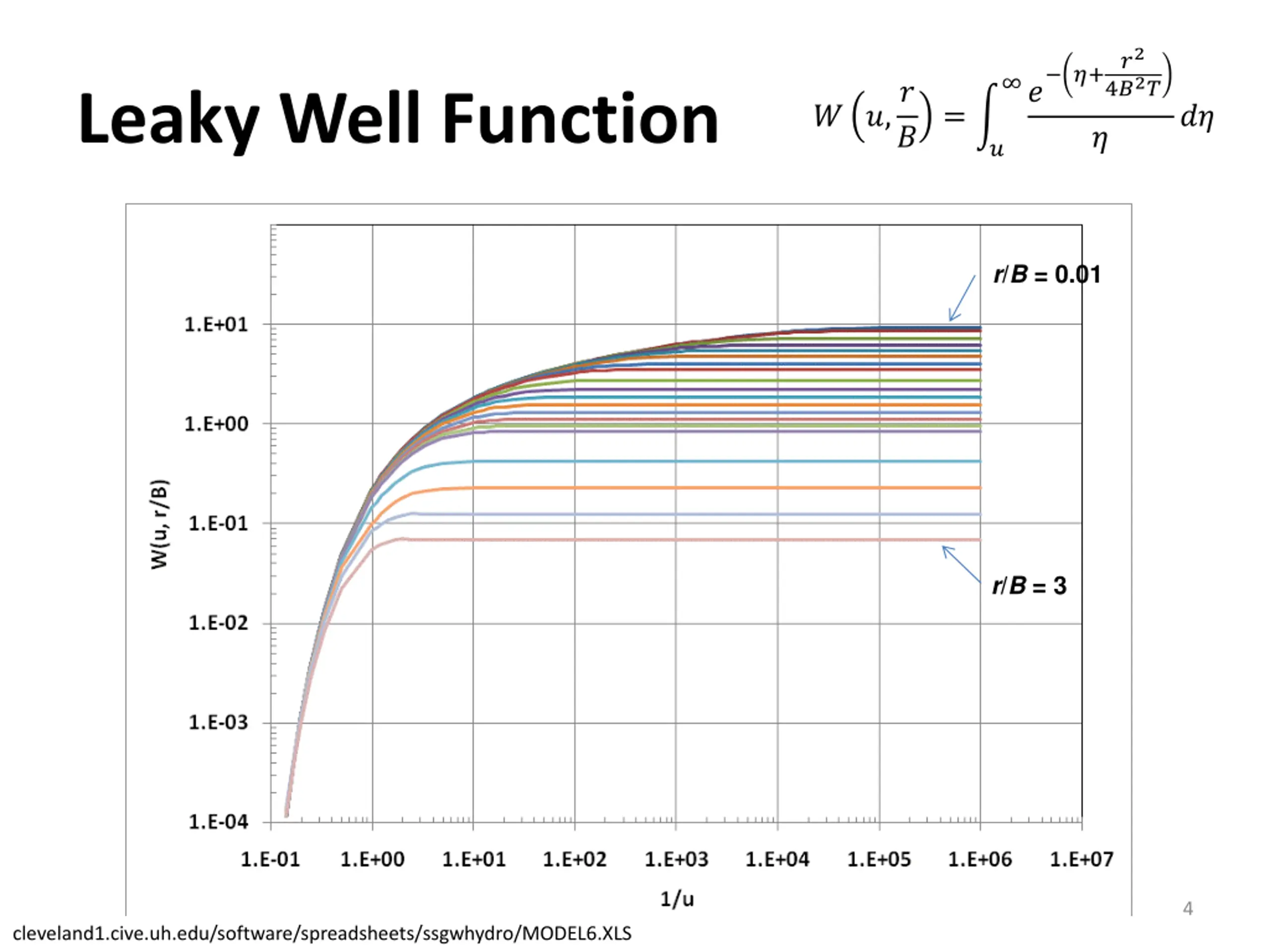

? ?+?2 4?2? ? ?,? Leaky Well Function = ?? ? ? ? r/B = 0.01 r/B = 3 4 cleveland1.cive.uh.edu/software/spreadsheets/ssgwhydro/MODEL6.XLS

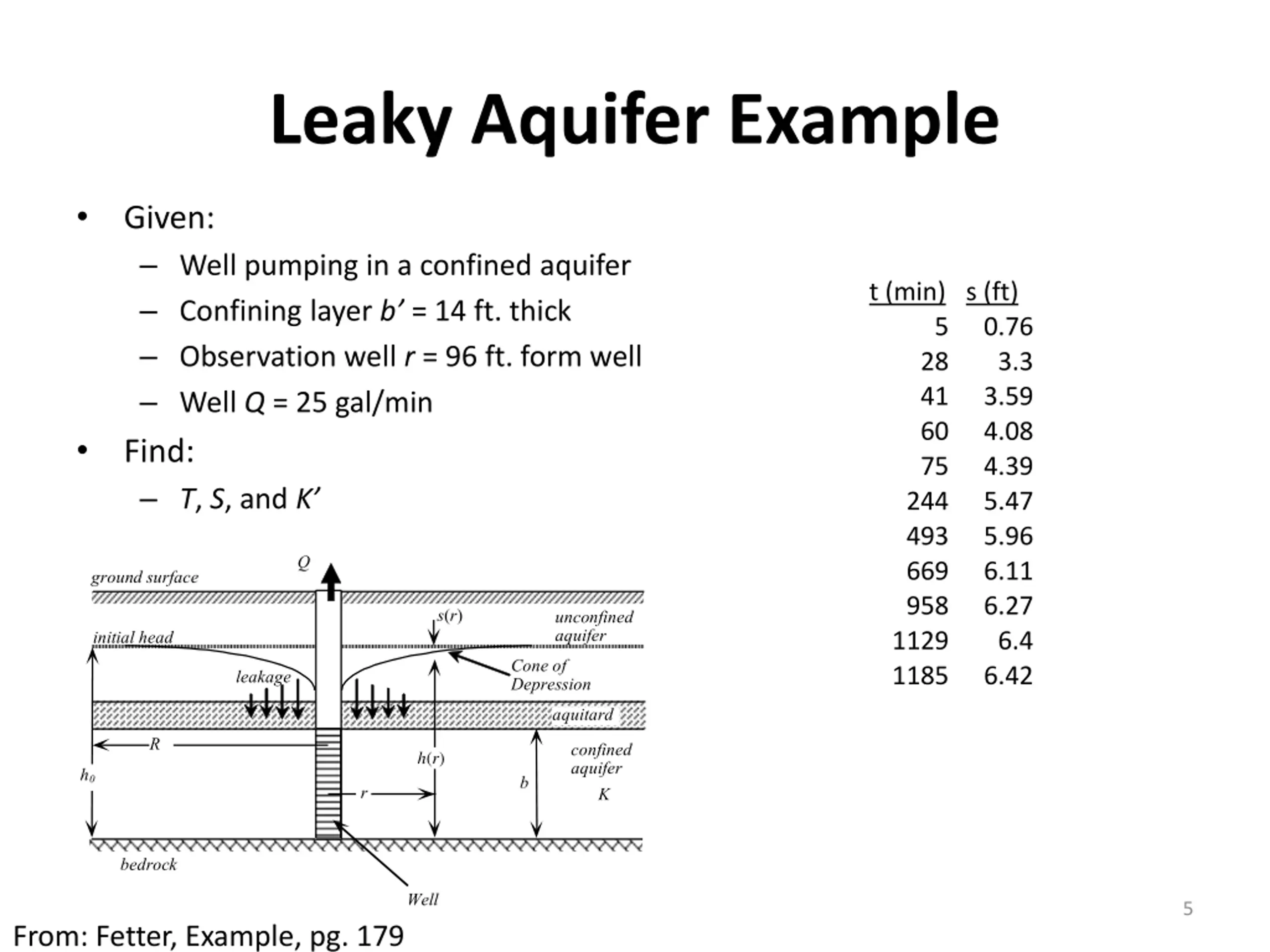

Leaky Aquifer Example Given: Well pumping in a confined aquifer Confining layer b = 14 ft. thick Observation well r = 96 ft. form well Well Q = 25 gal/min Find: T, S, and K t (min) s (ft) 5 28 41 60 75 244 493 669 958 1129 1185 0.76 3.3 3.59 4.08 4.39 5.47 5.96 6.11 6.27 6.4 6.42 Q ground surface s(r) unconfined aquifer initial head Cone of Depression leakage aquitard confined aquifer R h(r) h0 b r K bedrock Well 5 From: Fetter, Example, pg. 179

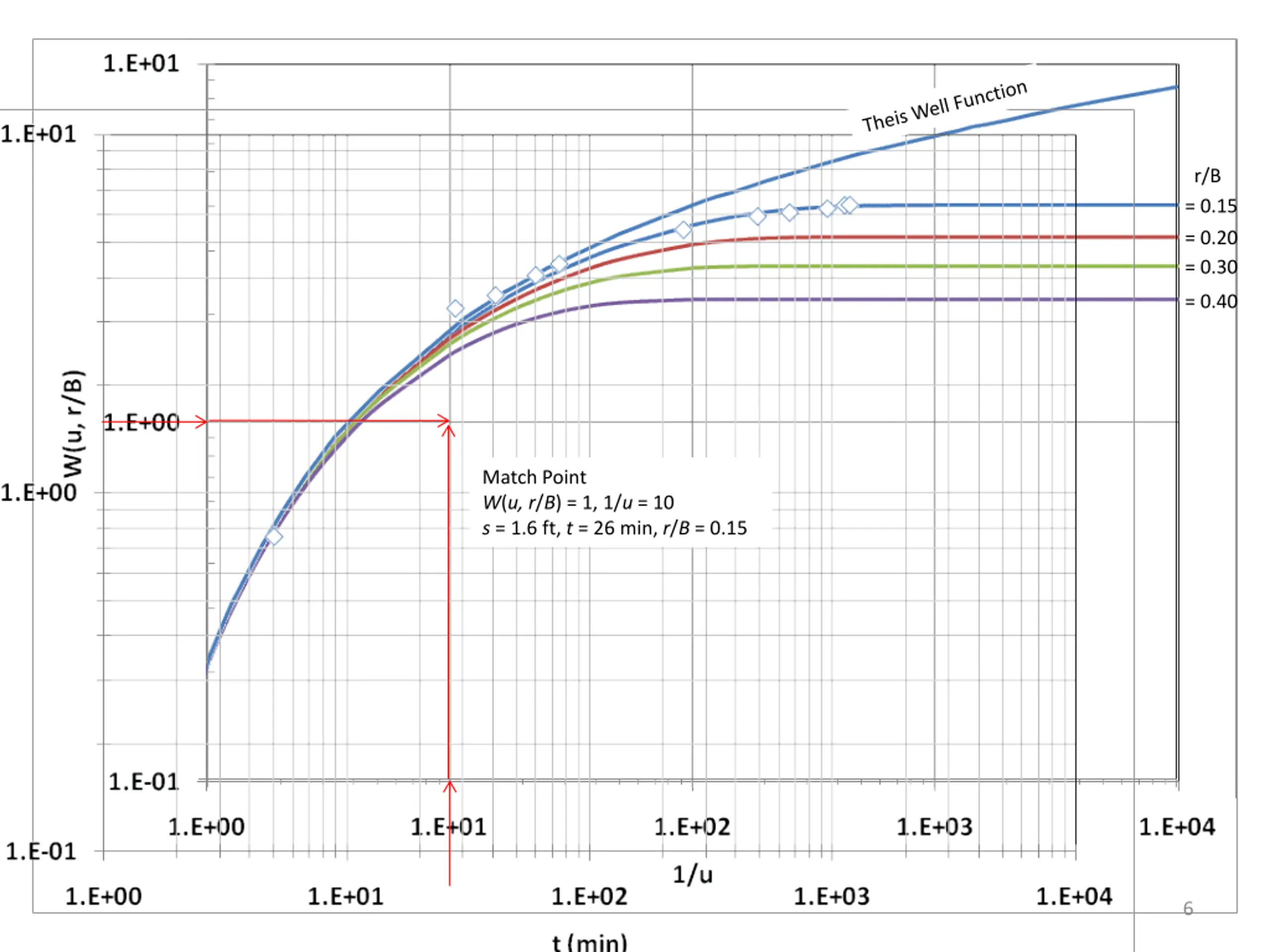

r/B = 0.15 = 0.20 = 0.30 = 0.40 Match Point W(u, r/B) = 1, 1/u = 10 s = 1.6 ft, t = 26 min, r/B = 0.15 6

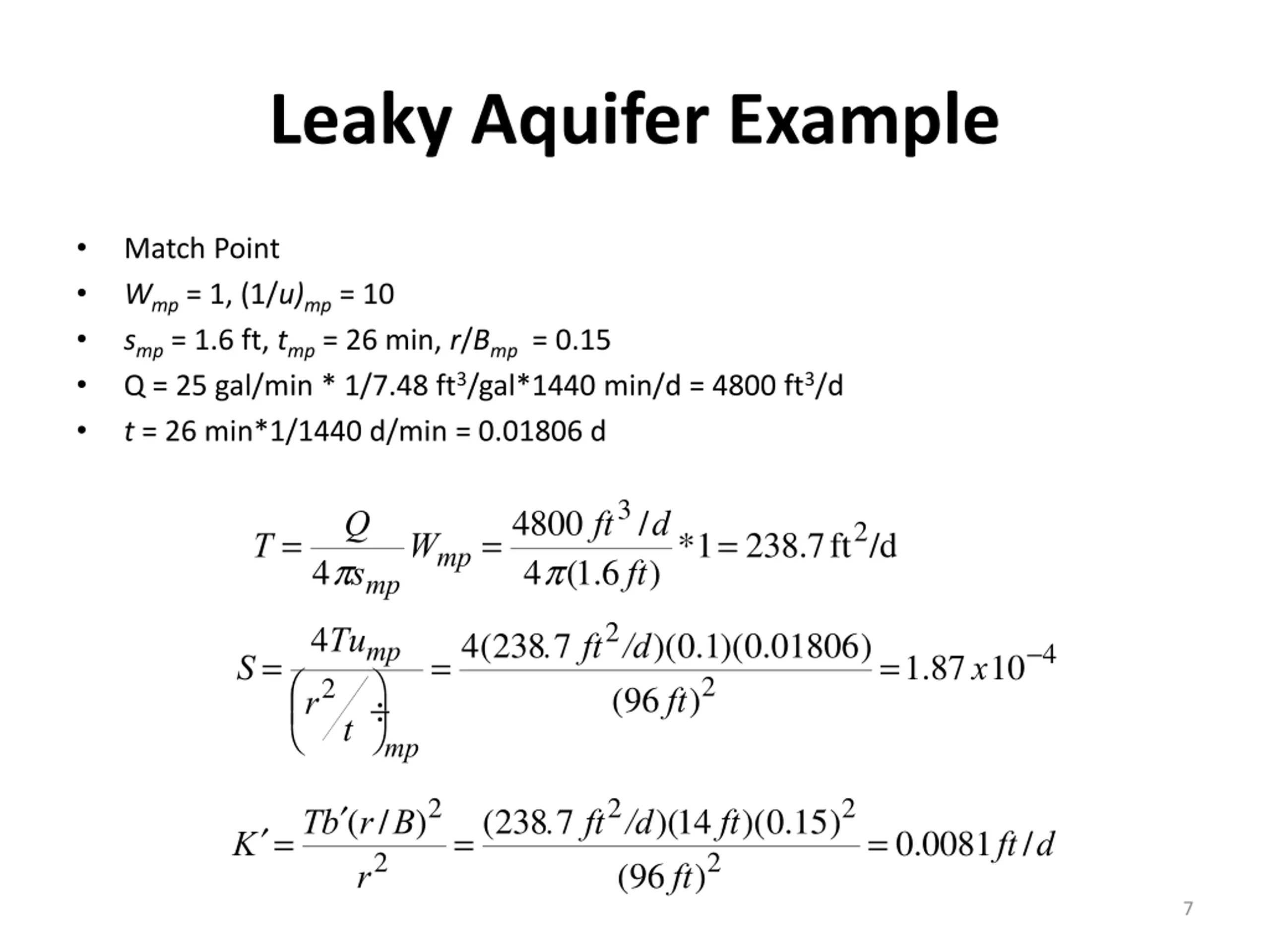

Leaky Aquifer Example Match Point Wmp = 1, (1/u)mp = 10 smp = 1.6 ft, tmp = 26 min, r/Bmp = 0.15 Q = 25 gal/min * 1/7.48 ft3/gal*1440 min/d = 4800 ft3/d t = 26 min*1/1440 d/min = 0.01806 d Wmp=4800 ft3/d Q 4p(1.6 ft)*1= 238.7ft2/d T = 4psmp =4(238.7 ft2/d)(0.1)(0.01806) (96 ft)2 4Tump r2 t =1.87x10-4 S = mp b (r/B)2 r2 =(238.7 ft2/d)(14 ft)(0.15)2 (96 ft)2 K =T = 0.0081ft/d 7

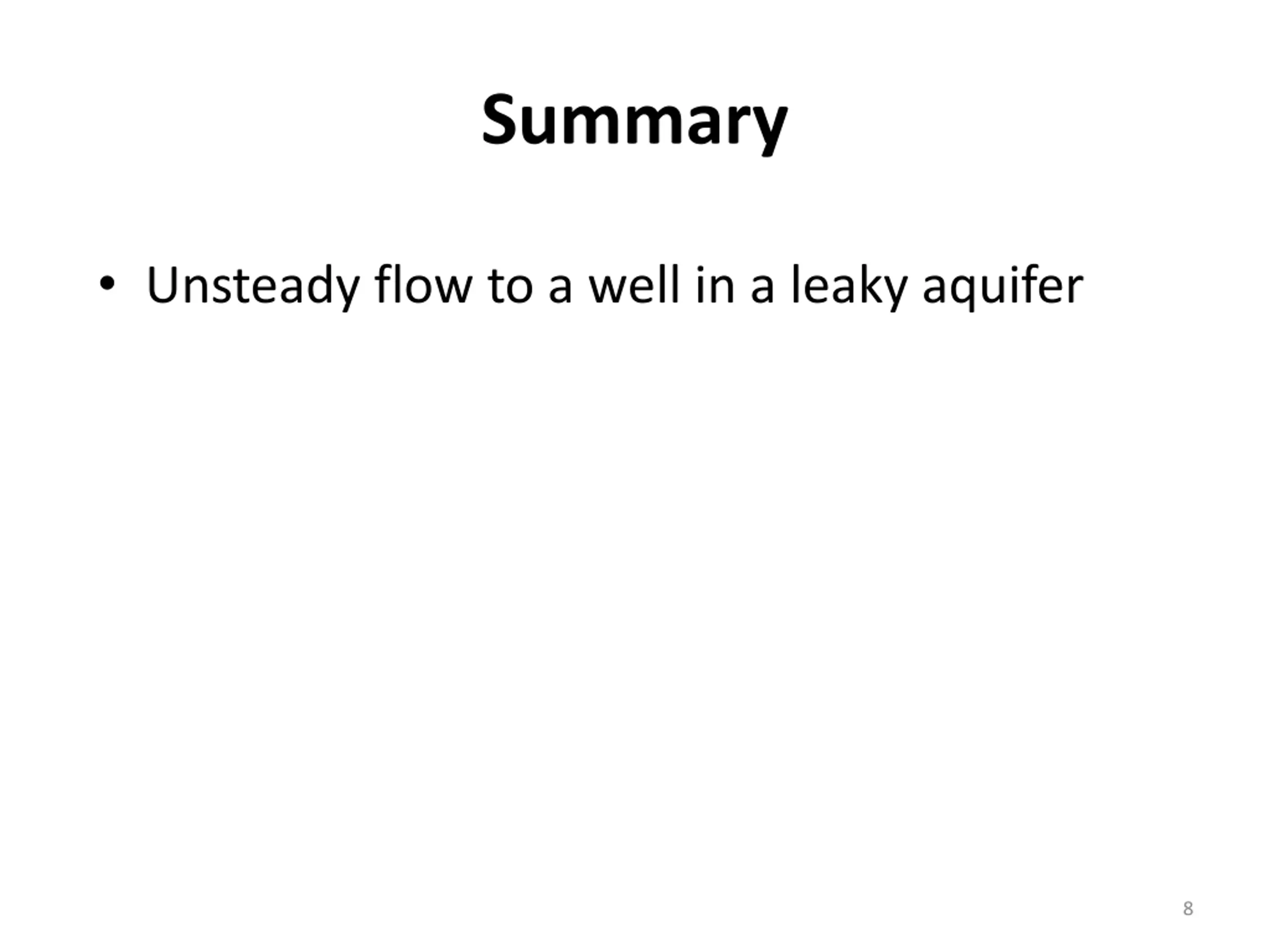

Summary Unsteady flow to a well in a leaky aquifer 8
