Presentation Transcript

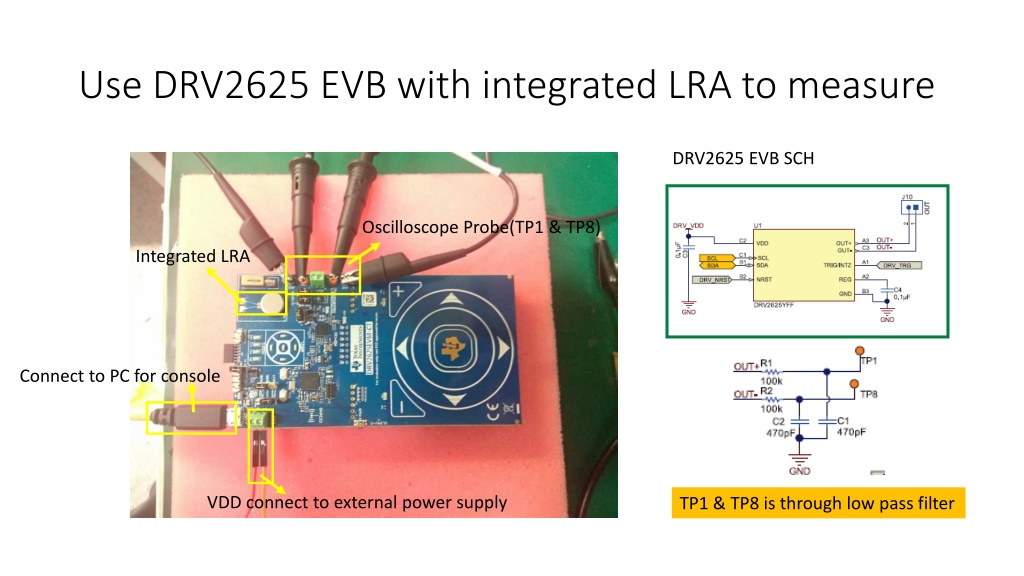

Use DRV2625 EVB with integrated LRA to measure DRV2625 EVB SCH Oscilloscope Probe(TP1 & TP8) Integrated LRA Connect to PC for console VDD connect to external power supply TP1 & TP8 is through low pass filter

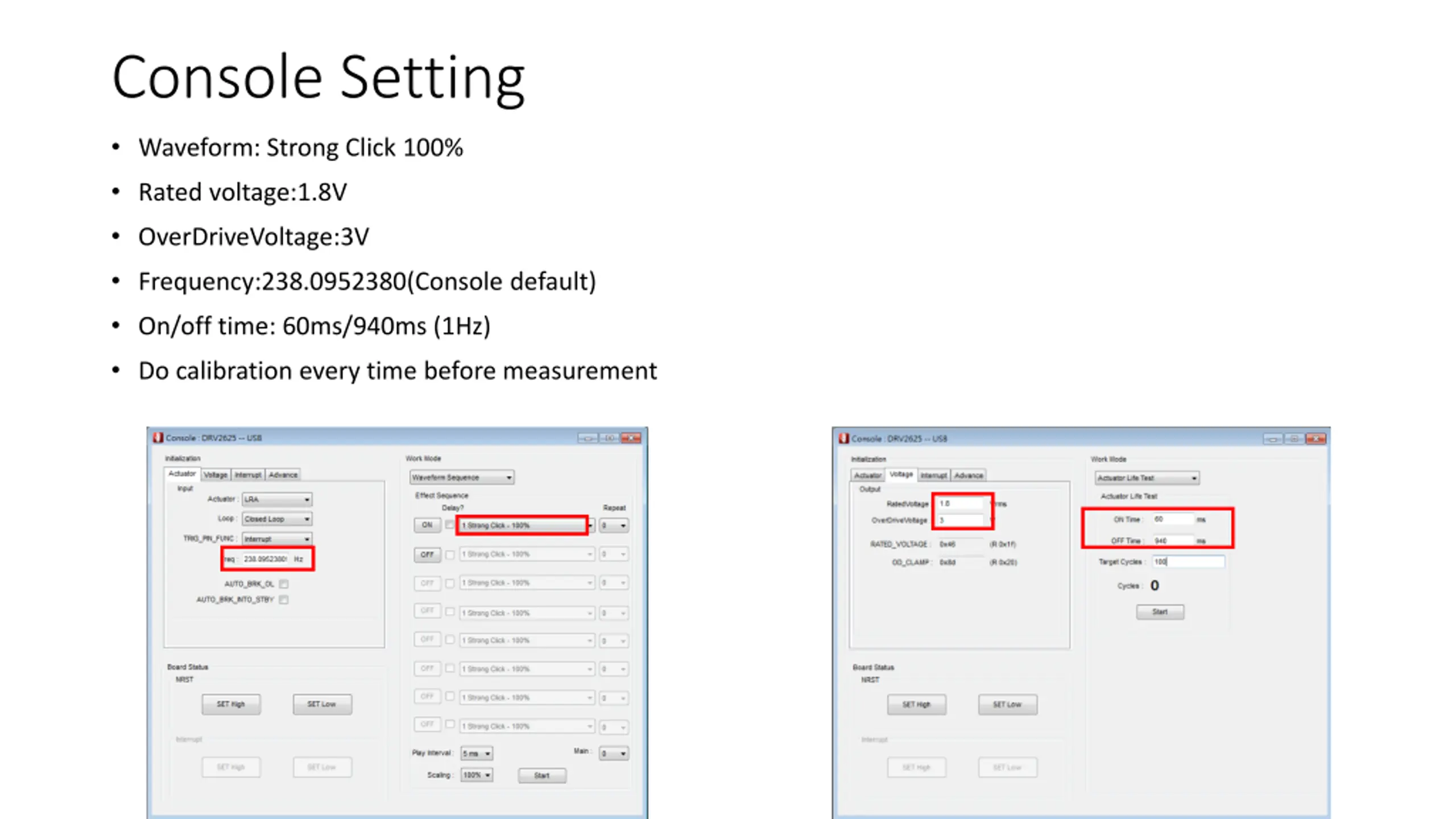

Console Setting Waveform: Strong Click 100% Rated voltage:1.8V OverDriveVoltage:3V Frequency:238.0952380(Console default) On/off time: 60ms/940ms (1Hz) Do calibration every time before measurement

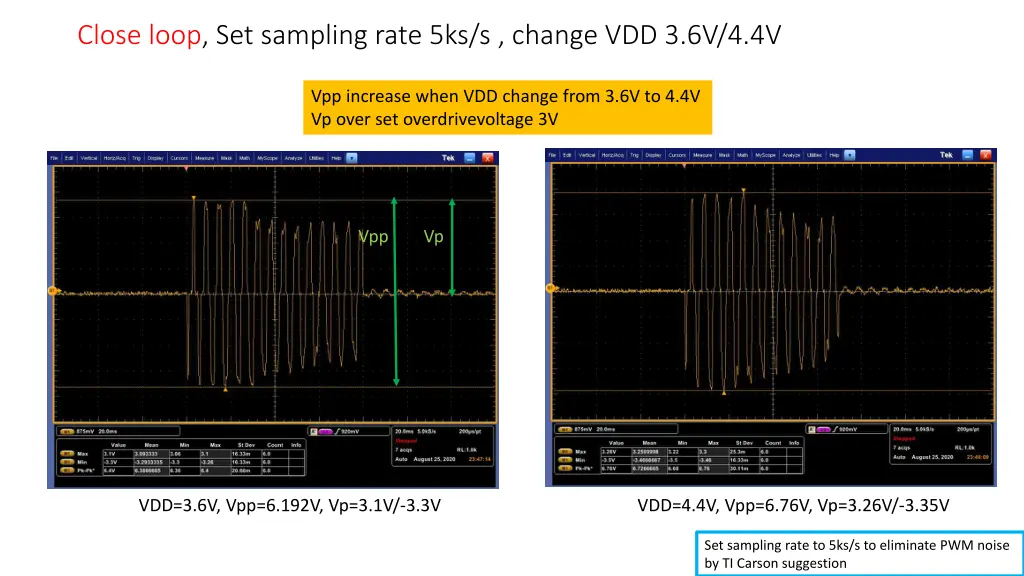

Close loop, Set sampling rate 5ks/s , change VDD 3.6V/4.4V Vpp increase when VDD change from 3.6V to 4.4V Vp over set overdrivevoltage 3V Vpp Vp VDD=3.6V, Vpp=6.192V, Vp=3.1V/-3.3V VDD=4.4V, Vpp=6.76V, Vp=3.26V/-3.35V Set sampling rate to 5ks/s to eliminate PWM noise by TI Carson suggestion

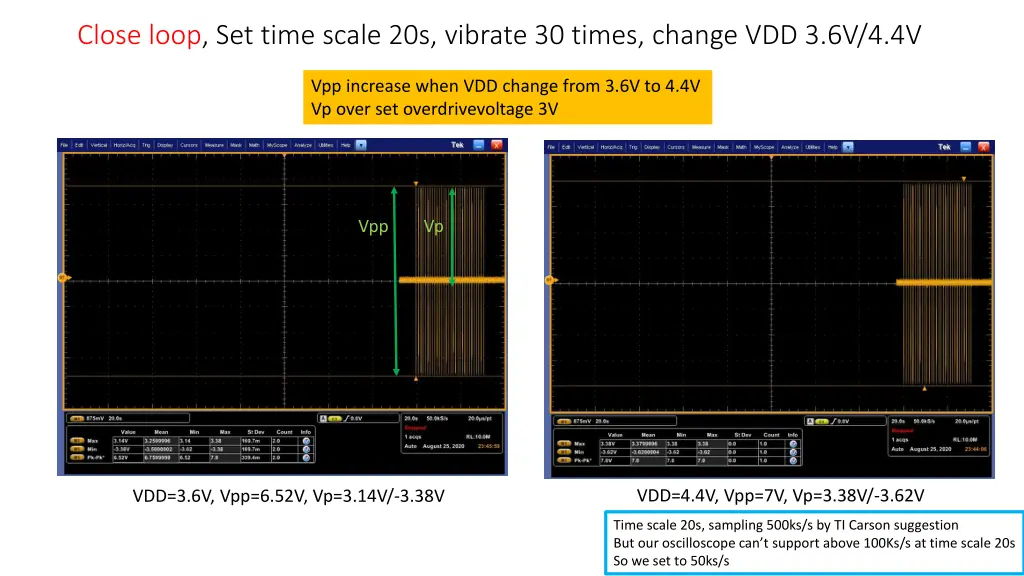

Close loop, Set time scale 20s, vibrate 30 times, change VDD 3.6V/4.4V Vpp increase when VDD change from 3.6V to 4.4V Vp over set overdrivevoltage 3V Vpp Vp VDD=4.4V, Vpp=7V, Vp=3.38V/-3.62V VDD=3.6V, Vpp=6.52V, Vp=3.14V/-3.38V Time scale 20s, sampling 500ks/s by TI Carson suggestion But our oscilloscope can t support above 100Ks/s at time scale 20s So we set to 50ks/s

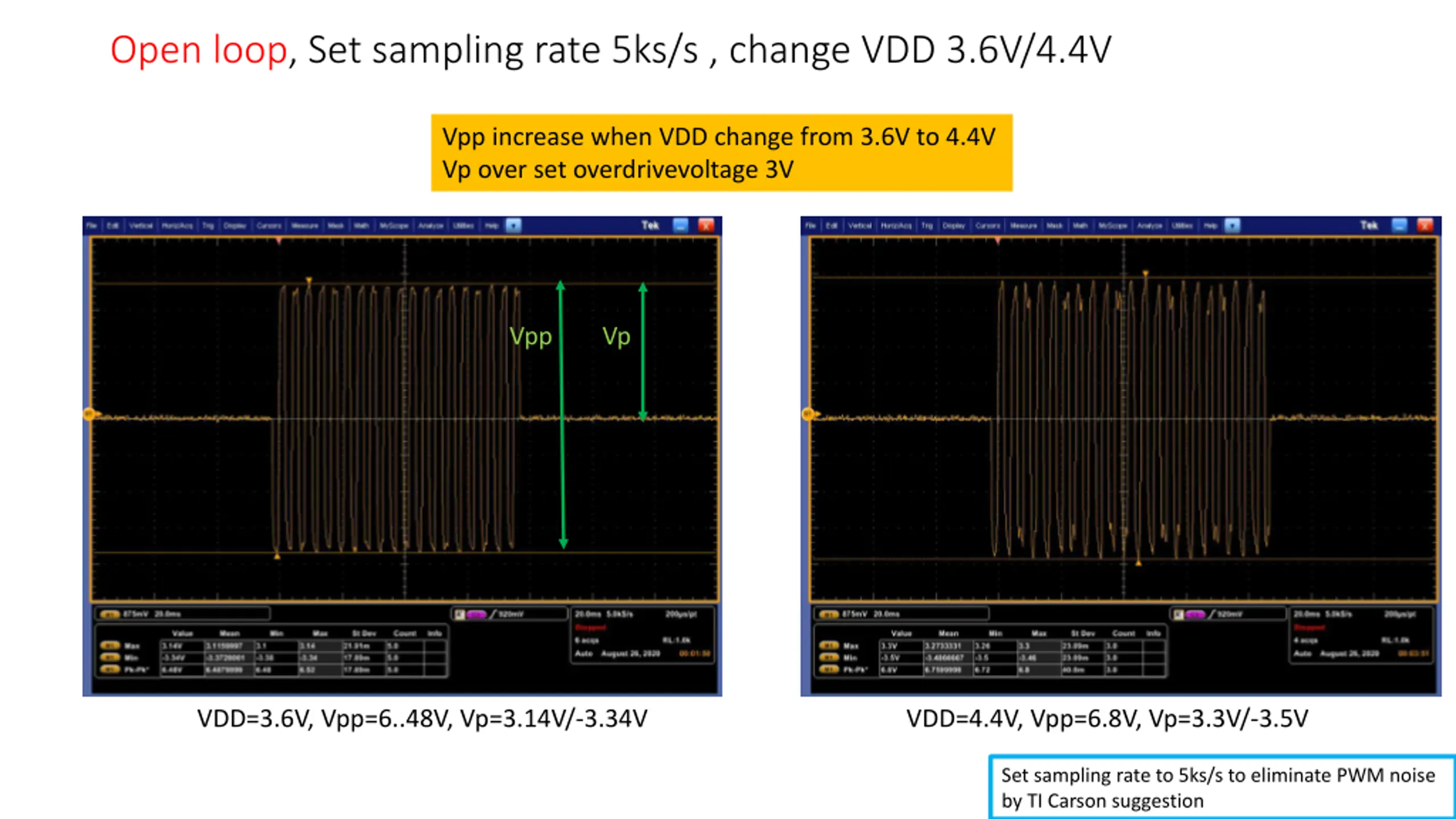

Open loop, Set sampling rate 5ks/s , change VDD 3.6V/4.4V Vpp increase when VDD change from 3.6V to 4.4V Vp over set overdrivevoltage 3V Vpp Vp VDD=3.6V, Vpp=6..48V, Vp=3.14V/-3.34V VDD=4.4V, Vpp=6.8V, Vp=3.3V/-3.5V Set sampling rate to 5ks/s to eliminate PWM noise by TI Carson suggestion

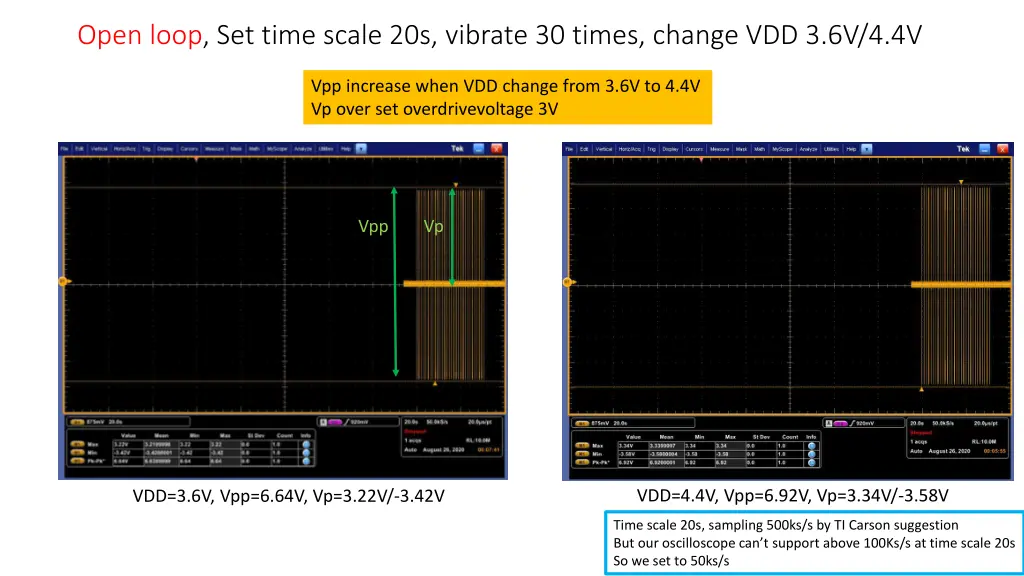

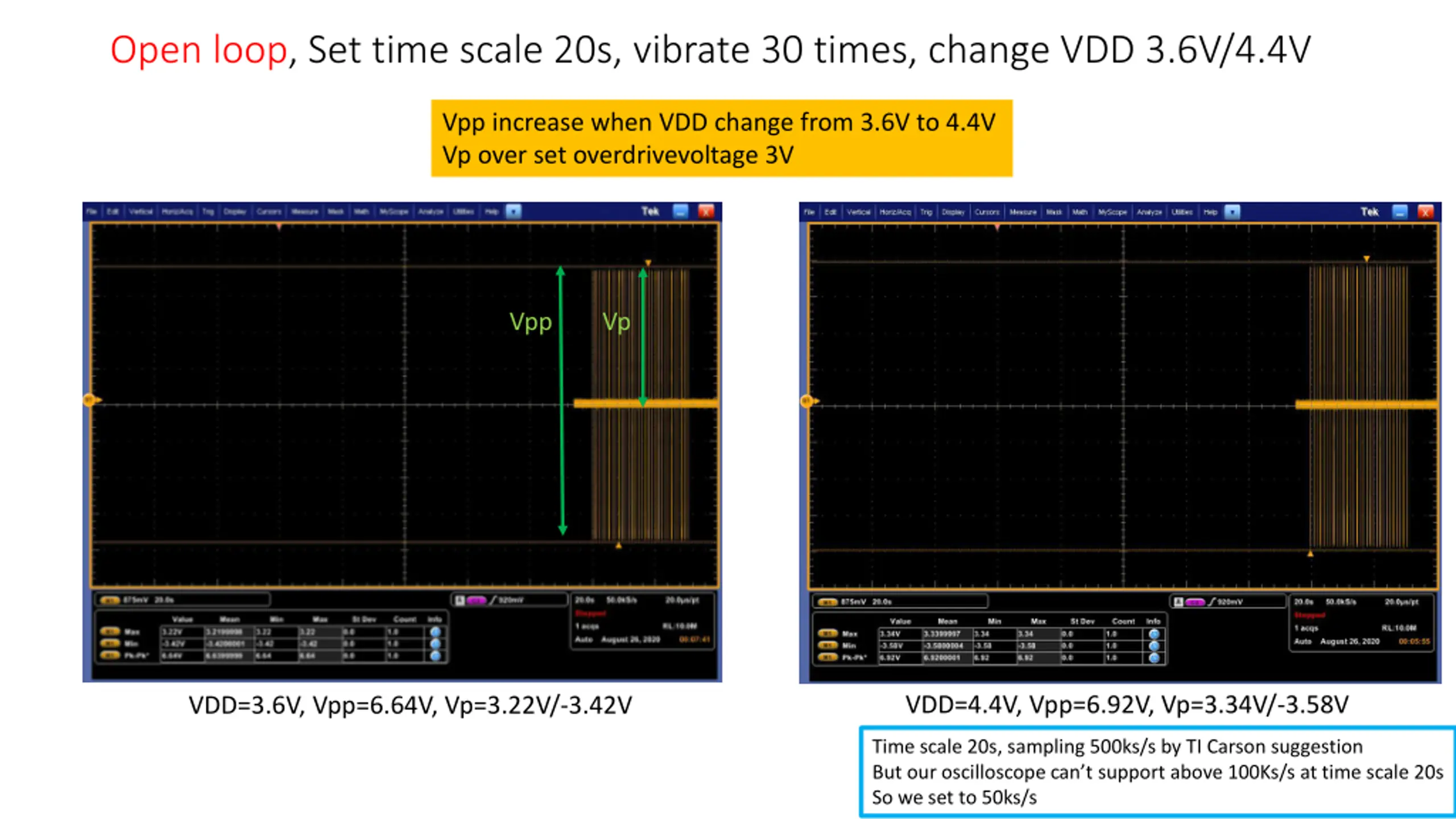

Open loop, Set time scale 20s, vibrate 30 times, change VDD 3.6V/4.4V Vpp increase when VDD change from 3.6V to 4.4V Vp over set overdrivevoltage 3V Vpp Vp VDD=4.4V, Vpp=6.92V, Vp=3.34V/-3.58V VDD=3.6V, Vpp=6.64V, Vp=3.22V/-3.42V Time scale 20s, sampling 500ks/s by TI Carson suggestion But our oscilloscope can t support above 100Ks/s at time scale 20s So we set to 50ks/s

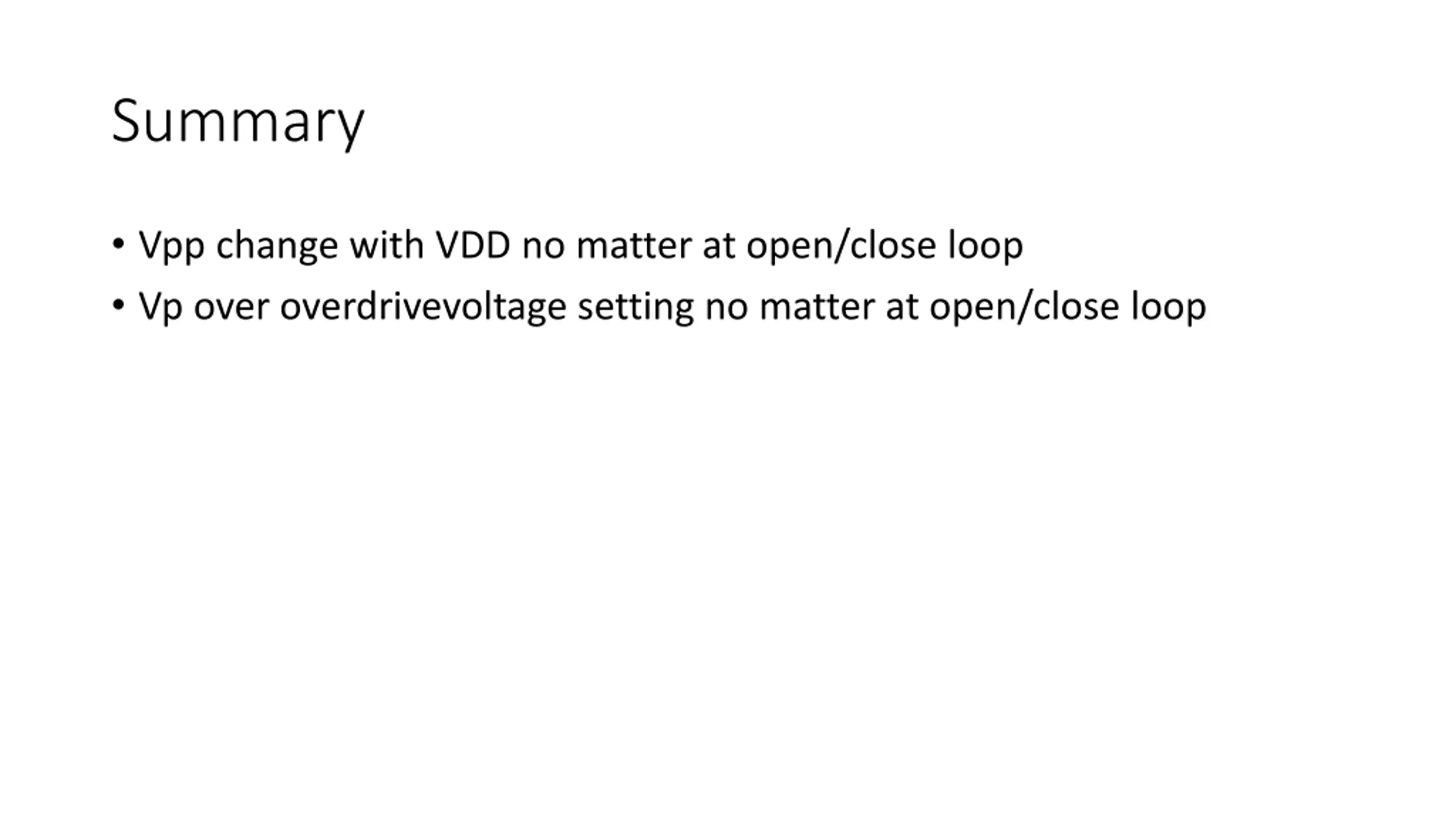

Summary Vpp change with VDD no matter at open/close loop Vp over overdrivevoltage setting no matter at open/close loop

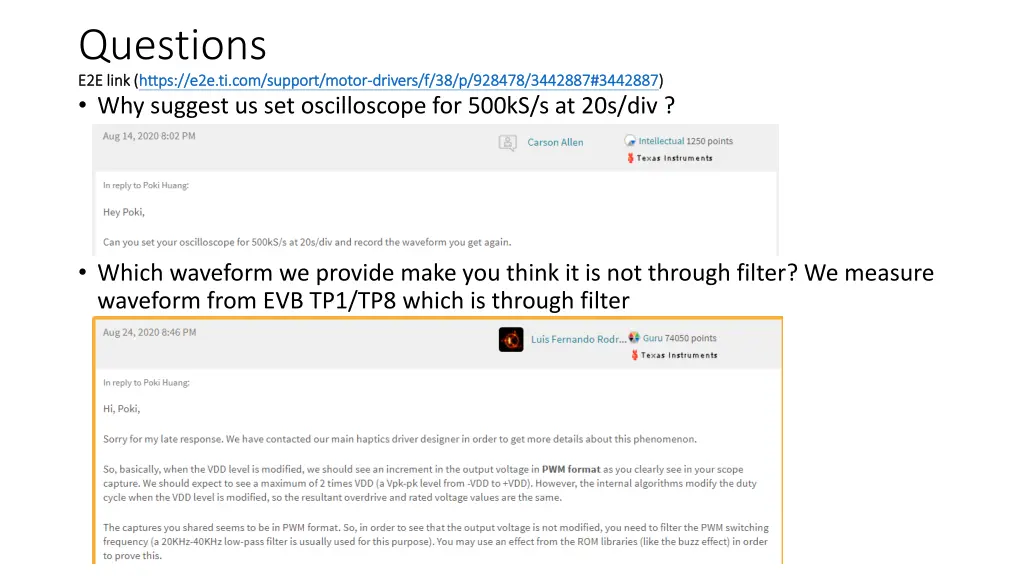

Questions E2E link ( E2E link (https https:// Why suggest us set oscilloscope for 500kS/s at 20s/div ? ://e2e.ti.com/support/motor e2e.ti.com/support/motor- -drivers/f/38/p/928478/3442887#3442887 drivers/f/38/p/928478/3442887#3442887) ) Which waveform we provide make you think it is not through filter? We measure waveform from EVB TP1/TP8 which is through filter

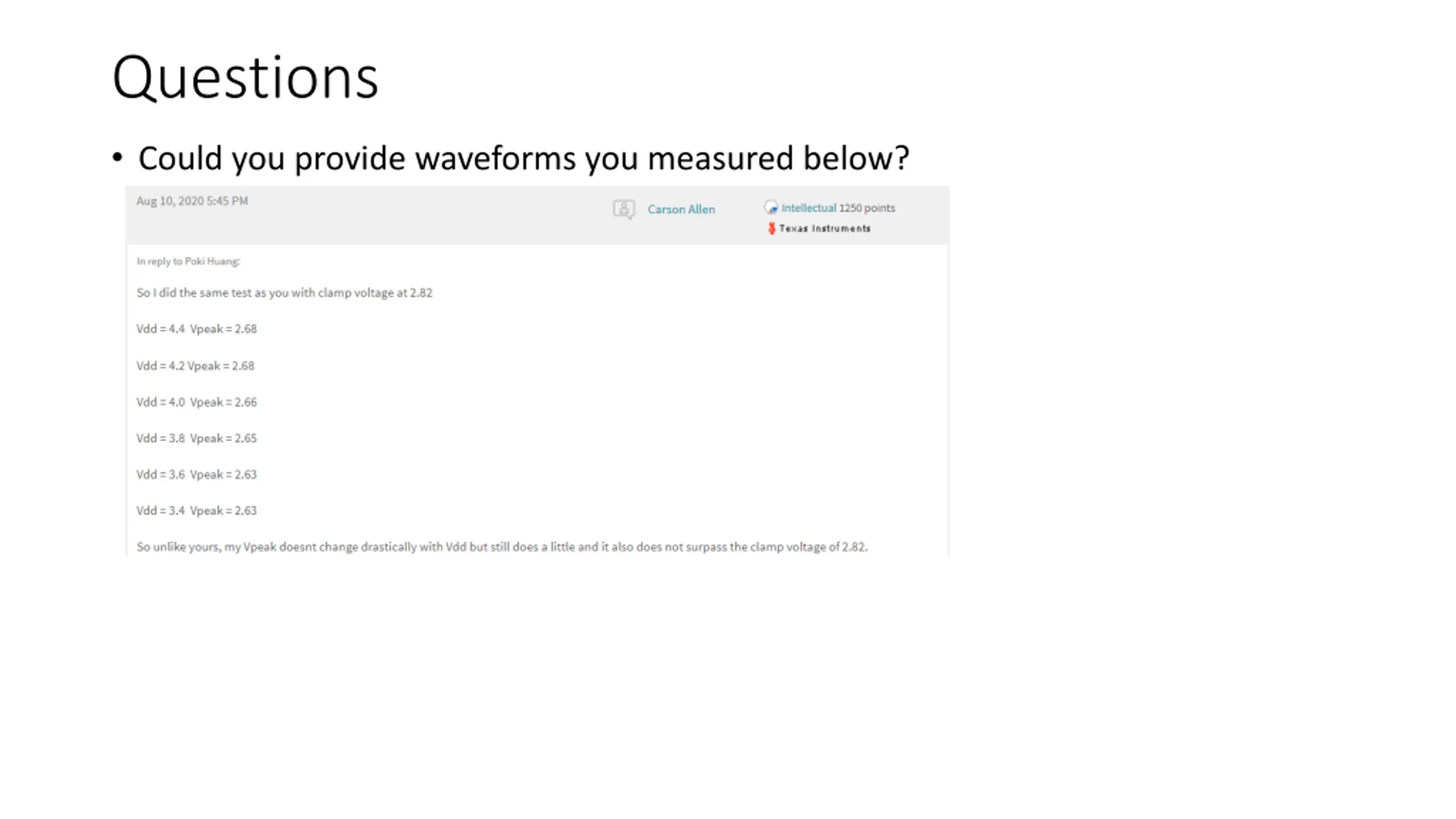

Questions Could you provide waveforms you measured below?
