How to use SQL data sources [416 - 431] Vaideeswaran Kaliannan Presentation ID #23
Overview Select statement with Query Builder Dropdown list - Data binding Define parameters Datalist control

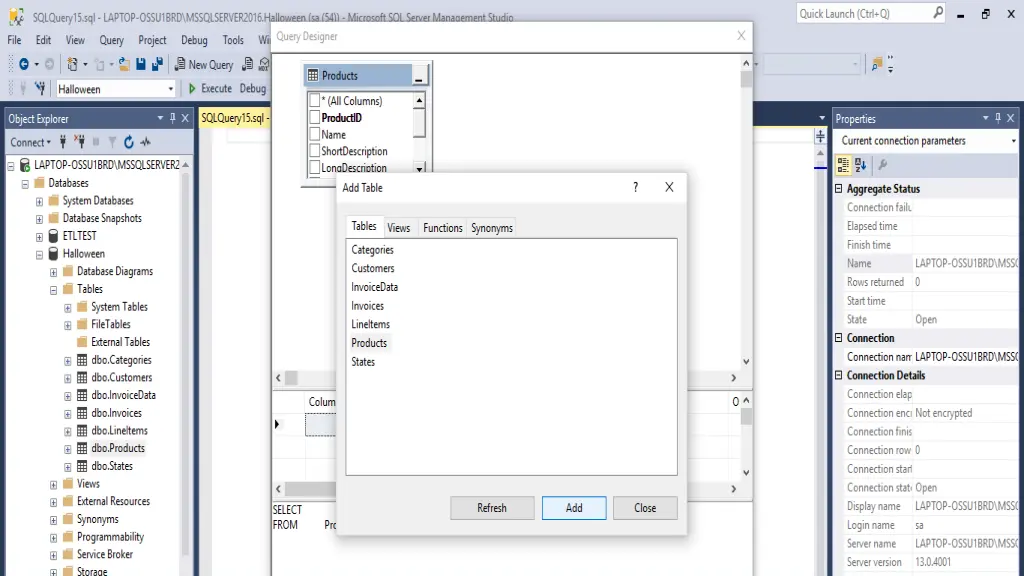

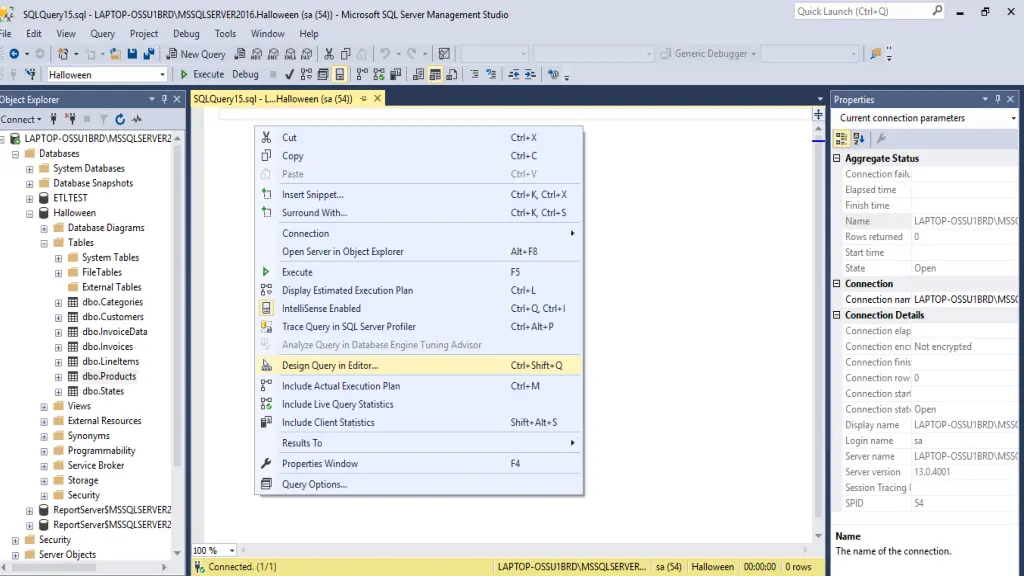

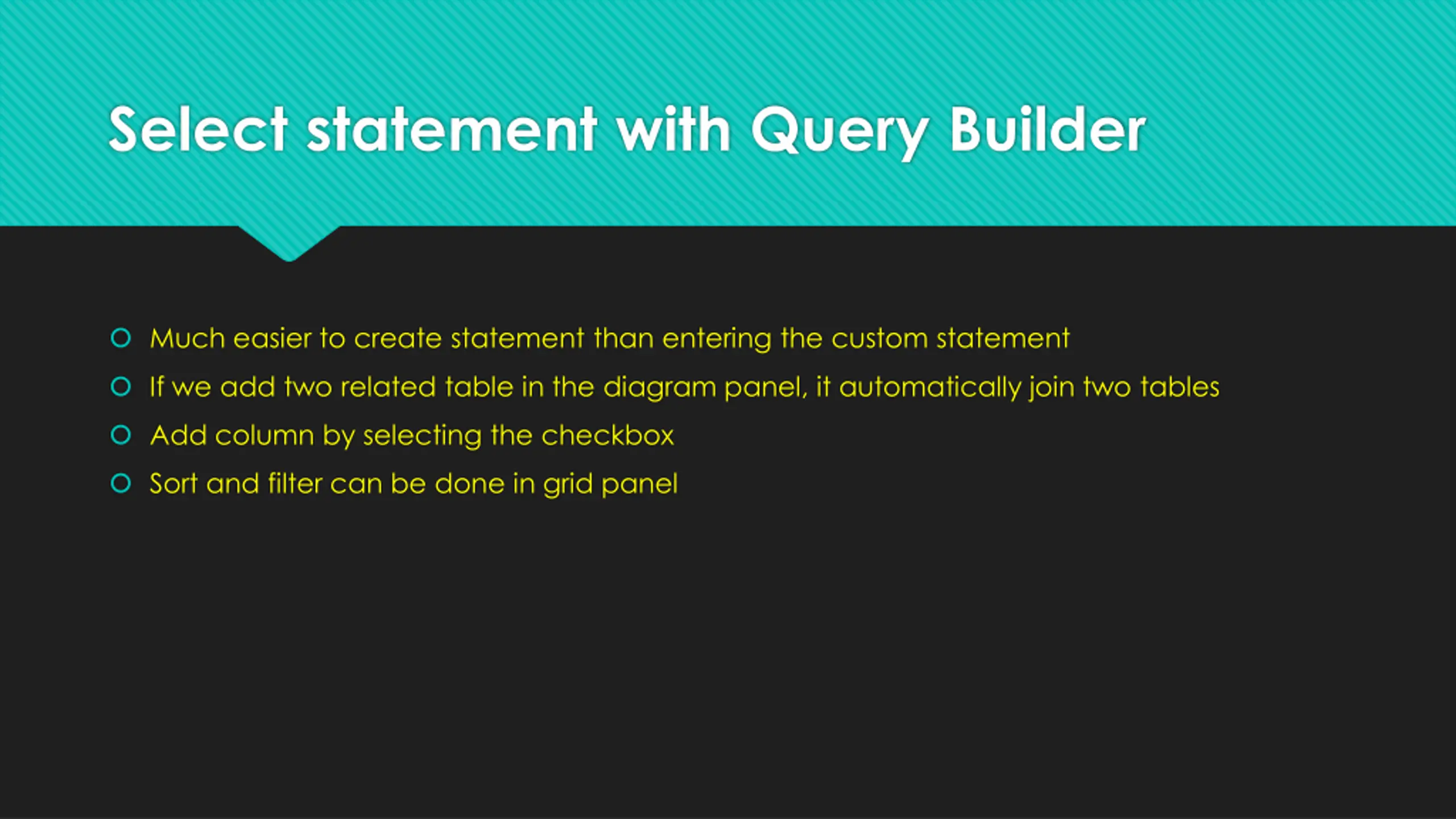

Select statement with Query Builder Much easier to create statement than entering the custom statement If we add two related table in the diagram panel, it automatically join two tables Add column by selecting the checkbox Sort and filter can be done in grid panel

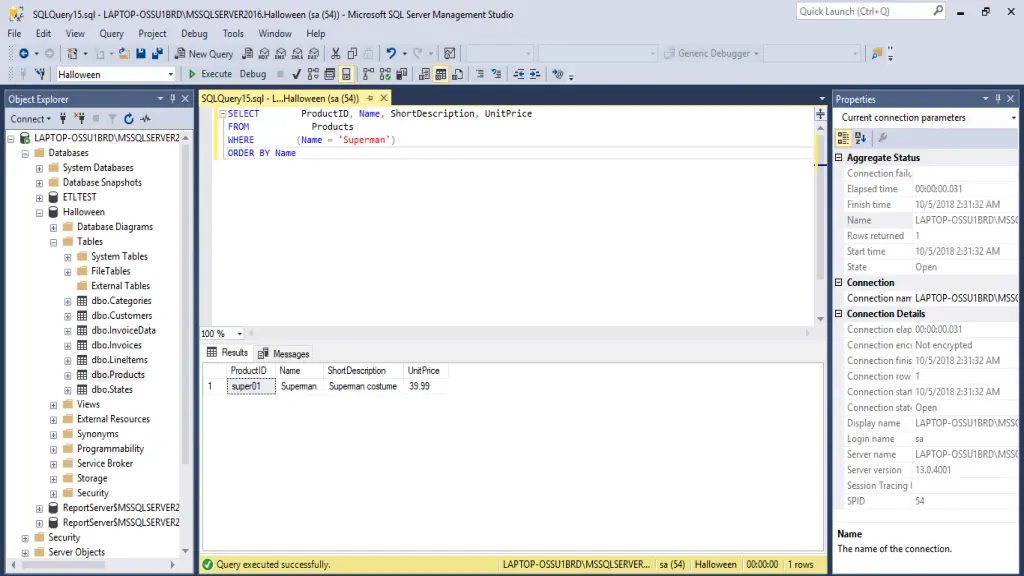

Query Designer Diagram panel Grid panel SQL panel

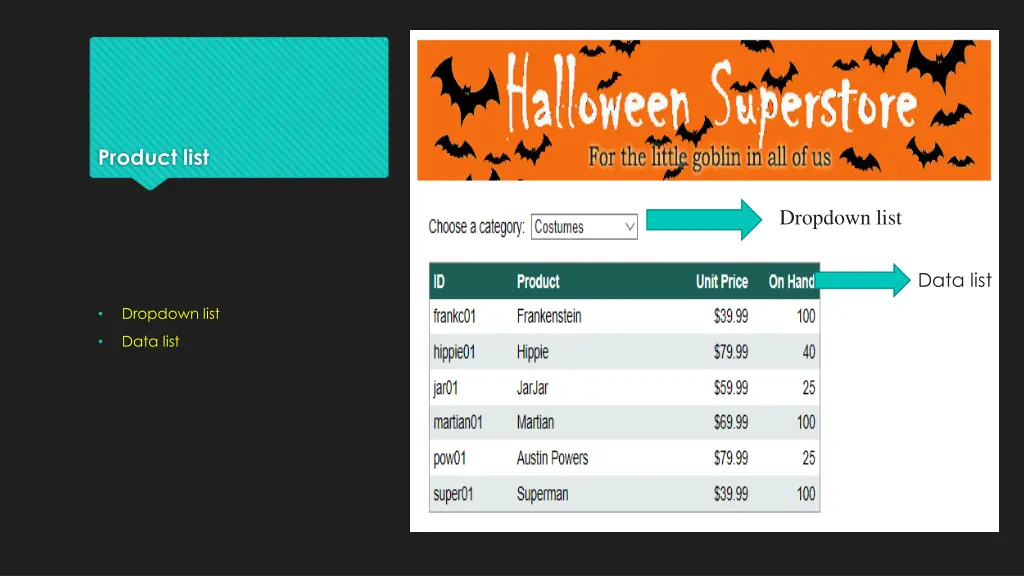

Product list Dropdown list Data list Dropdown list Data list

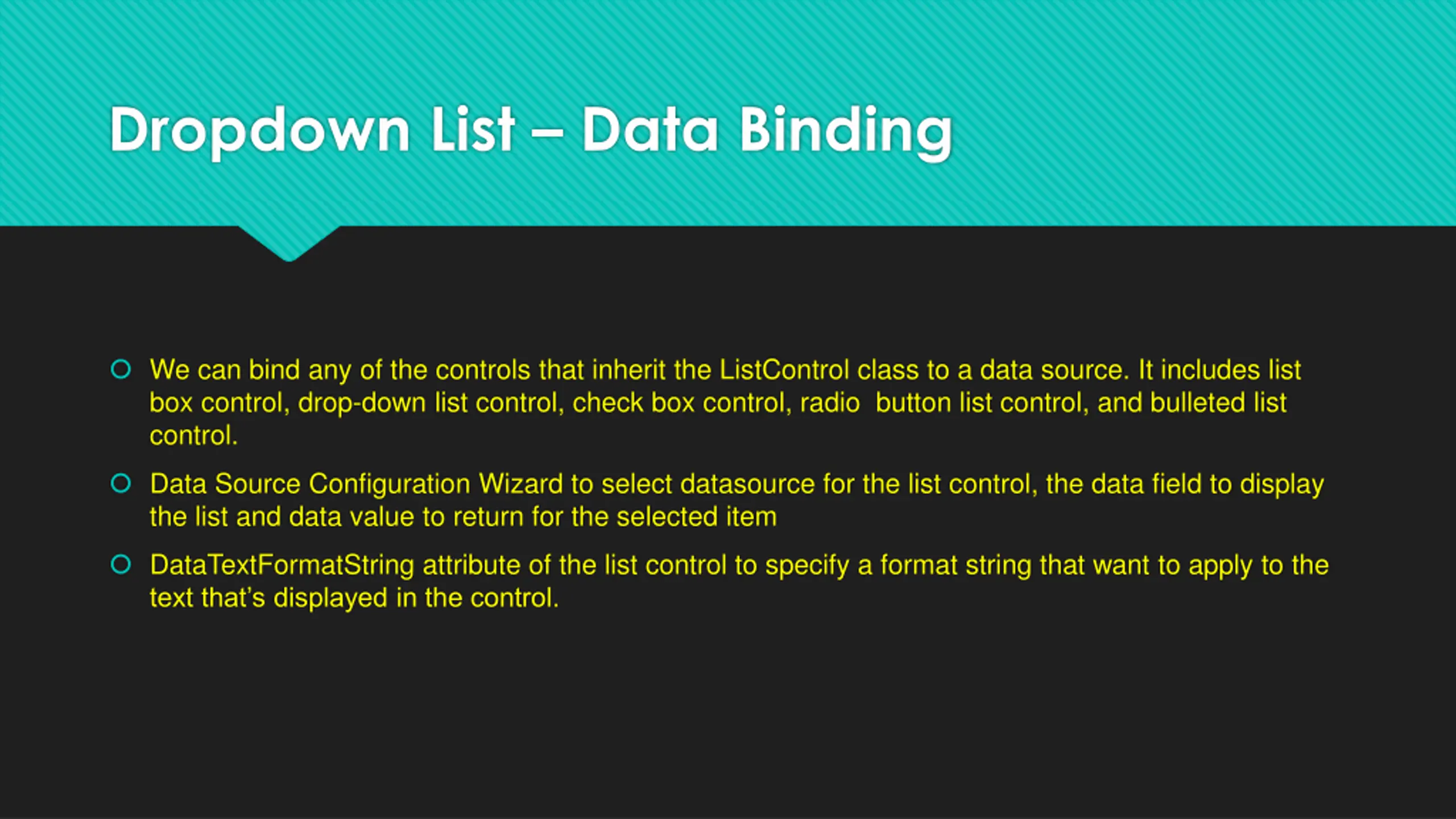

Dropdown List Data Binding We can bind any of the controls that inherit the ListControl class to a data source. It includes list box control, drop-down list control, check box control, radio button list control, and bulleted list control. Data Source Configuration Wizard to select datasource for the list control, the data field to display the list and data value to return for the selected item DataTextFormatString attribute of the list control to specify a format string that want to apply to the text that s displayed in the control.

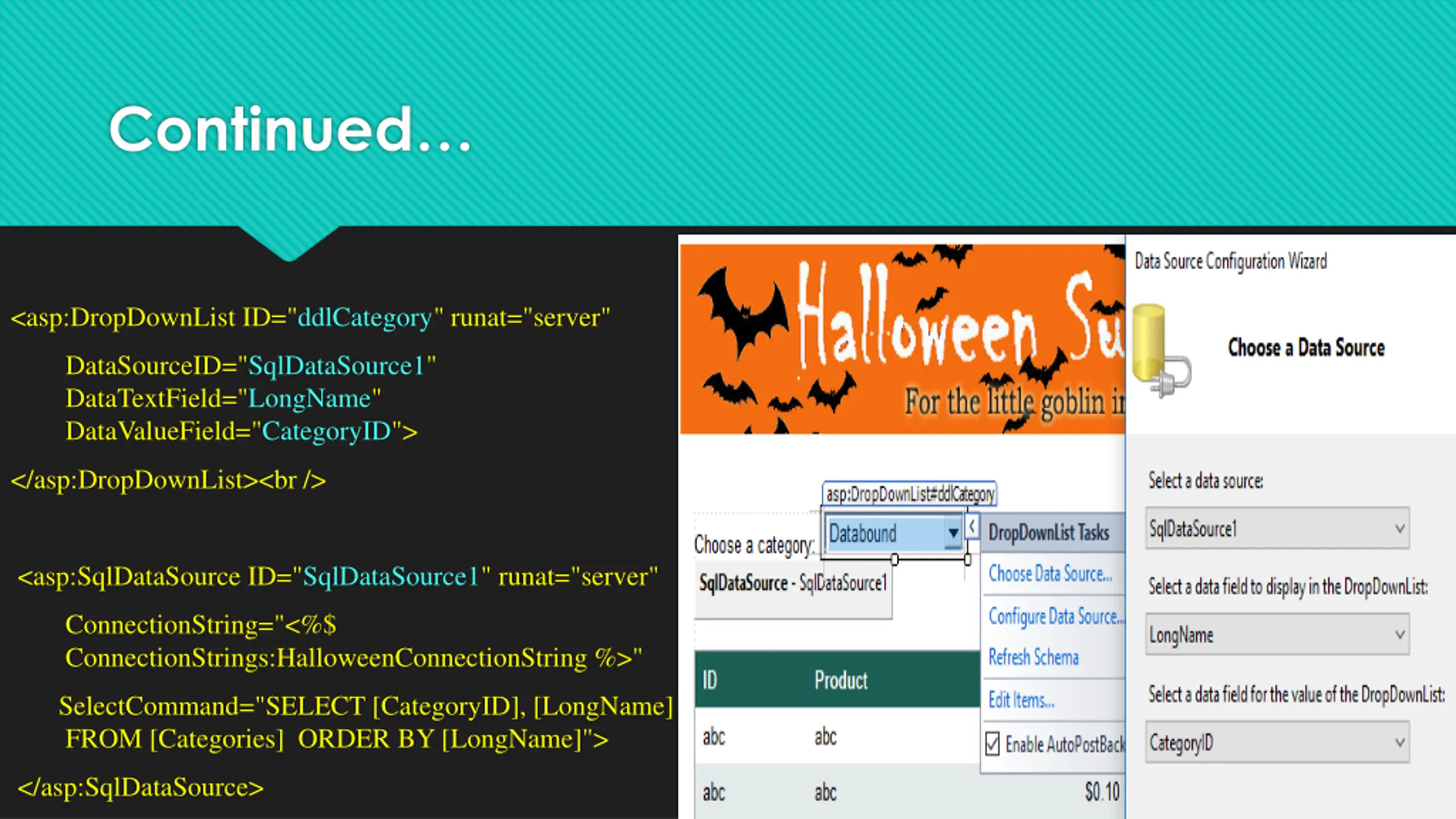

Continued <asp:DropDownList ID="ddlCategory" runat="server" DataSourceID="SqlDataSource1" DataTextField="LongName" DataValueField="CategoryID"> </asp:DropDownList><br /> <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:HalloweenConnectionString %>" SelectCommand="SELECT [CategoryID], [LongName] FROM [Categories] ORDER BY [LongName]"> </asp:SqlDataSource>

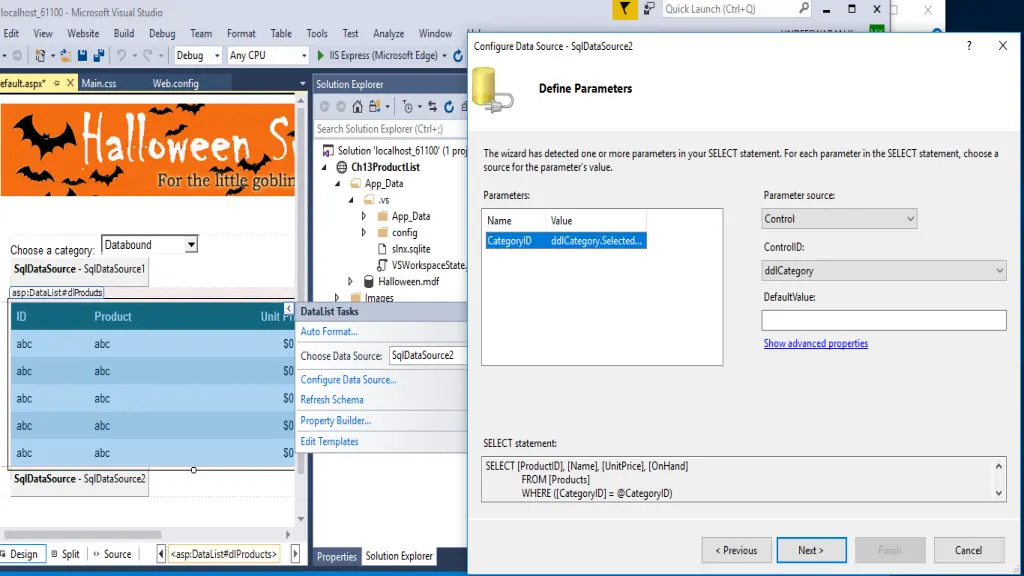

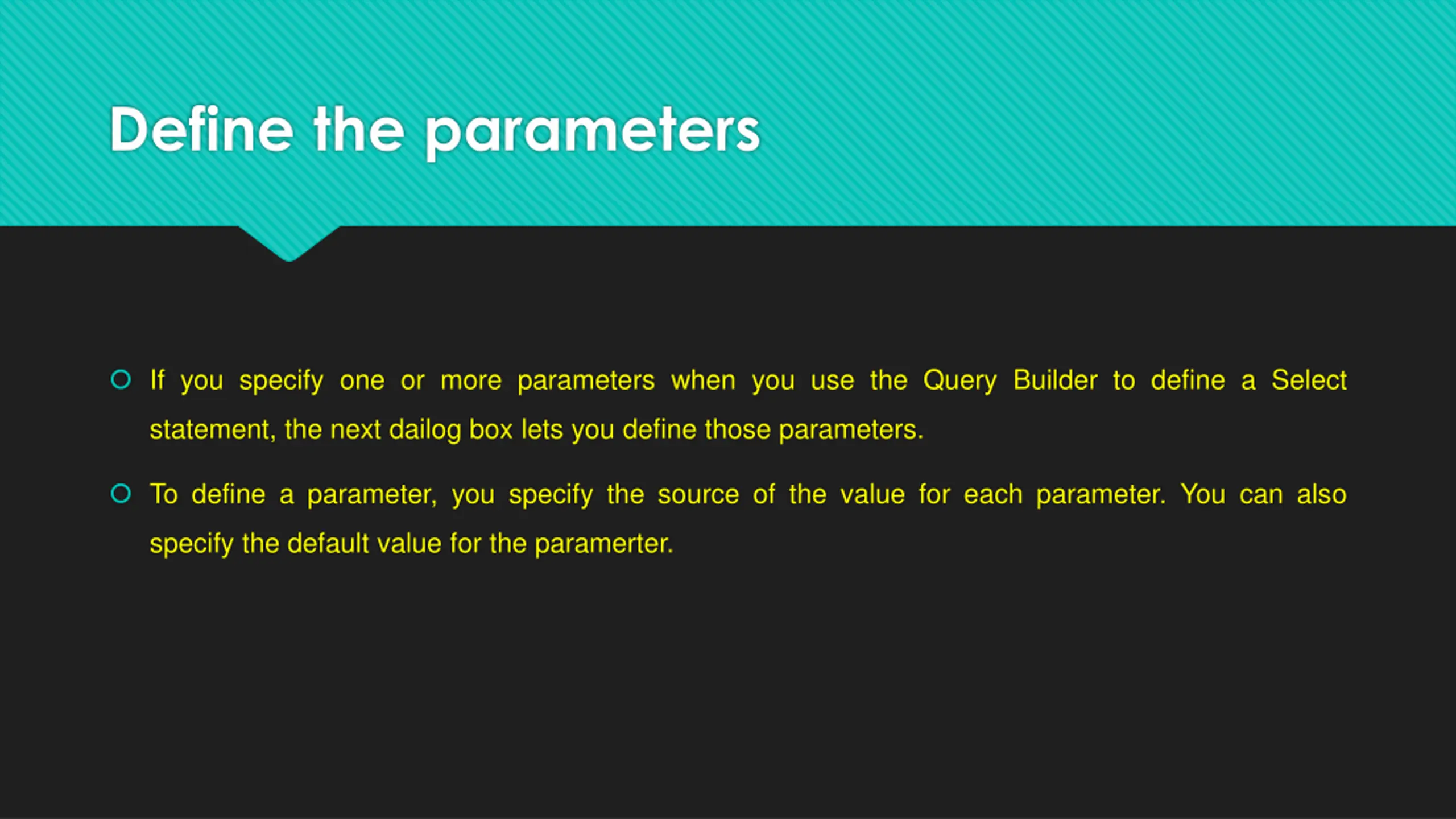

Define the parameters If you specify one or more parameters when you use the Query Builder to define a Select statement, the next dailog box lets you define those parameters. To define a parameter, you specify the source of the value for each parameter. You can also specify the default value for the paramerter.
Continued The source of the CategoryID parameter is set to the SelectedValue property of the control named SelectedValue property was selected by default. ddlCategory.The If you want to use a different property as the source for a parameter, click the Show Advanced Properties link to display a list of the parameter properties. Then, you can set the PropertyName to the control property you want to use.

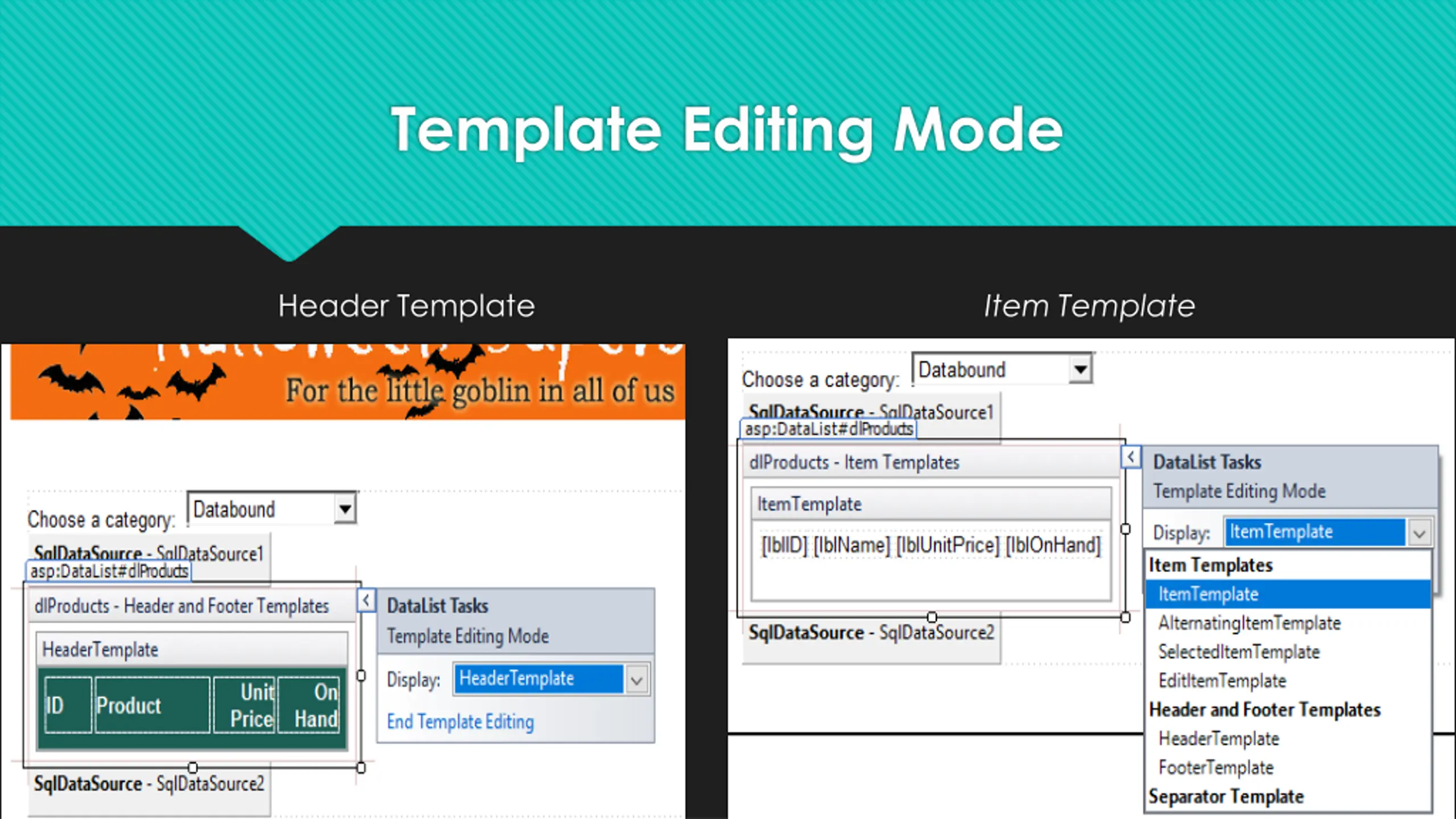

Template Editing Mode Header Template Item Template

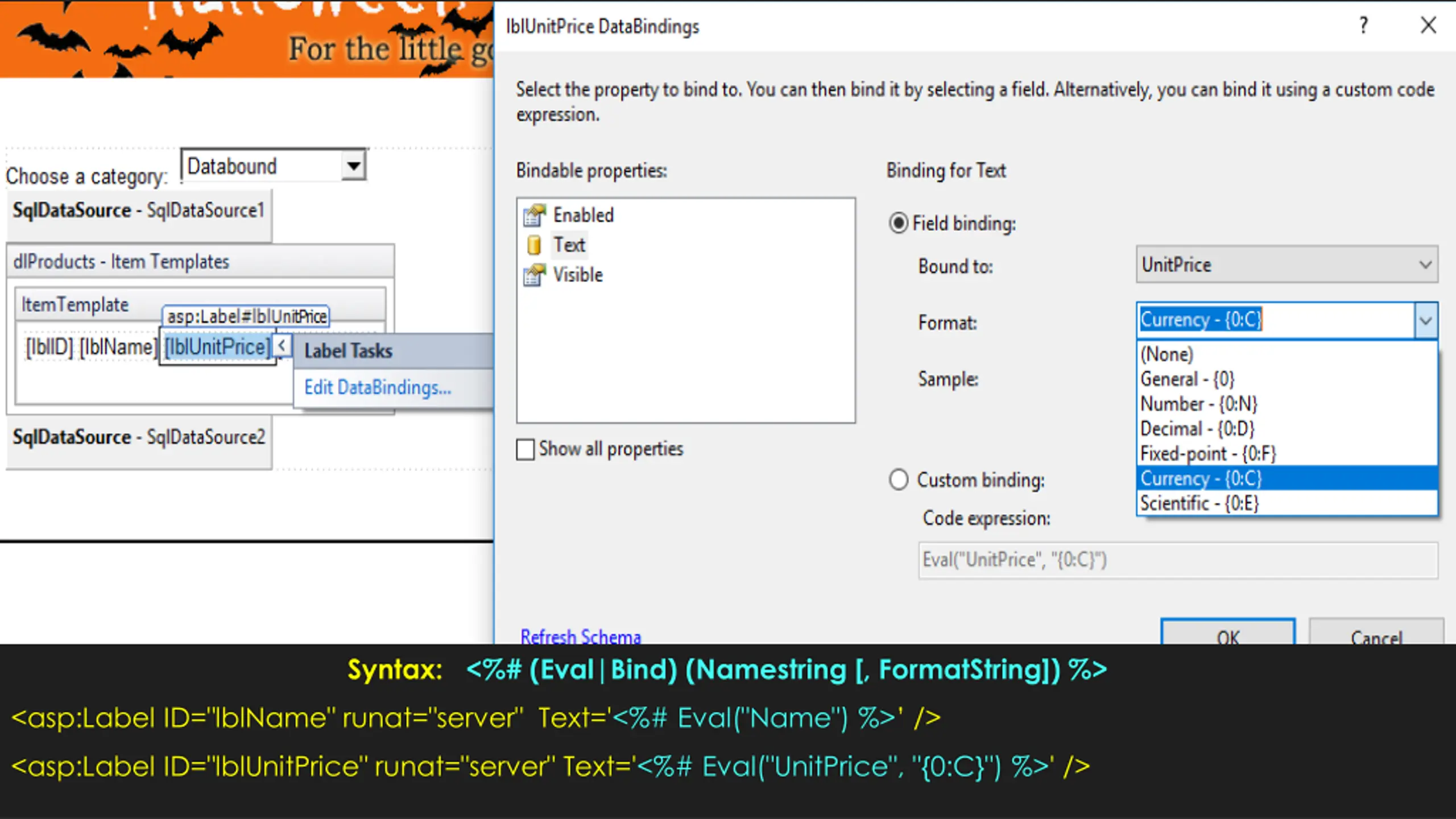

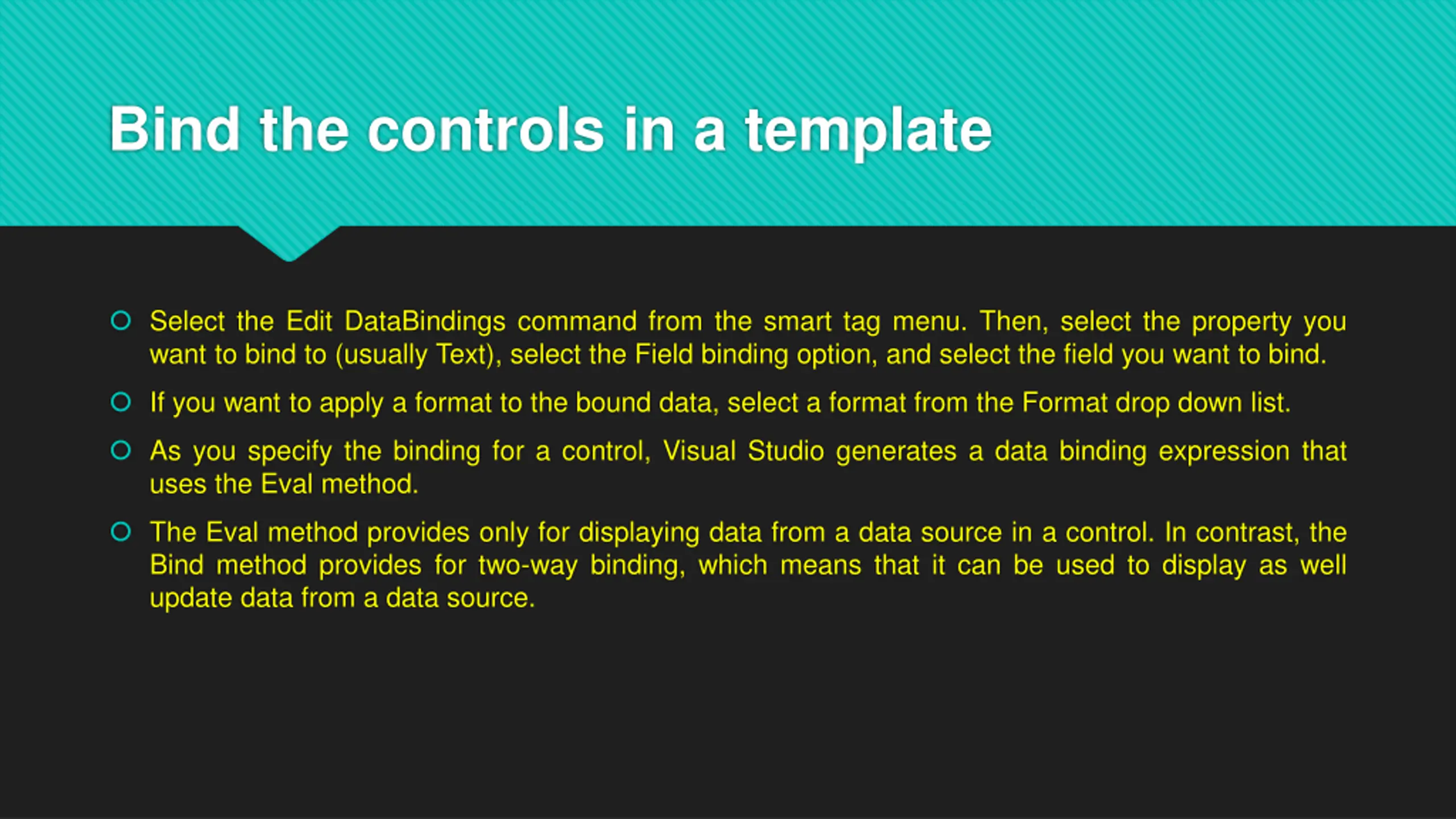

Bind the controls in a template Select the Edit DataBindings command from the smart tag menu. Then, select the property you want to bind to (usually Text), select the Field binding option, and select the field you want to bind. If you want to apply a format to the bound data, select a format from the Format drop down list. As you specify the binding for a control, Visual Studio generates a data binding expression that uses the Eval method. The Eval method provides only for displaying data from a data source in a control. In contrast, the Bind method provides for two-way binding, which means that it can be used to display as well update data from a data source.
Syntax: <%# (Eval|Bind) (Namestring [, FormatString]) %> <asp:Label ID="lblName" runat="server" Text='<%# Eval("Name") %> /> <asp:Label ID="lblUnitPrice" runat="server" Text='<%# Eval("UnitPrice", "{0:C}") %>' />
