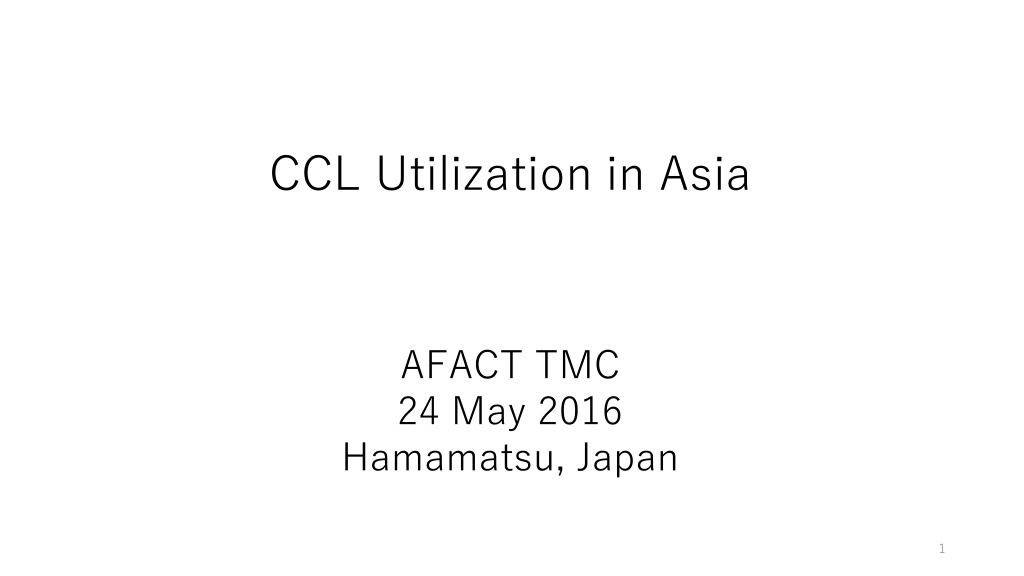

CCL Utilization in Asia AFACT TMC 24 May 2016 Hamamatsu, Japan 1

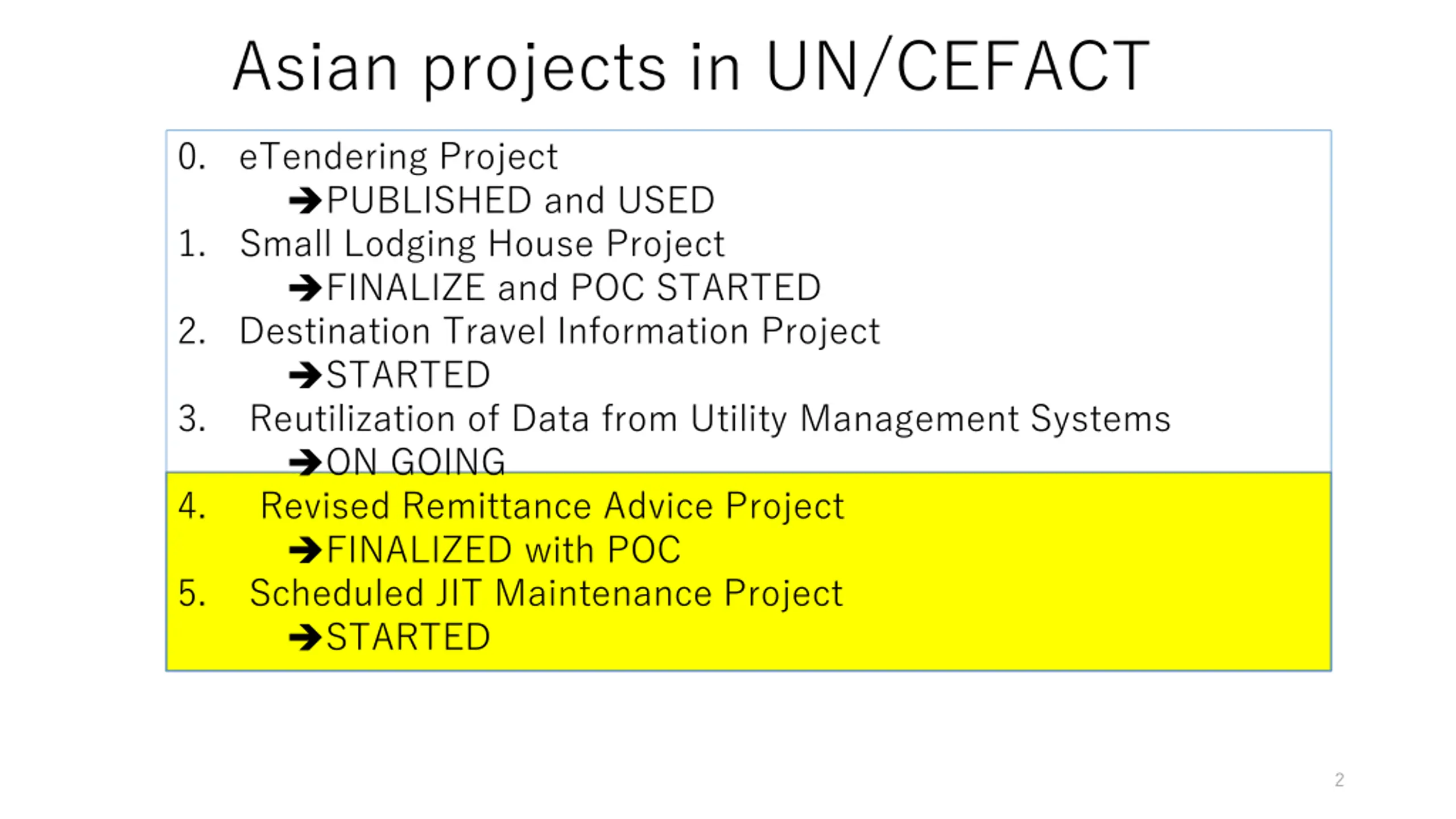

Asian projects in UN/CEFACT 0. eTendering Project PUBLISHED and USED 1. Small Lodging House Project FINALIZE and POC STARTED 2. Destination Travel Information Project STARTED 3. Reutilization of Data from Utility Management Systems ON GOING 4. Revised Remittance Advice Project FINALIZED with POC 5. Scheduled JIT Maintenance Project STARTED 2

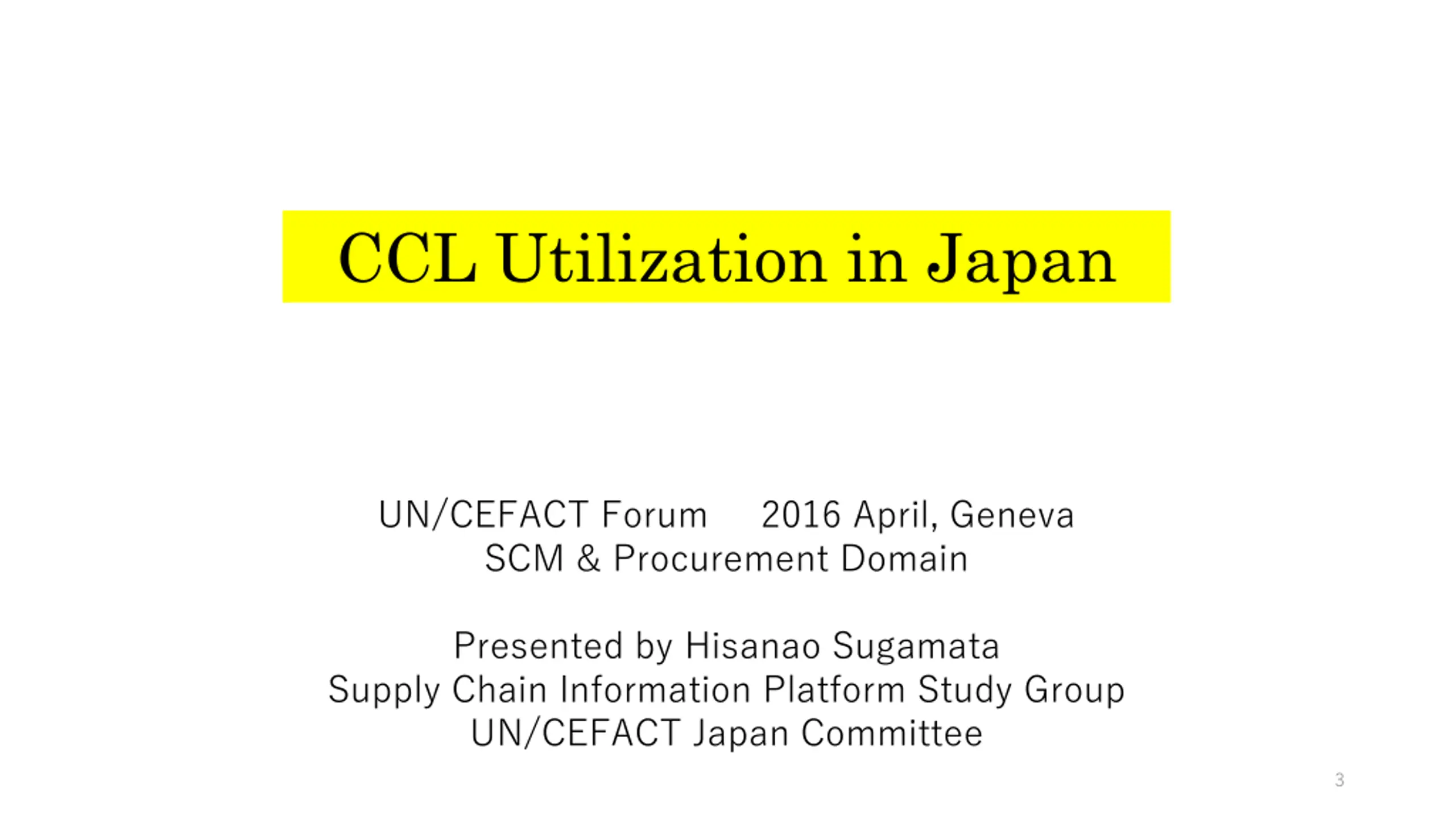

CCL Utilization in Japan UN/CEFACT Forum 2016 April, Geneva SCM & Procurement Domain Presented by Hisanao Sugamata Supply Chain Information Platform Study Group UN/CEFACT Japan Committee 3

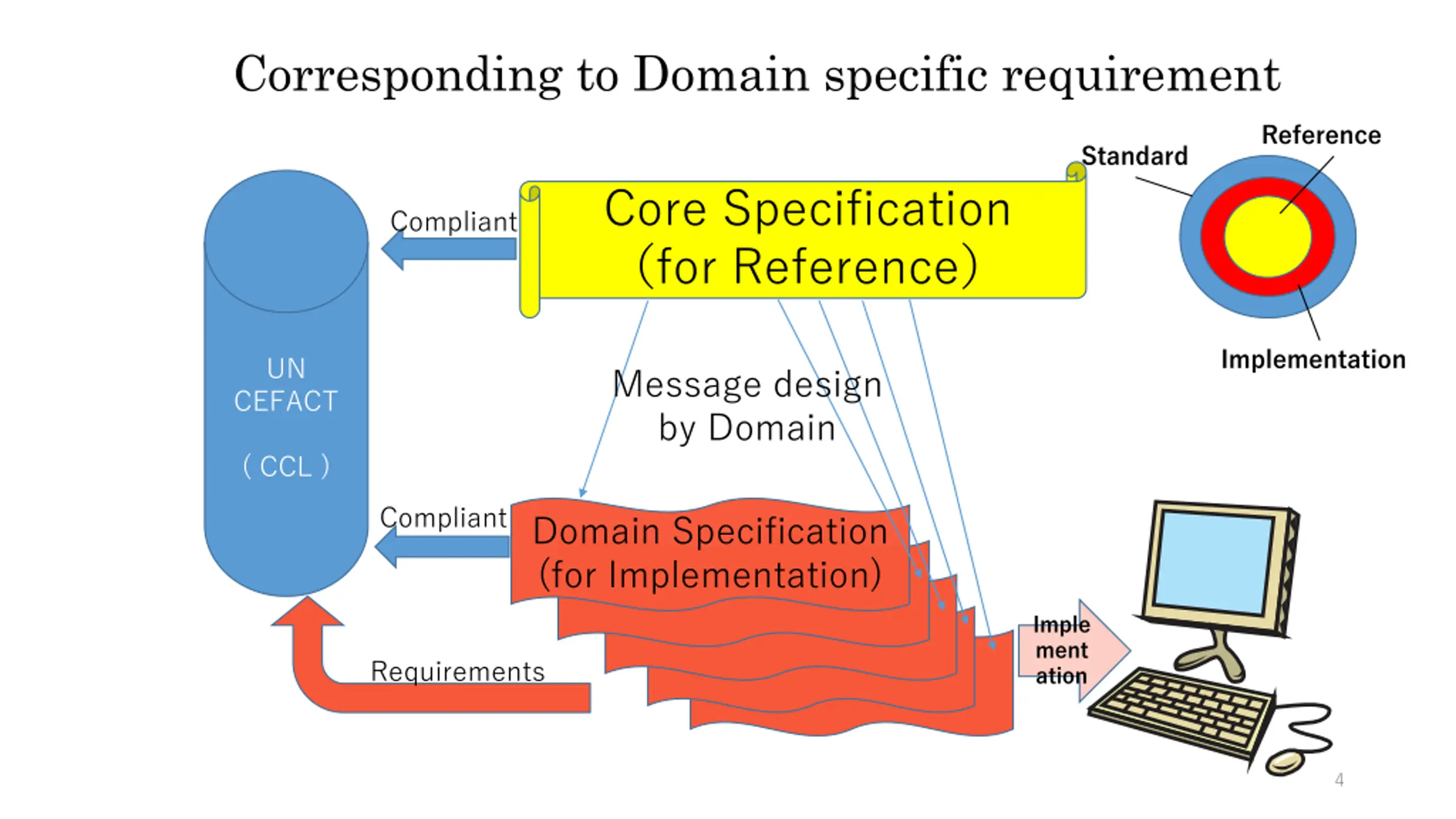

Corresponding to Domain specific requirement Reference Standard Core Specification for Reference Compliant Implementation UN Message design by Domain CEFACT ( CCL ) Compliant Domain Specification (for Implementation) Imple ment ation Requirements 4

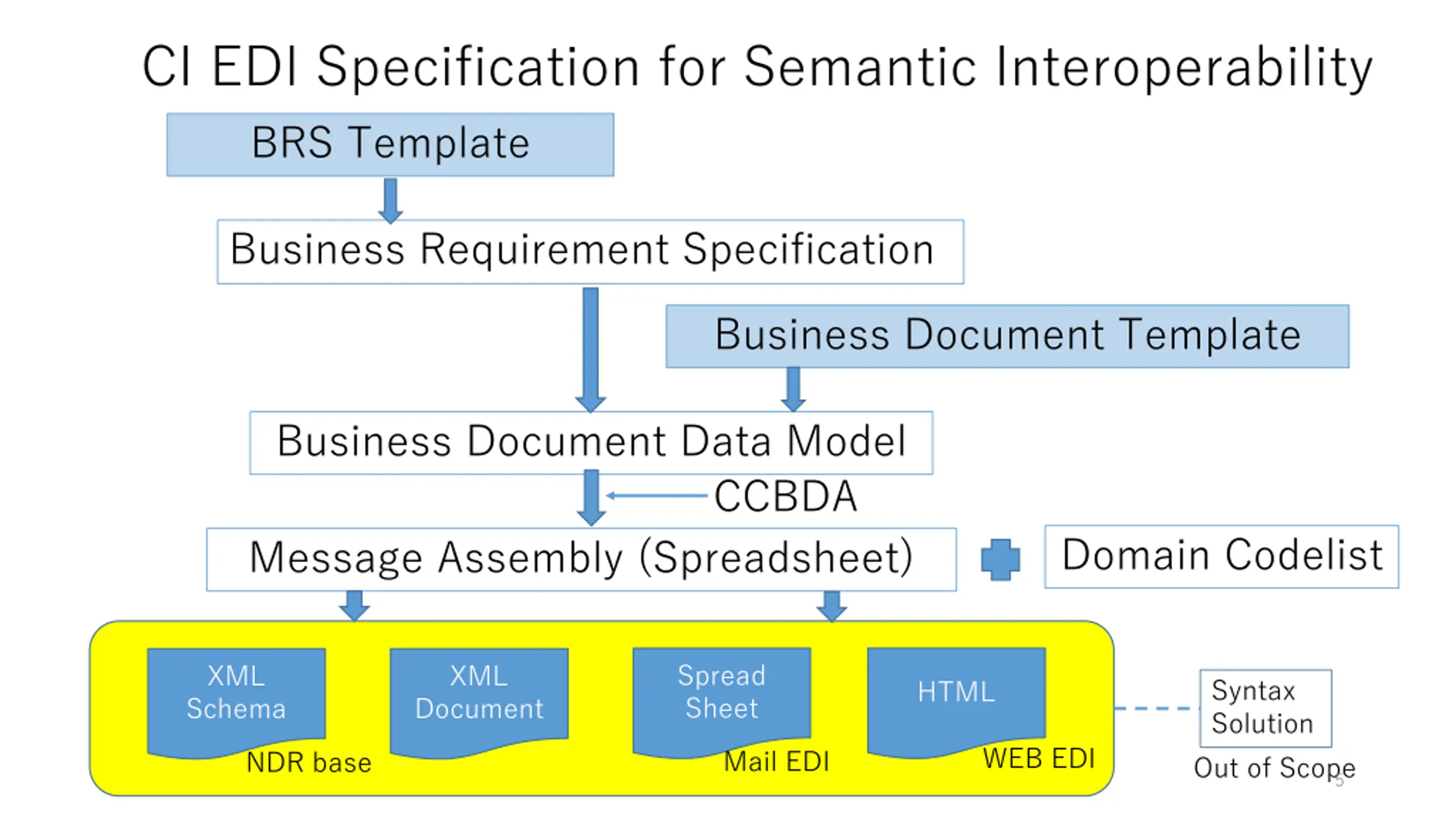

CI EDI Specification for Semantic Interoperability BRS Template Business Requirement Specification Business Document Template Business Document Data Model CCBDA Domain Codelist Message Assembly (Spreadsheet) Spread Sheet XML Schema XML Syntax Solution HTML Document WEB EDI Mail EDI NDR base Out of Scope 5

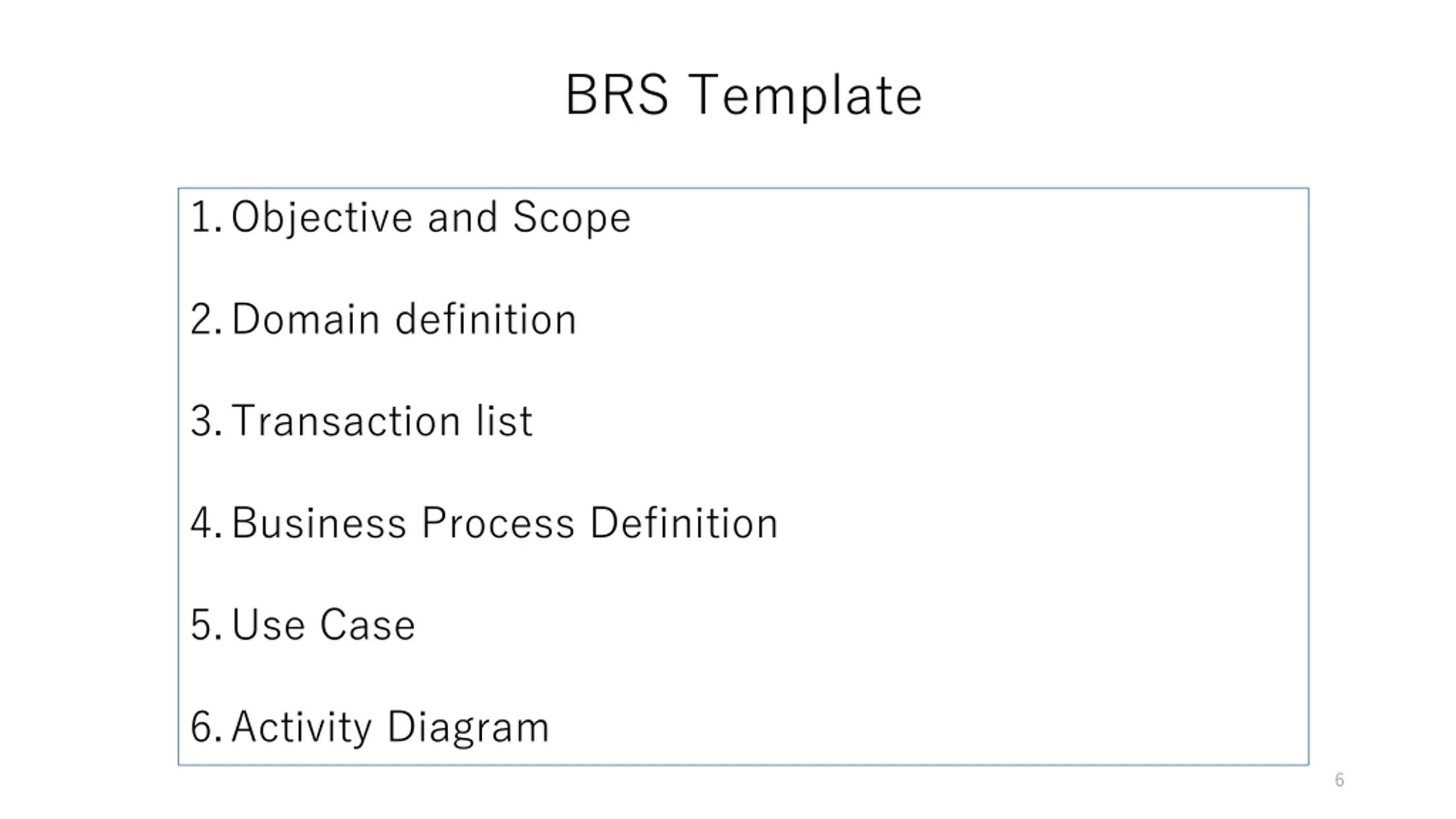

BRS Template 1.Objective and Scope 2.Domain definition 3.Transaction list 4.Business Process Definition 5.Use Case 6.Activity Diagram 6

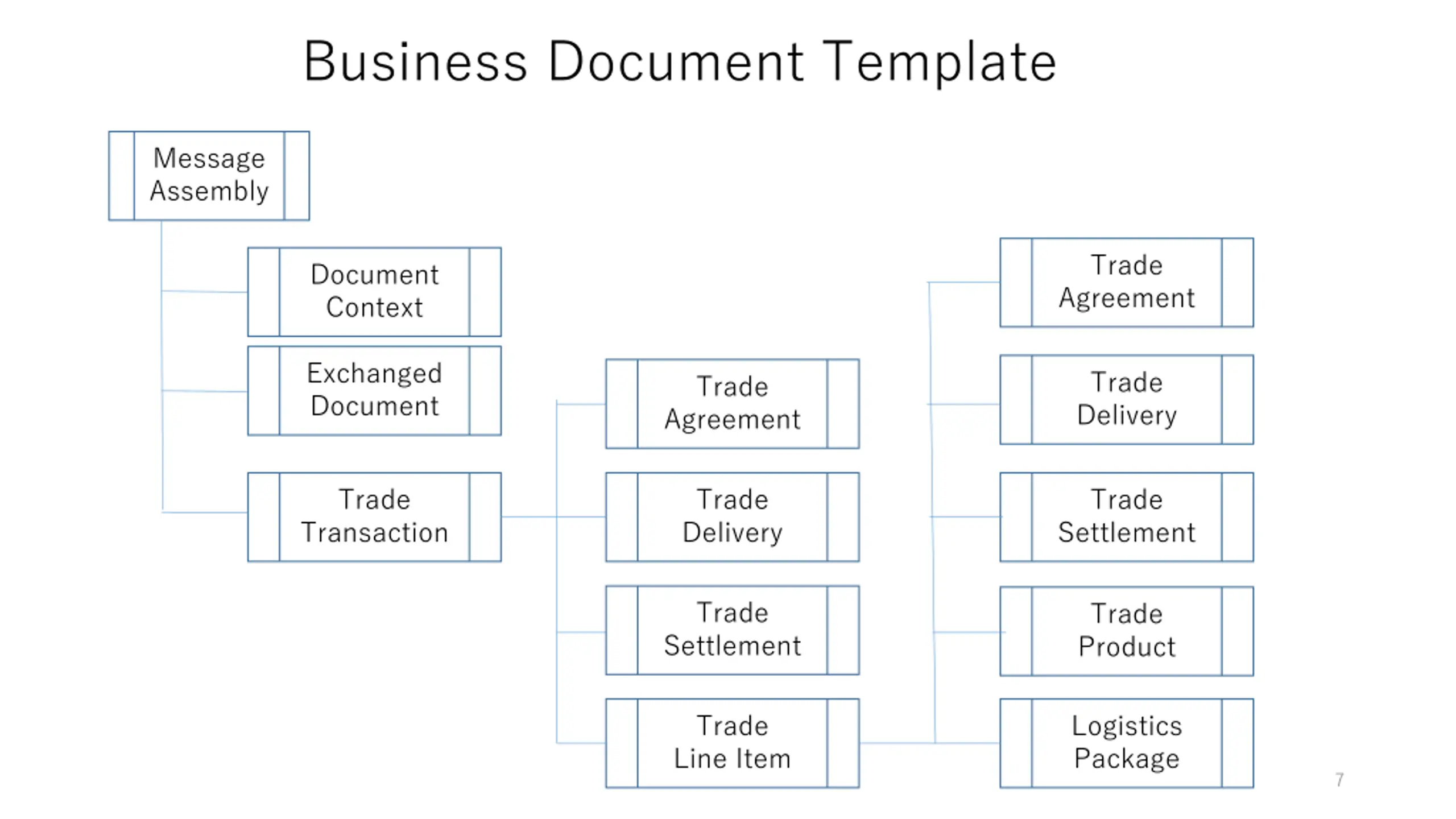

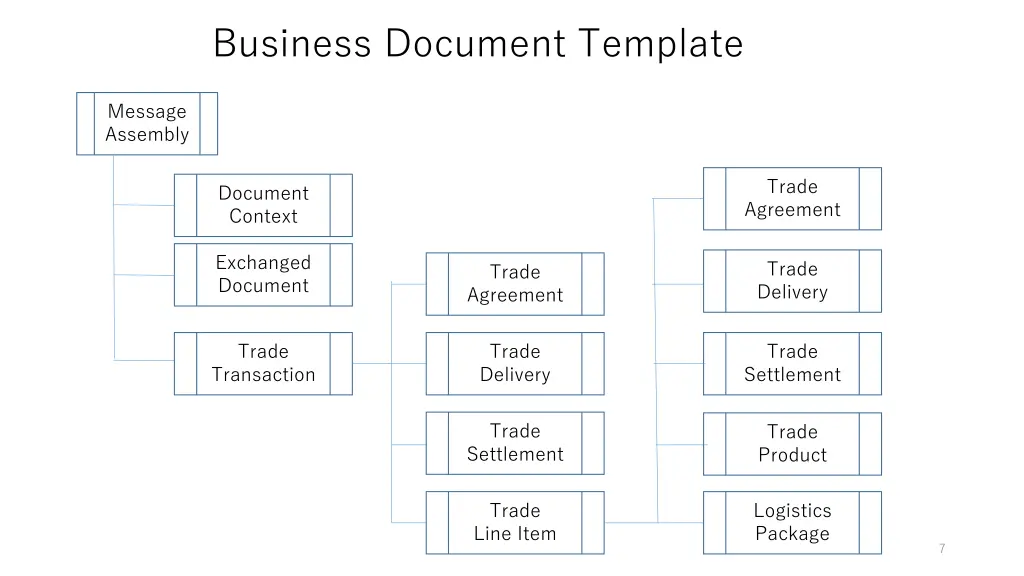

Business Document Template Message Assembly Trade Agreement Document Context Exchanged Document Trade Delivery Trade Agreement Trade Trade Delivery Trade Settlement Transaction Trade Settlement Trade Product Trade Line Item Logistics Package 7
MA Wholesaler_ Order ASMA CI_ Exchanged Document_ Context Manufacture s Wholesaler Order Message (Header part) Domain_ Specified CI_ Document Context_ Parameter ASMA CIOH_ Exchanged_ Document Included CI_ Note ASMA CIOH_ Supply Chain_ Trade Transaction Applicable CIOH_ Supply Chain_ Trade Agreement Seller CI_ Trade_ Party Defined CI_ Trade_ Contact Telephone CI_ Universal_ Communication Fax CI_ Universal_ Communication Email_ URI CI_ Universal_ Communication Postal CI_ Trade_ Address Buyer CI_ Trade_ Party B/D Data Model Defined CI_ Trade_ Contact Telephone CI_ Universal_ Communication Fax CI_ Universal_ Communication Email_ URI CI_ Universal_ Communication Postal CI_ Trade_ Address Relevant CI_ Trade_ Party Defined CI_ Trade_ Contact Specified Procuring_ Project Applicable CIOH_ Supply Chain_ Trade Delivery Ship To CI_ Trade_ Party Defined CI_ Trade_ Contact Telephone CI_ Universal_ Communication Postal CI_ Trade_ Address Ship From CI_ Trade_ Party Planned_ Delivery CI_ Supply Chain_ Event Applicable CIOH_ Supply Chain_ Trade Settlement Applicable CI_ Trade_ Tax Specified CI_ Trade_ Payment Terms 8 Specified CIOH_ Trade Settlement_ Monetary Summation

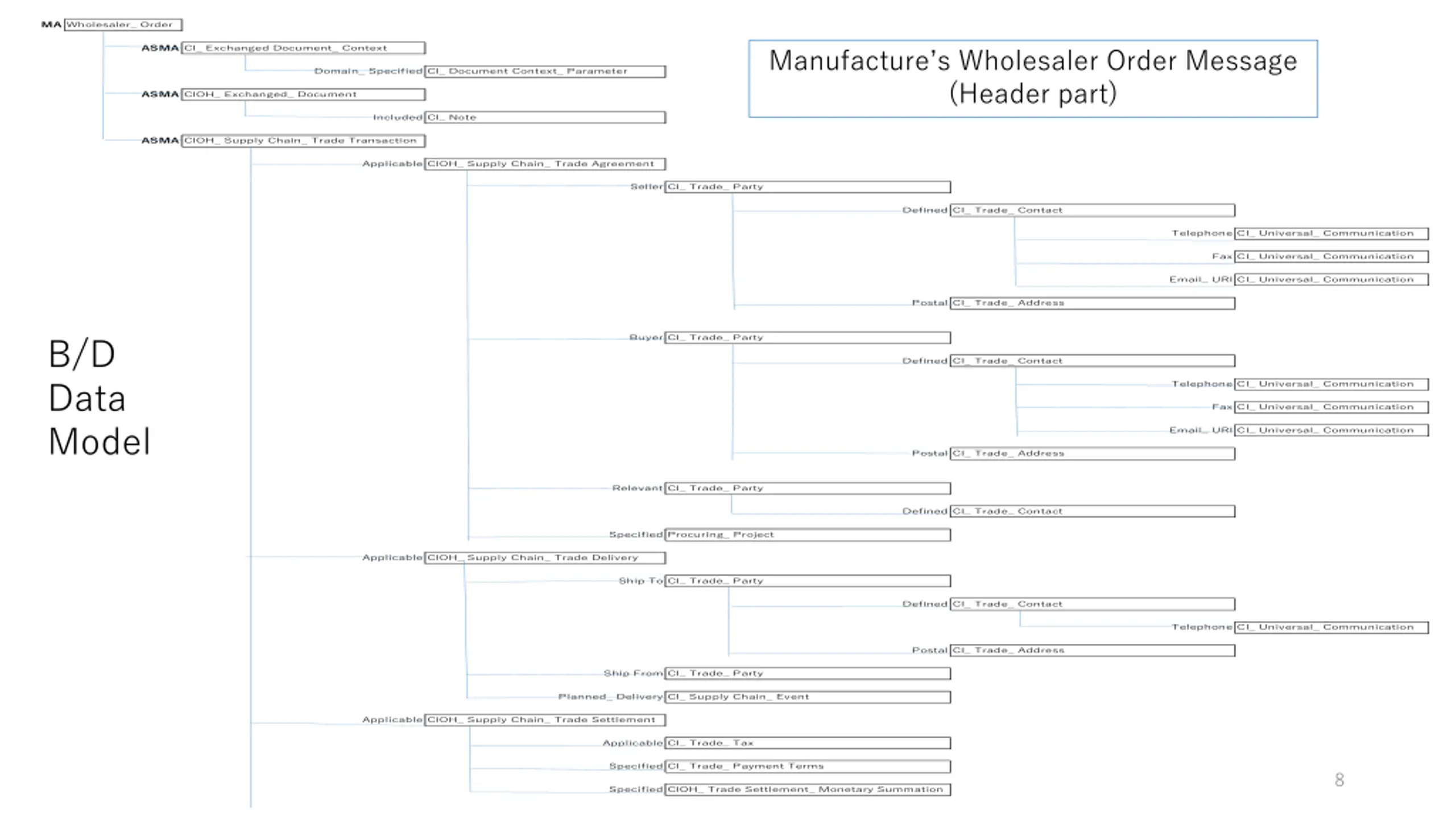

Manufactures Wholesaler Order Message (Line Item part) Included CIOL_ Supply Chain_ Trade Line Item Associated CIOL_ Document Line_ Document Included CI_ Note Specified CIOL_ Supply Chain_ Trade Agreement Buyer Order_ Referenced CI_ Referenced_ Document Additional_ Referenced. CI_ Referenced_ Document Net Price_ Product CI_ Trade_ Price Specified CIOL_ Supply Chain_ Trade Delivery B/D Data Model Delivery CI_ Delivery_ Instructions Requested_ Delivery CI_ Supply Chain_ Event Occurrence CI_ Logistics_ Location Applicable CIOL_ Supply Chain_ Trade Settlement Applicable CI_ Trade_ Tax Specified CIOL_ Trade Settlement_ Monetary Summation Specified CI_ Trade_ Product Applicable Product_ Characteristic Manufacturer CI_ Trade_ Party Additional_ Reference CI_ Referenced_ Document 9 Physical Referenced_ Logistics_ Package

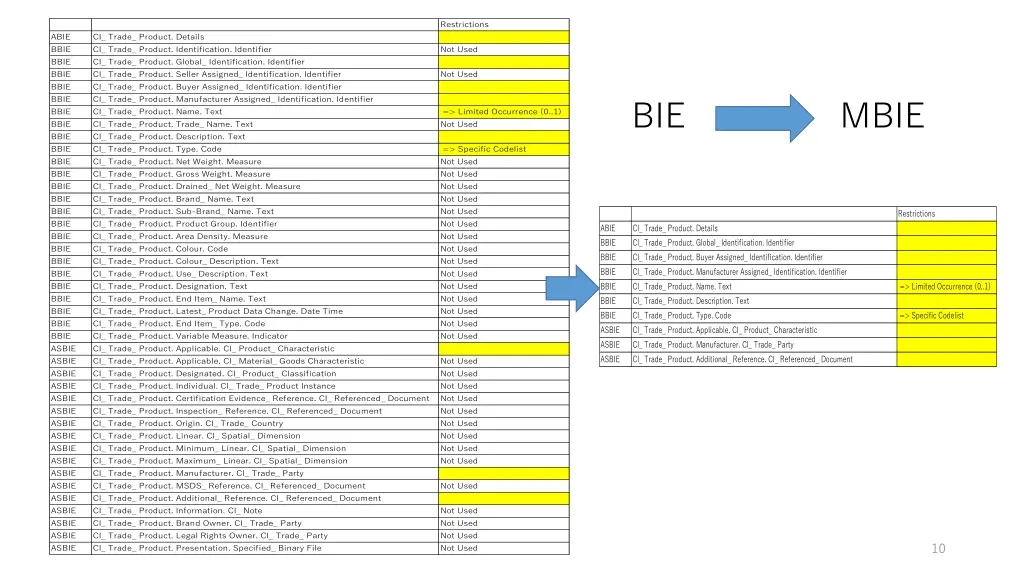

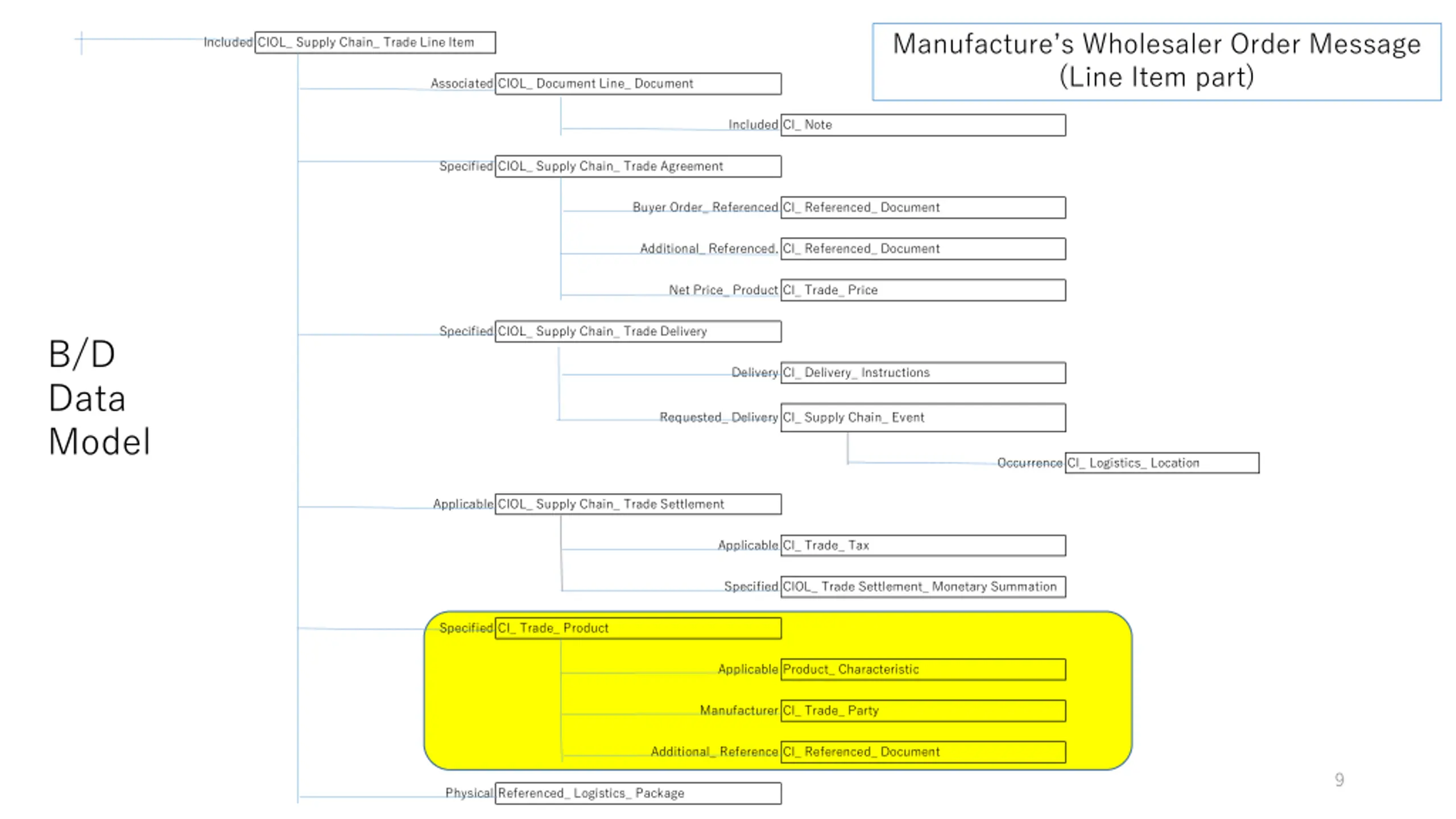

Restrictions ABIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE BBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE ASBIE CI_ Trade_ Product. Details CI_ Trade_ Product. Identification. Identifier CI_ Trade_ Product. Global_ Identification. Identifier CI_ Trade_ Product. Seller Assigned_ Identification. Identifier CI_ Trade_ Product. Buyer Assigned_ Identification. Identifier CI_ Trade_ Product. Manufacturer Assigned_ Identification. Identifier CI_ Trade_ Product. Name. Text CI_ Trade_ Product. Trade_ Name. Text CI_ Trade_ Product. Description. Text CI_ Trade_ Product. Type. Code CI_ Trade_ Product. Net Weight. Measure CI_ Trade_ Product. Gross Weight. Measure CI_ Trade_ Product. Drained_ Net Weight. Measure CI_ Trade_ Product. Brand_ Name. Text CI_ Trade_ Product. Sub-Brand_ Name. Text CI_ Trade_ Product. Product Group. Identifier CI_ Trade_ Product. Area Density. Measure CI_ Trade_ Product. Colour. Code CI_ Trade_ Product. Colour_ Description. Text CI_ Trade_ Product. Use_ Description. Text CI_ Trade_ Product. Designation. Text CI_ Trade_ Product. End Item_ Name. Text CI_ Trade_ Product. Latest_ Product Data Change. Date Time CI_ Trade_ Product. End Item_ Type. Code CI_ Trade_ Product. Variable Measure. Indicator CI_ Trade_ Product. Applicable. CI_ Product_ Characteristic CI_ Trade_ Product. Applicable. CI_ Material_ Goods Characteristic CI_ Trade_ Product. Designated. CI_ Product_ Classification CI_ Trade_ Product. Individual. CI_ Trade_ Product Instance CI_ Trade_ Product. Certification Evidence_ Reference. CI_ Referenced_ Document CI_ Trade_ Product. Inspection_ Reference. CI_ Referenced_ Document CI_ Trade_ Product. Origin. CI_ Trade_ Country CI_ Trade_ Product. Linear. CI_ Spatial_ Dimension CI_ Trade_ Product. Minimum_ Linear. CI_ Spatial_ Dimension CI_ Trade_ Product. Maximum_ Linear. CI_ Spatial_ Dimension CI_ Trade_ Product. Manufacturer. CI_ Trade_ Party CI_ Trade_ Product. MSDS_ Reference. CI_ Referenced_ Document CI_ Trade_ Product. Additional_ Reference. CI_ Referenced_ Document CI_ Trade_ Product. Information. CI_ Note CI_ Trade_ Product. Brand Owner. CI_ Trade_ Party CI_ Trade_ Product. Legal Rights Owner. CI_ Trade_ Party CI_ Trade_ Product. Presentation. Specified_ Binary File Not Used Not Used BIE MBIE => Limited Occurrence (0..1) Not Used => Specific Codelist Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Restrictions ABIE CI_ Trade_ Product. Details BBIE CI_ Trade_ Product. Global_ Identification. Identifier BBIE CI_ Trade_ Product. Buyer Assigned_ Identification. Identifier BBIE CI_ Trade_ Product. Manufacturer Assigned_ Identification. Identifier BBIE CI_ Trade_ Product. Name. Text => Limited Occurrence (0..1) BBIE CI_ Trade_ Product. Description. Text BBIE CI_ Trade_ Product. Type. Code => Specific Codelist ASBIE CI_ Trade_ Product. Applicable. CI_ Product_ Characteristic ASBIE CI_ Trade_ Product. Manufacturer. CI_ Trade_ Party ASBIE CI_ Trade_ Product. Additional_ Reference. CI_ Referenced_ Document Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used 10

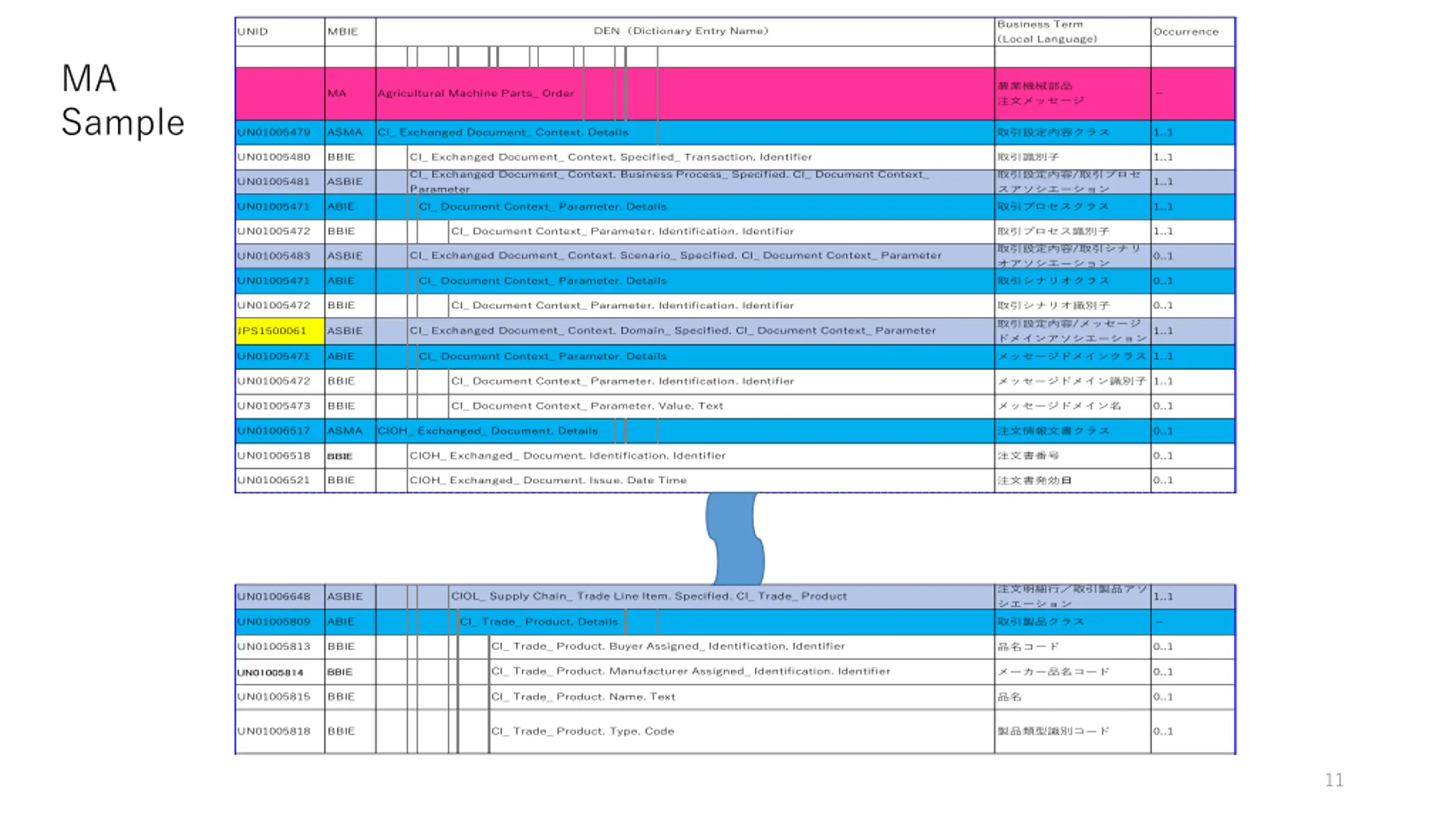

Business Term (Local Language) DEN Dictionary Entry Name UNID MBIE Occurrence MA Sample MA Agricultural Machine Parts_ Order UN01005479 ASMA CI_ Exchanged Document_ Context. Details 1..1 UN01005480 BBIE CI_ Exchanged Document_ Context. Specified_ Transaction. Identifier 1..1 CI_ Exchanged Document_ Context. Business Process_ Specified. CI_ Document Context_ Parameter / UN01005481 ASBIE 1..1 UN01005471 ABIE CI_ Document Context_ Parameter. Details 1..1 UN01005472 BBIE CI_ Document Context_ Parameter. Identification. Identifier 1..1 / CI_ Exchanged Document_ Context. Scenario_ Specified. CI_ Document Context_ Parameter UN01005483 ASBIE 0..1 UN01005471 ABIE CI_ Document Context_ Parameter. Details 0..1 UN01005472 BBIE CI_ Document Context_ Parameter. Identification. Identifier 0..1 / 1..1 CI_ Exchanged Document_ Context. Domain_ Specified. CI_ Document Context_ Parameter JPS1500061 ASBIE UN01005471 ABIE CI_ Document Context_ Parameter. Details 1..1 UN01005472 BBIE CI_ Document Context_ Parameter. Identification. Identifier 1..1 UN01005473 BBIE CI_ Document Context_ Parameter. Value. Text 0..1 UN01006517 ASMA CIOH_ Exchanged_ Document. Details 0..1 UN01006518 CIOH_ Exchanged_ Document. Identification. Identifier 0..1 BBIE UN01006521 BBIE CIOH_ Exchanged_ Document. Issue. Date Time 0..1 CIOL_ Supply Chain_ Trade Line Item. Specified. CI_ Trade_ Product UN01006648 ASBIE 1..1 UN01005809 ABIE CI_ Trade_ Product. Details CI_ Trade_ Product. Buyer Assigned_ Identification. Identifier UN01005813 BBIE 0..1 CI_ Trade_ Product. Manufacturer Assigned_ Identification. Identifier 0..1 BBIE UN01005814 UN01005815 BBIE CI_ Trade_ Product. Name. Text 0..1 UN01005818 BBIE CI_ Trade_ Product. Type. Code 0..1 11

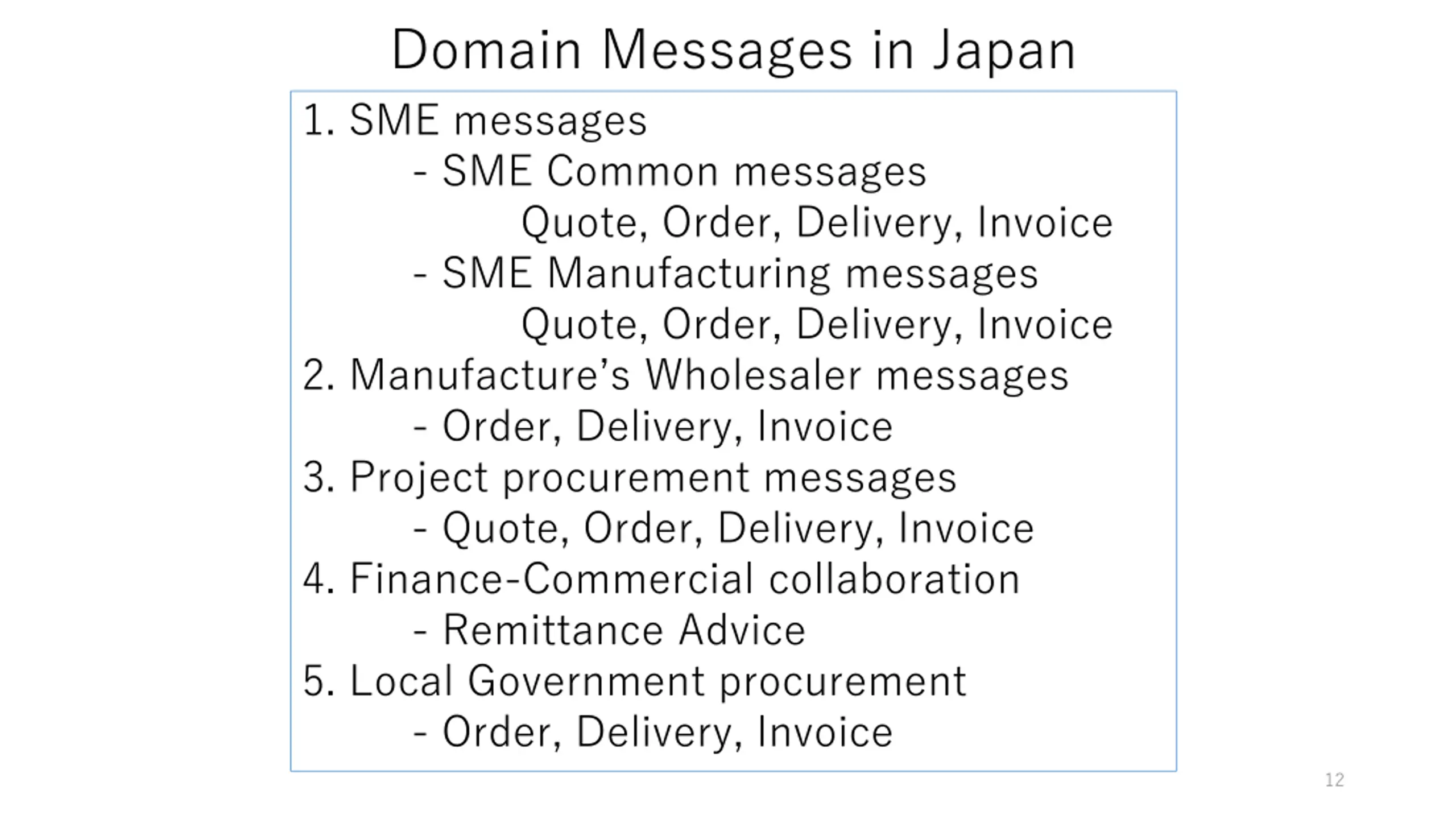

Domain Messages in Japan 1. SME messages - SME Common messages Quote, Order, Delivery, Invoice - SME Manufacturing messages Quote, Order, Delivery, Invoice 2. Manufacture s Wholesaler messages - Order, Delivery, Invoice 3. Project procurement messages - Quote, Order, Delivery, Invoice 4. Finance-Commercial collaboration - Remittance Advice 5. Local Government procurement - Order, Delivery, Invoice 12

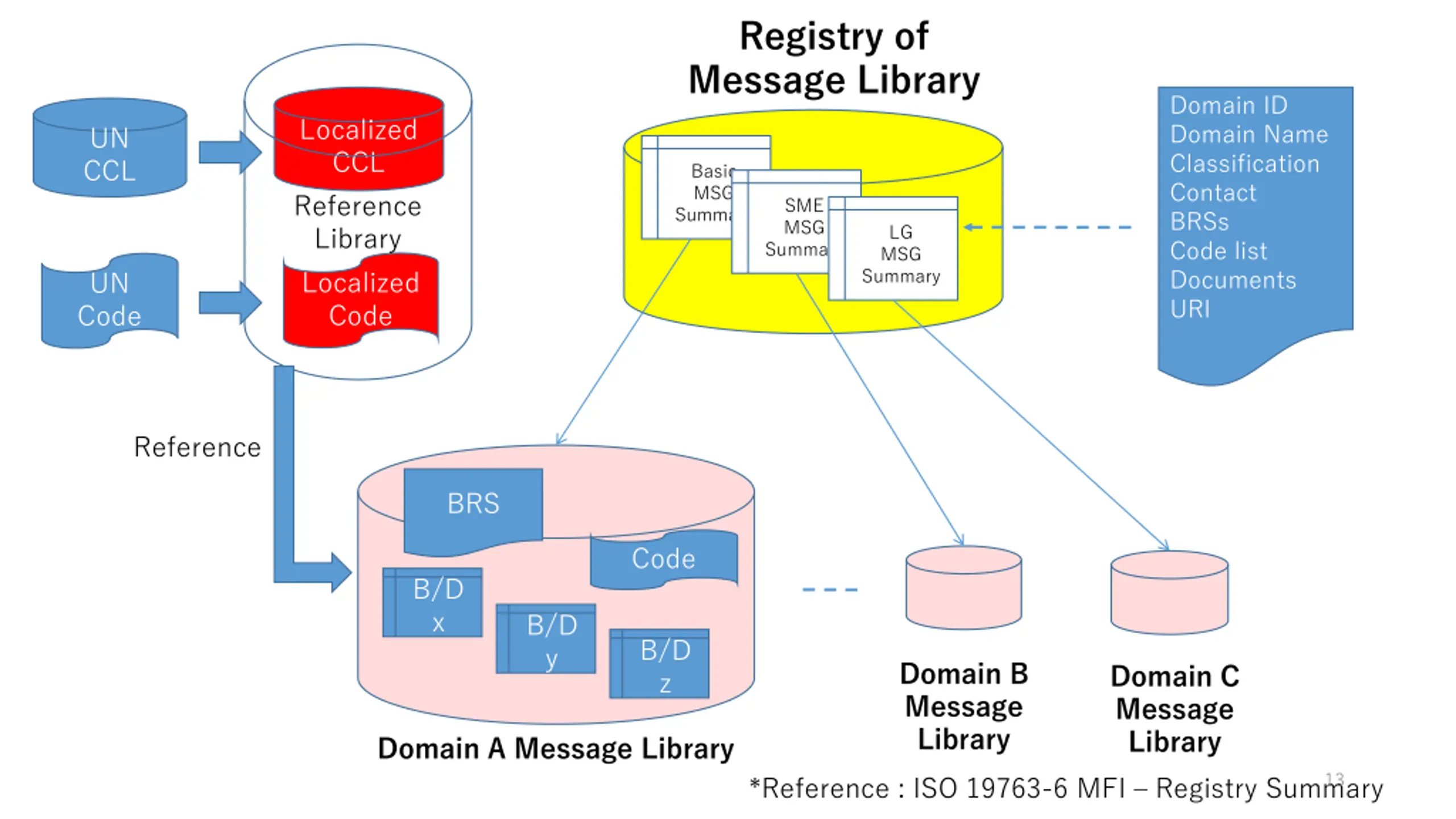

Registry of Message Library Domain ID Domain Name Classification Contact BRSs Code list Documents URI Localized CCL Reference Library UN CCL Basic MSG Summary SME MSG Summary LG MSG Summary Localized Code UN Code Reference BRS Code B/D x B/D y B/D z Domain B Message Library Domain C Message Library Domain A Message Library 13 *Reference : ISO 19763-6 MFI Registry Summary

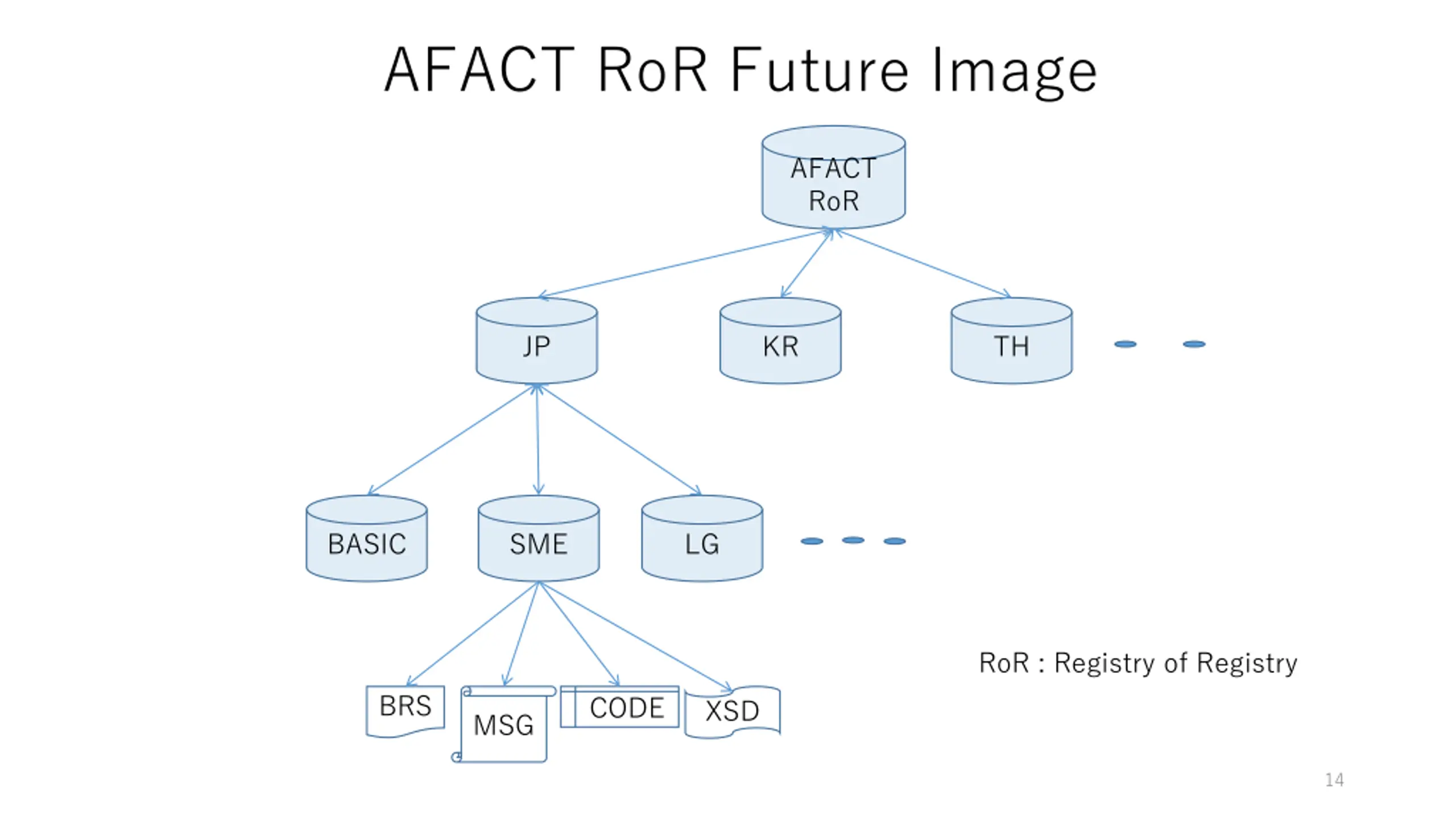

AFACT RoR Future Image AFACT RoR JP KR TH BASIC SME LG RoR : Registry of Registry BRS CODE XSD MSG 14

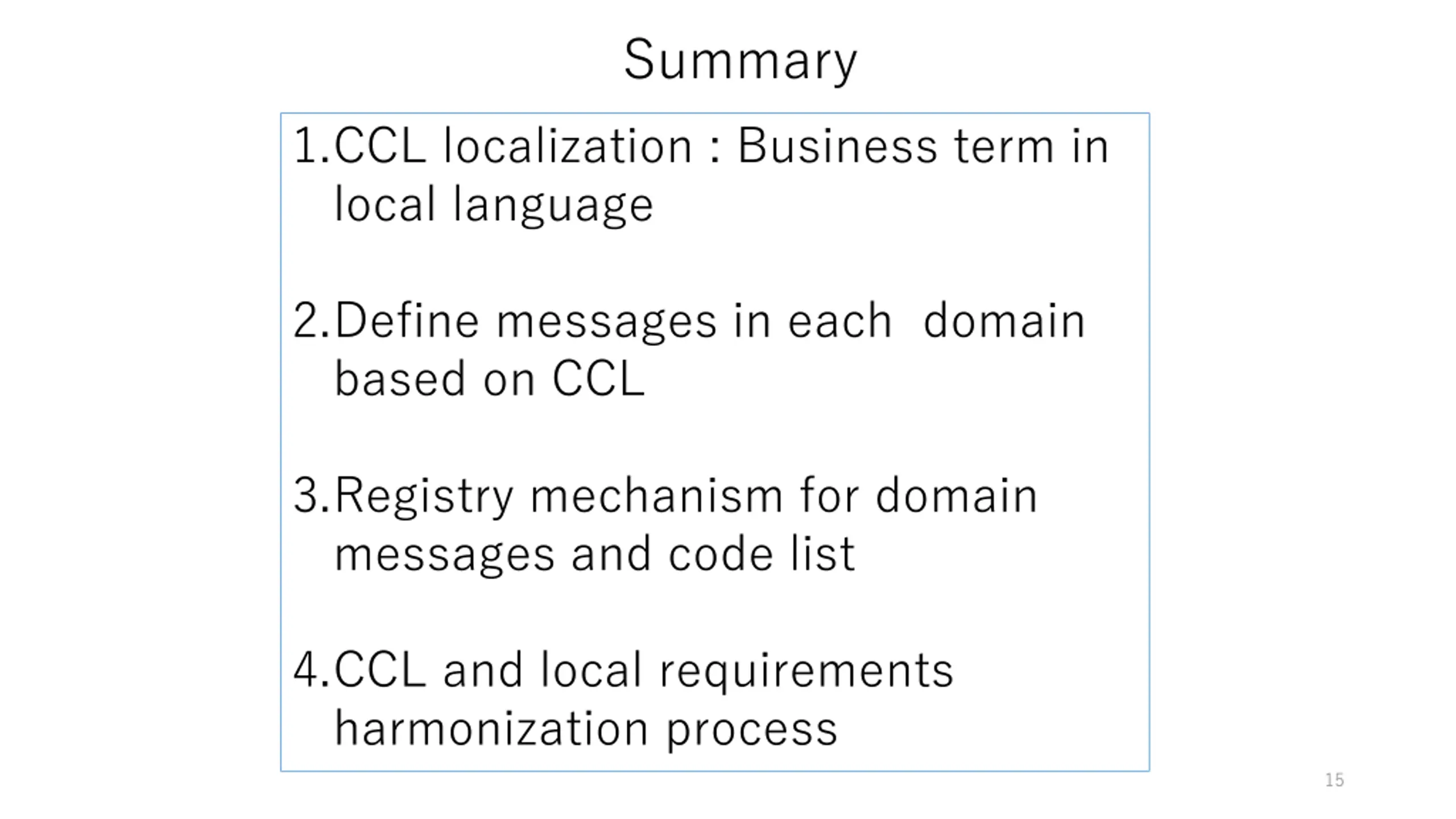

Summary 1.CCL localization : Business term in local language 2.Define messages in each domain based on CCL 3.Registry mechanism for domain messages and code list 4.CCL and local requirements harmonization process 15
