December 10-11, 2019 | Westford, MA Utilizing DPDK Virtual Devices in OVS Yinan Wang / Lei Yao Intel
DPDK Virtual Devices Introduction Virtual Devices for Exceptional Path - TAP - KNI - Virtio-user Virtual Devices Based on NIC in Kernel - PCAP - AF_PACKET - AF_XDP

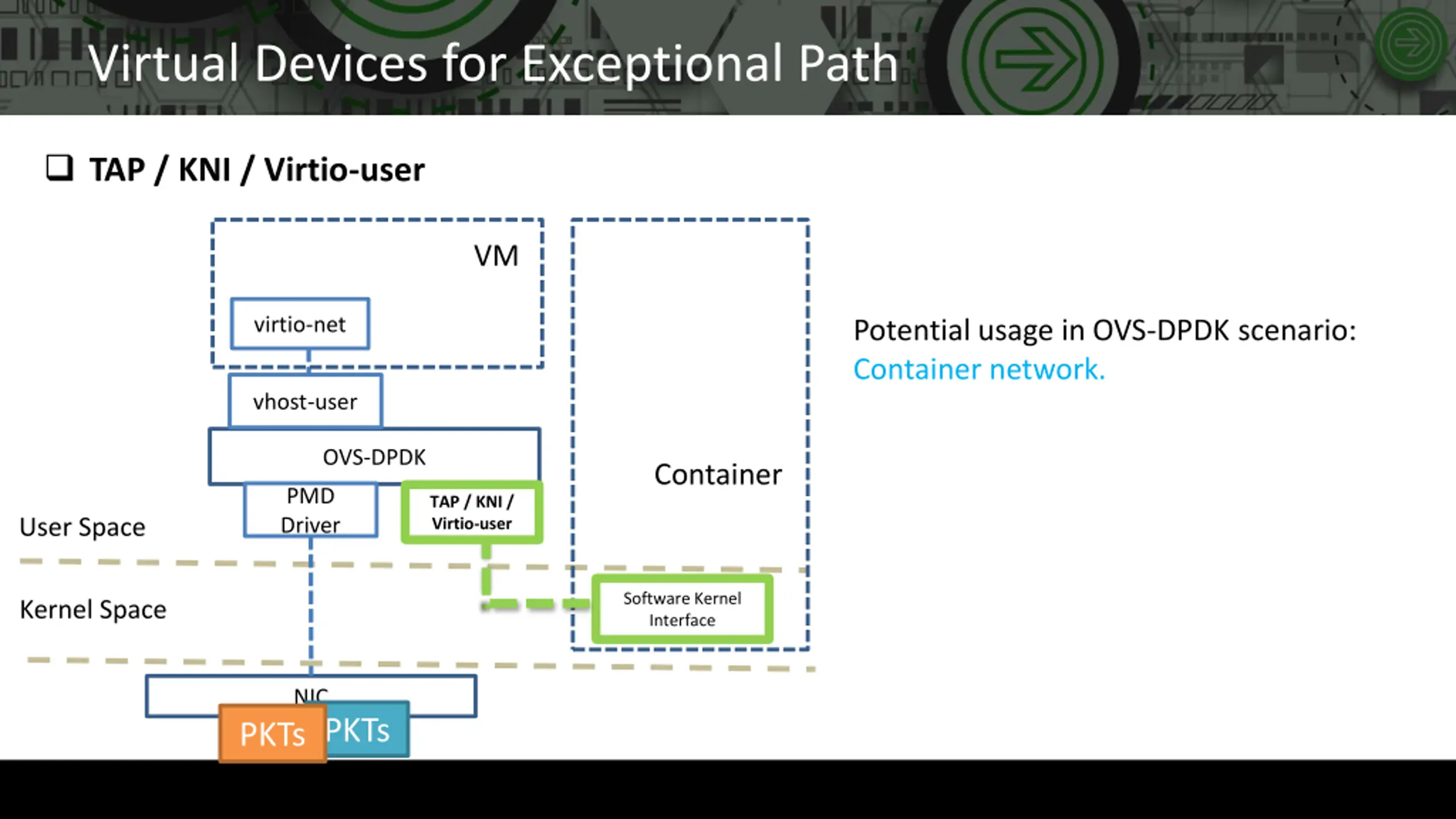

Virtual Devices for Exceptional Path TAP / KNI / Virtio-user VM virtio-net Potential usage in OVS-DPDK scenario: Container network. vhost-user OVS-DPDK Container PMD Driver TAP / KNI / Virtio-user User Space Software Kernel Interface Kernel Space NIC PKTs PKTs

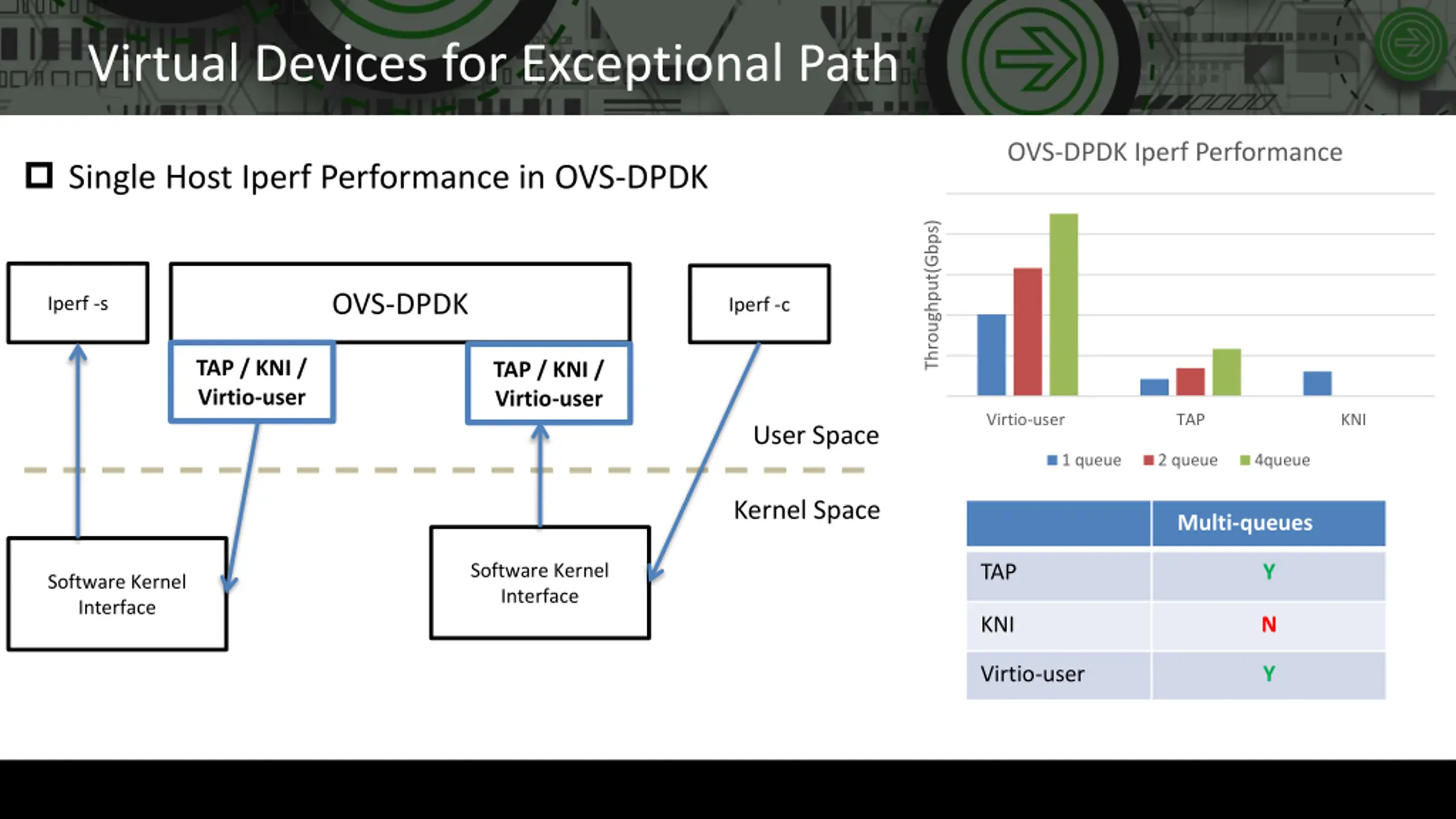

Virtual Devices for Exceptional Path OVS-DPDK Iperf Performance Single Host Iperf Performance in OVS-DPDK Throughput(Gbps) OVS-DPDK Iperf -s Iperf -c TAP / KNI / Virtio-user TAP / KNI / Virtio-user Virtio-user TAP KNI User Space 1 queue 2 queue 4queue Kernel Space Multi-queues Software Kernel Interface TAP Y Software Kernel Interface KNI N Virtio-user Y

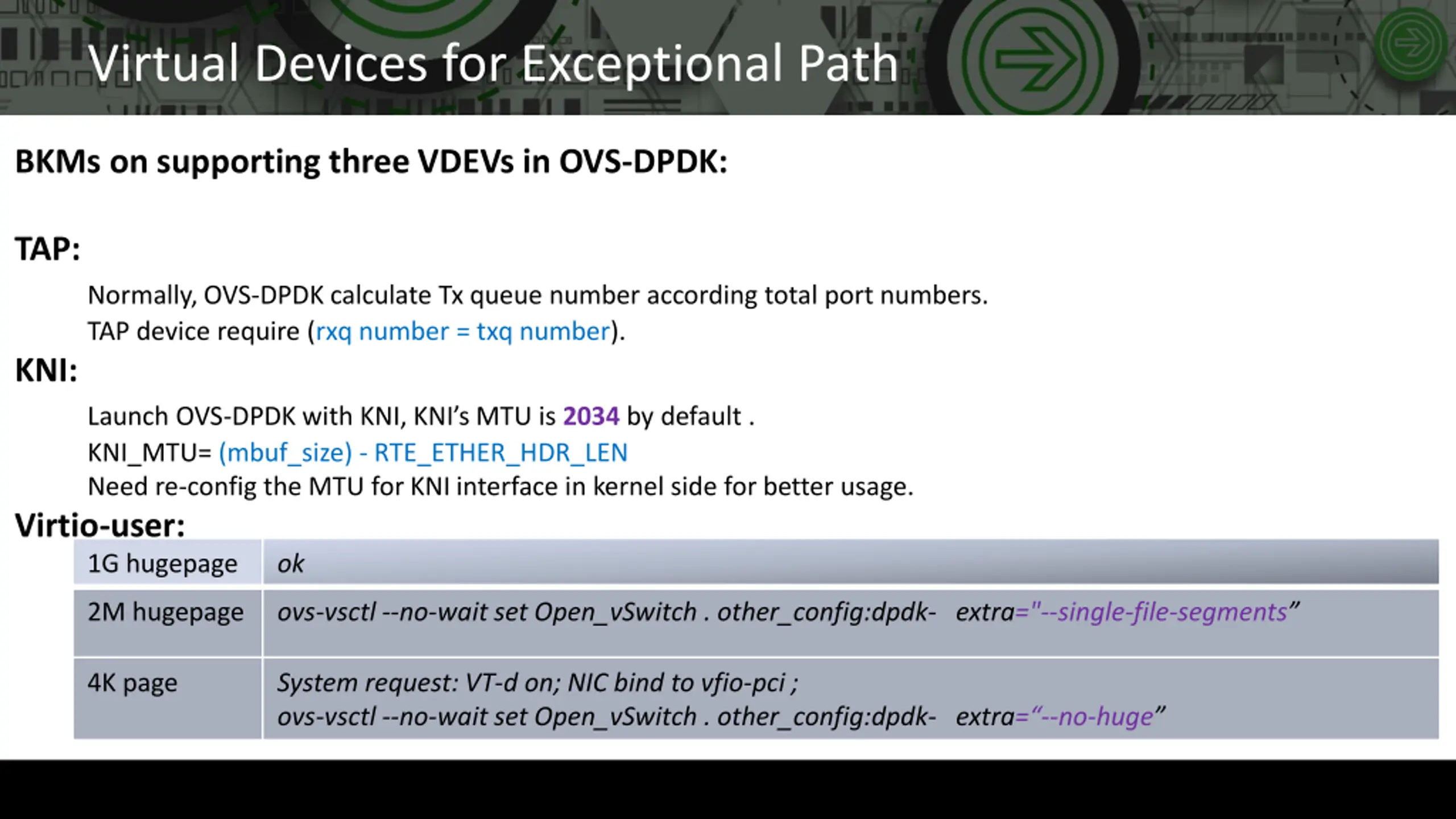

Virtual Devices for Exceptional Path BKMs on supporting three VDEVs in OVS-DPDK: TAP: KNI: Virtio-user: 1G hugepage 2M hugepage Normally, OVS-DPDK calculate Tx queue number according total port numbers. TAP device require (rxq number = txq number). Launch OVS-DPDK with KNI, KNI s MTU is 2034 by default . KNI_MTU= (mbuf_size) - RTE_ETHER_HDR_LEN Need re-config the MTU for KNI interface in kernel side for better usage. ok ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk- extra="--single-file-segments 4K page System request: VT-d on; NIC bind to vfio-pci ; ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk- extra= --no-huge

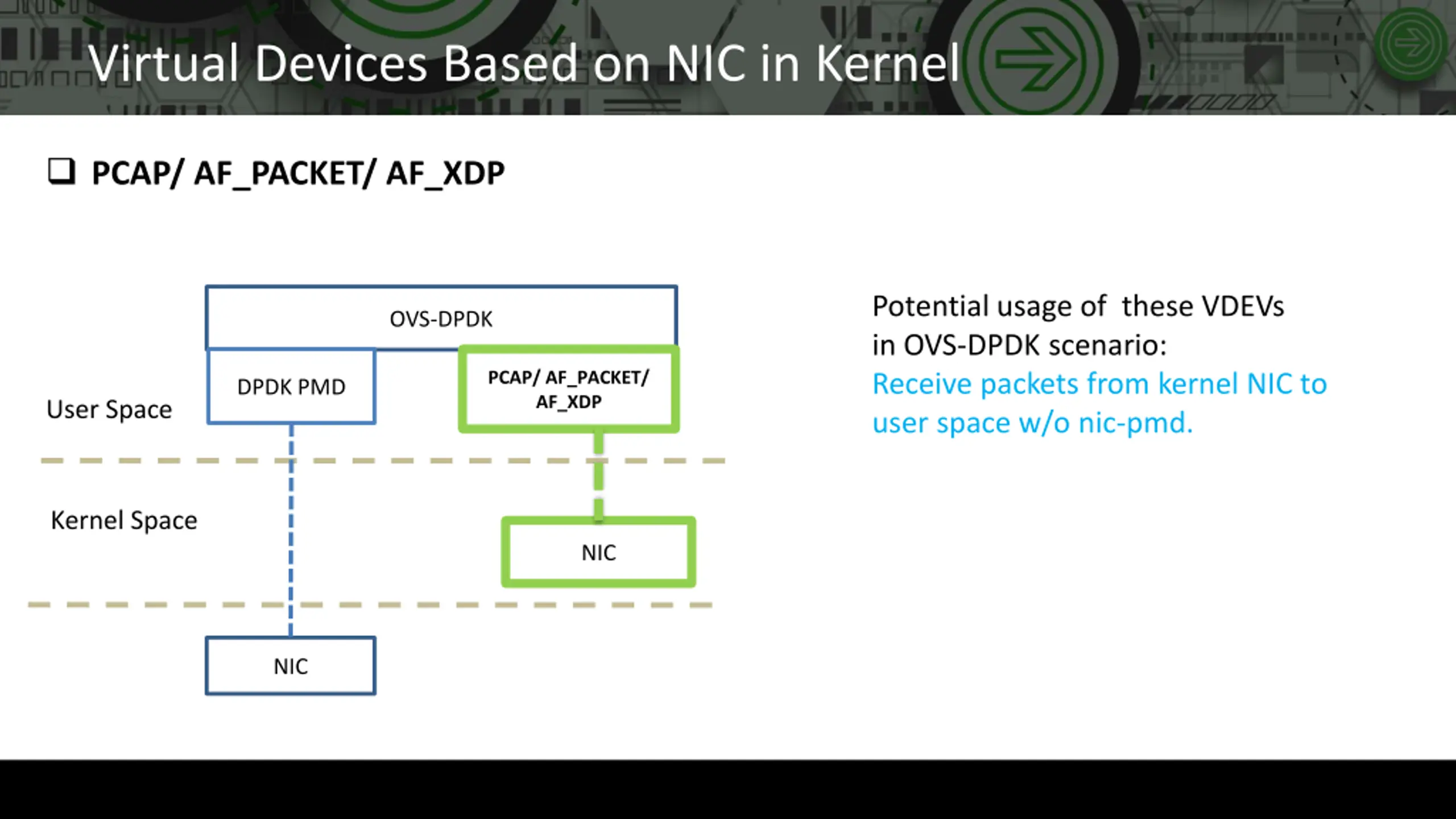

Virtual Devices Based on NIC in Kernel PCAP/ AF_PACKET/ AF_XDP Potential usage of these VDEVs in OVS-DPDK scenario: Receive packets from kernel NIC to user space w/o nic-pmd. OVS-DPDK PCAP/ AF_PACKET/ AF_XDP DPDK PMD User Space Kernel Space NIC NIC

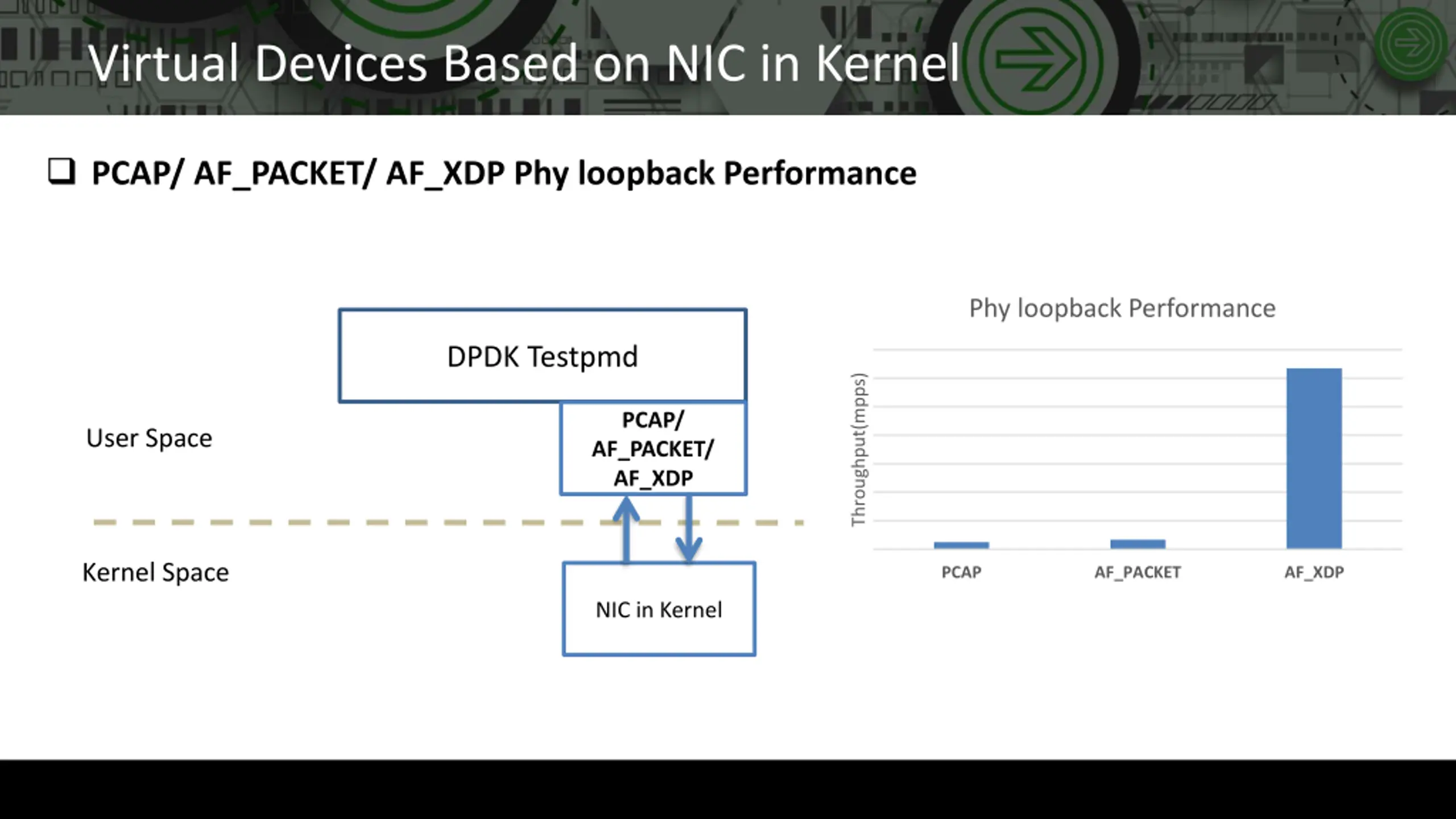

Virtual Devices Based on NIC in Kernel PCAP/ AF_PACKET/ AF_XDP Phy loopback Performance Phy loopback Performance DPDK Testpmd Throughput(mpps) PCAP/ AF_PACKET/ AF_XDP User Space Kernel Space PCAP AF_PACKET AF_XDP NIC in Kernel

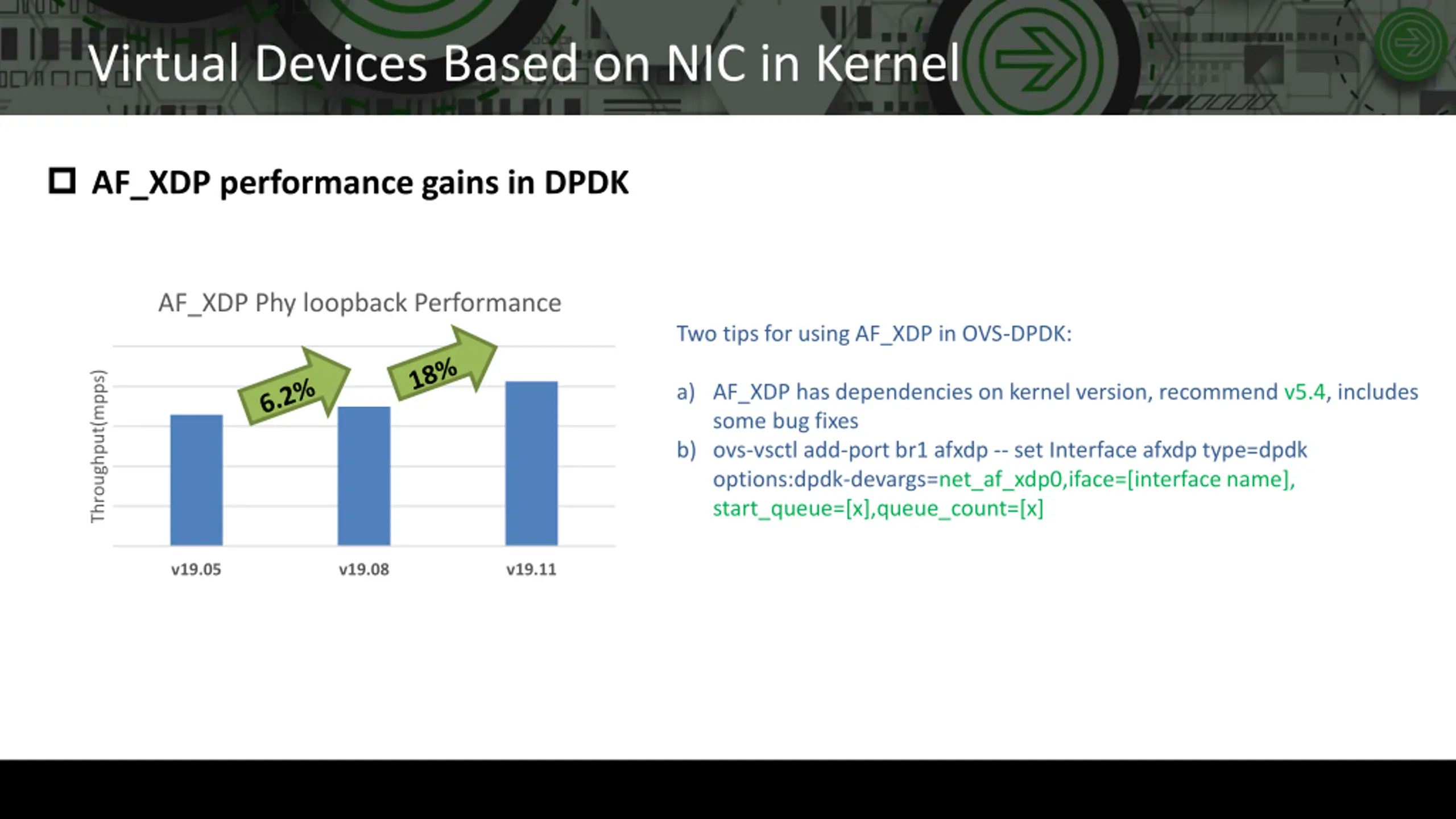

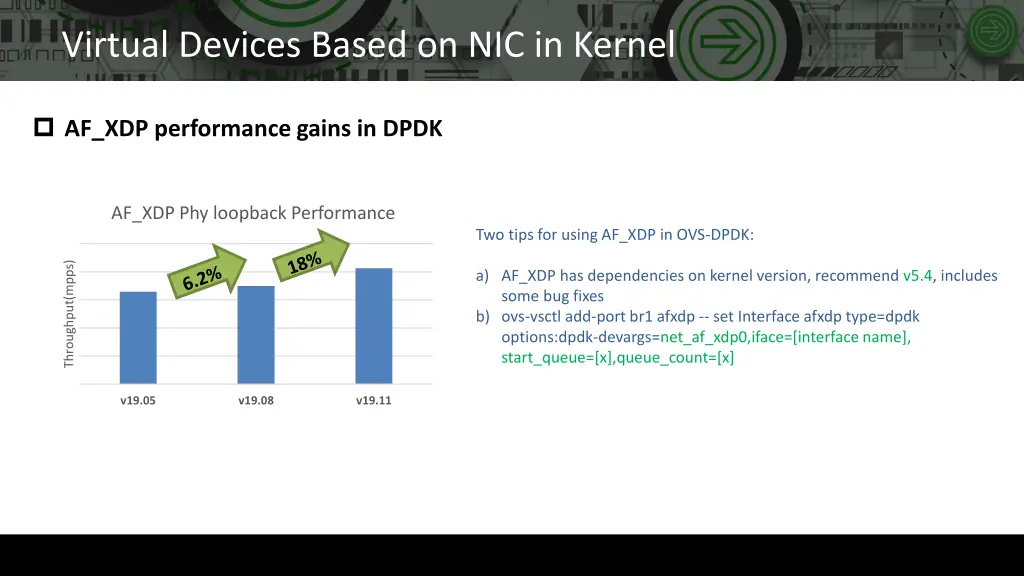

Virtual Devices Based on NIC in Kernel AF_XDP performance gains in DPDK AF_XDP Phy loopback Performance Two tips for using AF_XDP in OVS-DPDK: Throughput(mpps) a) AF_XDP has dependencies on kernel version, recommend v5.4, includes some bug fixes b) ovs-vsctl add-port br1 afxdp -- set Interface afxdp type=dpdk options:dpdk-devargs=net_af_xdp0,iface=[interface name], start_queue=[x],queue_count=[x] v19.05 v19.08 v19.11
