UV Output Comparison with and without Reflectors for Various Distances and Surfaces
This content discusses the UV output measurements with and without reflectors at different distances from the surface for various coverage areas. It provides detailed information on the fixture outputs, light distribution patterns, and comparisons between different scenarios. The data presented includes measurements for Horner UV light, fixture outputs, and ETG-WLL series for different reflector configurations. The content also includes visual representations of light distribution patterns for better understanding.
Uploaded on | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

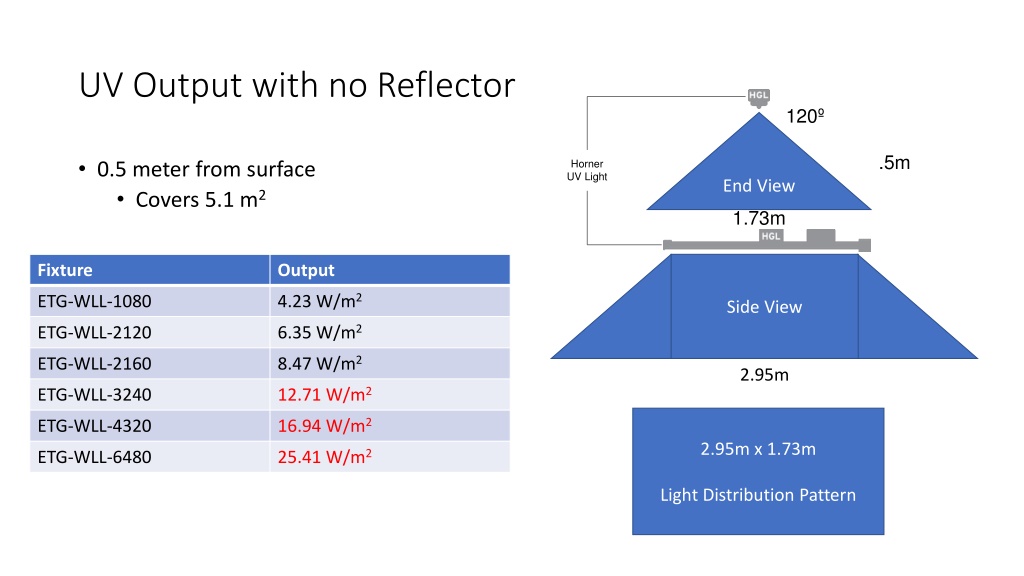

UV Output with no Reflector 120 .5m 0.5 meter from surface Covers 5.1 m2 Horner UV Light End View 1.73m Fixture Output 4.23 W/m2 ETG-WLL-1080 Side View 6.35 W/m2 ETG-WLL-2120 8.47 W/m2 ETG-WLL-2160 2.95m 12.71 W/m2 ETG-WLL-3240 16.94 W/m2 ETG-WLL-4320 2.95m x 1.73m 25.41 W/m2 ETG-WLL-6480 Light Distribution Pattern

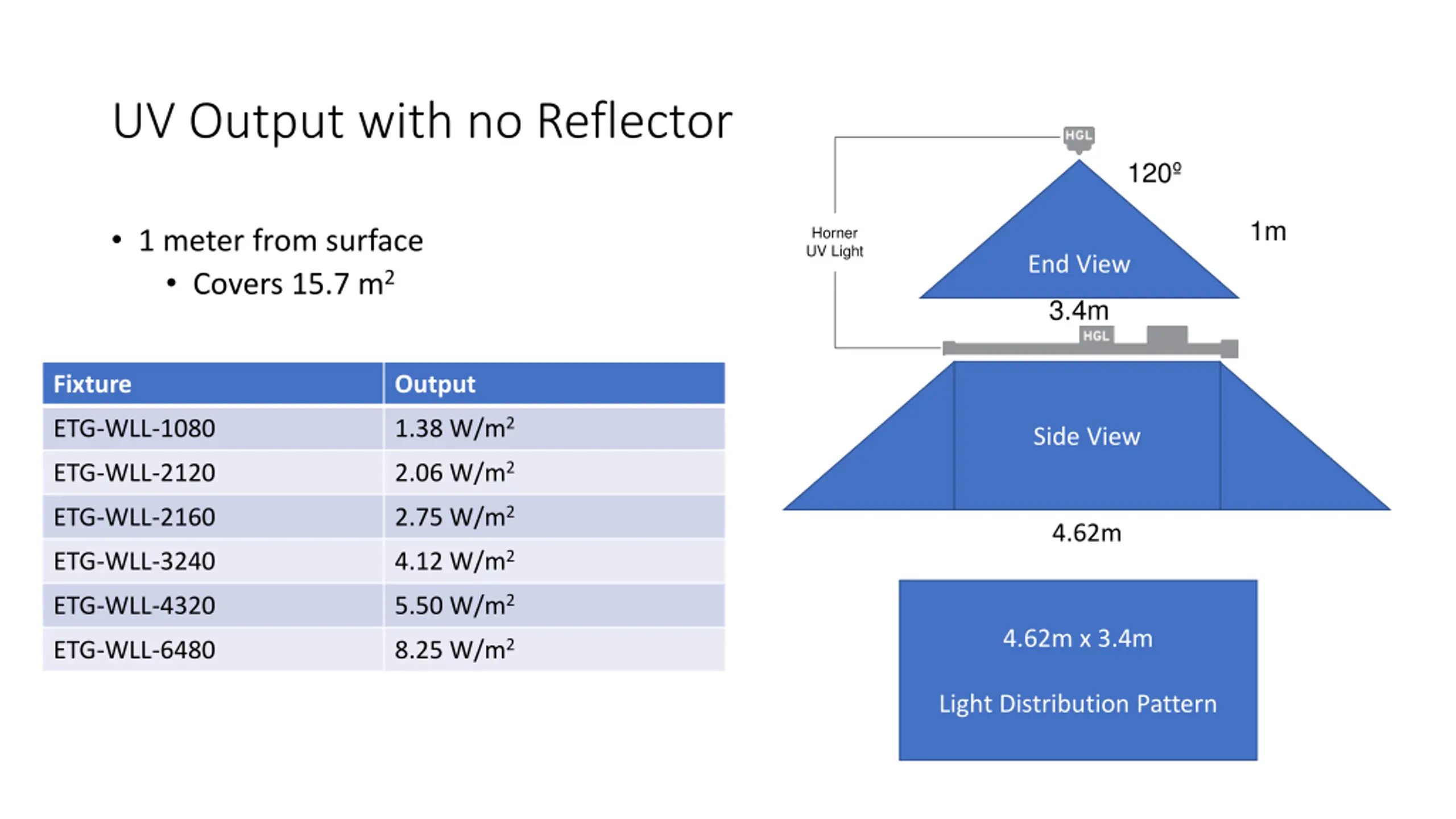

UV Output with no Reflector 120 1m 1 meter from surface Covers 15.7 m2 Horner UV Light End View 3.4m Fixture Output 1.38 W/m2 ETG-WLL-1080 Side View 2.06 W/m2 ETG-WLL-2120 2.75 W/m2 ETG-WLL-2160 4.62m 4.12 W/m2 ETG-WLL-3240 5.50 W/m2 ETG-WLL-4320 4.62m x 3.4m 8.25 W/m2 ETG-WLL-6480 Light Distribution Pattern

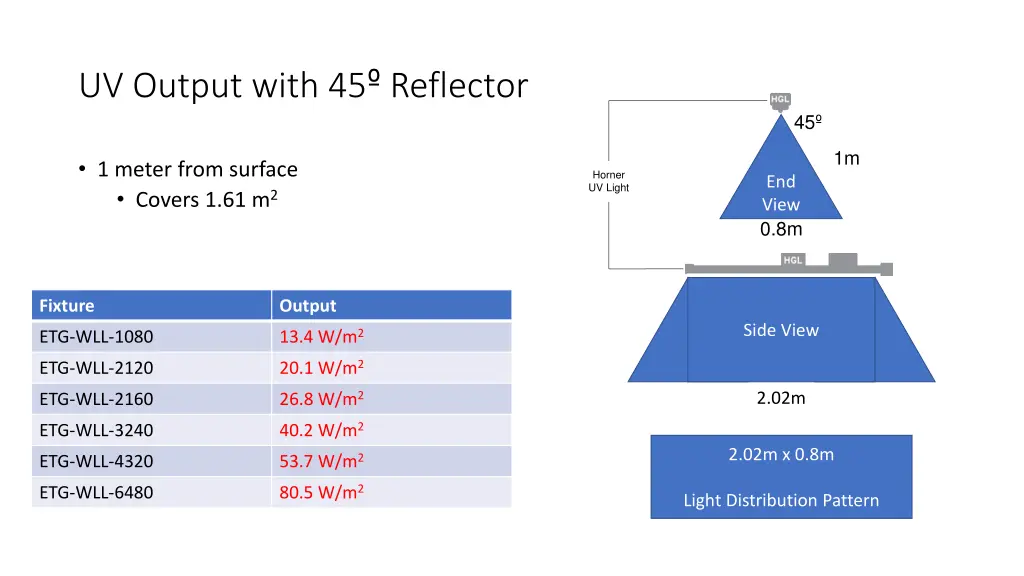

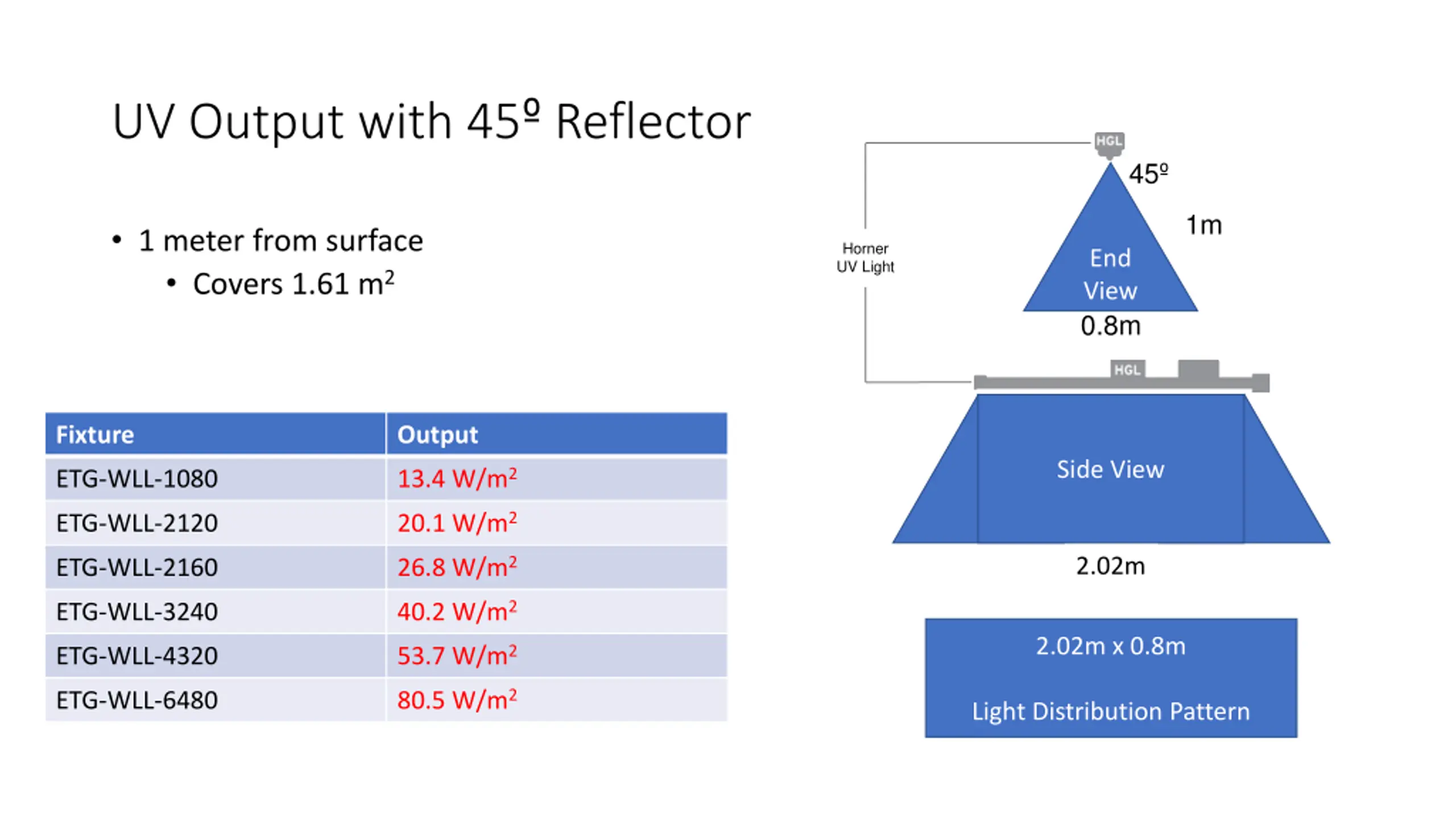

UV Output with 45 Reflector 45 1m 1 meter from surface Covers 1.61 m2 Horner UV Light End View 0.8m Fixture Output Side View 13.4 W/m2 ETG-WLL-1080 20.1 W/m2 ETG-WLL-2120 2.02m 26.8 W/m2 ETG-WLL-2160 40.2 W/m2 ETG-WLL-3240 2.02m x 0.8m 53.7 W/m2 ETG-WLL-4320 80.5 W/m2 ETG-WLL-6480 Light Distribution Pattern
UV Output with 45 Reflector 45 2m 2 meter from surface Covers 11.35 m2 Horner UV Light End View 1.64m Fixture Output Side View 1.90 W/m2 ETG-WLL-1080 2.85 W/m2 ETG-WLL-2120 6.92m 3.73 W/m2 ETG-WLL-2160 5.71 W/m2 ETG-WLL-3240 6.92m x 1.64m 7.35 W/m2 ETG-WLL-4320 11.41 W/m2 ETG-WLL-6480 Light Distribution Pattern
