VERSION CONTROL USING SVN AND GIT WITH UNITY AND SDK

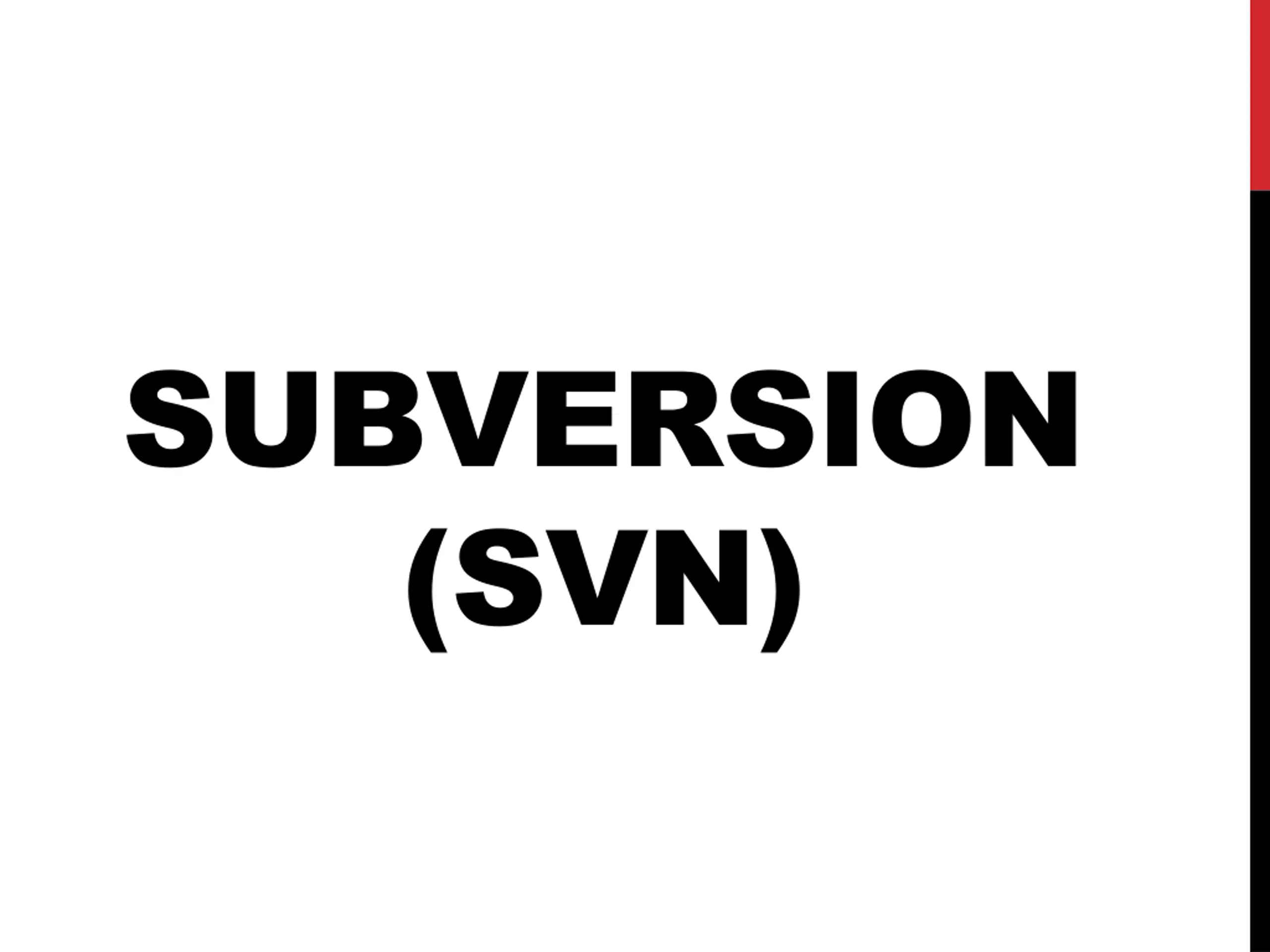

SUBVERSION (SVN)

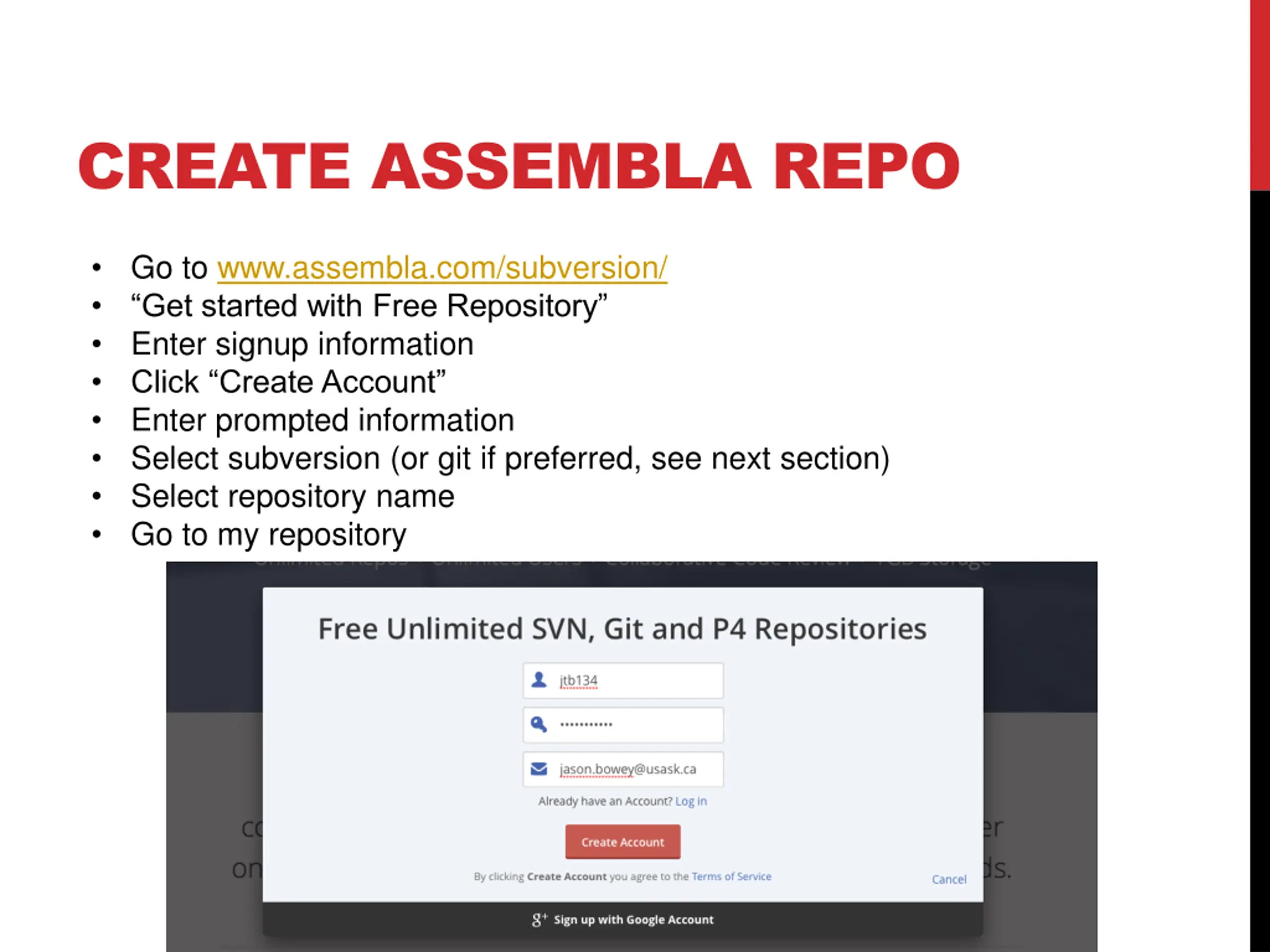

CREATE ASSEMBLA REPO Go to www.assembla.com/subversion/ Get started with Free Repository Enter signup information Click Create Account Enter prompted information Select subversion (or git if preferred, see next section) Select repository name Go to my repository

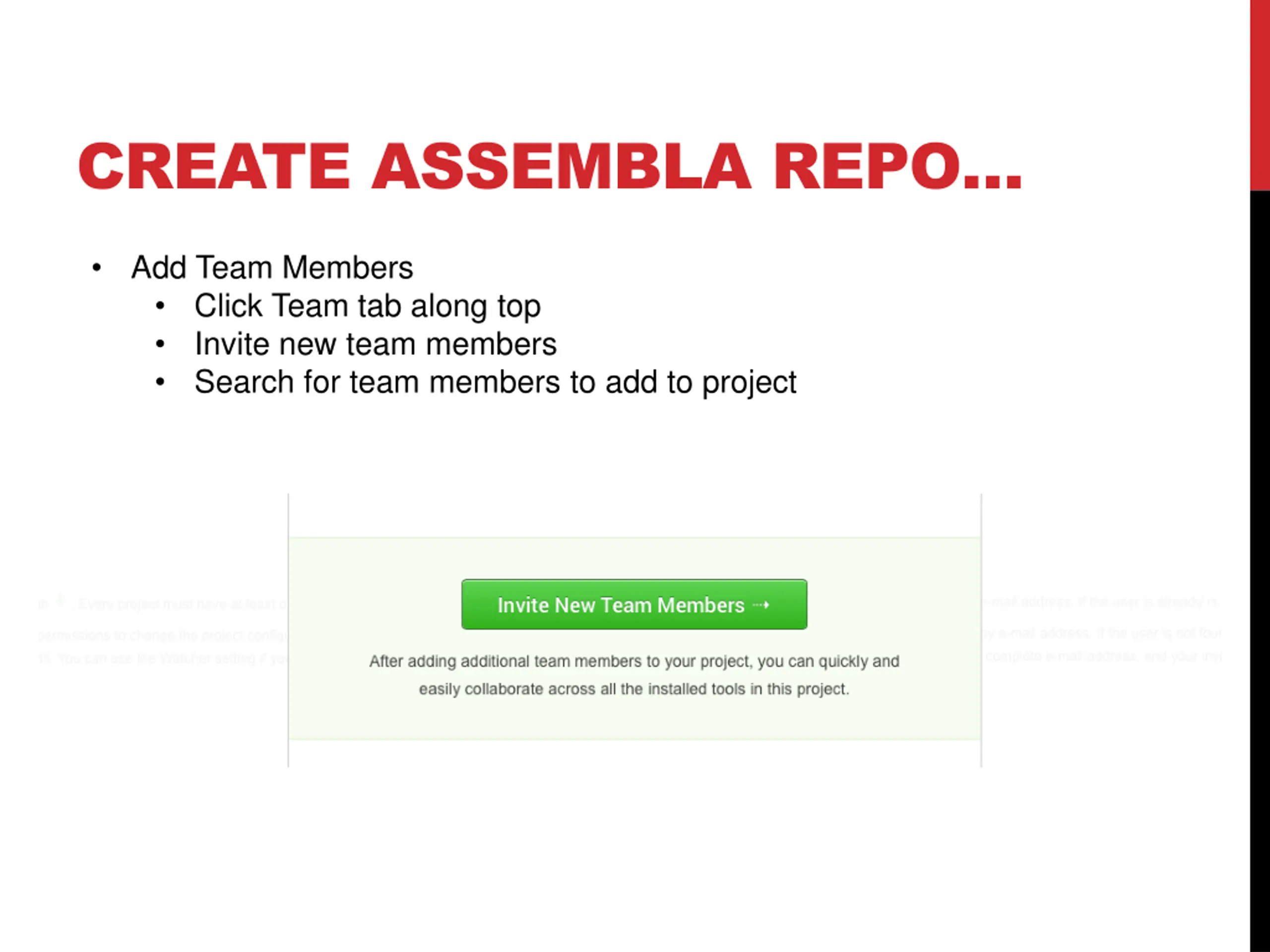

CREATE ASSEMBLA REPO Add Team Members Click Team tab along top Invite new team members Search for team members to add to project

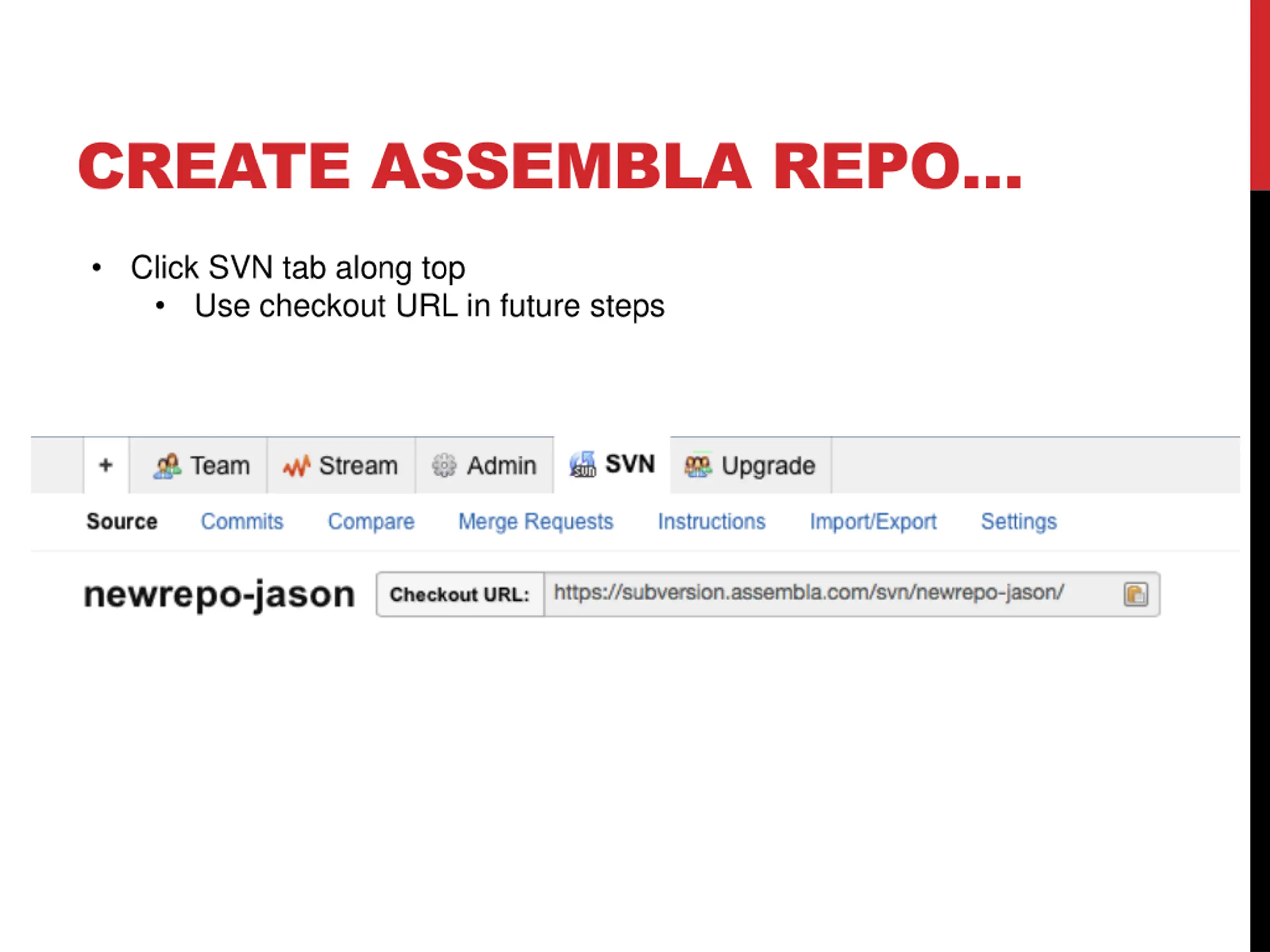

CREATE ASSEMBLA REPO Click SVN tab along top Use checkout URL in future steps

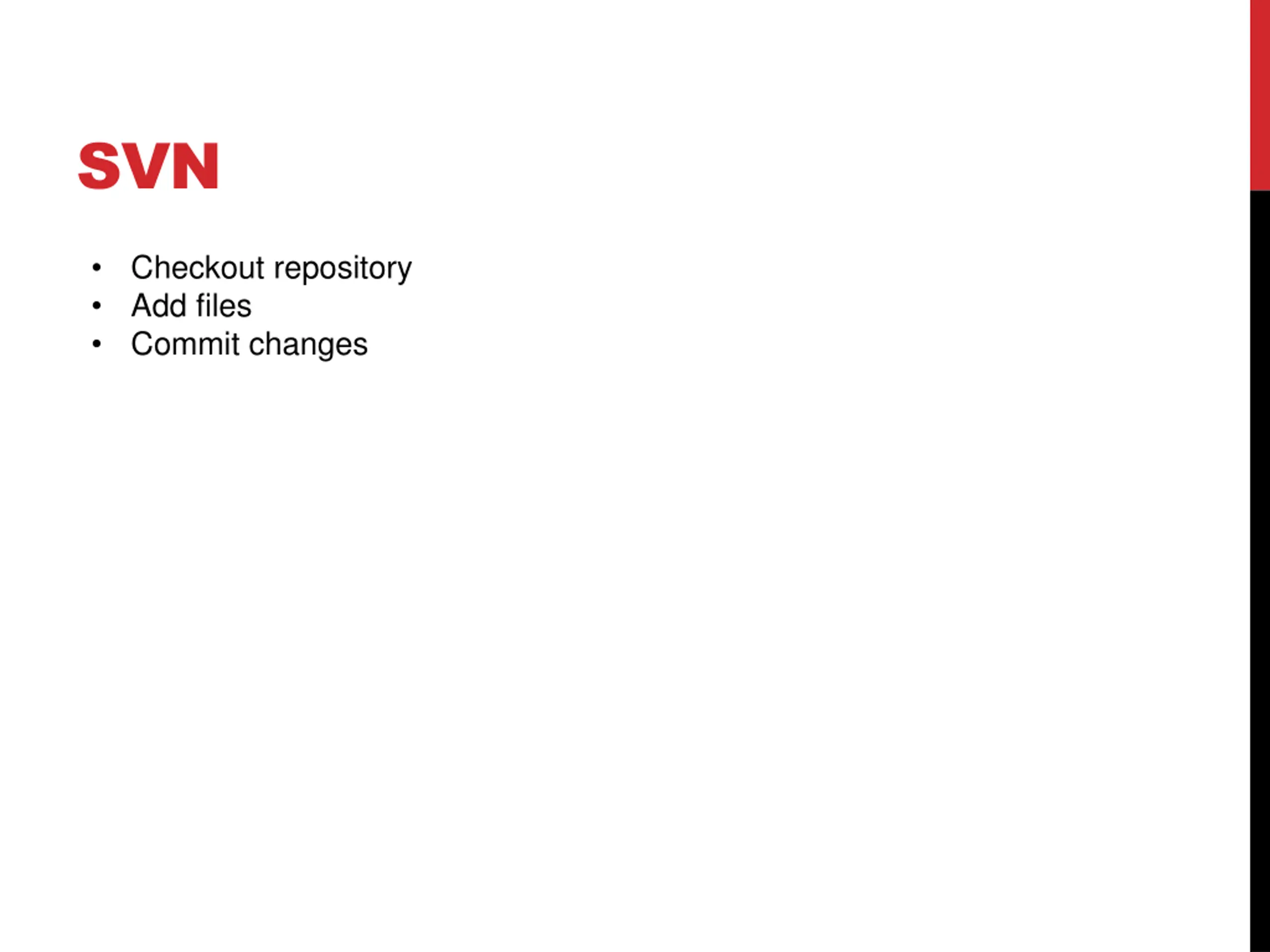

SVN Checkout repository Add files Commit changes

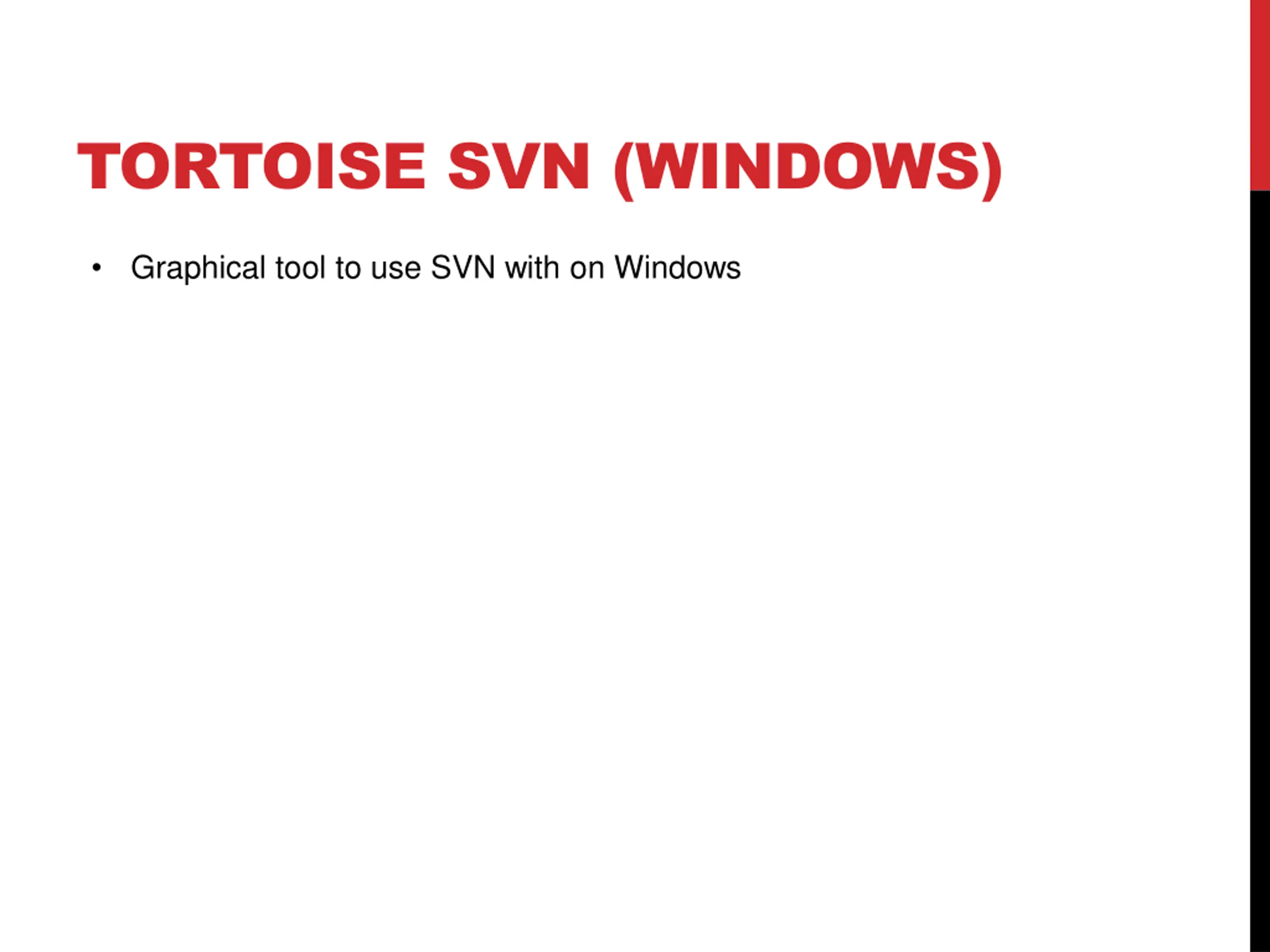

TORTOISE SVN (WINDOWS) Graphical tool to use SVN with on Windows

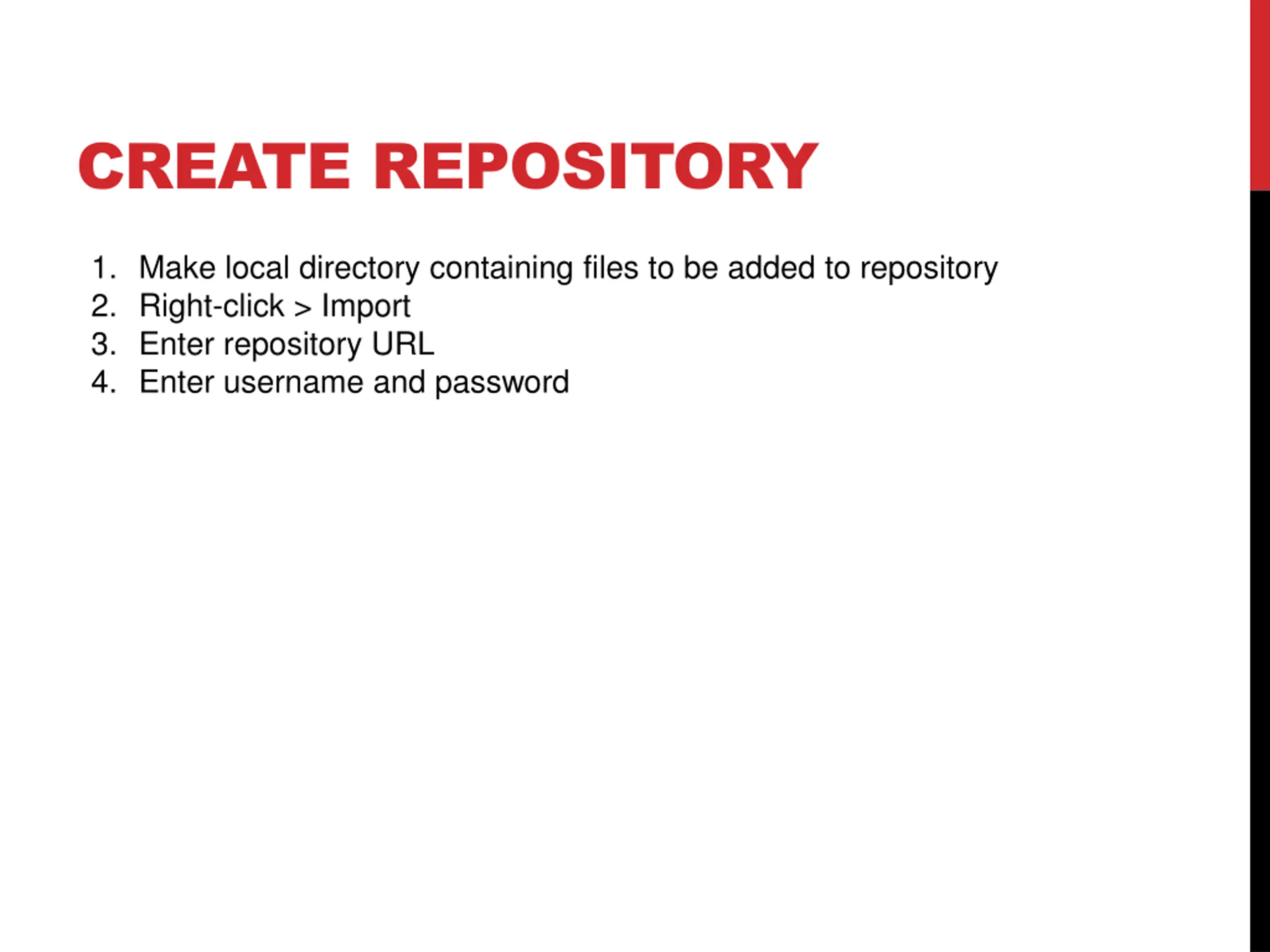

CREATE REPOSITORY 1. Make local directory containing files to be added to repository 2. Right-click > Import 3. Enter repository URL 4. Enter username and password

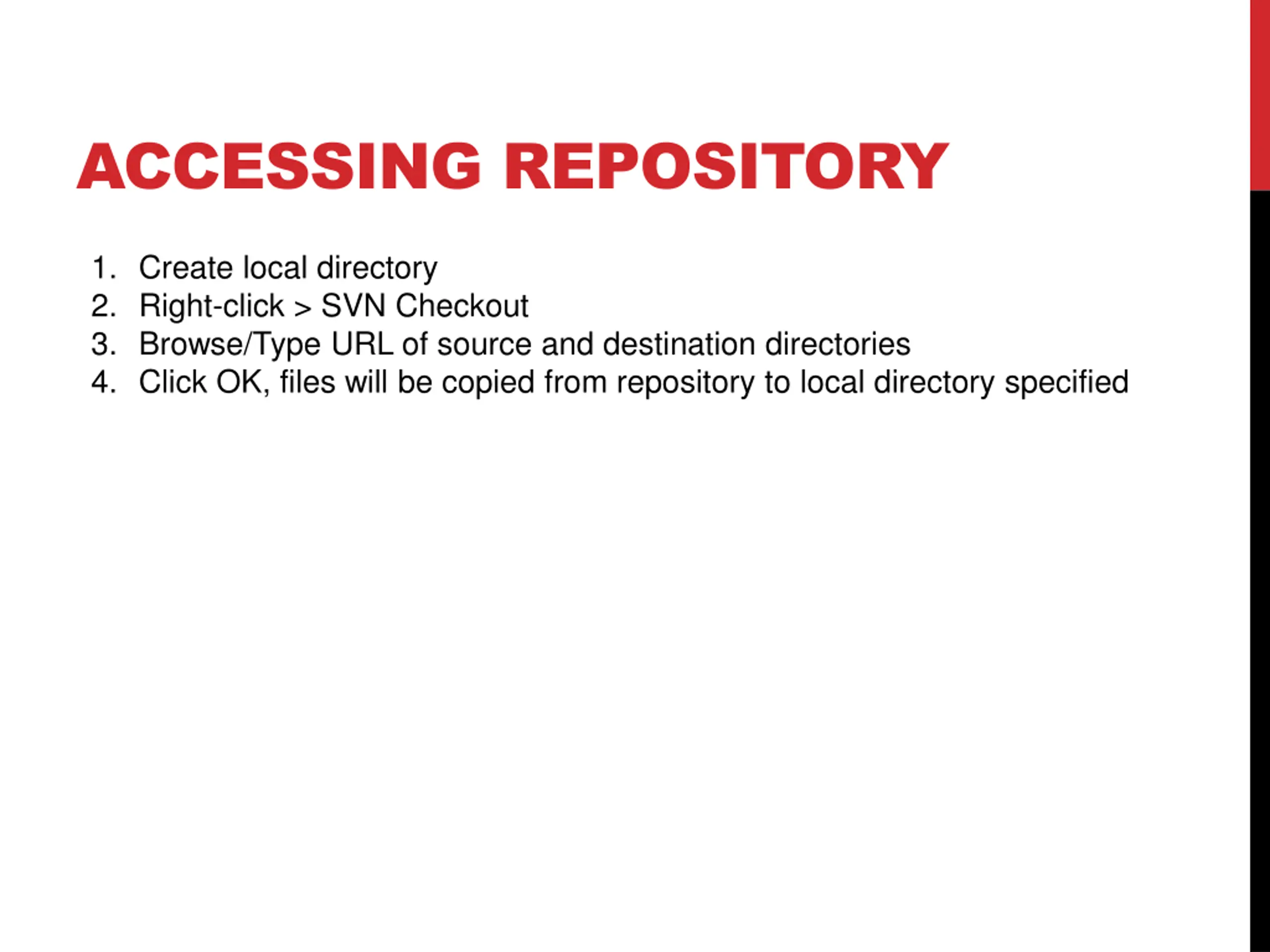

ACCESSING REPOSITORY 1. Create local directory 2. Right-click > SVN Checkout 3. Browse/Type URL of source and destination directories 4. Click OK, files will be copied from repository to local directory specified

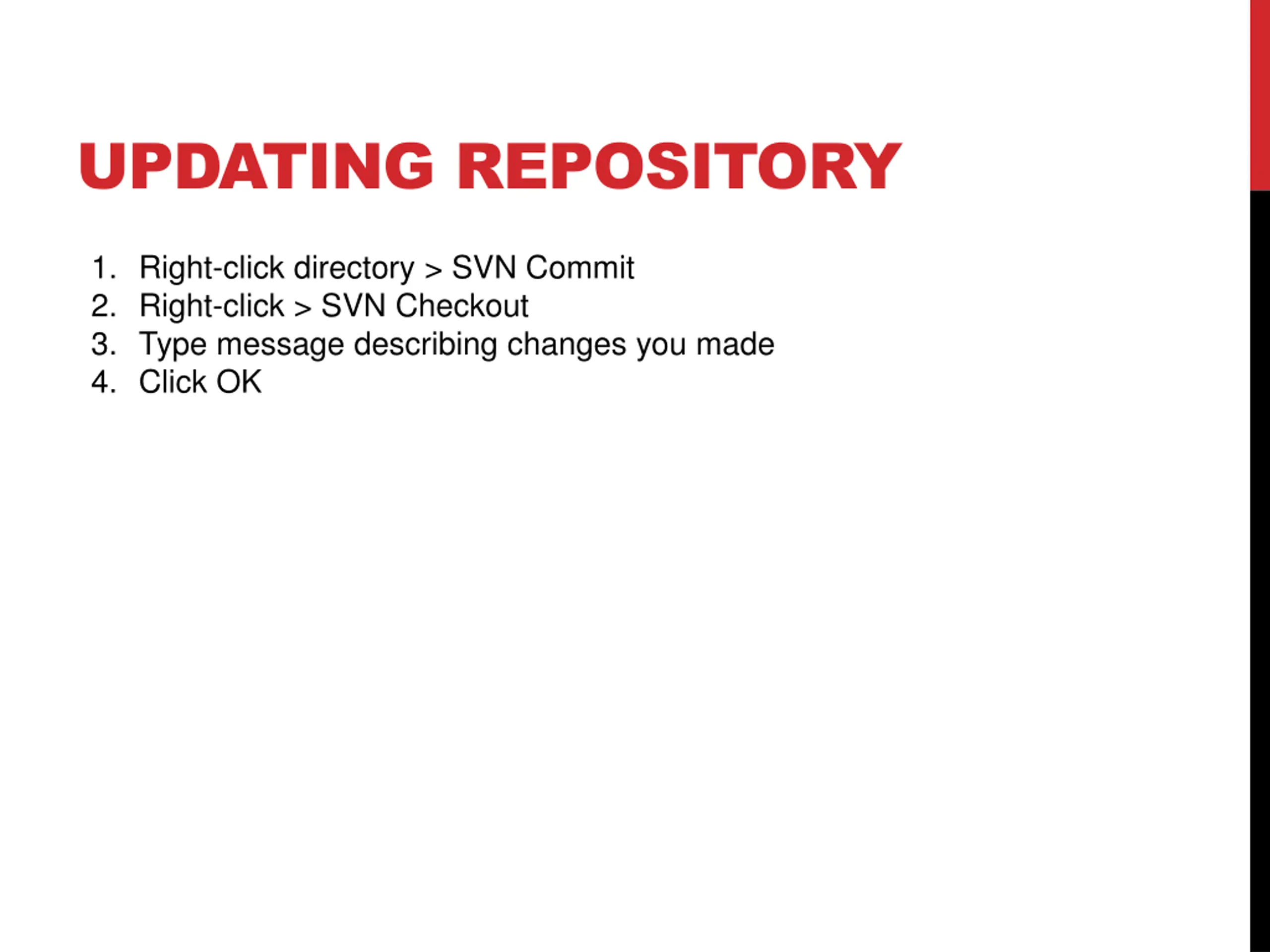

UPDATING REPOSITORY 1. Right-click directory > SVN Commit 2. Right-click > SVN Checkout 3. Type message describing changes you made 4. Click OK

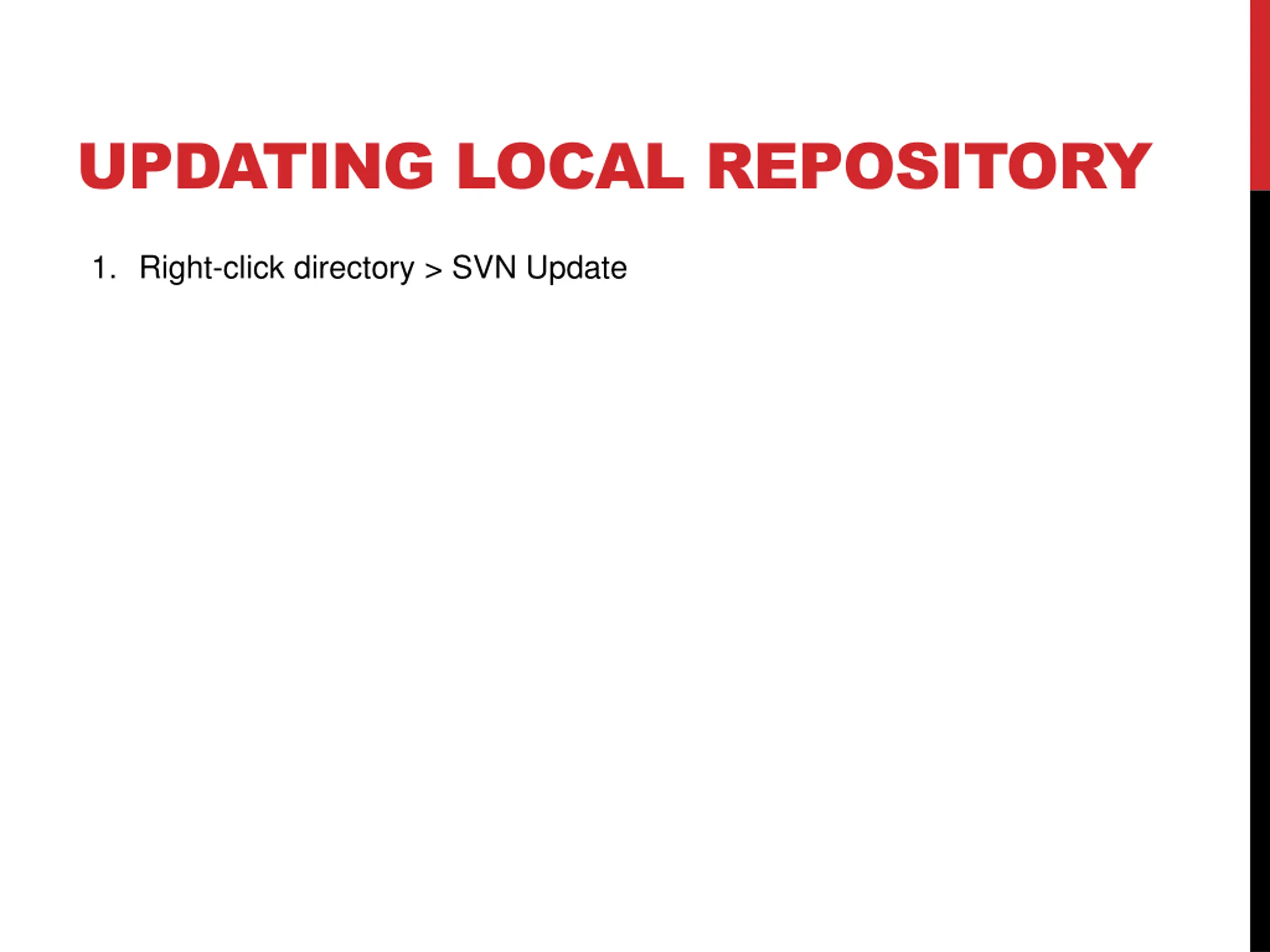

UPDATING LOCAL REPOSITORY 1. Right-click directory > SVN Update

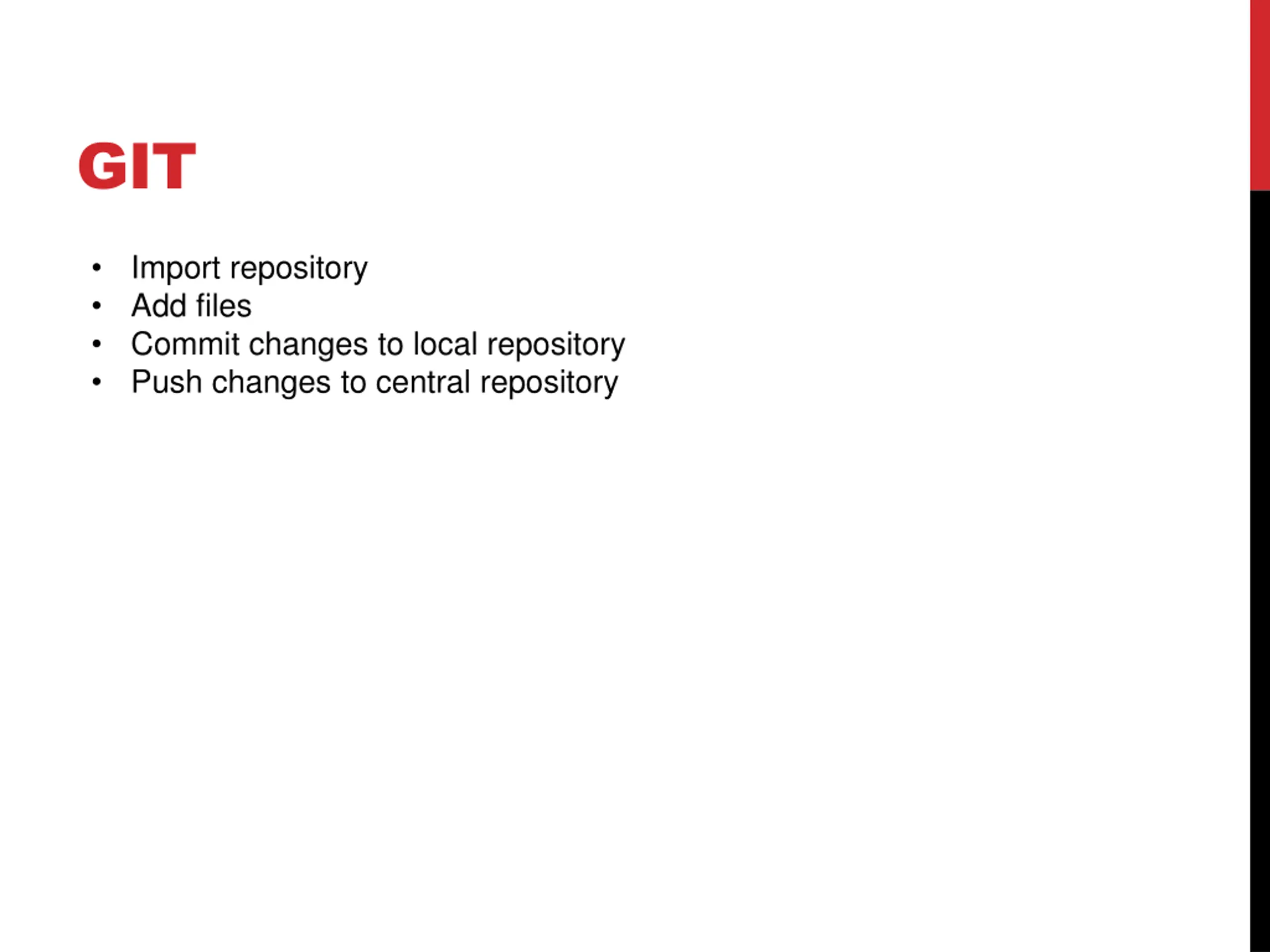

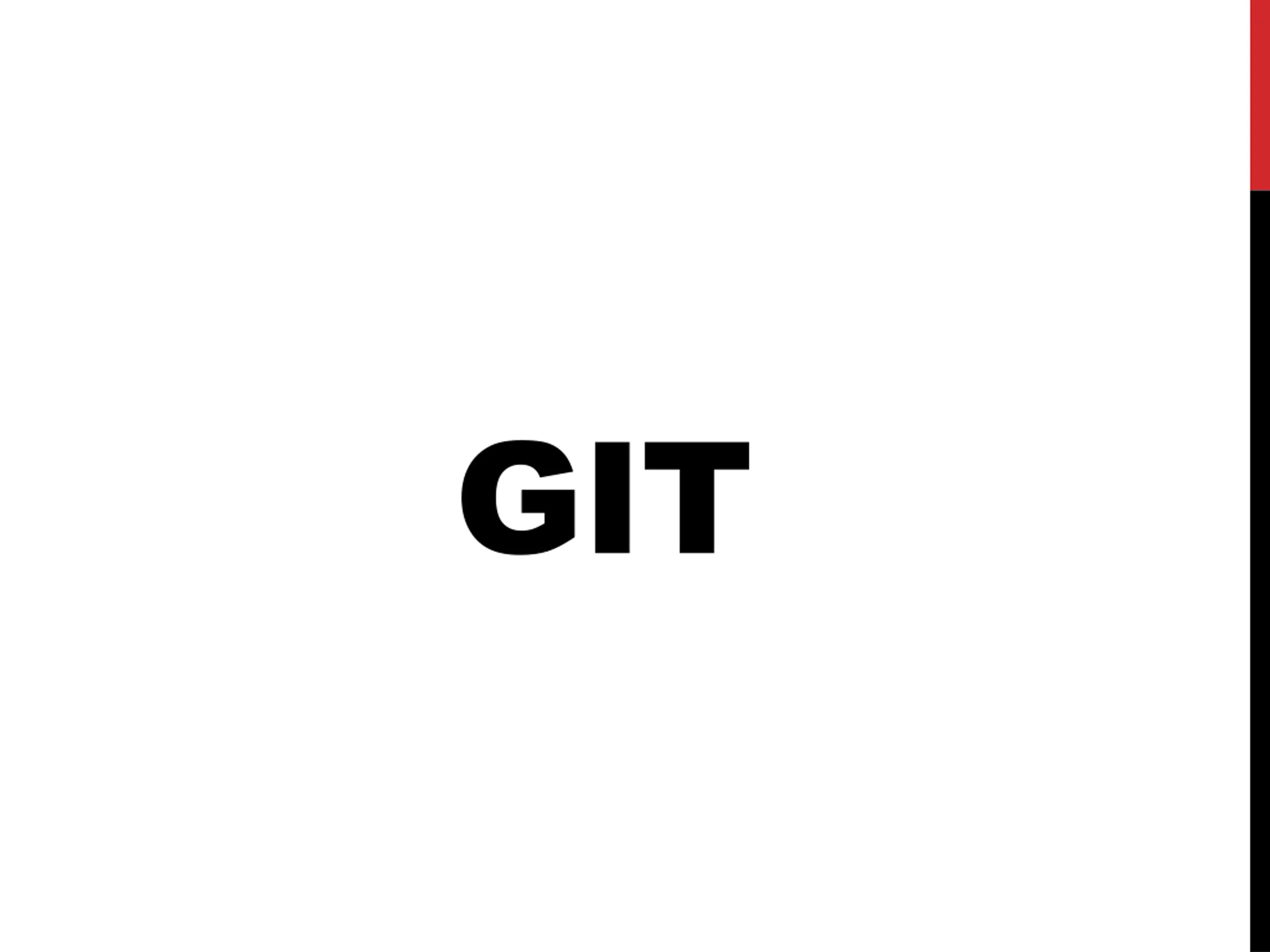

GIT Import repository Add files Commit changes to local repository Push changes to central repository

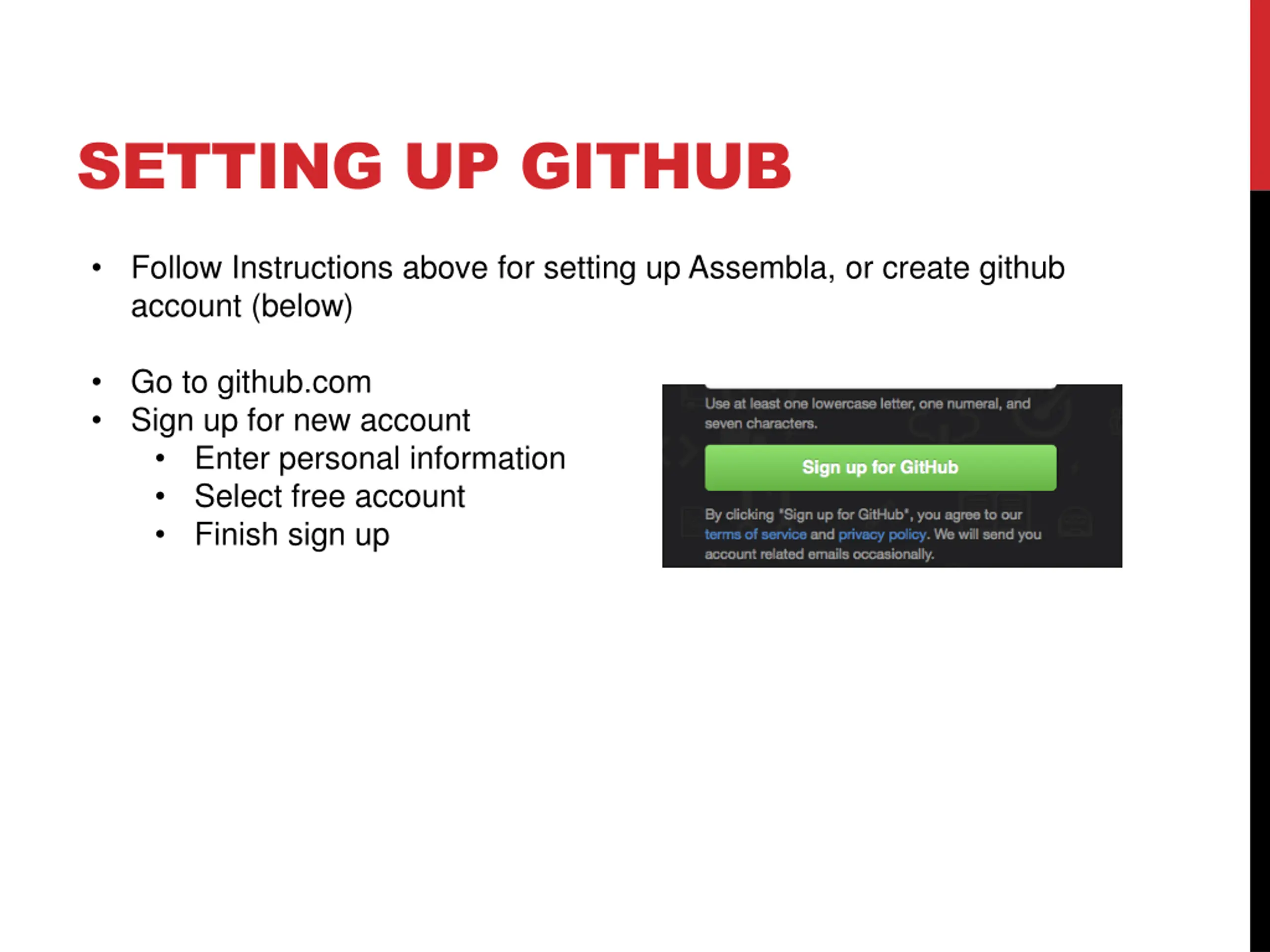

SETTING UP GITHUB Follow Instructions above for setting up Assembla, or create github account (below) Go to github.com Sign up for new account Enter personal information Select free account Finish sign up

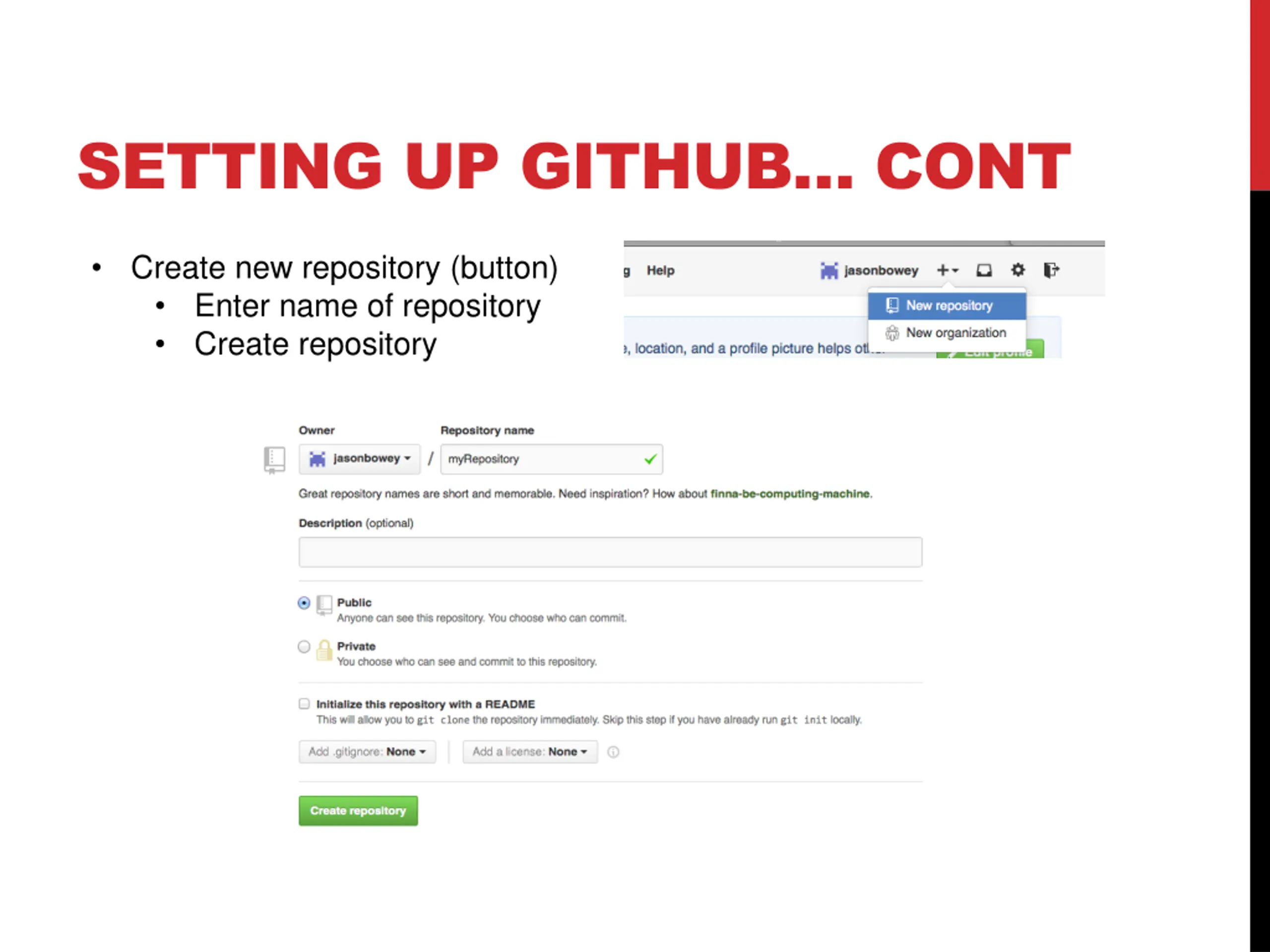

SETTING UP GITHUB CONT Create new repository (button) Enter name of repository Create repository

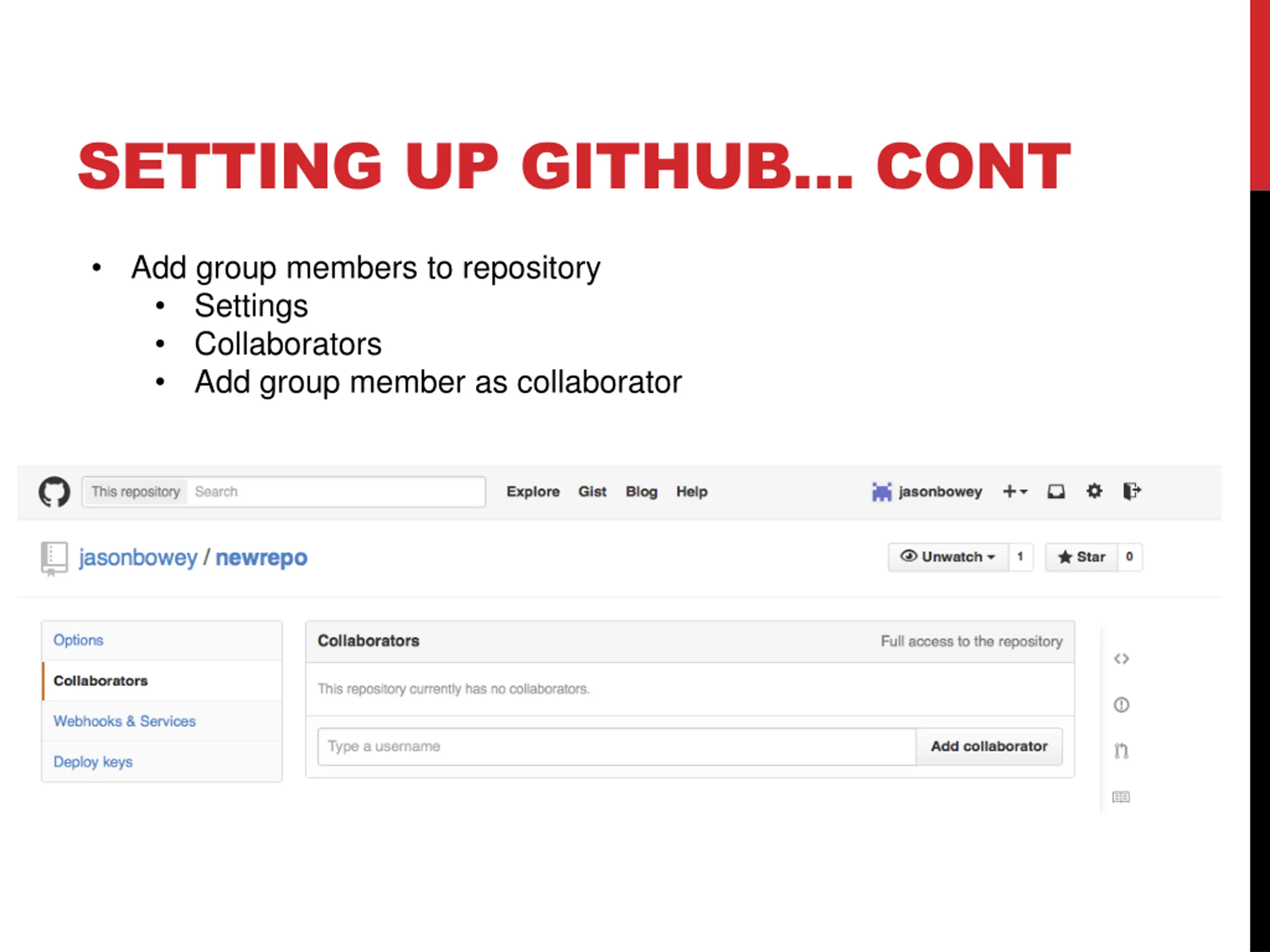

SETTING UP GITHUB CONT Add group members to repository Settings Collaborators Add group member as collaborator

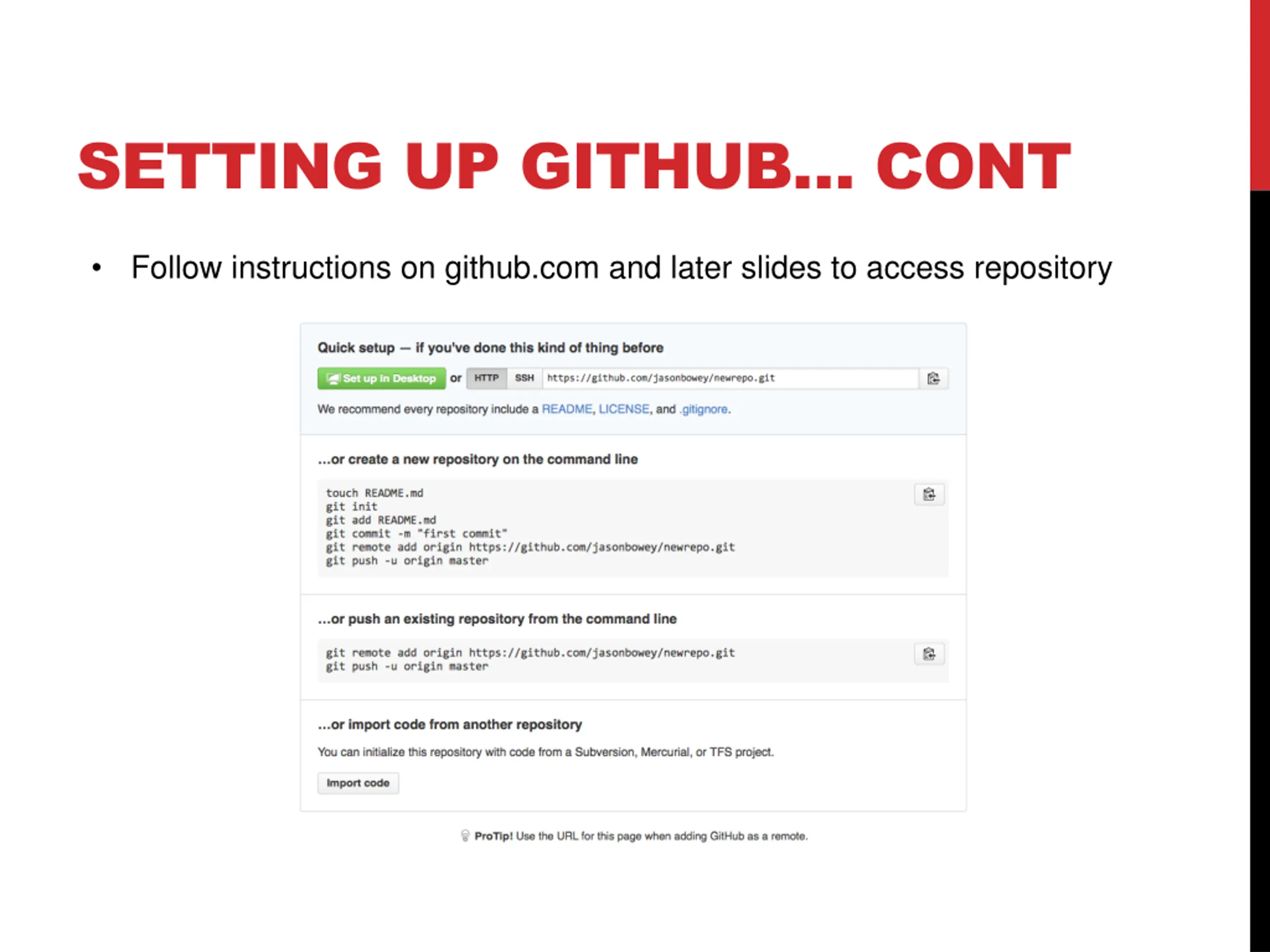

SETTING UP GITHUB CONT Follow instructions on github.com and later slides to access repository

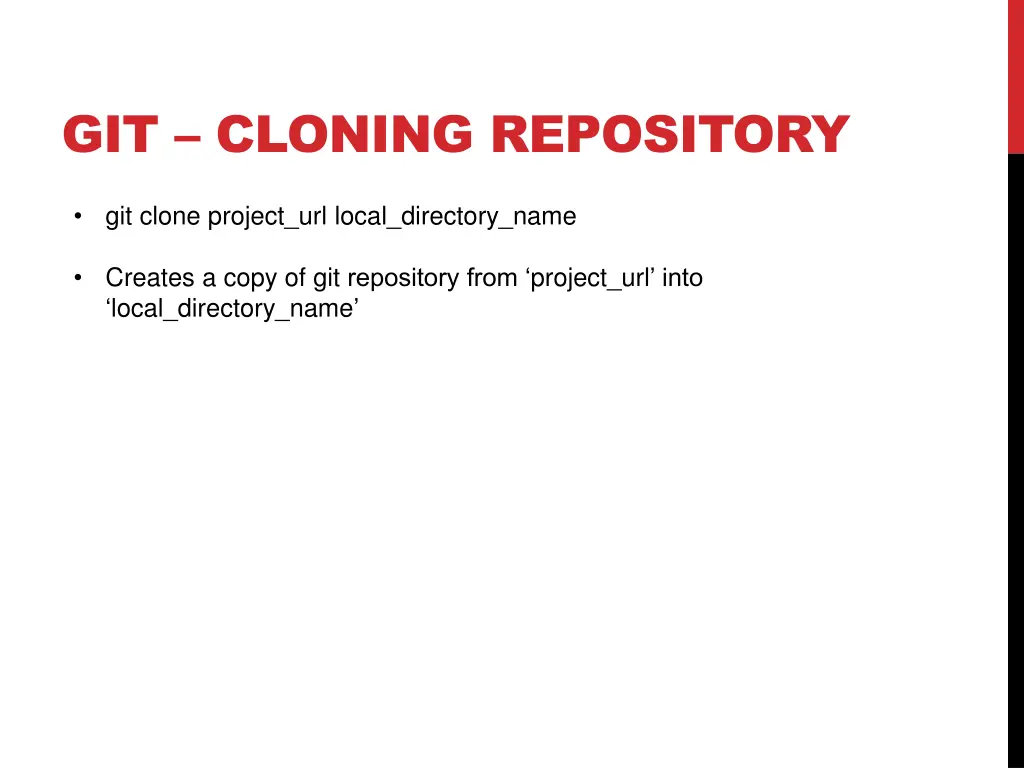

GIT CLONING REPOSITORY git clone project_url local_directory_name Creates a copy of git repository from project_url into local_directory_name

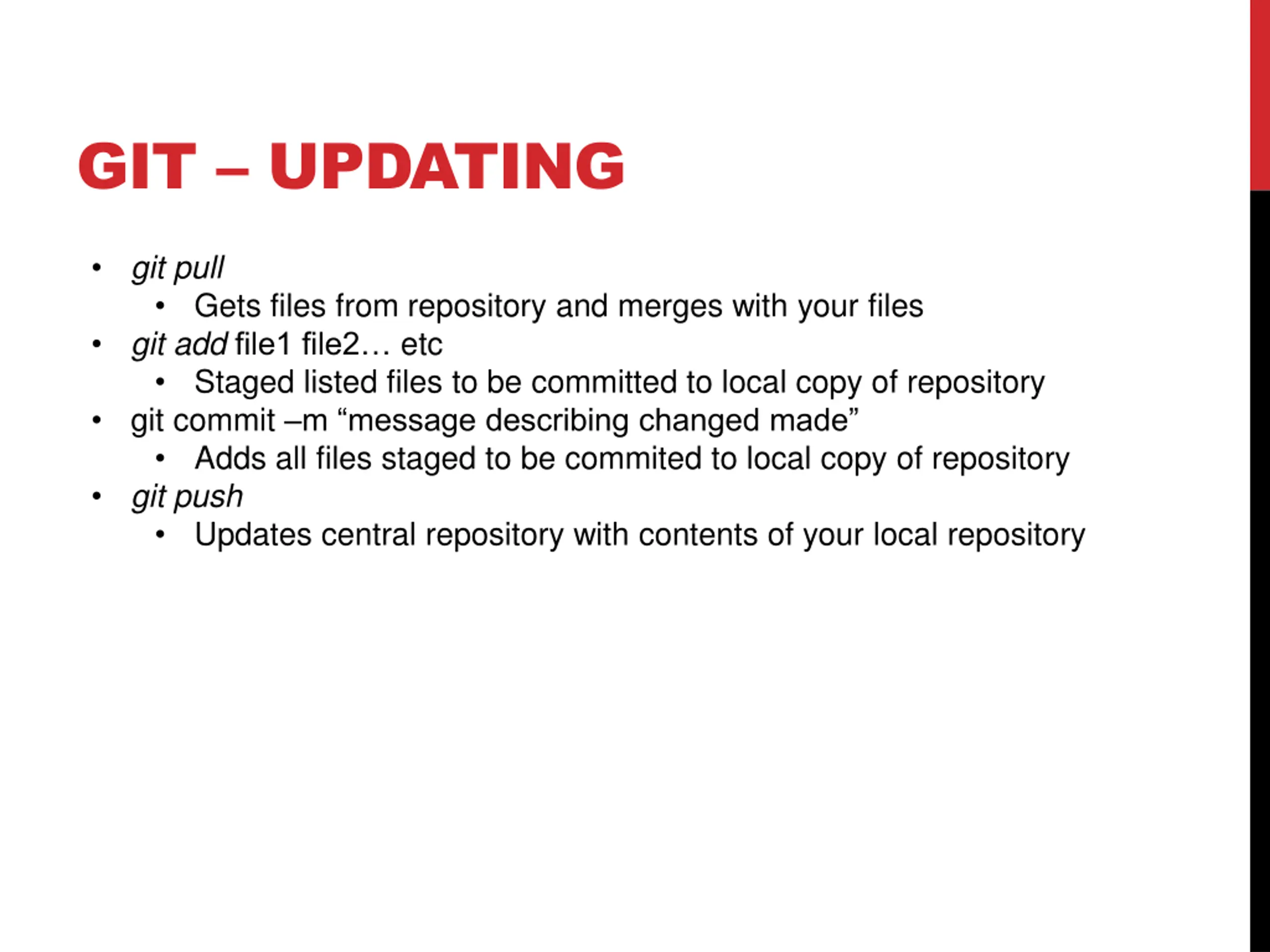

GIT UPDATING git pull git add file1 file2 etc Staged listed files to be committed to local copy of repository git commit m message describing changed made Adds all files staged to be commited to local copy of repository git push Updates central repository with contents of your local repository Gets files from repository and merges with your files

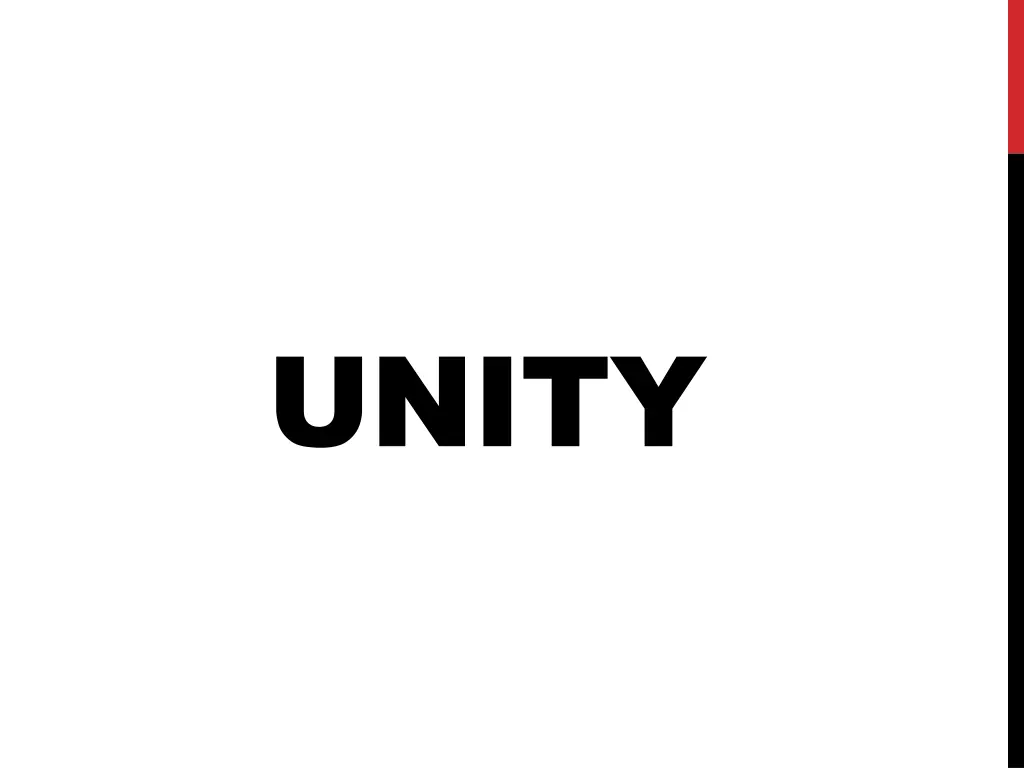

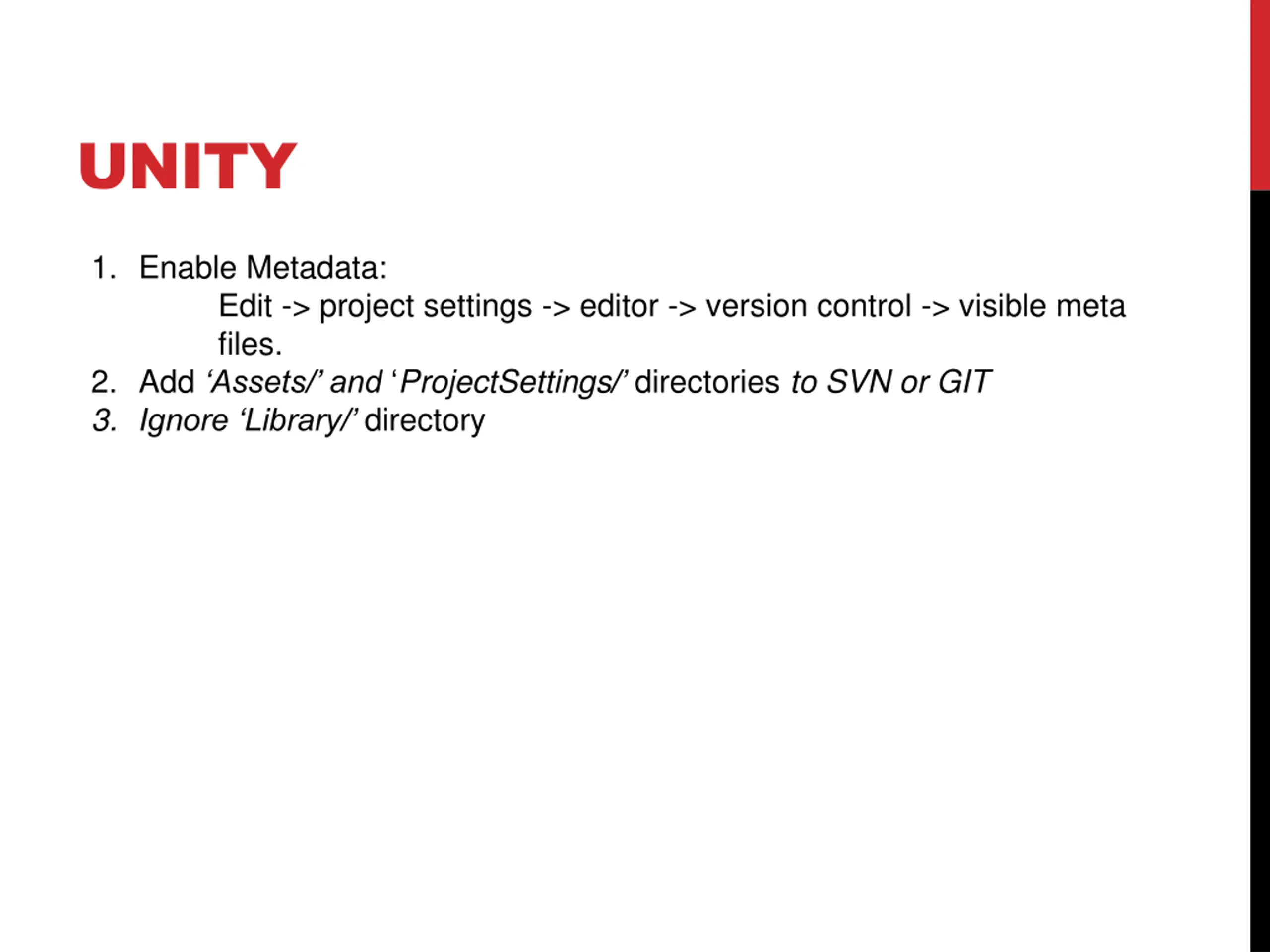

UNITY 1. Enable Metadata: Edit -> project settings -> editor -> version control -> visible meta files. 2. Add Assets/ and ProjectSettings/ directories to SVN or GIT 3. Ignore Library/ directory

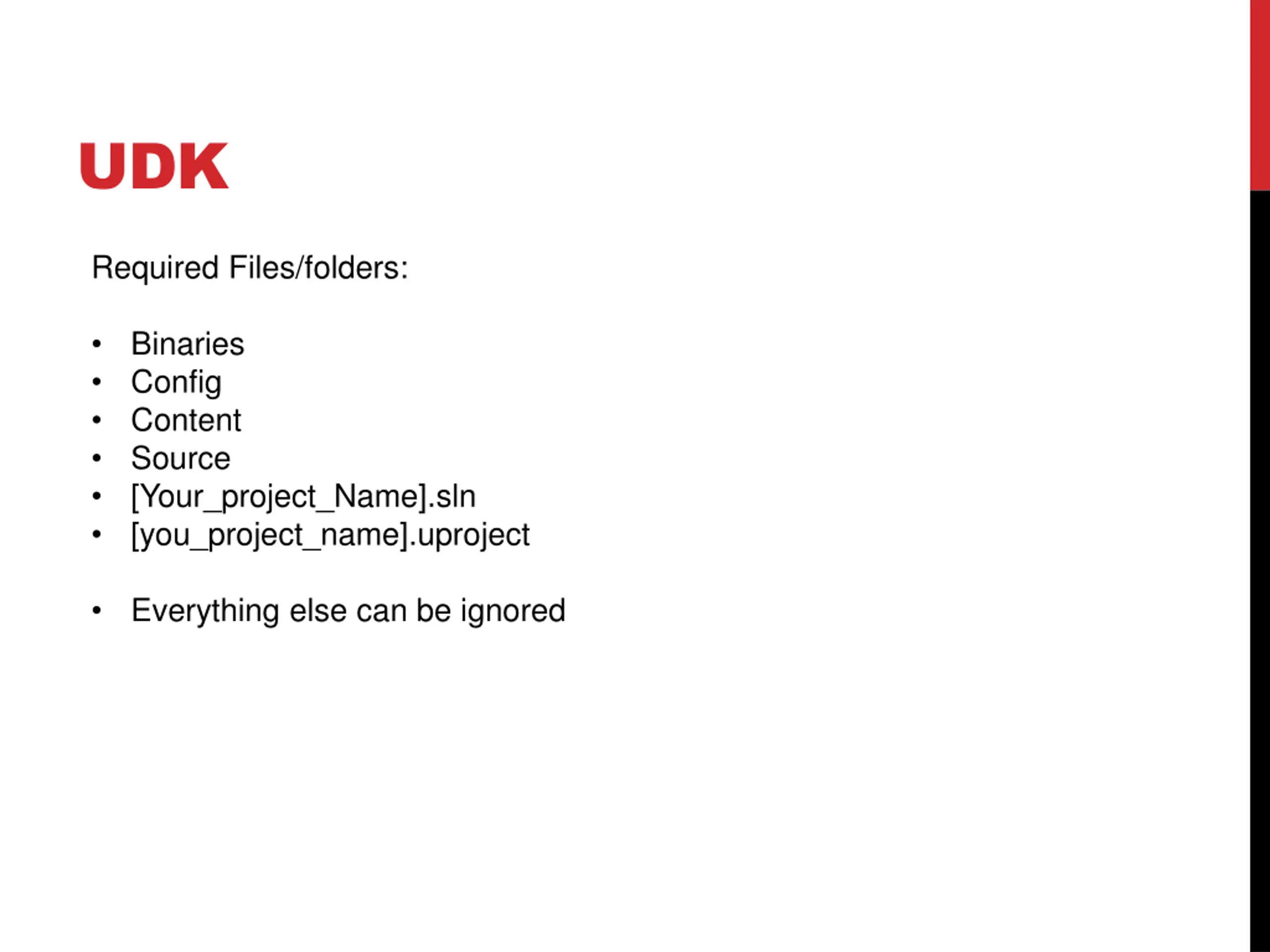

UDK Required Files/folders: Binaries Config Content Source [Your_project_Name].sln [you_project_name].uproject Everything else can be ignored

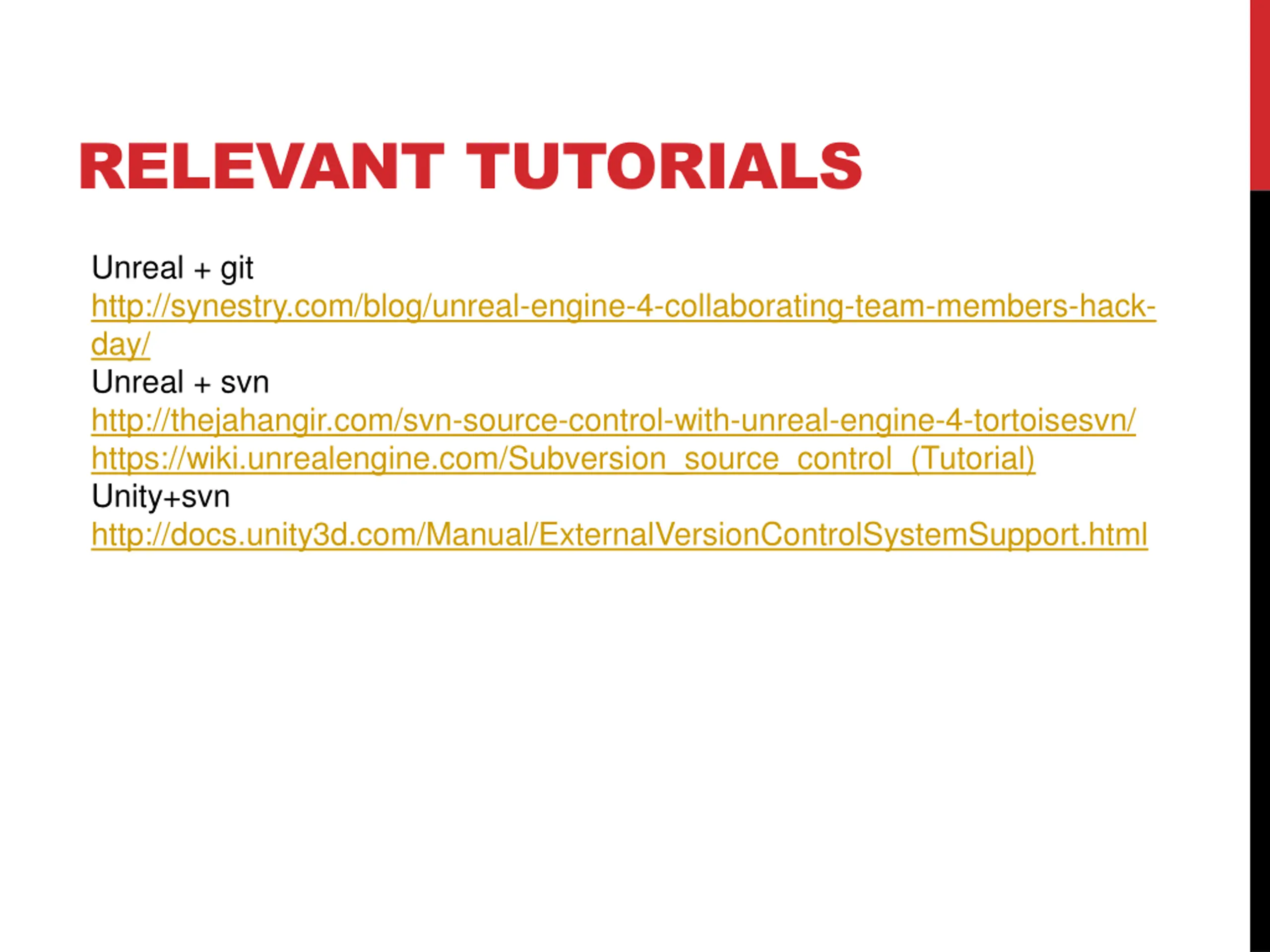

RELEVANT TUTORIALS Unreal + git http://synestry.com/blog/unreal-engine-4-collaborating-team-members-hack- day/ Unreal + svn http://thejahangir.com/svn-source-control-with-unreal-engine-4-tortoisesvn/ https://wiki.unrealengine.com/Subversion_source_control_(Tutorial) Unity+svn http://docs.unity3d.com/Manual/ExternalVersionControlSystemSupport.html
