Virtual Analyser
Virtual Analyser (VA) is a patented software that can calculate and predict parameters without physical measurement, offering a backup solution for analyser failures. It resolves issues with calibration, zero checks, and span checks. VA can accurately monitor critical processes like combustion control, providing safety, efficiency, and reliability. Contact for more details: AKHAQAN@technologyedge.biz.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Virtual Analyser www.technologyedge.biz

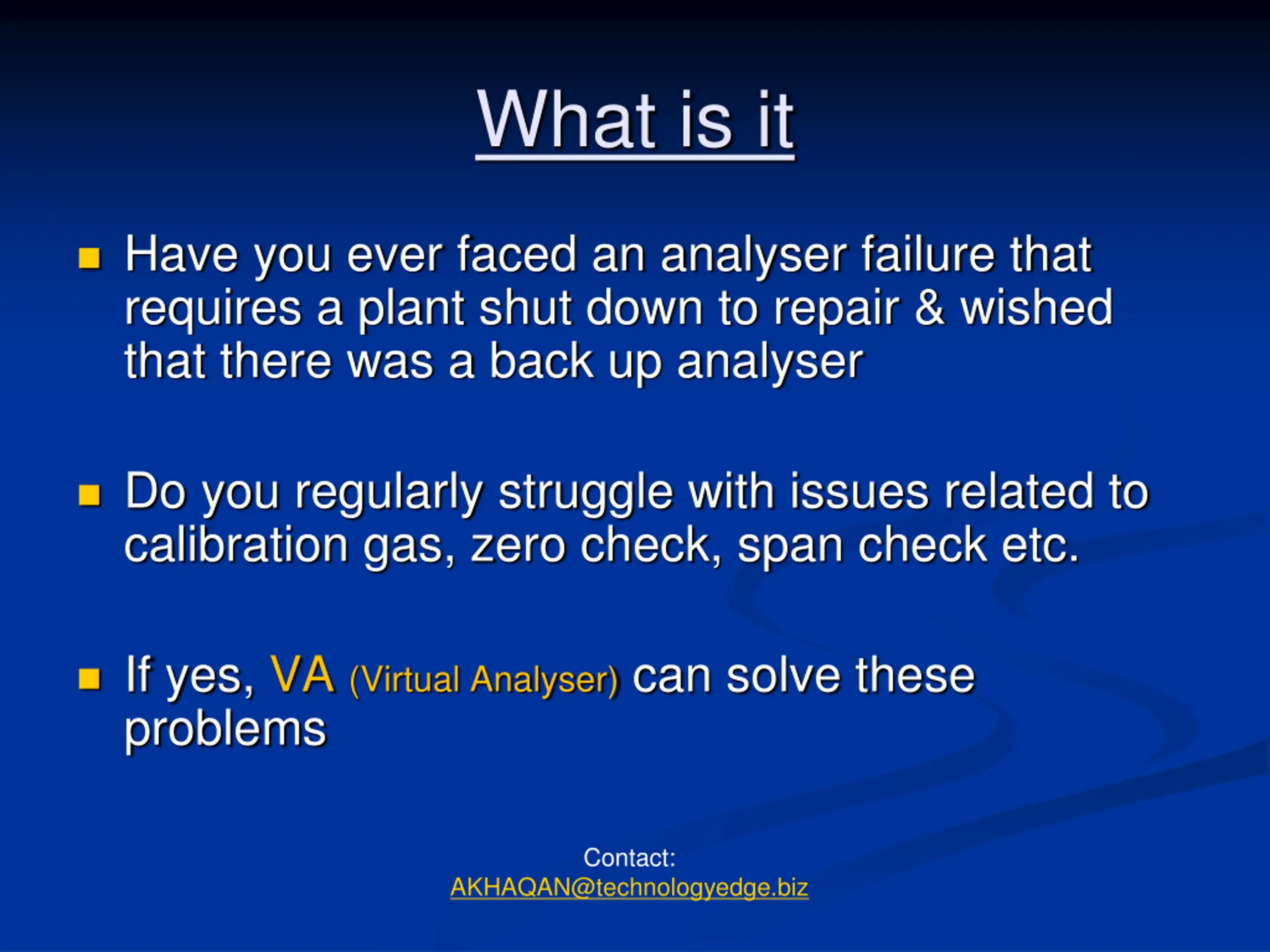

What is it Have you ever faced an analyser failure that requires a plant shut down to repair & wished that there was a back up analyser Do you regularly struggle with issues related to calibration gas, zero check, span check etc. If yes, VA (Virtual Analyser) can solve these problems Contact: AKHAQAN@technologyedge.biz

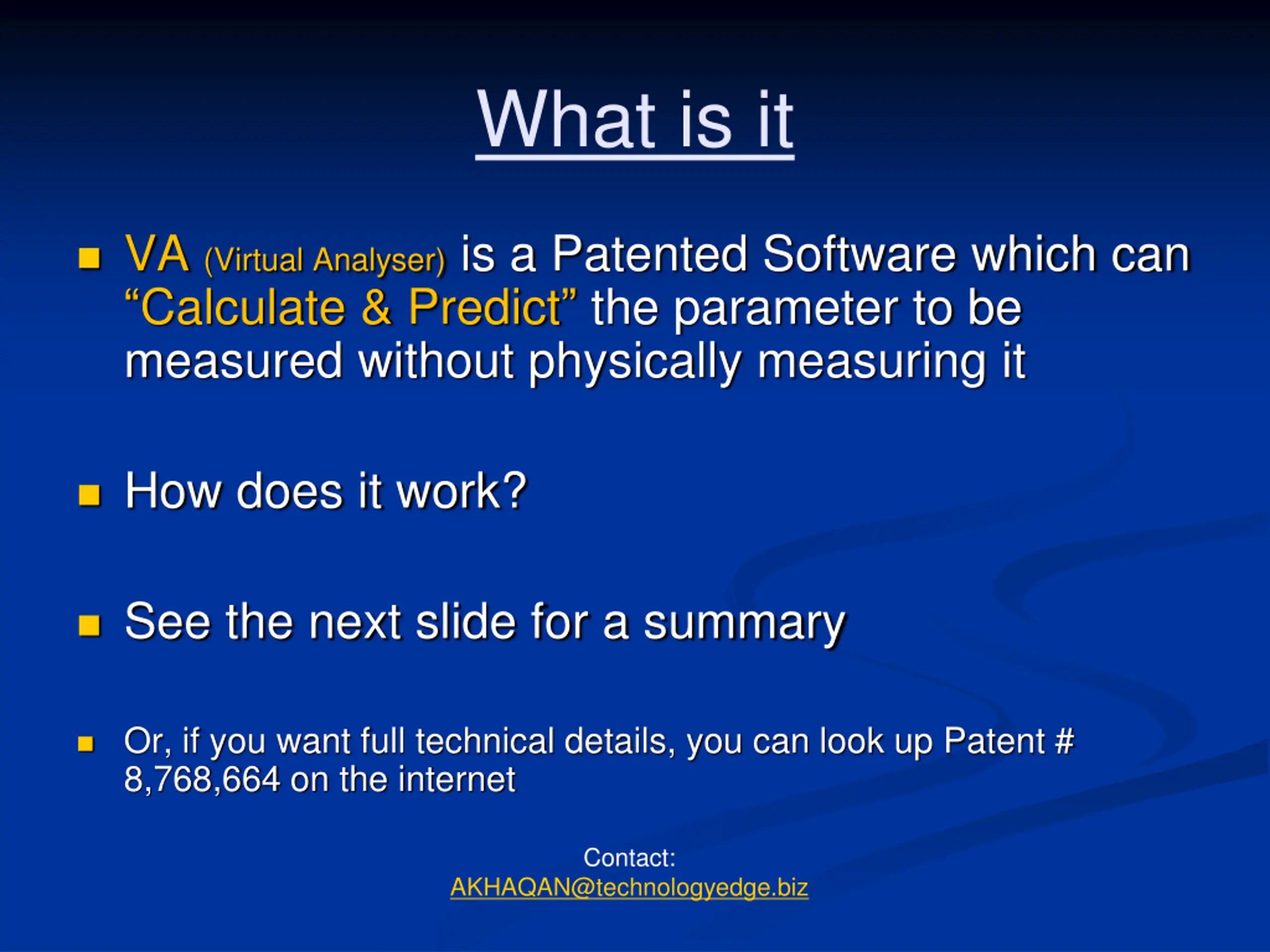

What is it VA (Virtual Analyser) is a Patented Software which can Calculate & Predict the parameter to be measured without physically measuring it How does it work? See the next slide for a summary Or, if you want full technical details, you can look up Patent # 8,768,664 on the internet Contact: AKHAQAN@technologyedge.biz

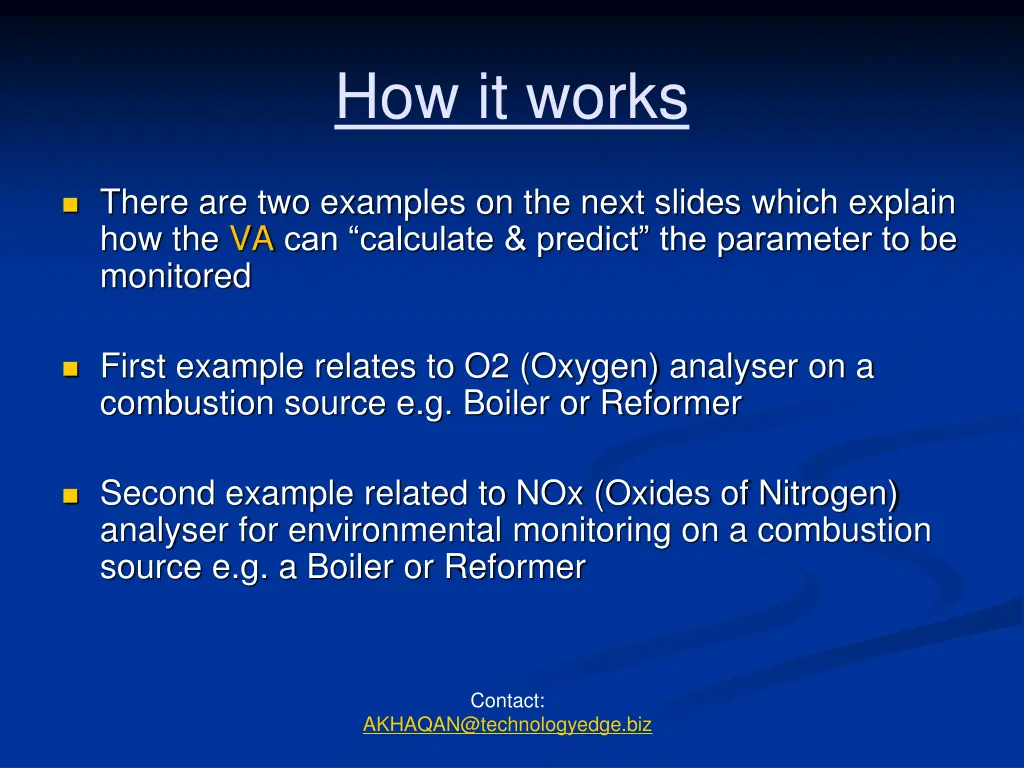

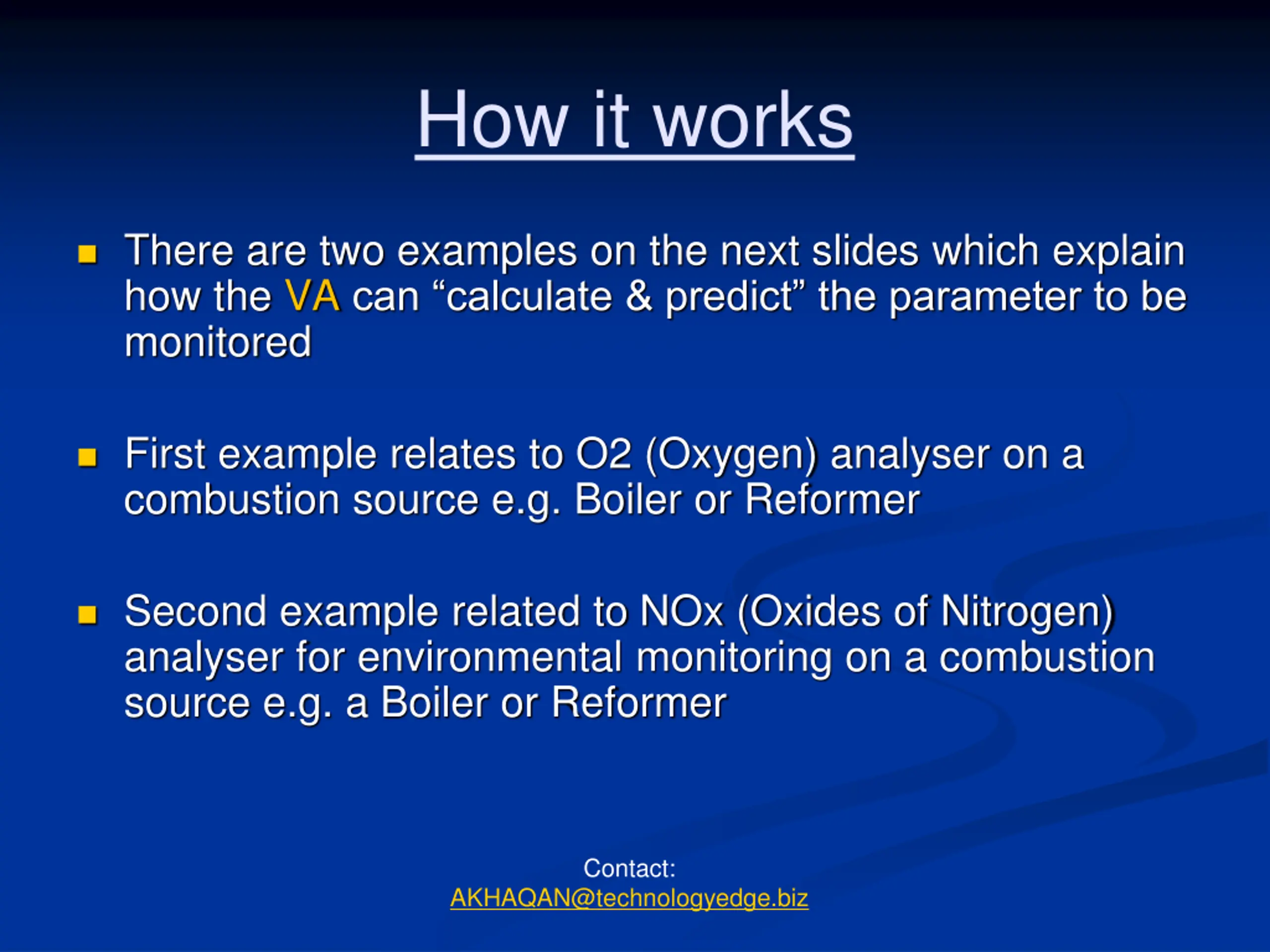

How it works There are two examples on the next slides which explain how the VA can calculate & predict the parameter to be monitored First example relates to O2 (Oxygen) analyser on a combustion source e.g. Boiler or Reformer Second example related to NOx (Oxides of Nitrogen) analyser for environmental monitoring on a combustion source e.g. a Boiler or Reformer Contact: AKHAQAN@technologyedge.biz
Example-1 of VA Use O2 (Oxygen) Analysers are: Critical for combustion control Safety & efficiency critical Prone to drift, malfunction & frequent calibration VA: Can do the job of an O2 analyser by using inputs on which combustion process is dependent Contact: AKHAQAN@technologyedge.biz

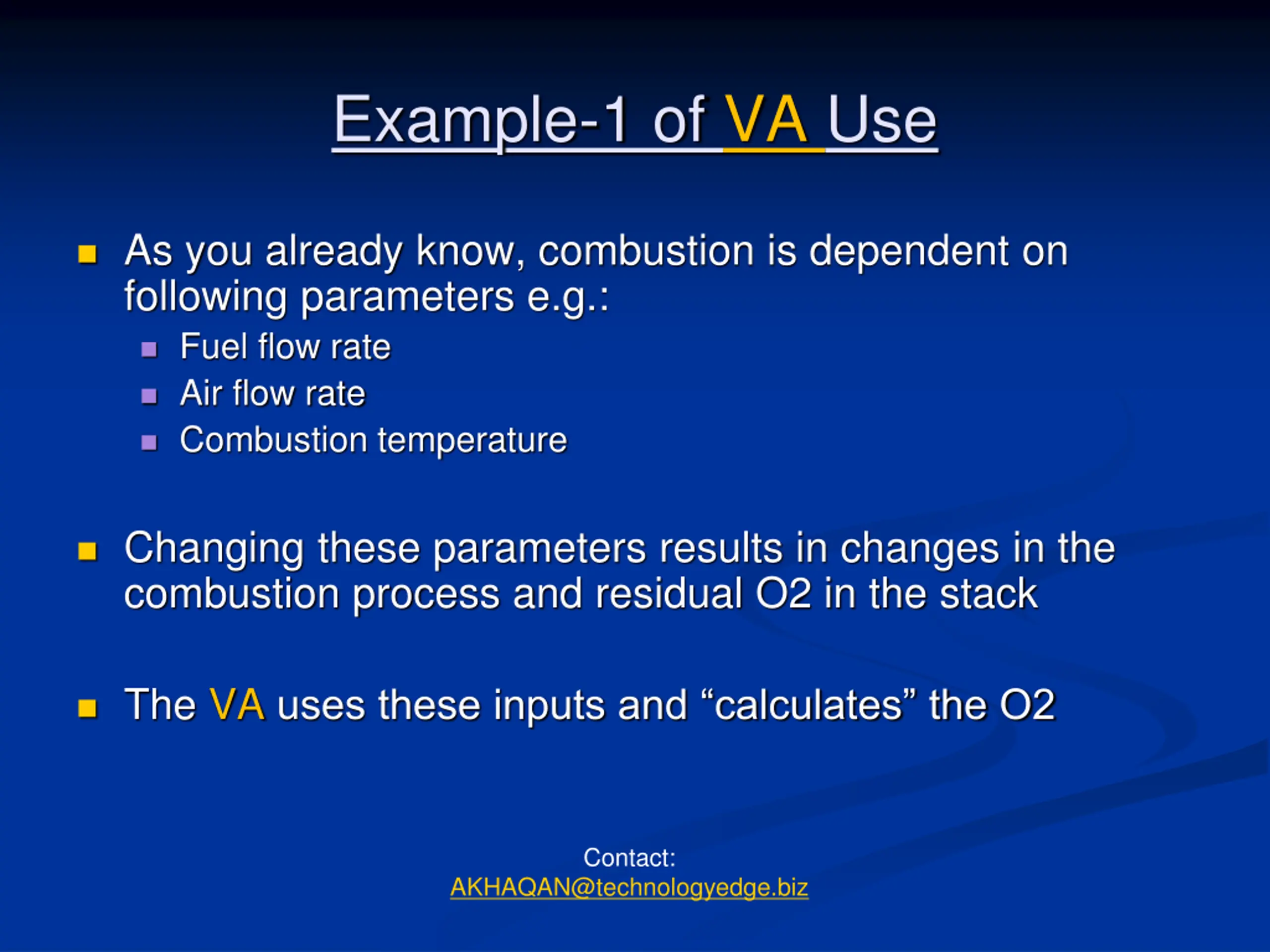

Example-1 of VA Use As you already know, combustion is dependent on following parameters e.g.: Fuel flow rate Air flow rate Combustion temperature Changing these parameters results in changes in the combustion process and residual O2 in the stack The VA uses these inputs and calculates the O2 Contact: AKHAQAN@technologyedge.biz

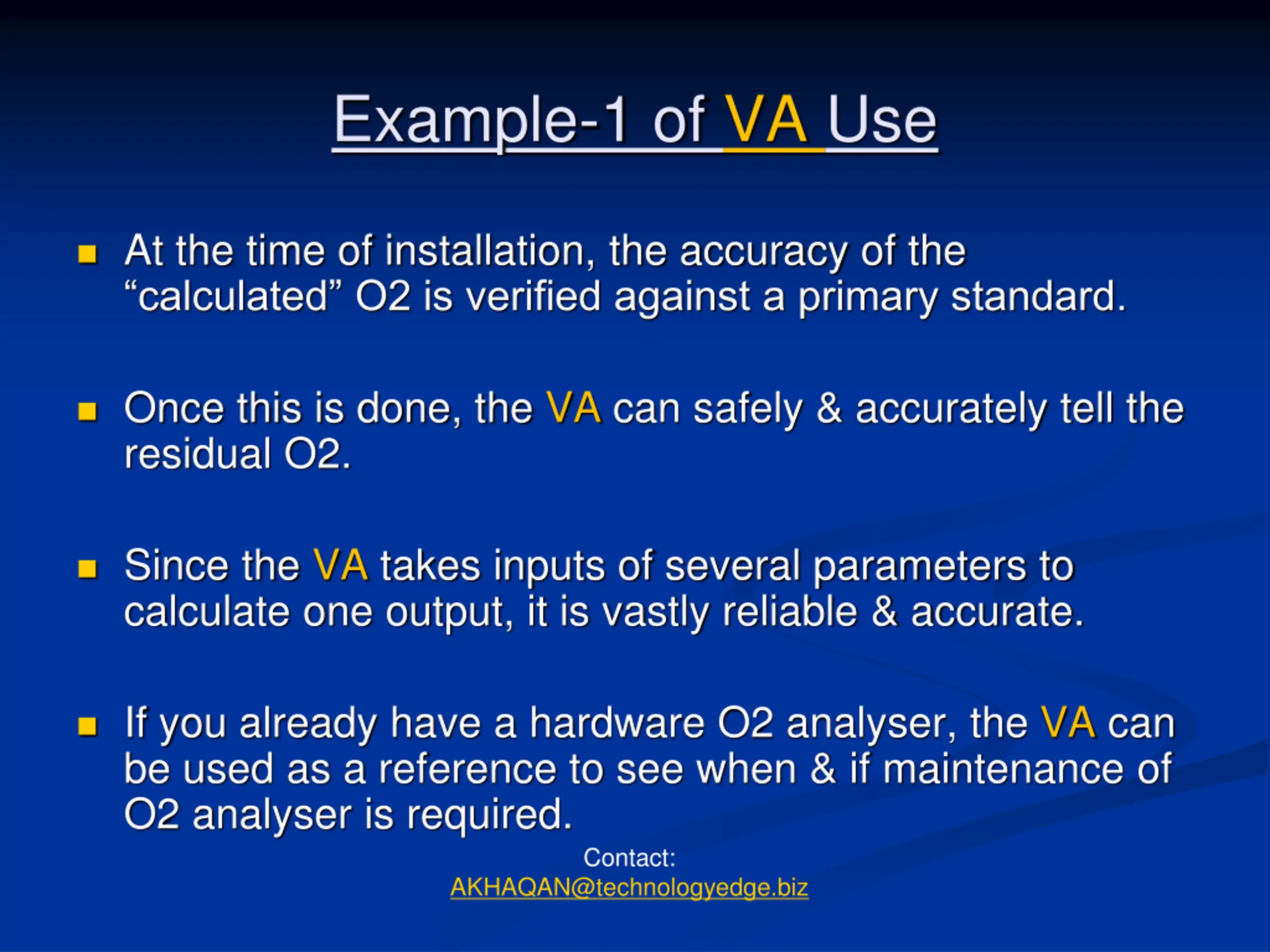

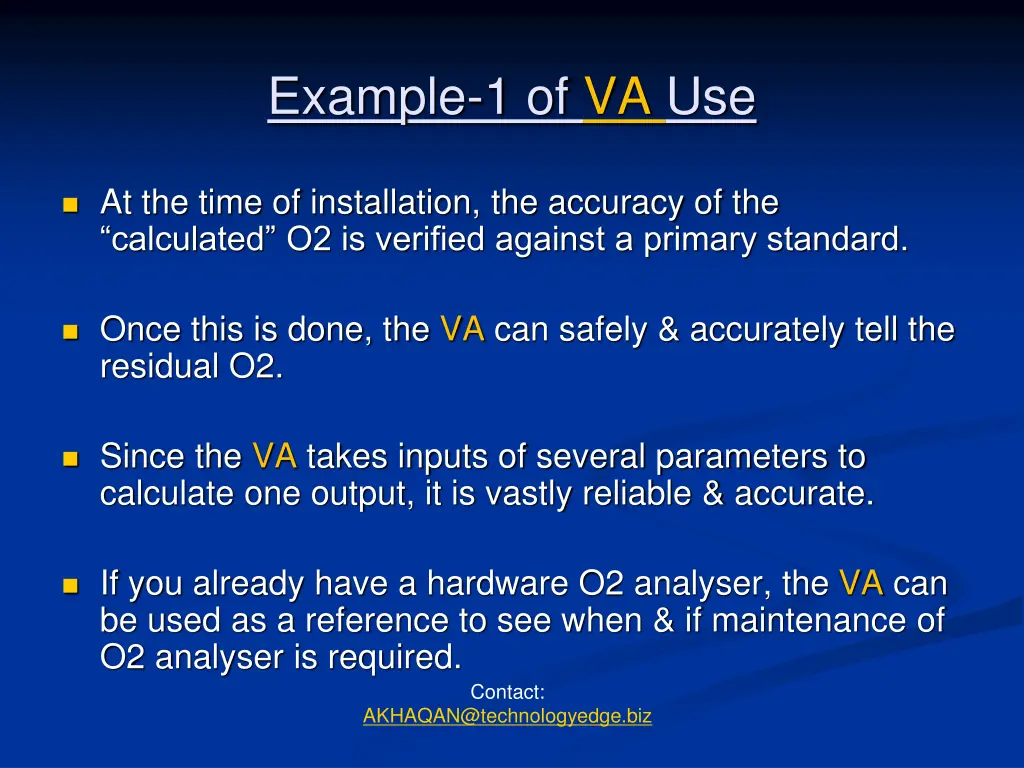

Example-1 of VA Use At the time of installation, the accuracy of the calculated O2 is verified against a primary standard. Once this is done, the VA can safely & accurately tell the residual O2. Since the VA takes inputs of several parameters to calculate one output, it is vastly reliable & accurate. If you already have a hardware O2 analyser, the VA can be used as a reference to see when & if maintenance of O2 analyser is required. Contact: AKHAQAN@technologyedge.biz

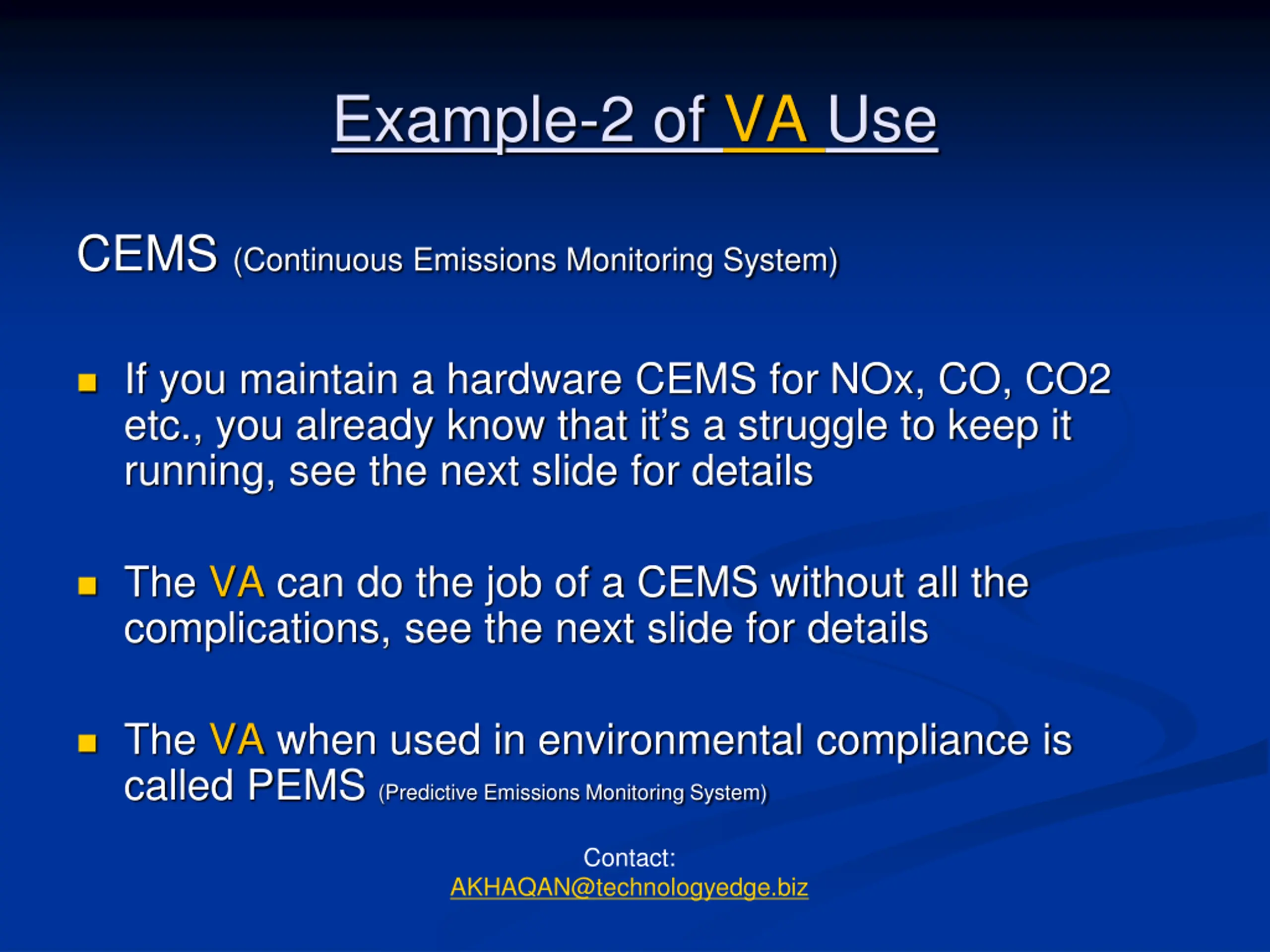

Example-2 of VA Use CEMS (Continuous Emissions Monitoring System) If you maintain a hardware CEMS for NOx, CO, CO2 etc., you already know that it s a struggle to keep it running, see the next slide for details The VA can do the job of a CEMS without all the complications, see the next slide for details The VA when used in environmental compliance is called PEMS (Predictive Emissions Monitoring System) Contact: AKHAQAN@technologyedge.biz

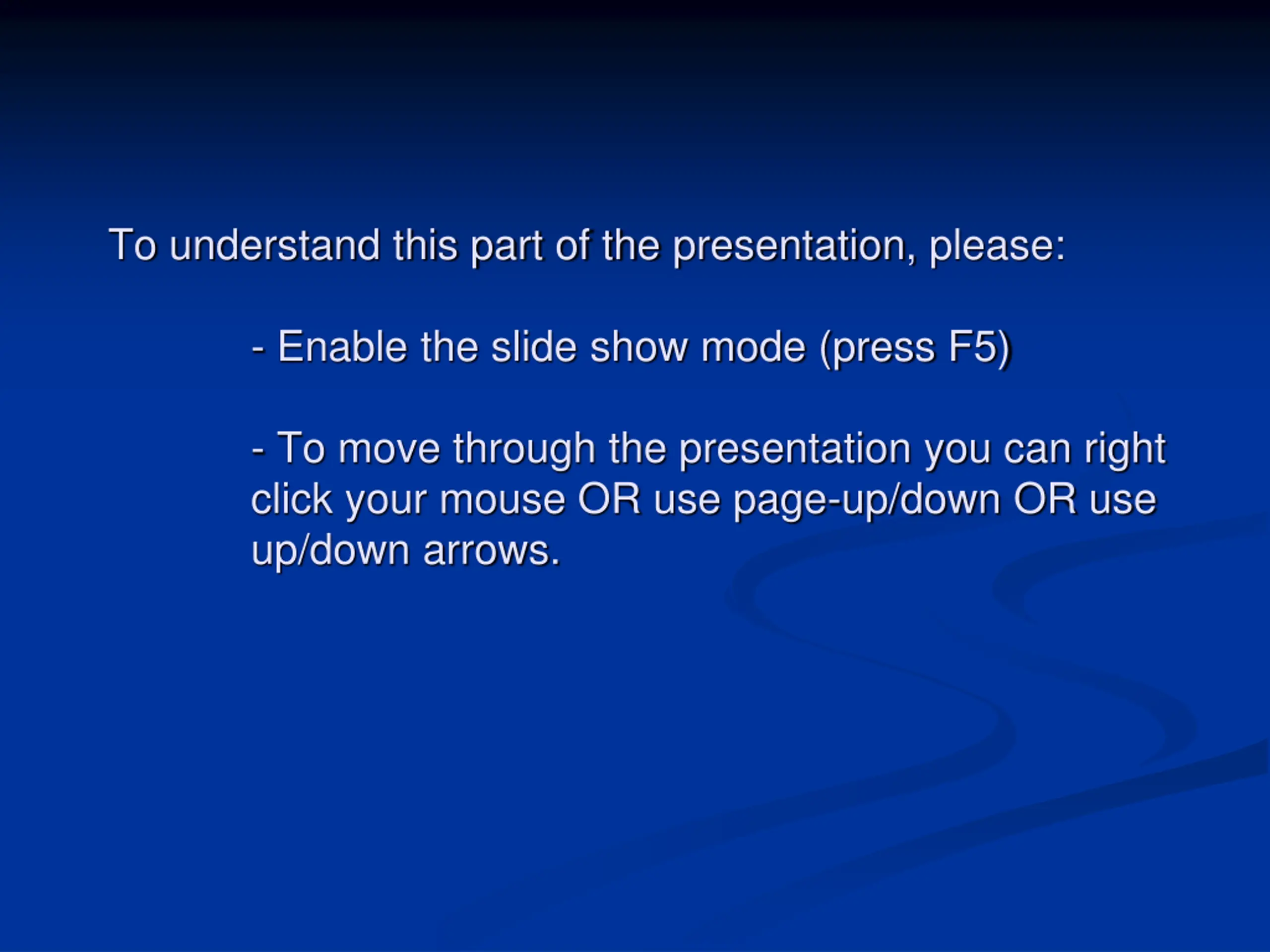

To understand this part of the presentation, please: - Enable the slide show mode (press F5) - To move through the presentation you can right click your mouse OR use page-up/down OR use up/down arrows.

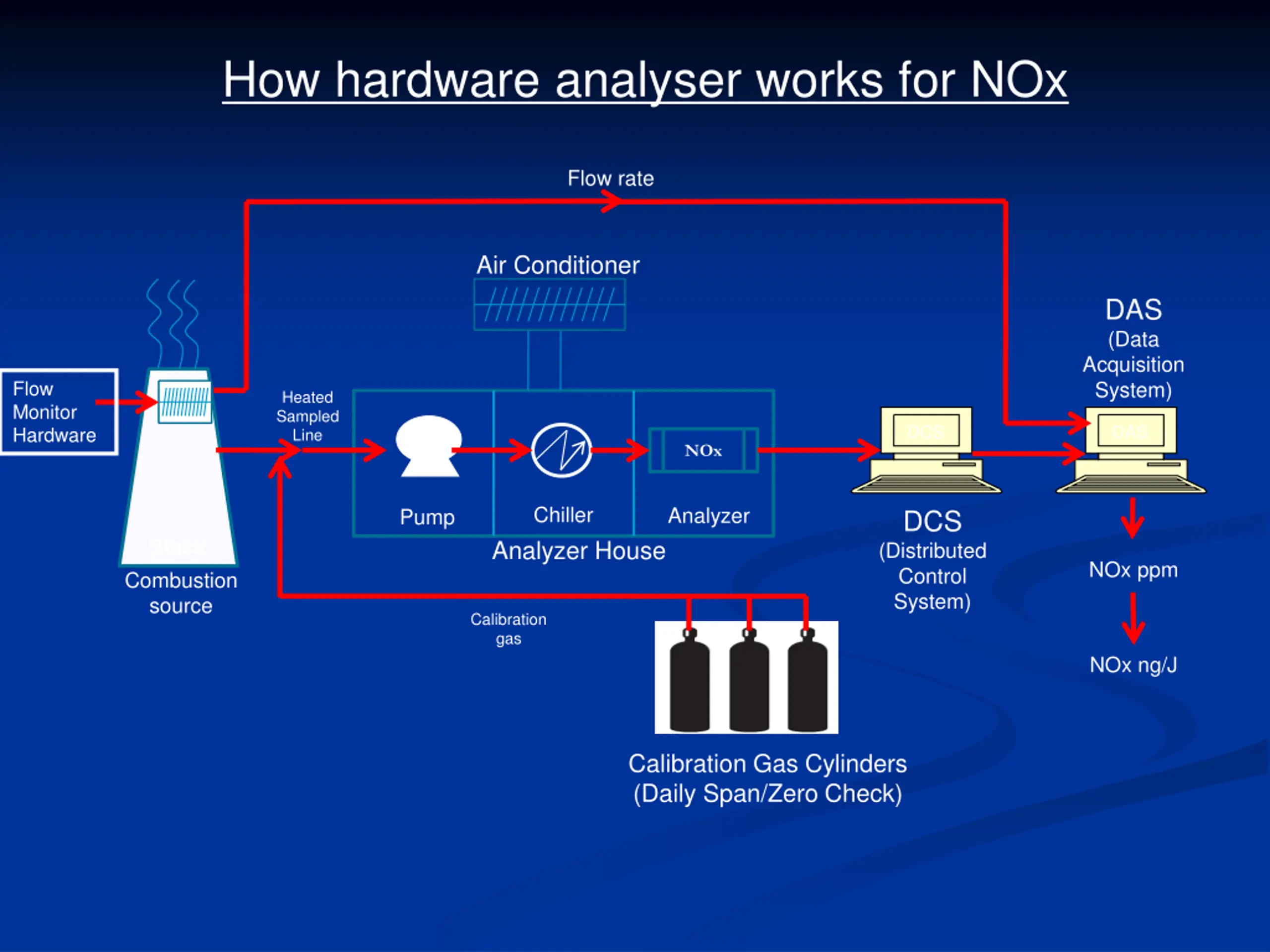

How hardware analyser works for NOx Flow rate Air Conditioner DAS (Data Acquisition System) Flow Monitor Hardware Heated Sampled Line DCS DAS NOx Chiller Analyzer Pump DCS (Distributed Control System) Stack Combustion source Analyzer House NOx ppm Calibration gas NOx ng/J Calibration Gas Cylinders (Daily Span/Zero Check)

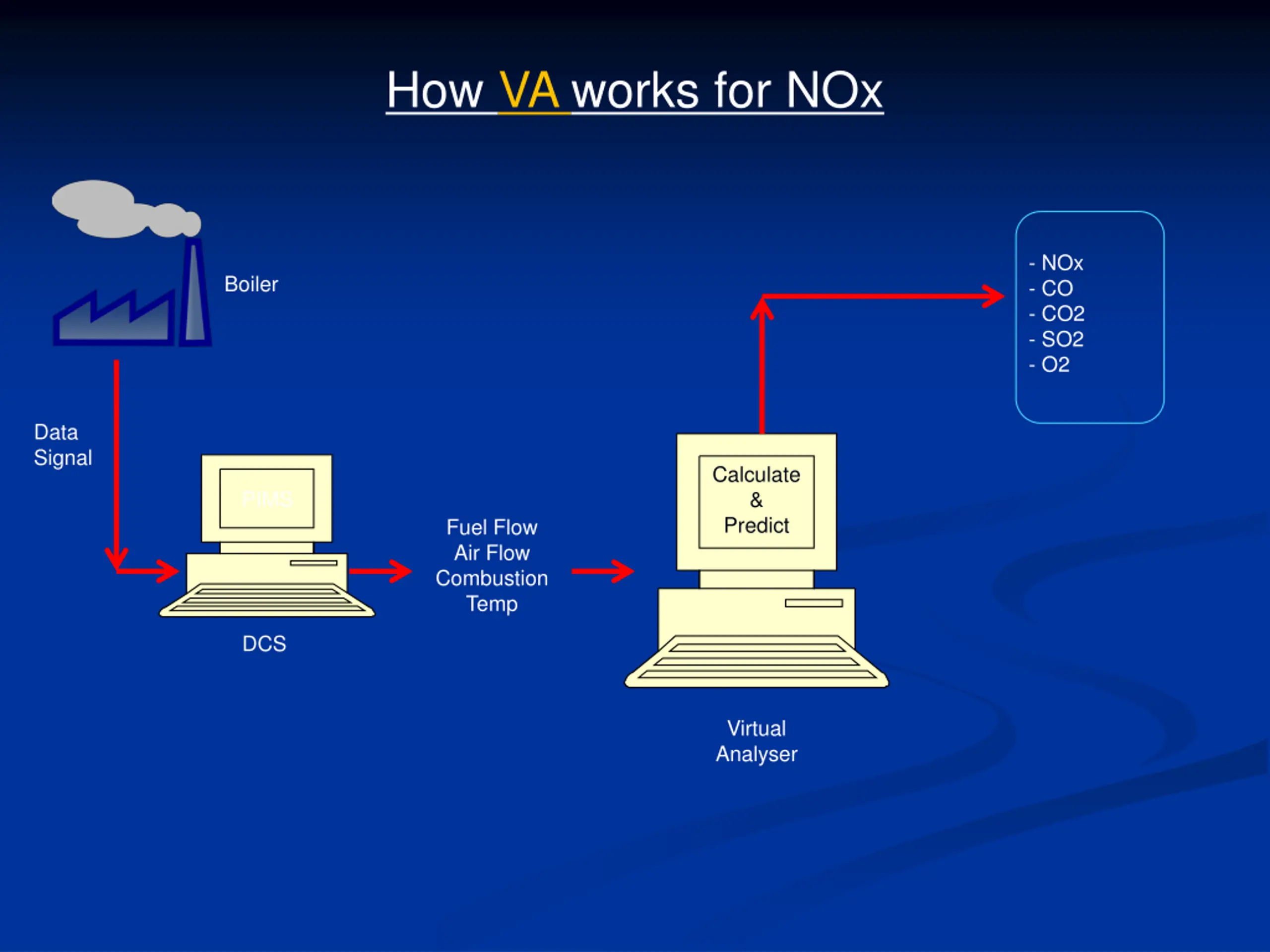

How VA works for NOx - NOx - CO - CO2 - SO2 - O2 Boiler Data Signal Calculate & Predict PIMS Fuel Flow Air Flow Combustion Temp DCS Virtual Analyser

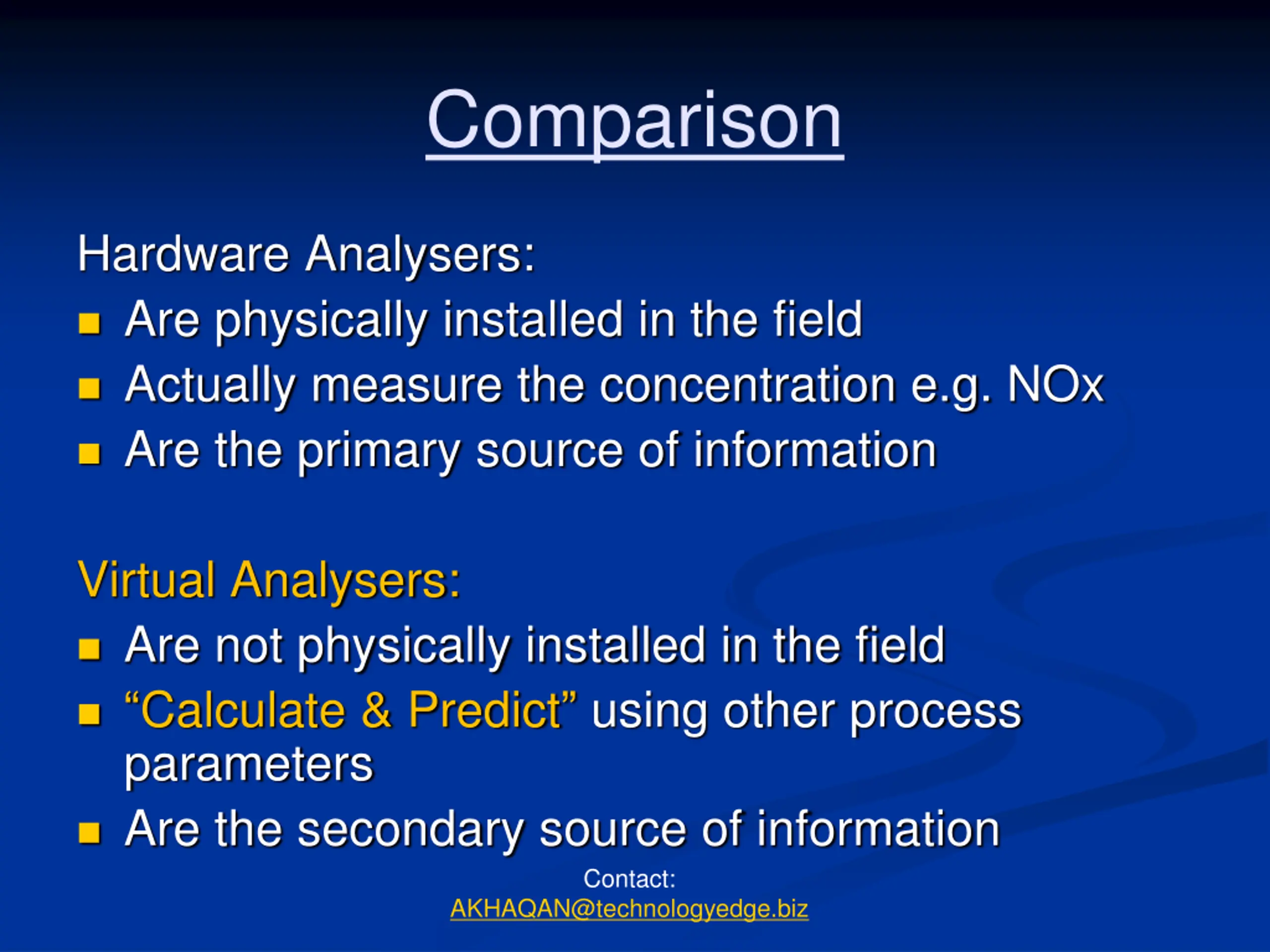

Comparison Hardware Analysers: Are physically installed in the field Actually measure the concentration e.g. NOx Are the primary source of information Virtual Analysers: Are not physically installed in the field Calculate & Predict using other process parameters Are the secondary source of information Contact: AKHAQAN@technologyedge.biz

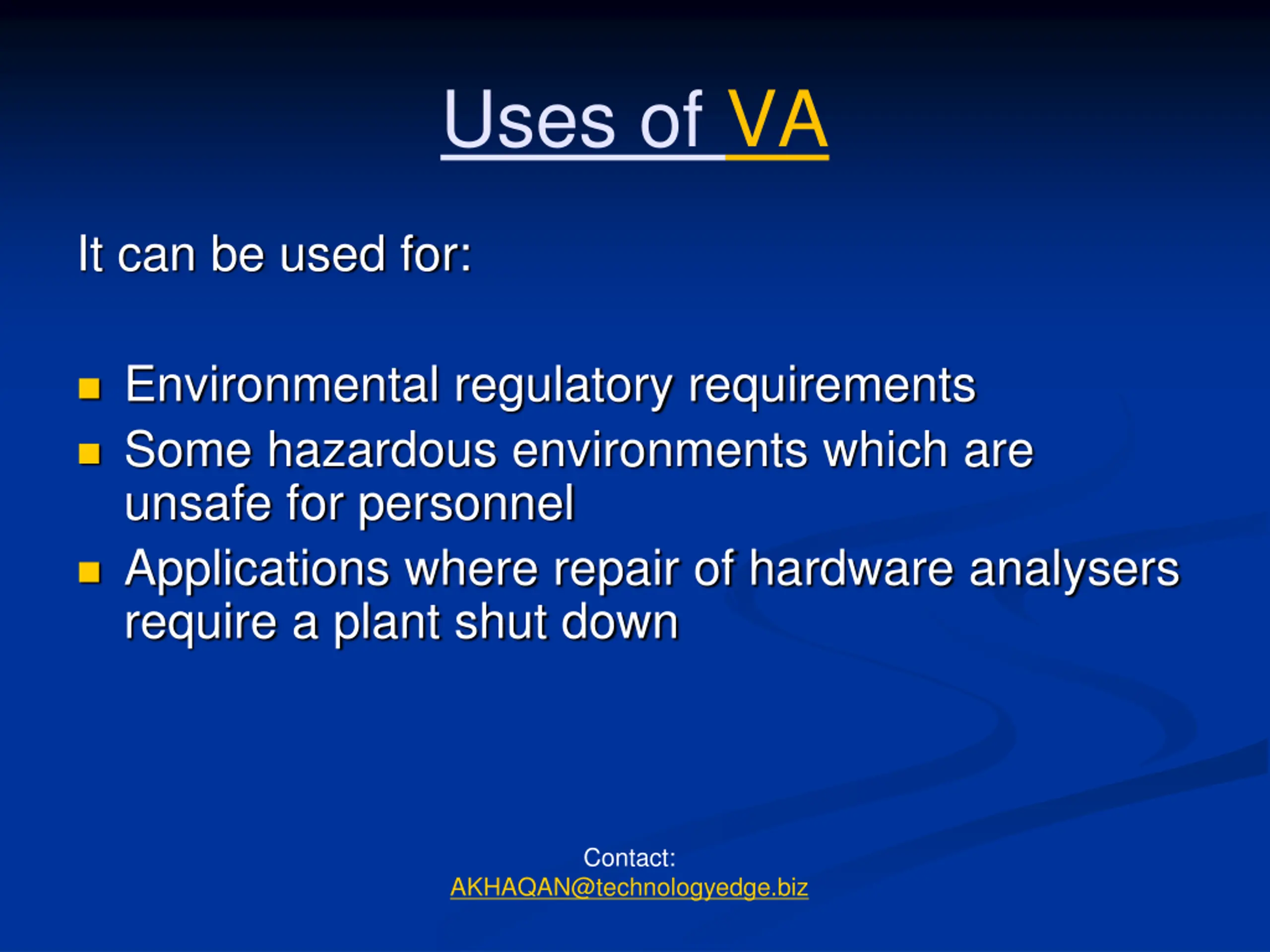

Uses of VA It can be used for: Environmental regulatory requirements Some hazardous environments which are unsafe for personnel Applications where repair of hardware analysers require a plant shut down Contact: AKHAQAN@technologyedge.biz

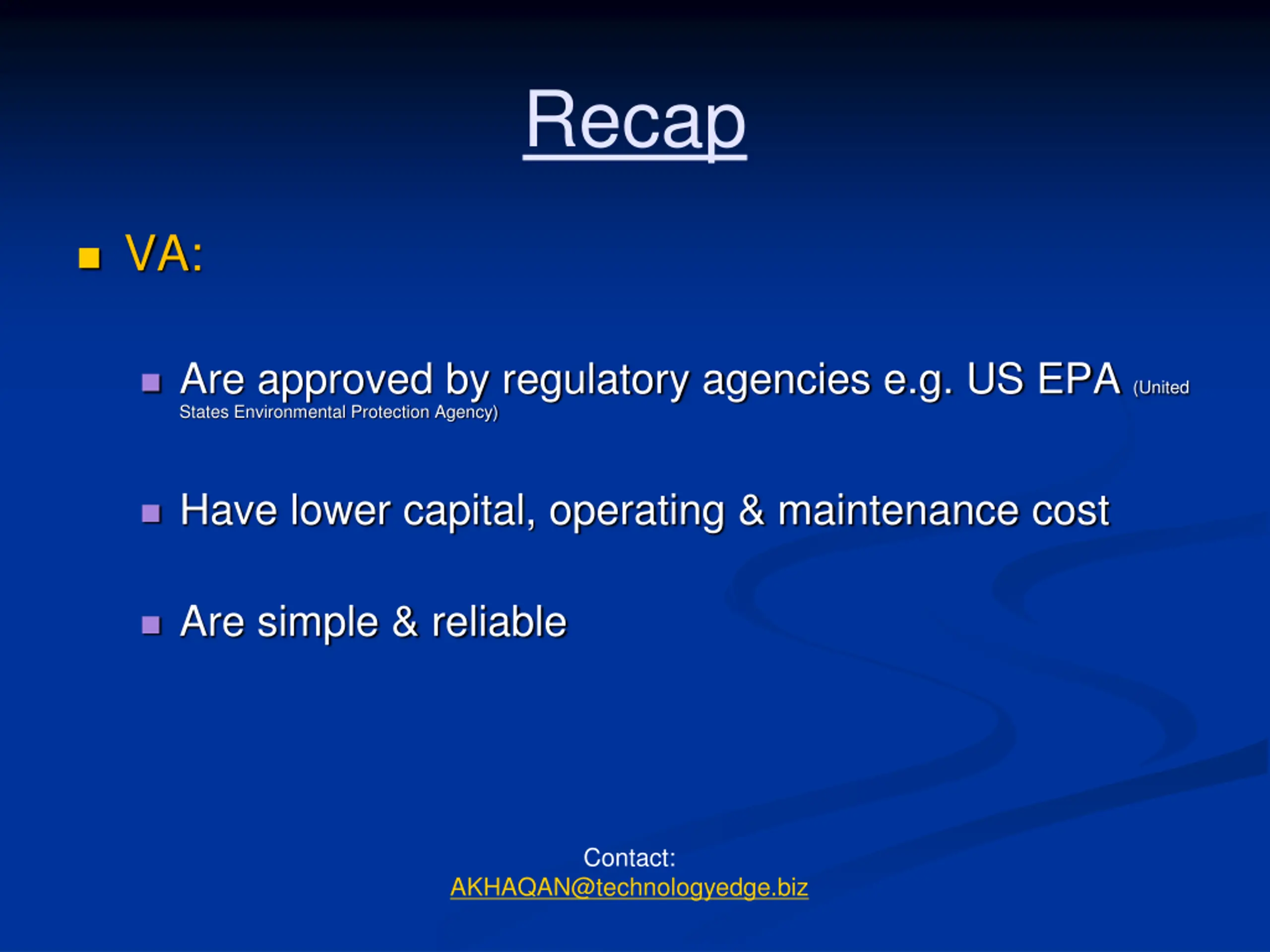

Recap VA: Are approved by regulatory agencies e.g. US EPA (United States Environmental Protection Agency) Have lower capital, operating & maintenance cost Are simple & reliable Contact: AKHAQAN@technologyedge.biz
