Virtual Page Addresses and Attic Page Details

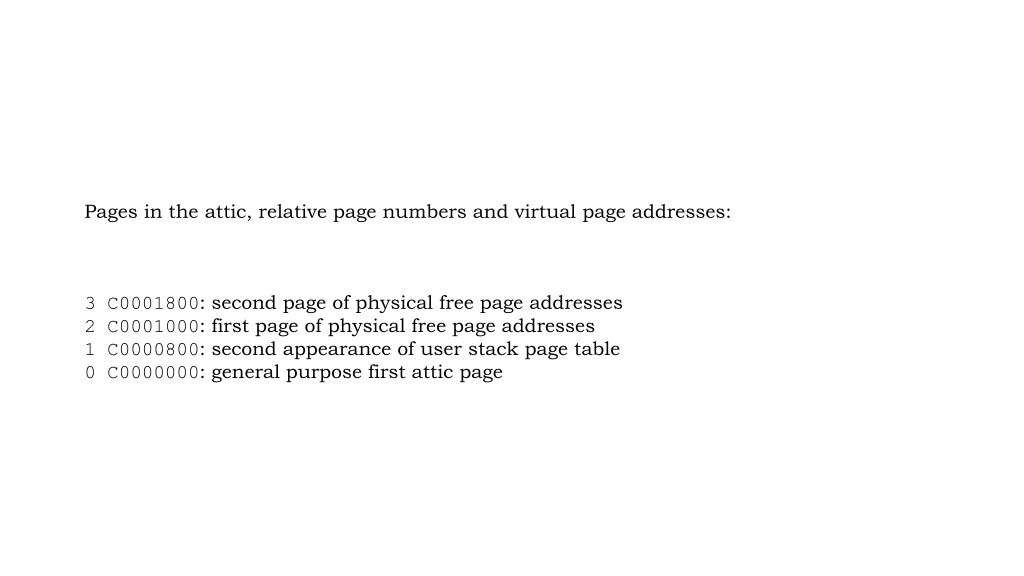

Pages in the attic, relative page numbers and virtual page addresses: 3 C0001800: second page of physical free page addresses 2 C0001000: first page of physical free page addresses 1 C0000800: second appearance of user stack page table 0 C0000000: general purpose first attic page

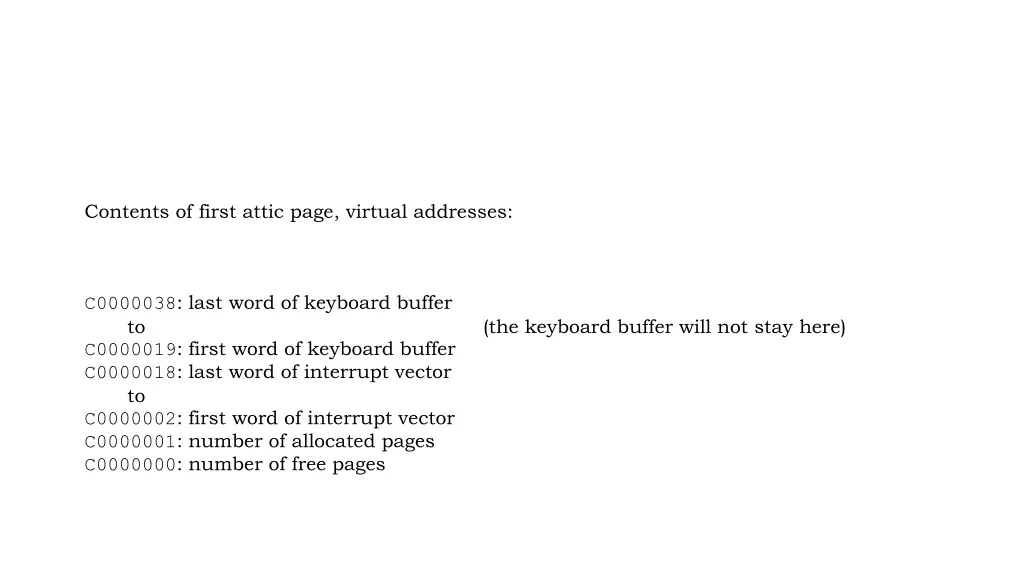

Contents of first attic page, virtual addresses: C0000038: last word of keyboard buffer to (the keyboard buffer will not stay here) C0000019: first word of keyboard buffer C0000018: last word of interrupt vector to C0000002: first word of interrupt vector C0000001: number of allocated pages C0000000: number of free pages

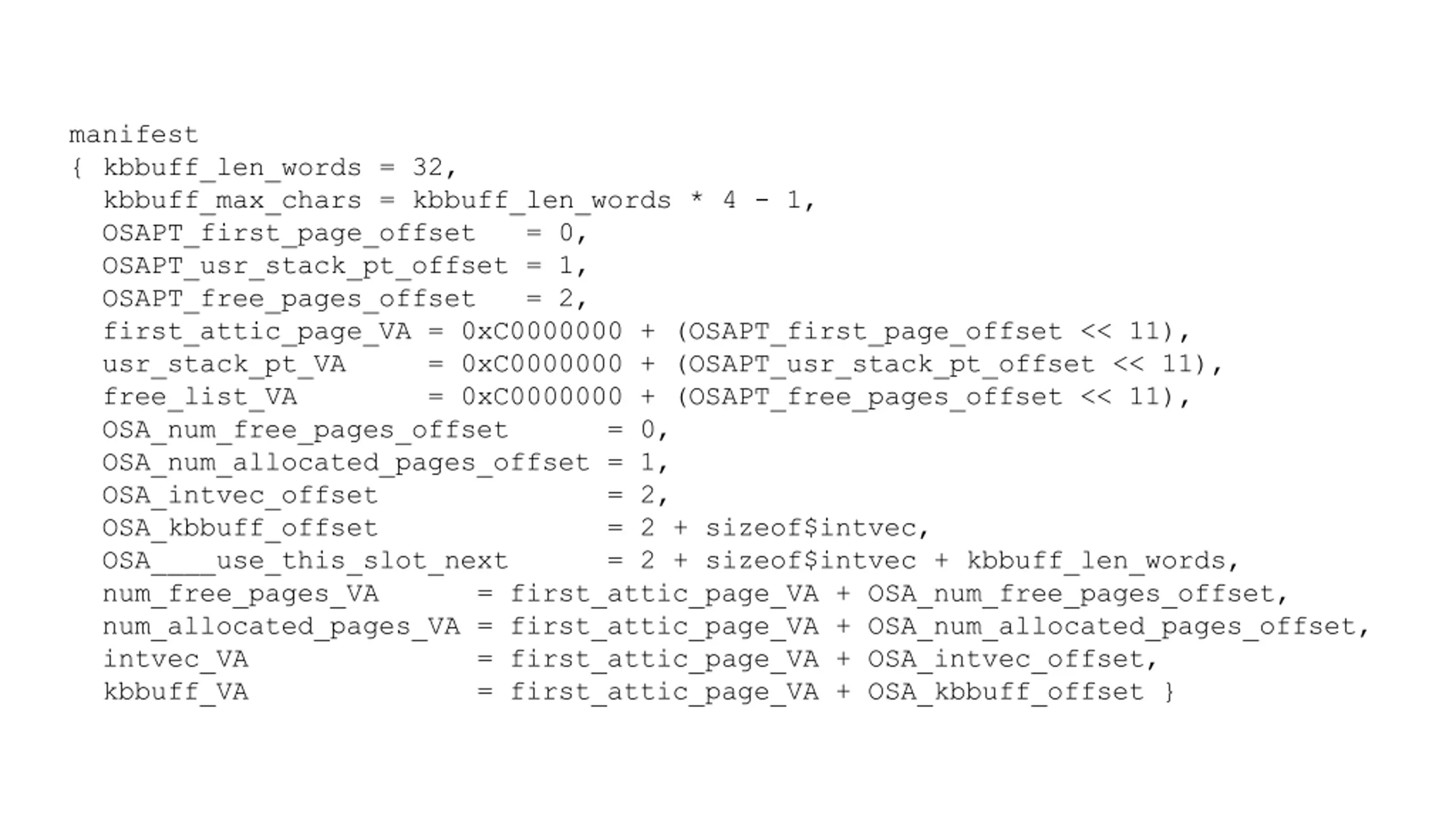

manifest { kbbuff_len_words = 32, kbbuff_max_chars = kbbuff_len_words * 4 - 1, OSAPT_first_page_offset = 0, OSAPT_usr_stack_pt_offset = 1, OSAPT_free_pages_offset = 2, first_attic_page_VA = 0xC0000000 + (OSAPT_first_page_offset << 11), usr_stack_pt_VA = 0xC0000000 + (OSAPT_usr_stack_pt_offset << 11), free_list_VA = 0xC0000000 + (OSAPT_free_pages_offset << 11), OSA_num_free_pages_offset = 0, OSA_num_allocated_pages_offset = 1, OSA_intvec_offset = 2, OSA_kbbuff_offset = 2 + sizeof$intvec, OSA____use_this_slot_next = 2 + sizeof$intvec + kbbuff_len_words, num_free_pages_VA = first_attic_page_VA + OSA_num_free_pages_offset, num_allocated_pages_VA = first_attic_page_VA + OSA_num_allocated_pages_offset, intvec_VA = first_attic_page_VA + OSA_intvec_offset, kbbuff_VA = first_attic_page_VA + OSA_kbbuff_offset }

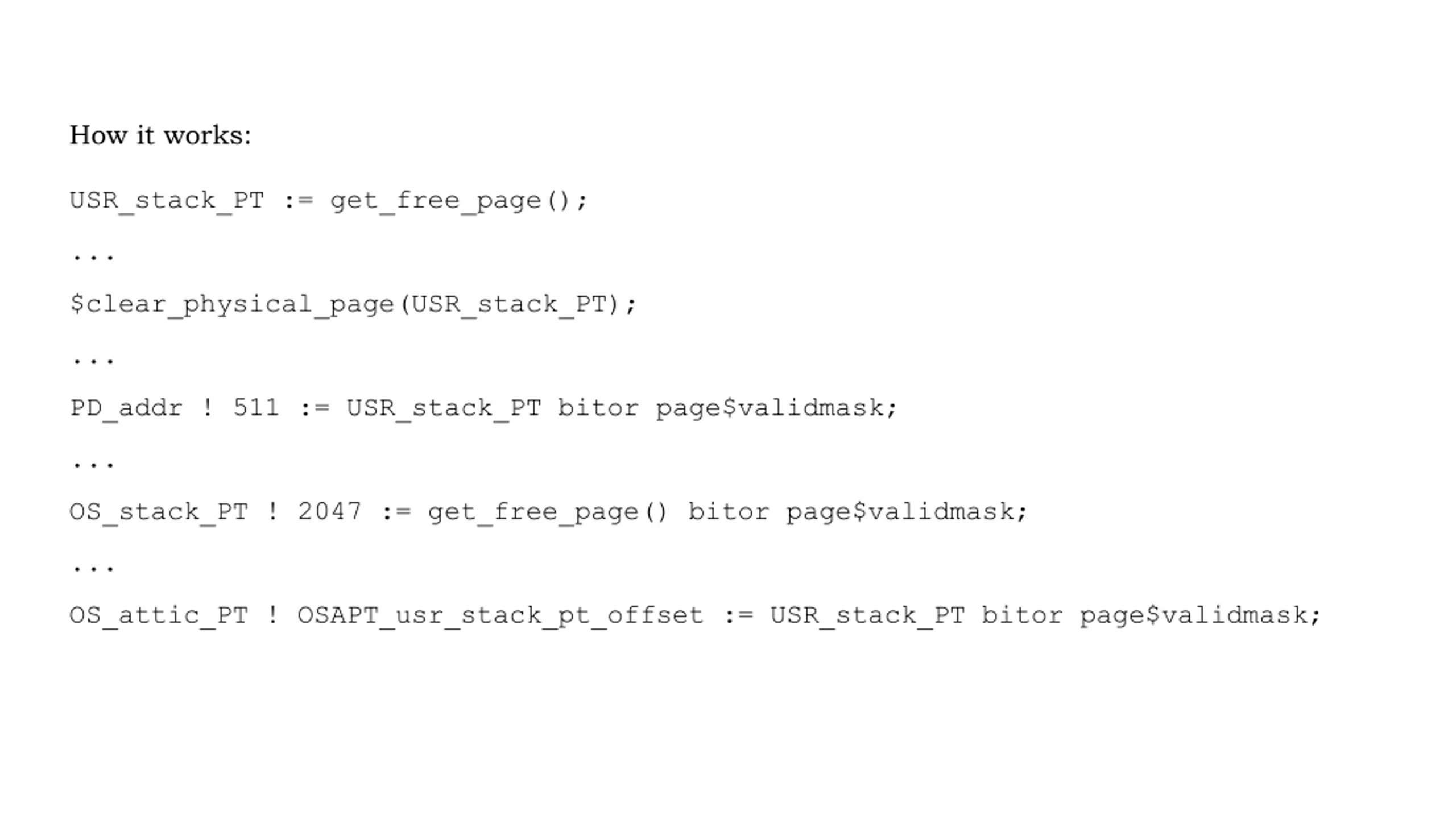

How it works: USR_stack_PT := get_free_page(); ... $clear_physical_page(USR_stack_PT); ... PD_addr ! 511 := USR_stack_PT bitor page$validmask; ... OS_stack_PT ! 2047 := get_free_page() bitor page$validmask; ... OS_attic_PT ! OSAPT_usr_stack_pt_offset := USR_stack_PT bitor page$validmask;

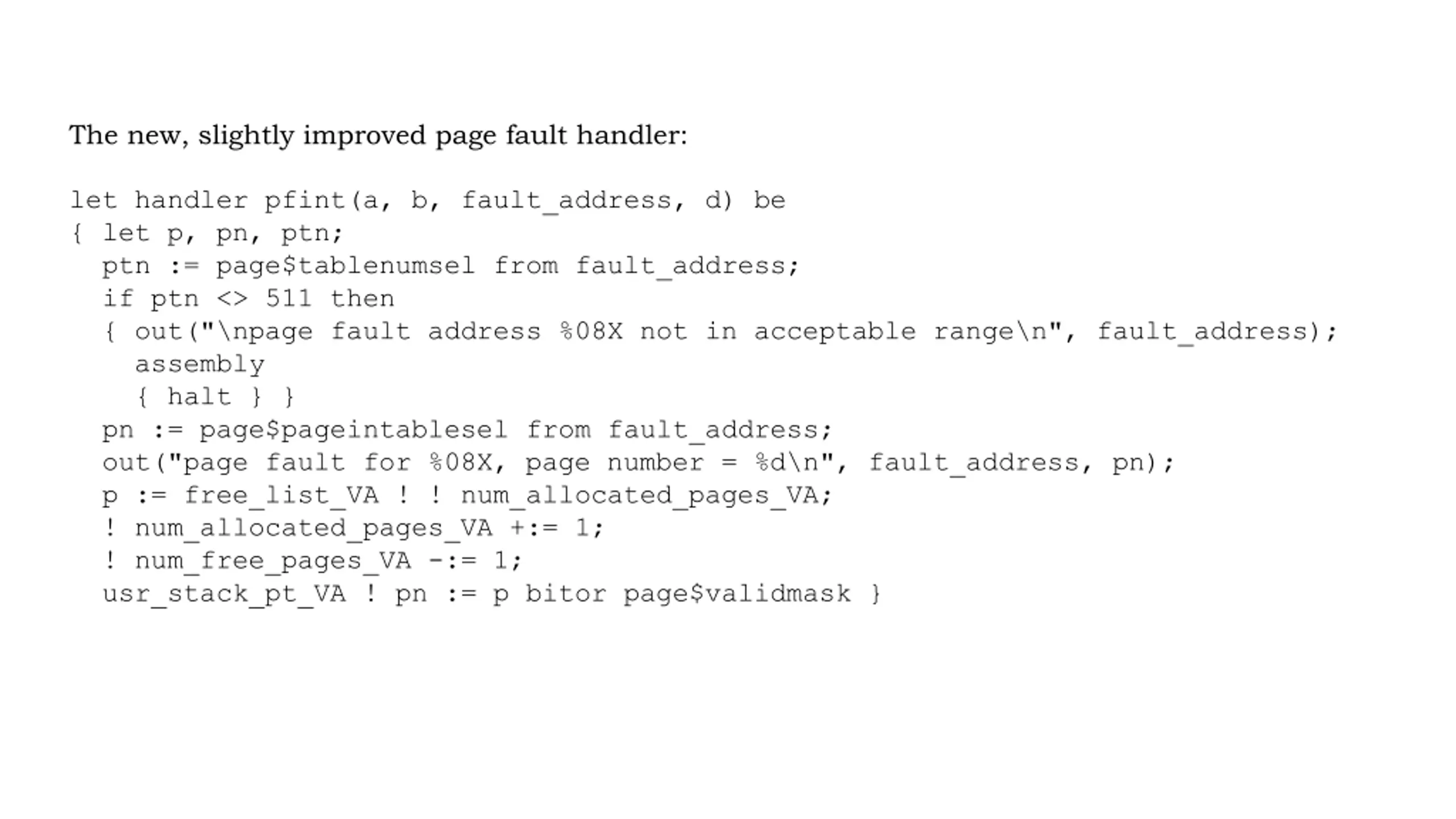

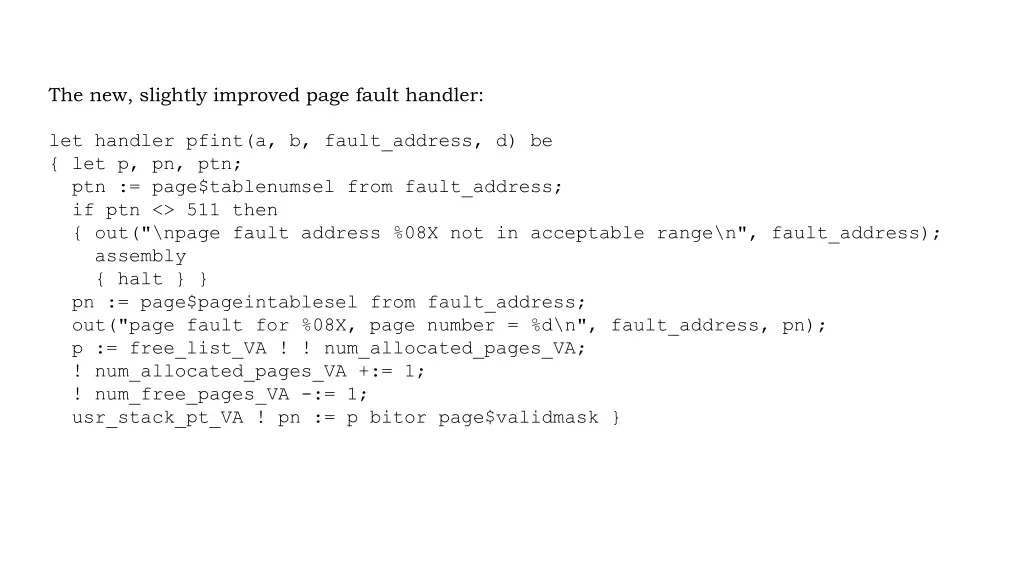

The new, slightly improved page fault handler: let handler pfint(a, b, fault_address, d) be { let p, pn, ptn; ptn := page$tablenumsel from fault_address; if ptn <> 511 then { out("\npage fault address %08X not in acceptable range\n", fault_address); assembly { halt } } pn := page$pageintablesel from fault_address; out("page fault for %08X, page number = %d\n", fault_address, pn); p := free_list_VA ! ! num_allocated_pages_VA; ! num_allocated_pages_VA +:= 1; ! num_free_pages_VA -:= 1; usr_stack_pt_VA ! pn := p bitor page$validmask }

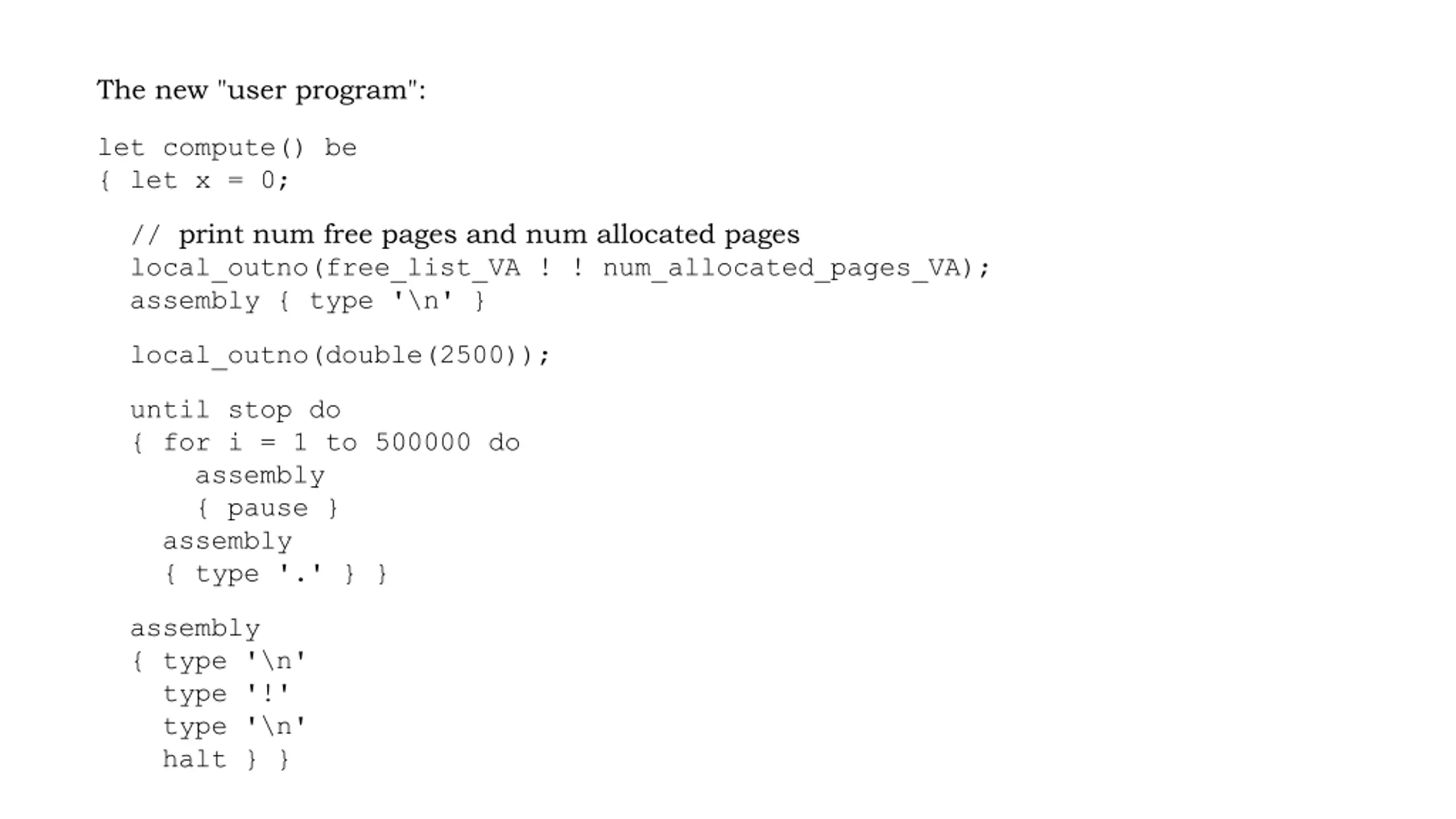

The new "user program": let compute() be { let x = 0; // print num free pages and num allocated pages local_outno(free_list_VA ! ! num_allocated_pages_VA); assembly { type '\n' } local_outno(double(2500)); until stop do { for i = 1 to 500000 do assembly { pause } assembly { type '.' } } assembly { type '\n' type '!' type '\n' halt } }

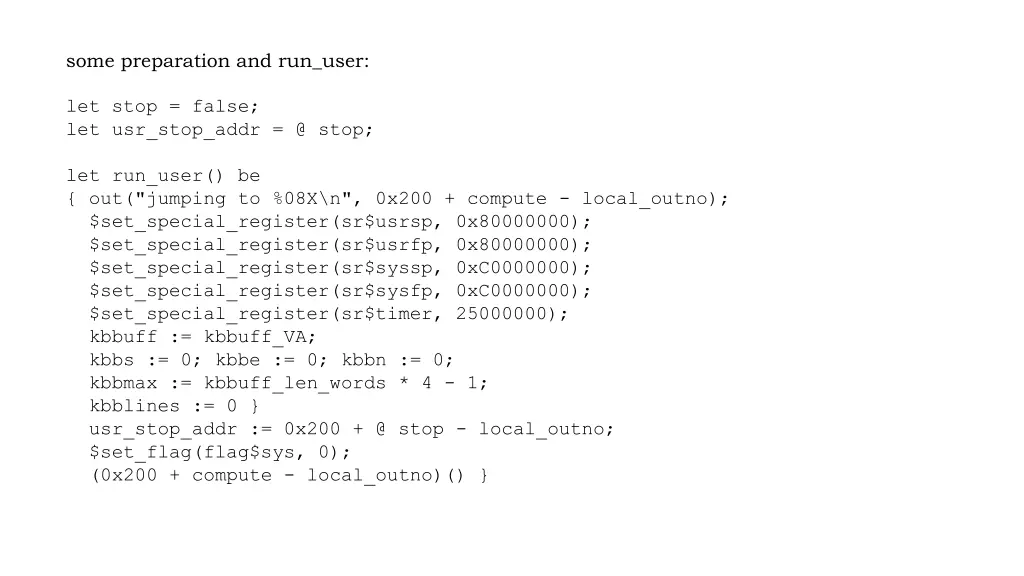

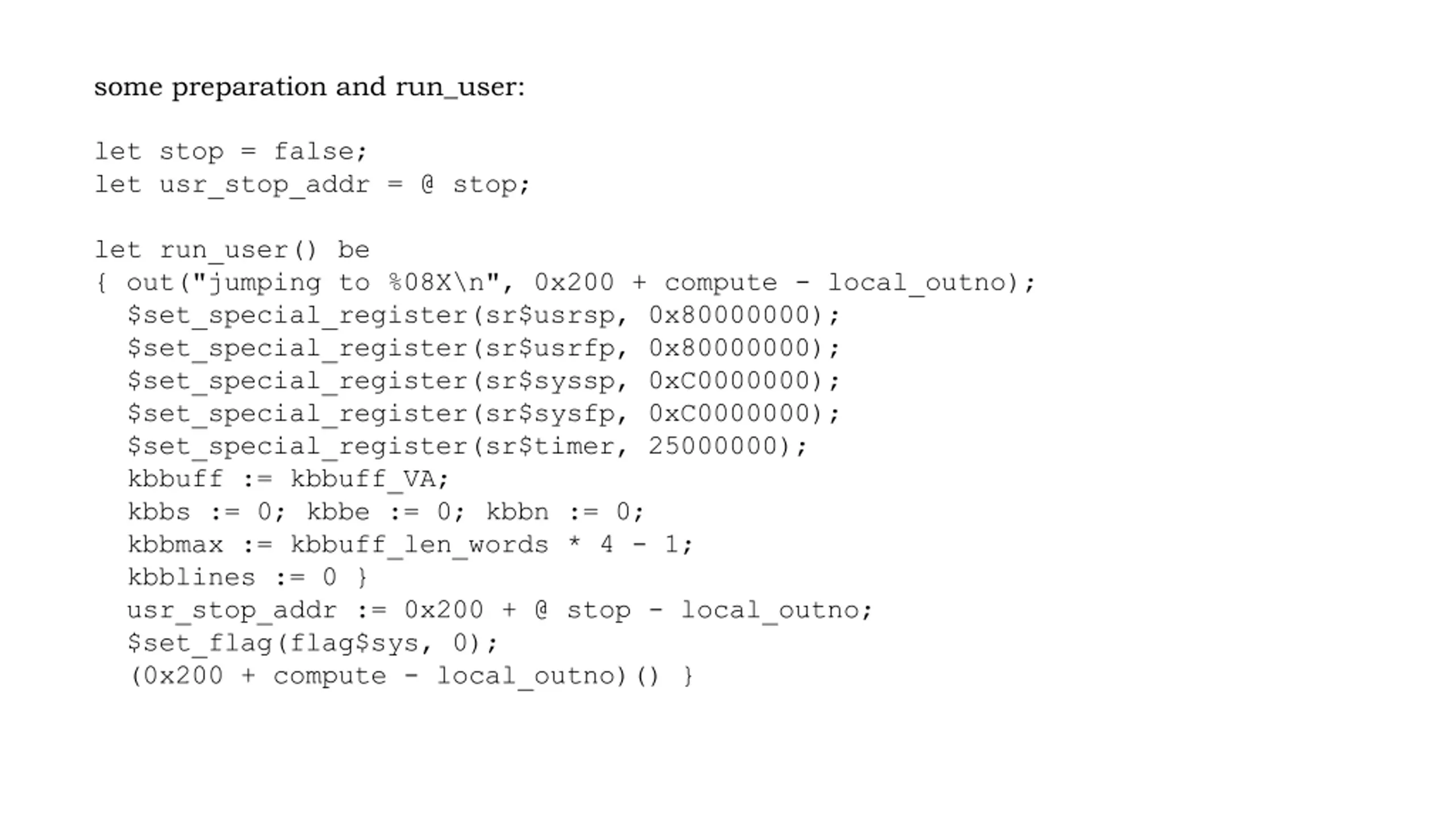

some preparation and run_user: let stop = false; let usr_stop_addr = @ stop; let run_user() be { out("jumping to %08X\n", 0x200 + compute - local_outno); $set_special_register(sr$usrsp, 0x80000000); $set_special_register(sr$usrfp, 0x80000000); $set_special_register(sr$syssp, 0xC0000000); $set_special_register(sr$sysfp, 0xC0000000); $set_special_register(sr$timer, 25000000); kbbuff := kbbuff_VA; kbbs := 0; kbbe := 0; kbbn := 0; kbbmax := kbbuff_len_words * 4 - 1; kbblines := 0 } usr_stop_addr := 0x200 + @ stop - local_outno; $set_flag(flag$sys, 0); (0x200 + compute - local_outno)() }

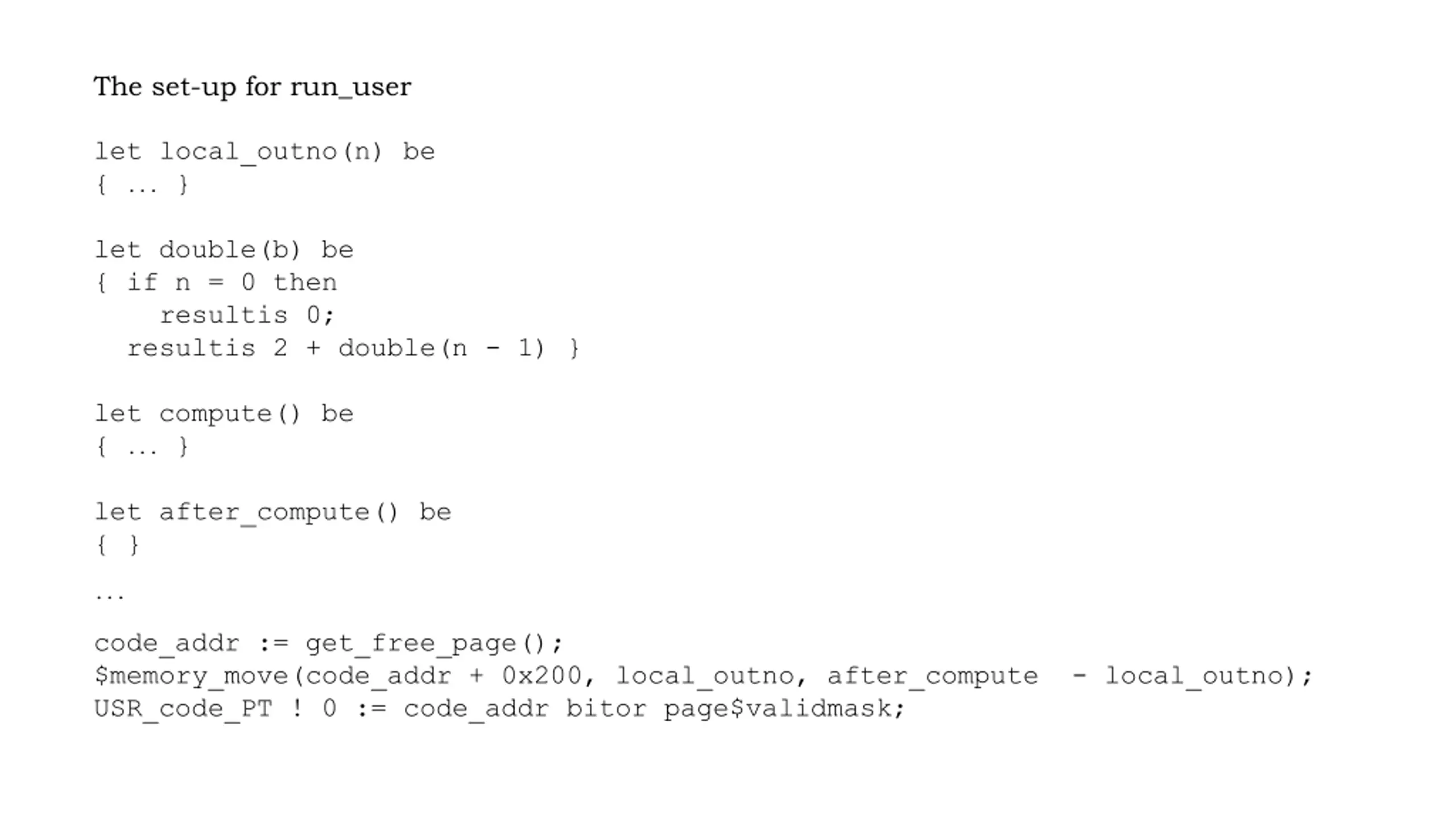

The set-up for run_user let local_outno(n) be { ... } let double(b) be { if n = 0 then resultis 0; resultis 2 + double(n - 1) } let compute() be { ... } let after_compute() be { } ... code_addr := get_free_page(); $memory_move(code_addr + 0x200, local_outno, after_compute - local_outno); USR_code_PT ! 0 := code_addr bitor page$validmask;

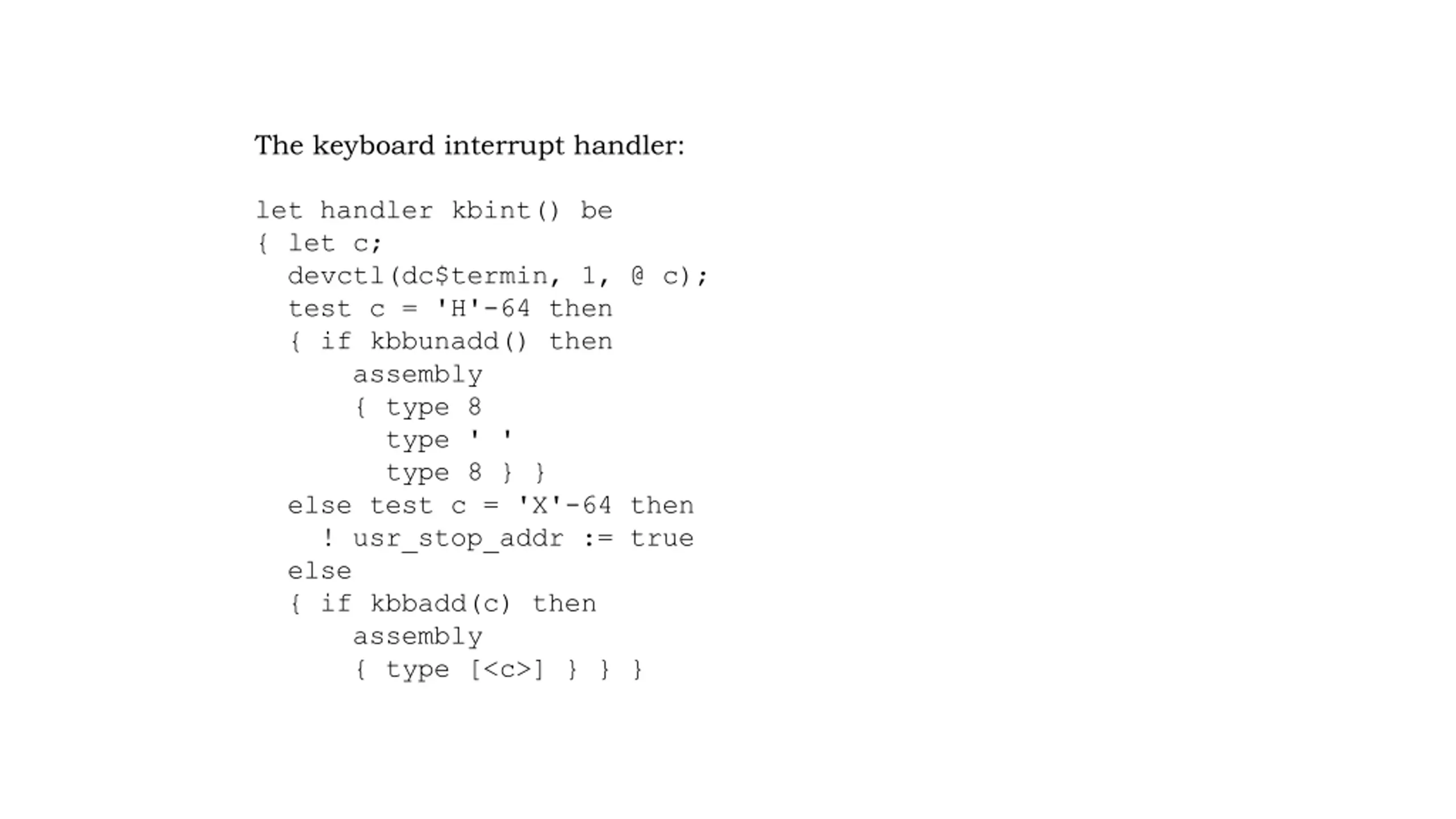

The keyboard interrupt handler: let handler kbint() be { let c; devctl(dc$termin, 1, @ c); test c = 'H'-64 then { if kbbunadd() then assembly { type 8 type ' ' type 8 } } else test c = 'X'-64 then ! usr_stop_addr := true else { if kbbadd(c) then assembly { type [<c>] } } }

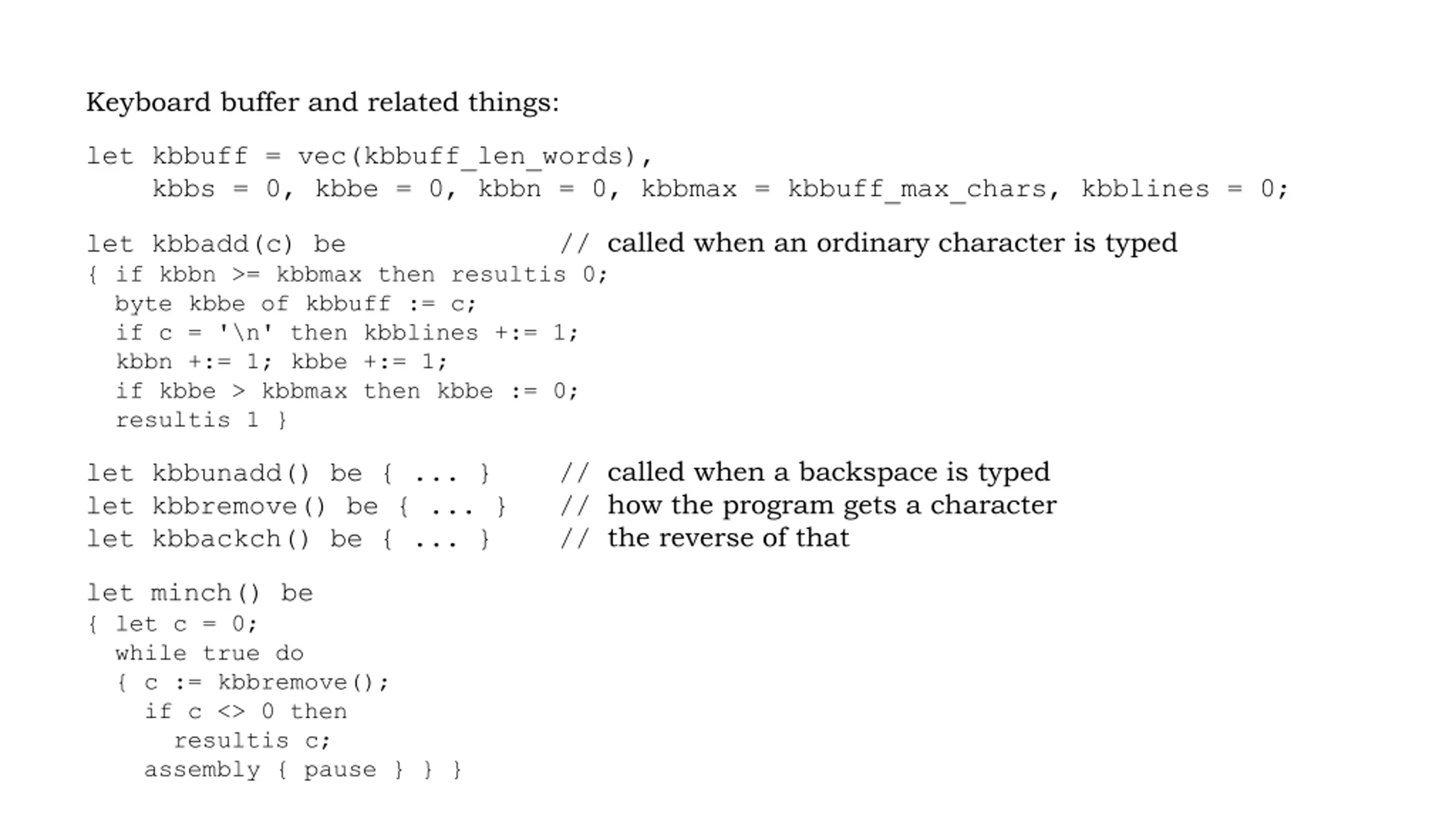

Keyboard buffer and related things: let kbbuff = vec(kbbuff_len_words), kbbs = 0, kbbe = 0, kbbn = 0, kbbmax = kbbuff_max_chars, kbblines = 0; let kbbadd(c) be // called when an ordinary character is typed { if kbbn >= kbbmax then resultis 0; byte kbbe of kbbuff := c; if c = '\n' then kbblines +:= 1; kbbn +:= 1; kbbe +:= 1; if kbbe > kbbmax then kbbe := 0; resultis 1 } let kbbunadd() be { ... } // called when a backspace is typed let kbbremove() be { ... } // how the program gets a character let kbbackch() be { ... } // the reverse of that let minch() be { let c = 0; while true do { c := kbbremove(); if c <> 0 then resultis c; assembly { pause } } }

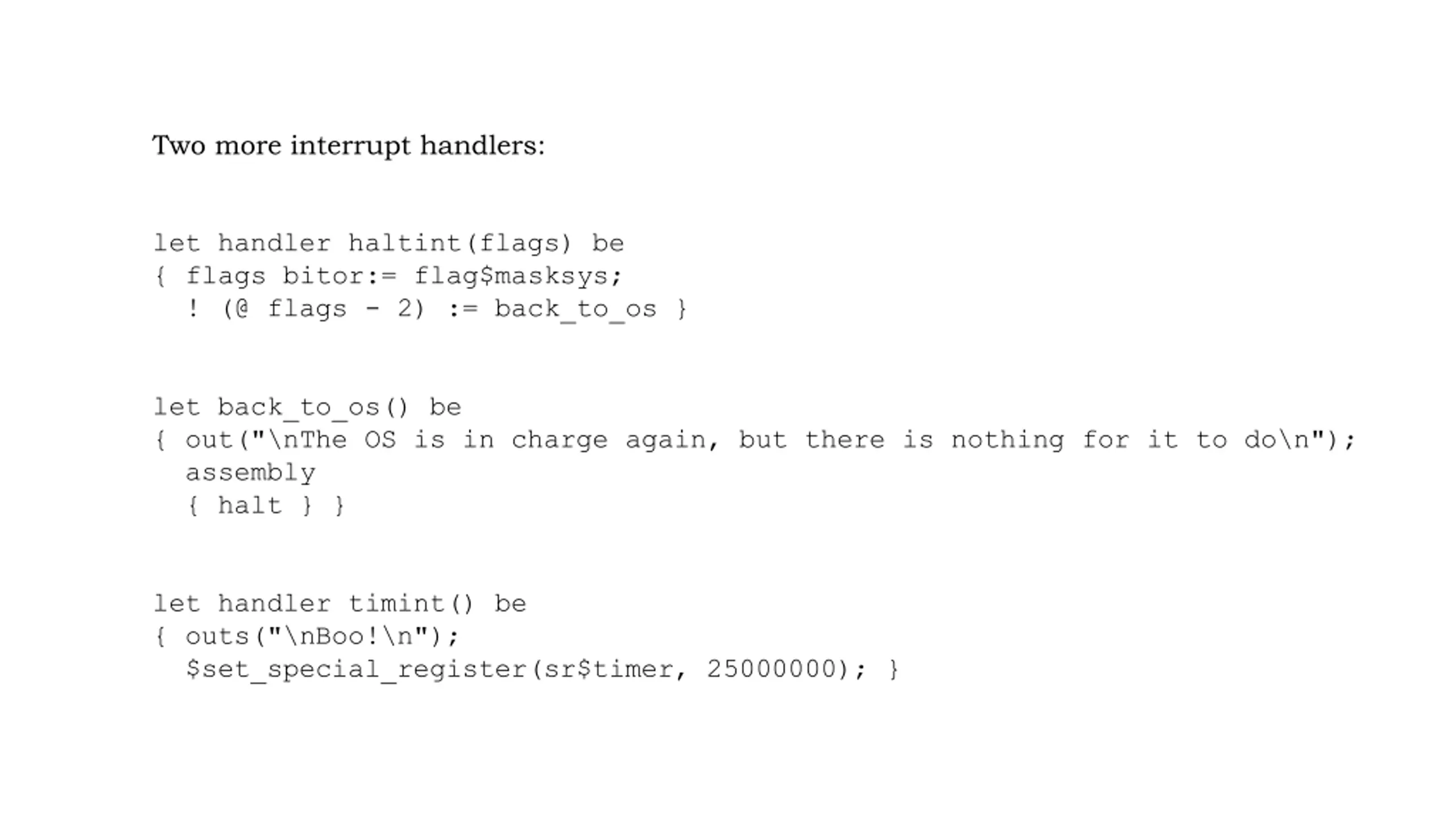

Two more interrupt handlers: let handler haltint(flags) be { flags bitor:= flag$masksys; ! (@ flags - 2) := back_to_os } let back_to_os() be { out("\nThe OS is in charge again, but there is nothing for it to do\n"); assembly { halt } } let handler timint() be { outs("\nBoo!\n"); $set_special_register(sr$timer, 25000000); }

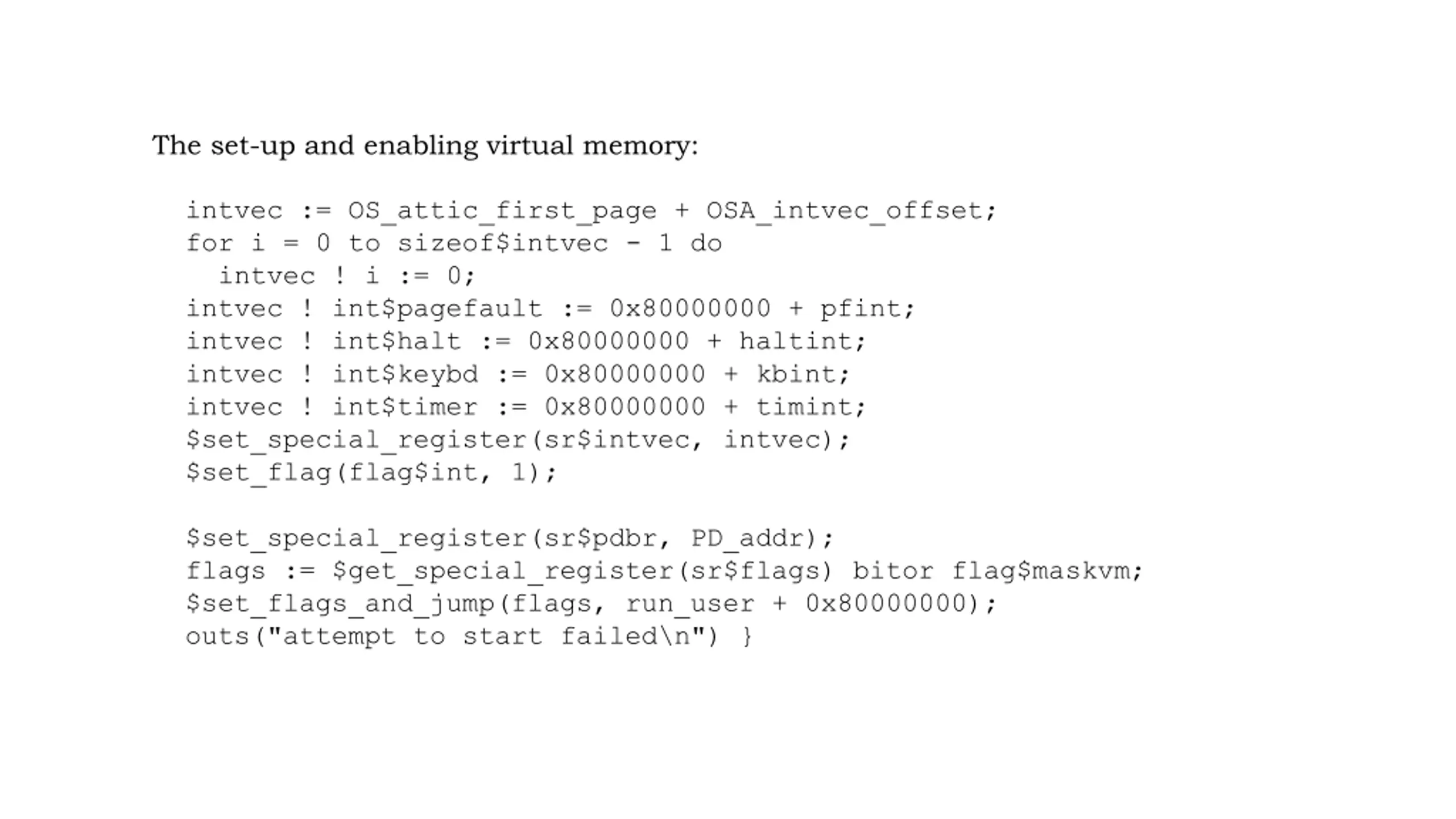

The set-up and enabling virtual memory: intvec := OS_attic_first_page + OSA_intvec_offset; for i = 0 to sizeof$intvec - 1 do intvec ! i := 0; intvec ! int$pagefault := 0x80000000 + pfint; intvec ! int$halt := 0x80000000 + haltint; intvec ! int$keybd := 0x80000000 + kbint; intvec ! int$timer := 0x80000000 + timint; $set_special_register(sr$intvec, intvec); $set_flag(flag$int, 1); $set_special_register(sr$pdbr, PD_addr); flags := $get_special_register(sr$flags) bitor flag$maskvm; $set_flags_and_jump(flags, run_user + 0x80000000); outs("attempt to start failed\n") }

Part Two

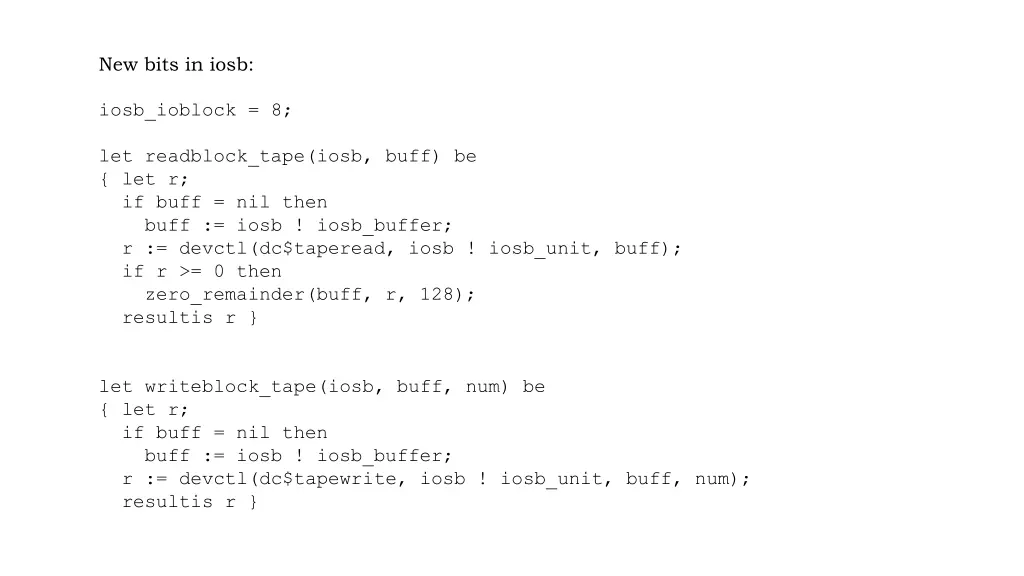

New bits in iosb: iosb_ioblock = 8; let readblock_tape(iosb, buff) be { let r; if buff = nil then buff := iosb ! iosb_buffer; r := devctl(dc$taperead, iosb ! iosb_unit, buff); if r >= 0 then zero_remainder(buff, r, 128); resultis r } let writeblock_tape(iosb, buff, num) be { let r; if buff = nil then buff := iosb ! iosb_buffer; r := devctl(dc$tapewrite, iosb ! iosb_unit, buff, num); resultis r }

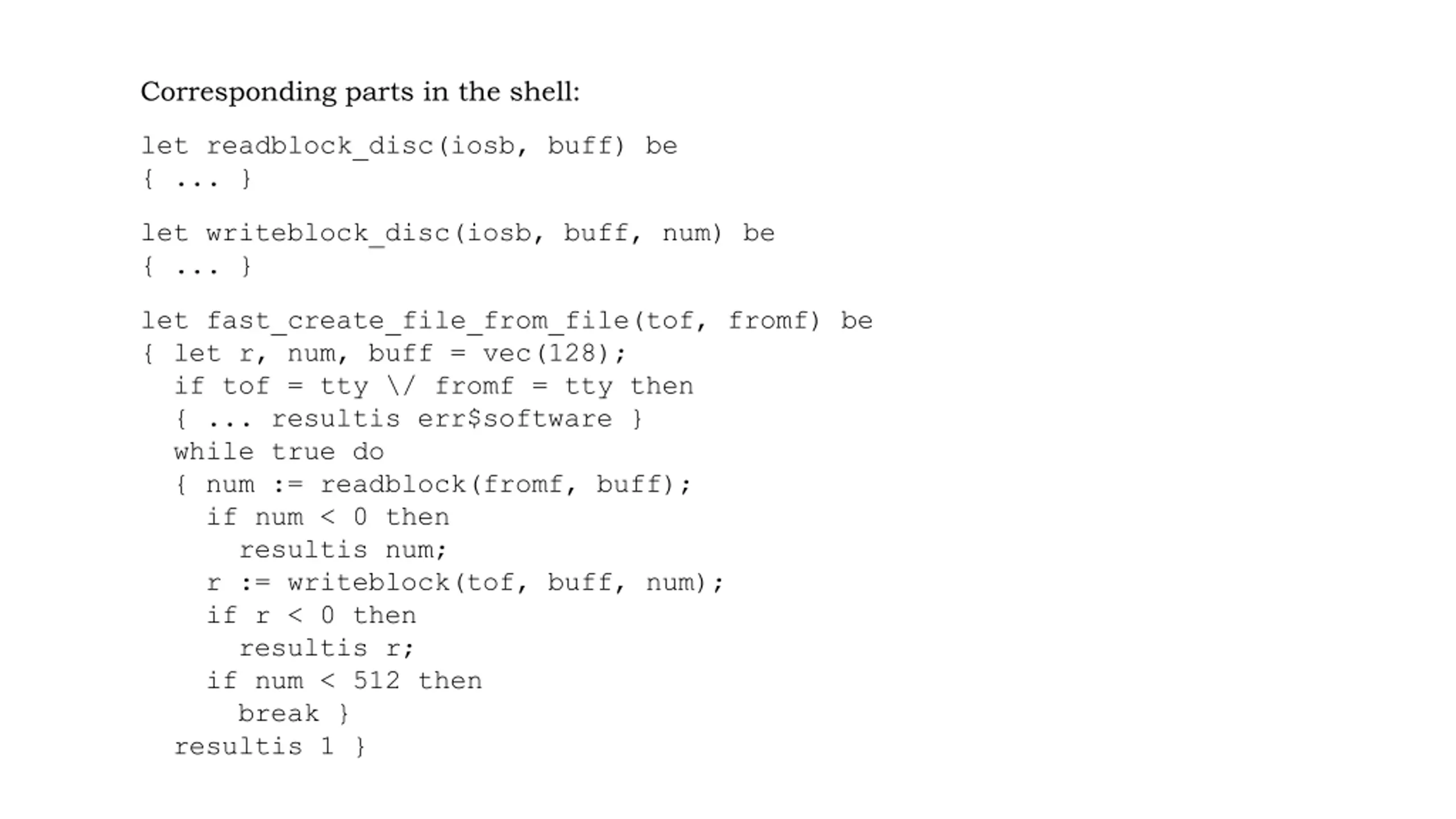

Corresponding parts in the shell: let readblock_disc(iosb, buff) be { ... } let writeblock_disc(iosb, buff, num) be { ... } let fast_create_file_from_file(tof, fromf) be { let r, num, buff = vec(128); if tof = tty \/ fromf = tty then { ... resultis err$software } while true do { num := readblock(fromf, buff); if num < 0 then resultis num; r := writeblock(tof, buff, num); if r < 0 then resultis r; if num < 512 then break } resultis 1 }
