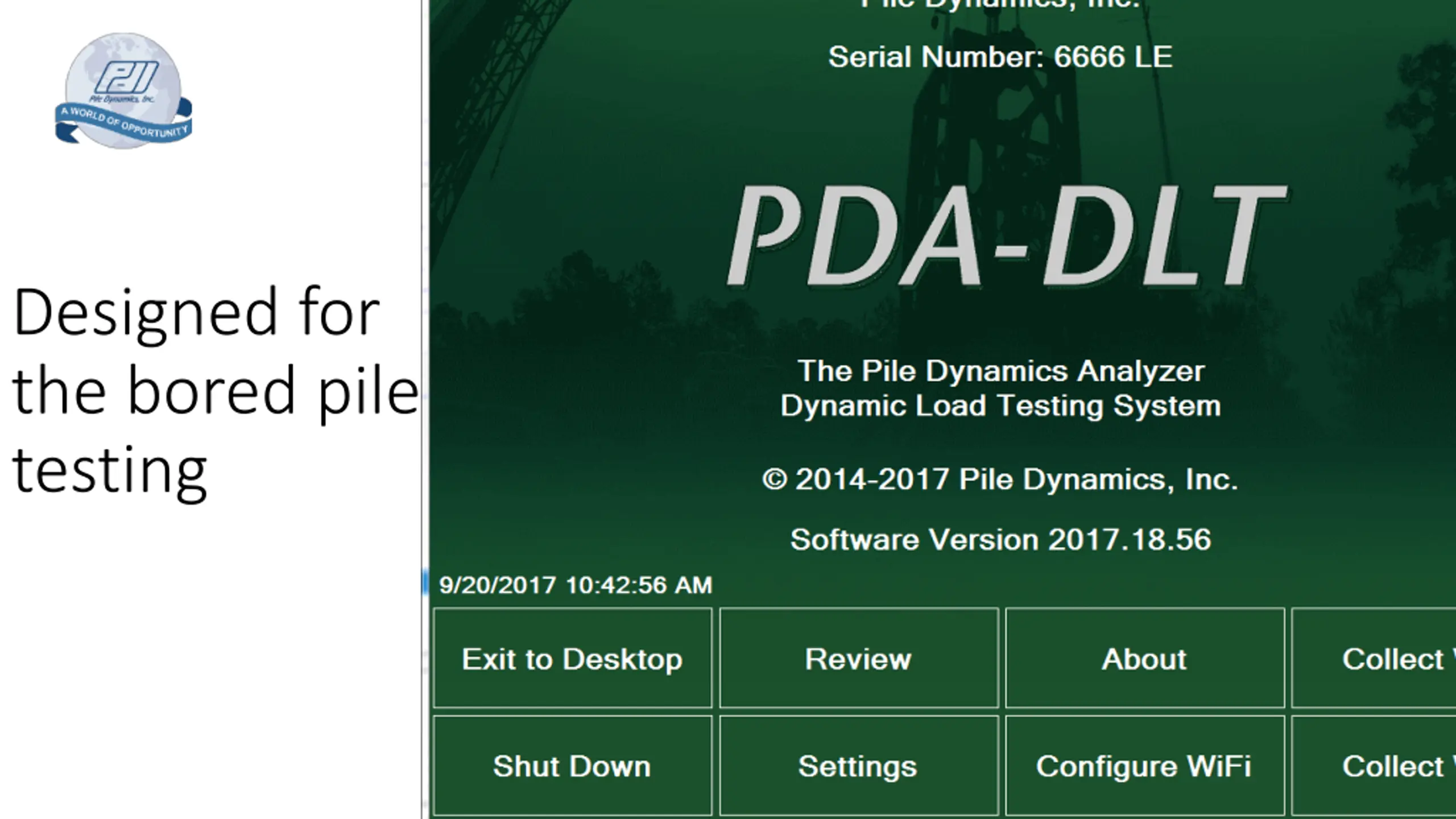

Designed for the bored pile testing

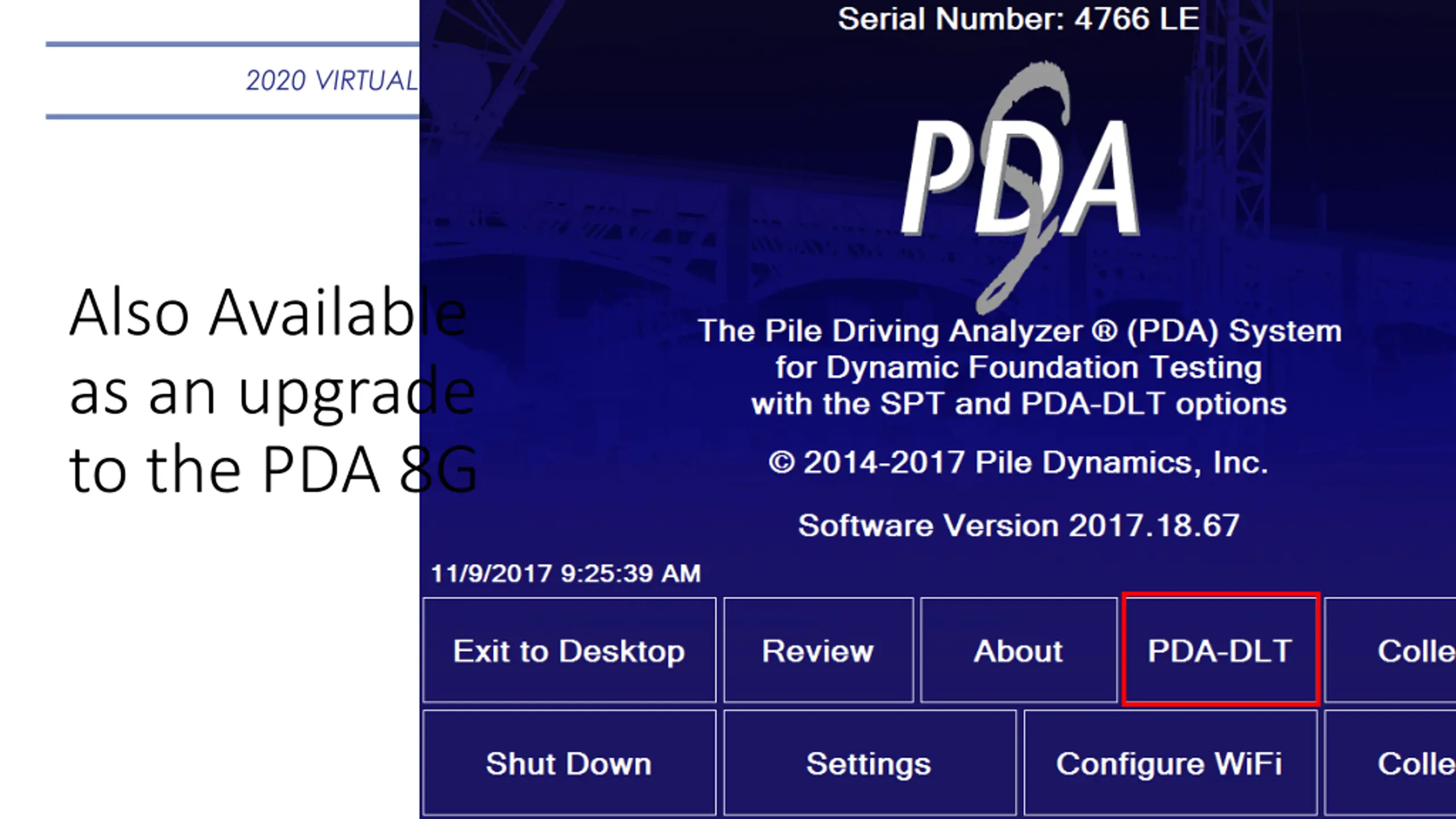

2020 VIRTUAL REP DAYS Also Available as an upgrade to the PDA 8G www.pile.com | info@pile.com

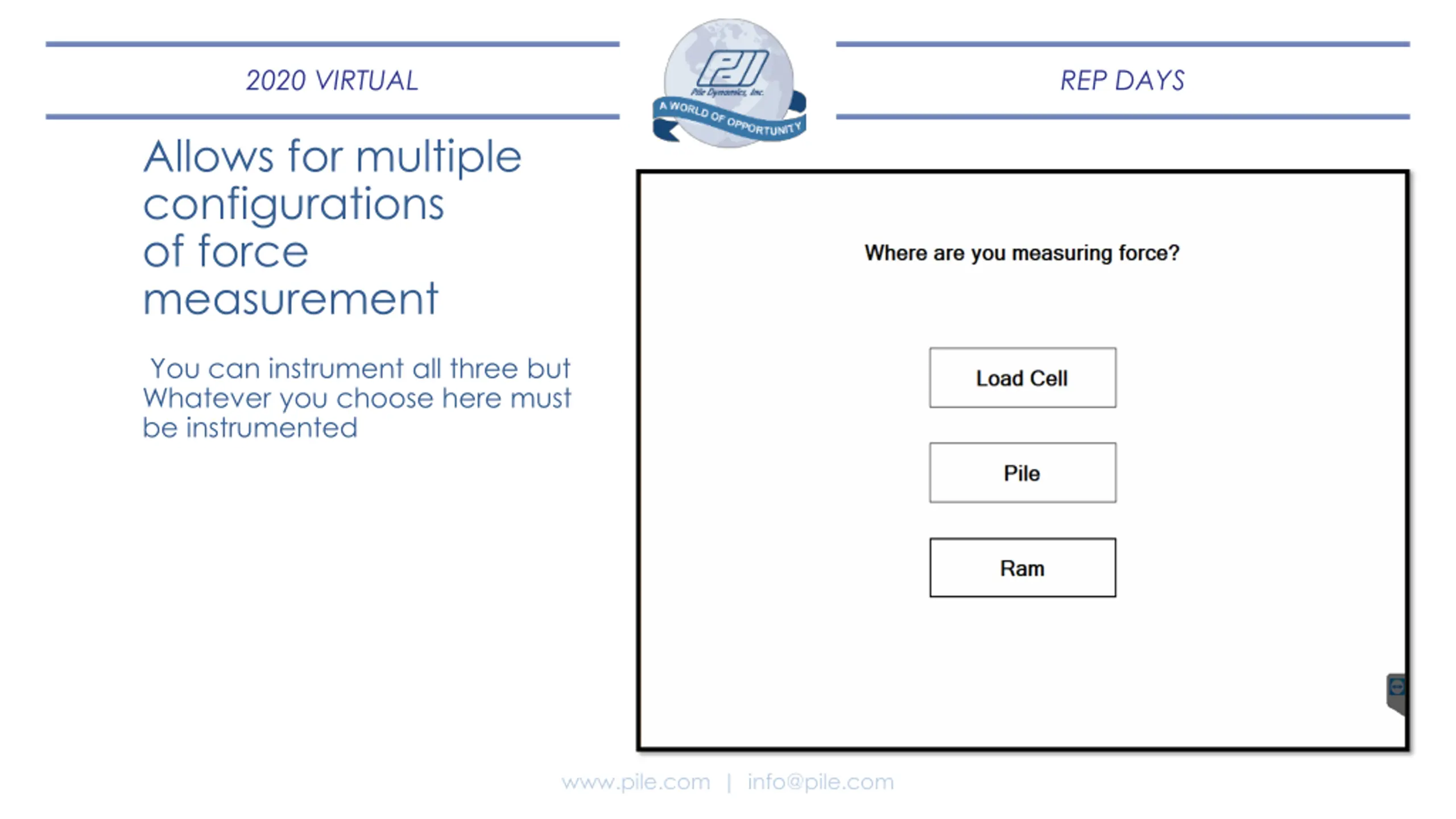

2020 VIRTUAL REP DAYS Allows for multiple configurations of force measurement You can instrument all three but Whatever you choose here must be instrumented www.pile.com | info@pile.com

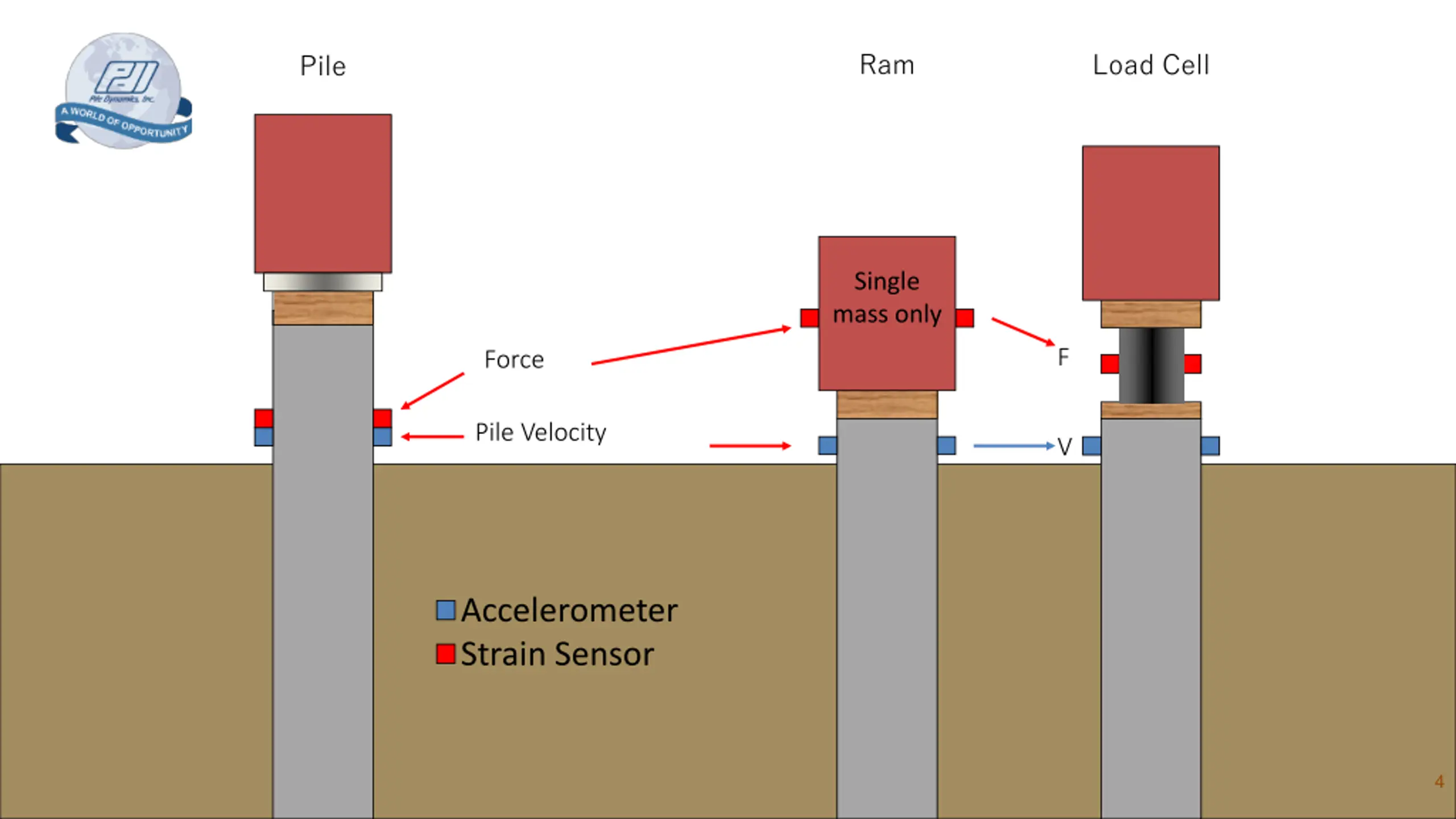

Ram Load Cell Pile Single mass only F Force Pile Velocity V Accelerometer Strain Sensor 4

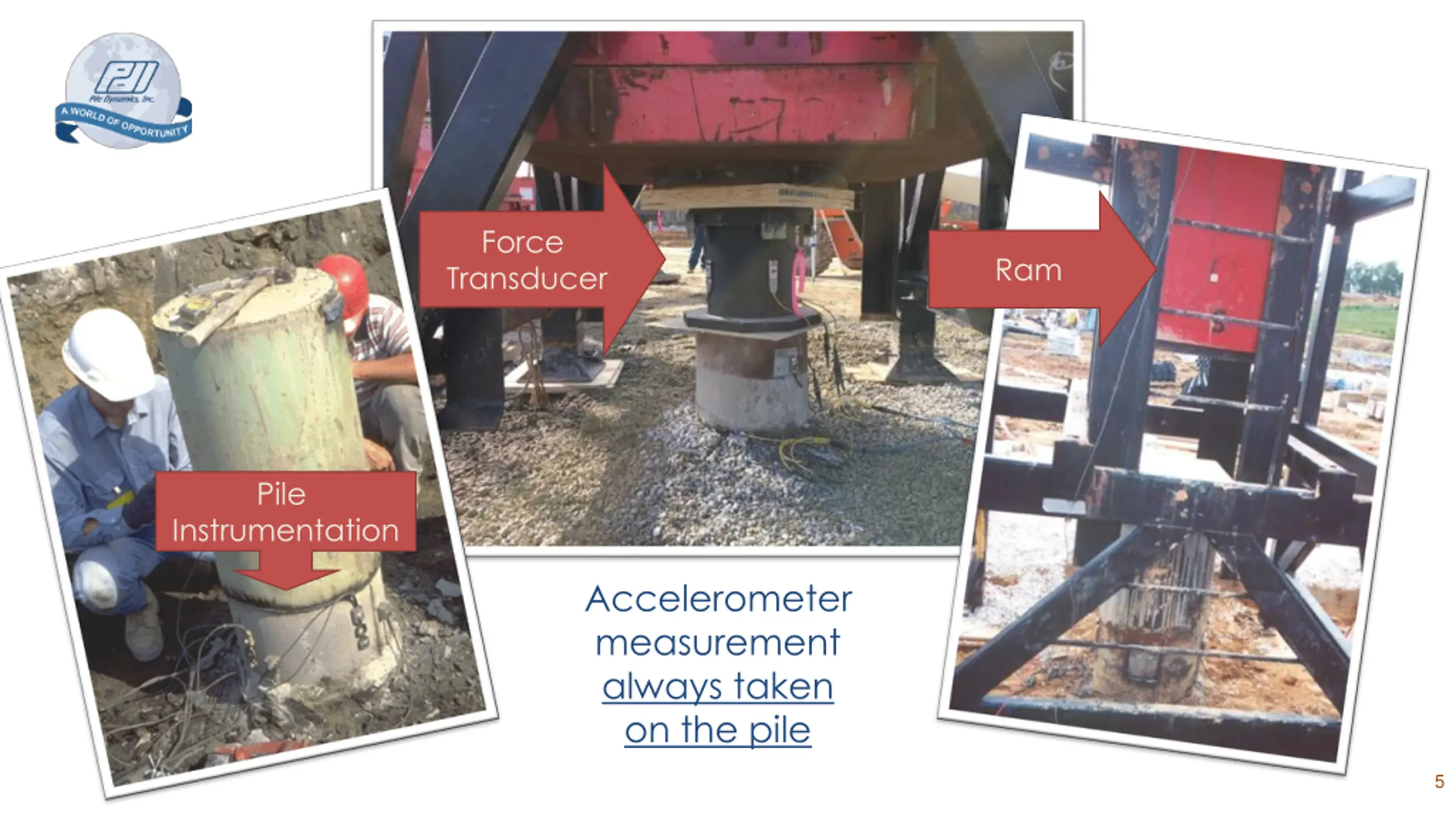

Force Transducer Ram Pile Instrumentation Accelerometer measurement always taken on the pile 5
2020 VIRTUAL REP DAYS Allows for multiple configurations of force measurement www.pile.com | info@pile.com

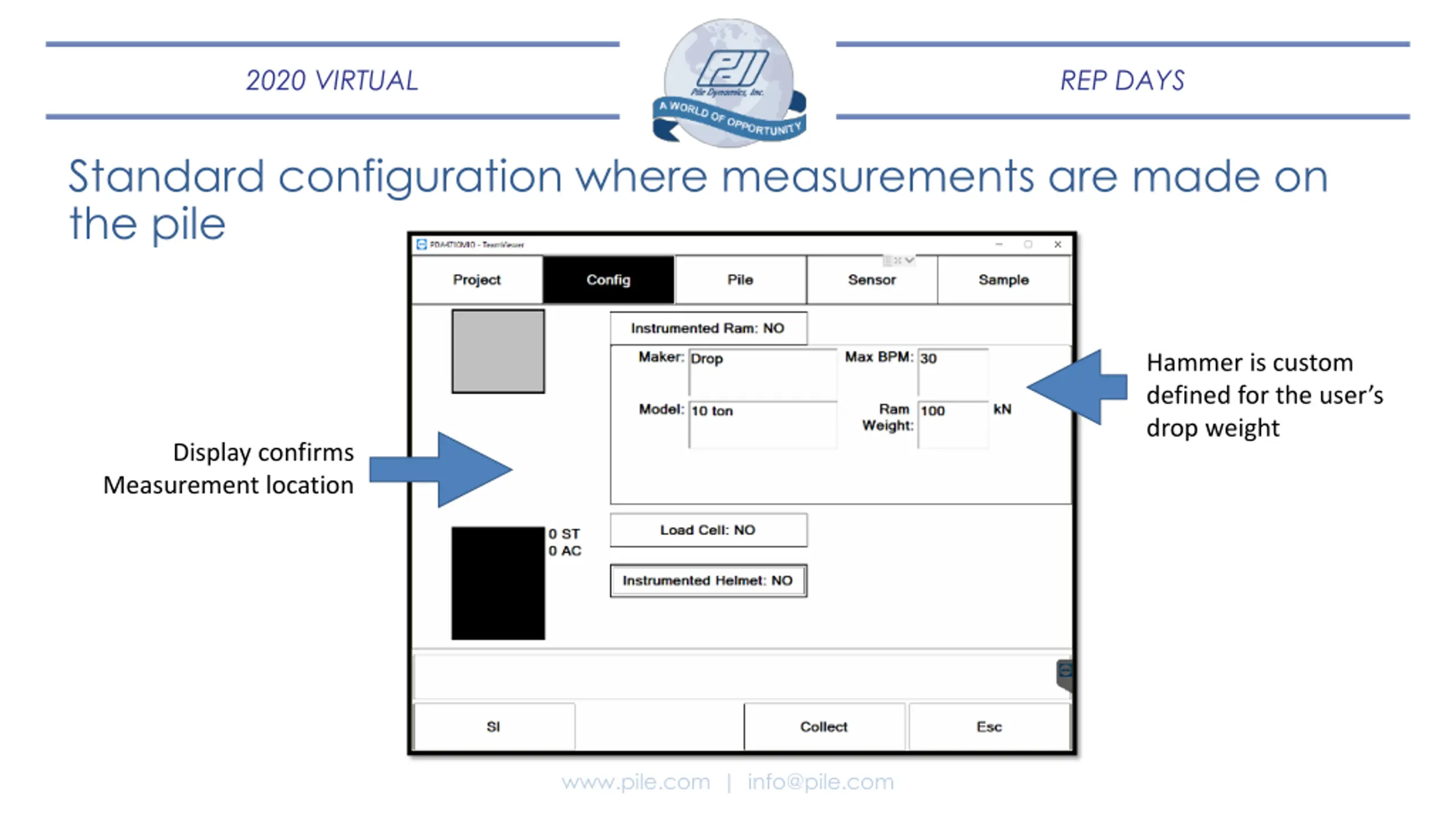

2020 VIRTUAL REP DAYS Standard configuration where measurements are made on the pile Hammer is custom defined for the user s drop weight Display confirms Measurement location www.pile.com | info@pile.com

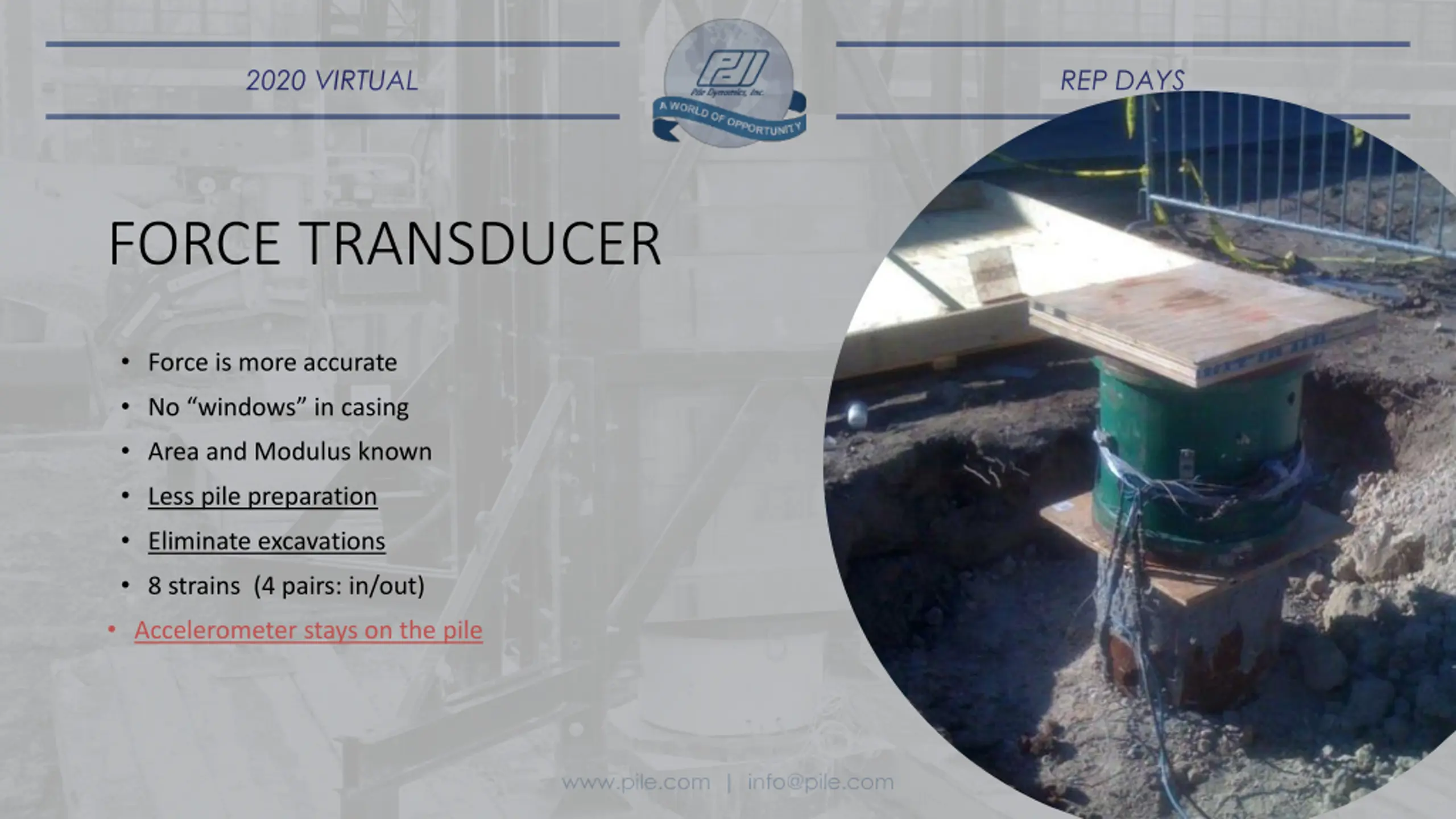

2020 VIRTUAL REP DAYS FORCE TRANSDUCER Force is more accurate No windows in casing Area and Modulus known Less pile preparation Eliminate excavations 8 strains (4 pairs: in/out) Accelerometer stays on the pile www.pile.com | info@pile.com

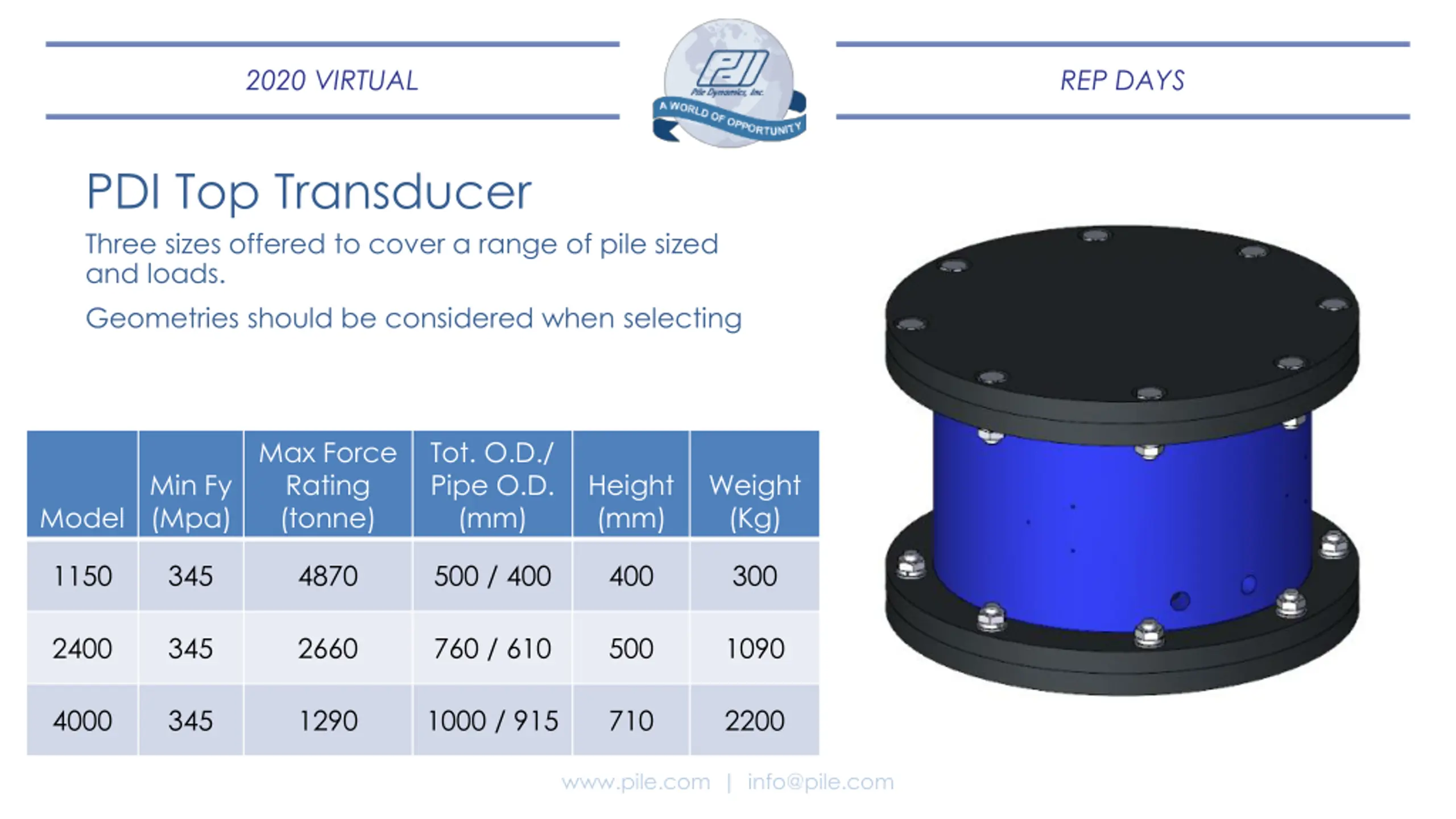

2020 VIRTUAL REP DAYS PDI Top Transducer Three sizes offered to cover a range of pile sized and loads. Geometries should be considered when selecting Max Force Rating (tonne) Tot. O.D./ Pipe O.D. (mm) Min Fy (Mpa) Height (mm) Weight (Kg) Model 1150 345 4870 500 / 400 400 300 2400 345 2660 760 / 610 500 1090 4000 345 1290 1000 / 915 710 2200 www.pile.com | info@pile.com

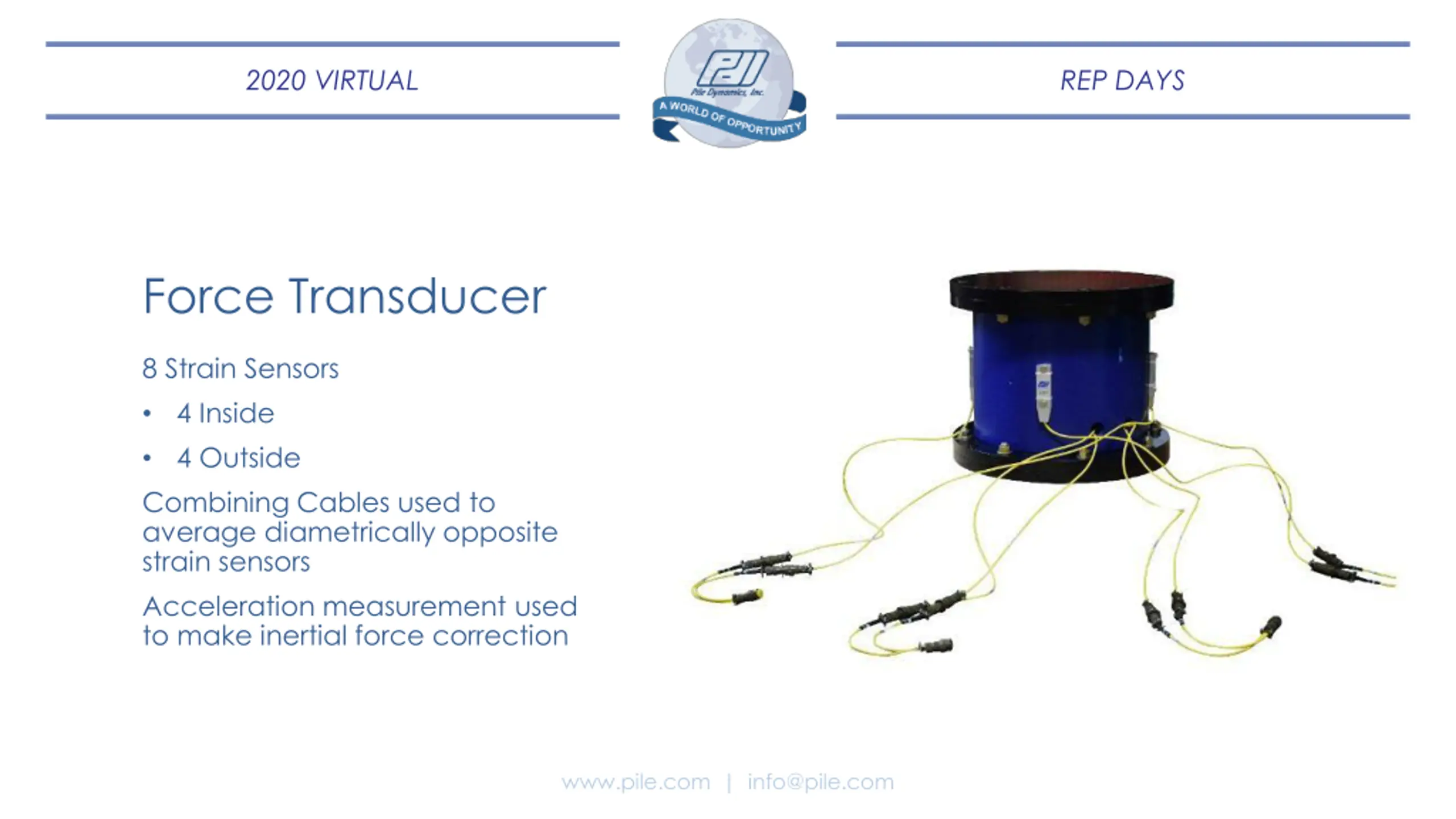

2020 VIRTUAL REP DAYS Force Transducer 8 Strain Sensors 4 Inside 4 Outside Combining Cables used to average diametrically opposite strain sensors Acceleration measurement used to make inertial force correction www.pile.com | info@pile.com
