Voltage Translation Clamps Standard Logic ASIA MARKETING DEVELOPMENT Samuel Lin s-lin9@ti.com 2012/Q1 1

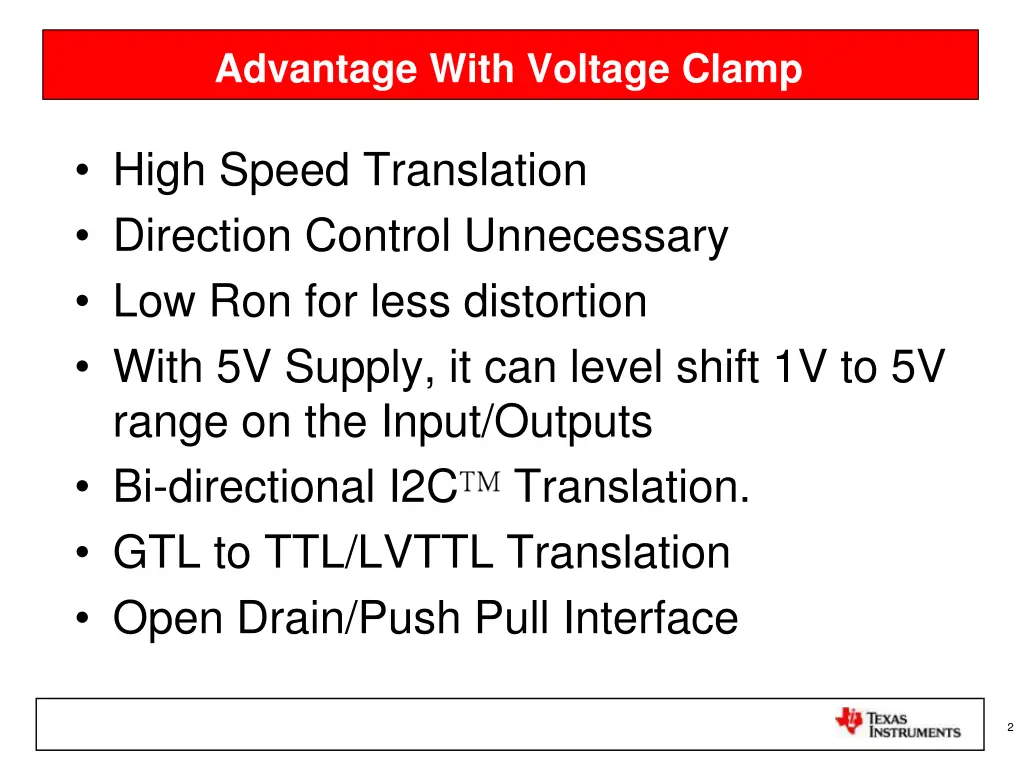

Advantage With Voltage Clamp High Speed Translation Direction Control Unnecessary Low Ron for less distortion With 5V Supply, it can level shift 1V to 5V range on the Input/Outputs Bi-directional I2C Translation. GTL to TTL/LVTTL Translation Open Drain/Push Pull Interface 2
TVC Structures #1 VCC=5V 200k A IO : non-open drain B IO : non-open drain VREF A1 B1 VPullup Output 0 V to VREF(no pullup) 0V to Vpullup(pull up) A2 Input: 0V to 5V B2 Input 0 V to VREF(no pullup) 0 V to Vpullup(pull up) Output 0V to VREF(no pullup) 3

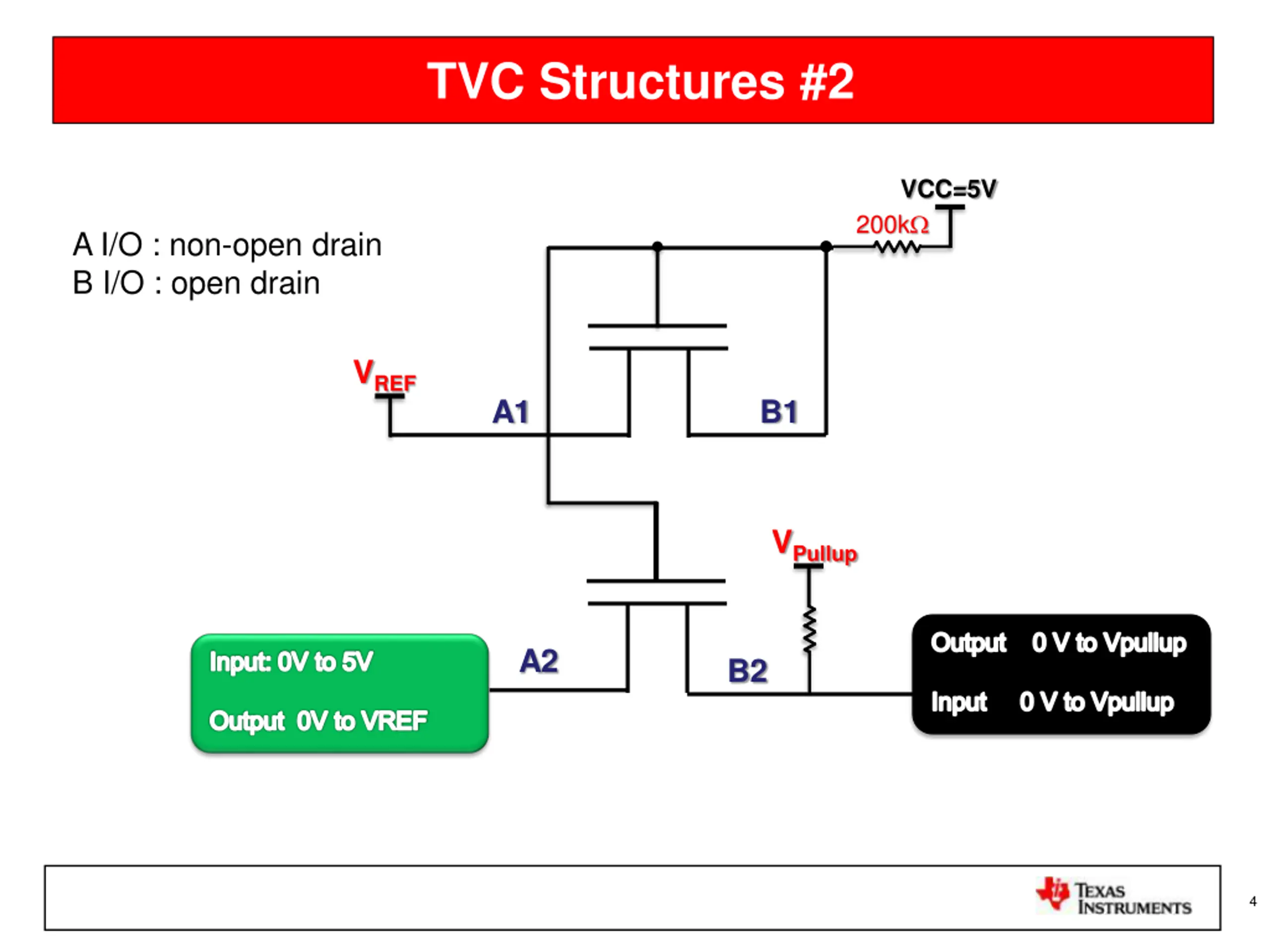

TVC Structures #2 VCC=5V 200k A I/O : non-open drain B I/O : open drain VREF A1 B1 VPullup Output 0 V to Vpullup A2 Input: 0V to 5V B2 Input 0 V to Vpullup Output 0V to VREF 4

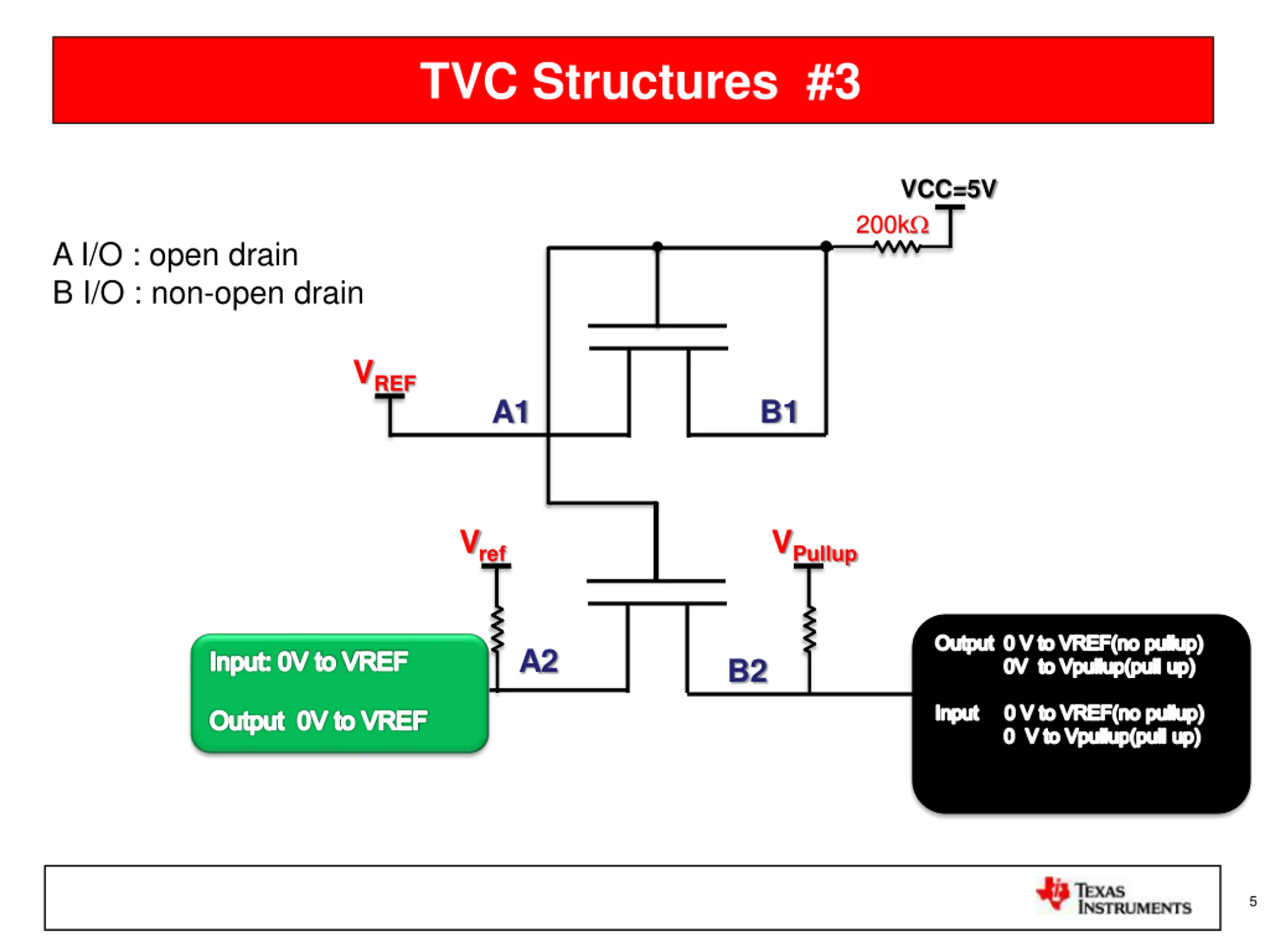

TVC Structures #3 VCC=5V 200k A I/O : open drain B I/O : non-open drain VREF A1 B1 Vref VPullup Output 0 V to VREF(no pullup) 0V to Vpullup(pull up) A2 Input: 0V to VREF B2 Input 0 V to VREF(no pullup) 0 V to Vpullup(pull up) Output 0V to VREF 5

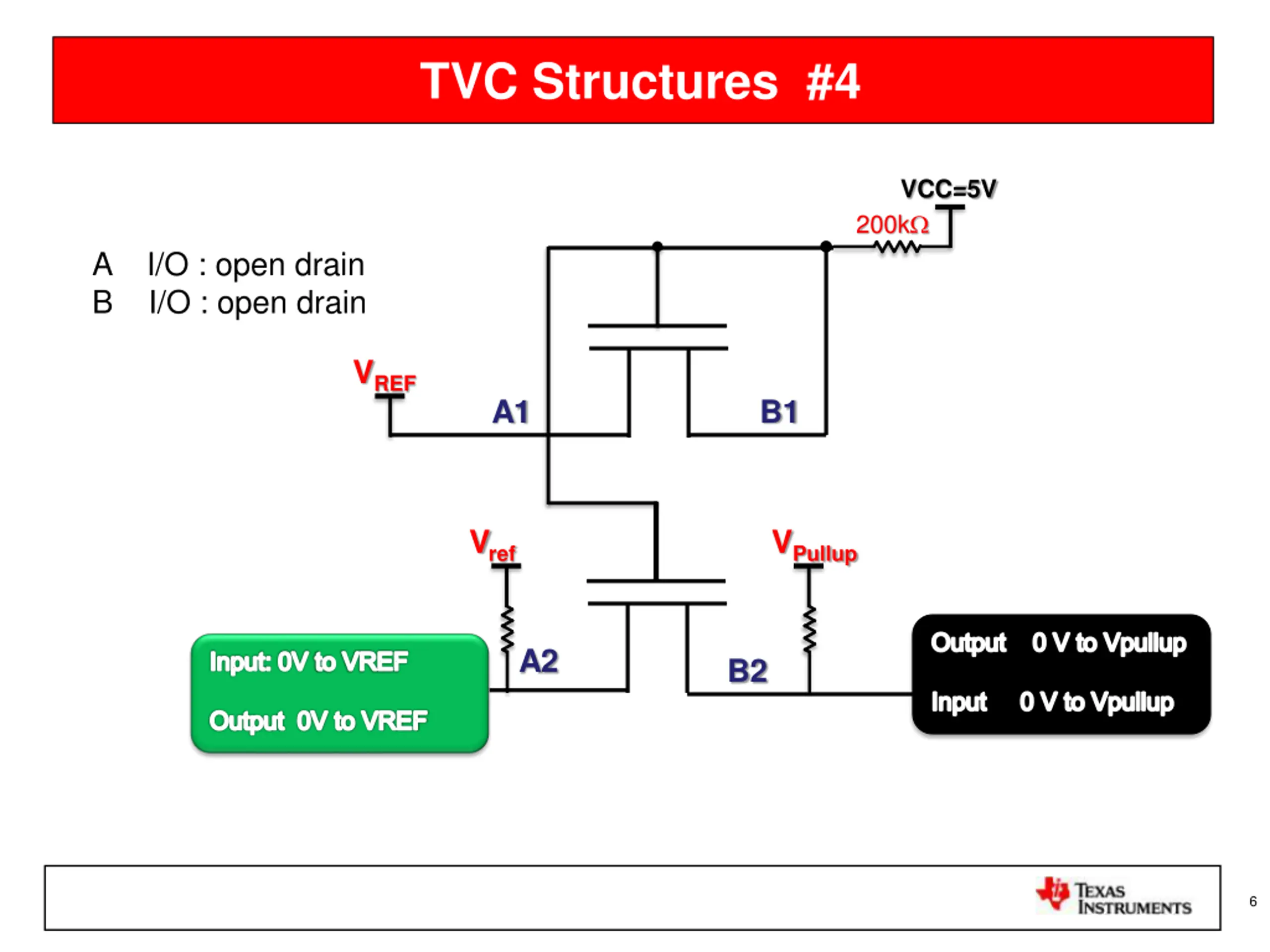

TVC Structures #4 VCC=5V 200k A I/O : open drain B I/O : open drain VREF A1 B1 Vref VPullup Output 0 V to Vpullup A2 Input: 0V to VREF B2 Input 0 V to Vpullup Output 0V to VREF 6

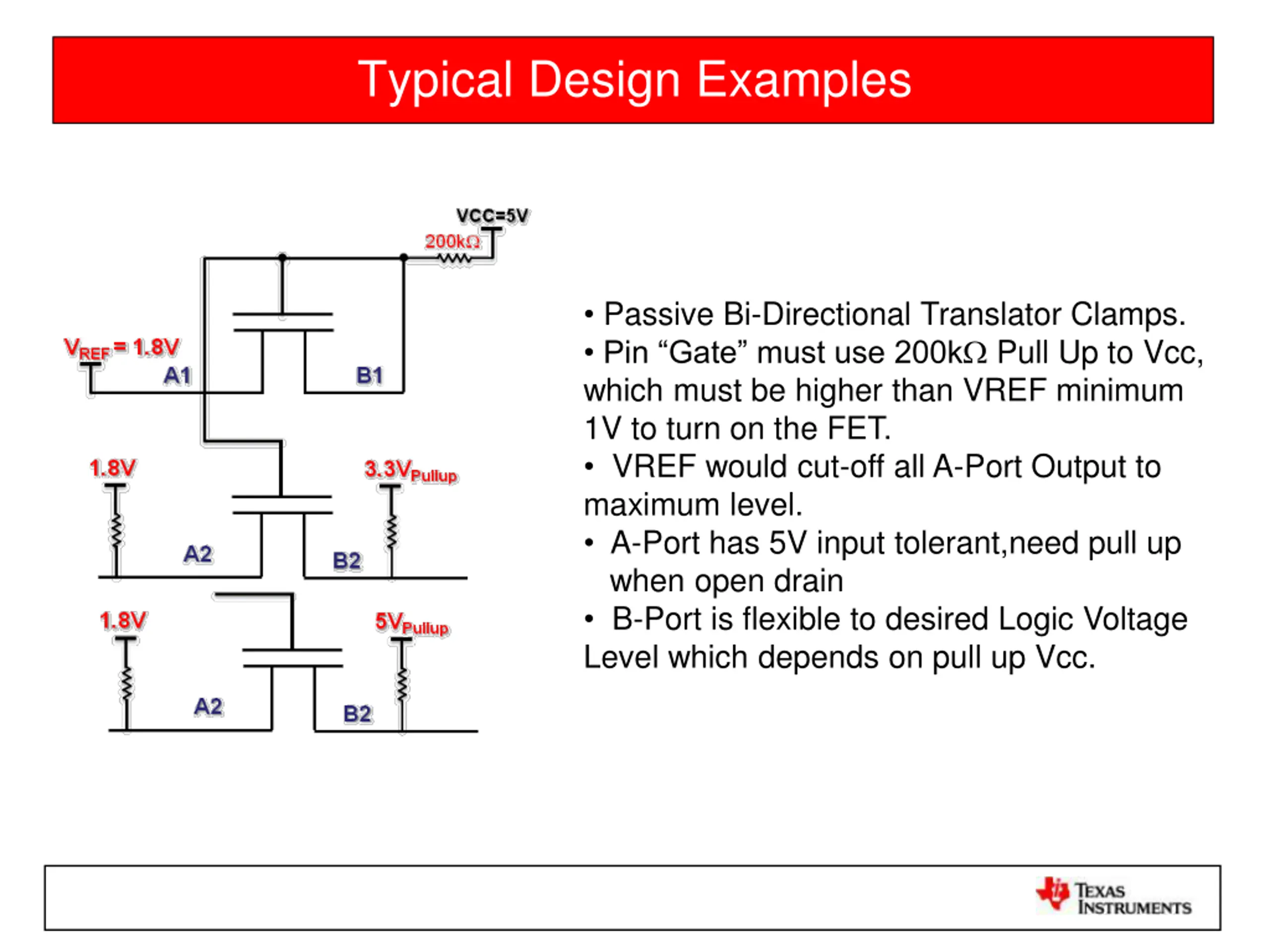

Typical Design Examples Passive Bi-Directional Translator Clamps. Pin Gate must use 200k Pull Up to Vcc, which must be higher than VREF minimum 1V to turn on the FET. VREF would cut-off all A-Port Output to maximum level. A-Port has 5V input tolerant,need pull up when open drain B-Port is flexible to desired Logic Voltage Level which depends on pull up Vcc.

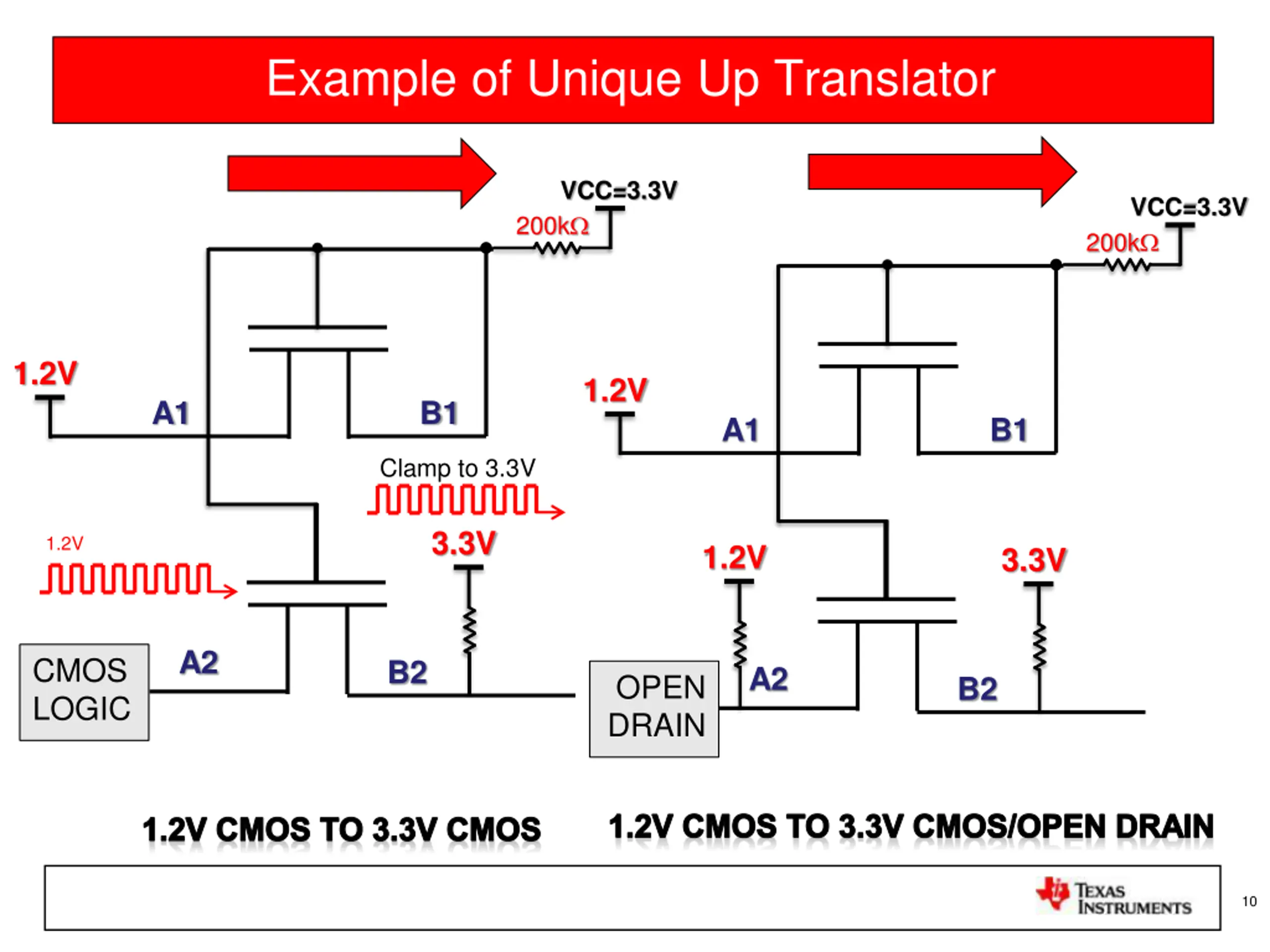

Example of Unique Up Translator VCC=3.3V VCC=3.3V 200k 200k 1.2V 1.2V A1 B1 A1 B1 Clamp to 3.3V 3.3V 1.2V 1.2V 3.3V A2 CMOS LOGIC B2 A2 OPEN DRAIN B2 1.2V CMOS TO 3.3V CMOS/OPEN DRAIN 1.2V CMOS TO 3.3V CMOS 10

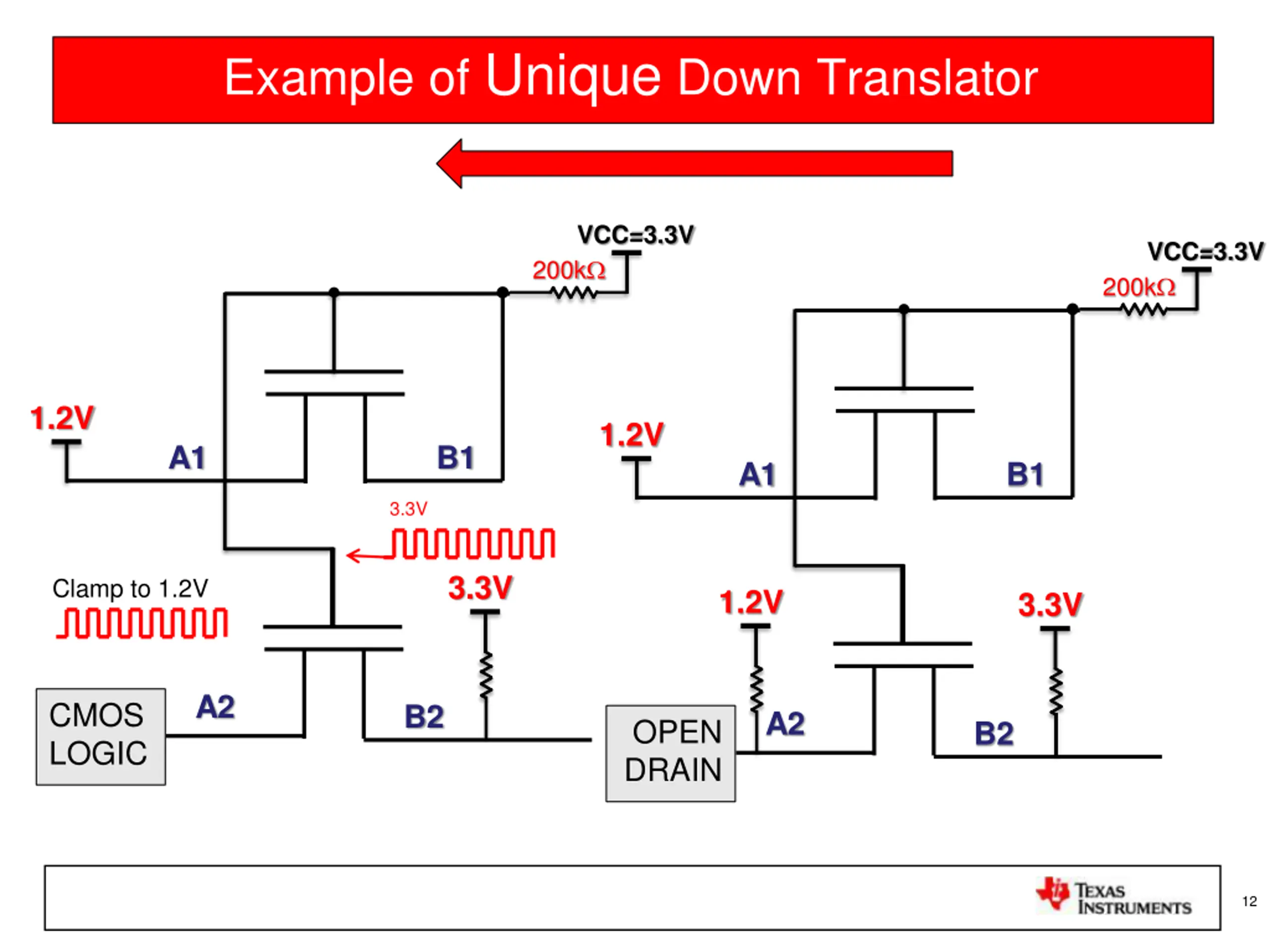

Example of Unique Down Translator VCC=3.3V VCC=3.3V 200k 200k 1.2V 1.2V A1 B1 A1 B1 3.3V 3.3V Clamp to 1.2V 1.2V 3.3V A2 CMOS LOGIC B2 A2 OPEN DRAIN B2 12
