Vonsild Consulting, within IEC/TC61/SC61D/WG16, focuses on IEC 60335-2-40 standard for refrigerants in domestic and light commercial HVAC systems. The standard limits the use of flammable low GWP refrigerants based on charge amount and system capacity. WG16 is addressing A2 and A3 refrigerants, discussing safety concepts, leak scenarios, and mitigation measures. Proposals aim to allow higher amounts of flammable refrigerants under specific conditions.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

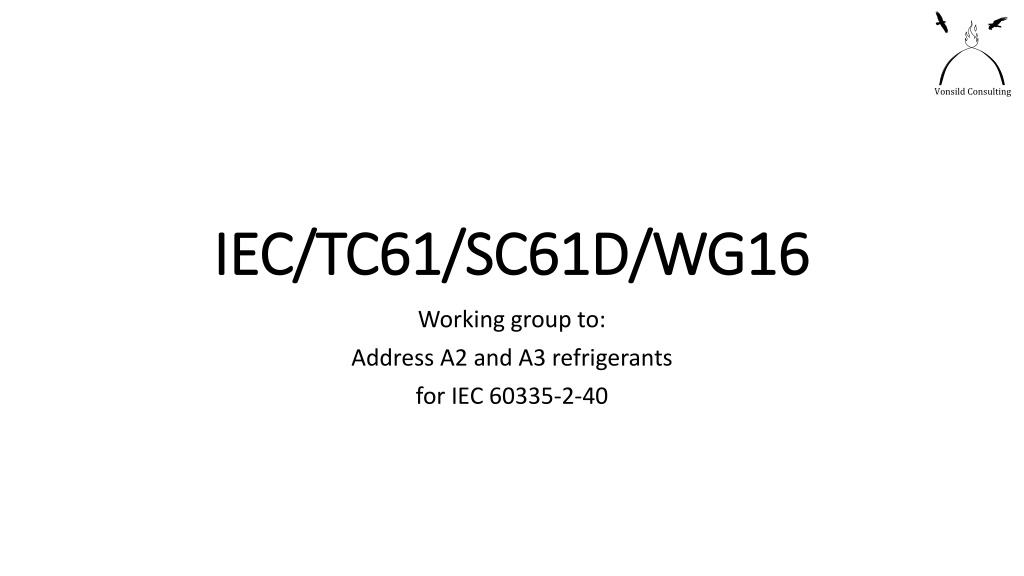

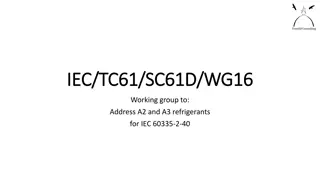

Vonsild Consulting IEC/TC61/SC61D/WG16 IEC/TC61/SC61D/WG16 Working group to: Address A2 and A3 refrigerants for IEC 60335-2-40

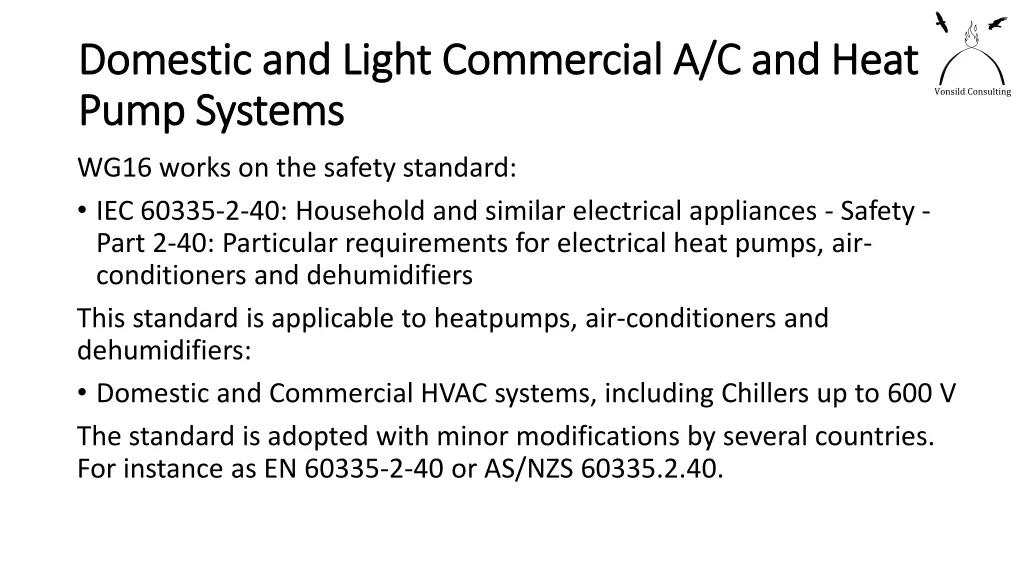

Domestic and Light Commercial A/C and Heat Domestic and Light Commercial A/C and Heat Pump Systems Pump Systems Vonsild Consulting WG16 works on the safety standard: IEC 60335-2-40: Household and similar electrical appliances - Safety - Part 2-40: Particular requirements for electrical heat pumps, air- conditioners and dehumidifiers This standard is applicable to heatpumps, air-conditioners and dehumidifiers: Domestic and Commercial HVAC systems, including Chillers up to 600 V The standard is adopted with minor modifications by several countries. For instance as EN 60335-2-40 or AS/NZS 60335.2.40.

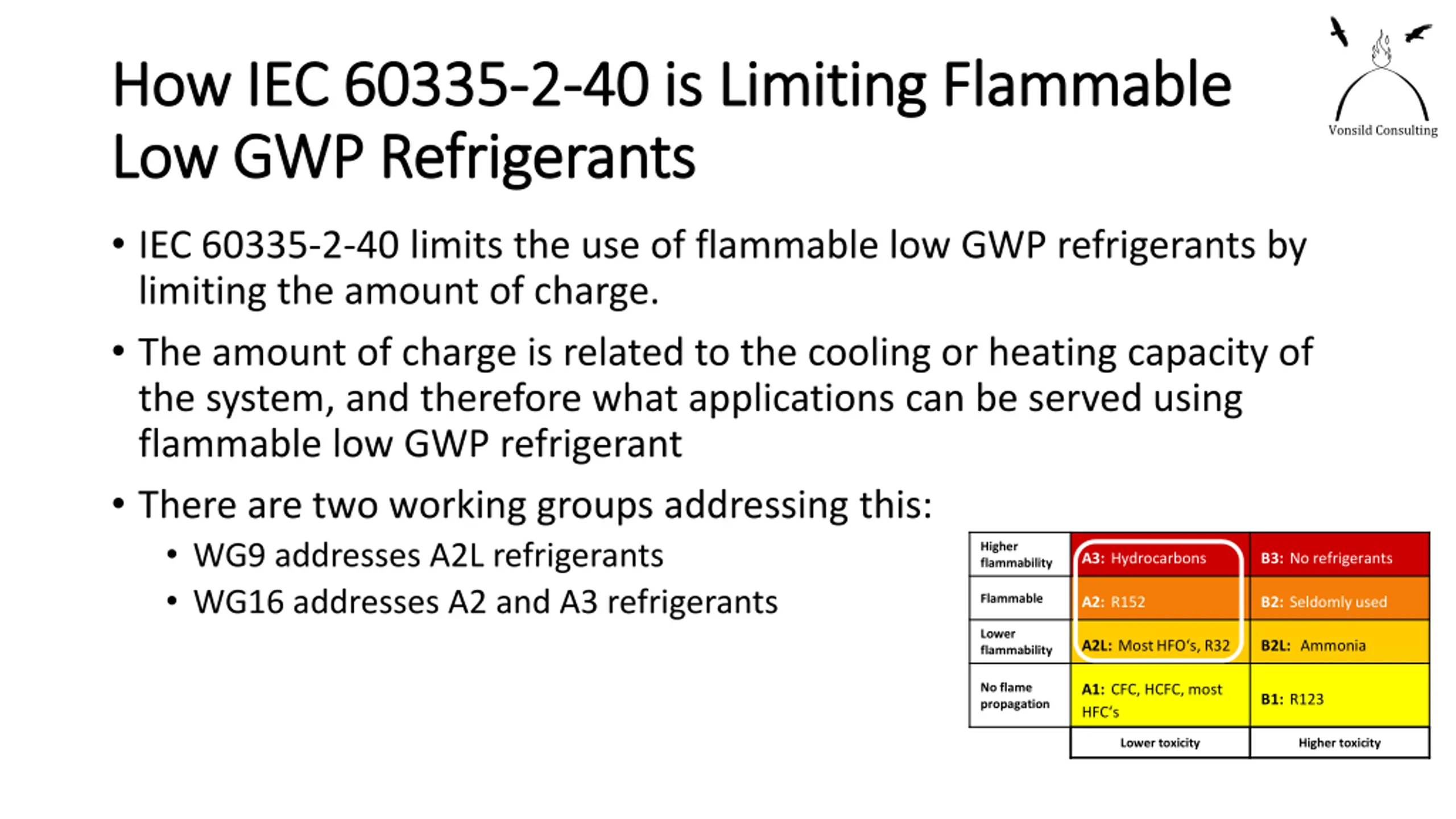

How IEC 60335 How IEC 60335- -2 2- -40 is Limiting Flammable 40 is Limiting Flammable Low GWP Refrigerants Low GWP Refrigerants Vonsild Consulting IEC 60335-2-40 limits the use of flammable low GWP refrigerants by limiting the amount of charge. The amount of charge is related to the cooling or heating capacity of the system, and therefore what applications can be served using flammable low GWP refrigerant There are two working groups addressing this: WG9 addresses A2L refrigerants WG16 addresses A2 and A3 refrigerants Higher flammability A3: Hydrocarbons B3: No refrigerants Flammable A2: R152 B2: Seldomlyused Lower flammability A2L: Most HFO s, R32 B2L: Ammonia No flame propagation A1: CFC, HCFC, most HFC s B1: R123 Lower toxicity Higher toxicity

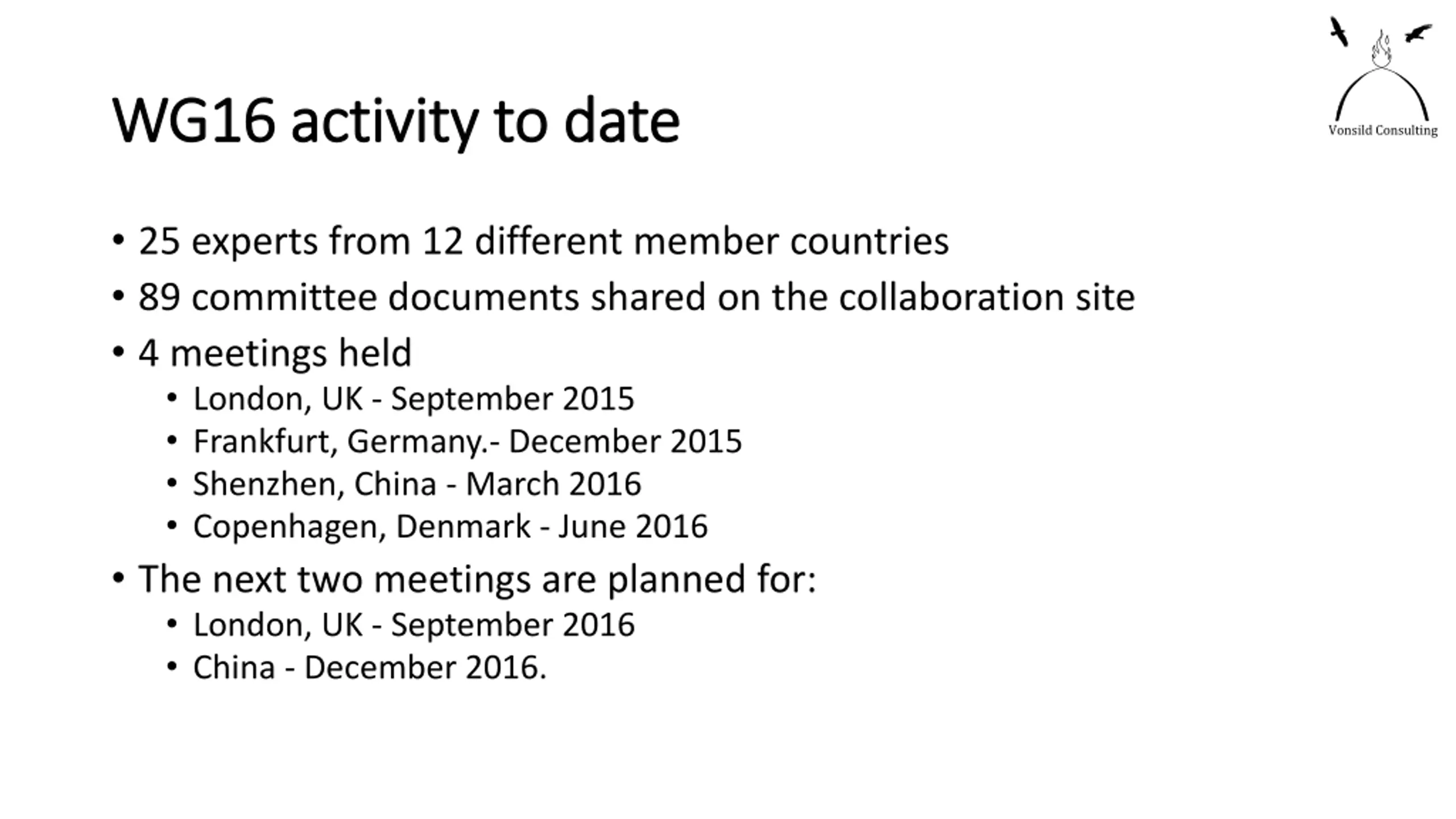

WG16 activity to date WG16 activity to date Vonsild Consulting 25 experts from 12 different member countries 89 committee documents shared on the collaboration site 4 meetings held London, UK - September 2015 Frankfurt, Germany.- December 2015 Shenzhen, China - March 2016 Copenhagen, Denmark - June 2016 The next two meetings are planned for: London, UK - September 2016 China - December 2016.

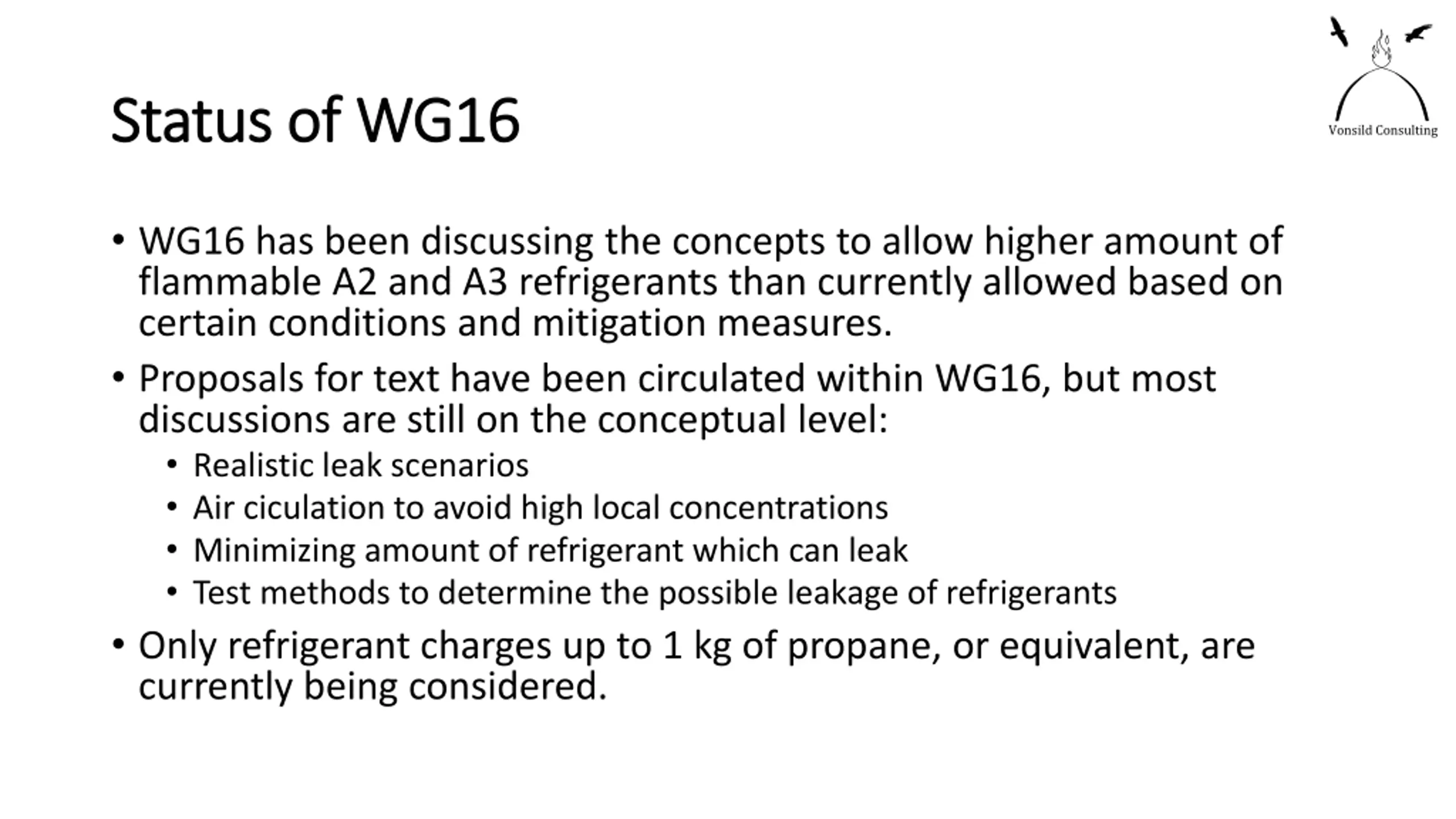

Status of WG16 Status of WG16 Vonsild Consulting WG16 has been discussing the concepts to allow higher amount of flammable A2 and A3 refrigerants than currently allowed based on certain conditions and mitigation measures. Proposals for text have been circulated within WG16, but most discussions are still on the conceptual level: Realistic leak scenarios Air ciculation to avoid high local concentrations Minimizing amount of refrigerant which can leak Test methods to determine the possible leakage of refrigerants Only refrigerant charges up to 1 kg of propane, or equivalent, are currently being considered.

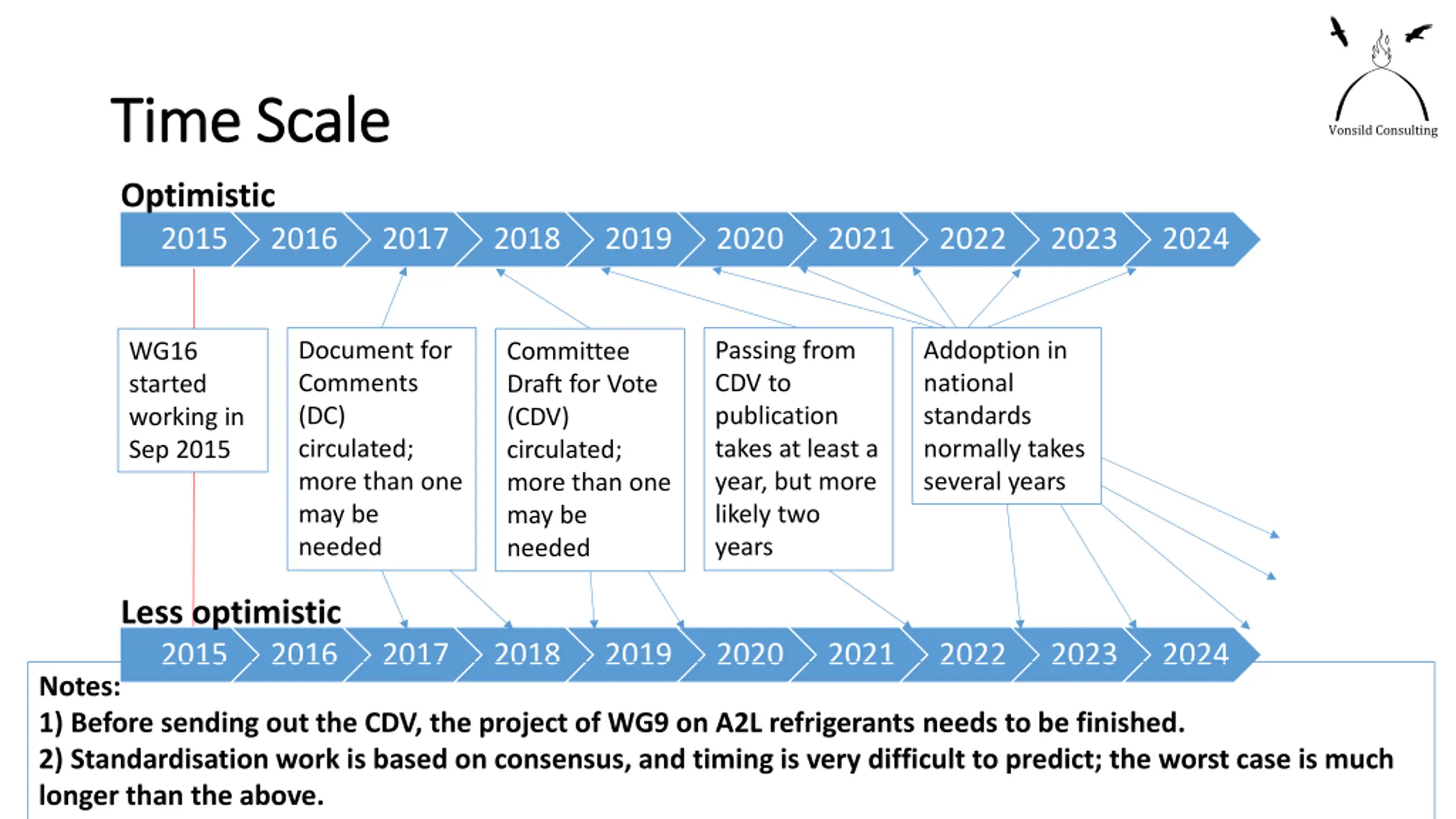

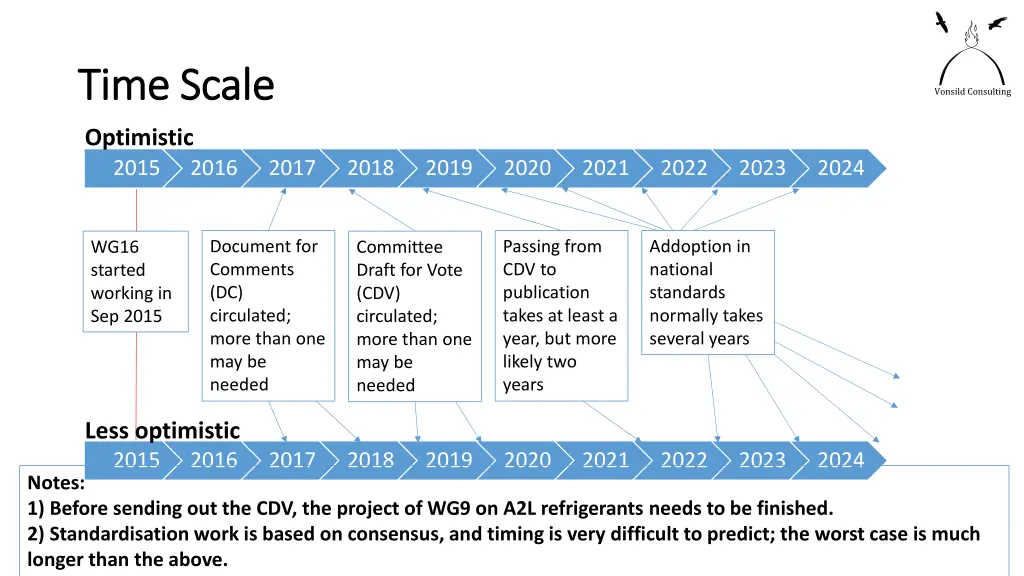

Time Scale Time Scale Vonsild Consulting Optimistic 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 Document for Comments (DC) circulated; more than one may be needed Passing from CDV to publication takes at least a year, but more likely two years Addoption in national standards normally takes several years WG16 started working in Sep 2015 Committee Draft for Vote (CDV) circulated; more than one may be needed Less optimistic 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 Notes: 1) Before sending out the CDV, the project of WG9 on A2L refrigerants needs to be finished. 2) Standardisation work is based on consensus, and timing is very difficult to predict; the worst case is much longer than the above.
