ITI Promoting Innovation Worldwide VPAT Training Module 3: WCAG Global Headquarters 700 K Street NW, Suite 600 Washington, D.C. 20001, USA Europe Office Rue de la Loi 227 Brussels 1040, Belgium info@itic.org +1 202-737-8888 Itic.org +32 (0)2-321-10-90 ITI Promoting Innovation Worldwide

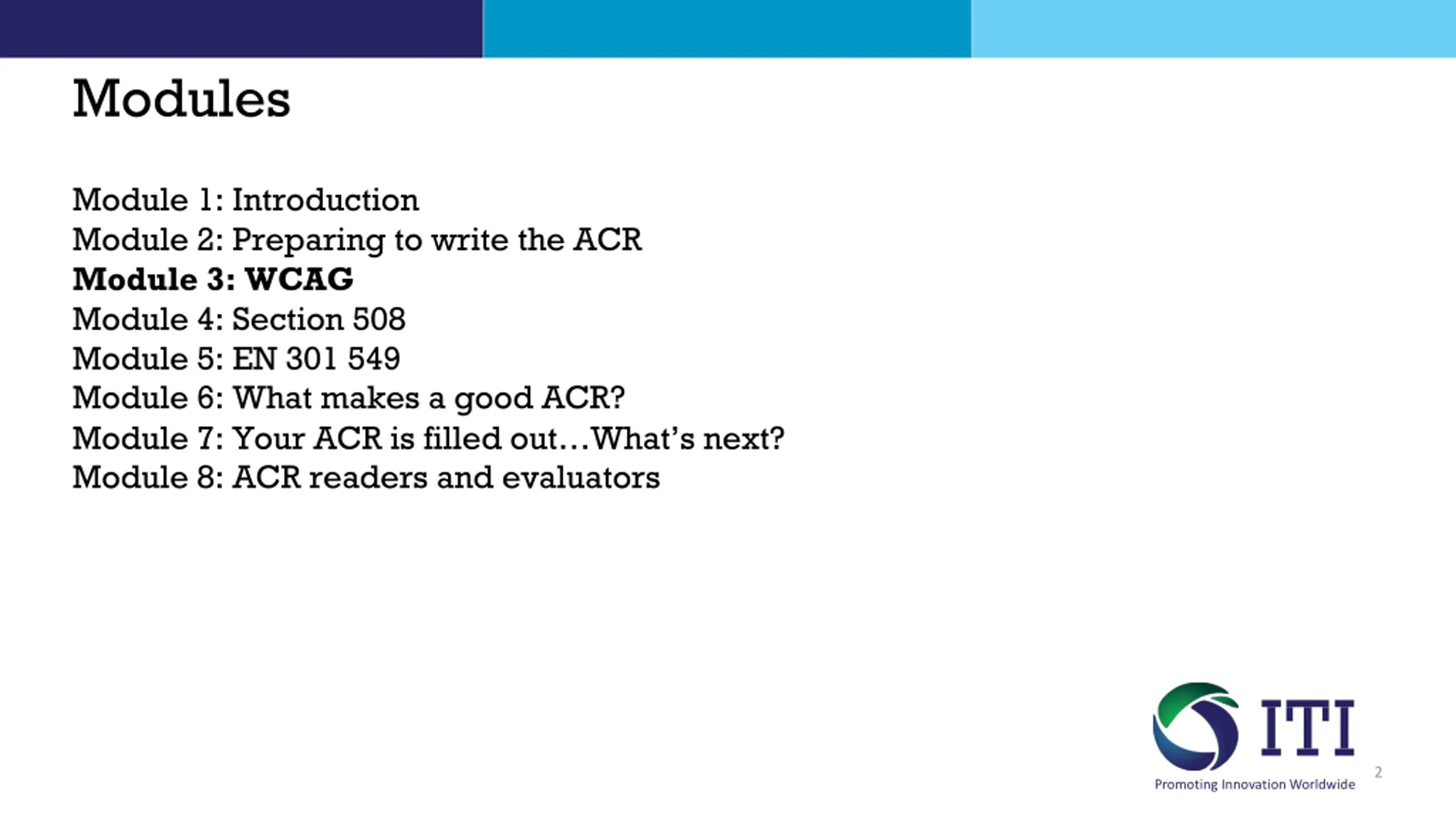

Modules Module 1: Introduction Module 2: Preparing to write the ACR Module 3: WCAG Module 4: Section 508 Module 5: EN 301 549 Module 6: What makes a good ACR? Module 7: Your ACR is filled out What s next? Module 8: ACR readers and evaluators 2 ITI Promoting Innovation Worldwide

Goals of module 3 Learn basics about WCAG Review WCAG criteria Show how to apply the criteria to all products (hardware, software, documentation and support services) 3 ITI Promoting Innovation Worldwide

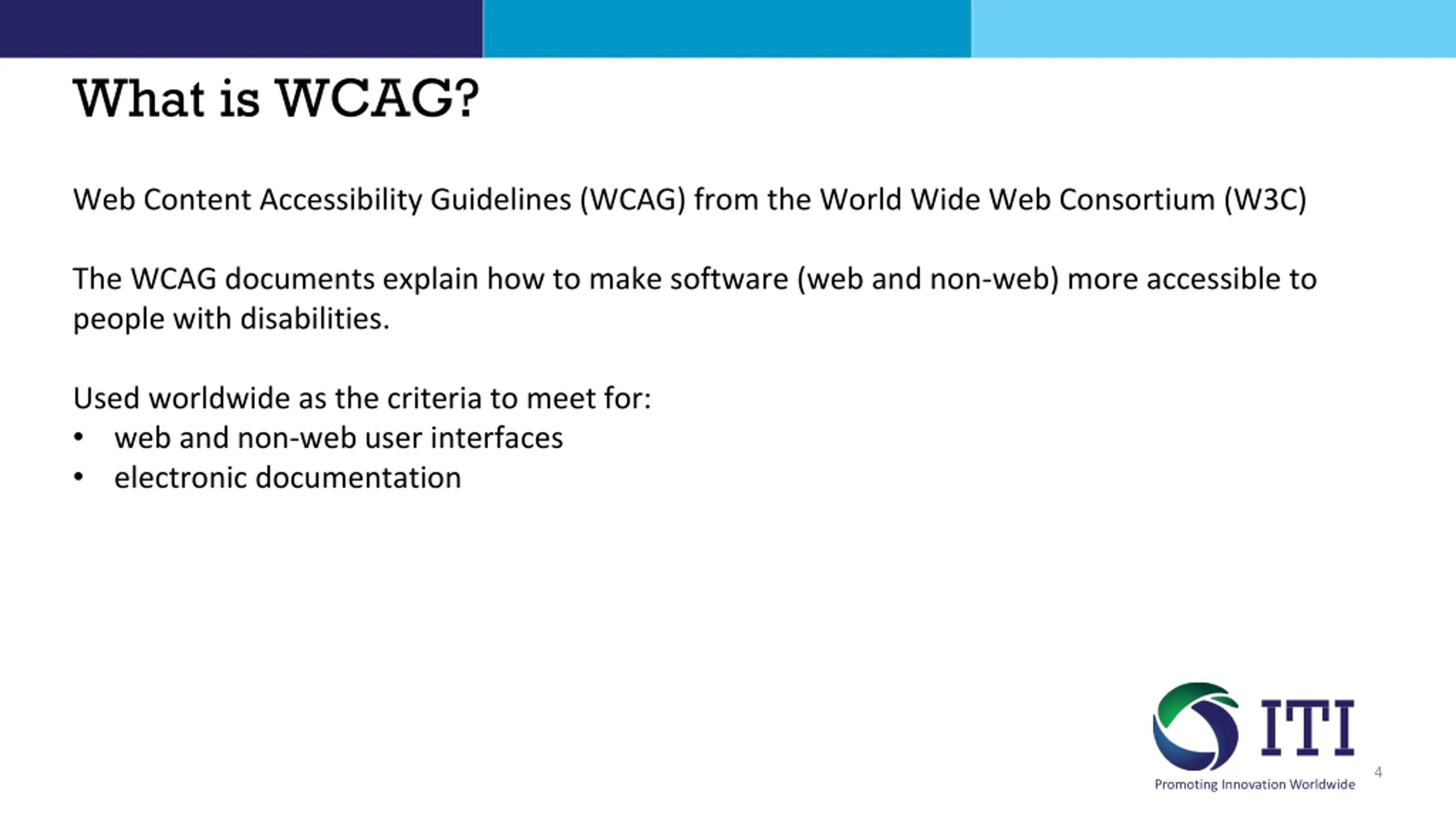

What is WCAG? Web Content Accessibility Guidelines (WCAG) from the World Wide Web Consortium (W3C) The WCAG documents explain how to make software (web and non-web) more accessible to people with disabilities. Used worldwide as the criteria to meet for: web and non-web user interfaces electronic documentation 4 ITI Promoting Innovation Worldwide

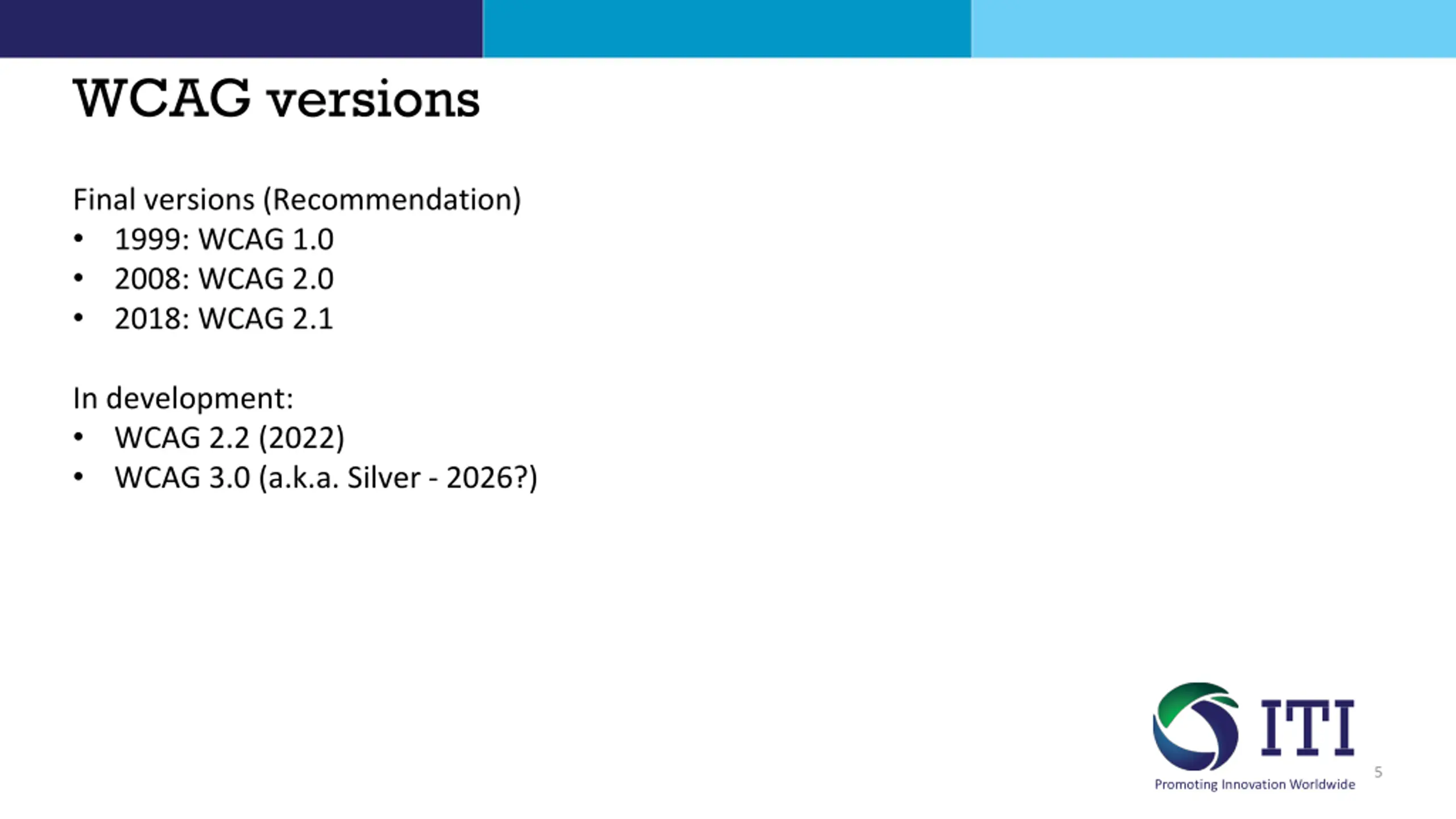

WCAG versions Final versions (Recommendation) 1999: WCAG 1.0 2008: WCAG 2.0 2018: WCAG 2.1 In development: WCAG 2.2 (2022) WCAG 3.0 (a.k.a. Silver - 2026?) 5 ITI Promoting Innovation Worldwide

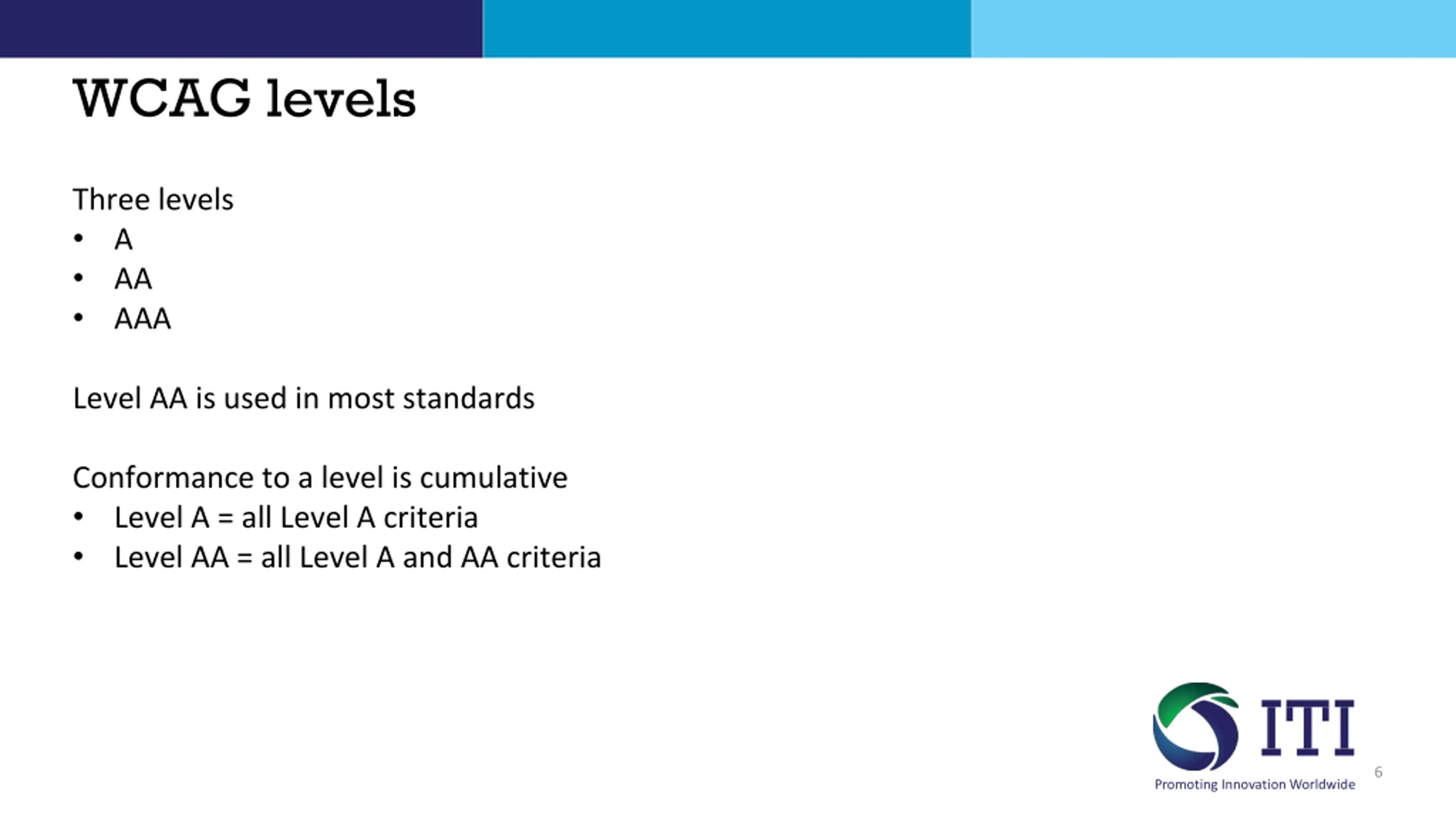

WCAG levels Three levels A AA AAA Level AA is used in most standards Conformance to a level is cumulative Level A = all Level A criteria Level AA = all Level A and AA criteria 6 ITI Promoting Innovation Worldwide

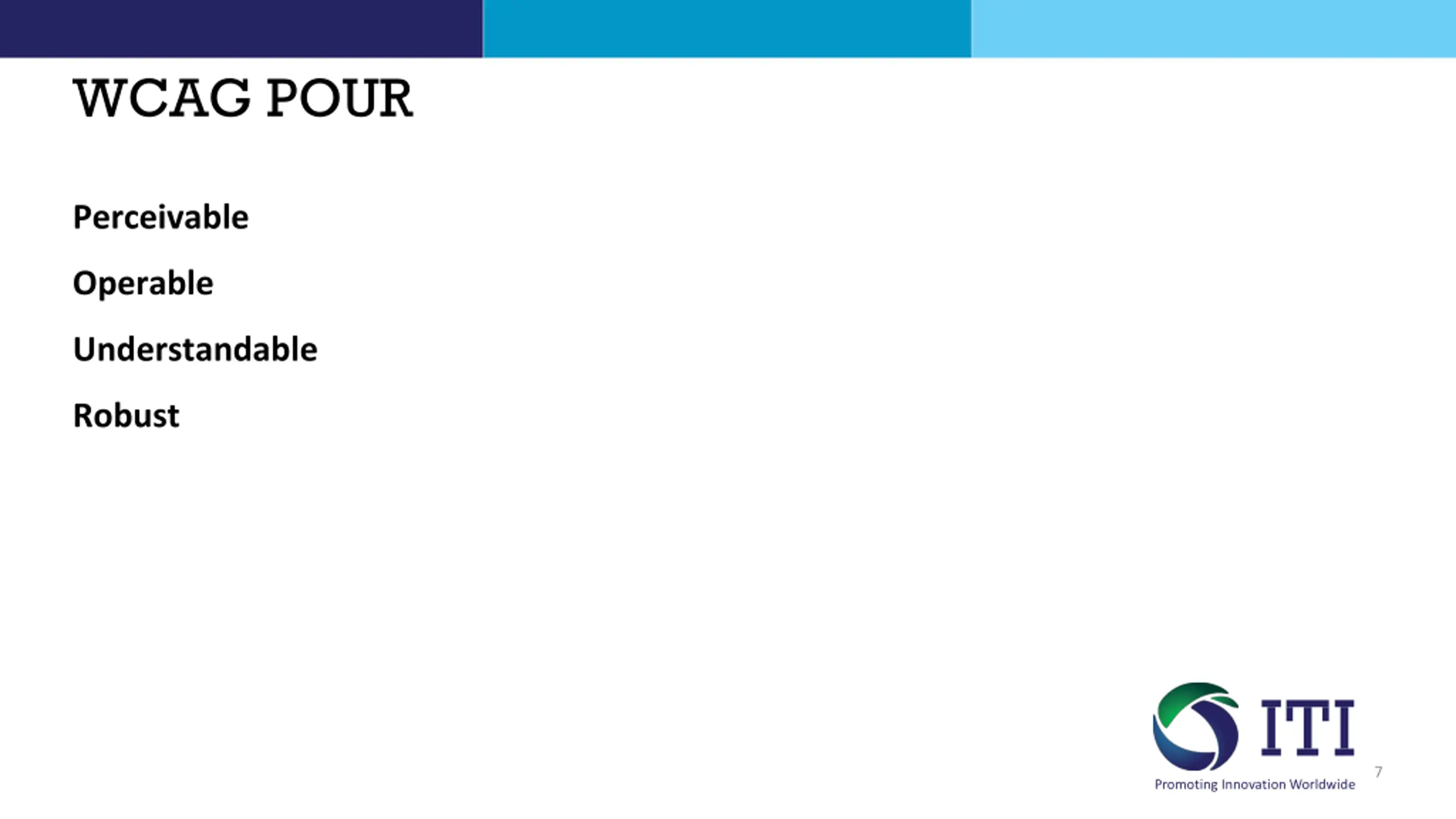

WCAG POUR Perceivable Operable Understandable Robust 7 ITI Promoting Innovation Worldwide

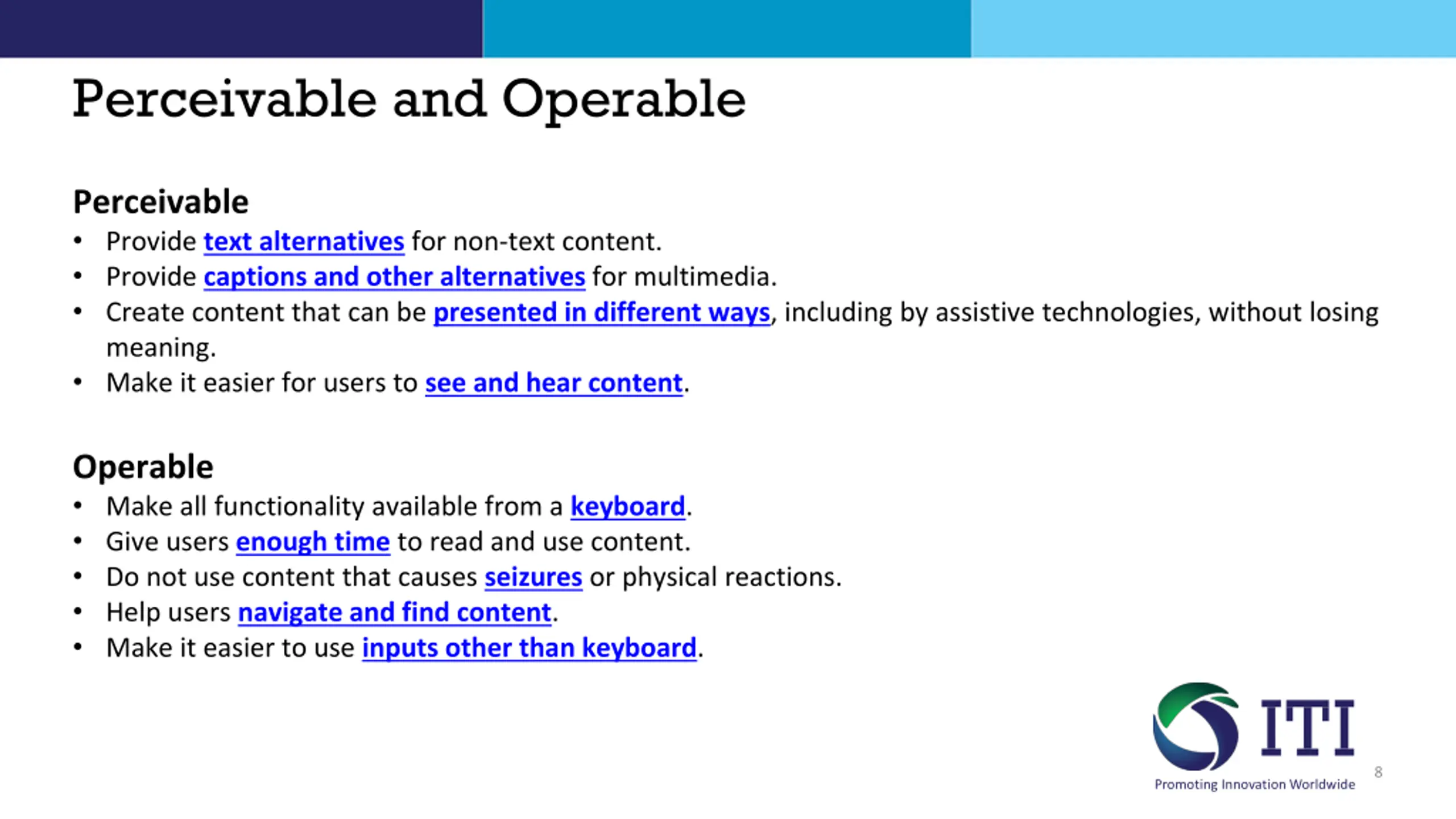

Perceivable and Operable Perceivable Provide text alternatives for non-text content. Provide captions and other alternatives for multimedia. Create content that can be presented in different ways, including by assistive technologies, without losing meaning. Make it easier for users to see and hear content. Operable Make all functionality available from a keyboard. Give users enough time to read and use content. Do not use content that causes seizures or physical reactions. Help users navigate and find content. Make it easier to use inputs other than keyboard. 8 ITI Promoting Innovation Worldwide

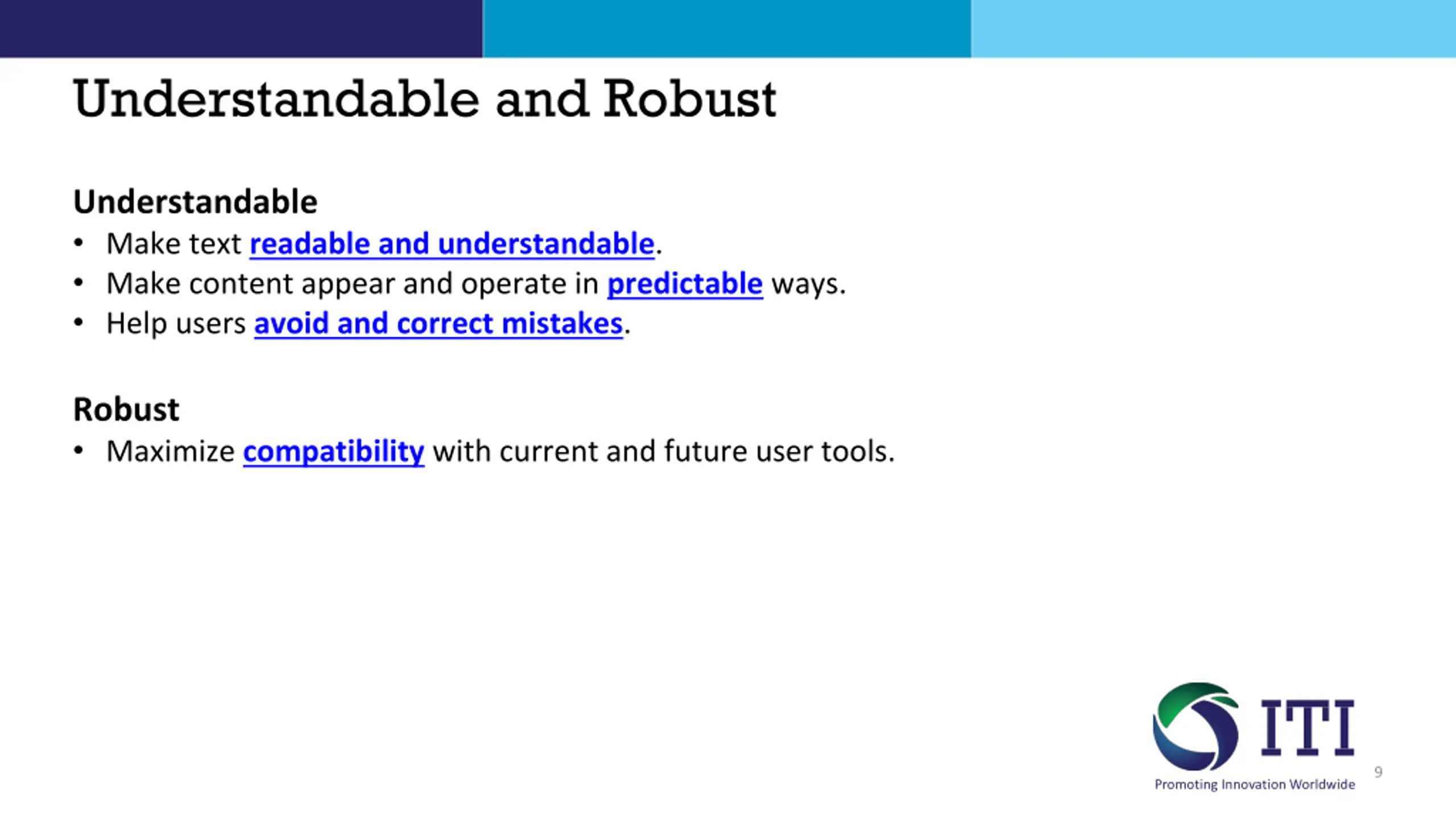

Understandable and Robust Understandable Make text readable and understandable. Make content appear and operate in predictable ways. Help users avoid and correct mistakes. Robust Maximize compatibility with current and future user tools. 9 ITI Promoting Innovation Worldwide

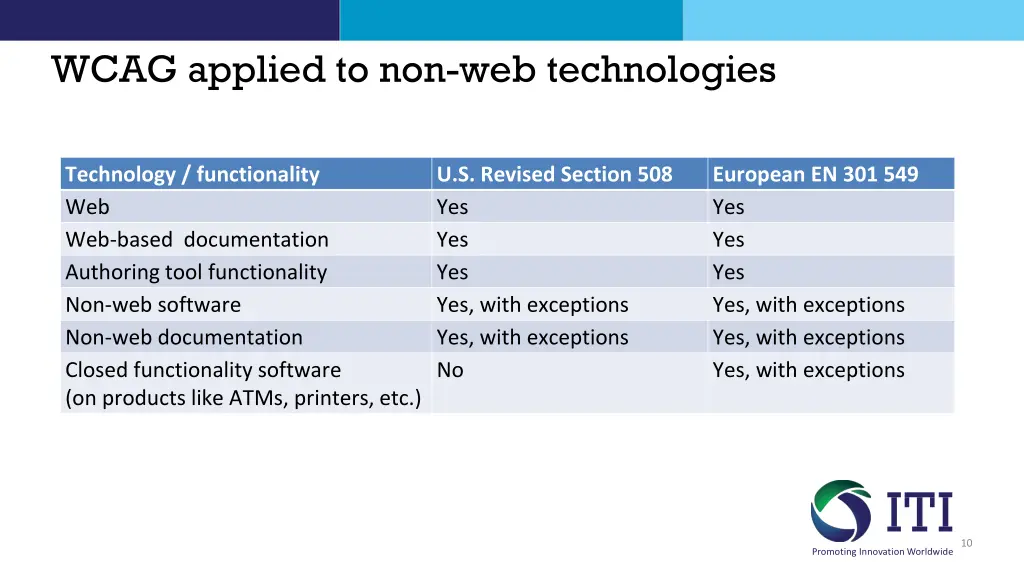

WCAG applied to non-web technologies Technology / functionality Web Web-based documentation Authoring tool functionality Non-web software Non-web documentation Closed functionality software (on products like ATMs, printers, etc.) U.S. Revised Section 508 Yes Yes Yes Yes, with exceptions Yes, with exceptions No European EN 301 549 Yes Yes Yes Yes, with exceptions Yes, with exceptions Yes, with exceptions 10 ITI Promoting Innovation Worldwide

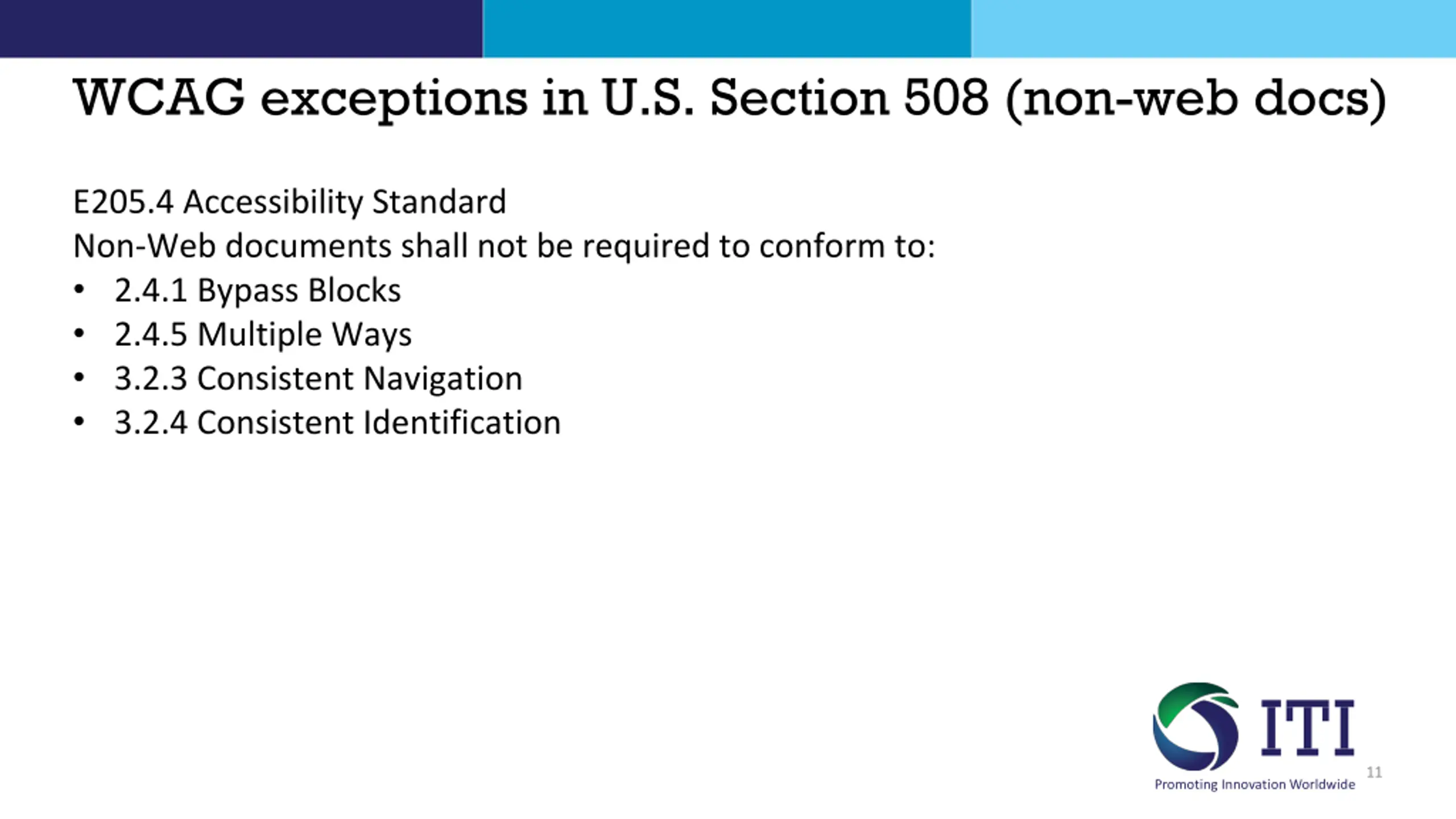

WCAG exceptions in U.S. Section 508 (non-web docs) E205.4 Accessibility Standard Non-Web documents shall not be required to conform to: 2.4.1 Bypass Blocks 2.4.5 Multiple Ways 3.2.3 Consistent Navigation 3.2.4 Consistent Identification 11 ITI Promoting Innovation Worldwide

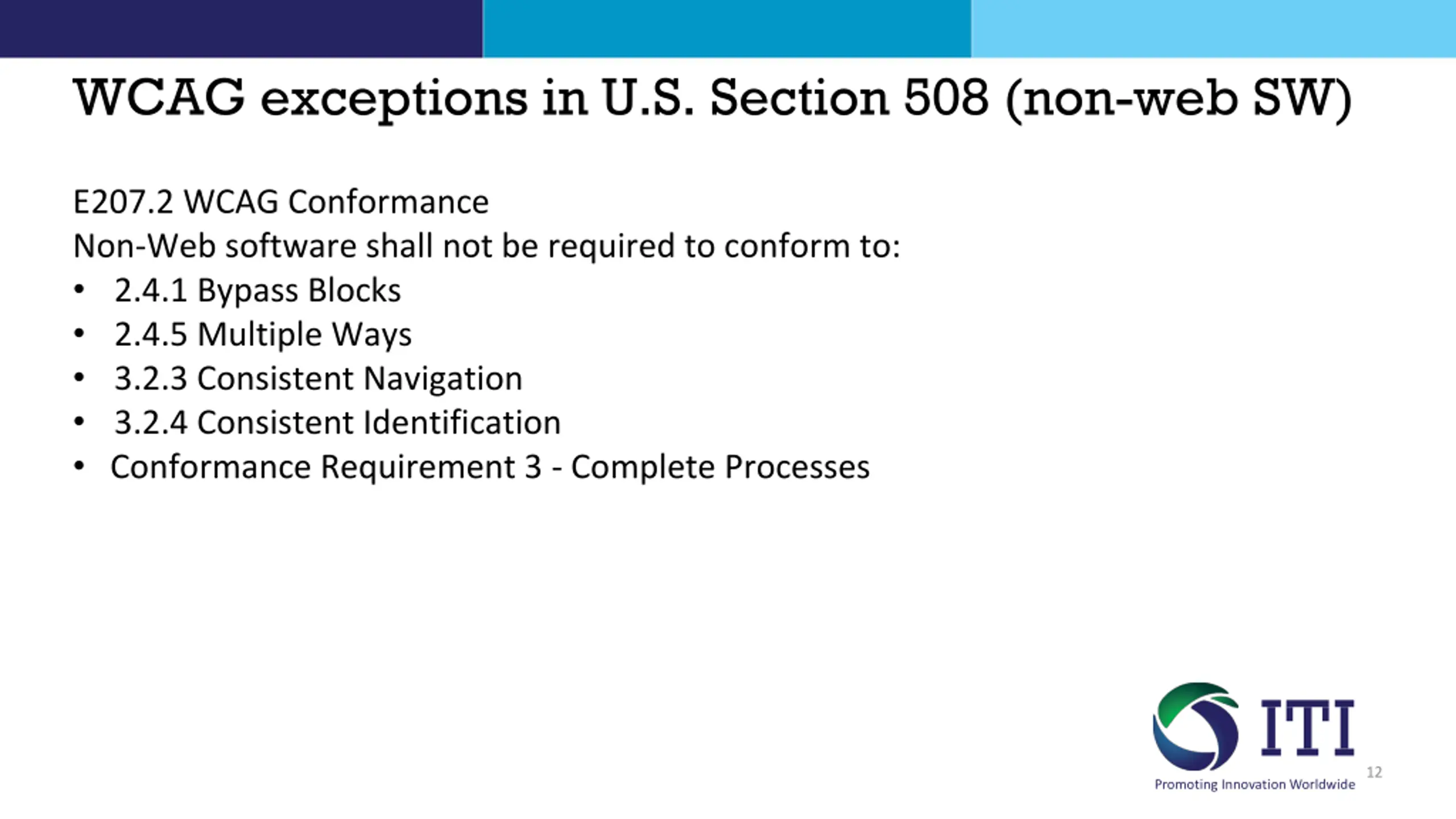

WCAG exceptions in U.S. Section 508 (non-web SW) E207.2 WCAG Conformance Non-Web software shall not be required to conform to: 2.4.1 Bypass Blocks 2.4.5 Multiple Ways 3.2.3 Consistent Navigation 3.2.4 Consistent Identification Conformance Requirement 3 - Complete Processes 12 ITI Promoting Innovation Worldwide

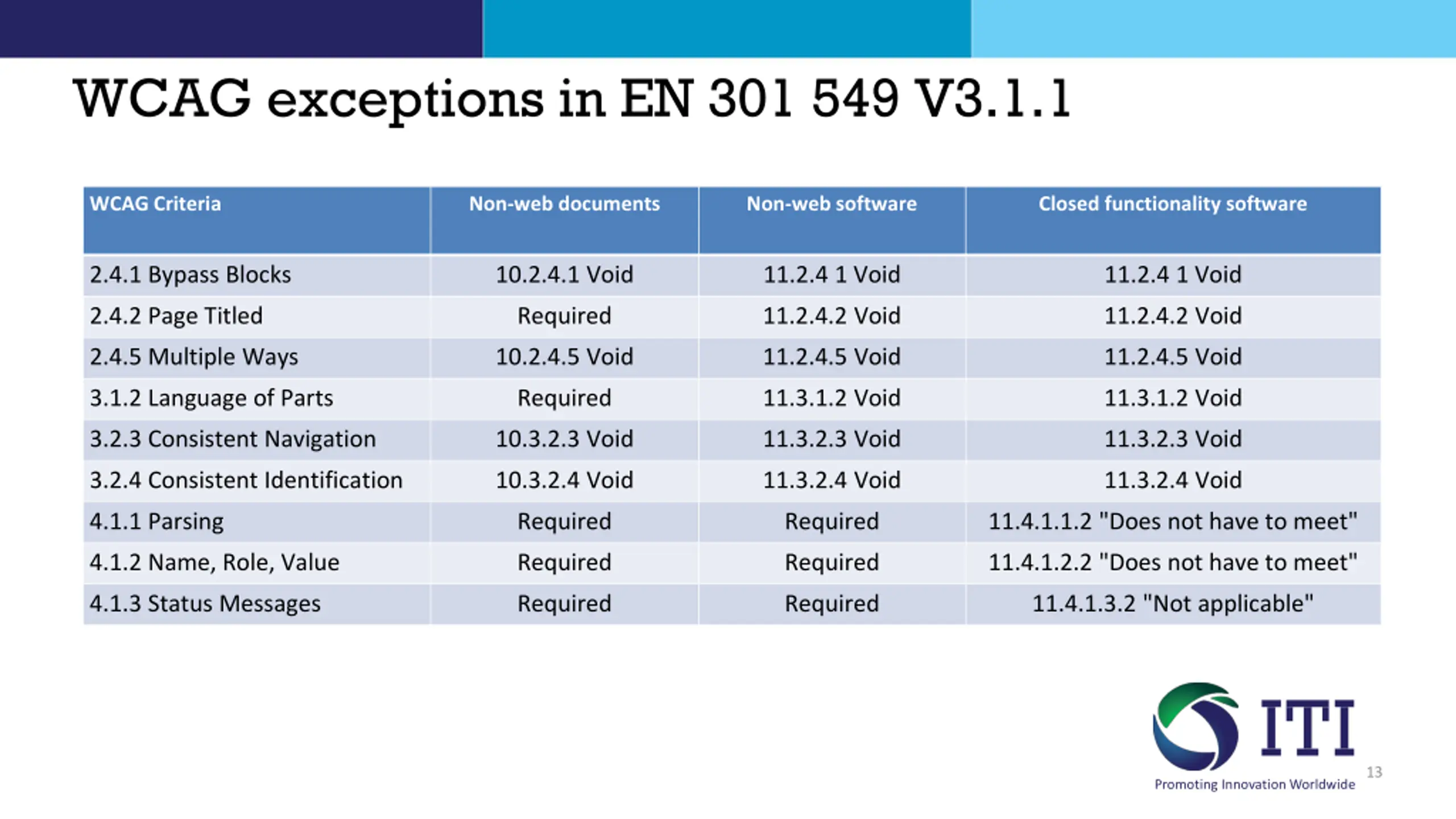

WCAG exceptions in EN 301 549 V3.1.1 WCAG Criteria Non-web documents Non-web software Closed functionality software 2.4.1 Bypass Blocks 10.2.4.1 Void 11.2.4 1 Void 11.2.4 1 Void 2.4.2 Page Titled Required 11.2.4.2 Void 11.2.4.2 Void 2.4.5 Multiple Ways 10.2.4.5 Void 11.2.4.5 Void 11.2.4.5 Void 3.1.2 Language of Parts Required 11.3.1.2 Void 11.3.1.2 Void 3.2.3 Consistent Navigation 10.3.2.3 Void 11.3.2.3 Void 11.3.2.3 Void 3.2.4 Consistent Identification 10.3.2.4 Void 11.3.2.4 Void 11.3.2.4 Void 4.1.1 Parsing Required Required 11.4.1.1.2 "Does not have to meet" 4.1.2 Name, Role, Value Required Required 11.4.1.2.2 "Does not have to meet" 4.1.3 Status Messages Required Required 11.4.1.3.2 "Not applicable" 13 ITI Promoting Innovation Worldwide

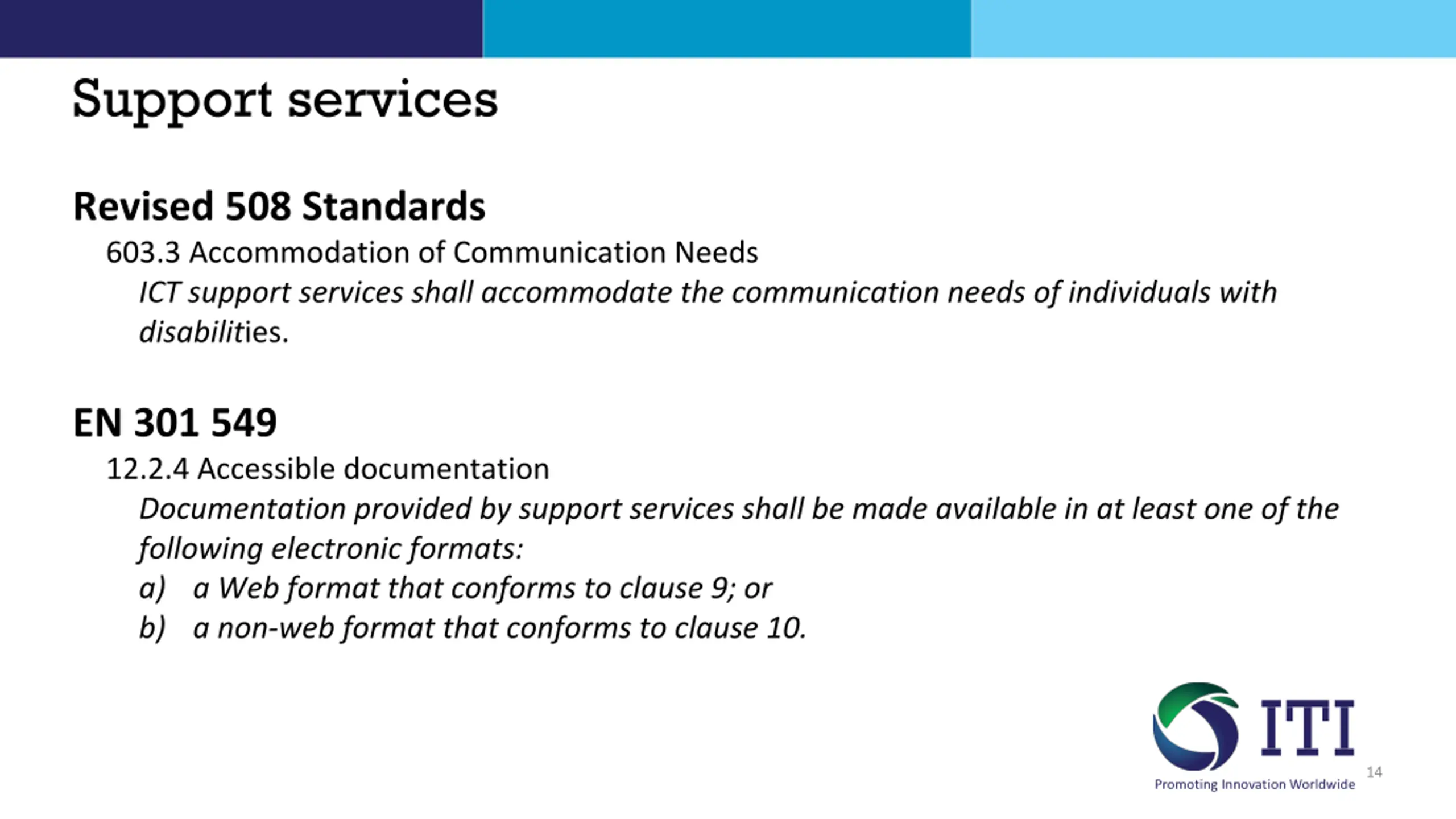

Support services Revised 508 Standards 603.3 Accommodation of Communication Needs ICT support services shall accommodate the communication needs of individuals with disabilities. EN 301 549 12.2.4 Accessible documentation Documentation provided by support services shall be made available in at least one of the following electronic formats: a) a Web format that conforms to clause 9; or b) a non-web format that conforms to clause 10. 14 ITI Promoting Innovation Worldwide

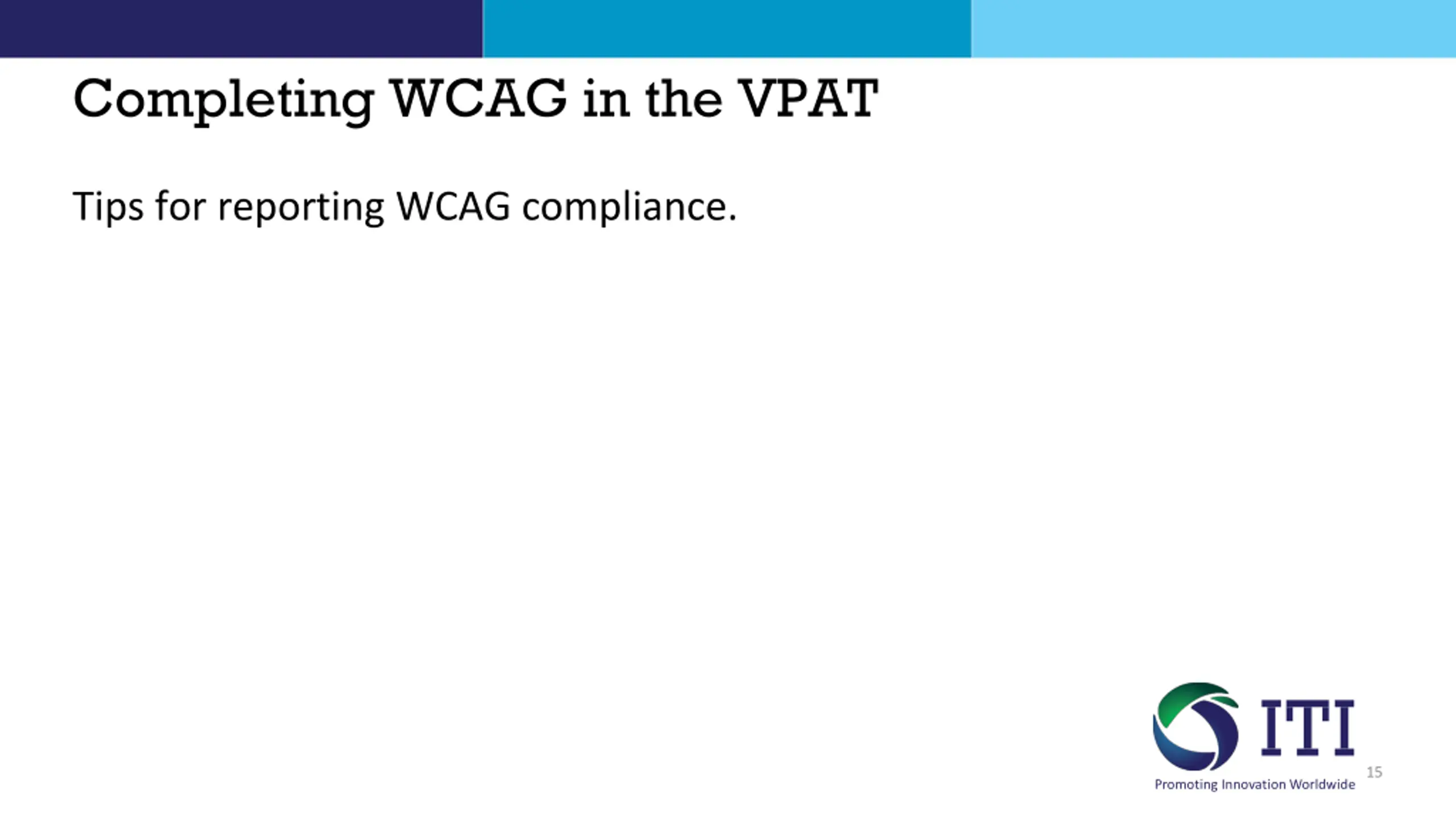

Completing WCAG in the VPAT Tips for reporting WCAG compliance. 15 ITI Promoting Innovation Worldwide

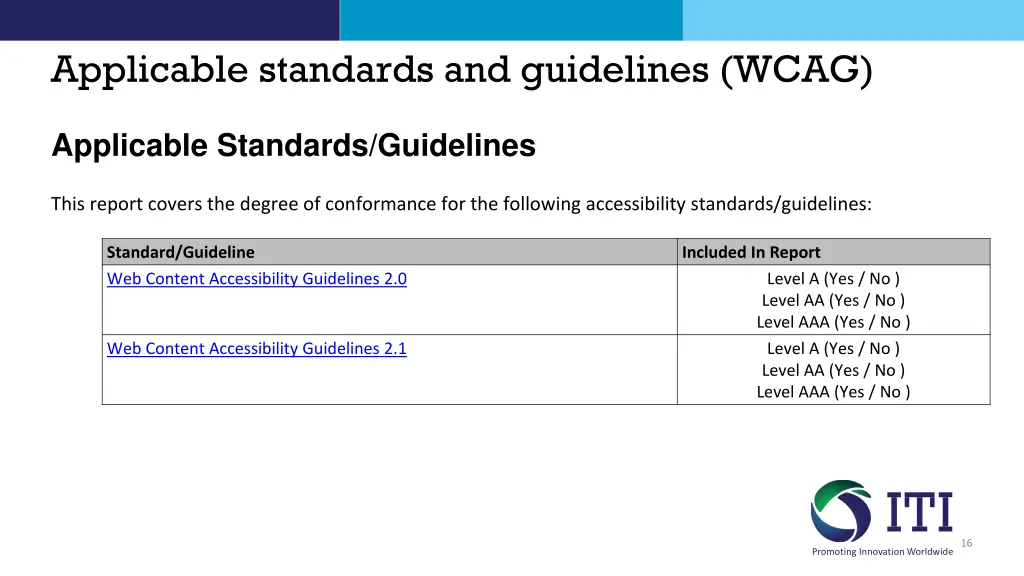

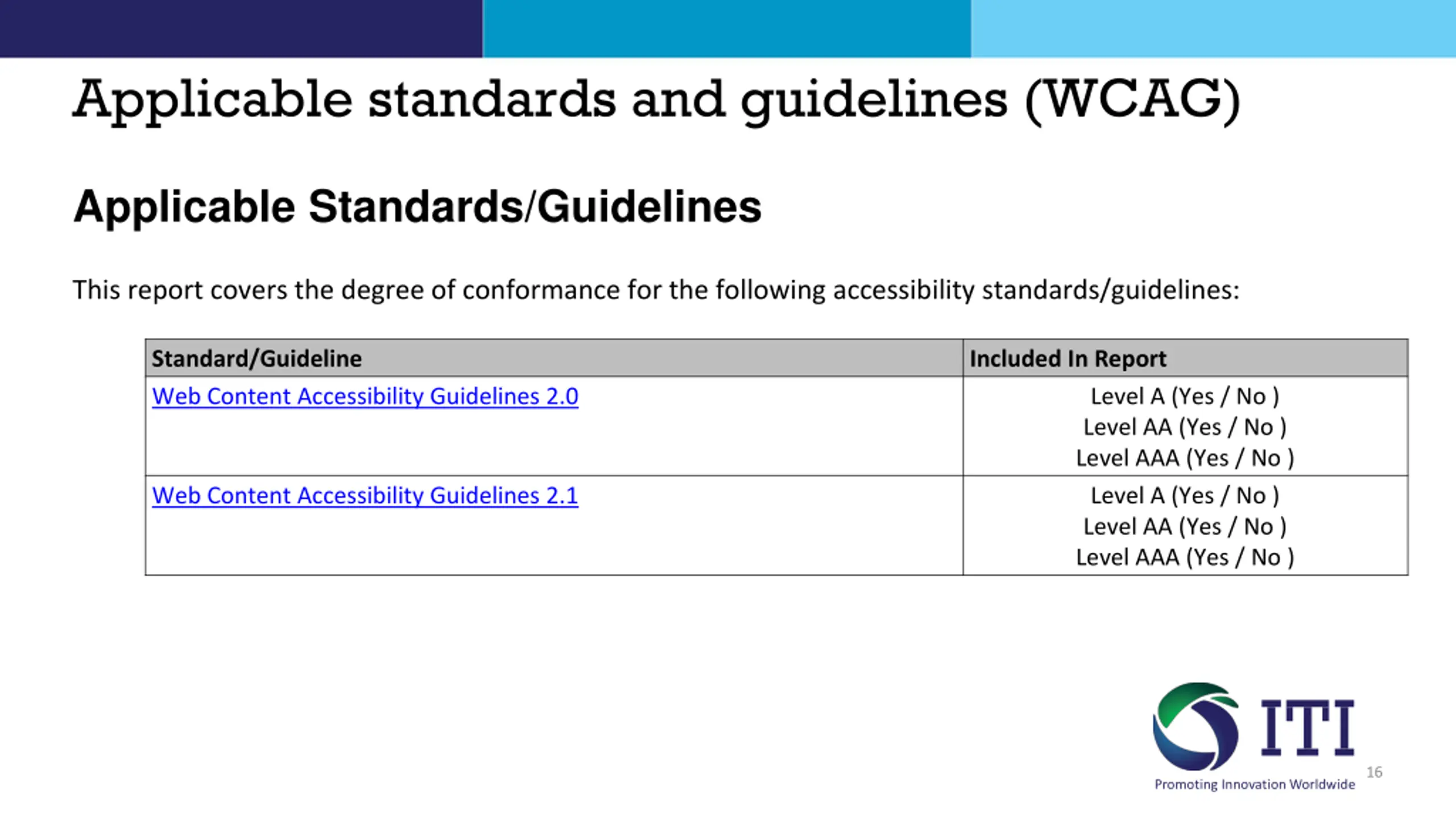

Applicable standards and guidelines (WCAG) Applicable Standards/Guidelines This report covers the degree of conformance for the following accessibility standards/guidelines: Standard/Guideline Web Content Accessibility Guidelines 2.0 Included In Report Level A (Yes / No ) Level AA (Yes / No ) Level AAA (Yes / No ) Level A (Yes / No ) Level AA (Yes / No ) Level AAA (Yes / No ) Web Content Accessibility Guidelines 2.1 16 ITI Promoting Innovation Worldwide

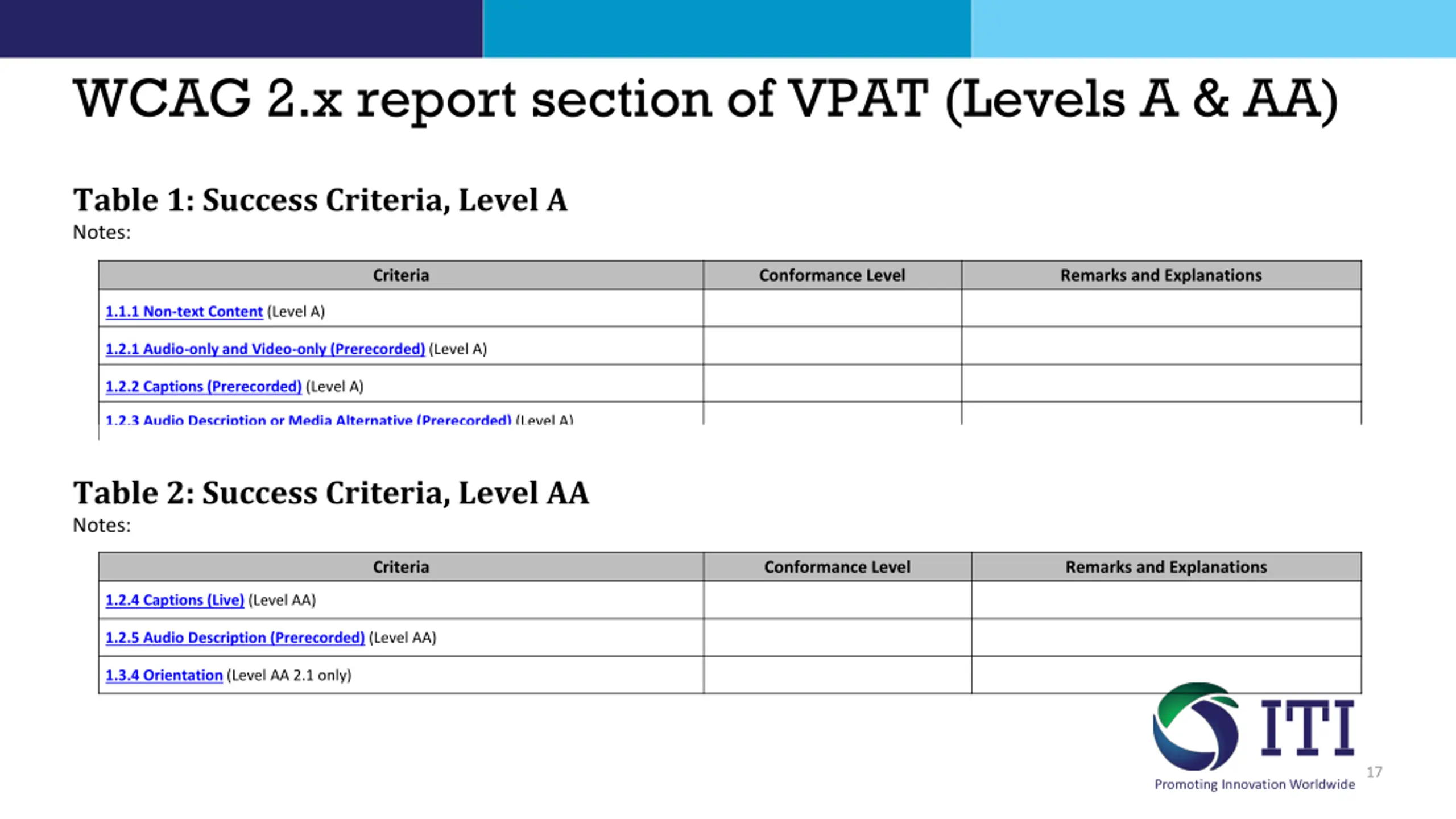

WCAG 2.x report section of VPAT (Levels A & AA) Table 1: Success Criteria, Level A Notes: Criteria Conformance Level Remarks and Explanations 1.1.1 Non-text Content (Level A) 1.2.1 Audio-only and Video-only (Prerecorded) (Level A) 1.2.2 Captions (Prerecorded) (Level A) 1.2.3 Audio Description or Media Alternative (Prerecorded) (Level A) Table 2: Success Criteria, Level AA Notes: Criteria Conformance Level Remarks and Explanations 1.2.4 Captions (Live) (Level AA) 1.2.5 Audio Description (Prerecorded) (Level AA) 1.3.4 Orientation (Level AA 2.1 only) 17 ITI Promoting Innovation Worldwide

WCAG 2.x report section of VPAT (Level AAA) Table 3: Success Criteria, Level AAA Notes: Criteria Conformance Level Remarks and Explanations 1.2.6 Sign Language (Prerecorded) (Level AAA) 1.2.7 Extended Audio Description (Prerecorded) (Level AAA) 1.2.8 Media Alternative (Prerecorded) (Level AAA) 1.2.9 Audio-only (Live) (Level AAA) 18 ITI Promoting Innovation Worldwide

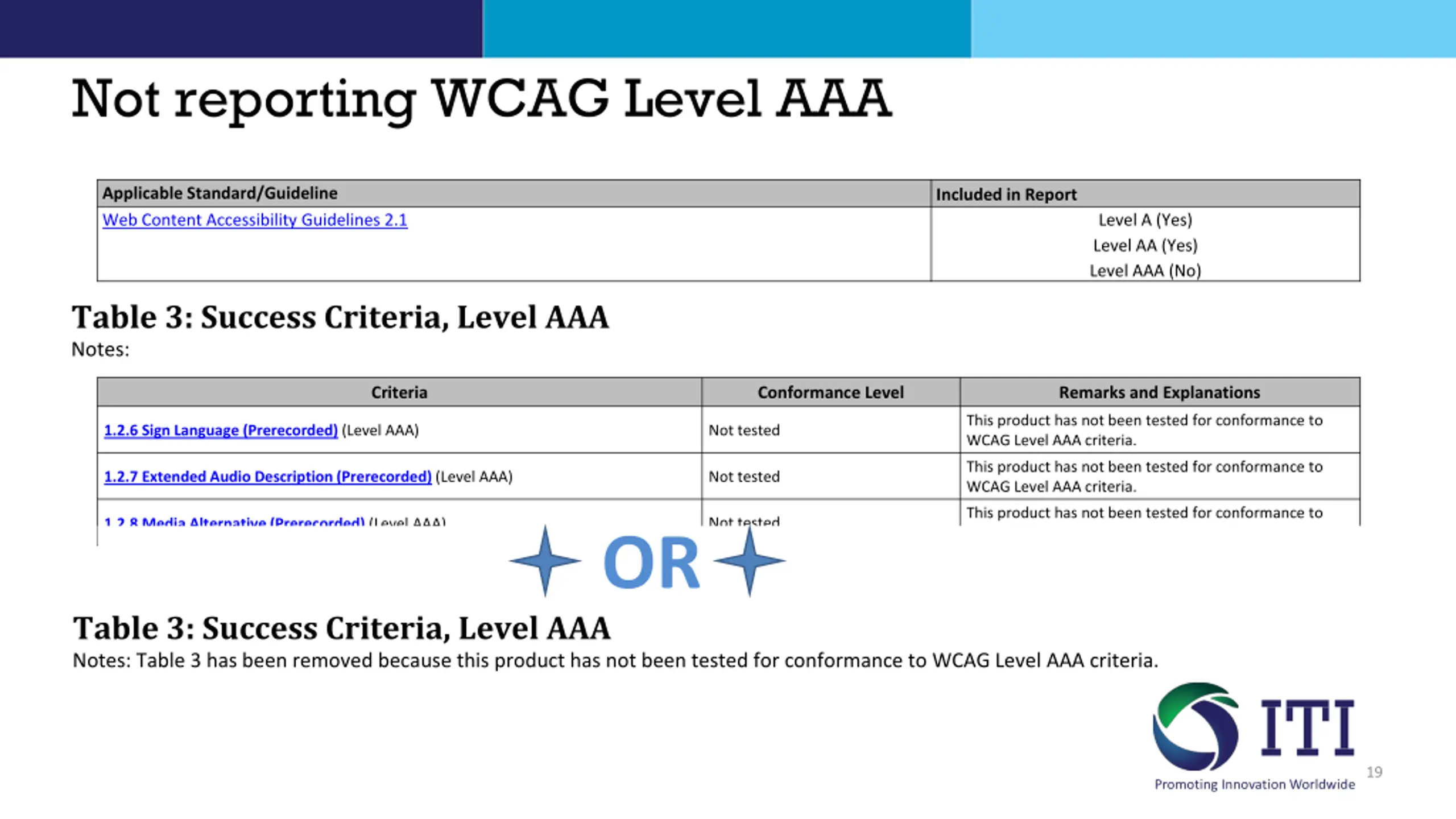

Not reporting WCAG Level AAA Applicable Standard/Guideline Web Content Accessibility Guidelines 2.1 Included in Report Level A (Yes) Level AA (Yes) Level AAA (No) Table 3: Success Criteria, Level AAA Notes: Criteria Conformance Level Remarks and Explanations This product has not been tested for conformance to WCAG Level AAA criteria. 1.2.6 Sign Language (Prerecorded) (Level AAA) Not tested This product has not been tested for conformance to WCAG Level AAA criteria. 1.2.7 Extended Audio Description (Prerecorded) (Level AAA) Not tested This product has not been tested for conformance to WCAG Level AAA criteria. Not tested 1.2.8 Media Alternative (Prerecorded) (Level AAA) OR Table 3: Success Criteria, Level AAA Notes: Table 3 has been removed because this product has not been tested for conformance to WCAG Level AAA criteria. 19 ITI Promoting Innovation Worldwide

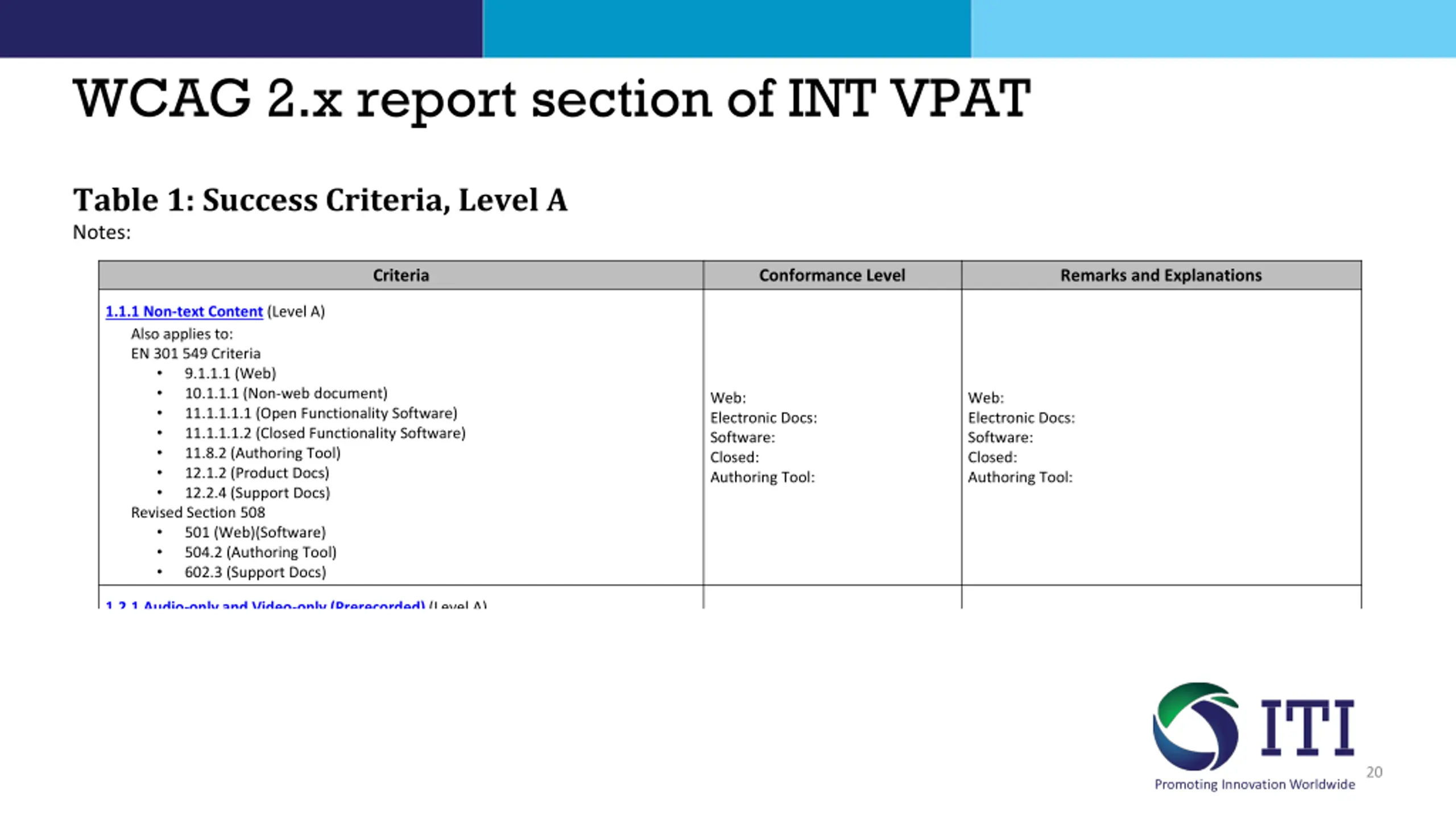

WCAG 2.x report section of INT VPAT Table 1: Success Criteria, Level A Notes: Criteria Conformance Level Remarks and Explanations 1.1.1 Non-text Content (Level A) Also applies to: EN 301 549 Criteria 9.1.1.1 (Web) 10.1.1.1 (Non-web document) 11.1.1.1.1 (Open Functionality Software) 11.1.1.1.2 (Closed Functionality Software) 11.8.2 (Authoring Tool) 12.1.2 (Product Docs) 12.2.4 (Support Docs) Revised Section 508 501 (Web)(Software) 504.2 (Authoring Tool) 602.3 (Support Docs) Web: Electronic Docs: Software: Closed: Authoring Tool: Web: Electronic Docs: Software: Closed: Authoring Tool: 1.2.1 Audio-only and Video-only (Prerecorded) (Level A) 20 ITI Promoting Innovation Worldwide

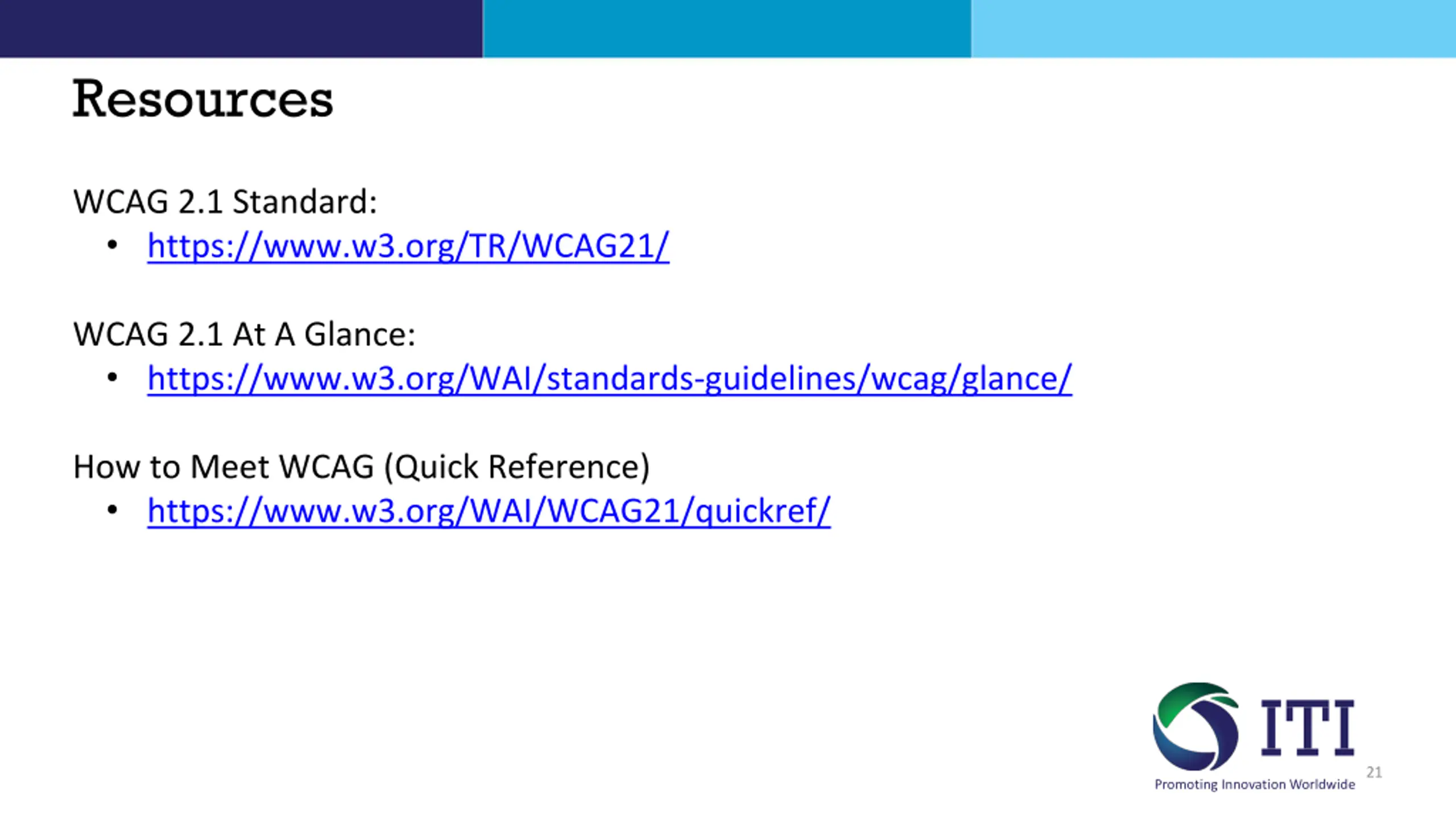

Resources WCAG 2.1 Standard: https://www.w3.org/TR/WCAG21/ WCAG 2.1 At A Glance: https://www.w3.org/WAI/standards-guidelines/wcag/glance/ How to Meet WCAG (Quick Reference) https://www.w3.org/WAI/WCAG21/quickref/ 21 ITI Promoting Innovation Worldwide
