Water Leak Detection Panel SY3618 Features
Water Leak Detection Panel SY3618 operates on 230 VAC and provides supervision of Interface modules. It includes an LCD display to indicate Module No. and distance to Leak Location in Meters. With 500 Event Logging, RS485 Communication, and Mod.bus output for BMS Communication, this panel ensures effective monitoring of water leaks. Other features include audible sounder, fault relay output, and common alarm relay output. Technical specifications reveal details such as supply voltage, display, modules to be connected, audible external hooter output, working temperature, construction details, weight, and size.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

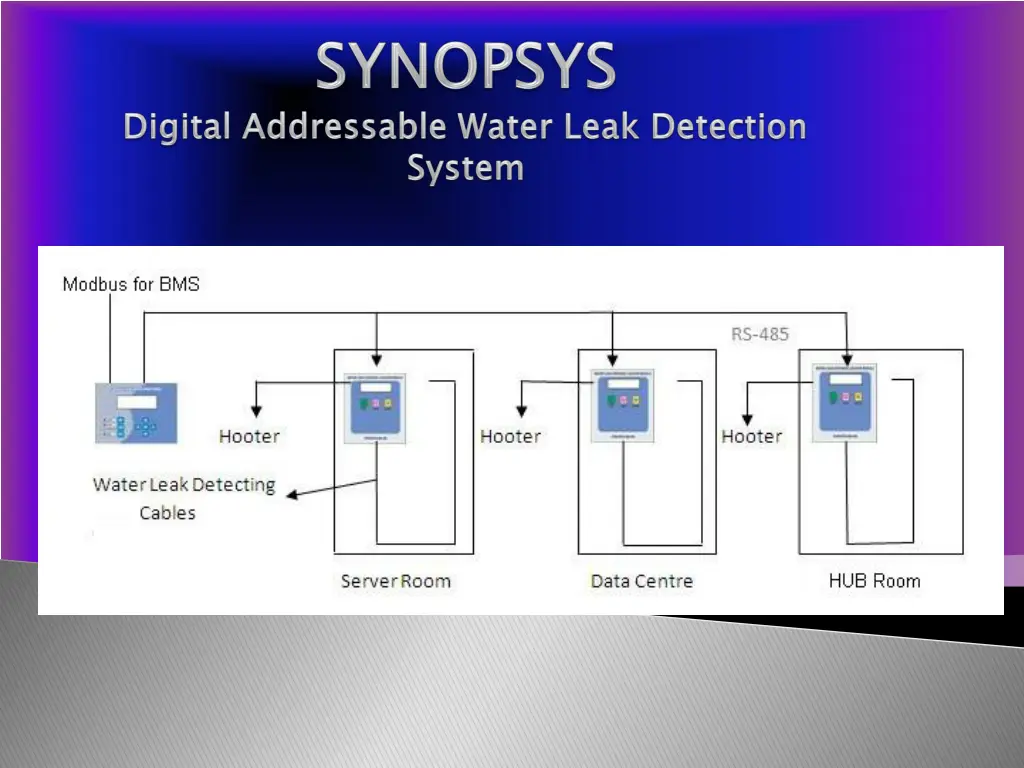

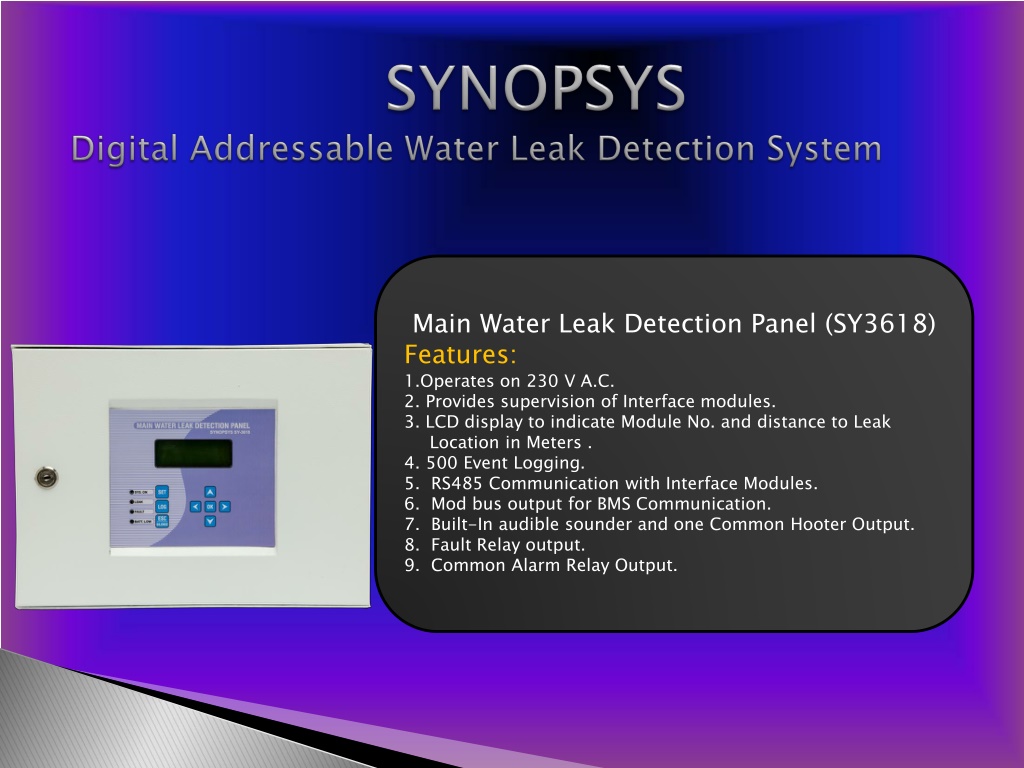

Main Water Leak Detection Panel (SY3618) Features: 1.Operates on 230 V A.C. 2. Provides supervision of Interface modules. 3. LCD display to indicate Module No. and distance to Leak Location in Meters . 4. 500 Event Logging. 5. RS485 Communication with Interface Modules. 6. Mod bus output for BMS Communication. 7. Built-In audible sounder and one Common Hooter Output. 8. Fault Relay output. 9. Common Alarm Relay Output.

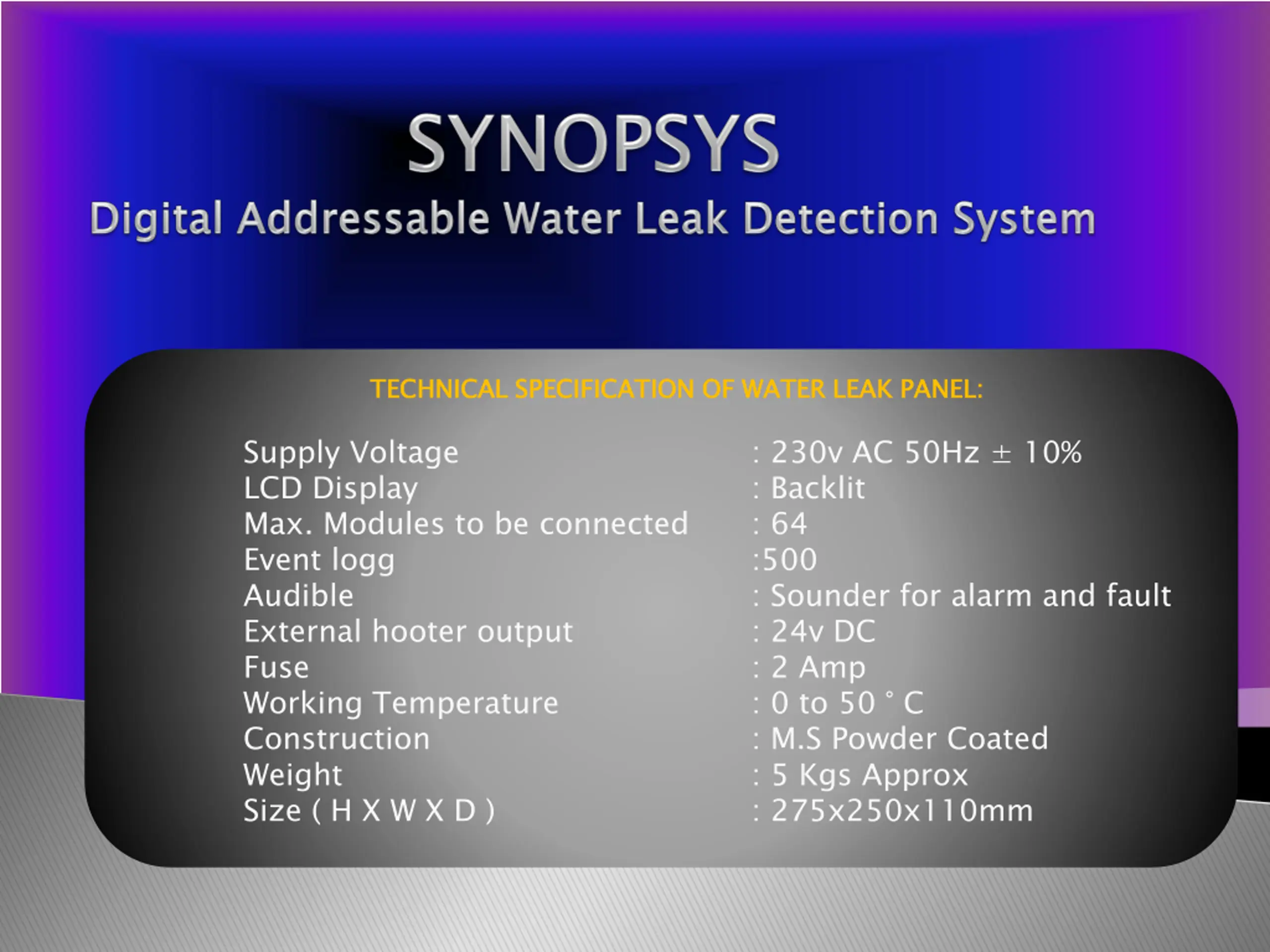

TECHNICAL SPECIFICATION OF WATER LEAK PANEL: TECHNICAL SPECIFICATION OF WATER LEAK PANEL: Supply Voltage LCD Display Max. Modules to be connected Event logg Audible External hooter output Fuse Working Temperature Construction Weight Size ( H X W X D ) : 230v AC 50Hz 10% : Backlit : 64 :500 : Sounder for alarm and fault : 24v DC : 2 Amp : 0 to 50 C : M.S Powder Coated : 5 Kgs Approx : 275x250x110mm

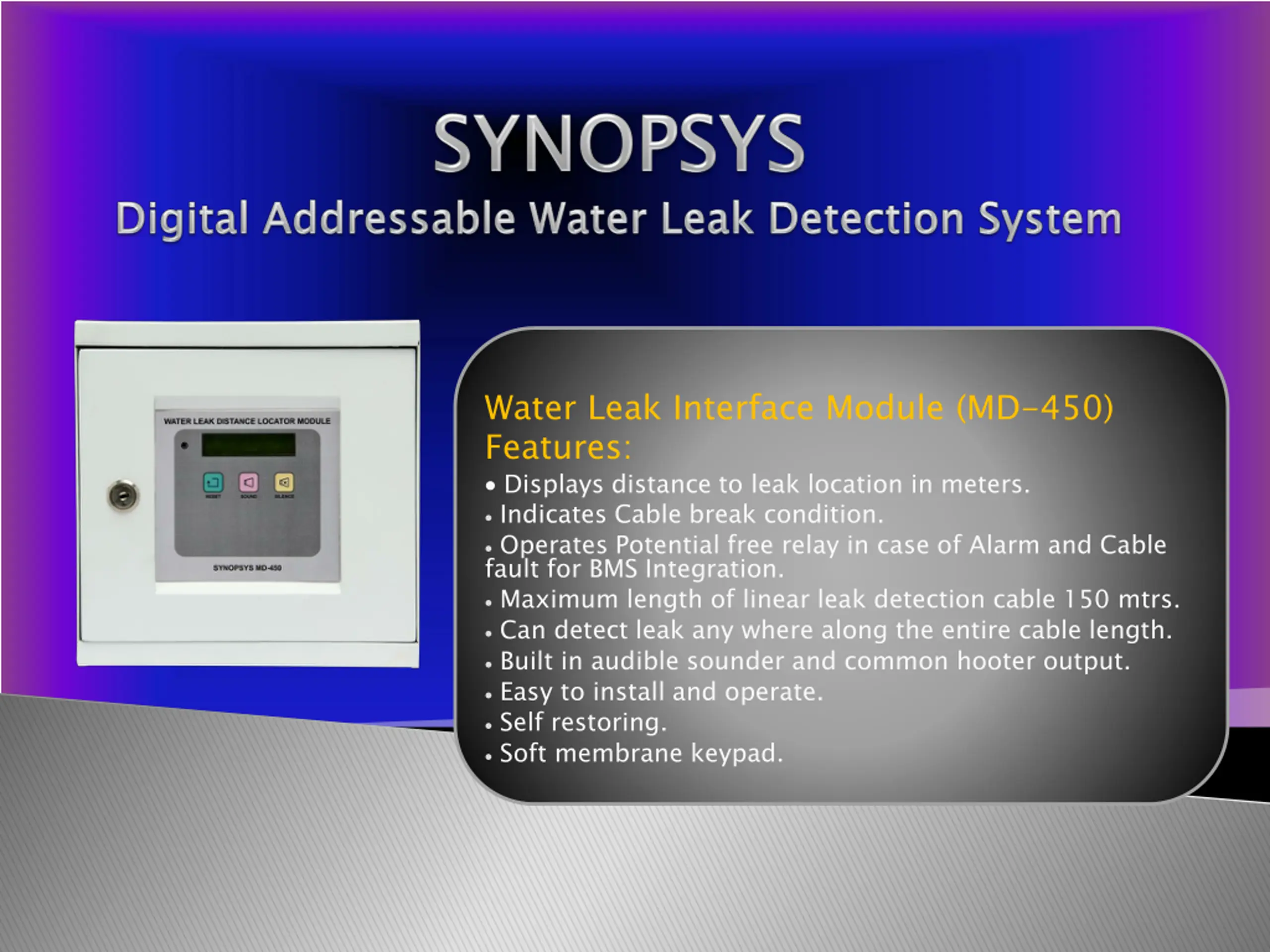

Water Leak Interface Module (MD-450) Features: Displays distance to leak location in meters. Indicates Cable break condition. Operates Potential free relay in case of Alarm and Cable fault for BMS Integration. Maximum length of linear leak detection cable 150 mtrs. Can detect leak any where along the entire cable length. Built in audible sounder and common hooter output. Easy to install and operate. Self restoring. Soft membrane keypad.

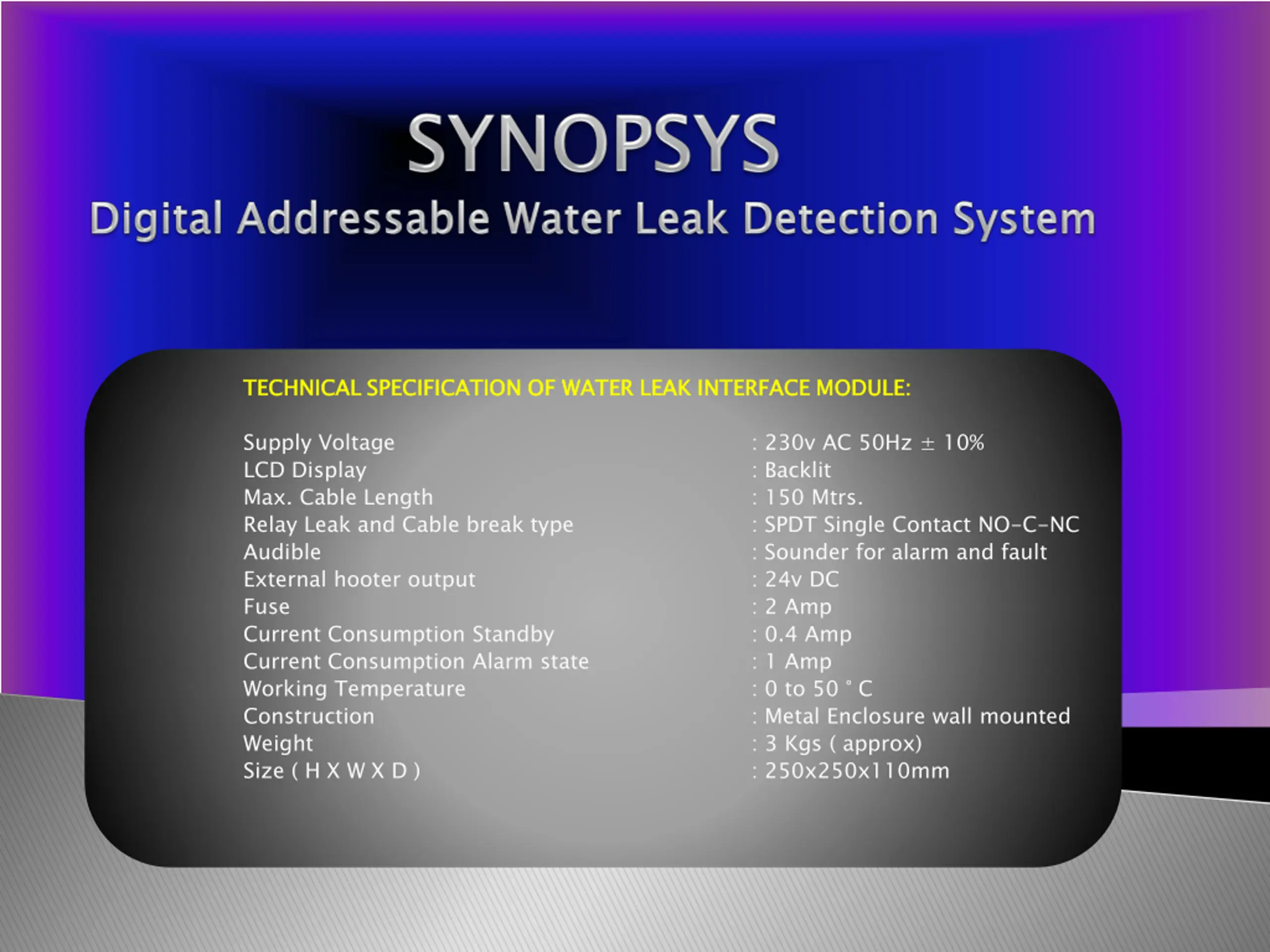

TECHNICAL SPECIFICATION OF WATER LEAK INTERFACE MODULE: TECHNICAL SPECIFICATION OF WATER LEAK INTERFACE MODULE: Supply Voltage LCD Display Max. Cable Length Relay Leak and Cable break type Audible External hooter output Fuse Current Consumption Standby Current Consumption Alarm state Working Temperature Construction Weight Size ( H X W X D ) : 230v AC 50Hz 10% : Backlit : 150 Mtrs. : SPDT Single Contact NO-C-NC : Sounder for alarm and fault : 24v DC : 2 Amp : 0.4 Amp : 1 Amp : 0 to 50 C : Metal Enclosure wall mounted : 3 Kgs ( approx) : 250x250x110mm

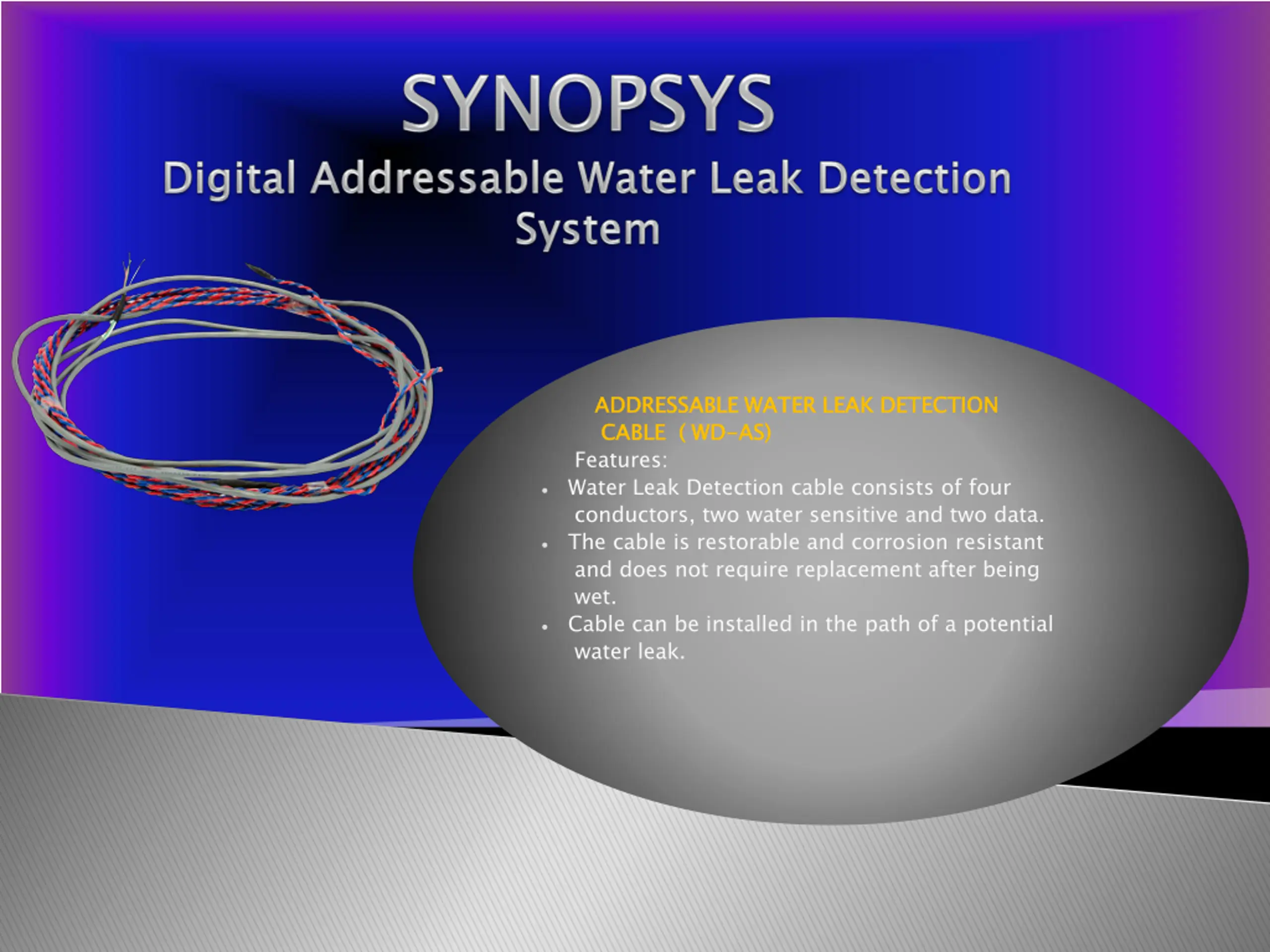

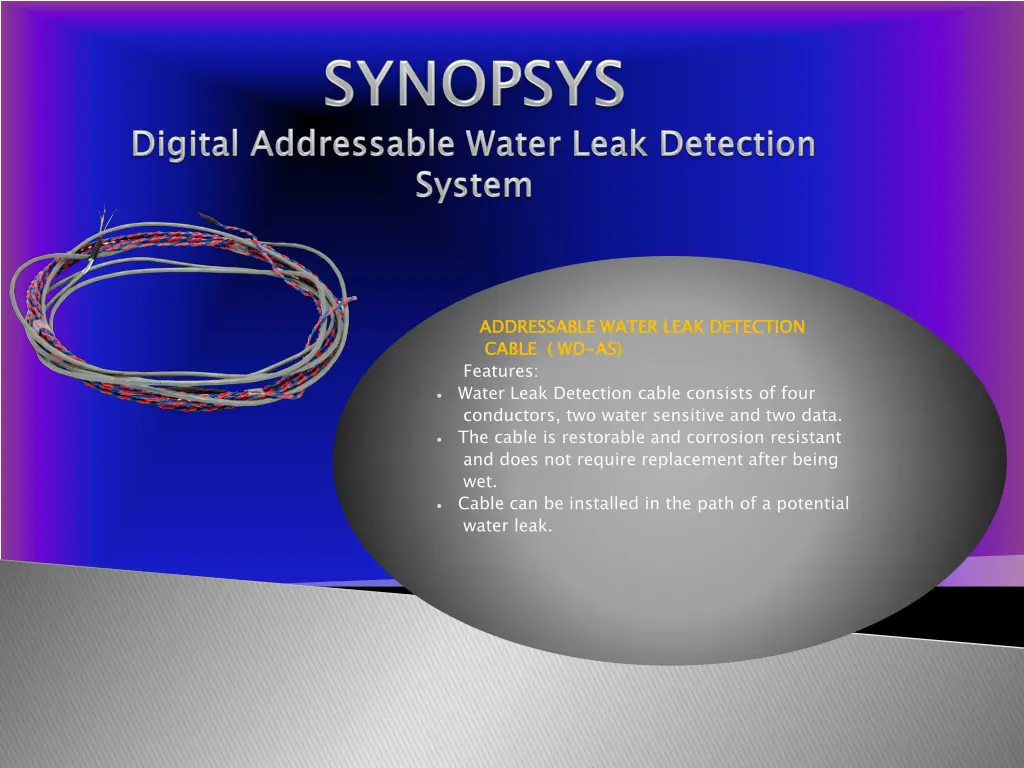

ADDRESSABLE WATER LEAK DETECTION Features: Water Leak Detection cable consists of four conductors, two water sensitive and two data. The cable is restorable and corrosion resistant and does not require replacement after being wet. Cable can be installed in the path of a potential water leak. ADDRESSABLE WATER LEAK DETECTION CABLE ( WD CABLE ( WD- -AS) AS)
TECHNICAL SPECIFICATION OF WATER LEAK DETECTION CABLE TECHNICAL SPECIFICATION OF WATER LEAK DETECTION CABLE: : elements Material : PVC twisted pair with stainless steel 316 Leader Cable : 3 mtrs Dimensions : 3.5mm dia No. of Wires : 4 two water sensitive and two data sensitive Max cable length : 150 mtrs Std cable lengths : 10,15,20,25,30 and so on upto 150 mtrs.
