Water Treatment Process Schematics for Roof and Bore Water
Explore detailed schematics of water treatment processes for roof and bore water sources in school buildings, including UV treatment, filtration systems, pump mechanisms, and storage tanks for treated and untreated water.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

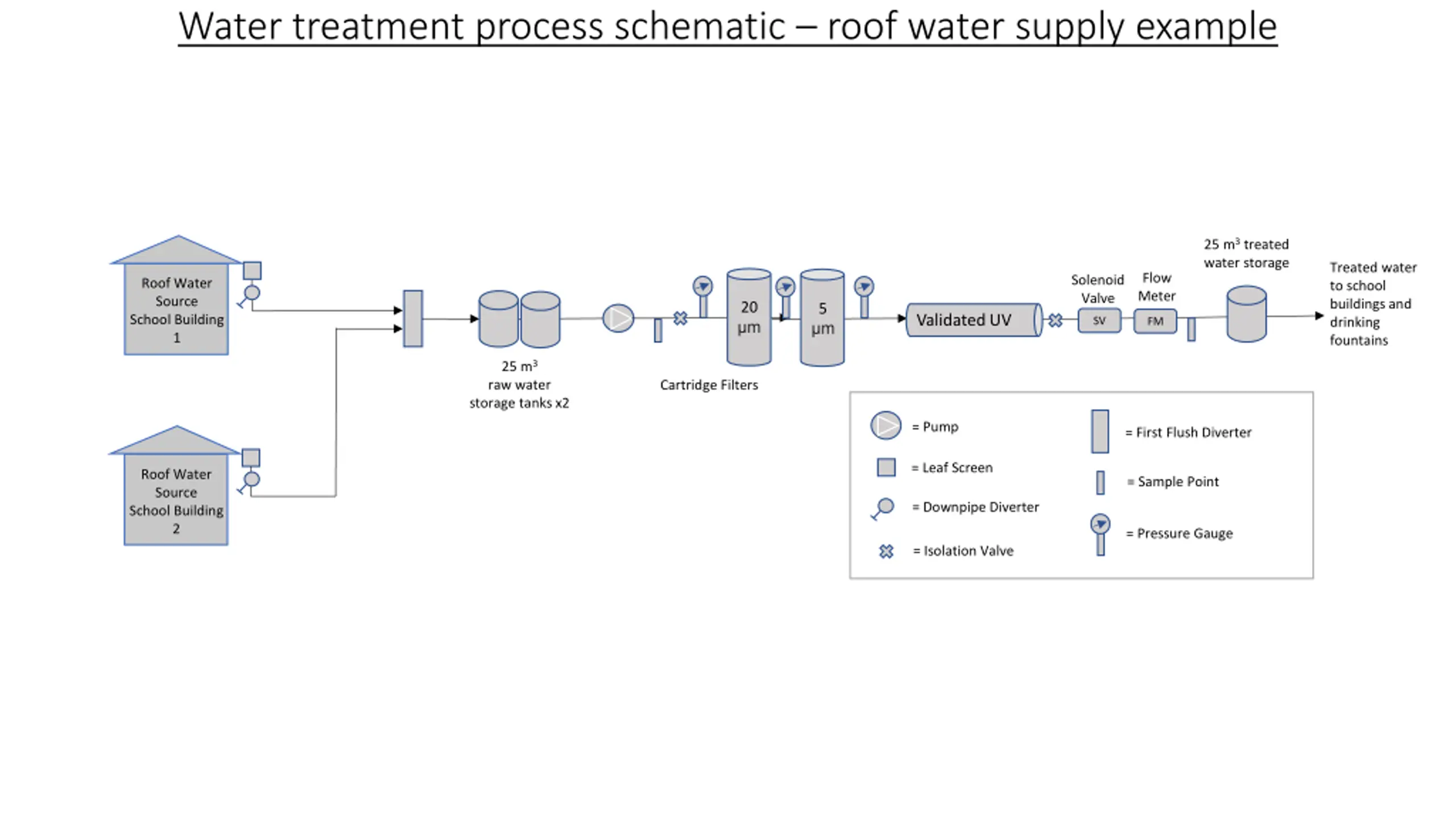

Water treatment process schematic roof water supply example 25 m3 treated water storage Treated water to school buildings and drinking fountains Flow Meter Solenoid Valve Roof Water Source School Building 1 20 m 5 Validated UV SV FM m 25 m3 raw water storage tanks x2 Cartridge Filters = Pump = First Flush Diverter = Leaf Screen Roof Water Source School Building 2 = Sample Point = Downpipe Diverter = Pressure Gauge = Isolation Valve
Water treatment process schematic roof water supply example 25 m3 treated water storage Treated water to school buildings and drinking fountains Flow Meter Solenoid Valve Roof Water Source School Building 1 20 m 5 Validated UV SV FM m 25 m3 raw water storage tanks x2 Cartridge Filters = Pump = First Flush Diverter = Leaf Screen Roof Water Source School Building 2 = Sample Point = Downpipe Diverter = Pressure Gauge = Isolation Valve Roof Water Source School Building 3

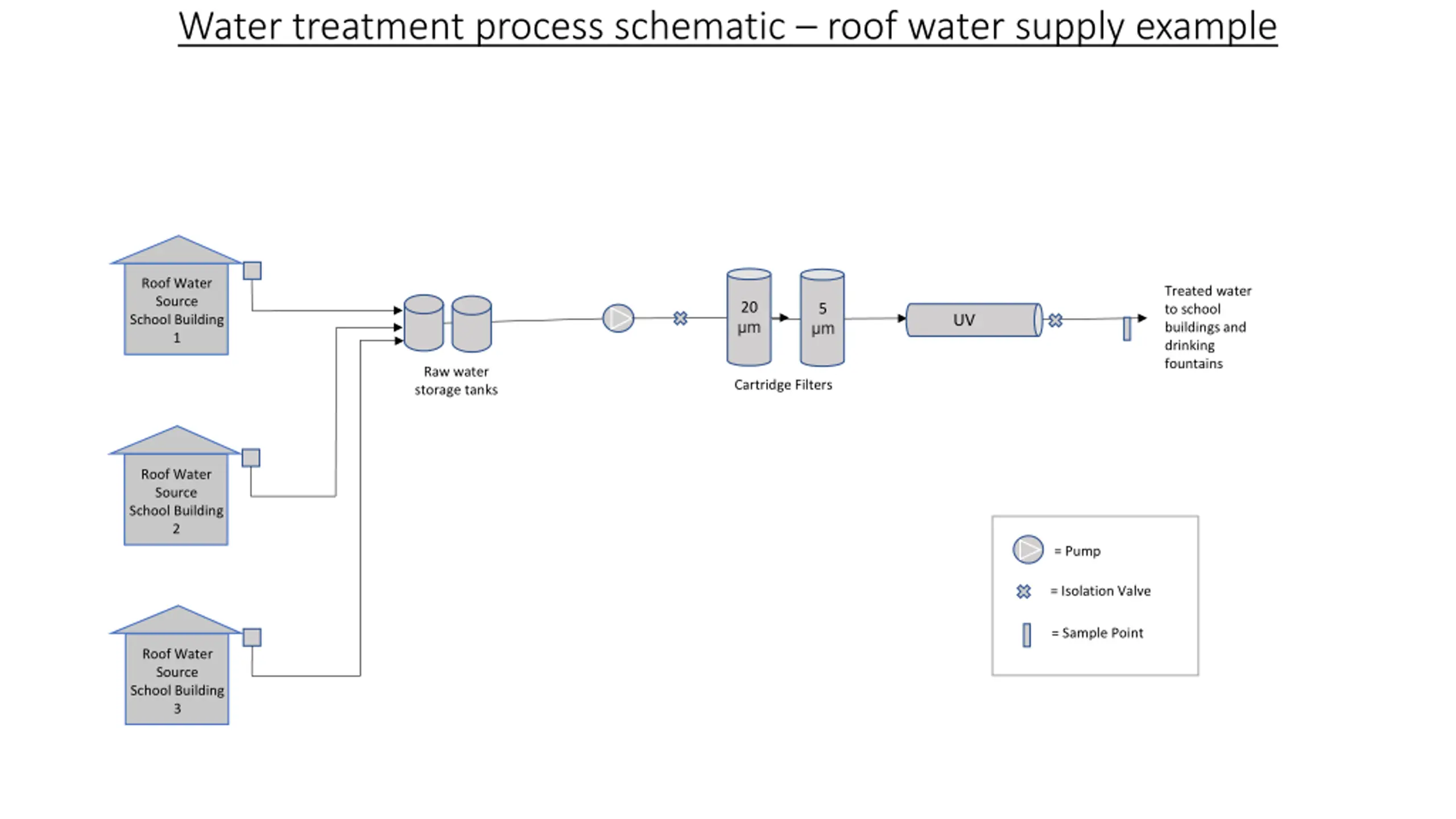

Water treatment process schematic roof water supply example Roof Water Source School Building 1 Treated water to school buildings and drinking fountains 20 m 5 UV m Raw water storage tanks Cartridge Filters Roof Water Source School Building 2 = Pump = Isolation Valve = Sample Point Roof Water Source School Building 3

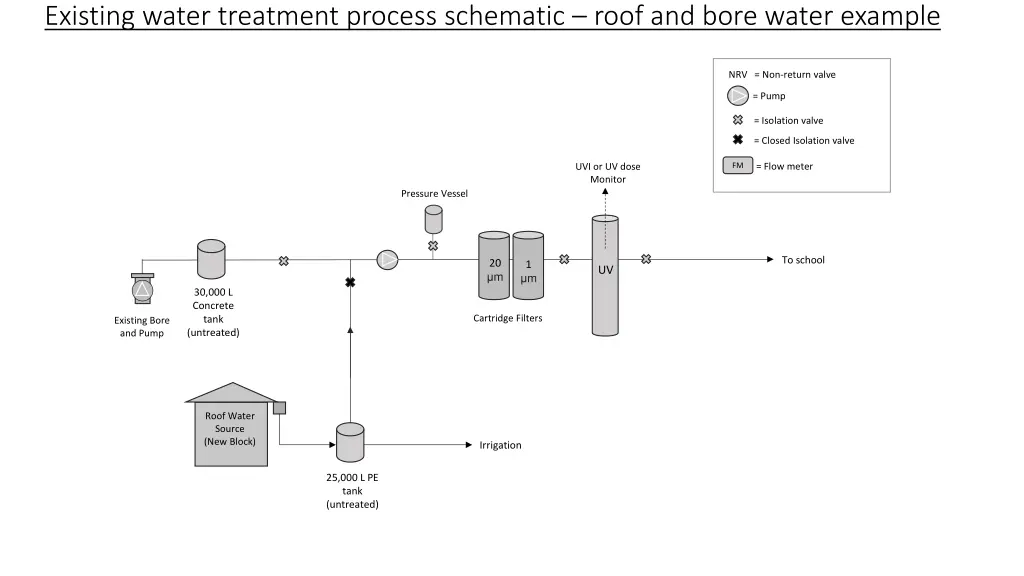

Existing water treatment process schematic roof and bore water example NRV = Non-return valve = Pump = Isolation valve = Closed Isolation valve = Flow meter FM UVI or UV dose Monitor Pressure Vessel To school 20 m 1 UV m 30,000 L Concrete tank (untreated) Cartridge Filters Existing Bore and Pump Roof Water Source (New Block) Irrigation 25,000 L PE tank (untreated)

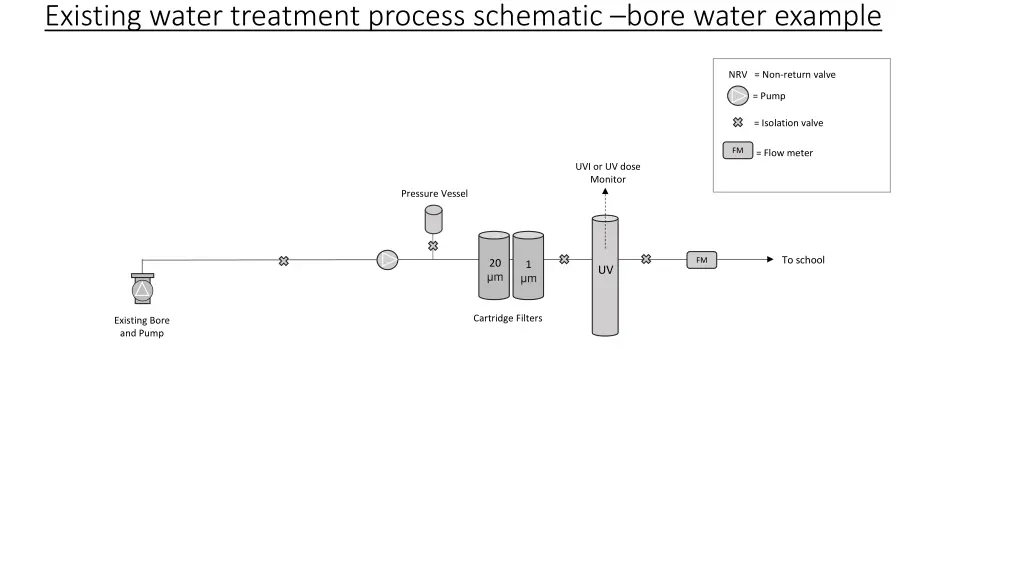

Existing water treatment process schematic bore water example NRV = Non-return valve = Pump = Isolation valve FM = Flow meter UVI or UV dose Monitor Pressure Vessel To school FM 20 m 1 UV m Cartridge Filters Existing Bore and Pump

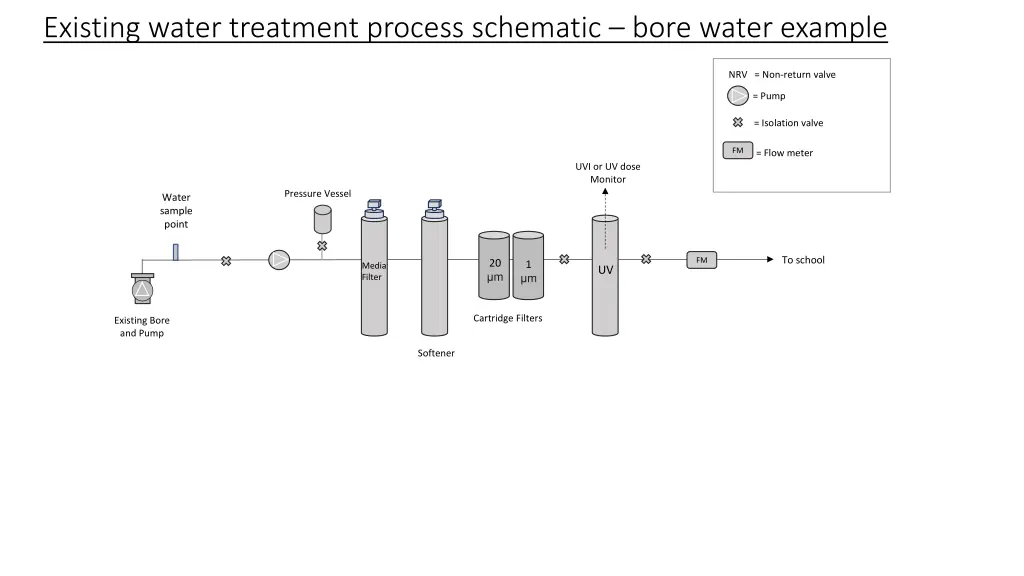

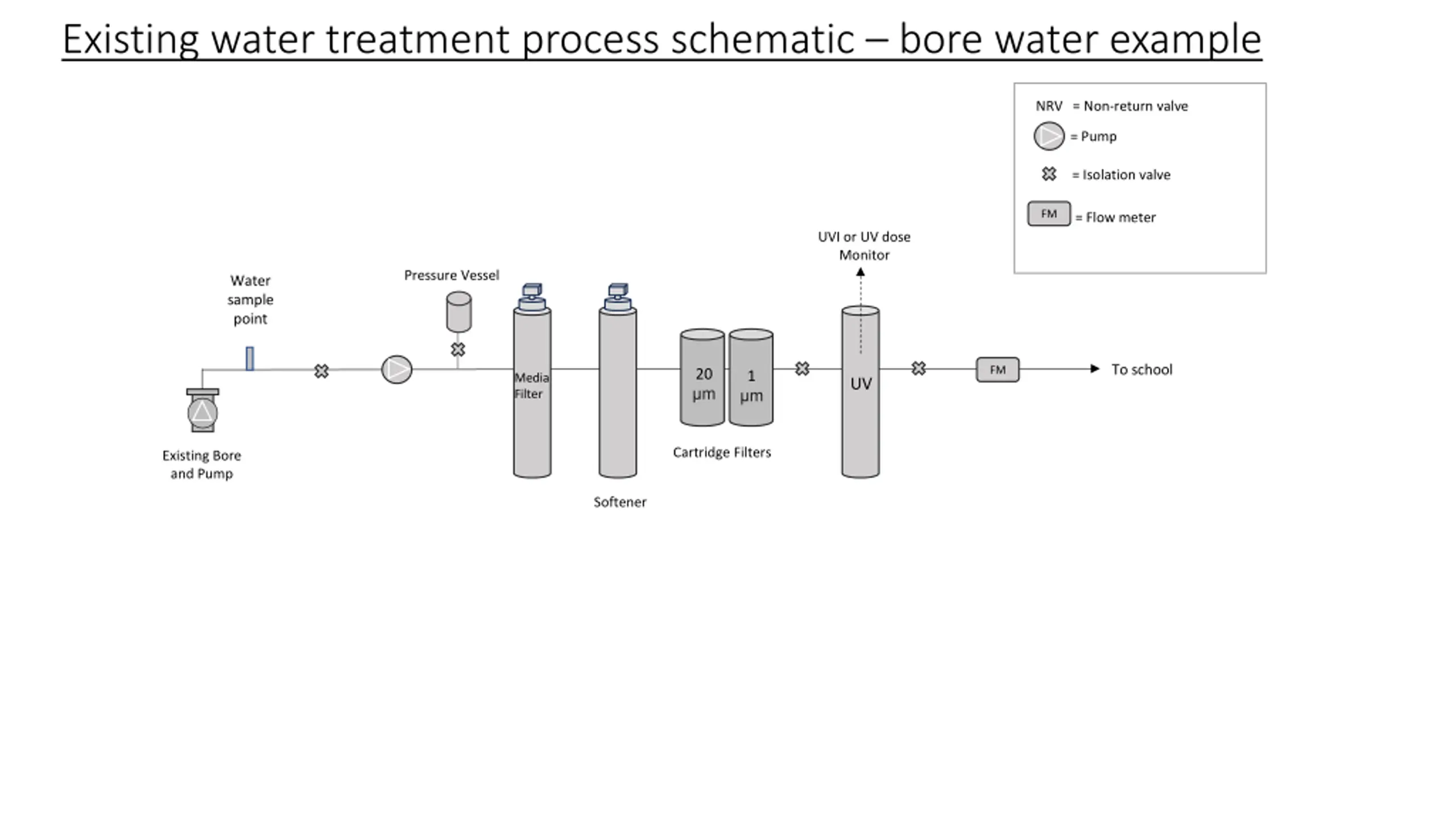

Existing water treatment process schematic bore water example NRV = Non-return valve = Pump = Isolation valve FM = Flow meter UVI or UV dose Monitor Pressure Vessel Water sample point To school FM 20 m 1 Media Filter UV m Cartridge Filters Existing Bore and Pump Softener

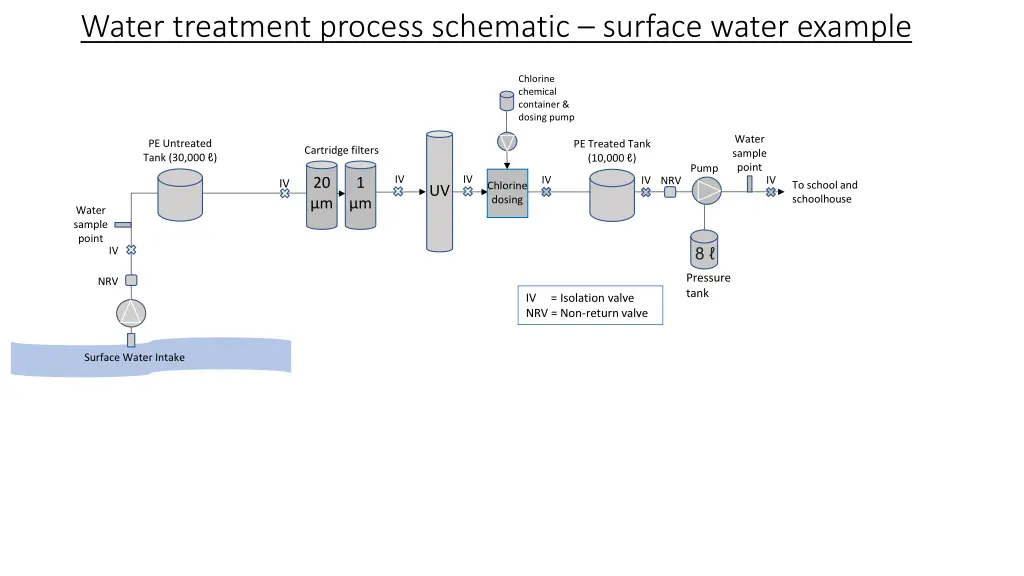

Water treatment process schematic surface water example Chlorine chemical container & dosing pump Water sample point PE Untreated Tank (30,000 ) PE Treated Tank (10,000 ) Cartridge filters Pump IV IV IV IV IV 20 m 1 NRV IV To school and schoolhouse Chlorine dosing UV m Water sample point 8 IV Pressure tank NRV IV = Isolation valve NRV = Non-return valve Surface Water Intake
