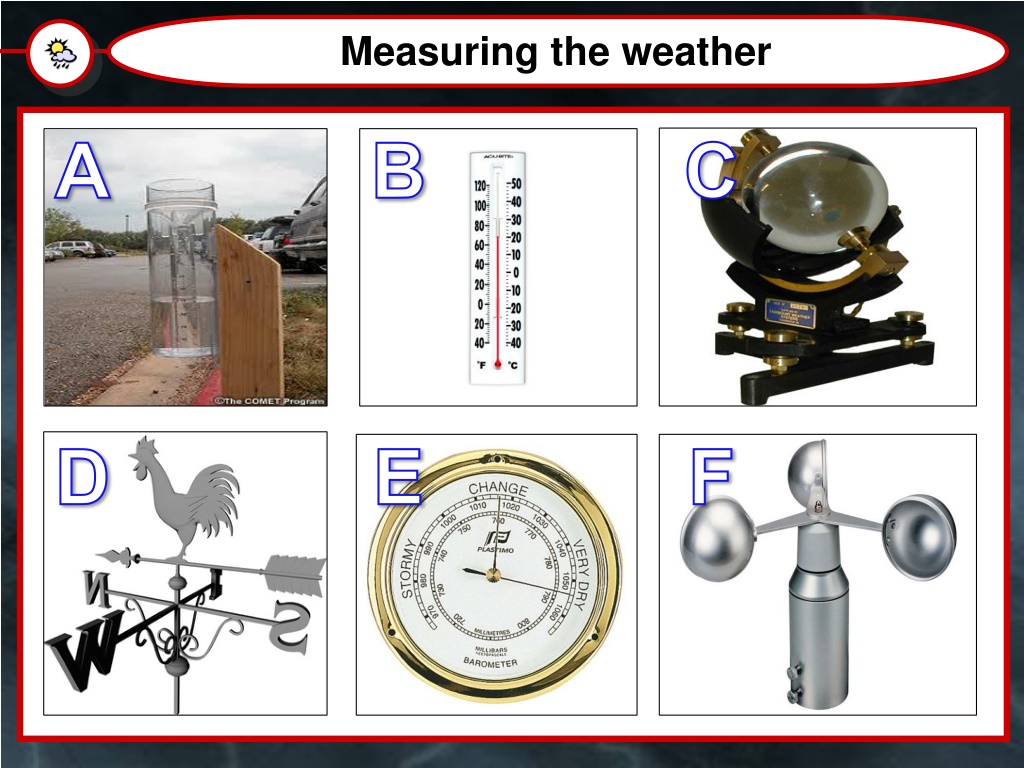

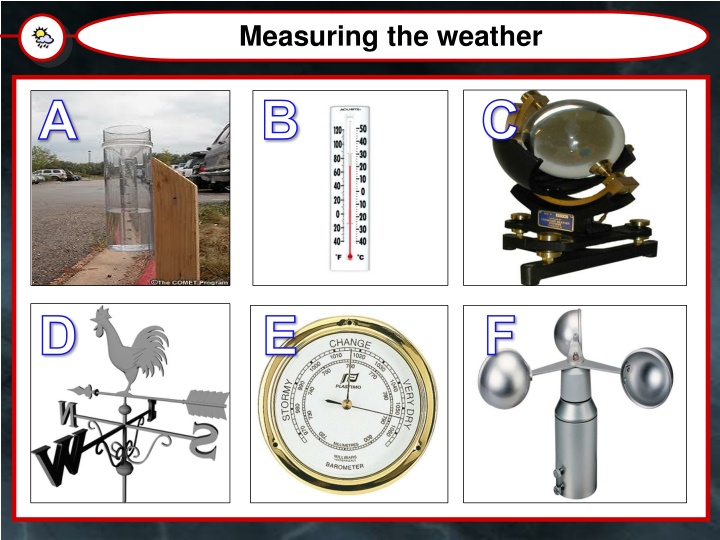

Measuring the weather A B C D E F
Weather and Climate How do you measure the weather?

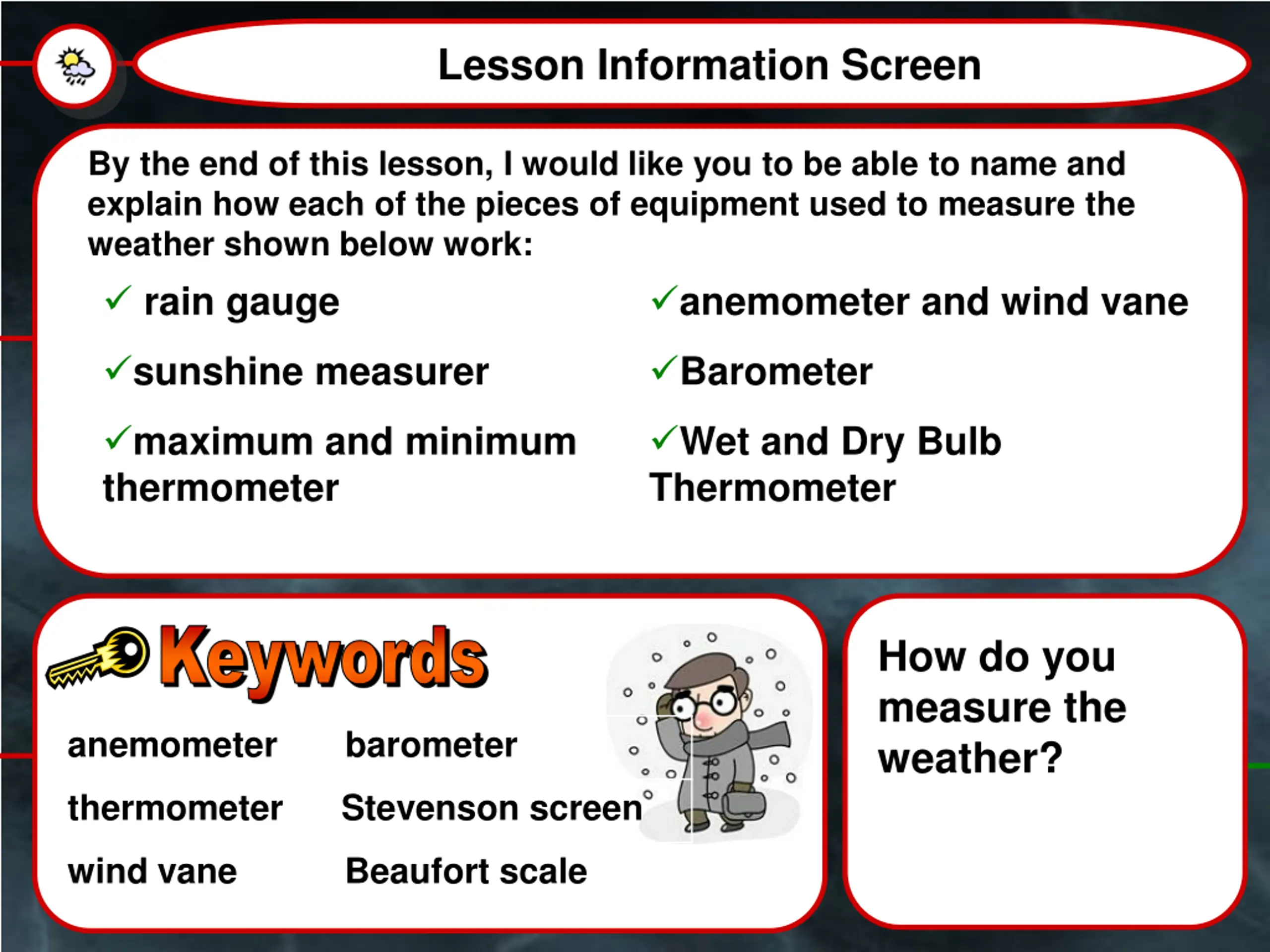

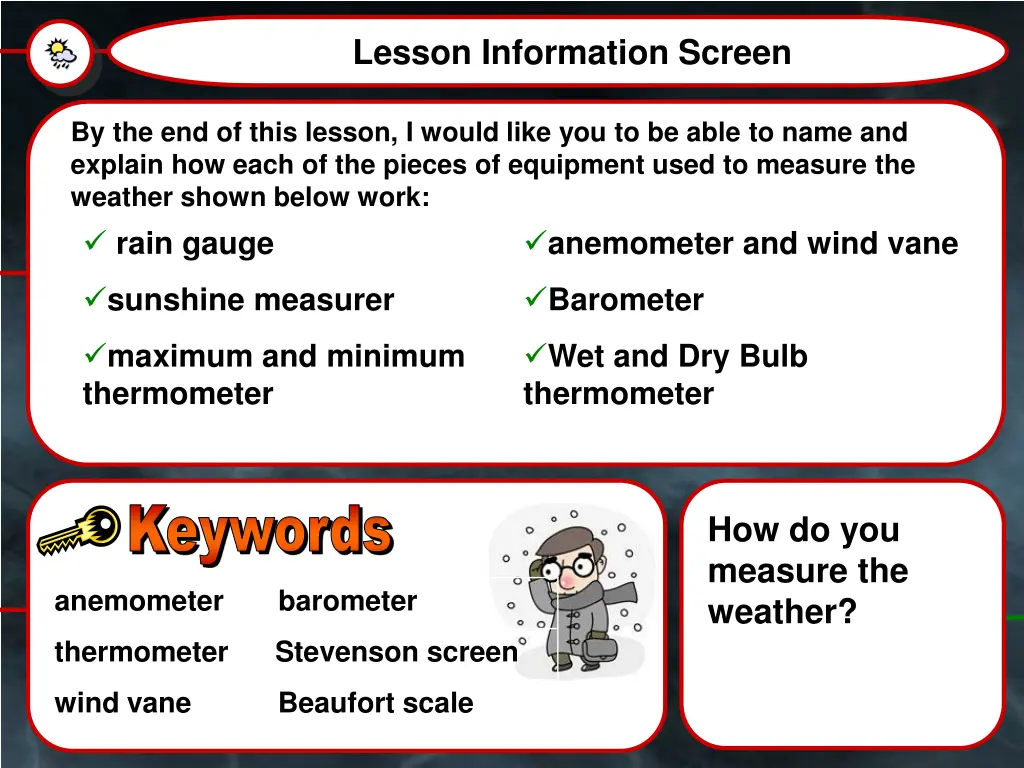

Lesson Information Screen By the end of this lesson, I would like you to be able to name and explain how each of the pieces of equipment used to measure the weather shown below work: rain gauge anemometer and wind vane sunshine measurer Barometer maximum and minimum thermometer Wet and Dry Bulb Thermometer Keywords anemometer barometer u15738058 How do you measure the weather? thermometer Stevenson screen wind vane Beaufort scale

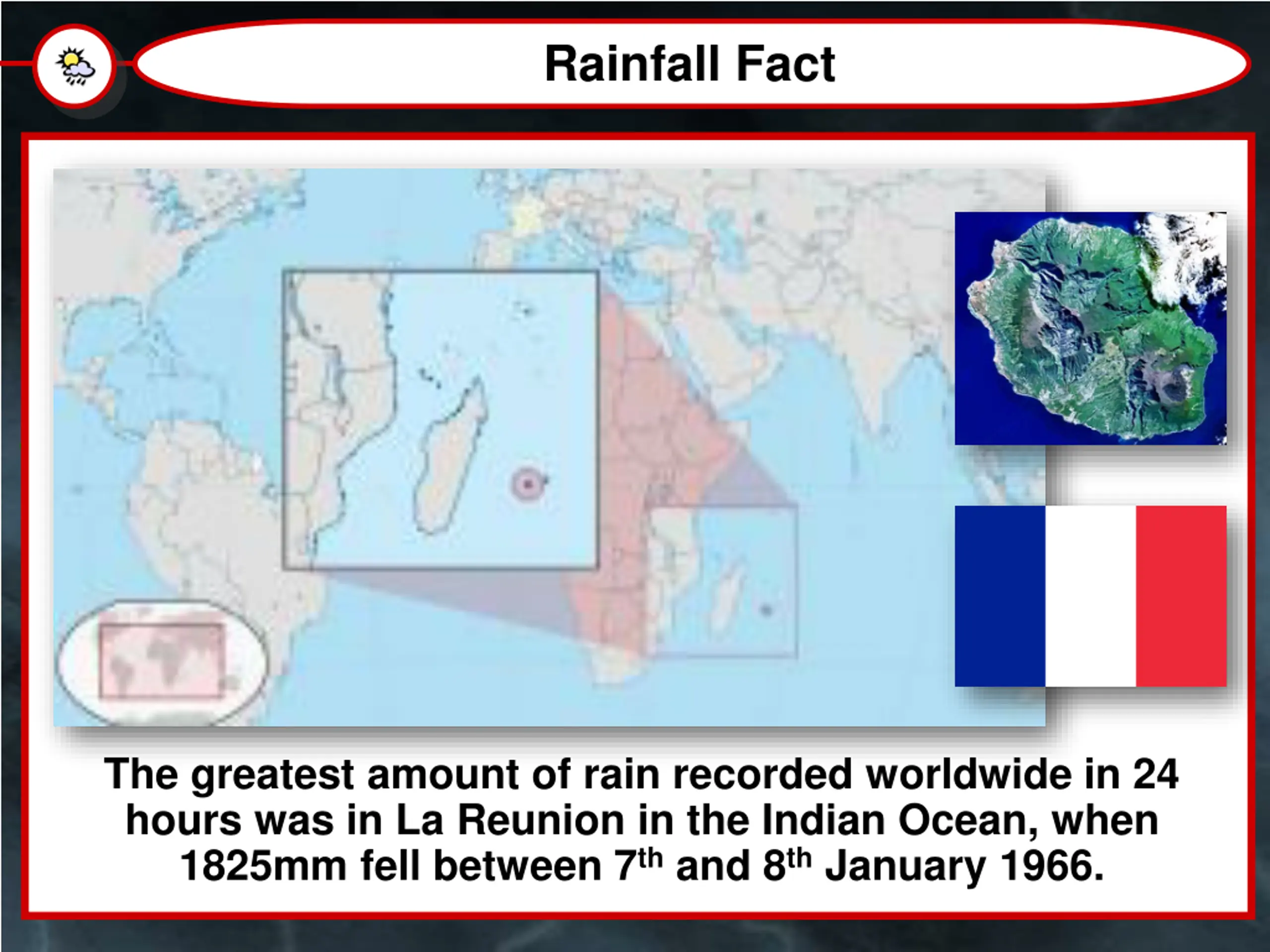

Rainfall Fact http://upload.wikimedia.org/wikipedia/commons/thumb/e/e5/Reunion_in_France.svg/250px-Reunion_in_France.svg.png File:Reunion 21.12S 55.51E.jpg File:Flag of France.svg The greatest amount of rain recorded worldwide in 24 hours was in La Reunion in the Indian Ocean, when 1825mm fell between 7th and 8th January 1966.

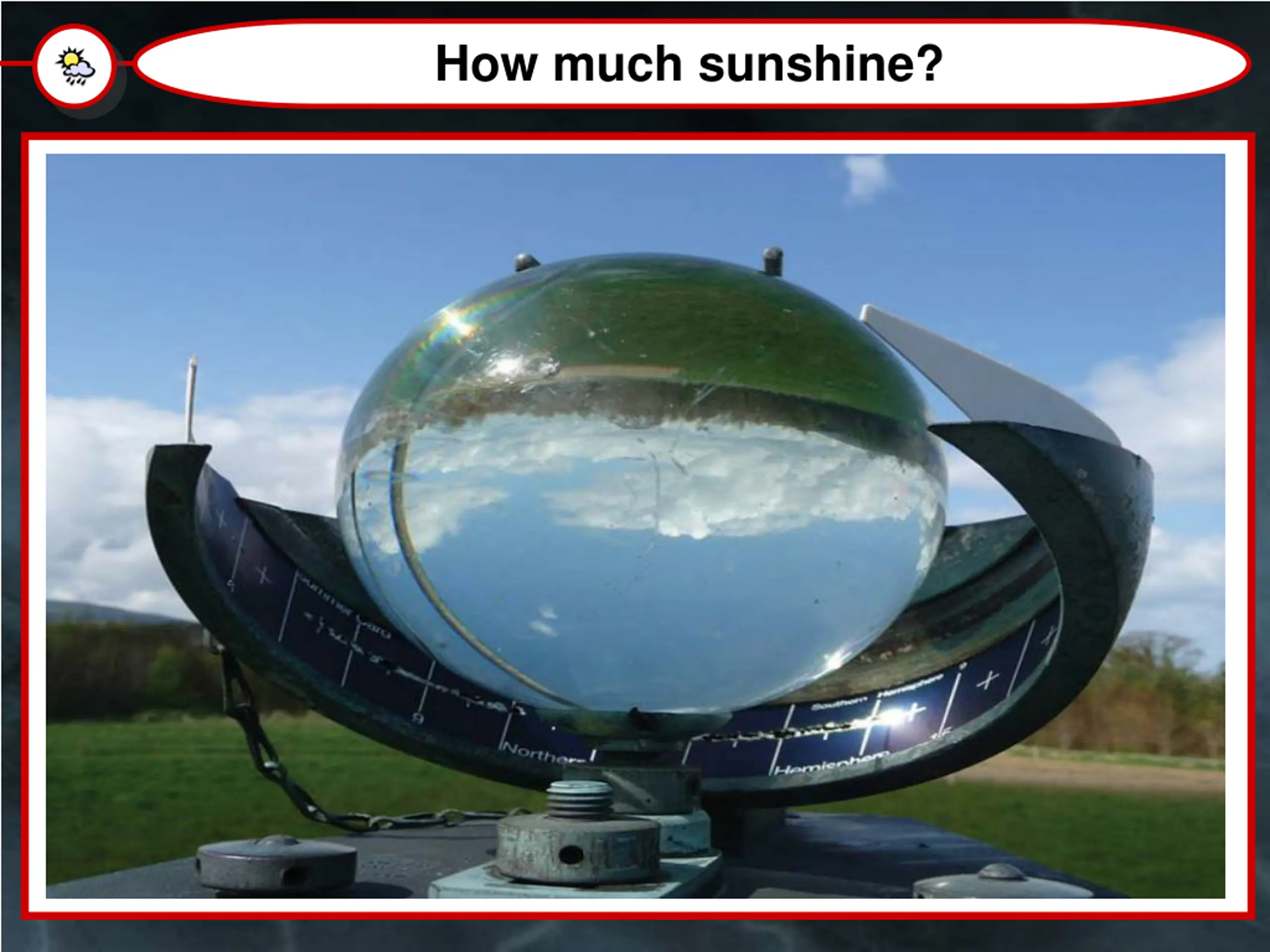

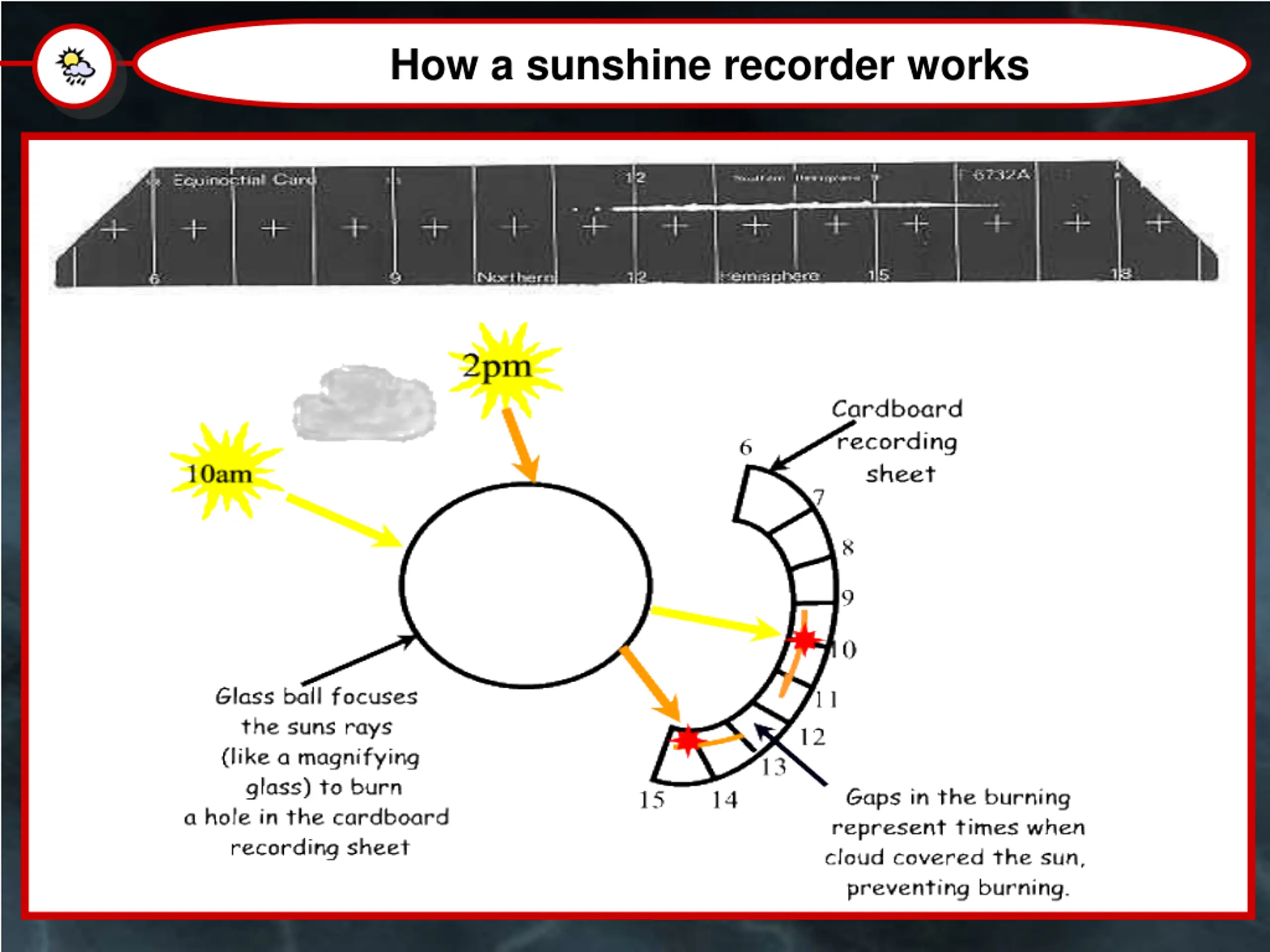

How much sunshine? http://media.pitchcare.com/L/OZx15SMouYnb3pbJARrS.jpg

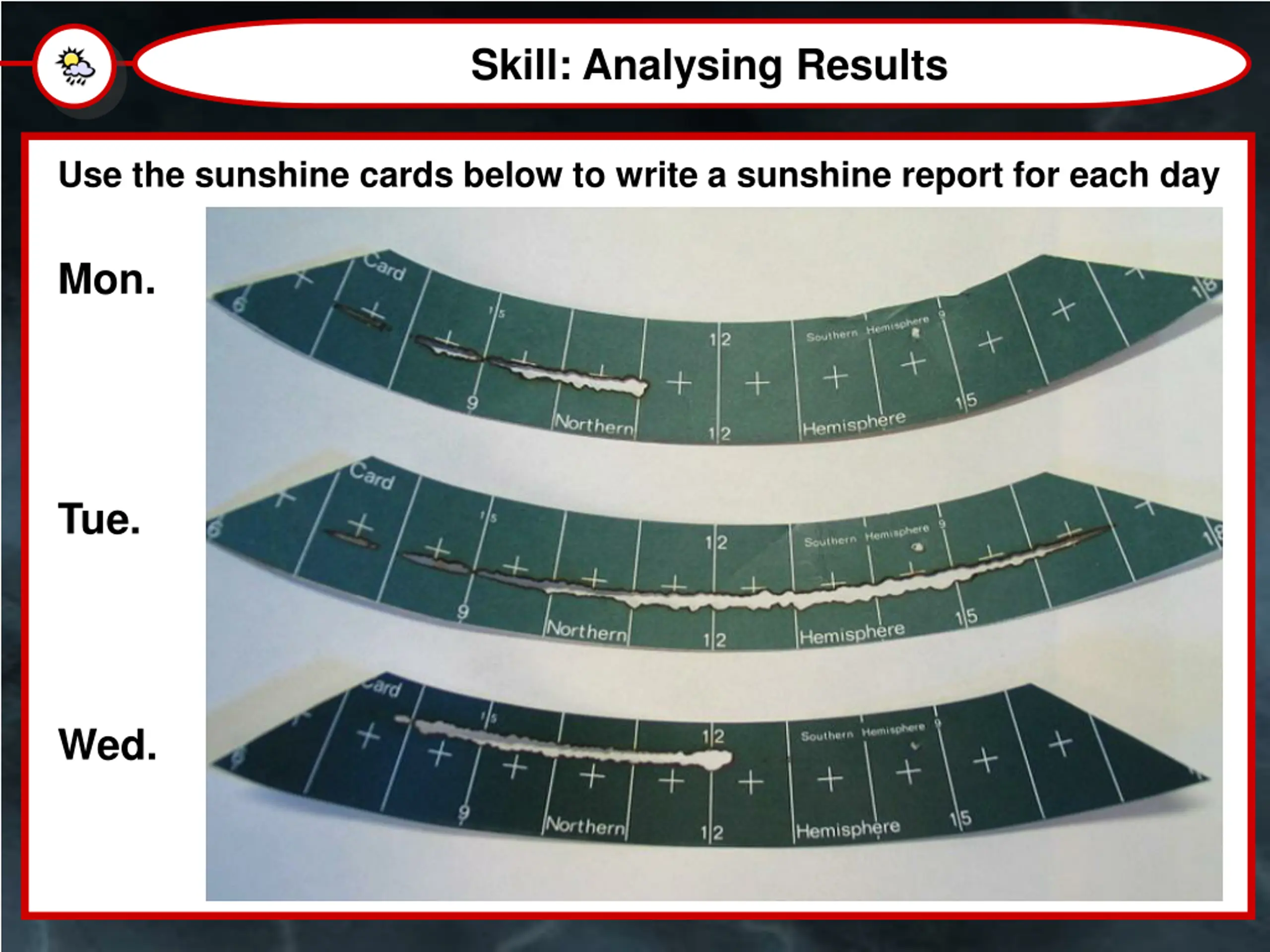

Skill: Analysing Results Use the sunshine cards below to write a sunshine report for each day Mon. Tue. Wed.

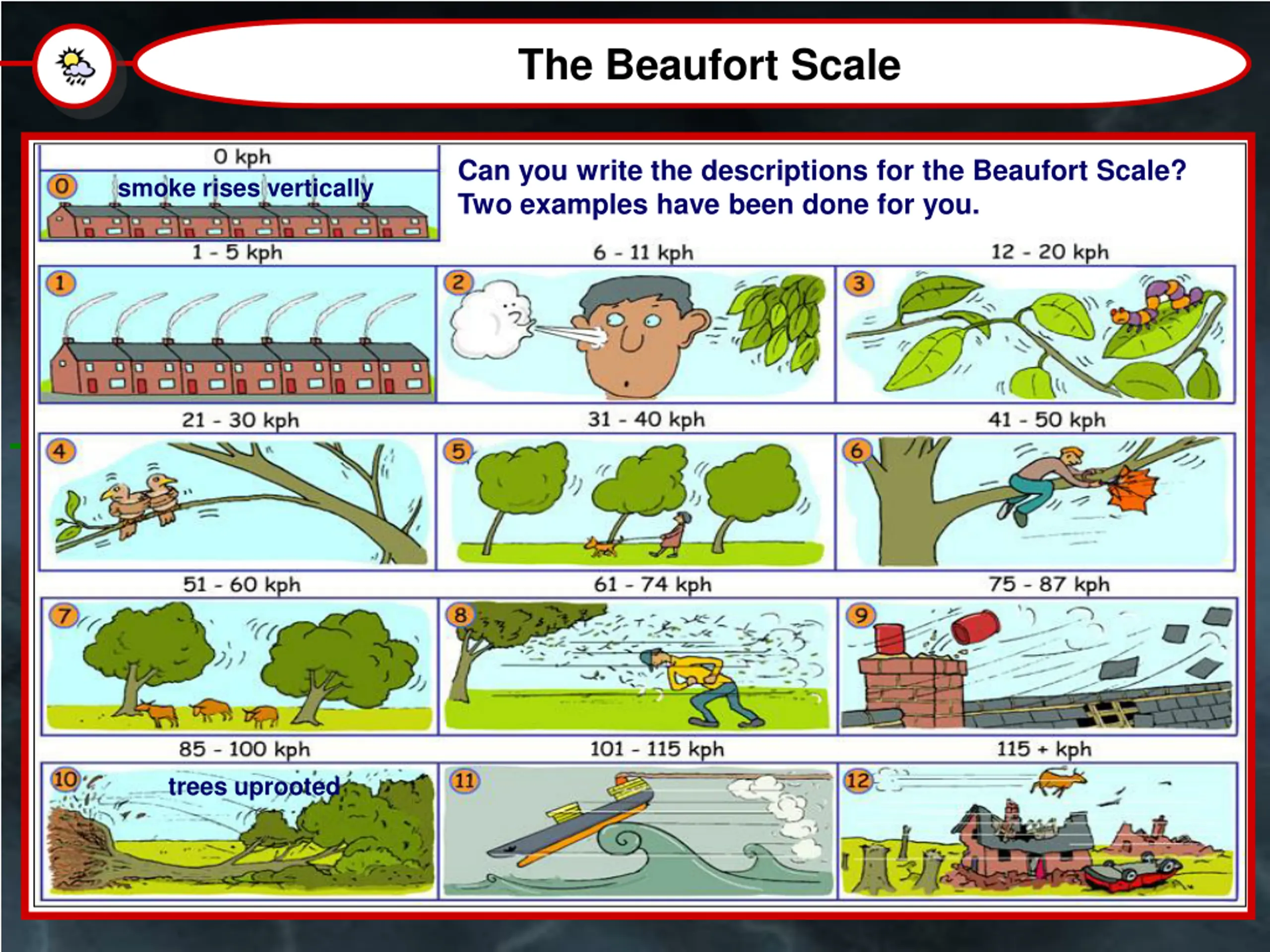

The Beaufort Scale Can you write the descriptions for the Beaufort Scale? Two examples have been done for you. smoke rises vertically trees uprooted

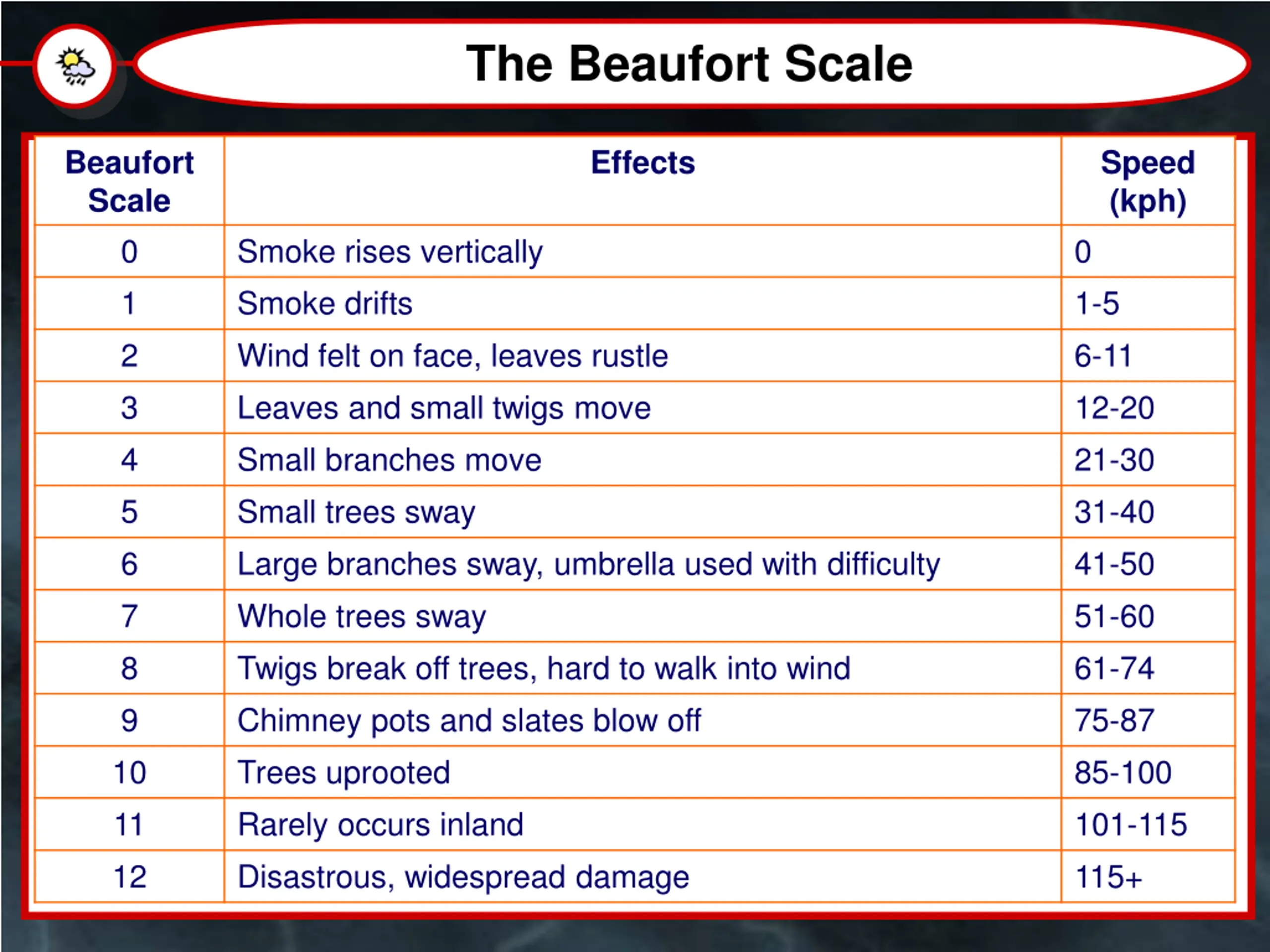

The Beaufort Scale Beaufort Scale 0 1 2 3 4 5 6 7 8 9 10 11 12 Effects Speed (kph) Smoke rises vertically Smoke drifts Wind felt on face, leaves rustle Leaves and small twigs move Small branches move Small trees sway Large branches sway, umbrella used with difficulty Whole trees sway Twigs break off trees, hard to walk into wind Chimney pots and slates blow off Trees uprooted Rarely occurs inland Disastrous, widespread damage 0 1-5 6-11 12-20 21-30 31-40 41-50 51-60 61-74 75-87 85-100 101-115 115+

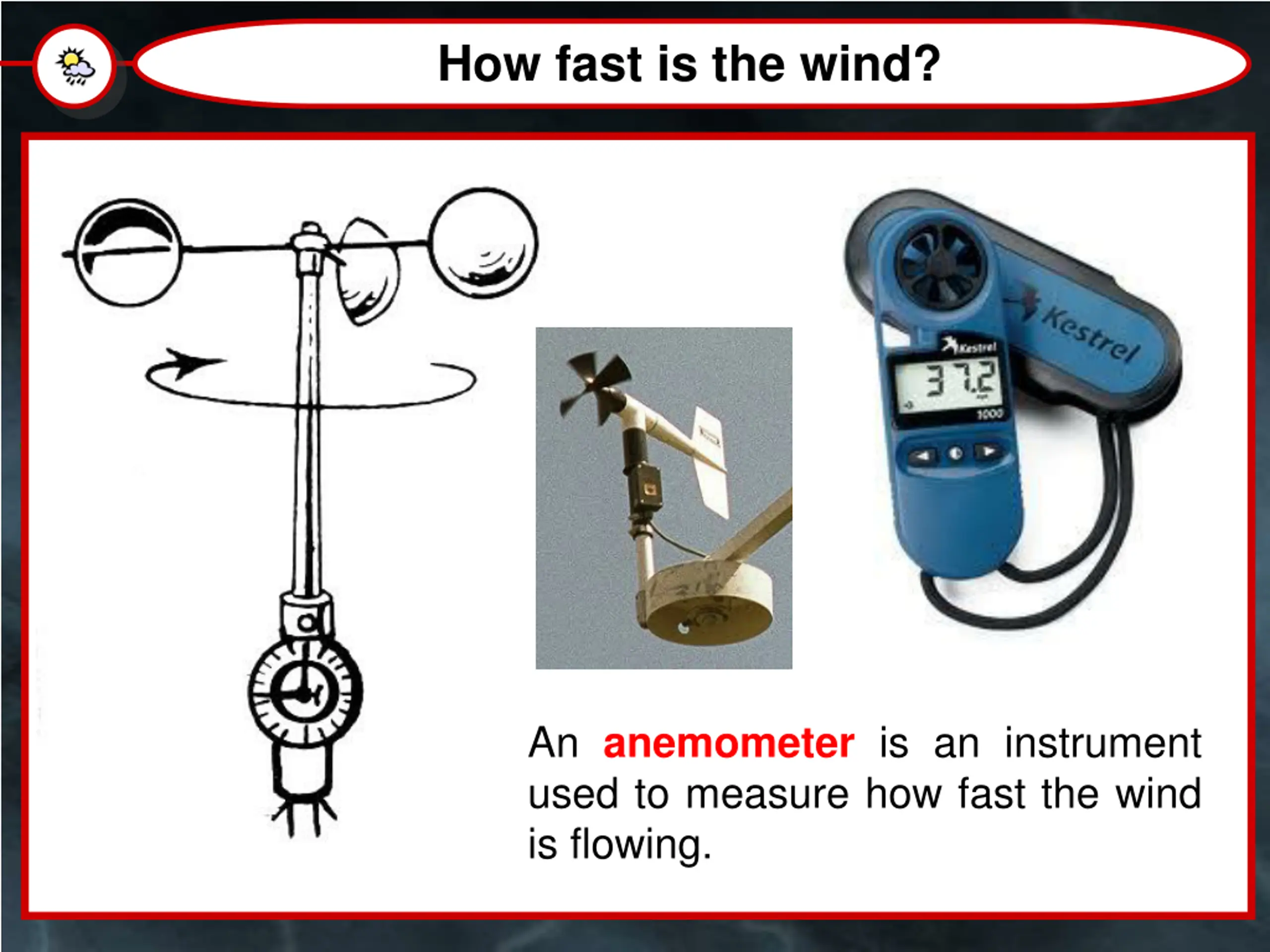

How fast is the wind? An anemometer is an instrument used to measure how fast the wind is flowing.

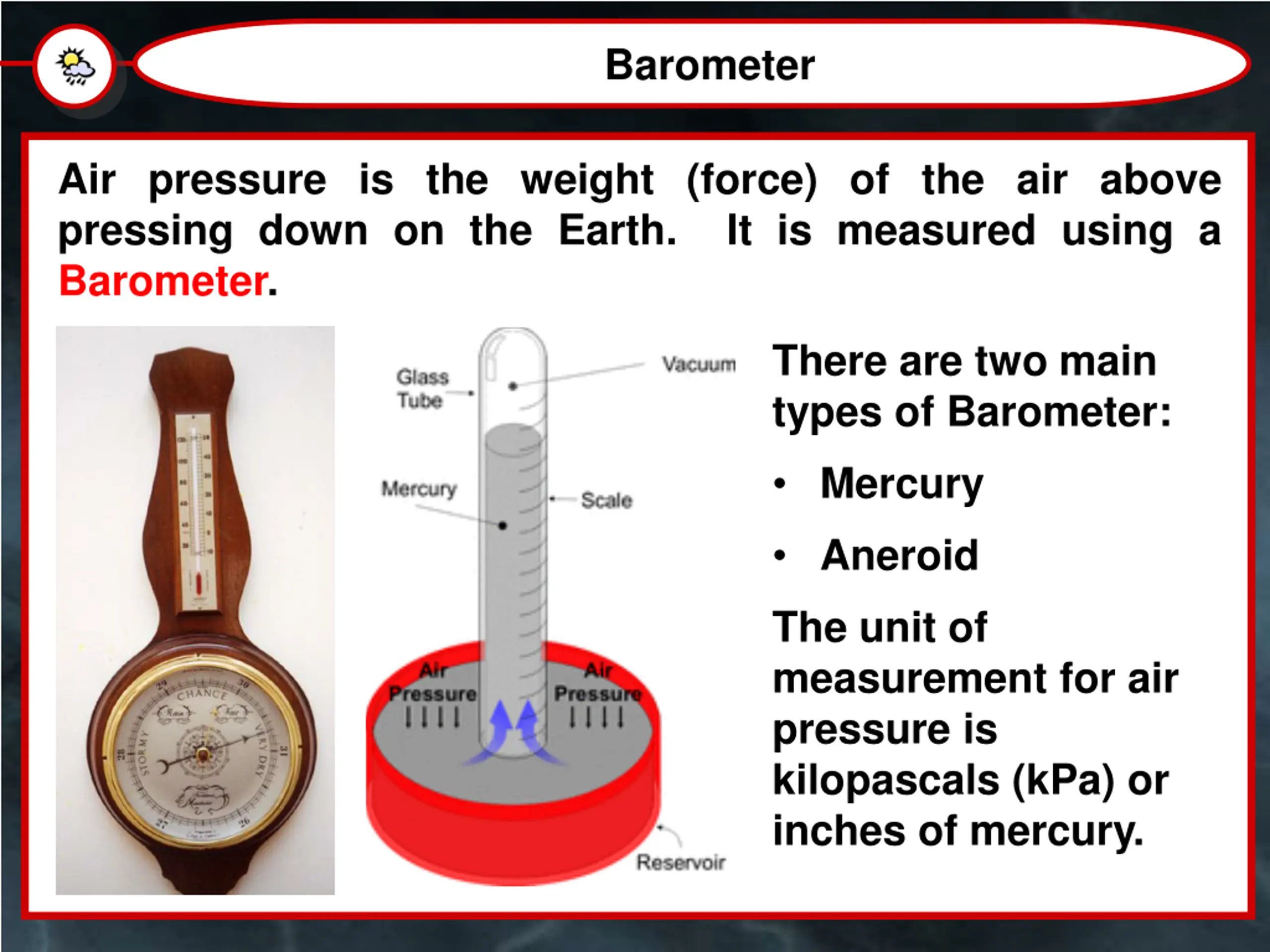

Barometer Air pressure is the weight (force) of the air above pressing down on the Earth. It is measured using a Barometer. There are two main types of Barometer: Mercury Aneroid The unit of measurement for air pressure is kilopascals (kPa) or inches of mercury.

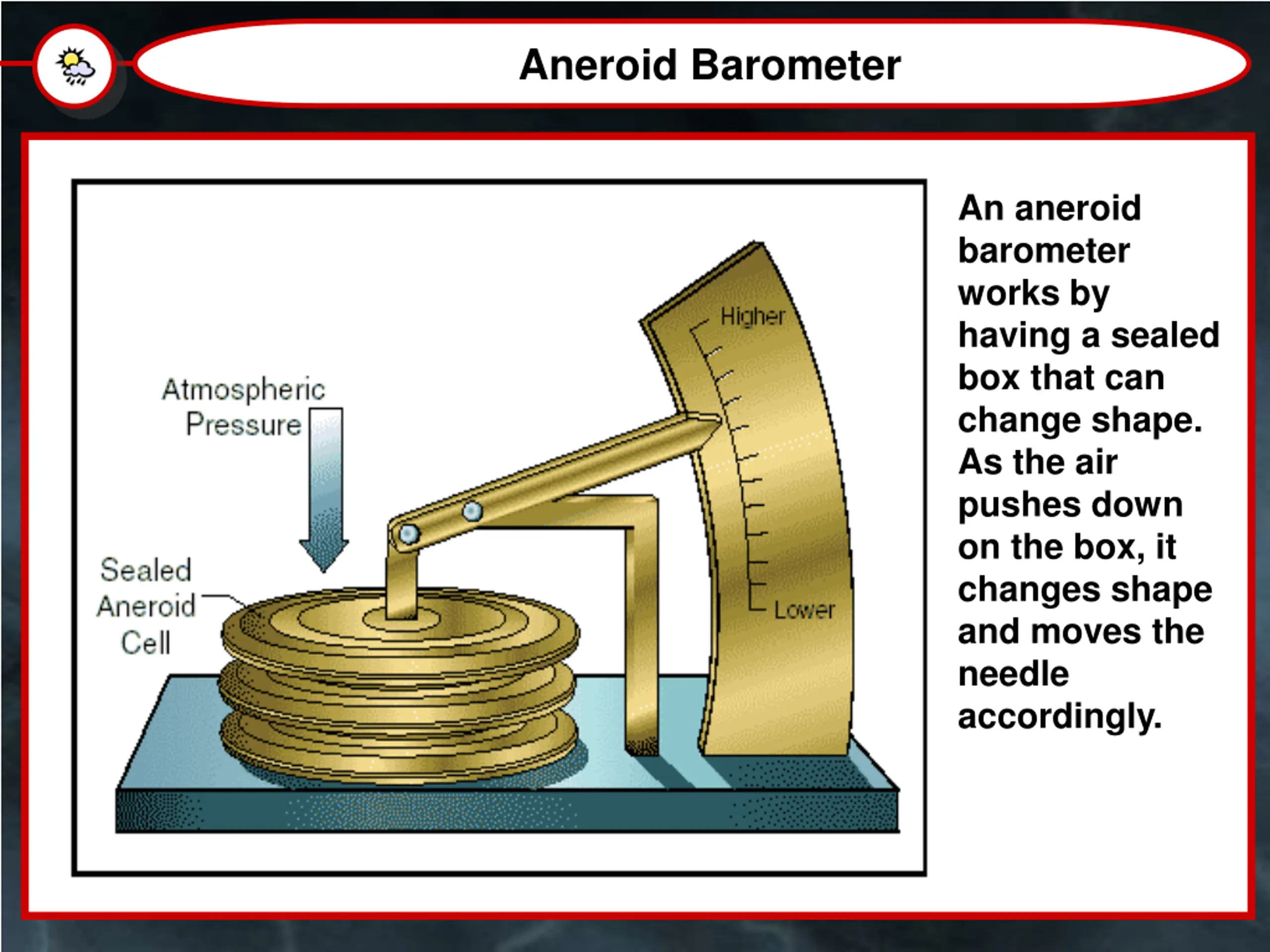

Aneroid Barometer Clipart_Weather_Symbol http://www.free-online-private-pilot-ground-school.com/images/aneroid-barometer.gif An aneroid barometer works by having a sealed box that can change shape. As the air pushes down on the box, it changes shape and moves the needle accordingly.

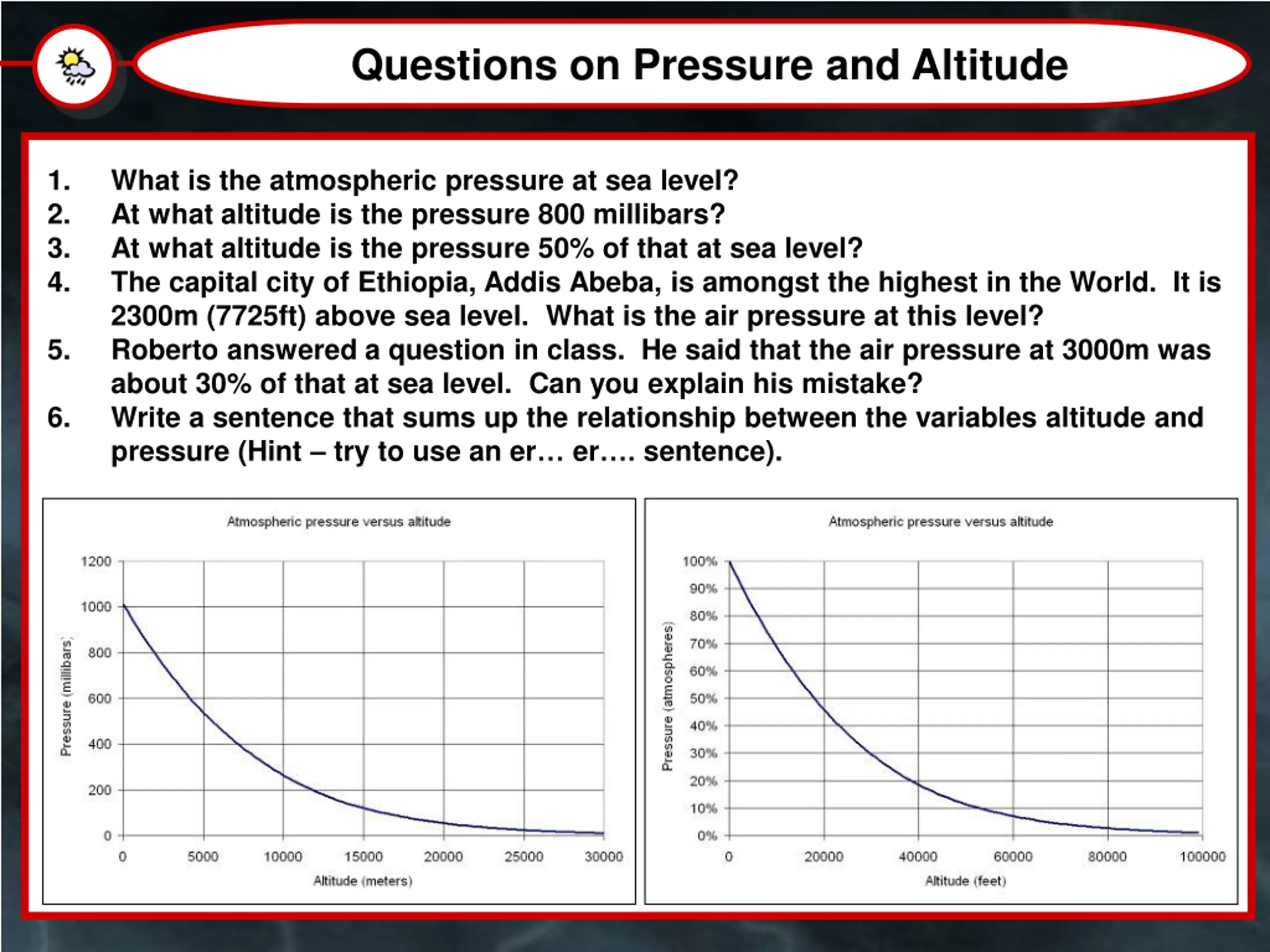

Questions on Pressure and Altitude 1. 2. 3. 4. What is the atmospheric pressure at sea level? At what altitude is the pressure 800 millibars? At what altitude is the pressure 50% of that at sea level? The capital city of Ethiopia, Addis Abeba, is amongst the highest in the World. It is 2300m (7725ft) above sea level. What is the air pressure at this level? Roberto answered a question in class. He said that the air pressure at 3000m was about 30% of that at sea level. Can you explain his mistake? Write a sentence that sums up the relationship between the variables altitude and pressure (Hint try to use an er er . sentence). 5. 6.
Maximum and Minimum Thermometer A maximum and minimum thermometer is a temperature measuring device that is designed to show the highest and lowest temperatures reached. It works by having a thermometer that has been turned into a U-Tube shape. At either end of the mercury is a small marker. This is pushed higher or lower up the tube by the contents of the tube.

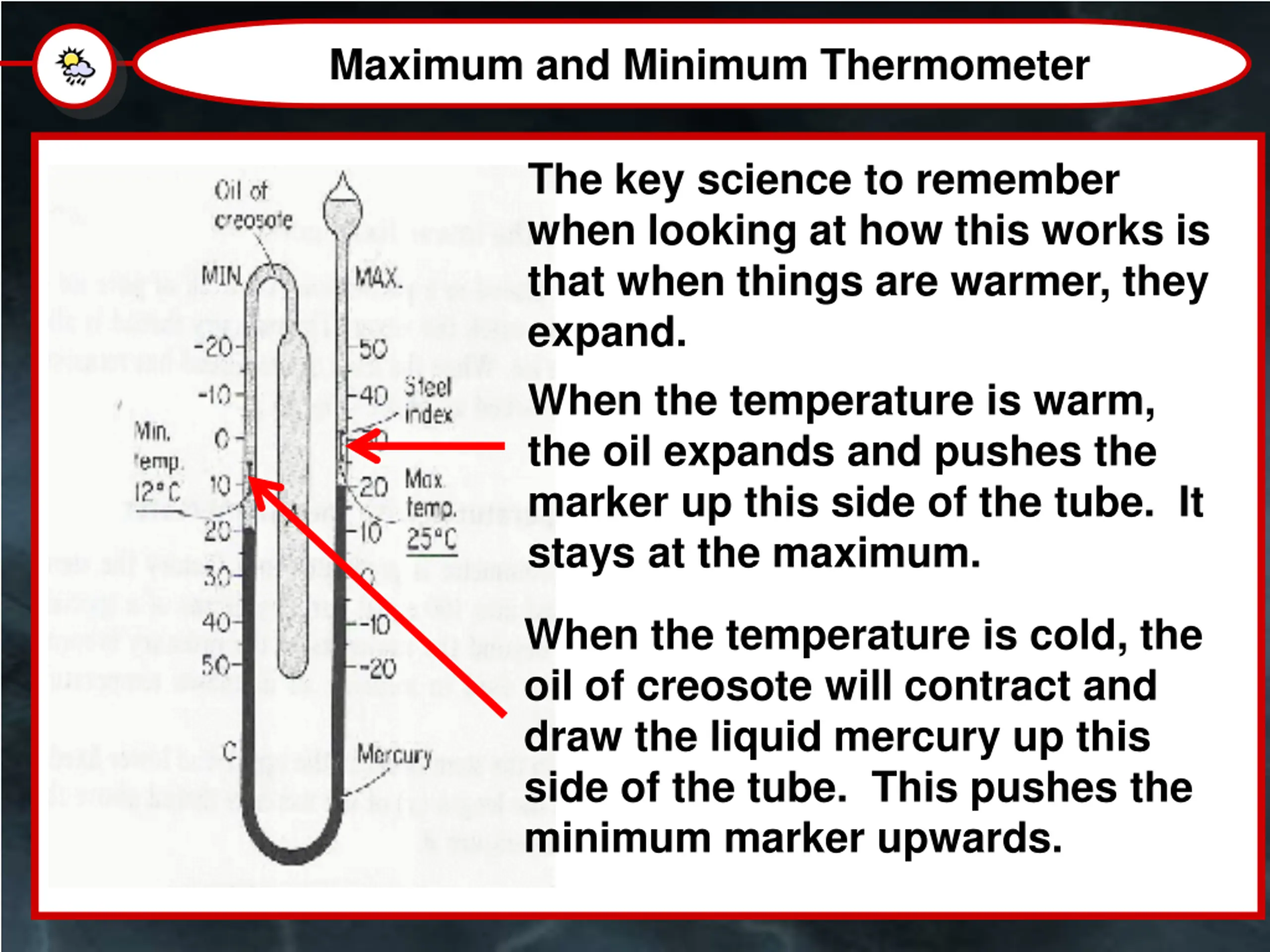

Maximum and Minimum Thermometer The key science to remember when looking at how this works is that when things are warmer, they expand. When the temperature is warm, the oil expands and pushes the marker up this side of the tube. It stays at the maximum. When the temperature is cold, the oil of creosote will contract and draw the liquid mercury up this side of the tube. This pushes the minimum marker upwards.

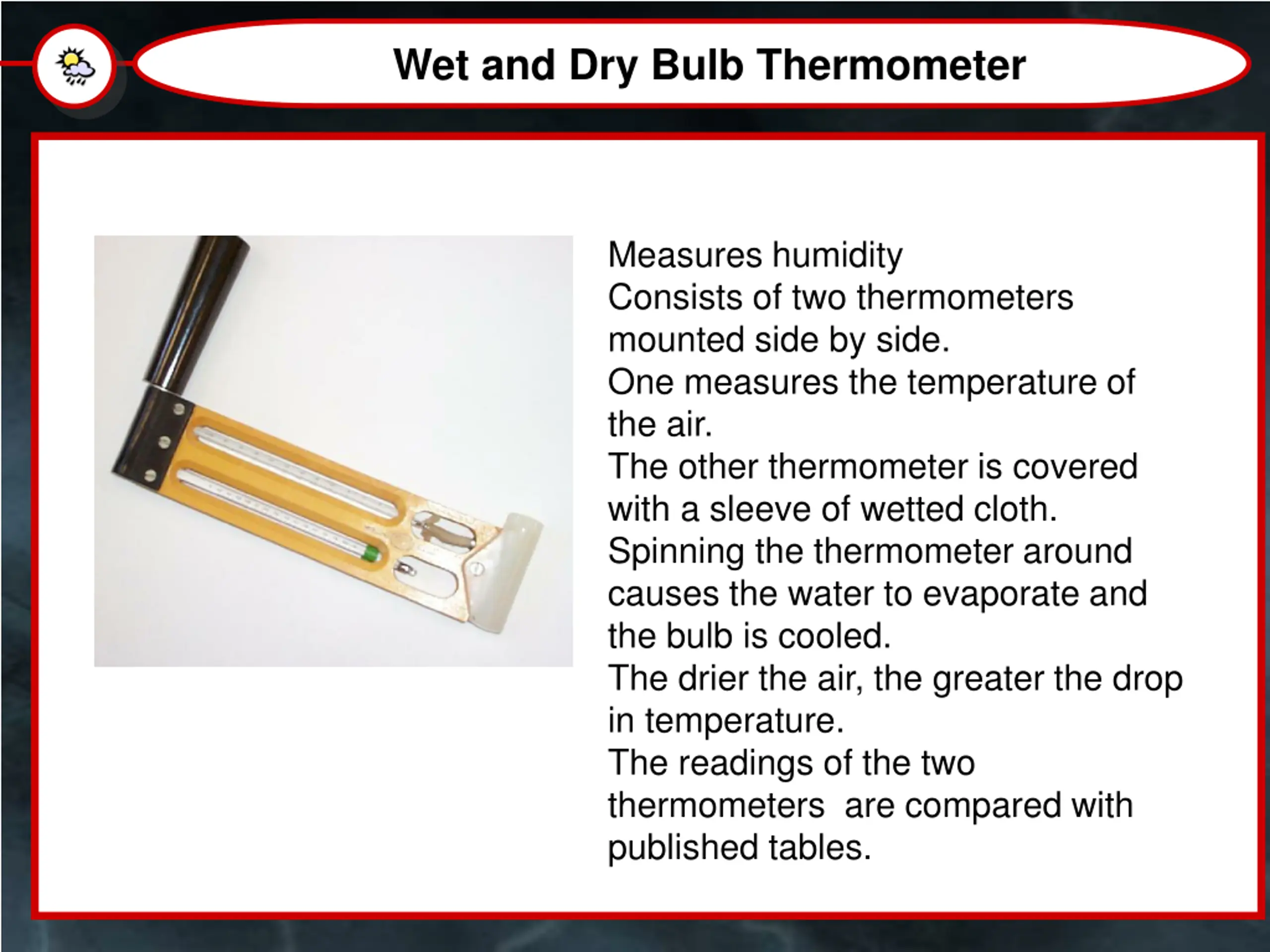

Wet and Dry Bulb Thermometer Measures humidity Consists of two thermometers mounted side by side. One measures the temperature of the air. The other thermometer is covered with a sleeve of wetted cloth. Spinning the thermometer around causes the water to evaporate and the bulb is cooled. The drier the air, the greater the drop in temperature. The readings of the two thermometers are compared with published tables.

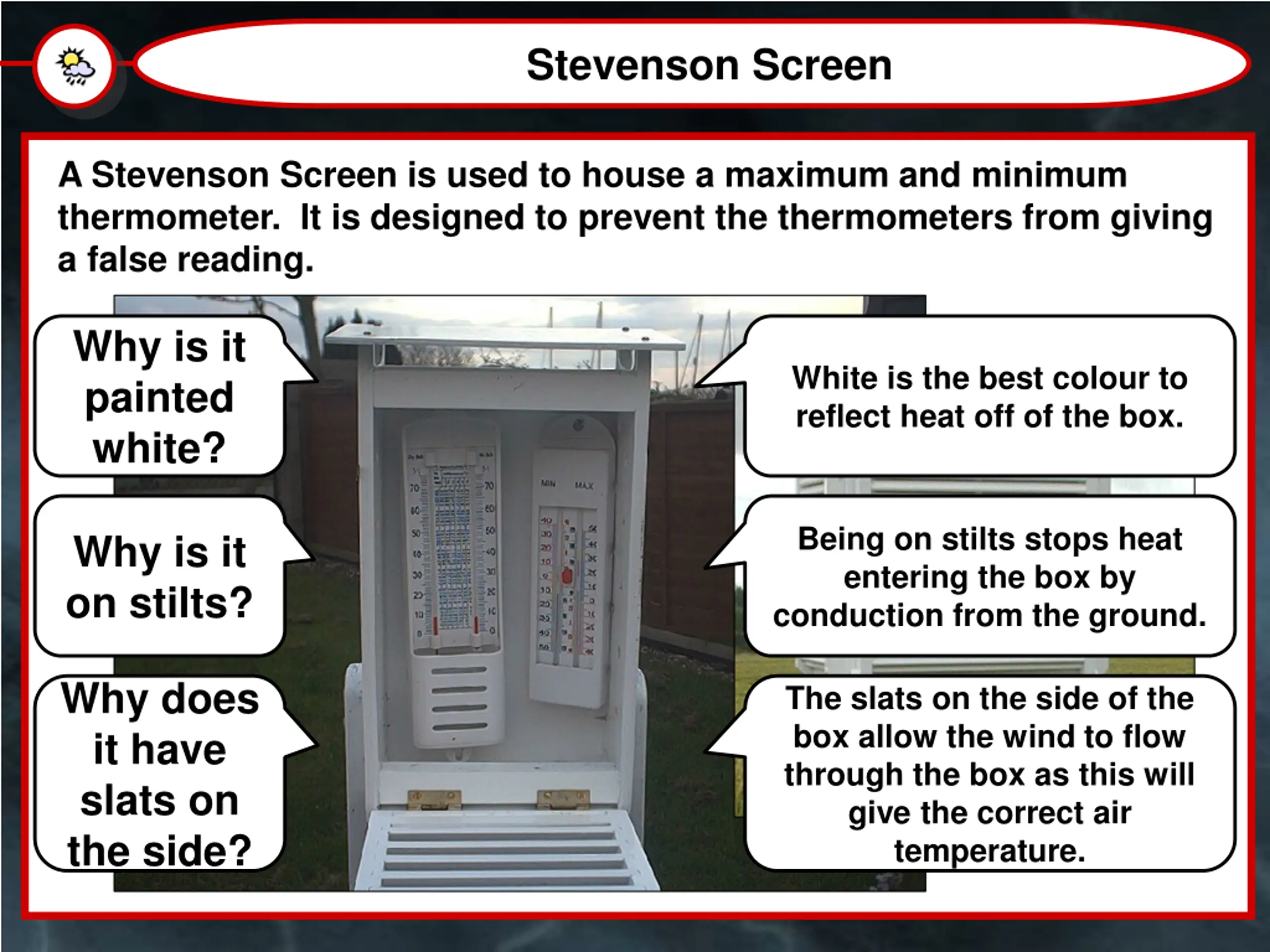

Stevenson Screen A Stevenson Screen is used to house a maximum and minimum thermometer. It is designed to prevent the thermometers from giving a false reading. Why is it painted white? White is the best colour to reflect heat off of the box. Being on stilts stops heat entering the box by conduction from the ground. Why is it on stilts? Why does it have slats on the side? The slats on the side of the box allow the wind to flow through the box as this will give the correct air temperature.
