ESS spoke CM02 weekly meeting 20201126 Han Li

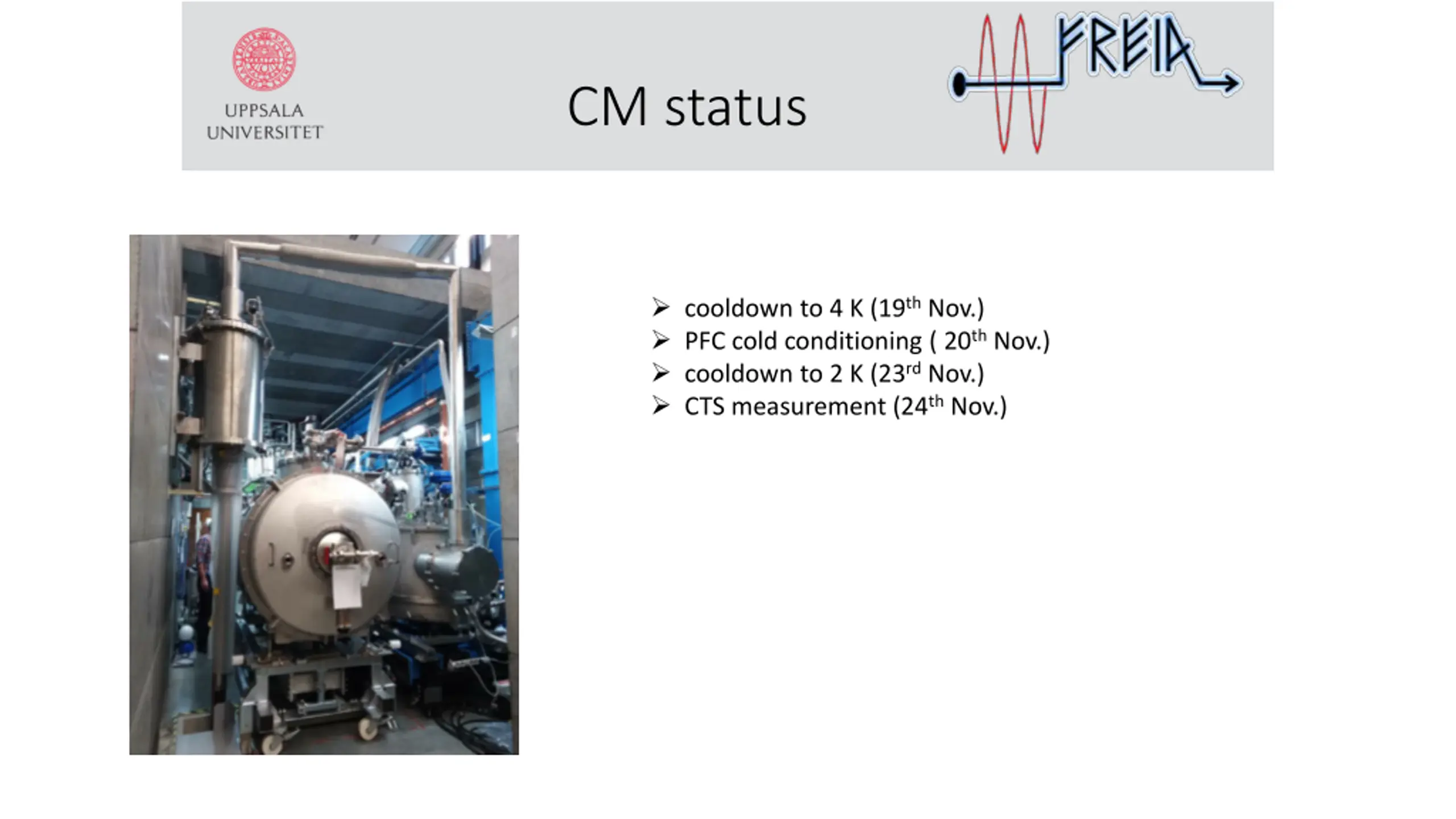

CM status cooldown to 4 K (19th Nov.) PFC cold conditioning ( 20th Nov.) cooldown to 2 K (23rd Nov.) CTS measurement (24th Nov.)

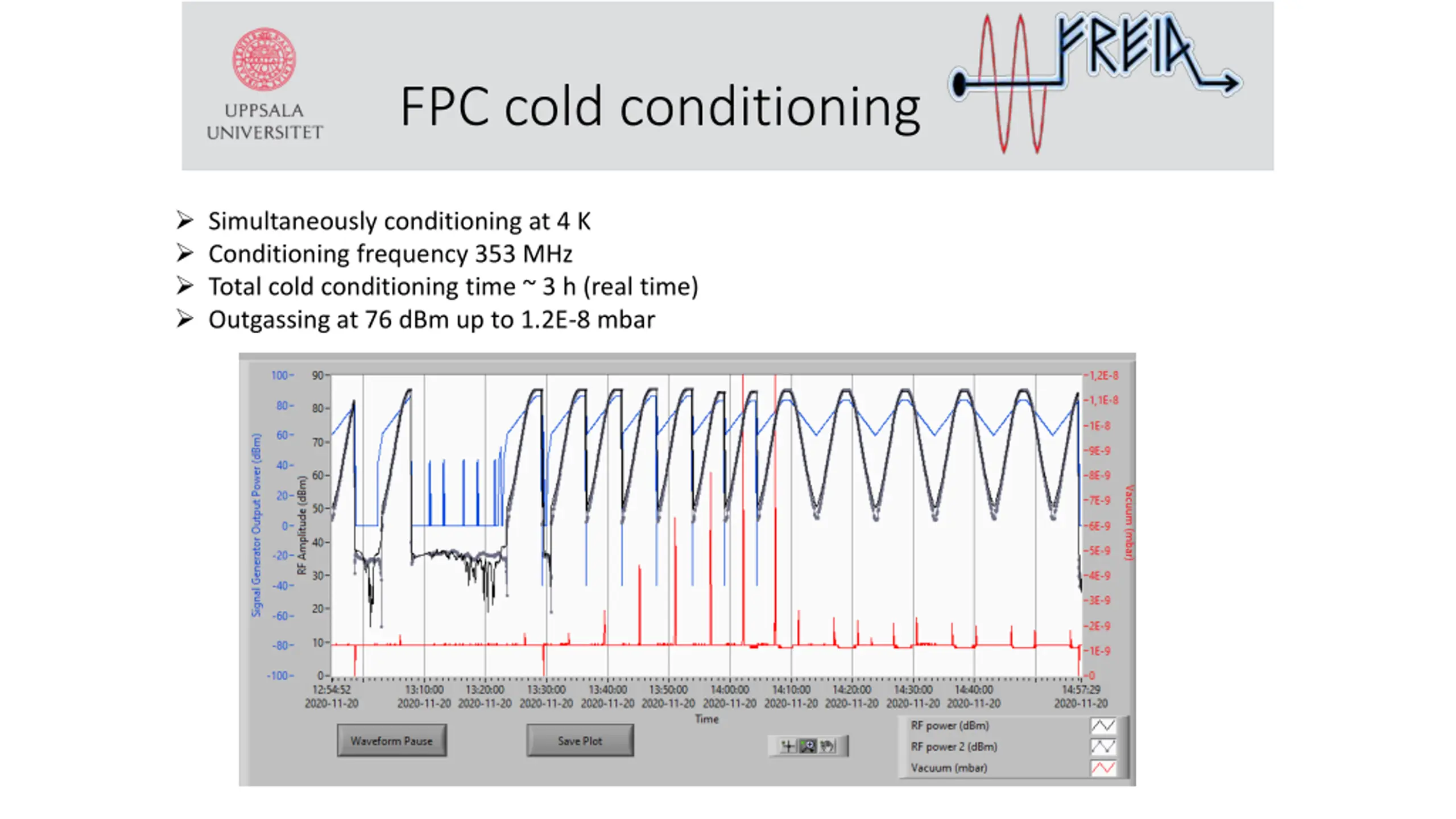

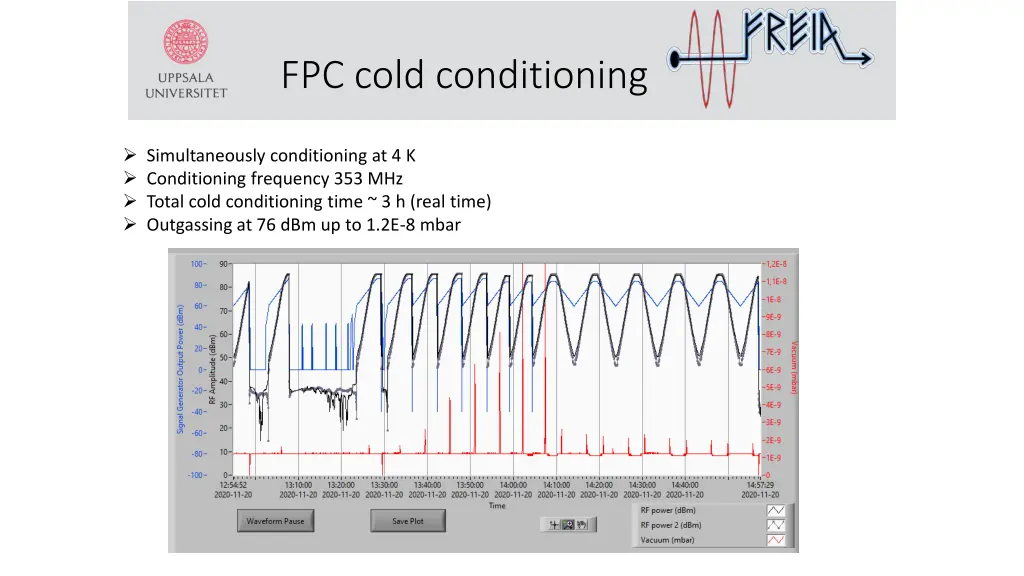

FPC cold conditioning Simultaneously conditioning at 4 K Conditioning frequency 353 MHz Total cold conditioning time ~ 3 h (real time) Outgassing at 76 dBm up to 1.2E-8 mbar

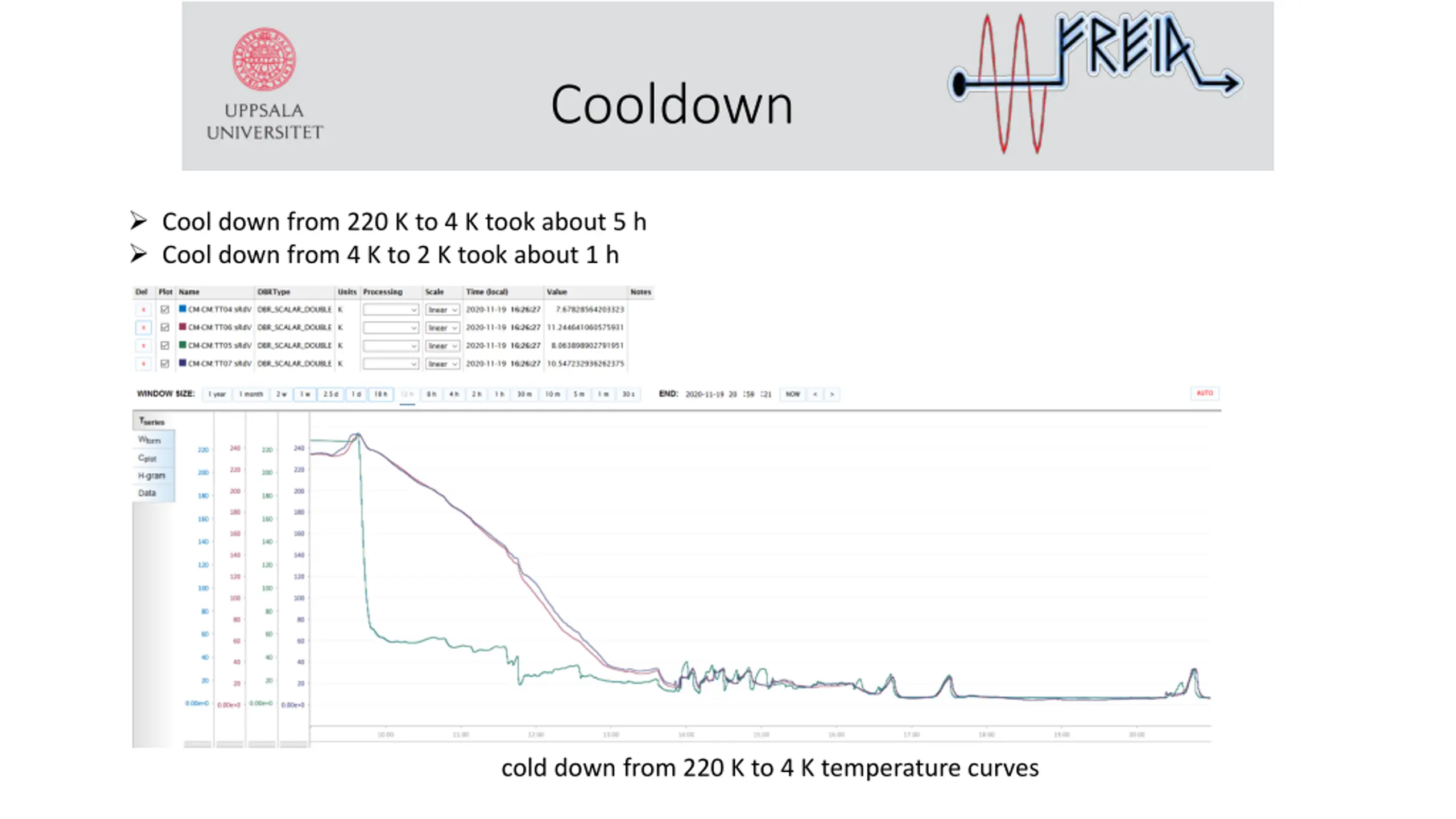

Cooldown Cool down from 220 K to 4 K took about 5 h Cool down from 4 K to 2 K took about 1 h cold down from 220 K to 4 K temperature curves

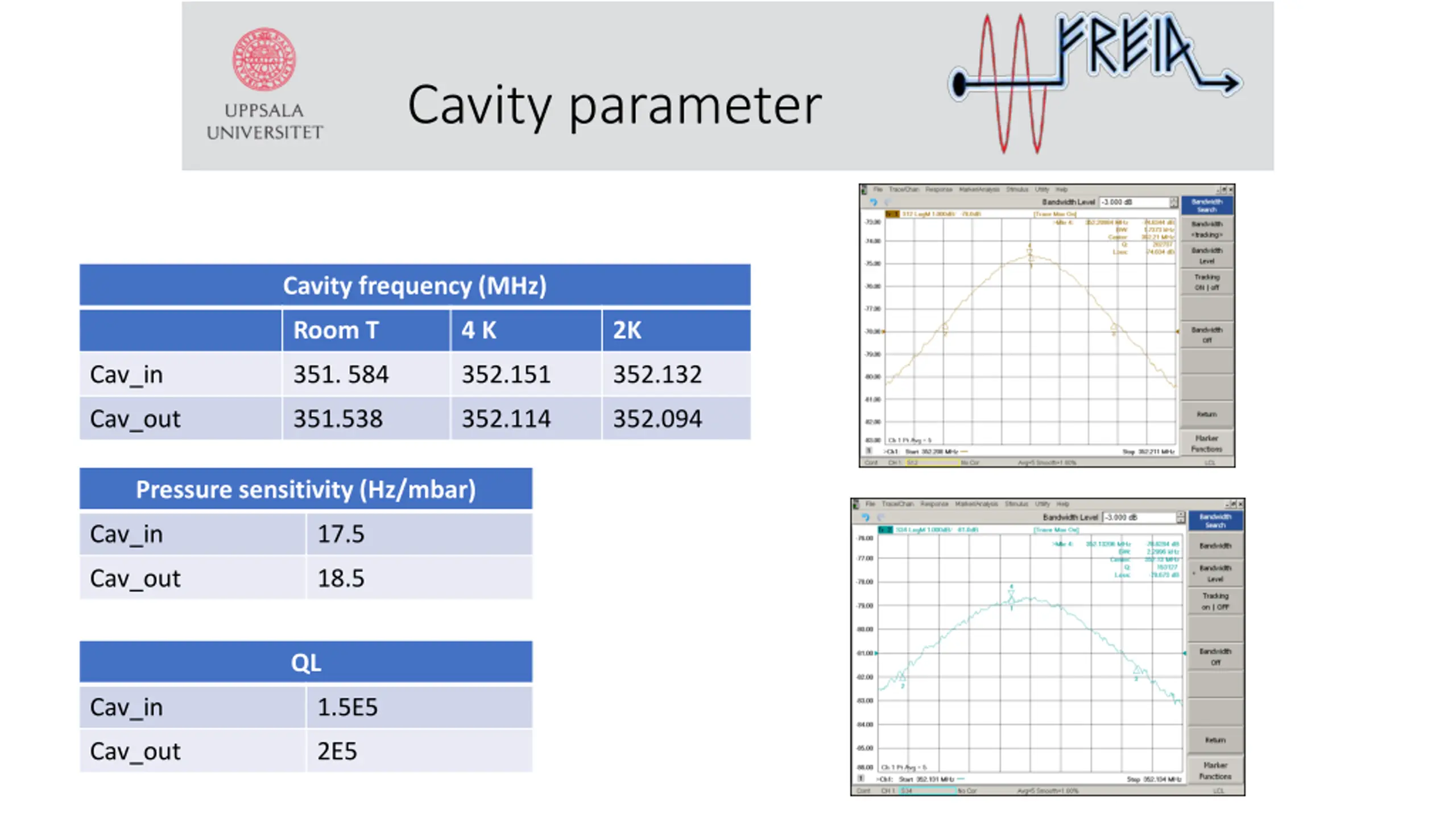

Cavity parameter Cavity frequency (MHz) Room T 4 K 2K Cav_in 351. 584 352.151 352.132 Cav_out 351.538 352.114 352.094 Pressure sensitivity (Hz/mbar) Cav_in 17.5 Cav_out 18.5 QL Cav_in 1.5E5 Cav_out 2E5

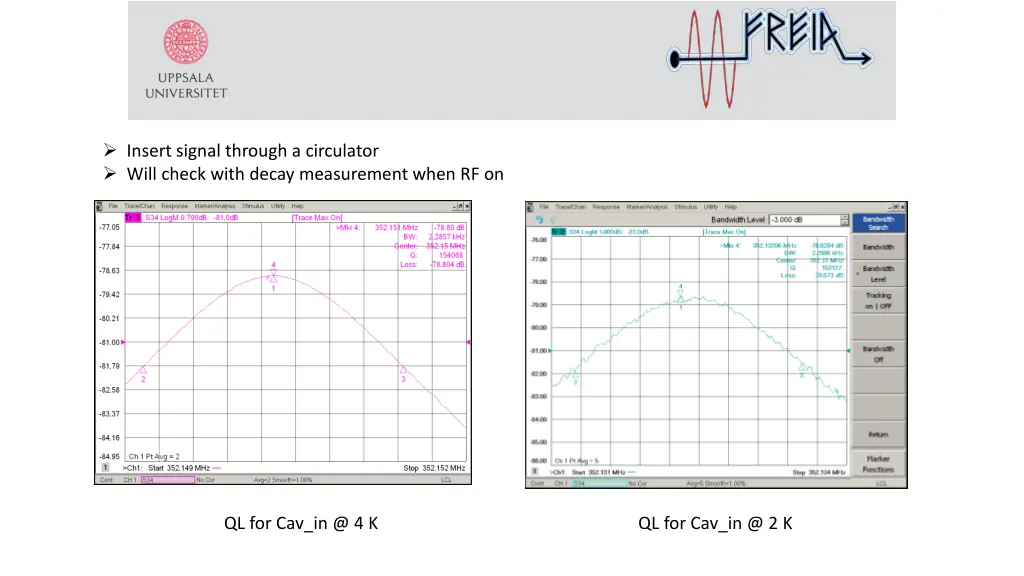

Insert signal through a circulator Will check with decay measurement when RF on QL for Cav_in @ 4 K QL for Cav_in @ 2 K

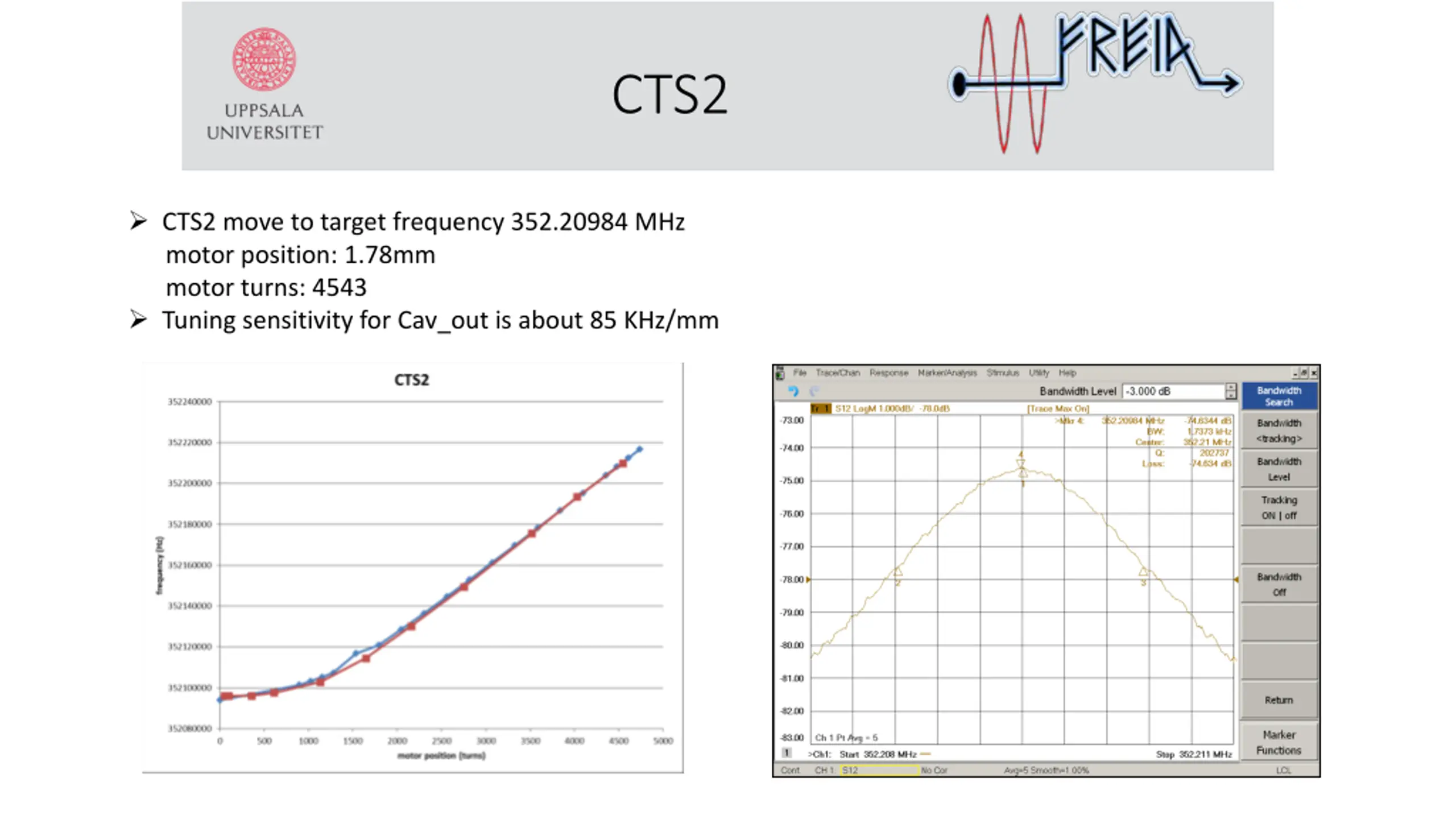

CTS2 CTS2 move to target frequency 352.20984 MHz motor position: 1.78mm motor turns: 4543 Tuning sensitivity for Cav_out is about 85 KHz/mm

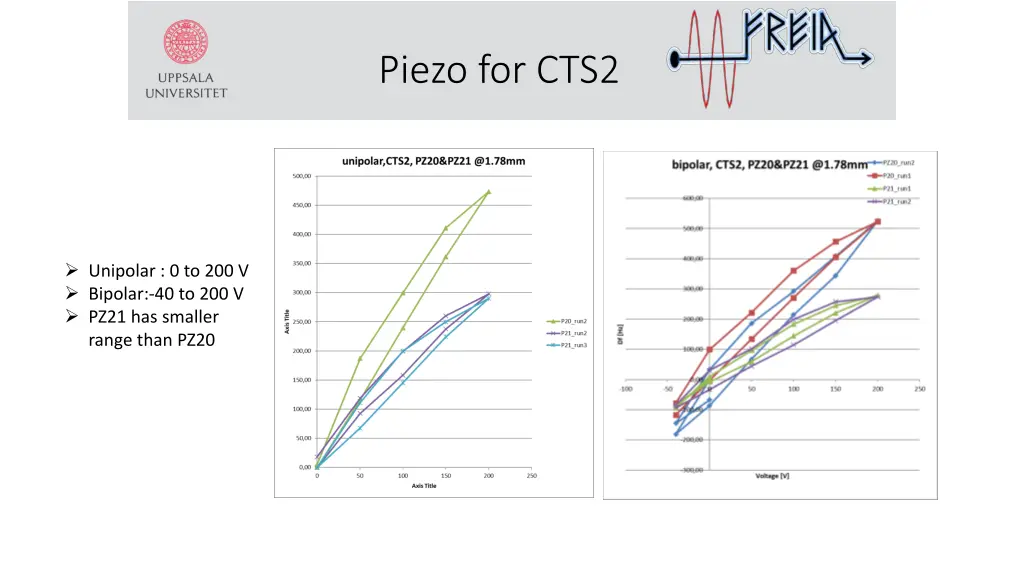

Piezo for CTS2 Unipolar : 0 to 200 V Bipolar:-40 to 200 V PZ21 has smaller range than PZ20

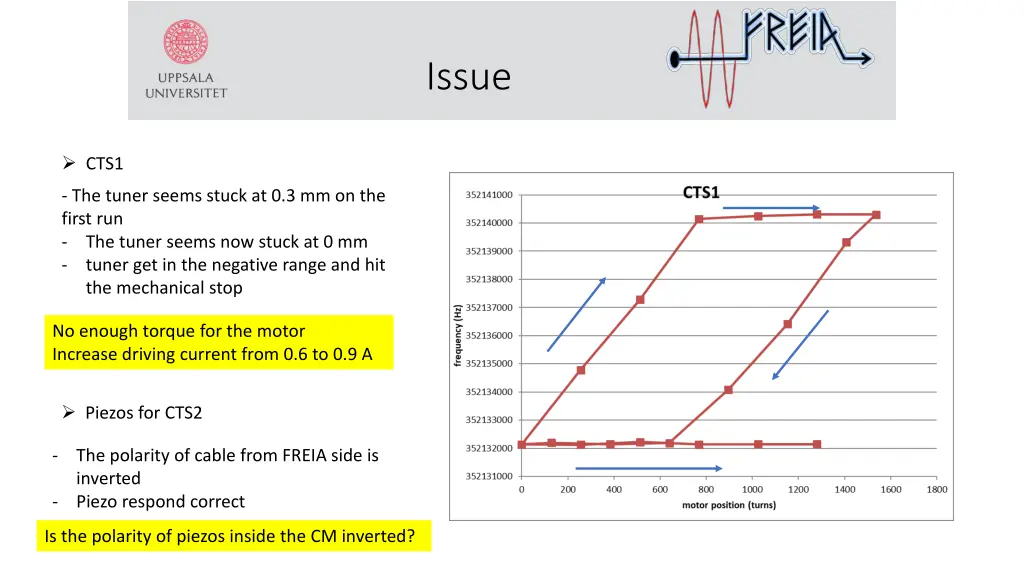

Issue CTS1 - The tuner seems stuck at 0.3 mm on the first run - The tuner seems now stuck at 0 mm - tuner get in the negative range and hit the mechanical stop No enough torque for the motor Increase driving current from 0.6 to 0.9 A Piezos for CTS2 - The polarity of cable from FREIA side is inverted Piezo respond correct - Is the polarity of piezos inside the CM inverted?

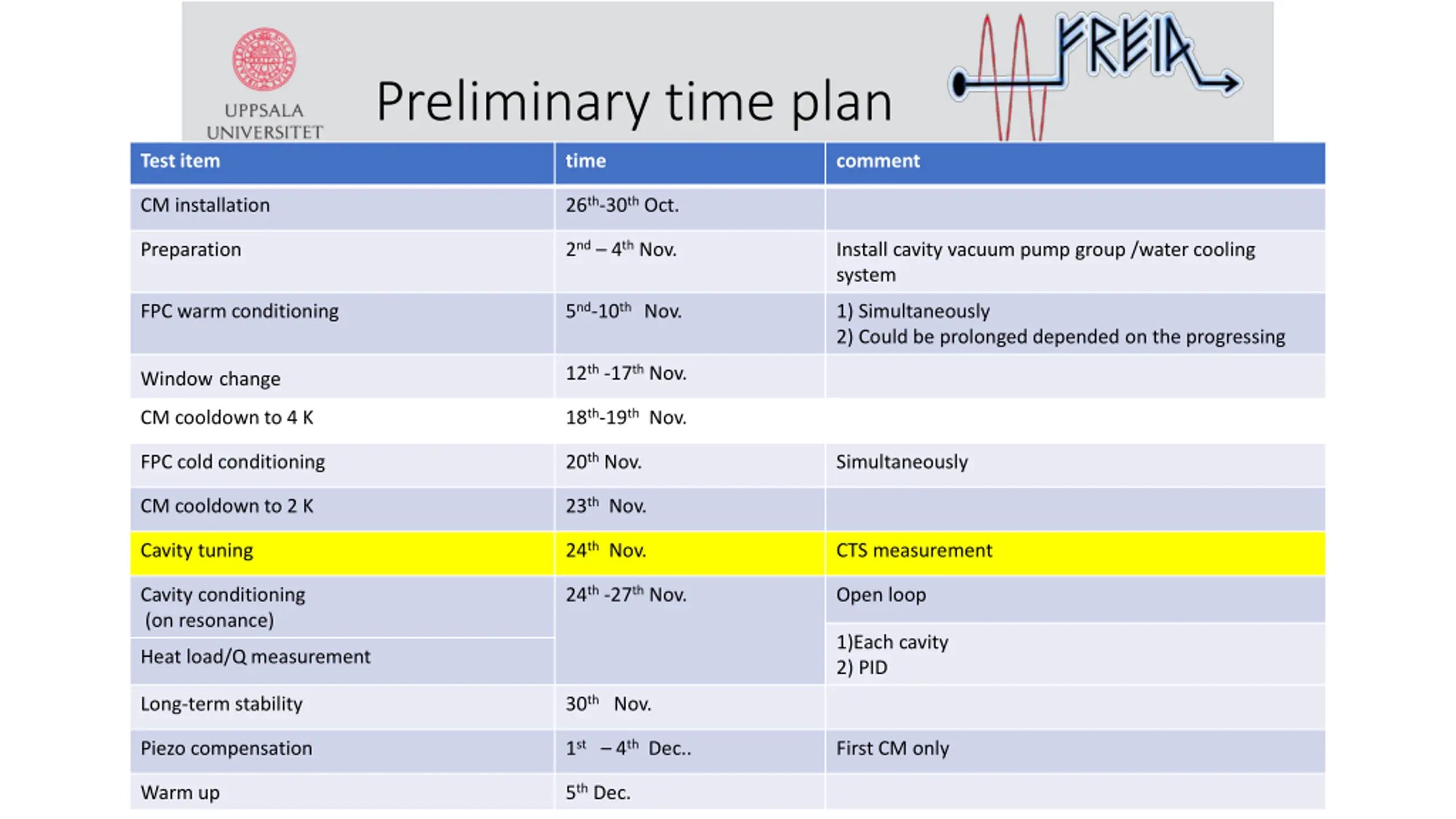

Preliminary time plan Test item time comment 26th-30th Oct. CM installation 2nd 4th Nov. Preparation Install cavity vacuum pump group /water cooling system 5nd-10th Nov. FPC warm conditioning 1) Simultaneously 2) Could be prolonged depended on the progressing 12th -17th Nov. Windowchange 18th-19th Nov. CM cooldown to 4 K 20th Nov. FPC cold conditioning Simultaneously 23th Nov. CM cooldown to 2 K 24th Nov. Cavity tuning CTS measurement 24th -27th Nov. Cavity conditioning (on resonance) Open loop 1)Each cavity 2) PID Heat load/Q measurement 30th Nov. Long-term stability 1st 4th Dec.. Piezo compensation First CM only 5th Dec. Warm up
