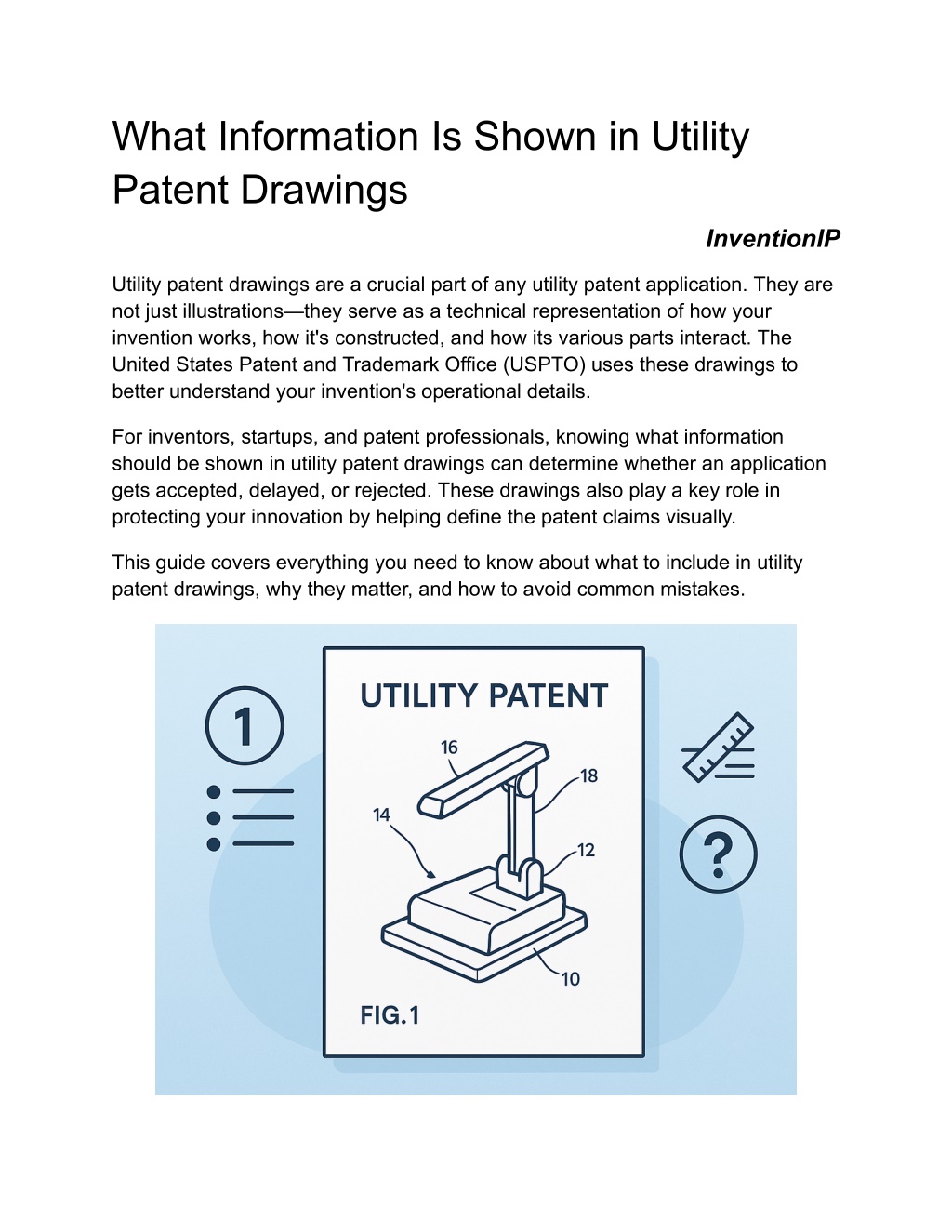

What Information Is Shown in Utility Patent Drawings InventionIP Utility patent drawings are a crucial part of any utility patent application. They are not just illustrations they serve as a technical representation of how your invention works, how it's constructed, and how its various parts interact. The United States Patent and Trademark Office (USPTO) uses these drawings to better understand your invention's operational details. For inventors, startups, and patent professionals, knowing what information should be shown in utility patent drawings can determine whether an application gets accepted, delayed, or rejected. These drawings also play a key role in protecting your innovation by helping define the patent claims visually. This guide covers everything you need to know about what to include in utility patent drawings, why they matter, and how to avoid common mistakes.

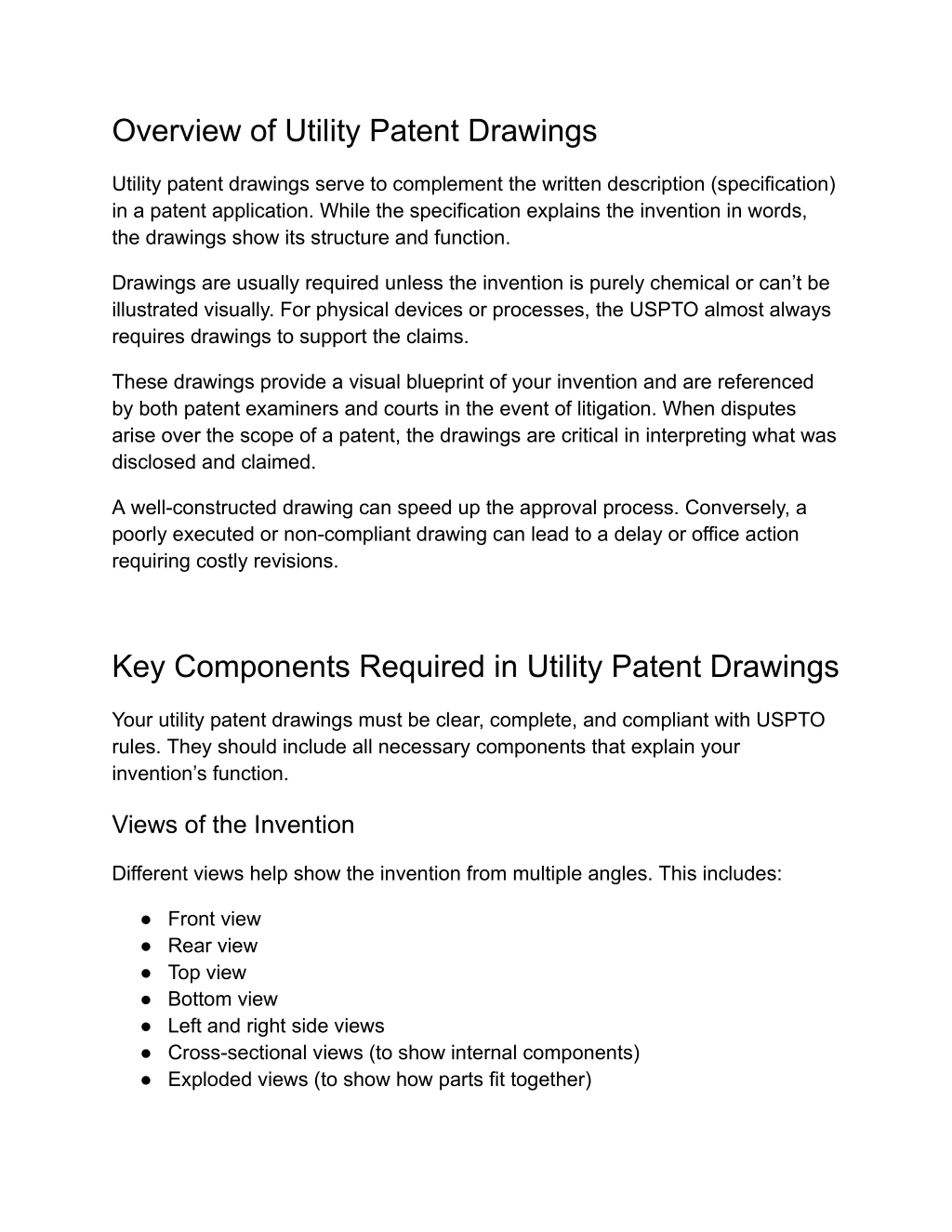

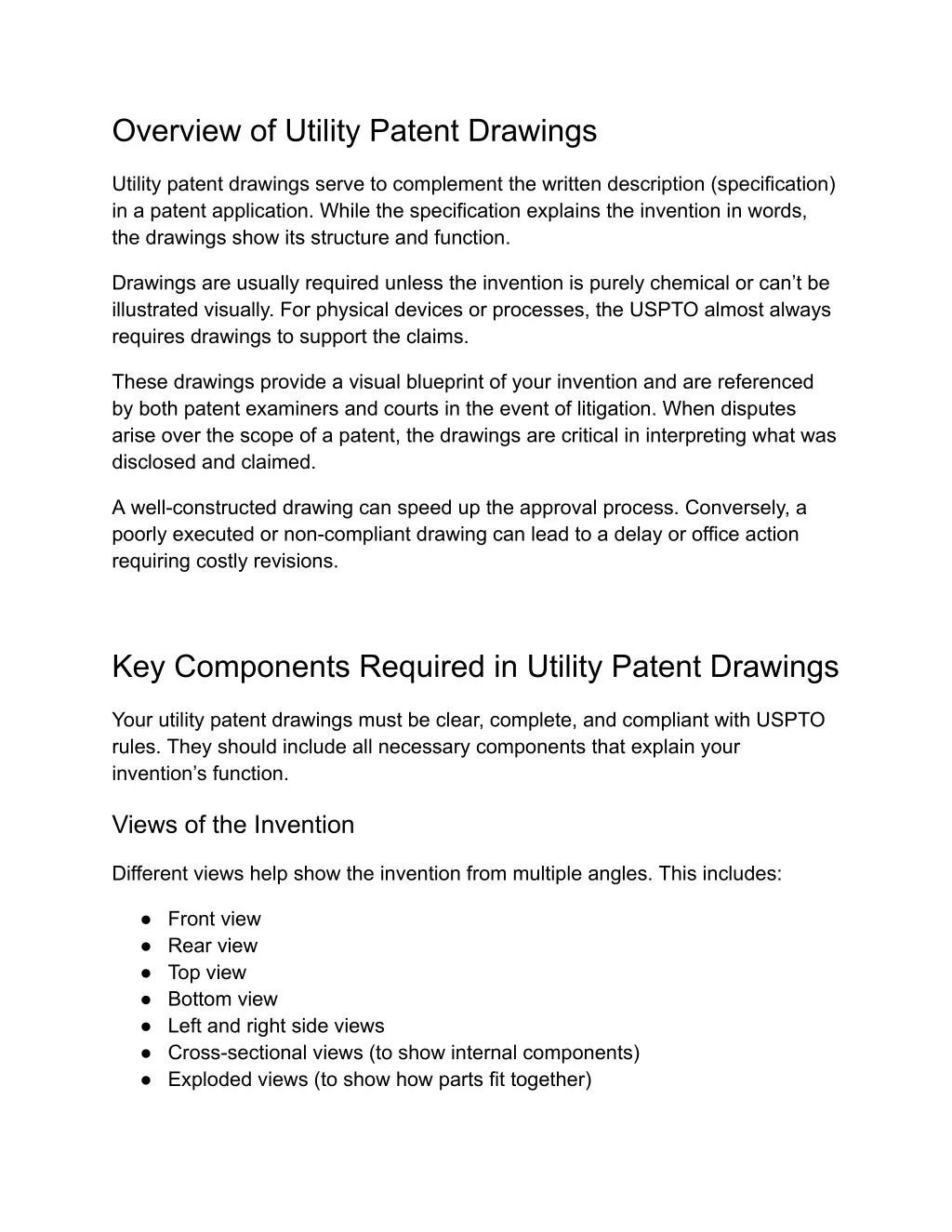

Overview of Utility Patent Drawings Utility patent drawings serve to complement the written description (specification) in a patent application. While the specification explains the invention in words, the drawings show its structure and function. Drawings are usually required unless the invention is purely chemical or can t be illustrated visually. For physical devices or processes, the USPTO almost always requires drawings to support the claims. These drawings provide a visual blueprint of your invention and are referenced by both patent examiners and courts in the event of litigation. When disputes arise over the scope of a patent, the drawings are critical in interpreting what was disclosed and claimed. A well-constructed drawing can speed up the approval process. Conversely, a poorly executed or non-compliant drawing can lead to a delay or office action requiring costly revisions. Key Components Required in Utility Patent Drawings Your utility patent drawings must be clear, complete, and compliant with USPTO rules. They should include all necessary components that explain your invention s function. Views of the Invention Different views help show the invention from multiple angles. This includes: Front view Rear view Top view Bottom view Left and right side views Cross-sectional views (to show internal components) Exploded views (to show how parts fit together)

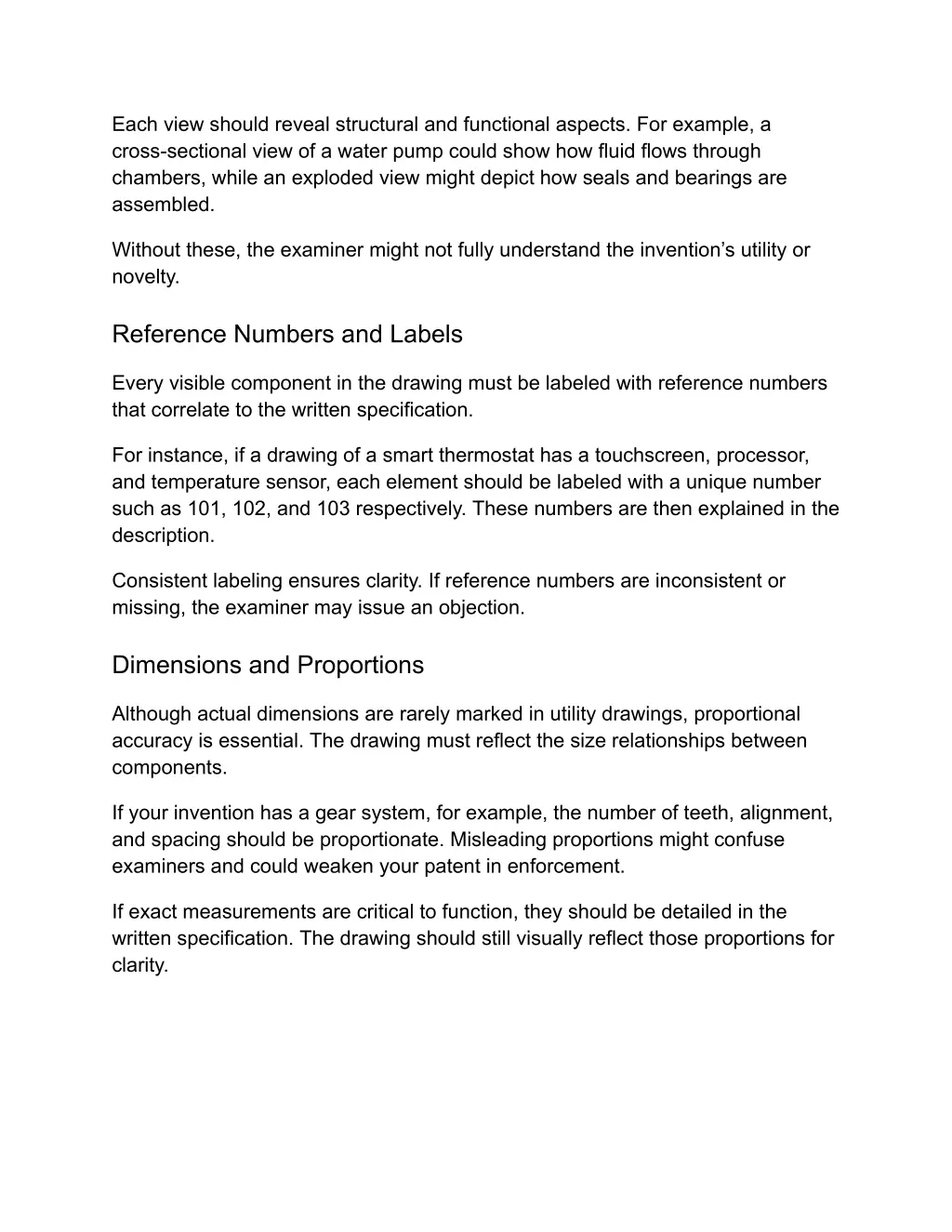

Each view should reveal structural and functional aspects. For example, a cross-sectional view of a water pump could show how fluid flows through chambers, while an exploded view might depict how seals and bearings are assembled. Without these, the examiner might not fully understand the invention s utility or novelty. Reference Numbers and Labels Every visible component in the drawing must be labeled with reference numbers that correlate to the written specification. For instance, if a drawing of a smart thermostat has a touchscreen, processor, and temperature sensor, each element should be labeled with a unique number such as 101, 102, and 103 respectively. These numbers are then explained in the description. Consistent labeling ensures clarity. If reference numbers are inconsistent or missing, the examiner may issue an objection. Dimensions and Proportions Although actual dimensions are rarely marked in utility drawings, proportional accuracy is essential. The drawing must reflect the size relationships between components. If your invention has a gear system, for example, the number of teeth, alignment, and spacing should be proportionate. Misleading proportions might confuse examiners and could weaken your patent in enforcement. If exact measurements are critical to function, they should be detailed in the written specification. The drawing should still visually reflect those proportions for clarity.

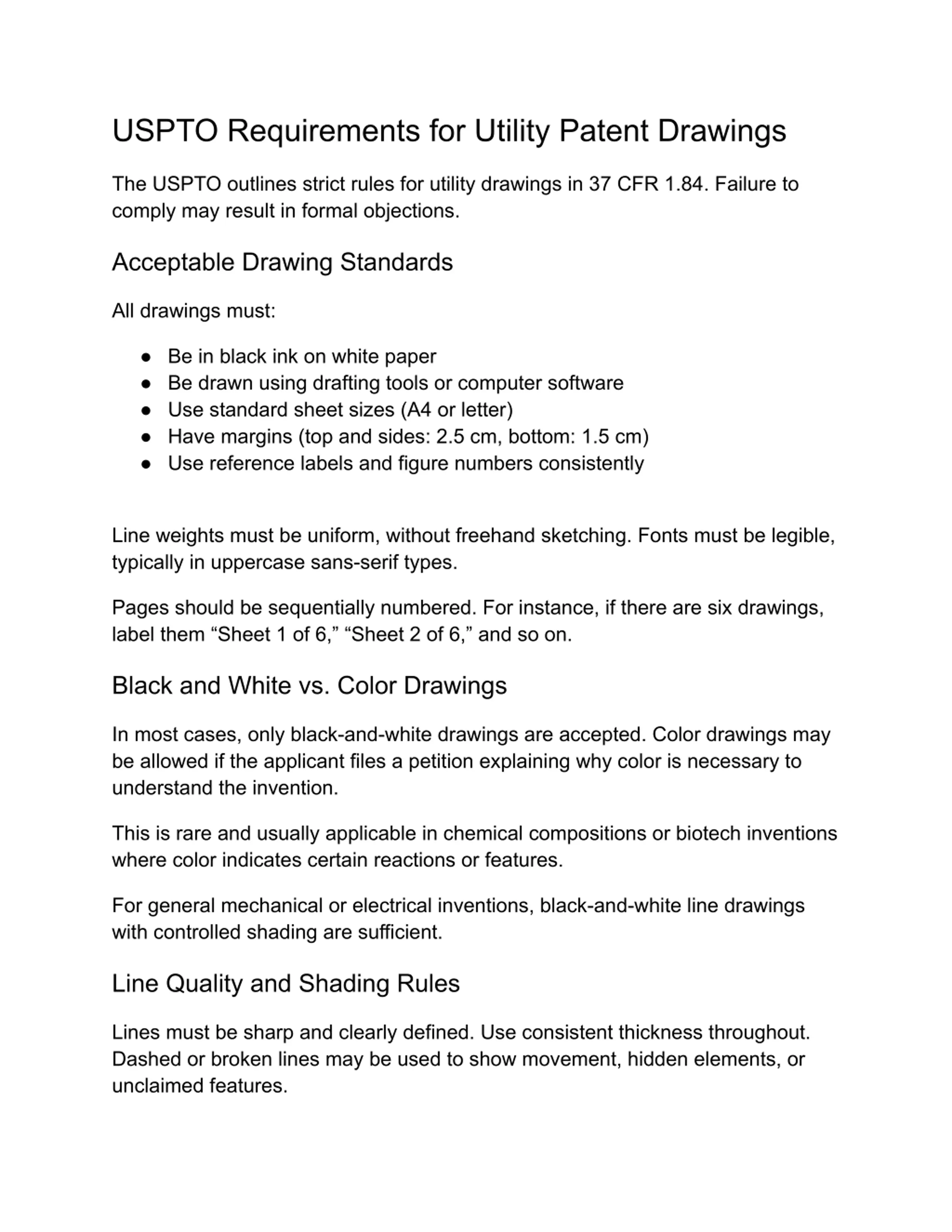

USPTO Requirements for Utility Patent Drawings The USPTO outlines strict rules for utility drawings in 37 CFR 1.84. Failure to comply may result in formal objections. Acceptable Drawing Standards All drawings must: Be in black ink on white paper Be drawn using drafting tools or computer software Use standard sheet sizes (A4 or letter) Have margins (top and sides: 2.5 cm, bottom: 1.5 cm) Use reference labels and figure numbers consistently Line weights must be uniform, without freehand sketching. Fonts must be legible, typically in uppercase sans-serif types. Pages should be sequentially numbered. For instance, if there are six drawings, label them Sheet 1 of 6, Sheet 2 of 6, and so on. Black and White vs. Color Drawings In most cases, only black-and-white drawings are accepted. Color drawings may be allowed if the applicant files a petition explaining why color is necessary to understand the invention. This is rare and usually applicable in chemical compositions or biotech inventions where color indicates certain reactions or features. For general mechanical or electrical inventions, black-and-white line drawings with controlled shading are sufficient. Line Quality and Shading Rules Lines must be sharp and clearly defined. Use consistent thickness throughout. Dashed or broken lines may be used to show movement, hidden elements, or unclaimed features.

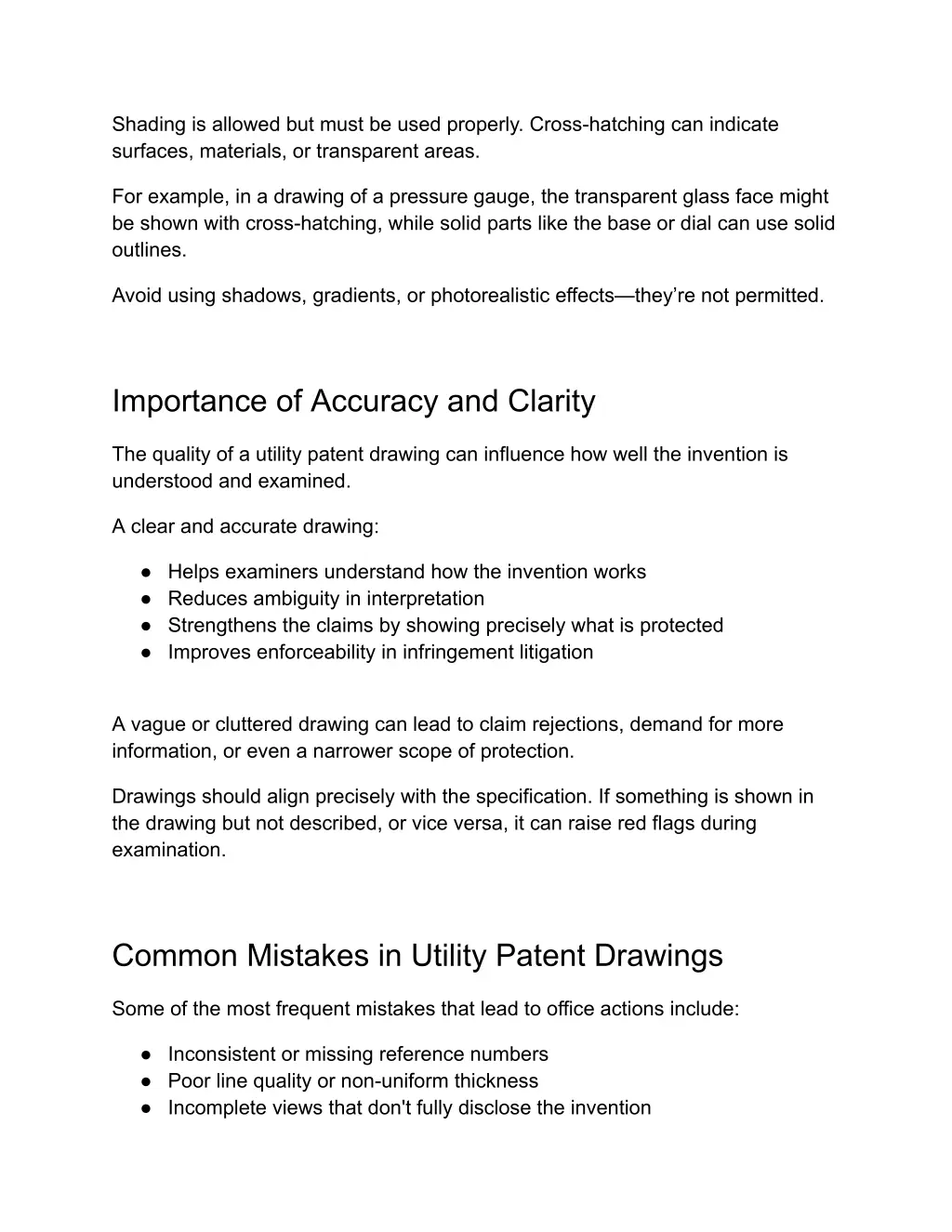

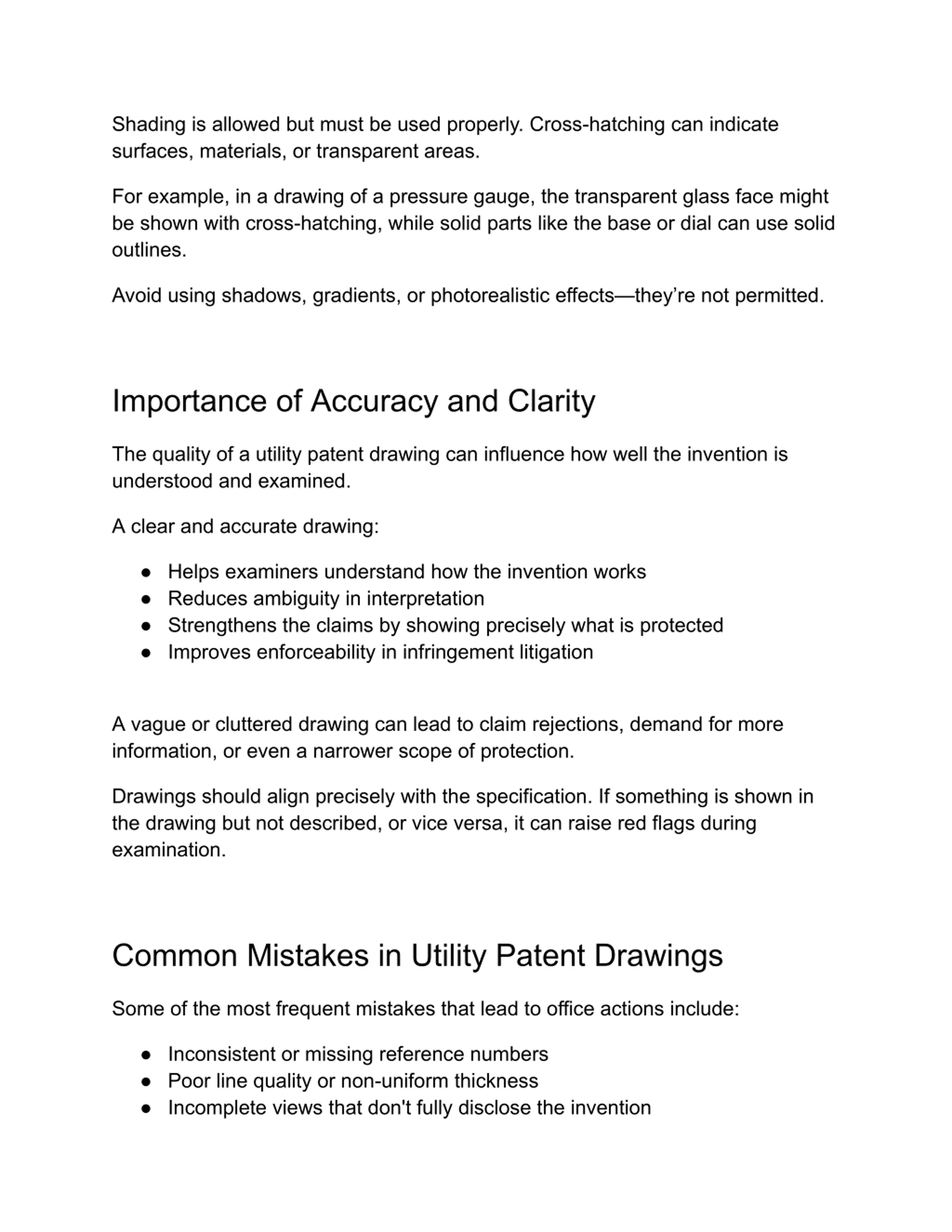

Shading is allowed but must be used properly. Cross-hatching can indicate surfaces, materials, or transparent areas. For example, in a drawing of a pressure gauge, the transparent glass face might be shown with cross-hatching, while solid parts like the base or dial can use solid outlines. Avoid using shadows, gradients, or photorealistic effects they re not permitted. Importance of Accuracy and Clarity The quality of a utility patent drawing can influence how well the invention is understood and examined. A clear and accurate drawing: Helps examiners understand how the invention works Reduces ambiguity in interpretation Strengthens the claims by showing precisely what is protected Improves enforceability in infringement litigation A vague or cluttered drawing can lead to claim rejections, demand for more information, or even a narrower scope of protection. Drawings should align precisely with the specification. If something is shown in the drawing but not described, or vice versa, it can raise red flags during examination. Common Mistakes in Utility Patent Drawings Some of the most frequent mistakes that lead to office actions include: Inconsistent or missing reference numbers Poor line quality or non-uniform thickness Incomplete views that don't fully disclose the invention

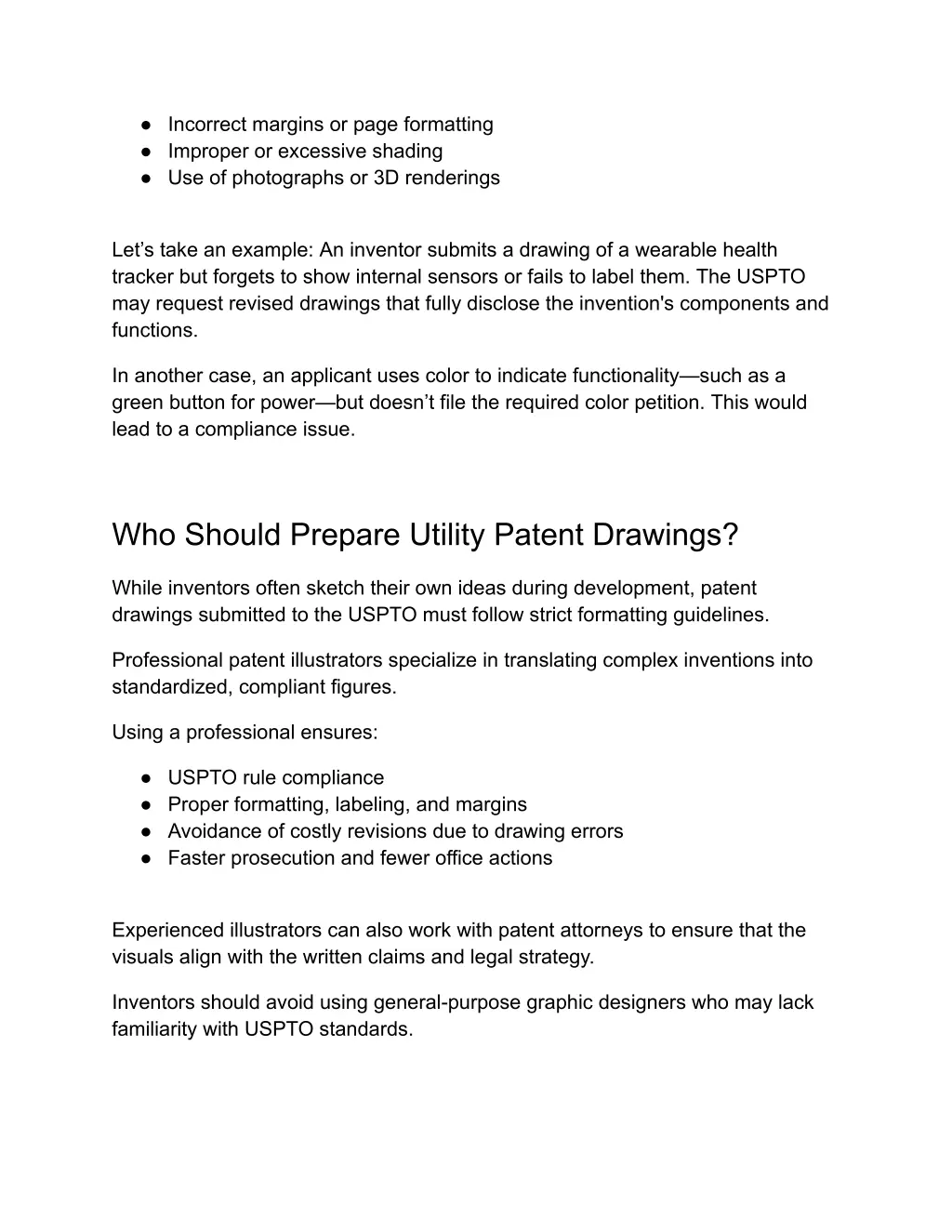

Incorrect margins or page formatting Improper or excessive shading Use of photographs or 3D renderings Let s take an example: An inventor submits a drawing of a wearable health tracker but forgets to show internal sensors or fails to label them. The USPTO may request revised drawings that fully disclose the invention's components and functions. In another case, an applicant uses color to indicate functionality such as a green button for power but doesn t file the required color petition. This would lead to a compliance issue. Who Should Prepare Utility Patent Drawings? While inventors often sketch their own ideas during development, patent drawings submitted to the USPTO must follow strict formatting guidelines. Professional patent illustrators specialize in translating complex inventions into standardized, compliant figures. Using a professional ensures: USPTO rule compliance Proper formatting, labeling, and margins Avoidance of costly revisions due to drawing errors Faster prosecution and fewer office actions Experienced illustrators can also work with patent attorneys to ensure that the visuals align with the written claims and legal strategy. Inventors should avoid using general-purpose graphic designers who may lack familiarity with USPTO standards.

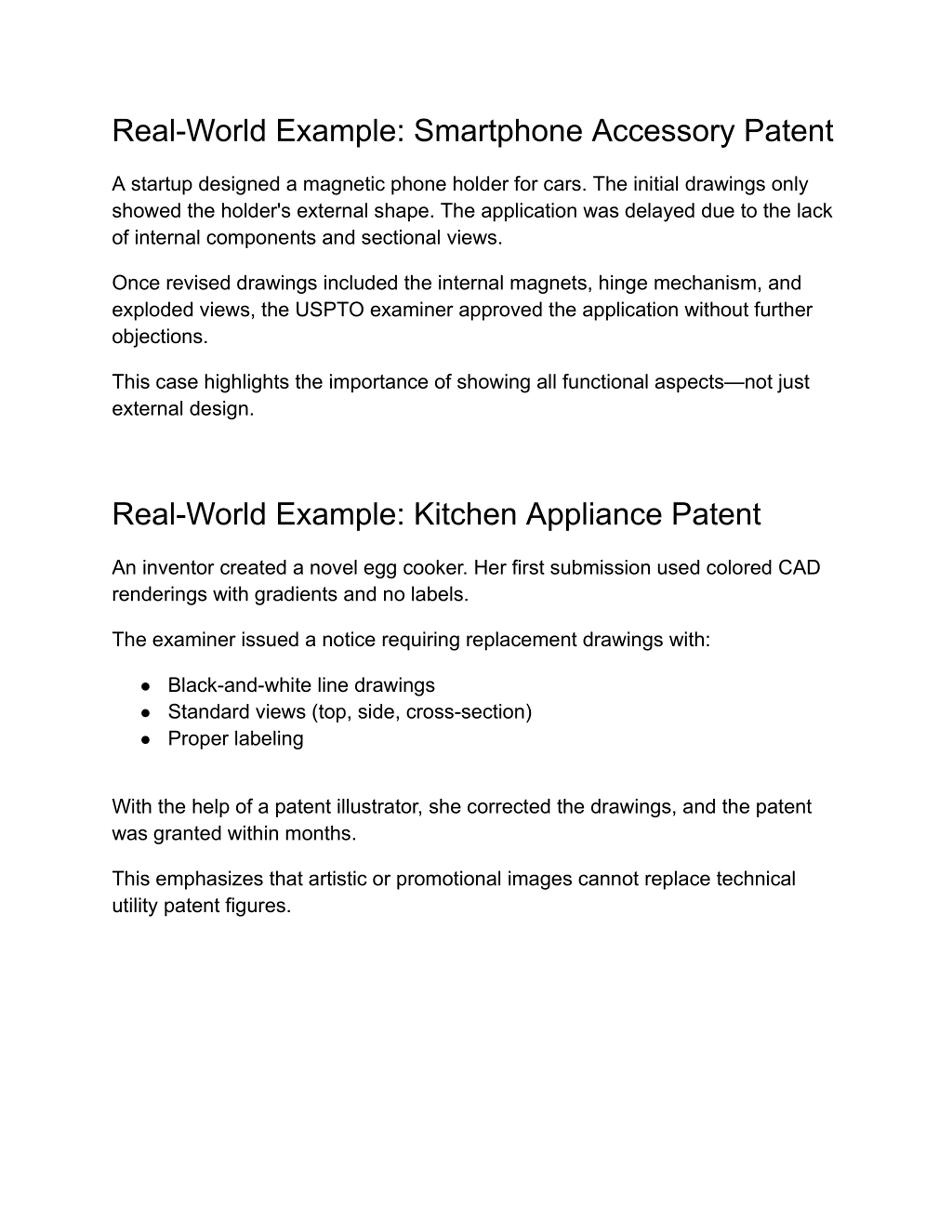

Real-World Example: Smartphone Accessory Patent A startup designed a magnetic phone holder for cars. The initial drawings only showed the holder's external shape. The application was delayed due to the lack of internal components and sectional views. Once revised drawings included the internal magnets, hinge mechanism, and exploded views, the USPTO examiner approved the application without further objections. This case highlights the importance of showing all functional aspects not just external design. Real-World Example: Kitchen Appliance Patent An inventor created a novel egg cooker. Her first submission used colored CAD renderings with gradients and no labels. The examiner issued a notice requiring replacement drawings with: Black-and-white line drawings Standard views (top, side, cross-section) Proper labeling With the help of a patent illustrator, she corrected the drawings, and the patent was granted within months. This emphasizes that artistic or promotional images cannot replace technical utility patent figures.

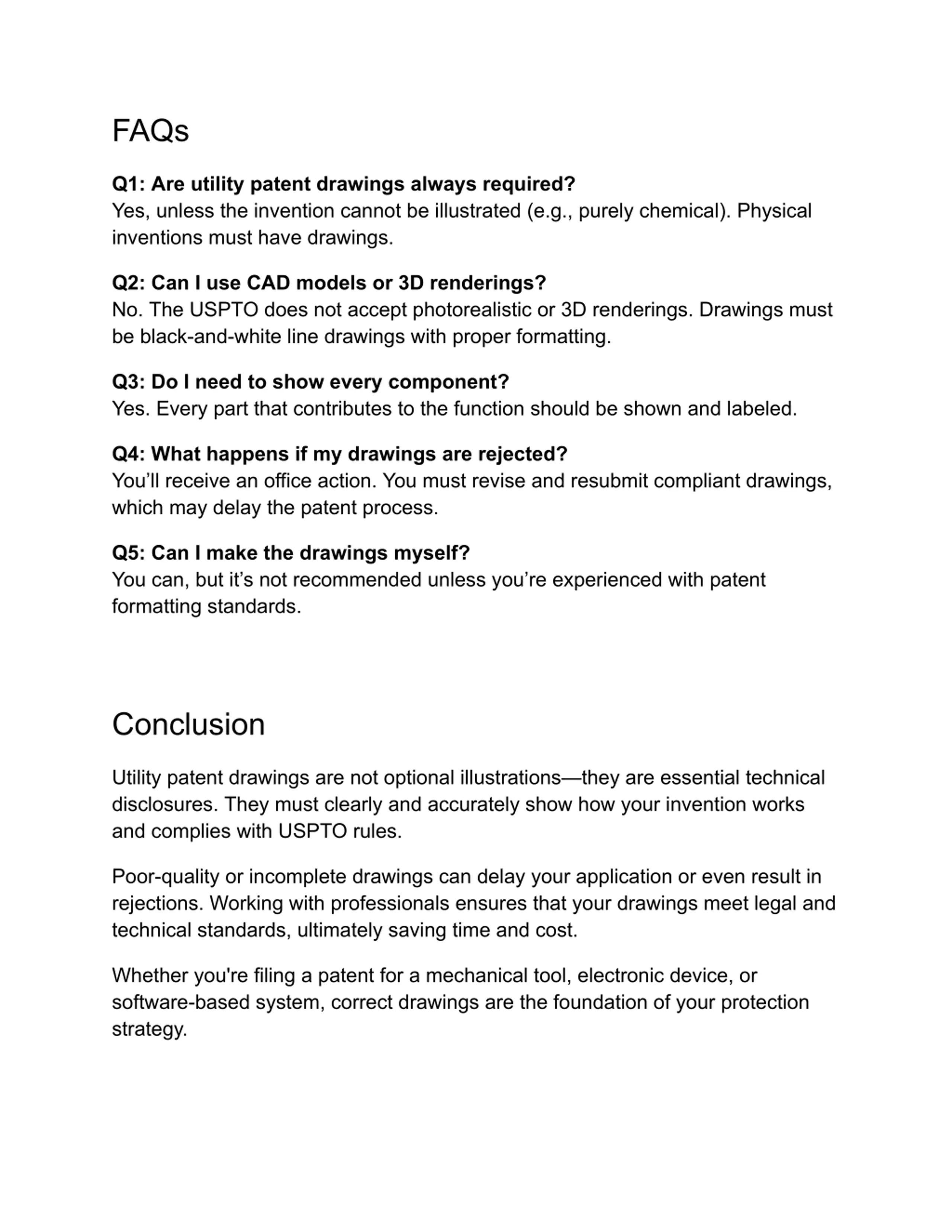

FAQs Q1: Are utility patent drawings always required? Yes, unless the invention cannot be illustrated (e.g., purely chemical). Physical inventions must have drawings. Q2: Can I use CAD models or 3D renderings? No. The USPTO does not accept photorealistic or 3D renderings. Drawings must be black-and-white line drawings with proper formatting. Q3: Do I need to show every component? Yes. Every part that contributes to the function should be shown and labeled. Q4: What happens if my drawings are rejected? You ll receive an office action. You must revise and resubmit compliant drawings, which may delay the patent process. Q5: Can I make the drawings myself? You can, but it s not recommended unless you re experienced with patent formatting standards. Conclusion Utility patent drawings are not optional illustrations they are essential technical disclosures. They must clearly and accurately show how your invention works and complies with USPTO rules. Poor-quality or incomplete drawings can delay your application or even result in rejections. Working with professionals ensures that your drawings meet legal and technical standards, ultimately saving time and cost. Whether you're filing a patent for a mechanical tool, electronic device, or software-based system, correct drawings are the foundation of your protection strategy.
