Building SDN-ready high bandwidth IXP M.Sc.E.E. Goran Slavi gslavic@sox.rs

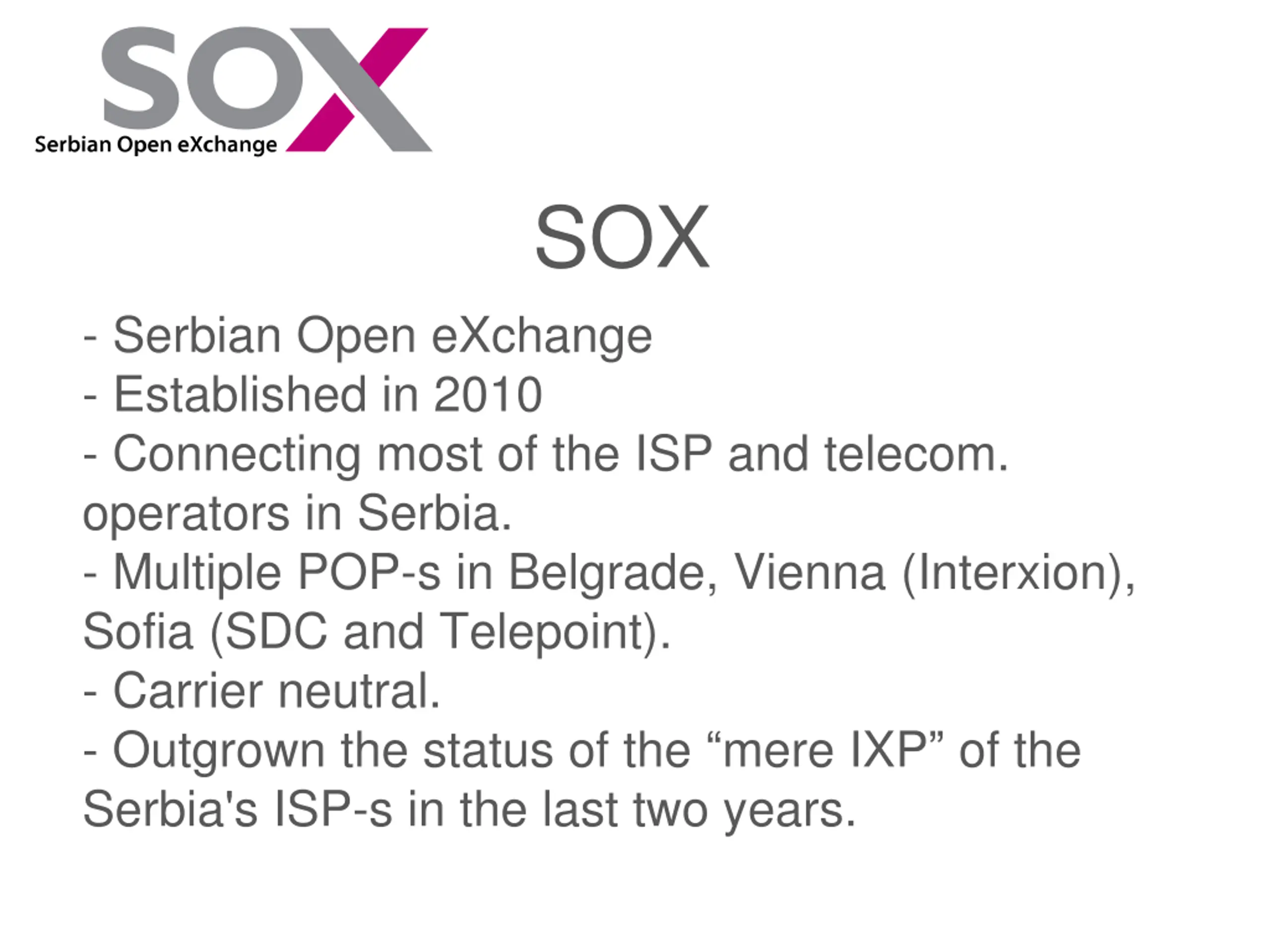

SOX - Serbian Open eXchange - Established in 2010 - Connecting most of the ISP and telecom. operators in Serbia. - Multiple POP-s in Belgrade, Vienna (Interxion), Sofia (SDC and Telepoint). - Carrier neutral. - Outgrown the status of the mere IXP of the Serbia's ISP-s in the last two years.

SOX

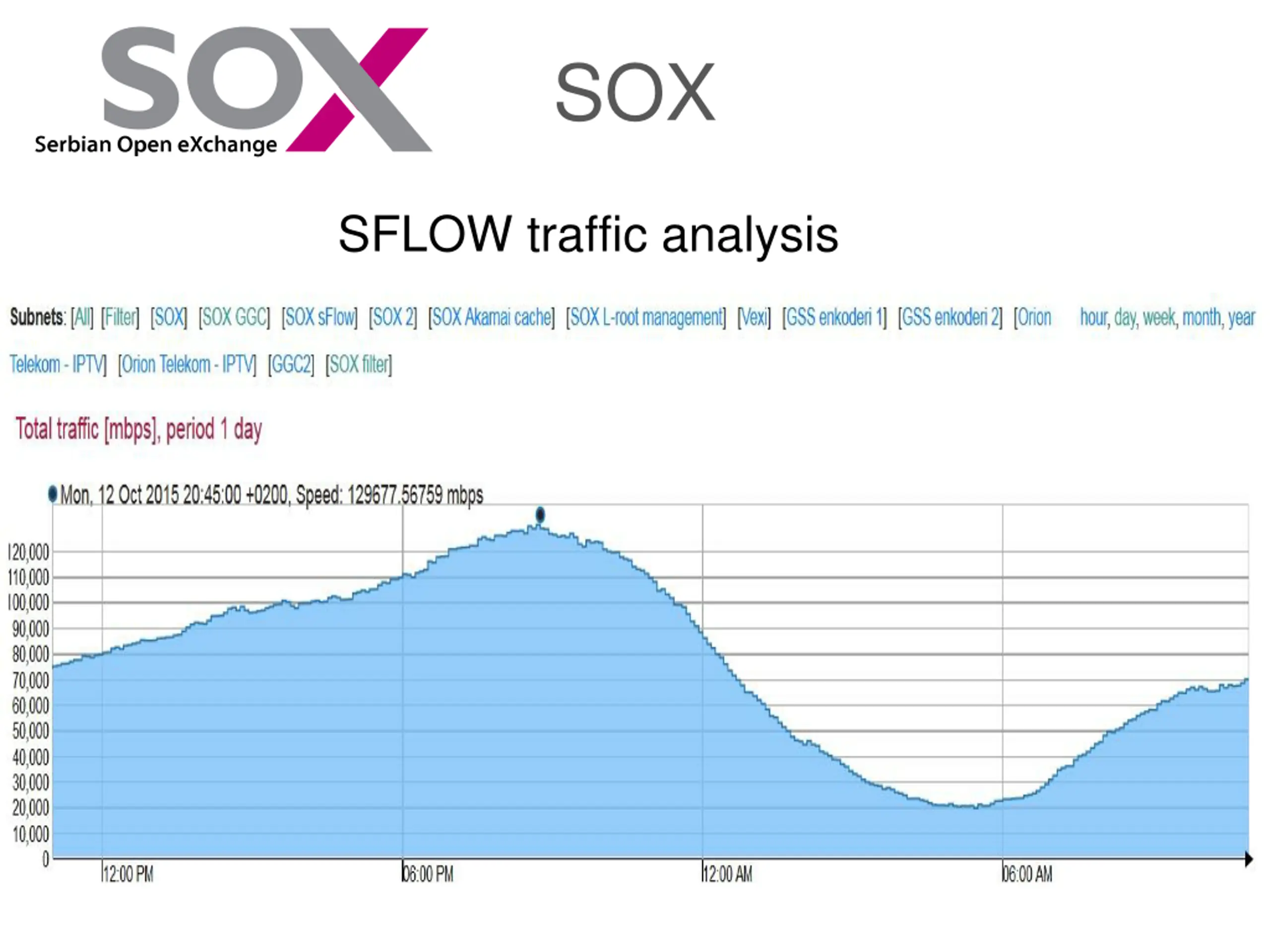

SOX SFLOW traffic analysis

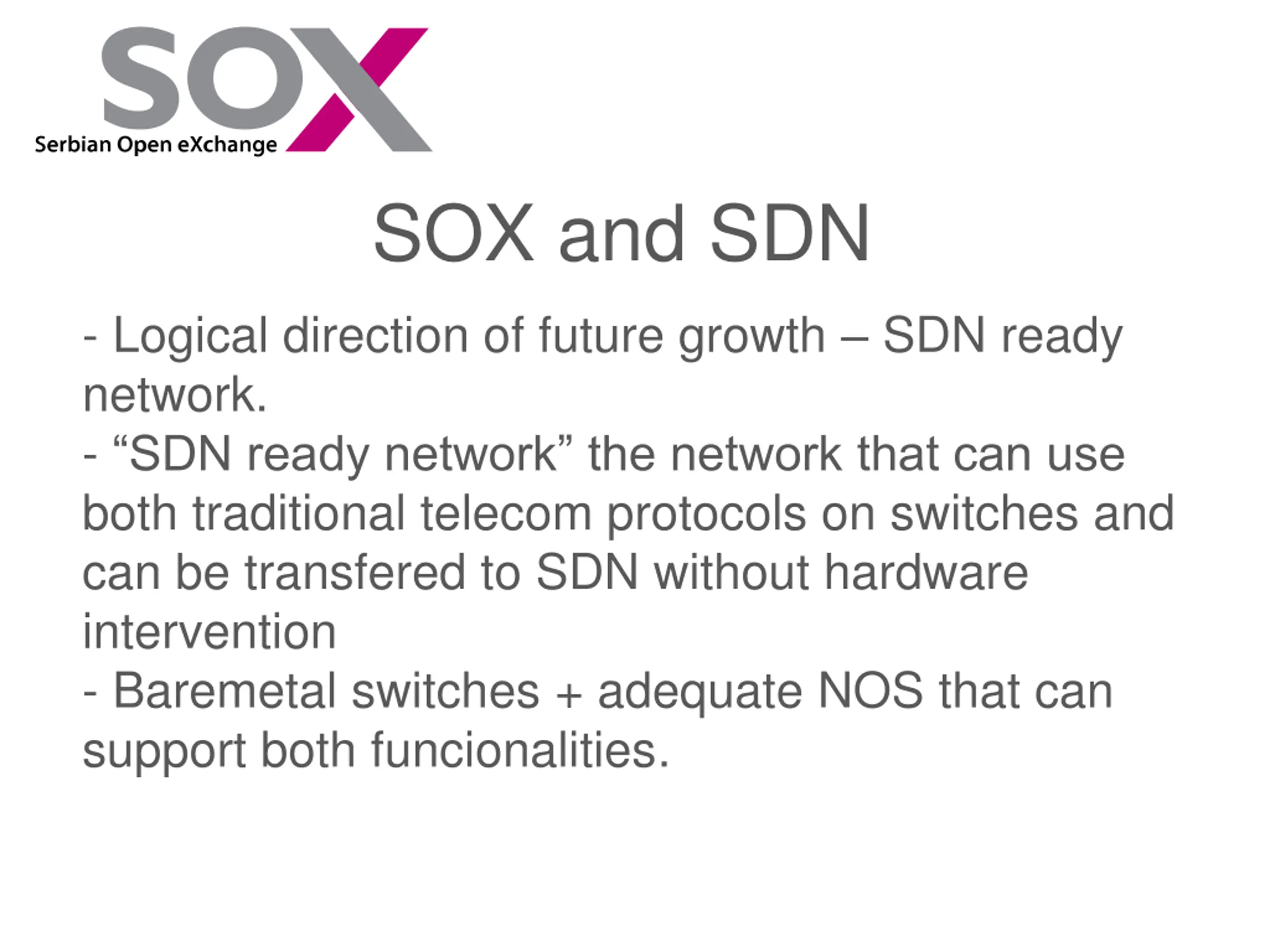

SOX and SDN - Logical direction of future growth SDN ready network. - SDN ready network the network that can use both traditional telecom protocols on switches and can be transfered to SDN without hardware intervention - Baremetal switches + adequate NOS that can support both funcionalities.

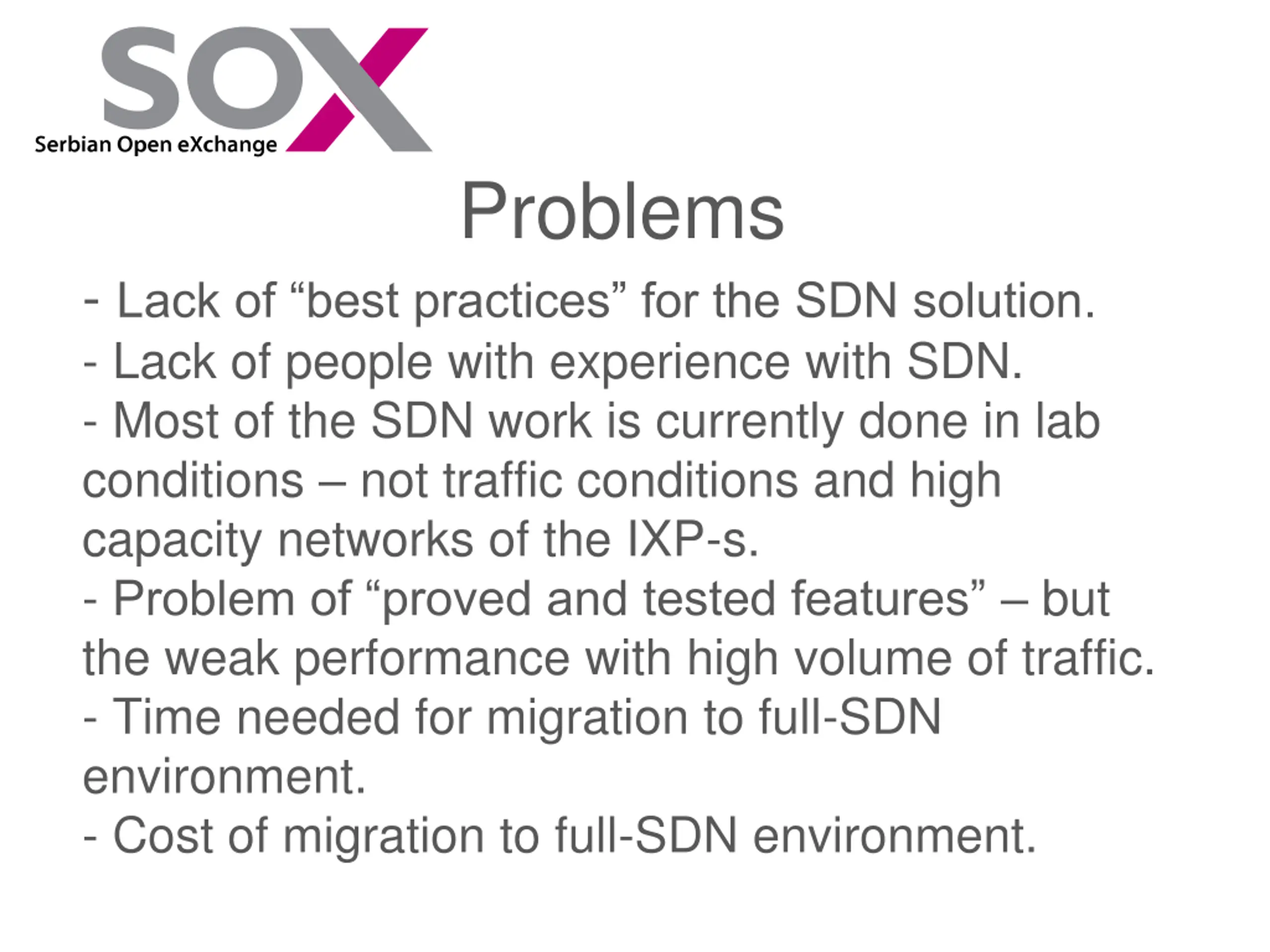

Problems - Lack of best practices for the SDN solution. - Lack of people with experience with SDN. - Most of the SDN work is currently done in lab conditions not traffic conditions and high capacity networks of the IXP-s. - Problem of proved and tested features but the weak performance with high volume of traffic. - Time needed for migration to full-SDN environment. - Cost of migration to full-SDN environment.

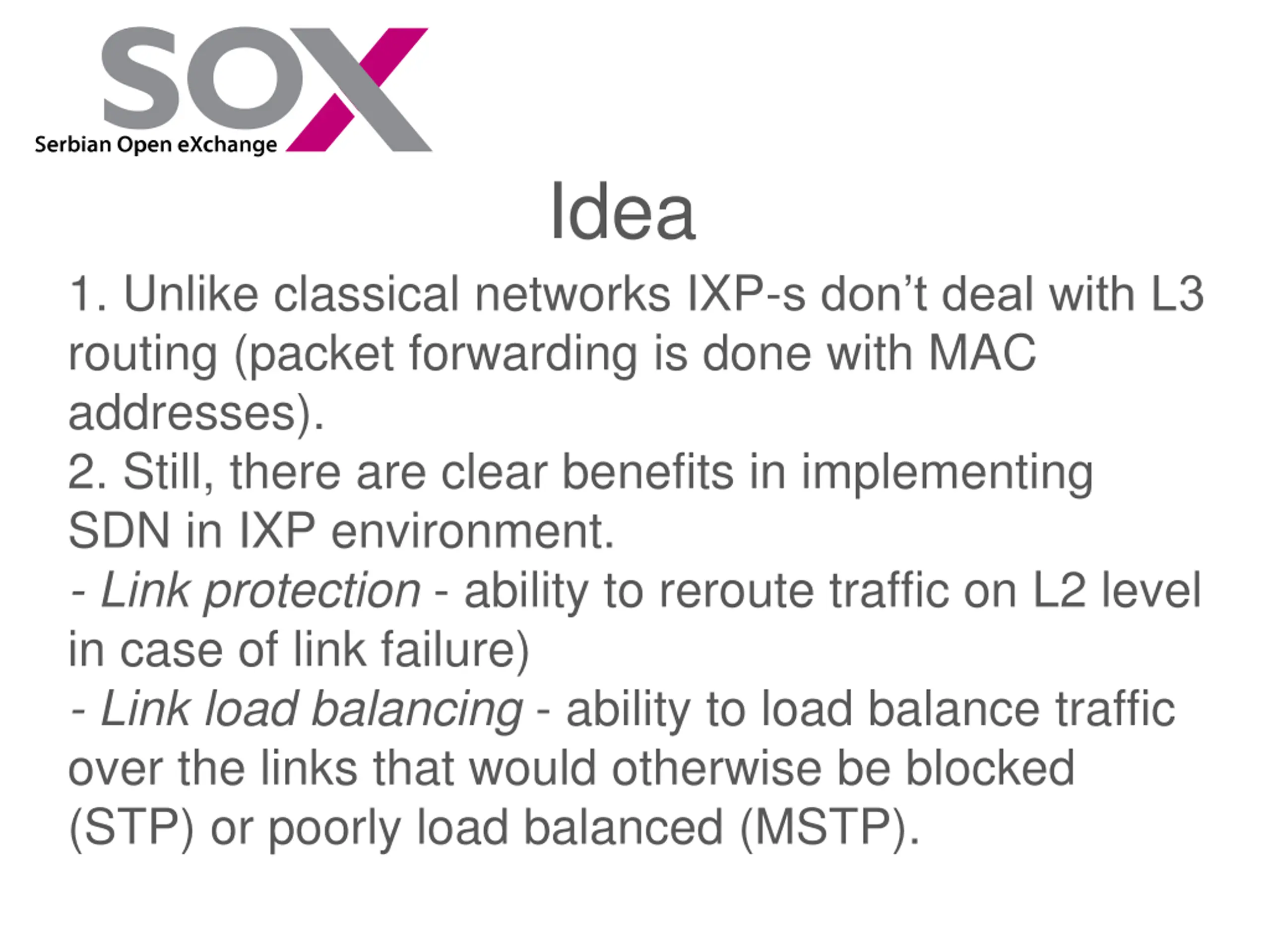

Idea 1. Unlike classical networks IXP-s don t deal with L3 routing (packet forwarding is done with MAC addresses). 2. Still, there are clear benefits in implementing SDN in IXP environment. - Link protection - ability to reroute traffic on L2 level in case of link failure) - Link load balancing - ability to load balance traffic over the links that would otherwise be blocked (STP) or poorly load balanced (MSTP).

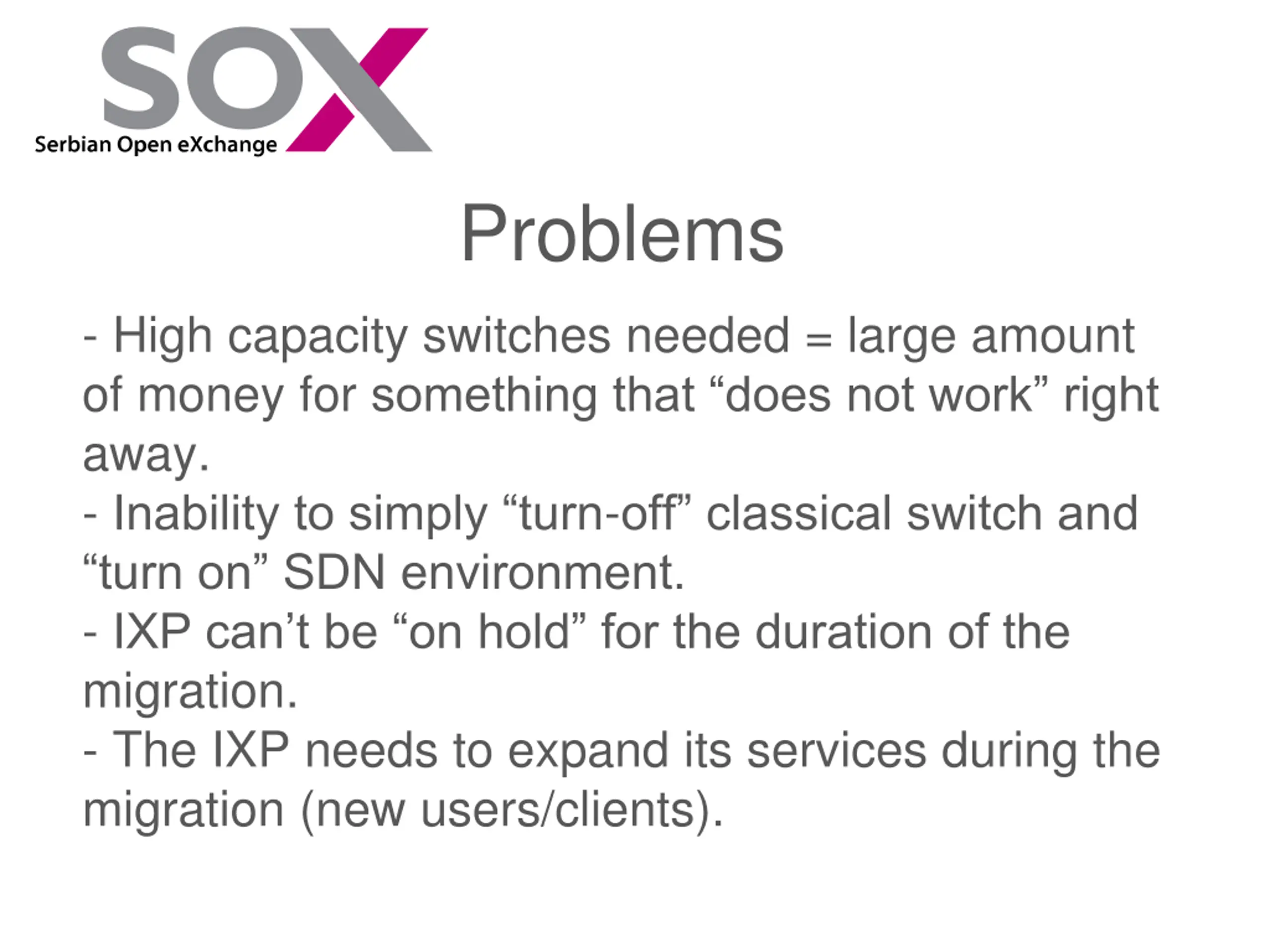

Problems - High capacity switches needed = large amount of money for something that does not work right away. - Inability to simply turn-off classical switch and turn on SDN environment. - IXP can t be on hold for the duration of the migration. - The IXP needs to expand its services during the migration (new users/clients).

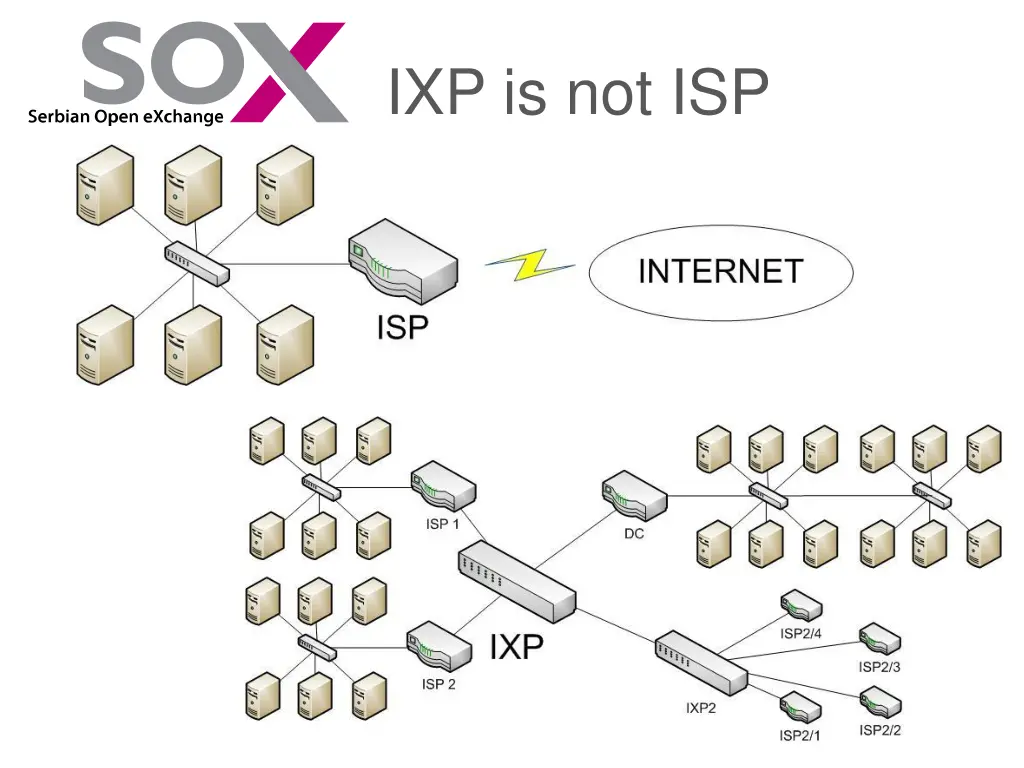

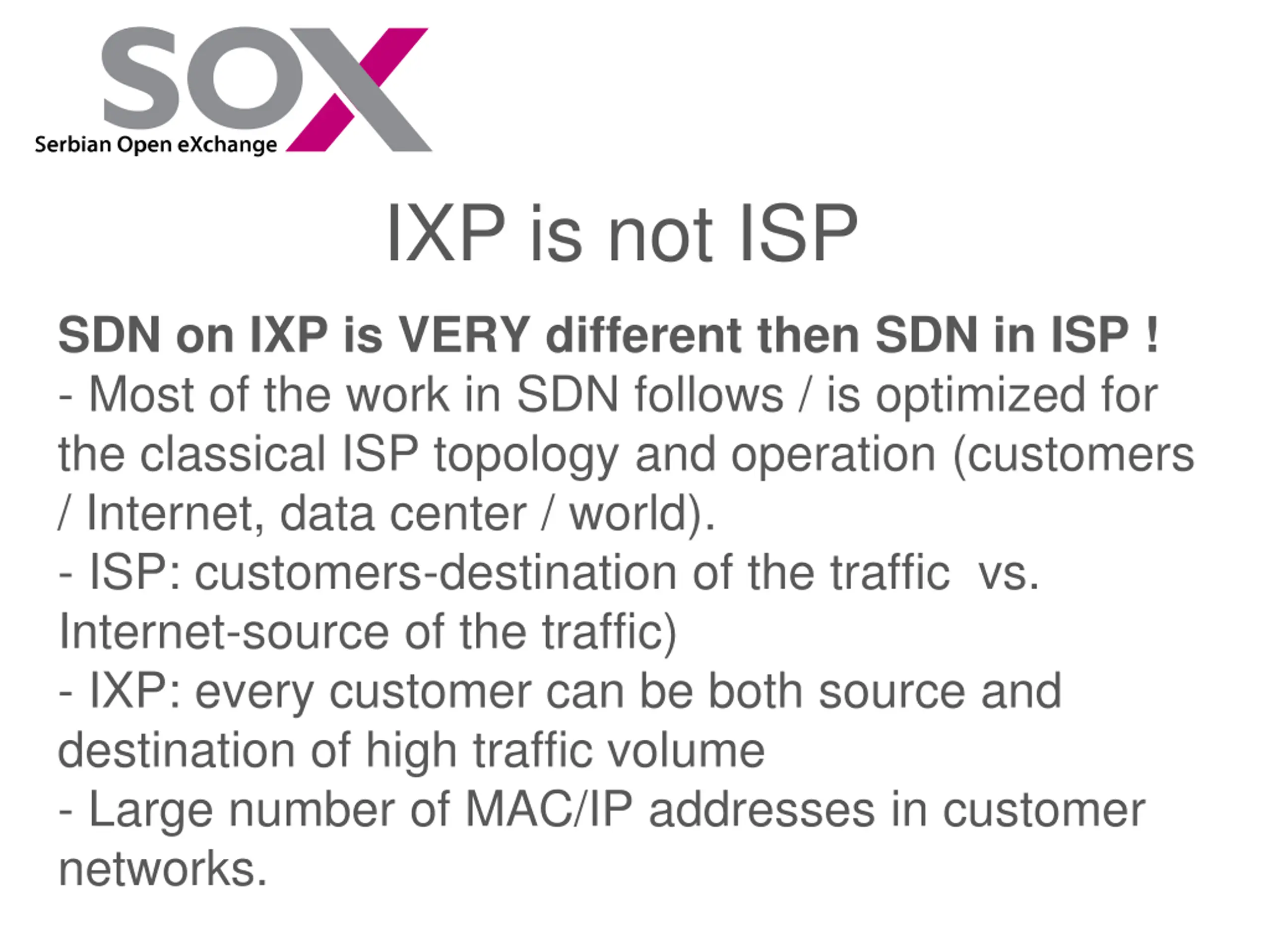

IXP is not ISP SDN on IXP is VERY different then SDN in ISP ! - Most of the work in SDN follows / is optimized for the classical ISP topology and operation (customers / Internet, data center / world). - ISP: customers-destination of the traffic vs. Internet-source of the traffic) - IXP: every customer can be both source and destination of high traffic volume - Large number of MAC/IP addresses in customer networks.

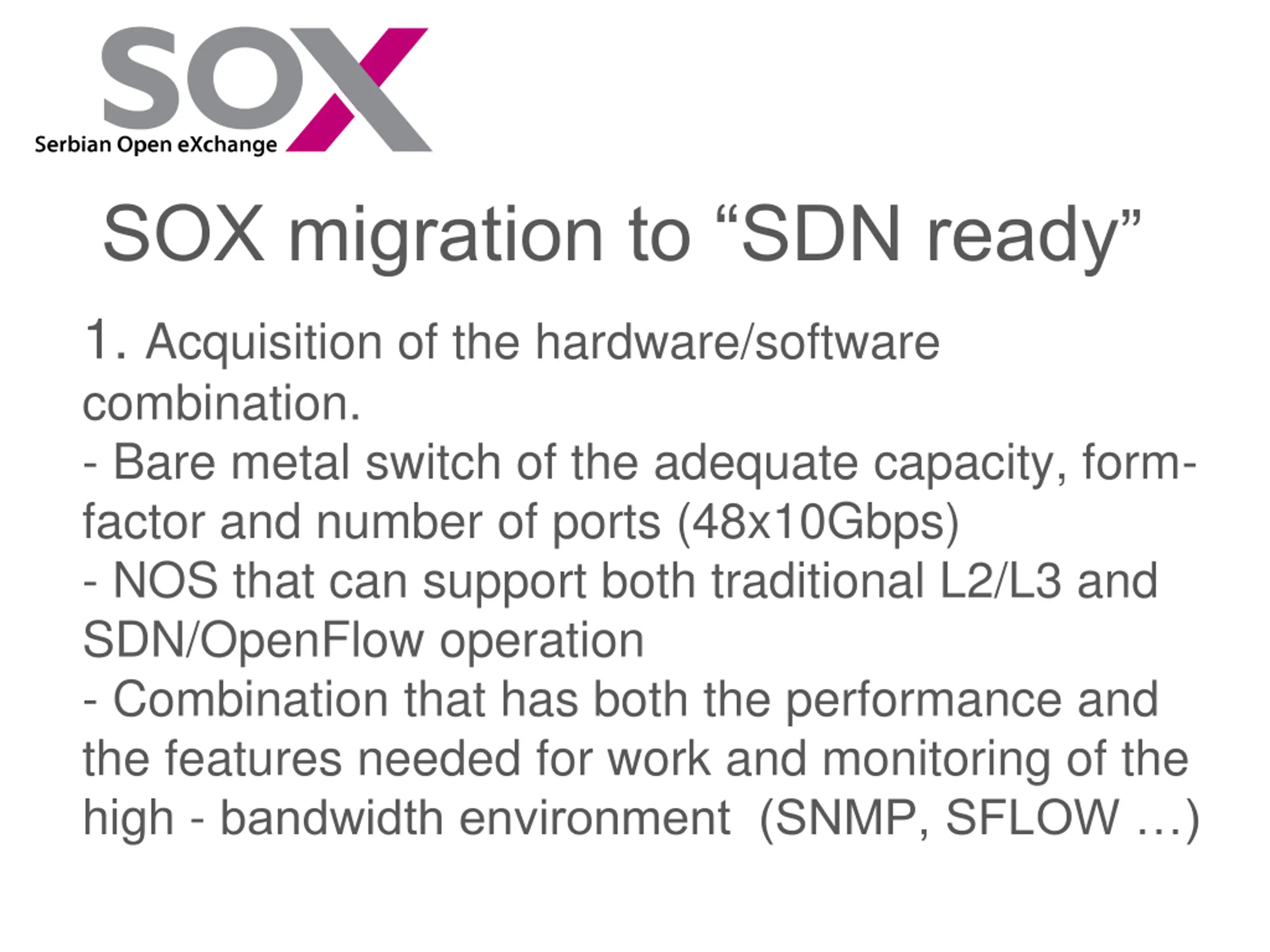

SOX migration to SDN ready 1. Acquisition of the hardware/software combination. - Bare metal switch of the adequate capacity, form- factor and number of ports (48x10Gbps) - NOS that can support both traditional L2/L3 and SDN/OpenFlow operation - Combination that has both the performance and the features needed for work and monitoring of the high - bandwidth environment (SNMP, SFLOW )

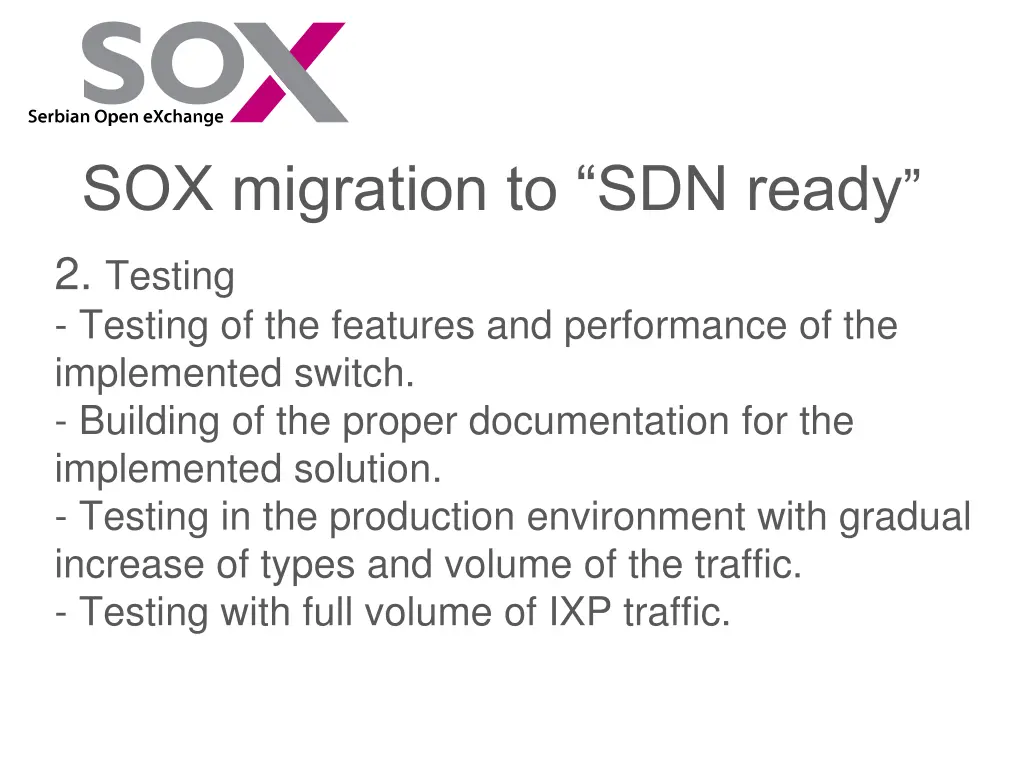

SOX migration to SDN ready 2. Testing - Testing of the features and performance of the implemented switch. - Building of the proper documentation for the implemented solution. - Testing in the production environment with gradual increase of types and volume of the traffic. - Testing with full volume of IXP traffic.

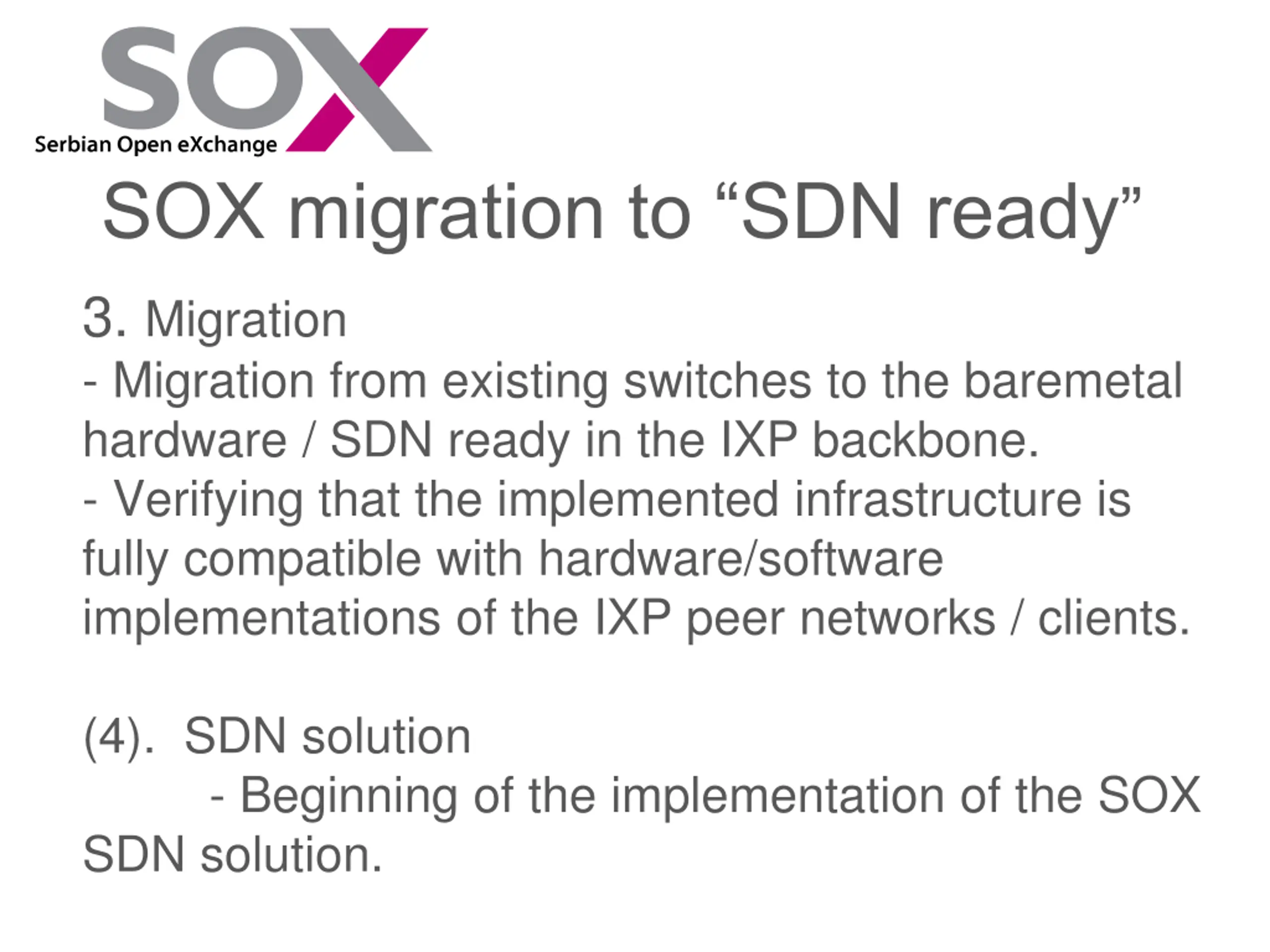

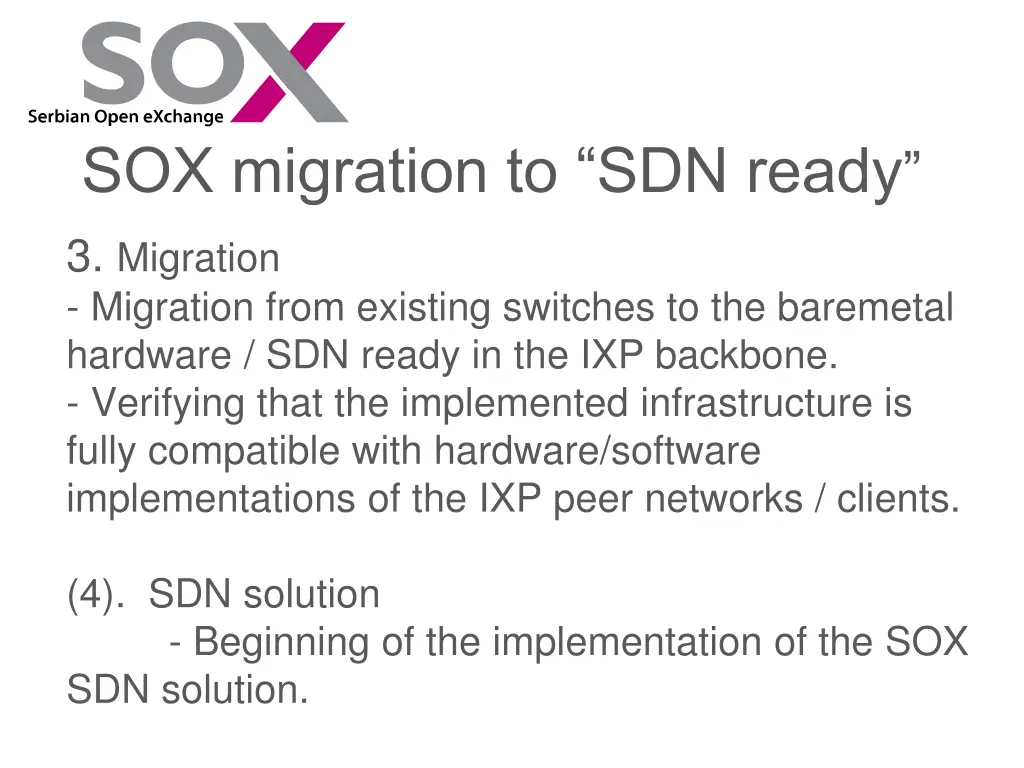

SOX migration to SDN ready 3. Migration - Migration from existing switches to the baremetal hardware / SDN ready in the IXP backbone. - Verifying that the implemented infrastructure is fully compatible with hardware/software implementations of the IXP peer networks / clients. (4). SDN solution - Beginning of the implementation of the SOX SDN solution.

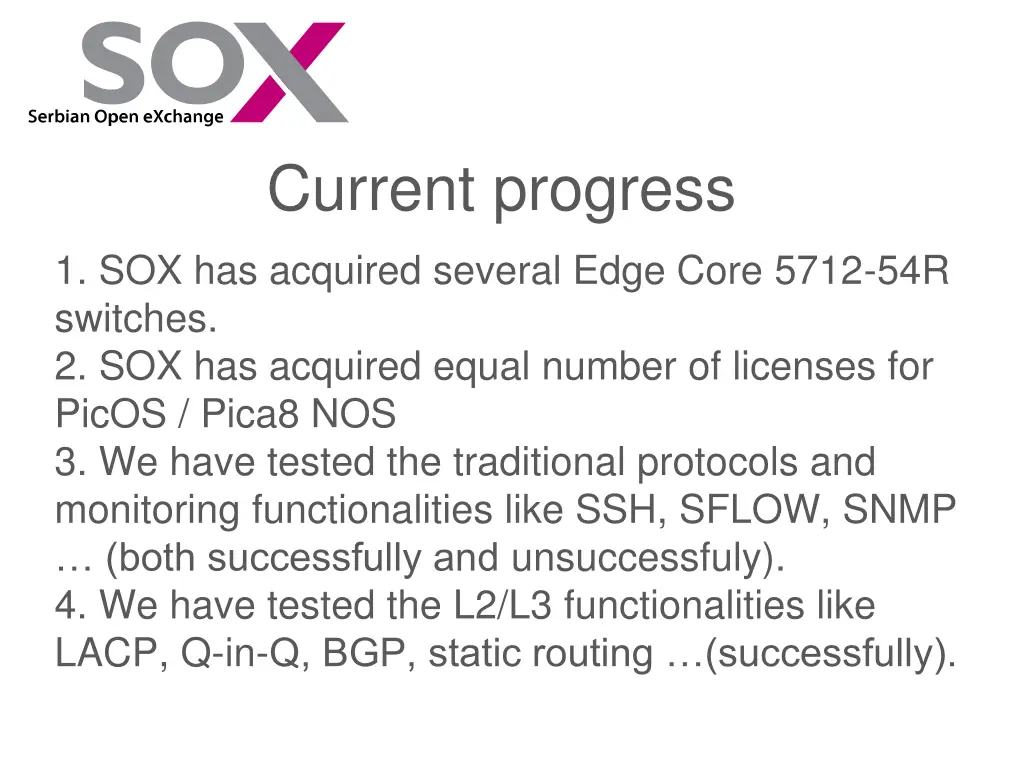

Current progress 1. SOX has acquired several Edge Core 5712-54R switches. 2. SOX has acquired equal number of licenses for PicOS / Pica8 NOS 3. We have tested the traditional protocols and monitoring functionalities like SSH, SFLOW, SNMP (both successfully and unsuccessfuly). 4. We have tested the L2/L3 functionalities like LACP, Q-in-Q, BGP, static routing (successfully).

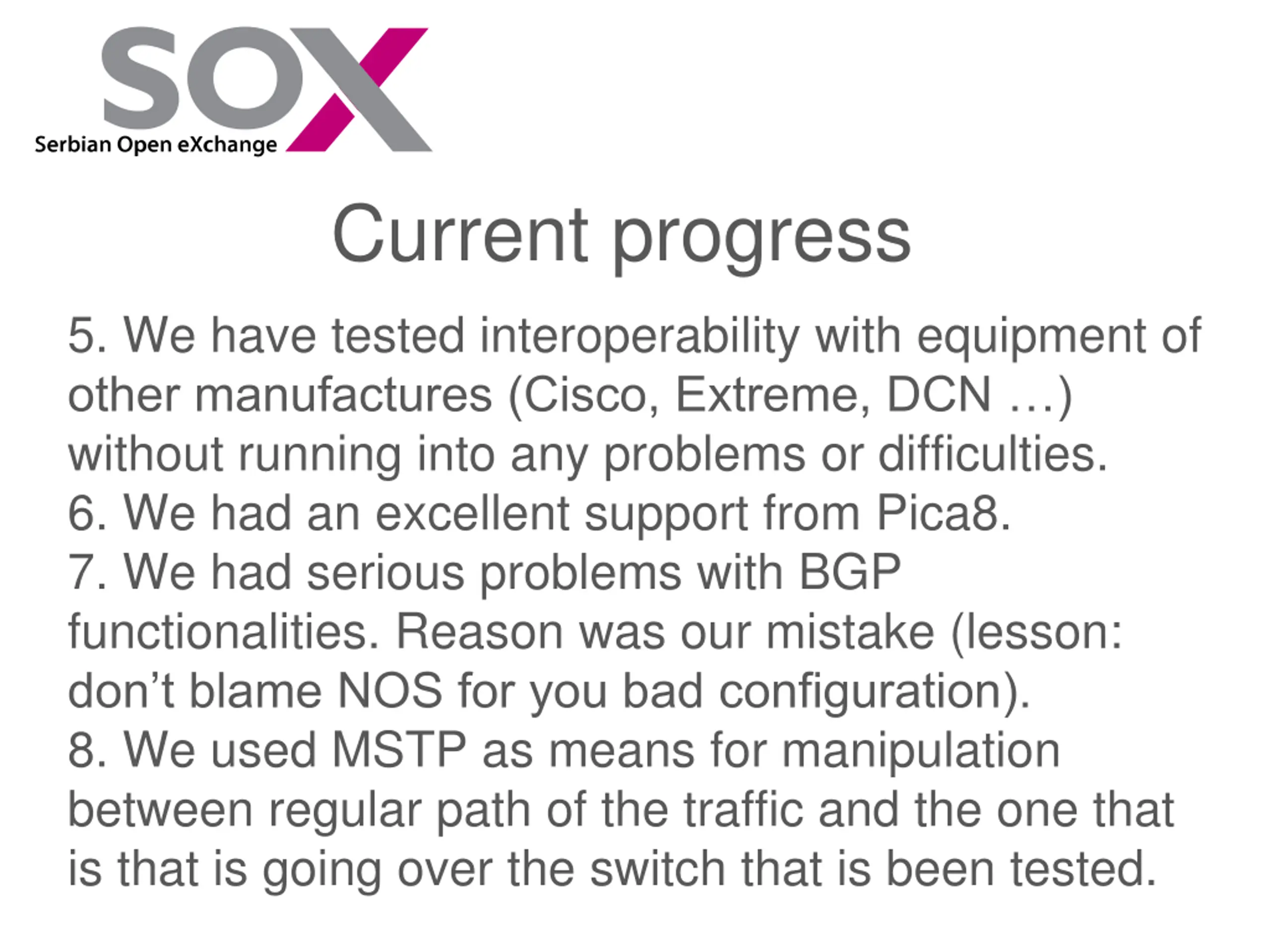

Current progress 5. We have tested interoperability with equipment of other manufactures (Cisco, Extreme, DCN ) without running into any problems or difficulties. 6. We had an excellent support from Pica8. 7. We had serious problems with BGP functionalities. Reason was our mistake (lesson: don t blame NOS for you bad configuration). 8. We used MSTP as means for manipulation between regular path of the traffic and the one that is that is going over the switch that is been tested.

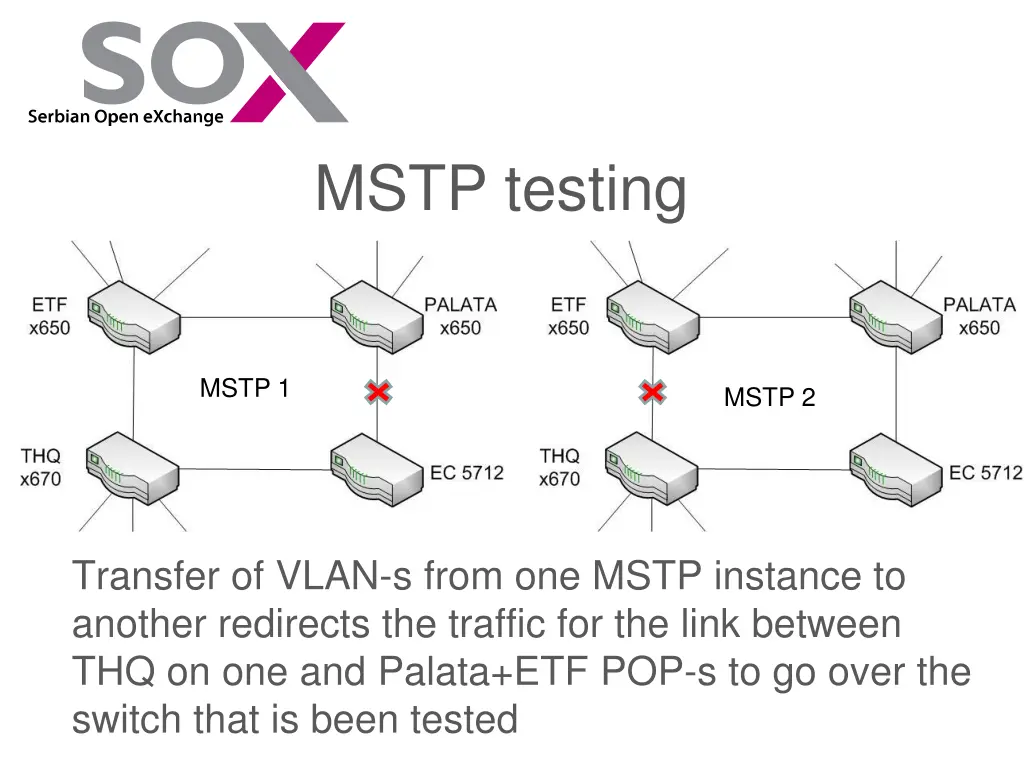

MSTP testing MSTP 1 MSTP 2 Transfer of VLAN-s from one MSTP instance to another redirects the traffic for the link between THQ on one and Palata+ETF POP-s to go over the switch that is been tested

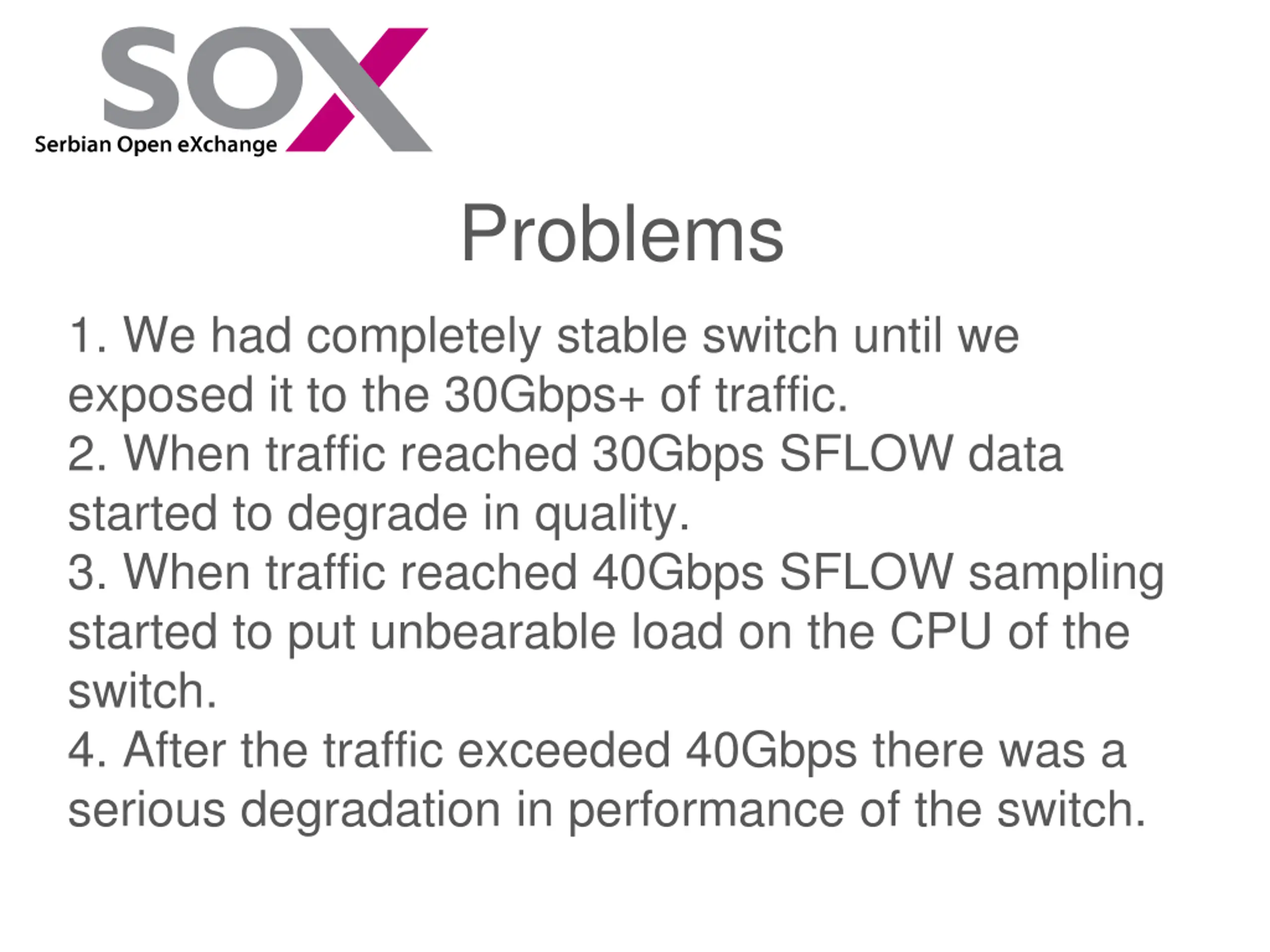

Problems 1. We had completely stable switch until we exposed it to the 30Gbps+ of traffic. 2. When traffic reached 30Gbps SFLOW data started to degrade in quality. 3. When traffic reached 40Gbps SFLOW sampling started to put unbearable load on the CPU of the switch. 4. After the traffic exceeded 40Gbps there was a serious degradation in performance of the switch.

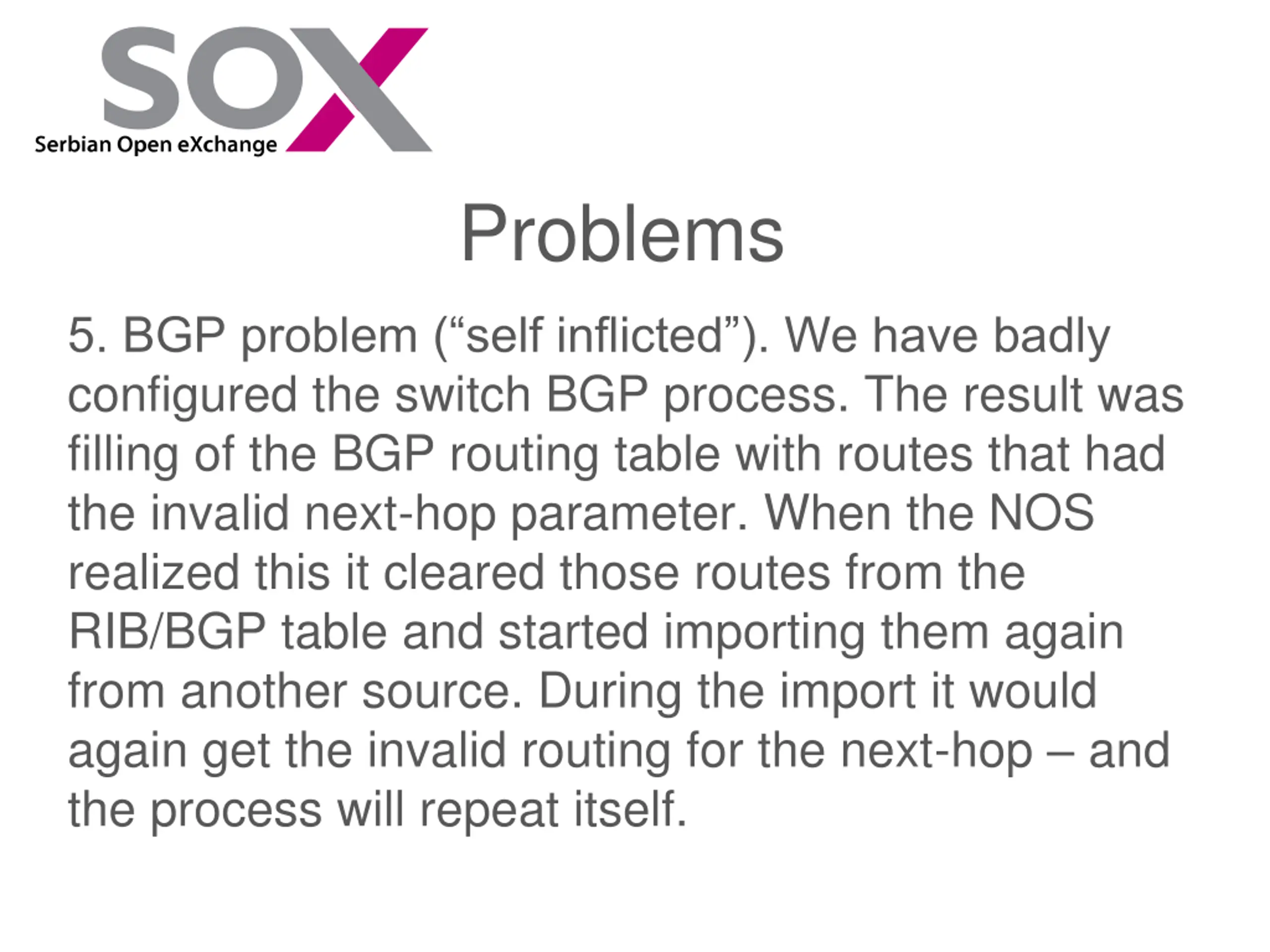

Problems 5. BGP problem ( self inflicted ). We have badly configured the switch BGP process. The result was filling of the BGP routing table with routes that had the invalid next-hop parameter. When the NOS realized this it cleared those routes from the RIB/BGP table and started importing them again from another source. During the import it would again get the invalid routing for the next-hop and the process will repeat itself.

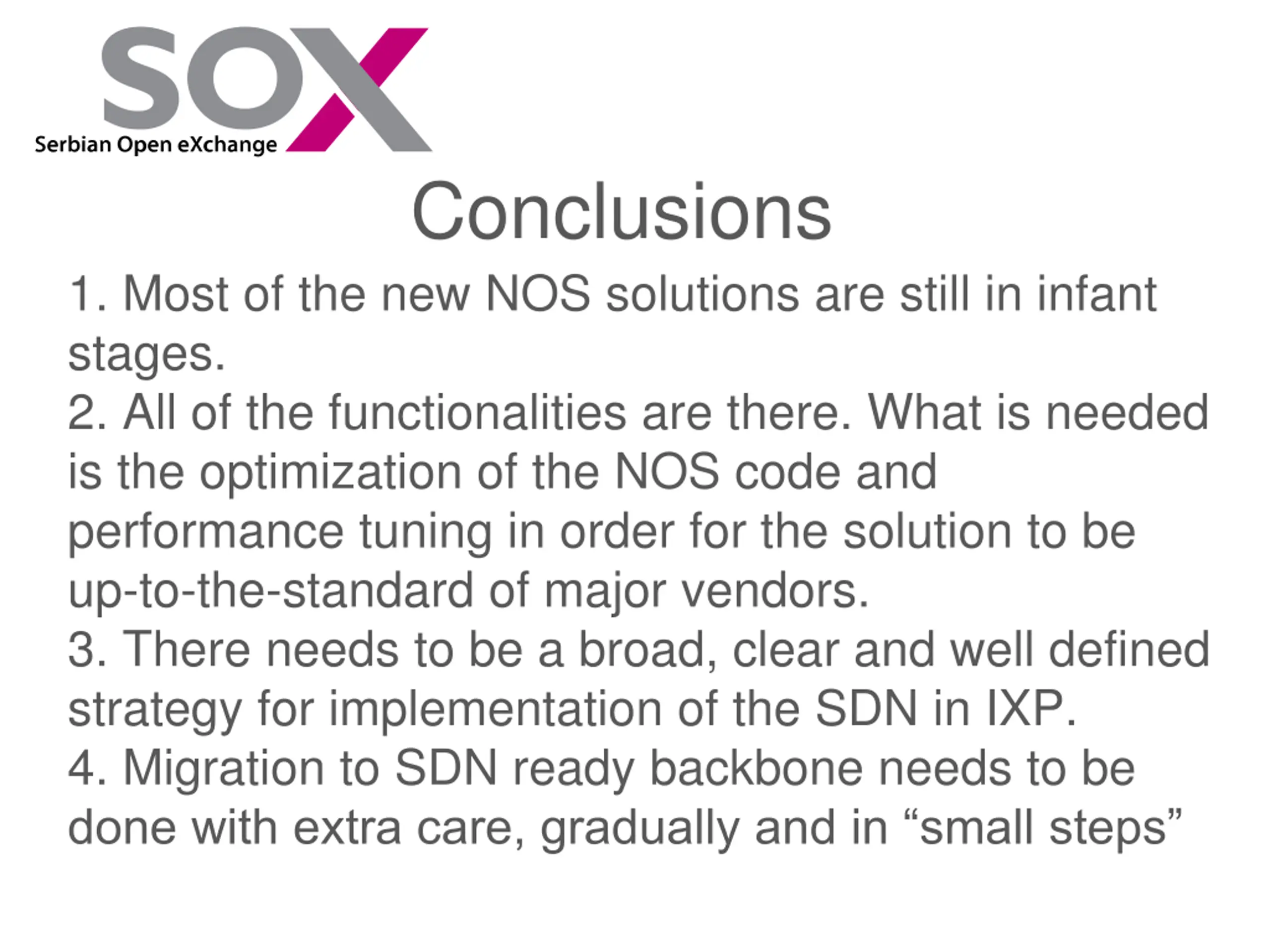

Conclusions 1. Most of the new NOS solutions are still in infant stages. 2. All of the functionalities are there. What is needed is the optimization of the NOS code and performance tuning in order for the solution to be up-to-the-standard of major vendors. 3. There needs to be a broad, clear and well defined strategy for implementation of the SDN in IXP. 4. Migration to SDN ready backbone needs to be done with extra care, gradually and in small steps
