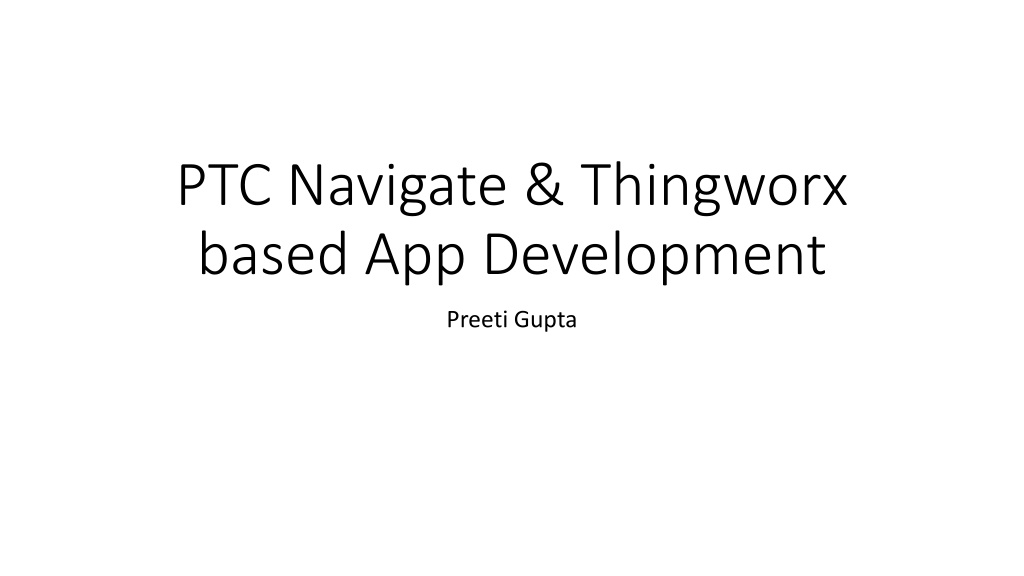

PTC Navigate & Thingworx based App Development Preeti Gupta

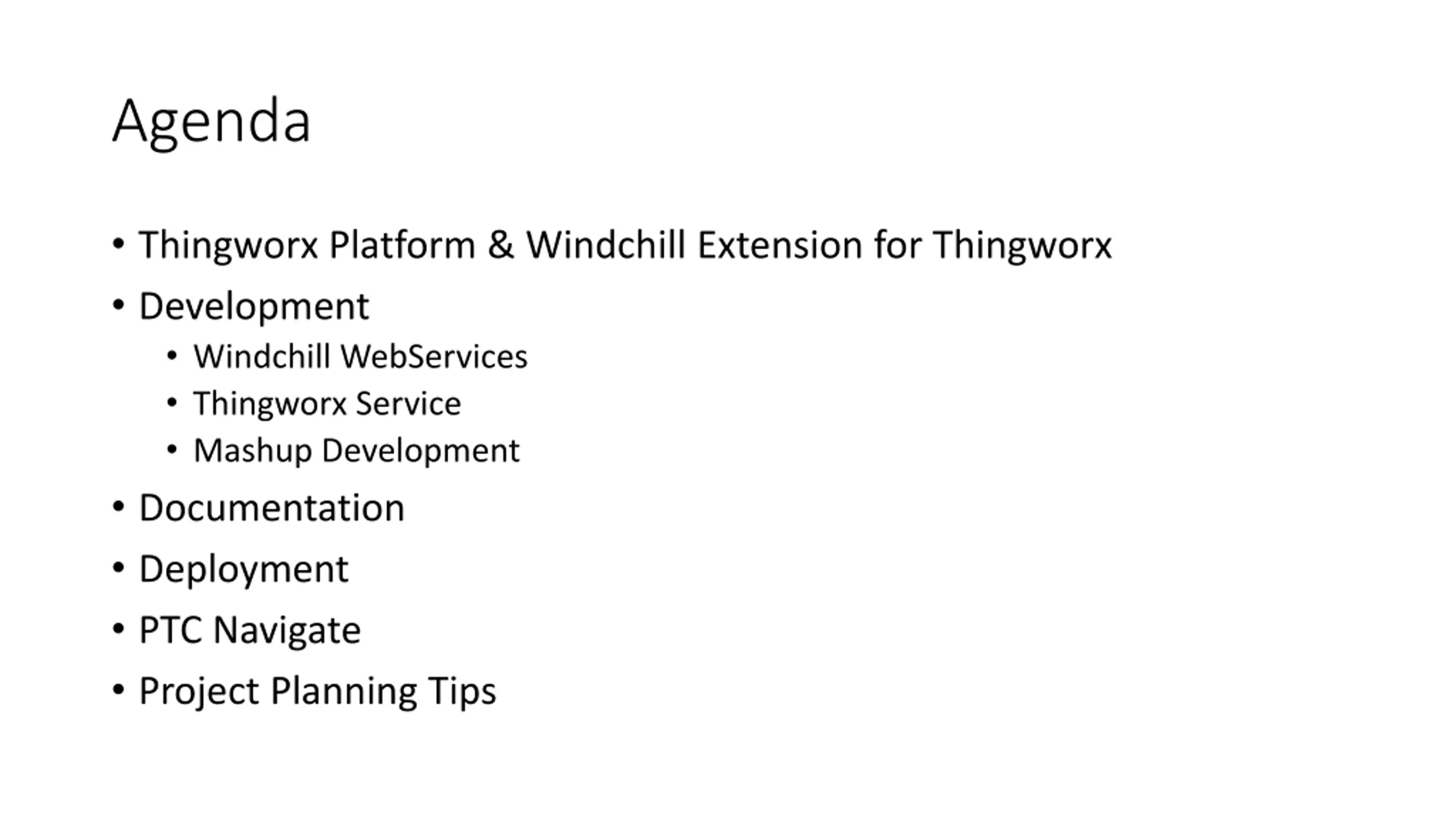

Agenda Thingworx Platform & Windchill Extension for Thingworx Development Windchill WebServices Thingworx Service Mashup Development Documentation Deployment PTC Navigate Project Planning Tips

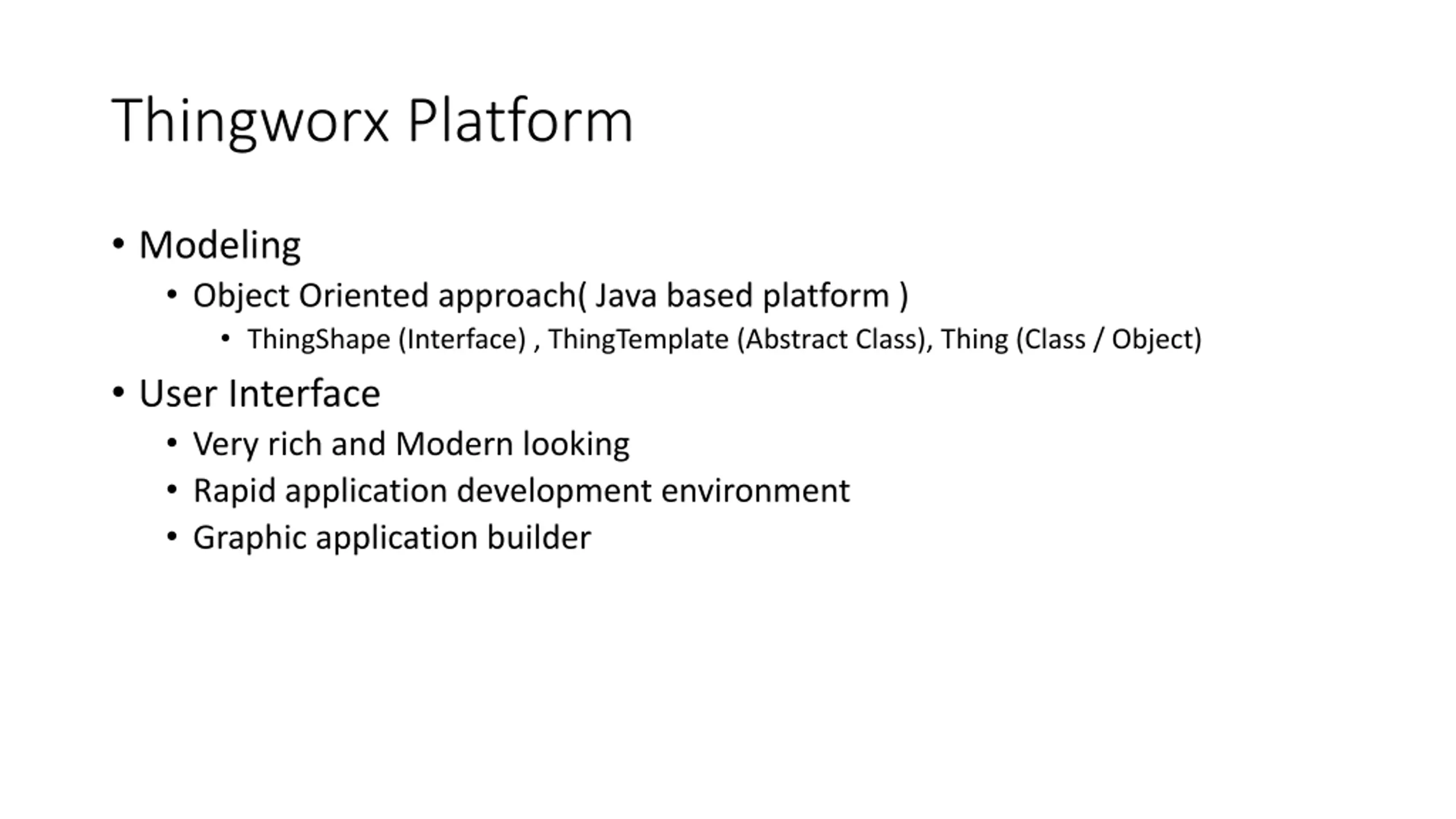

Thingworx Platform Modeling Object Oriented approach( Java based platform ) ThingShape (Interface) , ThingTemplate (Abstract Class), Thing (Class / Object) User Interface Very rich and Modern looking Rapid application development environment Graphic application builder

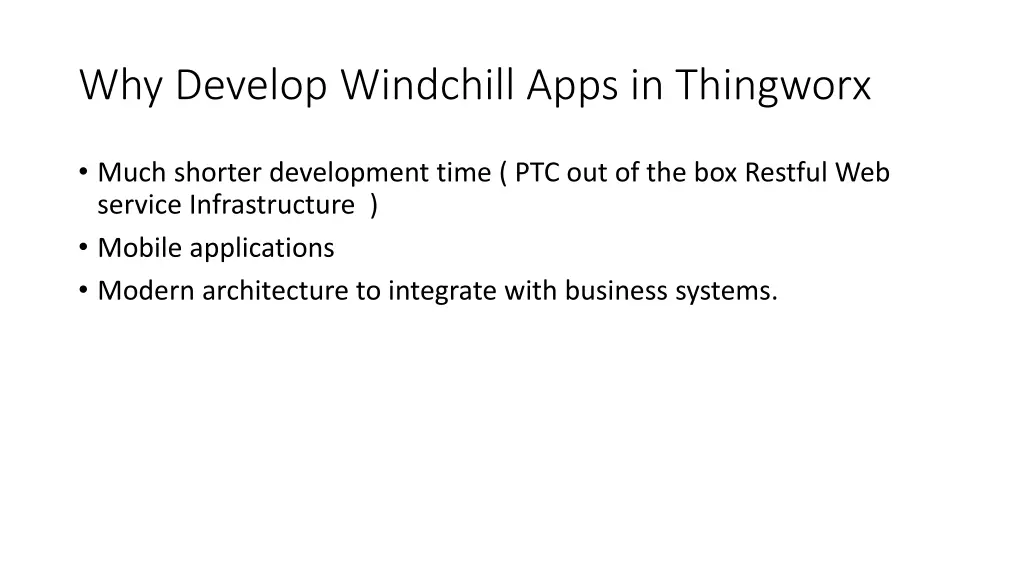

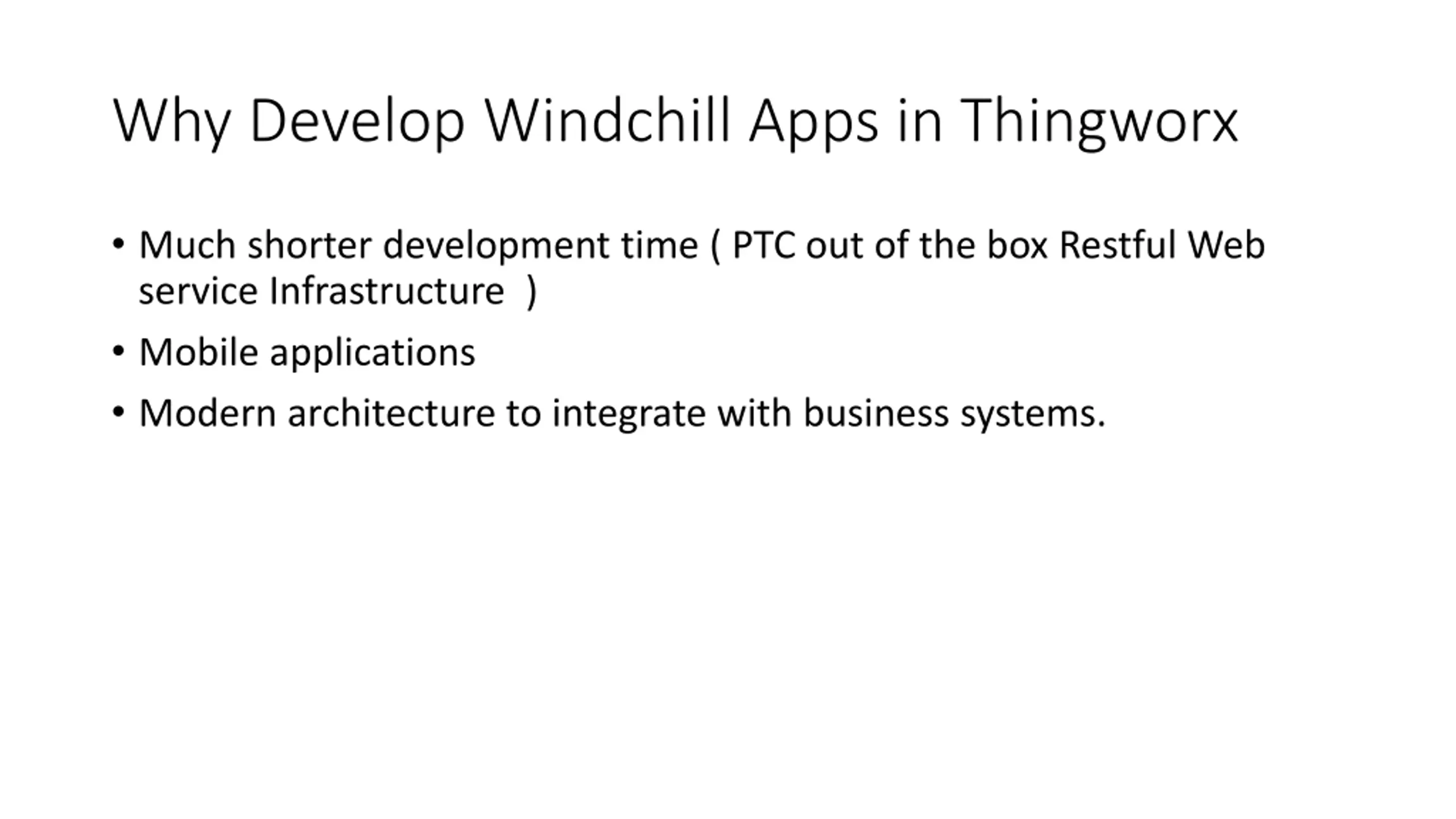

Why Develop Windchill Apps in Thingworx Much shorter development time ( PTC out of the box Restful Web service Infrastructure ) Mobile applications Modern architecture to integrate with business systems.

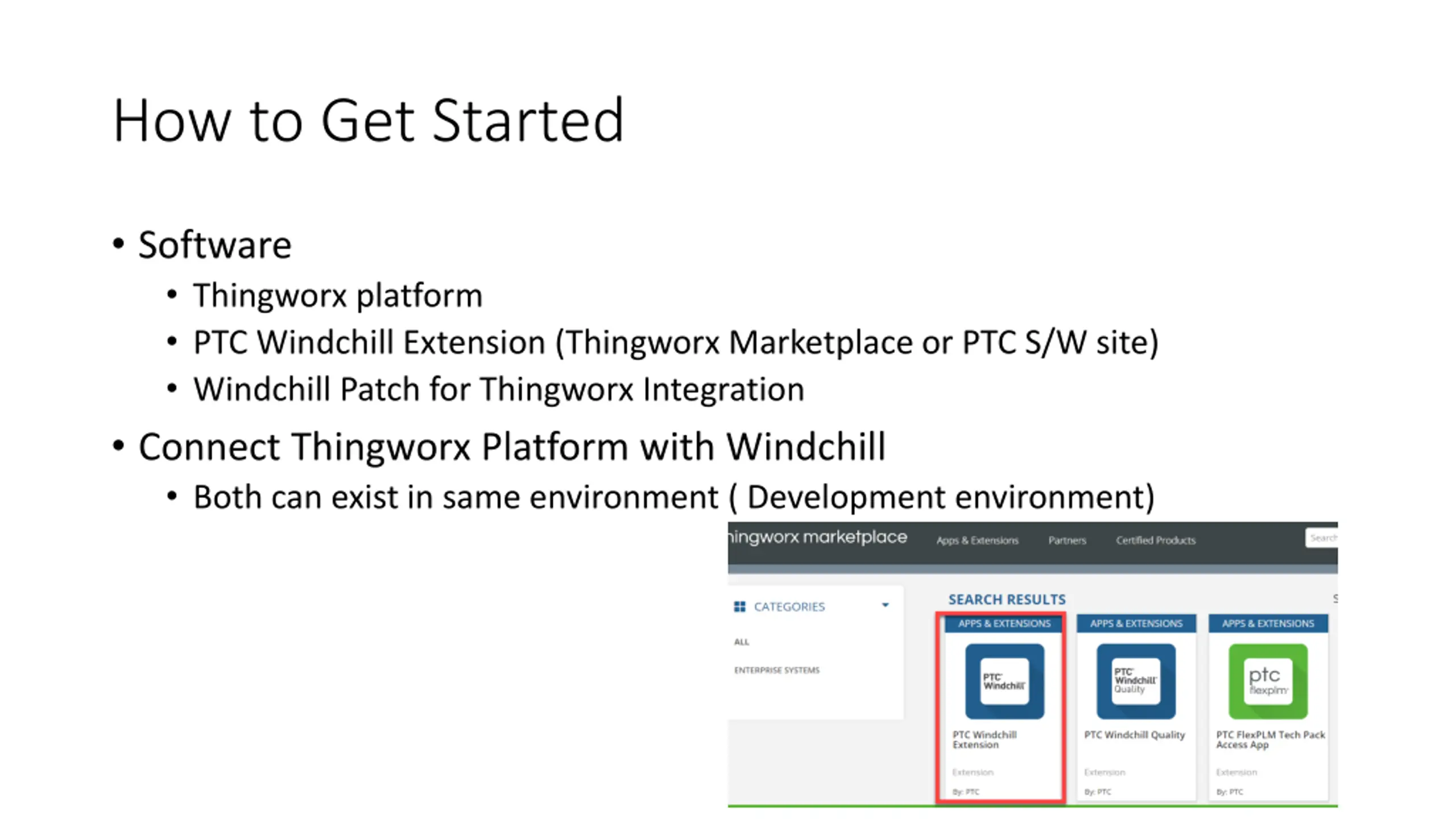

How to Get Started Software Thingworx platform PTC Windchill Extension (Thingworx Marketplace or PTC S/W site) Windchill Patch for Thingworx Integration Connect Thingworx Platform with Windchill Both can exist in same environment ( Development environment)
Out of the box Windchill Integration with Thingworx Platform PTC Windchill PLM Extension 11.0-M010- WCTWXExtension_05 Windchill Environment (Support for 10.1 M040, 10.2, 11) Thingworx Platform (Latest 7.2)

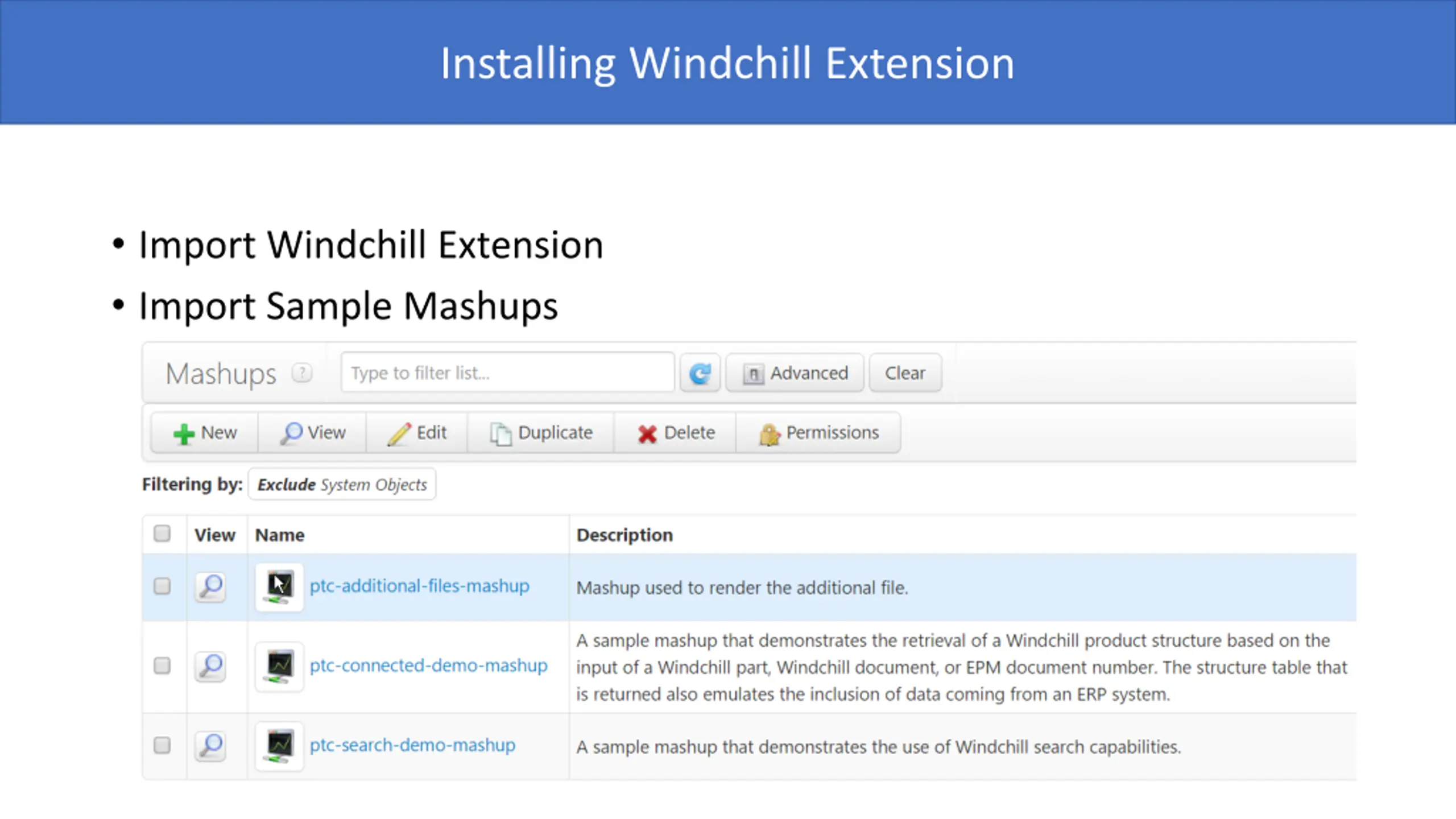

Installing Windchill Extension Import Windchill Extension Import Sample Mashups

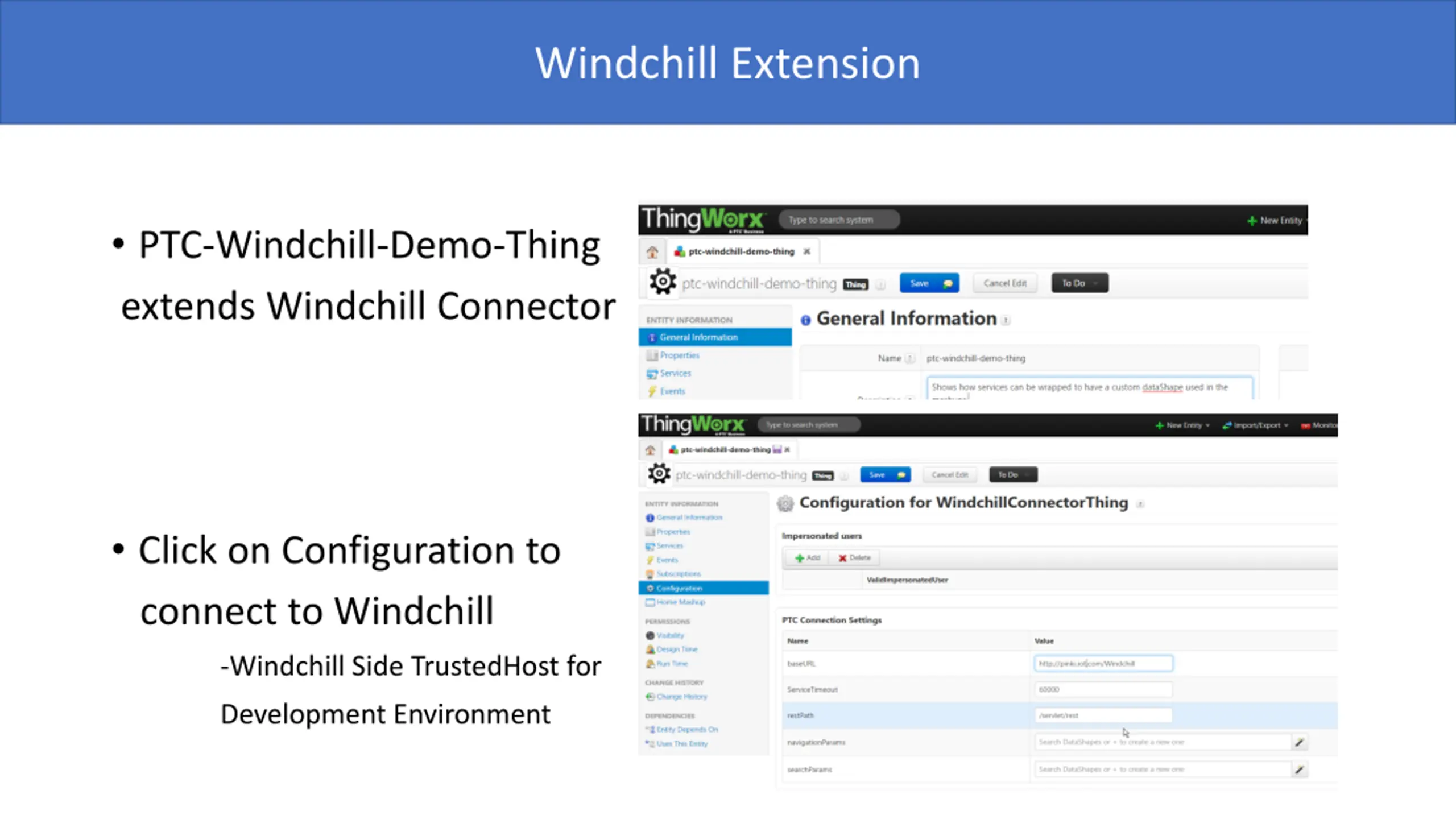

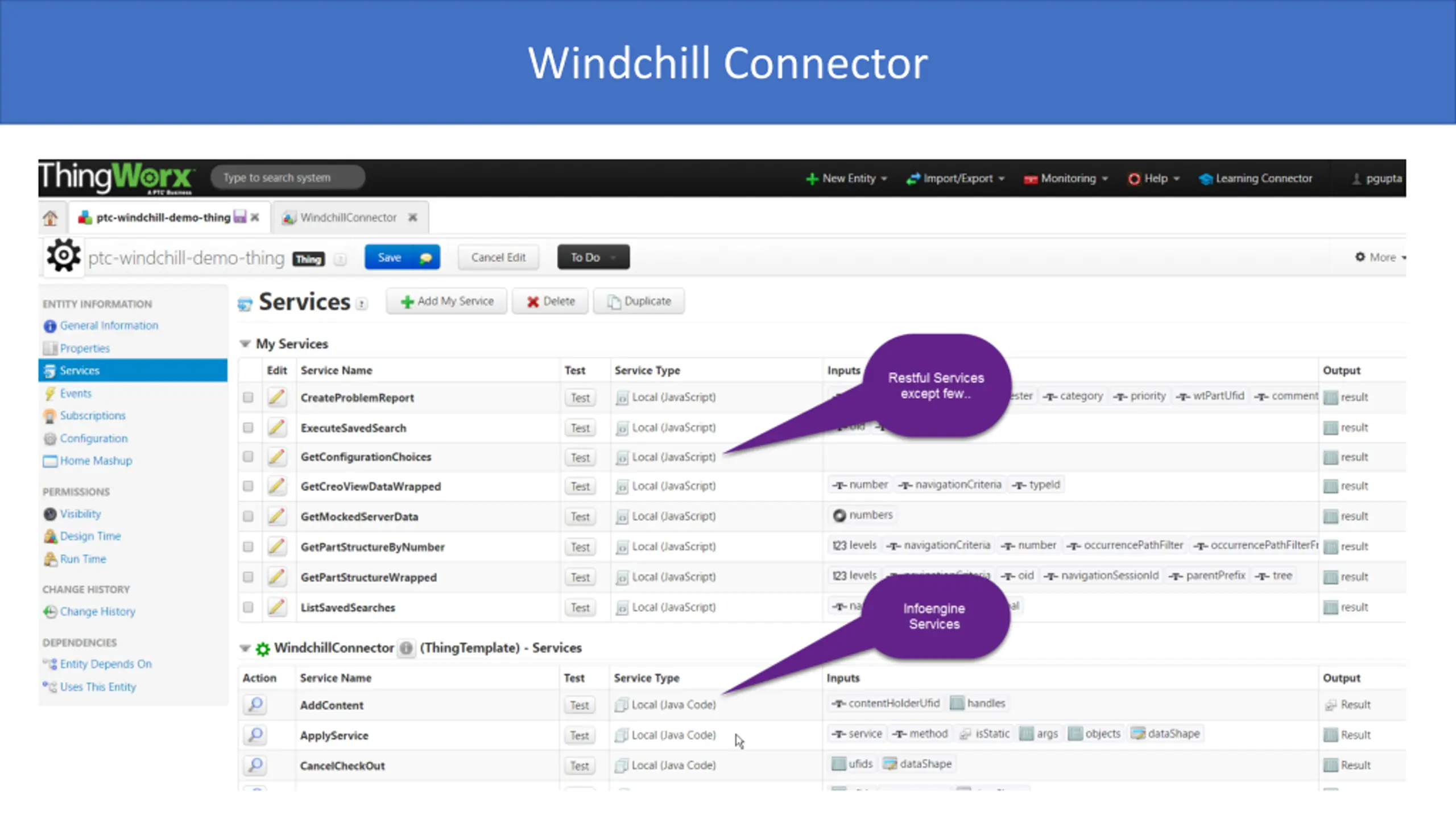

Windchill Extension PTC-Windchill-Demo-Thing extends Windchill Connector Click on Configuration to connect to Windchill -Windchill Side TrustedHost for Development Environment

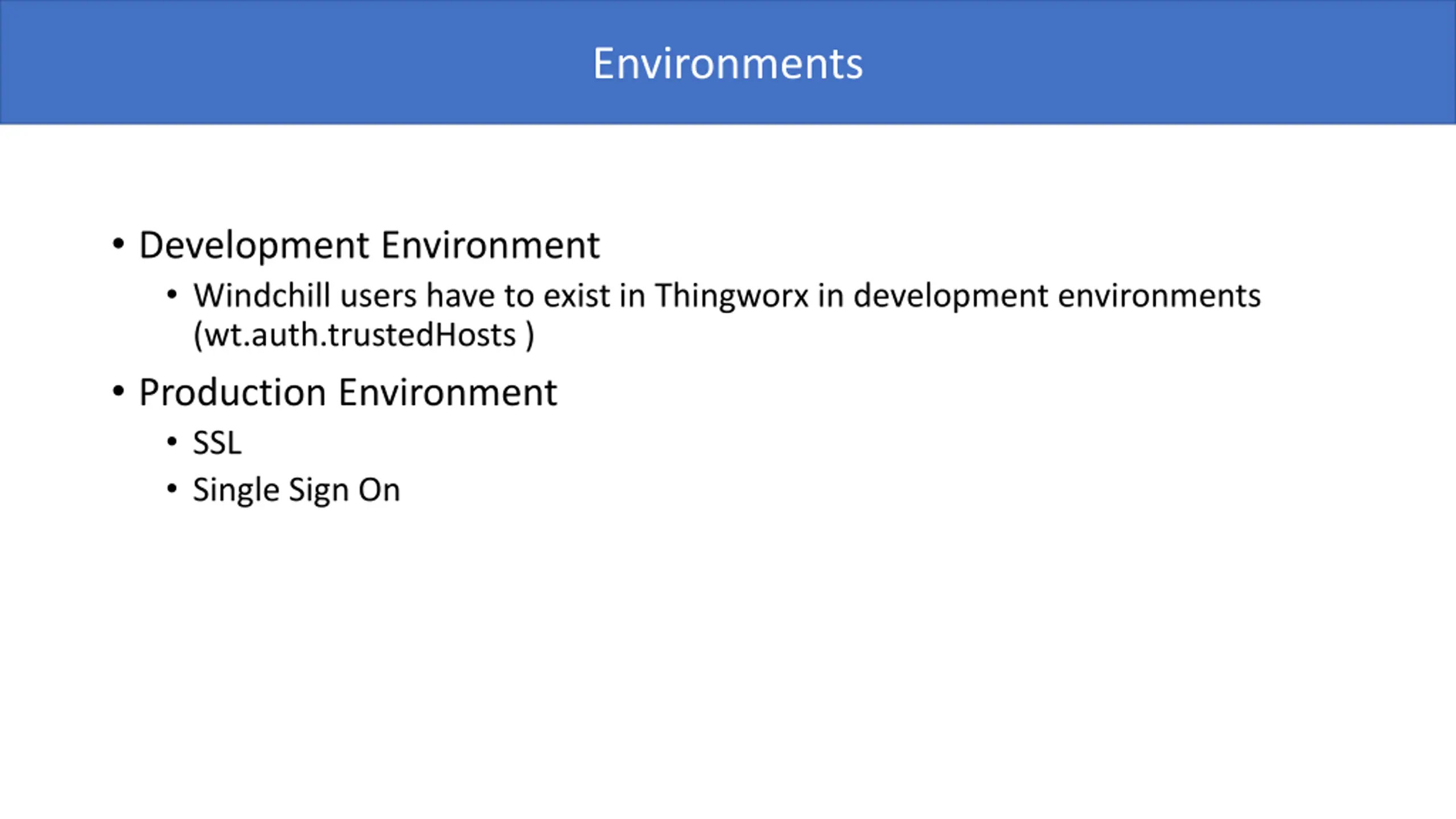

Environments Development Environment Windchill users have to exist in Thingworx in development environments (wt.auth.trustedHosts ) Production Environment SSL Single Sign On

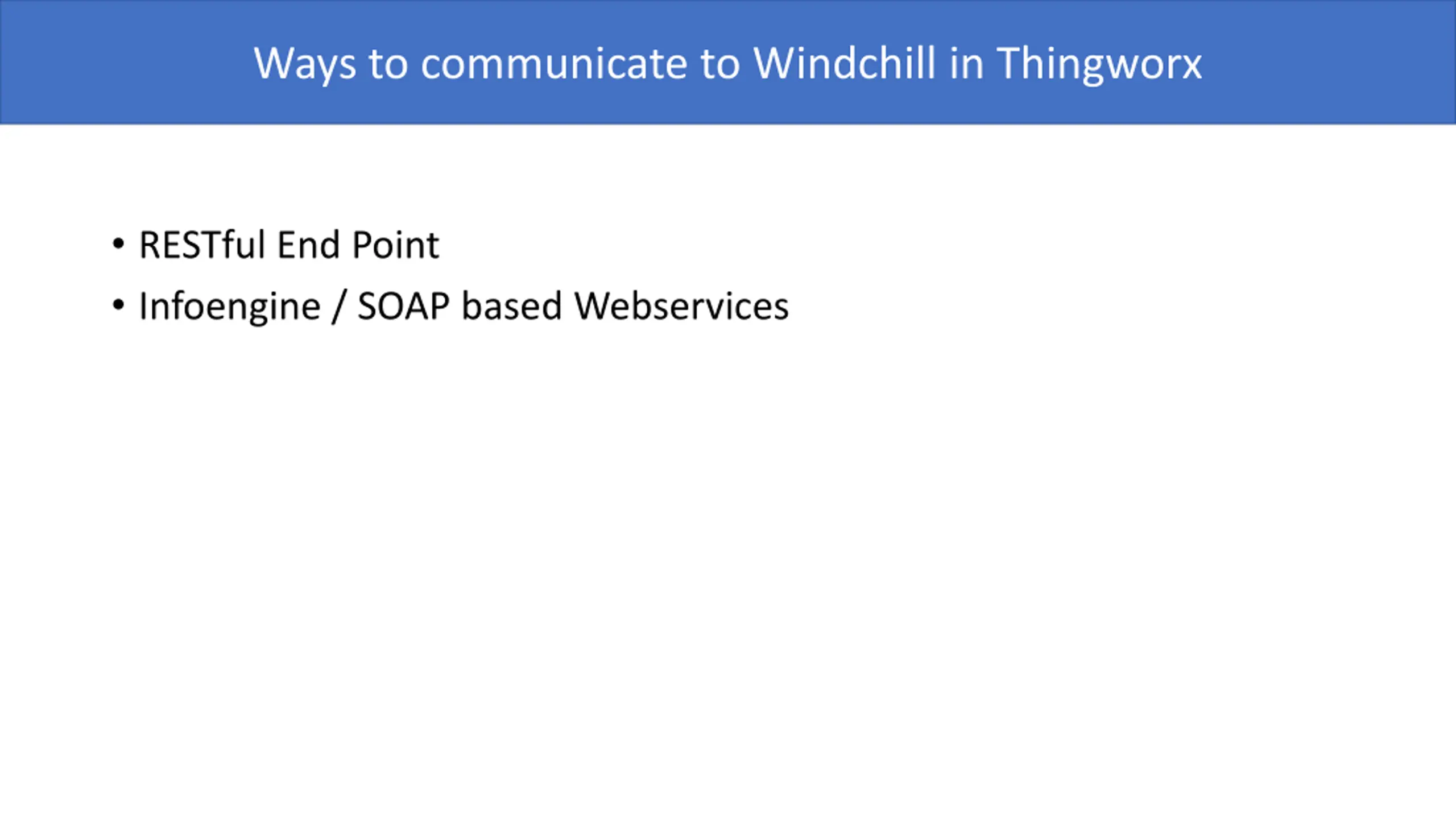

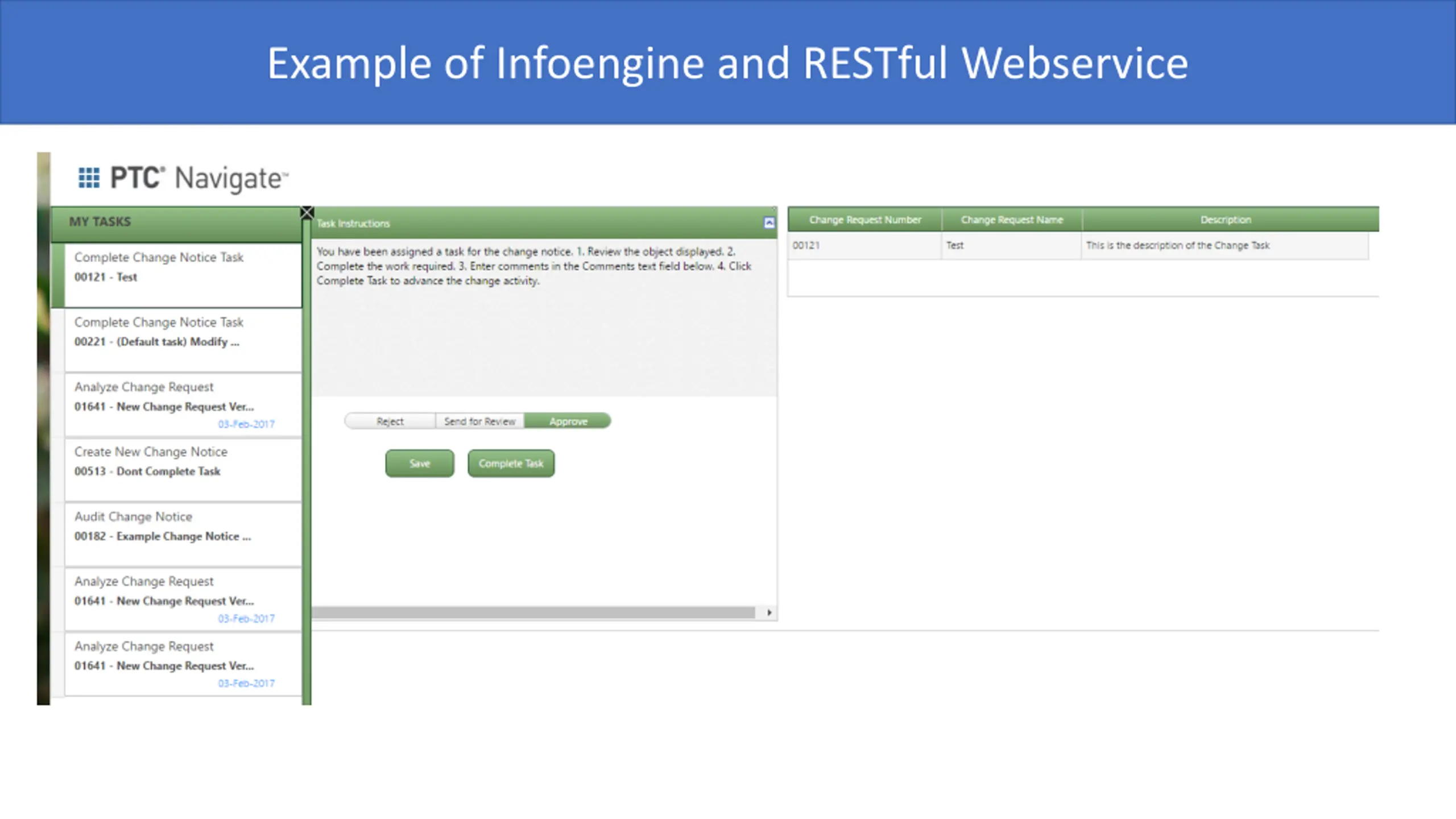

Ways to communicate to Windchill in Thingworx RESTful End Point Infoengine / SOAP based Webservices

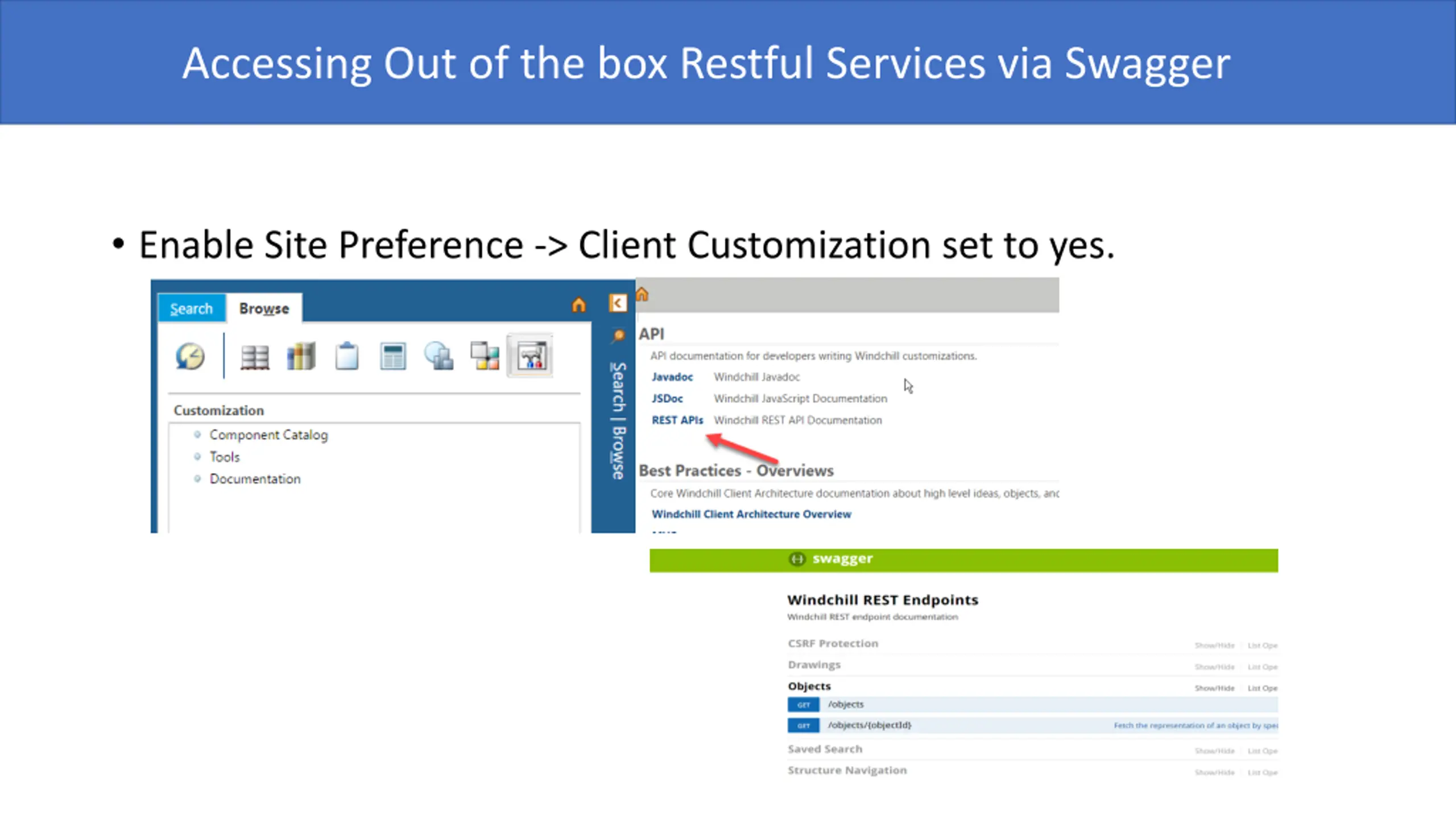

Accessing Out of the box Restful Services via Swagger Enable Site Preference -> Client Customization set to yes.

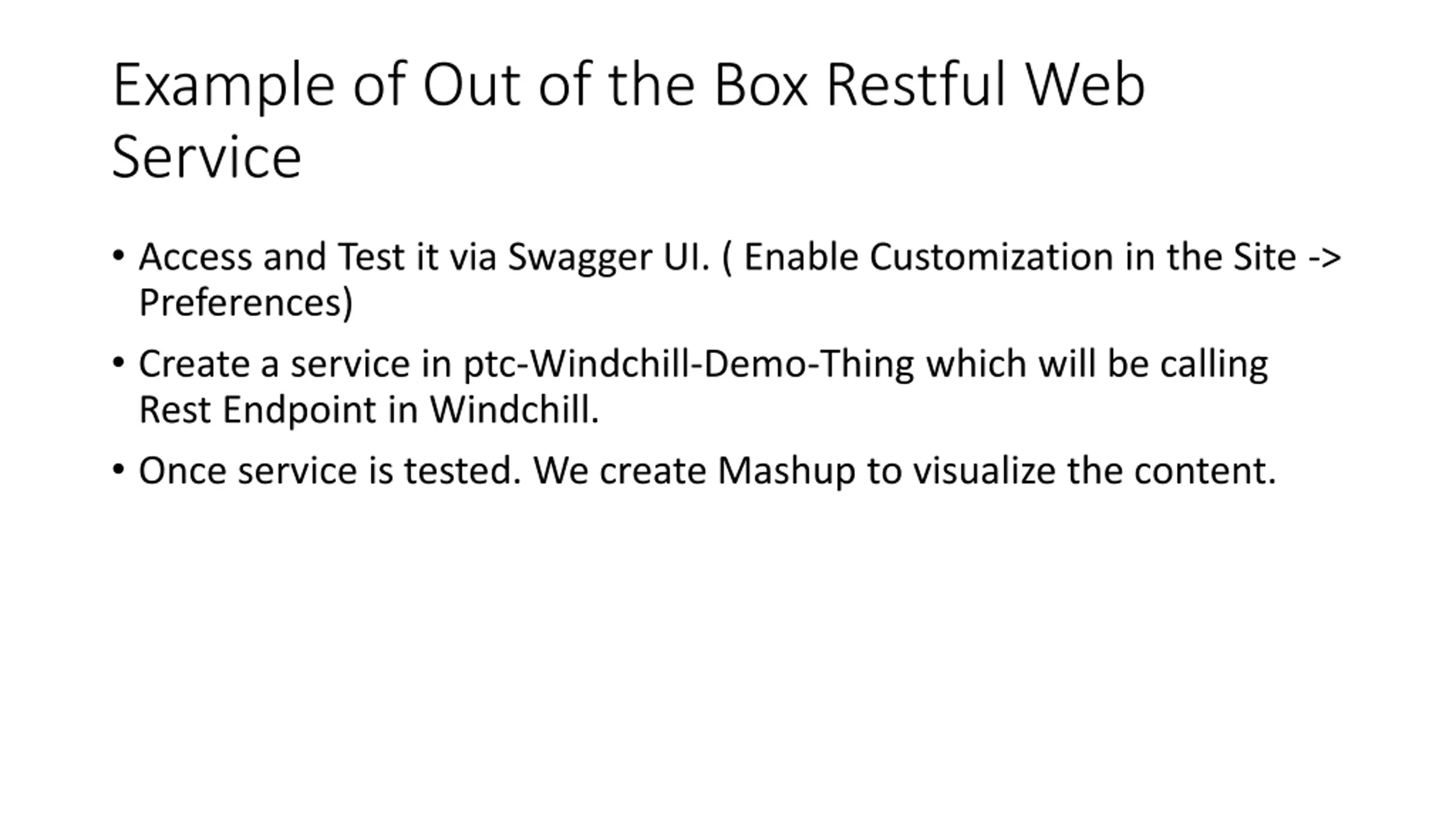

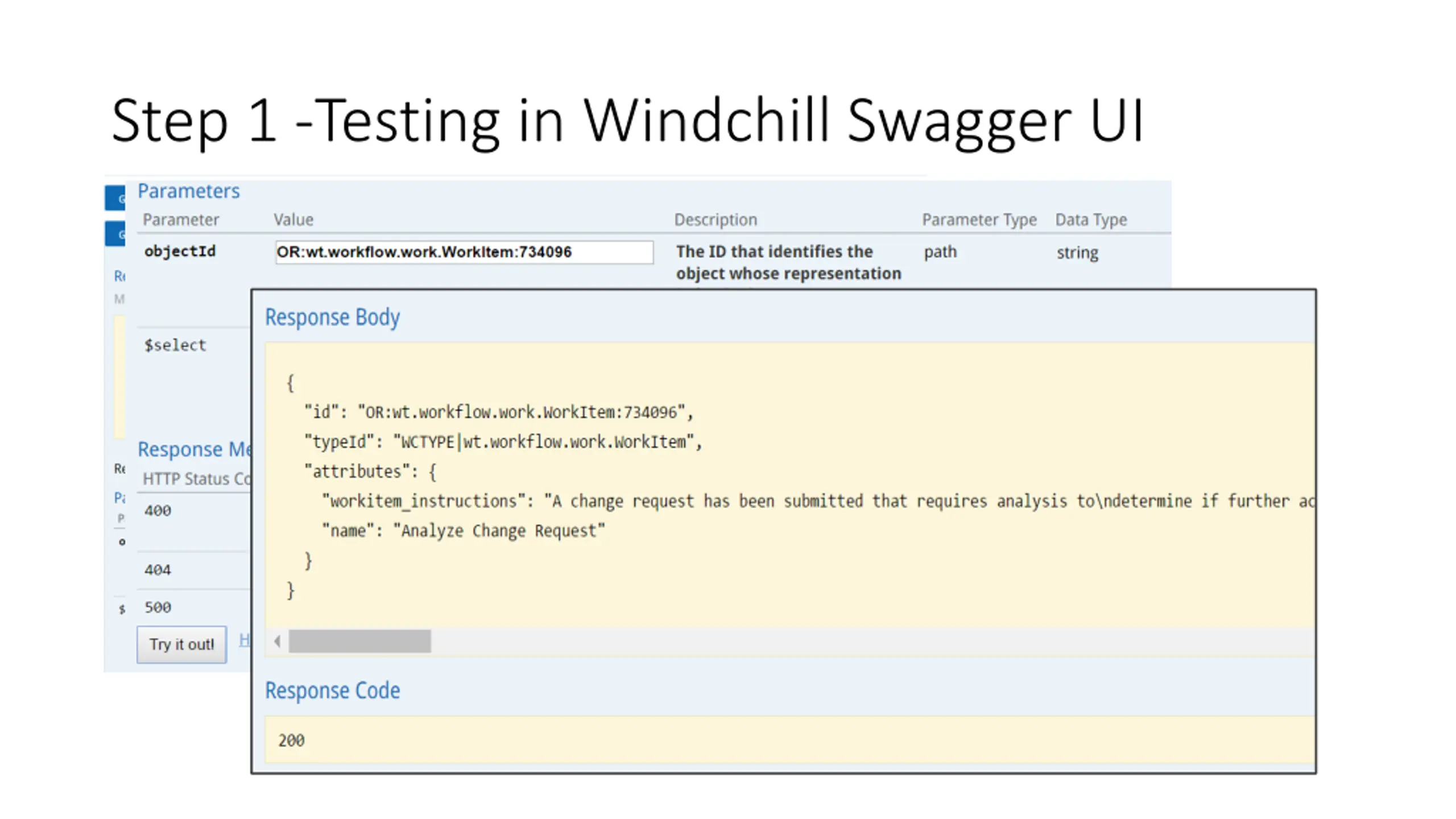

Example of Out of the Box Restful Web Service Access and Test it via Swagger UI. ( Enable Customization in the Site -> Preferences) Create a service in ptc-Windchill-Demo-Thing which will be calling Rest Endpoint in Windchill. Once service is tested. We create Mashup to visualize the content.

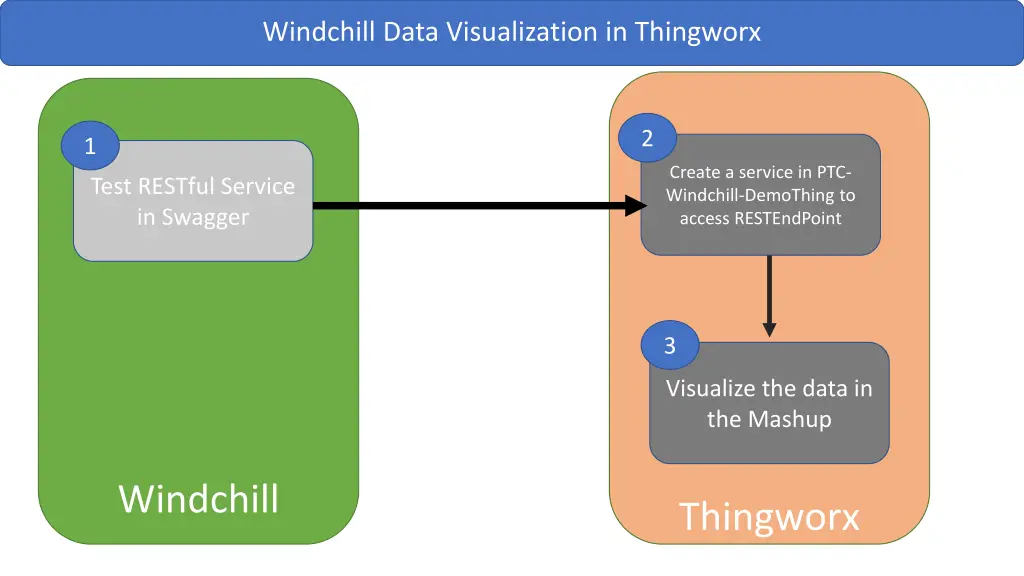

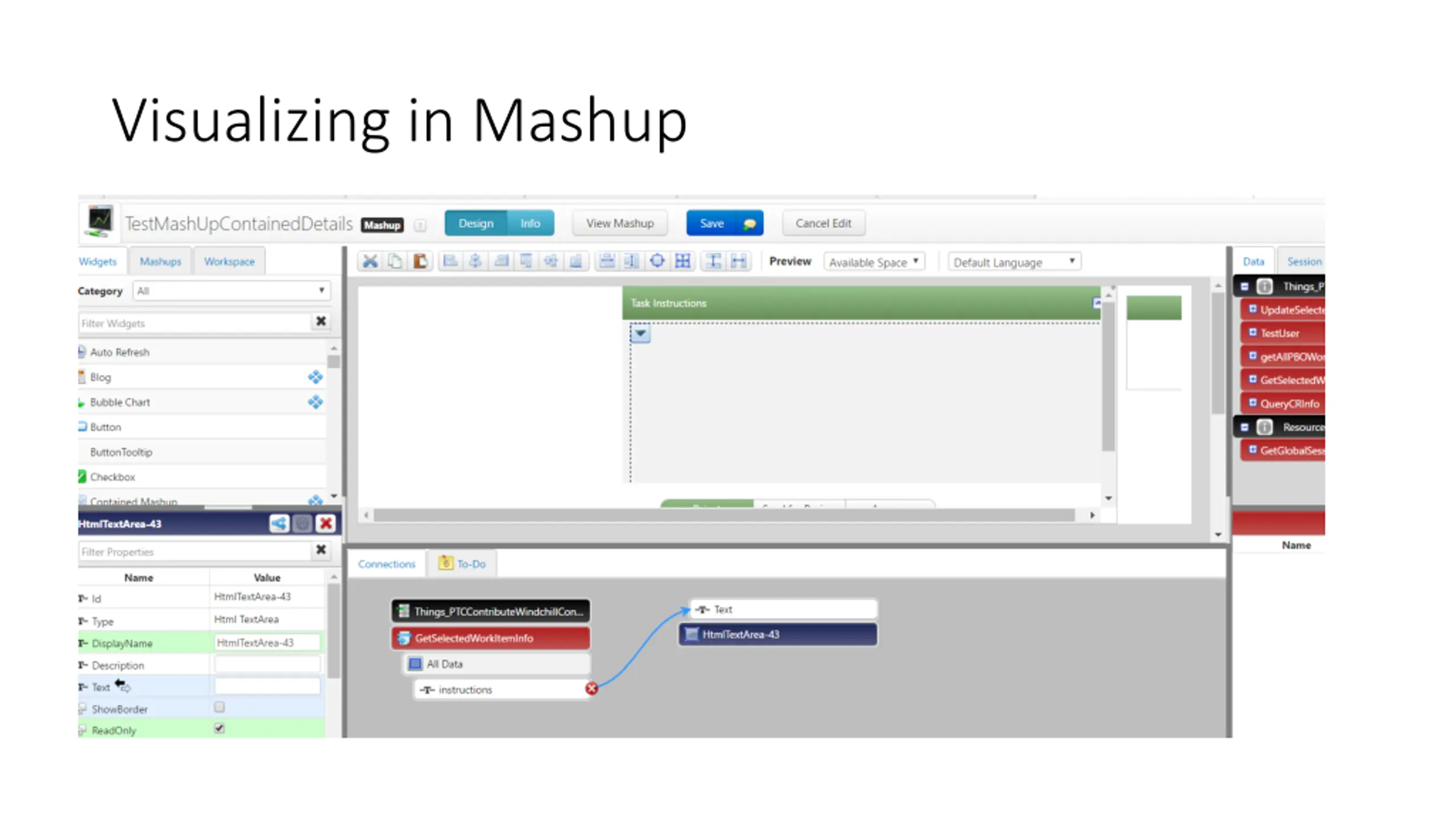

Windchill Data Visualization in Thingworx 2 1 Create a service in PTC- Windchill-DemoThing to access RESTEndPoint Test RESTful Service in Swagger 3 Visualize the data in the Mashup Windchill Thingworx

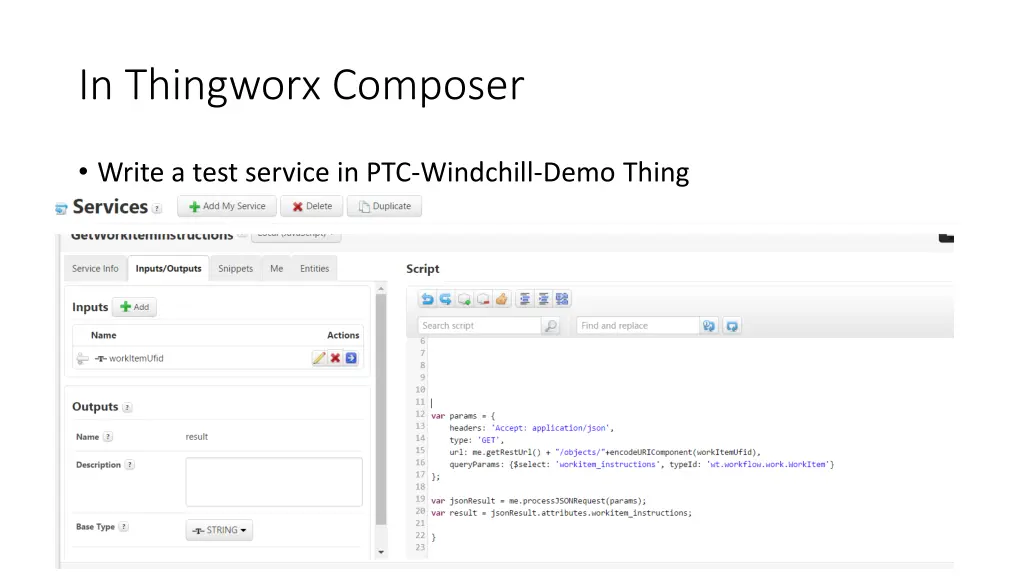

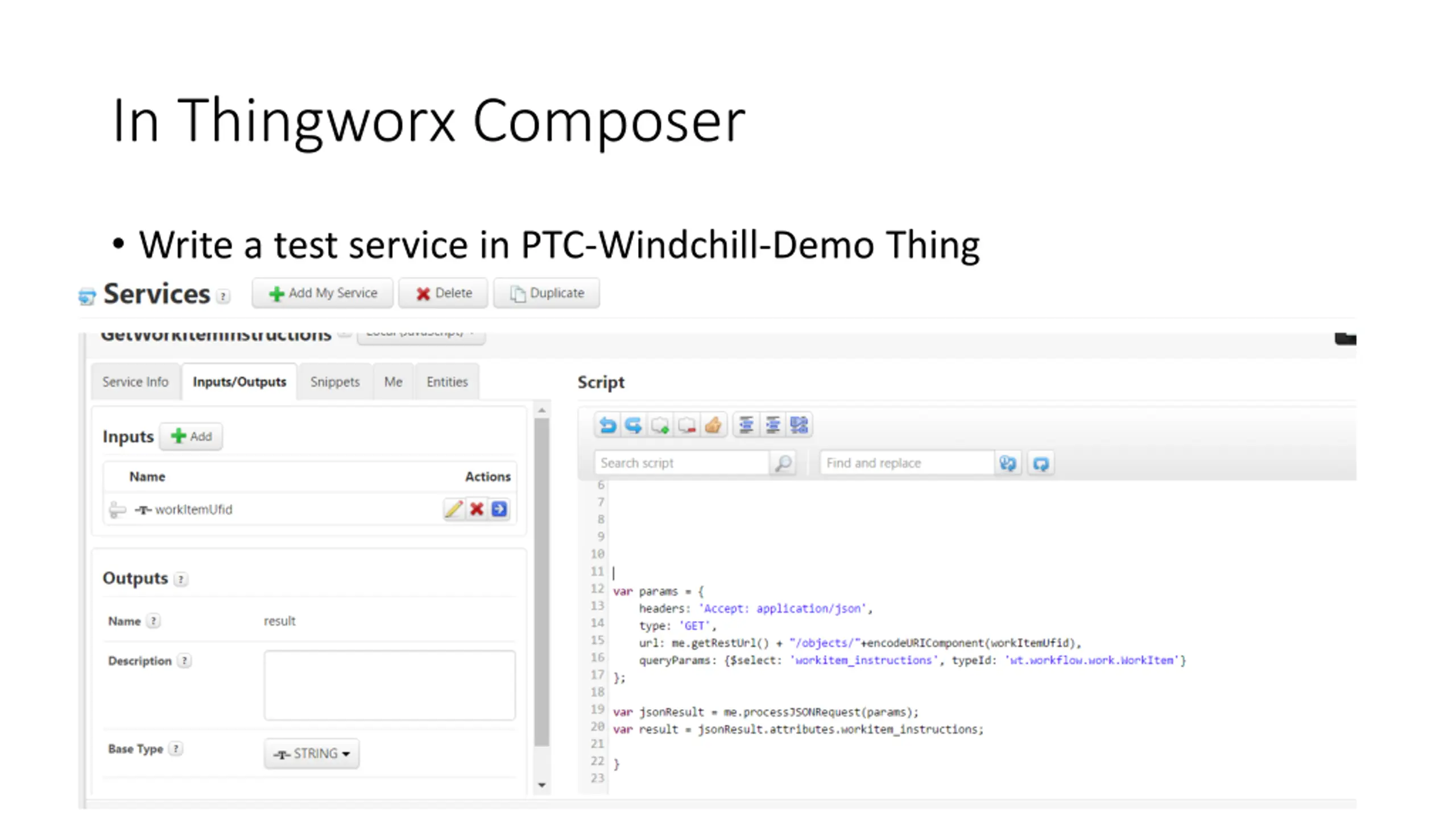

In Thingworx Composer Write a test service in PTC-Windchill-Demo Thing

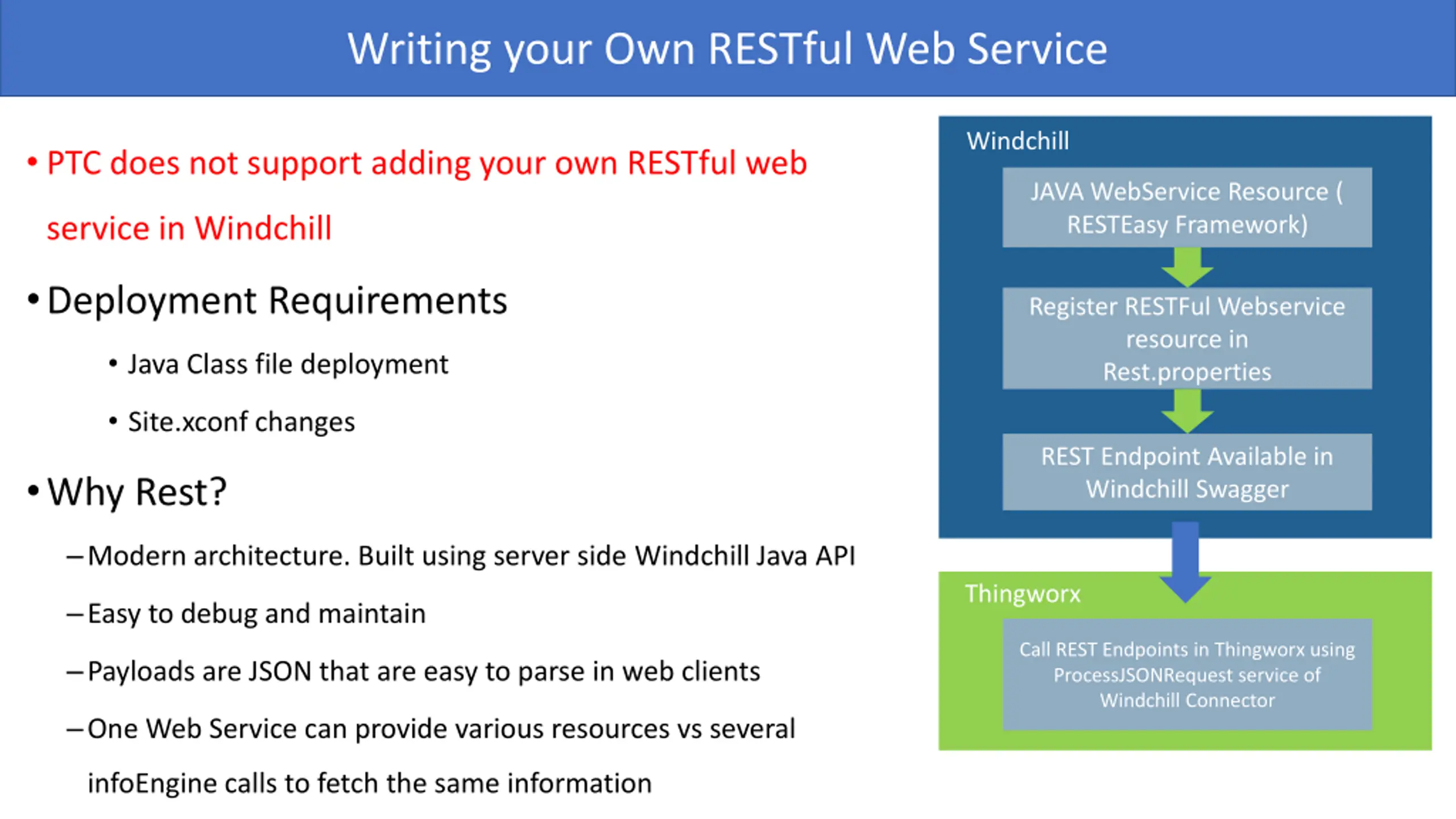

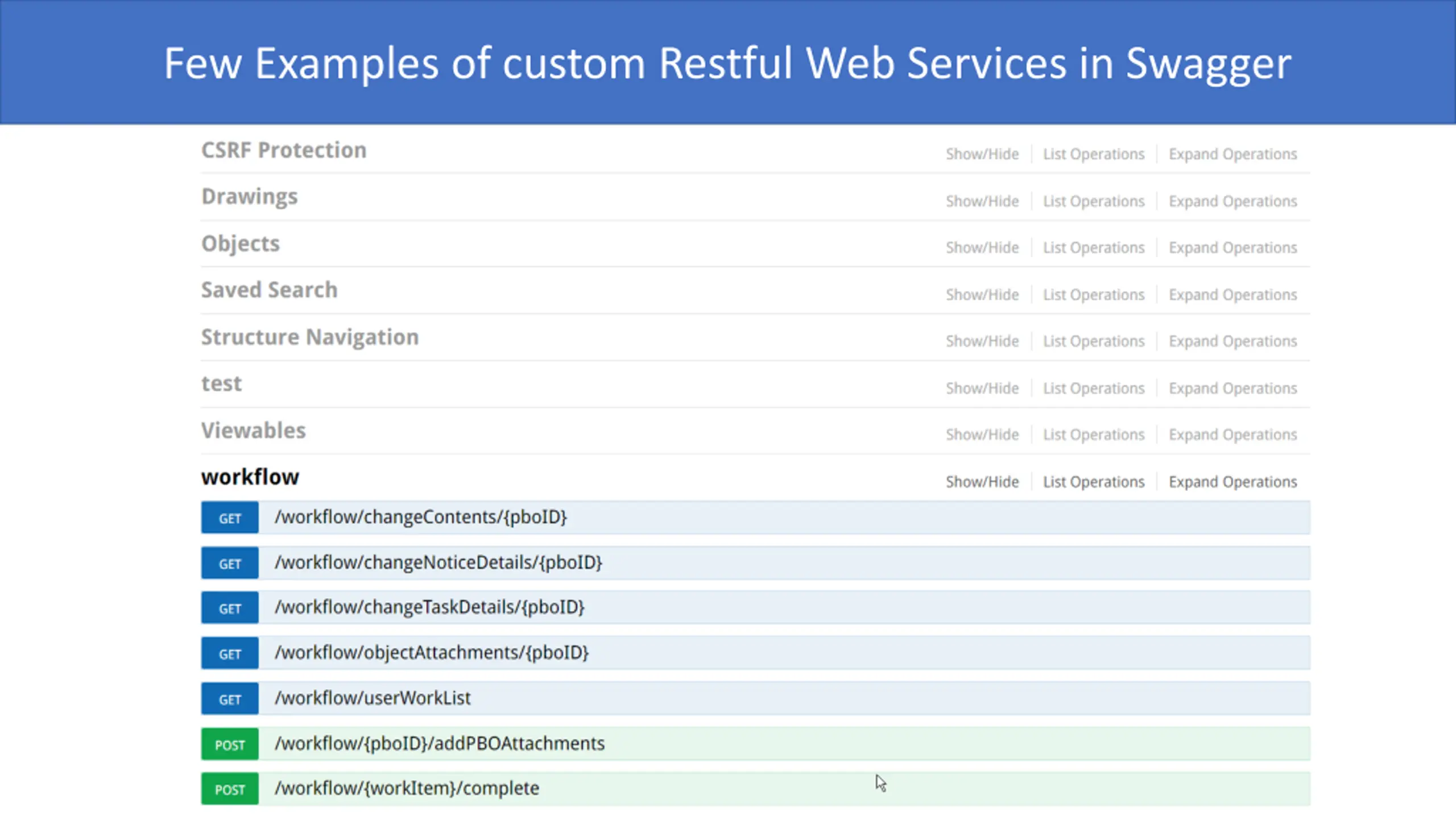

Writing your Own RESTful Web Service Windchill PTC does not support adding your own RESTful web JAVA WebService Resource ( RESTEasy Framework) service in Windchill Deployment Requirements Register RESTFul Webservice resource in Rest.properties Java Class file deployment Site.xconf changes REST Endpoint Available in Windchill Swagger Why Rest? Modern architecture. Built using server side Windchill Java API Thingworx Easy to debug and maintain Call REST Endpoints in Thingworx using ProcessJSONRequest service of Windchill Connector Payloads are JSON that are easy to parse in web clients One Web Service can provide various resources vs several infoEngine calls to fetch the same information

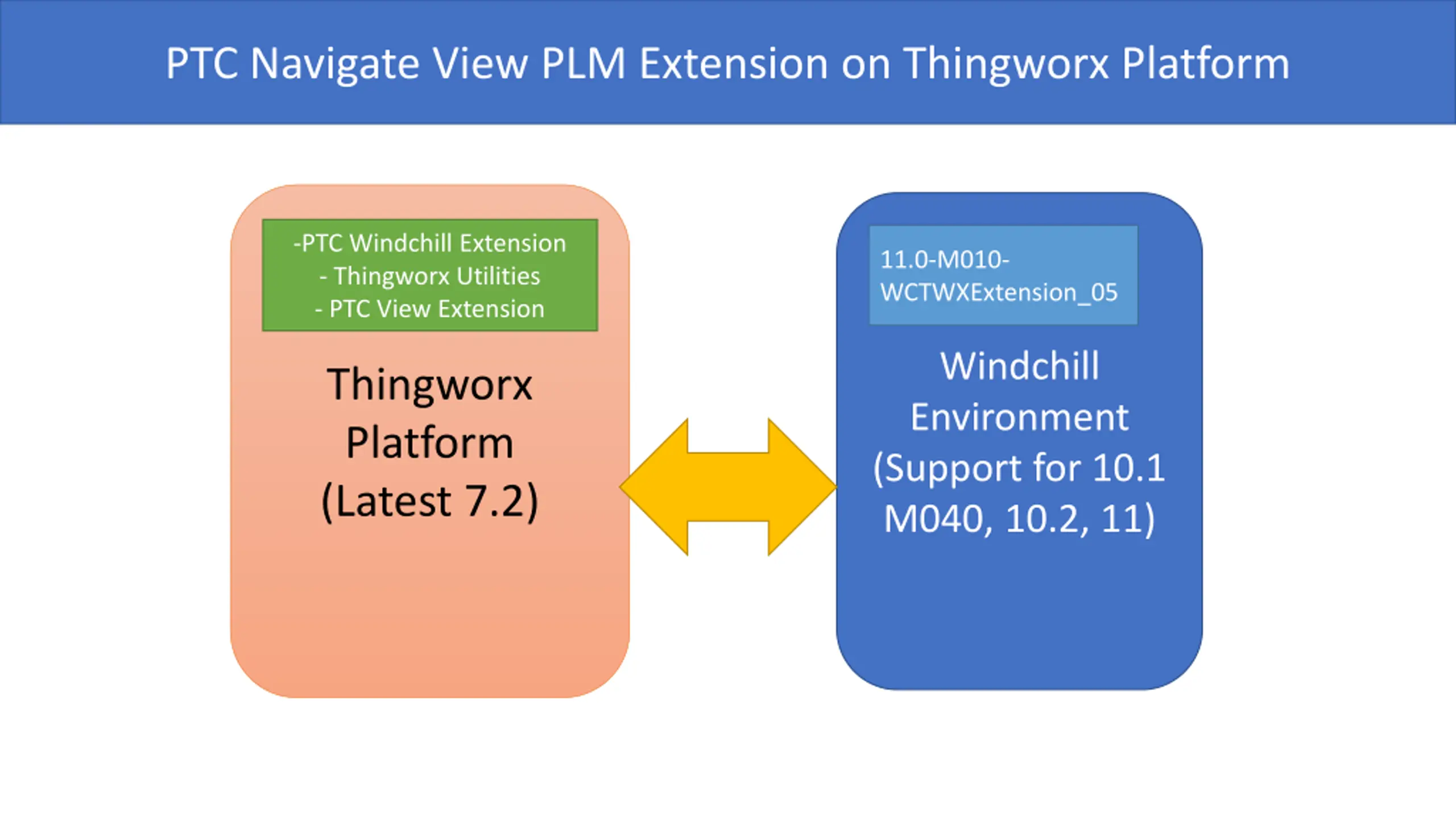

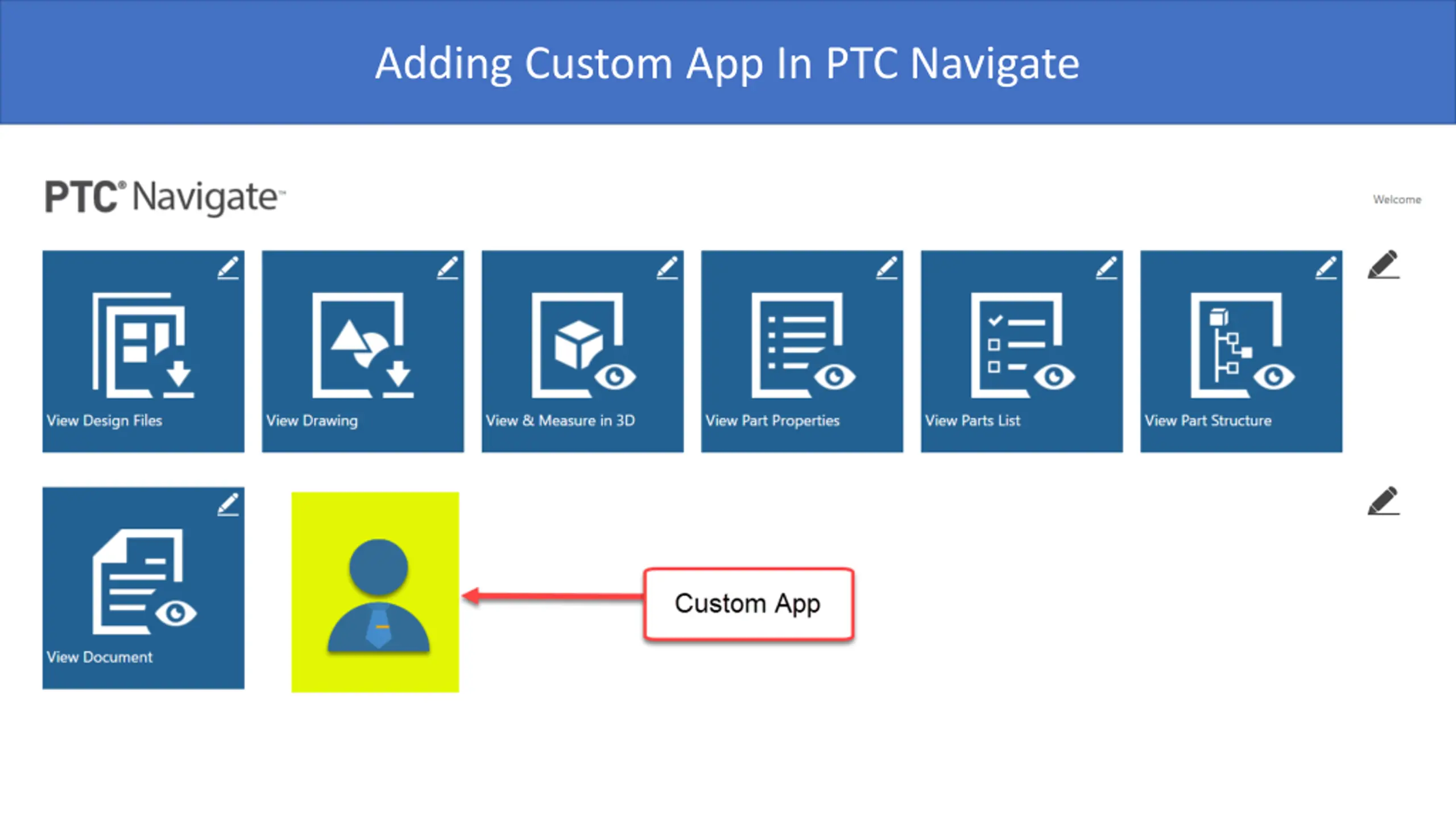

PTC Navigate View PLM Extension on Thingworx Platform -PTC Windchill Extension - Thingworx Utilities - PTC View Extension 11.0-M010- WCTWXExtension_05 Windchill Environment (Support for 10.1 M040, 10.2, 11) Thingworx Platform (Latest 7.2)

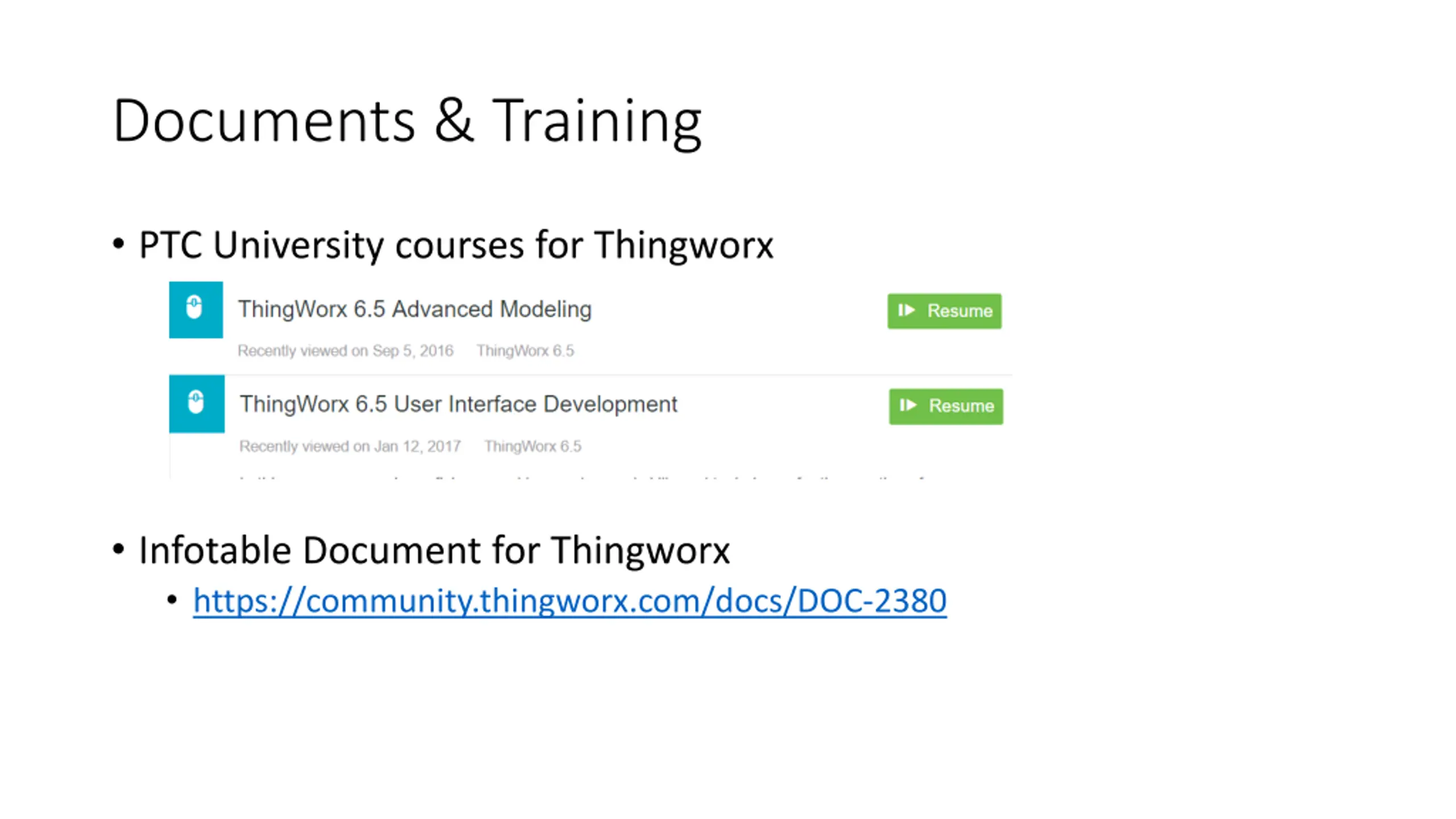

Documents & Training PTC University courses for Thingworx Infotable Document for Thingworx https://community.thingworx.com/docs/DOC-2380

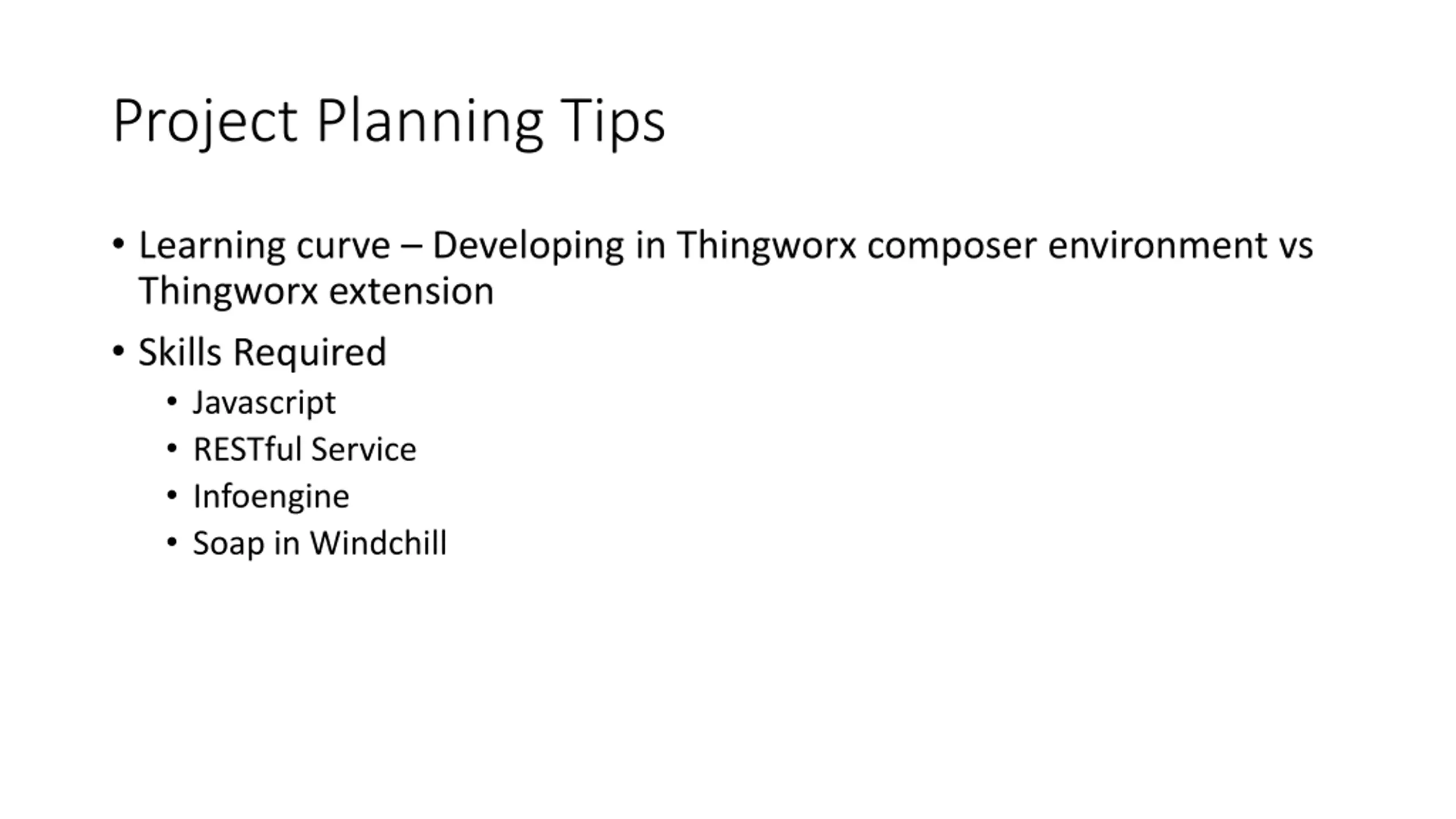

Project Planning Tips Learning curve Developing in Thingworx composer environment vs Thingworx extension Skills Required Javascript RESTful Service Infoengine Soap in Windchill

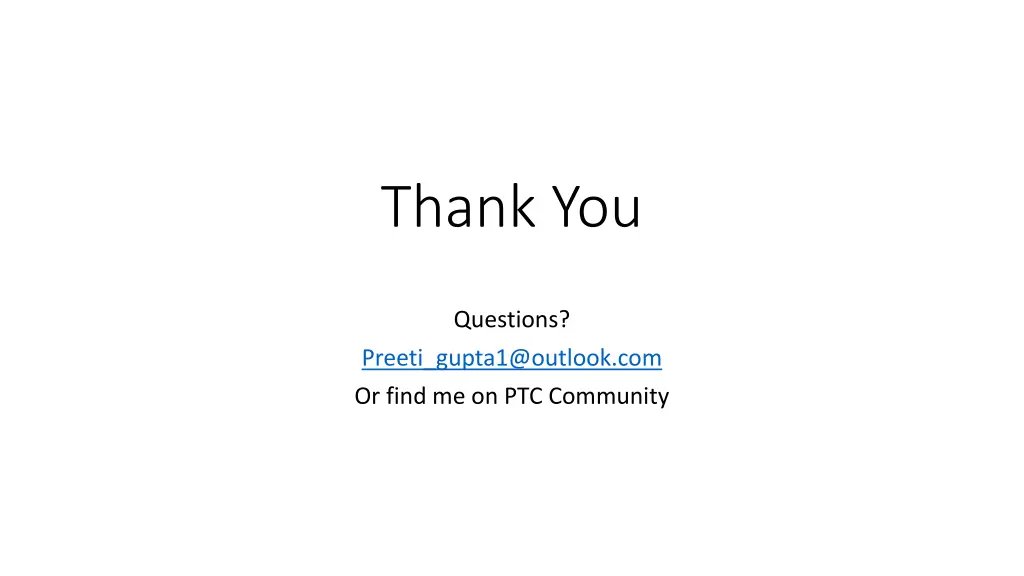

Thank You Questions? Preeti_gupta1@outlook.com Or find me on PTC Community
