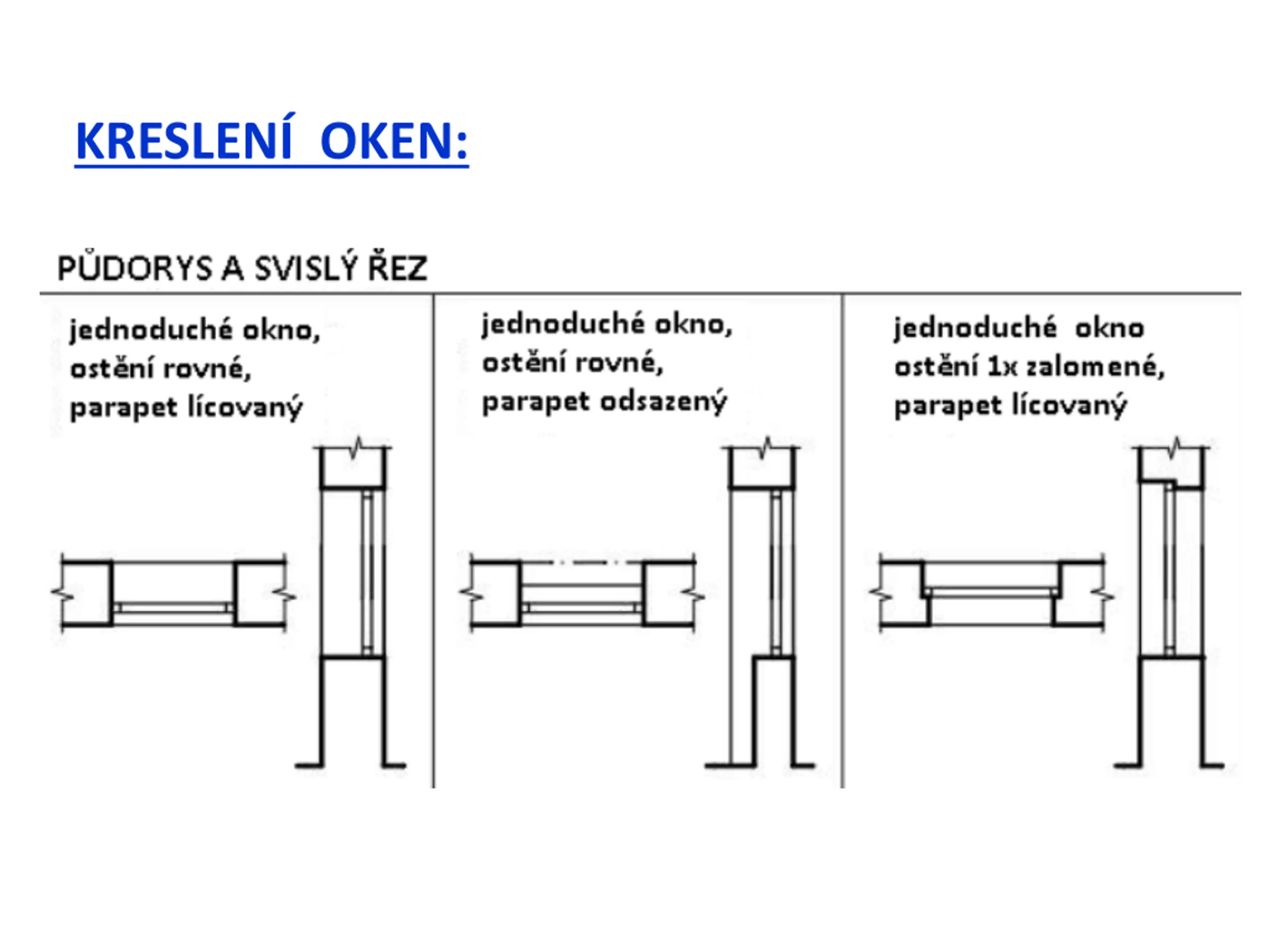

KRESLEN A KTOVN OKENN CH A DVE N CH OTVOR , PROSTUP , NIK A DR EK

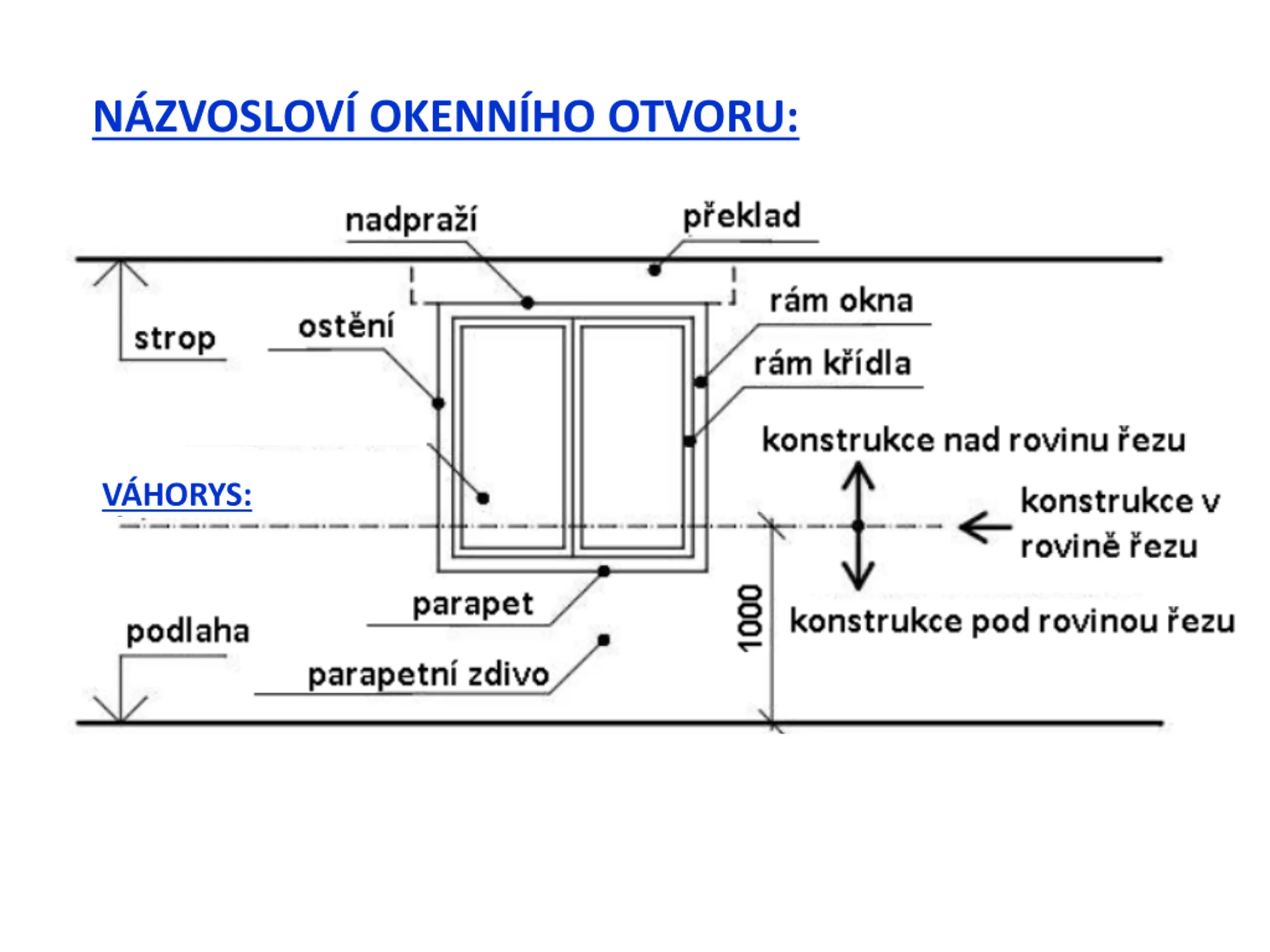

NZVOSLOV OKENNHO OTVORU: V HORYS:

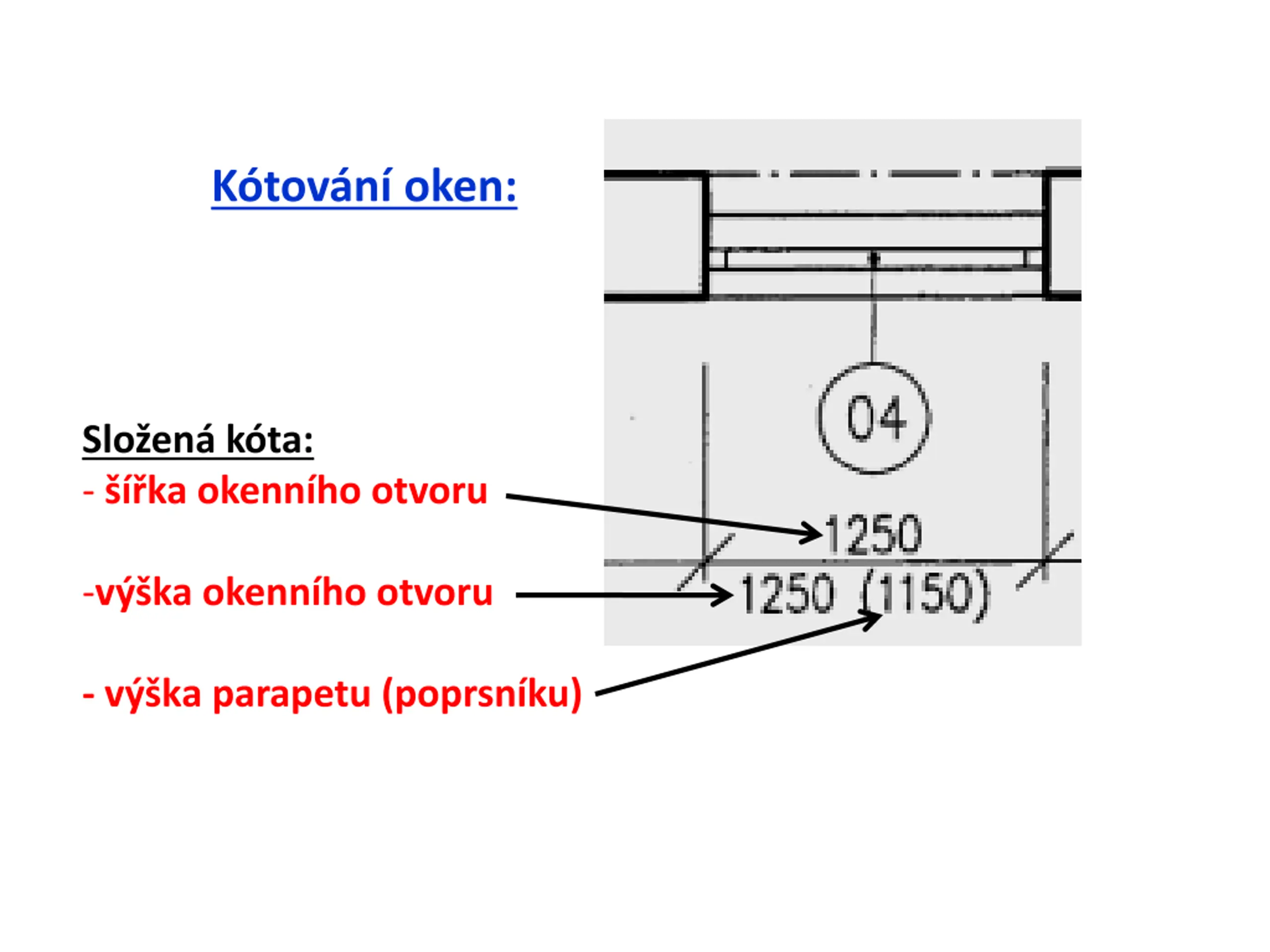

Ktovn oken: Slo en k ta: - ka okenn ho otvoru -v ka okenn ho otvoru - v ka parapetu (poprsn ku)

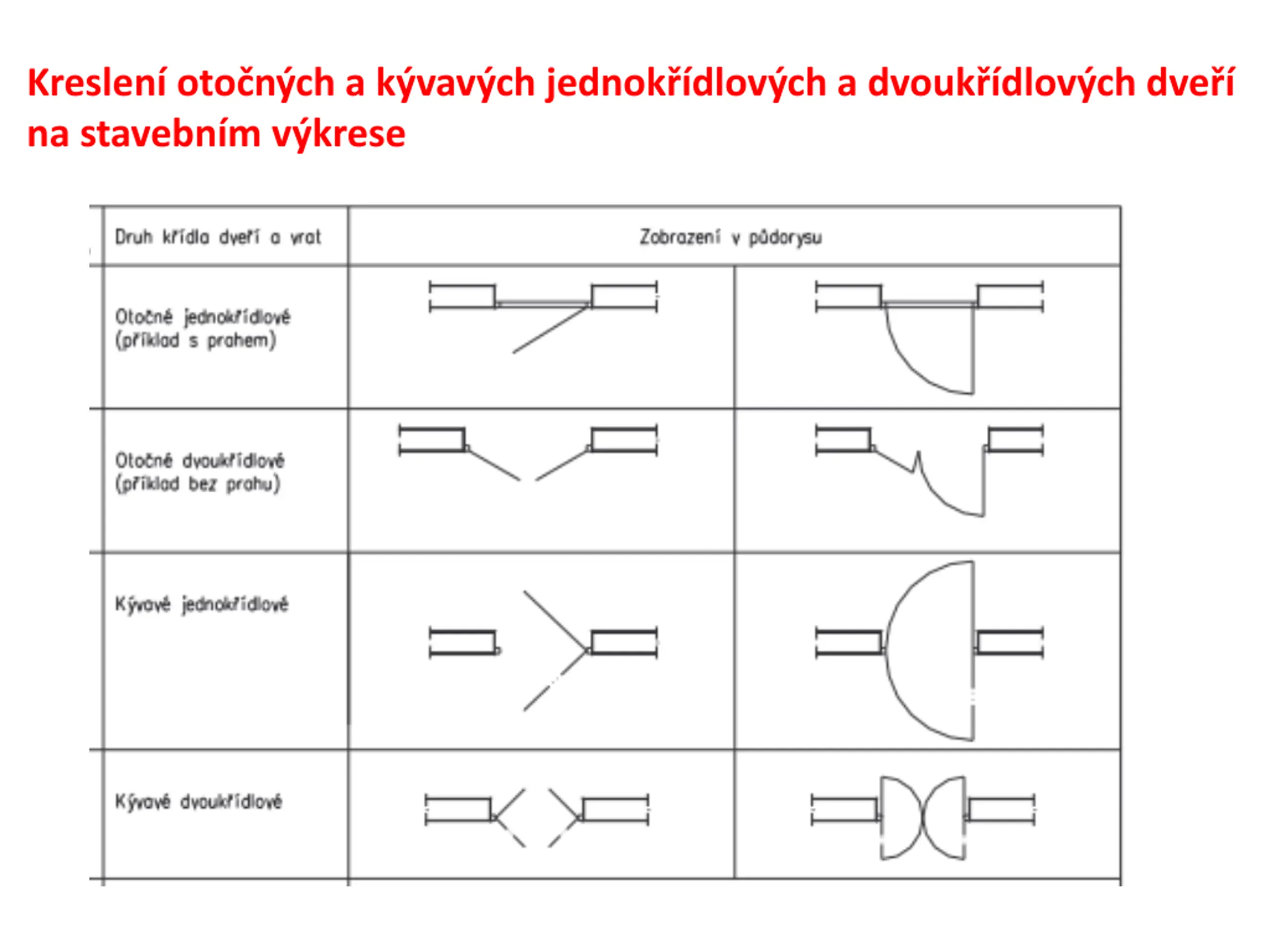

Kreslen otonch a kvavch jednokdlovch a dvoukdlovch dve na stavebn m v krese

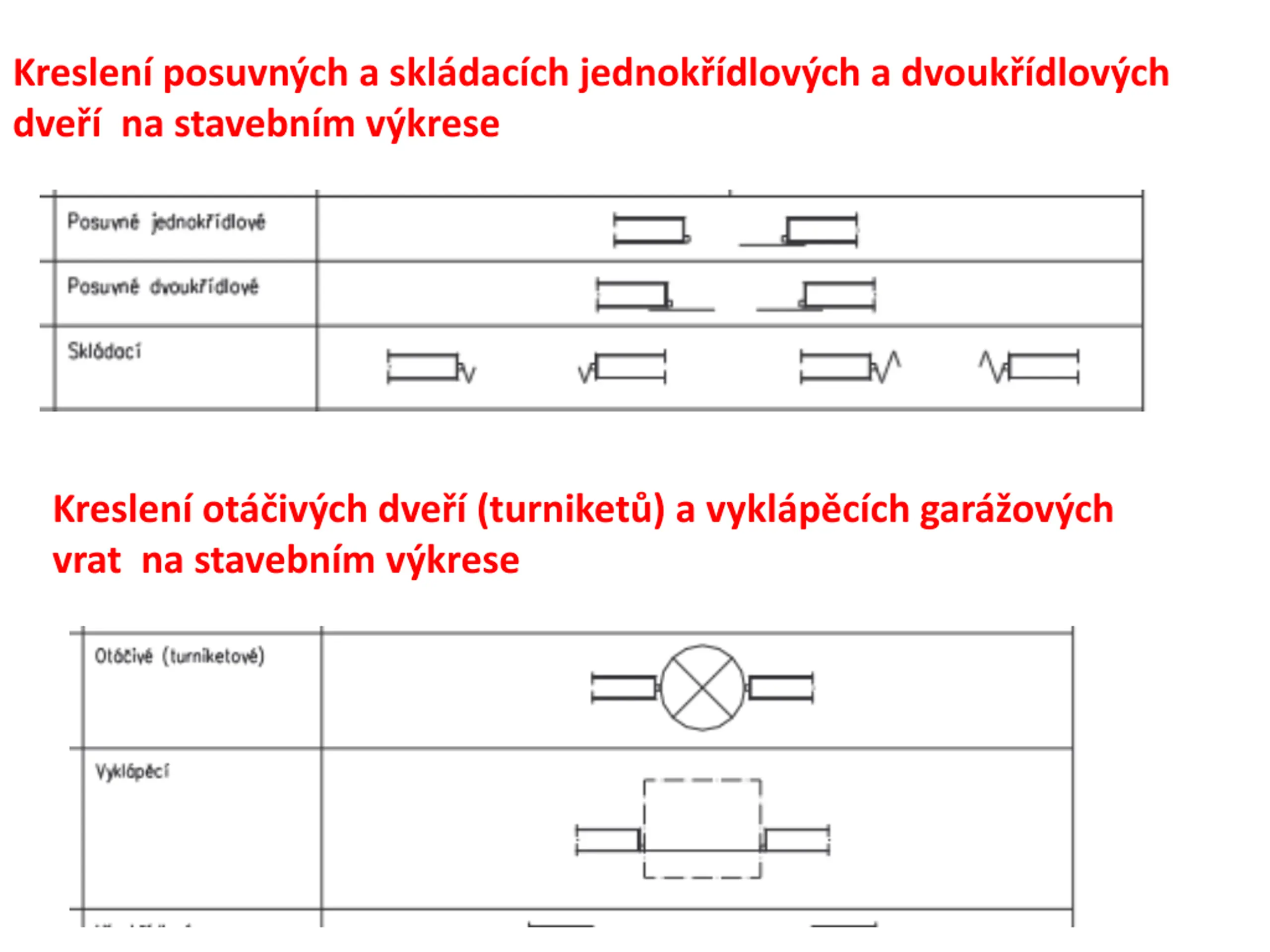

Kreslen posuvnch a skldacch jednokdlovch a dvoukdlovch dve na stavebn m v krese Kreslen ot iv ch dve (turniket ) a vykl p c ch gar ov ch vrat na stavebn m v krese

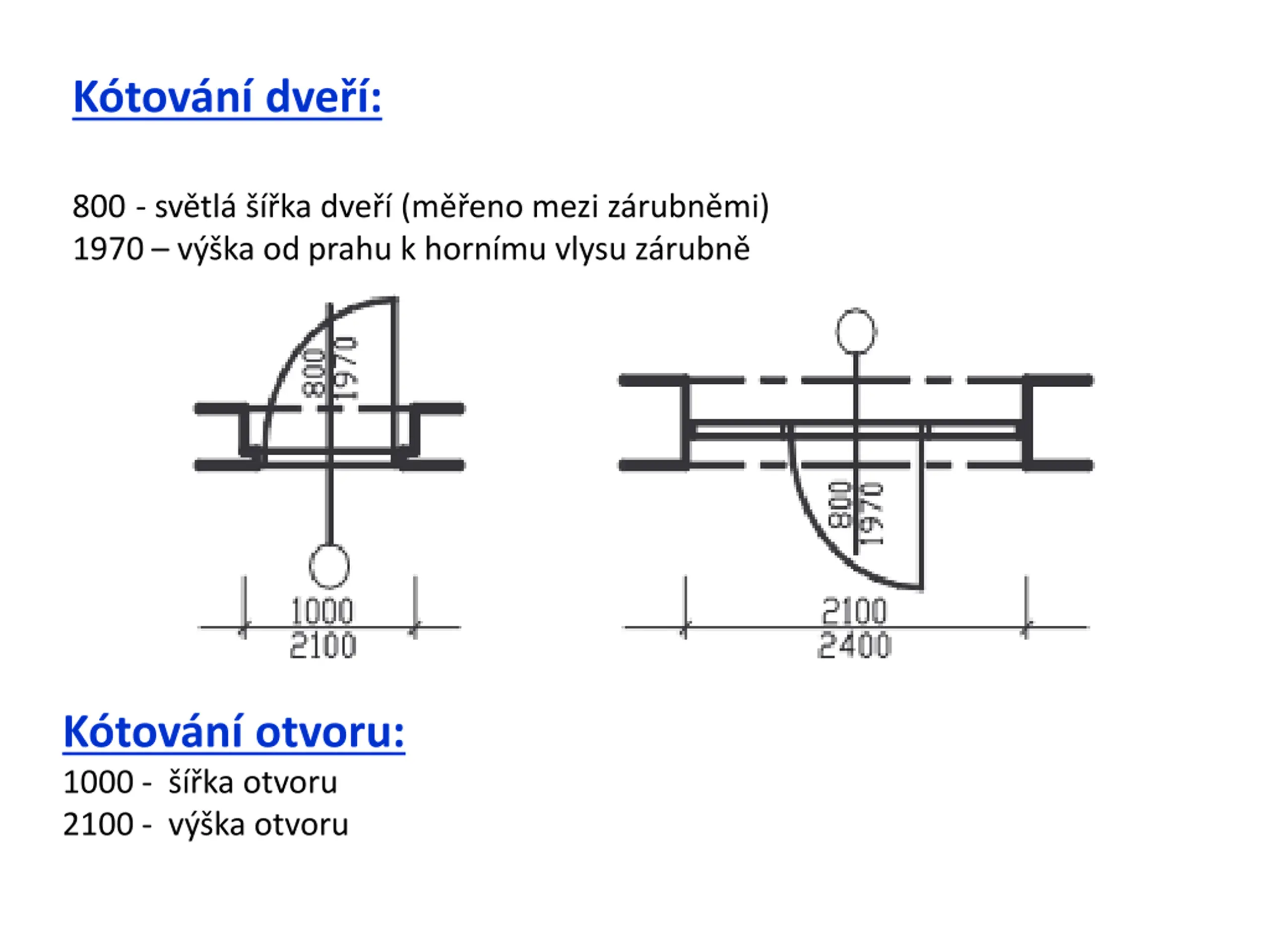

Ktovn dve: 800 - sv tl ka dve (m eno mezi z rubn mi) 1970 v ka od prahu k horn mu vlysu z rubn K tov n otvoru: 1000 - ka otvoru 2100 - v ka otvoru

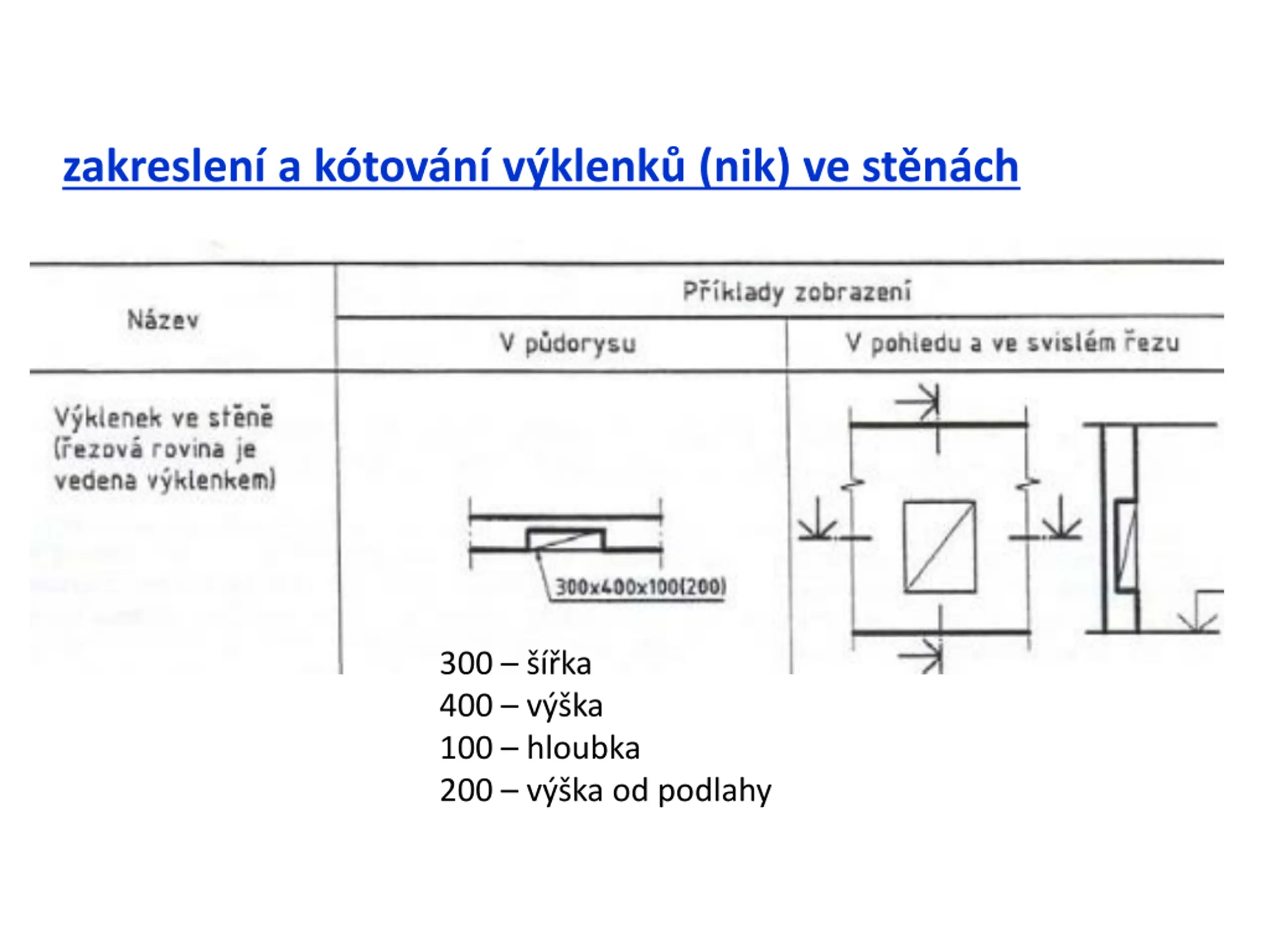

zakreslen a ktovn vklenk (nik) ve stnch 300 ka 400 v ka 100 hloubka 200 v ka od podlahy

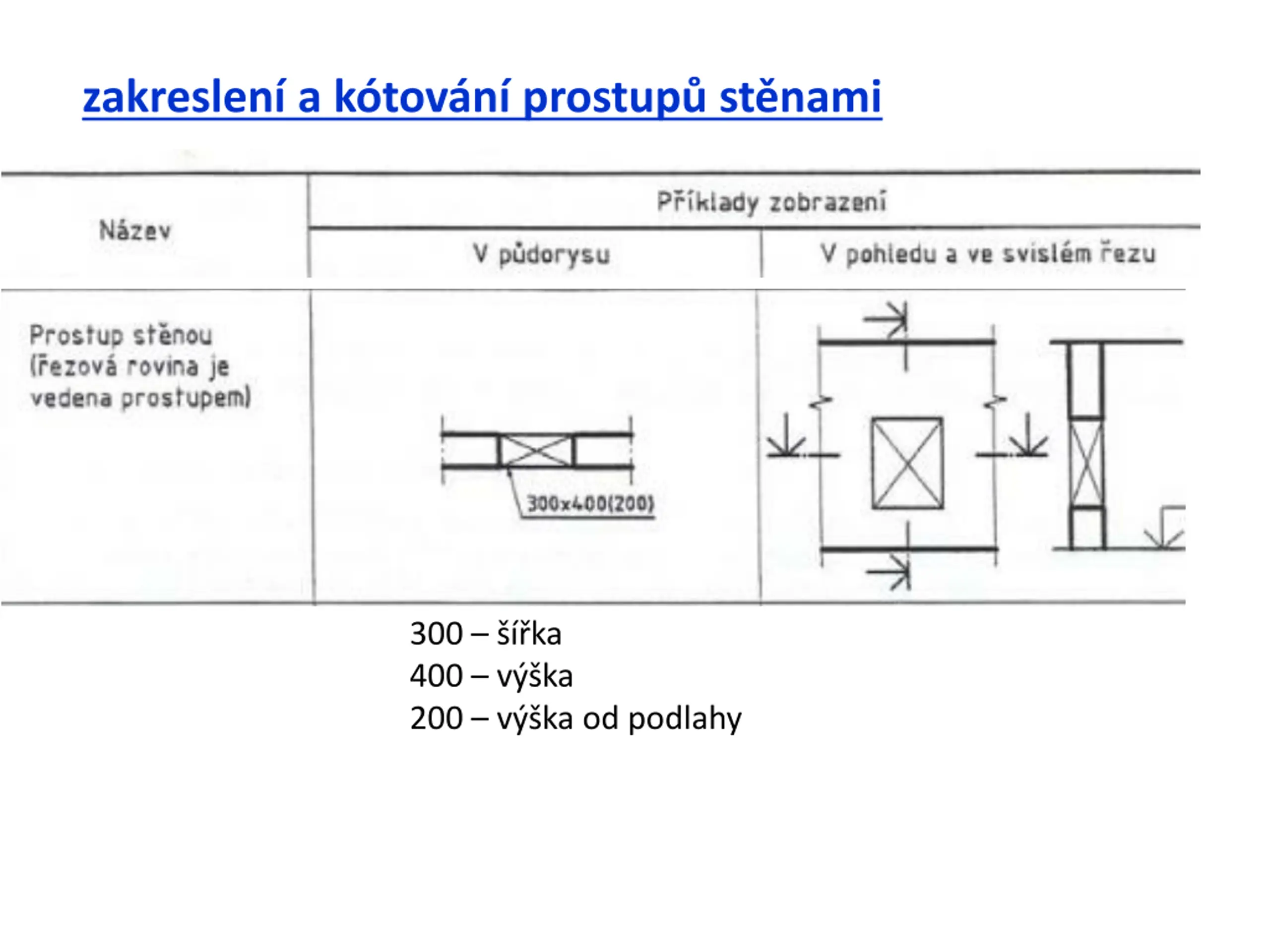

zakreslen a ktovn prostup stnami 300 ka 400 v ka 200 v ka od podlahy

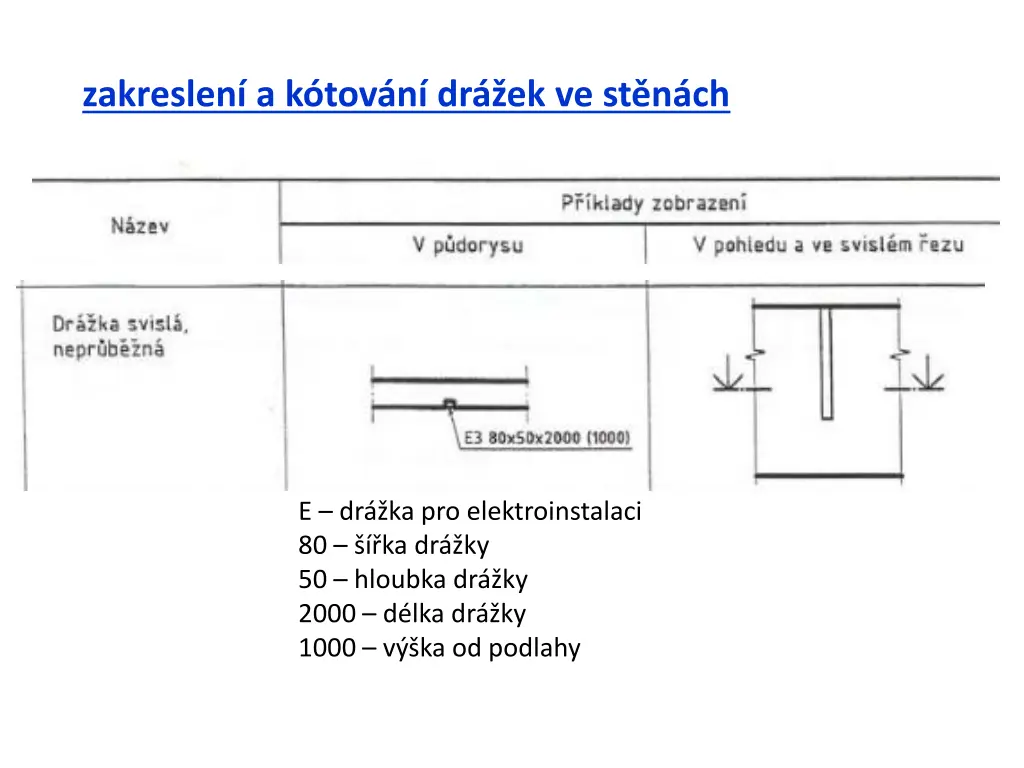

zakreslen a ktovn drek ve stnch E dr ka pro elektroinstalaci 80 ka dr ky 50 hloubka dr ky 2000 d lka dr ky 1000 v ka od podlahy
