Presentation Transcript
Windows Server 2012 R2 Overview Boris Ul k Technology Solutions Professional Windows Infra & Systems Mgmt

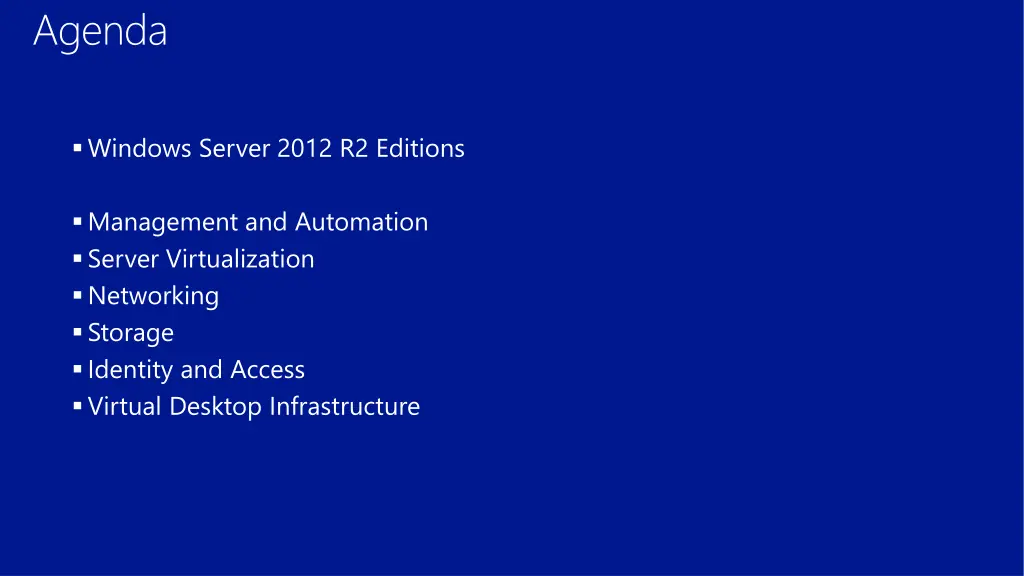

Agenda Windows Server 2012 R2 Editions Management and Automation Server Virtualization Networking Storage Identity and Access Virtual Desktop Infrastructure

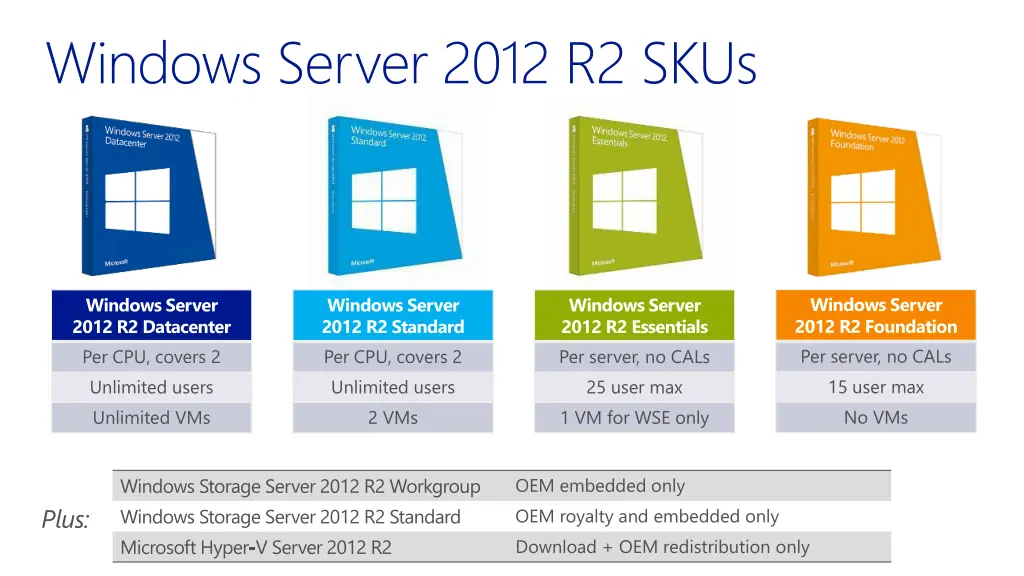

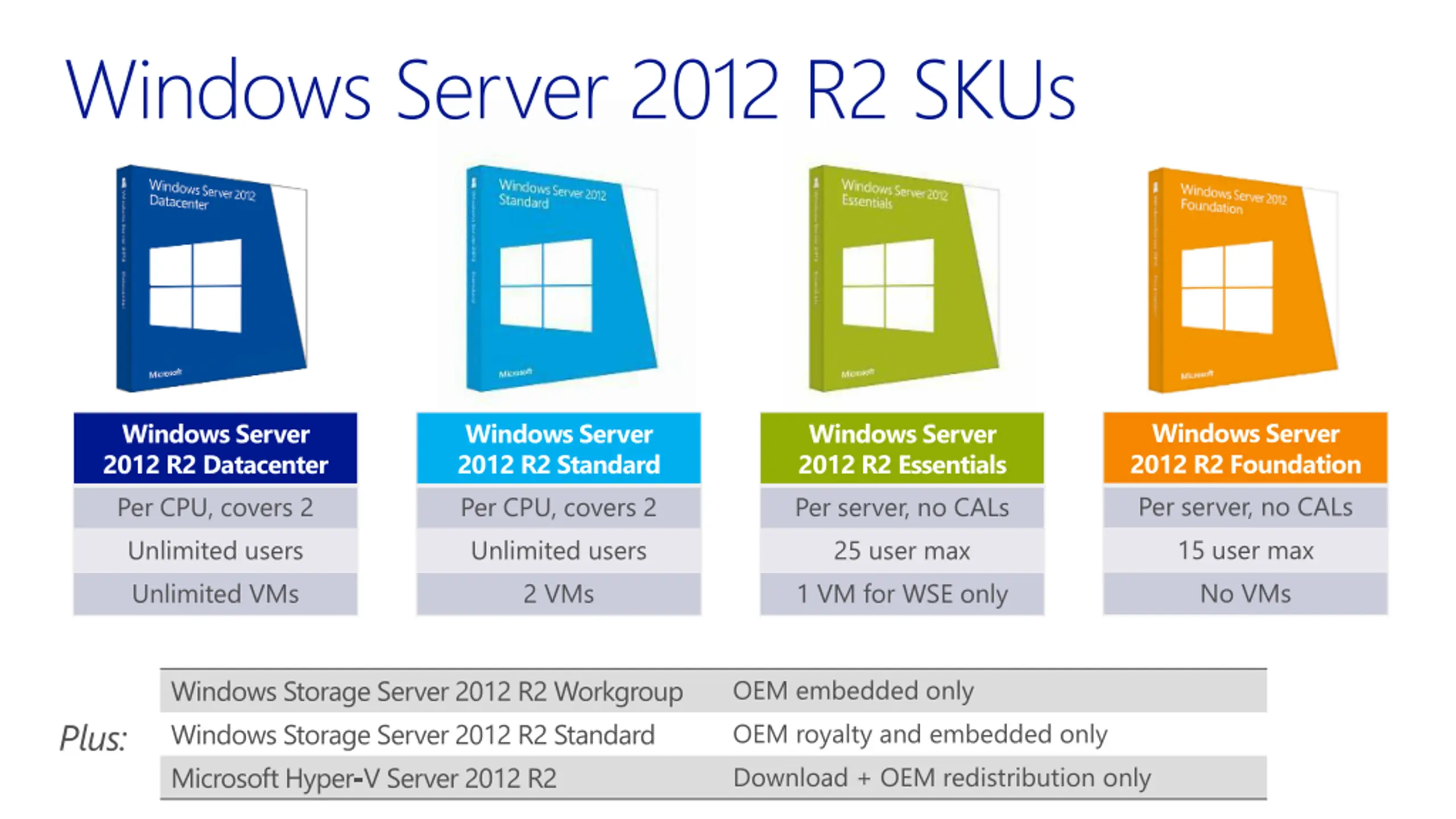

Windows Server 2012 R2 SKUs Windows Server 2012 R2 Foundation Per server, no CALs 15 user max No VMs Windows Server 2012 R2 Datacenter Per CPU, covers 2 Unlimited users Unlimited VMs Windows Server 2012 R2 Standard Per CPU, covers 2 Unlimited users 2 VMs Windows Server 2012 R2 Essentials Per server, no CALs 25 user max 1 VM for WSE only Windows Storage Server 2012 R2 Workgroup Windows Storage Server 2012 R2 Standard Microsoft Hyper-V Server 2012 R2 OEM embedded only OEM royalty and embedded only Download + OEM redistribution only Plus:

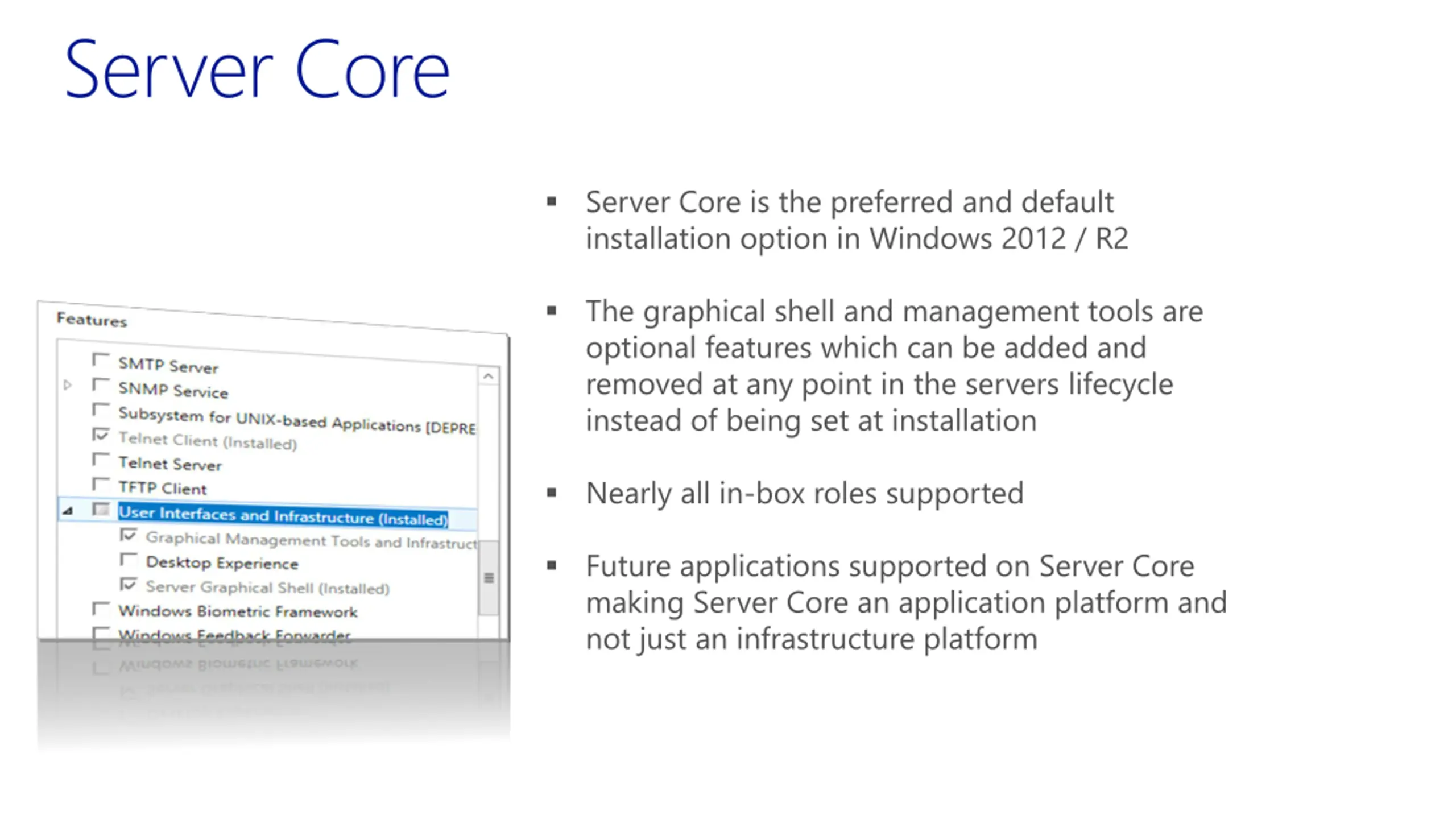

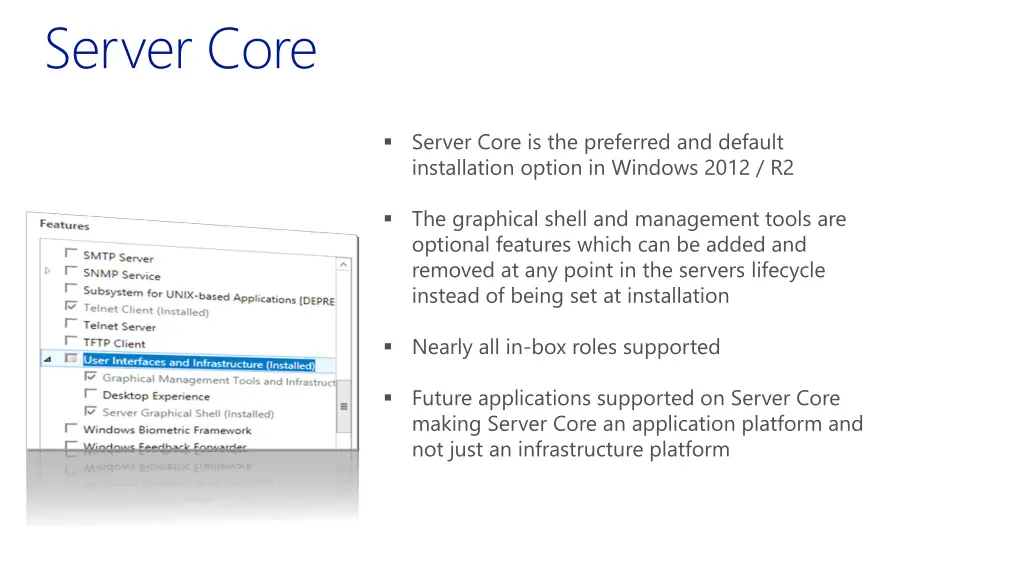

Server Core Server Core is the preferred and default installation option in Windows 2012 / R2 The graphical shell and management tools are optional features which can be added and removed at any point in the servers lifecycle instead of being set at installation Nearly all in-box roles supported Future applications supported on Server Core making Server Core an application platform and not just an infrastructure platform
Windows Server Essentials Experience Essentials functionalities are enabled via a dedicated server role in Windows Server Standard and Windows Server Datacenter. Familiar and seamless deployment experience that sets up the most fundamental roles for the primary server. Optional unattended deployment and configuration using PowerShell.

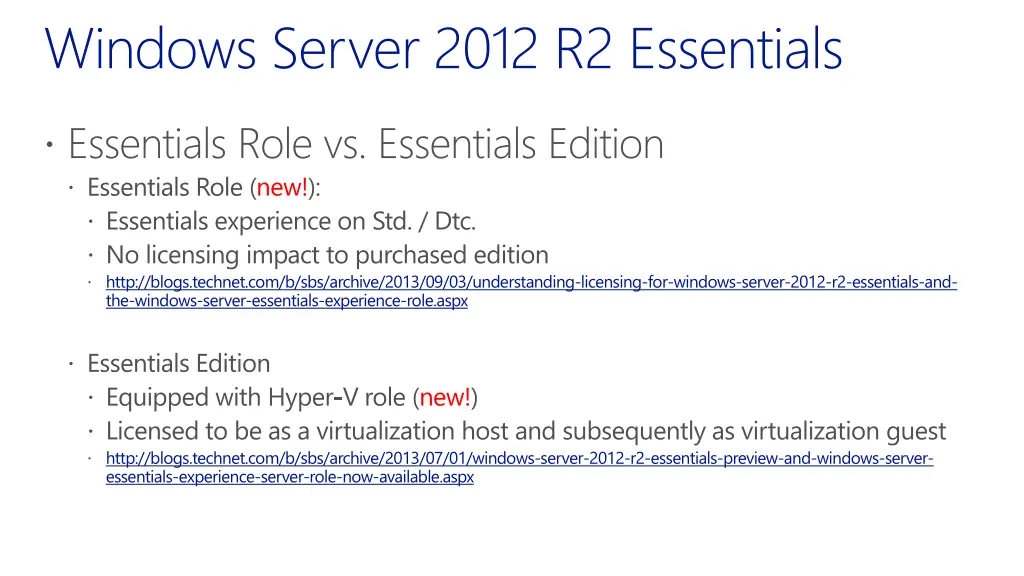

Windows Server 2012 R2 Essentials Essentials Role vs. Essentials Edition Essentials Role (new!): Essentials experience on Std. / Dtc. No licensing impact to purchased edition http://blogs.technet.com/b/sbs/archive/2013/09/03/understanding-licensing-for-windows-server-2012-r2-essentials-and- the-windows-server-essentials-experience-role.aspx Essentials Edition Equipped with Hyper-V role (new!) Licensed to be as a virtualization host and subsequently as virtualization guest http://blogs.technet.com/b/sbs/archive/2013/07/01/windows-server-2012-r2-essentials-preview-and-windows-server- essentials-experience-server-role-now-available.aspx

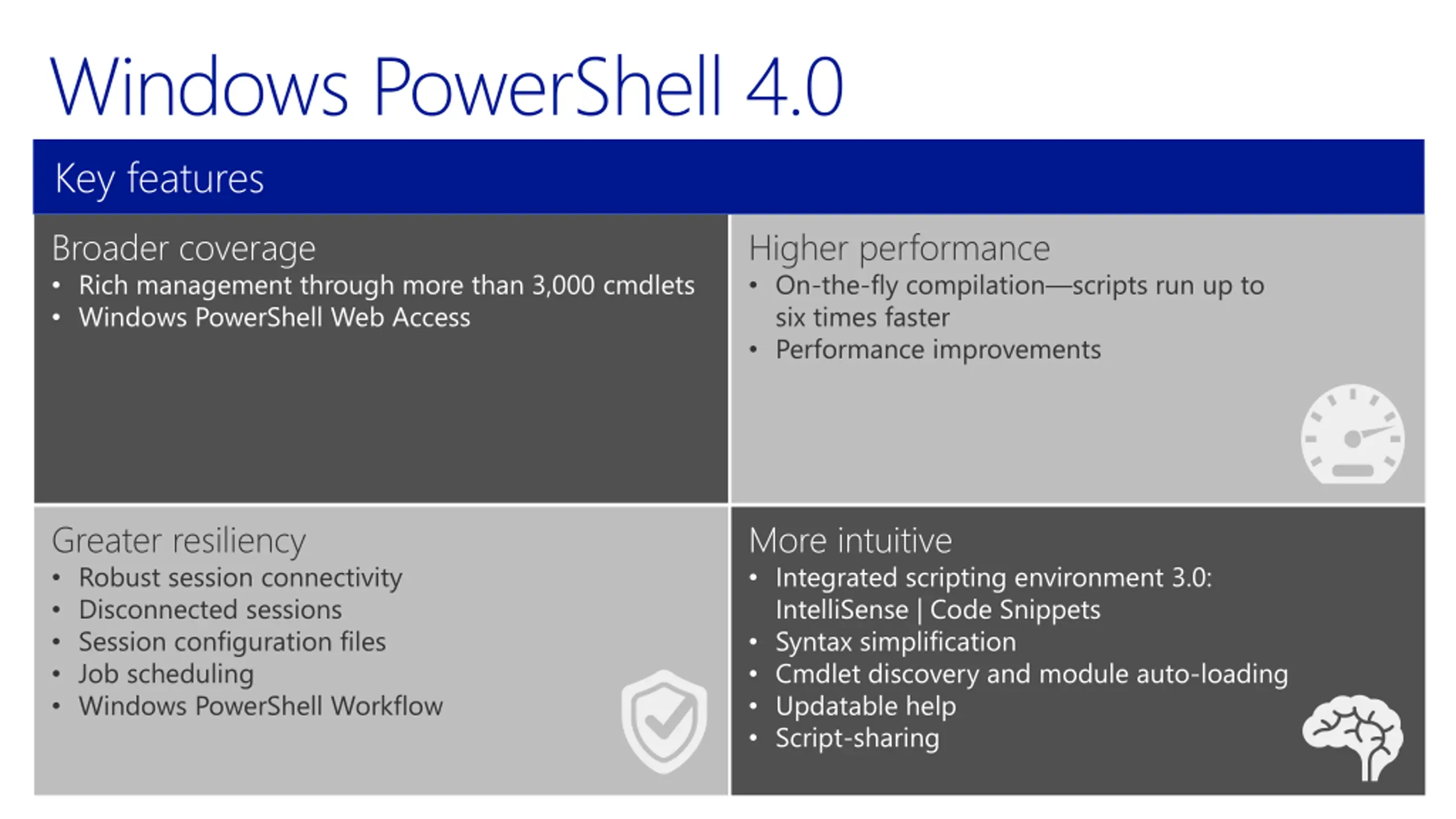

Windows PowerShell 4.0 Key features Broader coverage Rich management through more than 3,000 cmdlets Windows PowerShell Web Access Higher performance On-the-fly compilation scripts run up to six times faster Performance improvements Greater resiliency Robust session connectivity Disconnected sessions Session configuration files Job scheduling Windows PowerShell Workflow More intuitive Integrated scripting environment 3.0: IntelliSense | Code Snippets Syntax simplification Cmdlet discovery and module auto-loading Updatable help Script-sharing

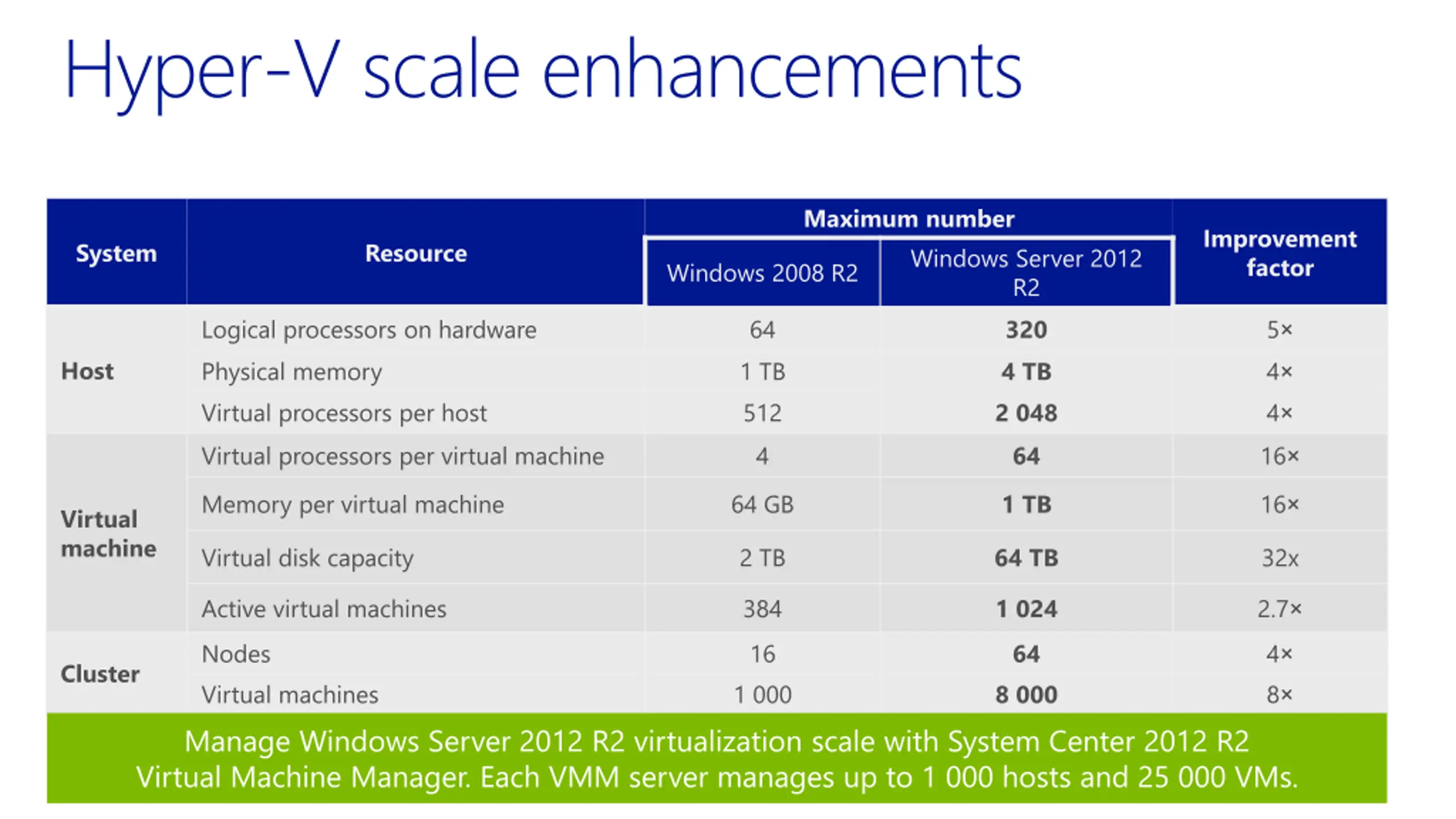

Hyper-V scale enhancements Maximum number Improvement factor System Resource Windows Server 2012 R2 320 4 TB 2 048 64 Windows 2008 R2 Logical processors on hardware Physical memory Virtual processors per host Virtual processors per virtual machine 64 1 TB 512 4 5 4 4 16 Host Memory per virtual machine 64 GB 1 TB 16 Virtual machine Virtual disk capacity 2 TB 64 TB 32x Active virtual machines 384 1 024 2.7 Nodes Virtual machines Manage Windows Server 2012 R2 virtualization scale with System Center 2012 R2 Virtual Machine Manager. Each VMM server manages up to 1 000 hosts and 25 000 VMs. 16 64 4 8 Cluster 1 000 8 000

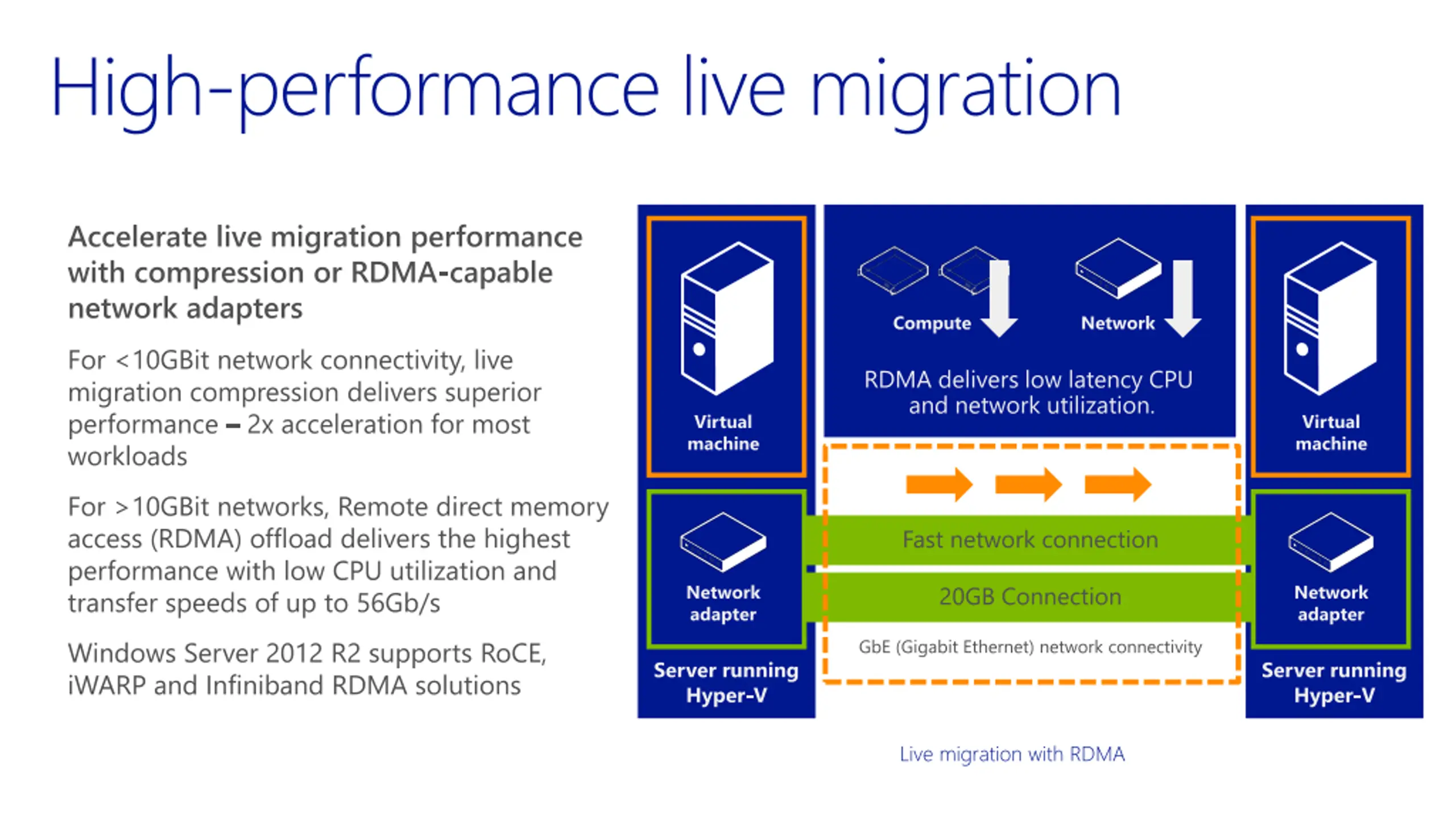

High-performance live migration Accelerate live migration performance with compression or RDMA-capable network adapters Compute Network For <10GBit network connectivity, live migration compression delivers superior performance 2x acceleration for most workloads RDMA delivers low latency CPU and network utilization. Virtual machine Virtual machine For >10GBit networks, Remote direct memory access (RDMA) offload delivers the highest performance with low CPU utilization and transfer speeds of up to 56Gb/s Fast network connection 20GB Connection Network adapter Network adapter Windows Server 2012 R2 supports RoCE, iWARP and Infiniband RDMA solutions GbE (Gigabit Ethernet) network connectivity Server running Hyper-V Server running Hyper-V Live migration with RDMA

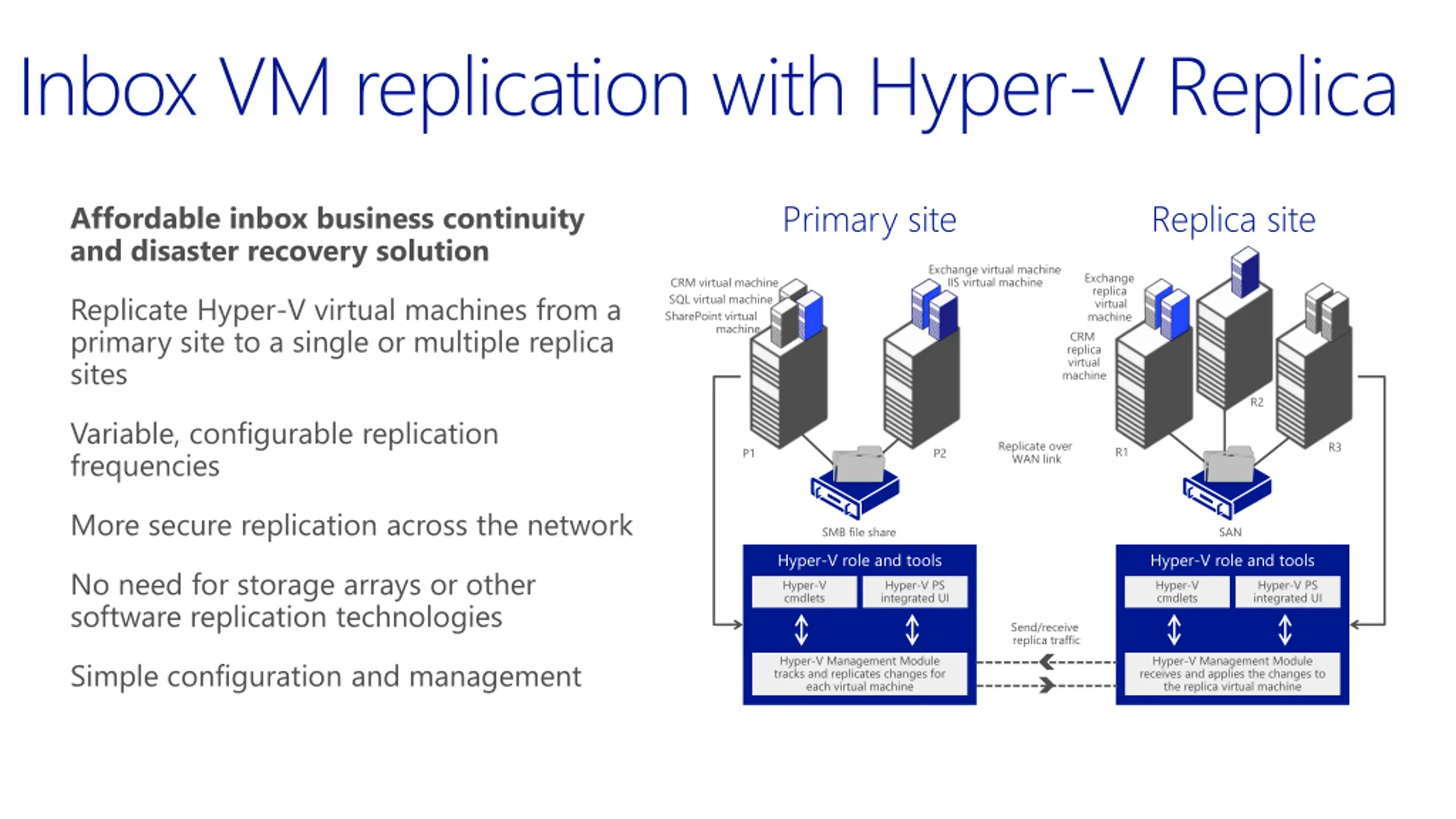

Inbox VM replication with Hyper-V Replica Primary site Replica site Affordable inbox business continuity and disaster recovery solution Exchange virtual machine IIS virtual machine Exchange replica virtual machine CRM replica virtual machine CRM virtual machine SQL virtual machine SharePoint virtual machine Replicate Hyper-V virtual machines from a primary site to a single or multiple replica sites R2 Variable, configurable replication frequencies Replicate over WAN link R3 R1 P1 P2 More secure replication across the network SMB file share SAN Hyper-V role and tools Hyper-V role and tools No need for storage arrays or other software replication technologies Hyper-V cmdlets Hyper-V PS integrated UI Hyper-V cmdlets Hyper-V PS integrated UI Send/receive replica traffic Hyper-V Management Module tracks and replicates changes for each virtual machine Hyper-V Management Module receives and applies the changes to the replica virtual machine Simple configuration and management
Windows Azure Hyper-V Recovery Manager Datacenter A Health Monitoring AD SQL Exch System Center Virtual Machine Manager Sign up Configure Create Hyper-V Replica replicates changes recovery plan Create a recovery plan AD SQL Exch System Center Virtual Machine Manager Orchestrates recovery plan for VMs or services in the event of an outage Datacenter B

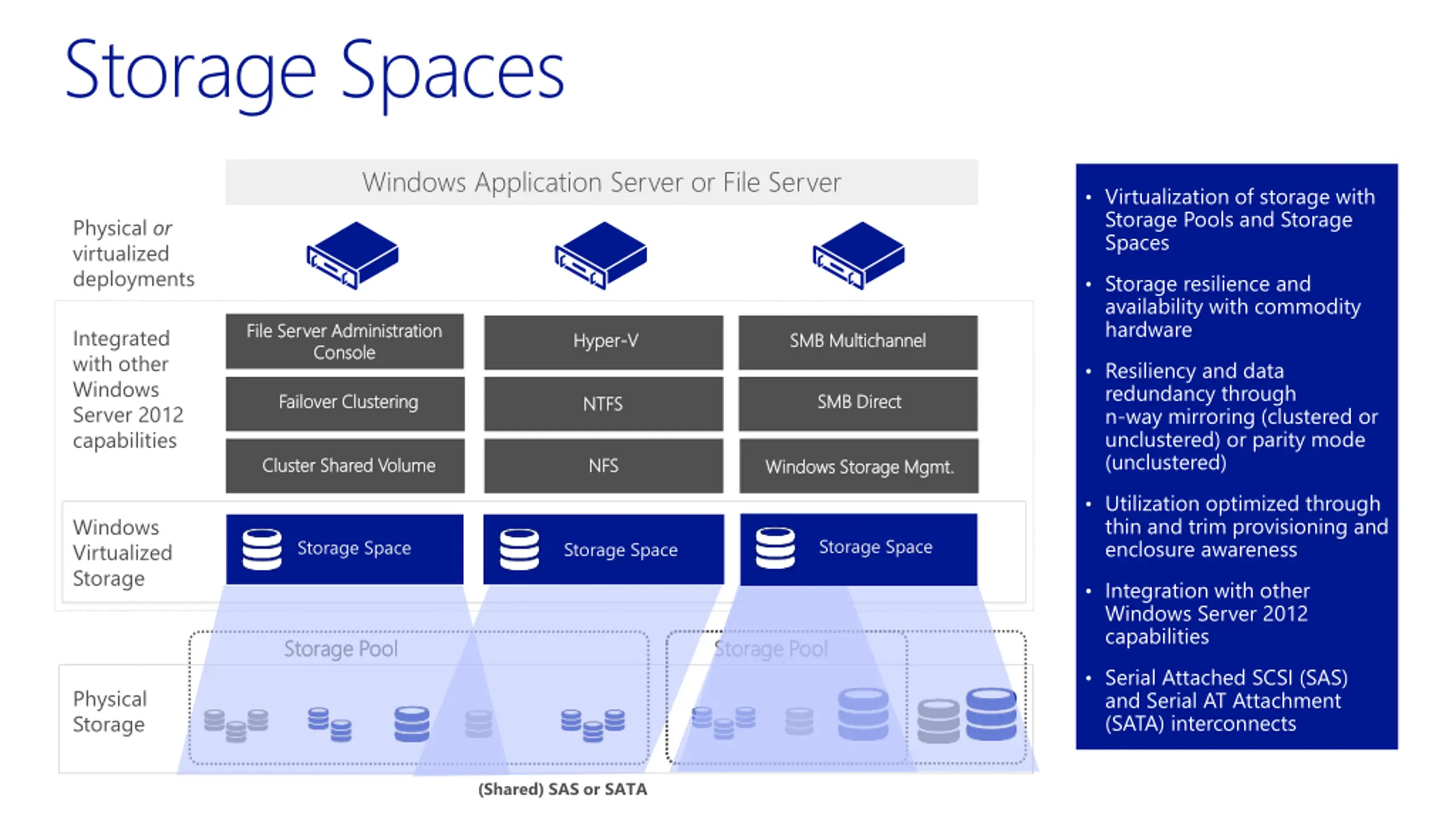

Storage Spaces Windows Application Server or File Server Virtualization of storage with Storage Pools and Storage Spaces Physical or virtualized deployments Storage resilience and availability with commodity hardware File Server Administration File Server Administration Console Console Integrated with other Windows Server 2012 capabilities Hyper Hyper- -V V SMB Multichannel SMB Multichannel Resiliency and data redundancy through n-way mirroring (clustered or unclustered) or parity mode (unclustered) Failover Clustering Failover Clustering SMB Direct SMB Direct NTFS NTFS Cluster Shared Cluster Shared Volume Volume NFS NFS Windows Storage Mgmt. Windows Storage Mgmt. Utilization optimized through thin and trim provisioning and enclosure awareness Windows Virtualized Storage Storage Space Storage Space Storage Space Integration with other Windows Server 2012 capabilities Storage Pool Storage Pool Storage Pool Storage Pool Serial Attached SCSI (SAS) and Serial AT Attachment (SATA) interconnects Physical Storage (Shared) SAS or SATA

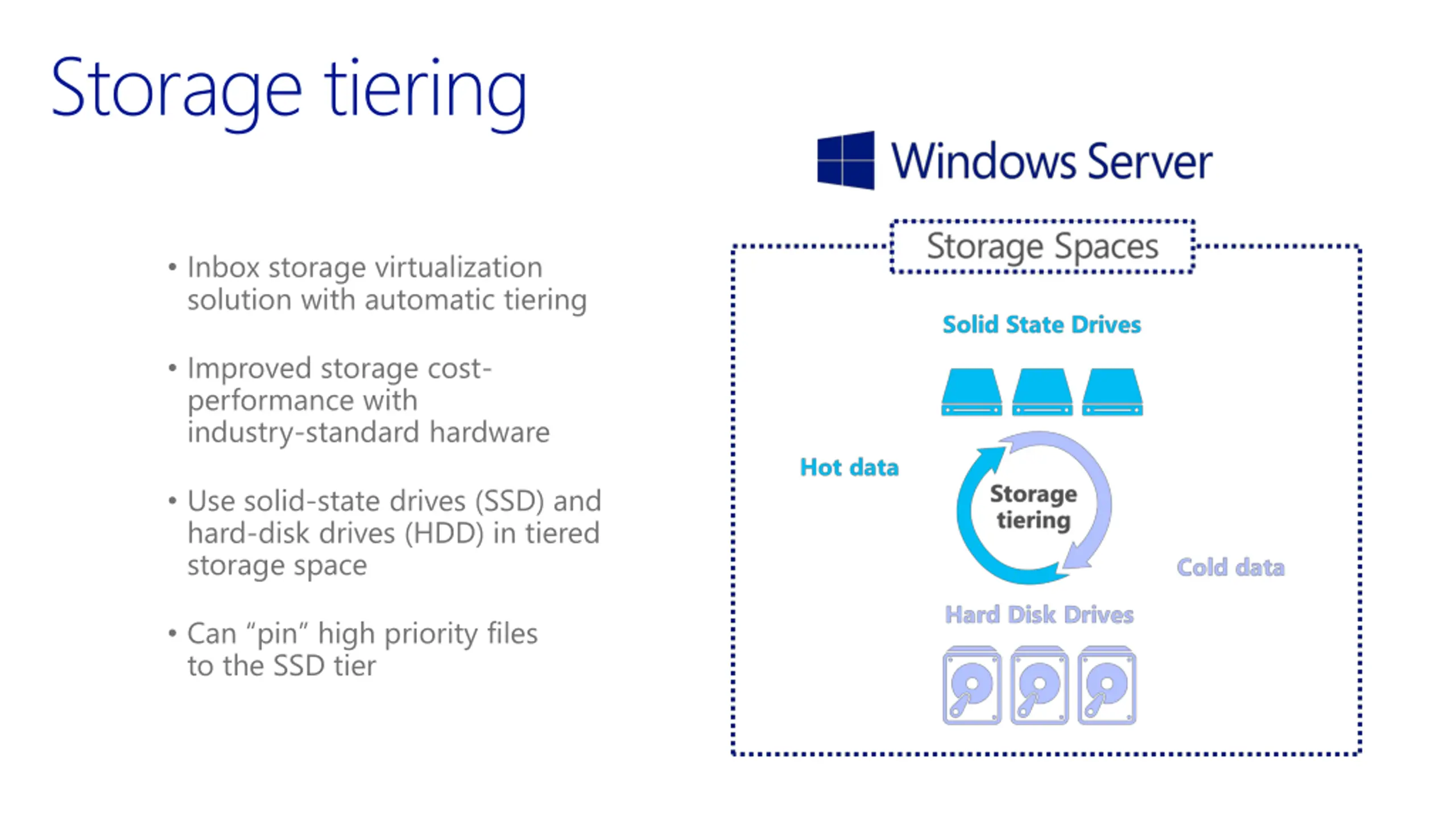

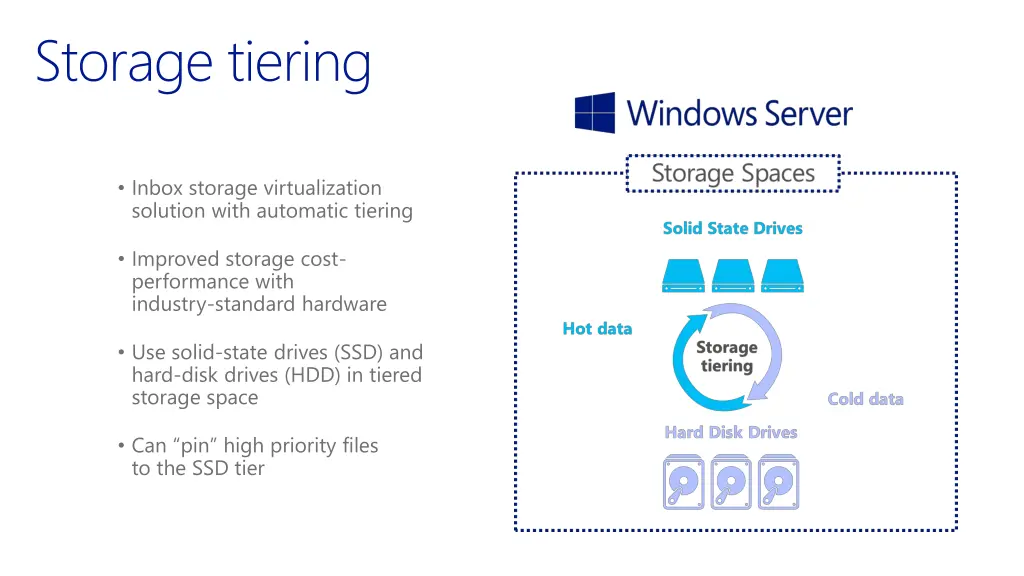

Storage tiering Inbox storage virtualization solution with automatic tiering Improved storage cost- performance with industry-standard hardware Use solid-state drives (SSD) and hard-disk drives (HDD) in tiered storage space Can pin high priority files to the SSD tier

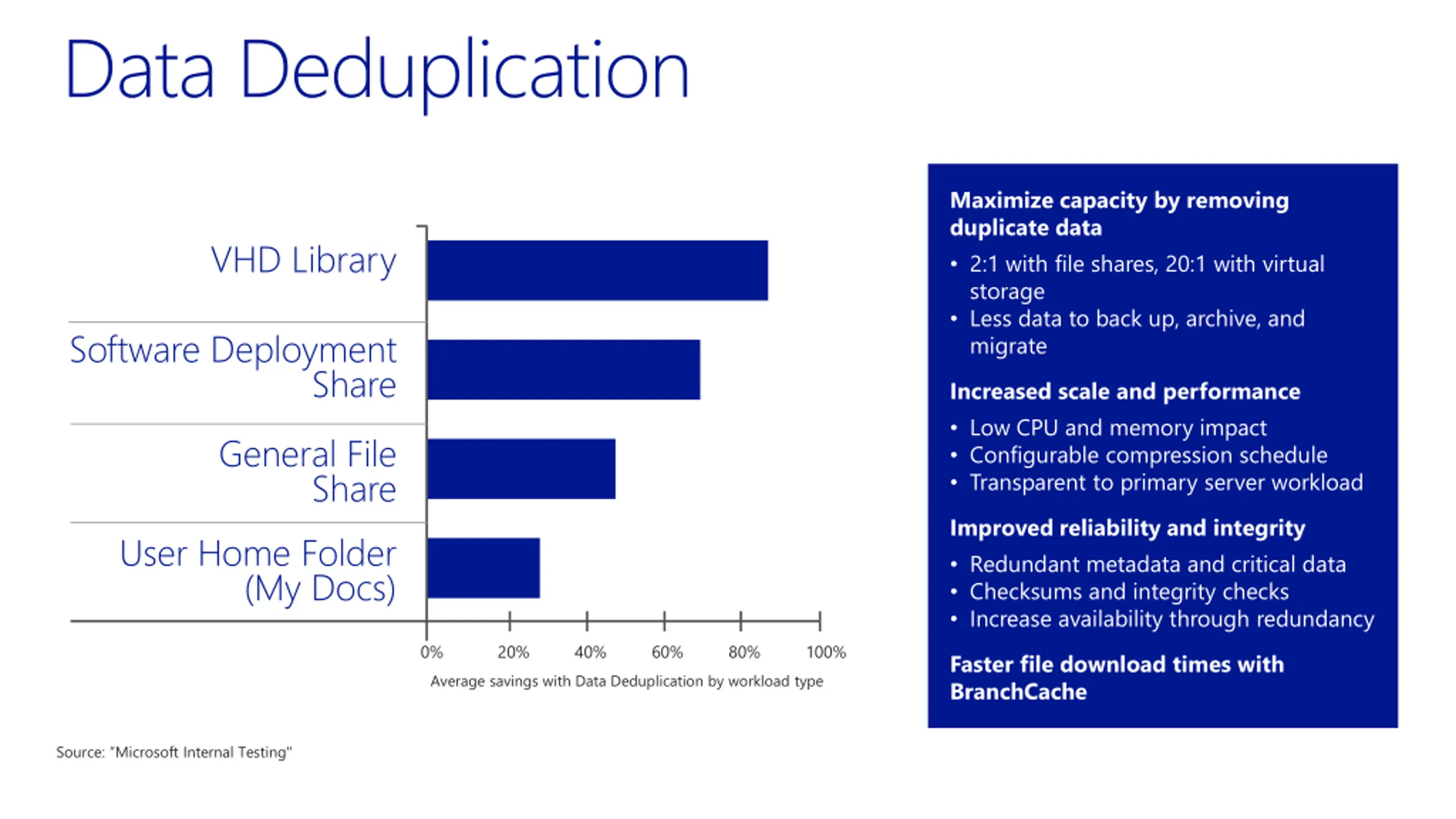

Data Deduplication Maximize capacity by removing duplicate data 2:1 with file shares, 20:1 with virtual storage Less data to back up, archive, and migrate VHD Library Software Deployment Share Increased scale and performance Low CPU and memory impact Configurable compression schedule Transparent to primary server workload General File Share Improved reliability and integrity Redundant metadata and critical data Checksums and integrity checks Increase availability through redundancy User Home Folder (My Docs) 0% 20% 40% 60% 80% 100% Faster file download times with BranchCache Average savings with Data Deduplication by workload type Source: Microsoft Internal Testing"
Online backup Ability to leverage Windows Azure cloud services to back up data Third-party cloud Reduced cost for backup storage and management Microsoft online backup portal Third-party online backup portal Options for third-party cloud services Sign up Billing Sign up Billing Microsoft online backup service Third-party online backup service Ideal for small businesses, branch offices, and departmental business needs Registration Backup/ Restore Registration Inbox engine Inbox UI Agents Microsoft online backup Third-party agents Windows Server 2012 backup (extensible) Windows Server 2012 IT Pro

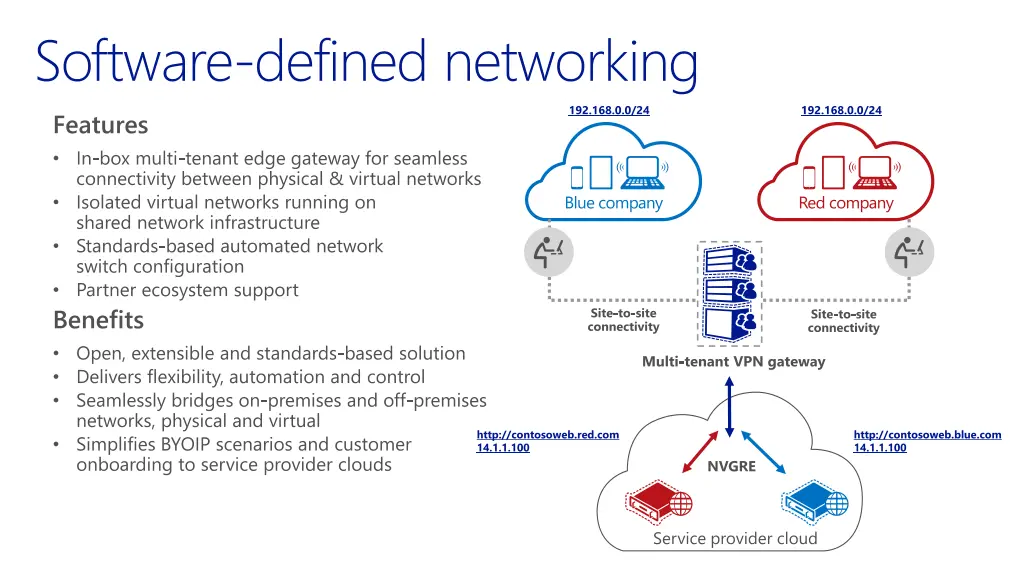

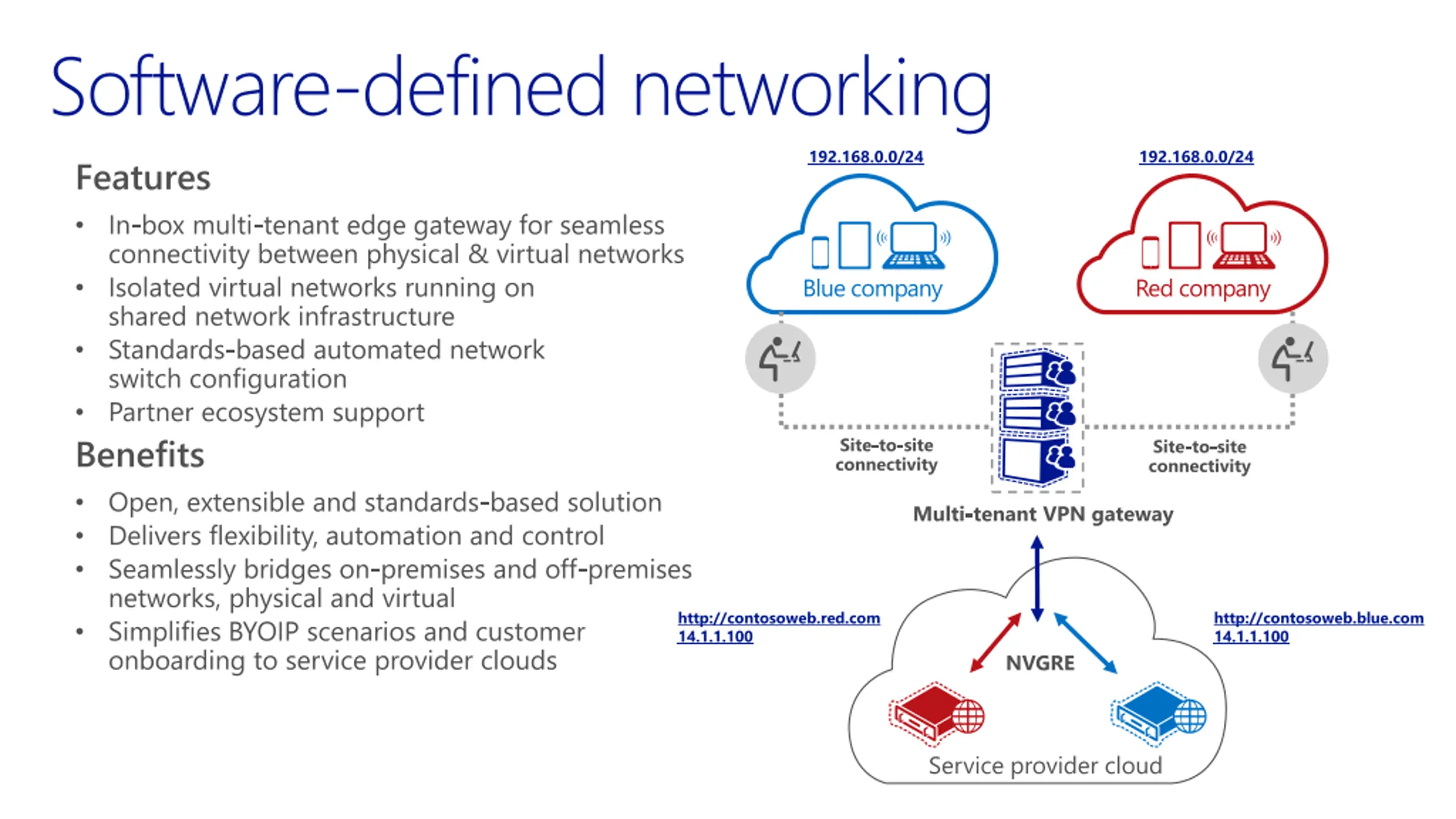

Software-defined networking 192.168.0.0/24 192.168.0.0/24 Features In-box multi-tenant edge gateway for seamless connectivity between physical & virtual networks Isolated virtual networks running on shared network infrastructure Standards-based automated network switch configuration Partner ecosystem support Benefits Open, extensible and standards-based solution Delivers flexibility, automation and control Seamlessly bridges on-premises and off-premises networks, physical and virtual Simplifies BYOIP scenarios and customer onboarding to service provider clouds Blue company Red company Site-to-site connectivity Site-to-site connectivity Multi-tenant VPN gateway http://contosoweb.red.com 14.1.1.100 http://contosoweb.blue.com 14.1.1.100 NVGRE Service provider cloud
NIC teaming Provides network fault tolerance and continuous availability when network adapters fail by teaming multiple network interfaces New in R2: enhanced LBFO performance Vendor agnostic and shipped inbox Provides local or remote management through Windows PowerShell or UI Enables teams of up to 32 network adapters Aggregates bandwidth from multiple network adapters Includes multiple nodes: switch dependent and independent Operating system Virtual adapters Teamed network adapter Teamed network adapter NIC Teaming Physical adapters
Controlled access to corporate data Users are provided with a common identity when accessing cloud-based resources. Active Directory Other cloud based apps and identity stores. When a user registers their device it becomes known and trusted to provide device level authentication. IT can then publish access to resources based on registration plus the users identity. Application Server Windows Server Remote Access IT can use Windows Server Remote Access to provide seamless application access and automatic VPN connections with conditional access based on user and device validation. Active Directory BYOD Devices Users can access corporate applications and data wherever they are.

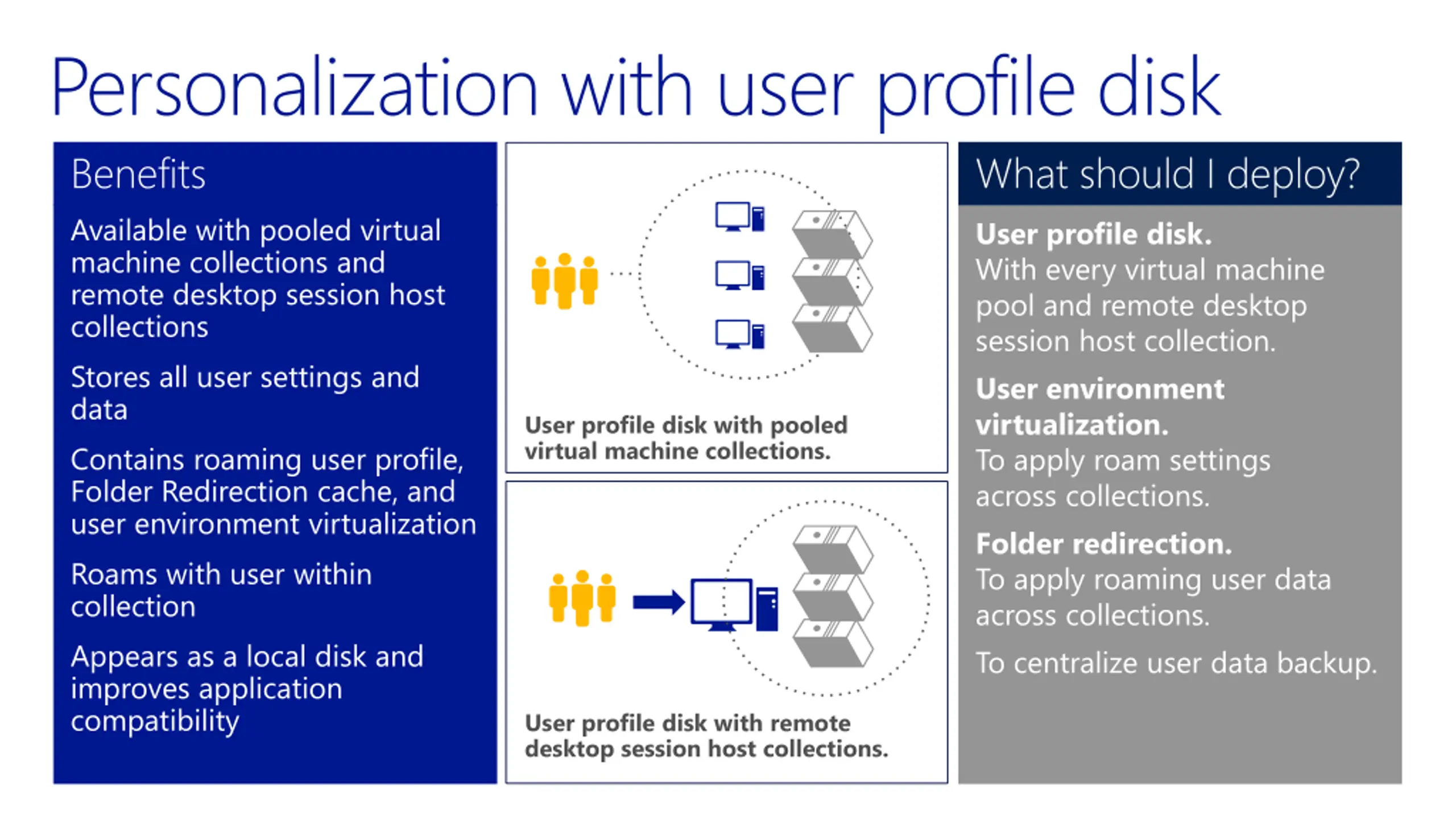

Personalization with user profile disk Benefits What should I deploy? Available with pooled virtual machine collections and remote desktop session host collections Stores all user settings and data Contains roaming user profile, Folder Redirection cache, and user environment virtualization Roams with user within collection Appears as a local disk and improves application compatibility User profile disk. With every virtual machine pool and remote desktop session host collection. User environment virtualization. To apply roam settings across collections. Folder redirection. To apply roaming user data across collections. To centralize user data backup. User profile disk with pooled virtual machine collections. User profile disk with remote desktop session host collections.

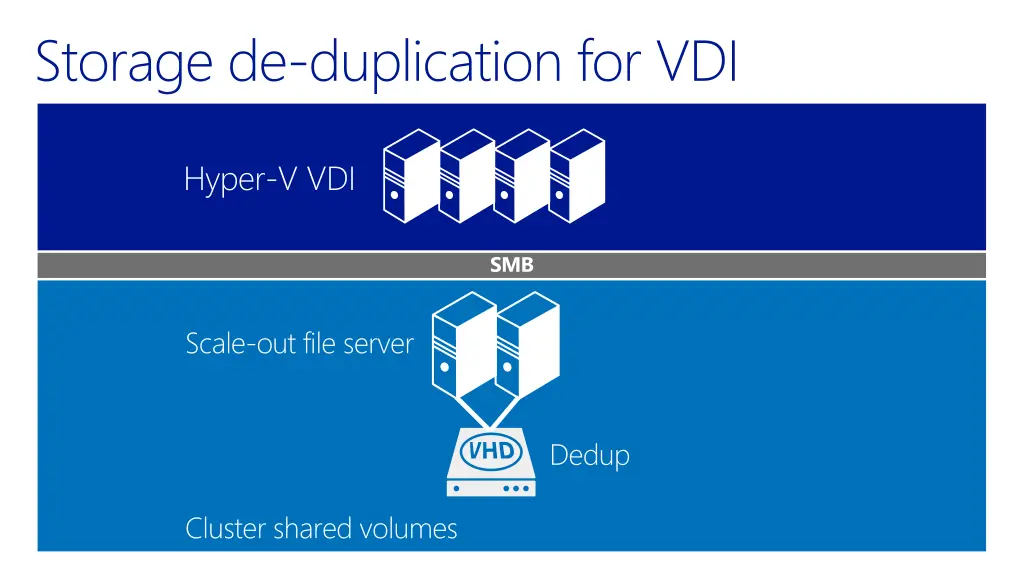

Storage de-duplication for VDI Hyper-V VDI SMB Scale-out file server Dedup Cluster shared volumes

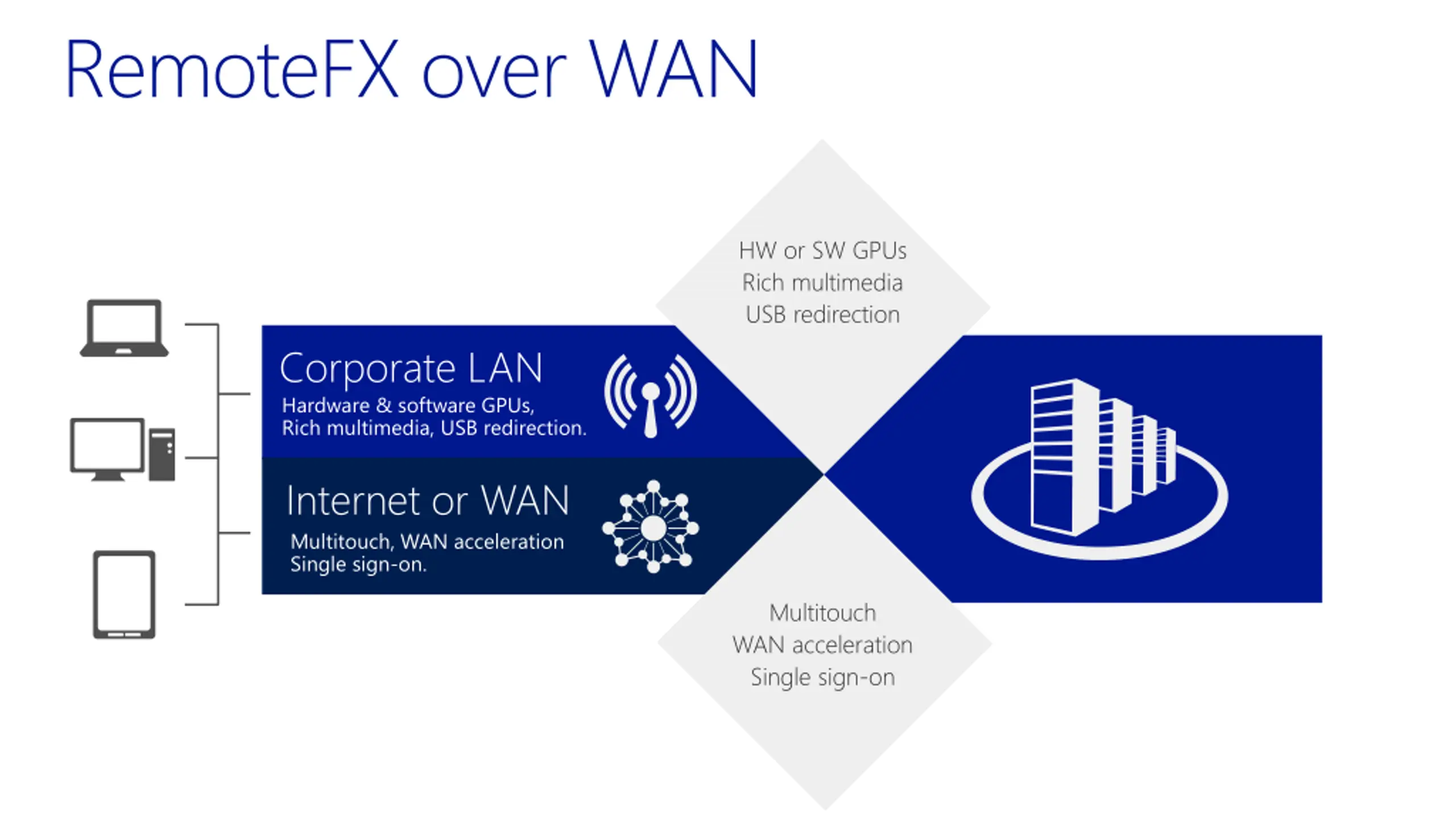

RemoteFX over WAN HW or SW GPUs Rich multimedia USB redirection Corporate LAN Hardware & software GPUs, Rich multimedia, USB redirection. Internet or WAN Multitouch, WAN acceleration Single sign-on. Multitouch WAN acceleration Single sign-on

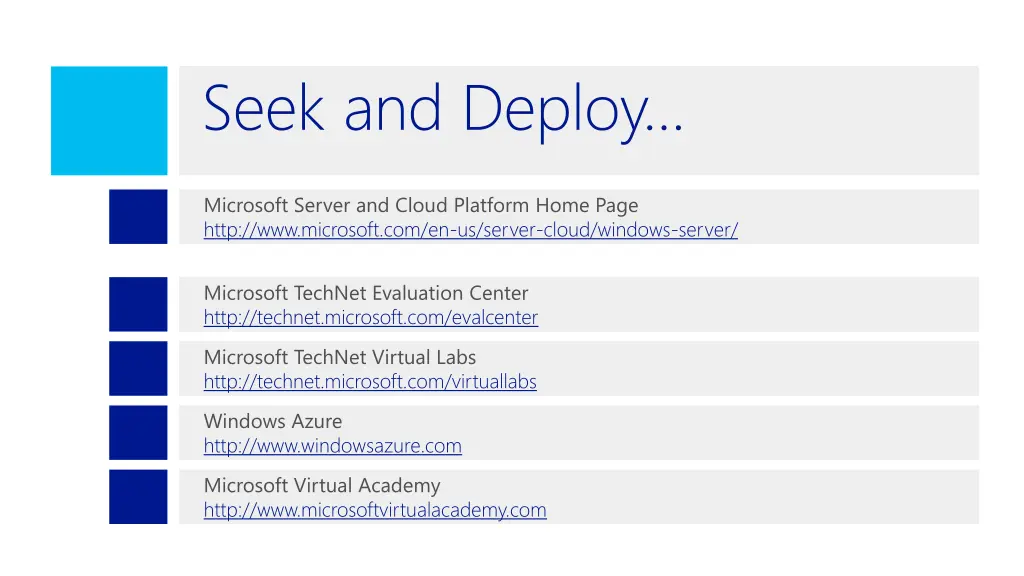

Seek and Deploy Microsoft Server and Cloud Platform Home Page http://www.microsoft.com/en-us/server-cloud/windows-server/ Microsoft TechNet Evaluation Center http://technet.microsoft.com/evalcenter Microsoft TechNet Virtual Labs http://technet.microsoft.com/virtuallabs Windows Azure http://www.windowsazure.com Microsoft Virtual Academy http://www.microsoftvirtualacademy.com
Pripravovan konferencie, seminre Ra ajky na t mu: 11.11. 2013 To najd le itej ie oTLS a SSLna Windows Ond ej eve ek ShowIT 2014 21.01. 2014 11.-13.02. 2014 ITkonferencia Teledom, Ko ice ITkonferencia Hotel Gate ONE, Bratislava

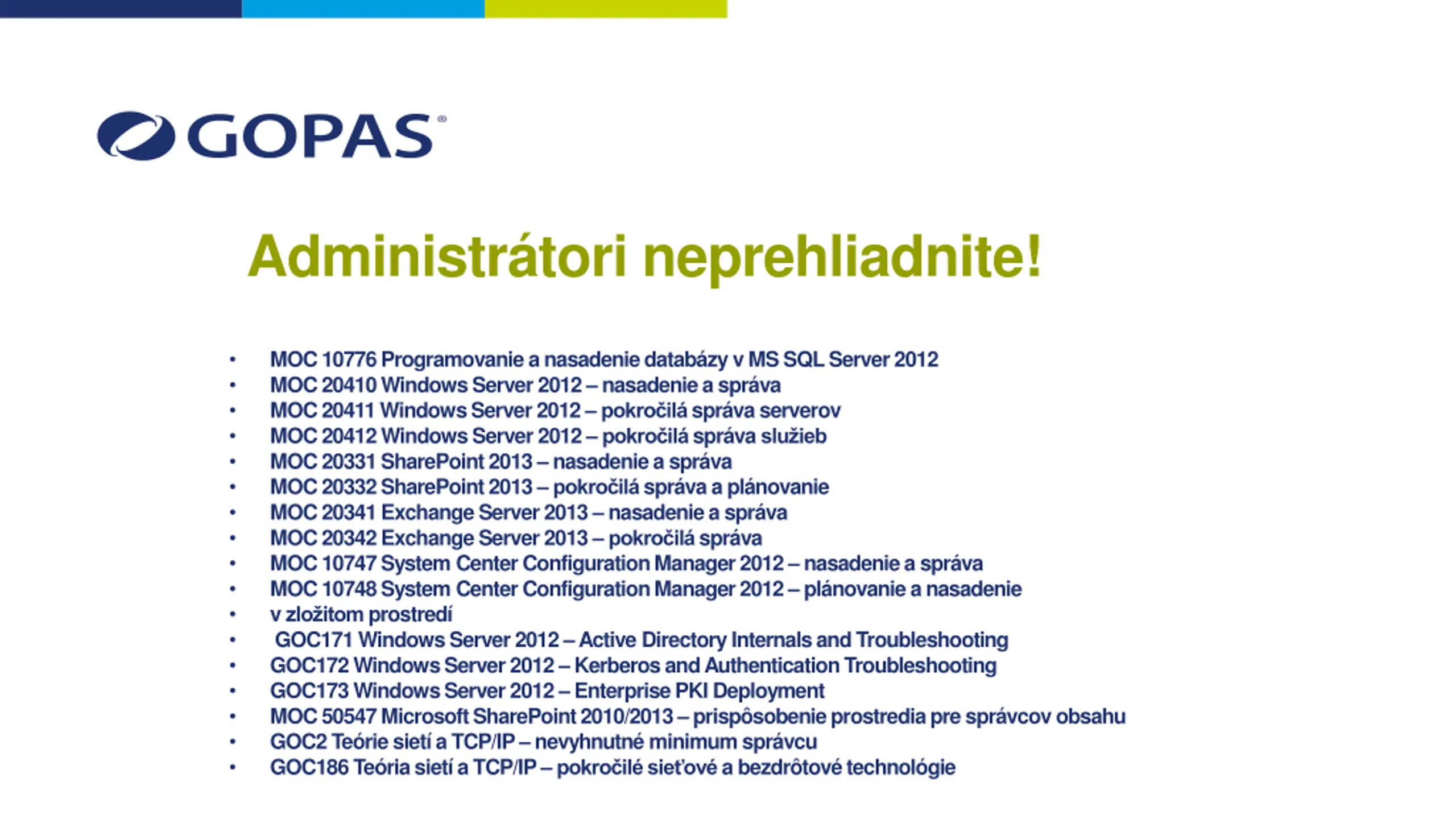

Administrtori neprehliadnite! MOC10776Programovanieanasadeniedatab zyvMSSQLServer2012 MOC20410WindowsServer2012 nasadenieaspr va MOC20411WindowsServer2012 pokro il spr vaserverov MOC20412WindowsServer2012 pokro il spr vaslu ieb MOC20331SharePoint2013 nasadenieaspr va MOC20332SharePoint2013 pokro il spr vaapl novanie MOC20341ExchangeServer2013 nasadenieaspr va MOC20342ExchangeServer2013 pokro il spr va MOC10747System CenterConfigurationManager2012 nasadenieaspr va MOC10748System CenterConfigurationManager2012 pl novanieanasadenie vzlo itomprostred GOC171WindowsServer2012 Active DirectoryInternalsandTroubleshooting GOC172WindowsServer2012 KerberosandAuthenticationTroubleshooting GOC173WindowsServer2012 EnterprisePKIDeployment MOC50547MicrosoftSharePoint2010/2013 prisp sobenieprostrediaprespr vcovobsahu GOC2Te riesiet aTCP/IP nevyhnutn minimumspr vcu GOC186Te riasiet aTCP/IP pokro il sie ov abezdr tov technol gie
Zava na kurzy -15% 11.-16.11.2013: Windows Server 2012 nasadenie a spr va [MOC20410] Windows Server 2012 Active Directory Internals and Troubleshooting [GOC171] 18.-22.11.2013: Windows Server 2012 pokro il spr va serverov [MOC20411] Microsoft Exchange Server 2010 nasadenie a spr va [MOC10135] Windows Server 2008/2008 R2 spr va sie ov ch slu ieb [MOC6421] Optimaliz cia, ladenie a monitorovanie T-SQLdotazov [GOC631]
