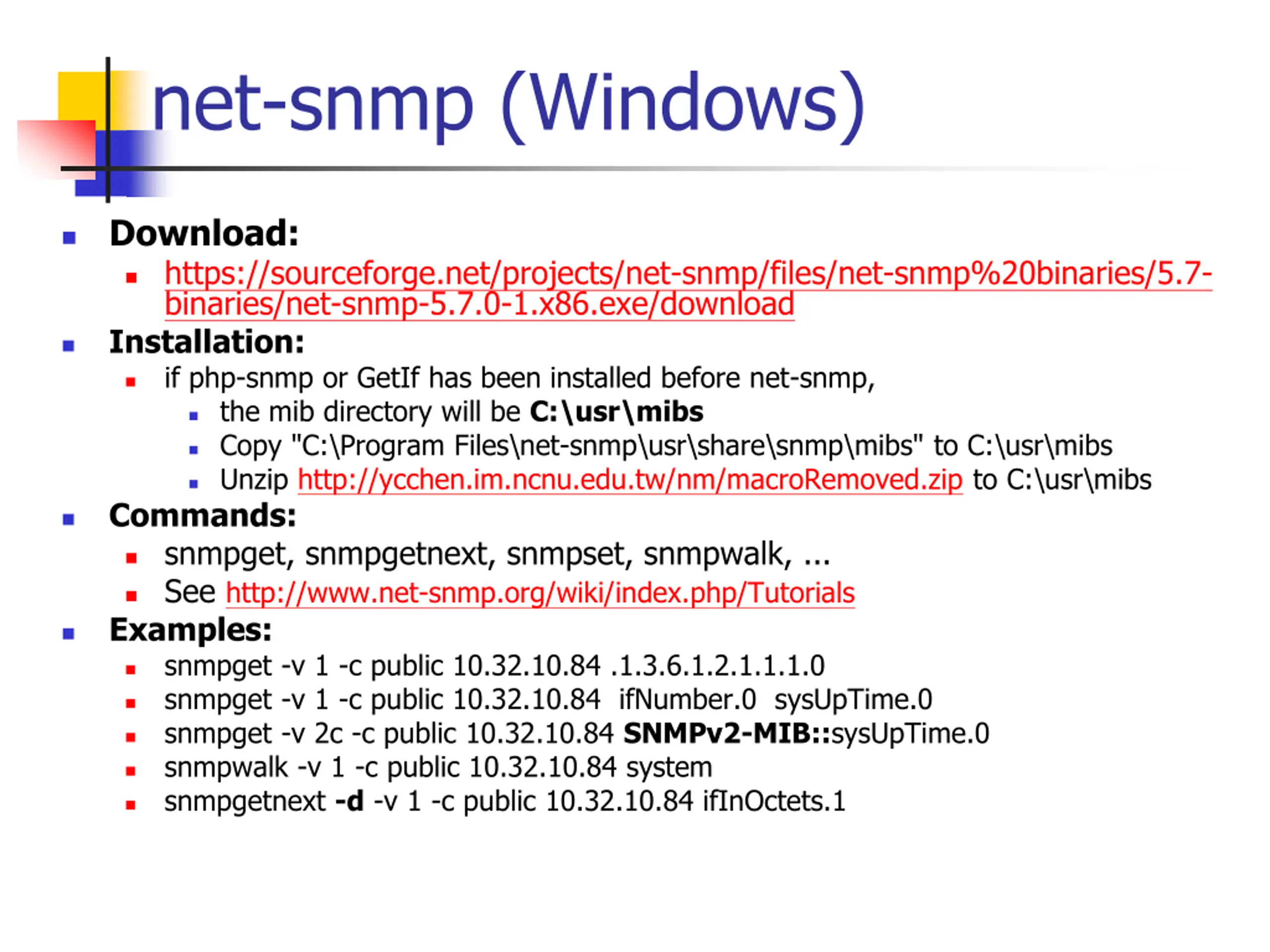

net-snmp (Windows) Download: https://sourceforge.net/projects/net-snmp/files/net-snmp%20binaries/5.7- binaries/net-snmp-5.7.0-1.x86.exe/download Installation: if php-snmp or GetIf has been installed before net-snmp, the mib directory will be C:\usr\mibs Copy "C:\Program Files\net-snmp\usr\share\snmp\mibs" to C:\usr\mibs Unzip http://ycchen.im.ncnu.edu.tw/nm/macroRemoved.zip to C:\usr\mibs Commands: snmpget, snmpgetnext, snmpset, snmpwalk, ... See http://www.net-snmp.org/wiki/index.php/Tutorials Examples: snmpget -v 1 -c public 10.32.10.84 .1.3.6.1.2.1.1.1.0 snmpget -v 1 -c public 10.32.10.84 ifNumber.0 sysUpTime.0 snmpget -v 2c -c public 10.32.10.84 SNMPv2-MIB::sysUpTime.0 snmpwalk -v 1 -c public 10.32.10.84 system snmpgetnext -d -v 1 -c public 10.32.10.84 ifInOctets.1

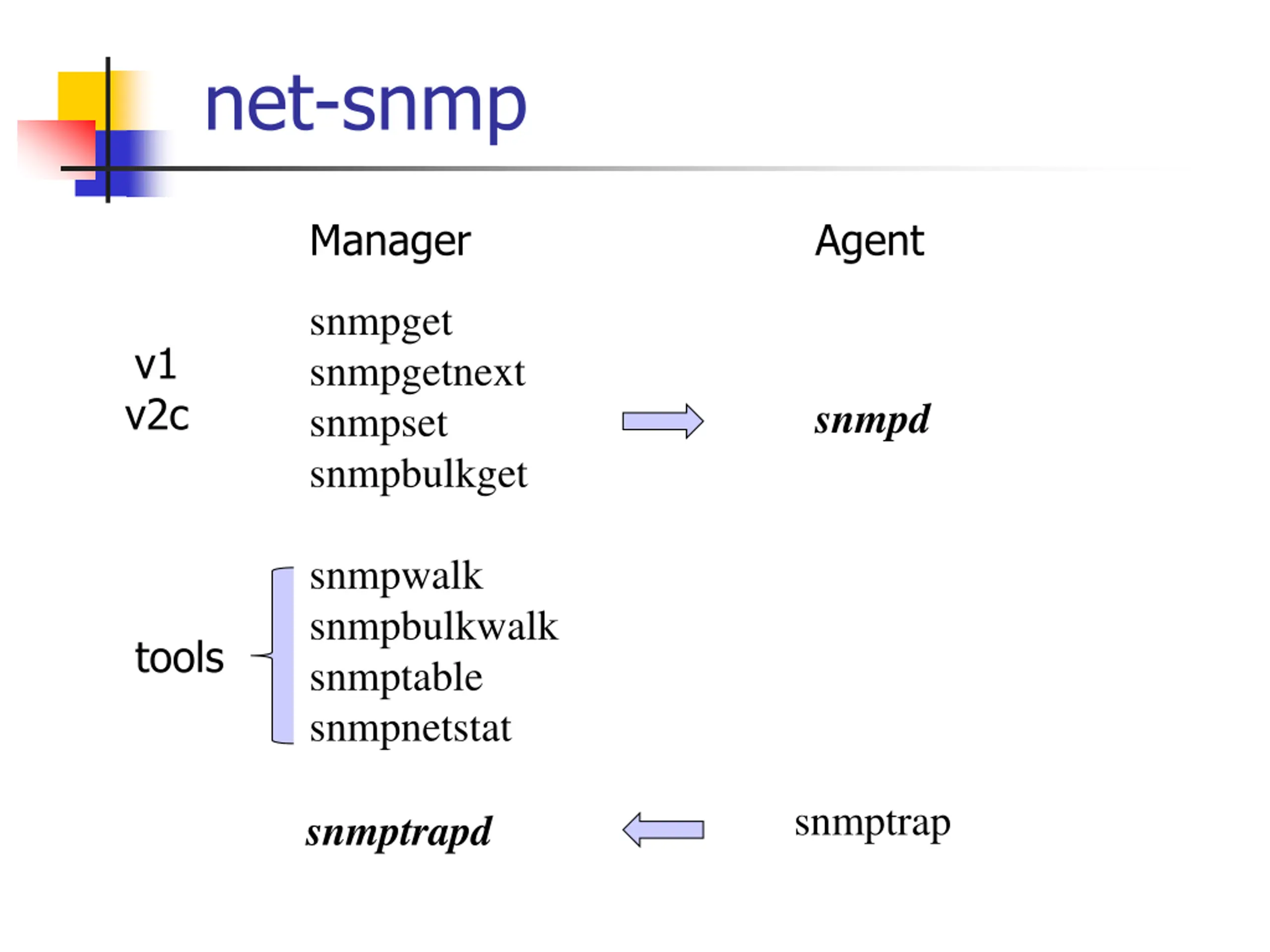

net-snmp Manager Agent snmpget snmpgetnext snmpset snmpbulkget v1 v2c snmpd snmpwalk snmpbulkwalk snmptable snmpnetstat tools snmptrap snmptrapd

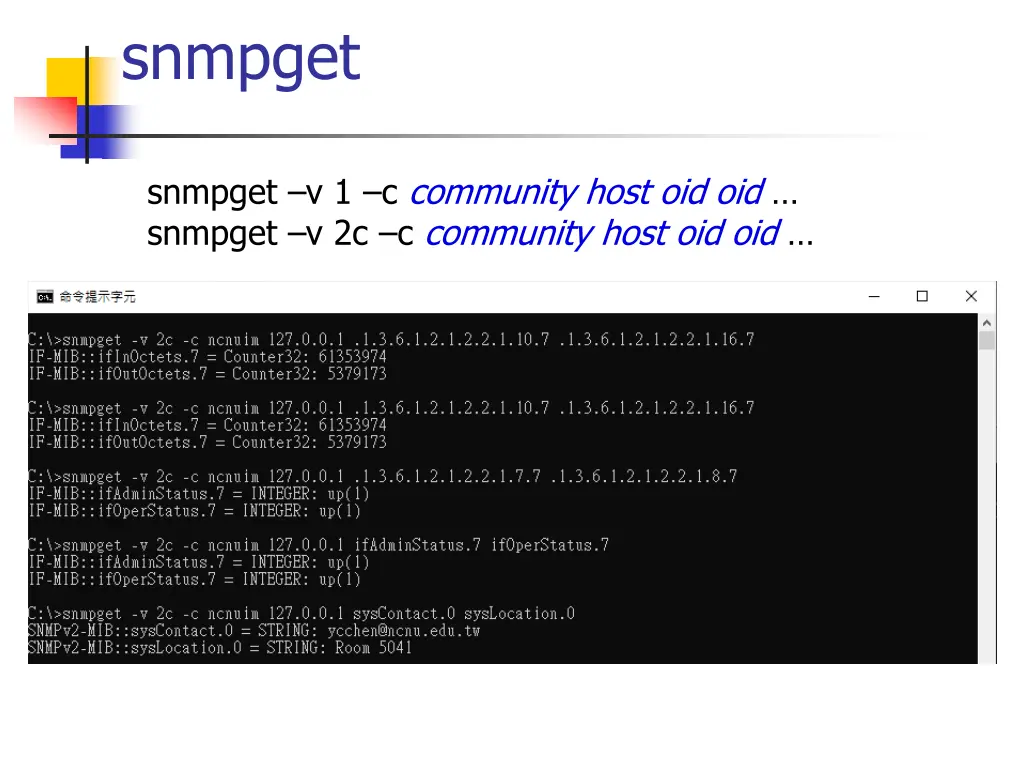

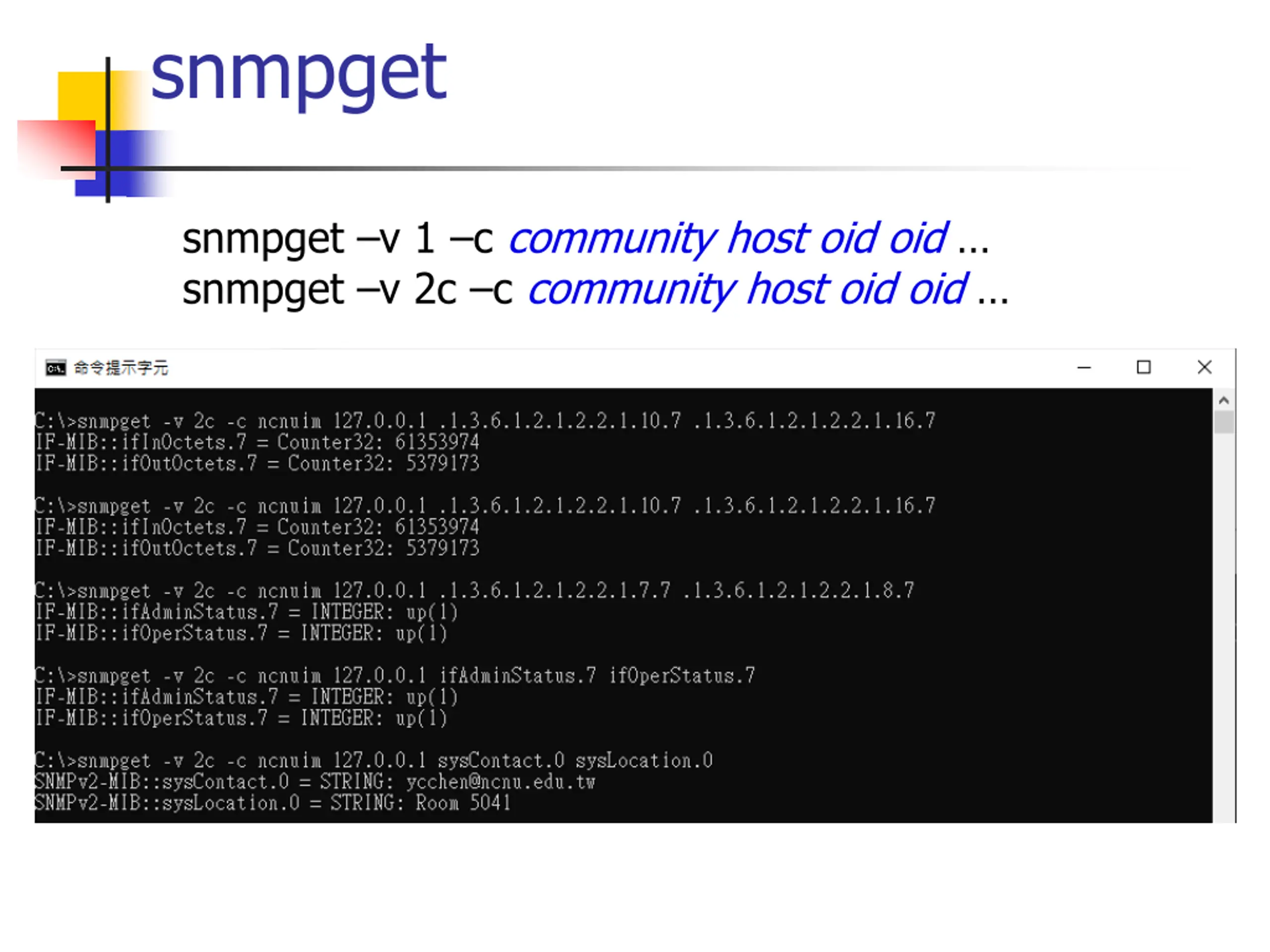

snmpget snmpget v 1 c community host oid oid snmpget v 2c c community host oid oid

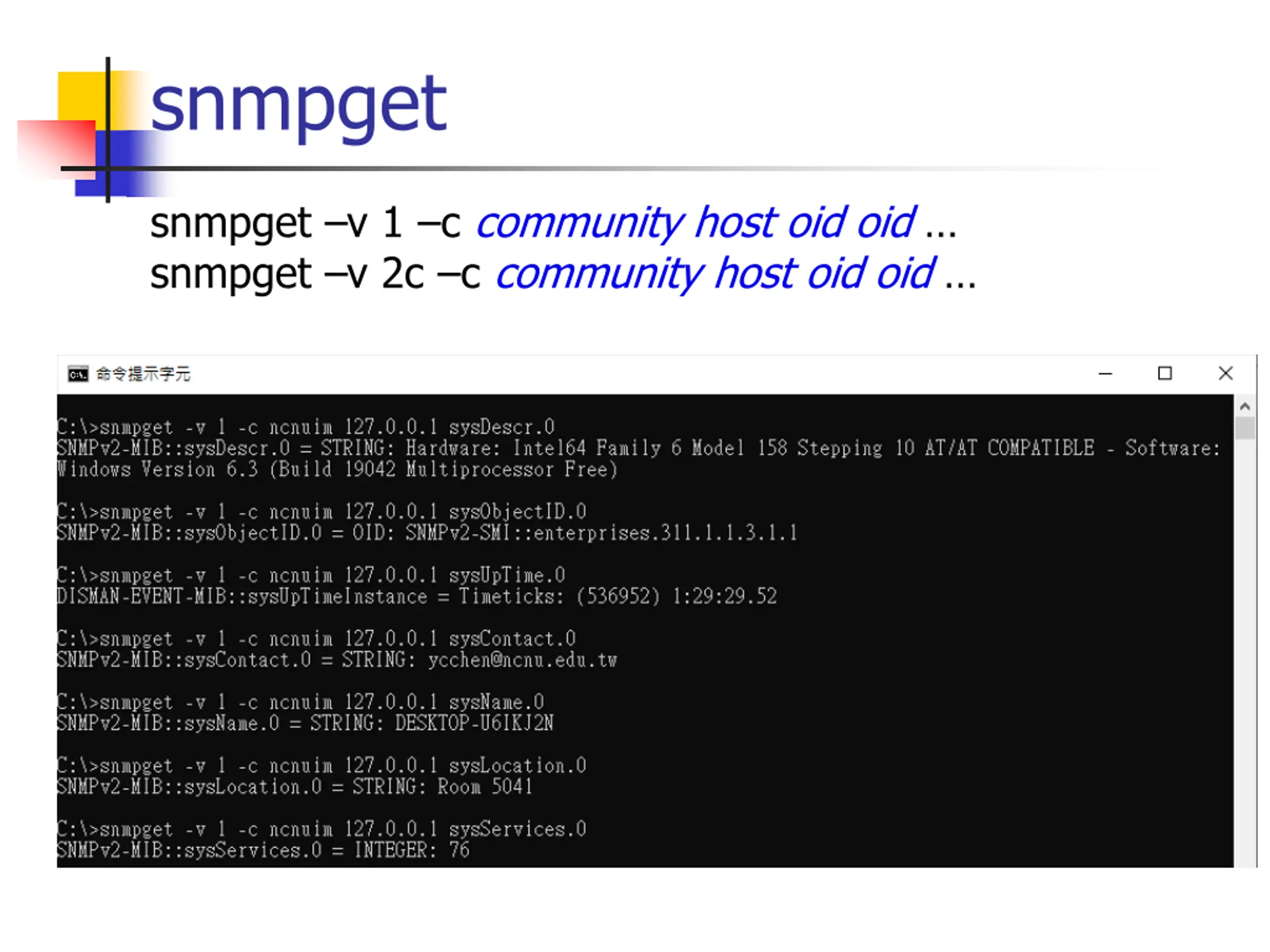

snmpget snmpget v 1 c community host oid oid snmpget v 2c c community host oid oid

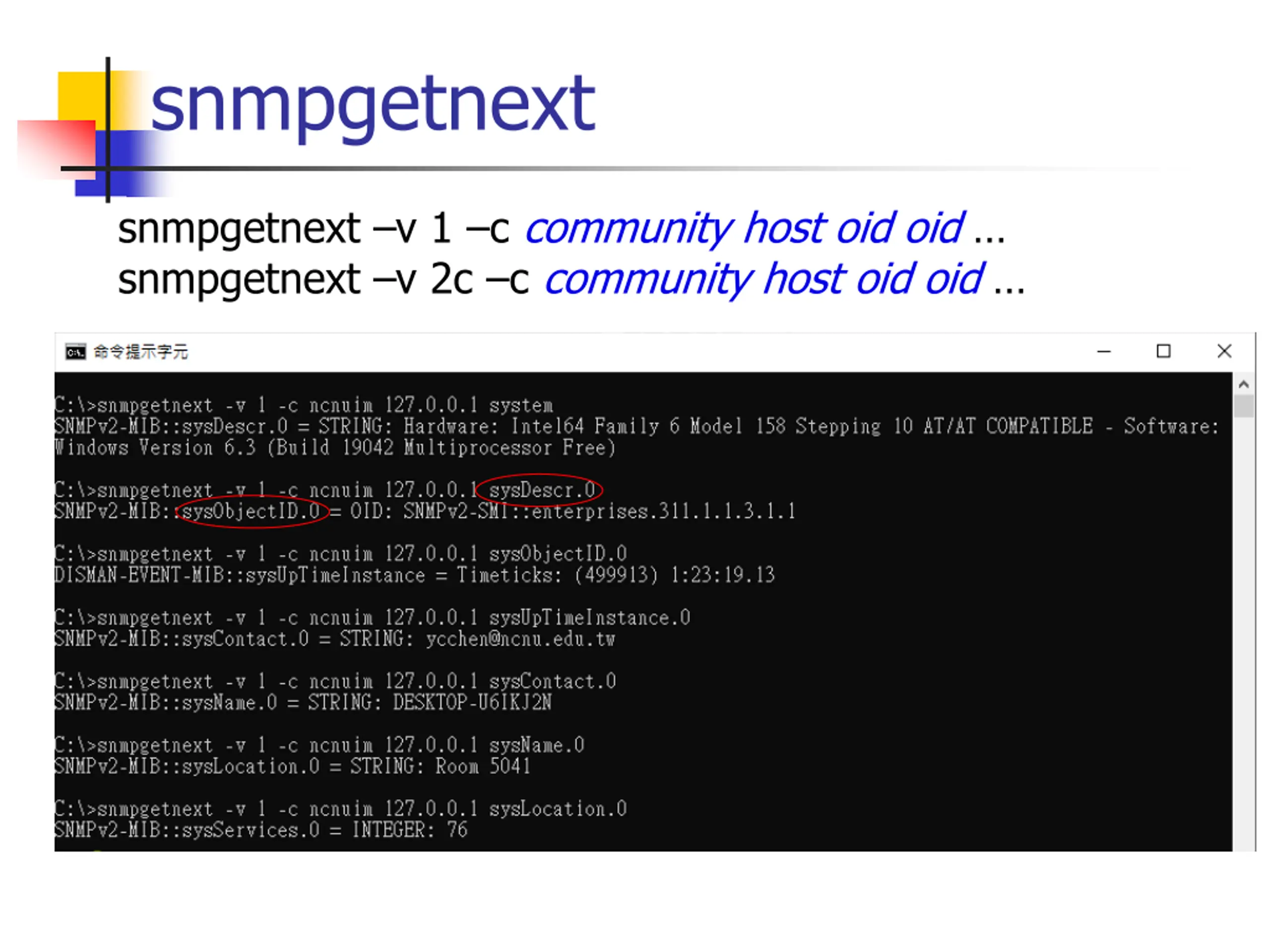

snmpgetnext snmpgetnext v 1 c community host oid oid snmpgetnext v 2c c community host oid oid

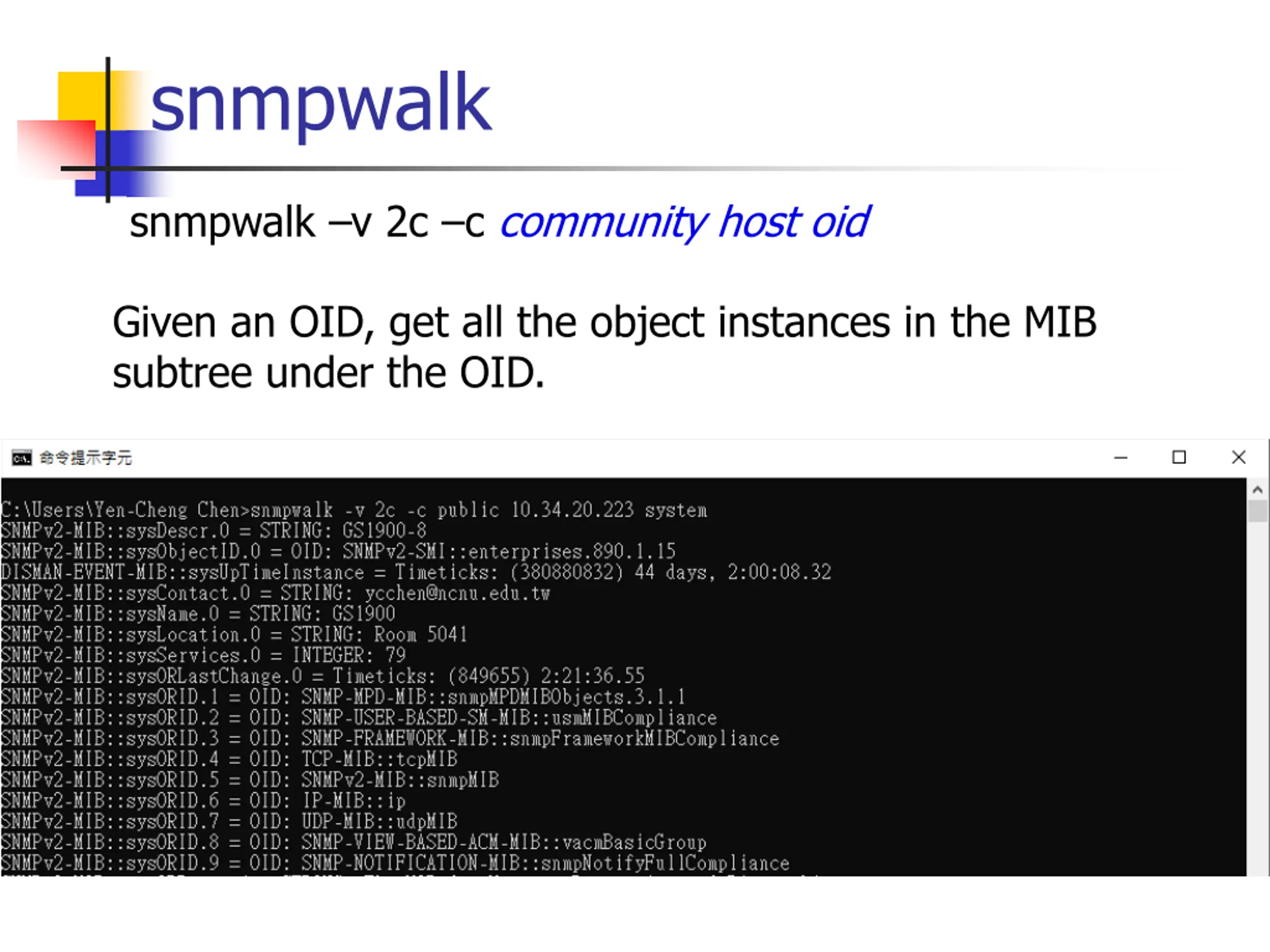

snmpwalk snmpwalk v 2c c community host oid Given an OID, get all the object instances in the MIB subtree under the OID.

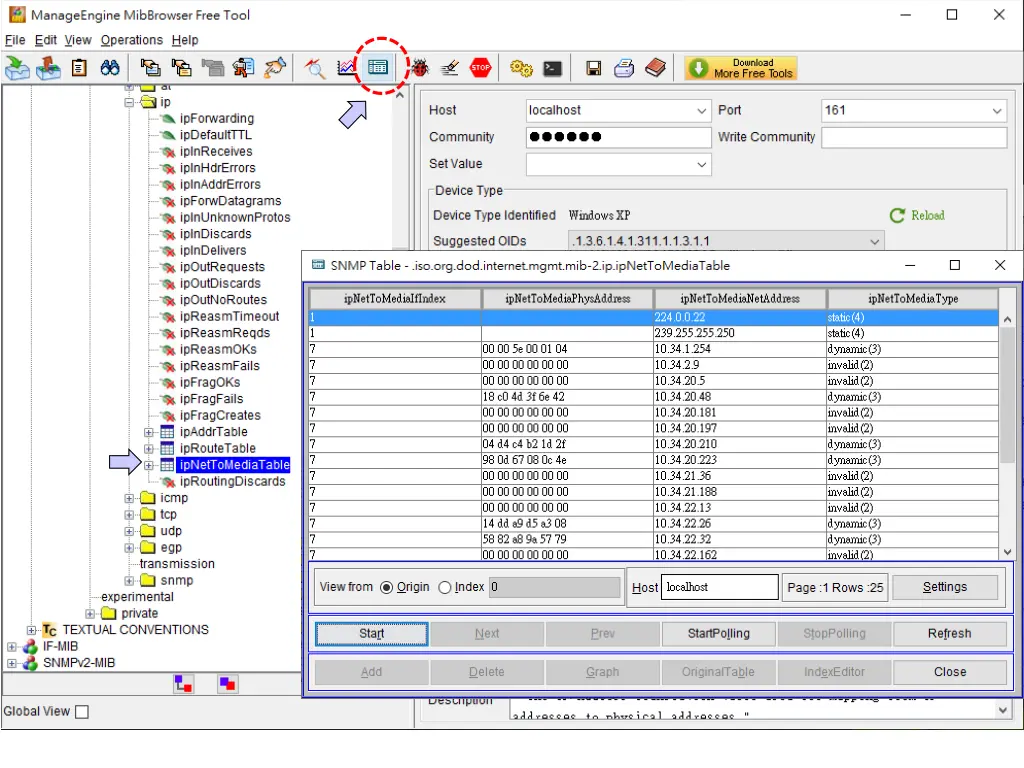

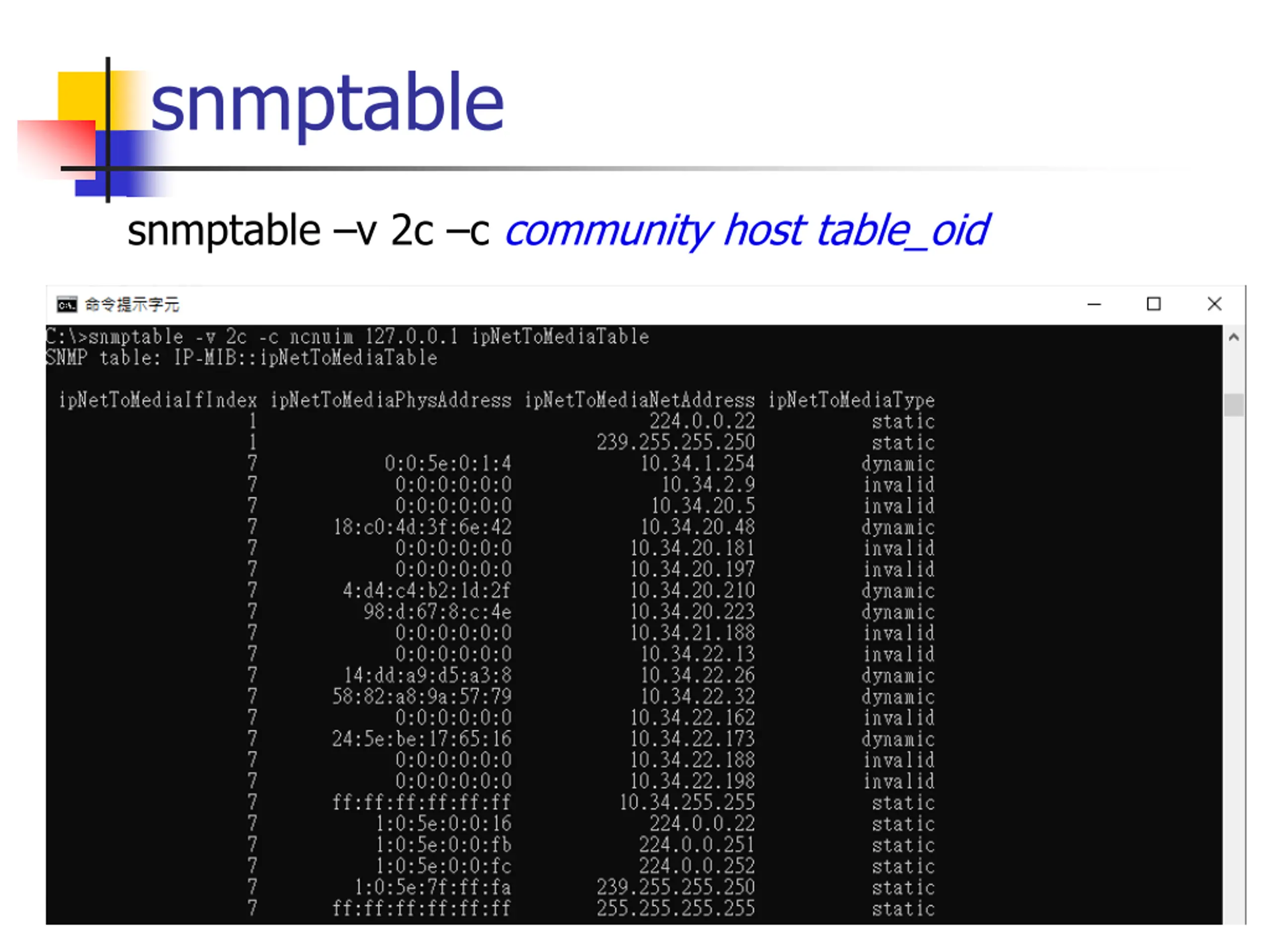

snmptable snmptable v 2c c community host table_oid

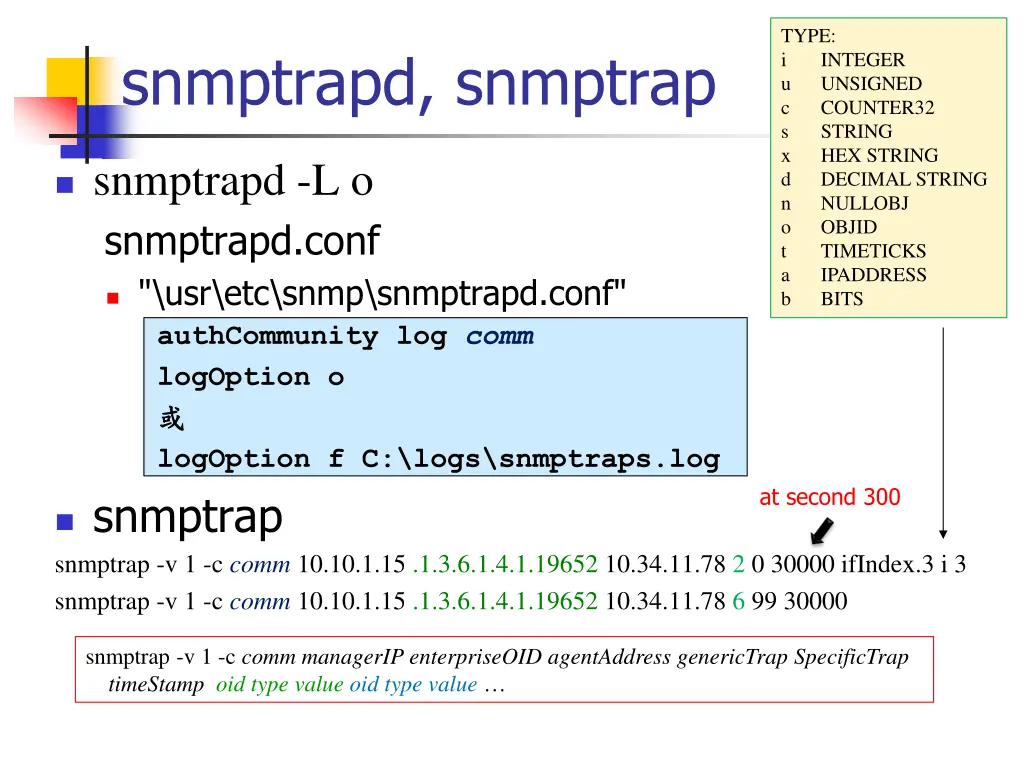

TYPE: i u c s x d n o t a b snmptrapd, snmptrap INTEGER UNSIGNED COUNTER32 STRING HEX STRING DECIMAL STRING NULLOBJ OBJID TIMETICKS IPADDRESS BITS snmptrapd -L o snmptrapd.conf "\usr\etc\snmp\snmptrapd.conf" authCommunity log comm logOption o logOption f C:\logs\snmptraps.log snmptrap snmptrap -v 1 -c comm 10.10.1.15 .1.3.6.1.4.1.19652 10.34.11.78 2 0 30000 ifIndex.3 i 3 snmptrap -v 1 -c comm 10.10.1.15 .1.3.6.1.4.1.19652 10.34.11.78 6 99 30000 at second 300 snmptrap -v 1 -c comm managerIP enterpriseOID agentAddress genericTrap SpecificTrap timeStamp oid type value oid type value

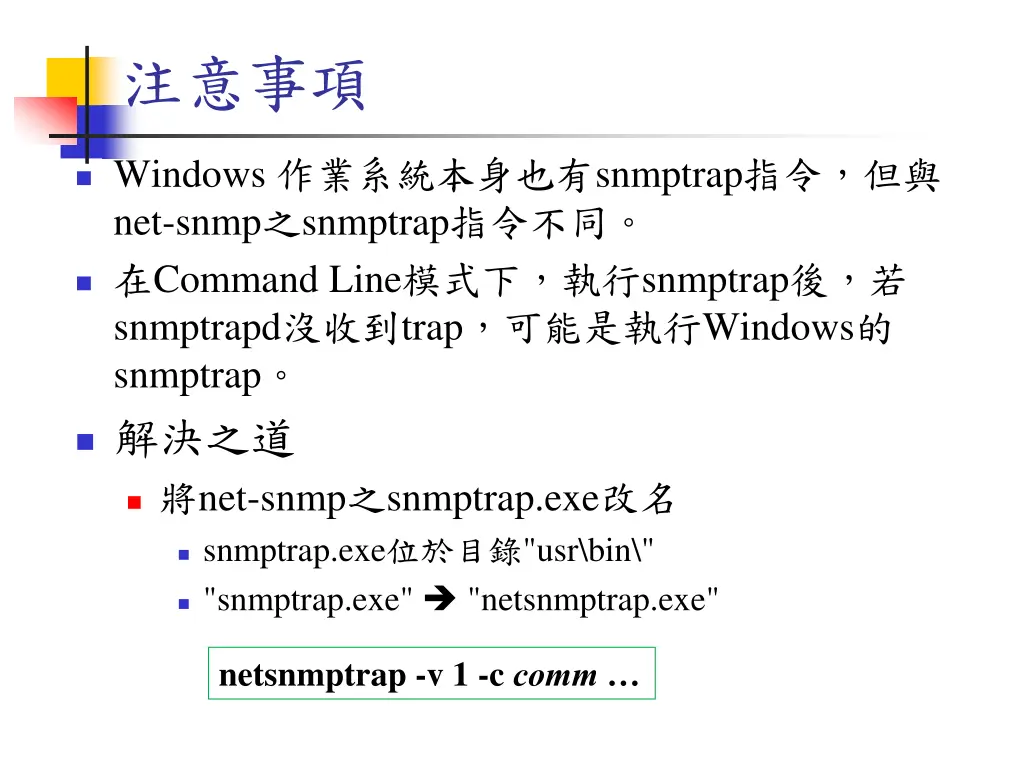

Windows snmptrap net-snmp snmptrap Command Line snmptrap snmptrapd trap Windows snmptrap net-snmp snmptrap.exe snmptrap.exe "usr\bin\" "snmptrap.exe" "netsnmptrap.exe" netsnmptrap -v 1 -c comm

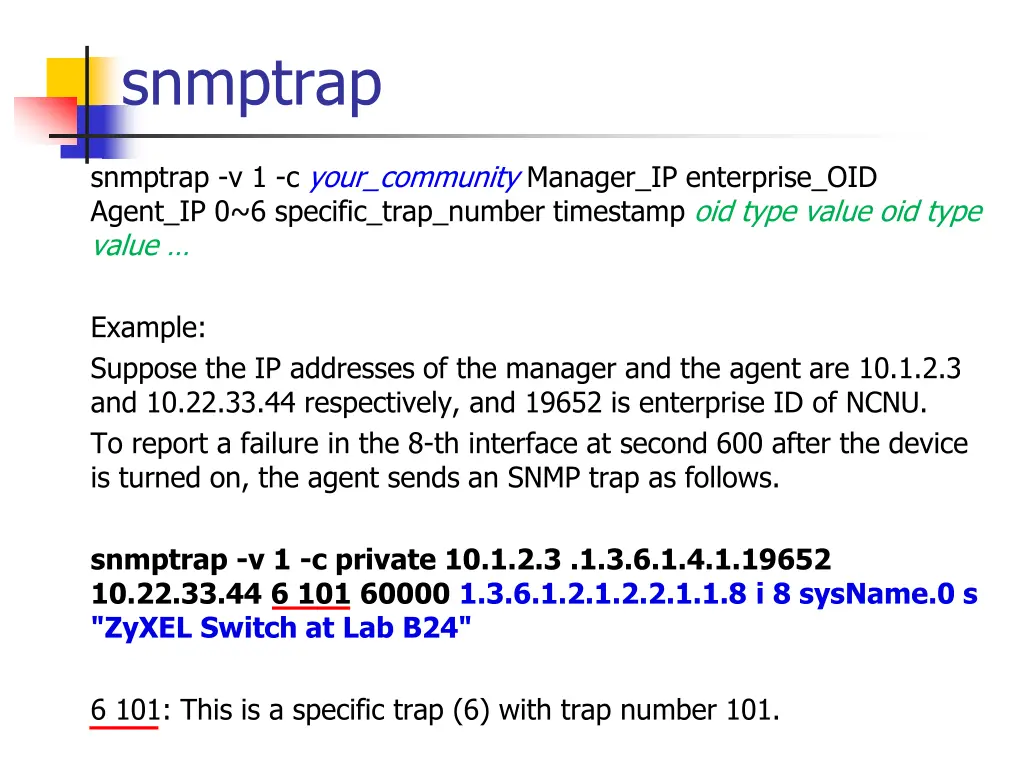

snmptrap snmptrap -v 1 -c your_community Manager_IP enterprise_OID Agent_IP 0~6 specific_trap_number timestamp oid type value oid type value Example: Suppose the IP addresses of the manager and the agent are 10.1.2.3 and 10.22.33.44 respectively, and 19652 is enterprise ID of NCNU. To report a failure in the 8-th interface at second 600 after the device is turned on, the agent sends an SNMP trap as follows. snmptrap -v 1 -c private 10.1.2.3 .1.3.6.1.4.1.19652 10.22.33.44 6 101 60000 1.3.6.1.2.1.2.2.1.1.8 i 8 sysName.0 s "ZyXEL Switch at Lab B24" 6 101: This is a specific trap (6) with trap number 101.

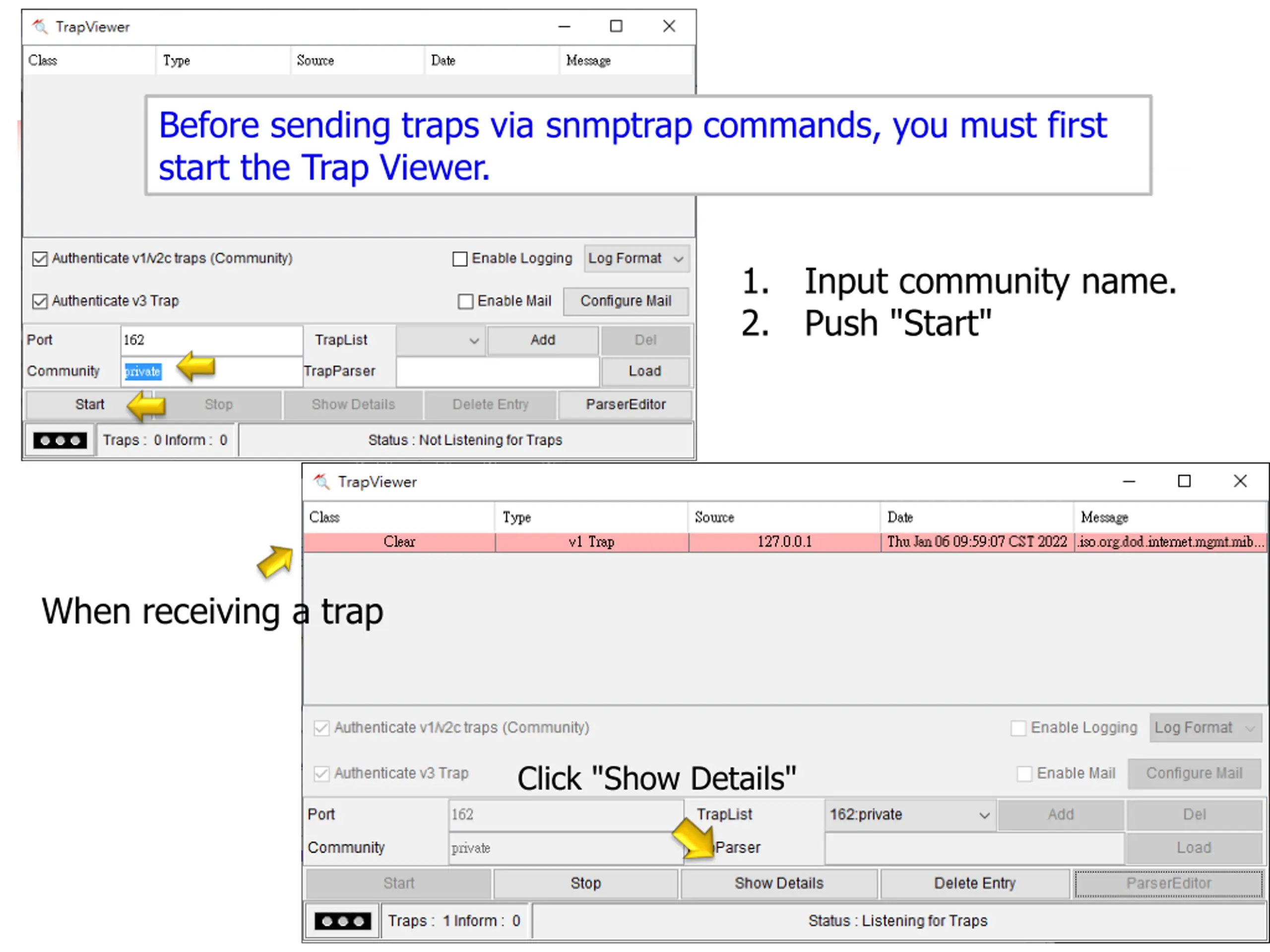

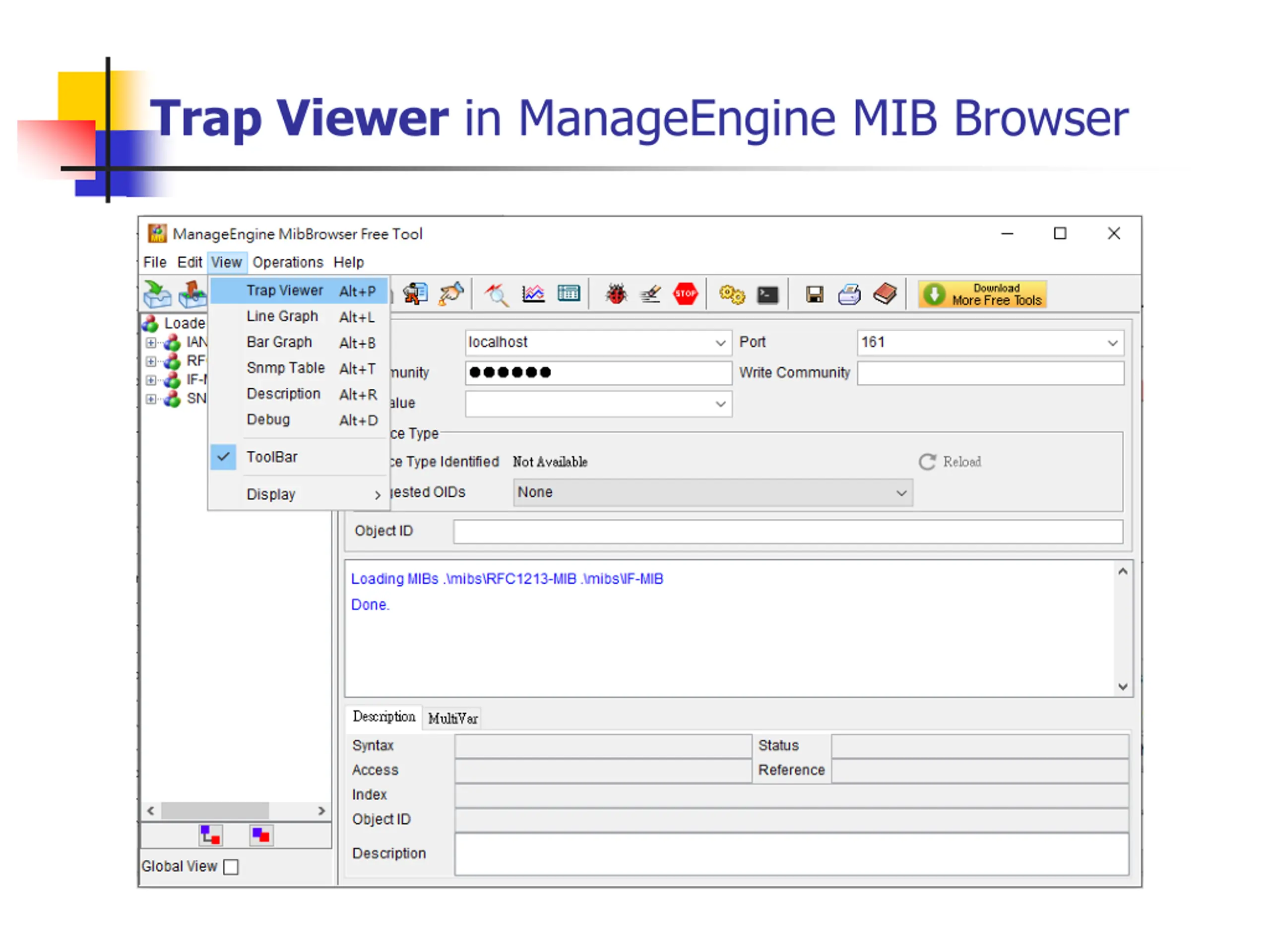

Before sending traps via snmptrap commands, you must first start the Trap Viewer. 1. 2. Input community name. Push "Start" When receiving a trap Click "Show Details"
