International Energy Outlook 2021 with projections to 2050 Narrative Figures October 6, 2021 www.eia.gov/ieo #IEO2021
You can access chart data by right-clicking the chart. www.eia.gov/ieo #IEO2021

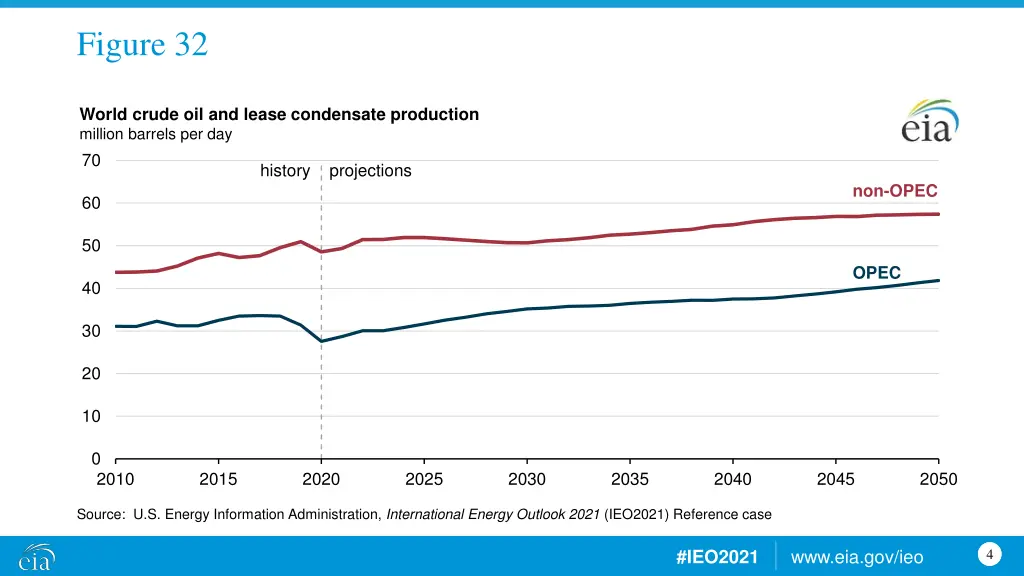

Figure 32 World crude oil and lease condensate production million barrels per day 70 history projections non-OPEC 60 50 OPEC 40 30 20 10 0 2010 2015 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 4

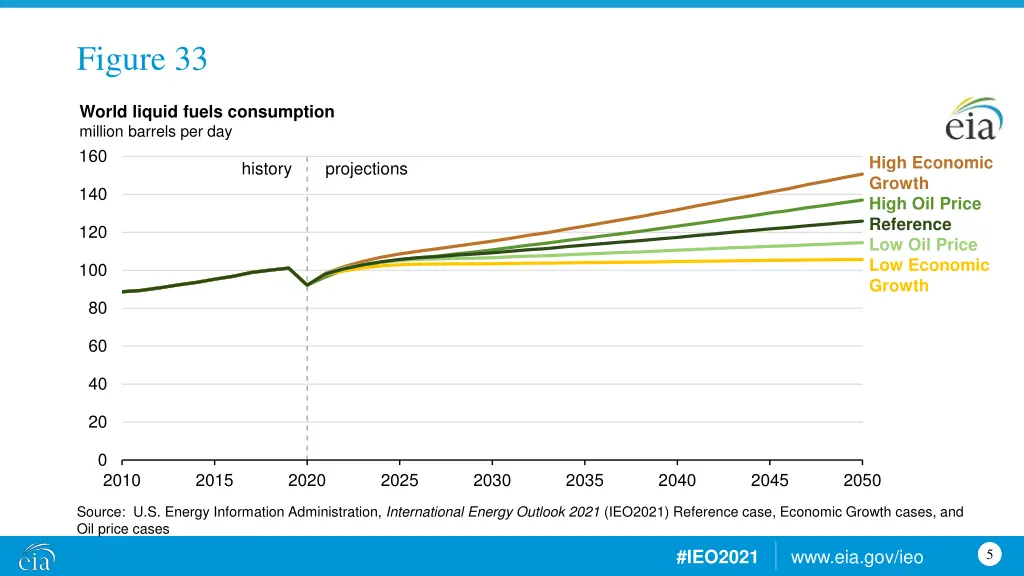

Figure 33 World liquid fuels consumption million barrels per day 160 High Economic Growth High Oil Price Reference Low Oil Price Low Economic Growth history projections 140 120 100 80 60 40 20 0 2010 2015 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case, Economic Growth cases, and Oil price cases www.eia.gov/ieo #IEO2021 5

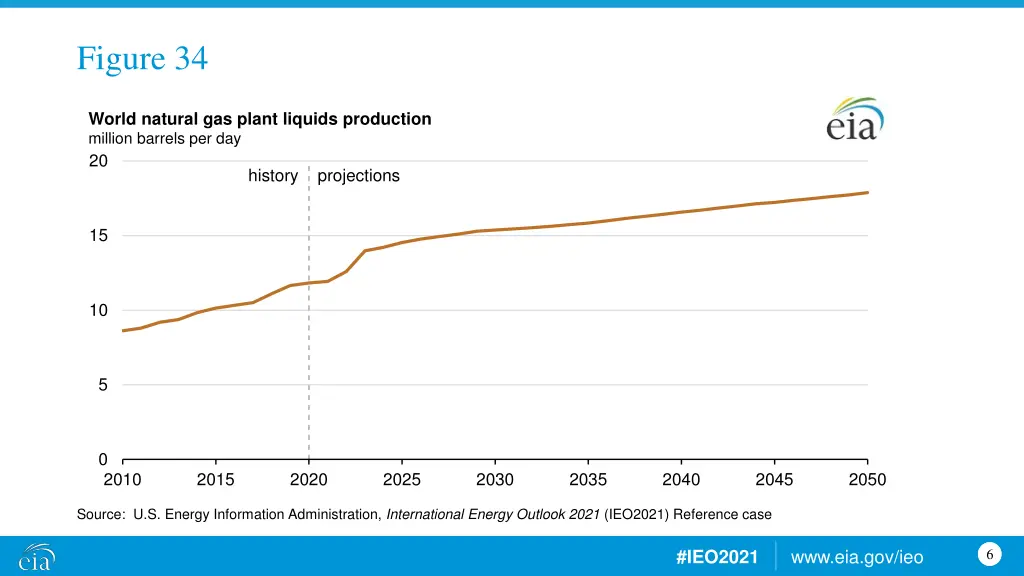

Figure 34 World natural gas plant liquids production million barrels per day 20 history projections 15 10 5 0 2010 2015 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 6
Figure 35 Crude oil production by select regions million barrels per day Total liquid fuels consumption by select regions million barrels per day 20 20 China Other non- OECD Asia India 15 15 10 10 China Other non- OECD Asia India 5 5 0 0 2020 2030 2040 2050 2020 2030 2040 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 7
Figure 36 OPEC crude oil and lease condensate production by select regions million barrels per day 45 history projections South America Central and West Africa North Africa 40 35 30 25 20 Middle East 15 10 5 0 2010 2020 2030 2040 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 8
Figure 37 Non-OPEC crude oil and lease condensate production by select regions millions of barrels per day 16 history projections United States Russia 14 12 10 8 Canada 6 4 Brazil 2 0 2010 2015 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 9

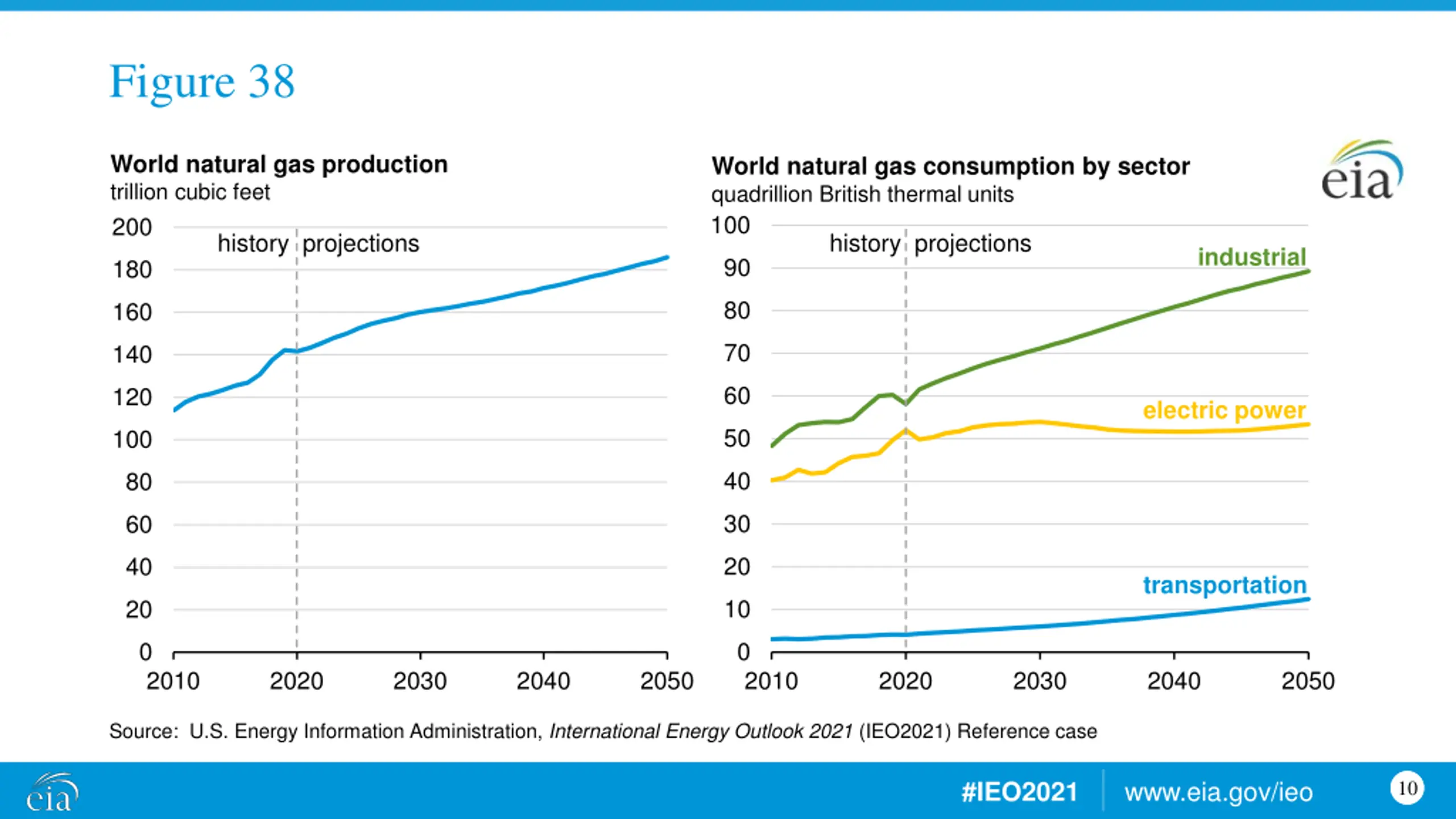

Figure 38 World natural gas production trillion cubic feet World natural gas consumption by sector quadrillion British thermal units 100 history projections 200 history projections industrial 90 180 80 160 70 140 60 120 electric power 50 100 40 80 30 60 20 40 transportation 10 20 0 0 2010 2020 2030 2040 2050 2010 2020 2030 2040 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 10

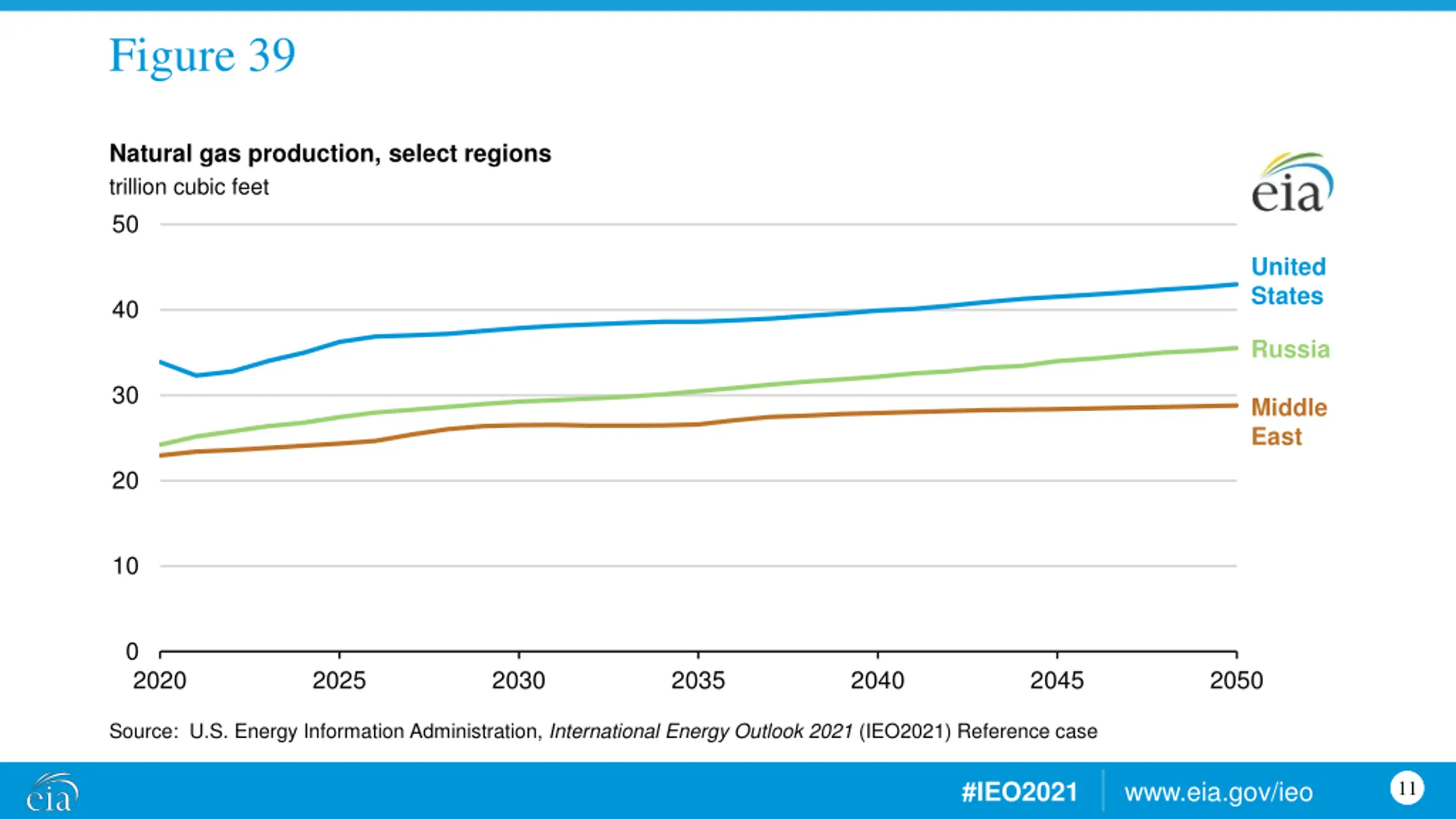

Figure 39 Natural gas production, select regions trillion cubic feet 50 United States 40 Russia 30 Middle East 20 10 0 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 11

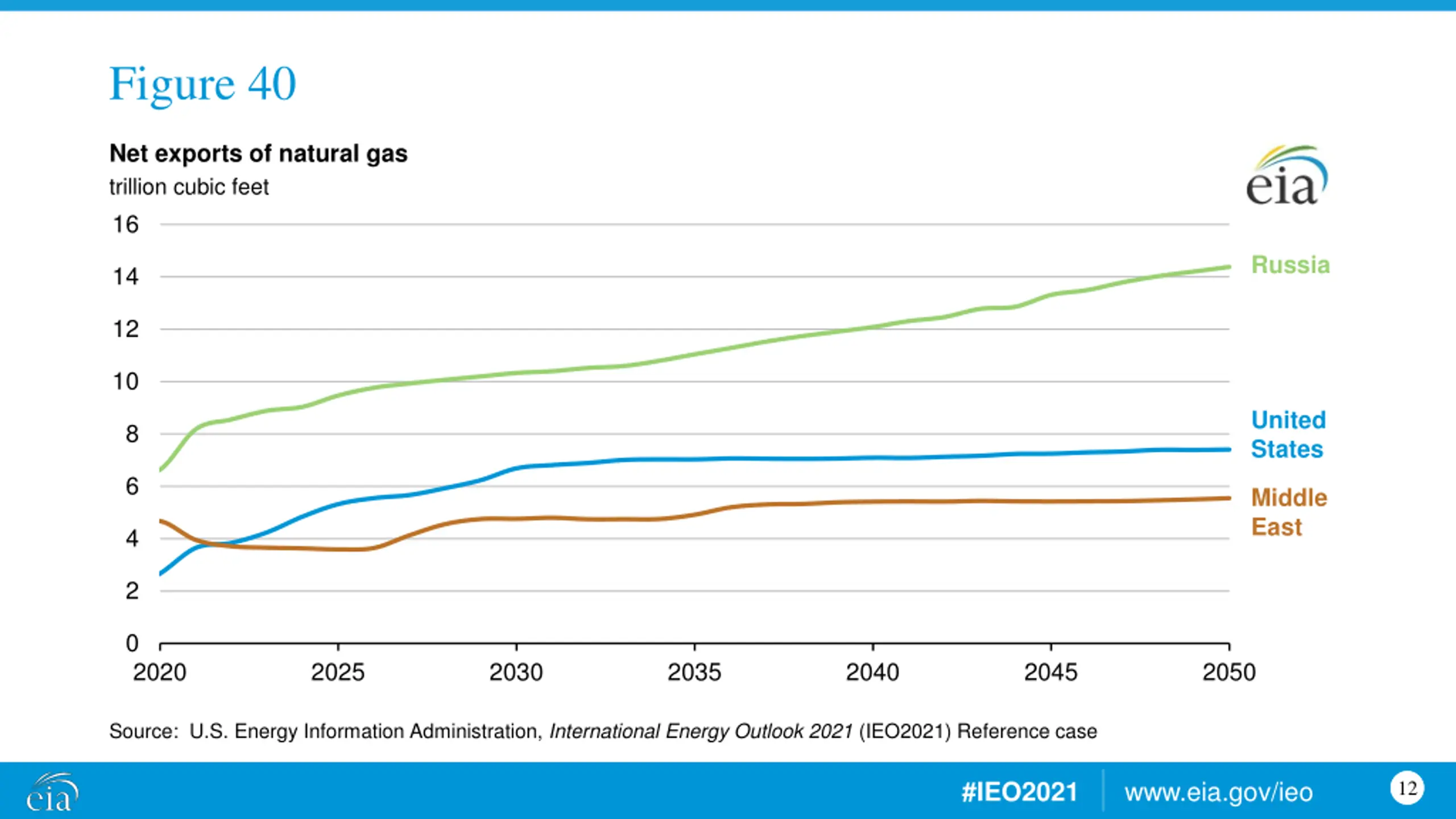

Figure 40 Net exports of natural gas trillion cubic feet 16 Russia 14 12 10 United States 8 6 Middle East 4 2 0 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 12

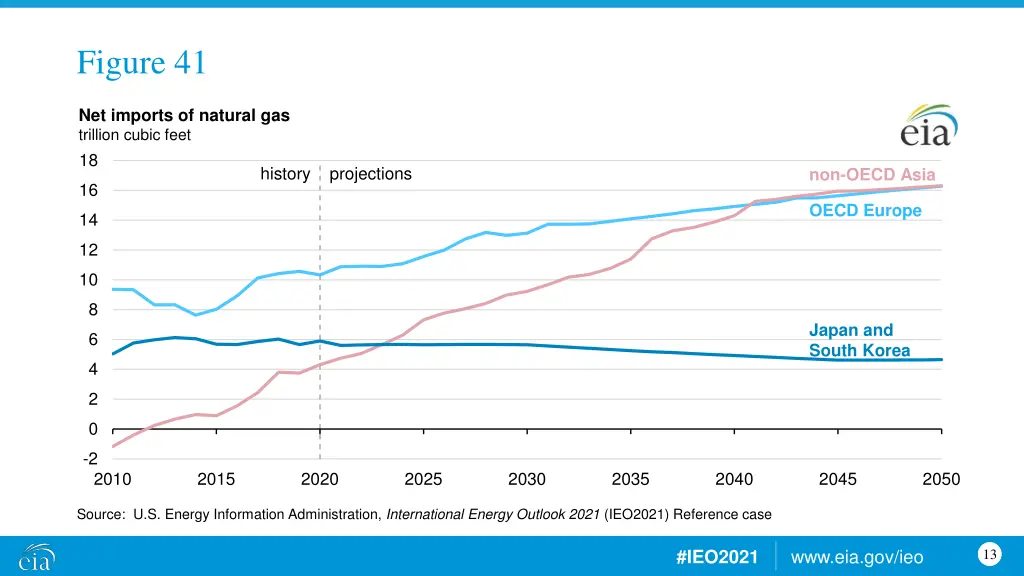

Figure 41 Net imports of natural gas trillion cubic feet 18 history projections non-OECD Asia 16 OECD Europe 14 12 10 8 Japan and South Korea 6 4 2 0 -2 2010 2015 2020 2025 2030 2035 2040 2045 2050 Source: U.S. Energy Information Administration, International Energy Outlook 2021 (IEO2021) Reference case www.eia.gov/ieo #IEO2021 13
