14-760: ADVANCED REAL-WORLD NETWORKS LECTURE 16 * SPRING 2019 * KESDEN

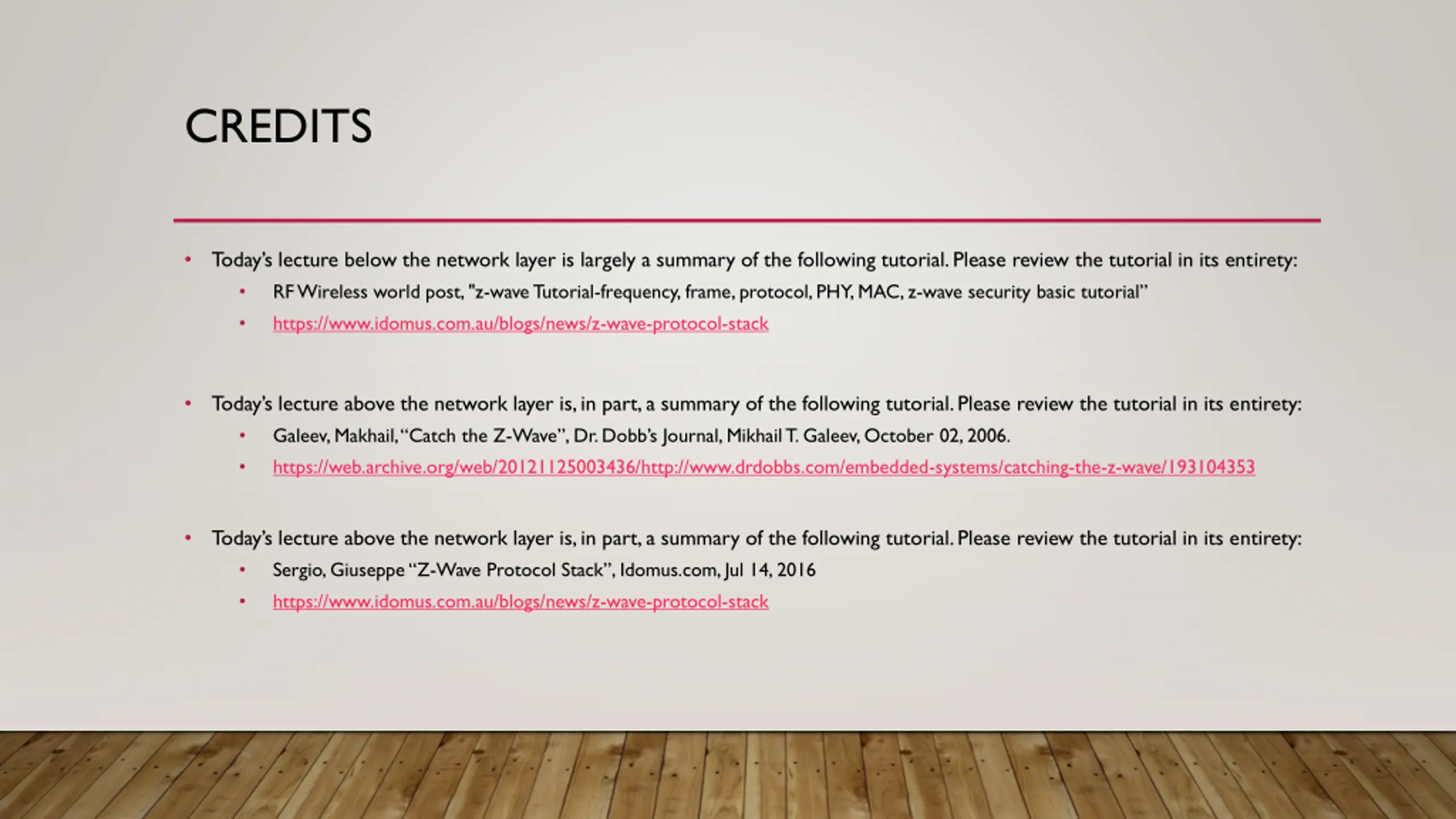

CREDITS Today s lecture below the network layer is largely a summary of the following tutorial. Please review the tutorial in its entirety: RF Wireless world post, "z-wave Tutorial-frequency, frame, protocol, PHY, MAC, z-wave security basic tutorial https://www.idomus.com.au/blogs/news/z-wave-protocol-stack Today s lecture above the network layer is, in part, a summary of the following tutorial. Please review the tutorial in its entirety: Galeev, Makhail, Catch the Z-Wave , Dr. Dobb s Journal, Mikhail T. Galeev, October 02, 2006. https://web.archive.org/web/20121125003436/http://www.drdobbs.com/embedded-systems/catching-the-z-wave/193104353 Today s lecture above the network layer is, in part, a summary of the following tutorial. Please review the tutorial in its entirety: Sergio, Giuseppe Z-Wave Protocol Stack , Idomus.com, Jul 14, 2016 https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

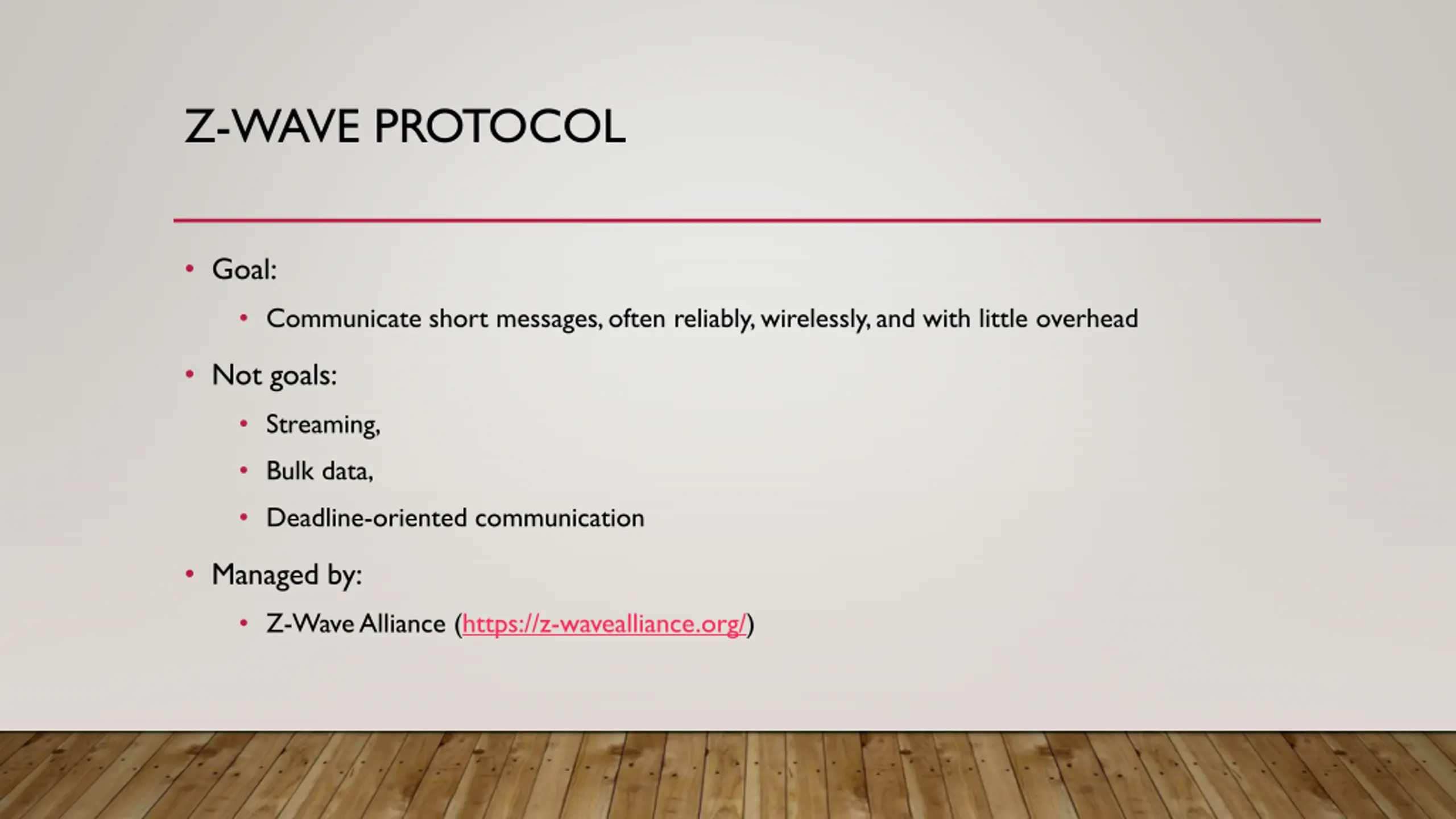

Z-WAVE PROTOCOL Goal: Communicate short messages, often reliably, wirelessly, and with little overhead Not goals: Streaming, Bulk data, Deadline-oriented communication Managed by: Z-Wave Alliance (https://z-wavealliance.org/)

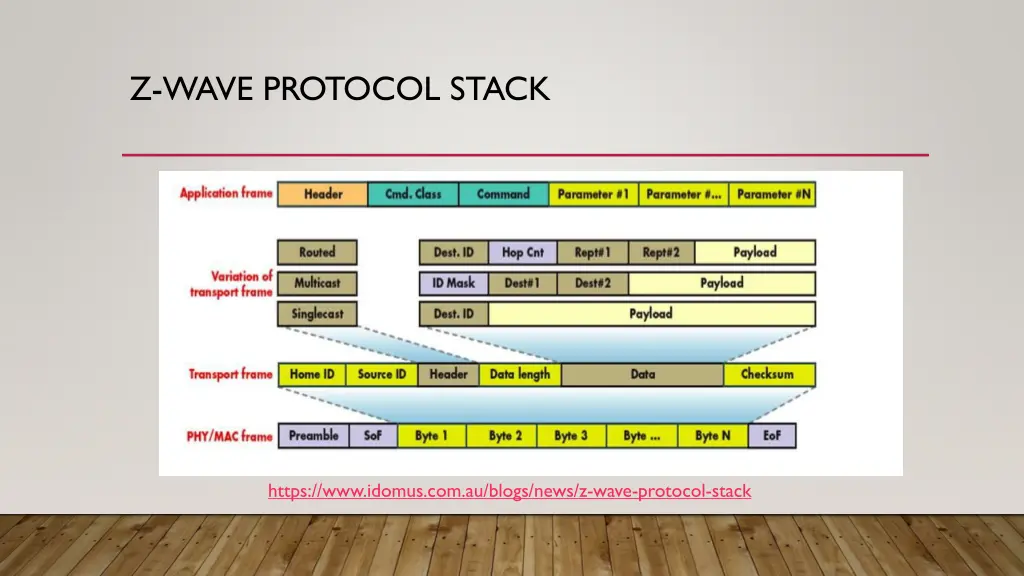

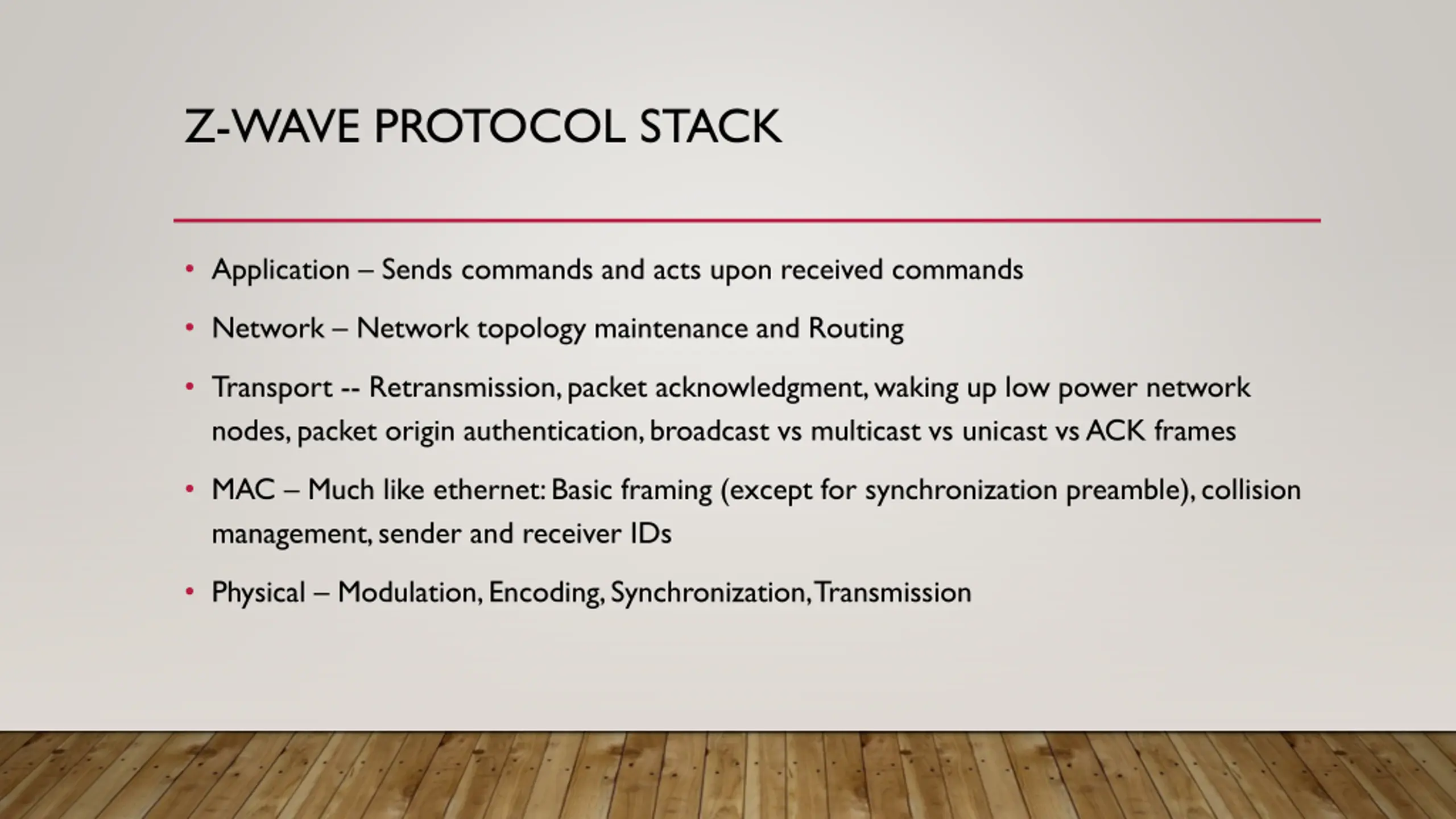

Z-WAVE PROTOCOL STACK Application Sends commands and acts upon received commands Network Network topology maintenance and Routing Transport -- Retransmission, packet acknowledgment, waking up low power network nodes, packet origin authentication, broadcast vs multicast vs unicast vs ACK frames MAC Much like ethernet: Basic framing (except for synchronization preamble), collision management, sender and receiver IDs Physical Modulation, Encoding, Synchronization, Transmission

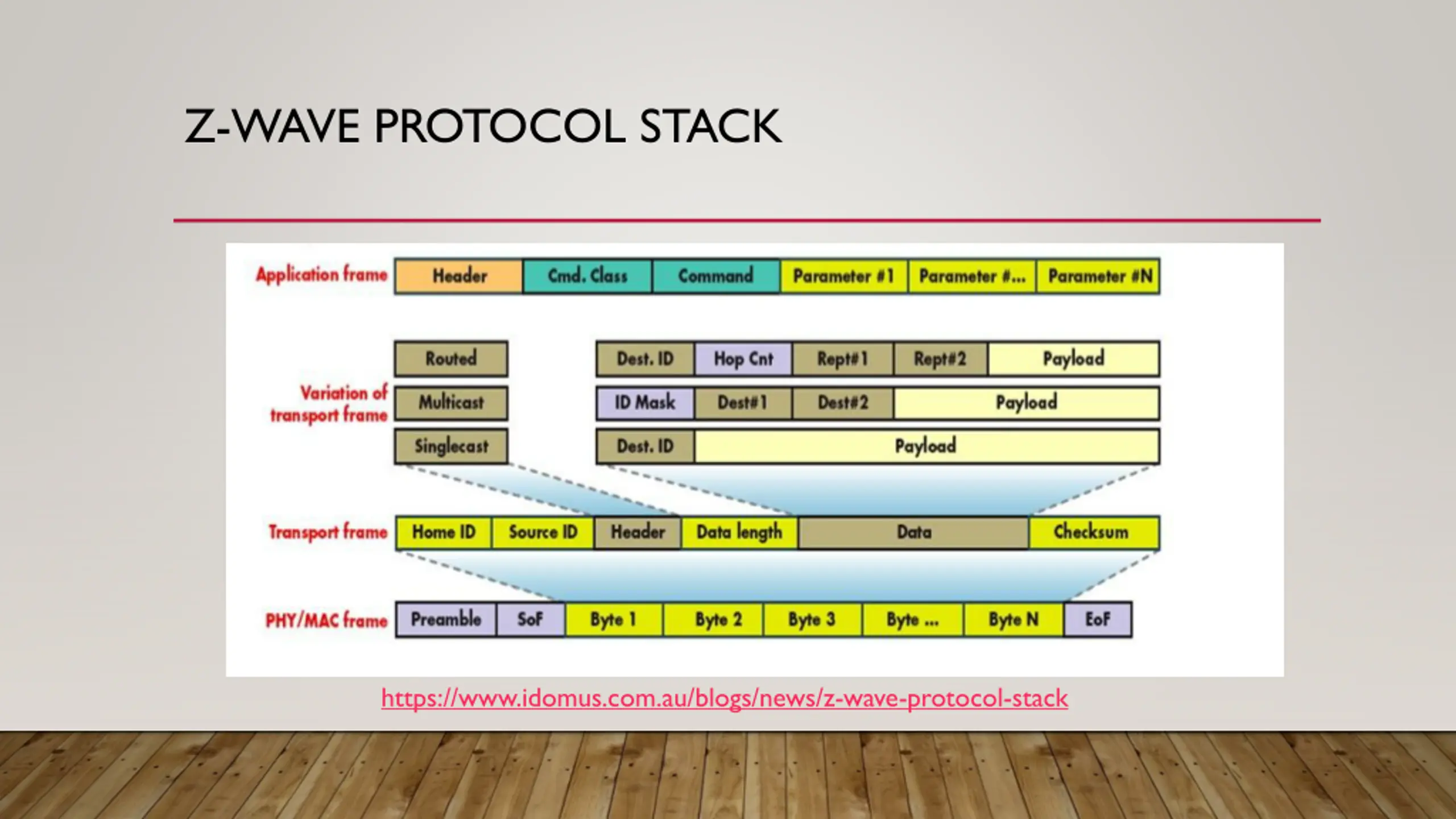

Z-WAVE PROTOCOL STACK https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

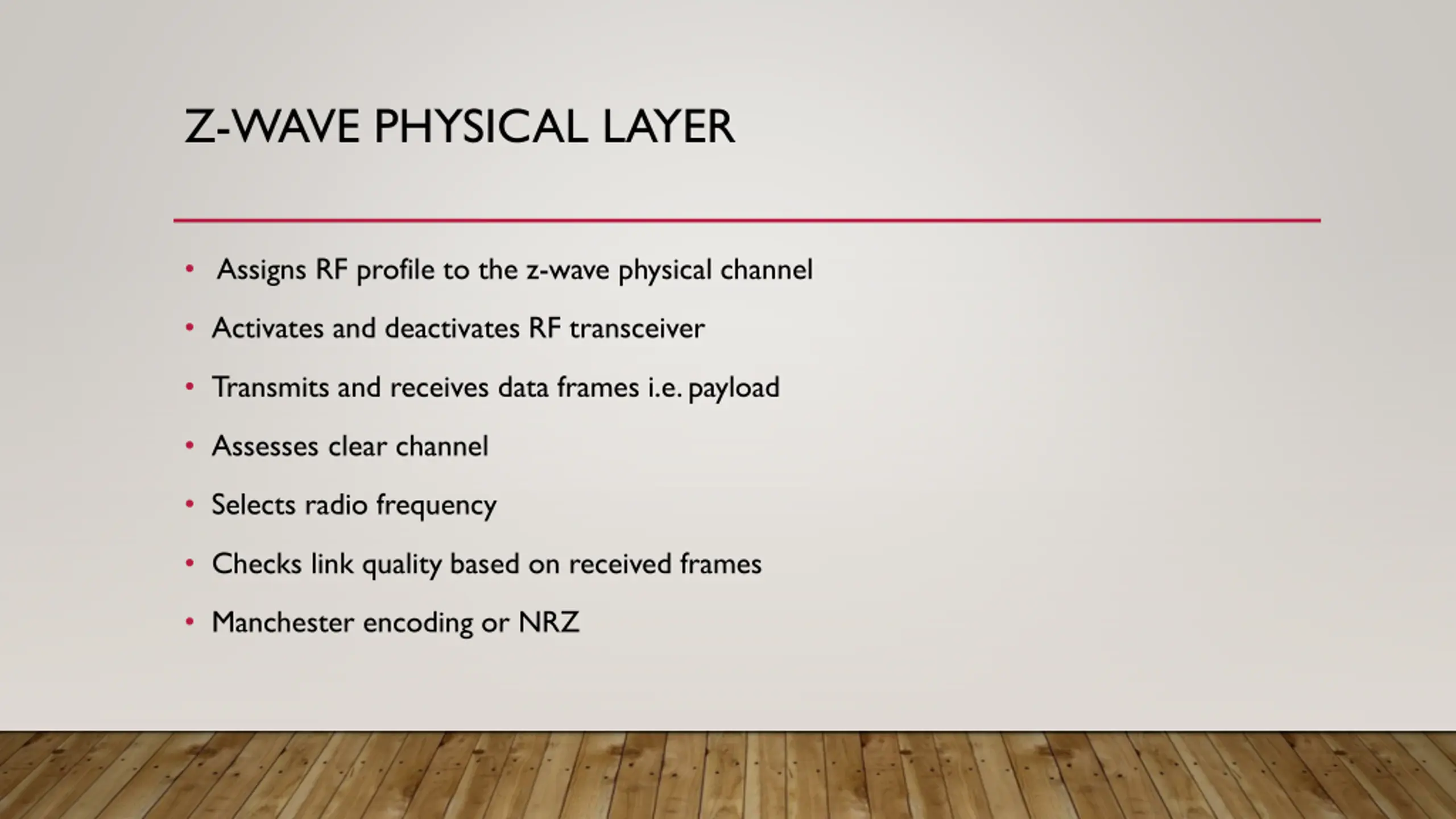

Z-WAVE PHYSICAL LAYER Assigns RF profile to the z-wave physical channel Activates and deactivates RF transceiver Transmits and receives data frames i.e. payload Assesses clear channel Selects radio frequency Checks link quality based on received frames Manchester encoding or NRZ

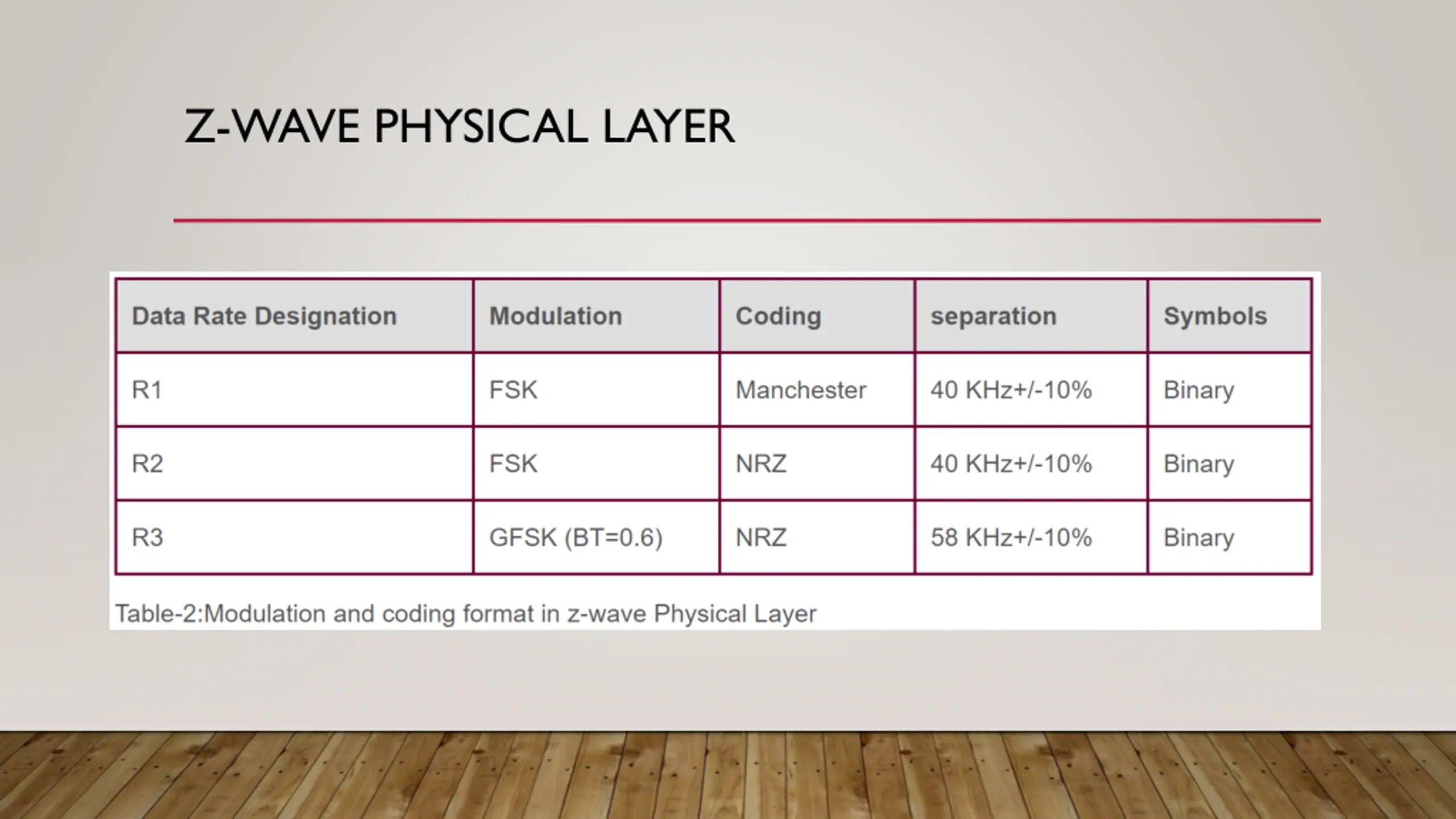

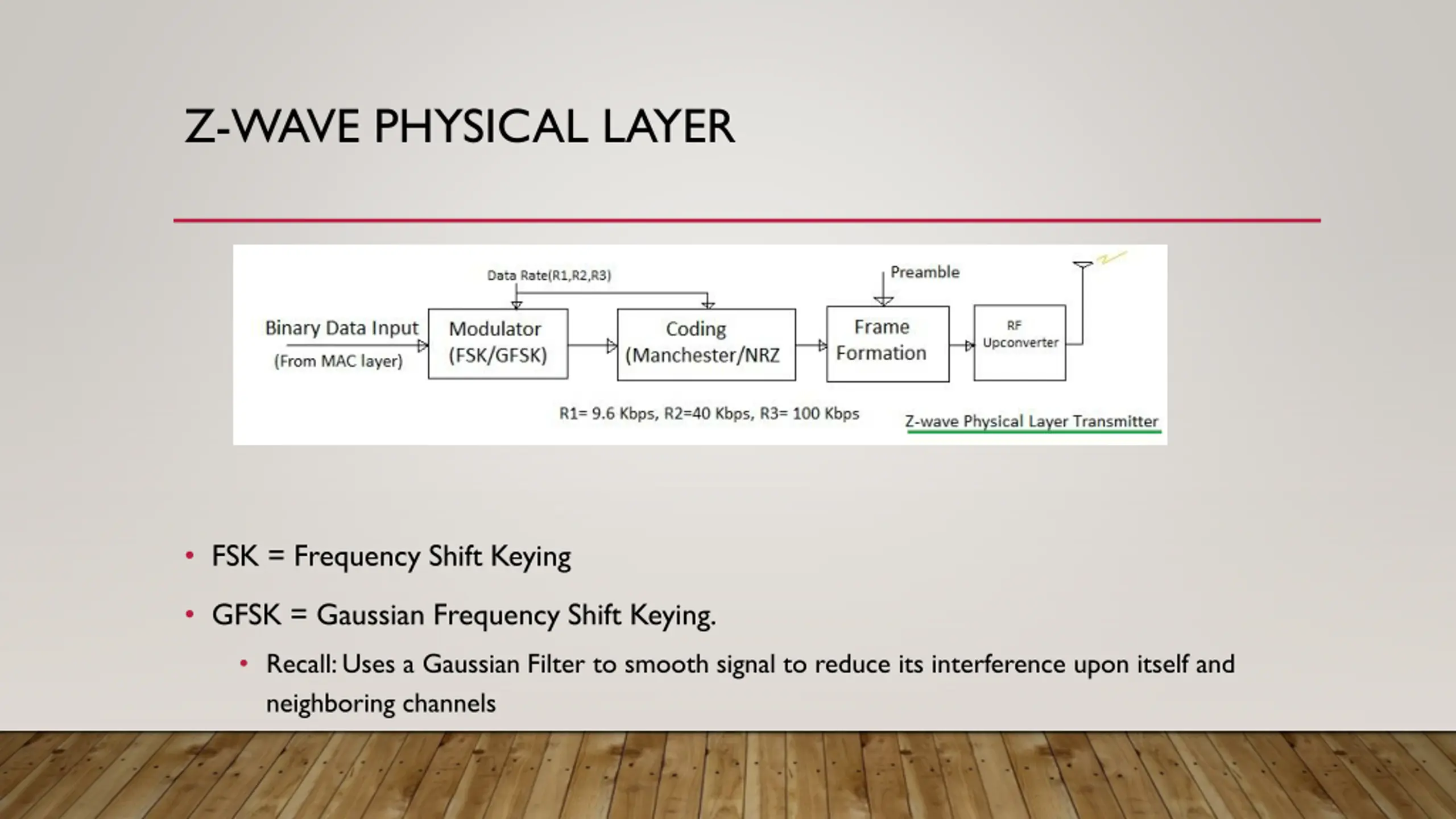

Z-WAVE PHYSICAL LAYER FSK = Frequency Shift Keying GFSK = Gaussian Frequency Shift Keying. Recall: Uses a Gaussian Filter to smooth signal to reduce its interference upon itself and neighboring channels

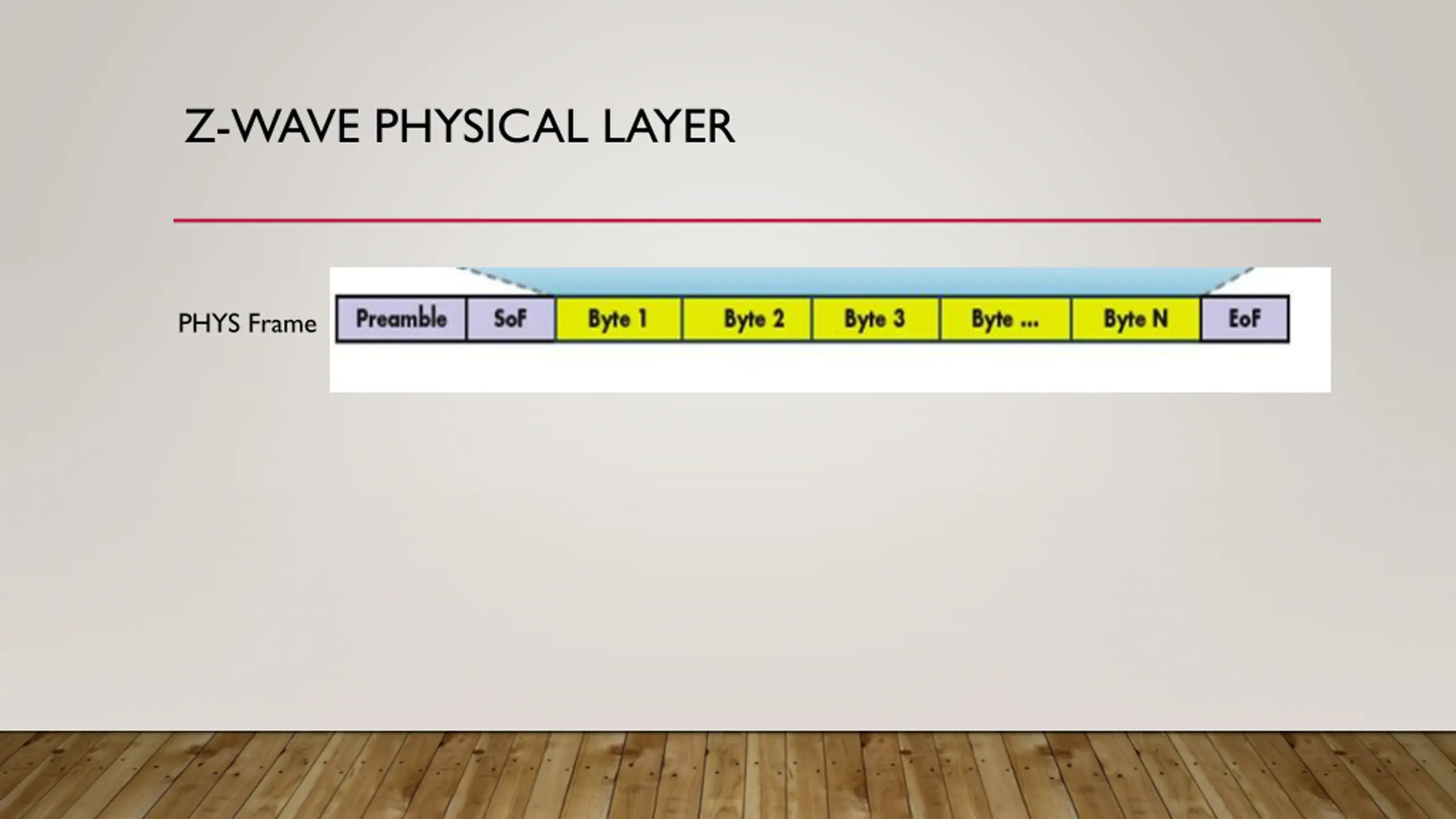

Z-WAVE PHYSICAL LAYER PHYS Frame

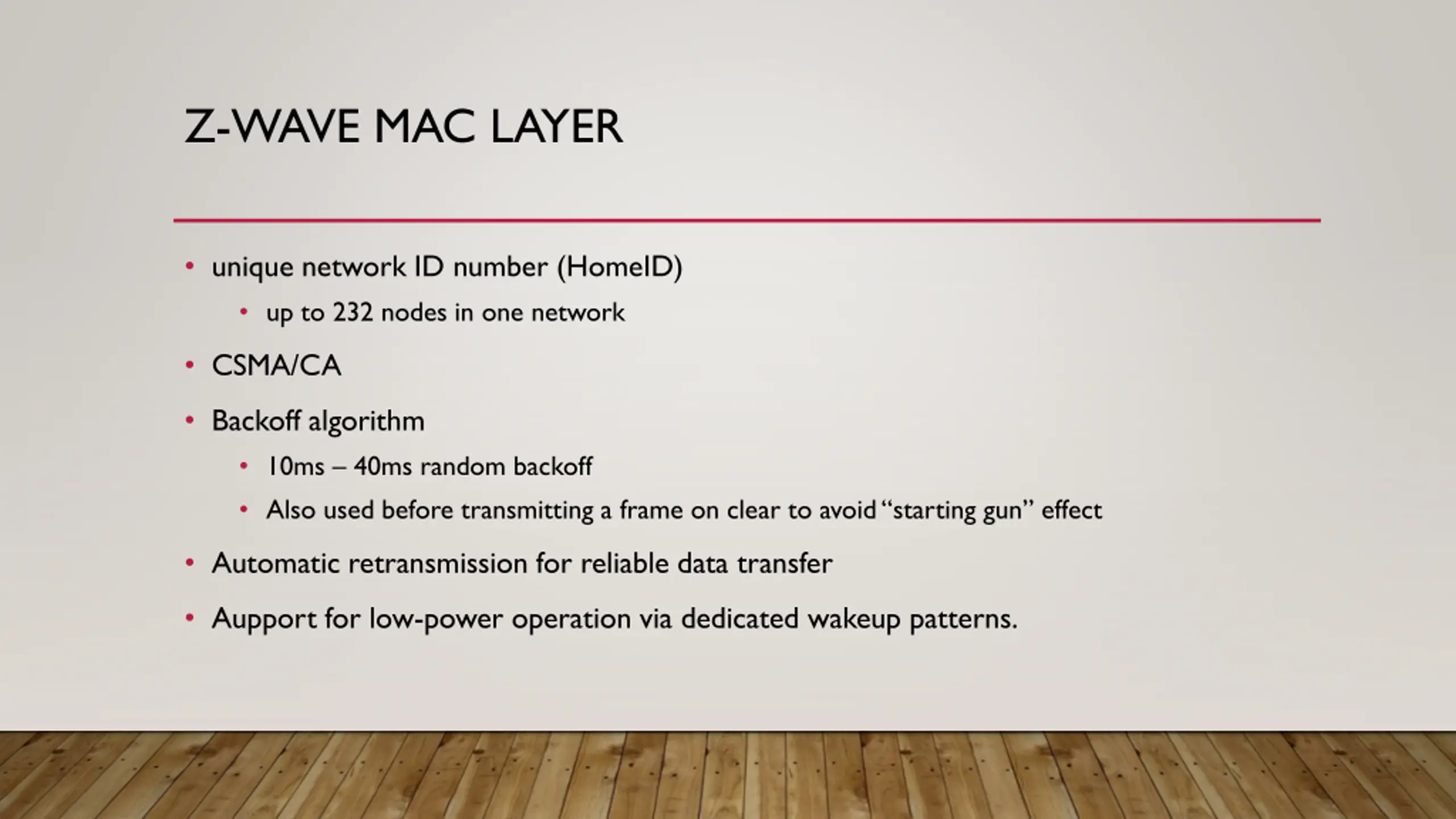

Z-WAVE MAC LAYER unique network ID number (HomeID) up to 232 nodes in one network CSMA/CA Backoff algorithm 10ms 40ms random backoff Also used before transmitting a frame on clear to avoid starting gun effect Automatic retransmission for reliable data transfer Aupport for low-power operation via dedicated wakeup patterns.

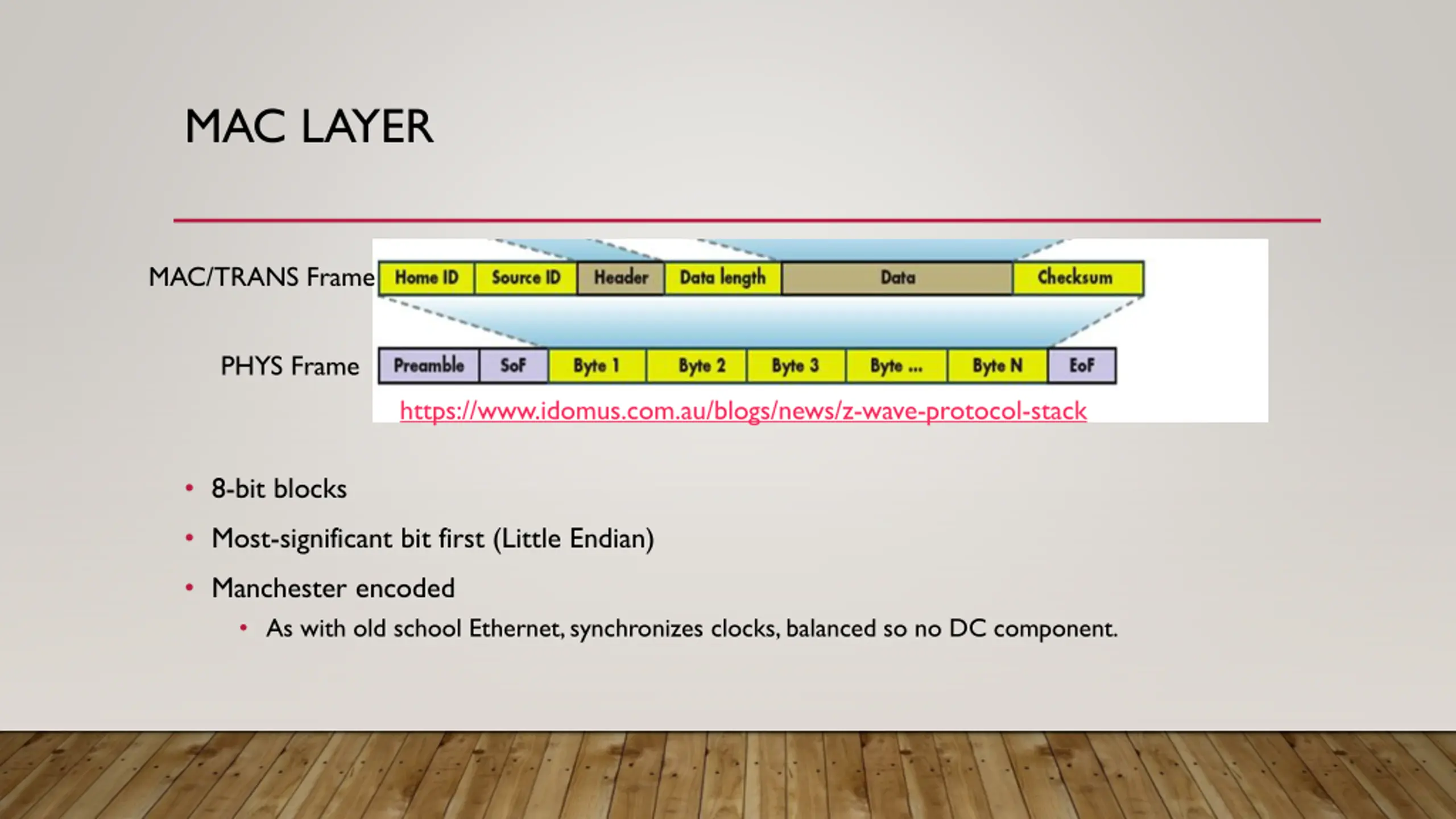

MAC LAYER MAC/TRANS Frame PHYS Frame https://www.idomus.com.au/blogs/news/z-wave-protocol-stack 8-bit blocks Most-significant bit first (Little Endian) Manchester encoded As with old school Ethernet, synchronizes clocks, balanced so no DC component.

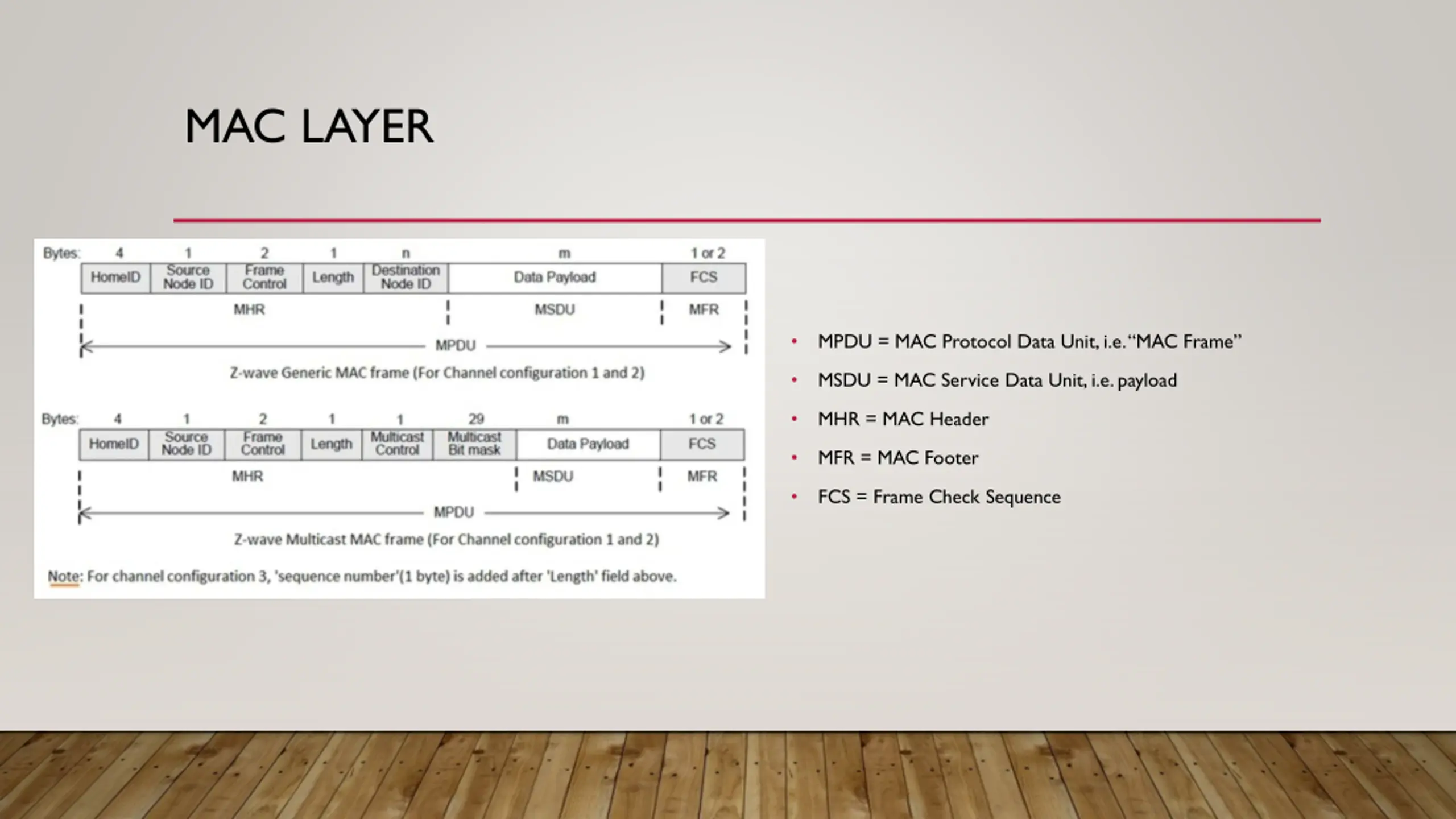

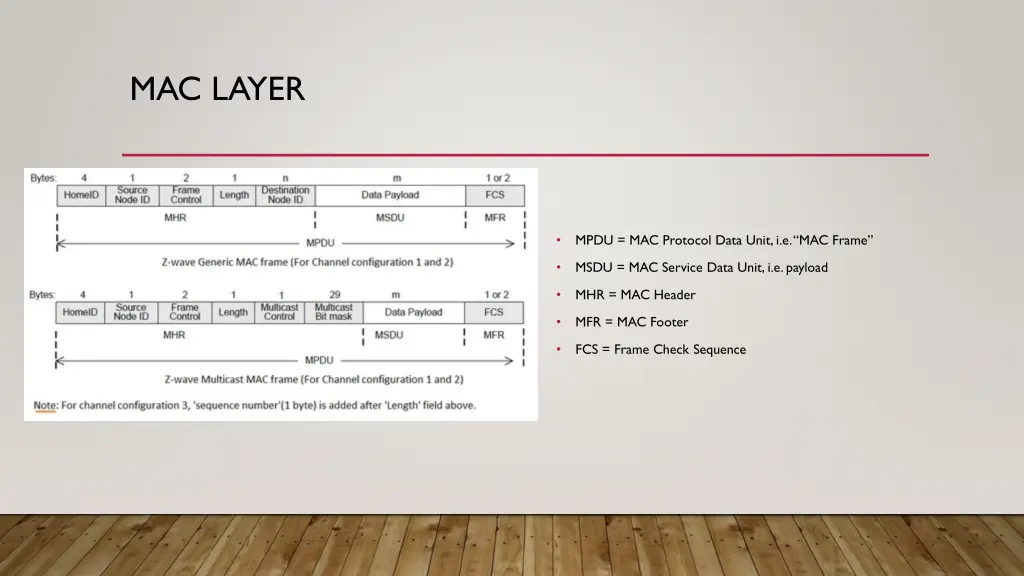

MAC LAYER MPDU = MAC Protocol Data Unit, i.e. MAC Frame MSDU = MAC Service Data Unit, i.e. payload MHR = MAC Header MFR = MAC Footer FCS = Frame Check Sequence

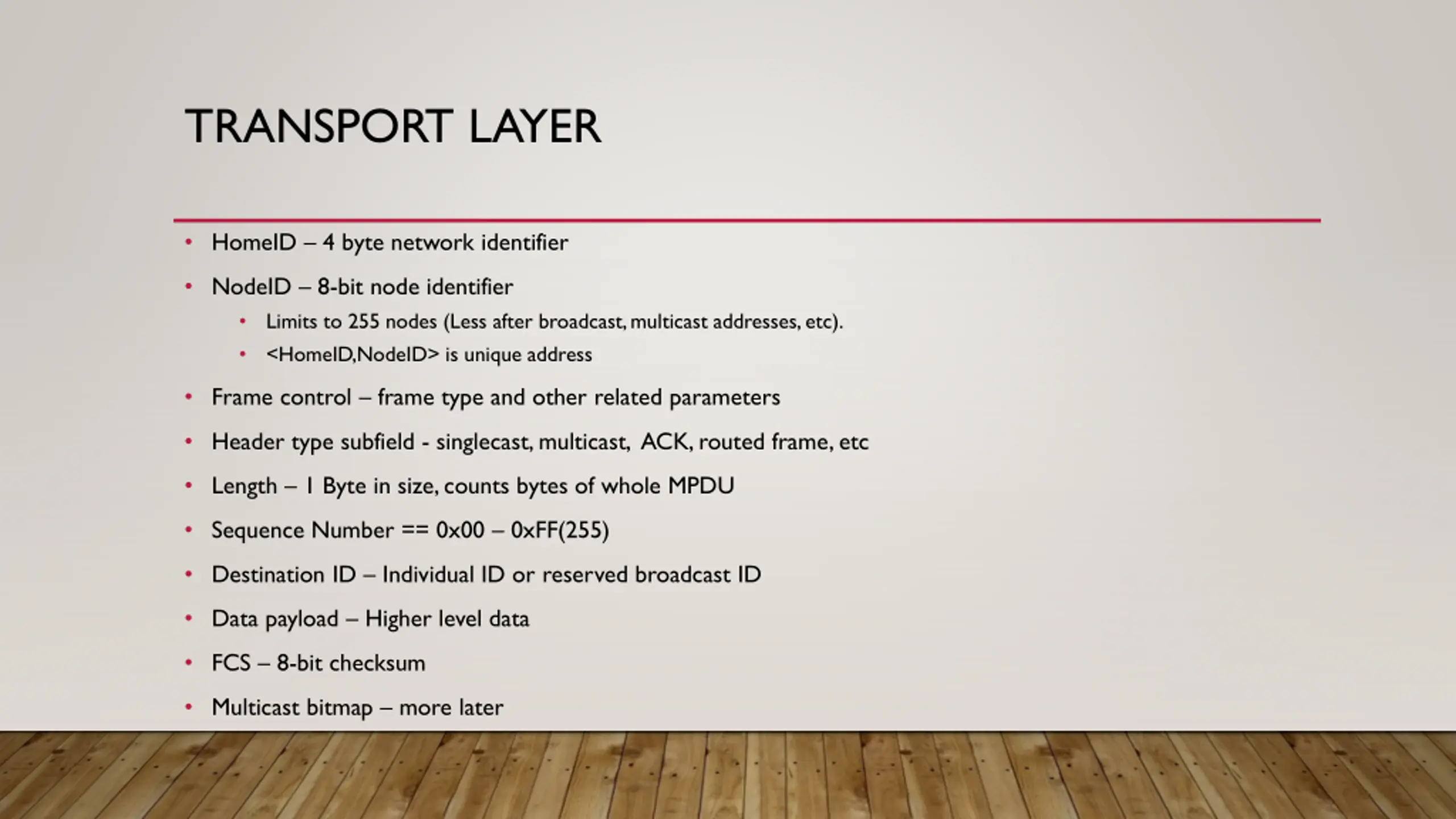

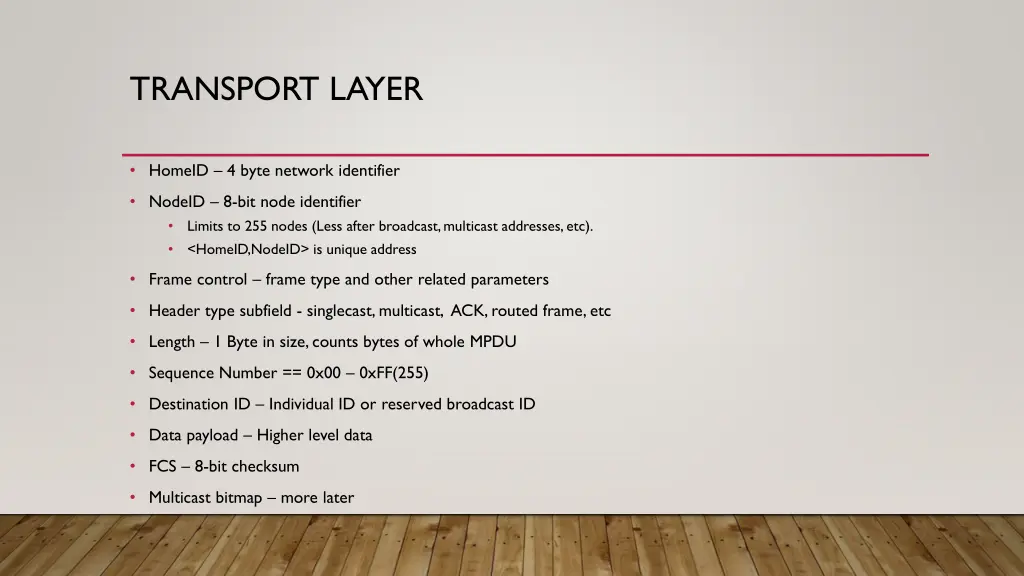

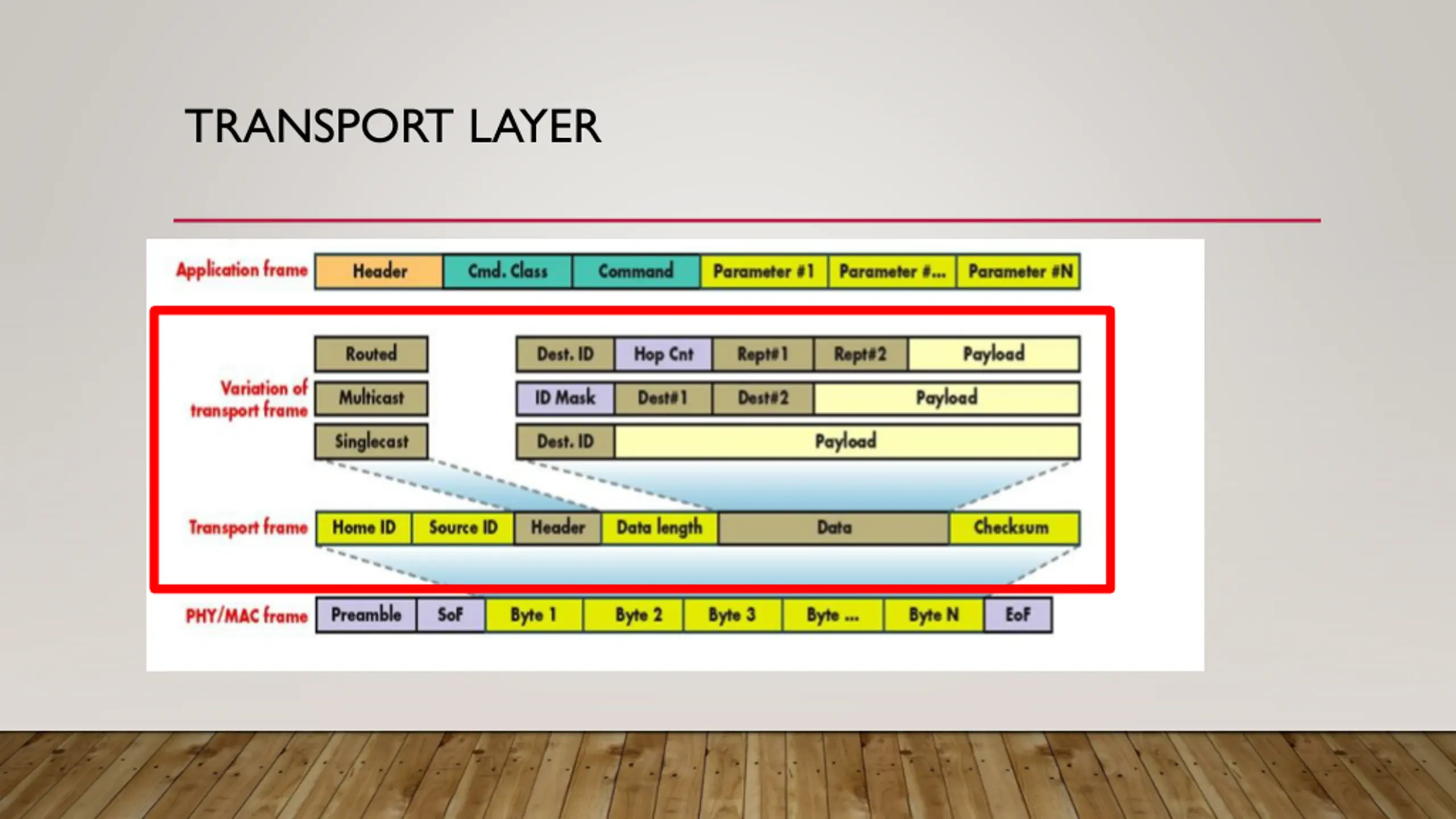

TRANSPORT LAYER HomeID 4 byte network identifier NodeID 8-bit node identifier Limits to 255 nodes (Less after broadcast, multicast addresses, etc). <HomeID,NodeID> is unique address Frame control frame type and other related parameters Header type subfield - singlecast, multicast, ACK, routed frame, etc Length 1 Byte in size, counts bytes of whole MPDU Sequence Number == 0x00 0xFF(255) Destination ID Individual ID or reserved broadcast ID Data payload Higher level data FCS 8-bit checksum Multicast bitmap more later

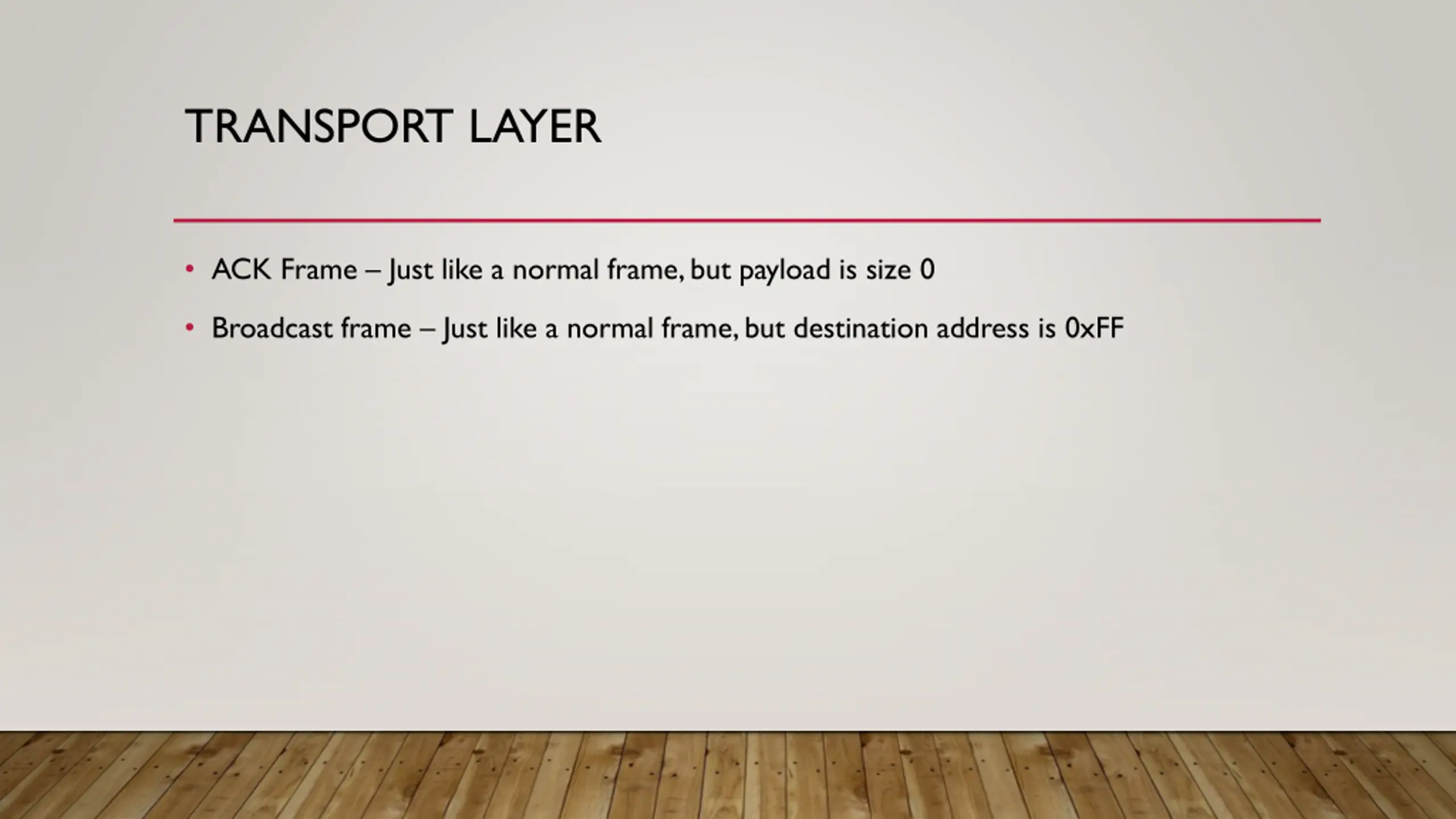

TRANSPORT LAYER ACK Frame Just like a normal frame, but payload is size 0 Broadcast frame Just like a normal frame, but destination address is 0xFF

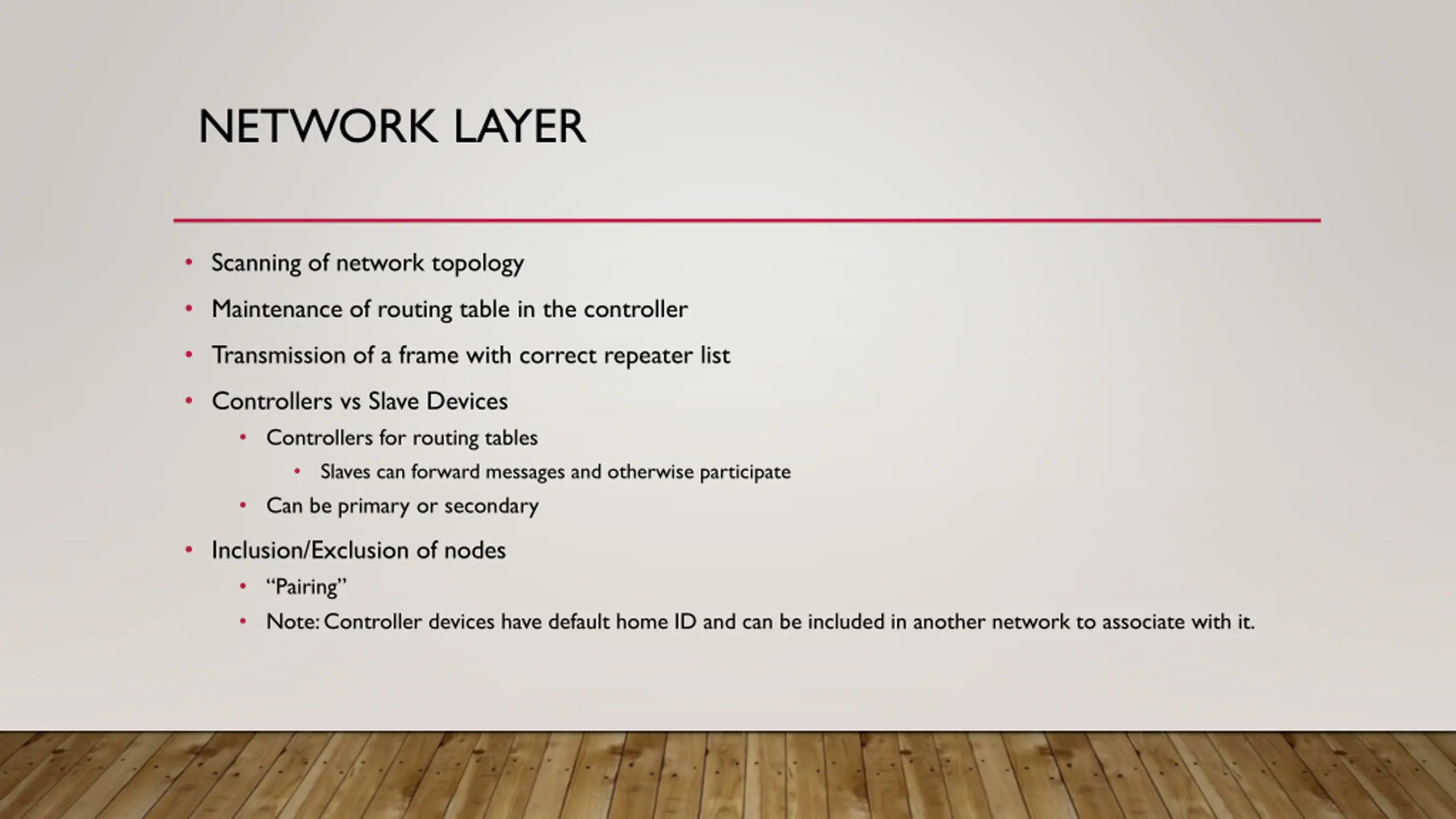

NETWORK LAYER Scanning of network topology Maintenance of routing table in the controller Transmission of a frame with correct repeater list Controllers vs Slave Devices Controllers for routing tables Slaves can forward messages and otherwise participate Can be primary or secondary Inclusion/Exclusion of nodes Pairing Note: Controller devices have default home ID and can be included in another network to associate with it.

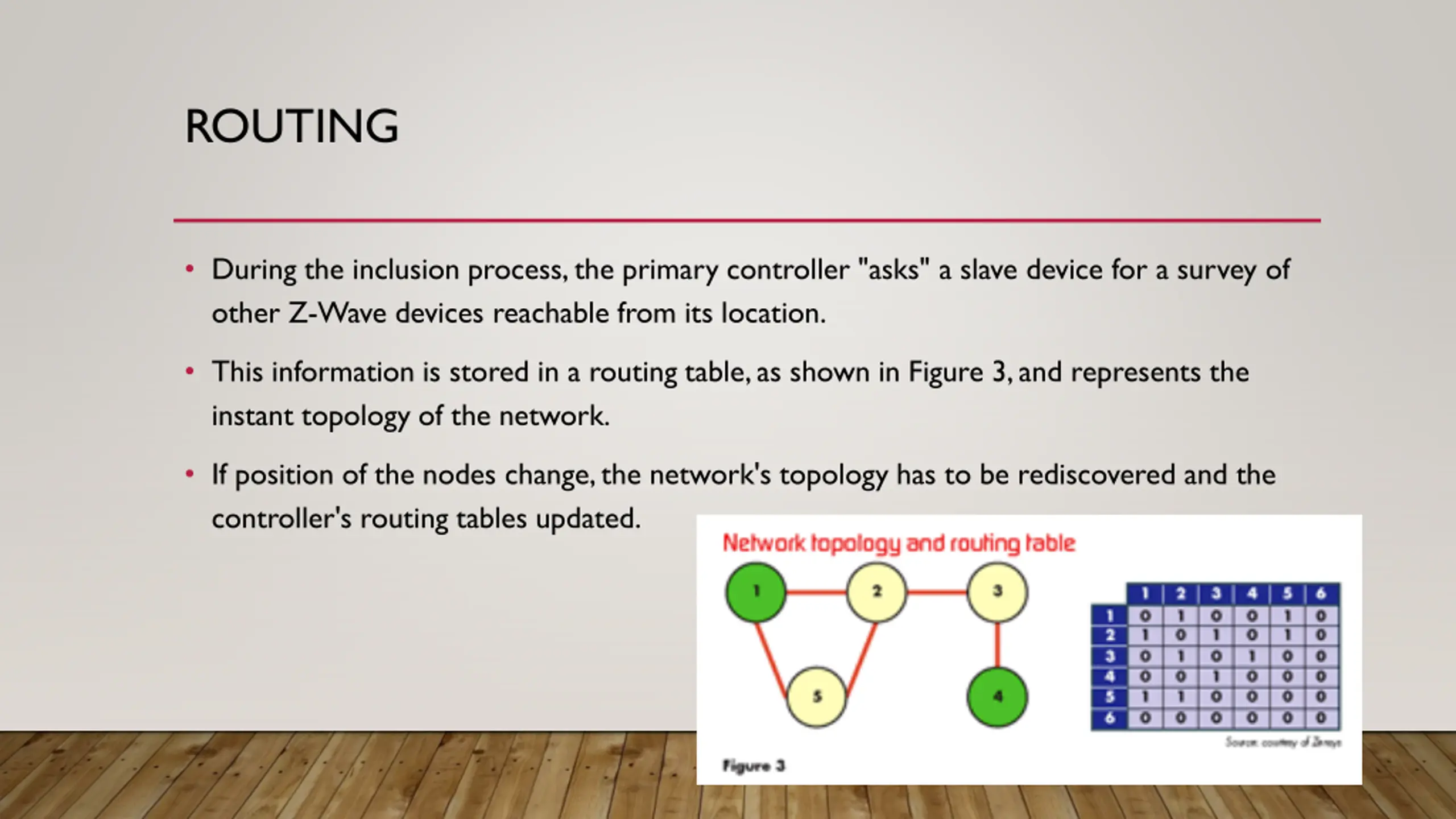

ROUTING During the inclusion process, the primary controller "asks" a slave device for a survey of other Z-Wave devices reachable from its location. This information is stored in a routing table, as shown in Figure 3, and represents the instant topology of the network. If position of the nodes change, the network's topology has to be rediscovered and the controller's routing tables updated.

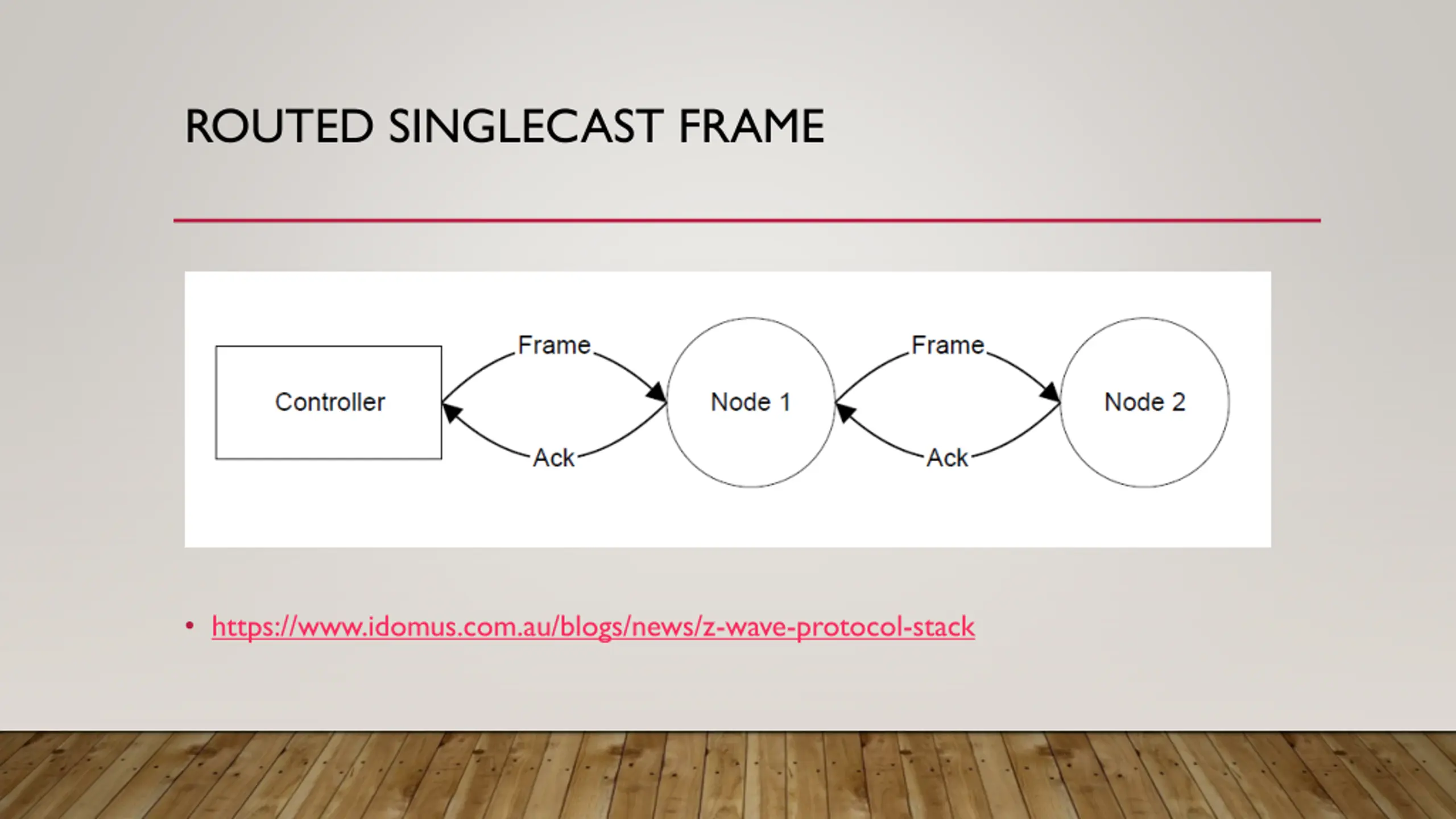

ROUTED SINGLECAST FRAME https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

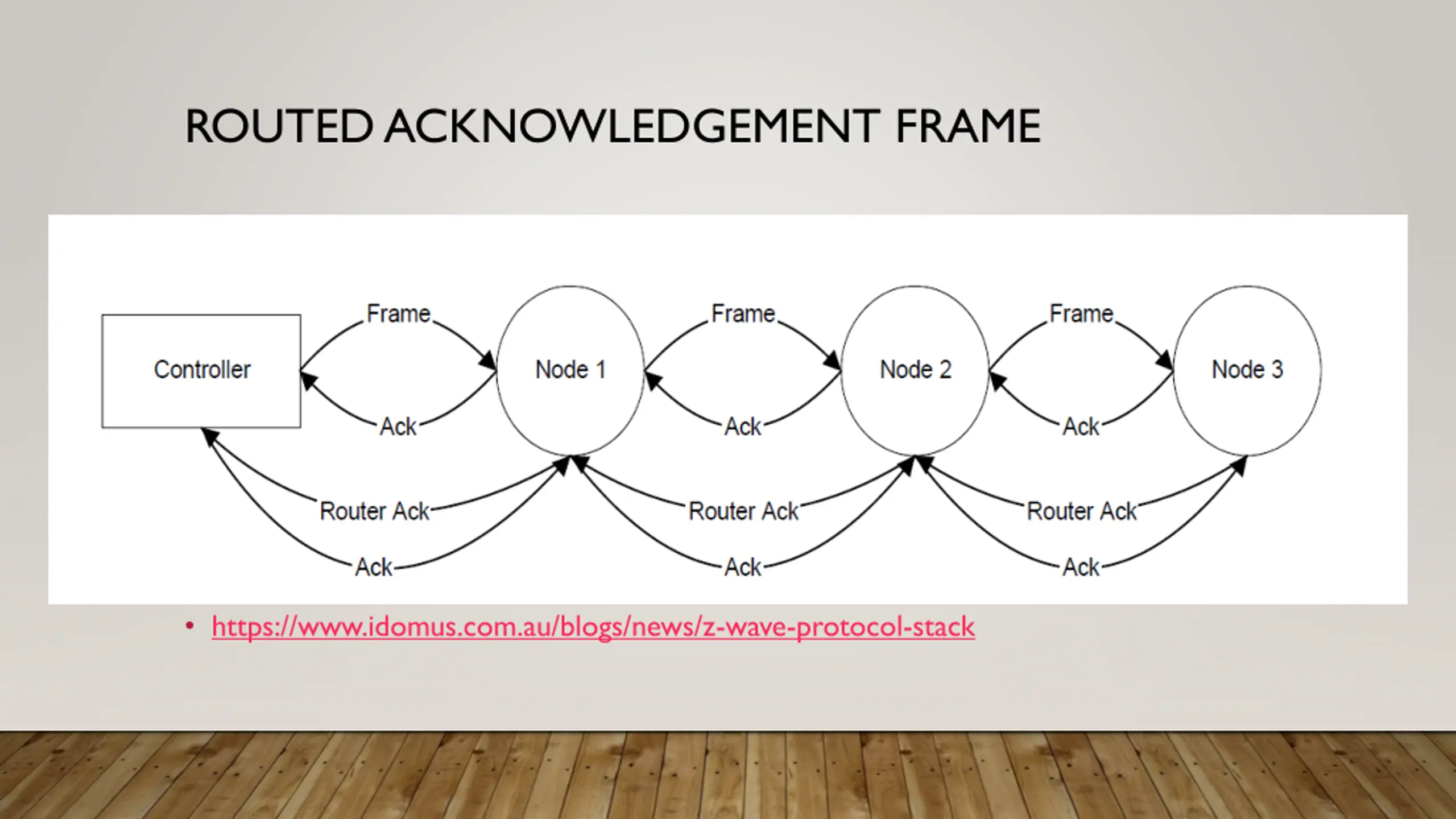

ROUTED ACKNOWLEDGEMENT FRAME https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

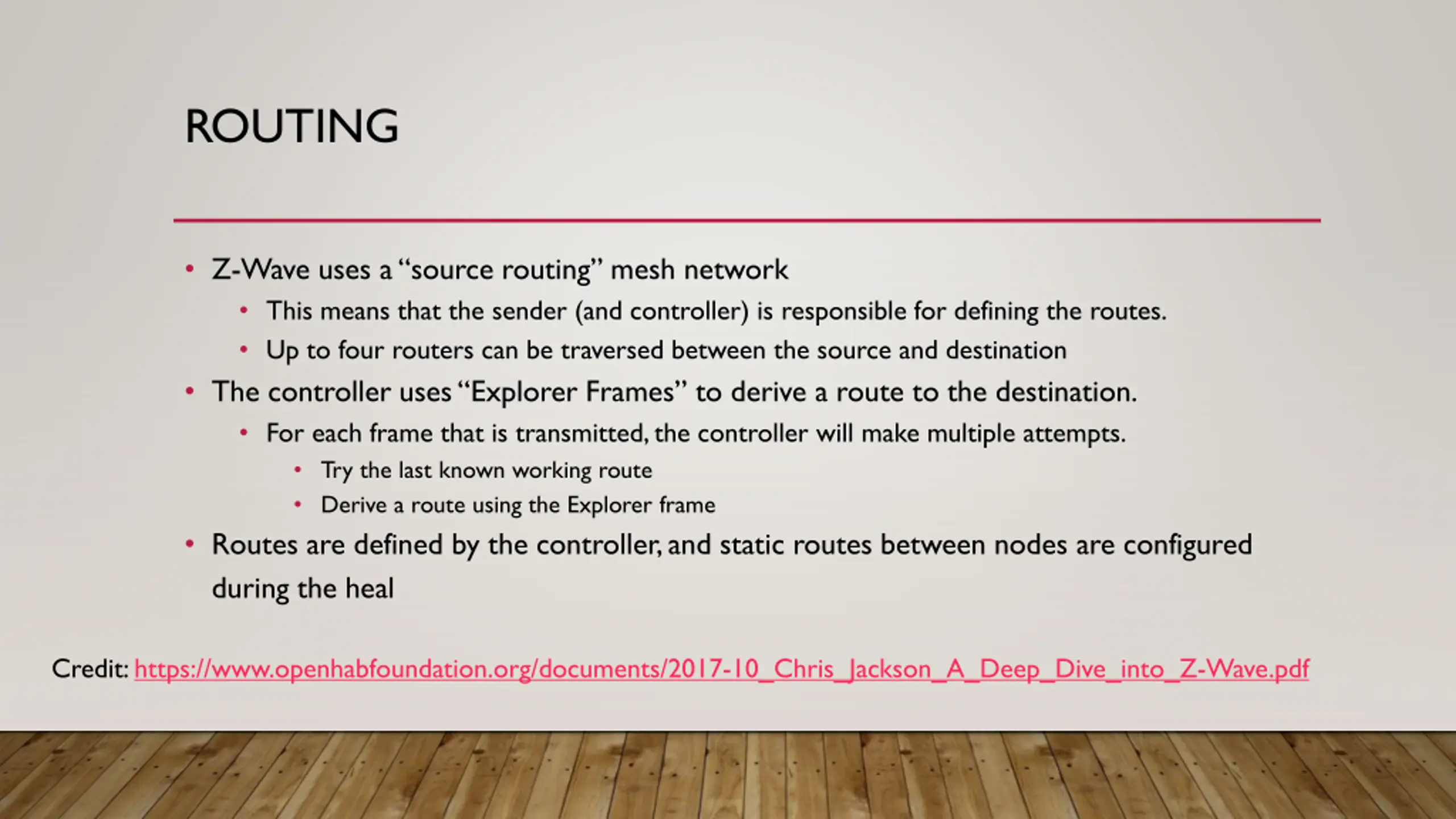

ROUTING Z-Wave uses a source routing mesh network This means that the sender (and controller) is responsible for defining the routes. Up to four routers can be traversed between the source and destination The controller uses Explorer Frames to derive a route to the destination. For each frame that is transmitted, the controller will make multiple attempts. Try the last known working route Derive a route using the Explorer frame Routes are defined by the controller, and static routes between nodes are configured during the heal Credit: https://www.openhabfoundation.org/documents/2017-10_Chris_Jackson_A_Deep_Dive_into_Z-Wave.pdf
Z-WAVE APPLICATION LAYER https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

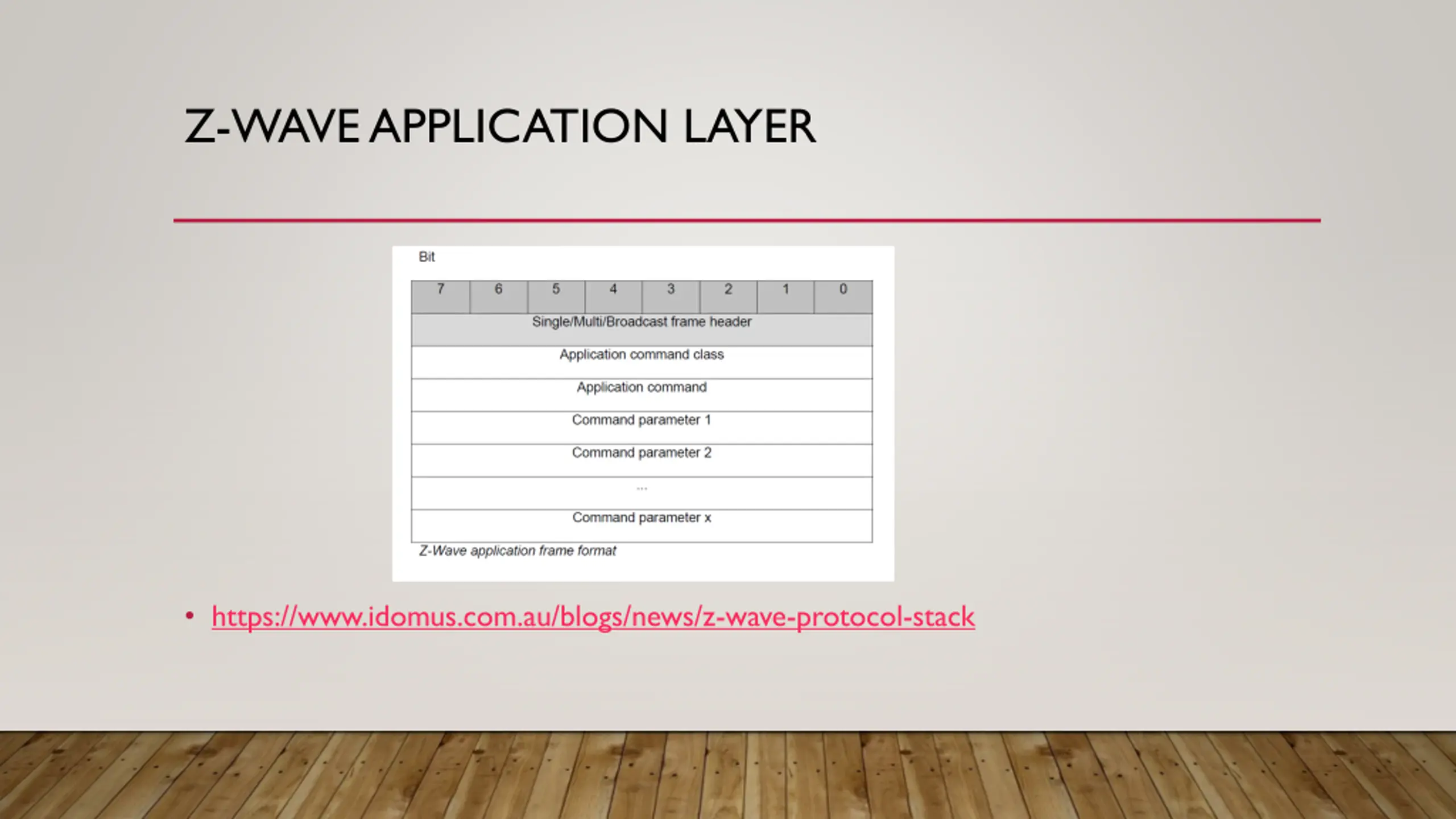

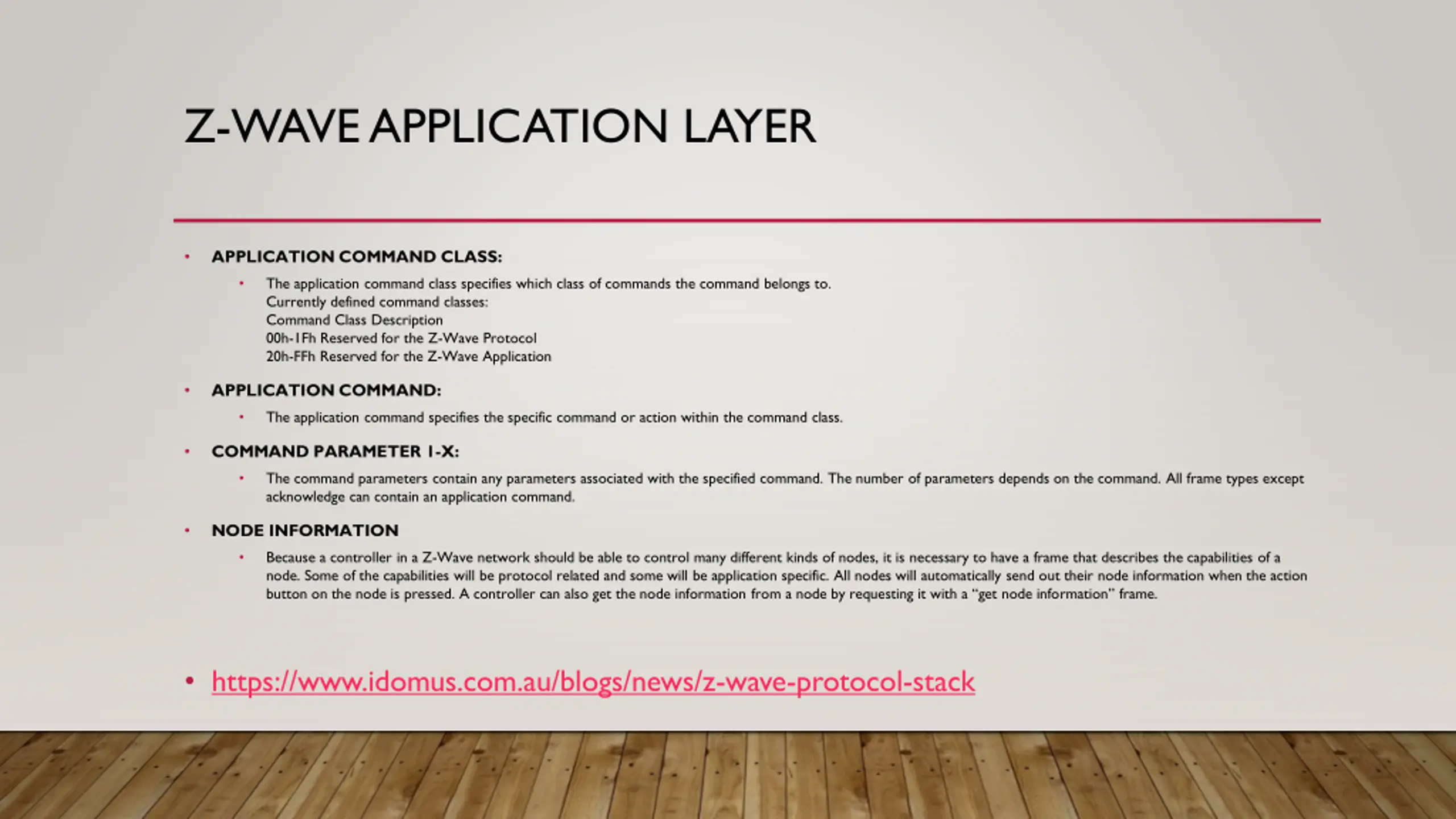

Z-WAVE APPLICATION LAYER APPLICATION COMMAND CLASS: The application command class specifies which class of commands the command belongs to. Currently defined command classes: Command Class Description 00h-1Fh Reserved for the Z-Wave Protocol 20h-FFh Reserved for the Z-Wave Application APPLICATION COMMAND: The application command specifies the specific command or action within the command class. COMMAND PARAMETER 1-X: The command parameters contain any parameters associated with the specified command. The number of parameters depends on the command. All frame types except acknowledge can contain an application command. NODE INFORMATION Because a controller in a Z-Wave network should be able to control many different kinds of nodes, it is necessary to have a frame that describes the capabilities of a node. Some of the capabilities will be protocol related and some will be application specific. All nodes will automatically send out their node information when the action button on the node is pressed. A controller can also get the node information from a node by requesting it with a get node information frame. https://www.idomus.com.au/blogs/news/z-wave-protocol-stack

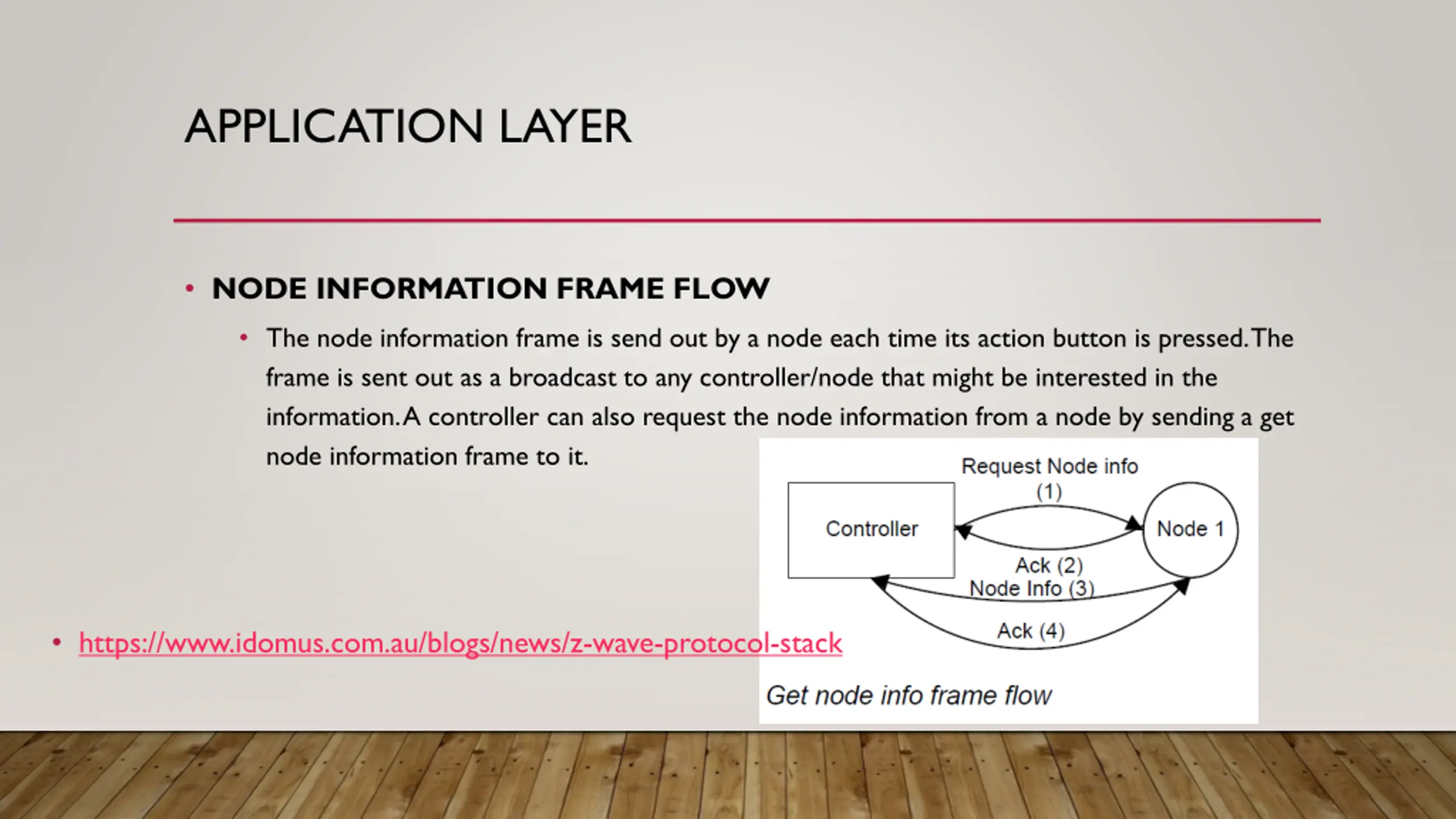

APPLICATION LAYER NODE INFORMATION FRAME FLOW The node information frame is send out by a node each time its action button is pressed. The frame is sent out as a broadcast to any controller/node that might be interested in the information. A controller can also request the node information from a node by sending a get node information frame to it. https://www.idomus.com.au/blogs/news/z-wave-protocol-stack
