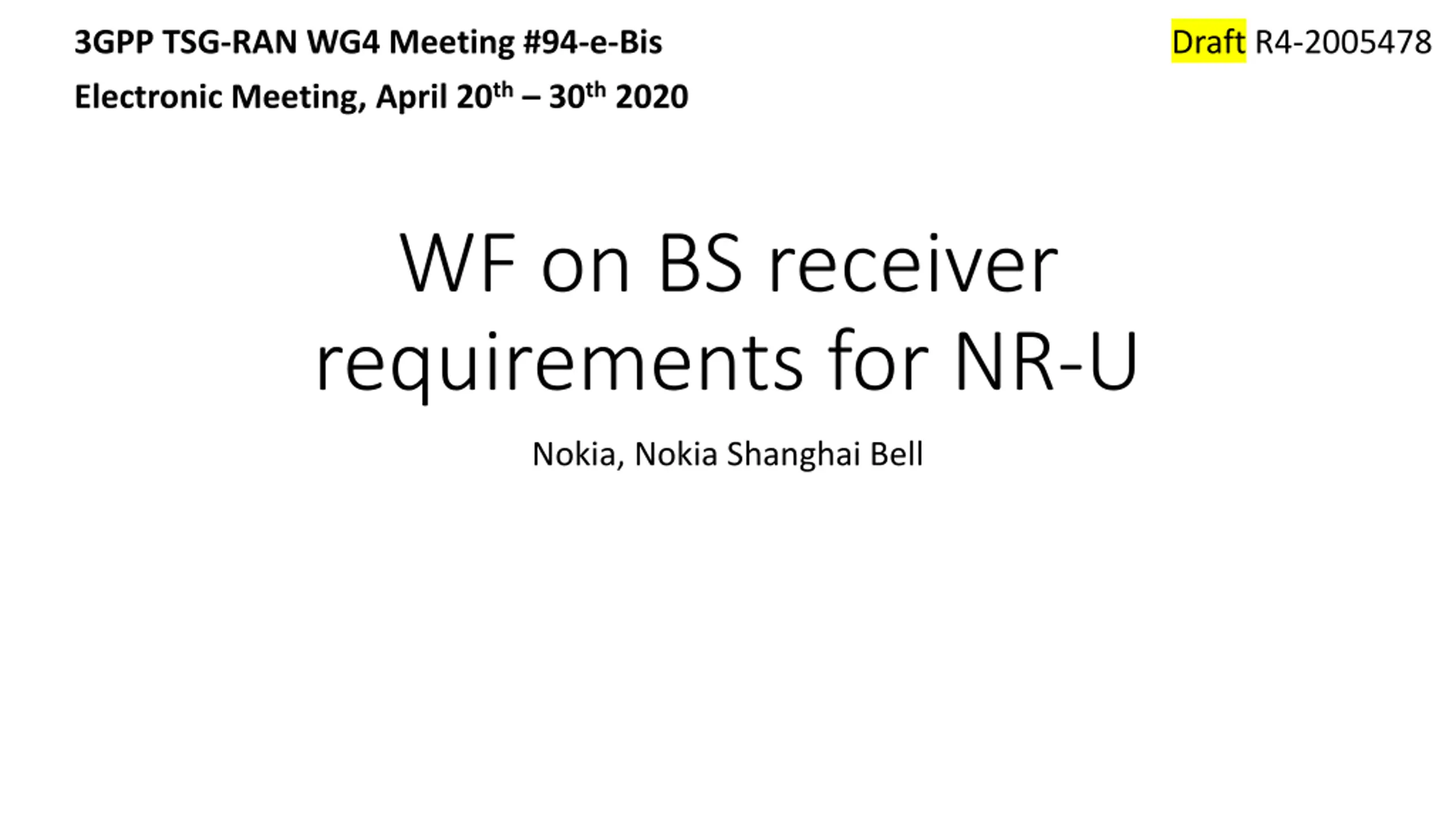

3GPP TSG-RAN WG4 Meeting #94-e-Bis Electronic Meeting, April 20th 30th2020 Draft R4-2005478 WF on BS receiver requirements for NR-U Nokia, Nokia Shanghai Bell

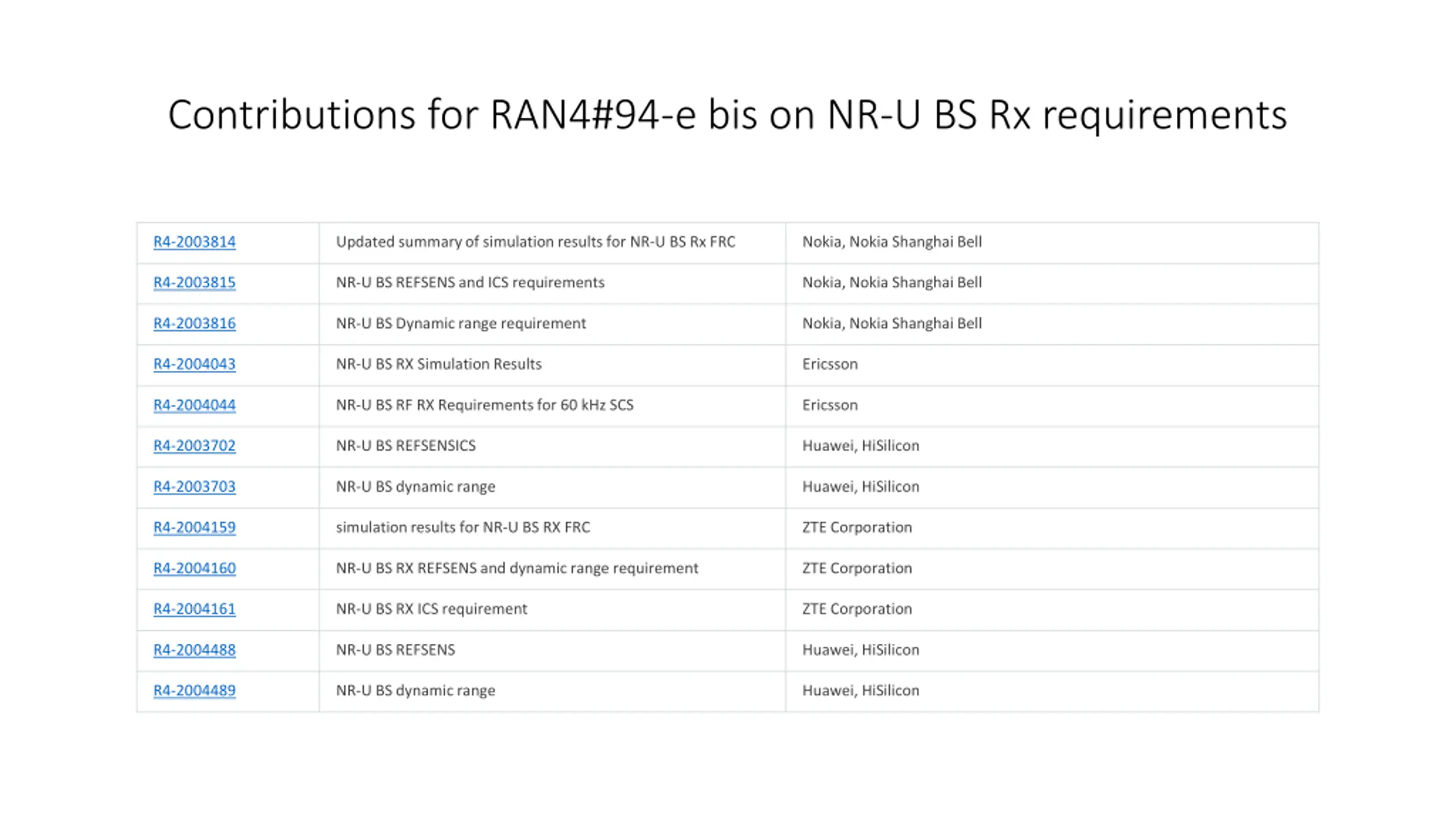

Contributions for RAN4#94-e bis on NR-U BS Rx requirements R4-2003814 Updated summary of simulation results for NR-U BS Rx FRC Nokia, Nokia Shanghai Bell R4-2003815 NR-U BS REFSENS and ICS requirements Nokia, Nokia Shanghai Bell R4-2003816 NR-U BS Dynamic range requirement Nokia, Nokia Shanghai Bell R4-2004043 NR-U BS RX Simulation Results Ericsson R4-2004044 NR-U BS RF RX Requirements for 60 kHz SCS Ericsson R4-2003702 NR-U BS REFSENSICS Huawei, HiSilicon R4-2003703 NR-U BS dynamic range Huawei, HiSilicon R4-2004159 simulation results for NR-U BS RX FRC ZTE Corporation R4-2004160 NR-U BS RX REFSENS and dynamic range requirement ZTE Corporation R4-2004161 NR-U BS RX ICS requirement ZTE Corporation R4-2004488 NR-U BS REFSENS Huawei, HiSilicon R4-2004489 NR-U BS dynamic range Huawei, HiSilicon

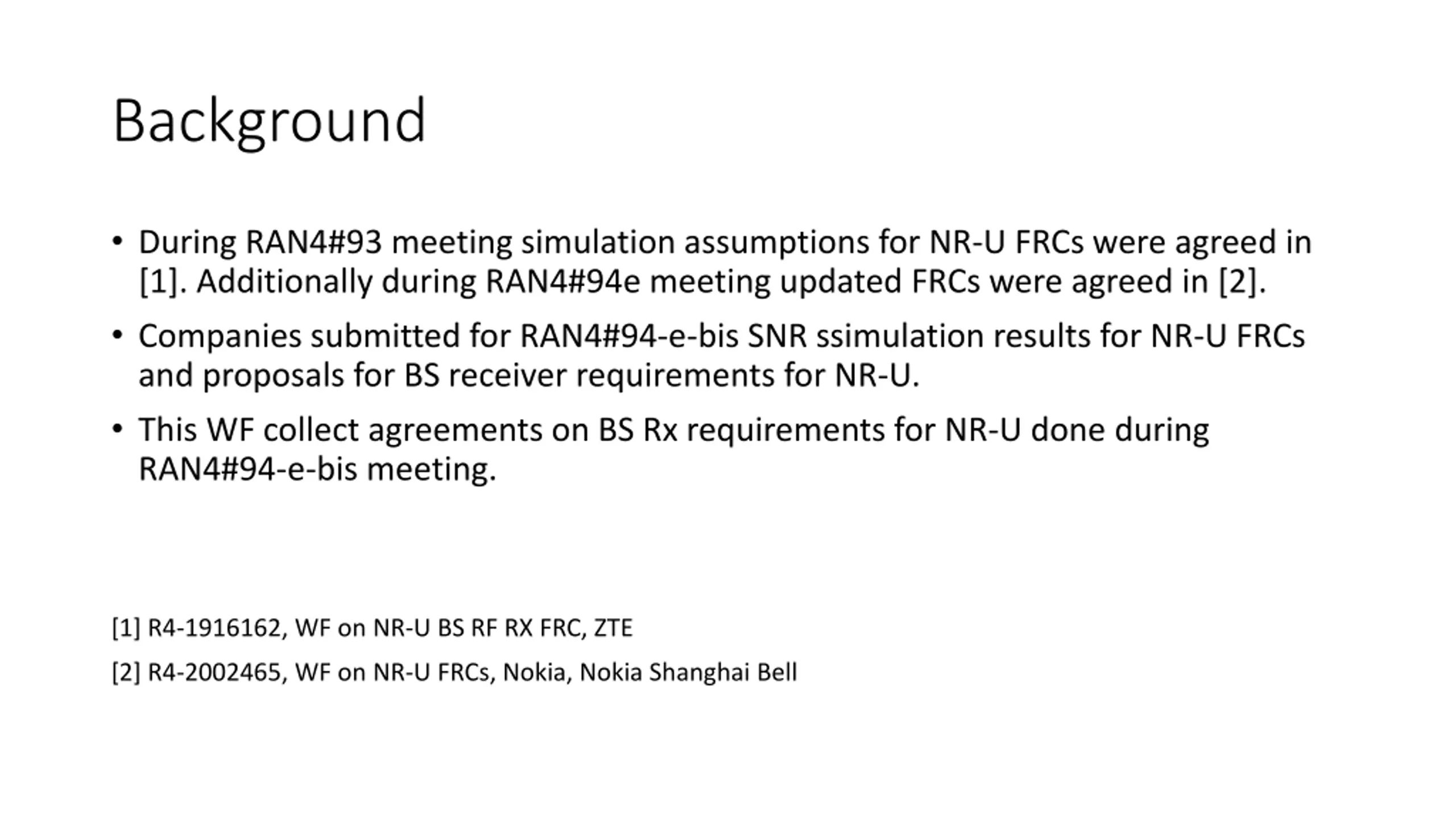

Background During RAN4#93 meeting simulation assumptions for NR-U FRCs were agreed in [1]. Additionally during RAN4#94e meeting updated FRCs were agreed in [2]. Companies submitted for RAN4#94-e-bis SNR ssimulation results for NR-U FRCs and proposals for BS receiver requirements for NR-U. This WF collect agreements on BS Rx requirements for NR-U done during RAN4#94-e-bis meeting. [1] R4-1916162, WF on NR-U BS RF RX FRC, ZTE [2] R4-2002465, WF on NR-U FRCs, Nokia, Nokia Shanghai Bell

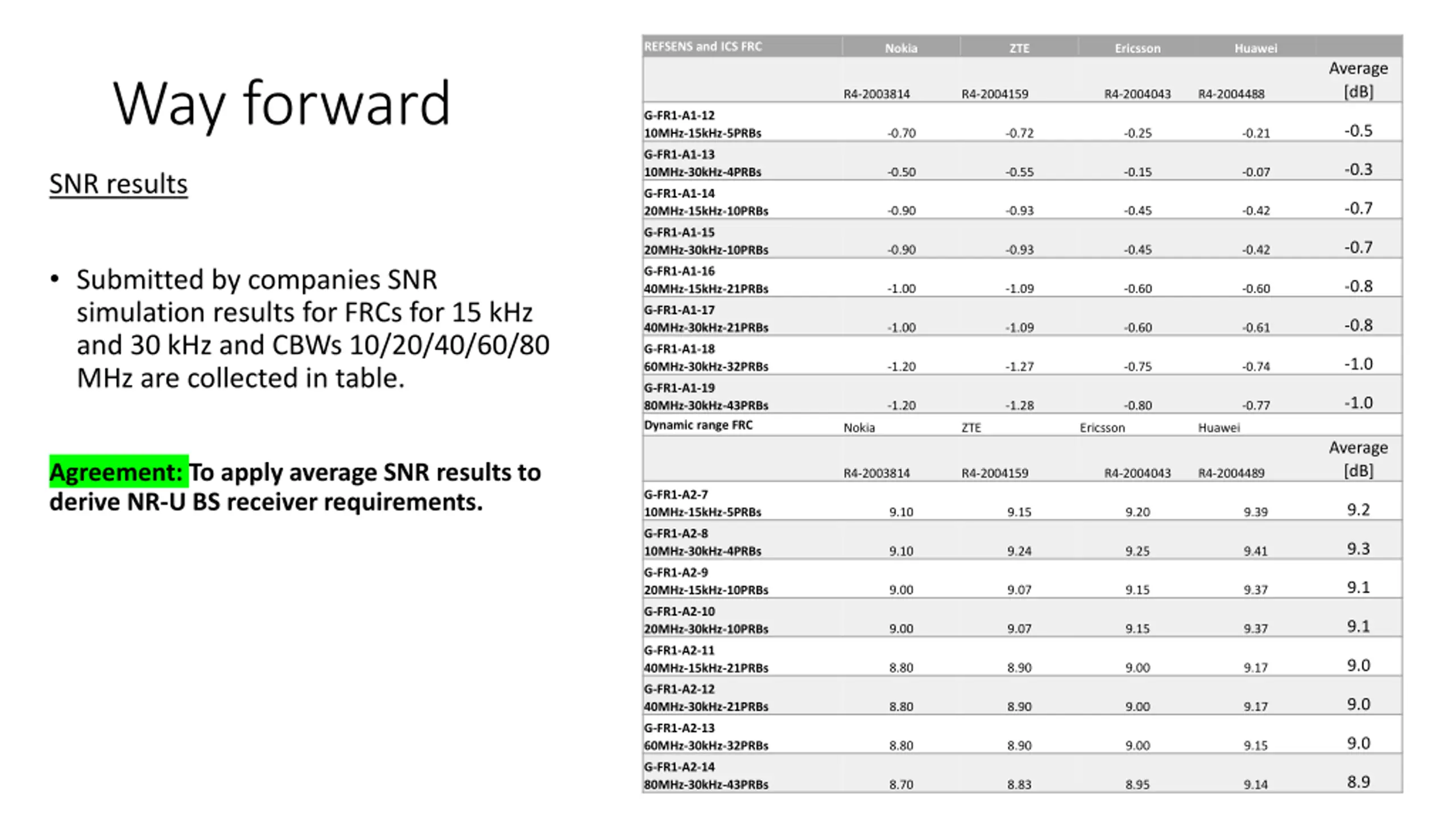

REFSENS and ICS FRC Nokia ZTE Ericsson Huawei Average [dB] Way forward R4-2003814 R4-2004159 R4-2004043 R4-2004488 G-FR1-A1-12 10MHz-15kHz-5PRBs -0.5 -0.70 -0.72 -0.25 -0.21 G-FR1-A1-13 10MHz-30kHz-4PRBs -0.3 -0.50 -0.55 -0.15 -0.07 SNR results G-FR1-A1-14 20MHz-15kHz-10PRBs -0.7 -0.90 -0.93 -0.45 -0.42 G-FR1-A1-15 20MHz-30kHz-10PRBs -0.7 -0.90 -0.93 -0.45 -0.42 Submitted by companies SNR simulation results for FRCs for 15 kHz and 30 kHz and CBWs 10/20/40/60/80 MHz are collected in table. G-FR1-A1-16 40MHz-15kHz-21PRBs -0.8 -1.00 -1.09 -0.60 -0.60 G-FR1-A1-17 40MHz-30kHz-21PRBs -0.8 -1.00 -1.09 -0.60 -0.61 G-FR1-A1-18 60MHz-30kHz-32PRBs -1.0 -1.20 -1.27 -0.75 -0.74 G-FR1-A1-19 80MHz-30kHz-43PRBs Dynamic range FRC -1.0 -1.20 -1.28 -0.80 -0.77 Nokia ZTE Ericsson Huawei Average [dB] Agreement: To apply average SNR results to derive NR-U BS receiver requirements. R4-2003814 R4-2004159 R4-2004043 R4-2004489 G-FR1-A2-7 10MHz-15kHz-5PRBs 9.2 9.10 9.15 9.20 9.39 G-FR1-A2-8 10MHz-30kHz-4PRBs 9.3 9.10 9.24 9.25 9.41 G-FR1-A2-9 20MHz-15kHz-10PRBs 9.1 9.00 9.07 9.15 9.37 G-FR1-A2-10 20MHz-30kHz-10PRBs 9.1 9.00 9.07 9.15 9.37 G-FR1-A2-11 40MHz-15kHz-21PRBs 9.0 8.80 8.90 9.00 9.17 G-FR1-A2-12 40MHz-30kHz-21PRBs 9.0 8.80 8.90 9.00 9.17 G-FR1-A2-13 60MHz-30kHz-32PRBs 9.0 8.80 8.90 9.00 9.15 G-FR1-A2-14 80MHz-30kHz-43PRBs 8.9 8.70 8.83 8.95 9.14

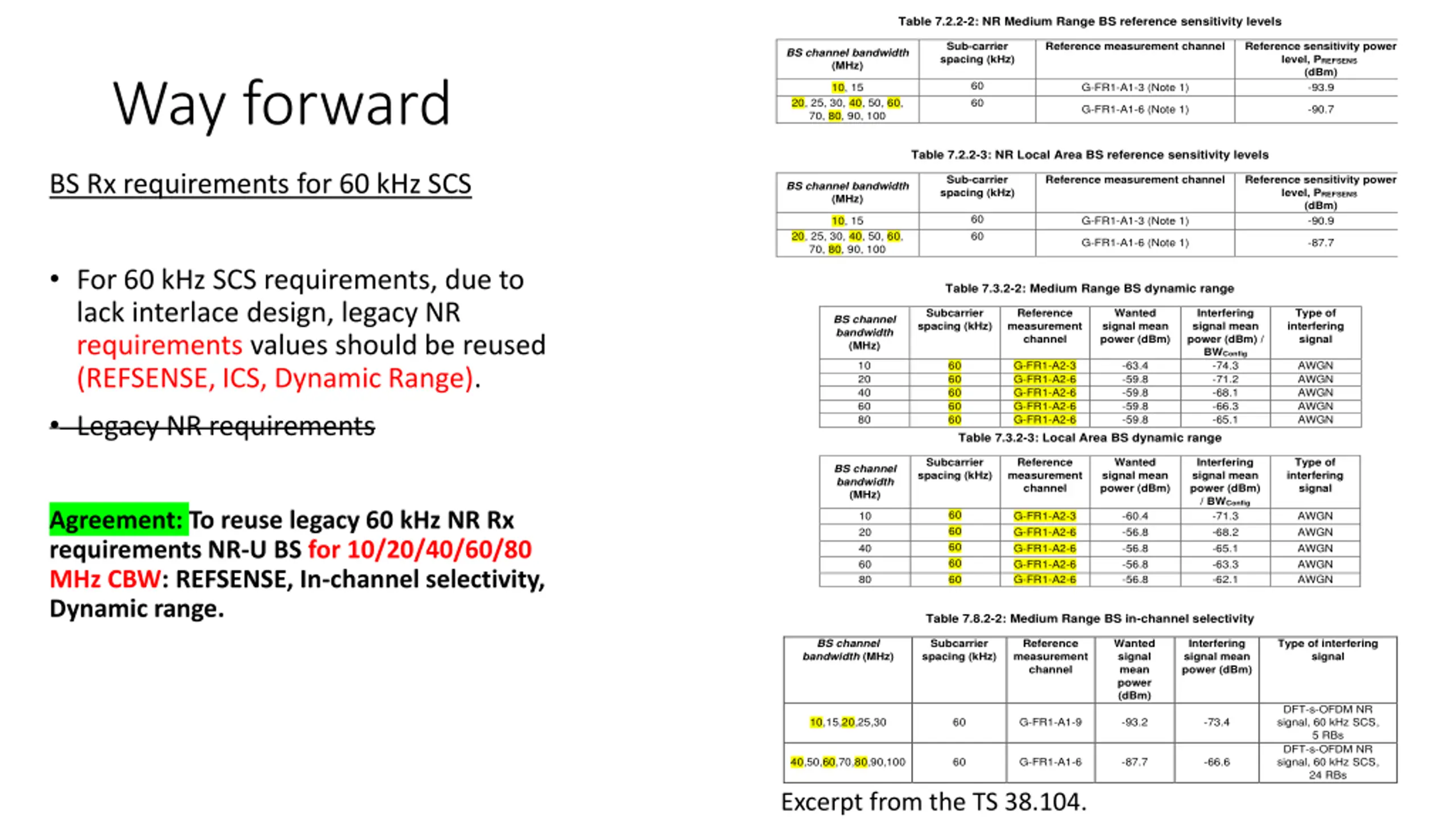

Table 7.2.2-2: NR Medium Range BS reference sensitivity levels Sub-carrier spacing (kHz) Reference measurement channel Reference sensitivity power level, PREFSENS (dBm) -93.9 BS channel bandwidth (MHz) Way forward 60 60 10, 15 G-FR1-A1-3 (Note 1) 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 G-FR1-A1-6 (Note 1) -90.7 Table 7.2.2-3: NR Local Area BS reference sensitivity levels BS Rx requirements for 60 kHz SCS Sub-carrier spacing (kHz) Reference measurement channel Reference sensitivity power level, PREFSENS (dBm) -90.9 BS channel bandwidth (MHz) 60 60 10, 15 G-FR1-A1-3 (Note 1) 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 G-FR1-A1-6 (Note 1) -87.7 For 60 kHz SCS requirements, due to lack interlace design, legacy NR requirements values should be reused (REFSENSE, ICS, Dynamic Range). Legacy NR requirements Table 7.3.2-2: Medium Range BS dynamic range Subcarrier spacing (kHz) Reference measurement channel Wanted signal mean power (dBm) Interfering signal mean power (dBm) / BWConfig -74.3 -71.2 -68.1 -66.3 -65.1 Type of interfering signal BS channel bandwidth (MHz) 10 20 40 60 80 60 60 60 60 60 G-FR1-A2-3 G-FR1-A2-6 G-FR1-A2-6 G-FR1-A2-6 G-FR1-A2-6 -63.4 -59.8 -59.8 -59.8 -59.8 AWGN AWGN AWGN AWGN AWGN Table 7.3.2-3: Local Area BS dynamic range Subcarrier spacing (kHz) Reference measurement channel Wanted signal mean power (dBm) Interfering signal mean power (dBm) / BWConfig -71.3 -68.2 -65.1 -63.3 -62.1 Type of interfering signal BS channel bandwidth (MHz) Agreement: To reuse legacy 60 kHz NR Rx requirements NR-U BS for 10/20/40/60/80 MHz CBW: REFSENSE, In-channel selectivity, Dynamic range. 60 60 60 60 60 10 20 40 60 80 G-FR1-A2-3 G-FR1-A2-6 G-FR1-A2-6 G-FR1-A2-6 G-FR1-A2-6 -60.4 -56.8 -56.8 -56.8 -56.8 AWGN AWGN AWGN AWGN AWGN Table 7.8.2-2: Medium Range BS in-channel selectivity BS channel bandwidth (MHz) Subcarrier spacing (kHz) Reference measurement channel Wanted signal mean power (dBm) Interfering signal mean power (dBm) Type of interfering signal DFT-s-OFDM NR signal, 60 kHz SCS, 5 RBs DFT-s-OFDM NR signal, 60 kHz SCS, 24 RBs 10,15,20,25,30 60 G-FR1-A1-9 -93.2 -73.4 40,50,60,70,80,90,100 60 G-FR1-A1-6 -87.7 -66.6 Excerpt from the TS 38.104.

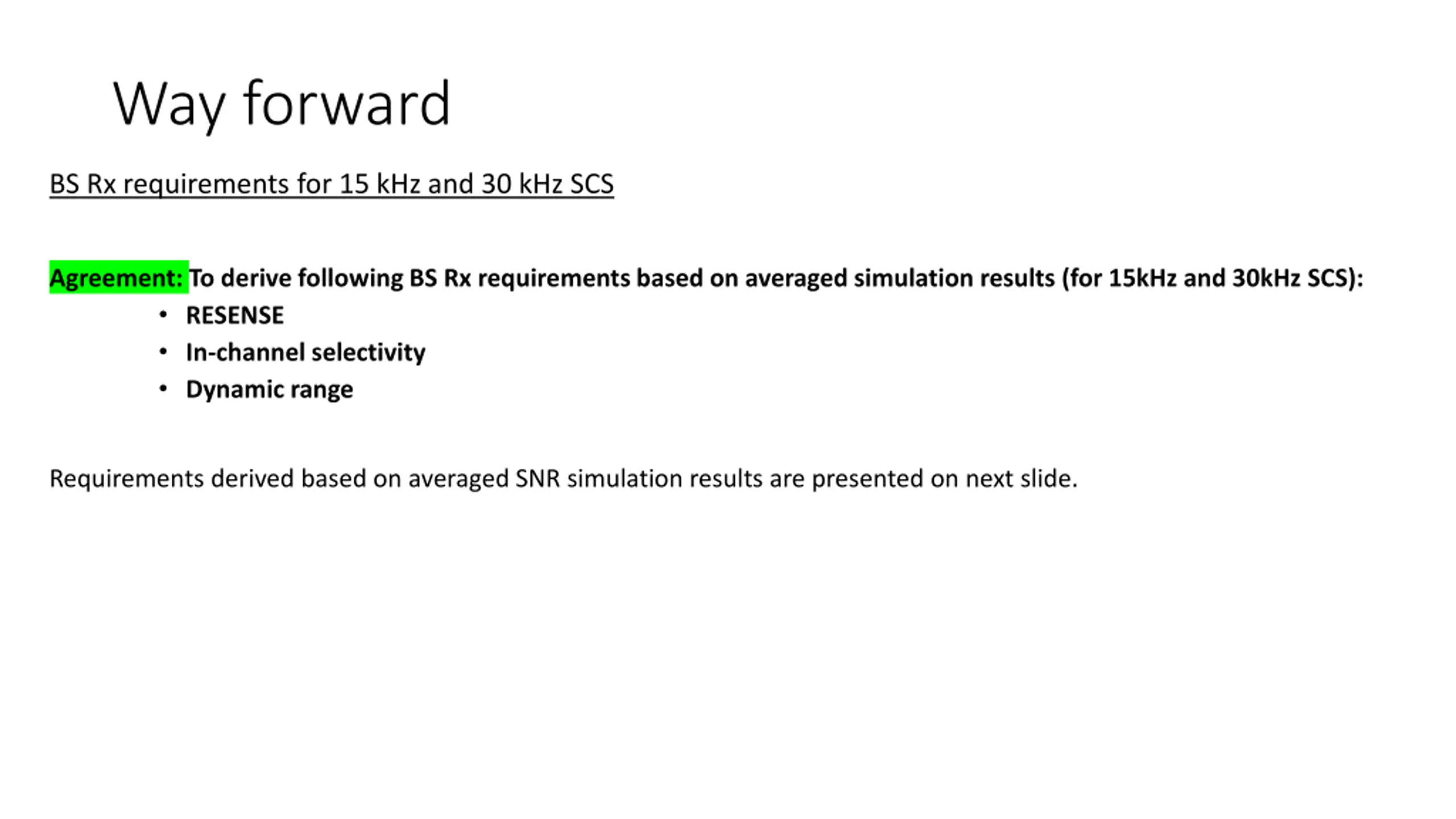

Way forward BS Rx requirements for 15 kHz and 30 kHz SCS Agreement: To derive following BS Rx requirements based on averaged simulation results (for 15kHz and 30kHz SCS): RESENSE In-channel selectivity Dynamic range Requirements derived based on averaged SNR simulation results are presented on next slide.
