Create Strip Footings for Foundations with Correct Dimensions
Learn how to place strip footings with specific dimensions in Allplan software to create a solid foundation for your architectural project. Follow step-by-step instructions to ensure proper height settings and alignment on an empty drawing file. Choose whether to center the foundations over the axes or align them with the outer edges. Check elevation and dimensions for a precise final result.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

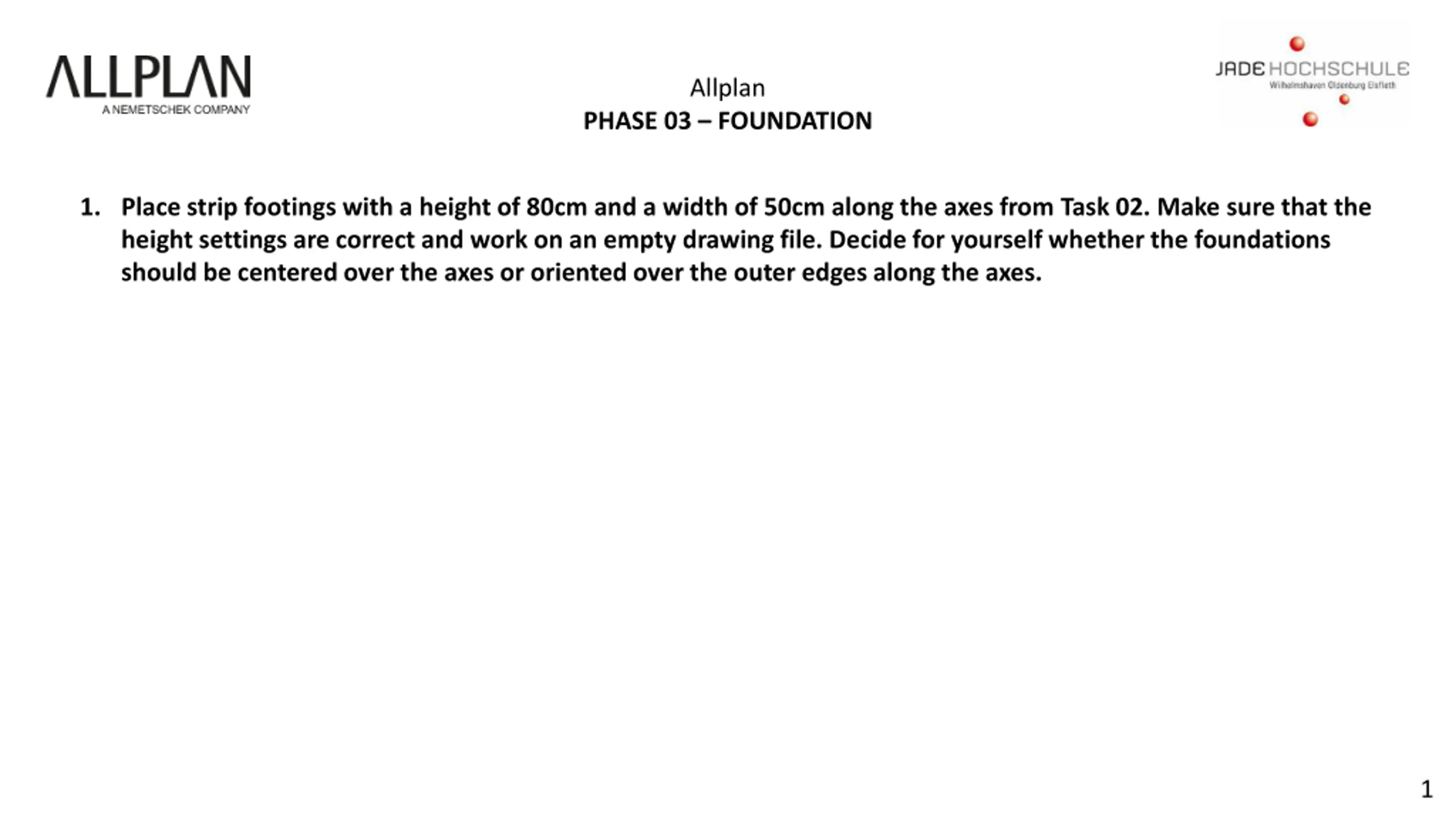

Allplan PHASE 03 FOUNDATION 1. Place strip footings with a height of 80cm and a width of 50cm along the axes from Task 02. Make sure that the height settings are correct and work on an empty drawing file. Decide for yourself whether the foundations should be centered over the axes or oriented over the outer edges along the axes. 1

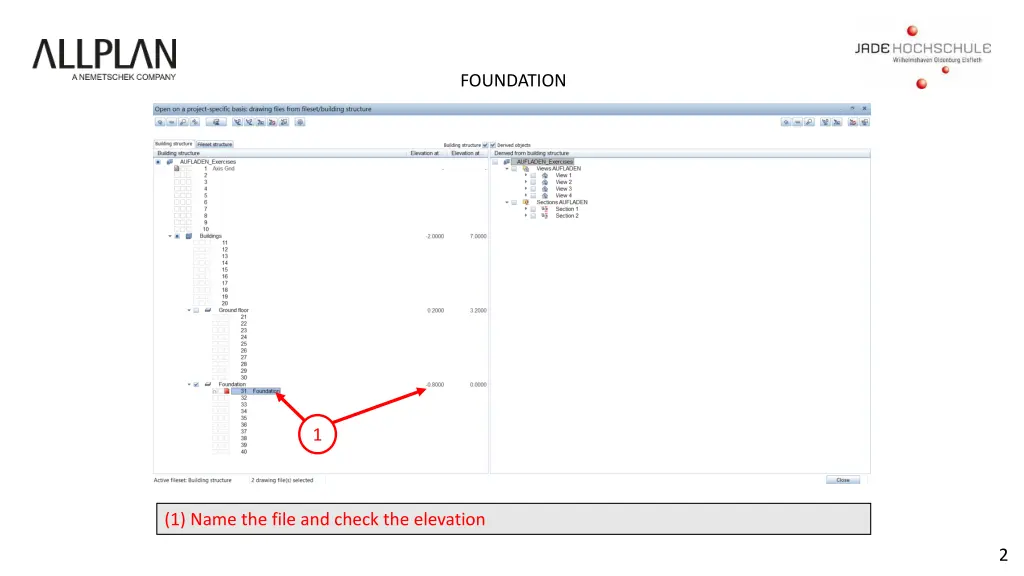

FOUNDATION 1 (1) Name the file and check the elevation 2

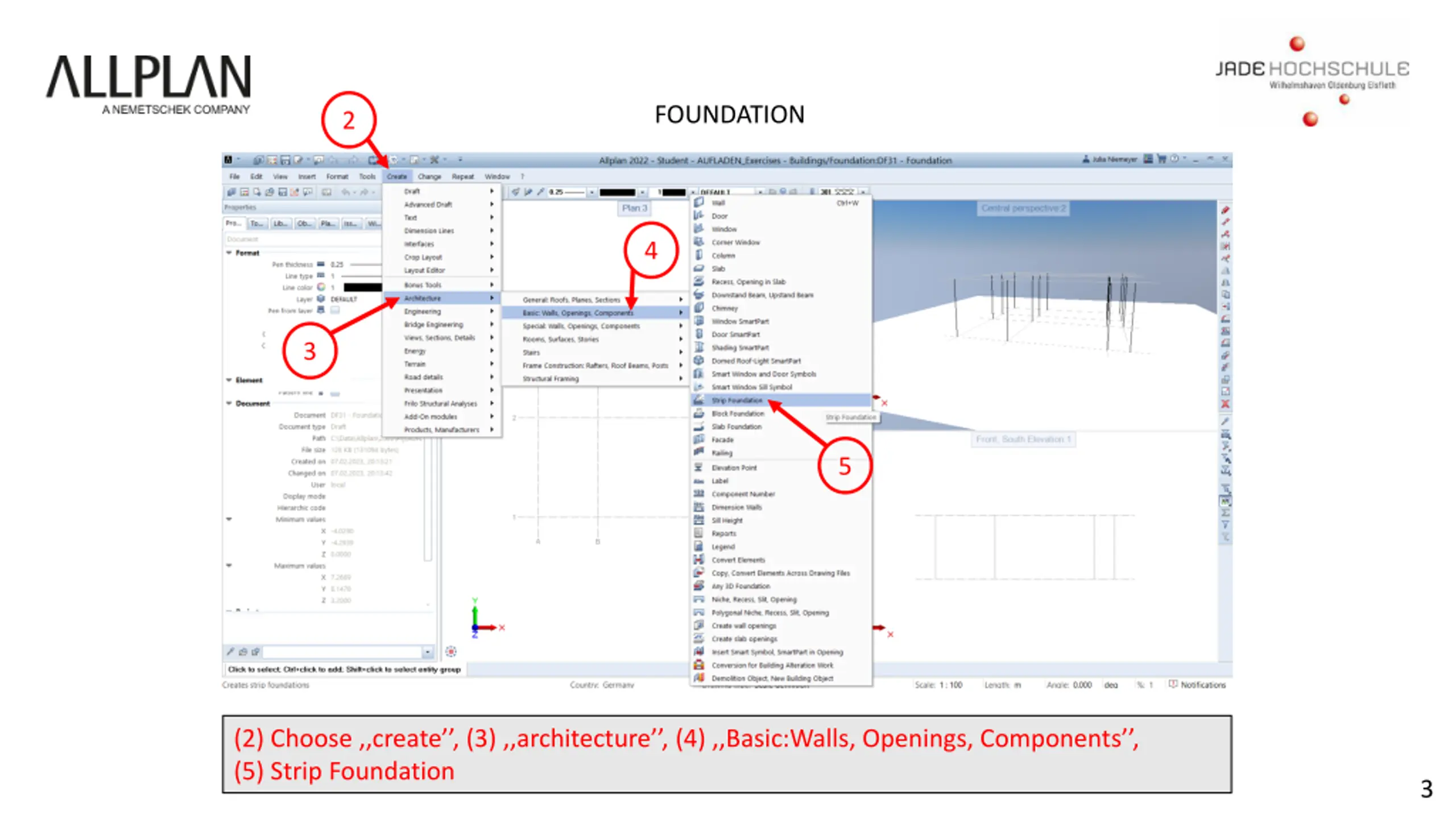

FOUNDATION 2 4 3 5 (2) Choose ,,create , (3) ,,architecture , (4) ,,Basic:Walls, Openings, Components , (5) Strip Foundation 3

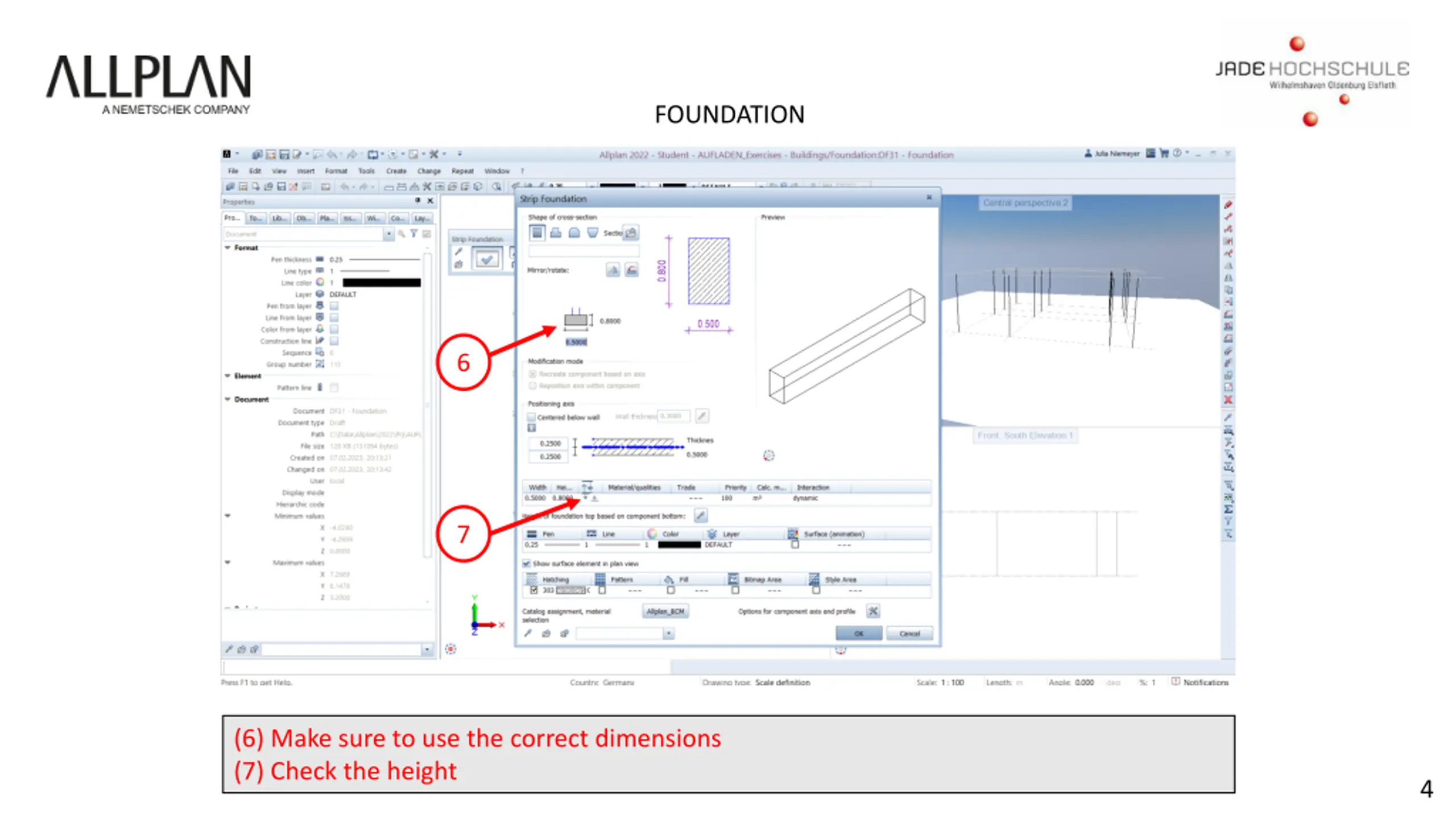

FOUNDATION 6 7 (6) Make sure to use the correct dimensions (7) Check the height 4

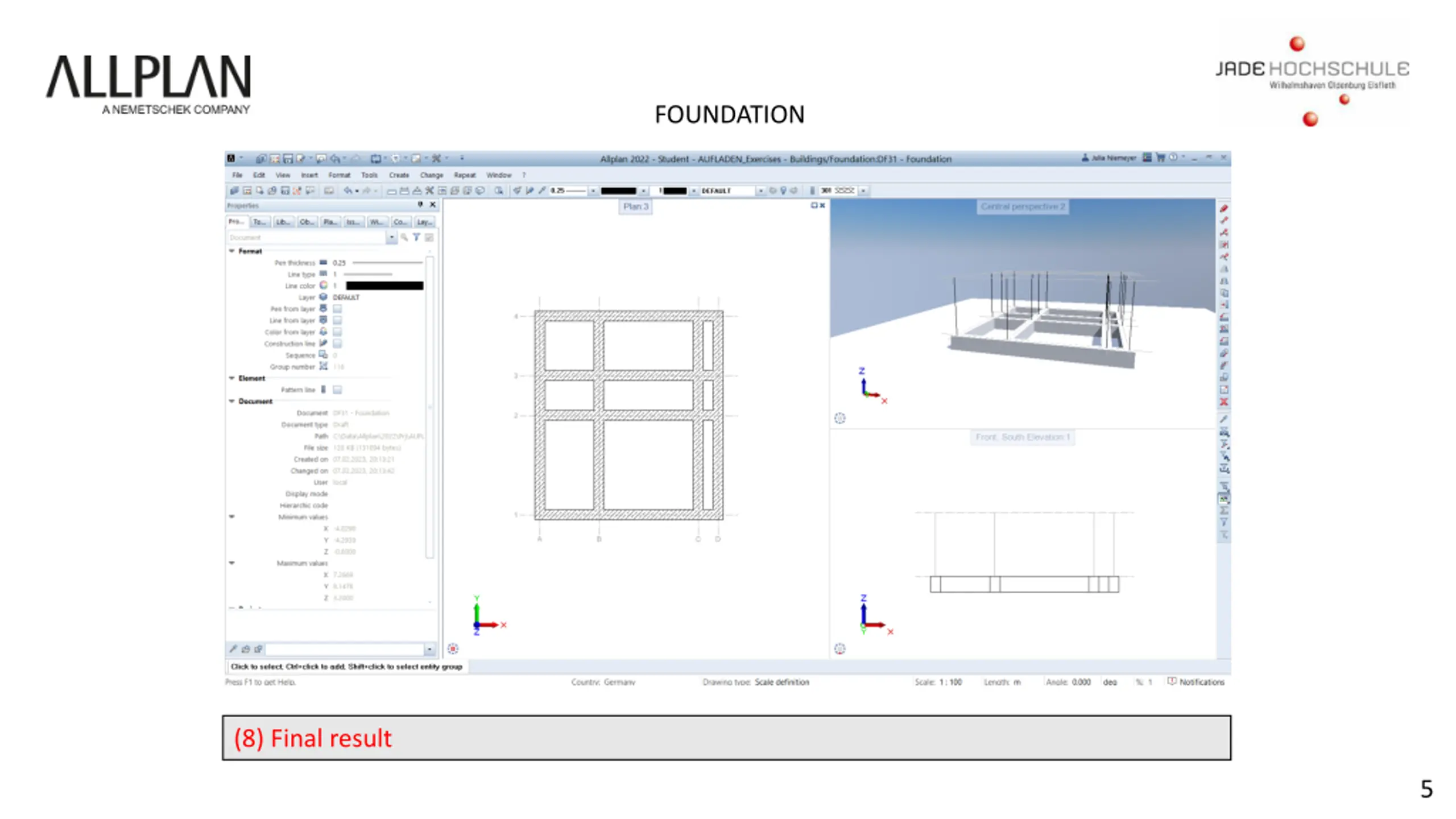

FOUNDATION (8) Final result 5
