CYCLOPEPTIDE SEQUENCING PROBLEM By Camille Hendry

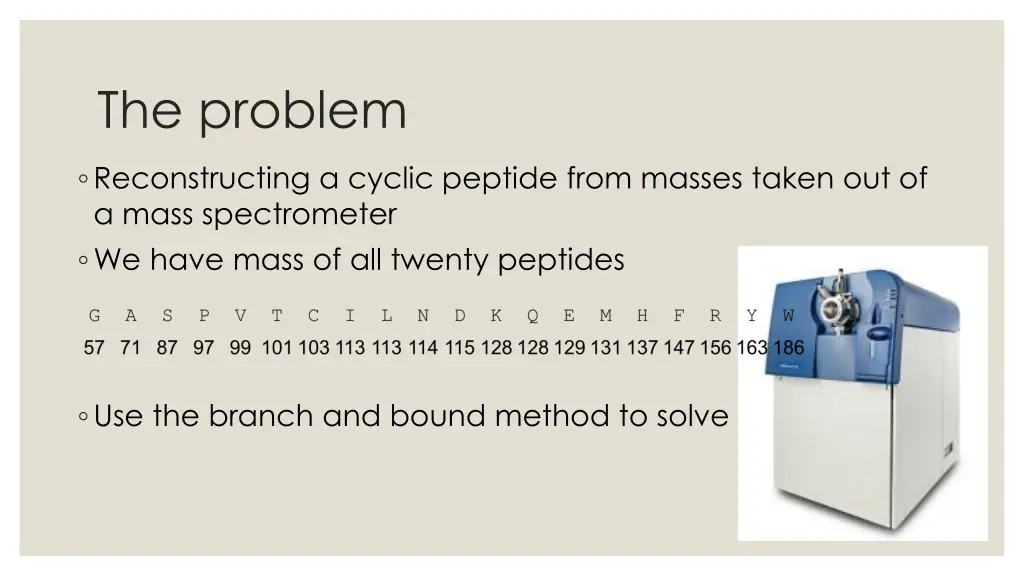

The problem Reconstructing a cyclic peptide from masses taken out of a mass spectrometer We have mass of all twenty peptides Use the branch and bound method to solve

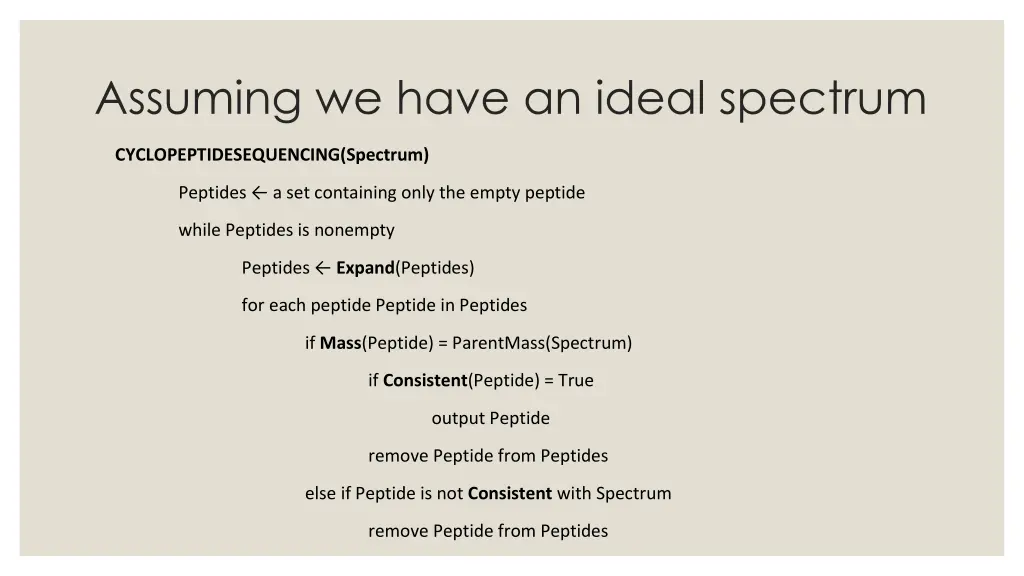

Assuming we have an ideal spectrum CYCLOPEPTIDESEQUENCING(Spectrum) Peptides a set containing only the empty peptide while Peptides is nonempty Peptides Expand(Peptides) for each peptide Peptide in Peptides if Mass(Peptide) = ParentMass(Spectrum) if Consistent(Peptide) = True output Peptide remove Peptide from Peptides else if Peptide is not Consistent with Spectrum remove Peptide from Peptides

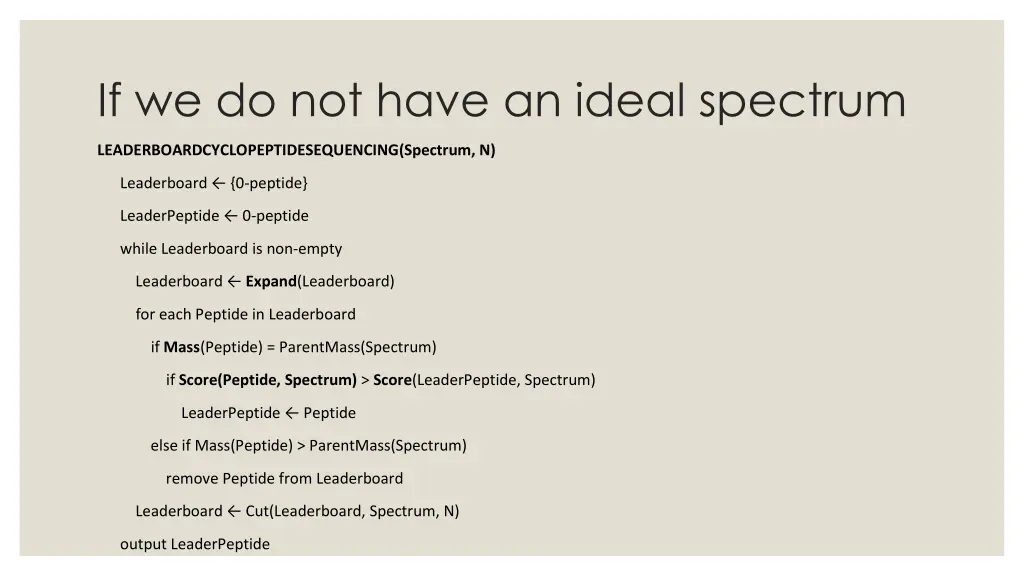

If we do not have an ideal spectrum LEADERBOARDCYCLOPEPTIDESEQUENCING(Spectrum, N) Leaderboard {0-peptide} LeaderPeptide 0-peptide while Leaderboard is non-empty Leaderboard Expand(Leaderboard) for each Peptide in Leaderboard if Mass(Peptide) = ParentMass(Spectrum) if Score(Peptide, Spectrum) > Score(LeaderPeptide, Spectrum) LeaderPeptide Peptide else if Mass(Peptide) > ParentMass(Spectrum) remove Peptide from Leaderboard Leaderboard Cut(Leaderboard, Spectrum, N) output LeaderPeptide

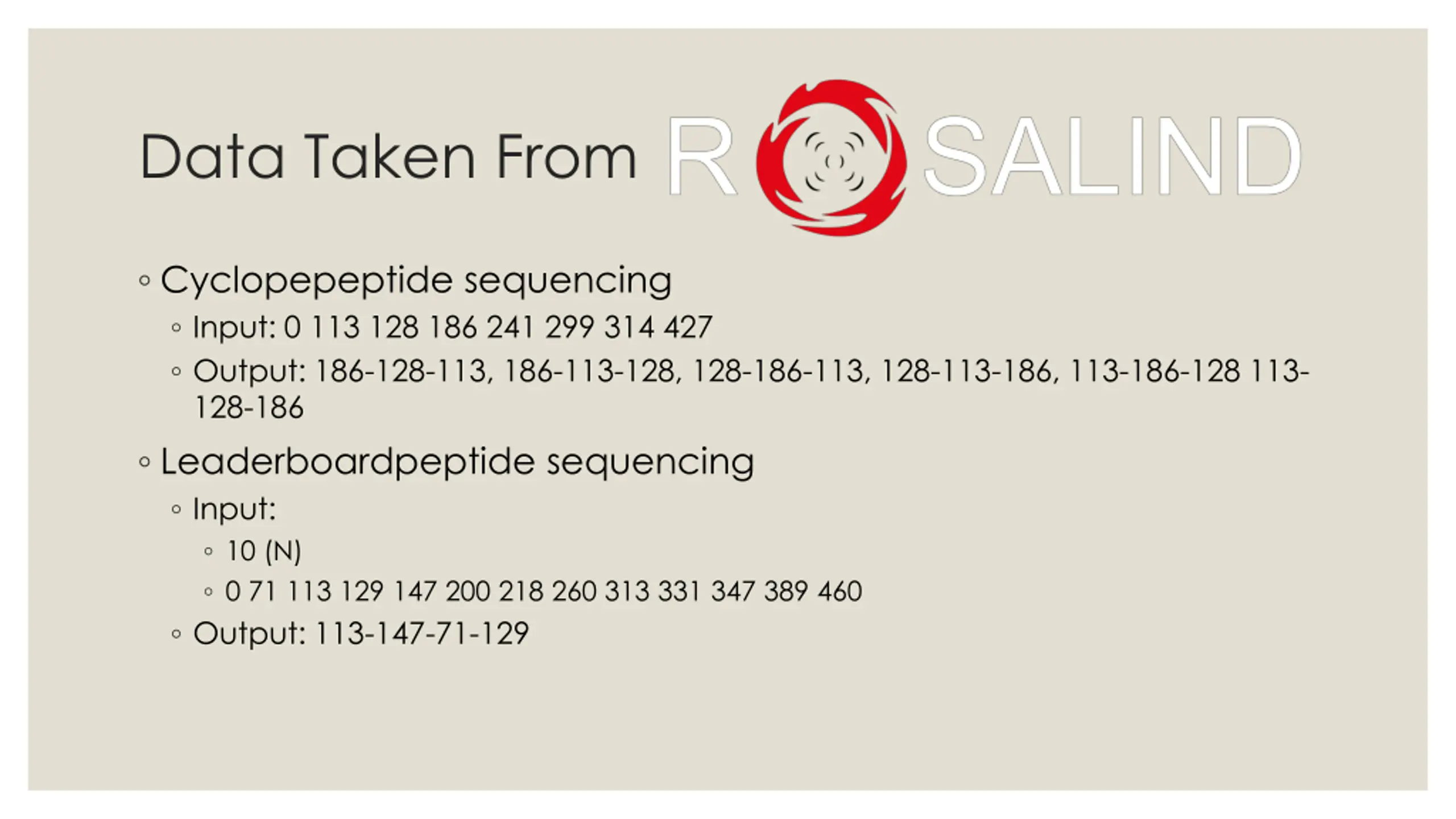

Data Taken From Cyclopepeptide sequencing Input: 0 113 128 186 241 299 314 427 Output: 186-128-113, 186-113-128, 128-186-113, 128-113-186, 113-186-128 113- 128-186 Leaderboardpeptide sequencing Input: 10 (N) 0 71 113 129 147 200 218 260 313 331 347 389 460 Output: 113-147-71-129

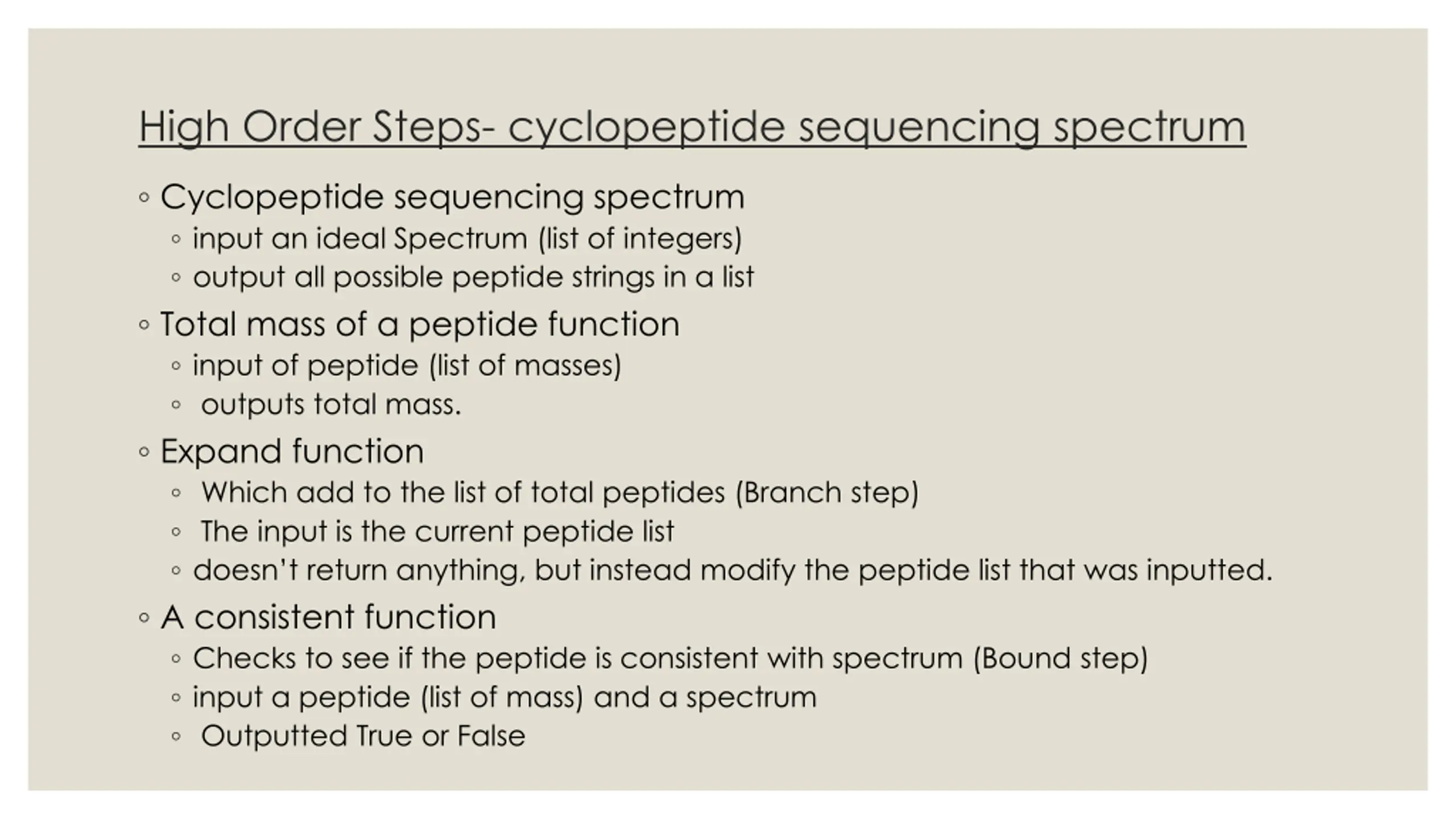

High Order Steps- cyclopeptide sequencing spectrum Cyclopeptide sequencing spectrum input an ideal Spectrum (list of integers) output all possible peptide strings in a list Total mass of a peptide function input of peptide (list of masses) outputs total mass. Expand function Which add to the list of total peptides (Branch step) The input is the current peptide list doesn t return anything, but instead modify the peptide list that was inputted. A consistent function Checks to see if the peptide is consistent with spectrum (Bound step) input a peptide (list of mass) and a spectrum Outputted True or False

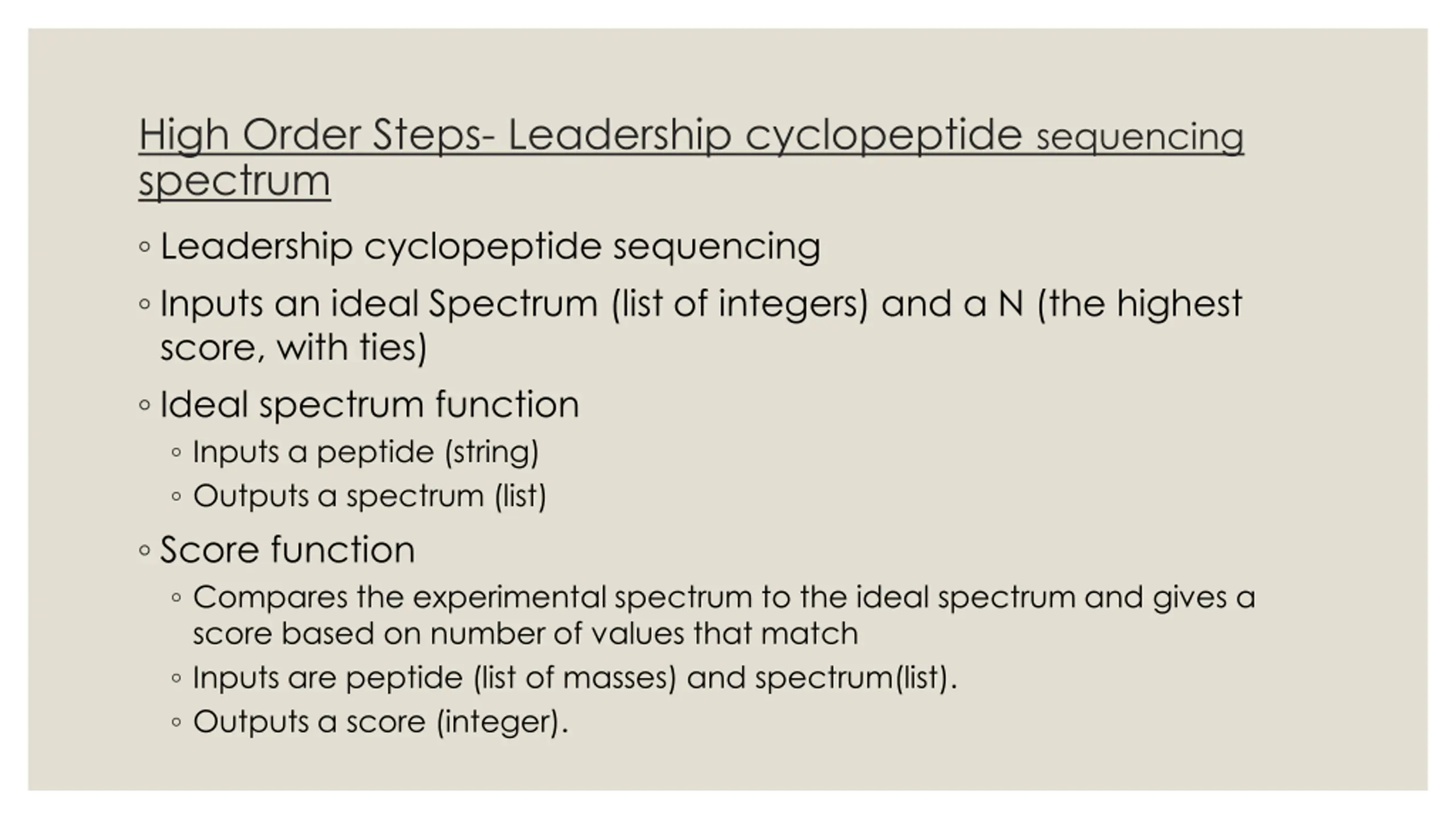

High Order Steps- Leadership cyclopeptide sequencing spectrum Leadership cyclopeptide sequencing Inputs an ideal Spectrum (list of integers) and a N (the highest score, with ties) Ideal spectrum function Inputs a peptide (string) Outputs a spectrum (list) Score function Compares the experimental spectrum to the ideal spectrum and gives a score based on number of values that match Inputs are peptide (list of masses) and spectrum(list). Outputs a score (integer).

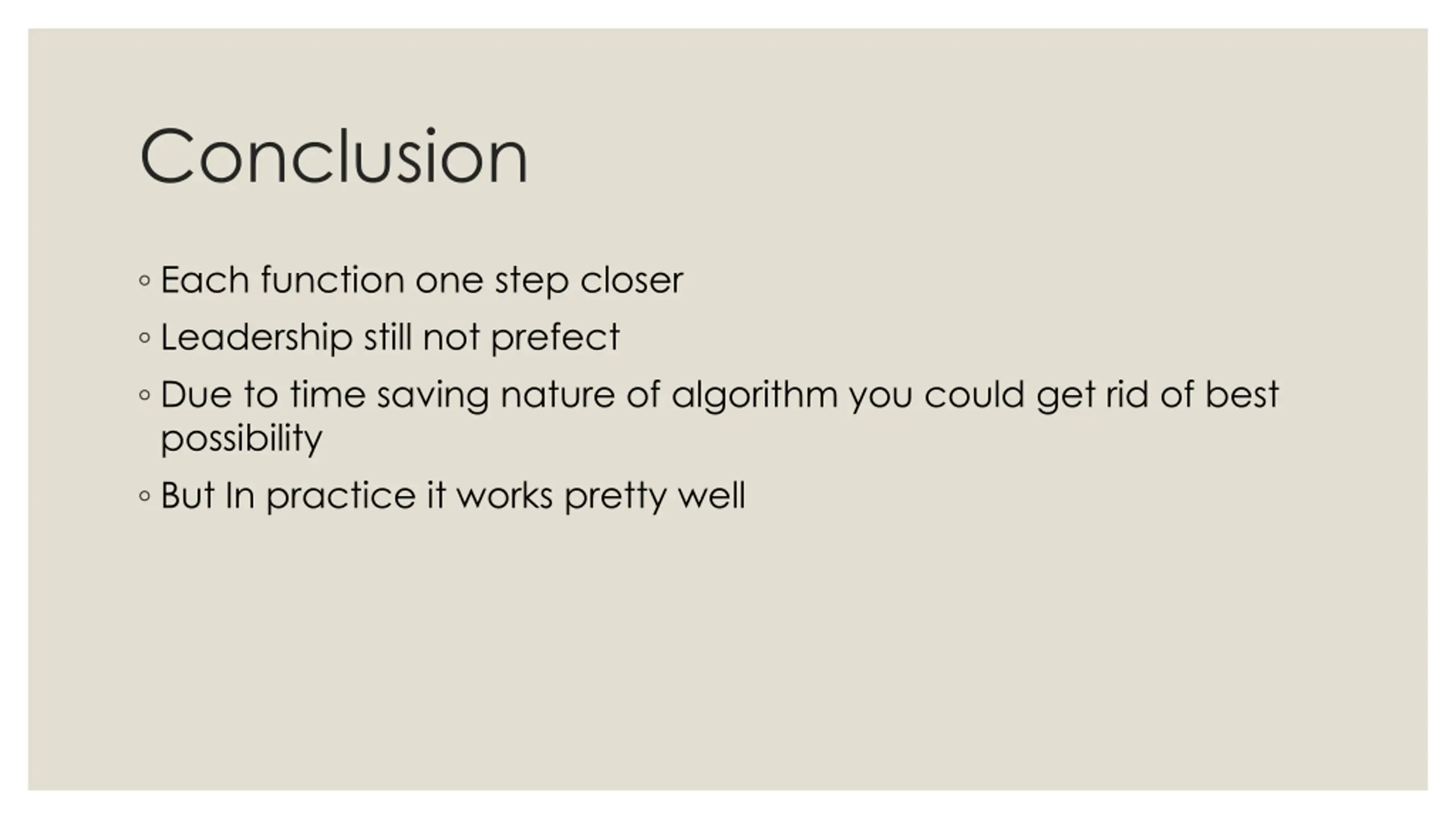

Conclusion Each function one step closer Leadership still not prefect Due to time saving nature of algorithm you could get rid of best possibility But In practice it works pretty well
