DIGITAL TO ANALOG CONVERTER GT ECE ACADEMIC LAB SLIDES BY ZACHARY CHAN

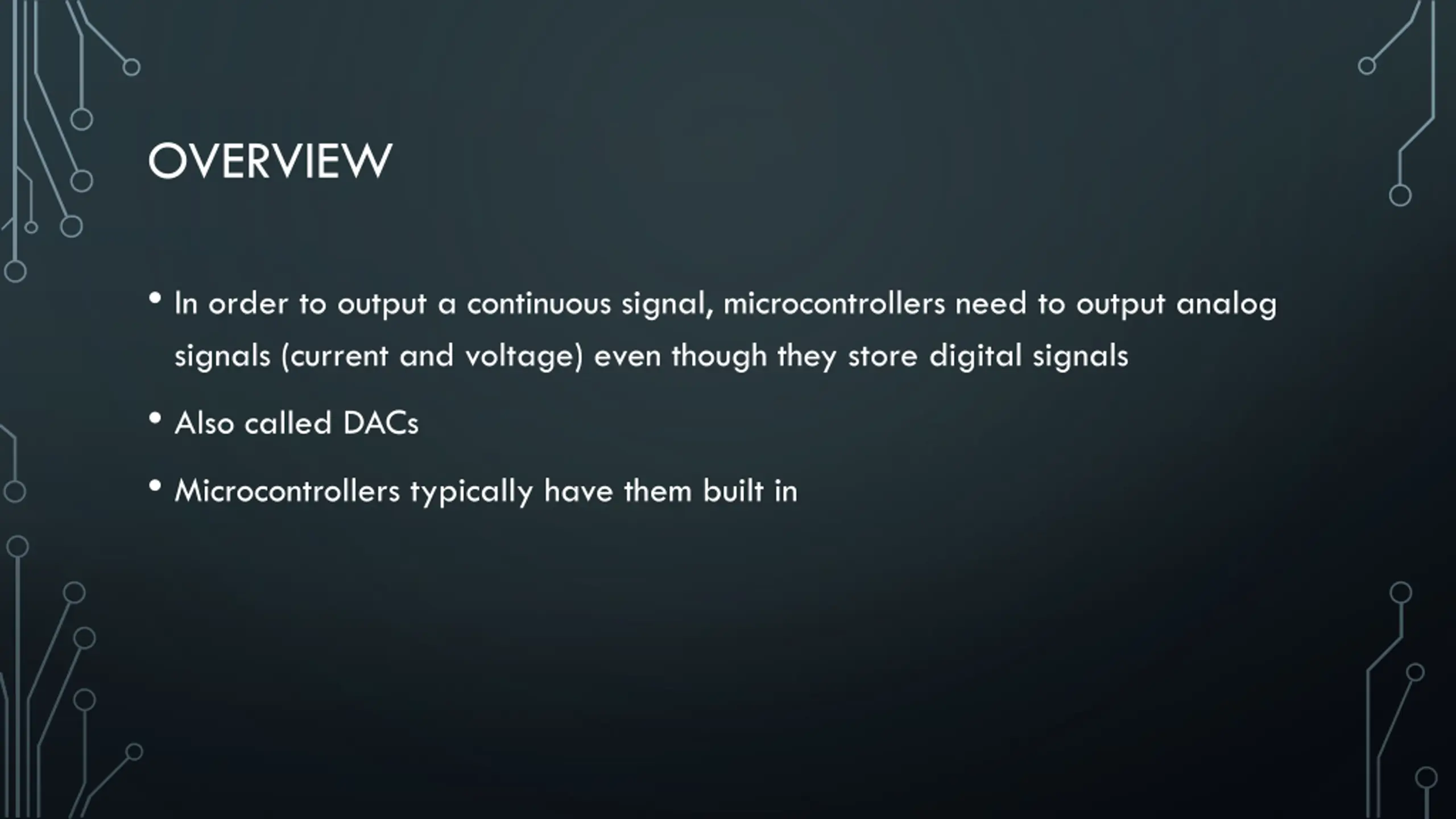

OVERVIEW In order to output a continuous signal, microcontrollers need to output analog signals (current and voltage) even though they store digital signals Also called DACs Microcontrollers typically have them built in

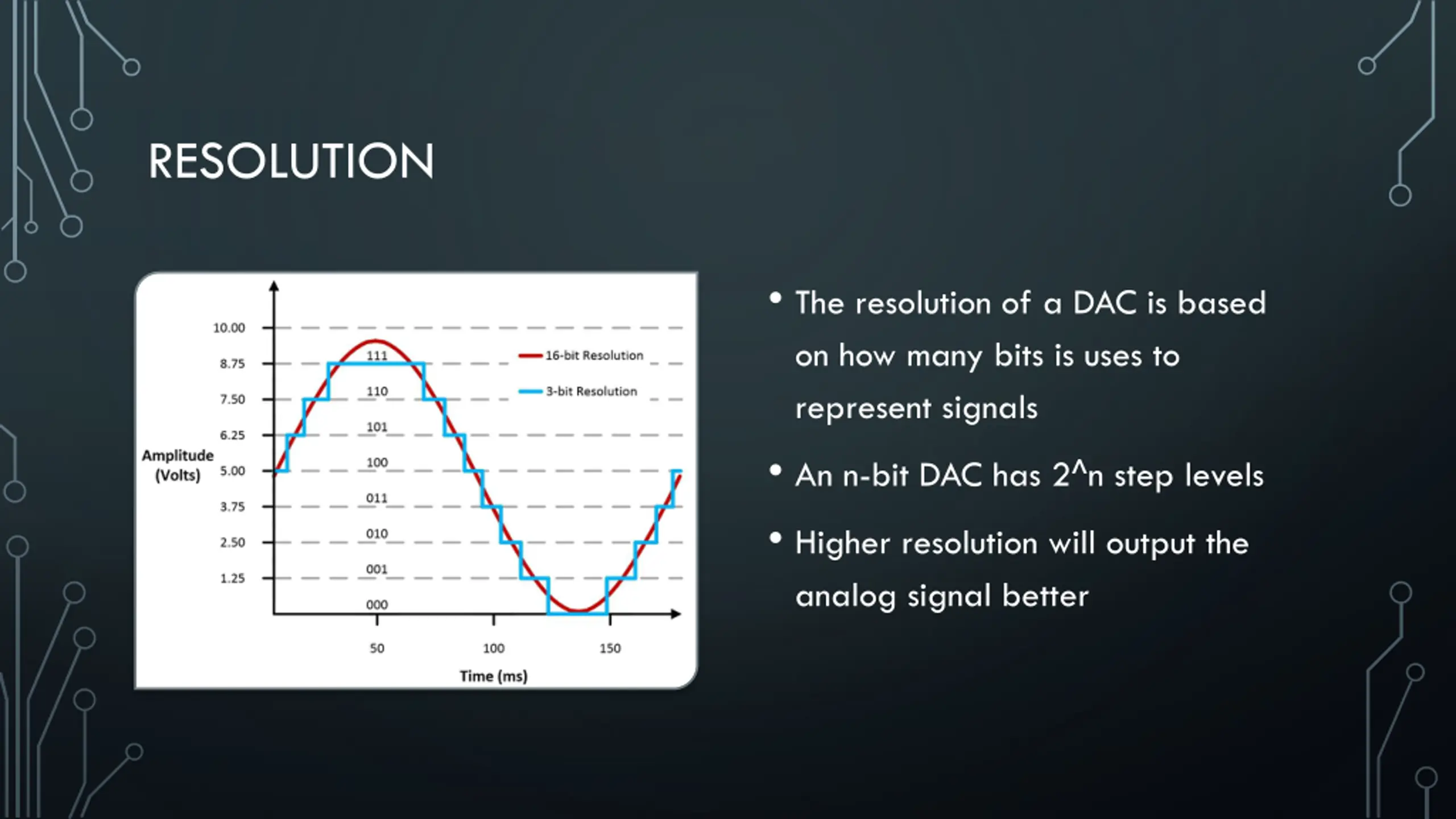

RESOLUTION The resolution of a DAC is based on how many bits is uses to represent signals An n-bit DAC has 2^n step levels Higher resolution will output the analog signal better

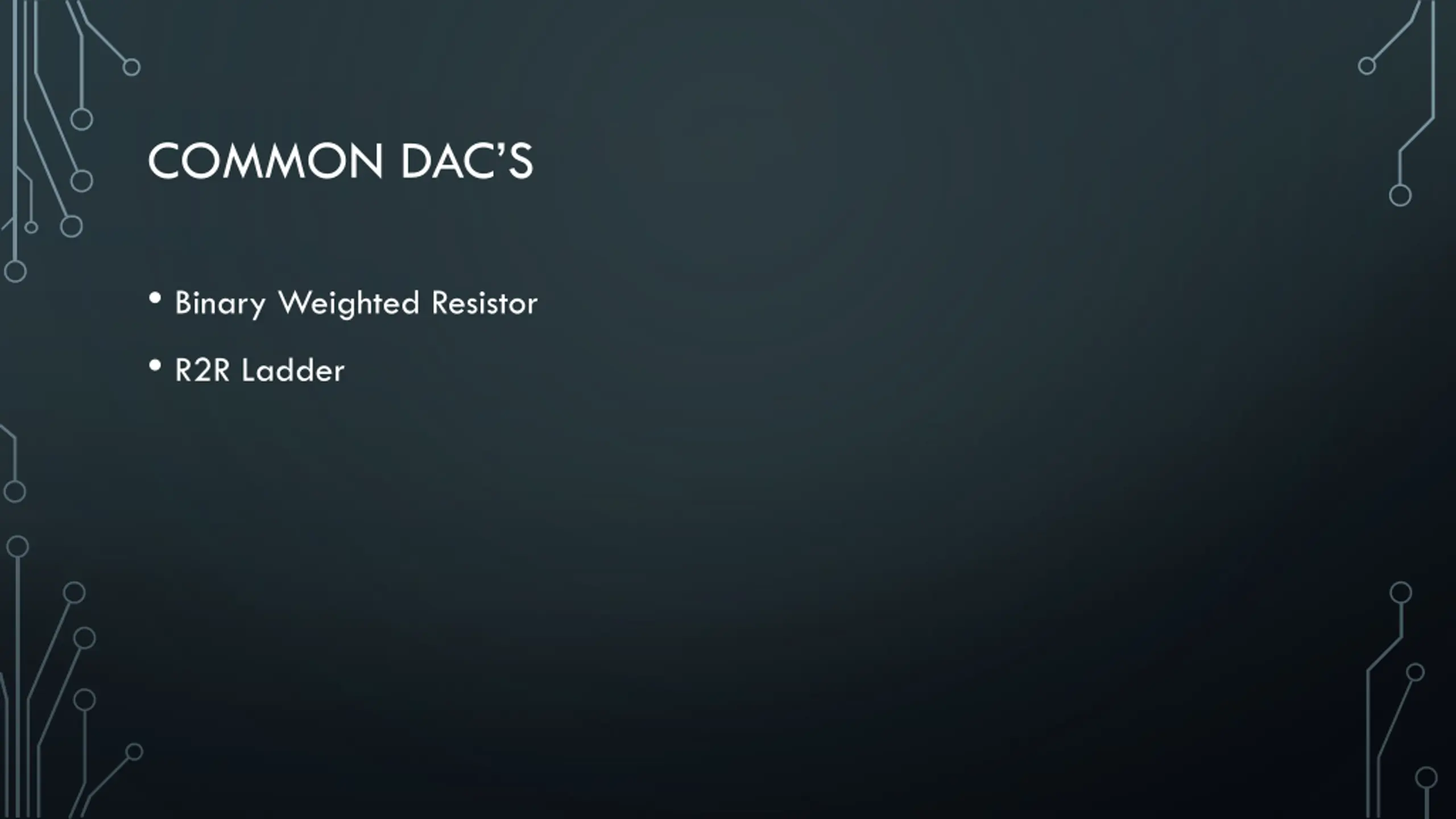

COMMON DACS Binary Weighted Resistor R2R Ladder

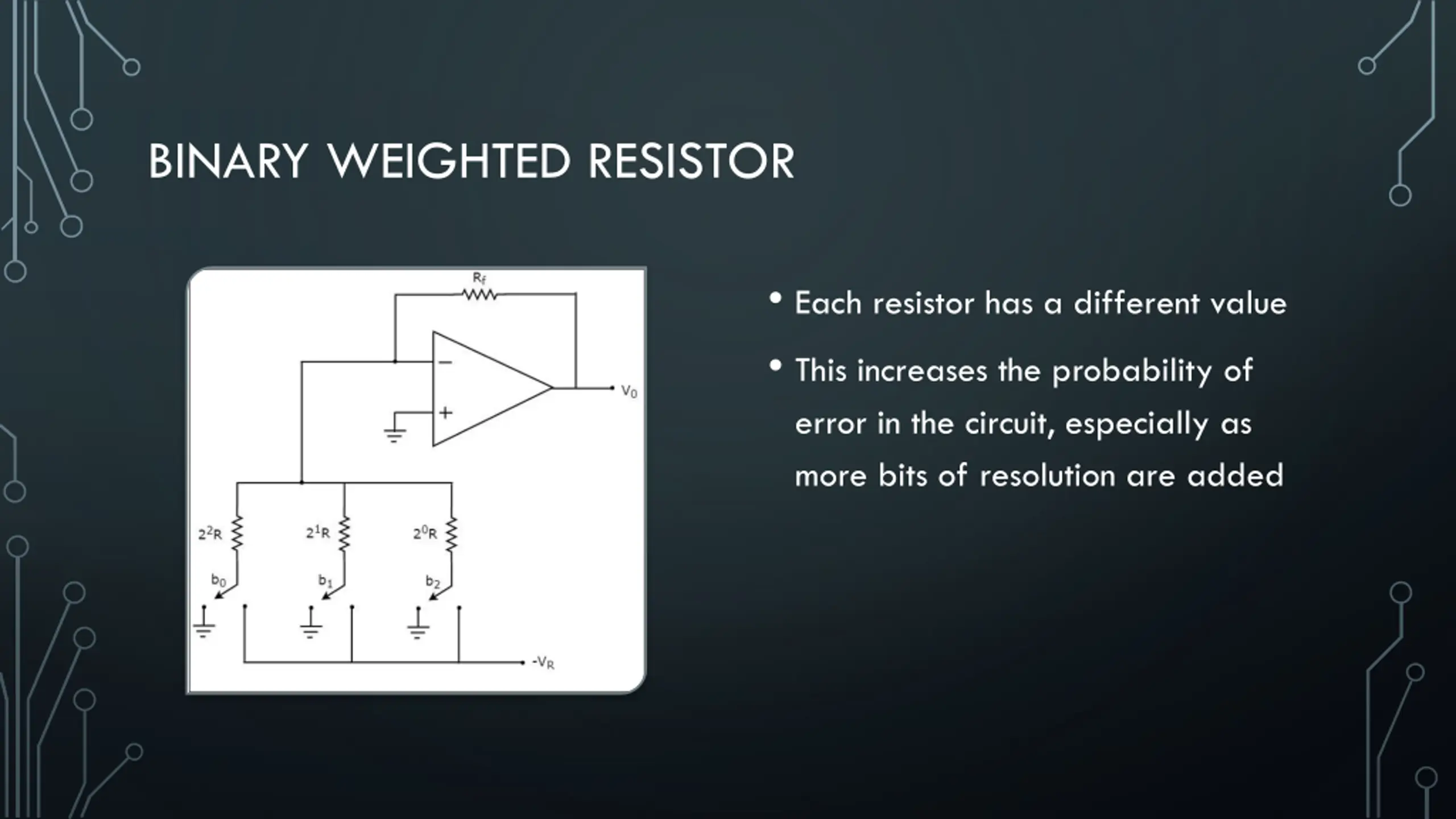

BINARY WEIGHTED RESISTOR Each resistor has a different value This increases the probability of error in the circuit, especially as more bits of resolution are added

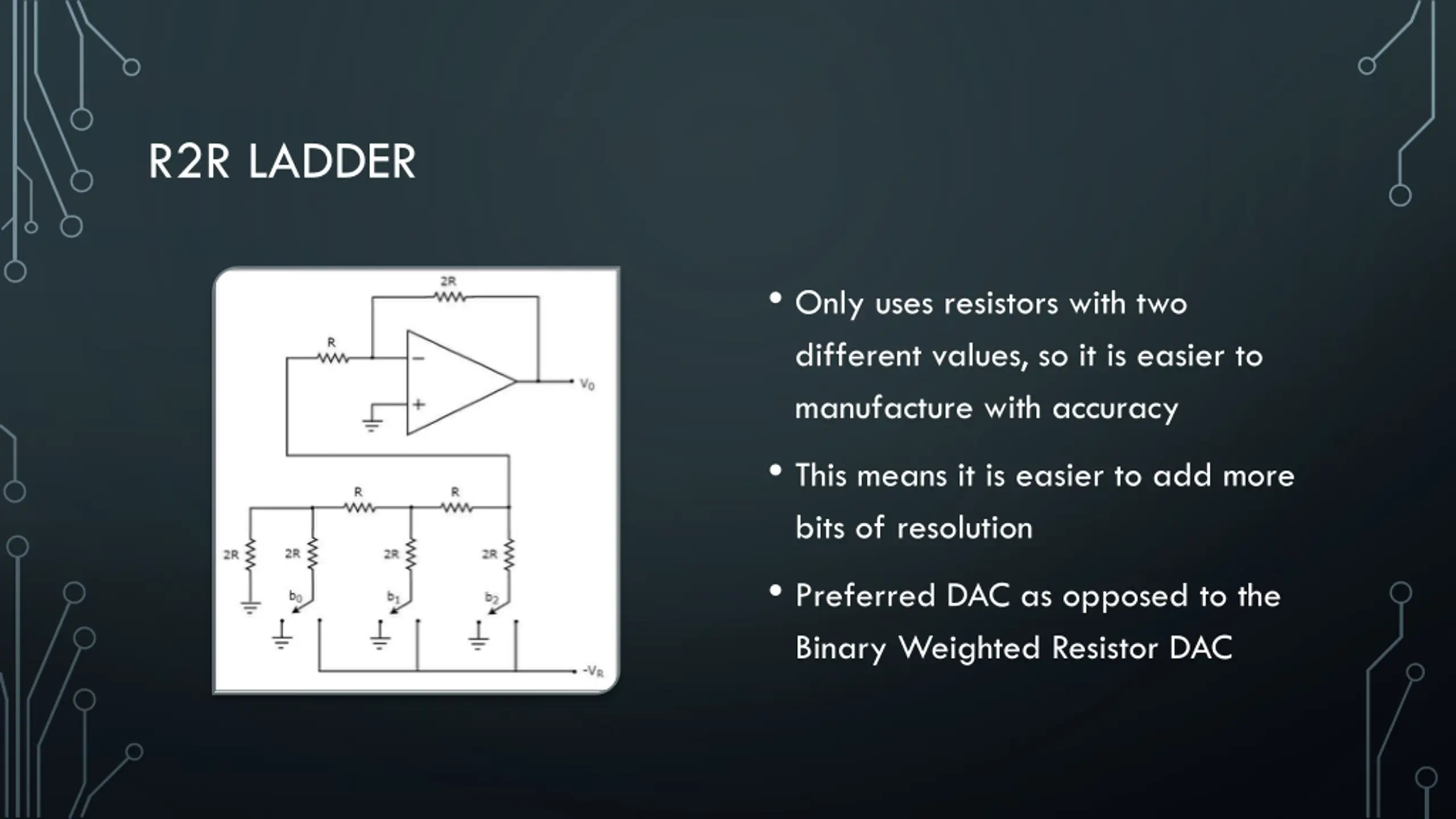

R2R LADDER Only uses resistors with two different values, so it is easier to manufacture with accuracy This means it is easier to add more bits of resolution Preferred DAC as opposed to the Binary Weighted Resistor DAC
