Presentation Transcript

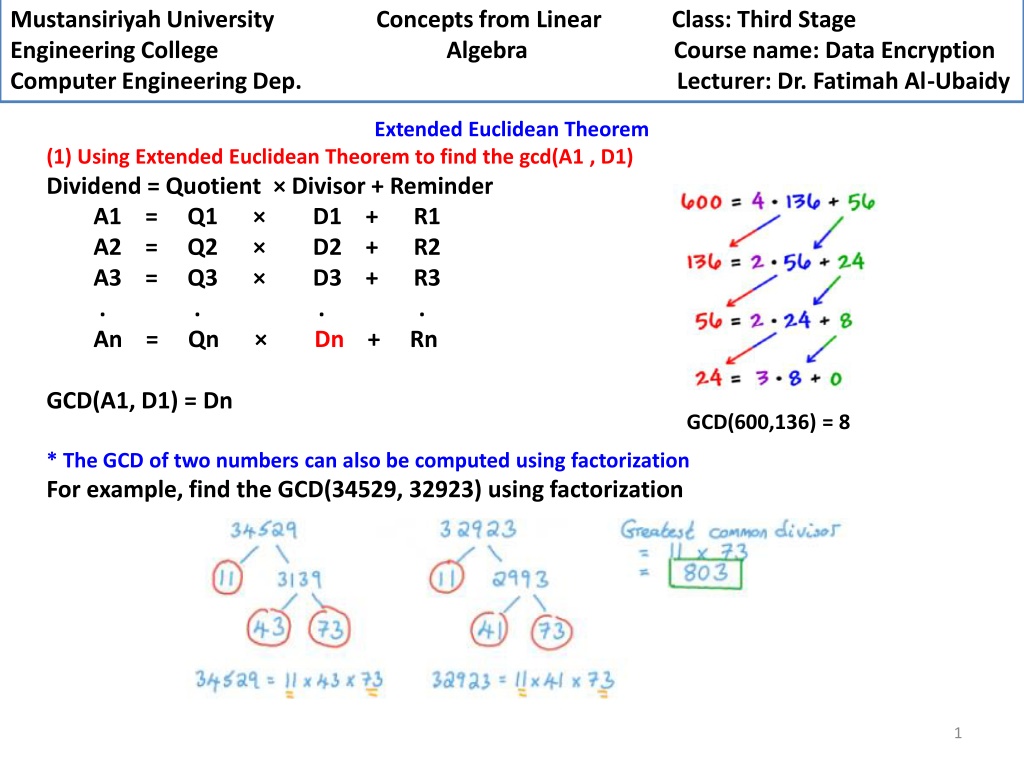

Mustansiriyah University Engineering College Algebra Course name: Data Encryption Computer Engineering Dep. Lecturer: Dr. Fatimah Al-Ubaidy Concepts from Linear Class: Third Stage Extended Euclidean Theorem (1) Using Extended Euclidean Theorem to find the gcd(A1 , D1) Dividend = Quotient Divisor + Reminder A1 = Q1 D1 + R1 A2 = Q2 D2 + R2 A3 = Q3 D3 + R3 . . . . An = Qn Dn + Rn GCD(A1, D1) = Dn GCD(600,136) = 8 * The GCD of two numbers can also be computed using factorization For example, find the GCD(34529, 32923) using factorization 1

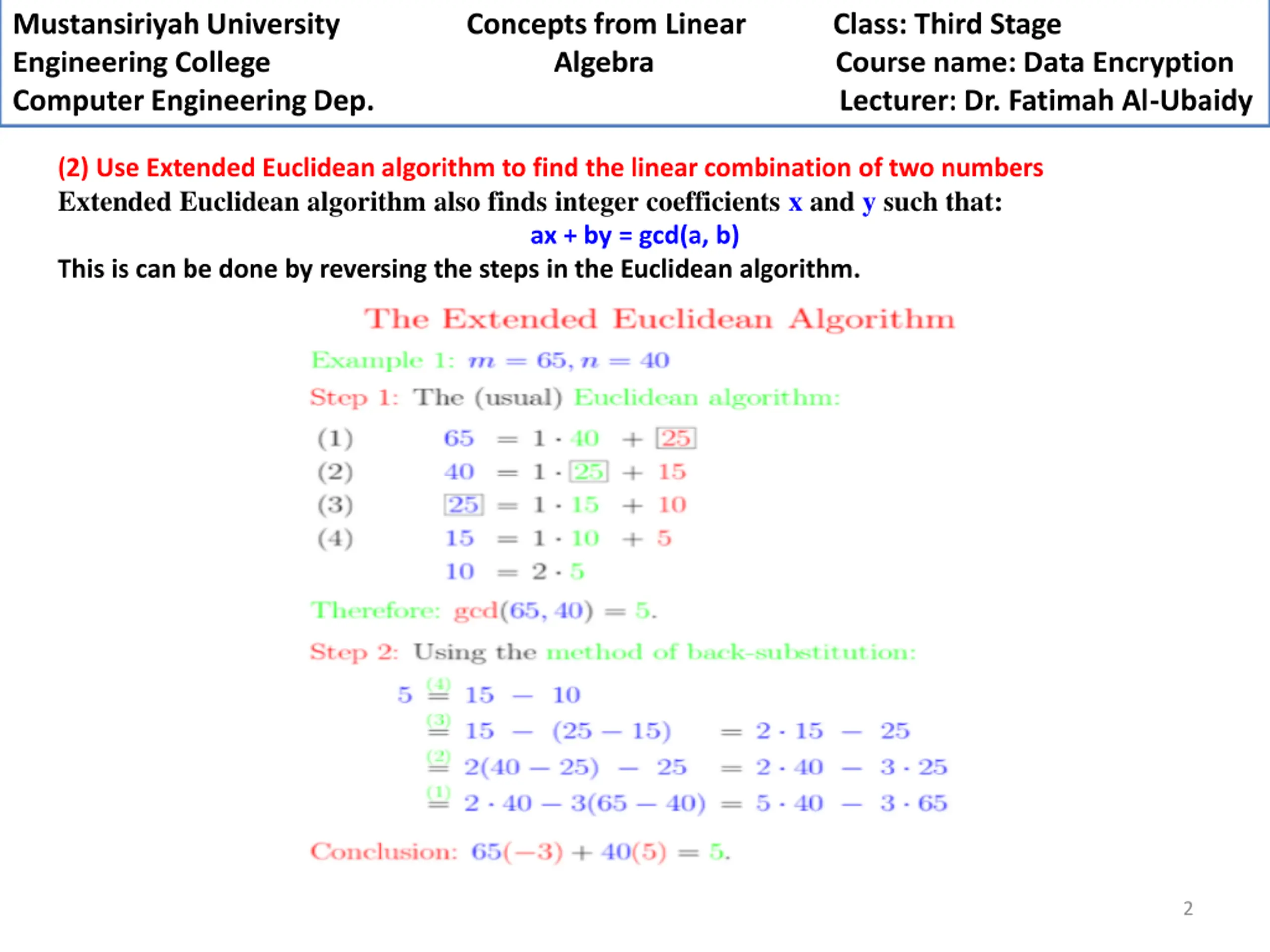

Mustansiriyah University Engineering College Algebra Course name: Data Encryption Computer Engineering Dep. Lecturer: Dr. Fatimah Al-Ubaidy Concepts from Linear Class: Third Stage (2) Use Extended Euclidean algorithm to find the linear combination of two numbers Extended Euclidean algorithm also finds integer coefficients x and y such that: ax + by = gcd(a, b) This is can be done by reversing the steps in the Euclidean algorithm. 2

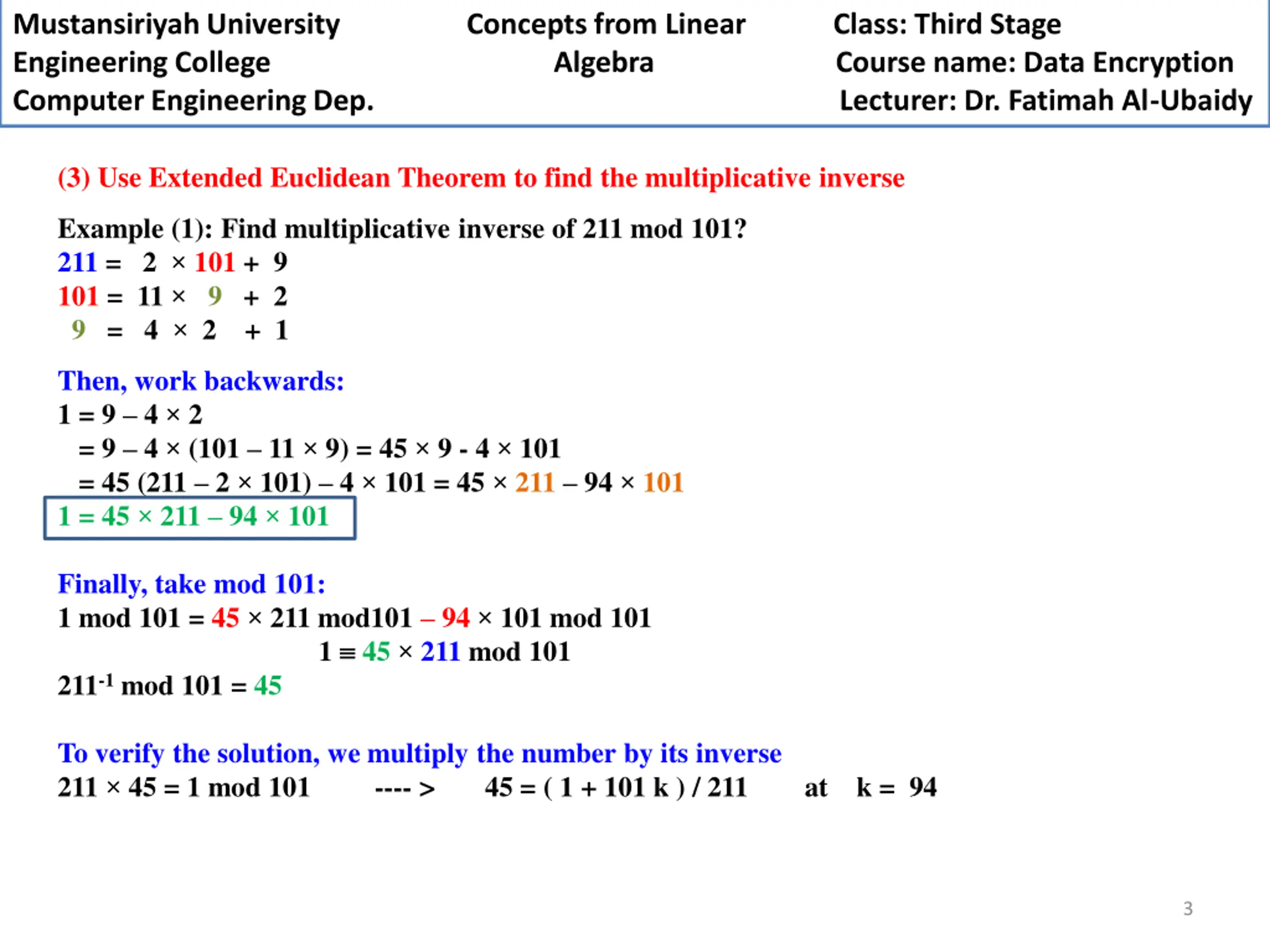

Mustansiriyah University Engineering College Algebra Course name: Data Encryption Computer Engineering Dep. Lecturer: Dr. Fatimah Al-Ubaidy Concepts from Linear Class: Third Stage (3) Use Extended Euclidean Theorem to find the multiplicative inverse Example (1): Find multiplicative inverse of 211 mod 101? 211 = 2 101 + 9 101 = 11 9 + 2 9 = 4 2 + 1 Then, work backwards: 1 = 9 4 2 = 9 4 (101 11 9) = 45 9 - 4 101 = 45 (211 2 101) 4 101 = 45 211 94 101 1 = 45 211 94 101 Finally, take mod 101: 1 mod 101 = 45 211 mod101 94 101 mod 101 1 45 211 mod 101 211-1 mod 101 = 45 To verify the solution, we multiply the number by its inverse 211 45 = 1 mod 101 ---- > 45 = ( 1 + 101 k ) / 211 at k = 94 3

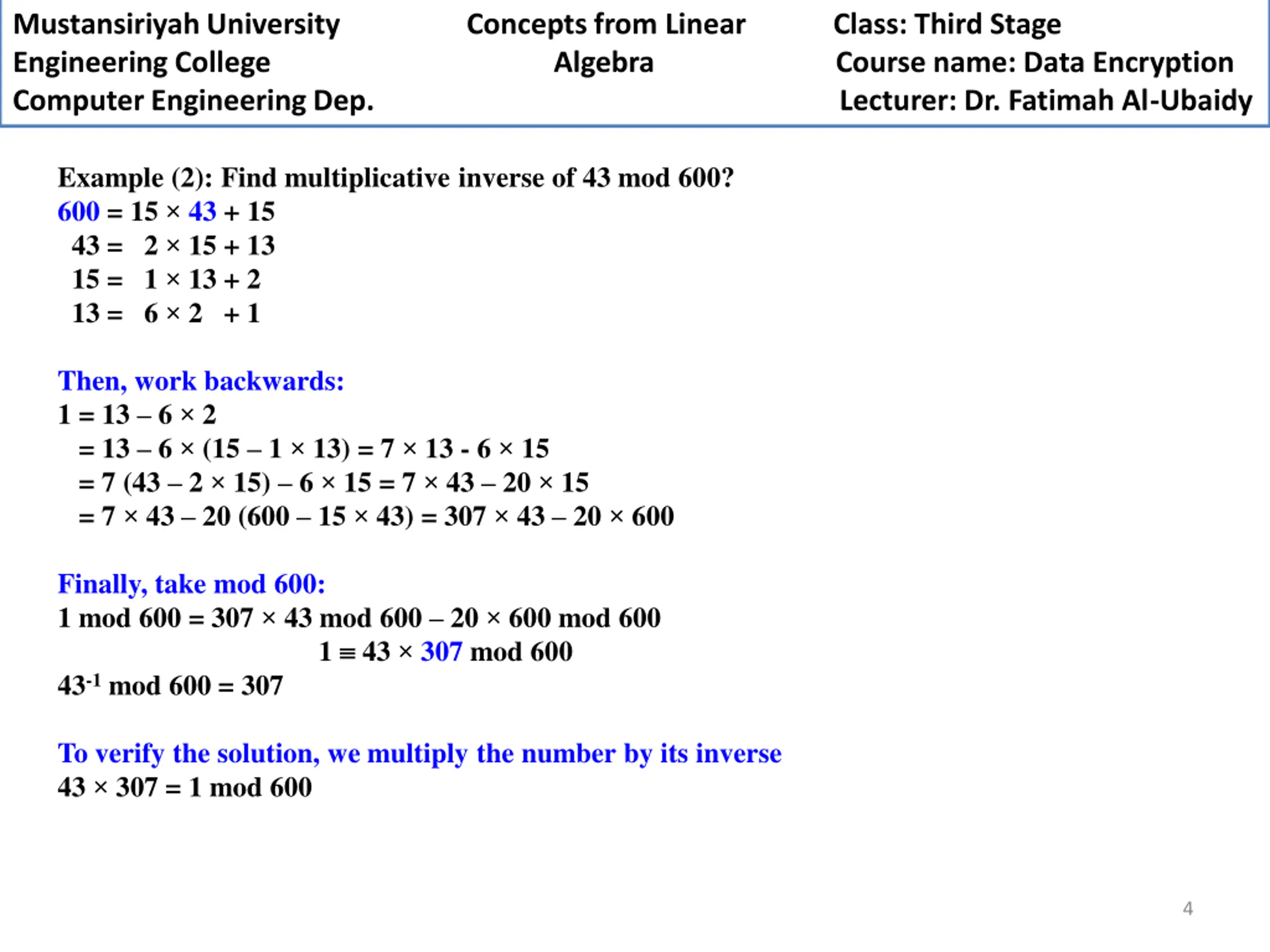

Mustansiriyah University Engineering College Algebra Course name: Data Encryption Computer Engineering Dep. Lecturer: Dr. Fatimah Al-Ubaidy Concepts from Linear Class: Third Stage Example (2): Find multiplicative inverse of 43 mod 600? 600 = 15 43 + 15 43 = 2 15 + 13 15 = 1 13 + 2 13 = 6 2 + 1 Then, work backwards: 1 = 13 6 2 = 13 6 (15 1 13) = 7 13 - 6 15 = 7 (43 2 15) 6 15 = 7 43 20 15 = 7 43 20 (600 15 43) = 307 43 20 600 Finally, take mod 600: 1 mod 600 = 307 43 mod 600 20 600 mod 600 1 43 307 mod 600 43-1 mod 600 = 307 To verify the solution, we multiply the number by its inverse 43 307 = 1 mod 600 4
