Detailed Anatomy of the Larynx and Respiratory System
Explore detailed images of laryngeal structures, vocal folds, and bronchial segments. Learn about the intricate anatomy of the respiratory system including the hyoid, arytenoid cartilage, and vocal ligaments.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

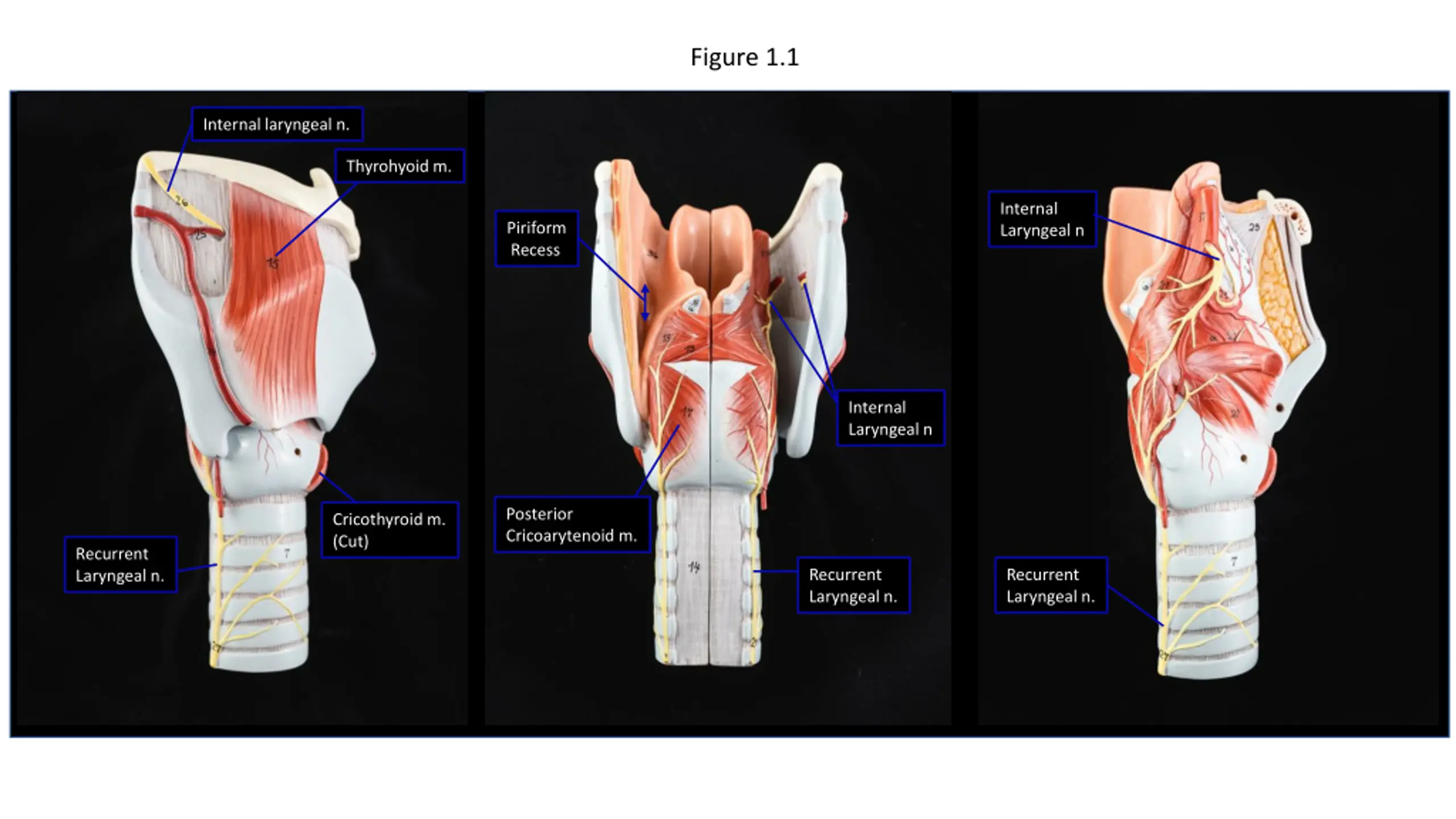

Figure 1.1 Internal laryngeal n. Thyrohyoid m. Internal Laryngeal n Piriform Recess Internal Laryngeal n Posterior Cricoarytenoid m. Cricothyroid m. (Cut) Recurrent Laryngeal n. Recurrent Laryngeal n. Recurrent Laryngeal n.

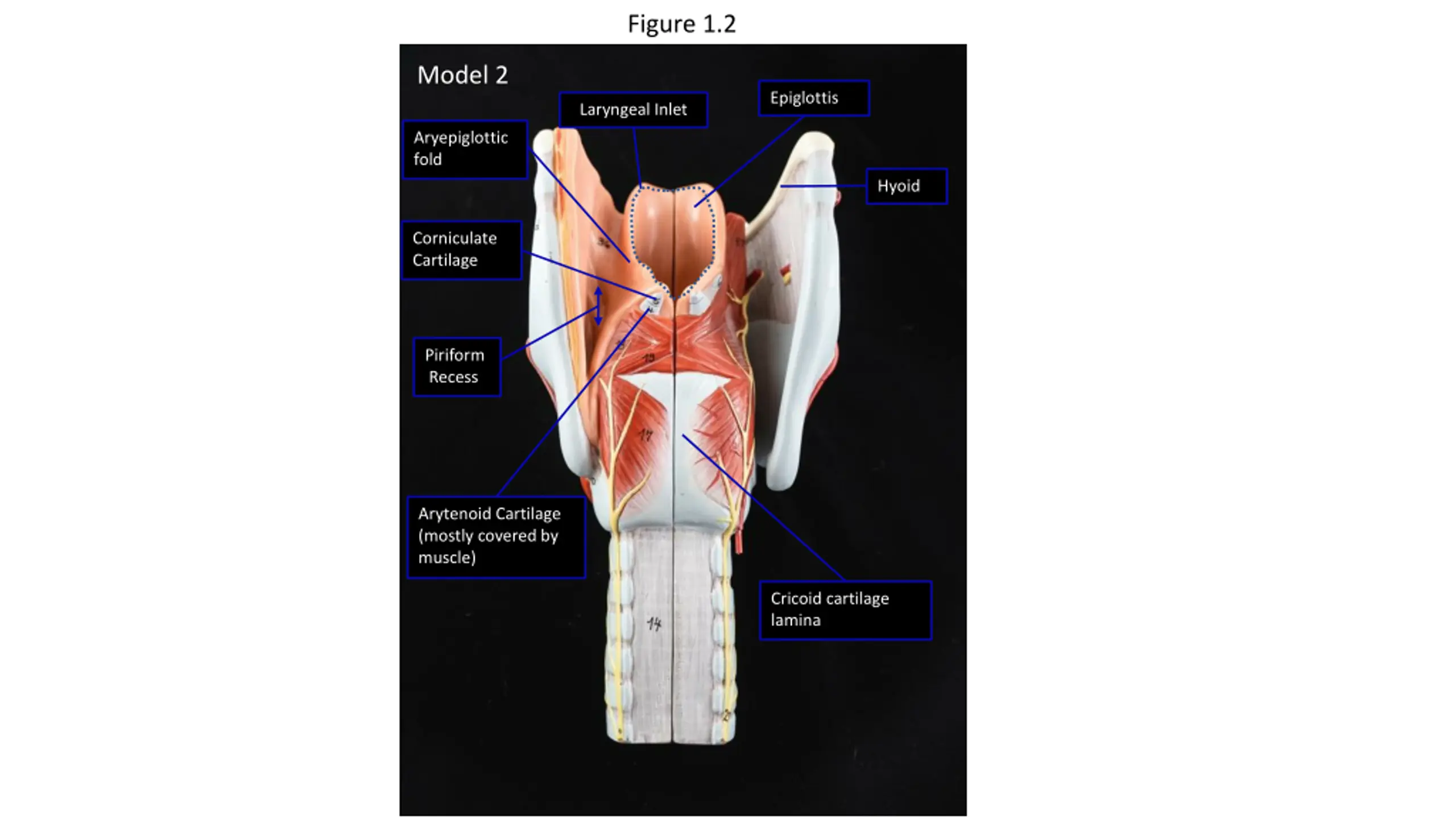

Figure 1.2 Model 2 Epiglottis Laryngeal Inlet Aryepiglottic fold Hyoid Corniculate Cartilage Piriform Recess Arytenoid Cartilage (mostly covered by muscle) Cricoid cartilage lamina

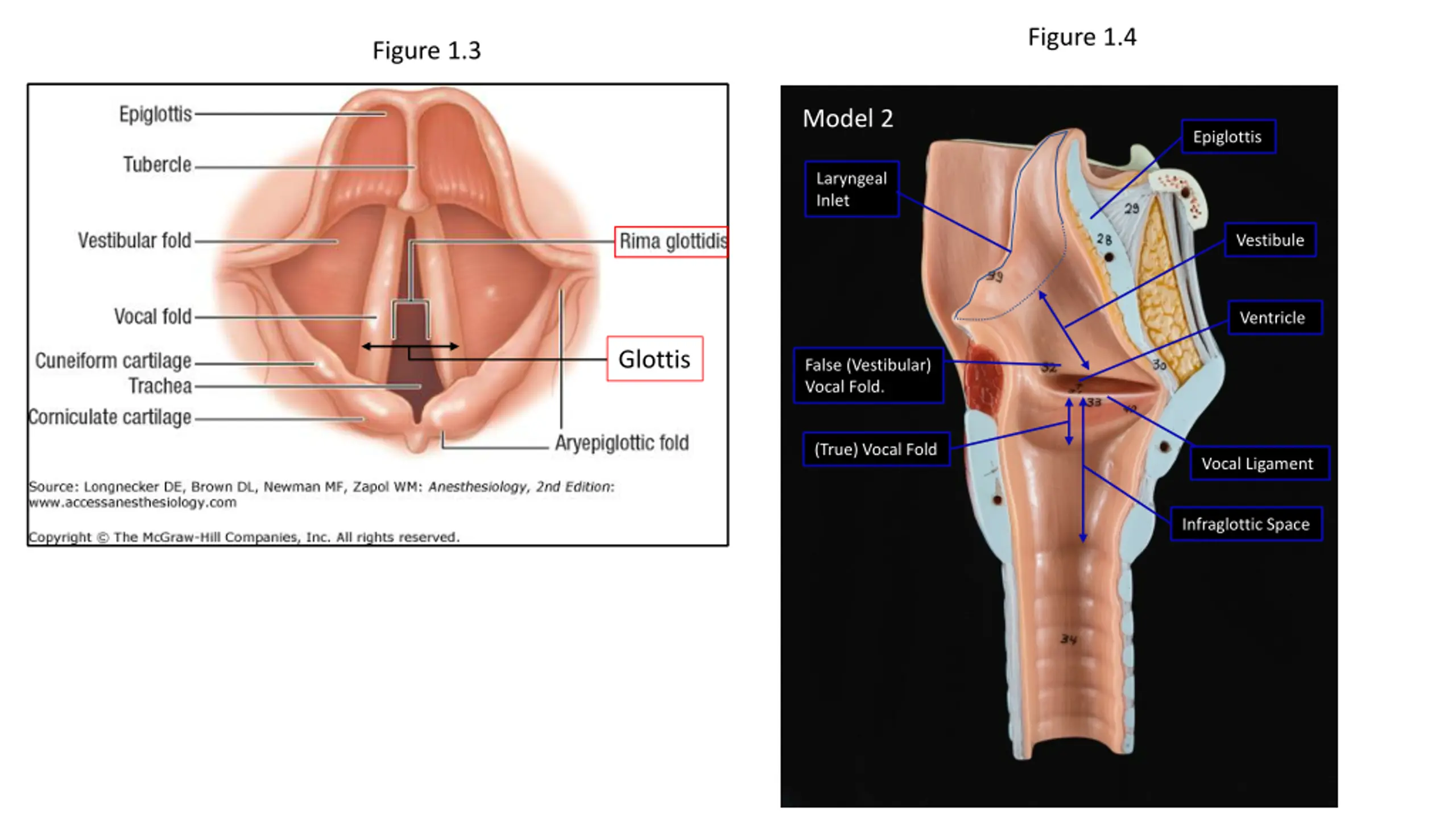

Figure 1.4 Figure 1.3 Model 2 Epiglottis Laryngeal Inlet Vestibule Ventricle Glottis False (Vestibular) Vocal Fold. (True) Vocal Fold Vocal Ligament Infraglottic Space

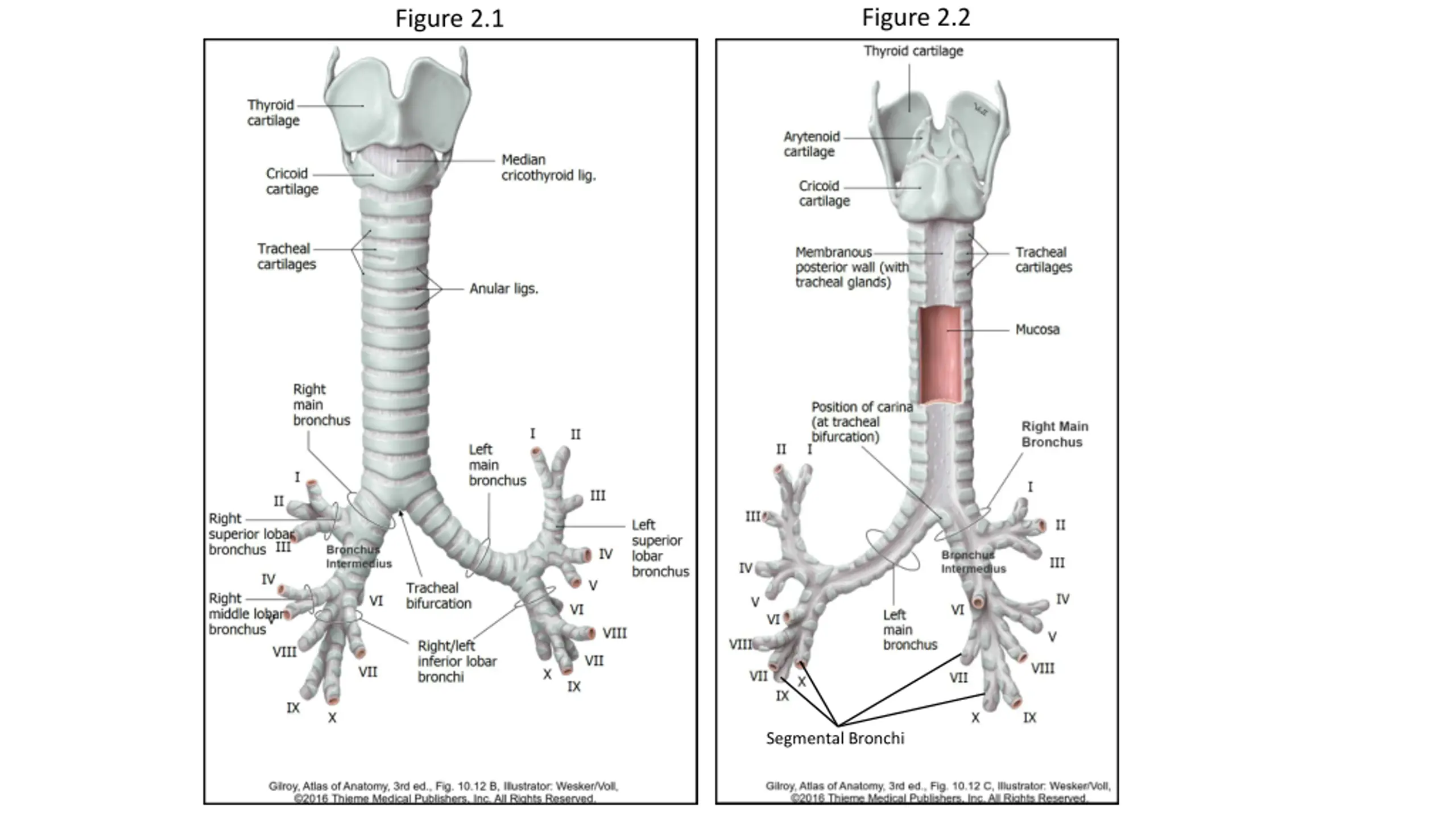

Figure 2.2 Figure 2.1 Segmental Bronchi
