Explore various types of graphs such as histograms, pie charts, stemplots, and boxplots for effective data visualization and analysis in this informative review session. Learn how each graph serves a specific purpose and how they can be applied to different data sets.
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

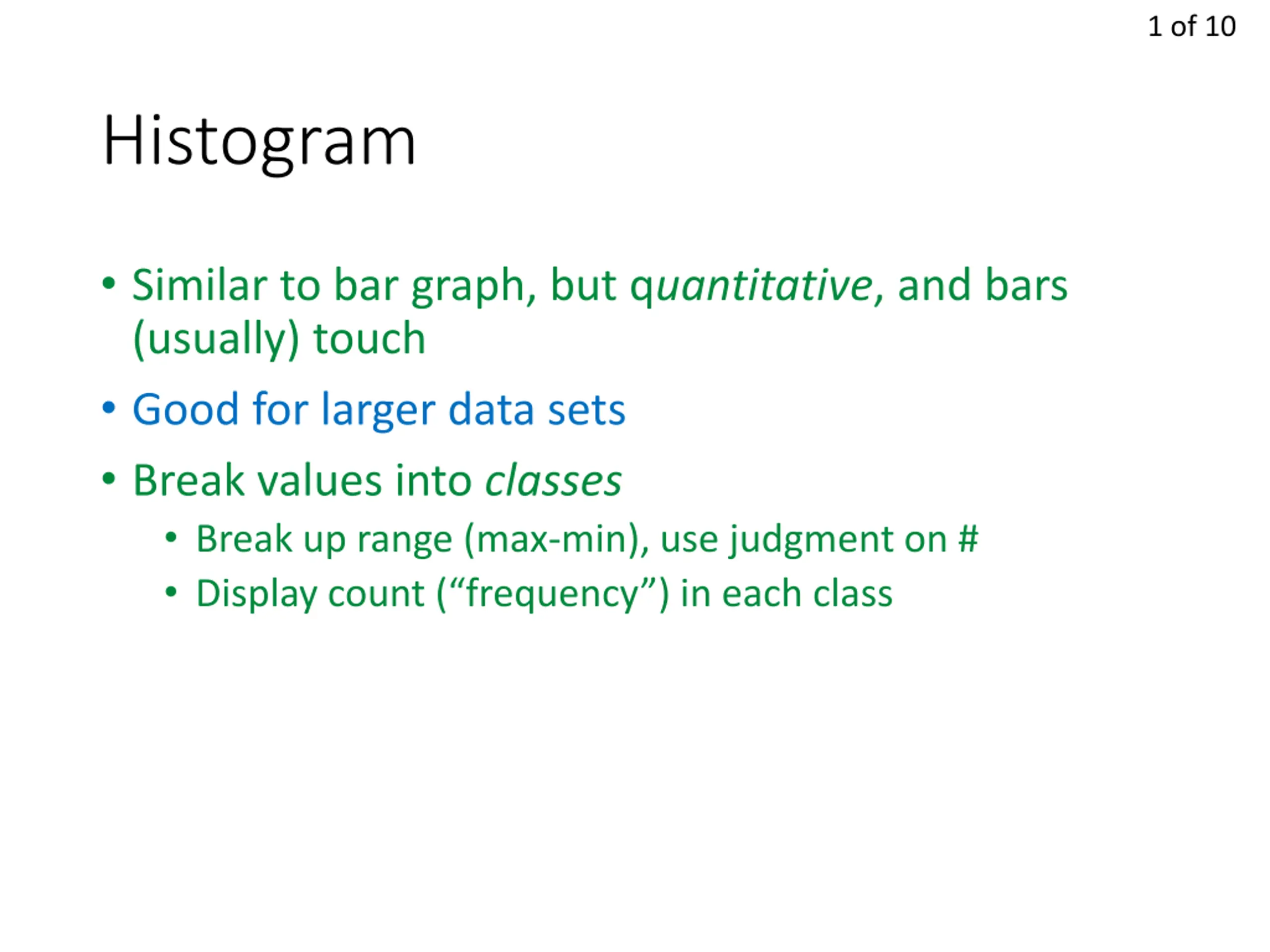

1 of 10 Histogram Similar to bar graph, but quantitative, and bars (usually) touch Good for larger data sets Break values into classes Break up range (max-min), use judgment on # Display count ( frequency ) in each class

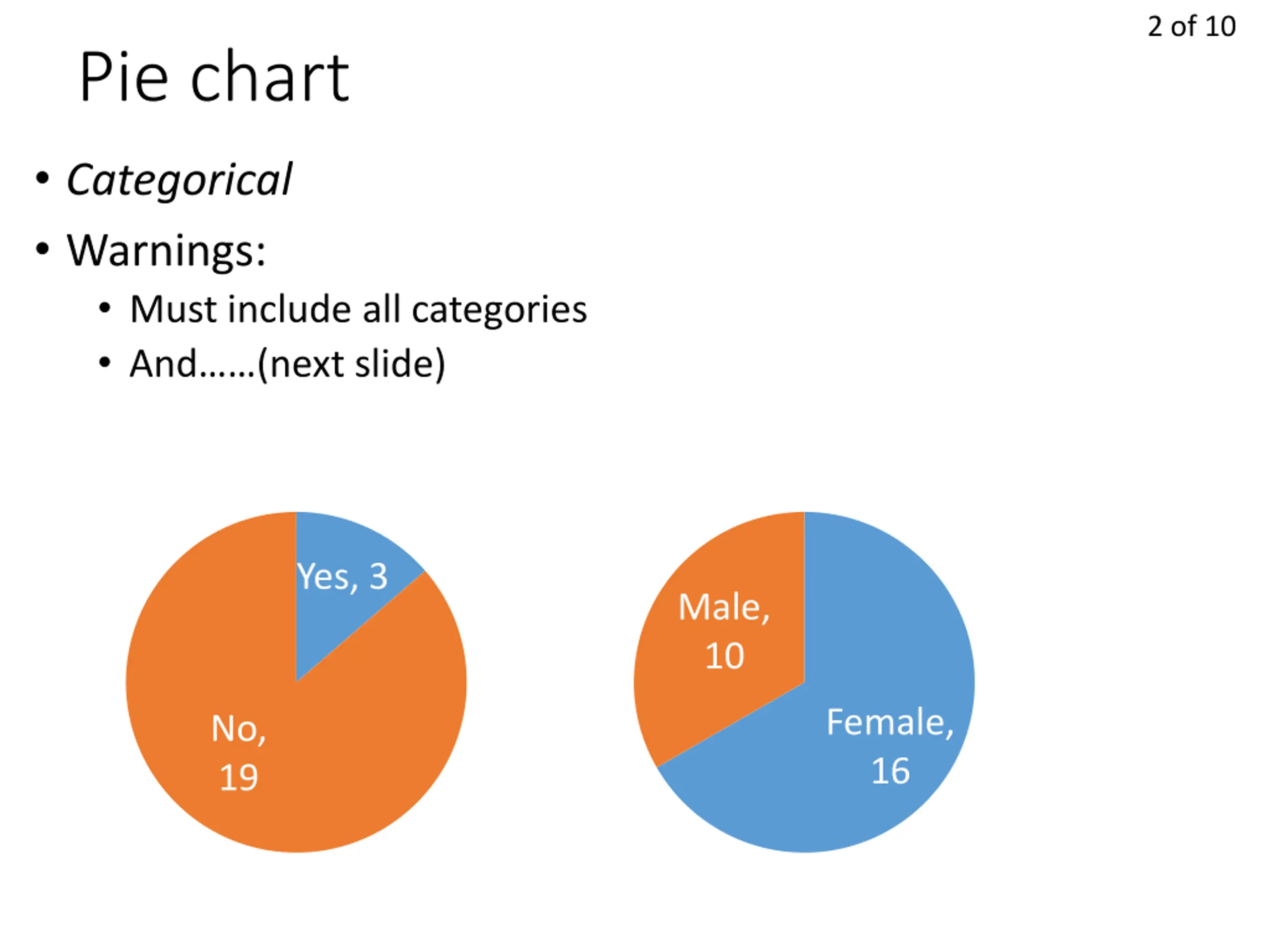

2 of 10 Pie chart Categorical Warnings: Must include all categories And (next slide) Yes, 3 Male, 10 Female, 16 No, 19

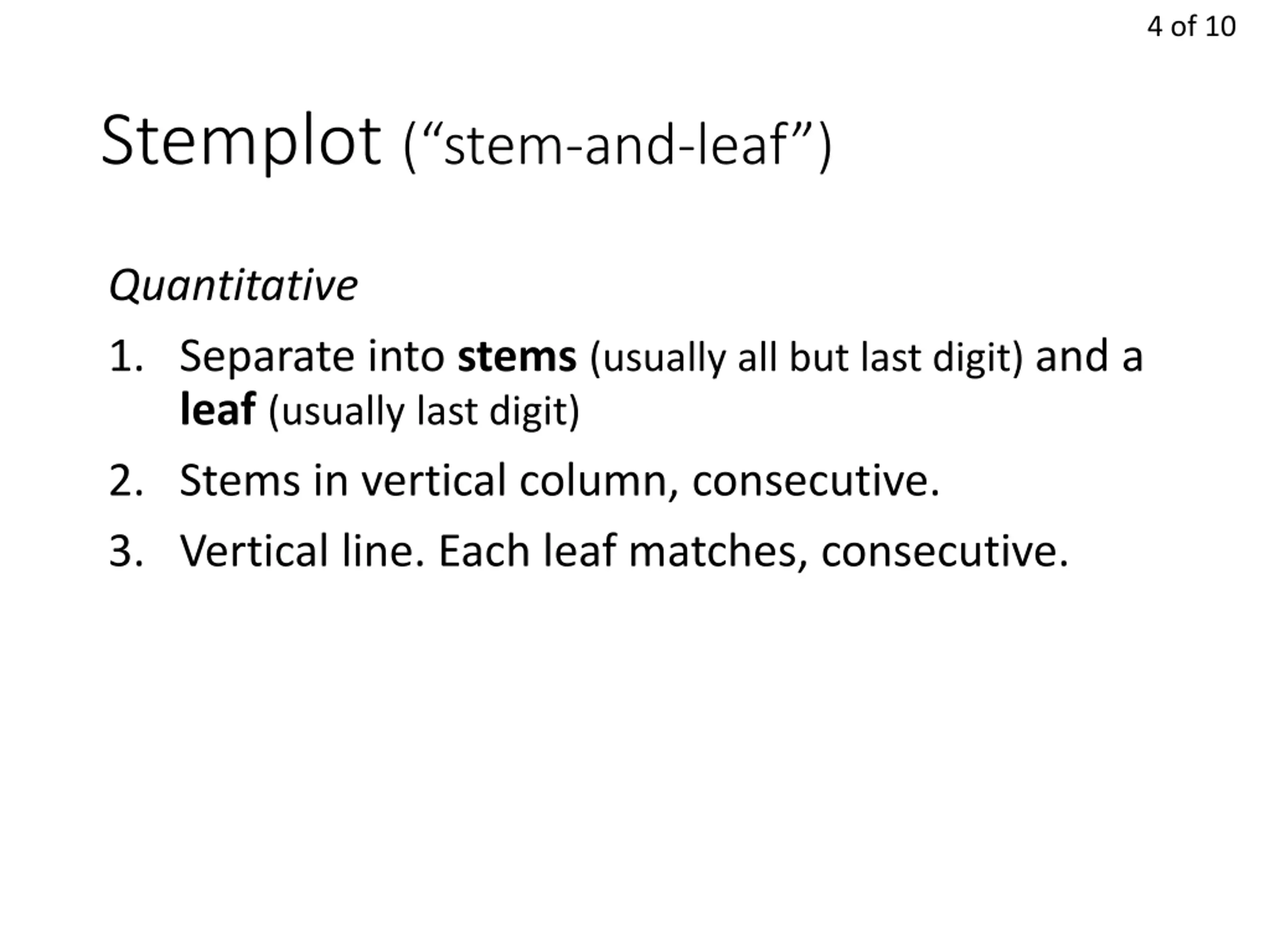

4 of 10 Stemplot ( stem-and-leaf ) Quantitative 1. Separate into stems (usually all but last digit) and a leaf (usually last digit) 2. Stems in vertical column, consecutive. 3. Vertical line. Each leaf matches, consecutive.

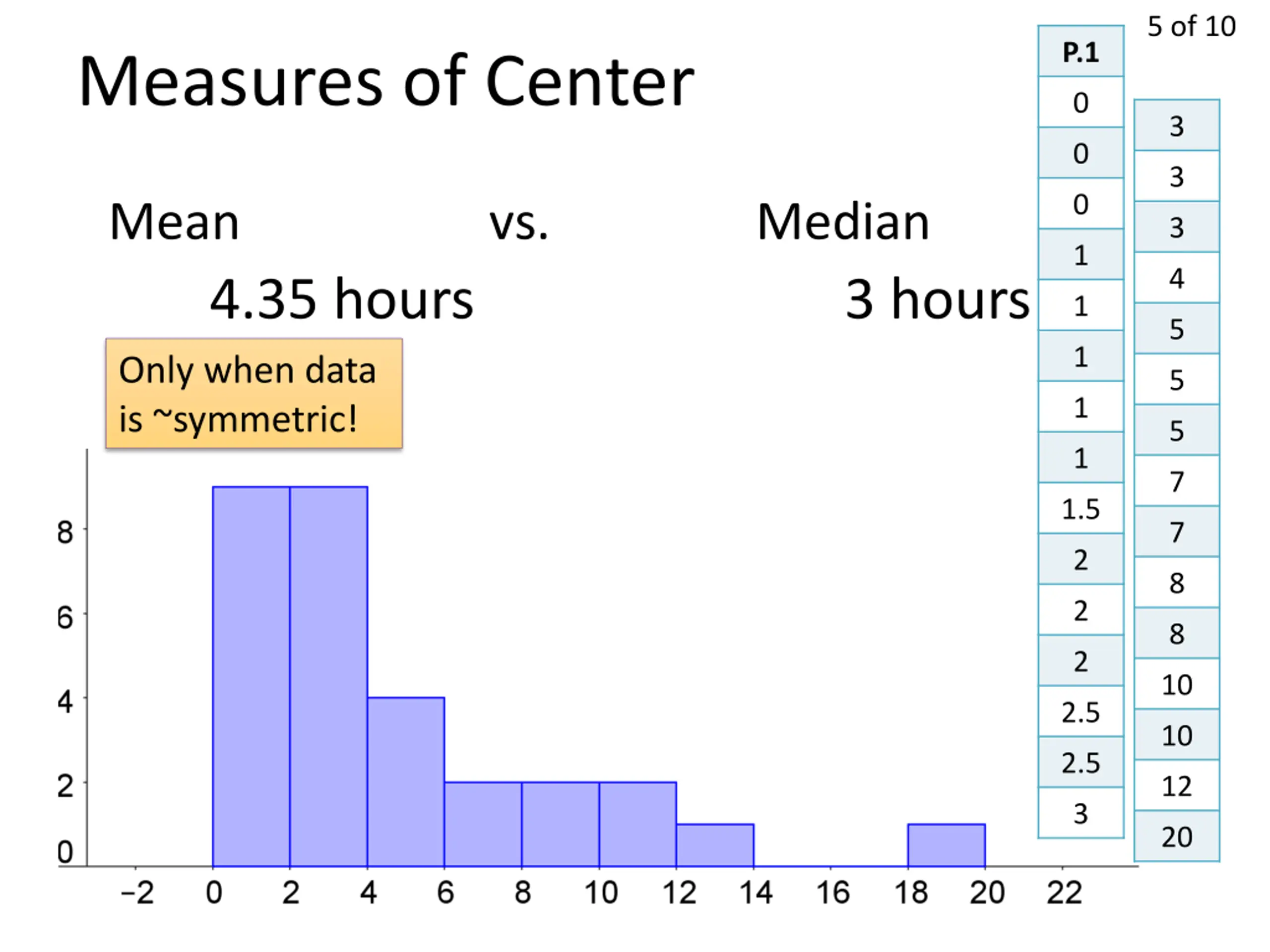

5 of 10 P.1 Measures of Center 0 3 0 3 0 Mean vs. Median 3 1 4 4.35 hours Only when data is ~symmetric! 3 hours 1 5 1 5 1 5 1 7 1.5 7 2 8 2 8 2 10 2.5 10 2.5 12 3 20

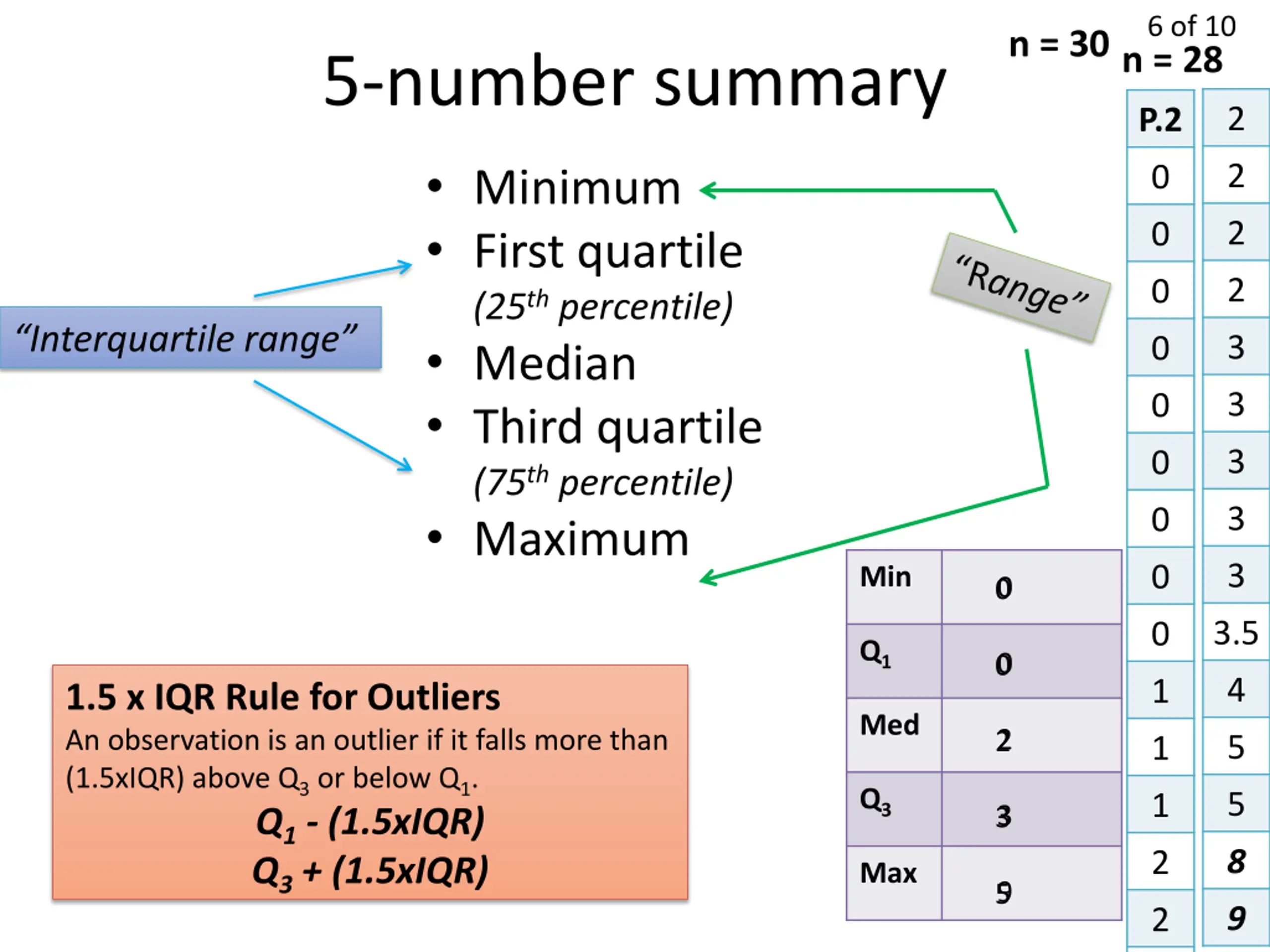

6 of 10 n = 30n = 28 5-number summary 2 P.2 Minimum First quartile (25th percentile) Median Third quartile (75th percentile) Maximum 2 0 2 0 2 0 Interquartile range 3 0 3 0 3 0 3 0 3 0 Min 0 0 3.5 0 Q1 0 0 4 1 1.5 x IQR Rule for Outliers An observation is an outlier if it falls more than (1.5xIQR) above Q3 or below Q1. Q1 - (1.5xIQR) Q3 + (1.5xIQR) Med 2 2 5 1 Q3 5 1 3 3 8 2 Max 9 5 9 2 2

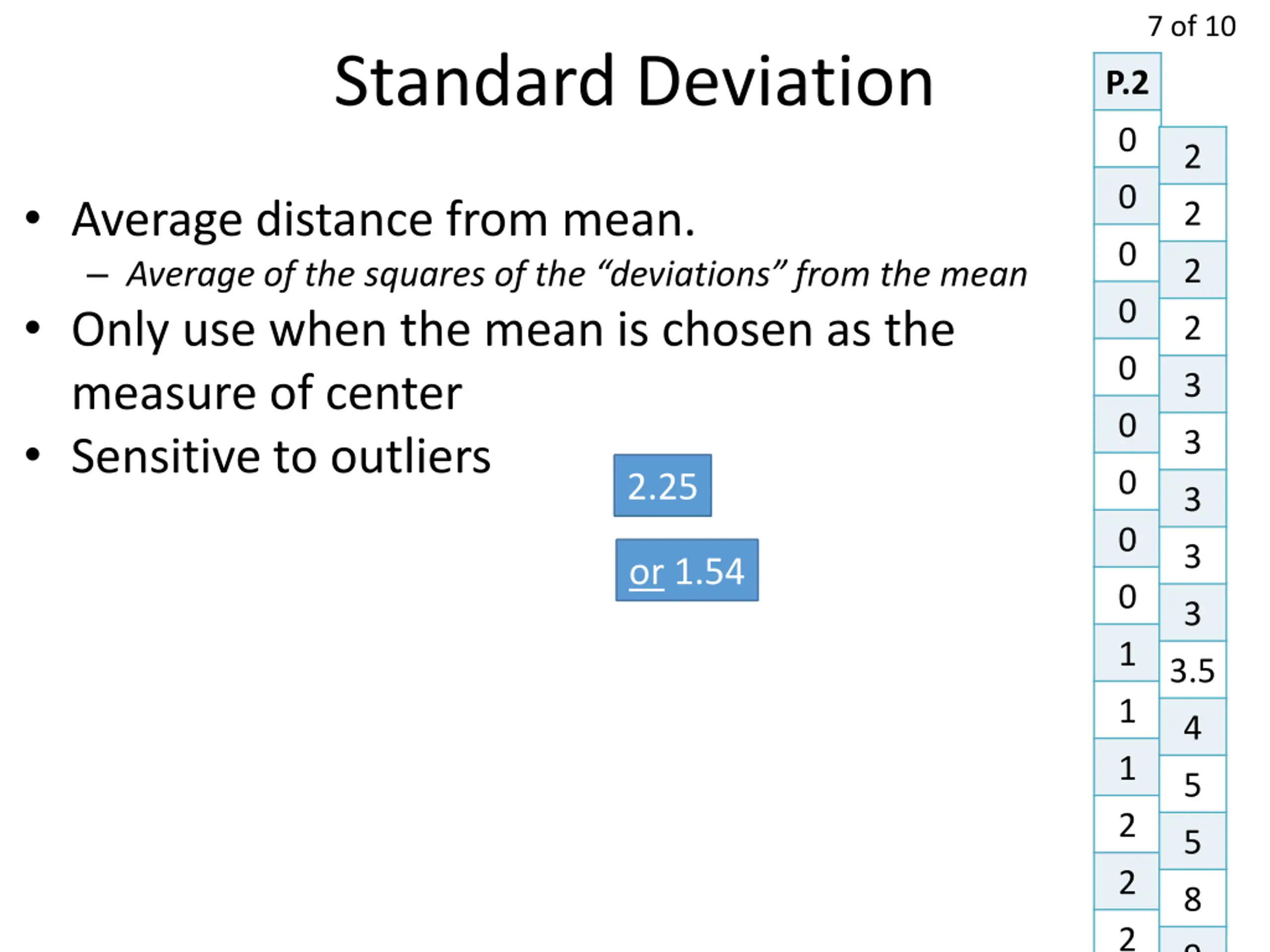

7 of 10 Standard Deviation P.2 0 2 0 Average distance from mean. Average of the squares of the deviations from the mean Only use when the mean is chosen as the measure of center Sensitive to outliers 2 0 2 0 2 0 3 0 3 0 2.25 3 0 3 or 1.54 0 3 1 3.5 1 4 1 5 2 5 2 8 2 9

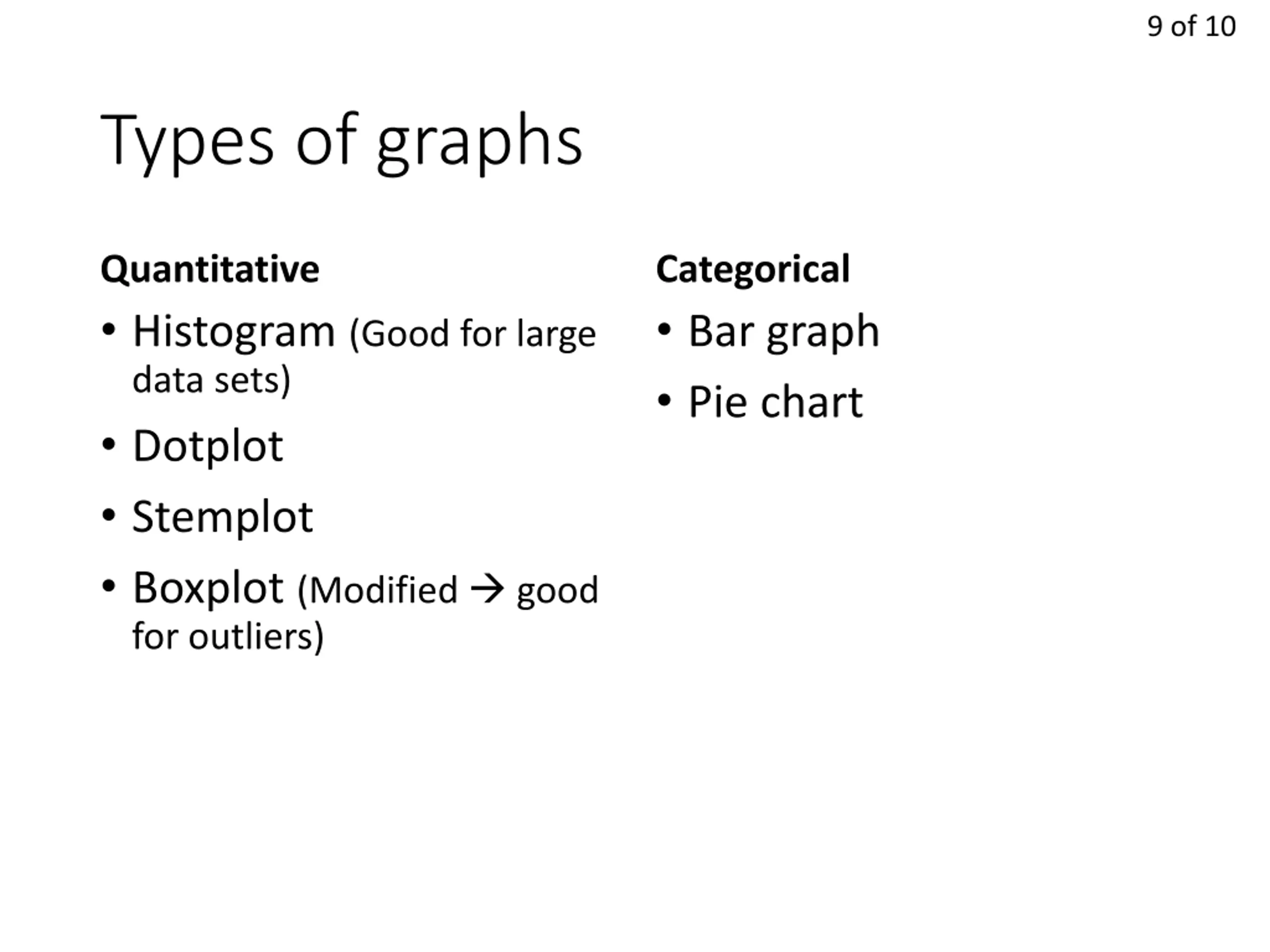

9 of 10 Types of graphs Quantitative Histogram (Good for large data sets) Dotplot Stemplot Boxplot (Modified good for outliers) Categorical Bar graph Pie chart

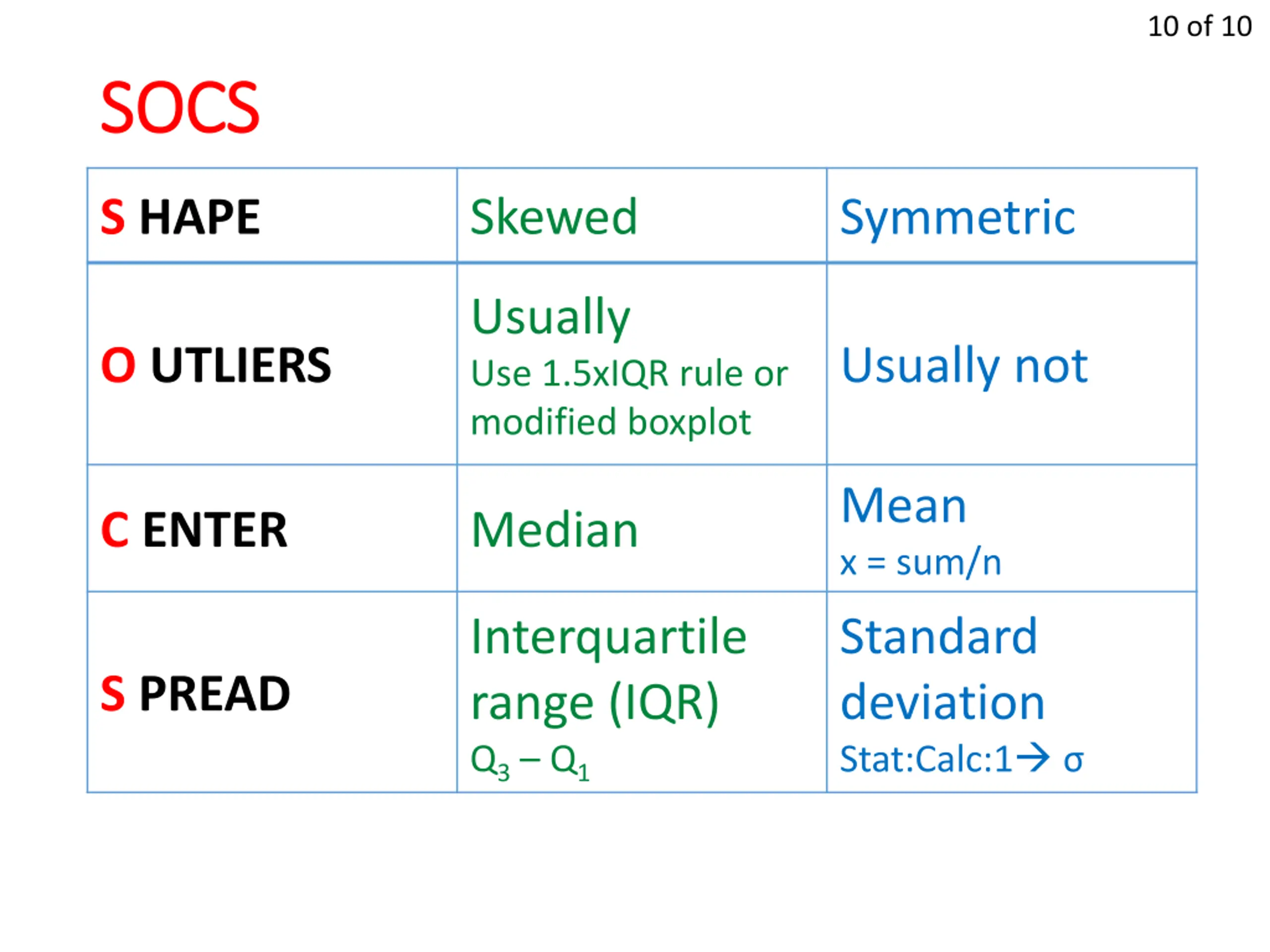

10 of 10 SOCS SOCS S HAPE Skewed Symmetric Usually Use 1.5xIQR rule or modified boxplot O UTLIERS Usually not Mean x = sum/n C ENTER Median Interquartile range (IQR) Q3 Q1 Standard deviation Stat:Calc:1 S PREAD
