1. Dragonfly Topology for networks Long Long Bao Bao Presented by

2. Netwrok

3. Topology

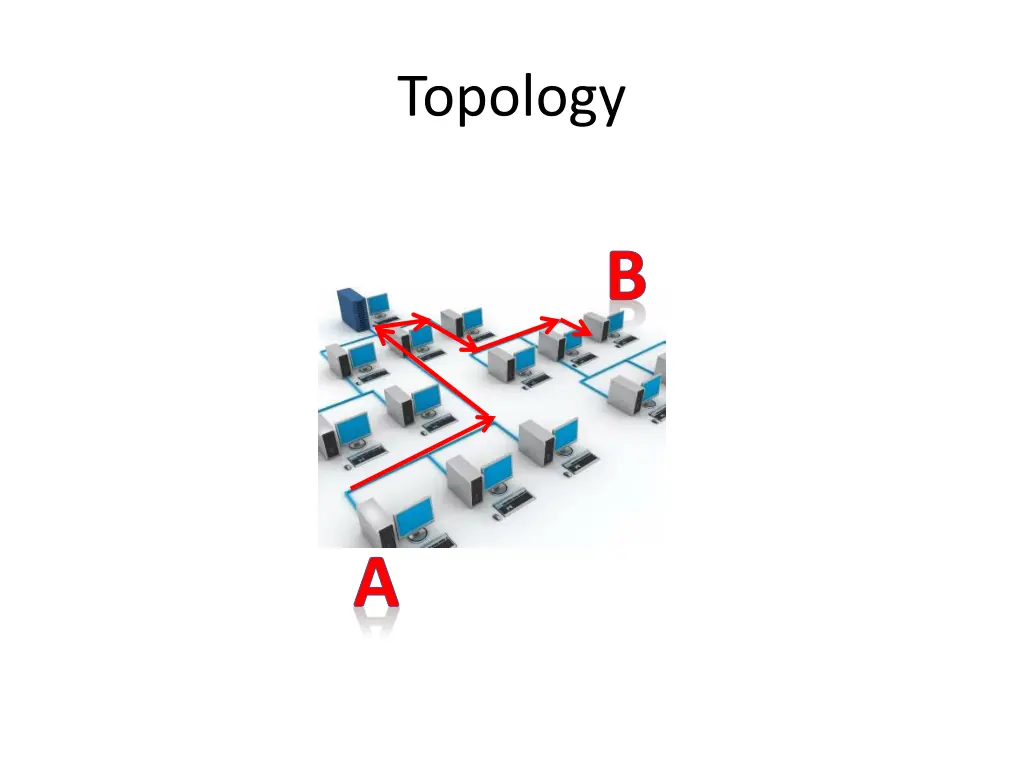

4. Topology B A

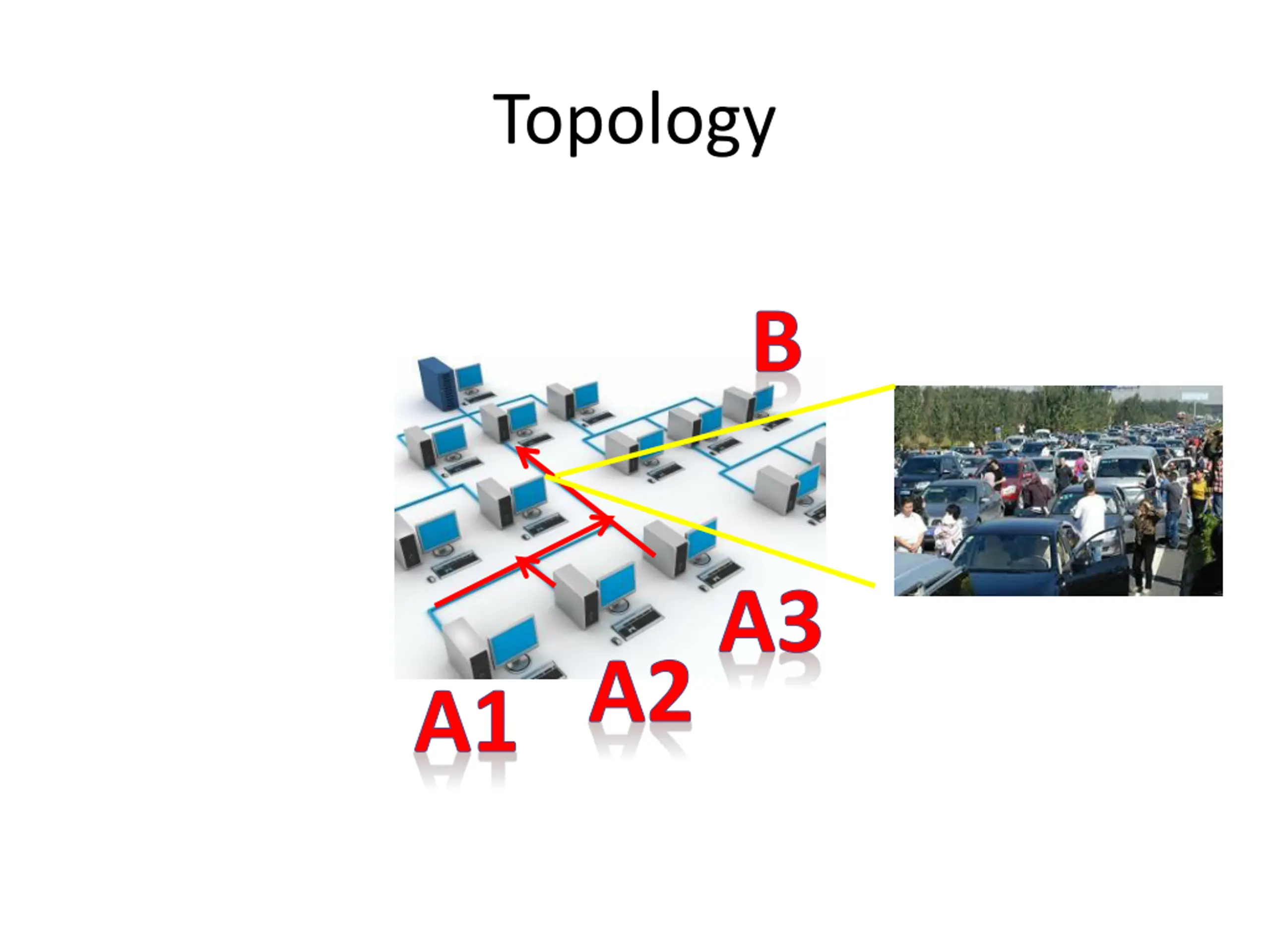

5. Topology B A2A3 A1

6. Topology B A Perfect?

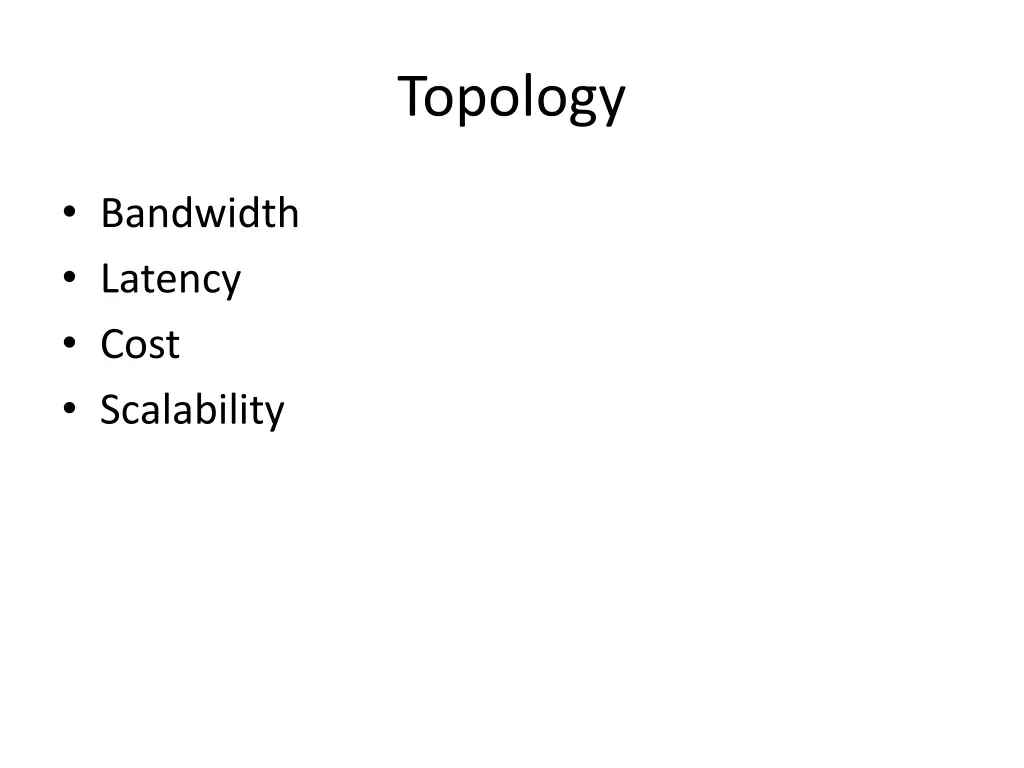

7. Topology Bandwidth Latency Cost Scalability

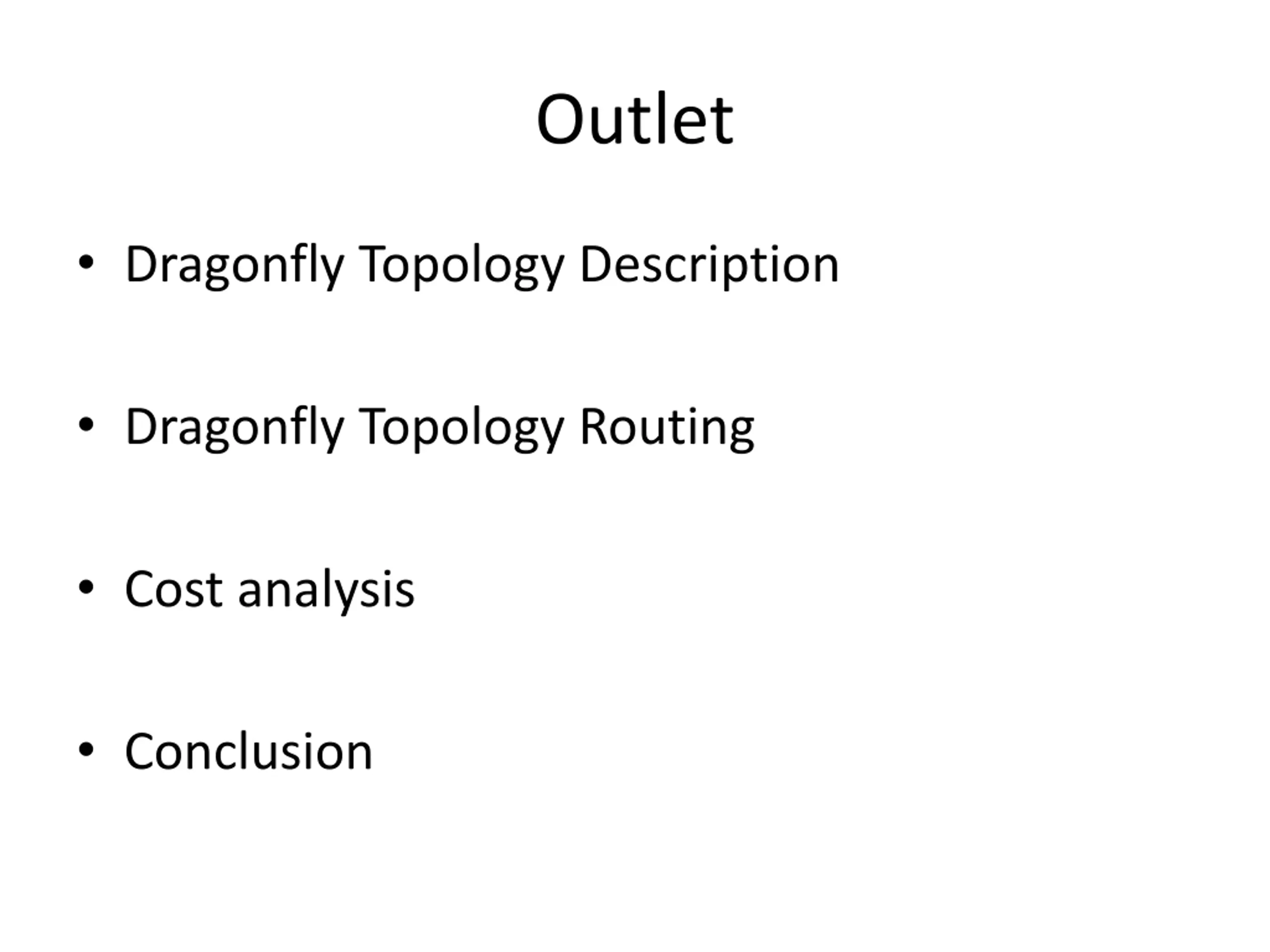

8. Outlet Dragonfly Topology Description Dragonfly Topology Routing Cost analysis Conclusion

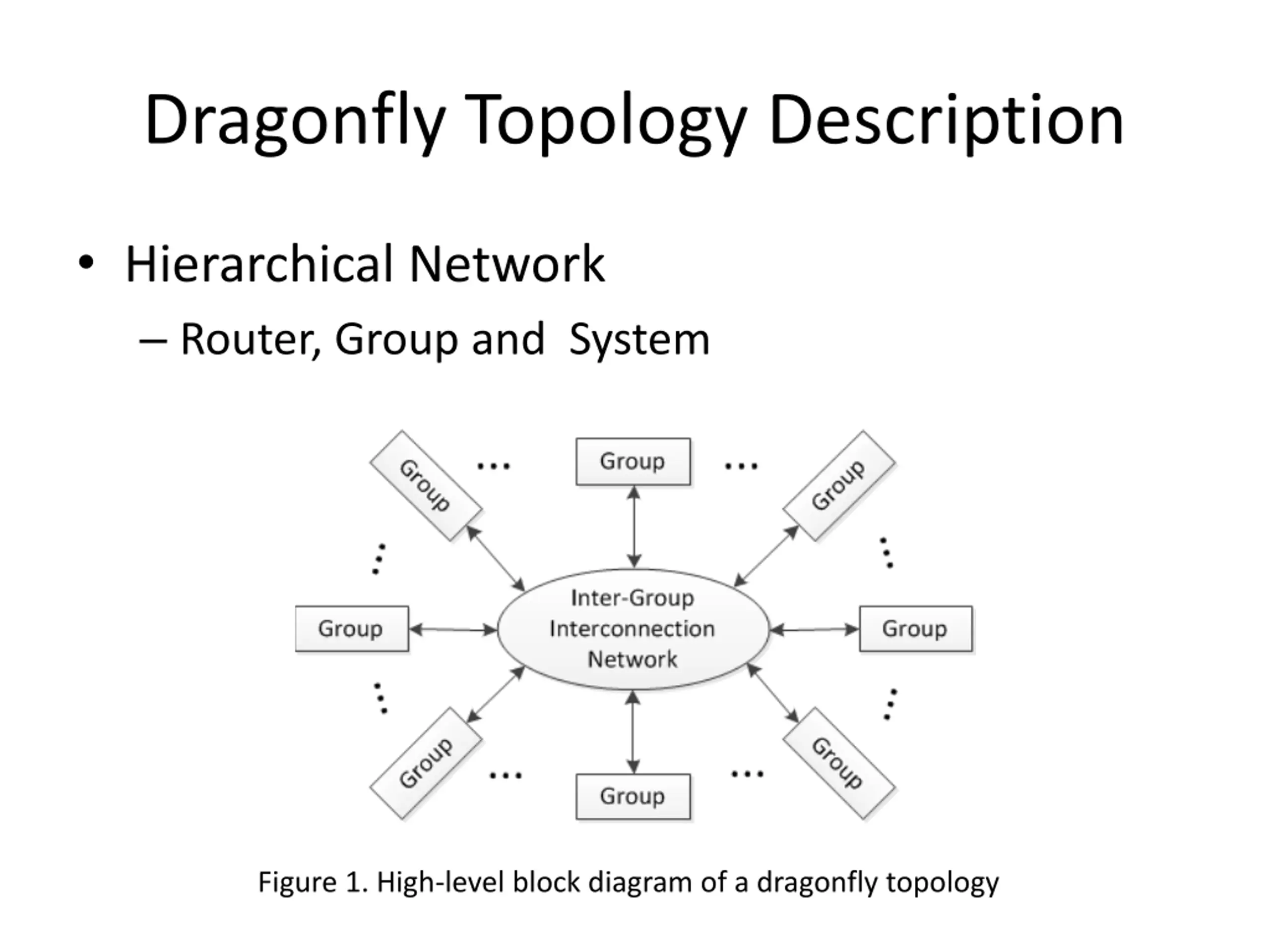

9. Dragonfly Topology Description Hierarchical Network Router, Group and System Figure 1. High-level block diagram of a dragonfly topology

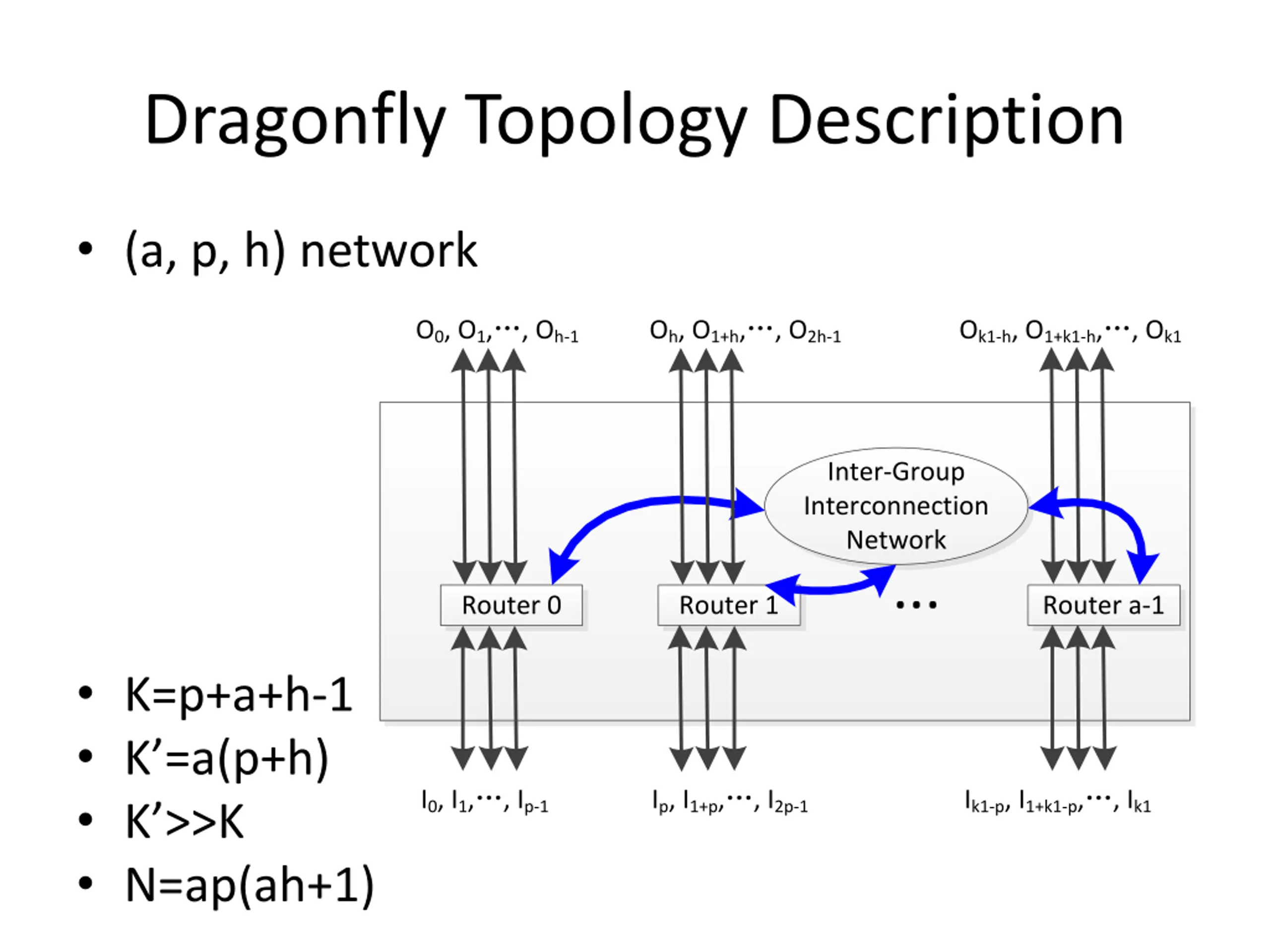

10. Dragonfly Topology Description (a, p, h) network O0, O1, , Oh-1 Oh, O1+h, , O2h-1 Ok1-h, O1+k1-h, , Ok1 Inter-Group Interconnection Network ... Router 0 Router 1 Router a-1 K=p+a+h-1 K =a(p+h) K >>K N=ap(ah+1) I0, I1, , Ip-1 Ip, I1+p, , I2p-1 Ik1-p, I1+k1-p, , Ik1

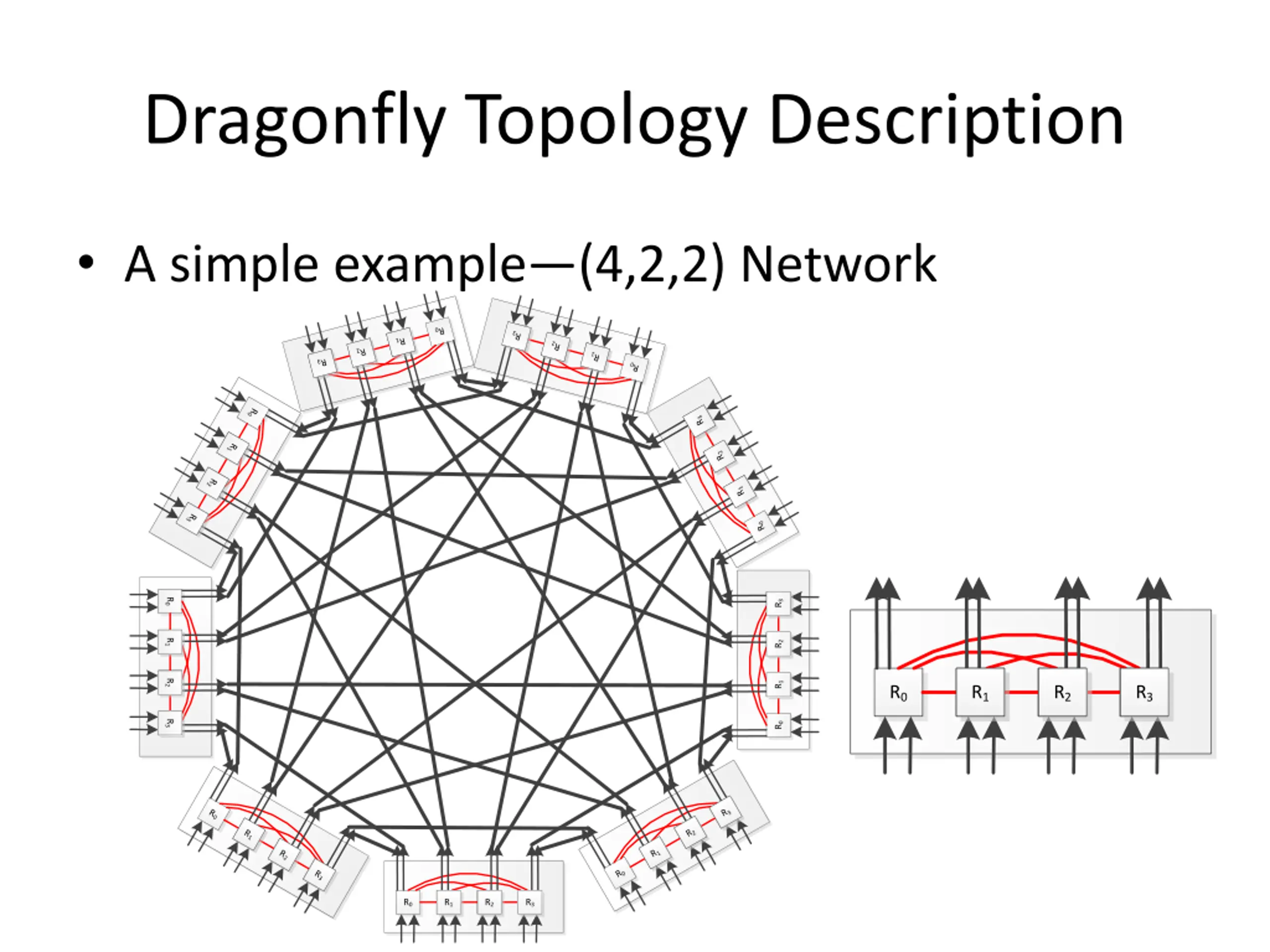

11. Dragonfly Topology Description A simple example (4,2,2) Network R0 R3 R1 R2 R2 R1 R3 R0 R0 R3 R1 R2 R2 R1 R3 R0 R0 R3 R1 R2 R2 R1 R0 R1 R2 R3 R3 R0 R3 R0 R2 R1 R1 R2 R0 R3 R0 R1 R2 R3

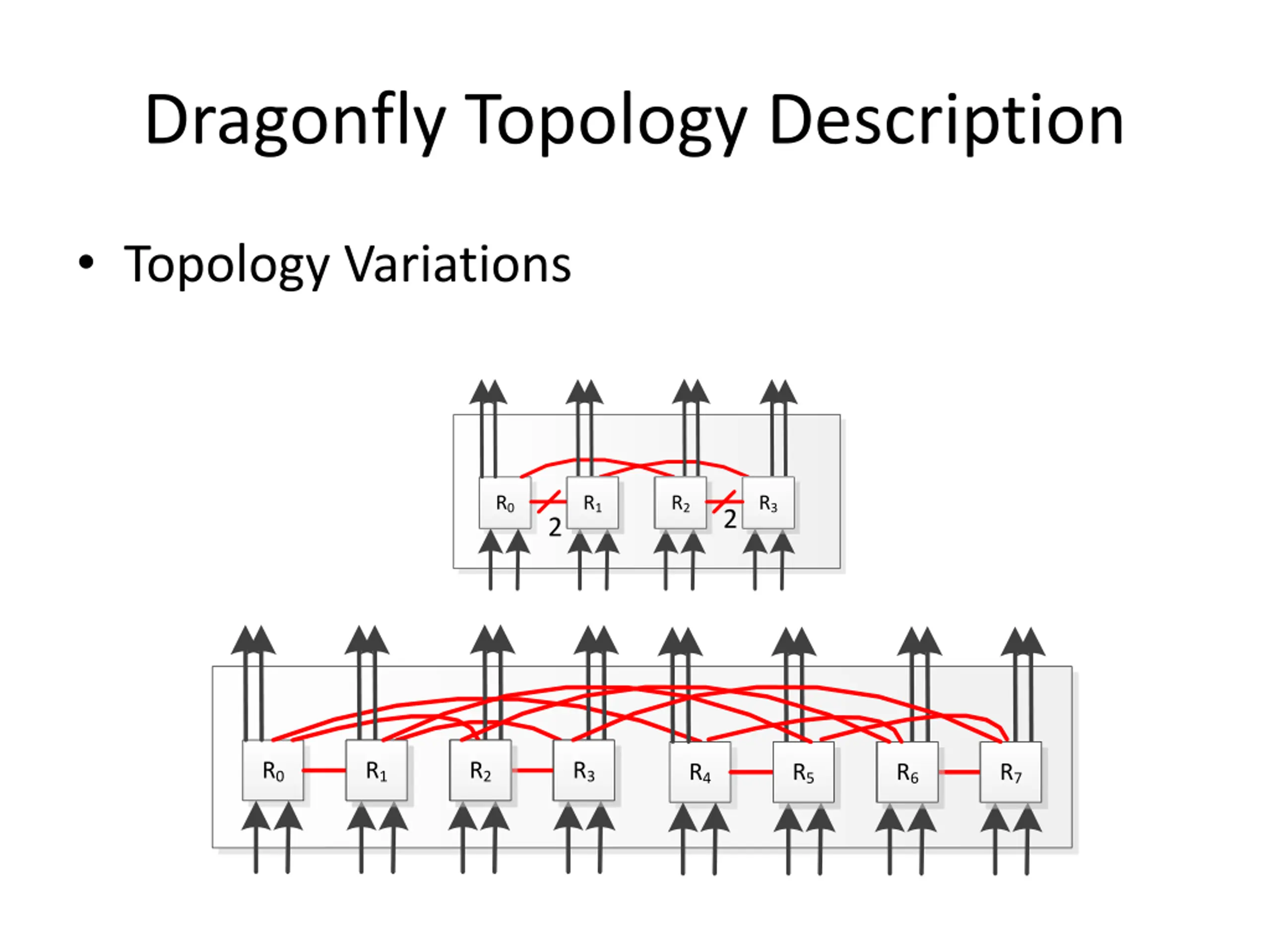

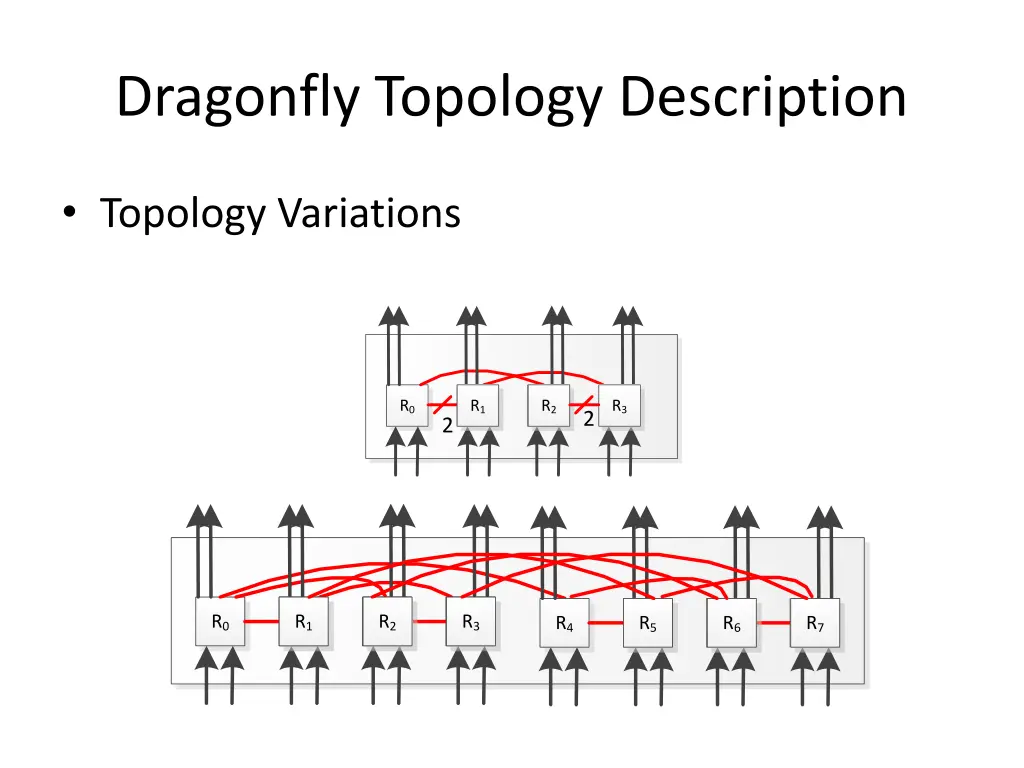

12. Dragonfly Topology Description Topology Variations R0 R1 R2 R3 2 2 R0 R1 R2 R3 R4 R5 R6 R7

13. Dragonfly Topology Routing Existing routing algorithm Minimal (Min) Valiant (Max) Universal Globally-Adaptive Load-balanced (UGAL) UGAL-L UGAL-G

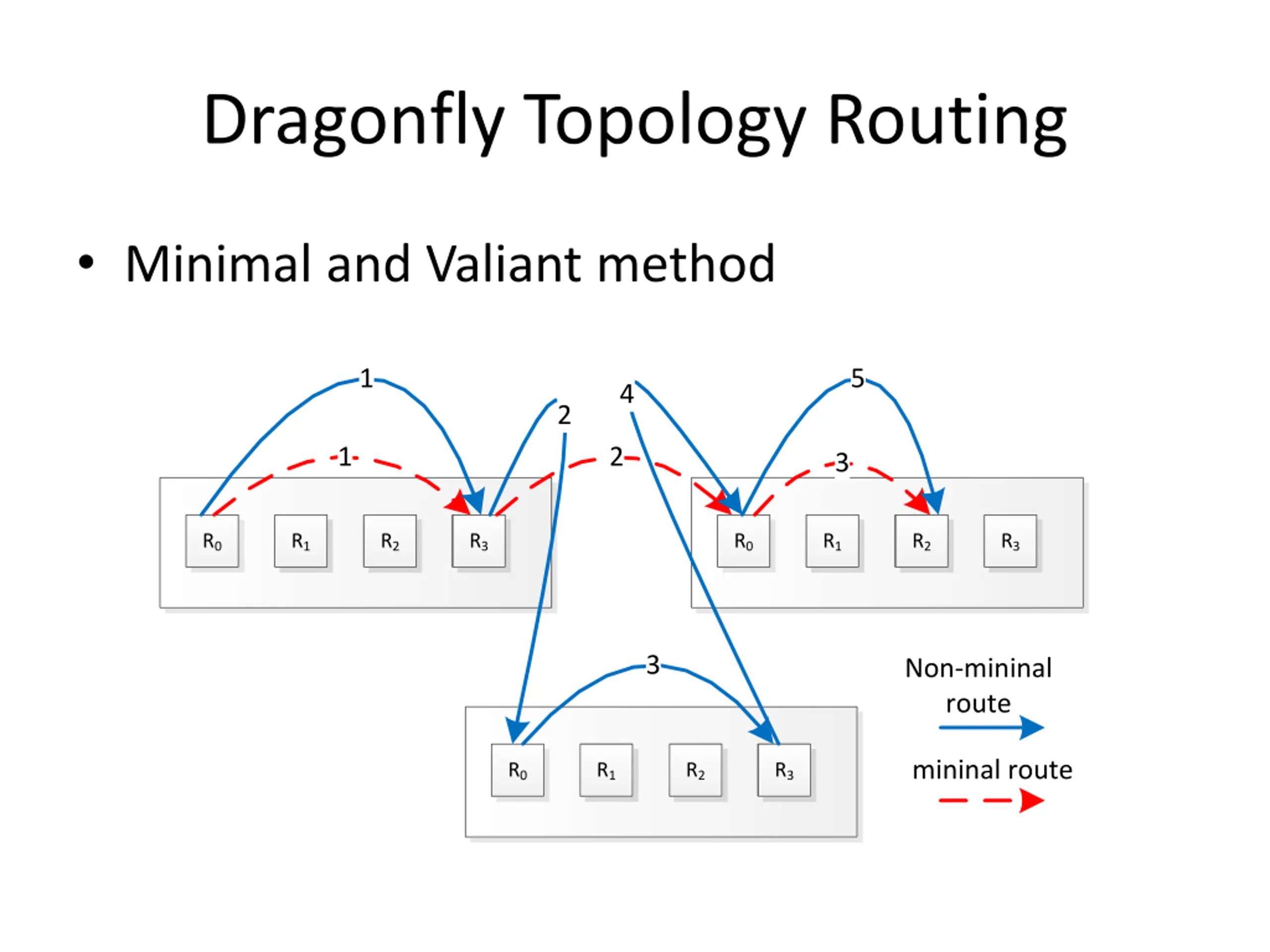

14. Dragonfly Topology Routing Minimal and Valiant method 1 5 4 2 1 2 3 R0 R1 R2 R3 R0 R1 R2 R3 3 Non-mininal route mininal route R0 R1 R2 R3

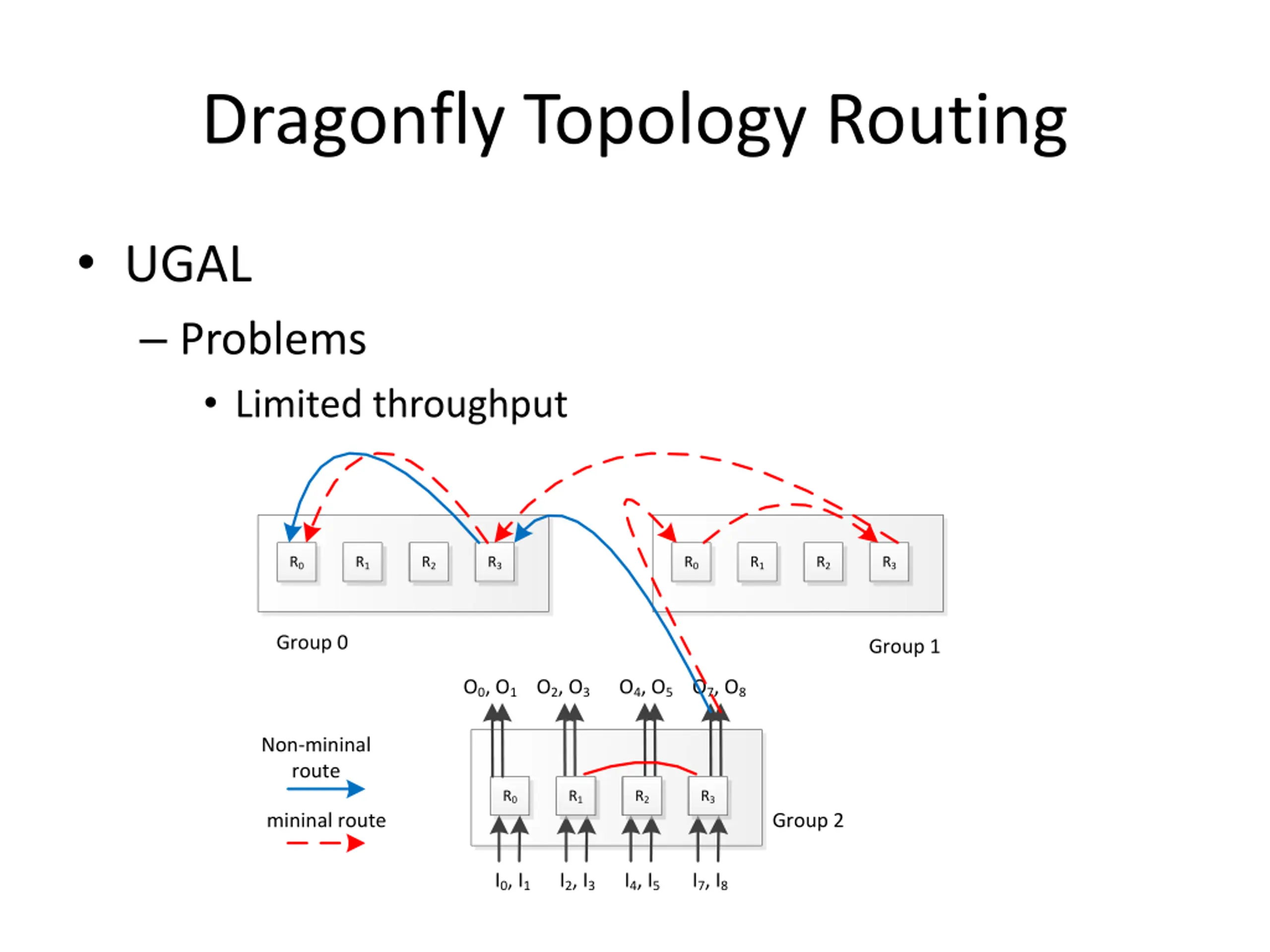

15. Dragonfly Topology Routing UGAL Problems Limited throughput R0 R1 R2 R3 R0 R1 R2 R3 Group 0 Group 1 O0, O1 O2, O3 O4, O5 O7, O8 Non-mininal route R0 R1 R2 R3 mininal route Group 2 I0, I1 I2, I3 I4, I5 I7, I8

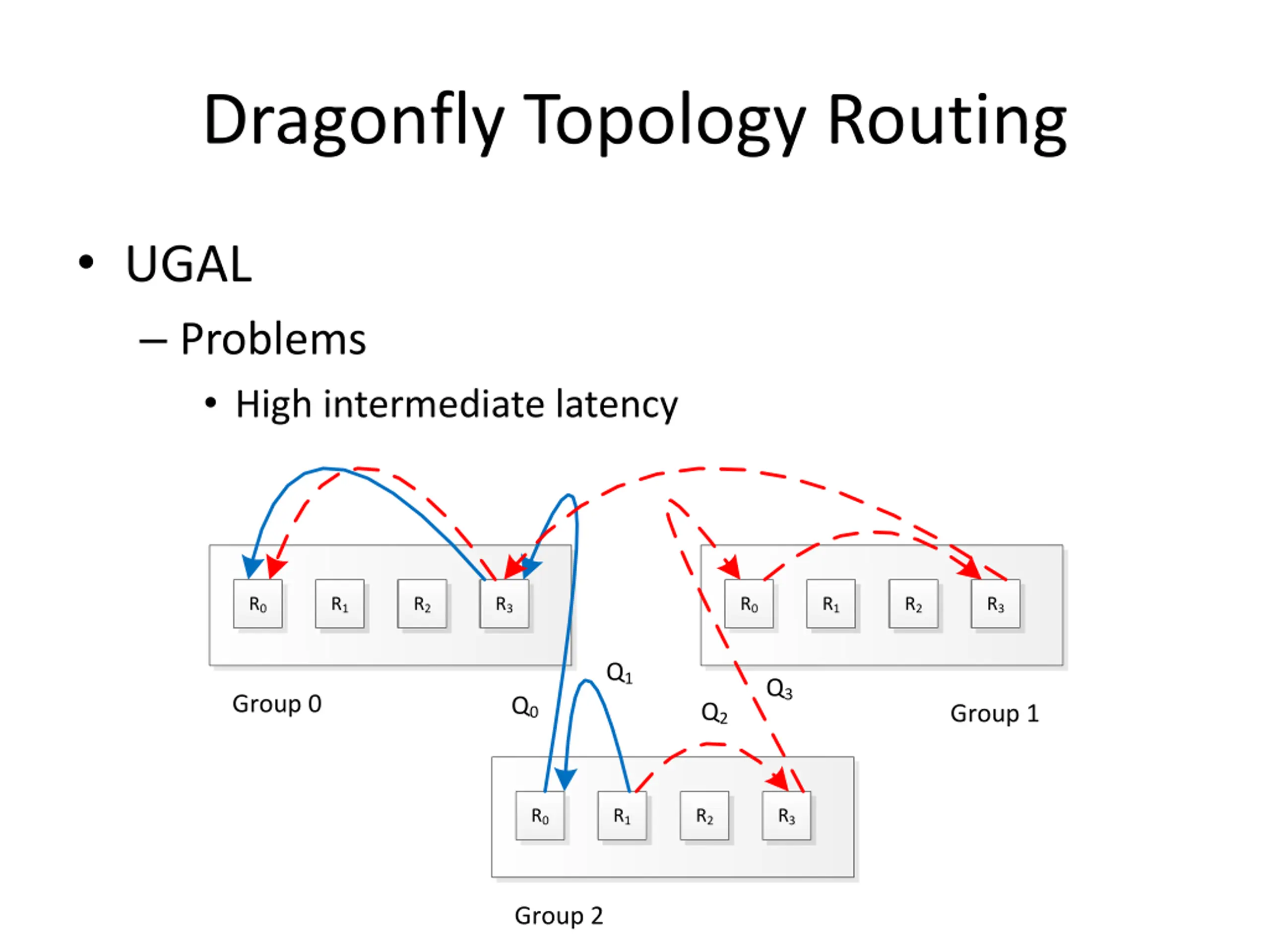

16. Dragonfly Topology Routing UGAL Problems High intermediate latency R0 R1 R2 R3 R0 R1 R2 R3 Q1 Q3 Group 0 Q0 Q2 Group 1 R0 R1 R2 R3 Group 2

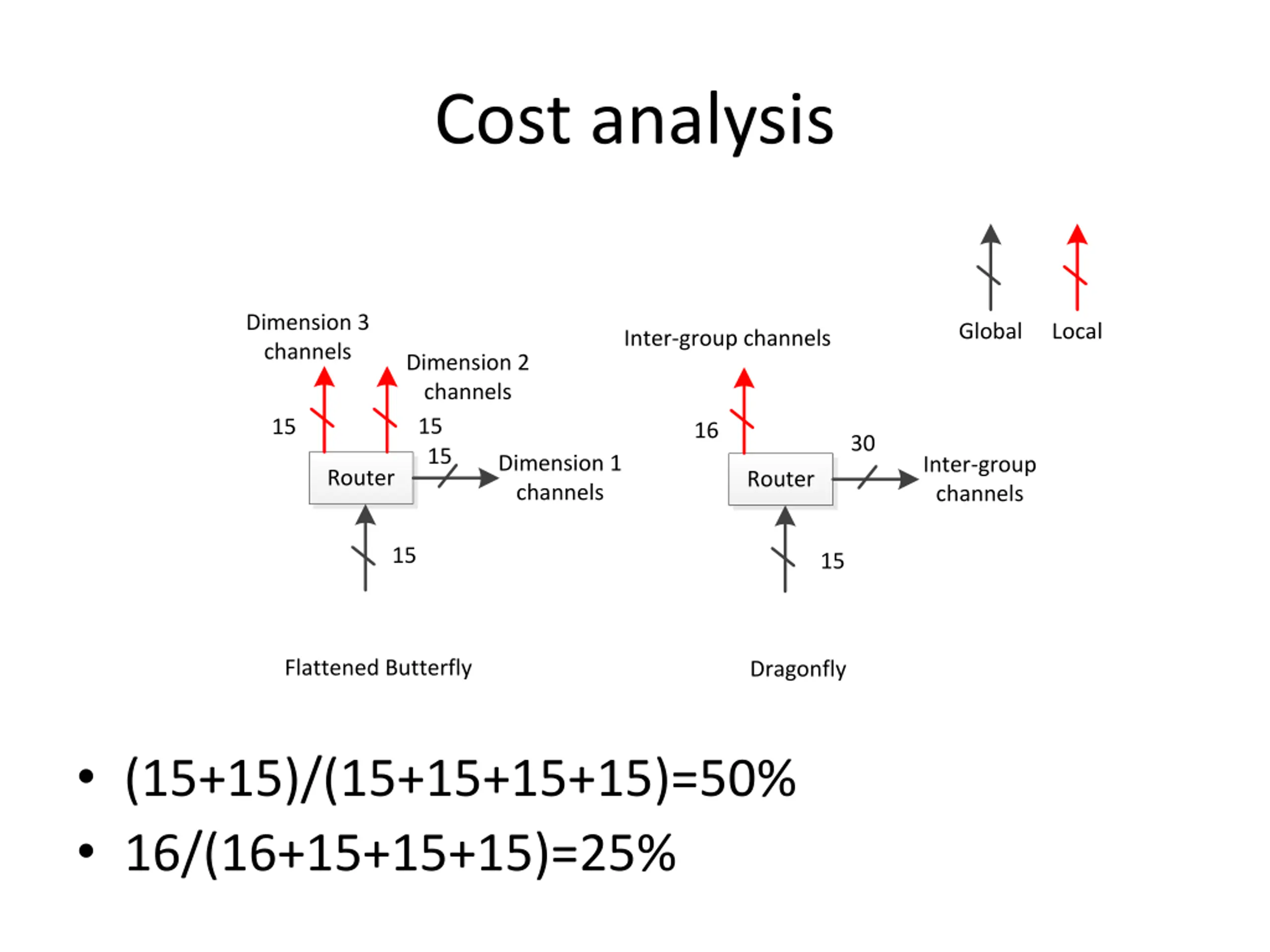

17. Cost analysis Dimension 3 channels Global Local Inter-group channels Dimension 2 channels 15 15 16 30 15 Dimension 1 channels Inter-group channels Router Router 15 15 Flattened Butterfly Dragonfly (15+15)/(15+15+15+15)=50% 16/(16+15+15+15)=25%

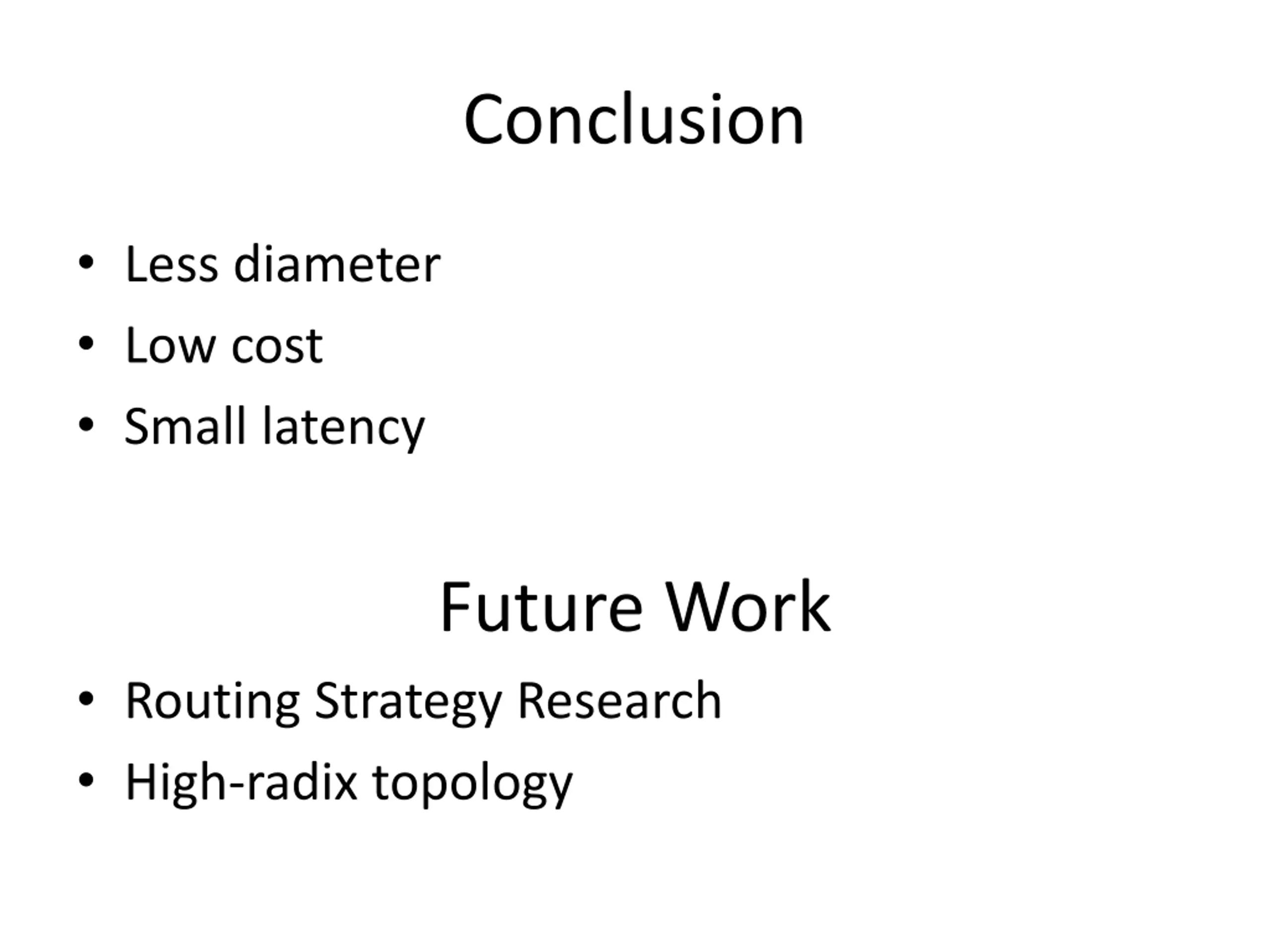

18. Conclusion Less diameter Low cost Small latency Future Work Routing Strategy Research High-radix topology
