Sdic Group meeting Dynamic Mediation for Live Migration VFIO-PCI case study shi, shuo 2019/12/08

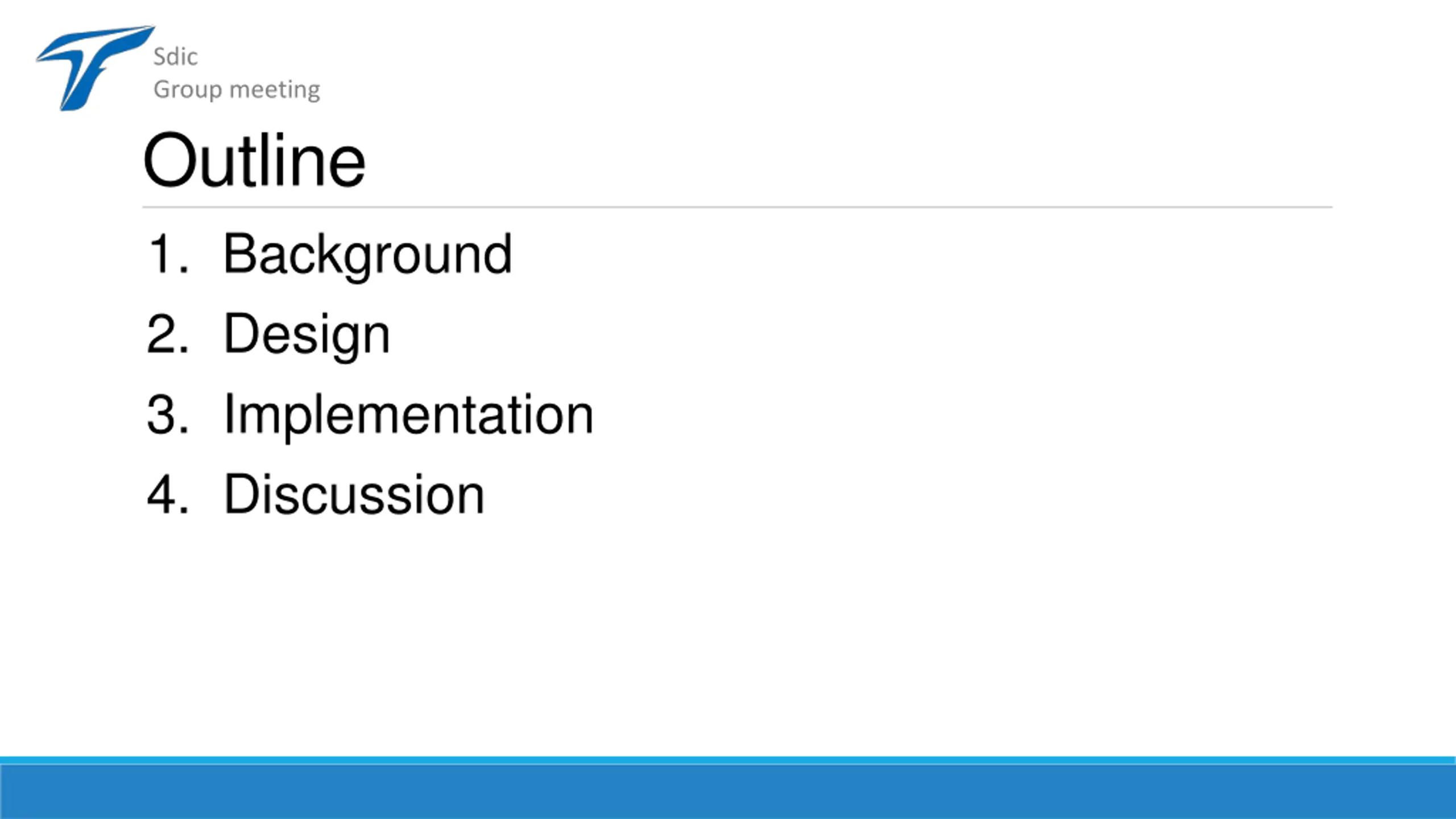

Sdic Group meeting Outline 1. Background 2. Design 3. Implementation 4. Discussion

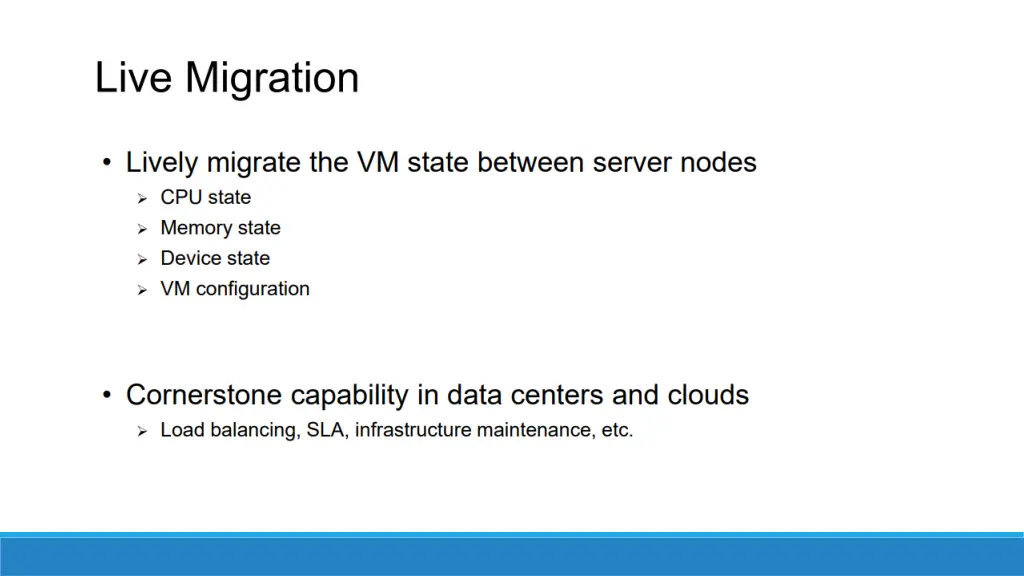

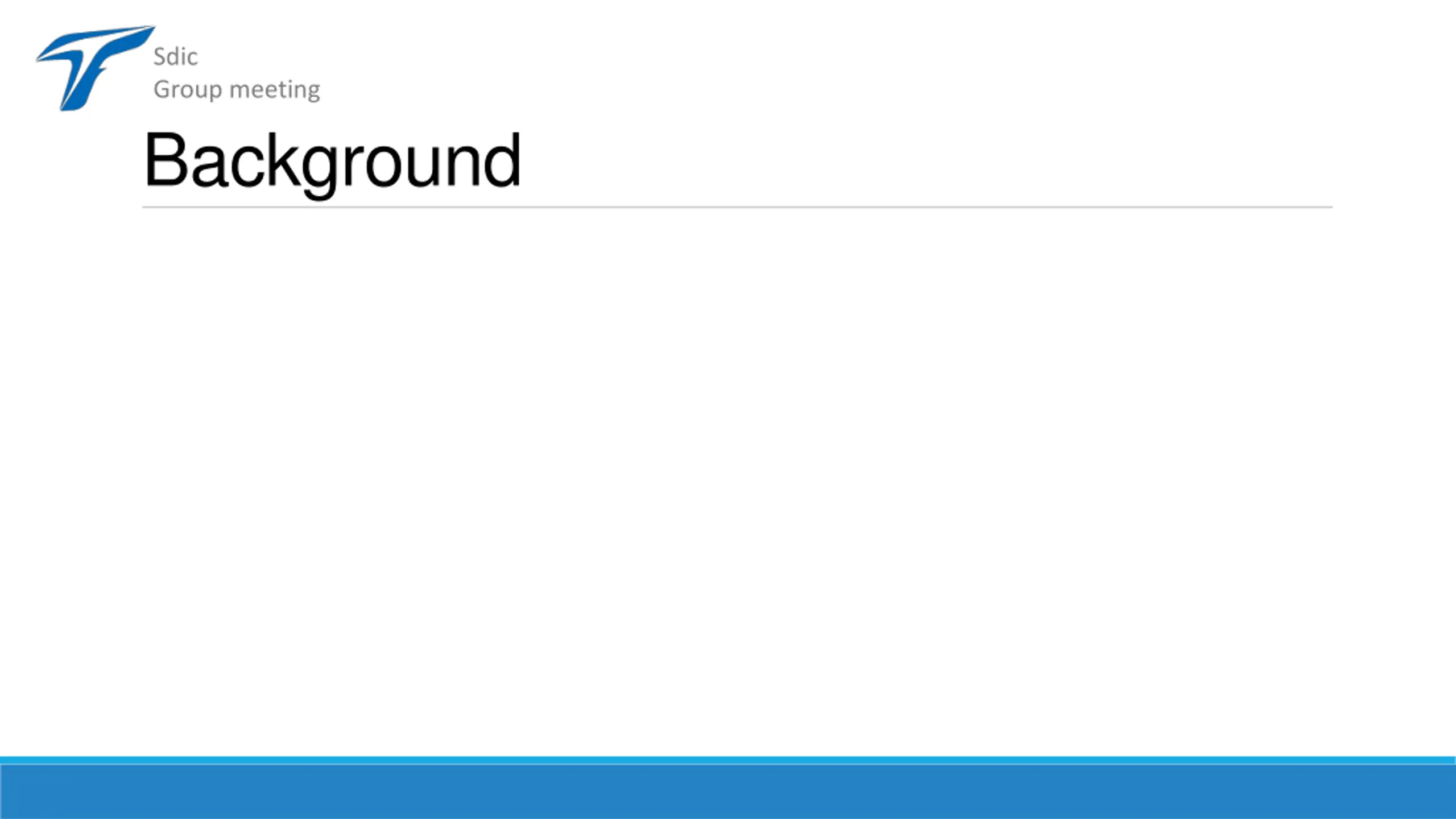

Sdic Group meeting Background

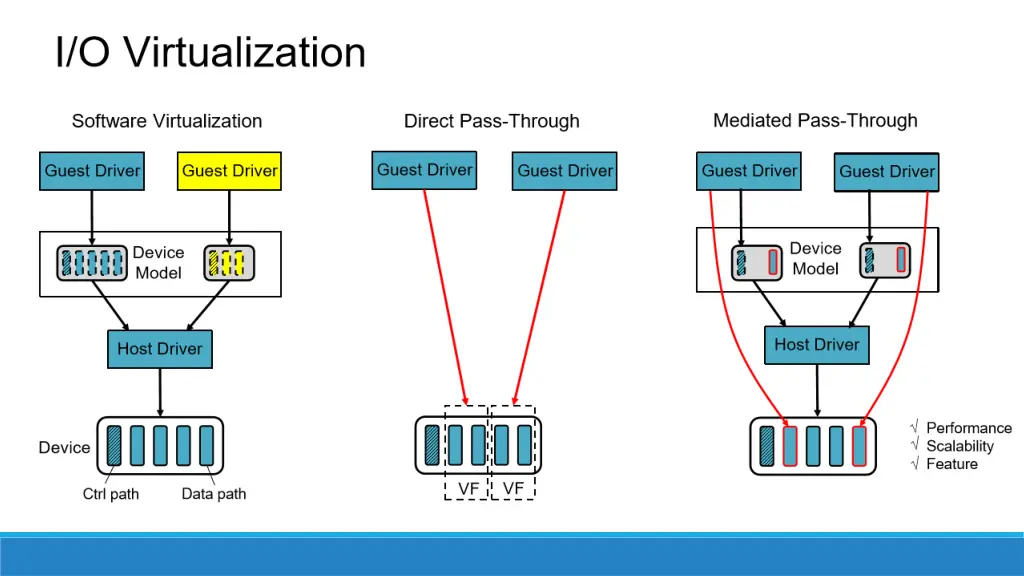

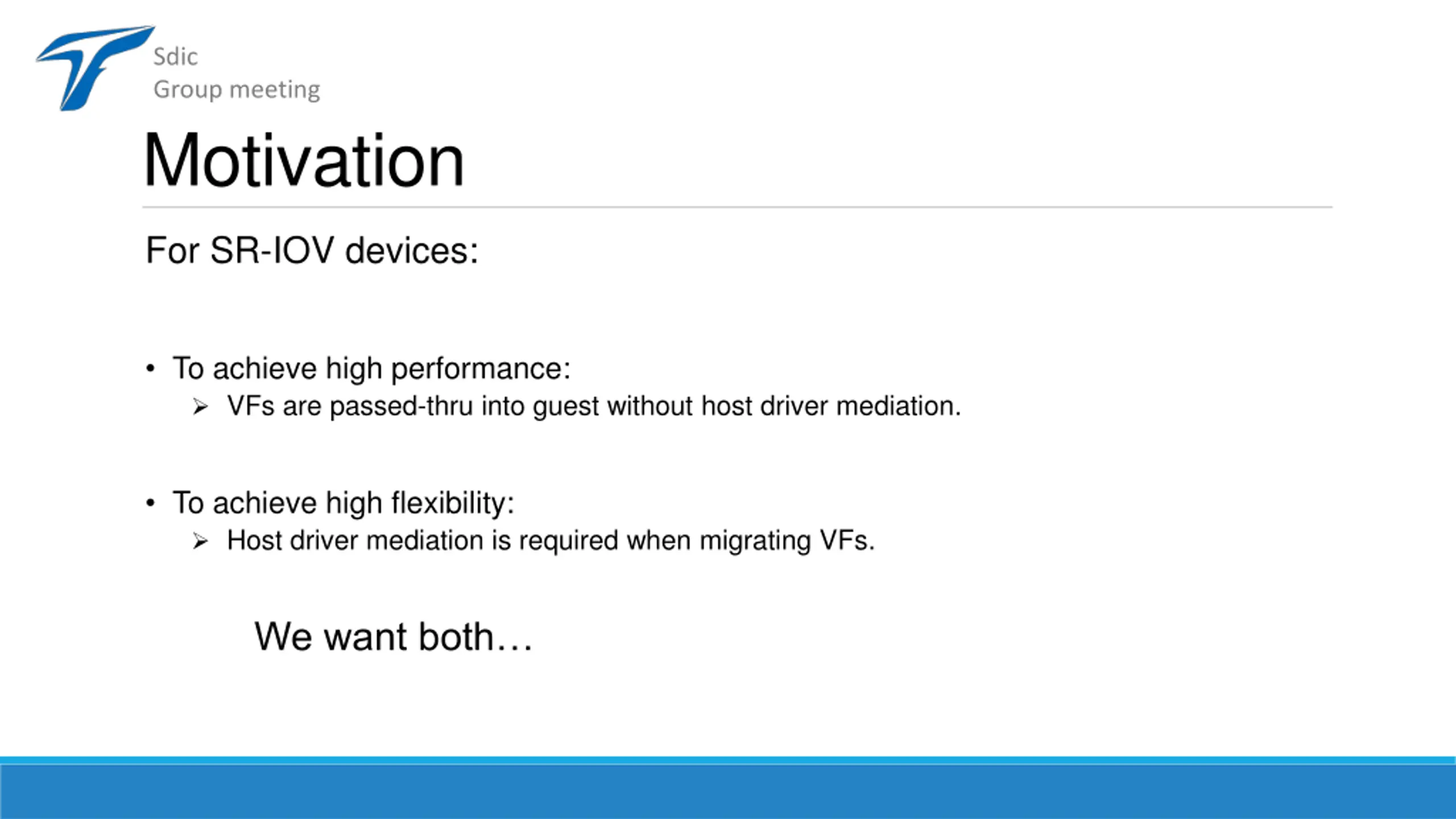

Sdic Group meeting Motivation For SR-IOV devices: To achieve high performance: VFs are passed-thru into guest without host driver mediation. To achieve high flexibility: Host driver mediation is required when migrating VFs. We want both

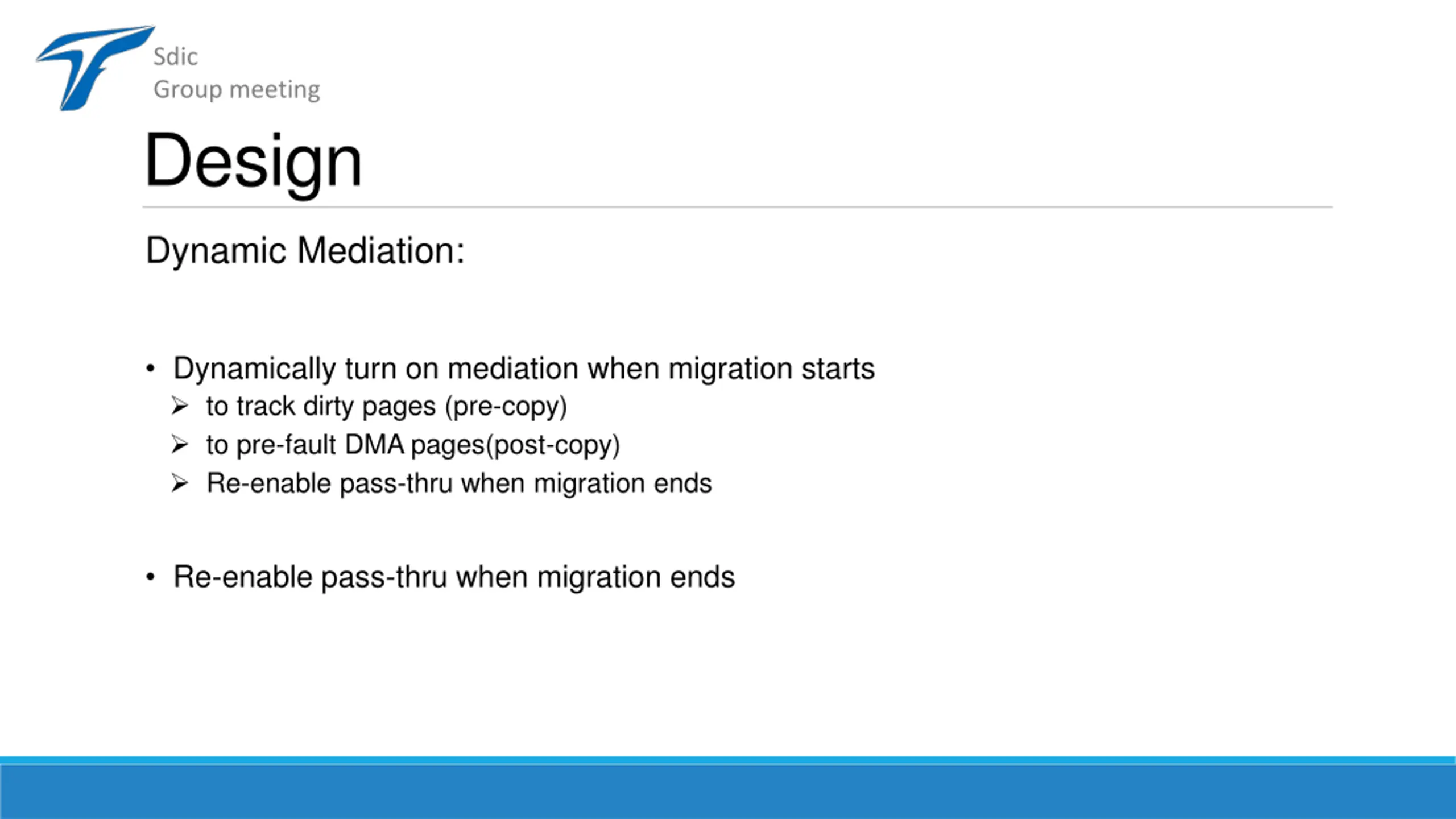

Sdic Group meeting Design Dynamic Mediation: Dynamically turn on mediation when migration starts to track dirty pages (pre-copy) to pre-fault DMA pages(post-copy) Re-enable pass-thru when migration ends Re-enable pass-thru when migration ends
Sdic Group meeting Design What about bonding driver? Failover: Unplug VF Low performance Live migration Low performance Plug VF Network downtime Current work: 640 ms 2260 ms 112 ms 97 ms 724 ms 1476 ms Find out reason for downtime 1 and 2 Mediation: Throughput Downtime interval 1 Uptime interval 1 Downtime interval 2 Uptime interval 2 Downtime interval 3 Network downtime 120 ms 900 ms 25 ms 63 ms 318 ms 463 ms

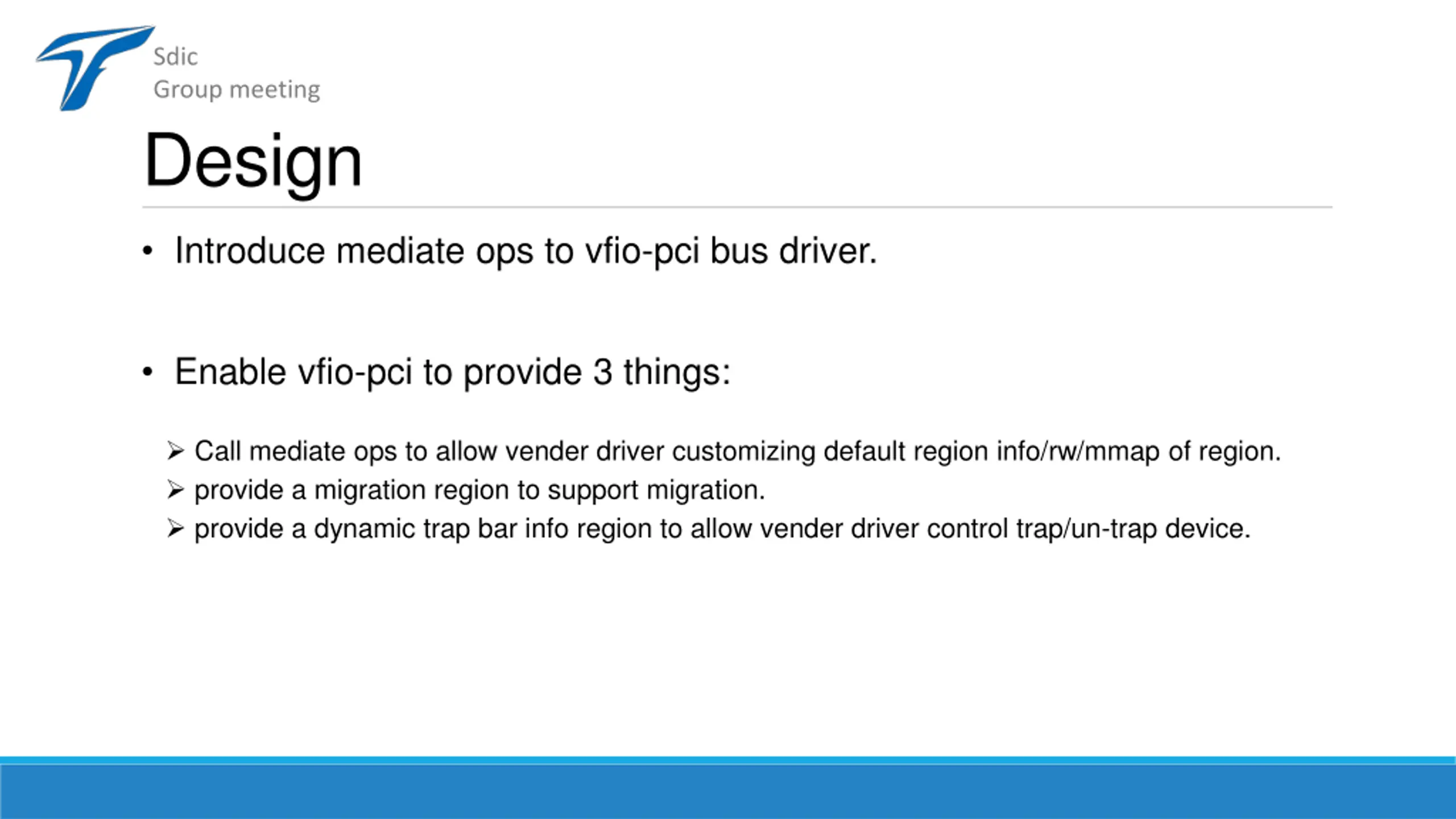

Sdic Group meeting Design Introduce mediate ops to vfio-pci bus driver. Enable vfio-pci to provide 3 things: Call mediate ops to allow vender driver customizing default region info/rw/mmap of region. provide a migration region to support migration. provide a dynamic trap bar info region to allow vender driver control trap/un-trap device.

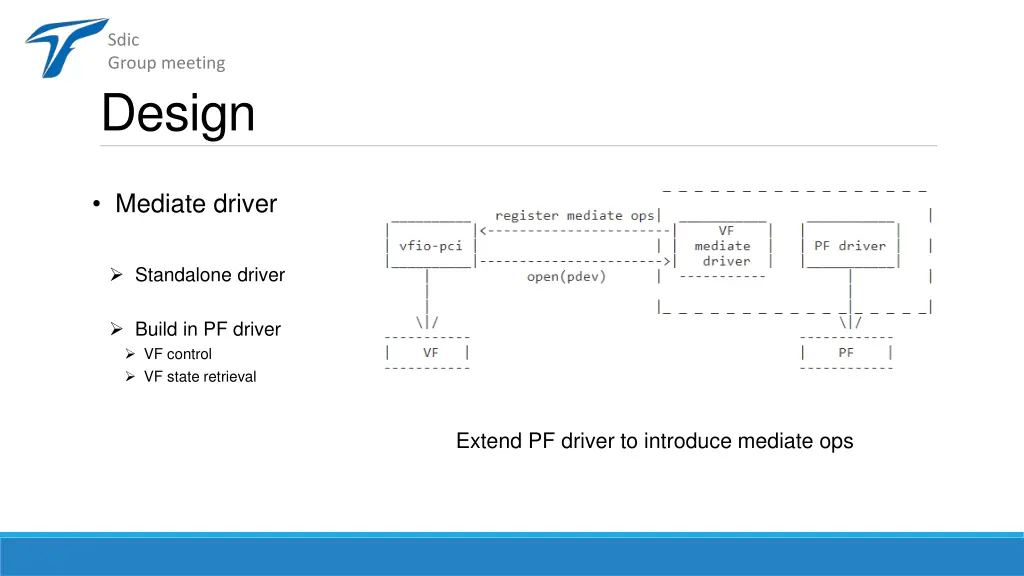

Sdic Group meeting Design Mediate driver Standalone driver Build in PF driver VF control VF state retrieval Extend PF driver to introduce mediate ops

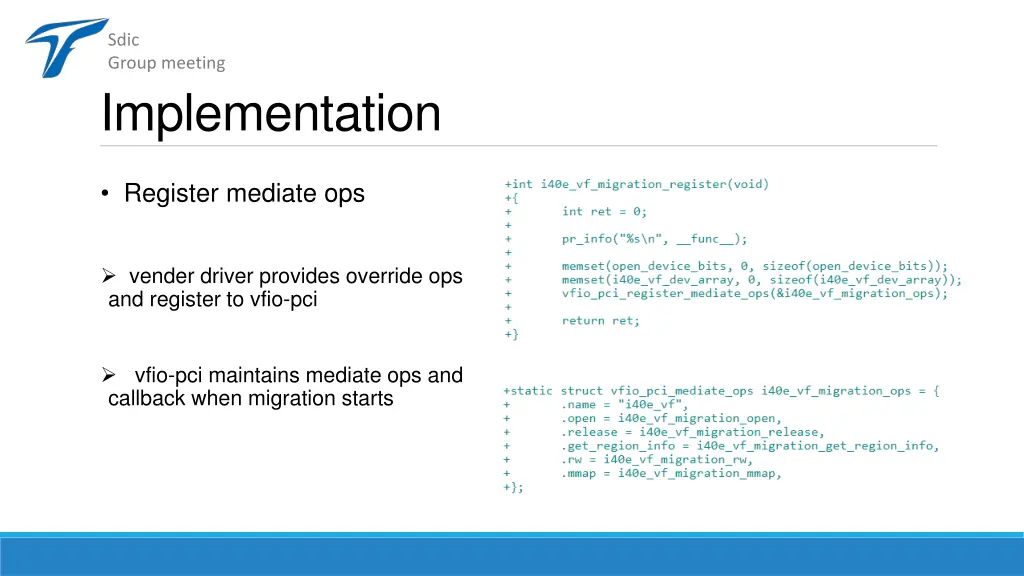

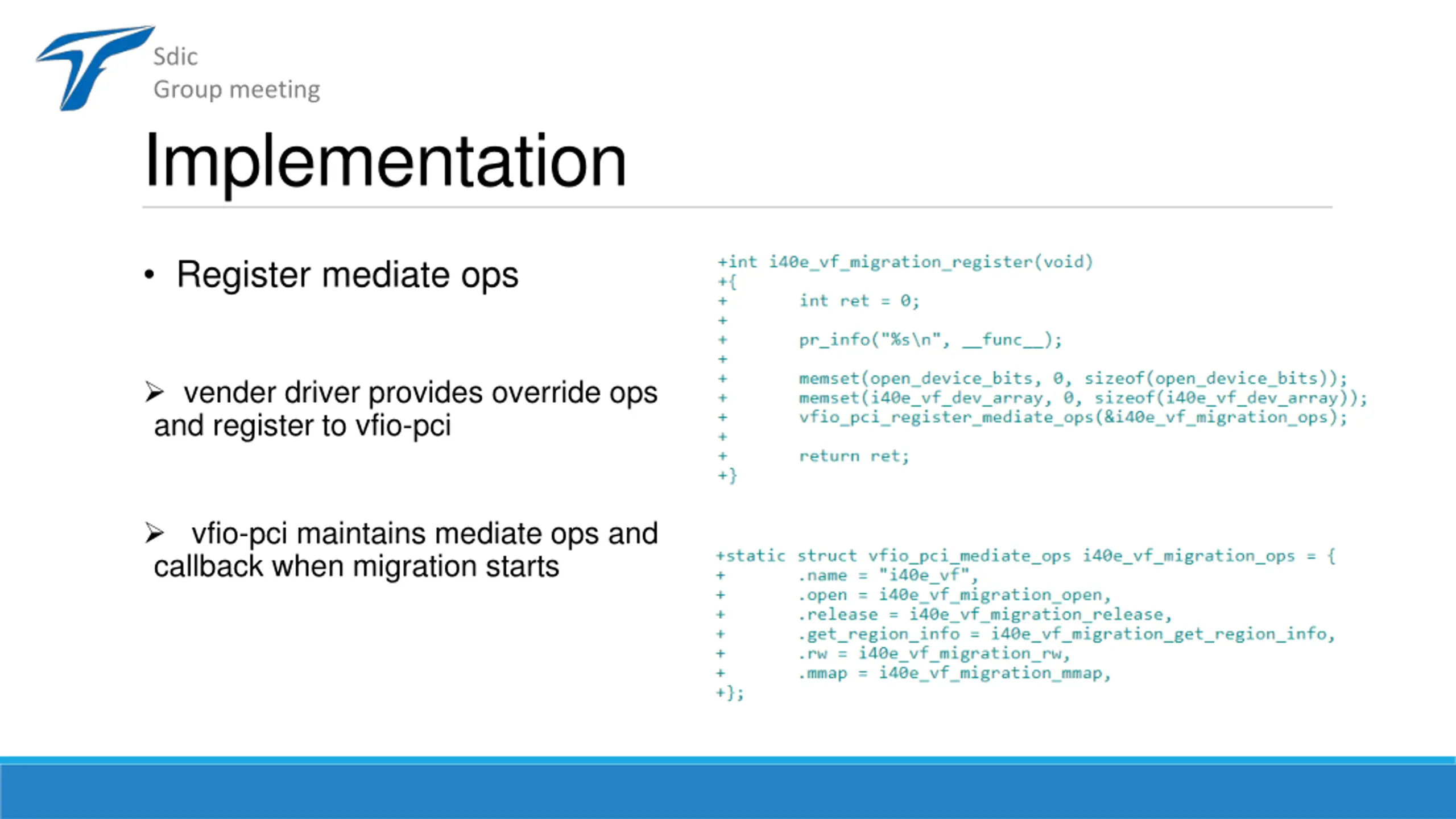

Sdic Group meeting Implementation Register mediate ops vender driver provides override ops and register to vfio-pci vfio-pci maintains mediate ops and callback when migration starts

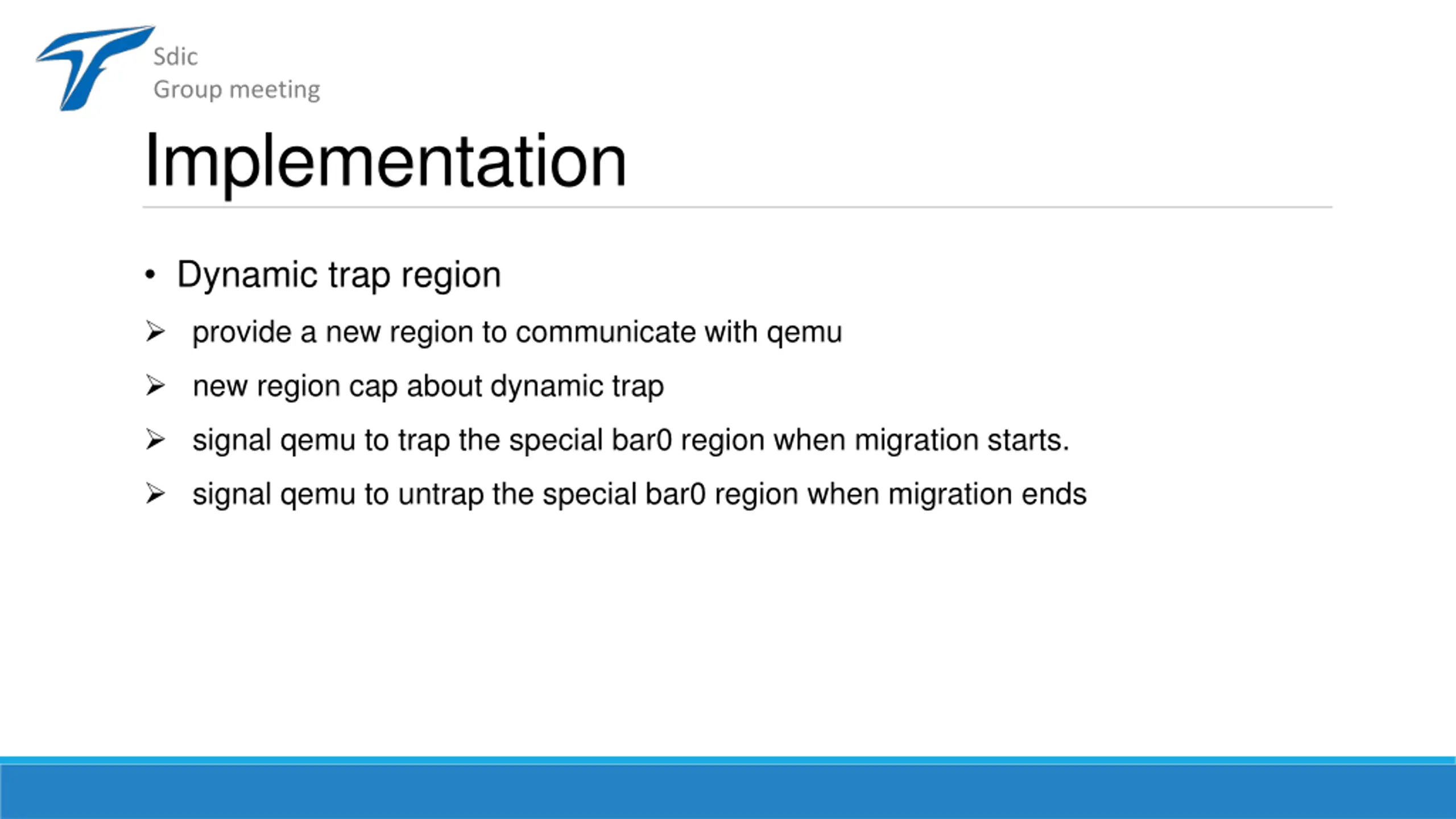

Sdic Group meeting Implementation Dynamic trap region provide a new region to communicate with qemu new region cap about dynamic trap signal qemu to trap the special bar0 region when migration starts. signal qemu to untrap the special bar0 region when migration ends

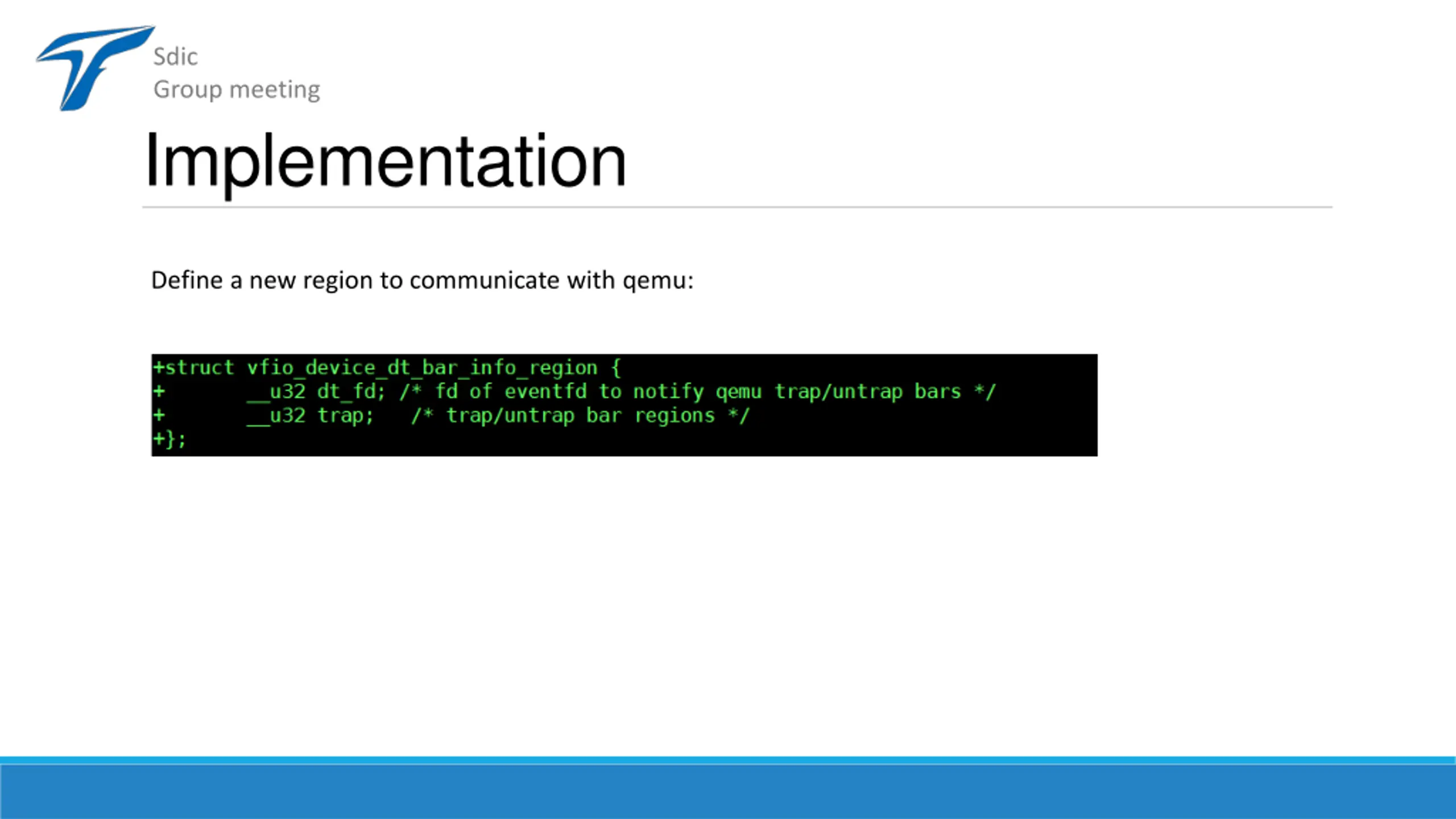

Sdic Group meeting Implementation Define a new region to communicate with qemu:

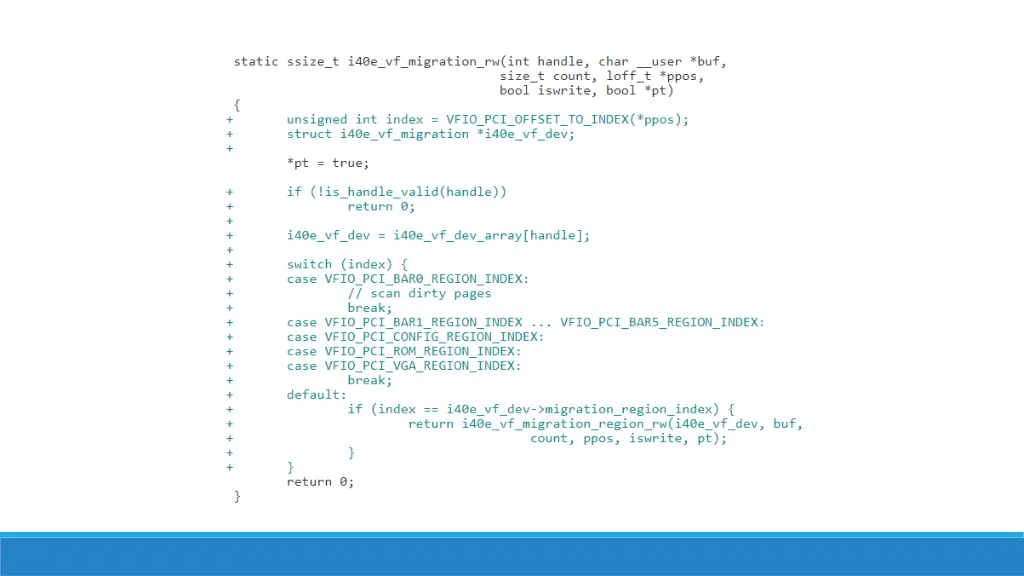

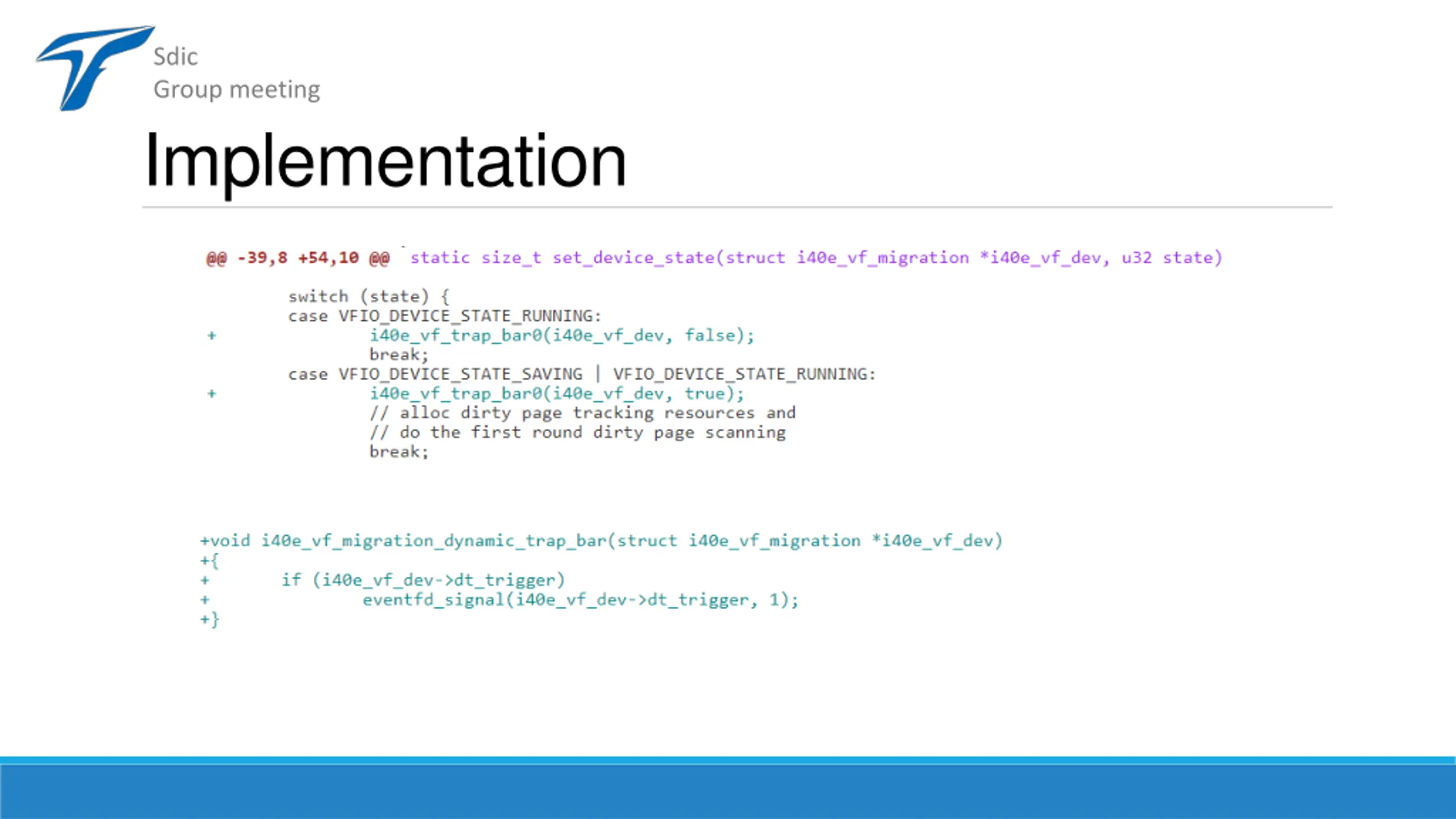

Sdic Group meeting Implementation

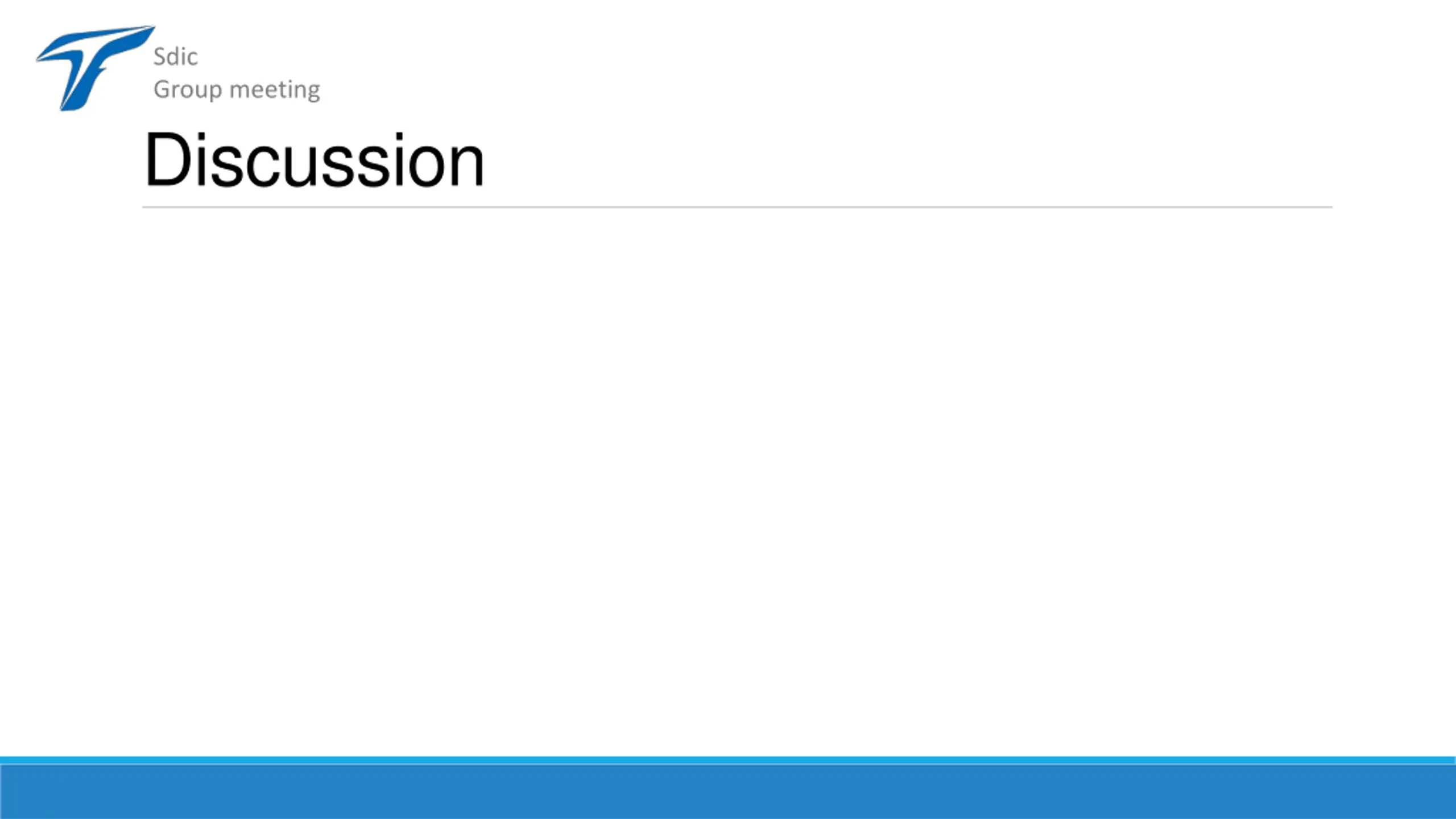

Sdic Group meeting Discussion
