EGI DATAHUB FOR DATA MANGEMENT AND PROCESSING Presented by: Lukasz Dutka

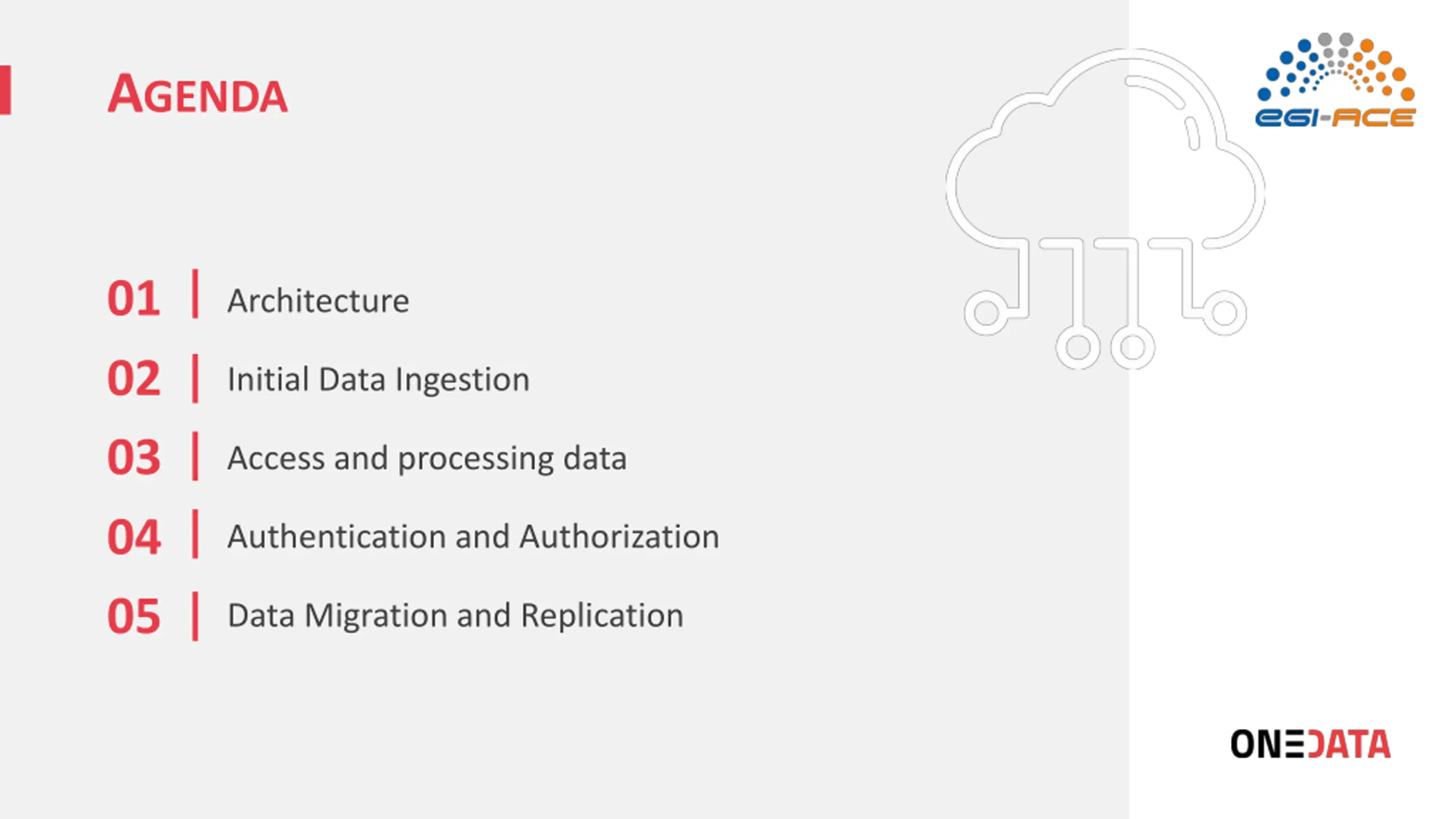

AGENDA 01 02 03 04 05 Architecture Initial Data Ingestion Access and processing data Authentication and Authorization Data Migration and Replication

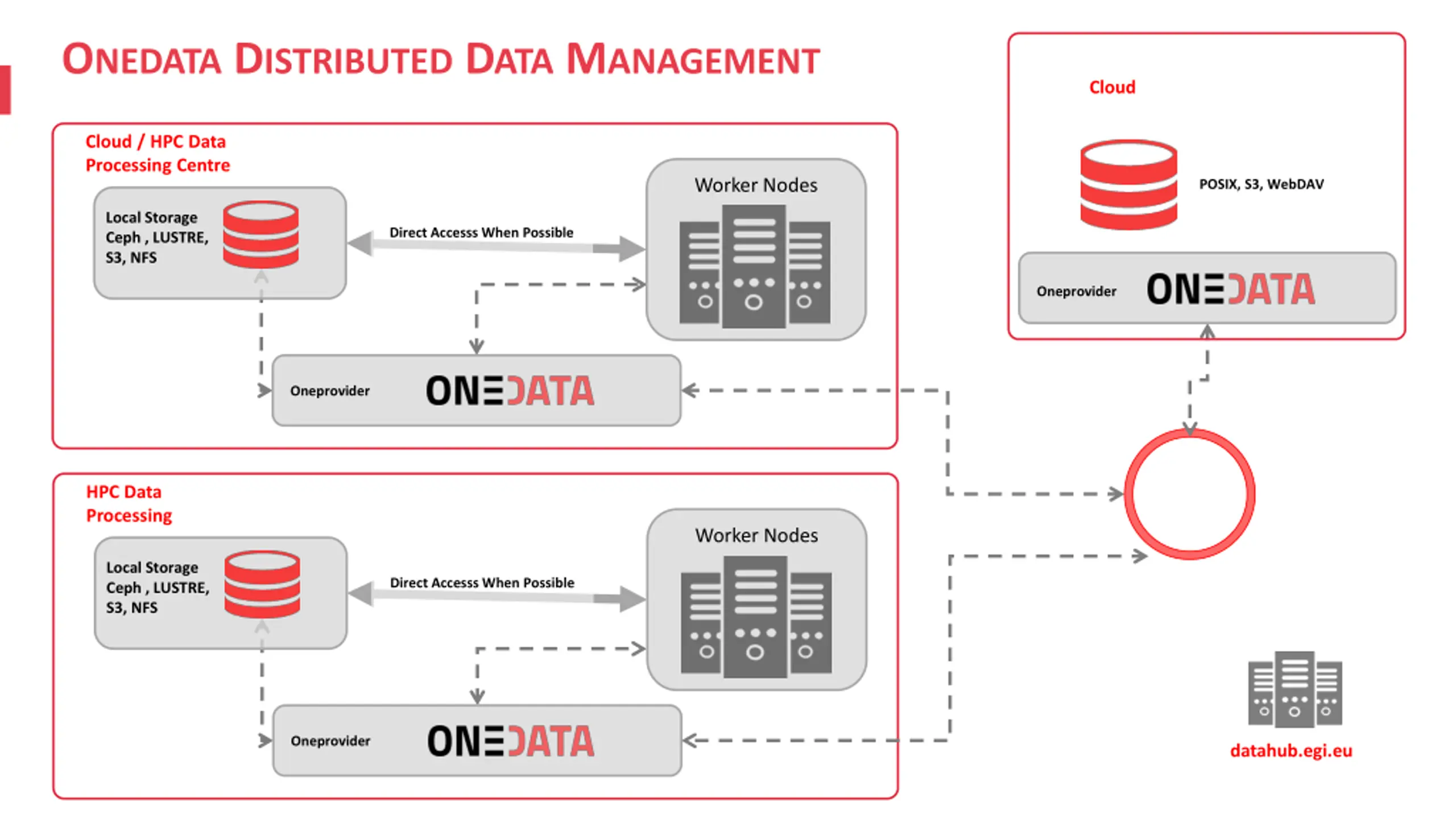

ONEDATA DISTRIBUTED DATA MANAGEMENT Cloud Cloud / HPC Data Processing Centre Worker Nodes POSIX, S3, WebDAV Local Storage Ceph , LUSTRE, S3, NFS Direct Accesss When Possible Oneprovider Oneprovider HPC Data Processing Worker Nodes Local Storage Ceph , LUSTRE, S3, NFS Direct Accesss When Possible Oneprovider datahub.egi.eu

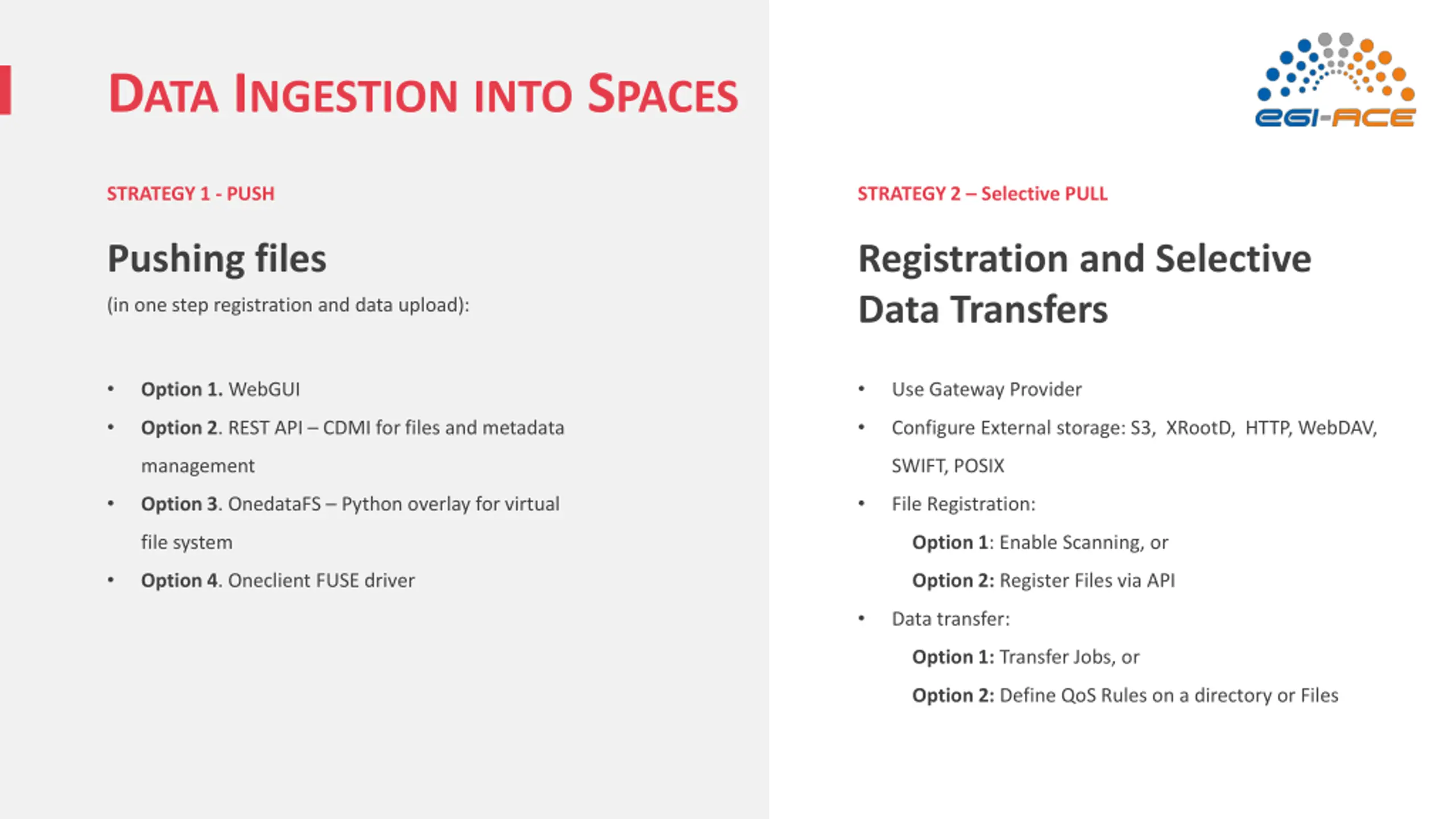

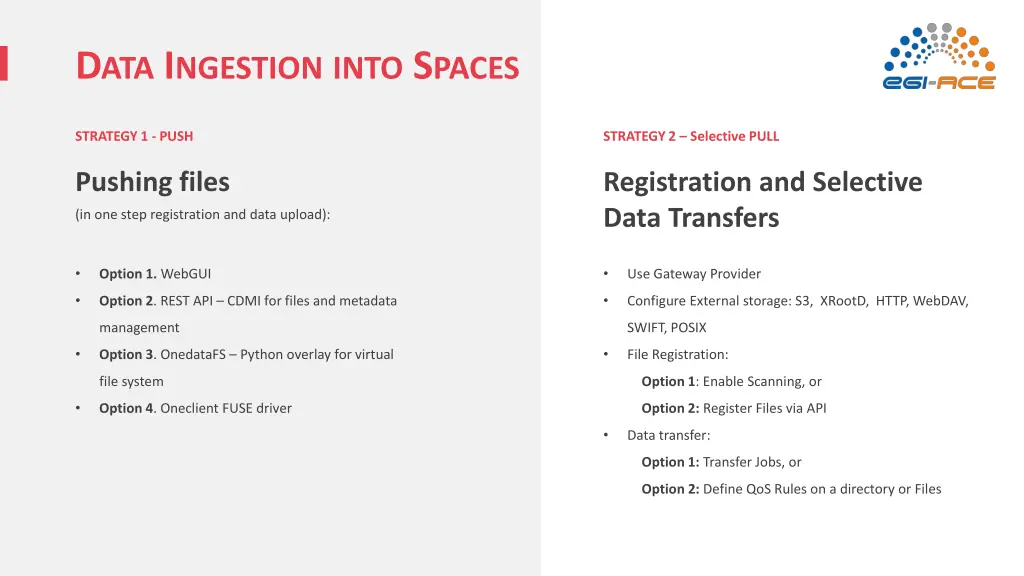

DATA INGESTION INTO SPACES STRATEGY 1 - PUSH STRATEGY 2 Selective PULL Pushing files Registration and Selective Data Transfers (in one step registration and data upload): Option 1. WebGUI Use Gateway Provider Option 2. REST API CDMI for files and metadata Configure External storage: S3, XRootD, HTTP, WebDAV, management SWIFT, POSIX Option 3. OnedataFS Python overlay for virtual File Registration: file system Option 1: Enable Scanning, or Option 4. Oneclient FUSE driver Option 2: Register Files via API Data transfer: Option 1: Transfer Jobs, or Option 2: Define QoS Rules on a directory or Files

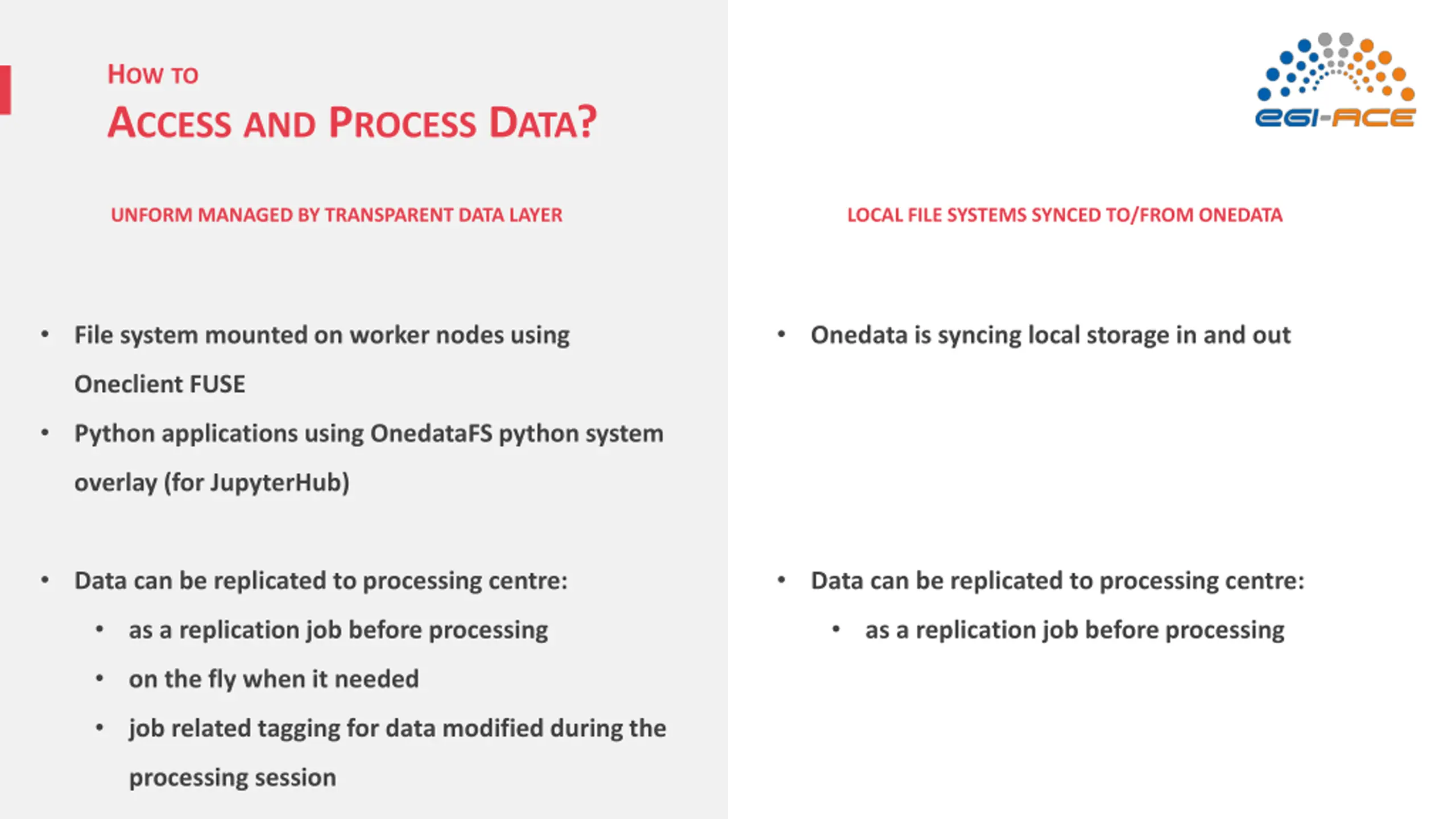

HOW TO ACCESS AND PROCESS DATA? UNFORM MANAGED BY TRANSPARENT DATA LAYER LOCAL FILE SYSTEMS SYNCED TO/FROM ONEDATA File system mounted on worker nodes using Onedata is syncing local storage in and out Oneclient FUSE Python applications using OnedataFS python system overlay (for JupyterHub) Data can be replicated to processing centre: Data can be replicated to processing centre: as a replication job before processing as a replication job before processing on the fly when it needed job related tagging for data modified during the processing session

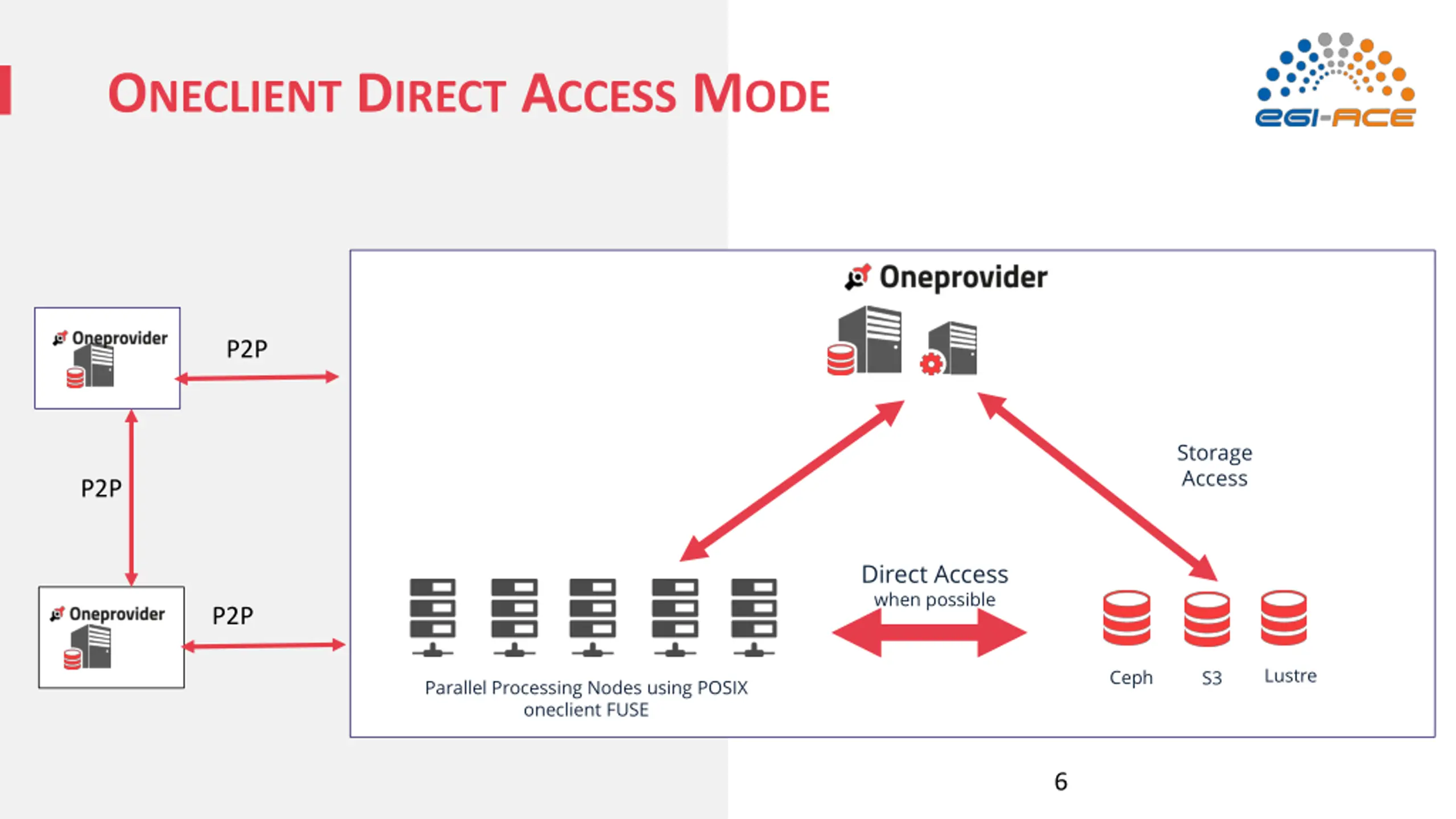

ONECLIENT DIRECT ACCESS MODE P2P Storage Access P2P Direct Access when possible P2P Lustre Ceph S3 Parallel Processing Nodes using POSIX oneclient FUSE 6

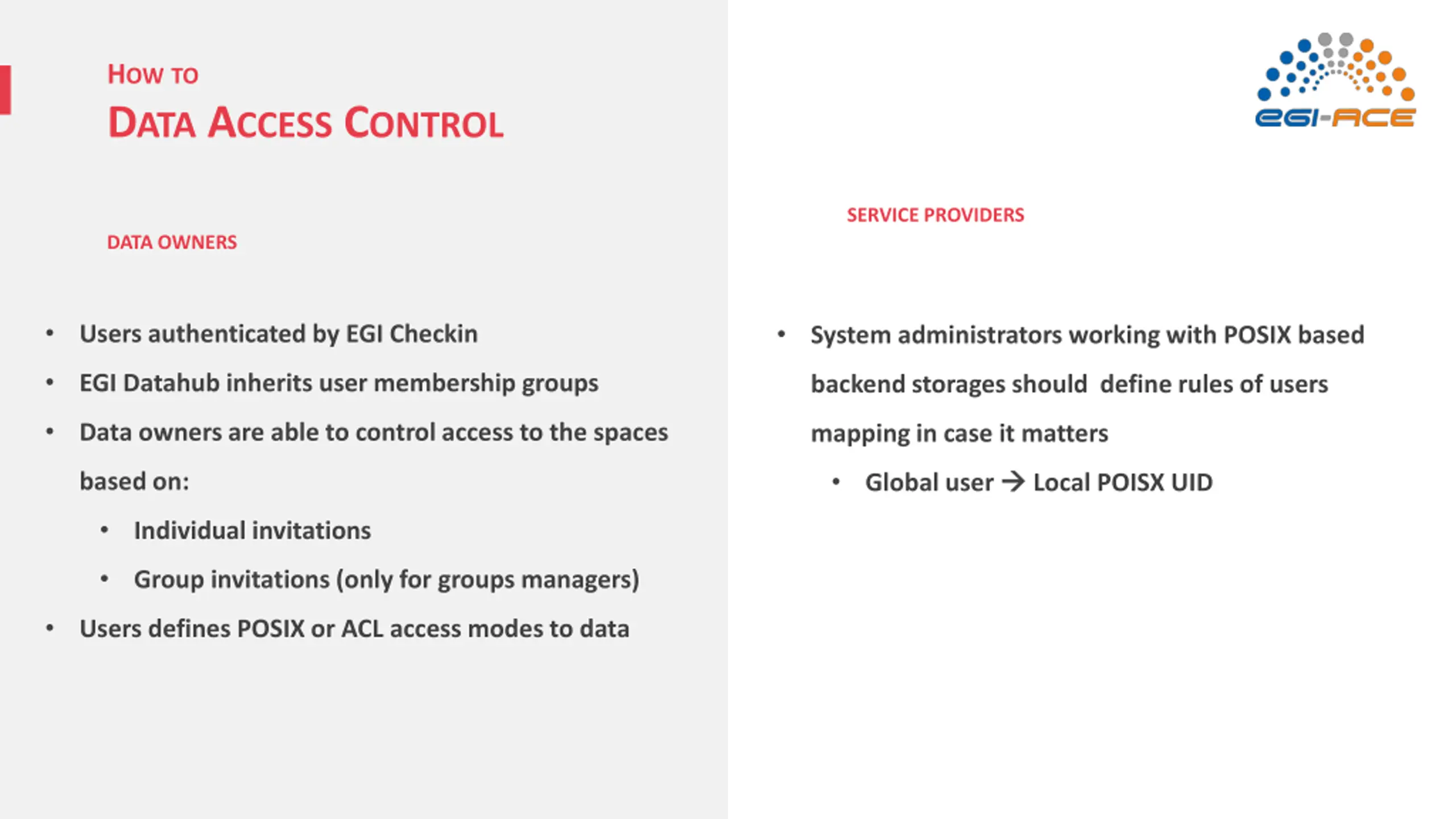

HOW TO DATA ACCESS CONTROL SERVICE PROVIDERS DATA OWNERS Users authenticated by EGI Checkin System administrators working with POSIX based EGI Datahub inherits user membership groups backend storages should define rules of users Data owners are able to control access to the spaces mapping in case it matters Global user Local POISX UID based on: Individual invitations Group invitations (only for groups managers) Users defines POSIX or ACL access modes to data

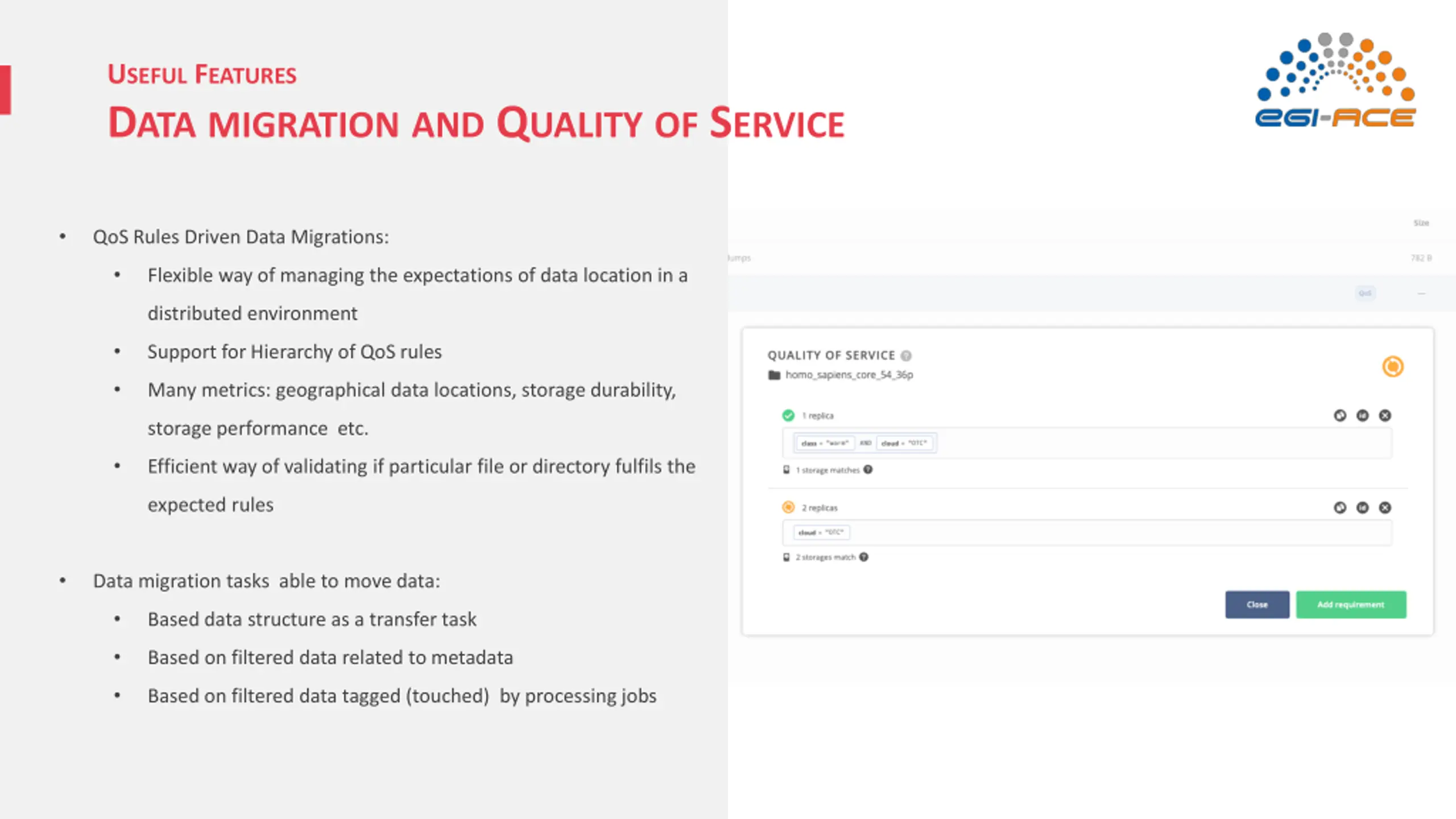

USEFUL FEATURES DATA MIGRATION AND QUALITY OF SERVICE QoS Rules Driven Data Migrations: Flexible way of managing the expectations of data location in a distributed environment Support for Hierarchy of QoS rules Many metrics: geographical data locations, storage durability, storage performance etc. Efficient way of validating if particular file or directory fulfils the expected rules Data migration tasks able to move data: Based data structure as a transfer task Based on filtered data related to metadata Based on filtered data tagged (touched) by processing jobs
