Emutel Symphony - Network Simulator for Testing ISDN and Analogue Equipment
Emutel Symphony is a network simulator designed for testing ISDN and Analogue equipment. It facilitates the testing of different pieces of equipment by allowing calls between ports configured with unique telephone numbers. With support for multiple protocols, the Emutel Symphony is ideal for testing equipment to be used globally. It offers various cards for communication, including Control cards for Serial, Ethernet, or Modem connections, and Analog cards providing -48V line feed. The unit features a Windows application for configuration and protocol analysis, with additional services like 3PTY CONF, ECT, HOLD, and more. Each port's telephone number can be customized, and it supports D channel packets, test tones, and protocol analysis.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

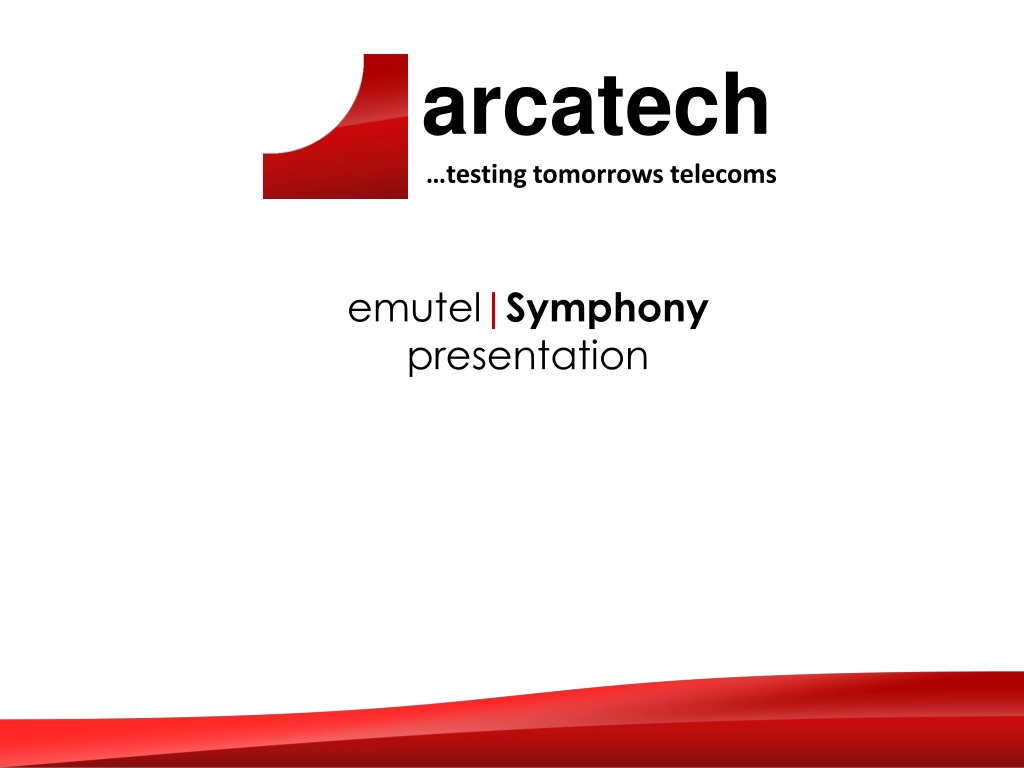

arcatech testing tomorrows telecoms emutel|Symphony presentation

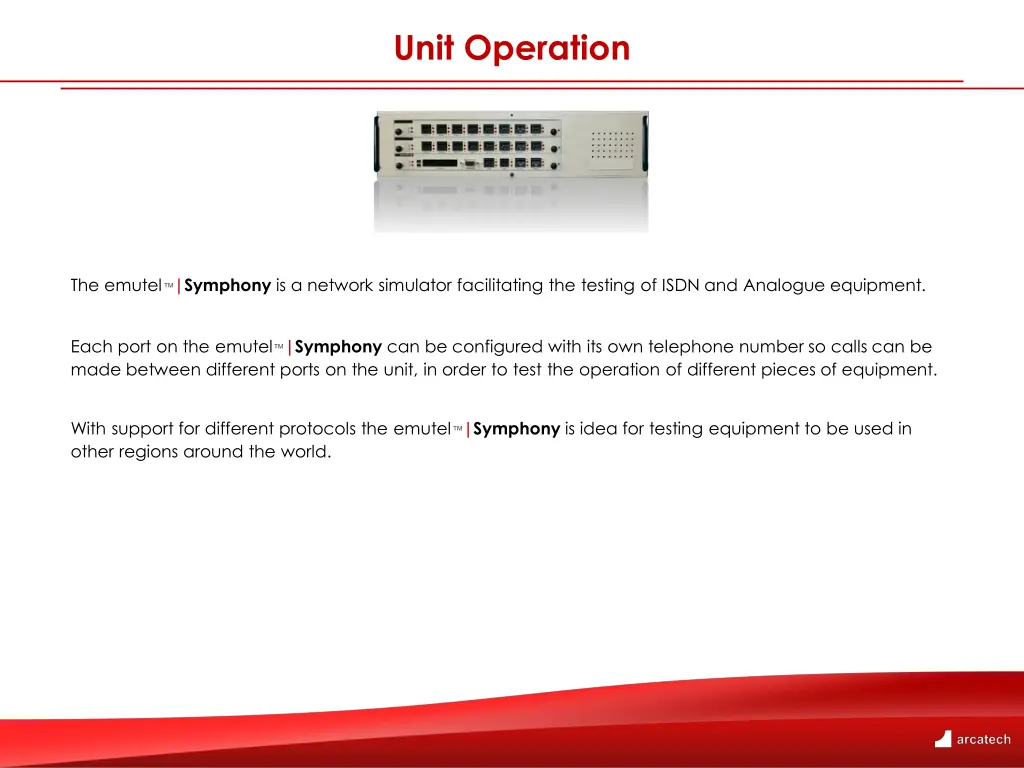

Unit Operation The emutel |Symphony is a network simulator facilitating the testing of ISDN and Analogue equipment. Each port on the emutel |Symphony can be configured with its own telephone number so calls can be made between different ports on the unit, in order to test the operation of different pieces of equipment. With support for different protocols the emutel |Symphony is idea for testing equipment to be used in other regions around the world.

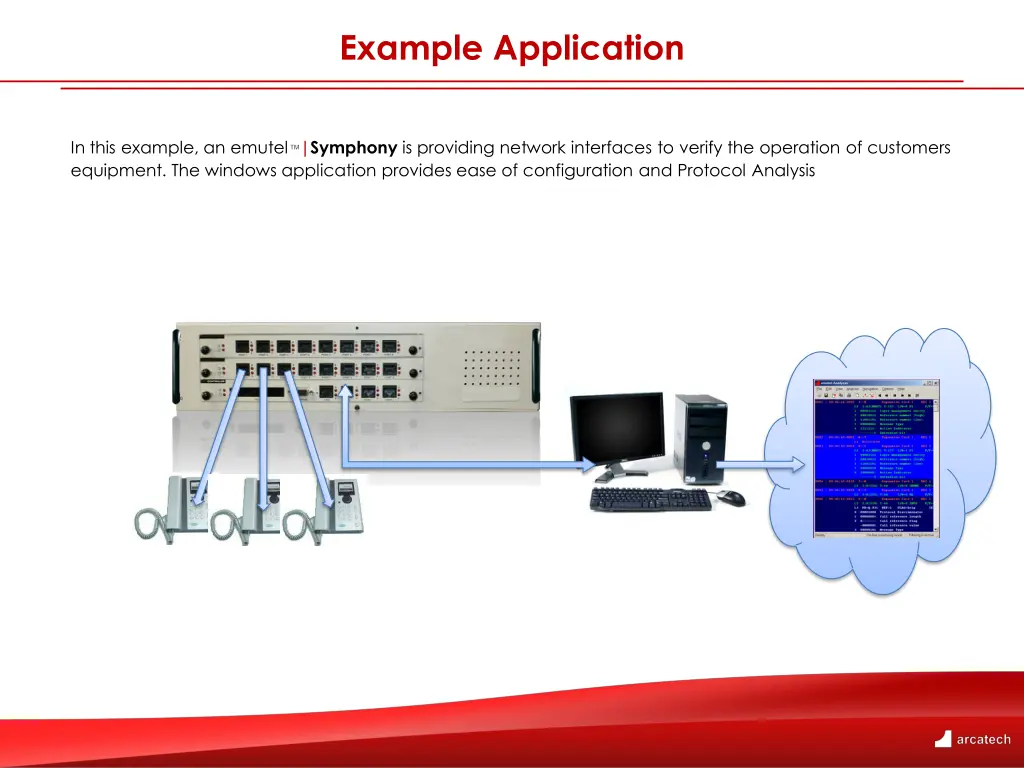

Example Application In this example, an emutel |Symphony is providing network interfaces to verify the operation of customers equipment. The windows application provides ease of configuration and Protocol Analysis

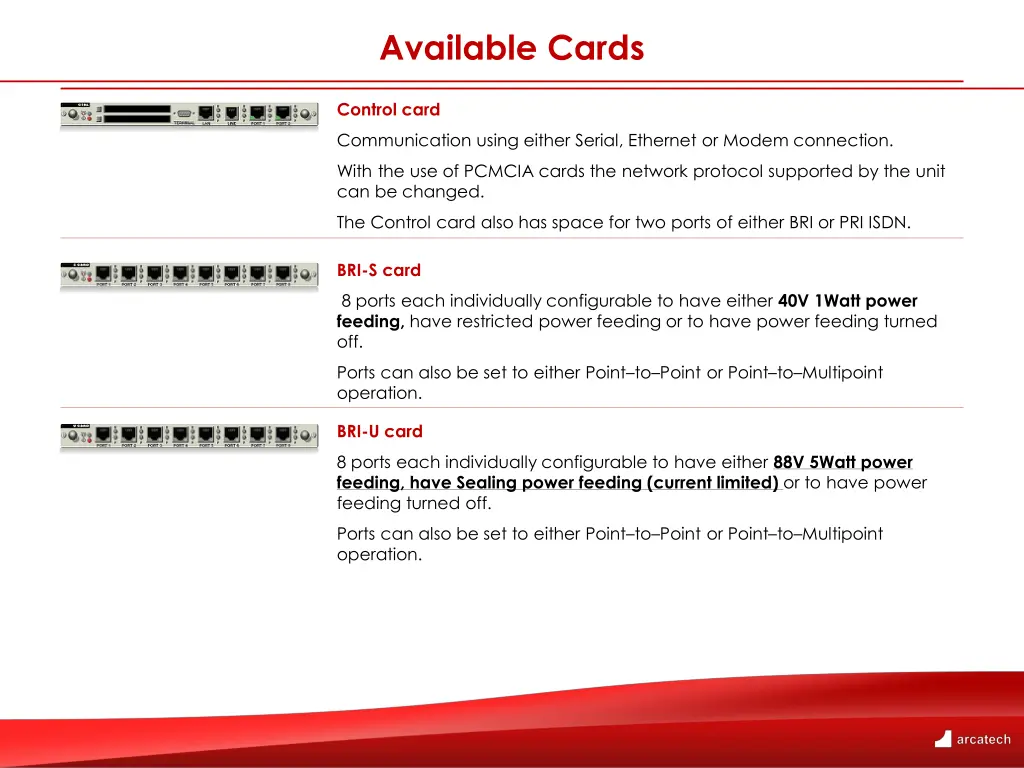

Available Cards Control card Communication using either Serial, Ethernet or Modem connection. With the use of PCMCIA cards the network protocol supported by the unit can be changed. The Control card also has space for two ports of either BRI or PRI ISDN. BRI-S card 8 ports each individually configurable to have either 40V 1Watt power feeding, have restricted power feeding or to have power feeding turned off. Ports can also be set to either Point to Point or Point to Multipoint operation. BRI-U card 8 ports each individually configurable to have either 88V 5Watt power feeding, have Sealing power feeding (current limited) or to have power feeding turned off. Ports can also be set to either Point to Point or Point to Multipoint operation.

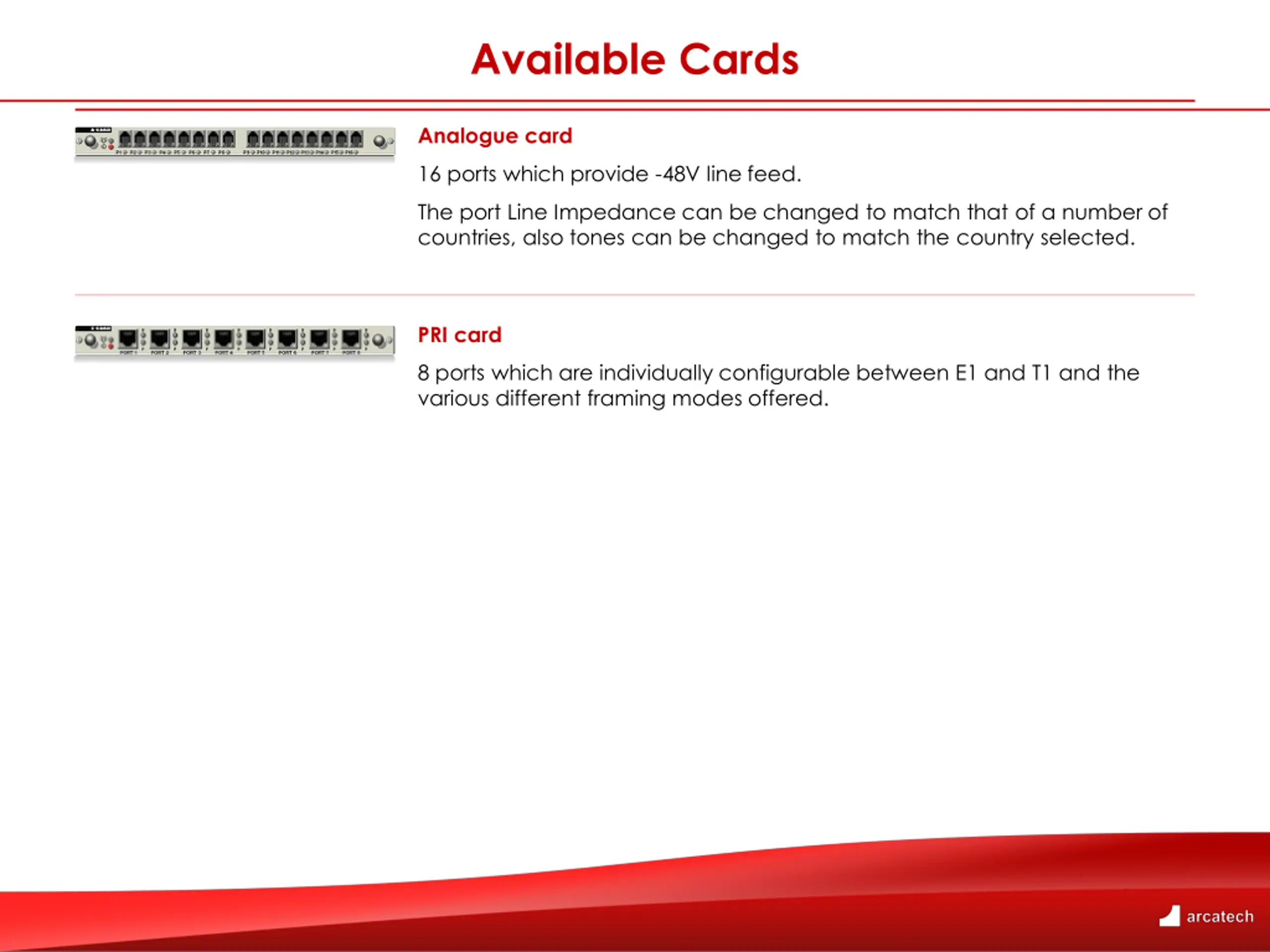

Available Cards Analogue card 16 ports which provide -48V line feed. The port Line Impedance can be changed to match that of a number of countries, also tones can be changed to match the country selected. PRI card 8 ports which are individually configurable between E1 and T1 and the various different framing modes offered.

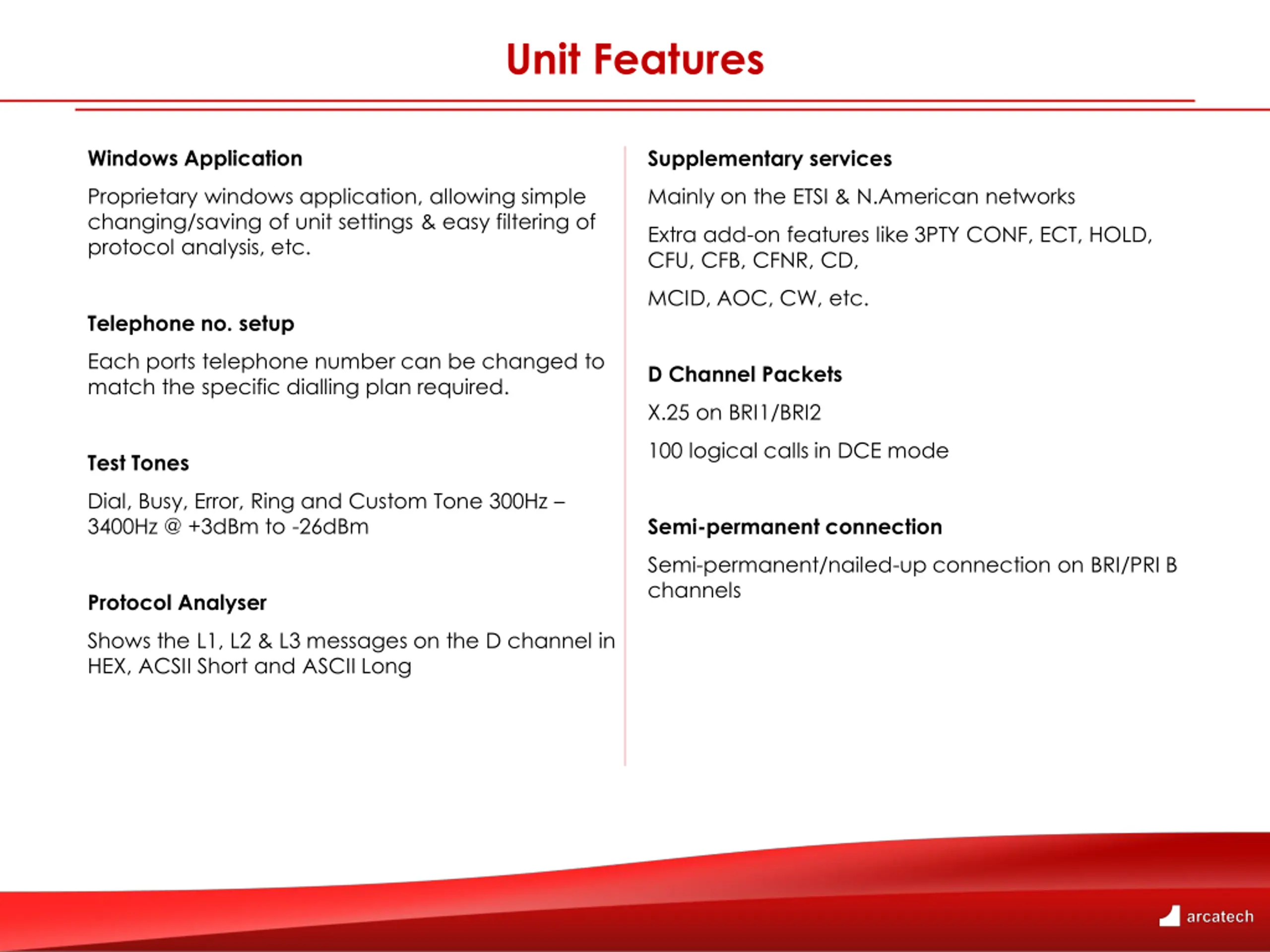

Unit Features Windows Application Supplementary services Proprietary windows application, allowing simple changing/saving of unit settings & easy filtering of protocol analysis, etc. Mainly on the ETSI & N.American networks Extra add-on features like 3PTY CONF, ECT, HOLD, CFU, CFB, CFNR, CD, MCID, AOC, CW, etc. Telephone no. setup Each ports telephone number can be changed to match the specific dialling plan required. D Channel Packets X.25 on BRI1/BRI2 100 logical calls in DCE mode Test Tones Dial, Busy, Error, Ring and Custom Tone 300Hz 3400Hz @ +3dBm to -26dBm Semi-permanent connection Semi-permanent/nailed-up connection on BRI/PRI B channels Protocol Analyser Shows the L1, L2 & L3 messages on the D channel in HEX, ACSII Short and ASCII Long

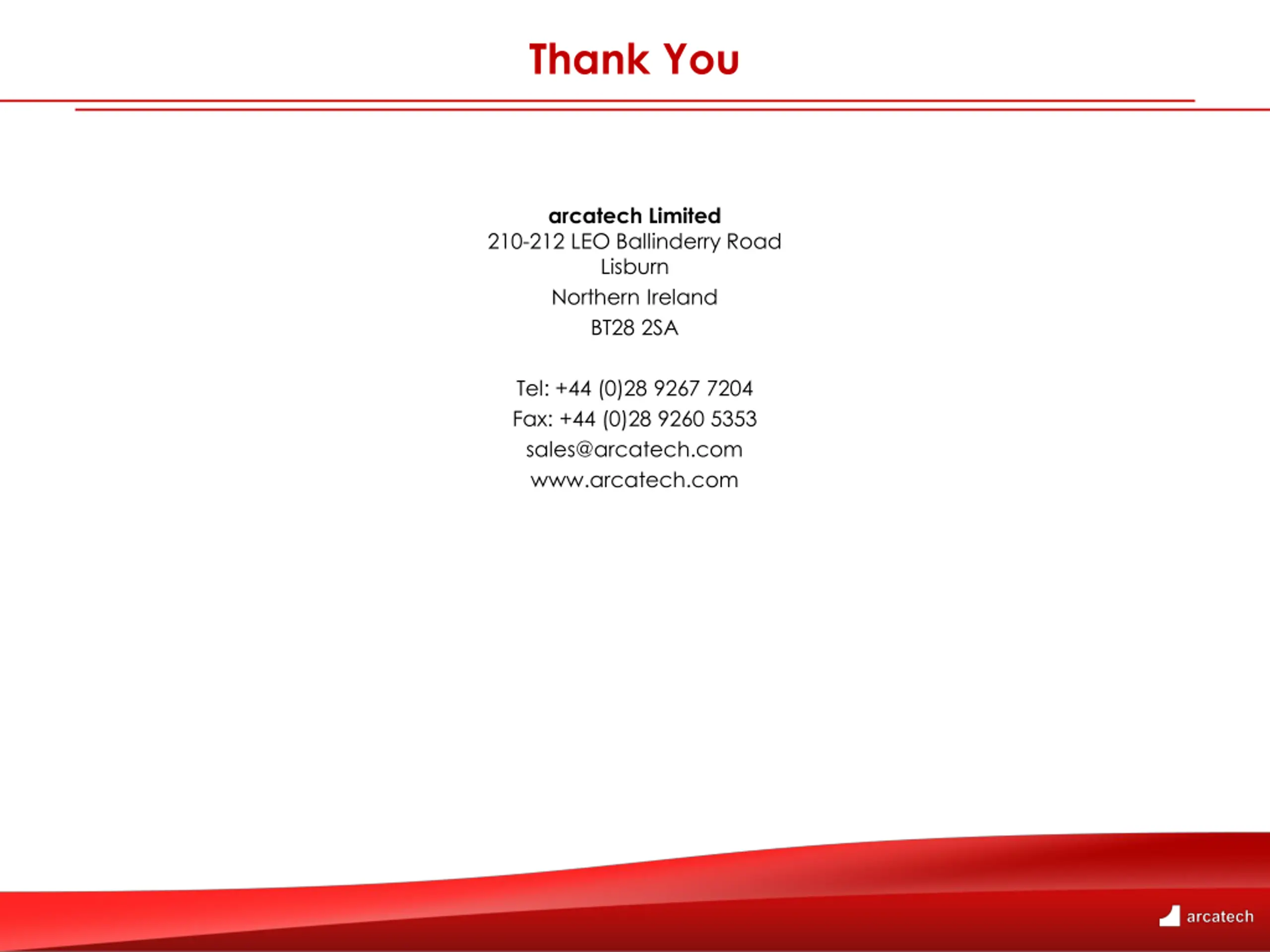

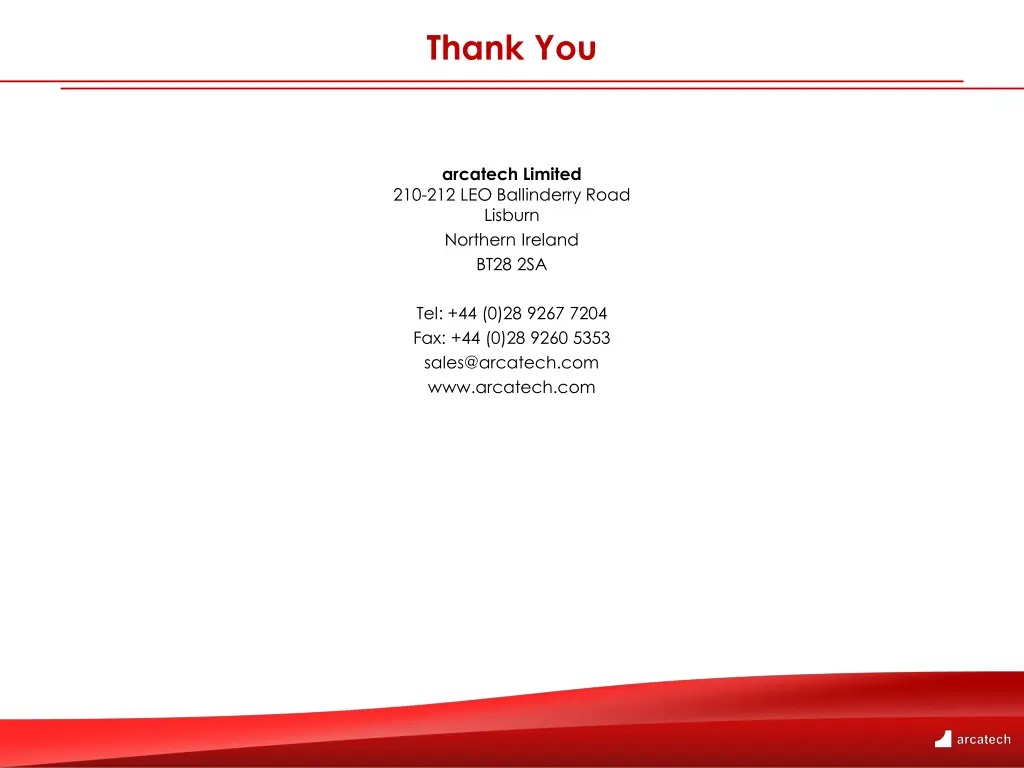

Thank You arcatech Limited 210-212 LEO Ballinderry Road Lisburn Northern Ireland BT28 2SA Tel: +44 (0)28 9267 7204 Fax: +44 (0)28 9260 5353 sales@arcatech.com www.arcatech.com
