ERCOT Frequency Control Report August 2022 ERCOT Operations Planning PDCWG | Sep 14th, 2022

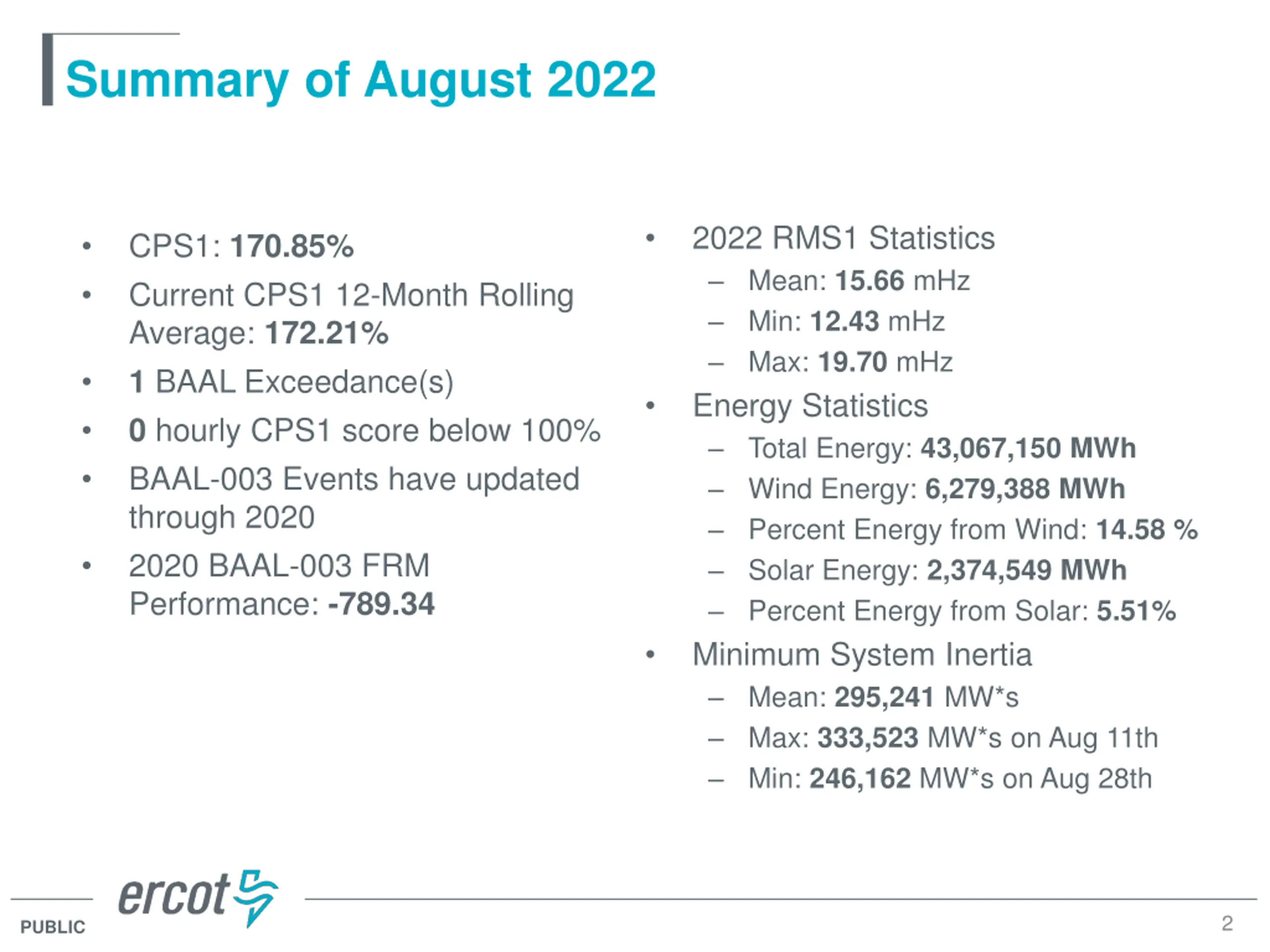

Summary of August 2022 2022 RMS1 Statistics Mean: 15.66 mHz Min: 12.43 mHz Max: 19.70 mHz Energy Statistics Total Energy: 43,067,150 MWh Wind Energy: 6,279,388 MWh Percent Energy from Wind: 14.58 % Solar Energy: 2,374,549 MWh Percent Energy from Solar: 5.51% Minimum System Inertia Mean: 295,241 MW*s Max: 333,523 MW*s on Aug 11th Min: 246,162 MW*s on Aug 28th CPS1: 170.85% Current CPS1 12-Month Rolling Average: 172.21% 1 BAAL Exceedance(s) 0 hourly CPS1 score below 100% BAAL-003 Events have updated through 2020 2020 BAAL-003 FRM Performance: -789.34 2 PUBLIC
Frequency Control CPS1, BAAL, & RMS1 PUBLIC

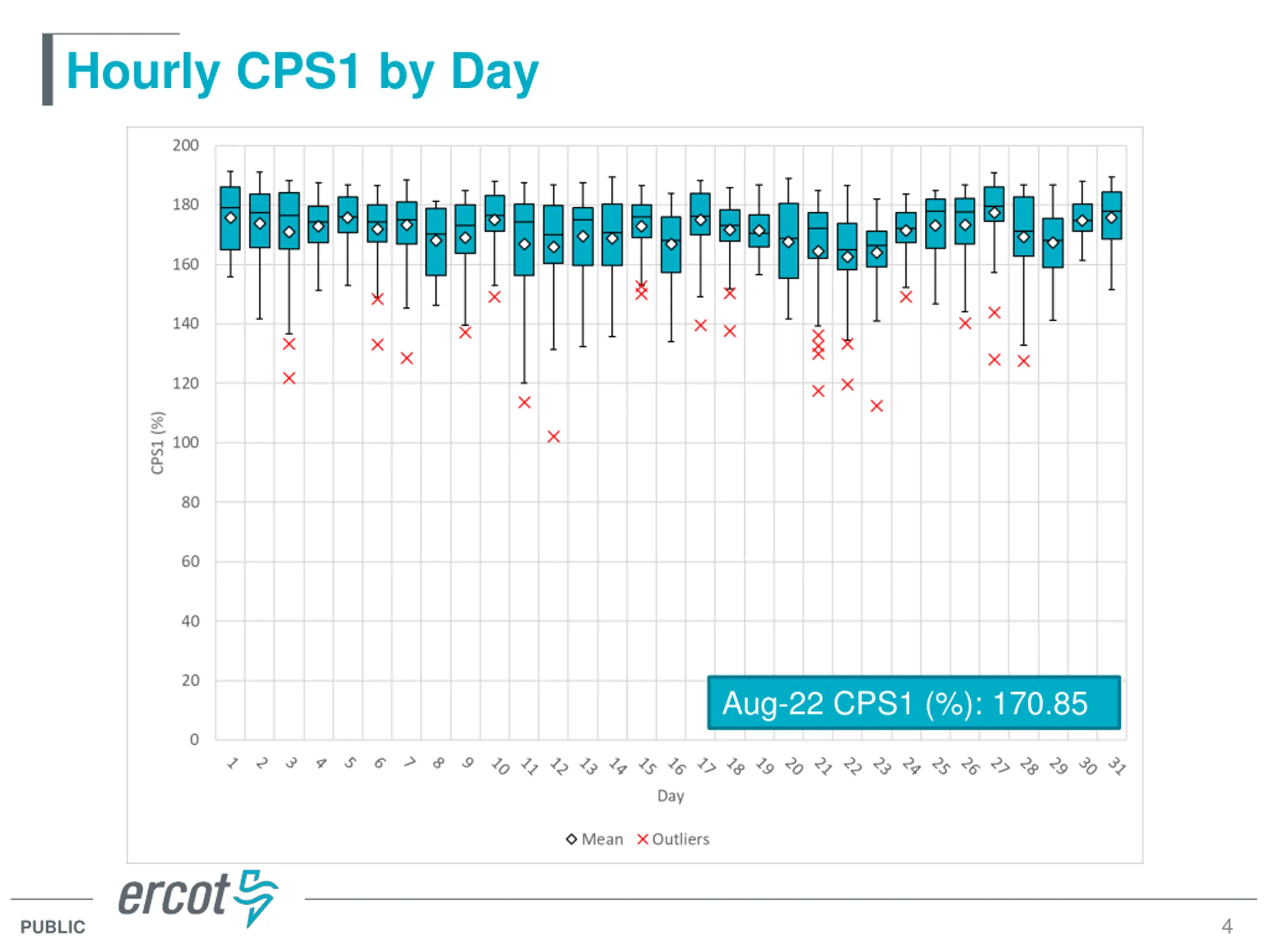

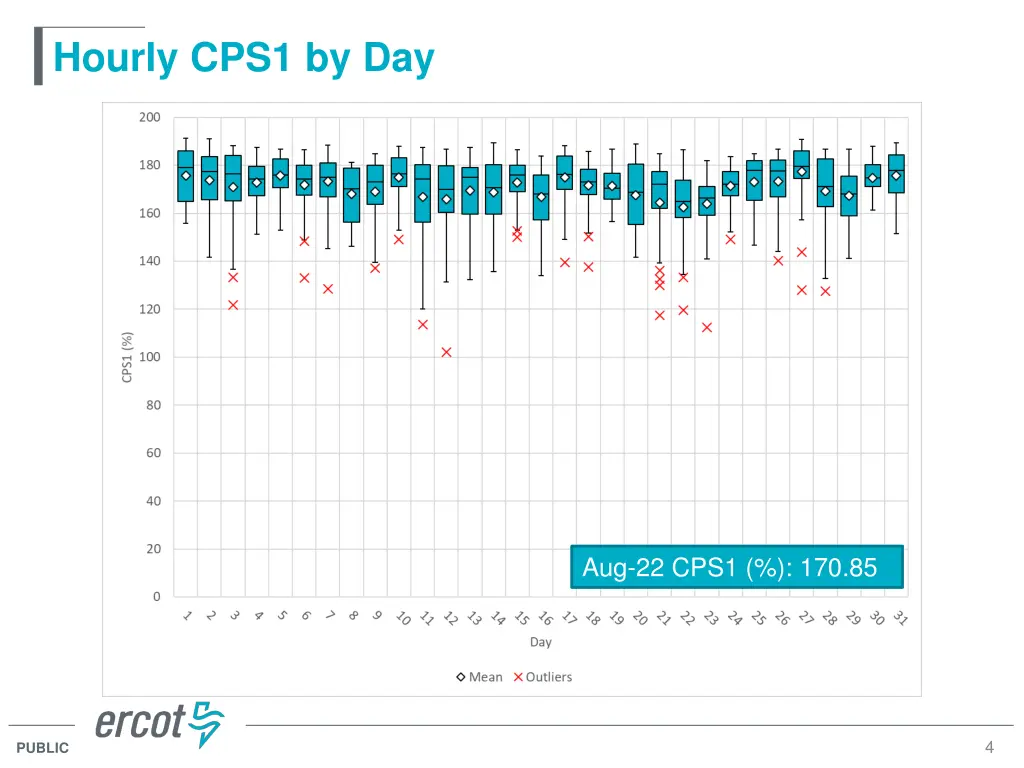

Hourly CPS1 by Day Aug-22 CPS1 (%): 170.85 4 PUBLIC

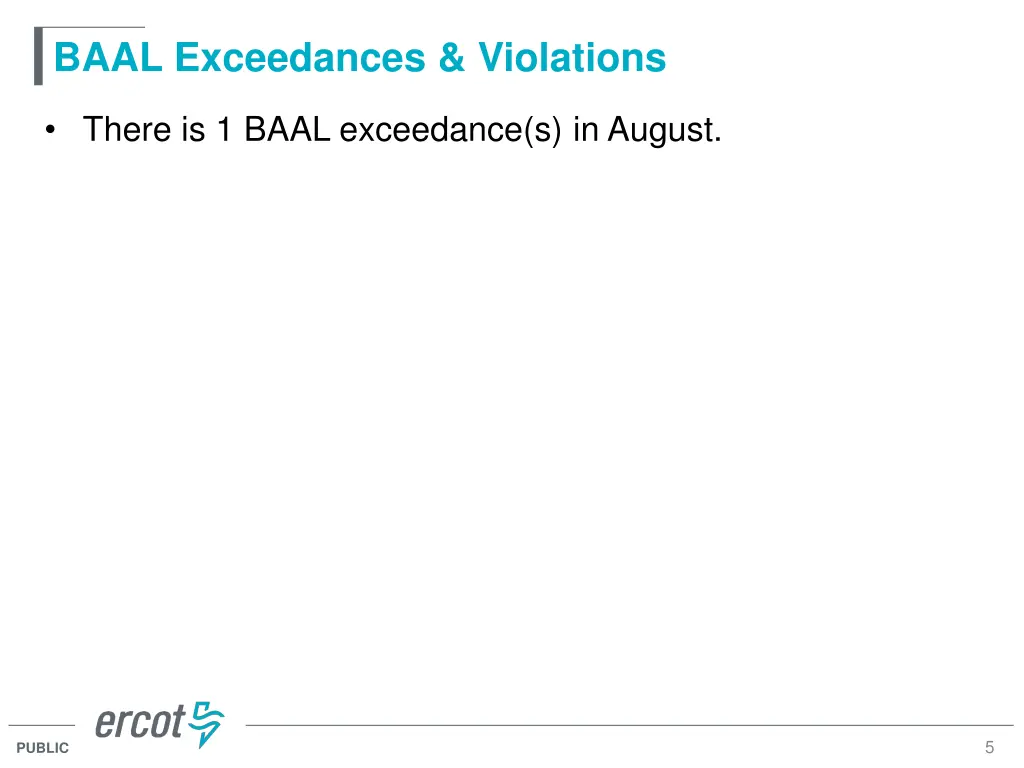

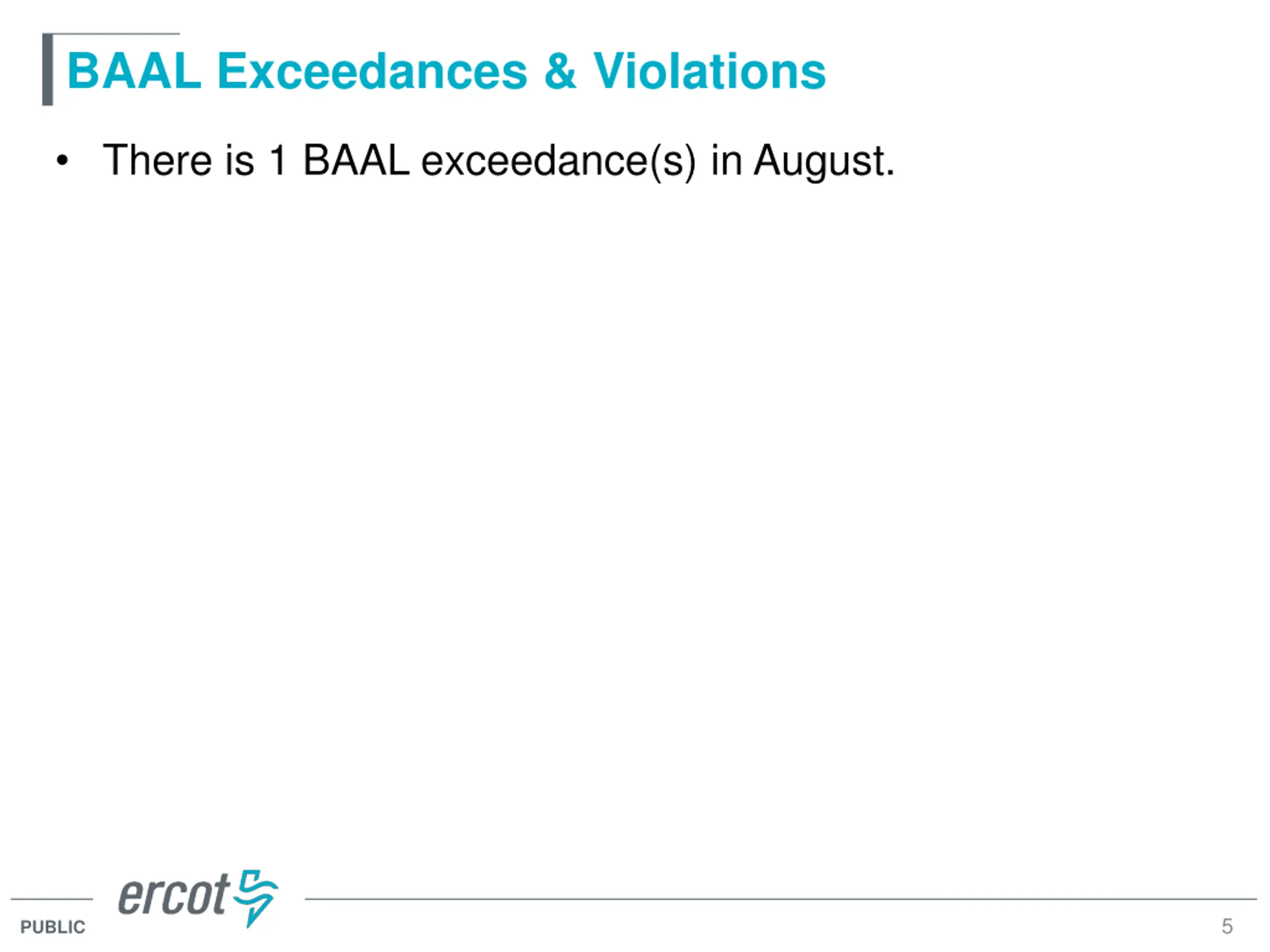

BAAL Exceedances & Violations There is 1 BAAL exceedance(s) in August. 5 PUBLIC

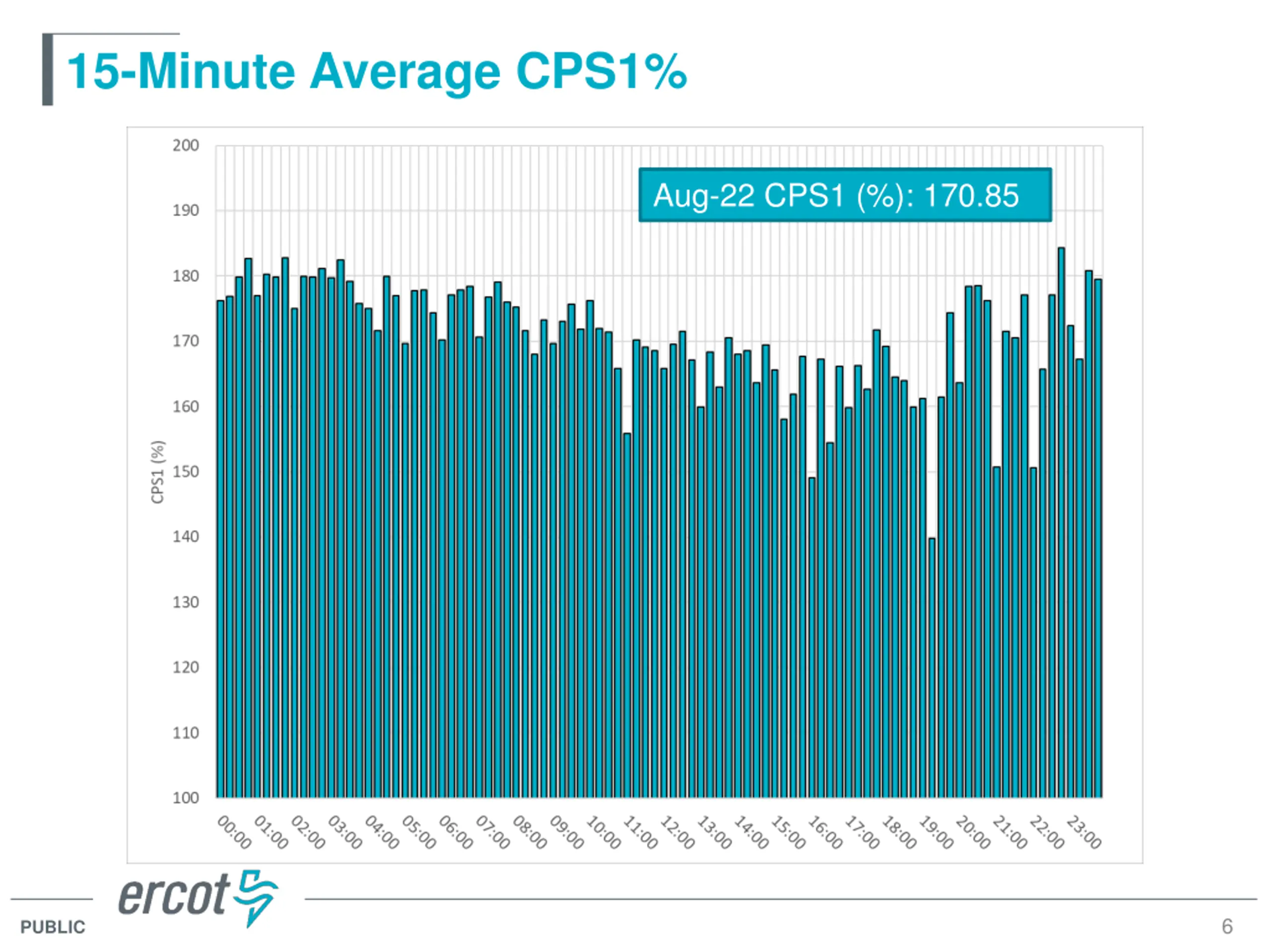

15-Minute Average CPS1% Aug-22 CPS1 (%): 170.85 6 PUBLIC

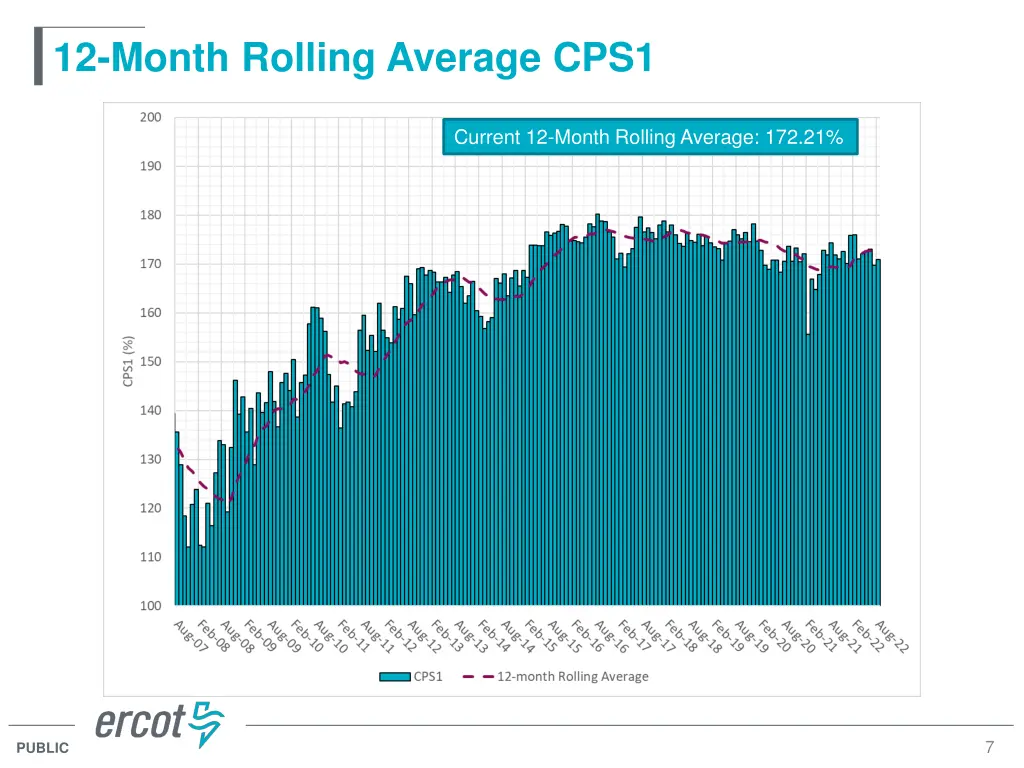

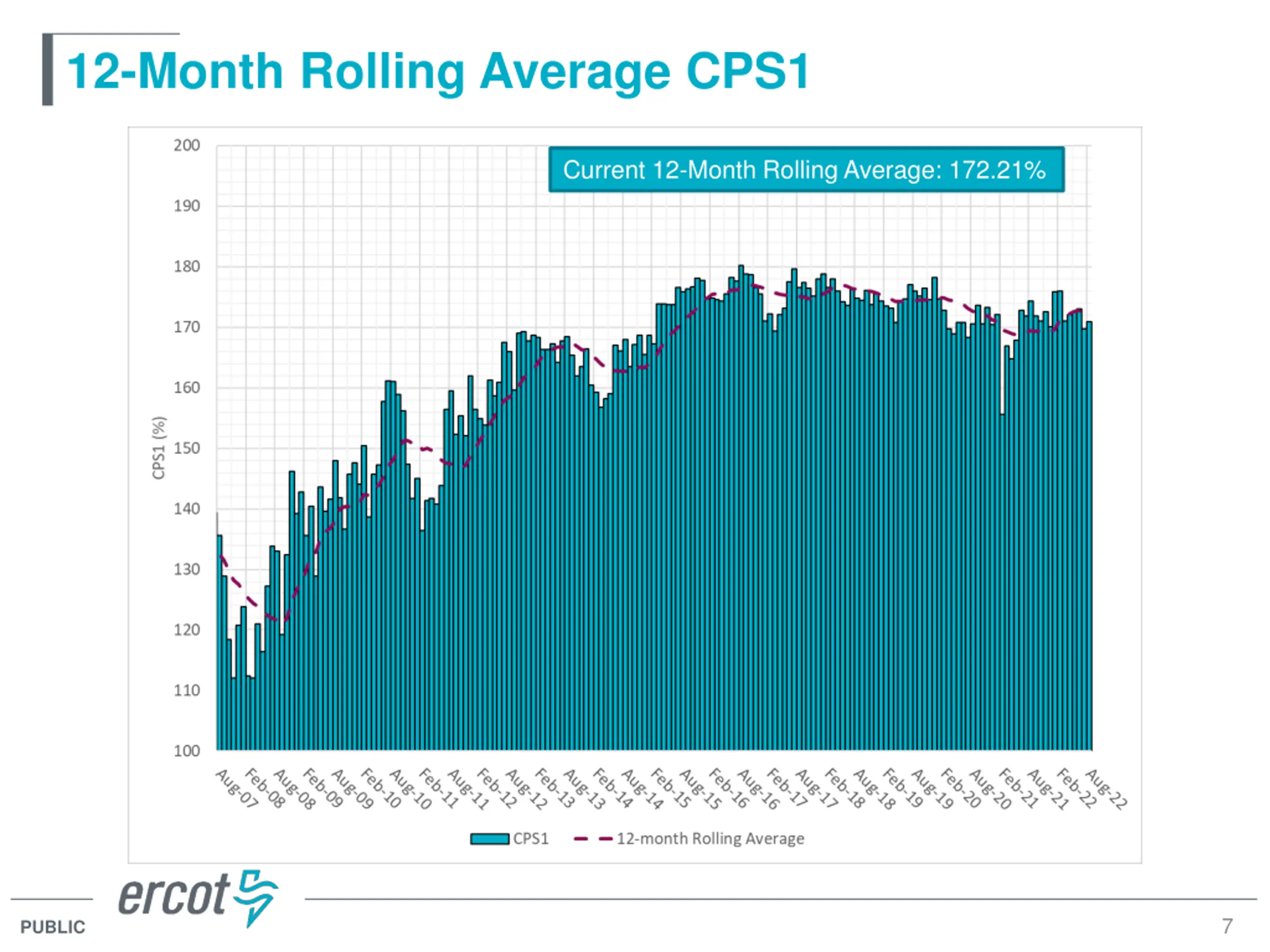

12-Month Rolling Average CPS1 Current 12-Month Rolling Average: 172.21% 7 PUBLIC

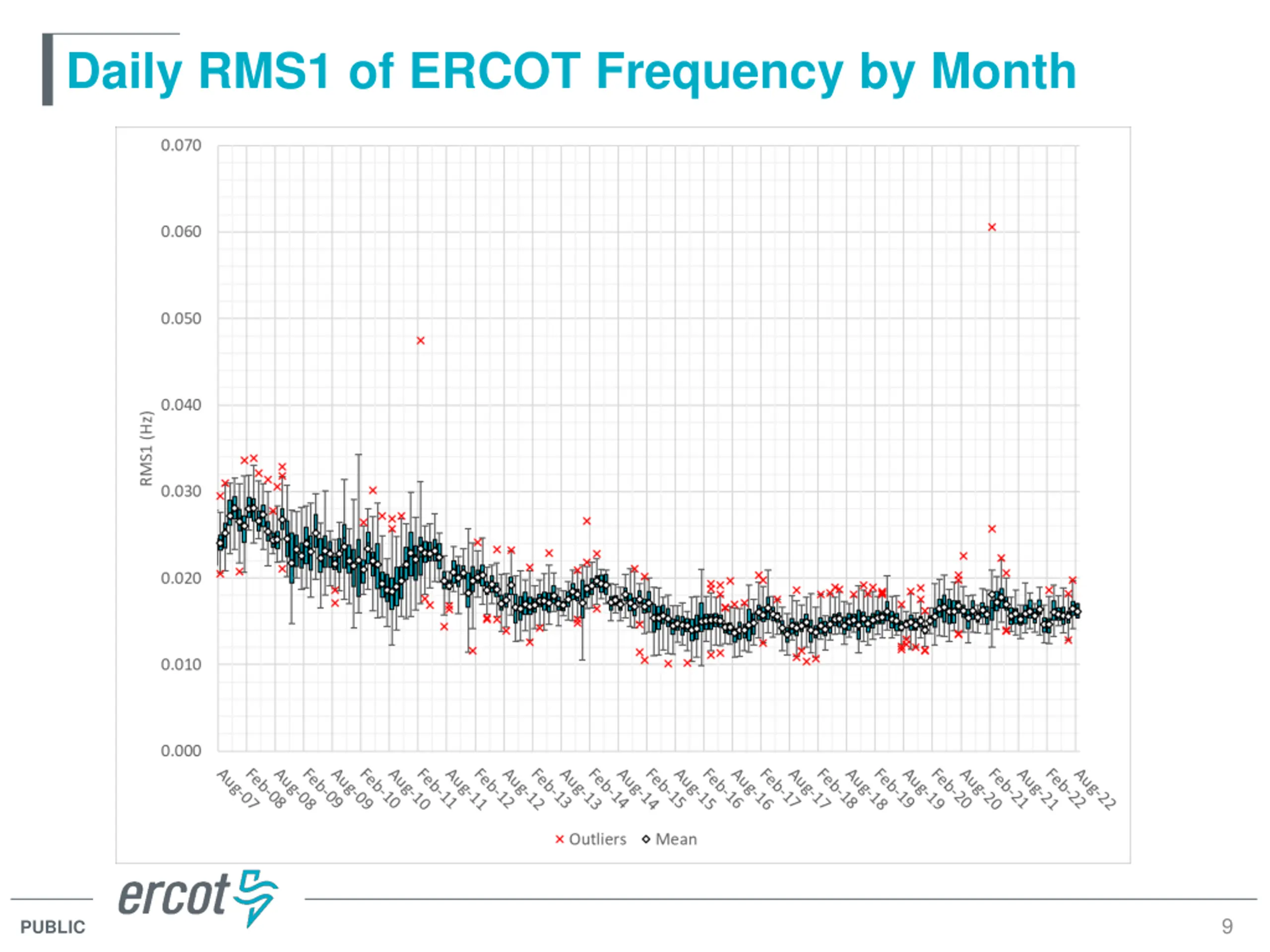

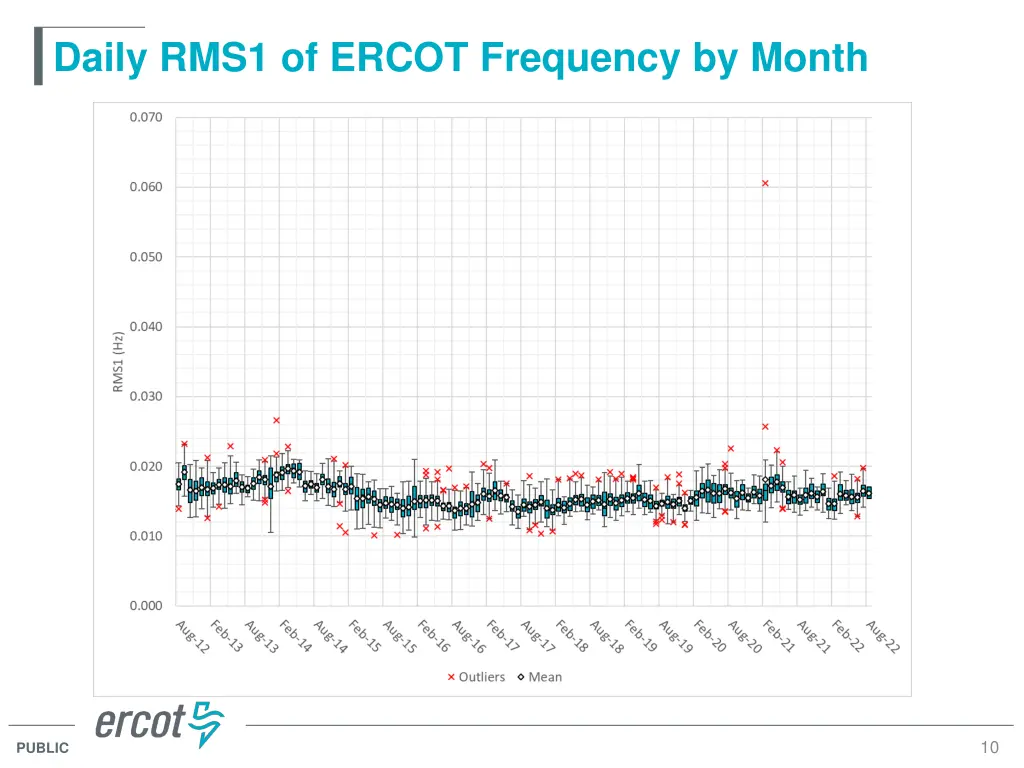

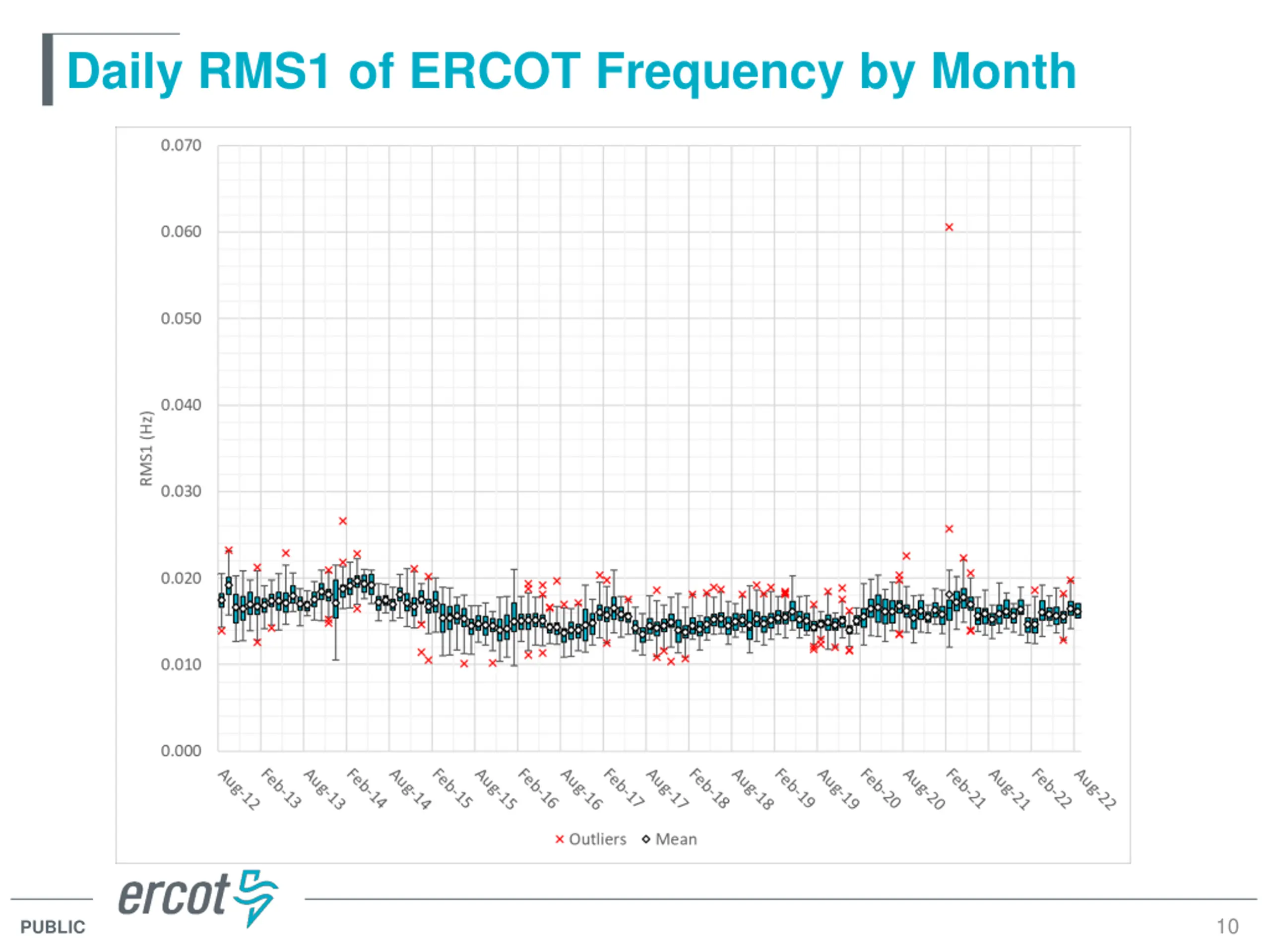

Daily RMS1 of ERCOT Frequency by Month 10 PUBLIC
Frequency Profile Comparison PUBLIC

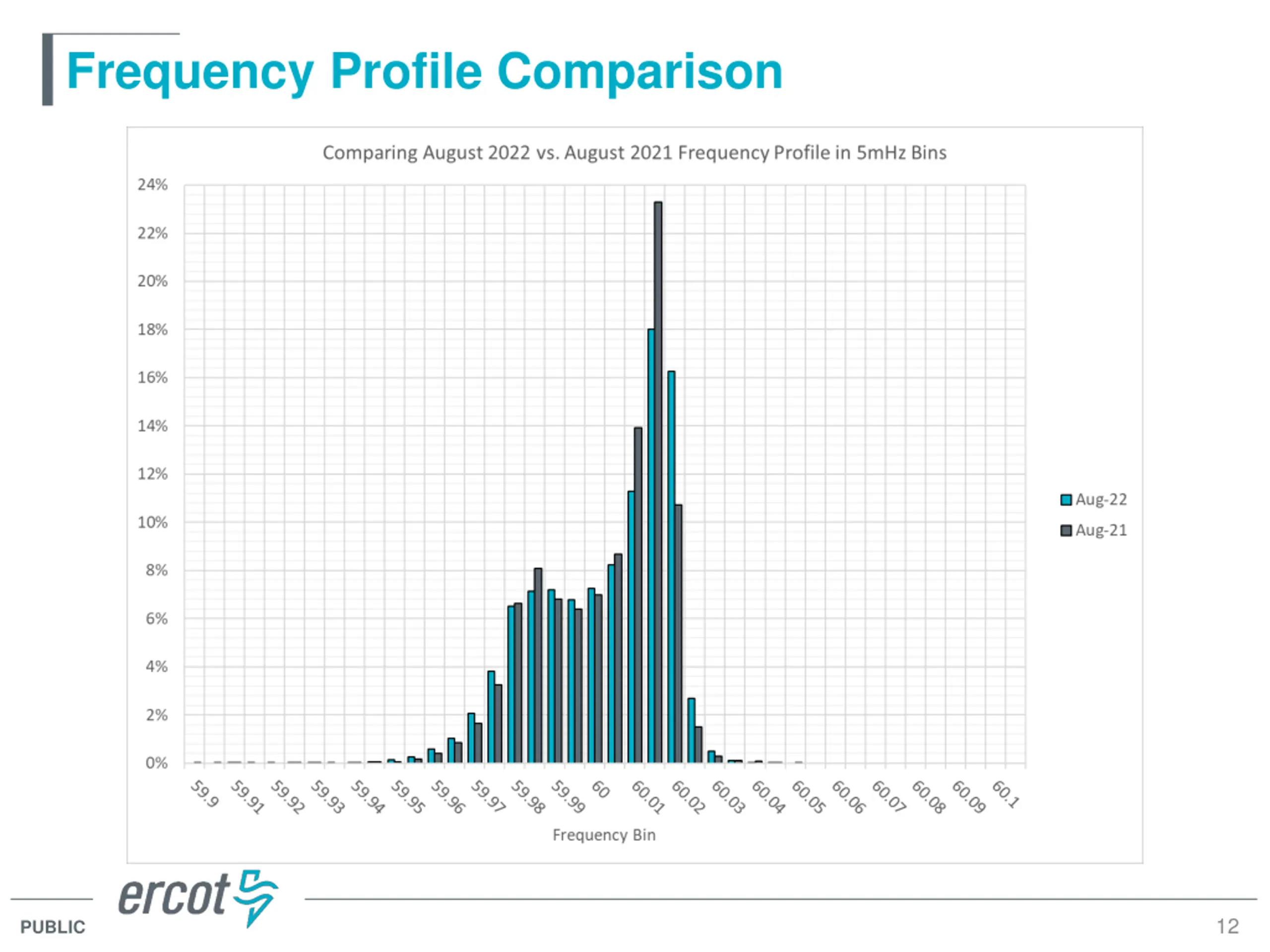

Frequency Profile Comparison 12 PUBLIC
Frequency Profile Comparison 13 PUBLIC

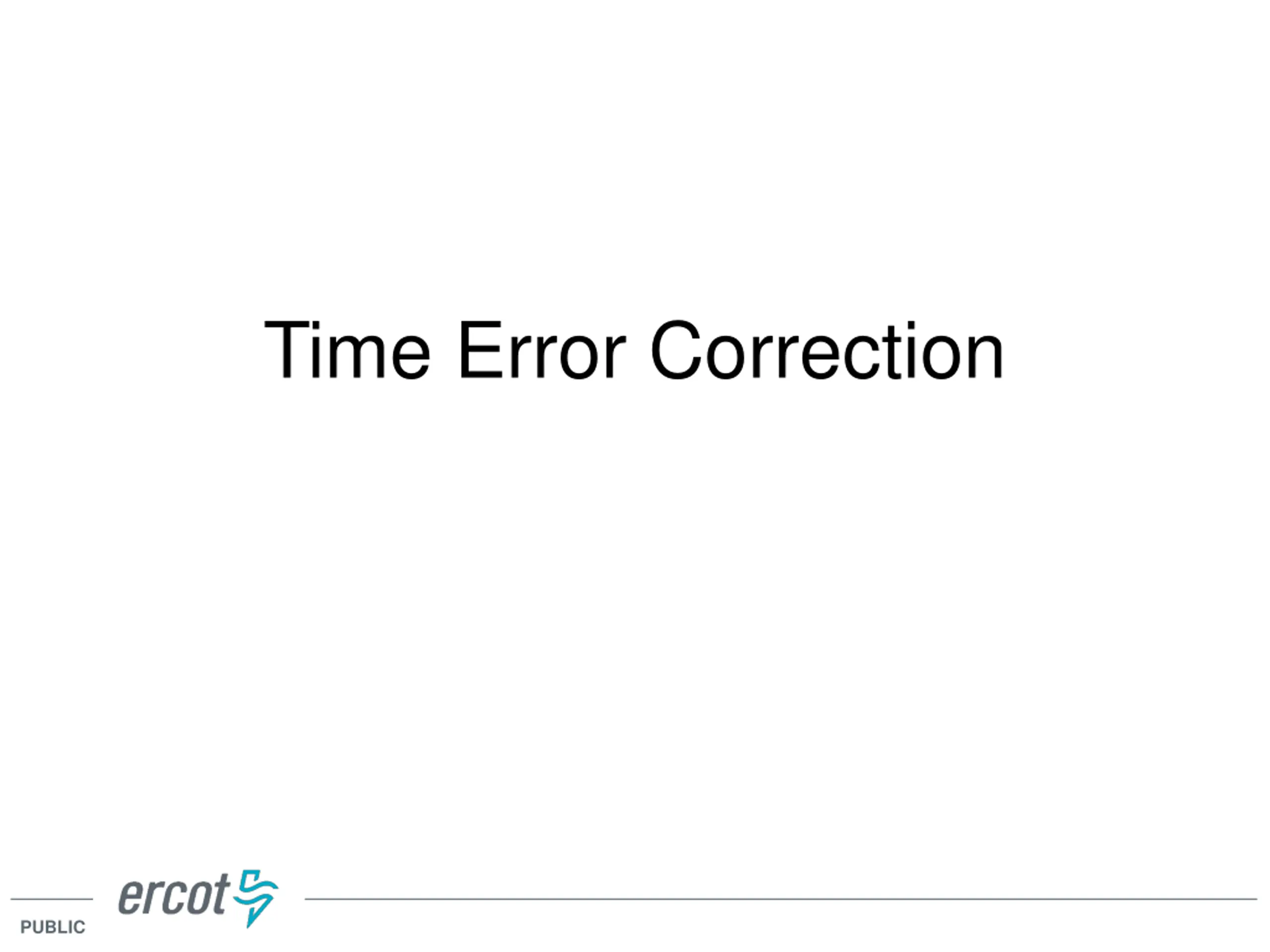

Time Error Correction PUBLIC

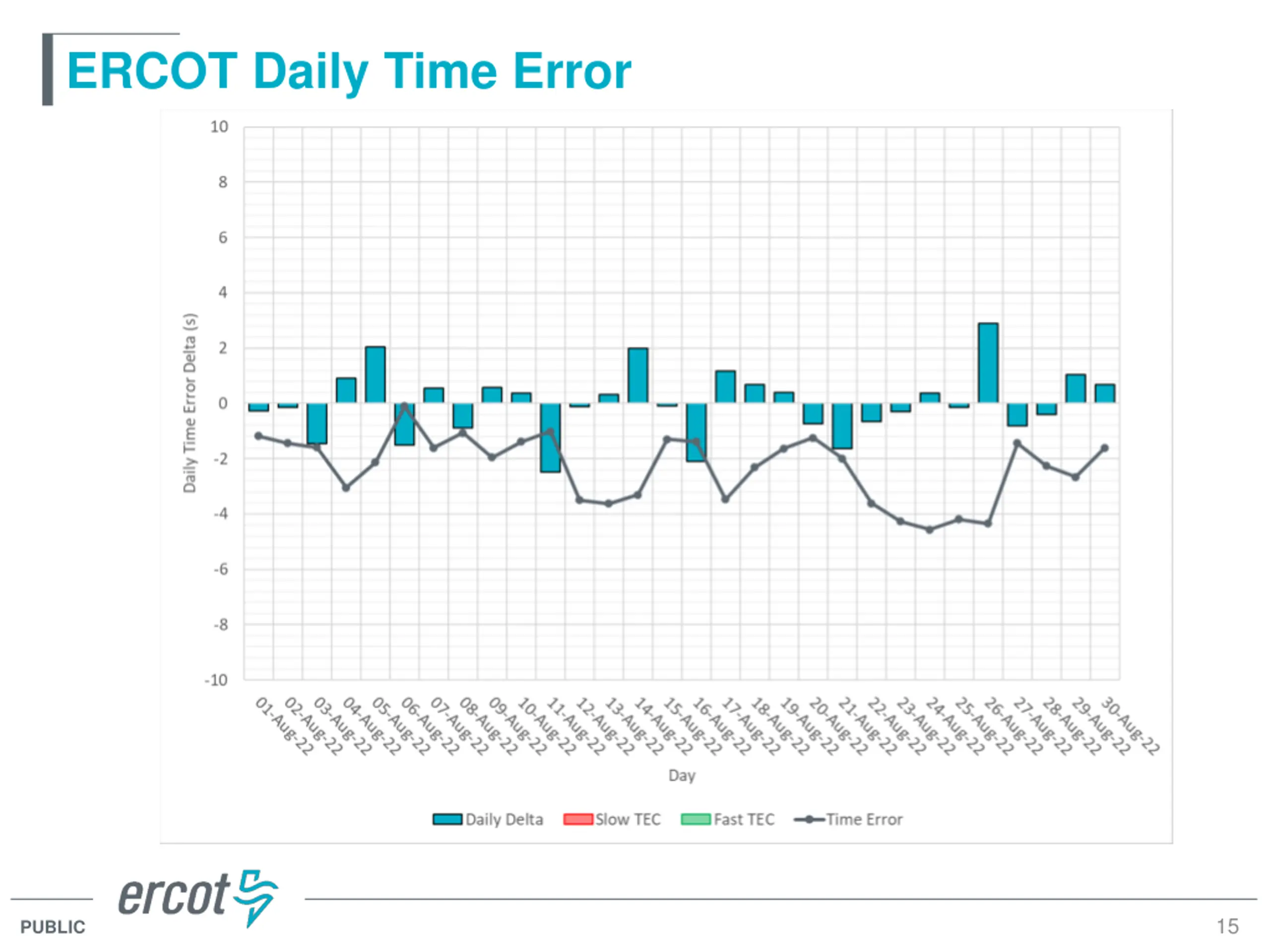

ERCOT Daily Time Error 15 PUBLIC

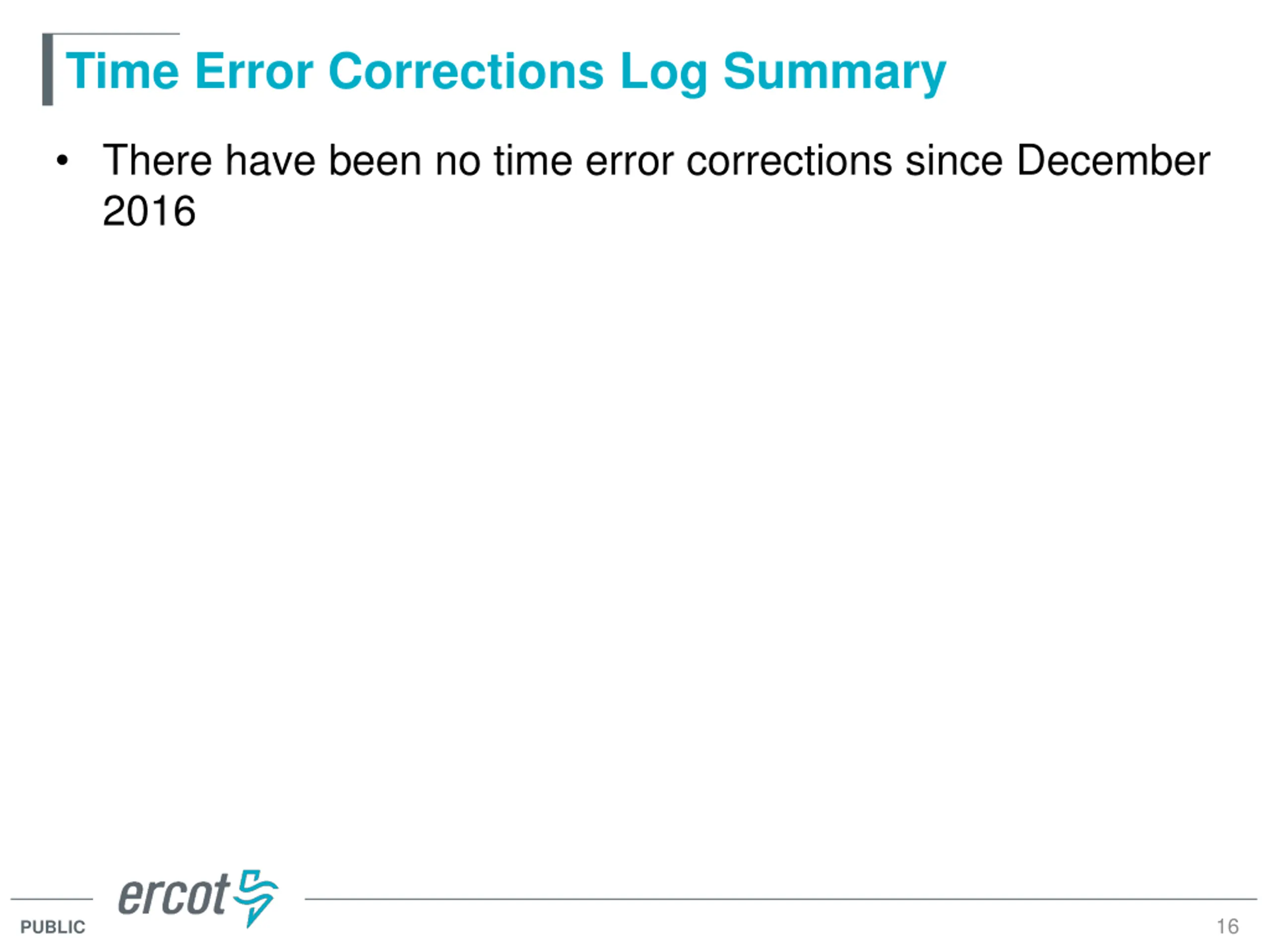

Time Error Corrections Log Summary There have been no time error corrections since December 2016 16 PUBLIC

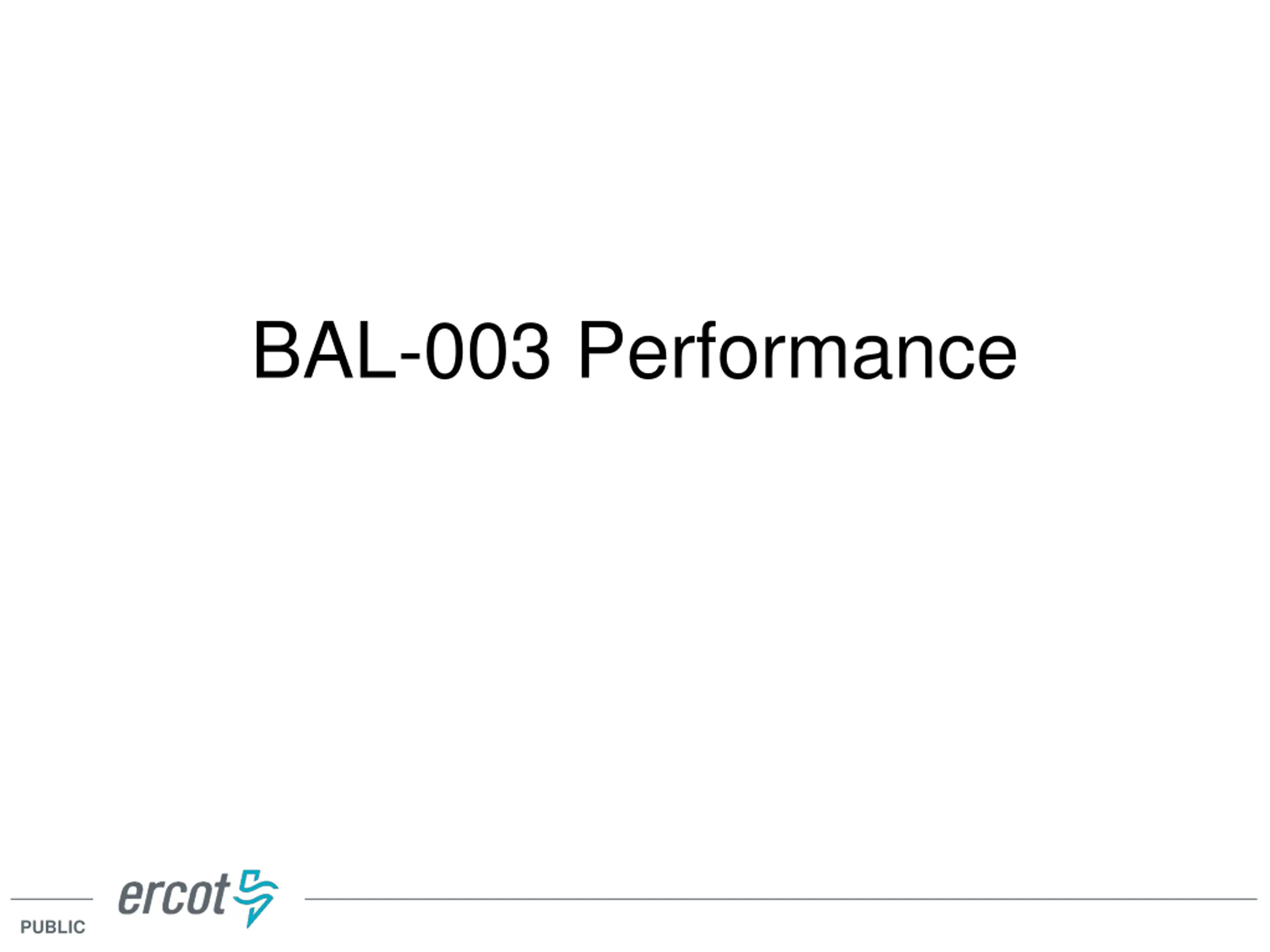

BAL-003 Performance PUBLIC

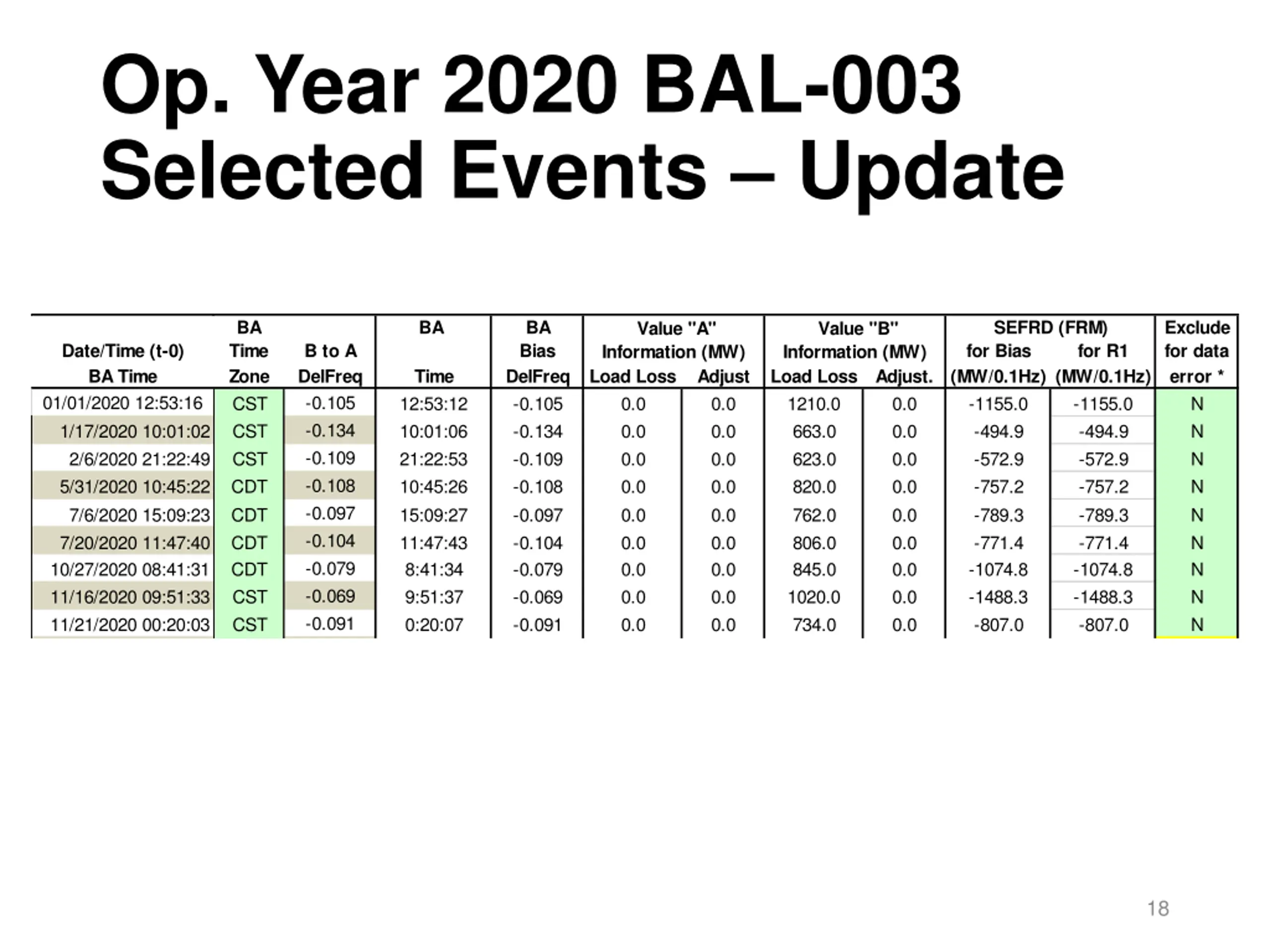

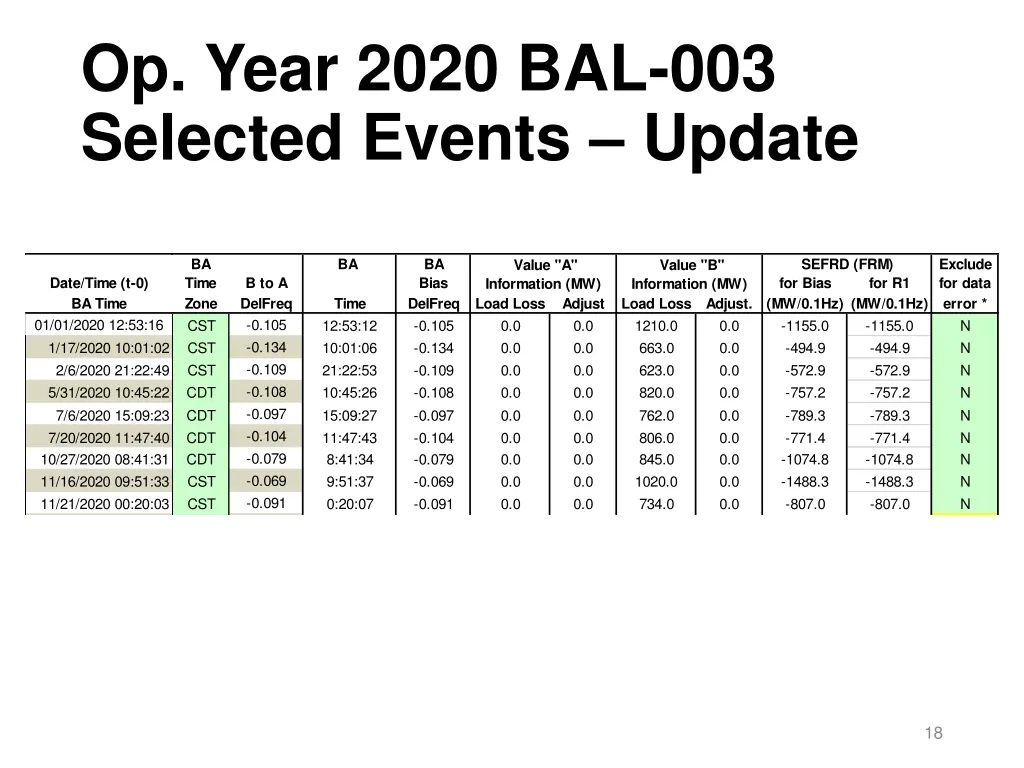

Op. Year 2020 BAL-003 Selected Events Update BA Time Zone CST CST CST CDT CDT CDT CDT CST CST BA BA Bias DelFreq -0.105 -0.134 -0.109 -0.108 -0.097 -0.104 -0.079 -0.069 -0.091 SEFRD (FRM) Exclude for data error * N N N N N N N N N Value "A" Information (MW) Value "B" Information (MW) Date/Time (t-0) BA Time 01/01/2020 12:53:16 1/17/2020 10:01:02 2/6/2020 21:22:49 5/31/2020 10:45:22 7/6/2020 15:09:23 7/20/2020 11:47:40 10/27/2020 08:41:31 11/16/2020 09:51:33 11/21/2020 00:20:03 B to A DelFreq -0.105 -0.134 -0.109 -0.108 -0.097 -0.104 -0.079 -0.069 -0.091 for Bias (MW/0.1Hz) (MW/0.1Hz) -1155.0 -494.9 -572.9 -757.2 -789.3 -771.4 -1074.8 -1488.3 -807.0 for R1 Time 12:53:12 10:01:06 21:22:53 10:45:26 15:09:27 11:47:43 8:41:34 9:51:37 0:20:07 Load Loss 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 Adjust 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 Load Loss 1210.0 663.0 623.0 820.0 762.0 806.0 845.0 1020.0 734.0 Adjust. 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 -1155.0 -494.9 -572.9 -757.2 -789.3 -771.4 -1074.8 -1488.3 -807.0 18 PUBLIC

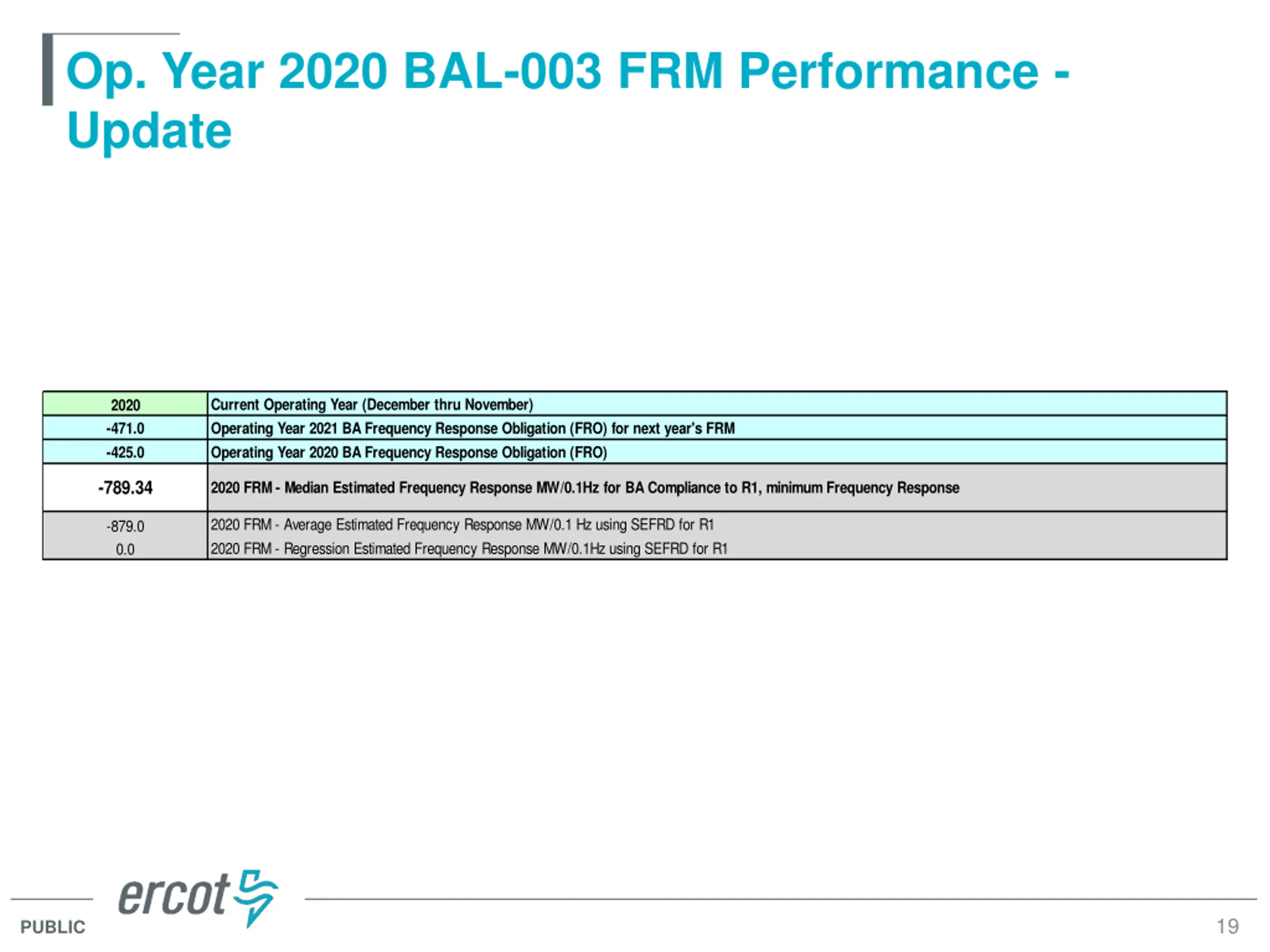

Op. Year 2020 BAL-003 FRM Performance - Update Current Operating Year (December thru November) Operating Year 2021 BA Frequency Response Obligation (FRO) for next year's FRM Operating Year 2020 BA Frequency Response Obligation (FRO) 2020 -471.0 -425.0 -789.34 2020 FRM - Median Estimated Frequency Response MW/0.1Hz for BA Compliance to R1, minimum Frequency Response 2020 FRM - Average Estimated Frequency Response MW/0.1 Hz using SEFRD for R1 2020 FRM - Regression Estimated Frequency Response MW/0.1Hz using SEFRD for R1 -879.0 0.0 19 PUBLIC
ERCOT Energy Statistics PUBLIC

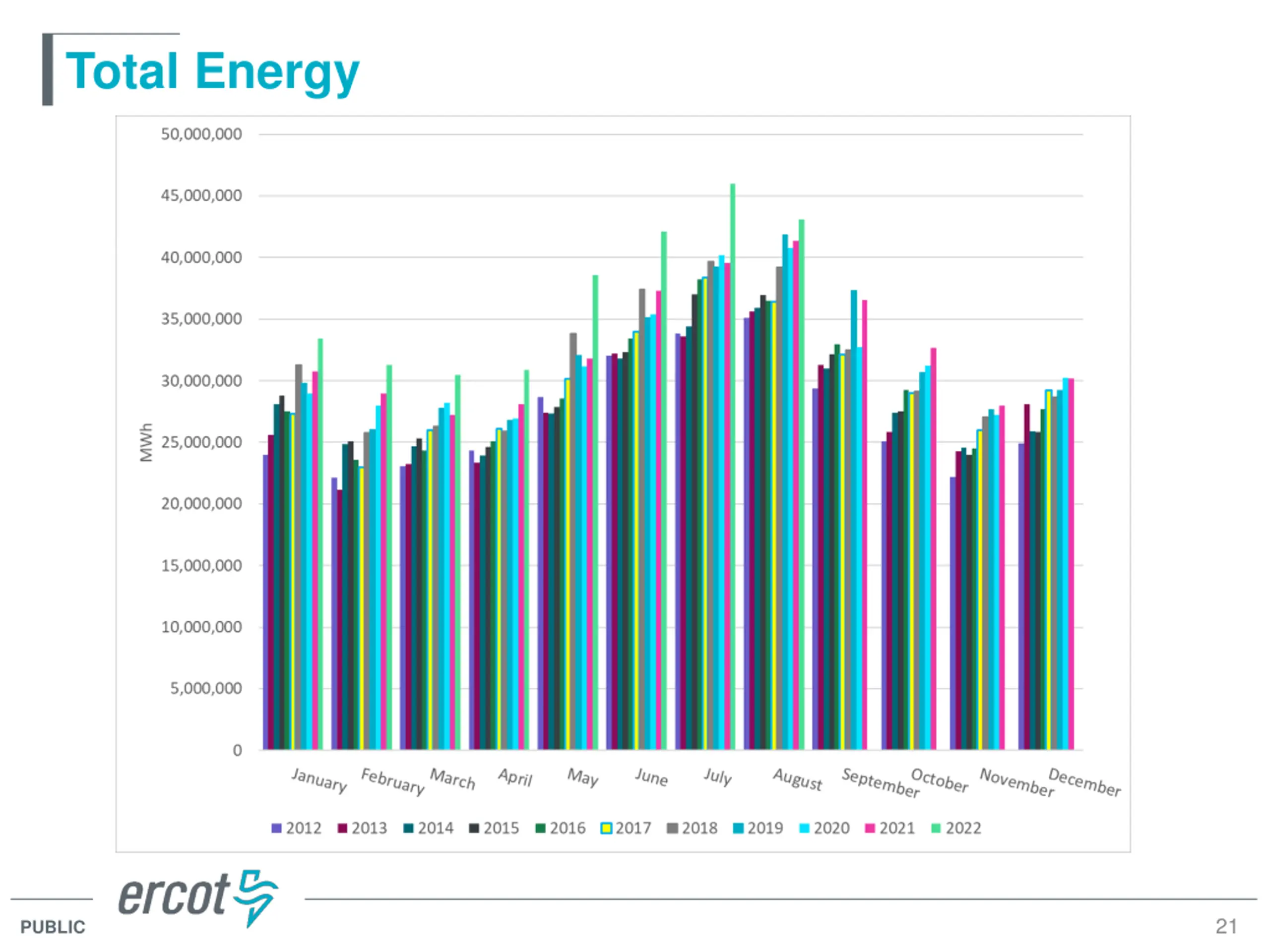

Total Energy 21 PUBLIC

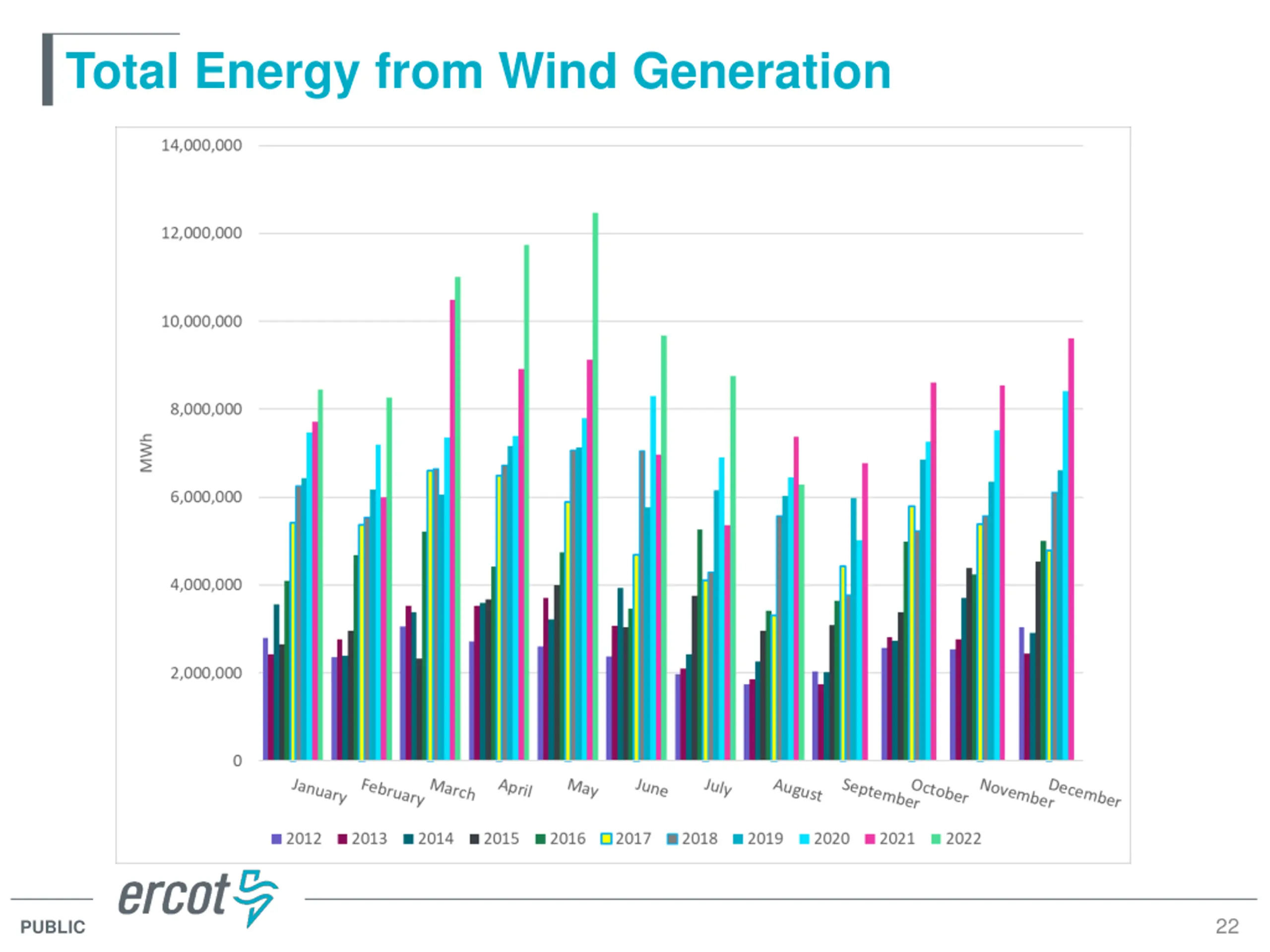

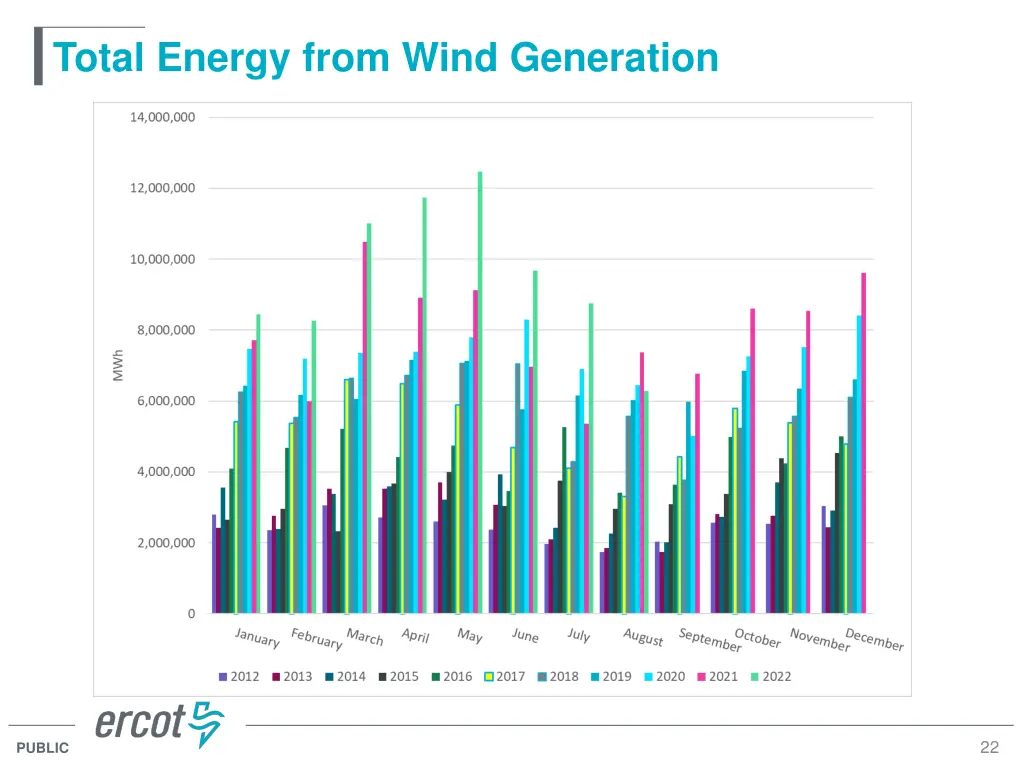

Total Energy from Wind Generation 22 PUBLIC

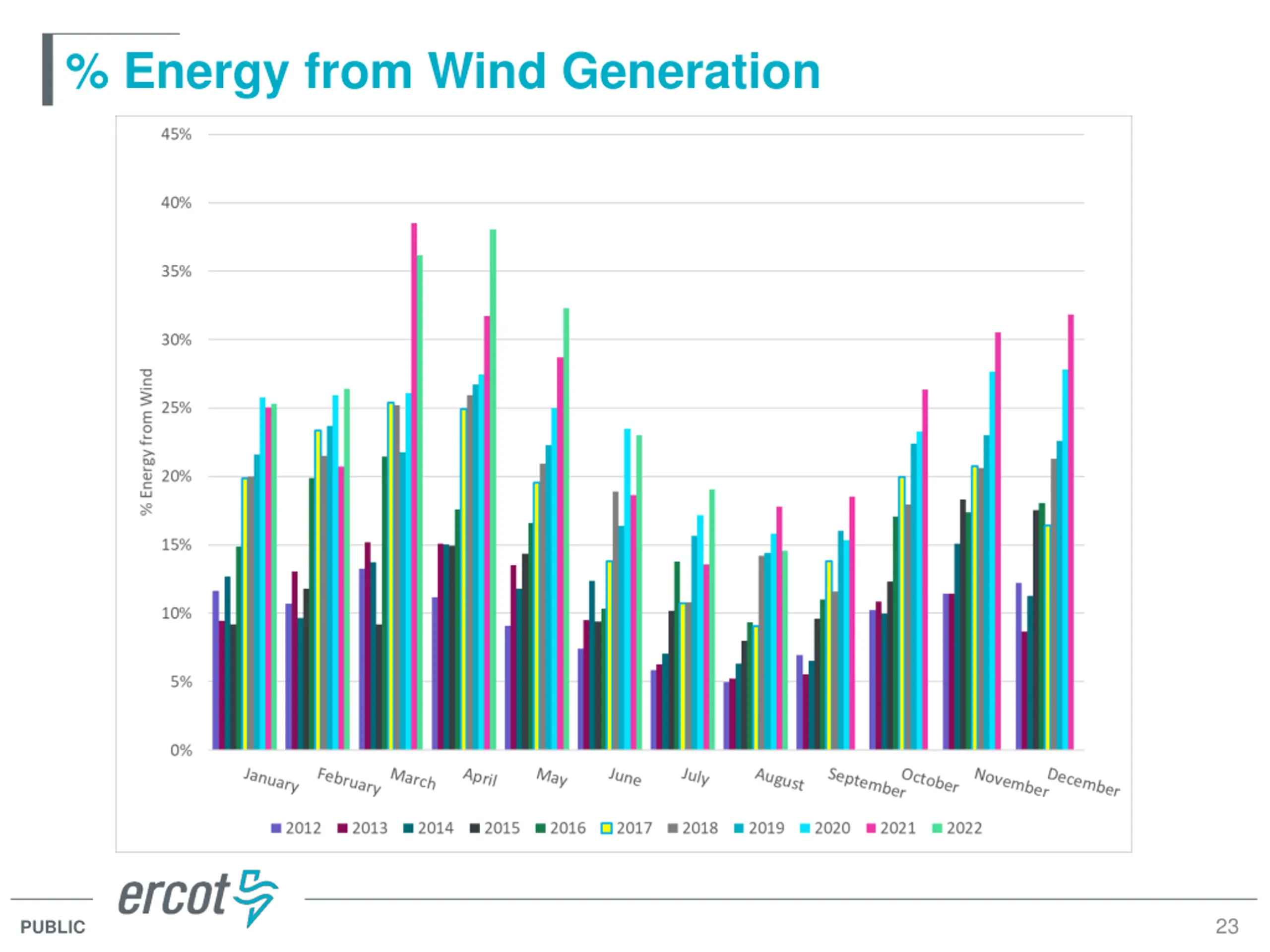

% Energy from Wind Generation 23 PUBLIC

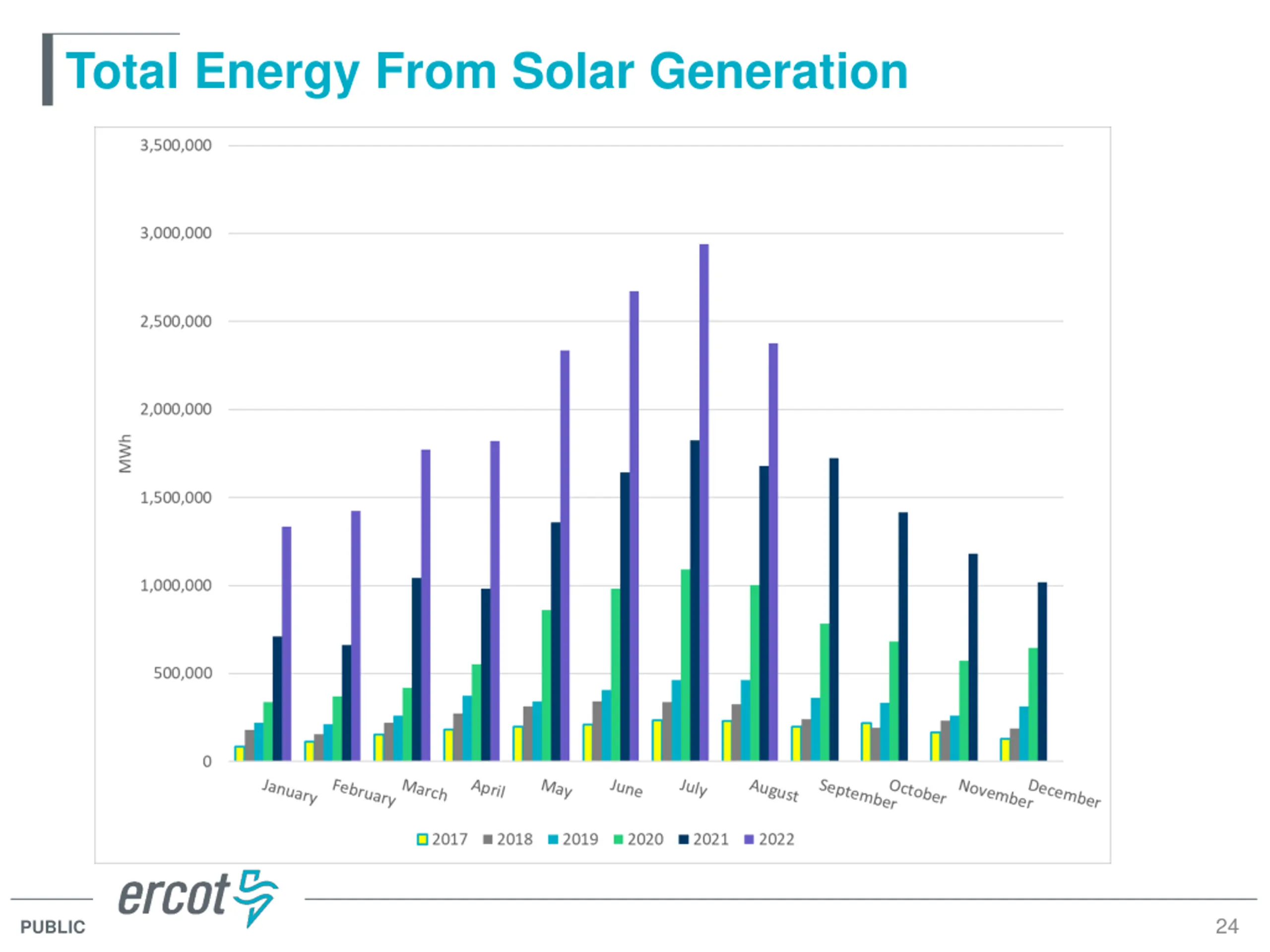

Total Energy From Solar Generation 24 PUBLIC

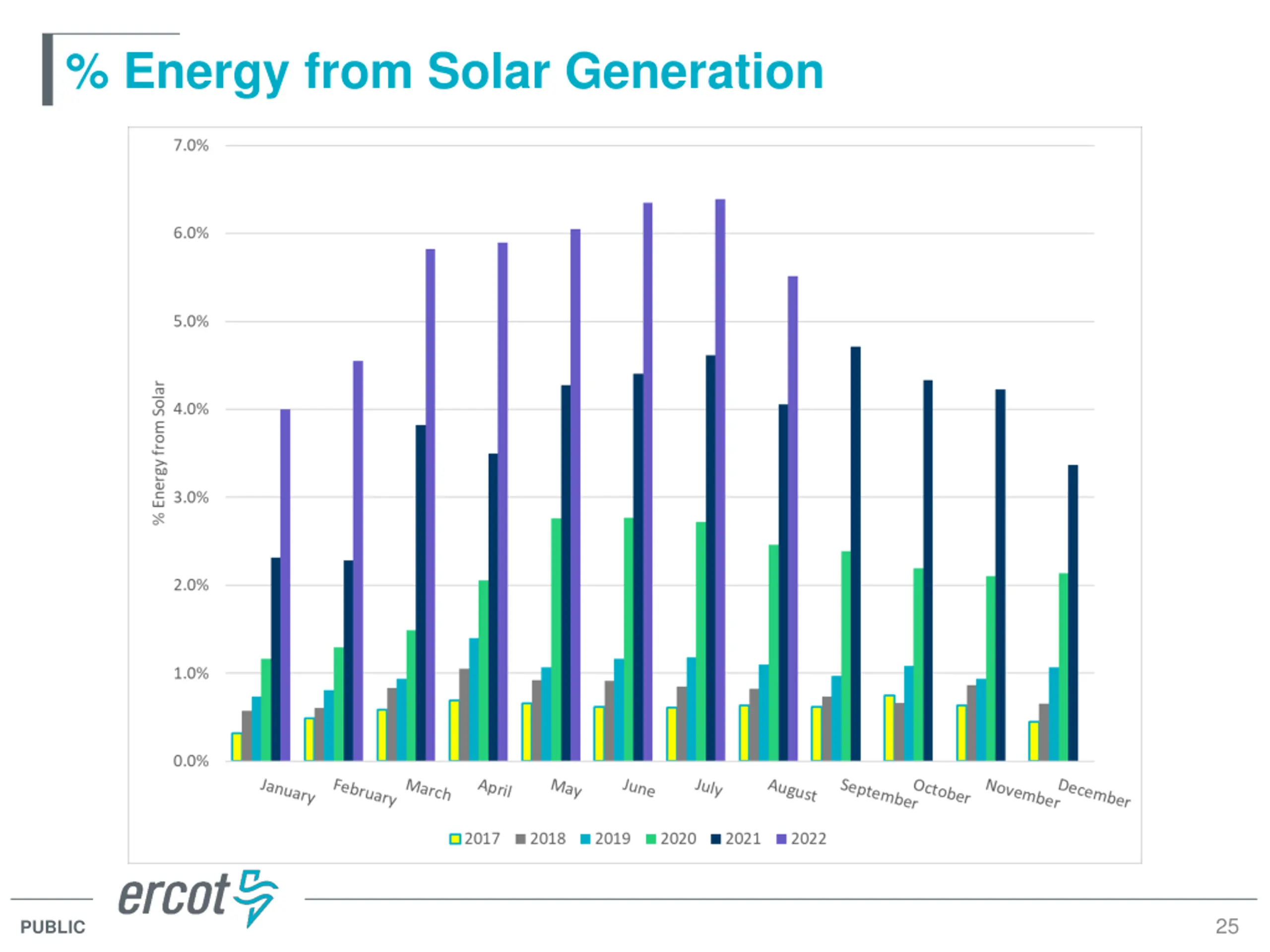

% Energy from Solar Generation 25 PUBLIC

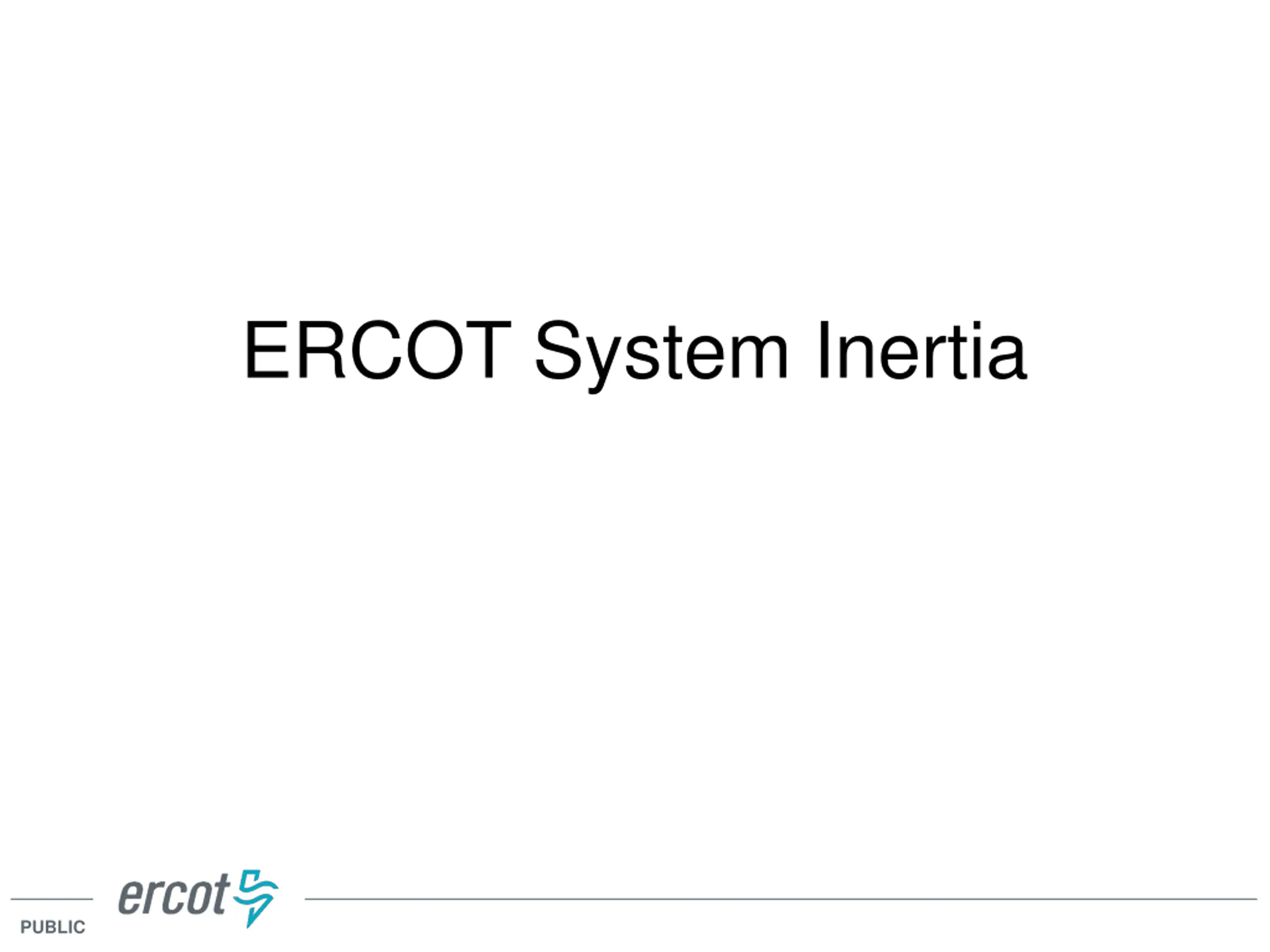

ERCOT System Inertia PUBLIC

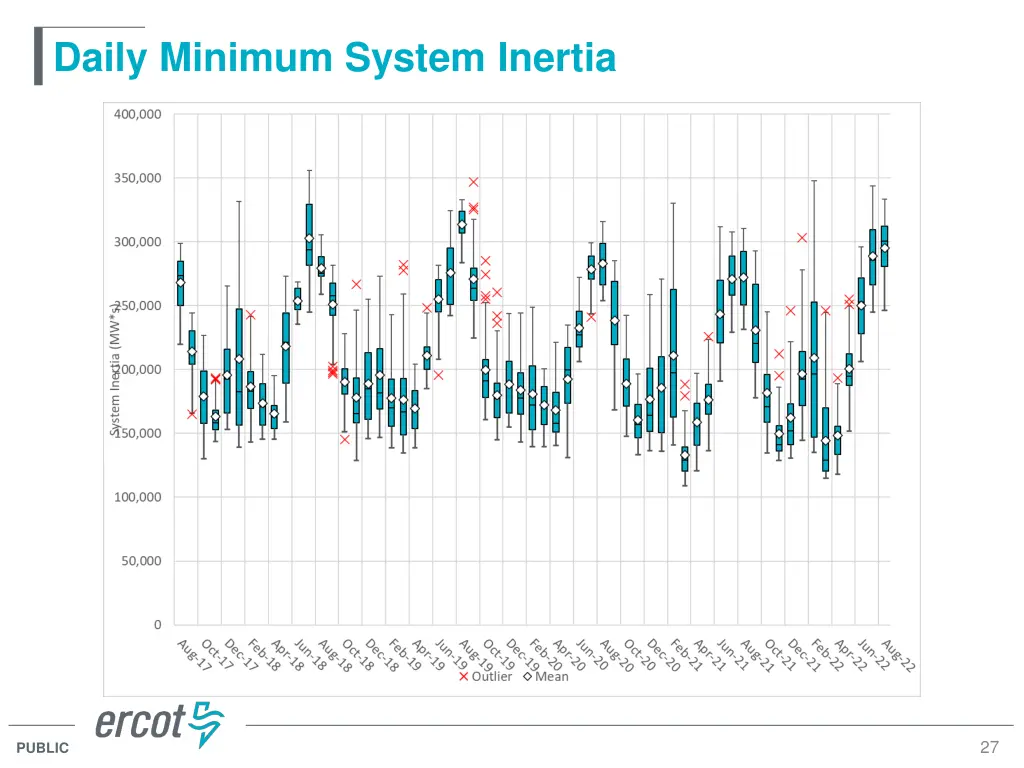

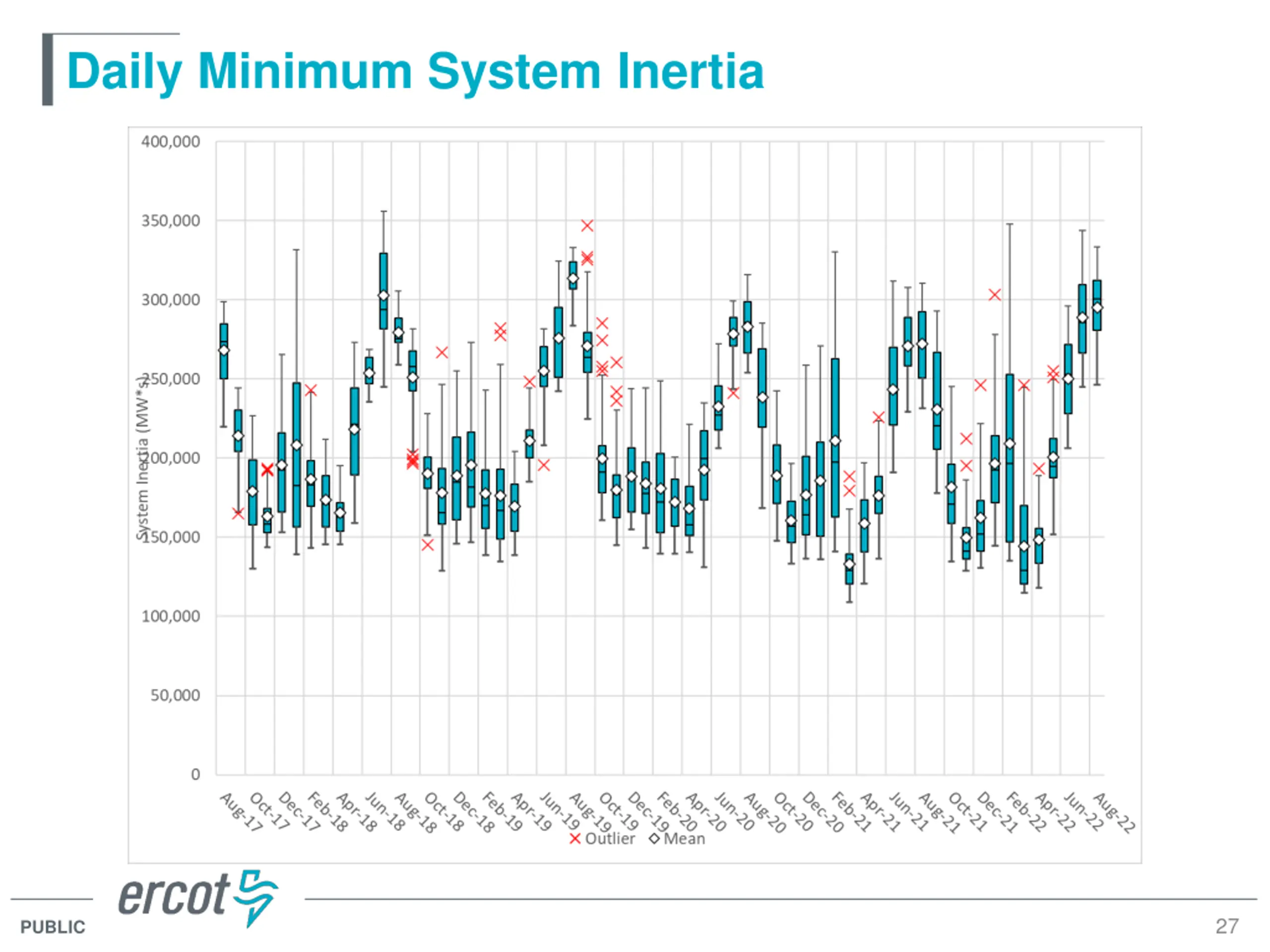

Daily Minimum System Inertia 27 PUBLIC
Questions? Thank you! PUBLIC
