ERCOT Transmission Demand Curve Optimization Proposal
Explore proposed improvements to ERCOT's transmission demand curves, addressing issues with shadow price caps for violations of post-contingency constraints. Learn about the current problem statement, the proposed improvement plan, and an example proposal for a 345kV contingency constraint. See how adjusting shadow price caps can optimize market actions within ERCOT.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

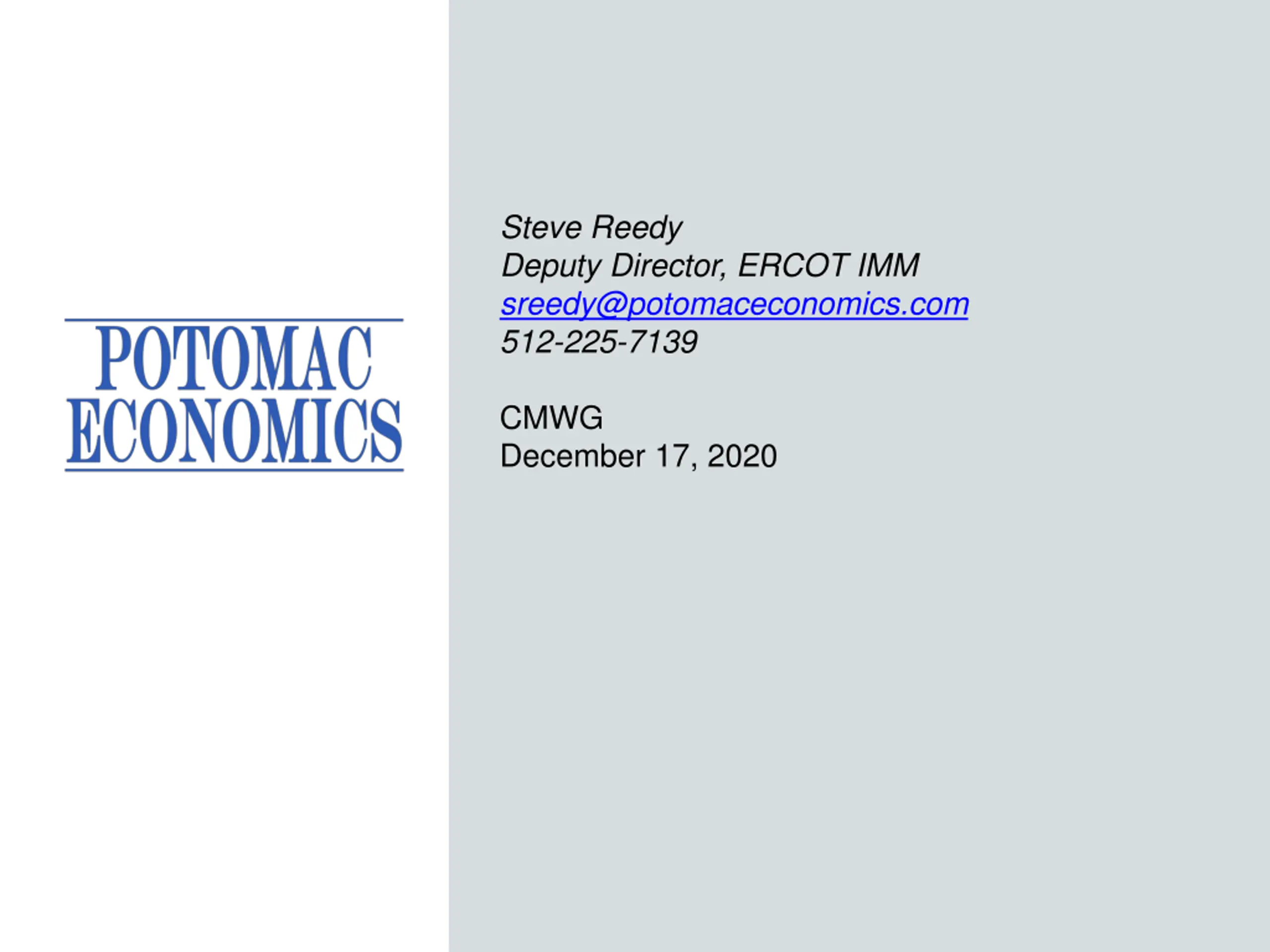

Steve Reedy Deputy Director, ERCOT IMM sreedy@potomaceconomics.com 512-225-7139 CMWG December 17, 2020

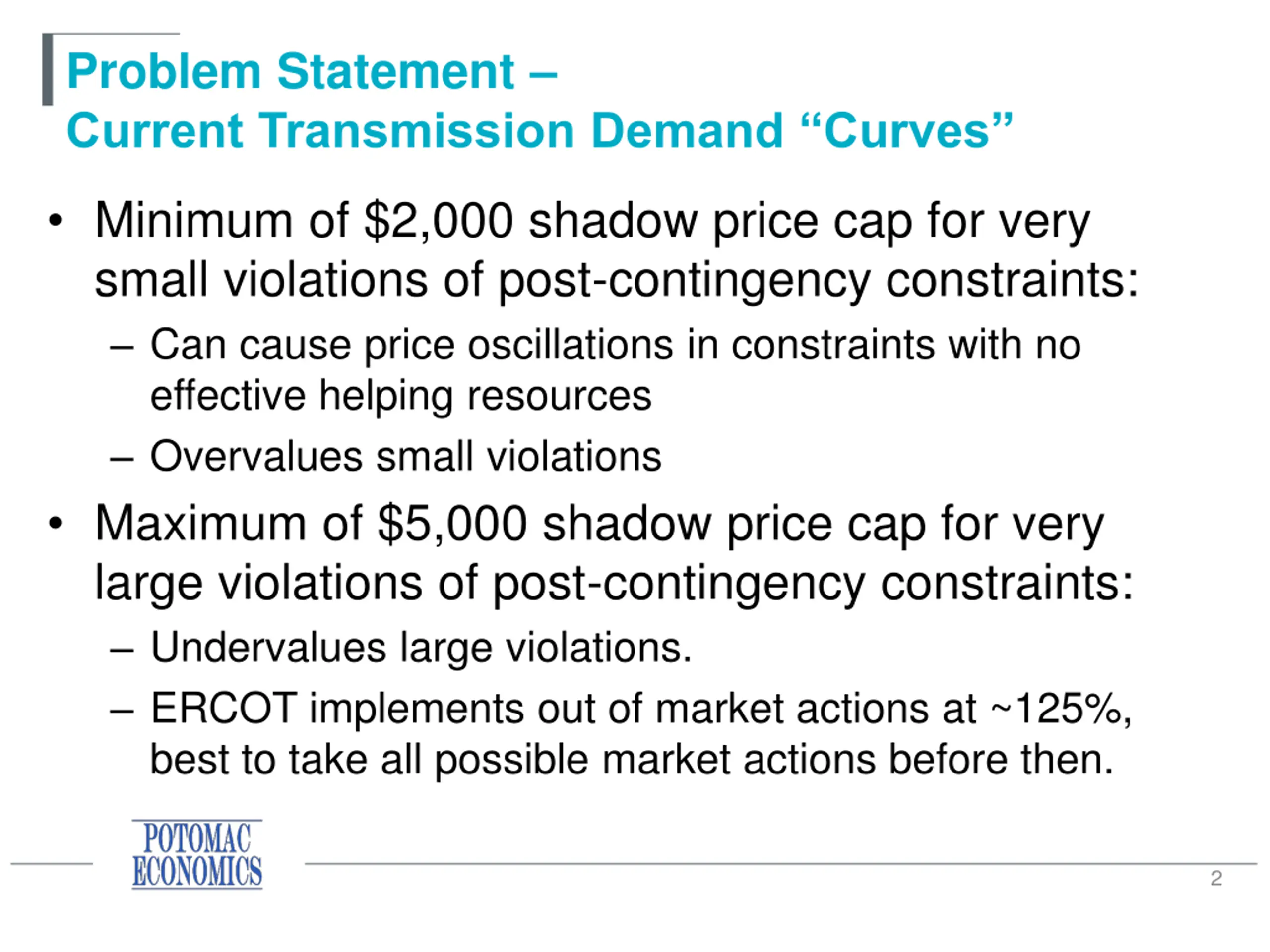

Problem Statement Current Transmission Demand Curves Minimum of $2,000 shadow price cap for very small violations of post-contingency constraints: Can cause price oscillations in constraints with no effective helping resources Overvalues small violations Maximum of $5,000 shadow price cap for very large violations of post-contingency constraints: Undervalues large violations. ERCOT implements out of market actions at ~125%, best to take all possible market actions before then. 2

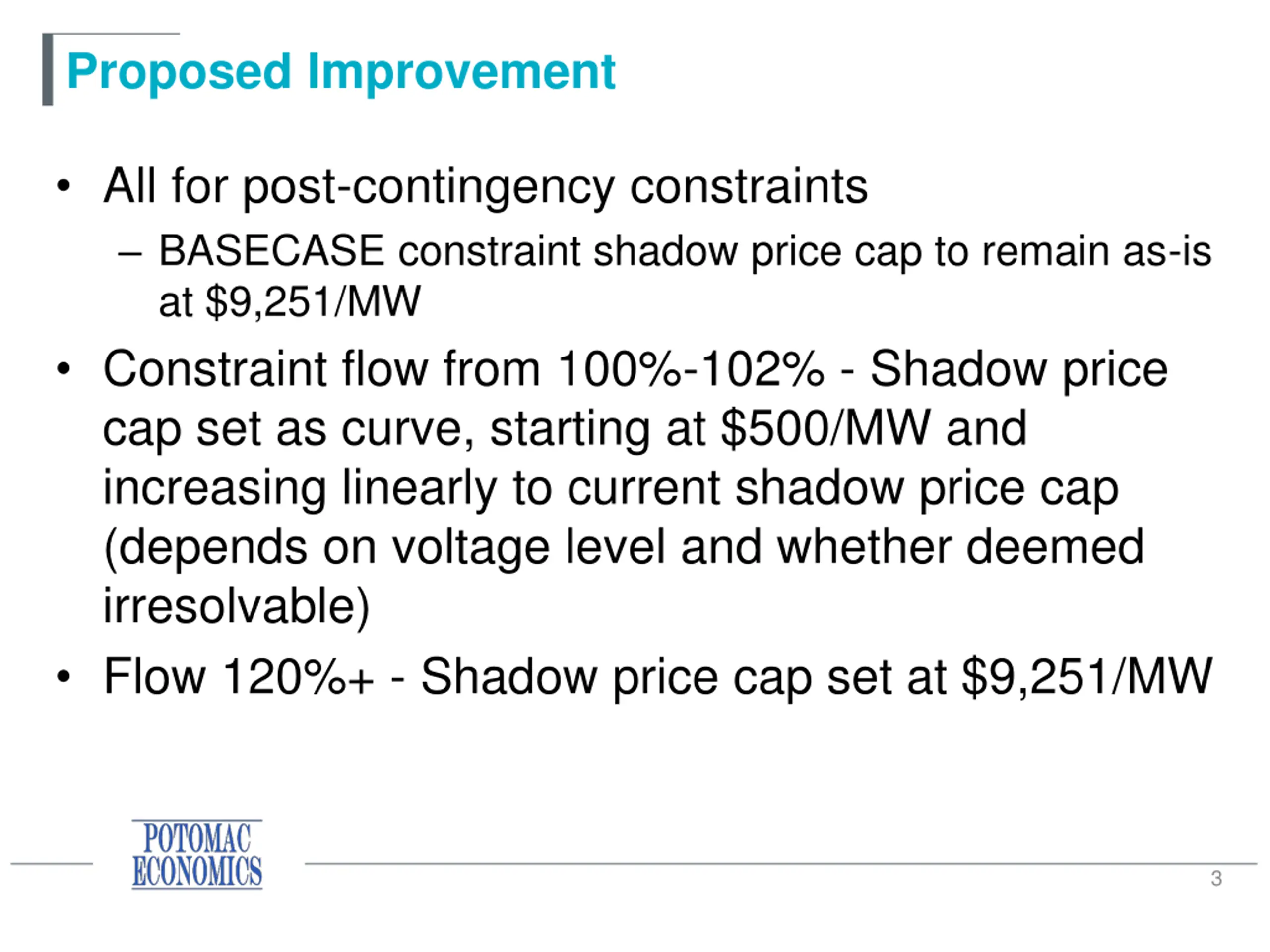

Proposed Improvement All for post-contingency constraints BASECASE constraint shadow price cap to remain as-is at $9,251/MW Constraint flow from 100%-102% - Shadow price cap set as curve, starting at $500/MW and increasing linearly to current shadow price cap (depends on voltage level and whether deemed irresolvable) Flow 120%+ - Shadow price cap set at $9,251/MW 3

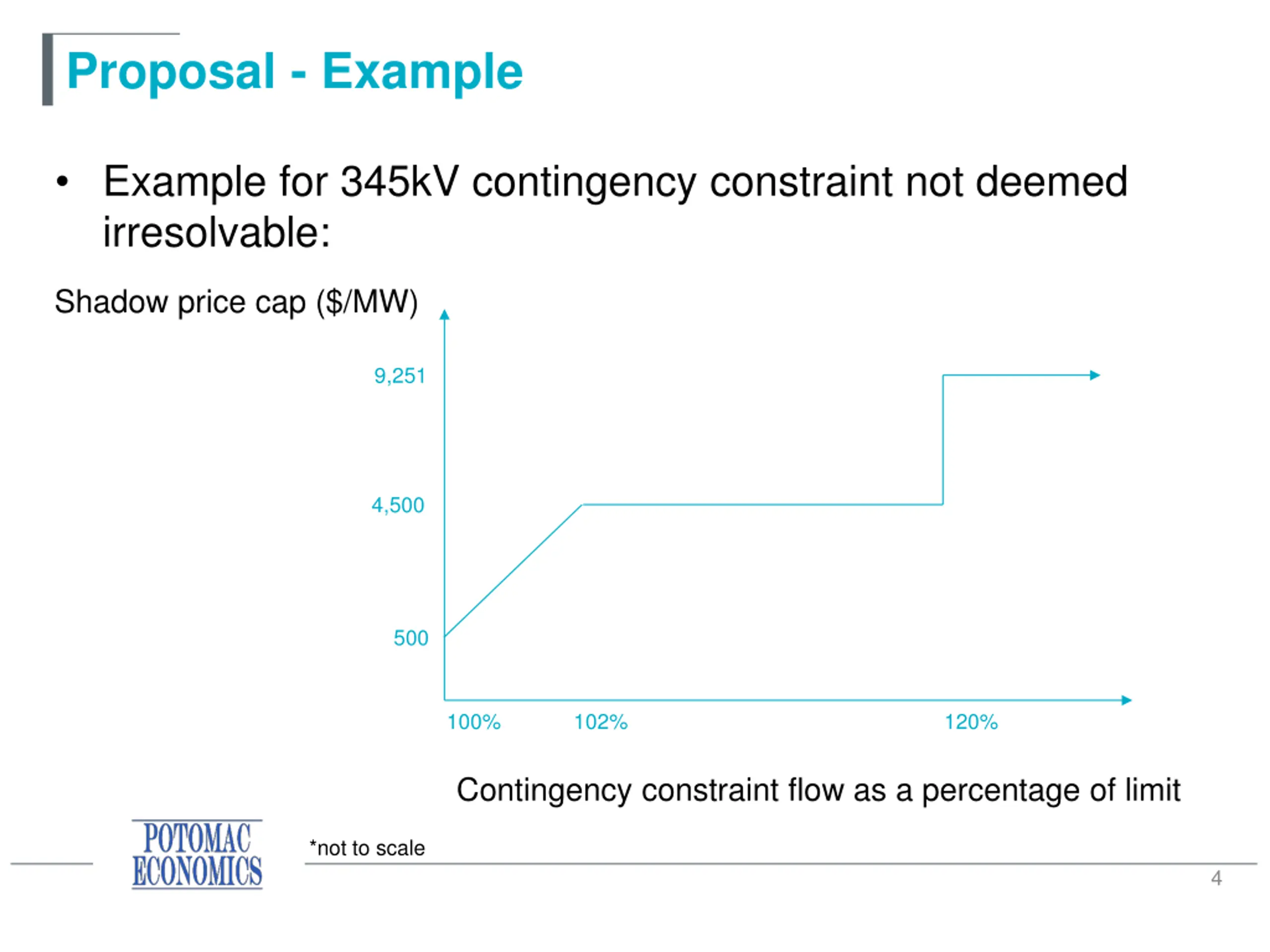

Proposal - Example Example for 345kV contingency constraint not deemed irresolvable: Shadow price cap ($/MW) 9,251 4,500 500 100% 102% 120% Contingency constraint flow as a percentage of limit *not to scale 4
