EEL 5245 POWER ELECTRONICS I Lecture #21 Examples of Ripple in 4th order DC-DC Converters

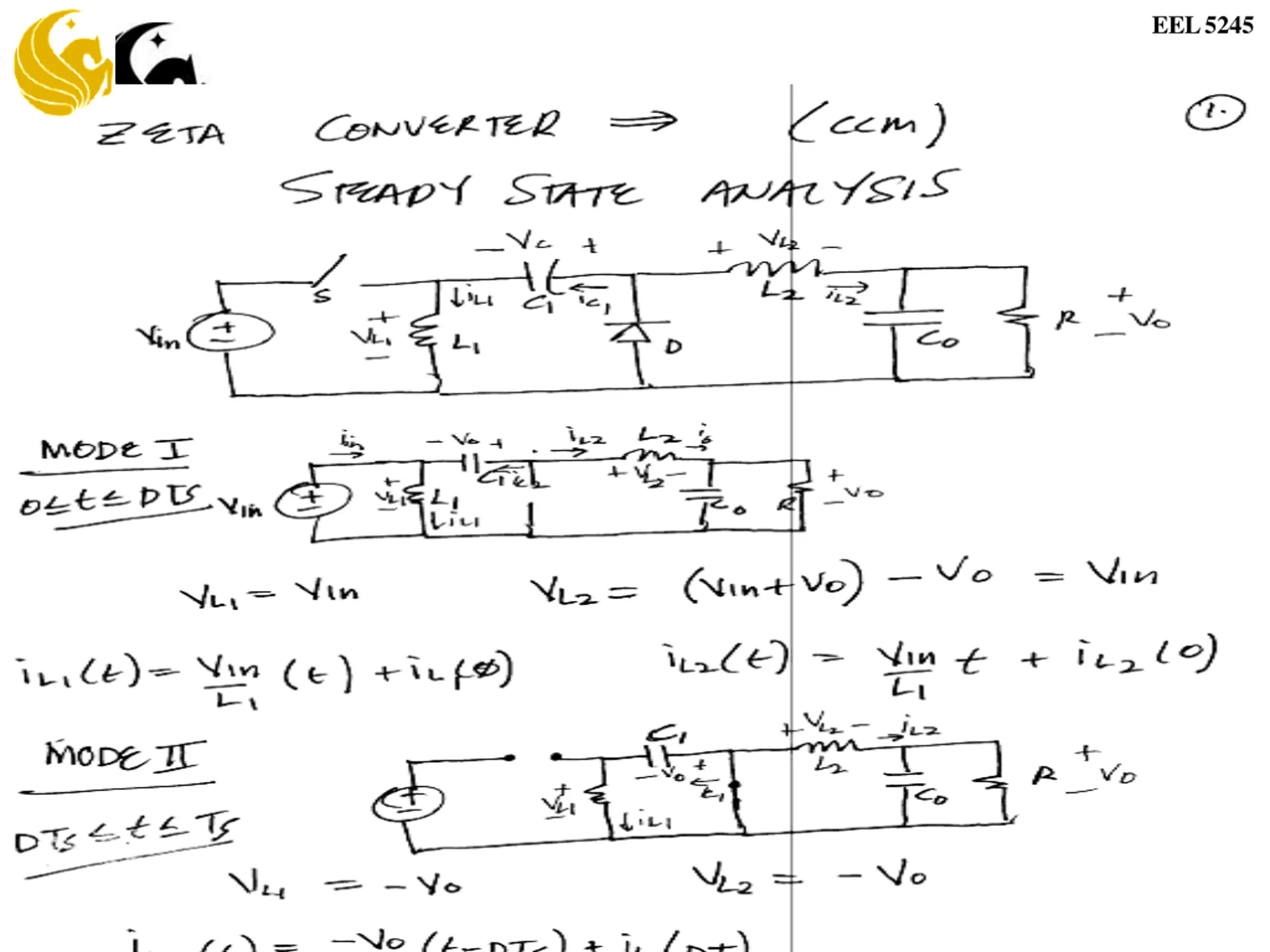

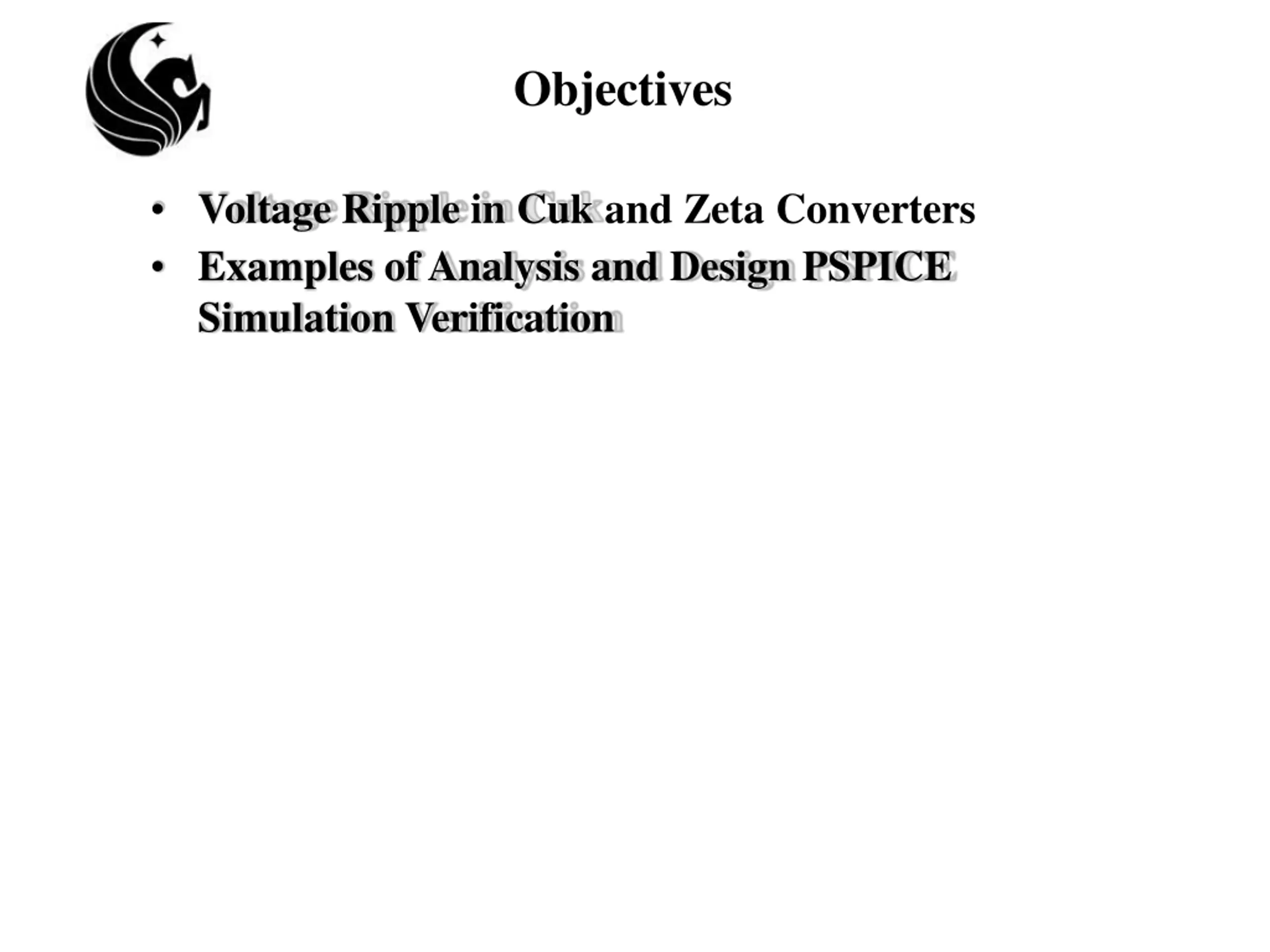

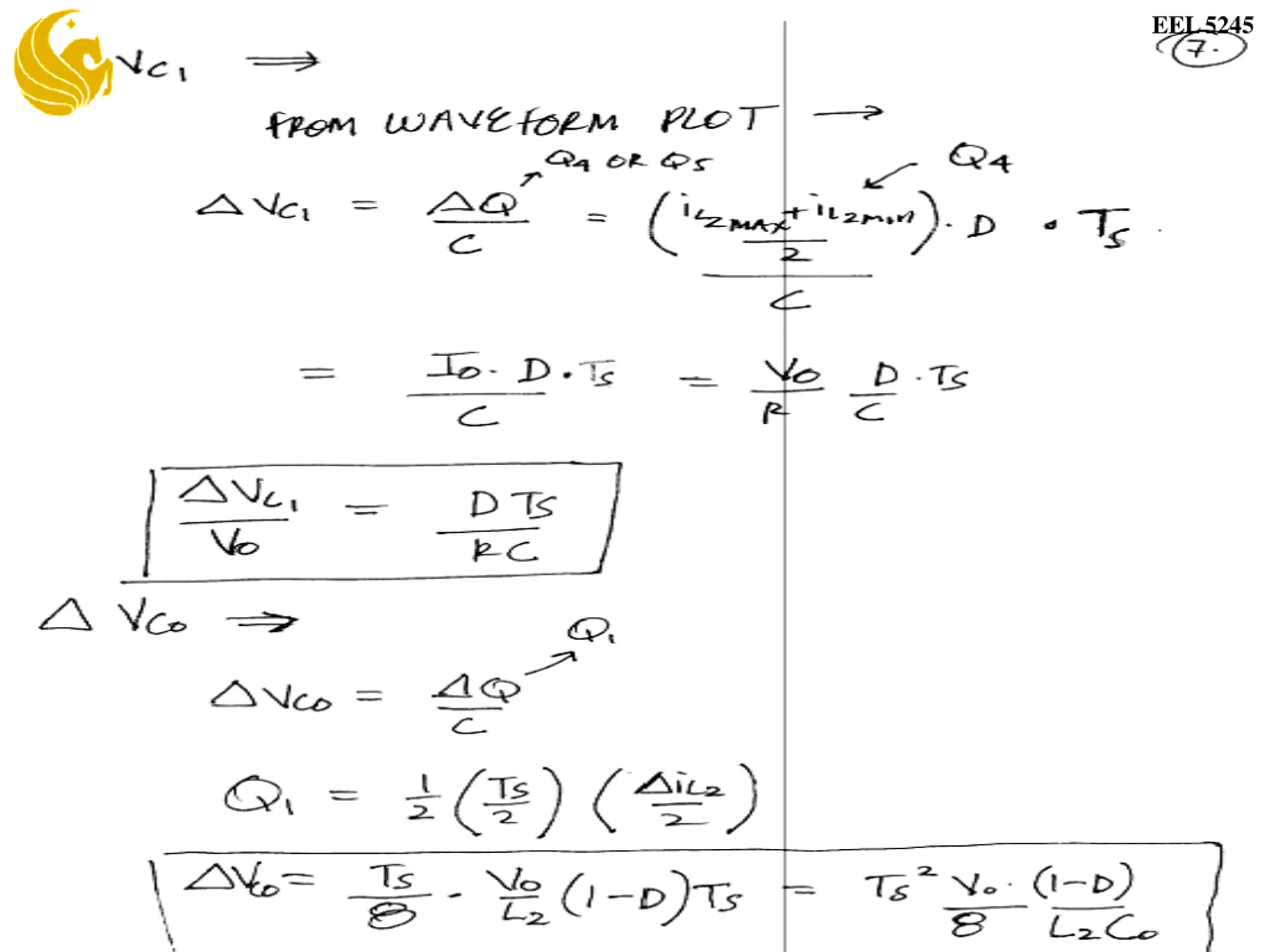

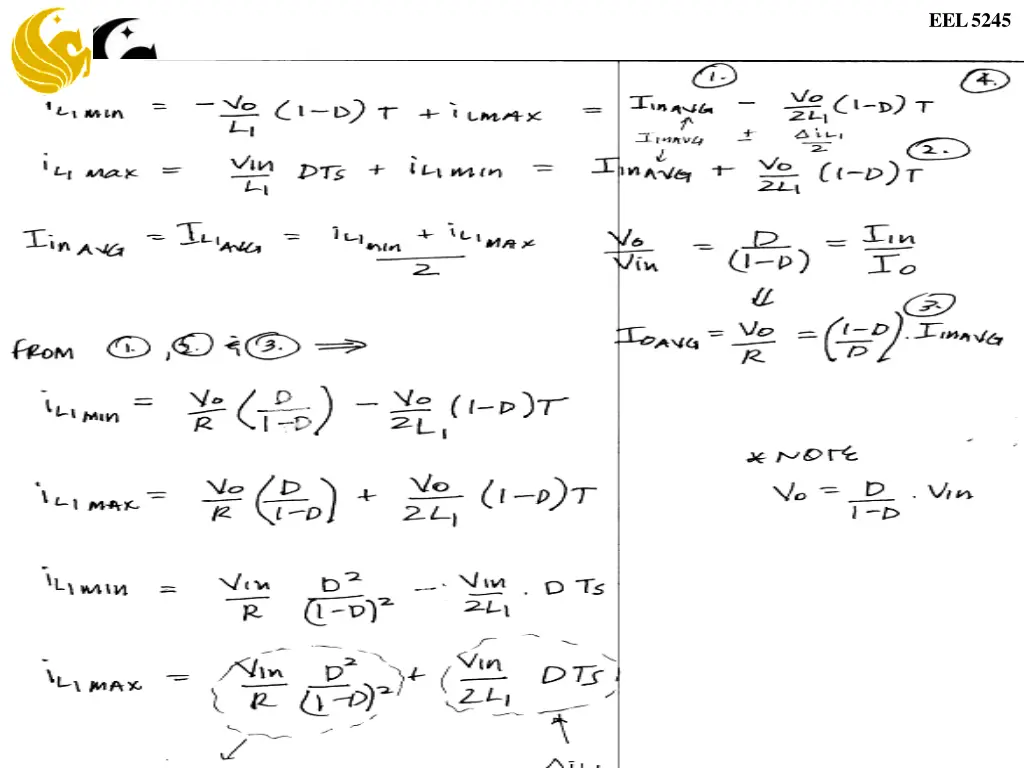

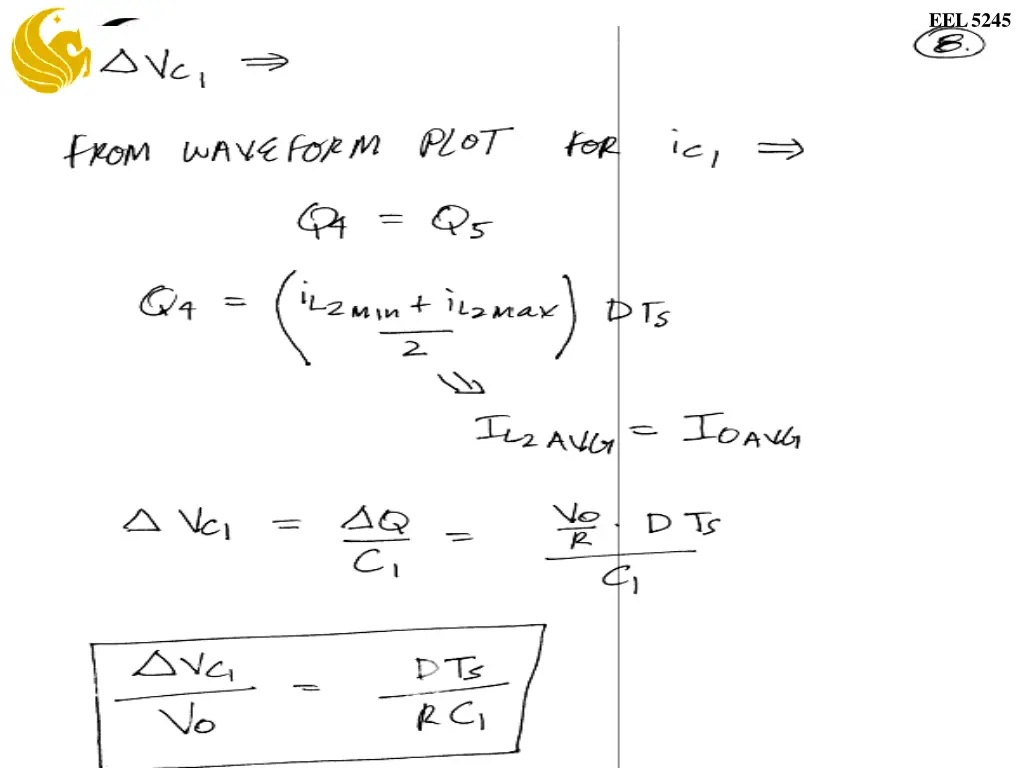

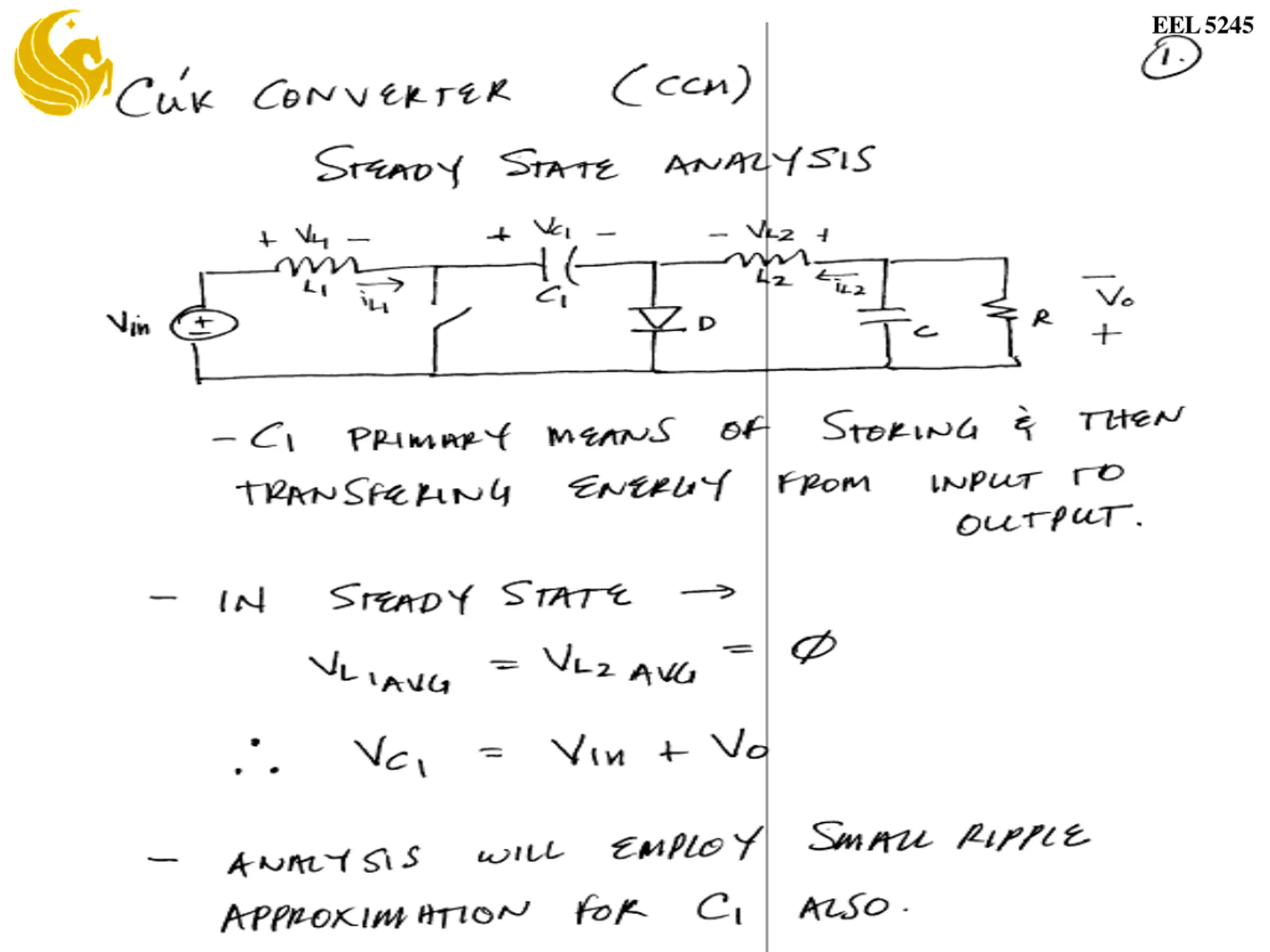

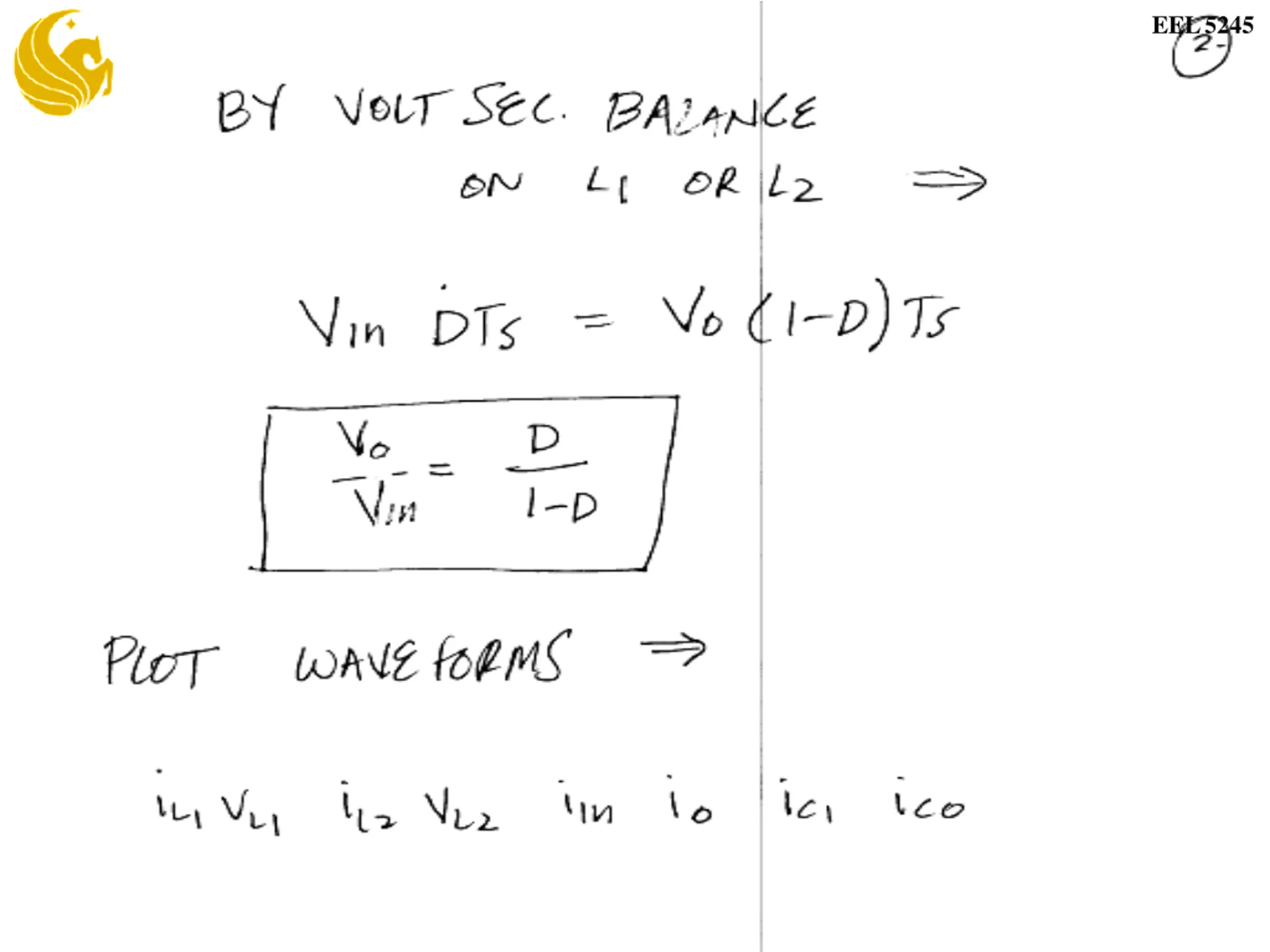

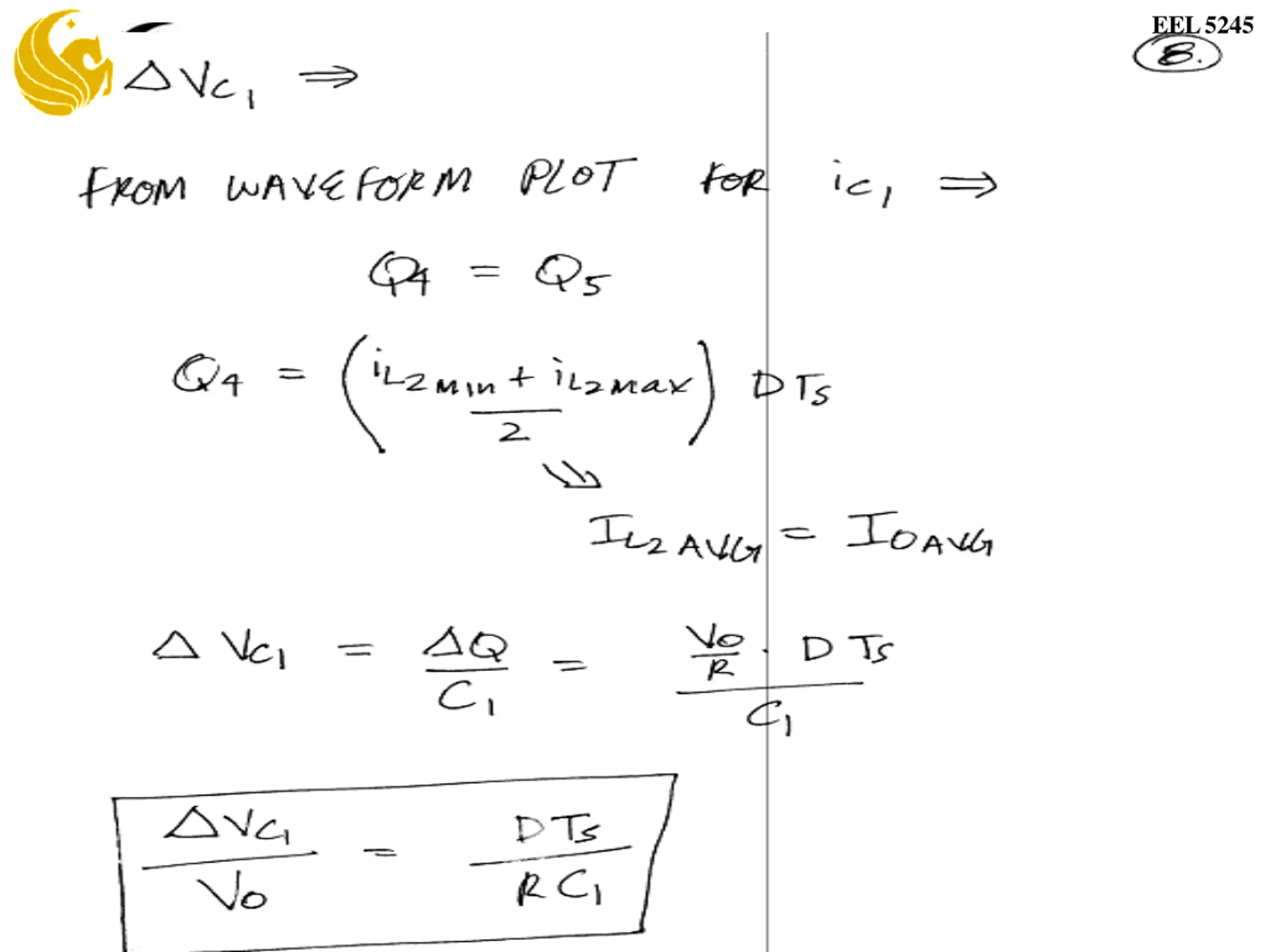

Objectives Voltage Ripple in Cuk and Zeta Converters Examples of Analysis and Design PSPICE Simulation Verification
