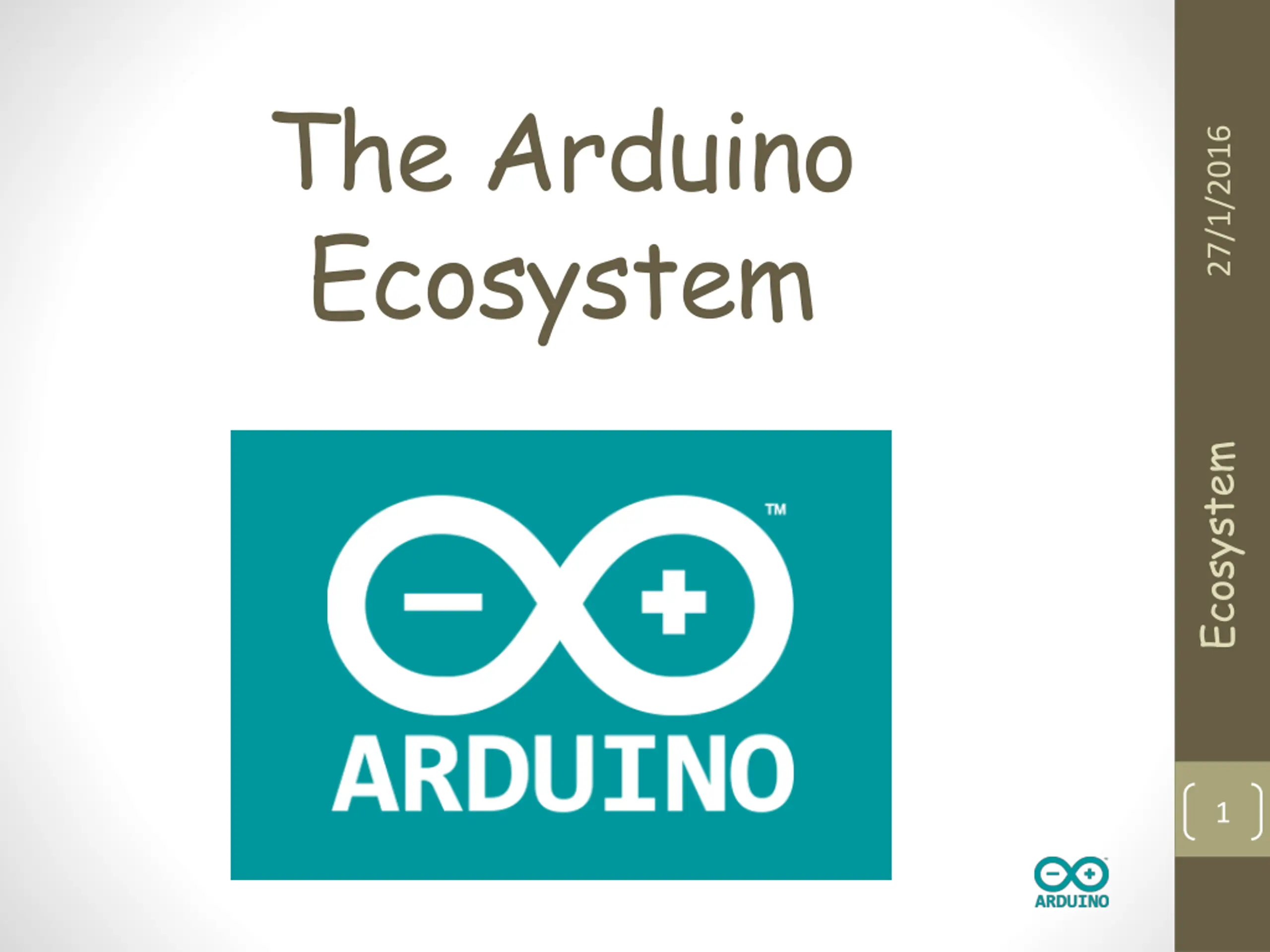

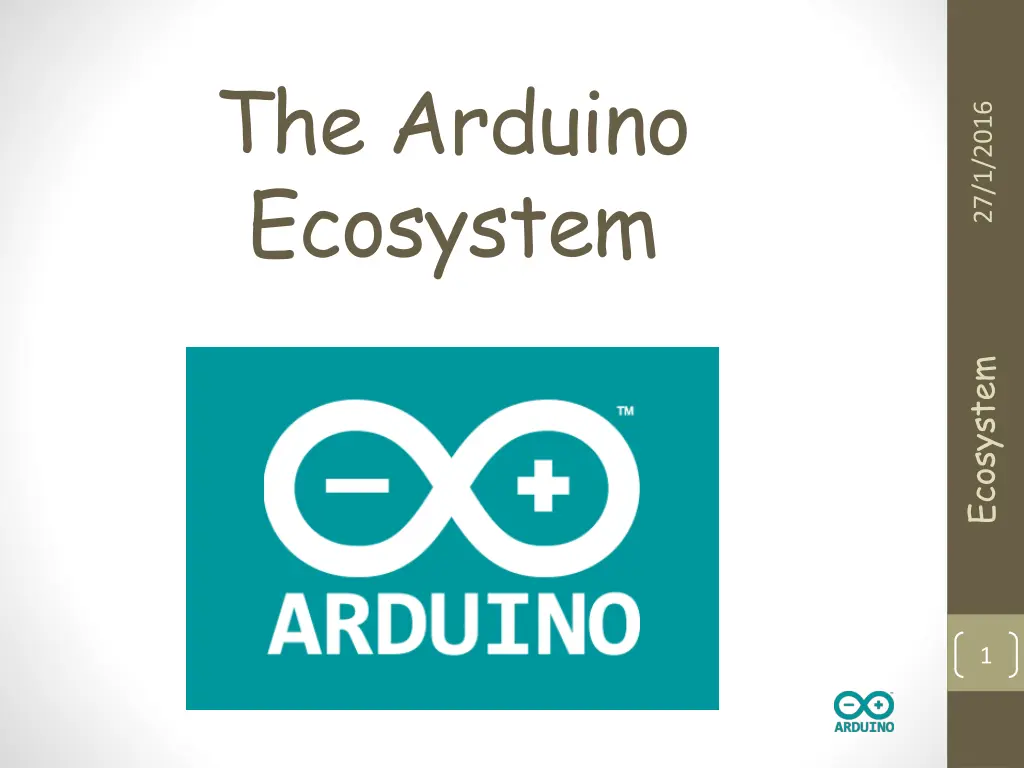

The Arduino Ecosystem 27/1/2016 Ecosystem 1

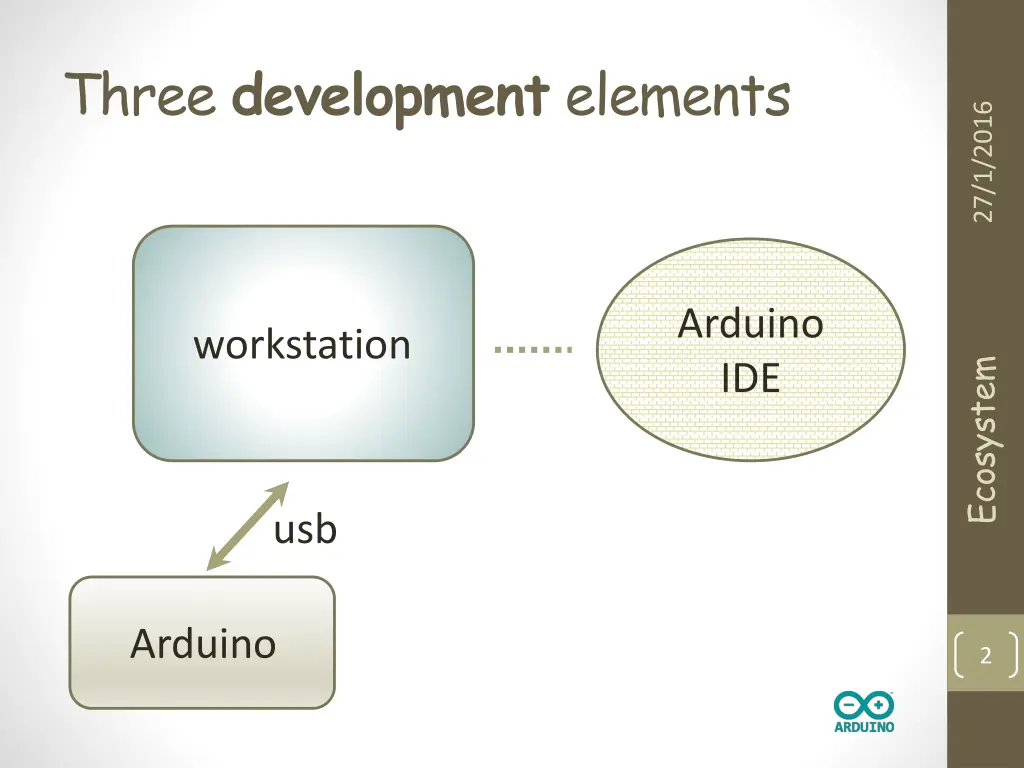

Three development elements 27/1/2016 Arduino IDE workstation Ecosystem usb Arduino 2

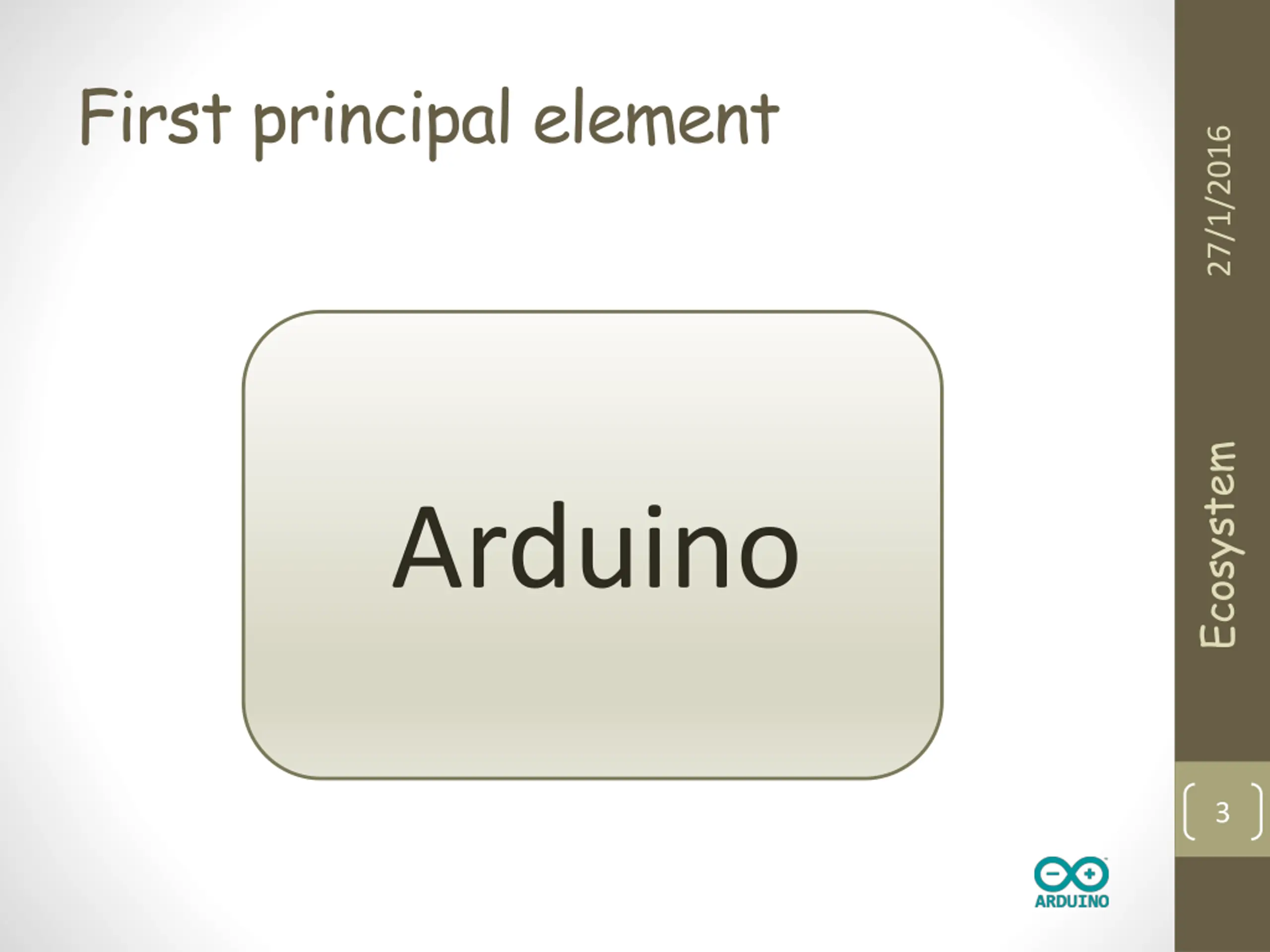

First principal element 27/1/2016 Ecosystem Arduino 3

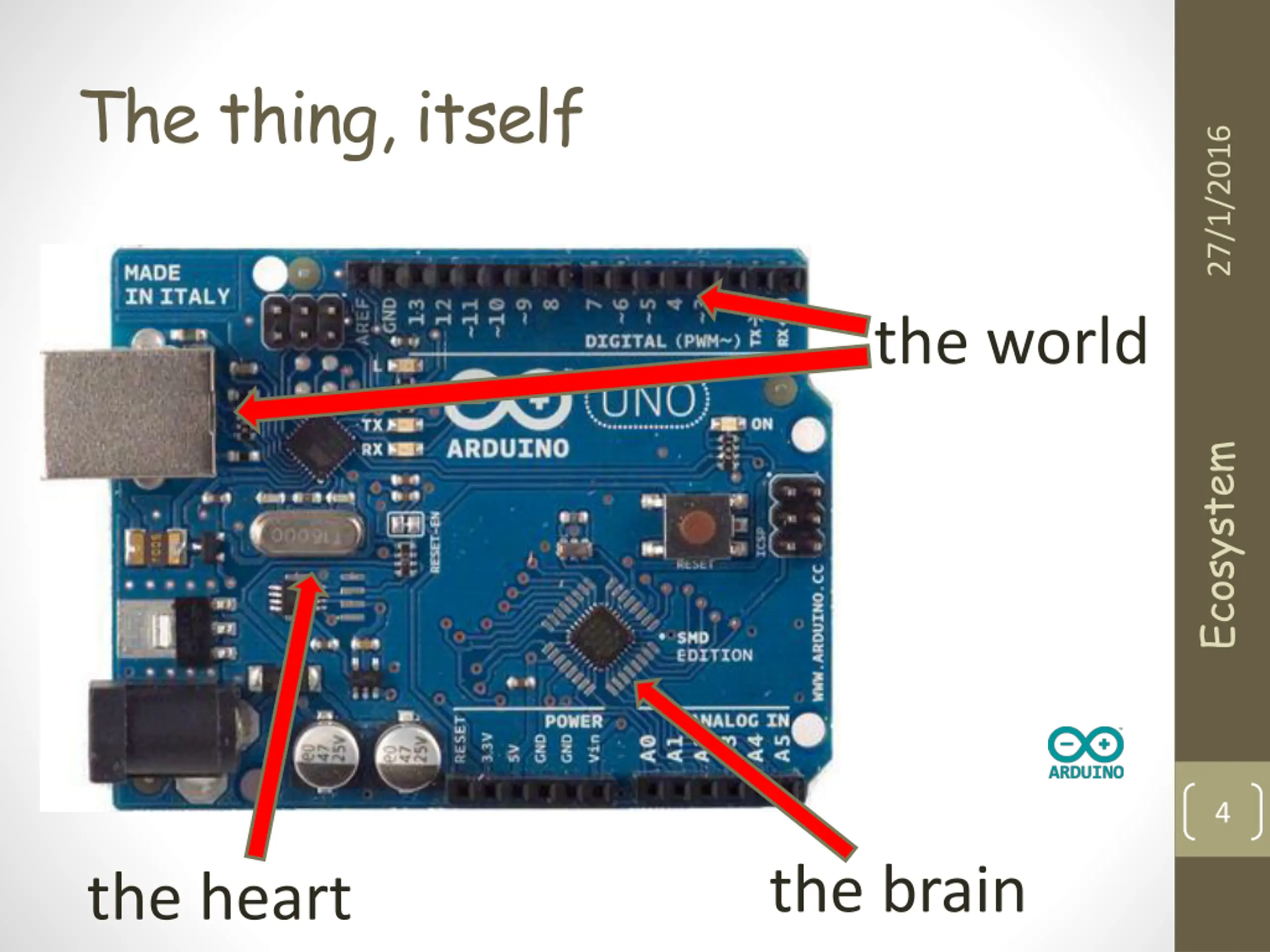

The thing, itself 27/1/2016 the world Ecosystem 4 the brain the heart

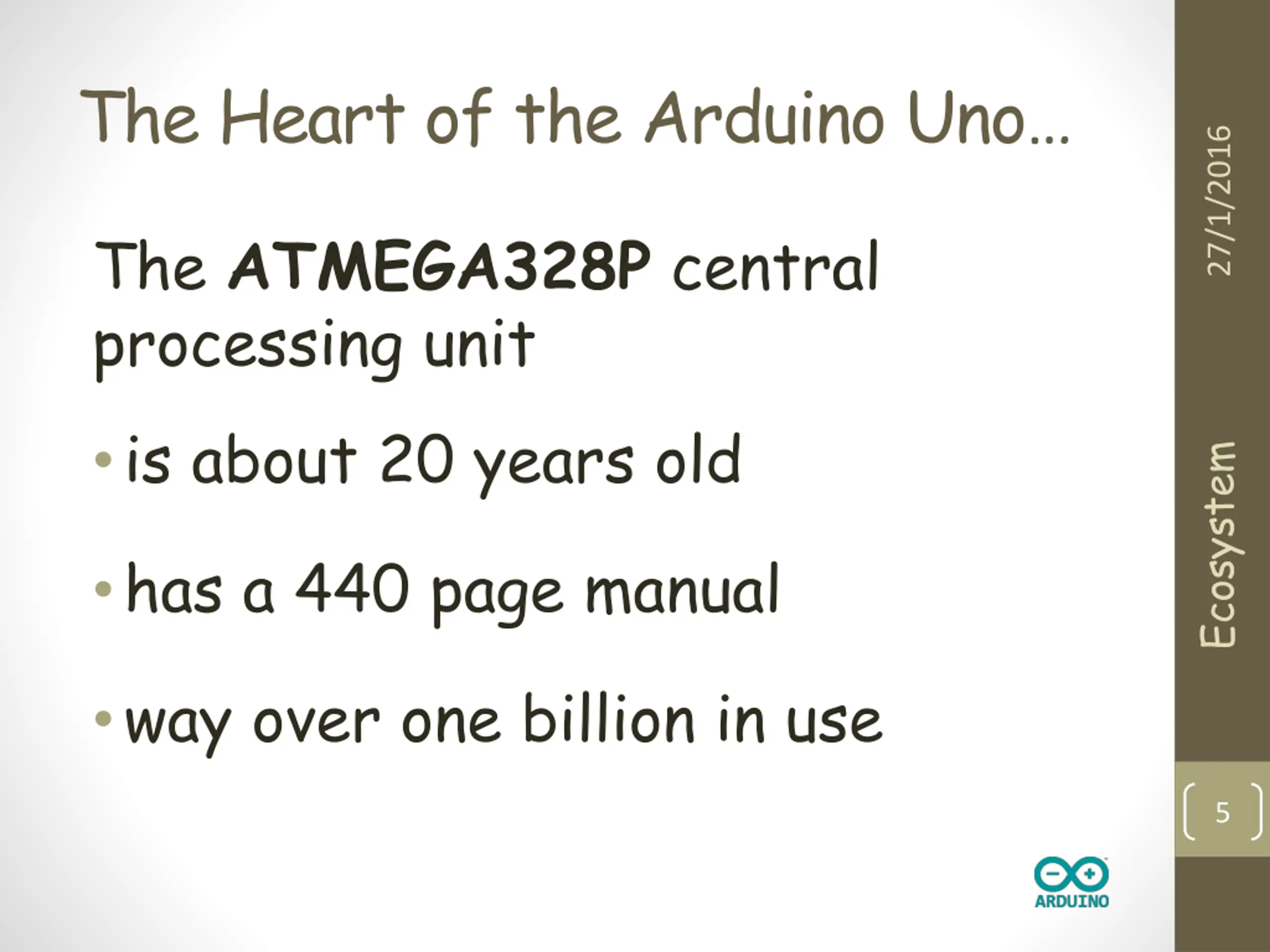

The Heart of the Arduino Uno 27/1/2016 The ATMEGA328P central processing unit is about 20 years old Ecosystem has a 440 page manual way over one billion in use 5
The Heart of the Arduino Uno 27/1/2016 Ecosystem 6
Rough Speed Comparisons 27/1/2016 Year Processor MIPS 10 5 mid-Paleo brain evolved 1989 Intel i386DX Atmel AVR ( C) Intel Core i7 0.1 PC 1996 2011 16 105 1010 Arduino PC Ecosystem 2011 Fujitsu K 88,000 chips 705,024 cores 7
Arduino Hardware Precautions 27/1/2016 10-20 different Arduino models depends on how you count differing maximum input voltages 3.3V and 5V pinout variations somewhat standardized but have to be checked for each Arduino model Ecosystem 8

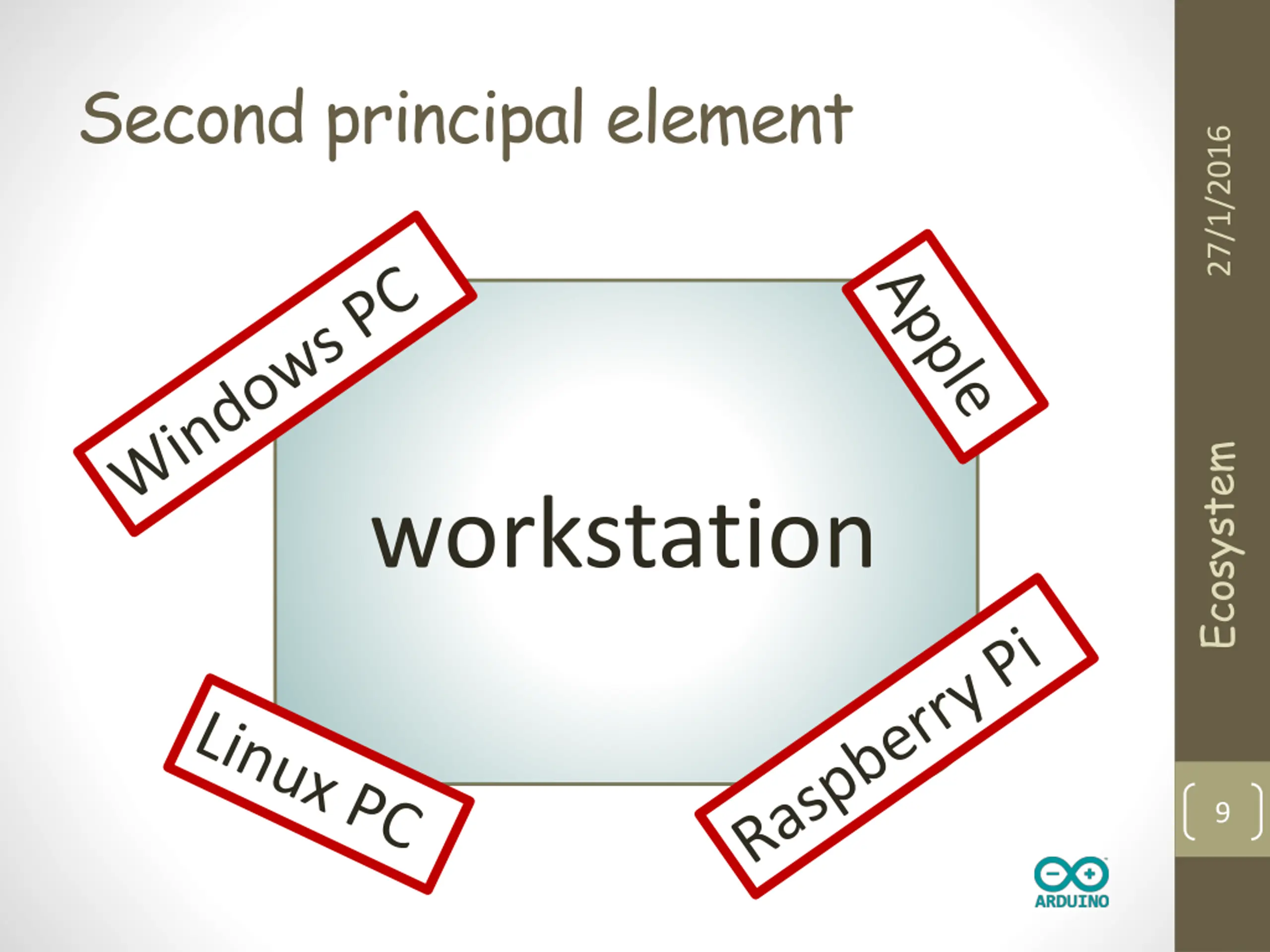

Second principal element 27/1/2016 Ecosystem workstation 9

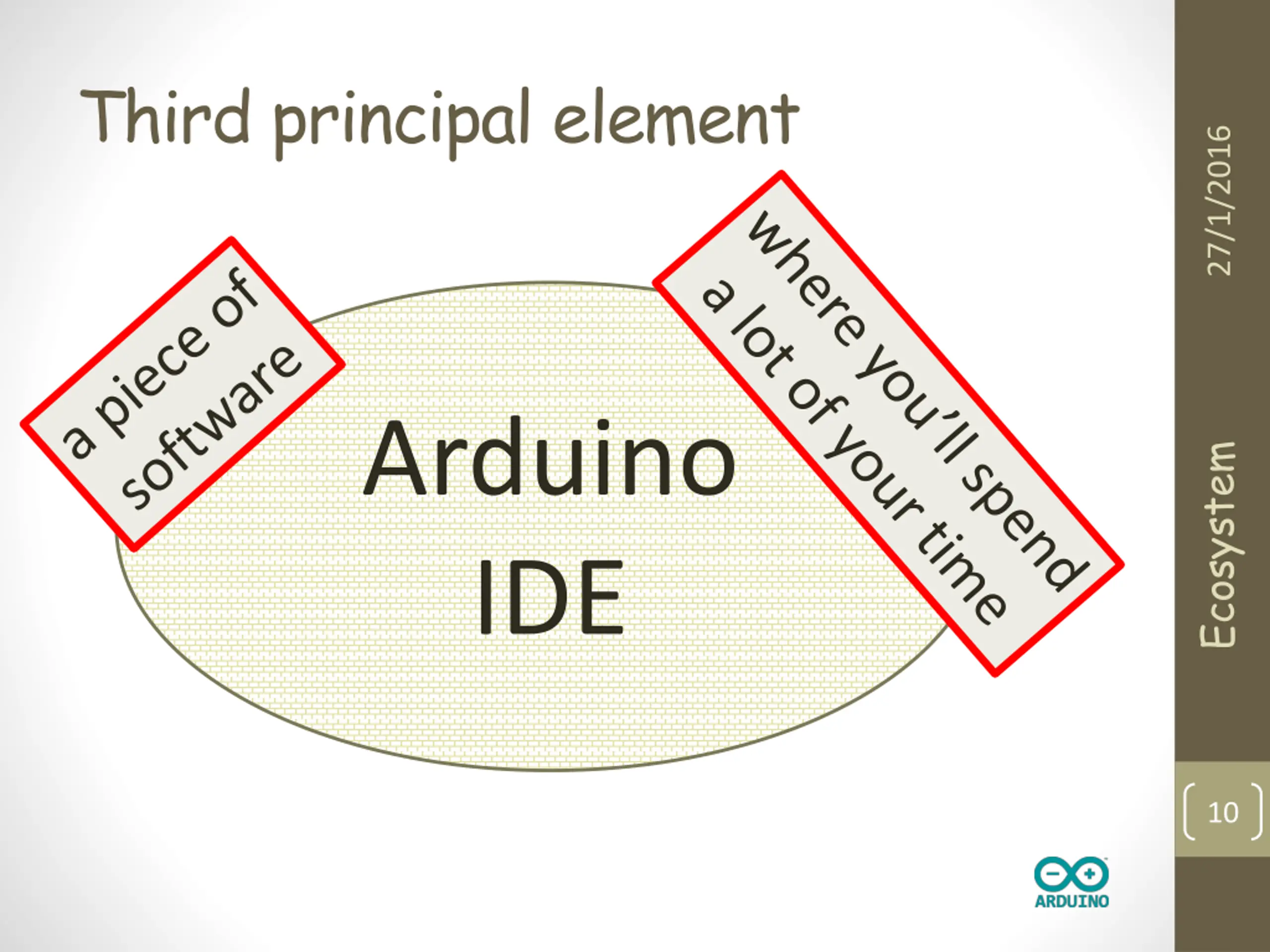

Third principal element 27/1/2016 Arduino IDE Ecosystem 10
27/1/2016 Ecosystem 11

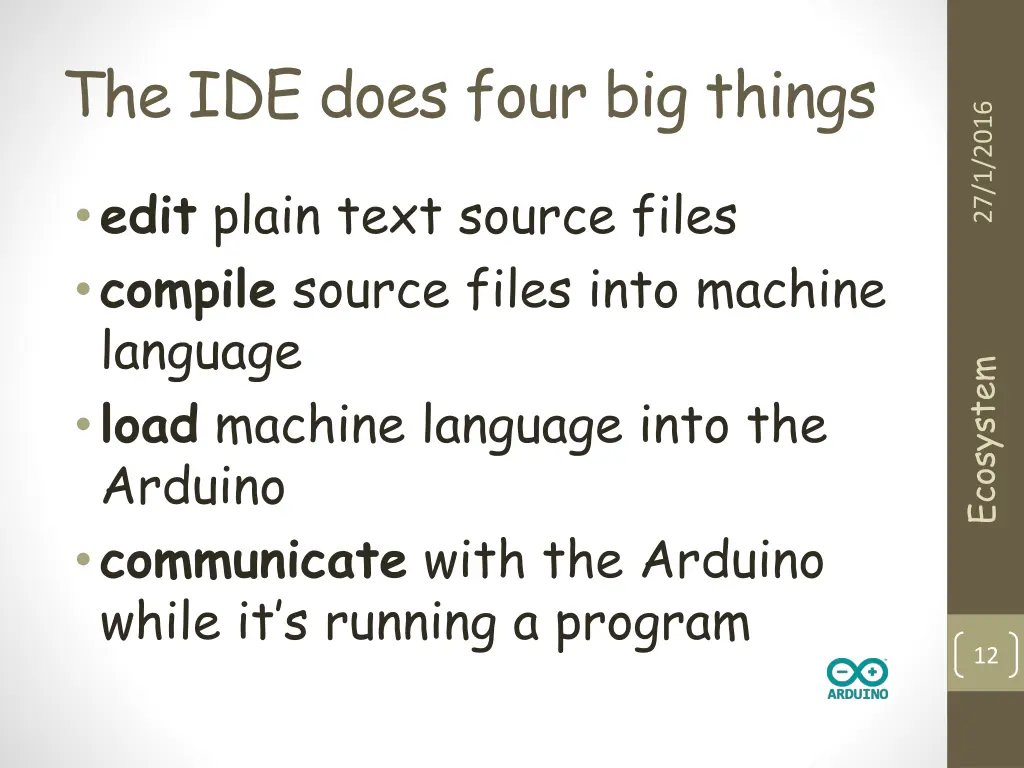

The IDE does four big things 27/1/2016 edit plain text source files compile source files into machine language load machine language into the Arduino communicate with the Arduino while it s running a program Ecosystem 12

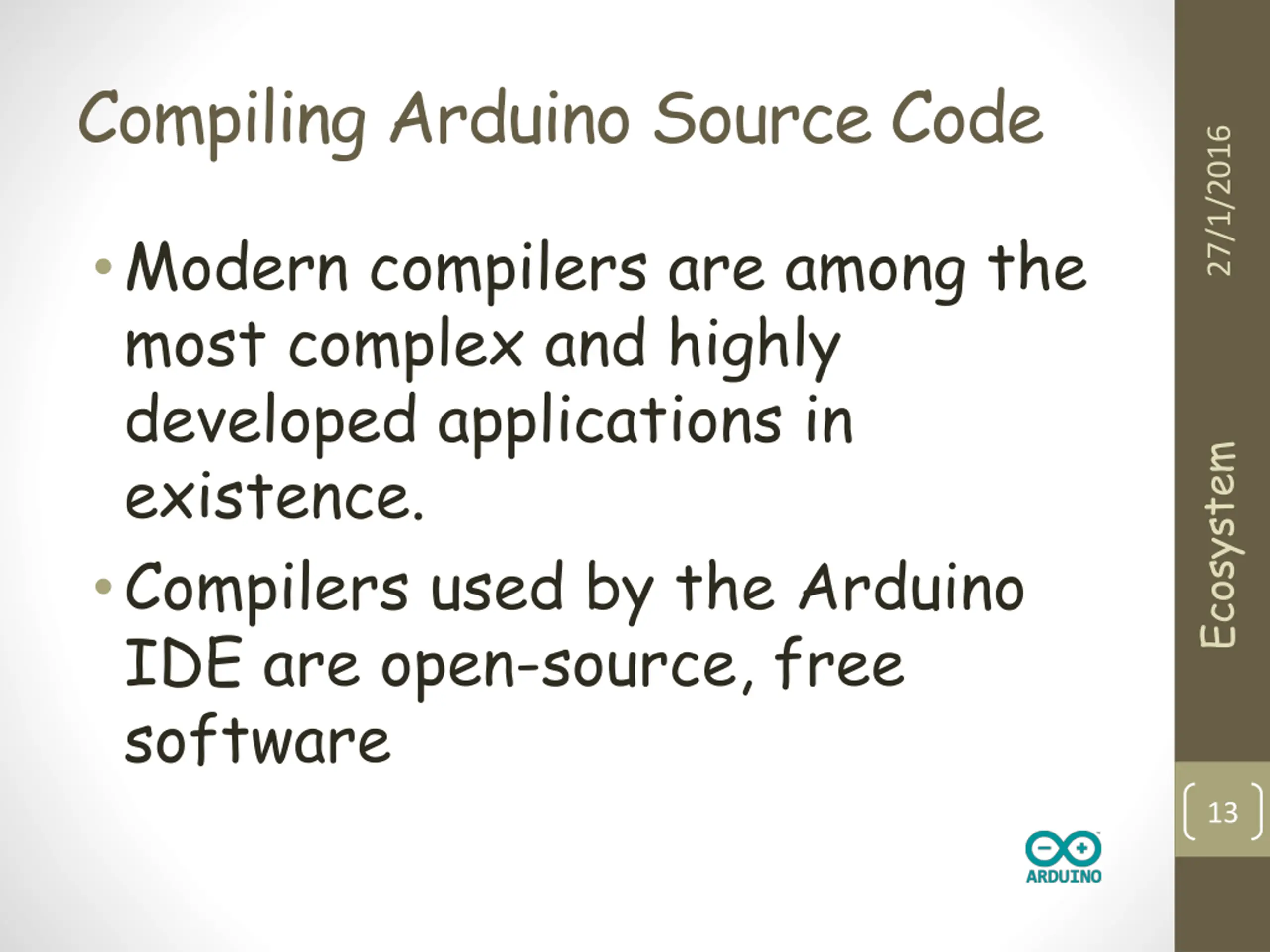

Compiling Arduino Source Code 27/1/2016 Modern compilers are among the most complex and highly developed applications in existence. Compilers used by the Arduino IDE are open-source, free software Ecosystem 13

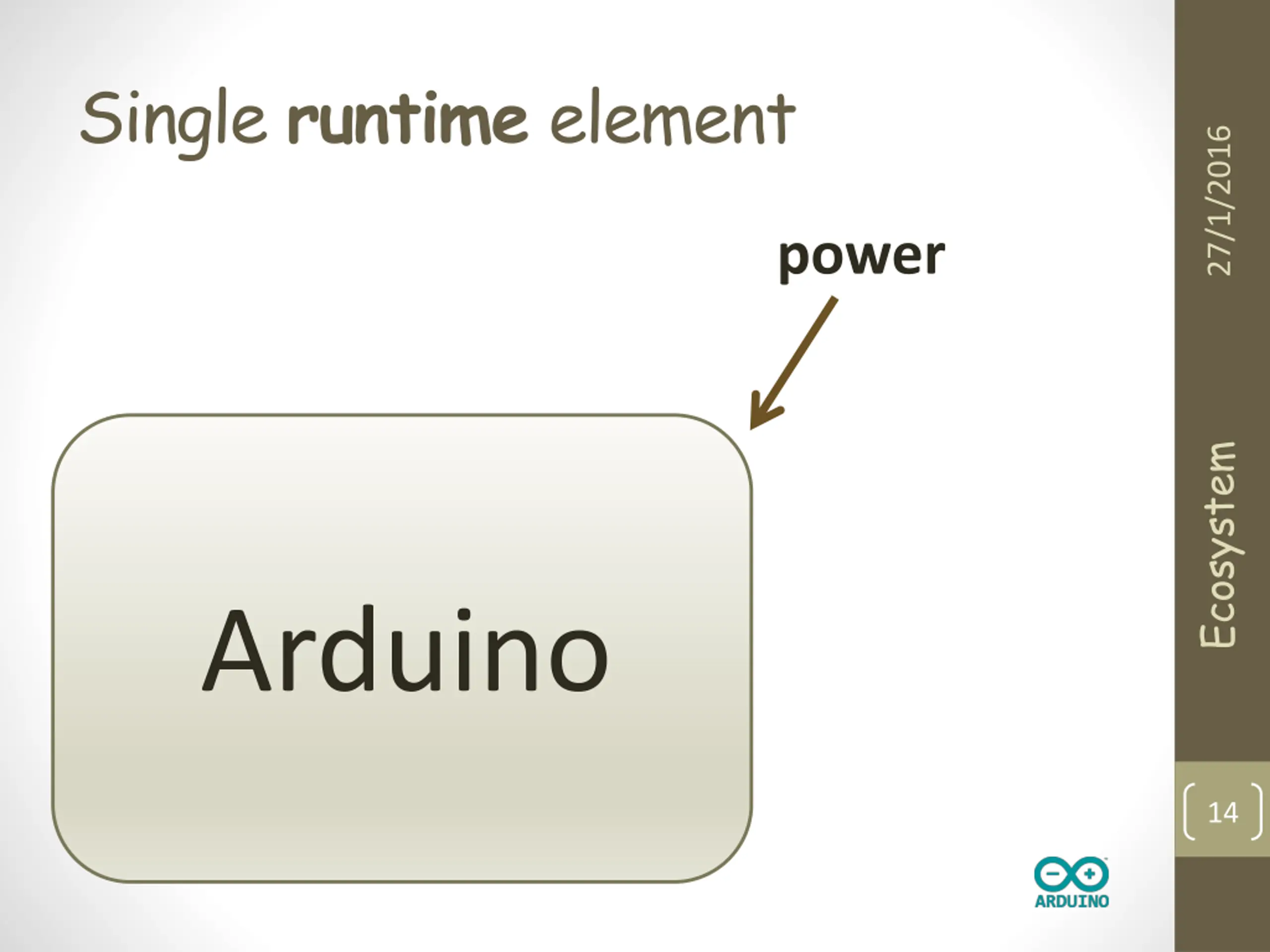

Single runtime element 27/1/2016 power Ecosystem Arduino 14

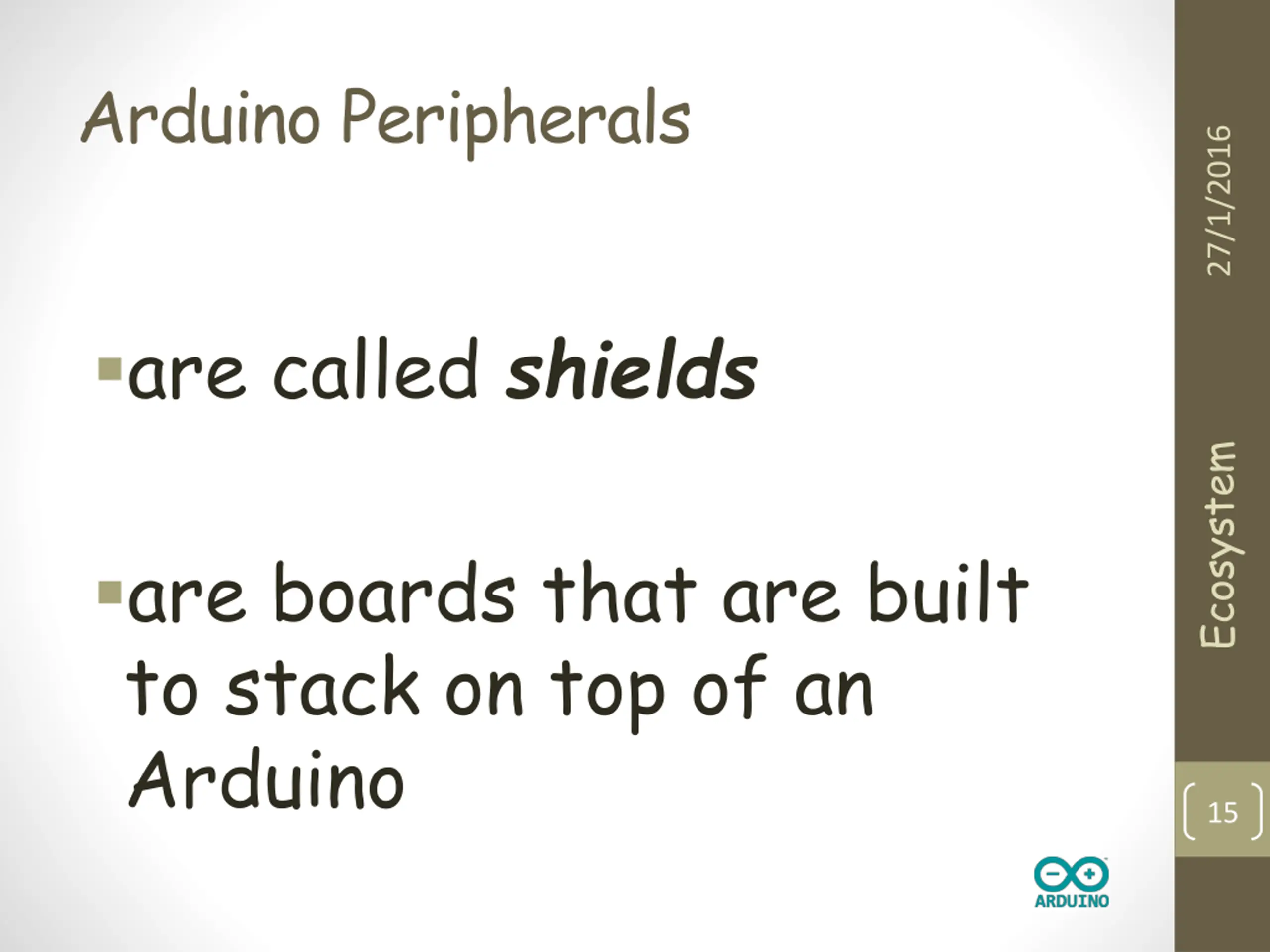

Arduino Peripherals 27/1/2016 are called shields Ecosystem are boards that are built to stack on top of an Arduino 15

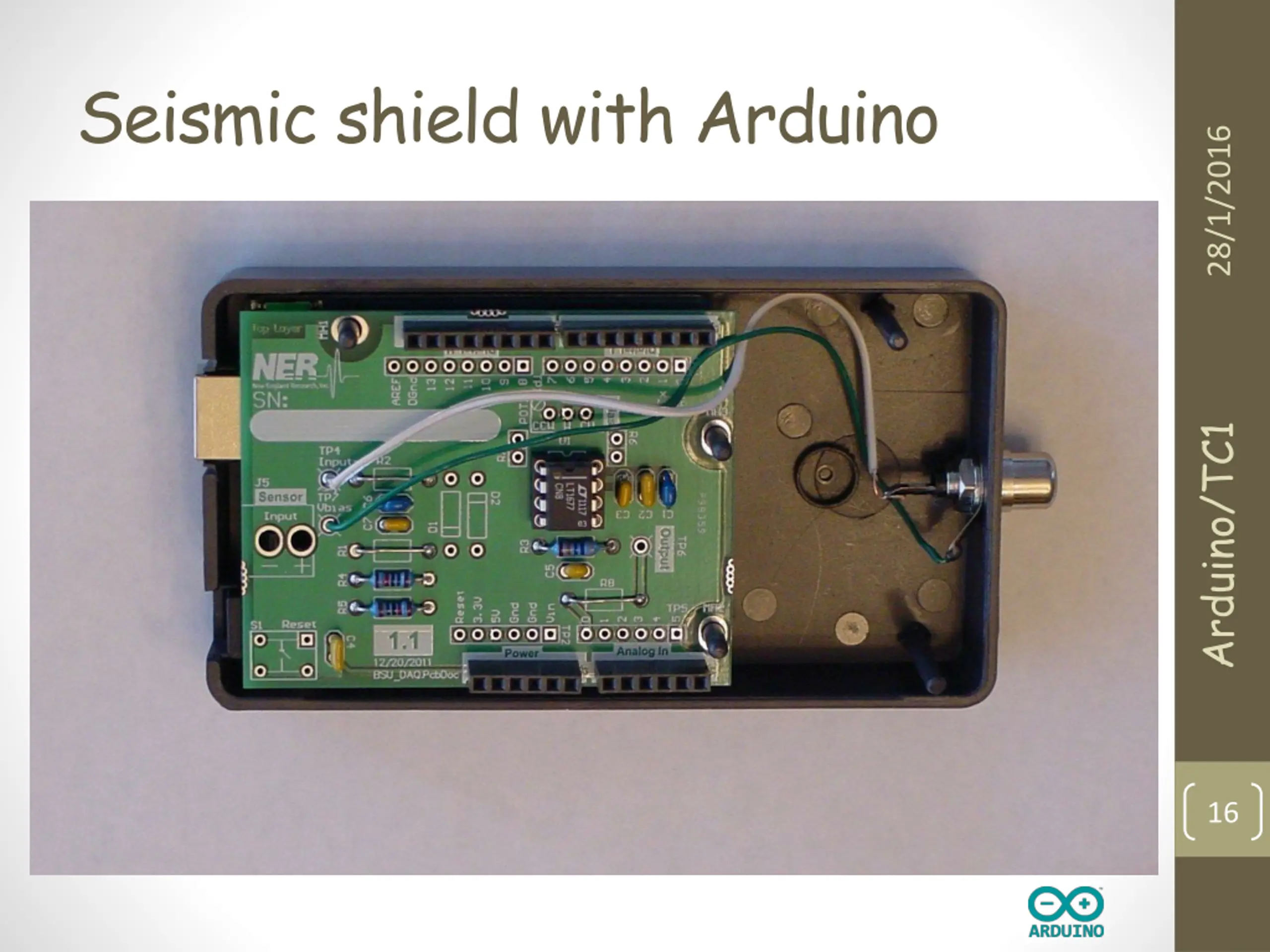

Seismic shield with Arduino 28/1/2016 Arduino/TC1 16

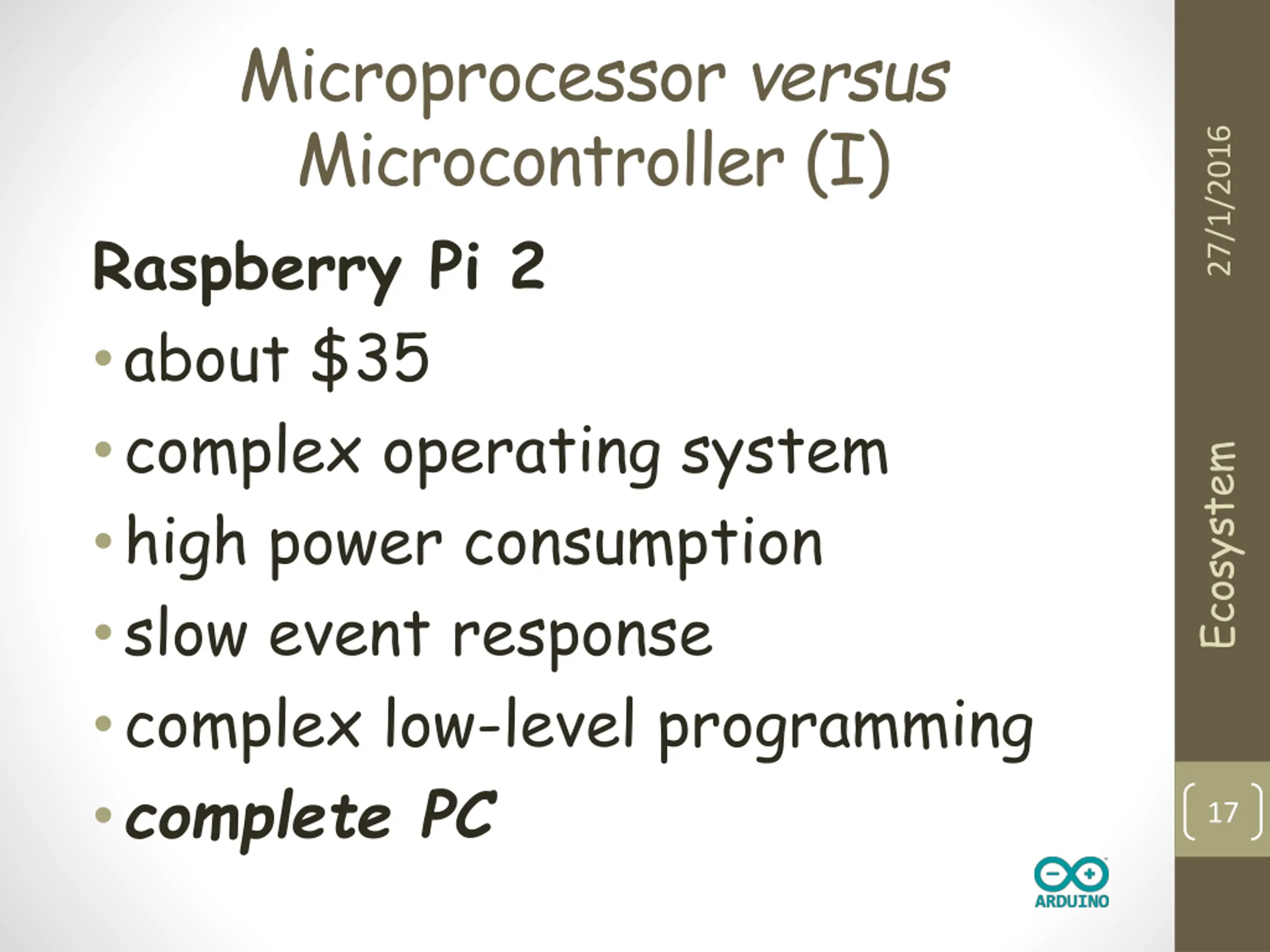

Microprocessor versus Microcontroller (I) Raspberry Pi 2 about $35 complex operating system high power consumption slow event response complex low-level programming complete PC 27/1/2016 Ecosystem 17

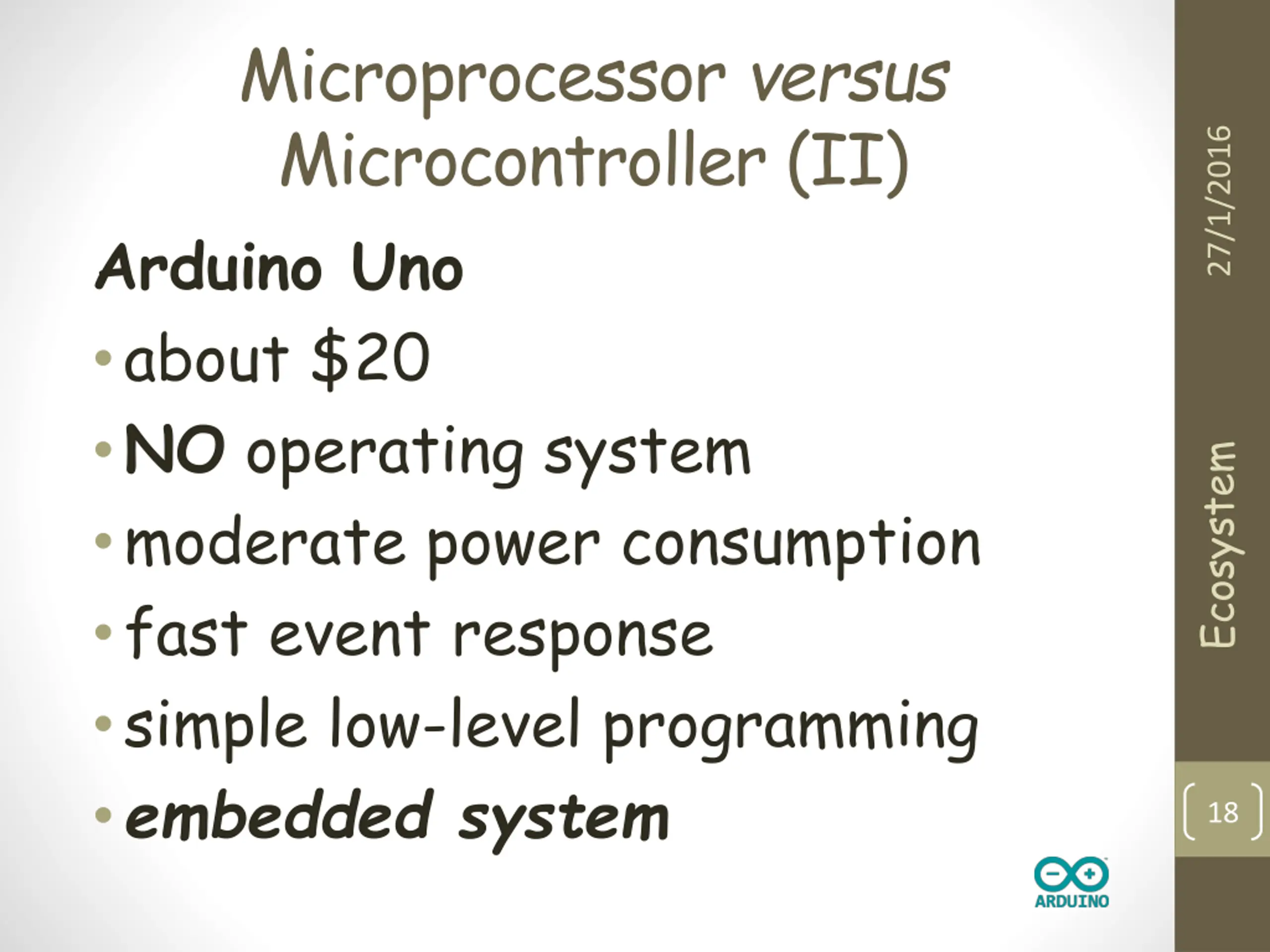

Microprocessor versus Microcontroller (II) Arduino Uno about $20 NO operating system moderate power consumption fast event response simple low-level programming embedded system 27/1/2016 Ecosystem 18

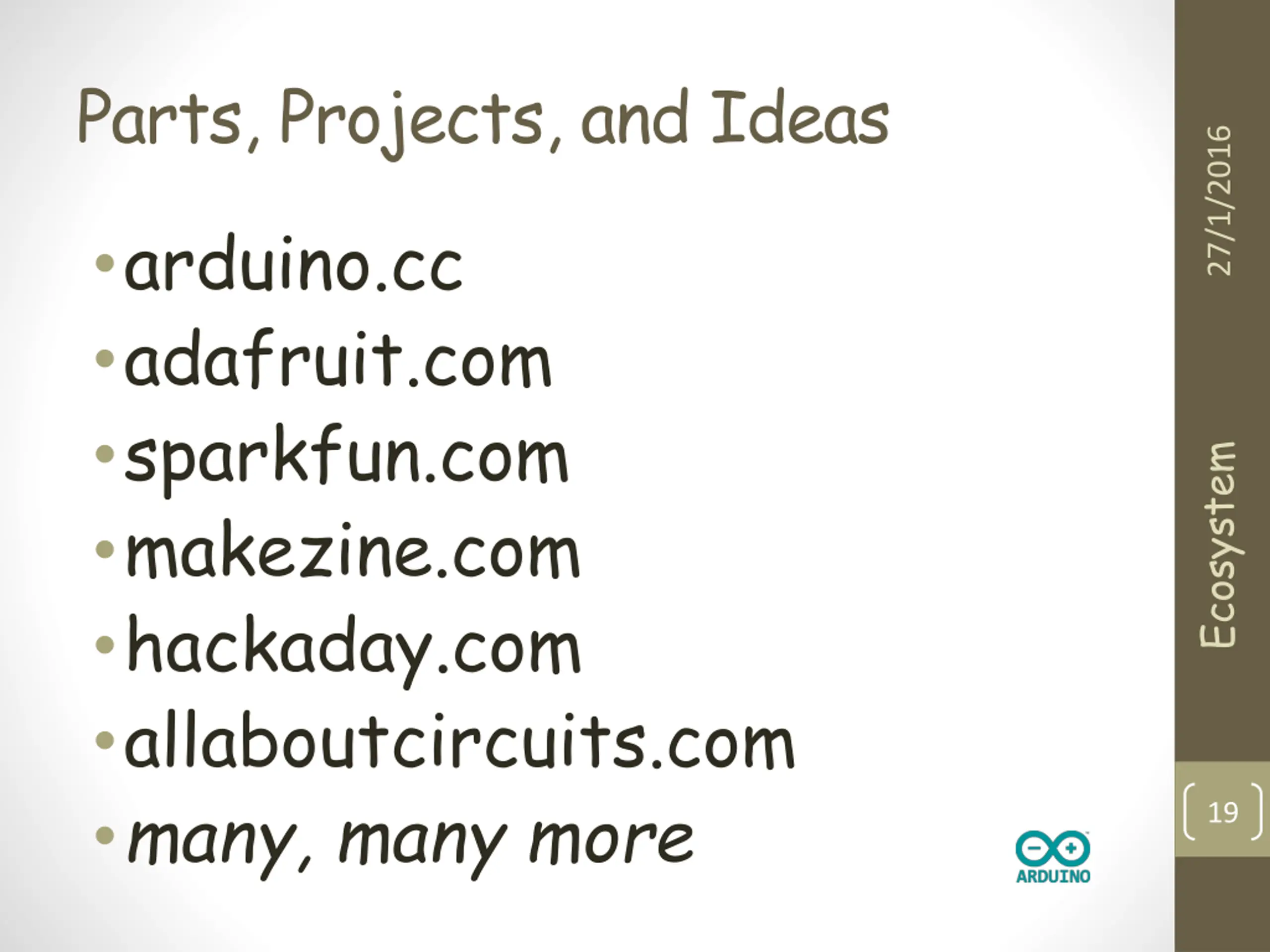

Parts, Projects, and Ideas 27/1/2016 arduino.cc adafruit.com sparkfun.com makezine.com hackaday.com allaboutcircuits.com many, many more Ecosystem 19
27/1/2016 Ecosystem 20
