Thoughts on improving programming practices in EPICS EPICS Collaboration Meeting April 7-11, 2025 Rutherford Appleton Laboratory Jure Varlec Senior Developer jure.varlec@cosylab.com 1

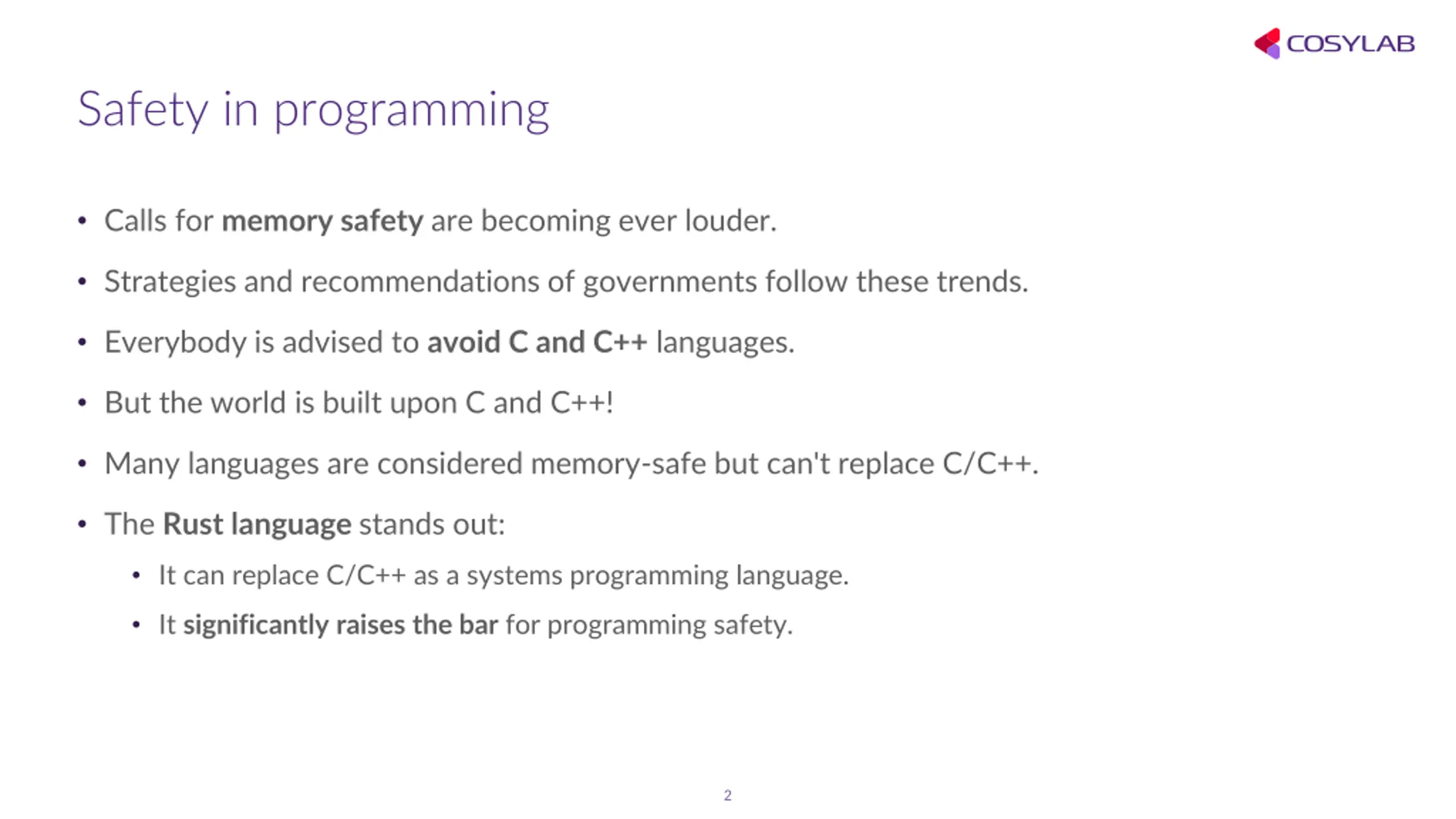

Safety in programming Calls for memory safety are becoming ever louder. Strategies and recommendations of governments follow these trends. Everybody is advised to avoid C and C++ languages. But the world is built upon C and C++! Many languages are considered memory-safe but can't replace C/C++. The Rust language stands out: It can replace C/C++ as a systems programming language. It significantly raises the bar for programming safety. 2

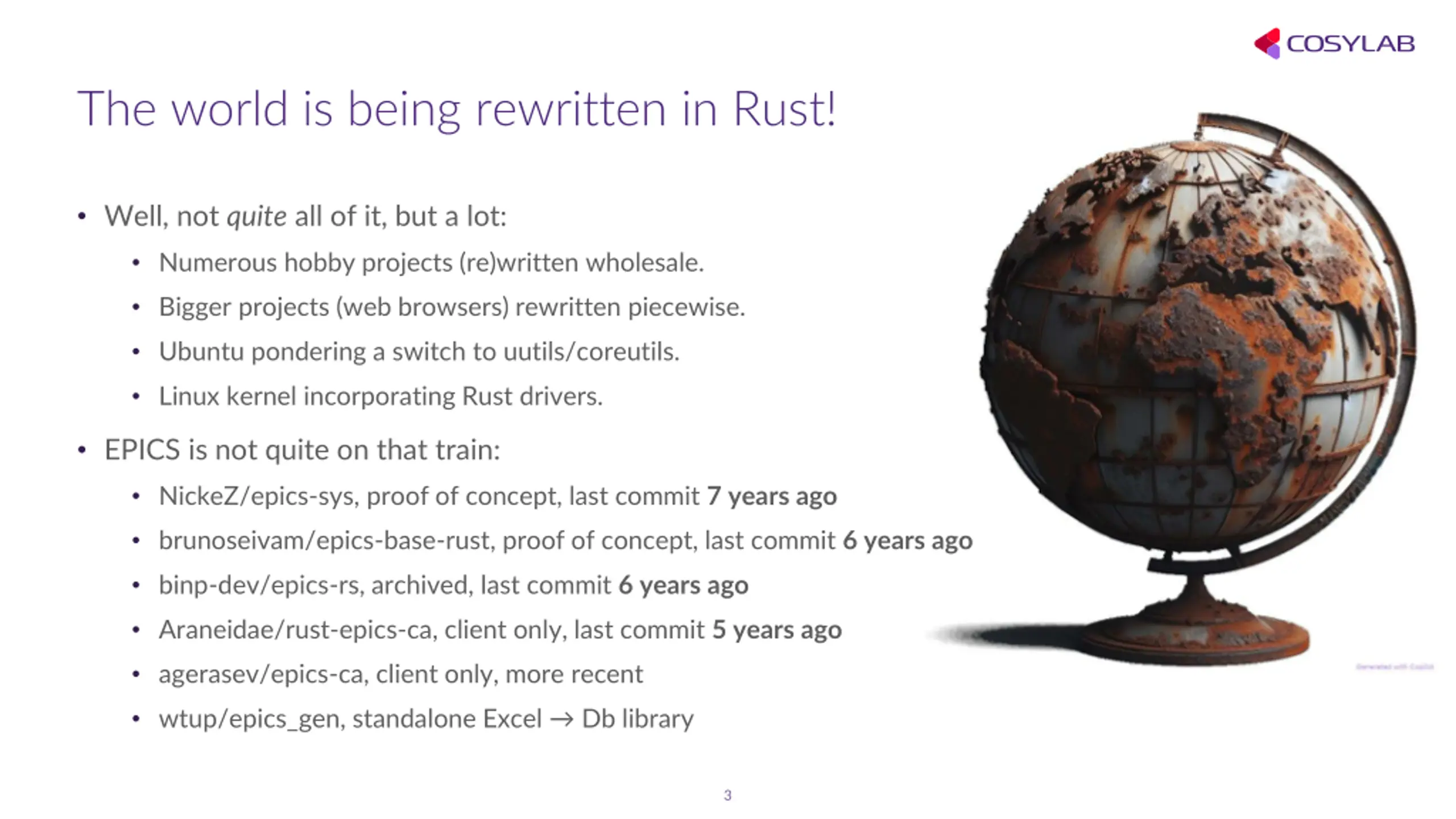

The world is being rewritten in Rust! Well, not quite all of it, but a lot: Numerous hobby projects (re)written wholesale. Bigger projects (web browsers) rewritten piecewise. Ubuntu pondering a switch to uutils/coreutils. Linux kernel incorporating Rust drivers. EPICS is not quite on that train: NickeZ/epics-sys, proof of concept, last commit 7 years ago brunoseivam/epics-base-rust, proof of concept, last commit 6 years ago binp-dev/epics-rs, archived, last commit 6 years ago Araneidae/rust-epics-ca, client only, last commit 5 years ago agerasev/epics-ca, client only, more recent wtup/epics_gen, standalone Excel Db library 3

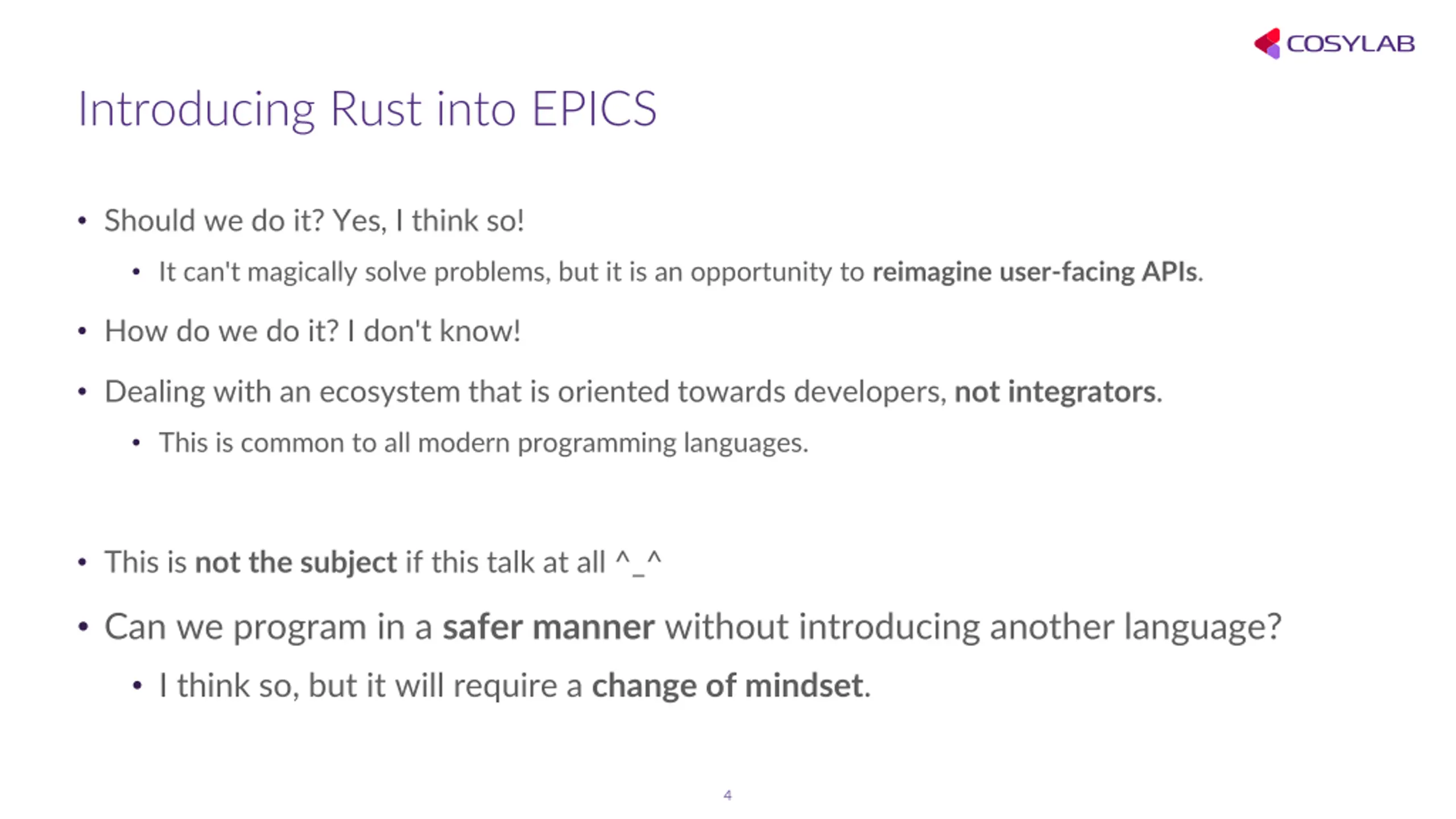

Introducing Rust into EPICS Should we do it? Yes, I think so! It can't magically solve problems, but it is an opportunity to reimagine user-facing APIs. How do we do it? I don't know! Dealing with an ecosystem that is oriented towards developers, not integrators. This is common to all modern programming languages. This is not the subject if this talk at all ^_^ Can we program in a safer manner without introducing another language? I think so, but it will require a change of mindset. 4

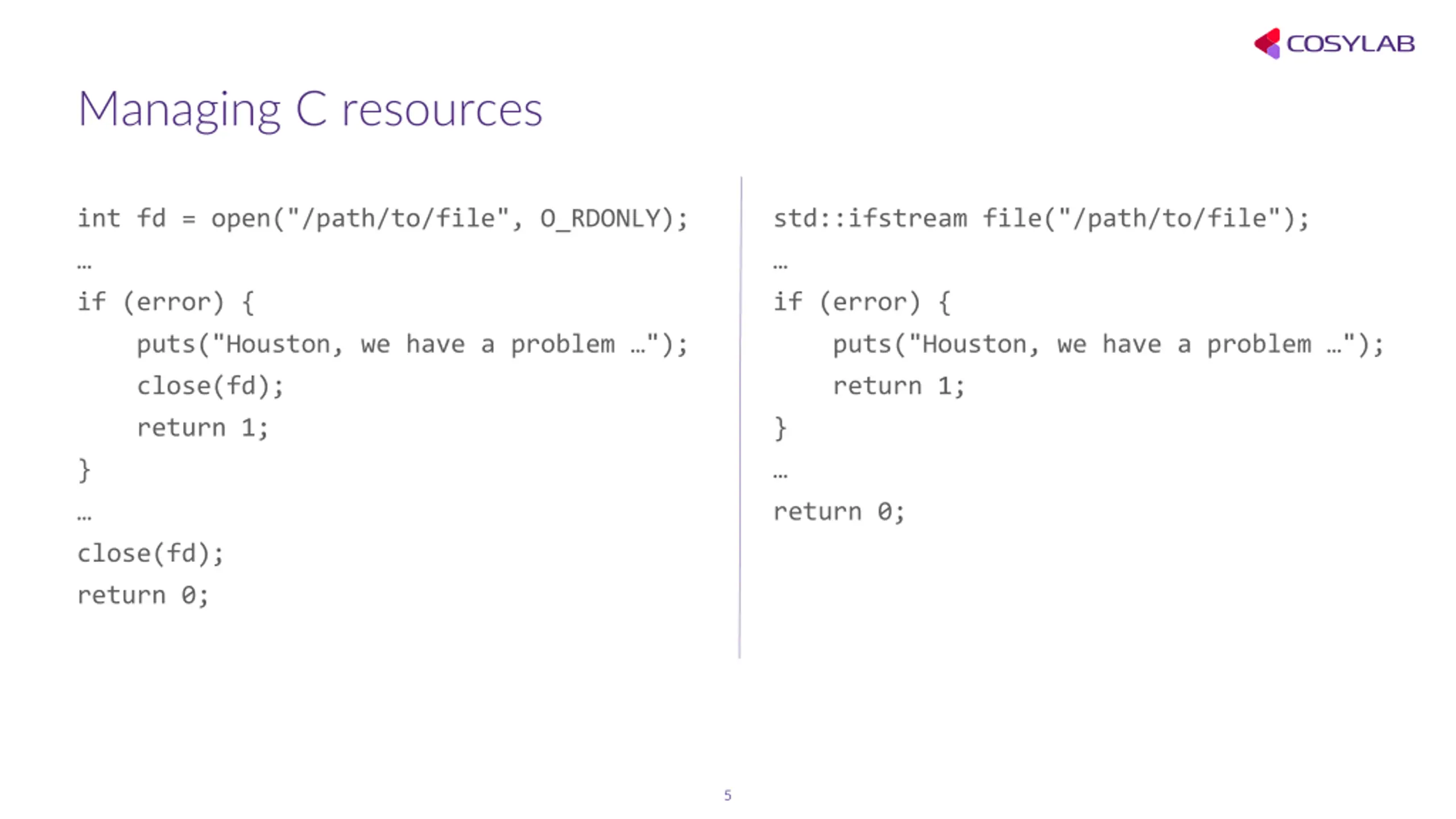

Managing C resources int fd = open("/path/to/file", O_RDONLY); std::ifstream file("/path/to/file"); if (error) { if (error) { puts("Houston, we have a problem "); puts("Houston, we have a problem "); close(fd); return 1; return 1; } } return 0; close(fd); return 0; 5

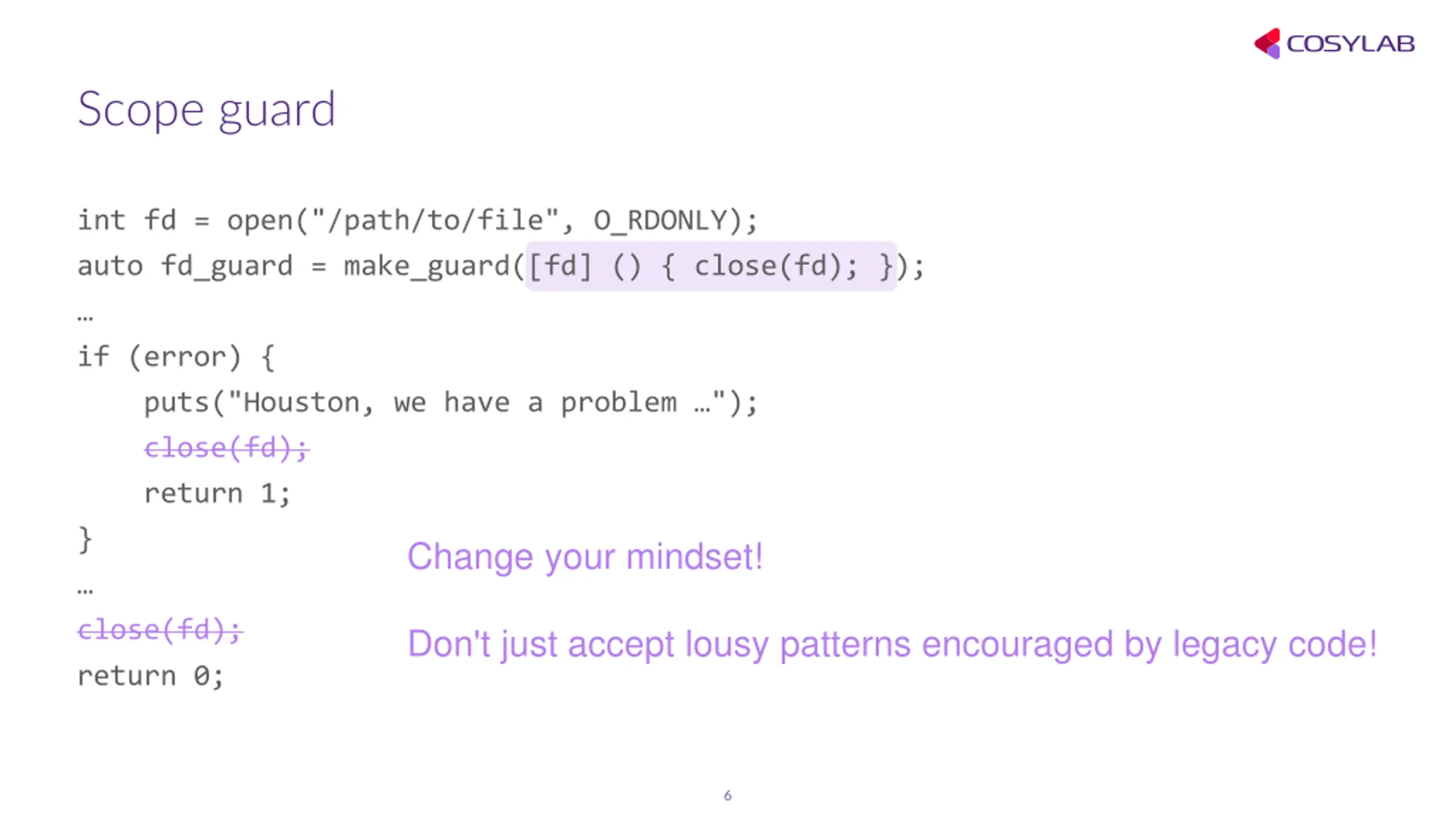

Scope guard int fd = open("/path/to/file", O_RDONLY); auto fd_guard = make_guard([fd] () { close(fd); }); if (error) { puts("Houston, we have a problem "); close(fd); return 1; } close(fd); Don't just accept lousy patterns encouraged by legacy code! Change your mindset! return 0; 6

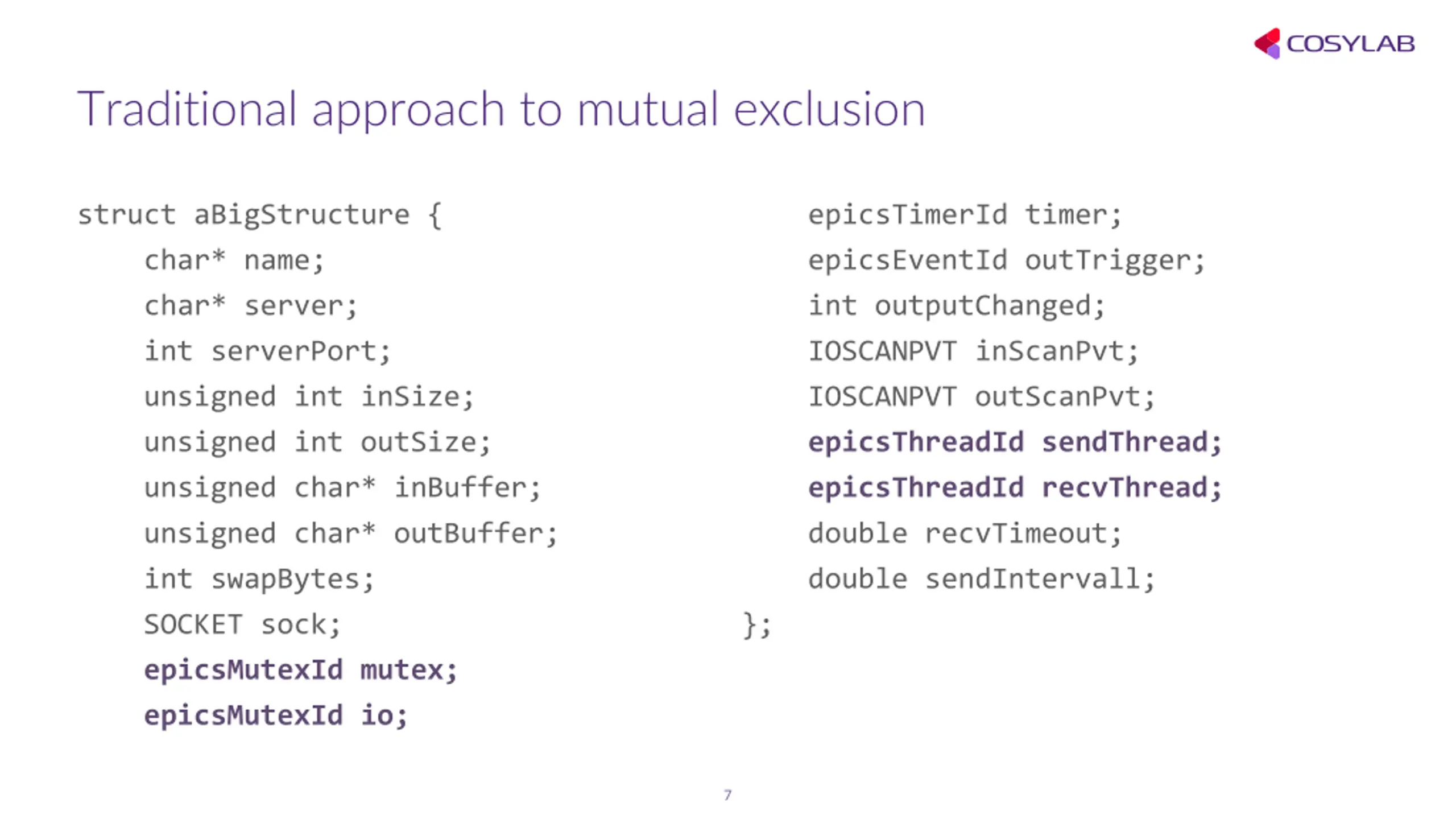

Traditional approach to mutual exclusion struct aBigStructure { char* name; char* server; int serverPort; unsigned int inSize; unsigned int outSize; unsigned char* inBuffer; unsigned char* outBuffer; int swapBytes; SOCKET sock; epicsMutexId mutex; epicsMutexId io; epicsTimerId timer; epicsEventId outTrigger; int outputChanged; IOSCANPVT inScanPvt; IOSCANPVT outScanPvt; epicsThreadId sendThread; epicsThreadId recvThread; double recvTimeout; double sendIntervall; }; 7

The traditional approach A better approach 8

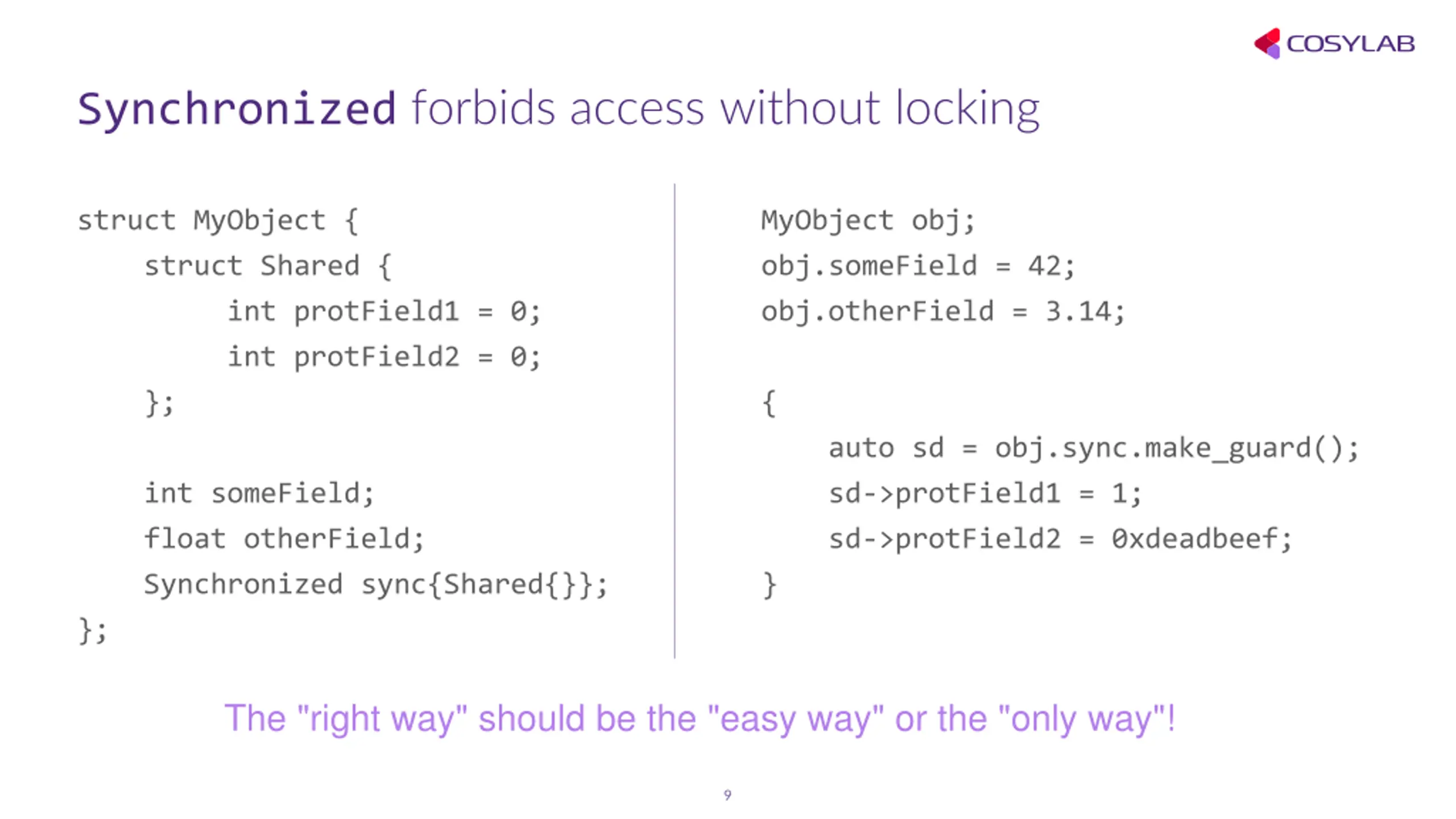

Synchronized forbids access without locking struct MyObject { struct Shared { int protField1 = 0; int protField2 = 0; }; MyObject obj; obj.someField = 42; obj.otherField = 3.14; { auto sd = obj.sync.make_guard(); sd->protField1 = 1; sd->protField2 = 0xdeadbeef; int someField; float otherField; Synchronized sync{Shared{}}; } }; The "right way" should be the "easy way" or the "only way"! 9

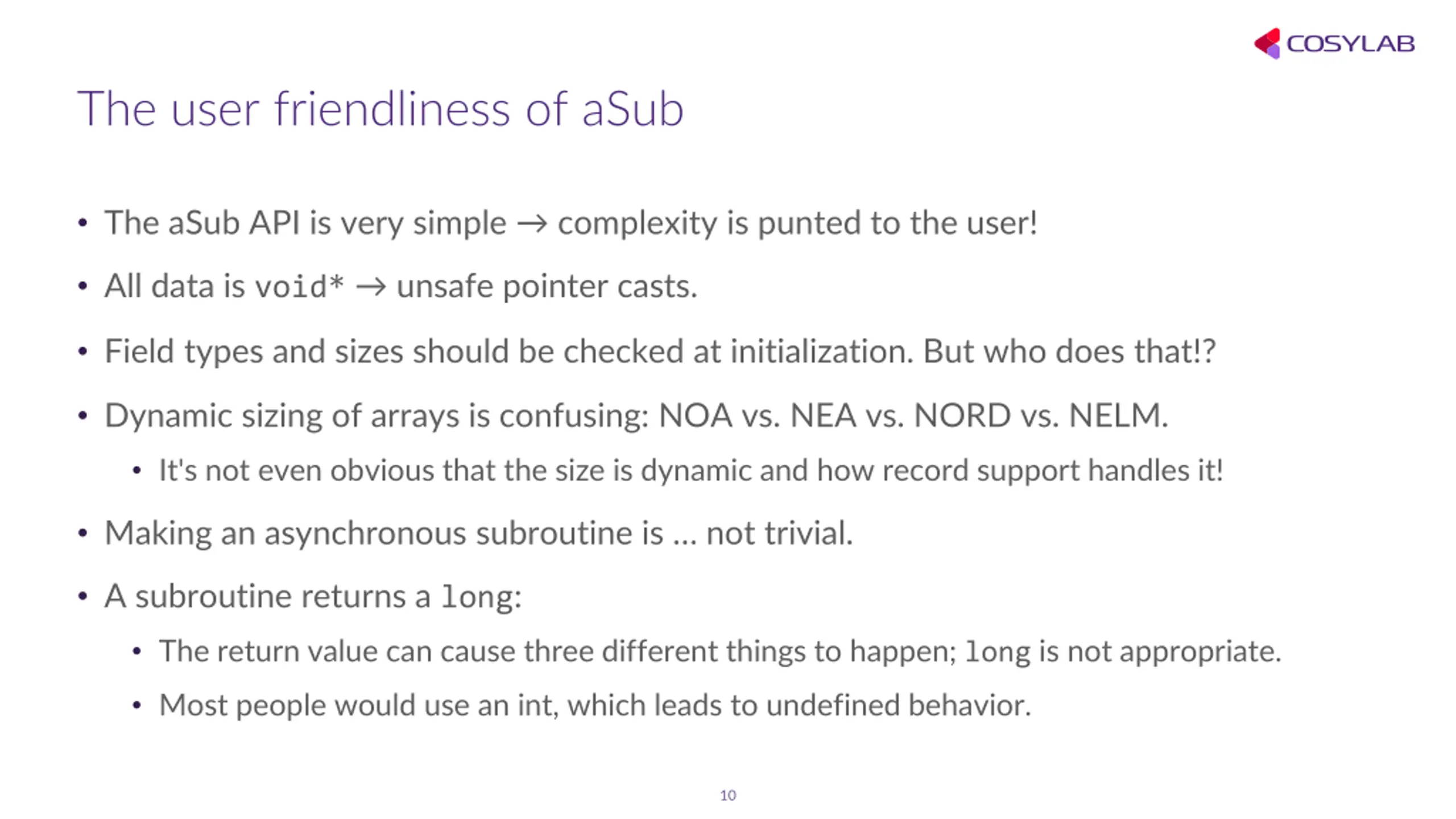

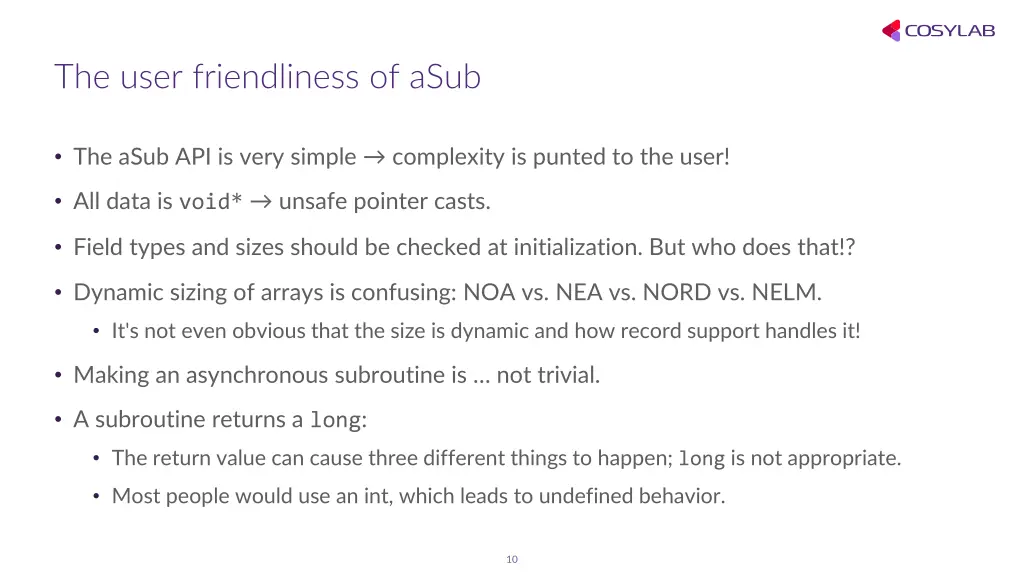

The user friendliness of aSub The aSub API is very simple complexity is punted to the user! All data is void* unsafe pointer casts. Field types and sizes should be checked at initialization. But who does that!? Dynamic sizing of arrays is confusing: NOA vs. NEA vs. NORD vs. NELM. It's not even obvious that the size is dynamic and how record support handles it! Making an asynchronous subroutine is not trivial. A subroutine returns a long: The return value can cause three different things to happen; long is not appropriate. Most people would use an int, which leads to undefined behavior. 10

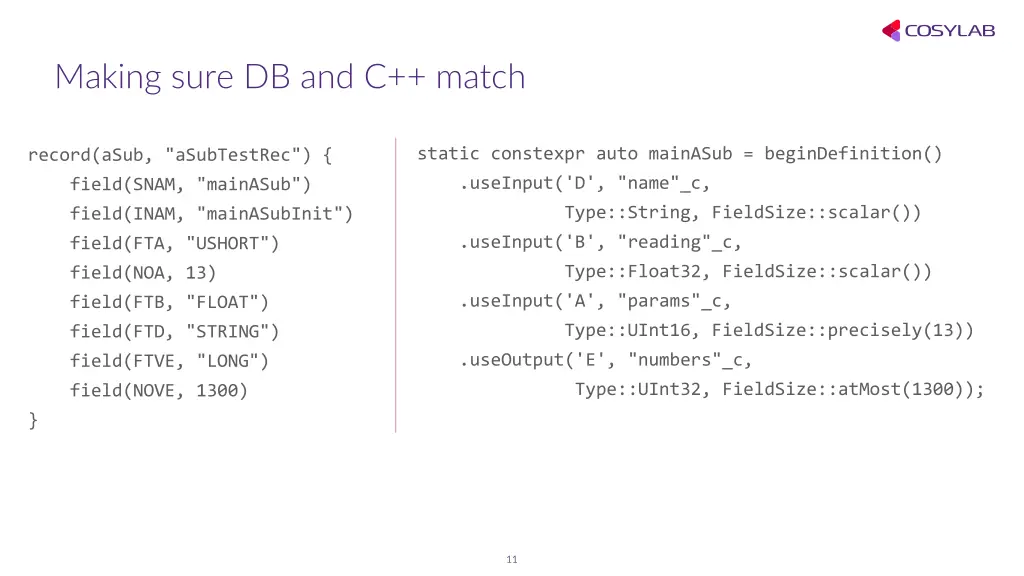

Making sure DB and C++ match static constexpr auto mainASub = beginDefinition() record(aSub, "aSubTestRec") { .useInput('D', "name"_c, field(SNAM, "mainASub") Type::String, FieldSize::scalar()) field(INAM, "mainASubInit") .useInput('B', "reading"_c, field(FTA, "USHORT") Type::Float32, FieldSize::scalar()) field(NOA, 13) .useInput('A', "params"_c, field(FTB, "FLOAT") Type::UInt16, FieldSize::precisely(13)) field(FTD, "STRING") .useOutput('E', "numbers"_c, field(FTVE, "LONG") Type::UInt32, FieldSize::atMost(1300)); field(NOVE, 1300) } 11

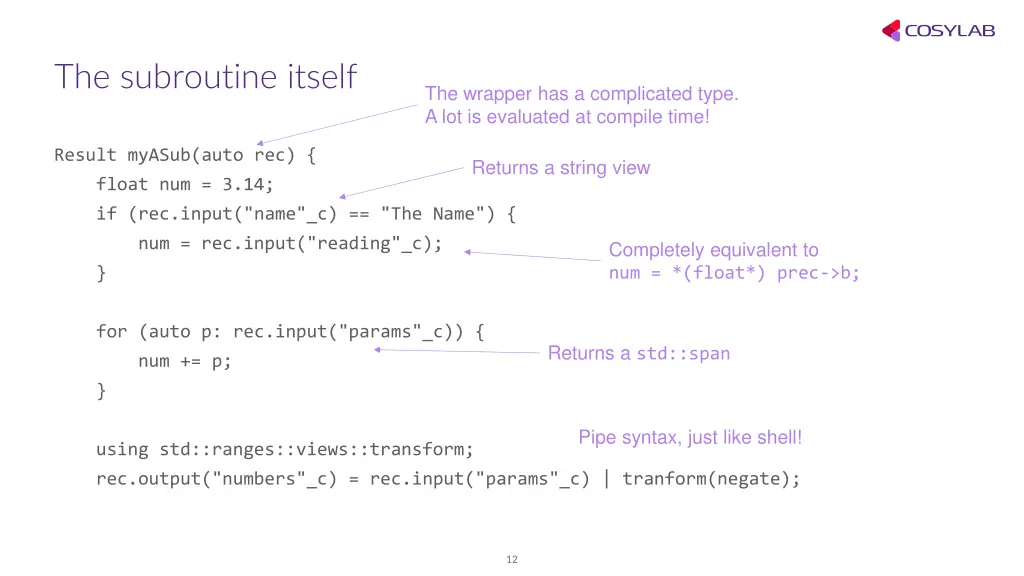

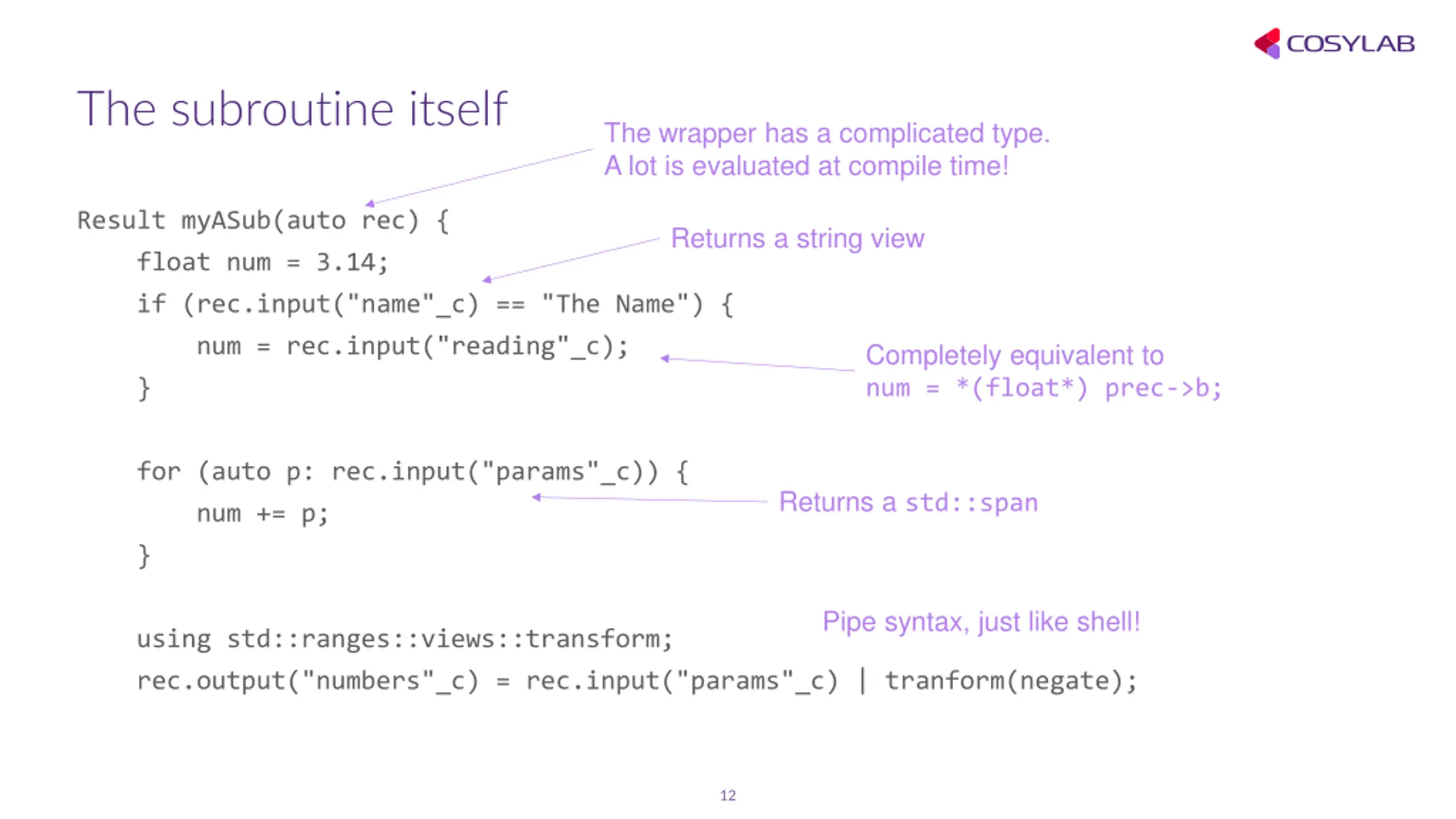

The subroutine itself The wrapper has a complicated type. A lot is evaluated at compile time! Result myASub(auto rec) { Returns a string view float num = 3.14; if (rec.input("name"_c) == "The Name") { num = rec.input("reading"_c); Completely equivalent to num = *(float*) prec->b; } for (auto p: rec.input("params"_c)) { Returns a std::span num += p; } Pipe syntax, just like shell! using std::ranges::views::transform; rec.output("numbers"_c) = rec.input("params"_c) | tranform(negate); 12

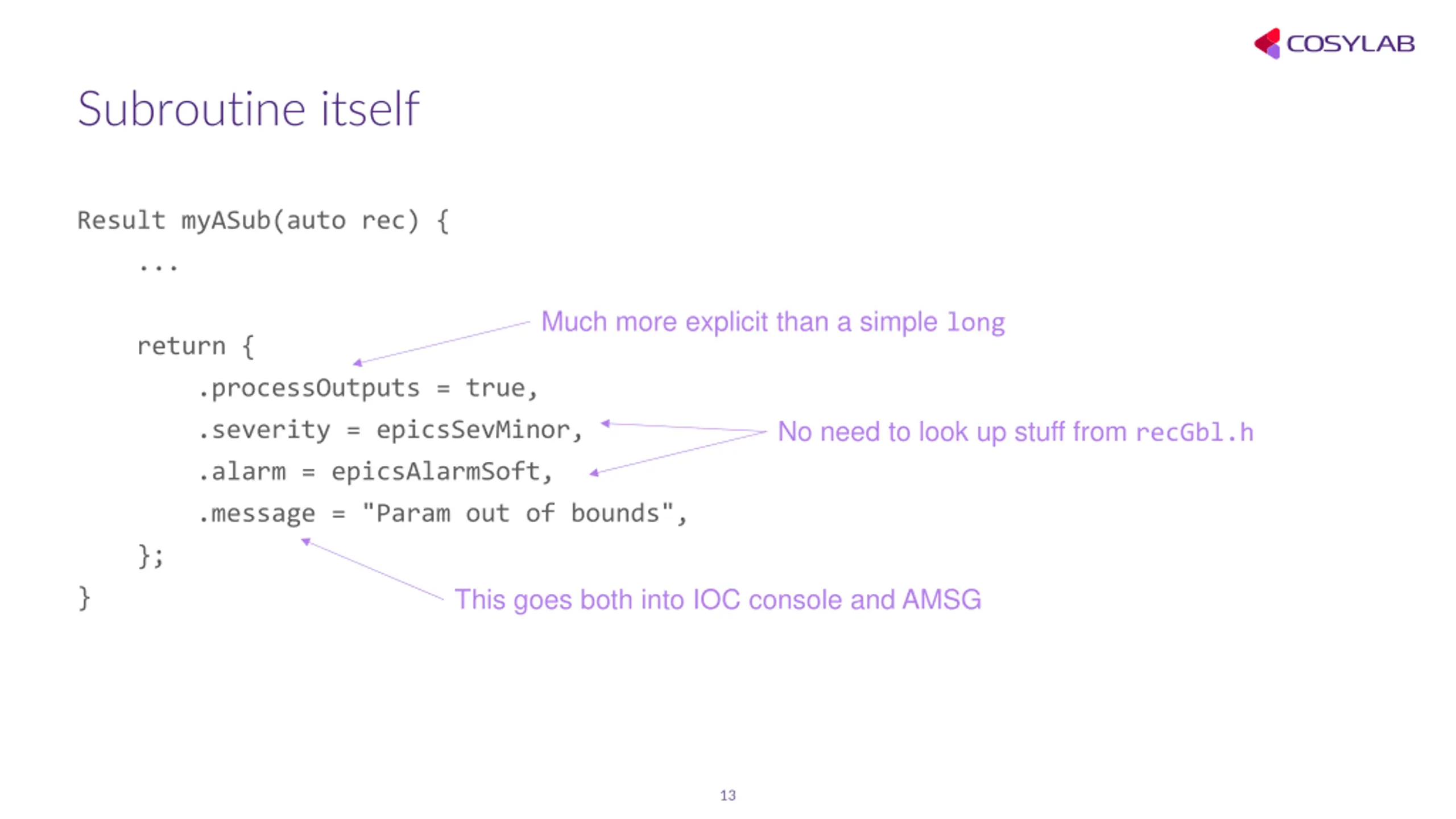

Subroutine itself Result myASub(auto rec) { ... Much more explicit than a simple long return { .processOutputs = true, No need to look up stuff from recGbl.h .severity = epicsSevMinor, .alarm = epicsAlarmSoft, .message = "Param out of bounds", }; This goes both into IOC console and AMSG } 13

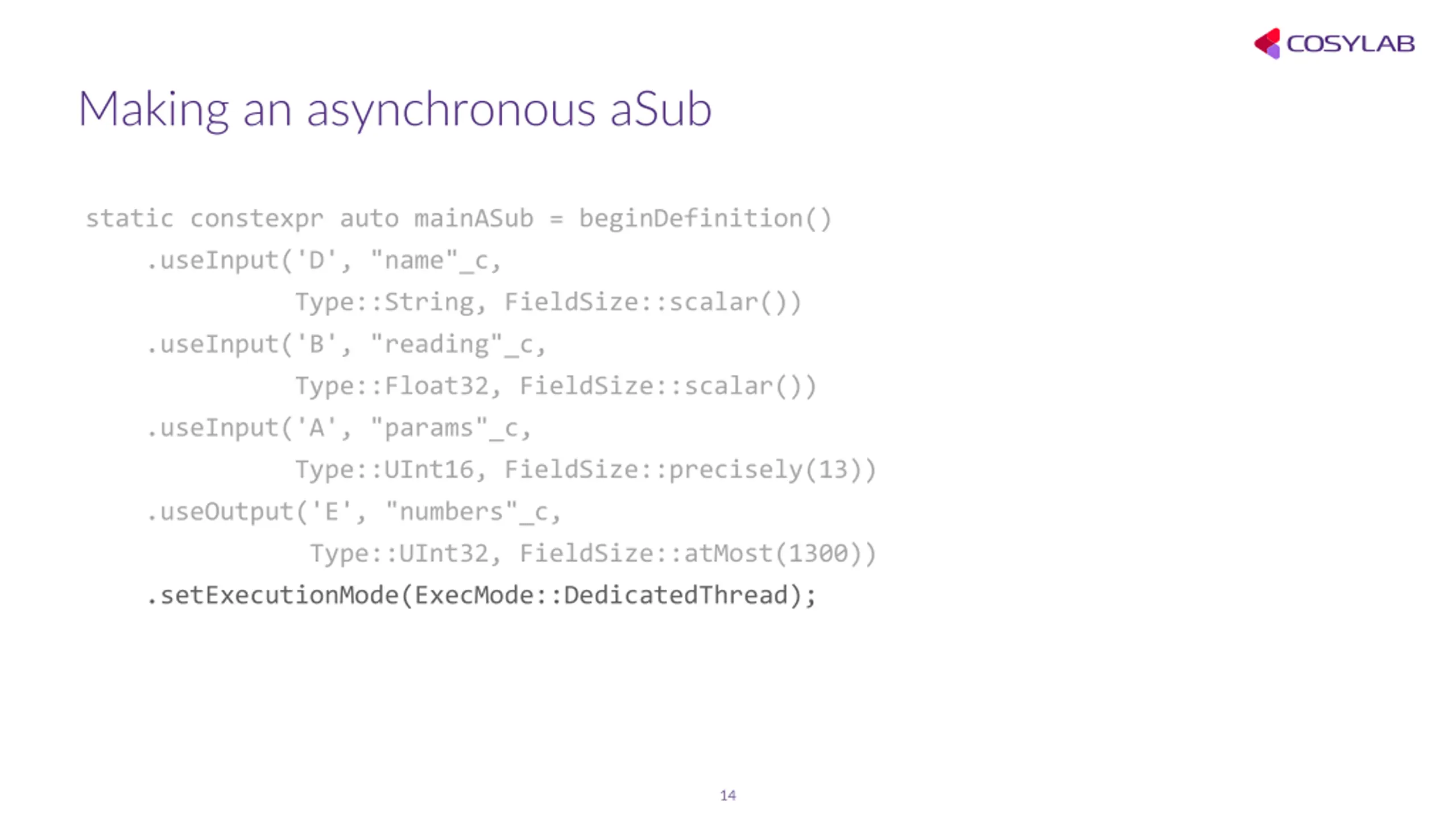

Making an asynchronous aSub static constexpr auto mainASub = beginDefinition() .useInput('D', "name"_c, Type::String, FieldSize::scalar()) .useInput('B', "reading"_c, Type::Float32, FieldSize::scalar()) .useInput('A', "params"_c, Type::UInt16, FieldSize::precisely(13)) .useOutput('E', "numbers"_c, Type::UInt32, FieldSize::atMost(1300)) .setExecutionMode(ExecMode::DedicatedThread); 14

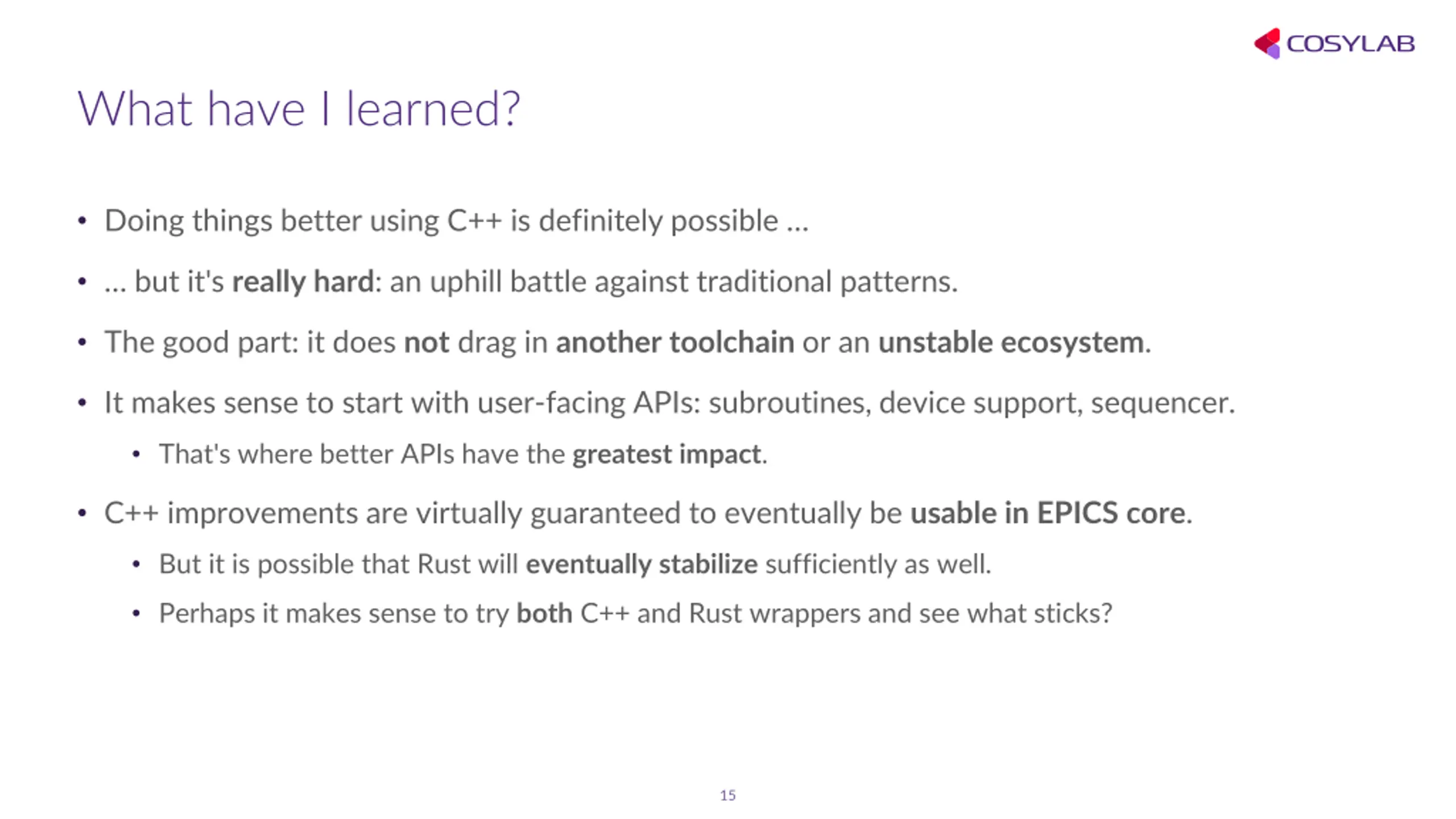

What have I learned? Doing things better using C++ is definitely possible but it's really hard: an uphill battle against traditional patterns. The good part: it does not drag in another toolchain or an unstable ecosystem. It makes sense to start with user-facing APIs: subroutines, device support, sequencer. That's where better APIs have the greatest impact. C++ improvements are virtually guaranteed to eventually be usable in EPICS core. But it is possible that Rust will eventually stabilize sufficiently as well. Perhaps it makes sense to try both C++ and Rust wrappers and see what sticks? 15

Thank you. Jure Varlec jure.varlec@cosylab.com www.cosylab.com 16
