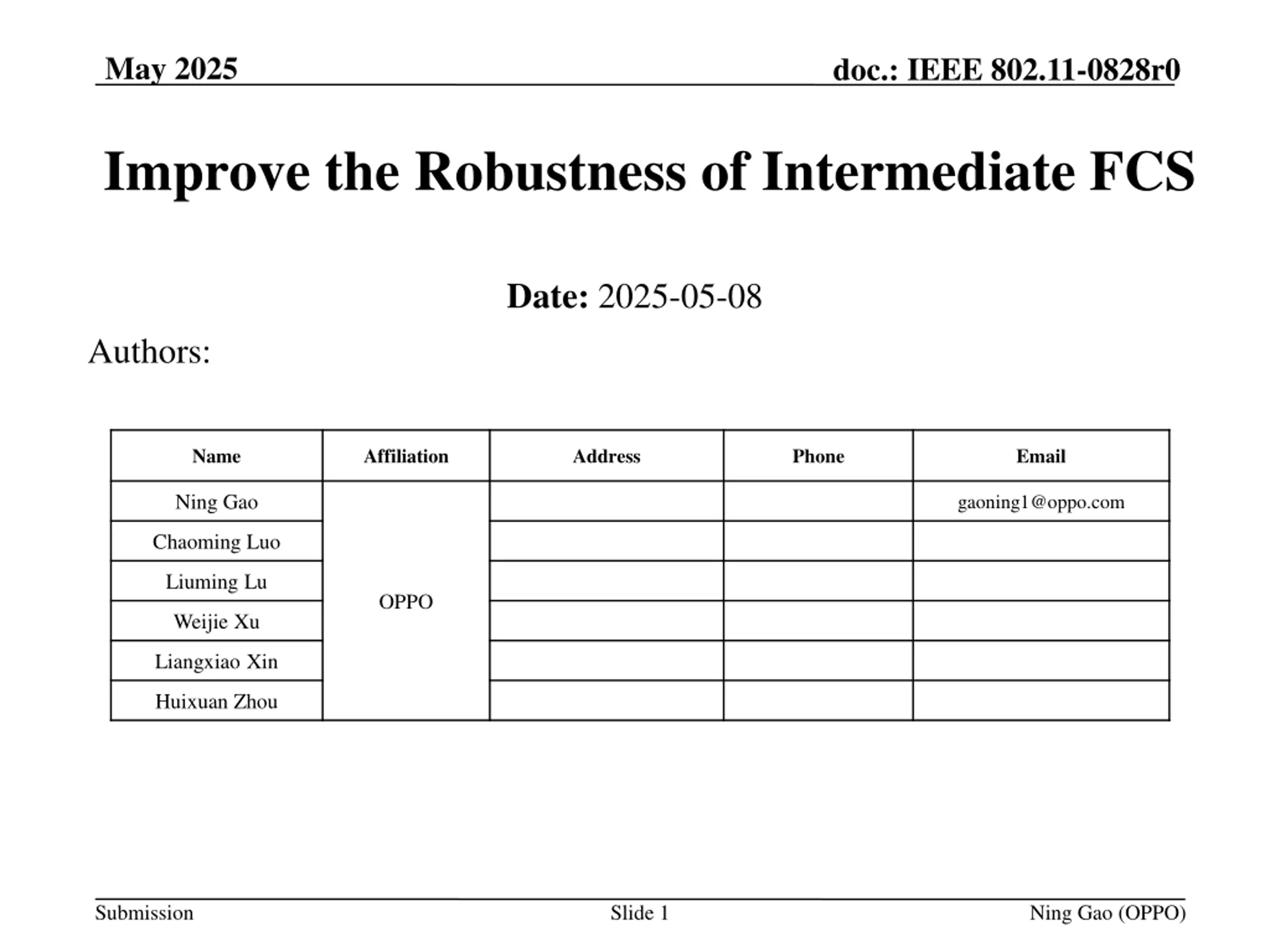

May 2025 doc.: IEEE 802.11-0828r0 Improve the Robustness of Intermediate FCS Date: 2025-05-08 Authors: Name Affiliation Address Phone Email Ning Gao gaoning1@oppo.com Chaoming Luo Liuming Lu OPPO Weijie Xu Liangxiao Xin Huixuan Zhou Submission Slide 1 Ning Gao (OPPO)

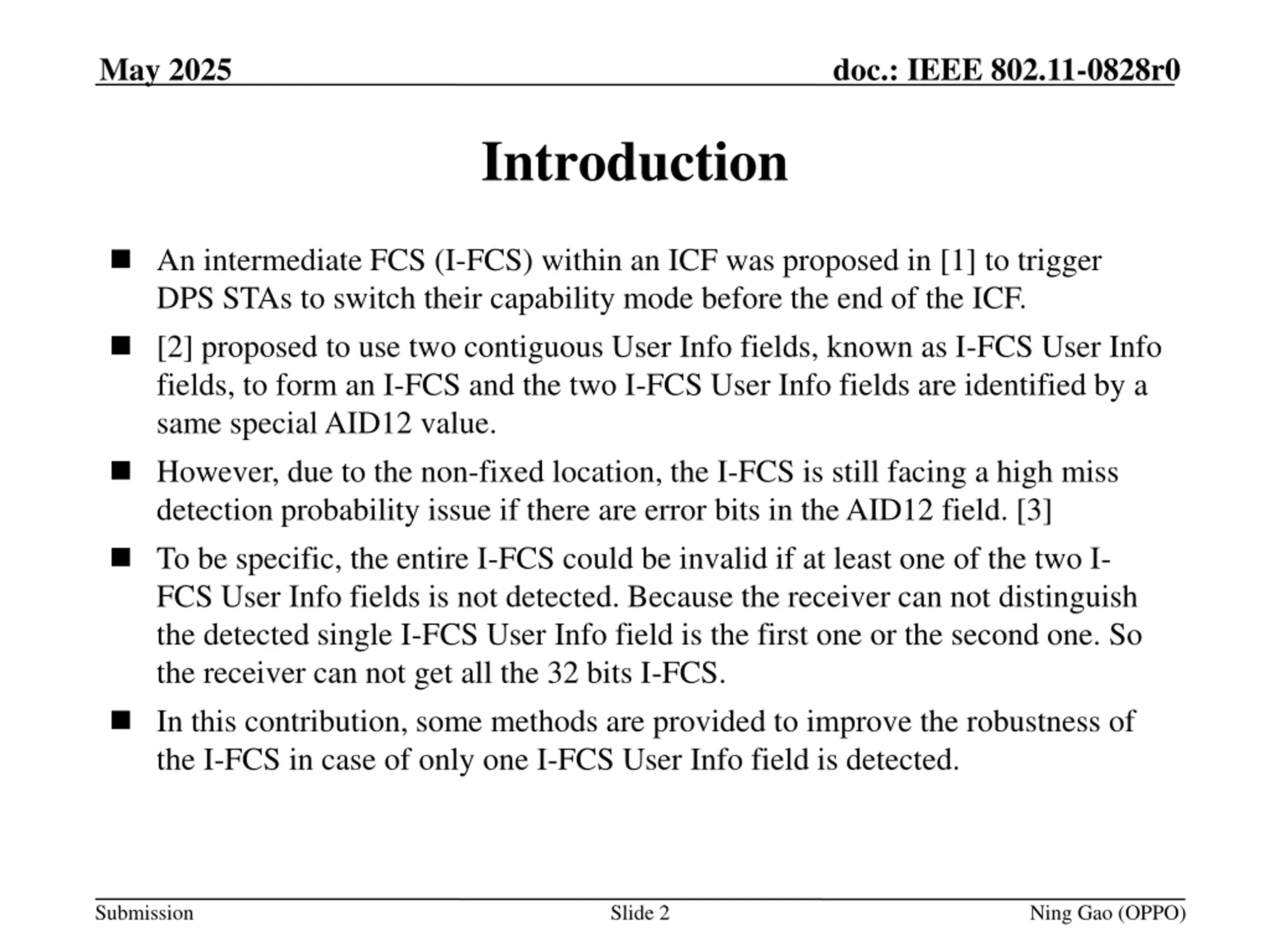

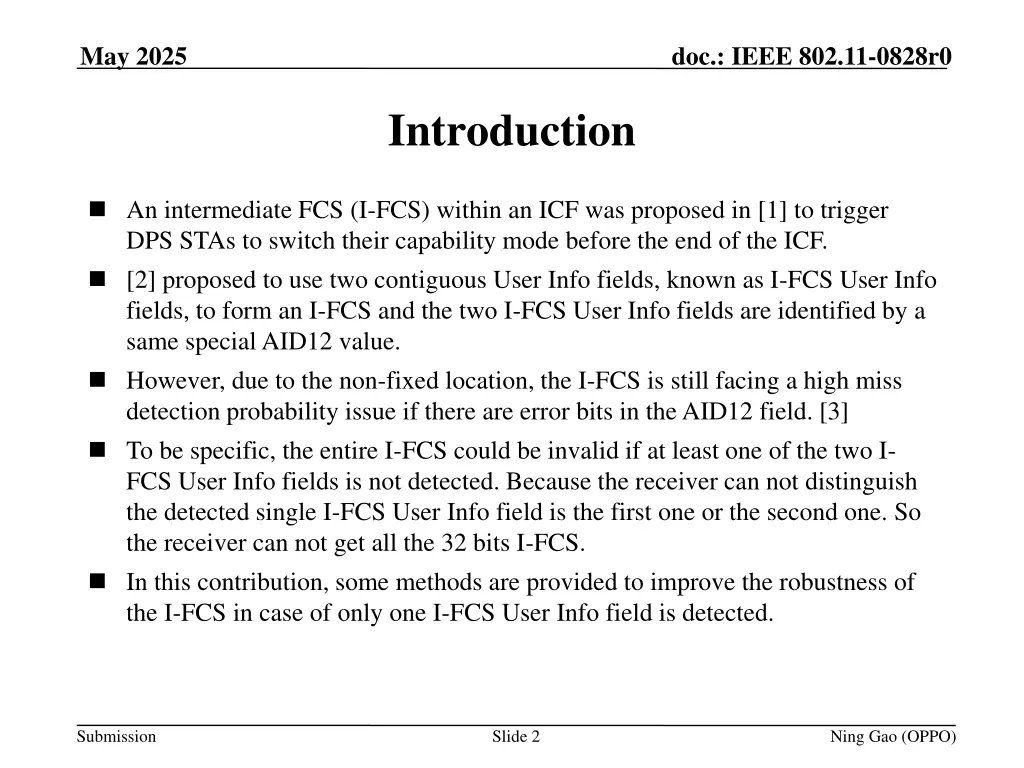

May 2025 doc.: IEEE 802.11-0828r0 Introduction An intermediate FCS (I-FCS) within an ICF was proposed in [1] to trigger DPS STAs to switch their capability mode before the end of the ICF. [2] proposed to use two contiguous User Info fields, known as I-FCS User Info fields, to form an I-FCS and the two I-FCS User Info fields are identified by a same special AID12 value. However, due to the non-fixed location, the I-FCS is still facing a high miss detection probability issue if there are error bits in the AID12 field. [3] To be specific, the entire I-FCS could be invalid if at least one of the two I- FCS User Info fields is not detected. Because the receiver can not distinguish the detected single I-FCS User Info field is the first one or the second one. So the receiver can not get all the 32 bits I-FCS. In this contribution, some methods are provided to improve the robustness of the I-FCS in case of only one I-FCS User Info field is detected. Submission Slide 2 Ning Gao (OPPO)

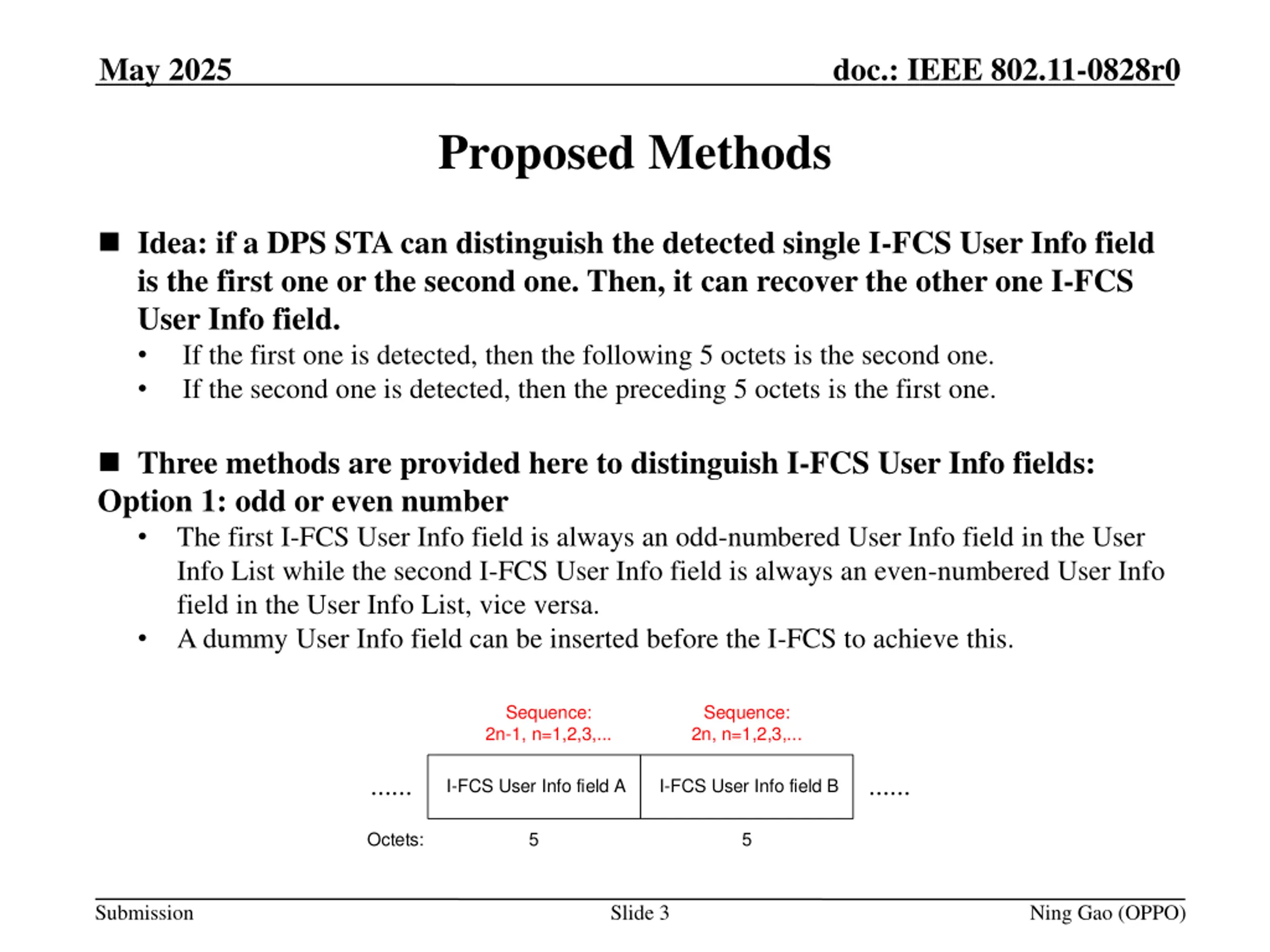

May 2025 doc.: IEEE 802.11-0828r0 Proposed Methods Idea: if a DPS STA can distinguish the detected single I-FCS User Info field is the first one or the second one. Then, it can recover the other one I-FCS User Info field. If the first one is detected, then the following 5 octets is the second one. If the second one is detected, then the preceding 5 octets is the first one. Three methods are provided here to distinguish I-FCS User Info fields: Option 1: odd or even number The first I-FCS User Info field is always an odd-numbered User Info field in the User Info List while the second I-FCS User Info field is always an even-numbered User Info field in the User Info List, vice versa. A dummy User Info field can be inserted before the I-FCS to achieve this. Sequence: 2n-1, n=1,2,3,... Sequence: 2n, n=1,2,3,... I-FCS User Info field A I-FCS User Info field B Octets: 5 5 Submission Slide 3 Ning Gao (OPPO)

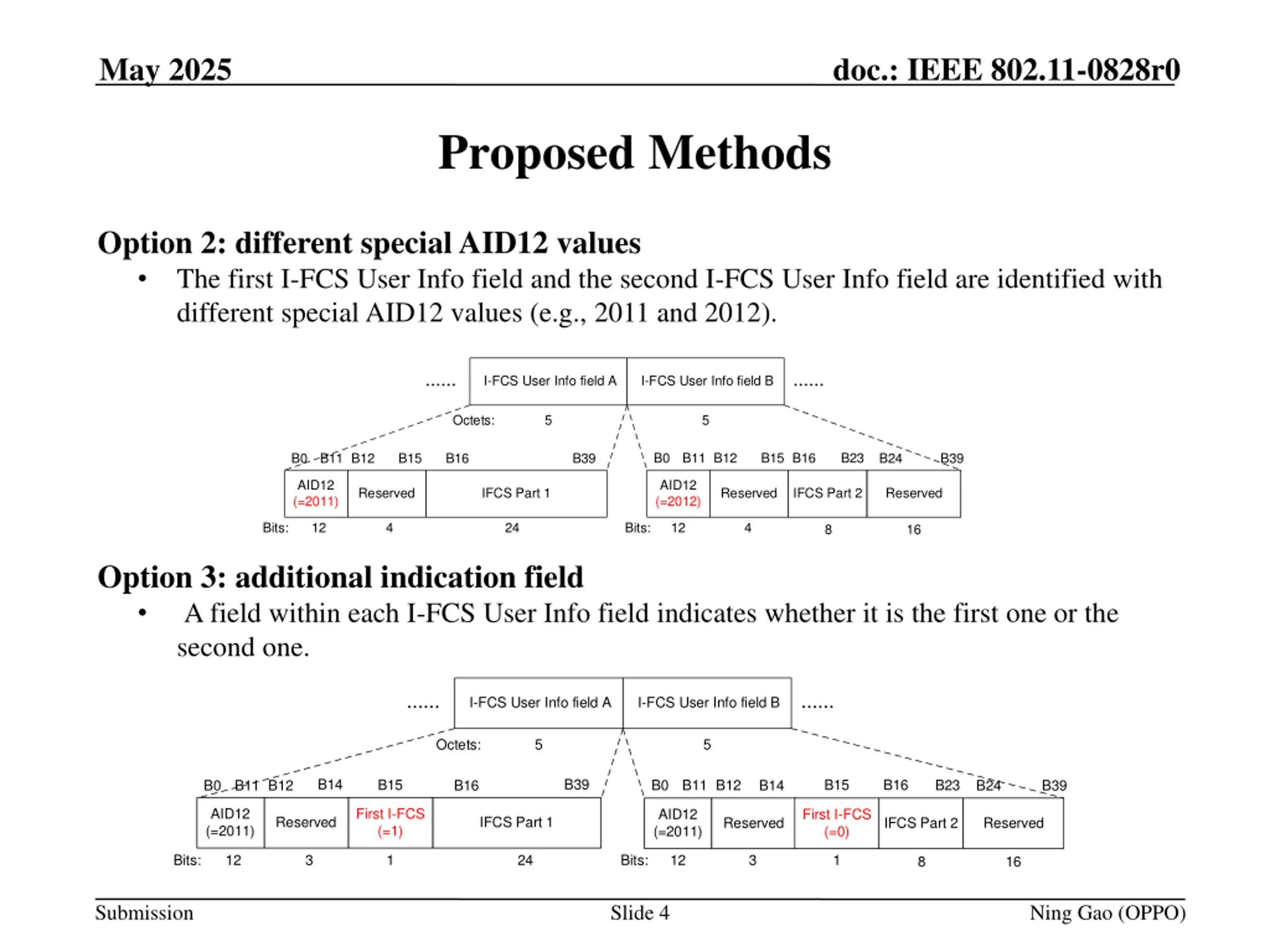

May 2025 doc.: IEEE 802.11-0828r0 Proposed Methods Option 2: different special AID12 values The first I-FCS User Info field and the second I-FCS User Info field are identified with different special AID12 values (e.g., 2011 and 2012). I-FCS User Info field A I-FCS User Info field B Octets: 5 5 B0 B11 B12 B15 B16 B23 B0 B11 B12 B15 B16 B39 B24 B39 AID12 (=2011) AID12 (=2012) Reserved IFCS Part 1 Reserved IFCS Part 2 Reserved Bits: 12 4 24 Bits: 12 4 8 16 Option 3: additional indication field A field within each I-FCS User Info field indicates whether it is the first one or the second one. I-FCS User Info field A I-FCS User Info field B Octets: 5 5 B14 B39 B15 B15 B16 B0 B11 B12 B23 B0 B11 B12 B16 B14 B24 B39 AID12 (=2011) First I-FCS (=1) AID12 (=2011) First I-FCS (=0) Reserved IFCS Part 1 Reserved IFCS Part 2 Reserved Bits: 12 3 1 24 Bits: 12 3 1 8 16 Submission Slide 4 Ning Gao (OPPO)

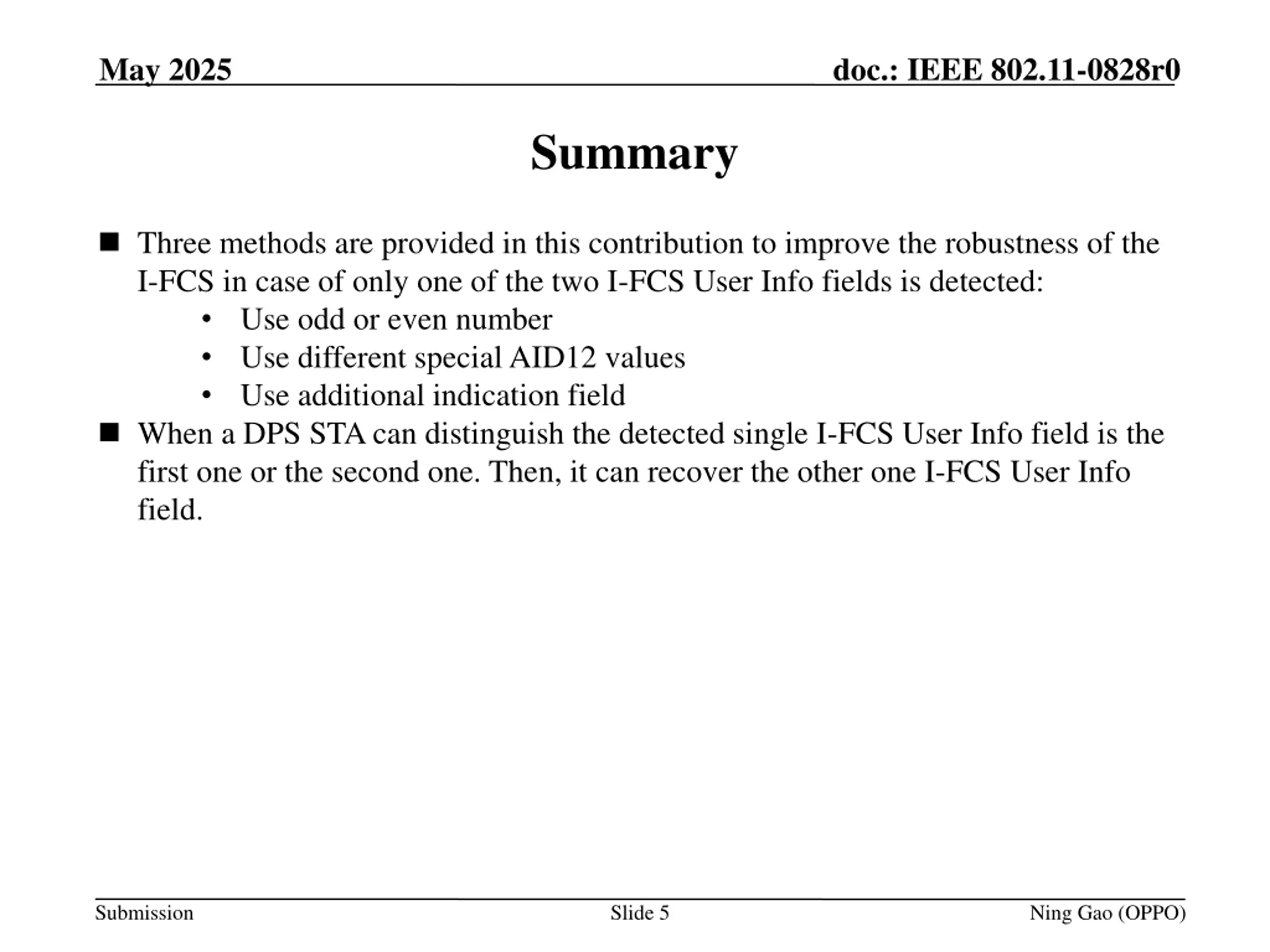

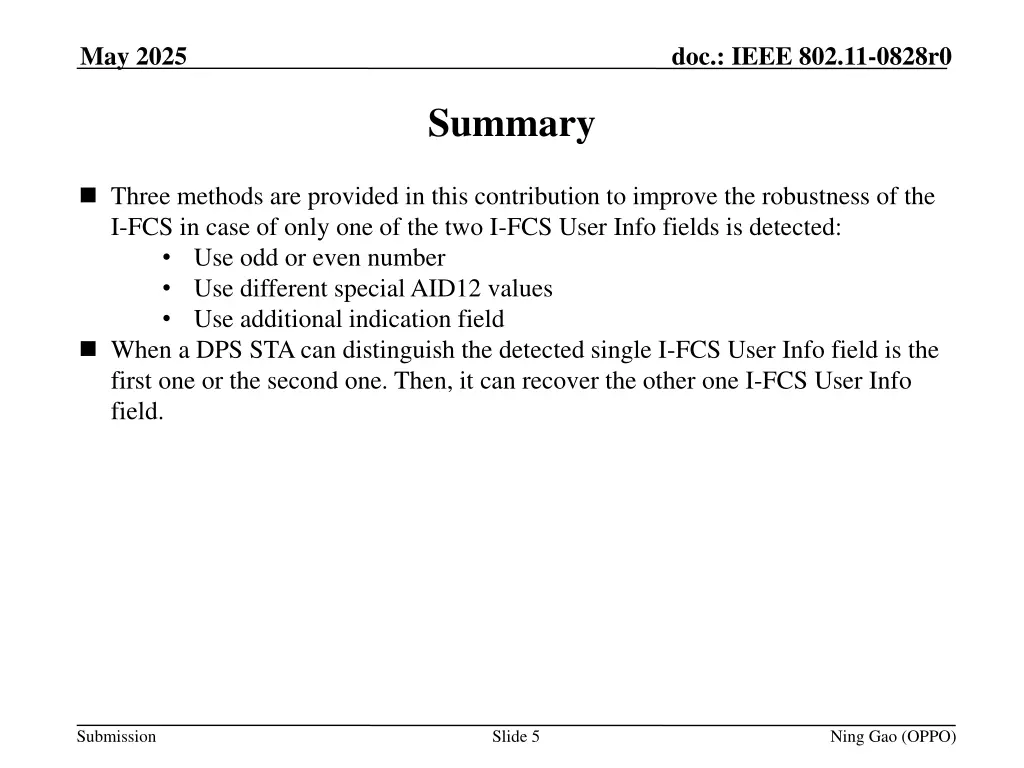

May 2025 doc.: IEEE 802.11-0828r0 Summary Three methods are provided in this contribution to improve the robustness of the I-FCS in case of only one of the two I-FCS User Info fields is detected: Use odd or even number Use different special AID12 values Use additional indication field When a DPS STA can distinguish the detected single I-FCS User Info field is the first one or the second one. Then, it can recover the other one I-FCS User Info field. Submission Slide 5 Ning Gao (OPPO)

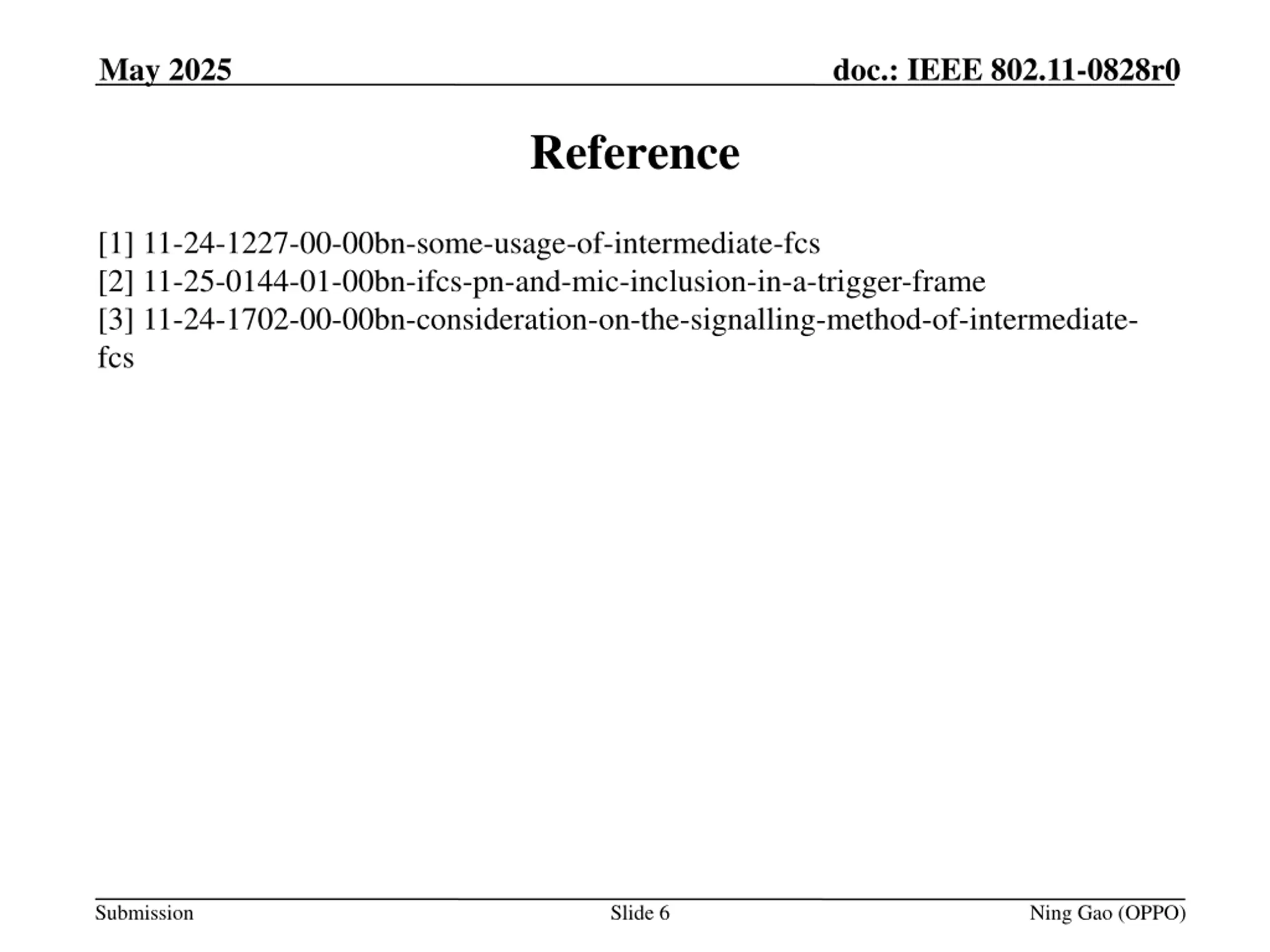

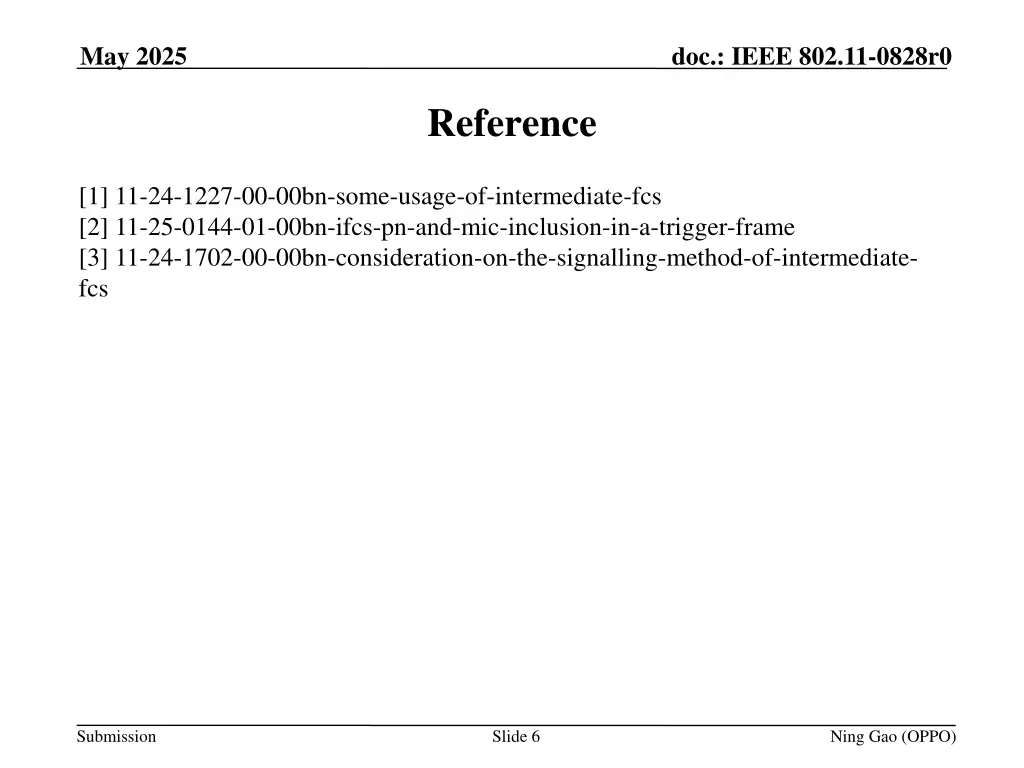

May 2025 doc.: IEEE 802.11-0828r0 Reference [1] 11-24-1227-00-00bn-some-usage-of-intermediate-fcs [2] 11-25-0144-01-00bn-ifcs-pn-and-mic-inclusion-in-a-trigger-frame [3] 11-24-1702-00-00bn-consideration-on-the-signalling-method-of-intermediate- fcs Submission Slide 6 Ning Gao (OPPO)

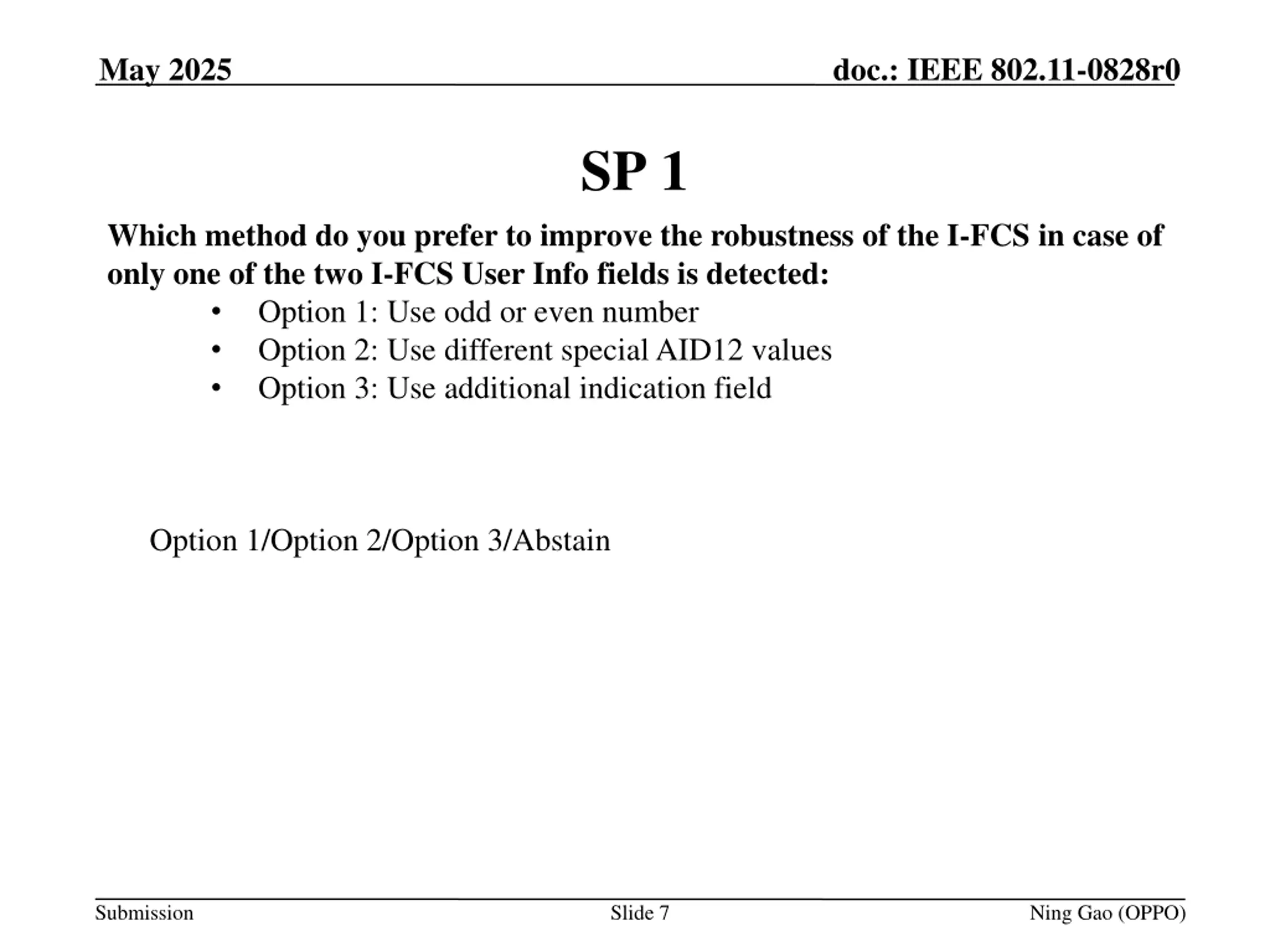

May 2025 doc.: IEEE 802.11-0828r0 SP 1 Which method do you prefer to improve the robustness of the I-FCS in case of only one of the two I-FCS User Info fields is detected: Option 1: Use odd or even number Option 2: Use different special AID12 values Option 3: Use additional indication field Option 1/Option 2/Option 3/Abstain Submission Slide 7 Ning Gao (OPPO)
