Information-Centric Approach for Smart Grid Communications
An information-centric approach for smart grid communications is being explored within the C-DAX Consortium, funded by the European Union. This approach focuses on leveraging information-centric networking (ICN) to enhance the delivery of various data services in the smart grid context, aiming to reduce complexity and improve efficiency. Through ICN, the network becomes aware of the content it delivers rather than just the end-hosts, enabling new interaction models like publish/subscribe and facilitating benefits such as multicast, mobility, and in-network caching. The publish/subscribe basics and the use of brokers further enhance the architecture, enabling decoupling of data production and consumption across a multitude of communicating devices.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
An An information information- -centric approach centric approach for smart grid communications for smart grid communications C-DAX Consortium Chris Develder (Ghent University iMinds) C-DAX is funded by the European Union's Seventh Framework Programme(FP7-ICT-2011-8) under grant agreement n 318708

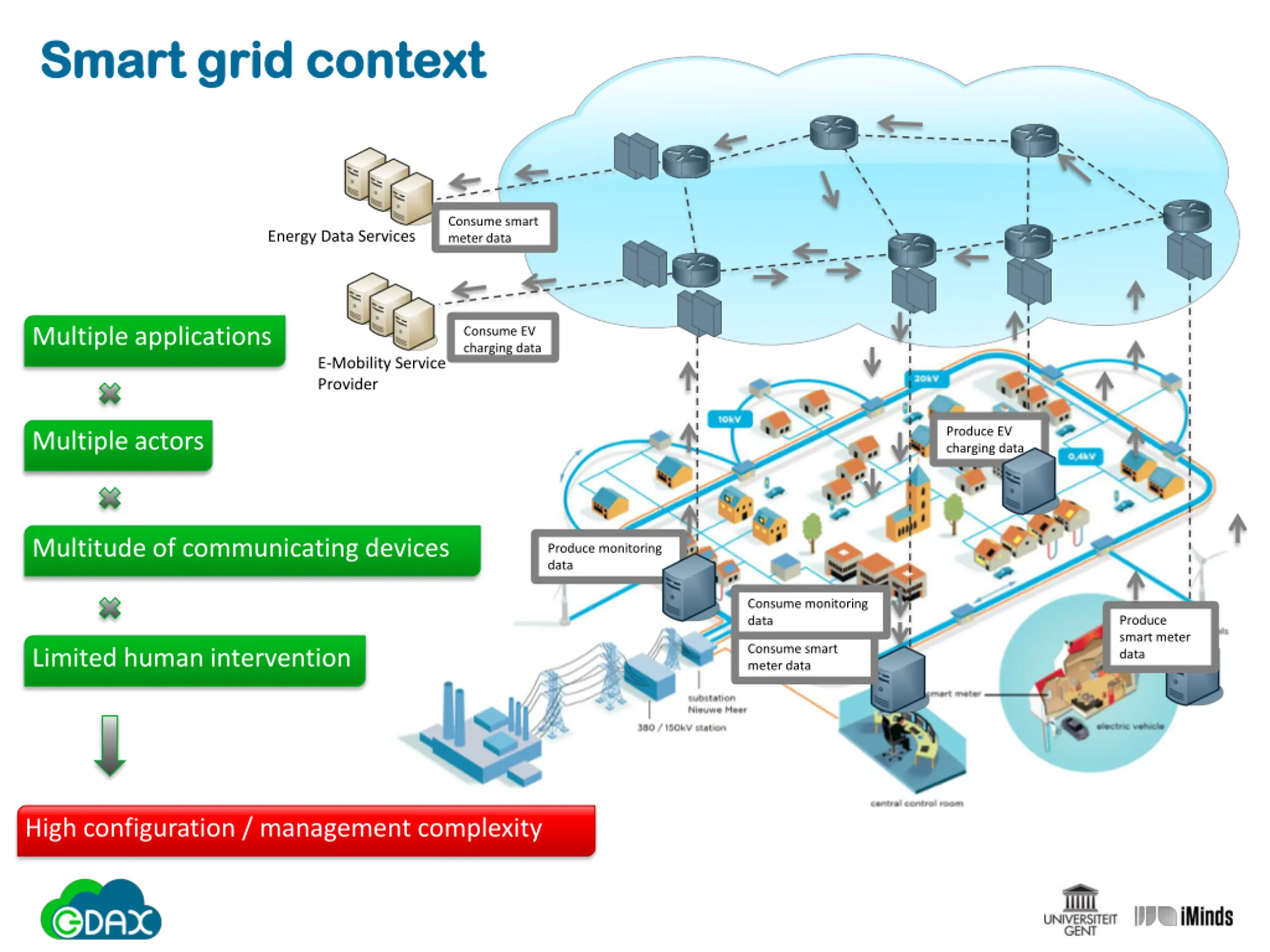

Smart grid context Smart grid context Consume smart meter data Energy Data Services Multiple applications Consume EV charging data E-Mobility Service Provider Produce EV charging data Multiple actors Multitude of communicating devices Produce monitoring data Consume monitoring data Produce smart meter data Consume smart meter data Limited human intervention High configuration / management complexity

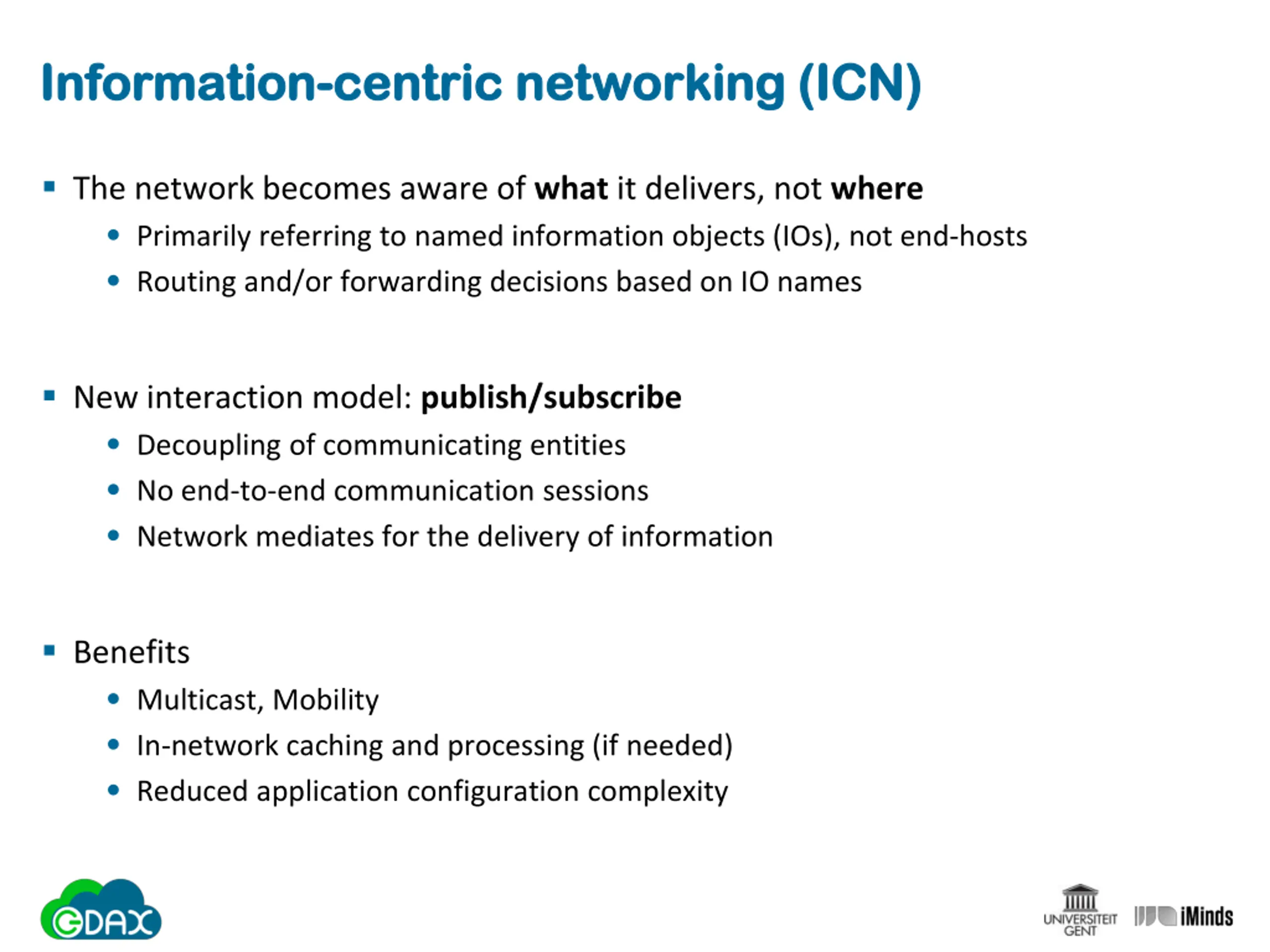

Information Information- -centric networking (ICN) centric networking (ICN) The network becomes aware of what it delivers, not where Primarily referring to named information objects (IOs), not end-hosts Routing and/or forwarding decisions based on IO names New interaction model: publish/subscribe Decoupling of communicating entities No end-to-end communication sessions Network mediates for the delivery of information Benefits Multicast, Mobility In-network caching and processing (if needed) Reduced application configuration complexity

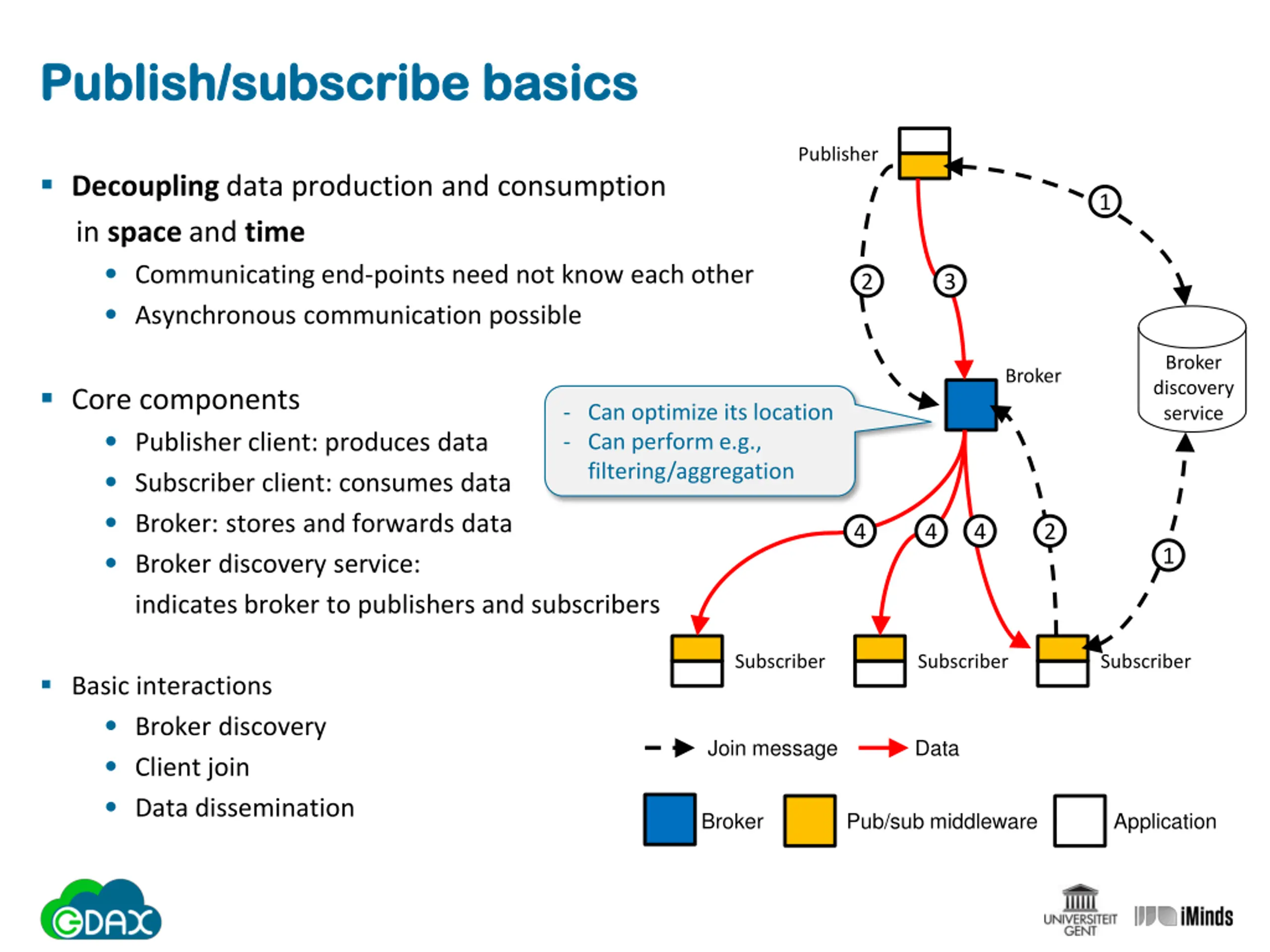

Publish/subscribe basics Publish/subscribe basics Publisher Decoupling data production and consumption in space and time Communicating end-points need not know each other Asynchronous communication possible 1 2 3 Broker discovery service Broker Core components Publisher client: produces data Subscriber client: consumes data Broker: stores and forwards data Broker discovery service: indicates broker to publishers and subscribers - Can optimize its location - Can perform e.g., filtering/aggregation 4 4 4 2 1 Subscriber Subscriber Subscriber Basic interactions Broker discovery Client join Data dissemination Join message Data Broker Pub/sub middleware Application

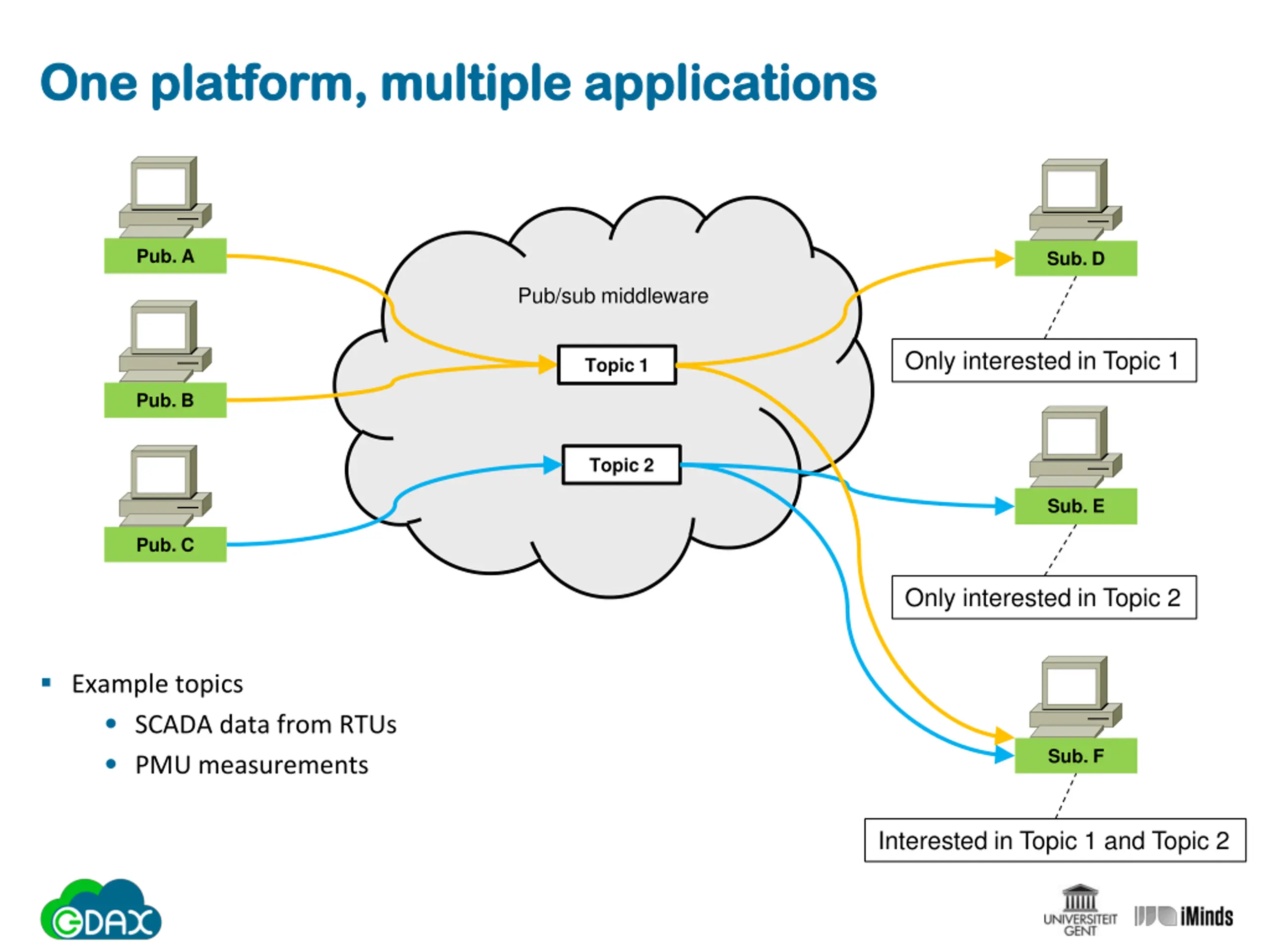

One platform, multiple applications One platform, multiple applications Pub. A Sub. D Pub/sub middleware Only interested in Topic 1 Topic 1 Pub. B Topic 2 Sub. E Pub. C Only interested in Topic 2 Example topics SCADA data from RTUs PMU measurements Sub. F Interested in Topic 1 and Topic 2

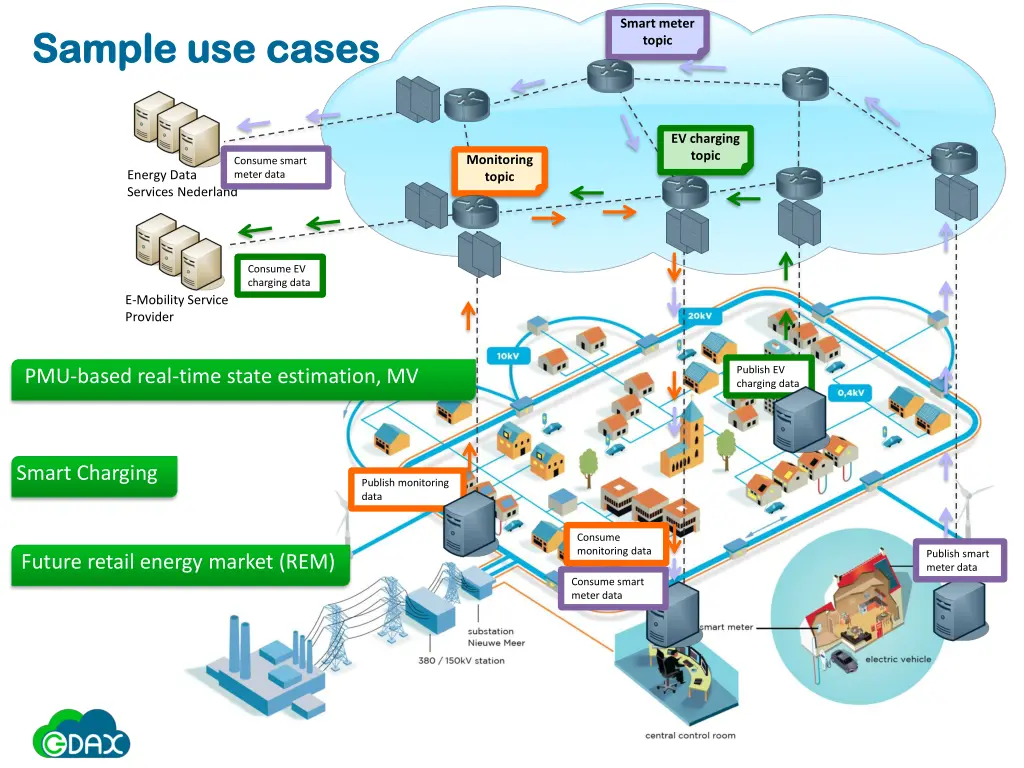

Smart meter topic Sample use Sample use c cases ases EV charging topic Monitoring topic Consume smart meter data Energy Data Services Nederland Consume EV charging data E-Mobility Service Provider Publish EV charging data PMU-based real-time state estimation, MV Smart Charging Publish monitoring data Consume monitoring data Publish smart meter data Future retail energy market (REM) Consume smart meter data
Thank you any questions? Thank you any questions? www.cdax.eu Chris Develder chris.develder@intec.ugent.be http://users.atlantis.ugent.be/cdvelder
