ADS129X: V_LOFF VS. R_ELEC Understanding input voltage for high-impedance and open-circuit conditions with AC lead-off detection Ryan Andrews 1 TI Confidential NDA Restrictions
TINA schematic Use this side only for DC lead-off resistor pull-up/pull-down method Set LOFF_SENSx: GND = 0 VLOFF = 1 Configure analog supply voltages. Vcc Select DC or AC lead-off current source. RLDREF AVDD 3.3 VLOFF VLOFF Vcc Vcc + + + + R6 10MEG AC_LOFF VCVS1 500m DC_LOFF 24u + - - Configure magnitude and frequency lead-off current sources. - AVSS 0 VCCS1 1 Vee SW-SPDT5 Vee + A Vcc Objective: sweep electrode impedance from nominal to open- circuit and observe voltage waveform produced by AC lead- off current R3 4.99k U2 OPA350 7 3 ++ I_LOFFP 6 2 C1 4.7n - 4 + R4 1MEG V_CINP Vee Vee - VLOFF Vee R1 220k + VCCS2 -1 A I_CIN R7 10MEG + RLDREF - R2 220k + R8 1MEG V_DIFF - Vee + 4 2 A - 6 R5 4.99k ++ 7 3 U3 OPA350 I_LOFFN + Vcc C3 4.7n V_CINN - R51 1MEG RLDREF C2 1.5n Vee RLDOUT 4 2 - + 6 A + 3 + I_RLD U4 OPA350 7 RLDREF Vcc 2 TI Confidential NDA Restrictions

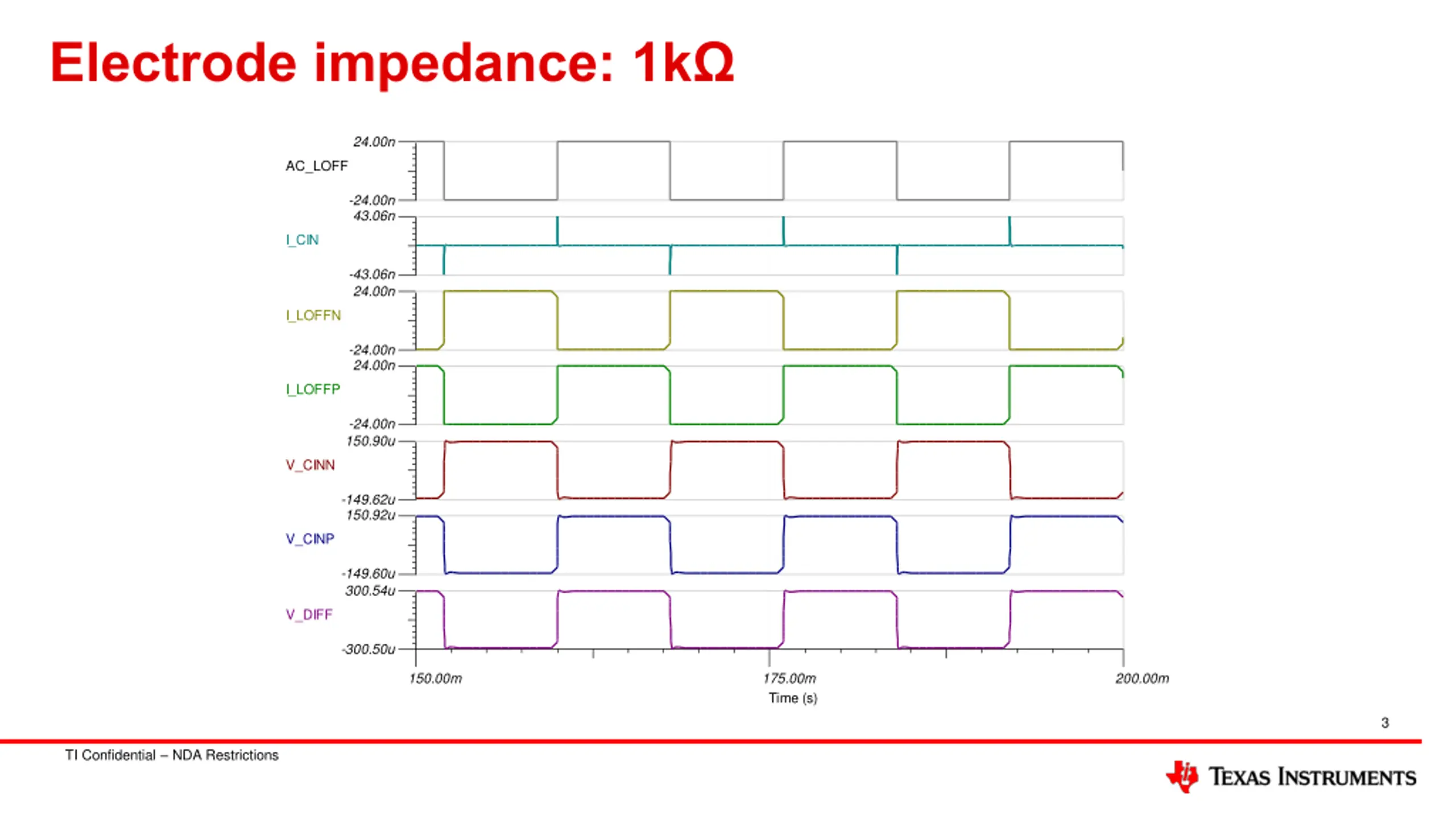

Electrode impedance: 1k 24.00n AC_LOFF -24.00n 43.06n I_CIN -43.06n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 150.90u V_CINN -149.62u 150.92u V_CINP -149.60u 300.54u V_DIFF -300.50u 150.00m 175.00m 200.00m Time (s) 3 TI Confidential NDA Restrictions
Electrode impedance: 10k 24.00n AC_LOFF -24.00n 44.19n I_CIN -44.19n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 367.73u V_CINN -366.49u 367.78u V_CINP -366.44u 734.27u V_DIFF -734.17u 150.00m 175.00m 200.00m Time (s) 4 TI Confidential NDA Restrictions

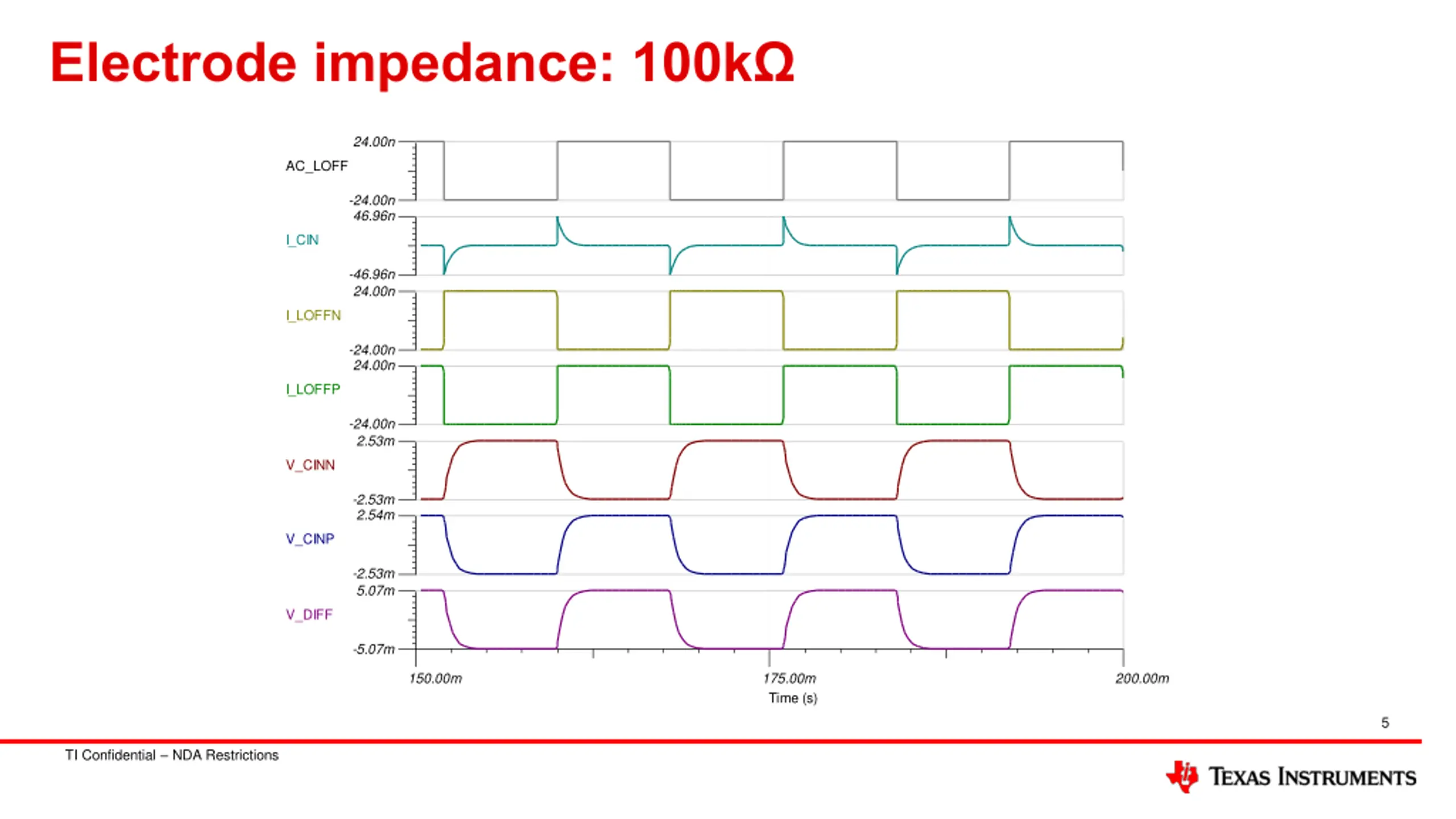

Electrode impedance: 100k 24.00n AC_LOFF -24.00n 46.96n I_CIN -46.96n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 2.53m V_CINN -2.53m 2.54m V_CINP -2.53m 5.07m V_DIFF -5.07m 150.00m 175.00m 200.00m Time (s) 5 TI Confidential NDA Restrictions

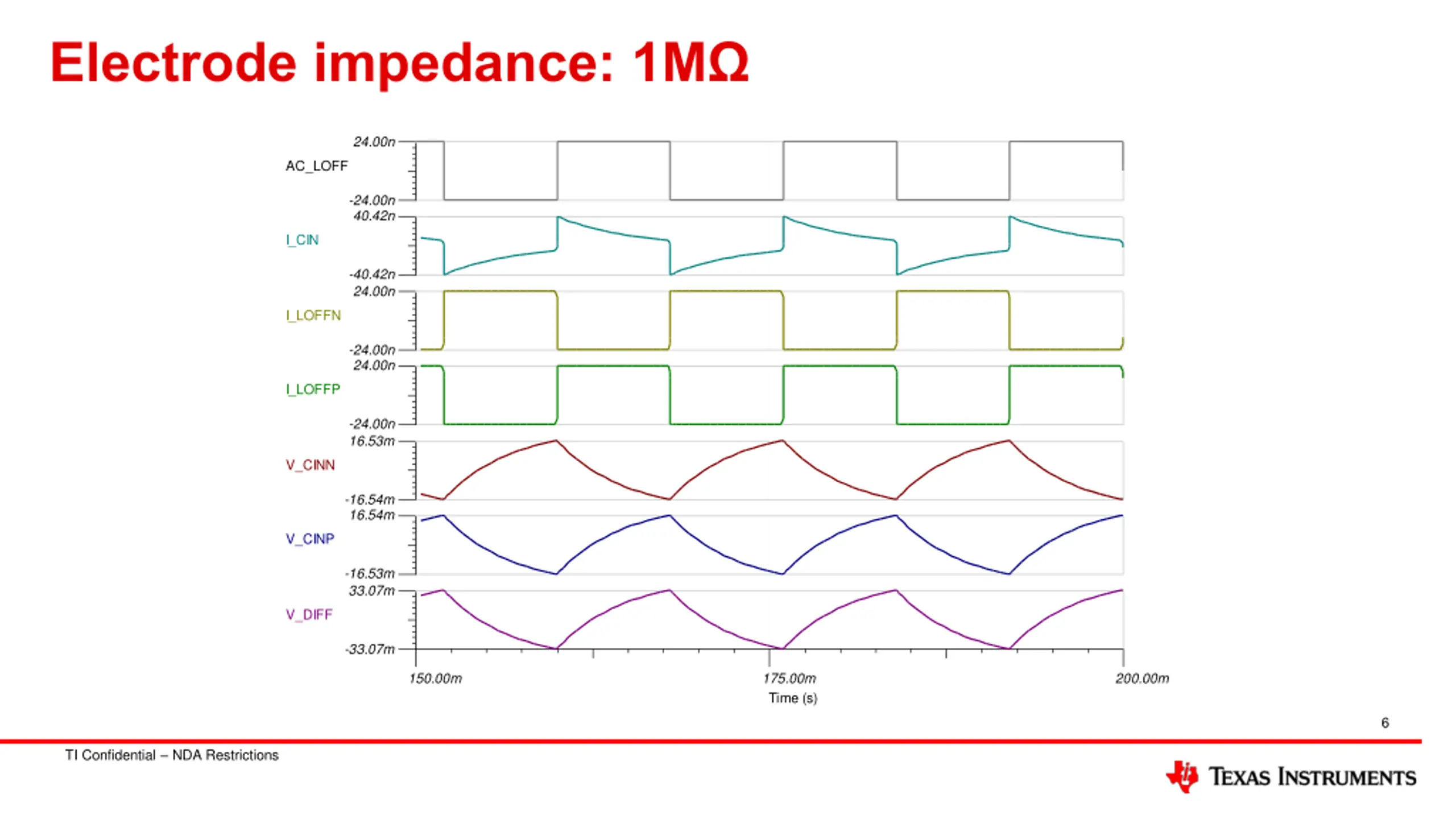

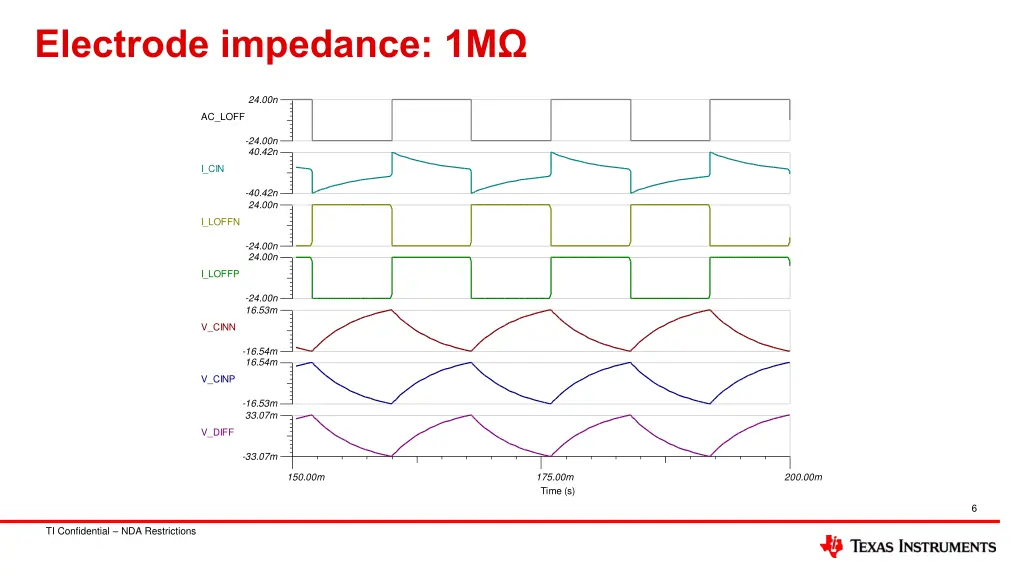

Electrode impedance: 1M 24.00n AC_LOFF -24.00n 40.42n I_CIN -40.42n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 16.53m V_CINN -16.54m 16.54m V_CINP -16.53m 33.07m V_DIFF -33.07m 150.00m 175.00m 200.00m Time (s) 6 TI Confidential NDA Restrictions
Electrode impedance: 10M 24.00n AC_LOFF -24.00n 25.97n I_CIN -26.08n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 19.91m V_CINN -21.10m 21.09m V_CINP -19.92m 42.19m V_DIFF -39.84m 150.00m 175.00m 200.00m Time (s) 7 TI Confidential NDA Restrictions

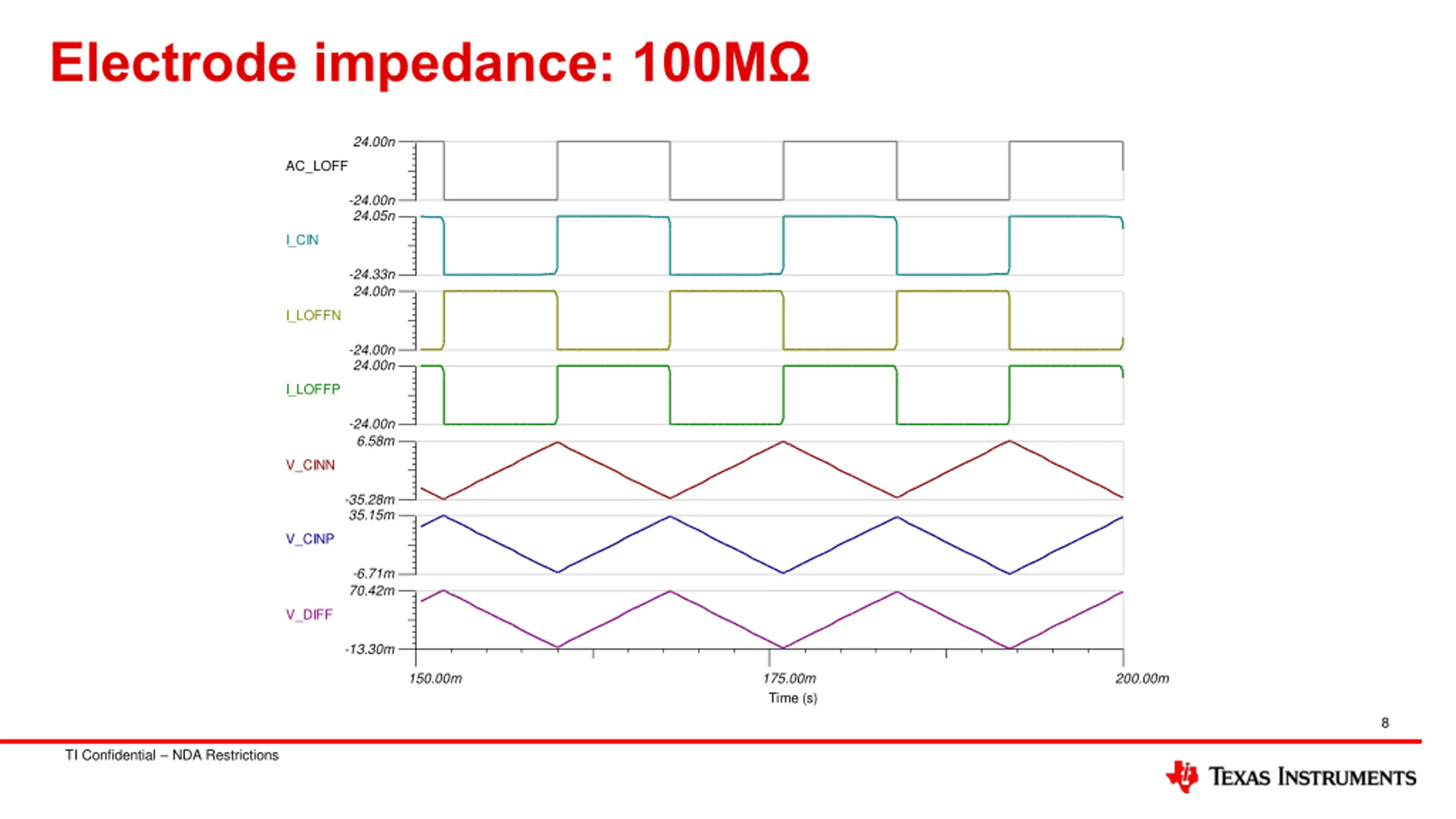

Electrode impedance: 100M 24.00n AC_LOFF -24.00n 24.05n I_CIN -24.33n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n 6.58m V_CINN -35.28m 35.15m V_CINP -6.71m 70.42m V_DIFF -13.30m 150.00m 175.00m 200.00m Time (s) 8 TI Confidential NDA Restrictions

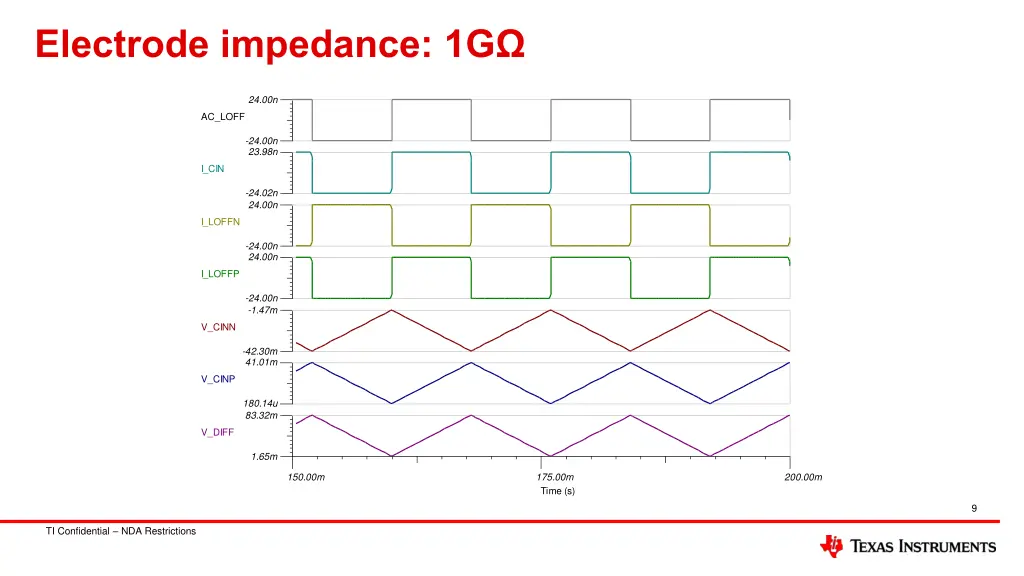

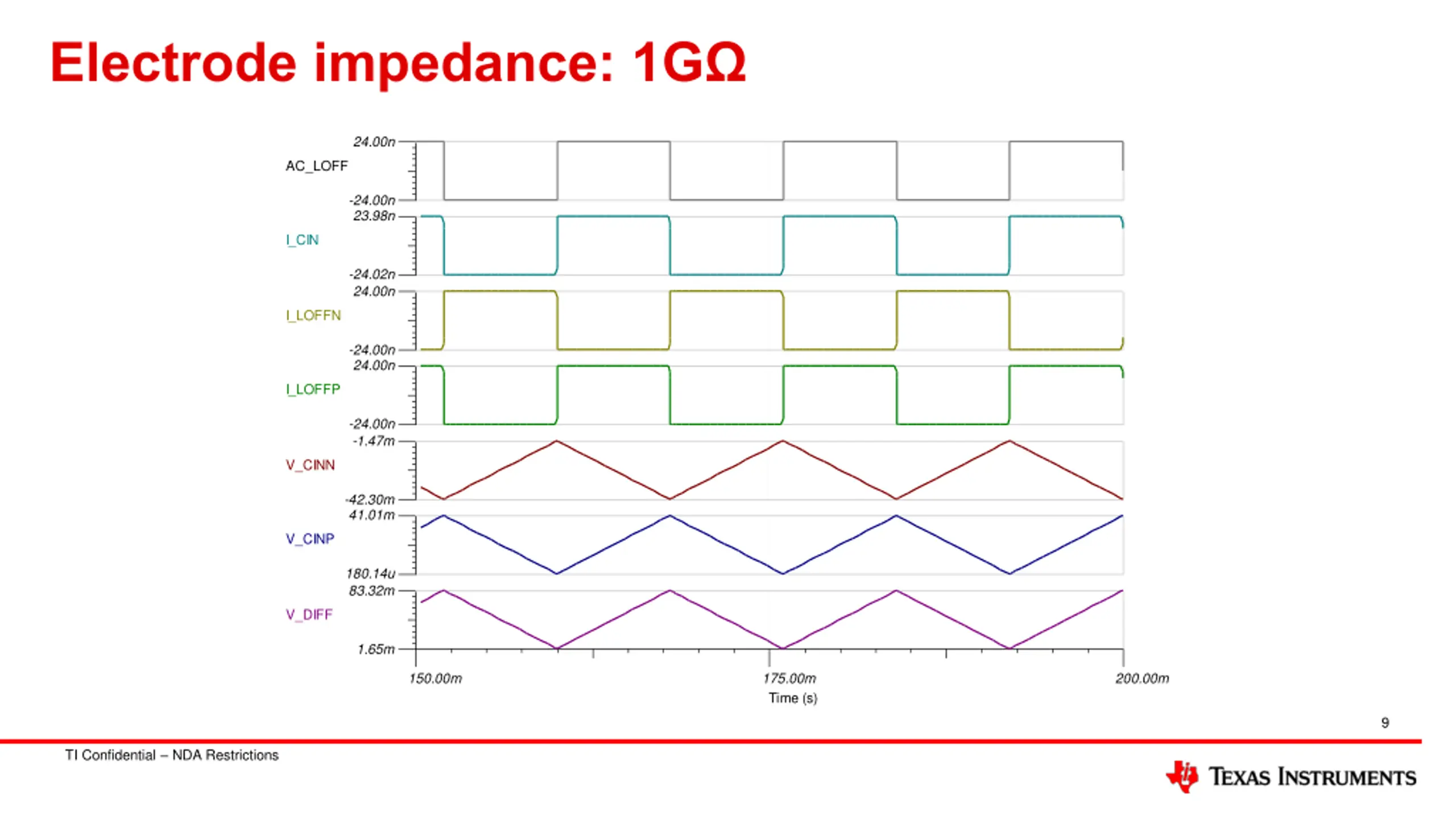

Electrode impedance: 1G 24.00n AC_LOFF -24.00n 23.98n I_CIN -24.02n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n -1.47m V_CINN -42.30m 41.01m V_CINP 180.14u 83.32m V_DIFF 1.65m 150.00m 175.00m 200.00m Time (s) 9 TI Confidential NDA Restrictions

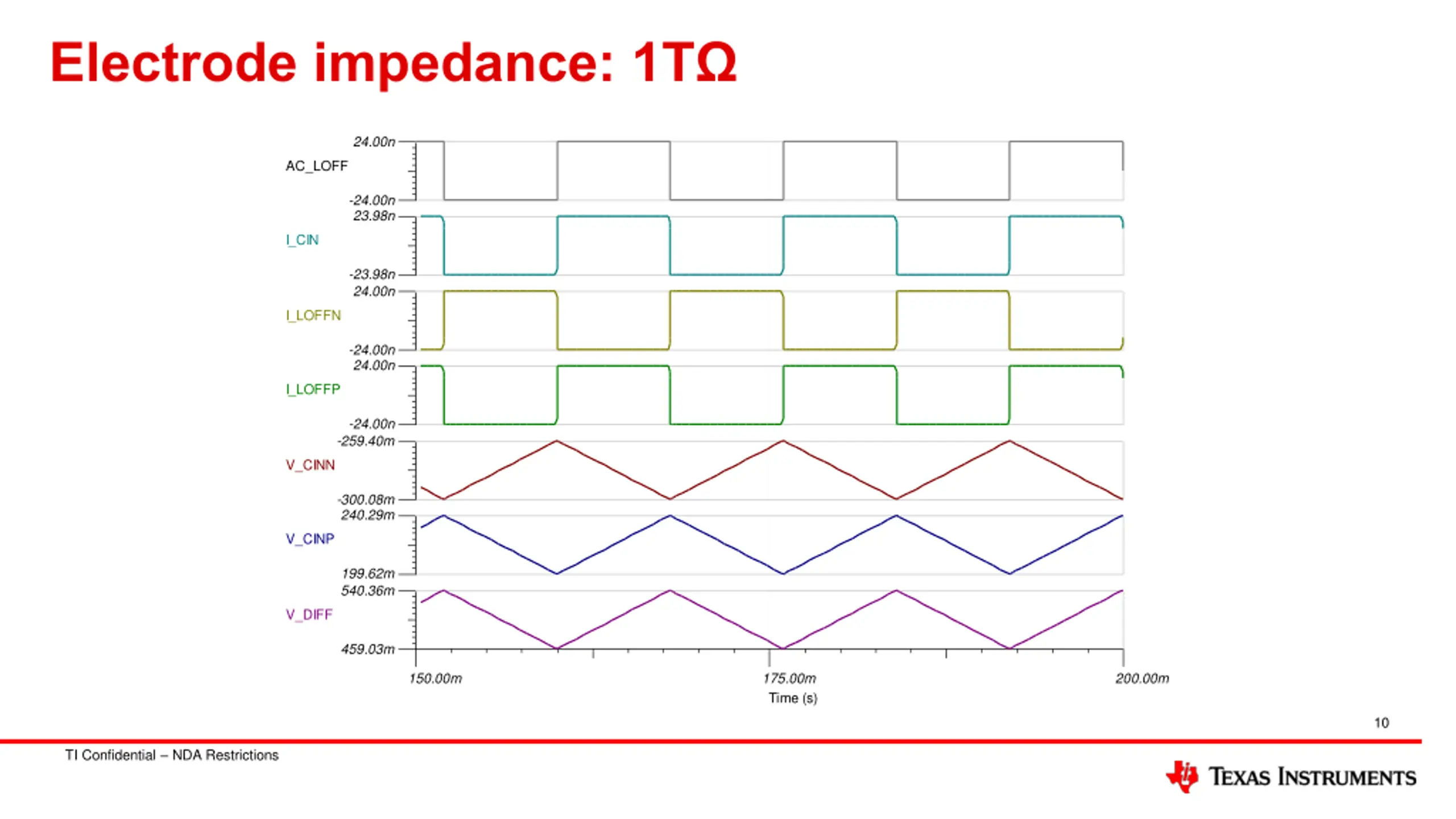

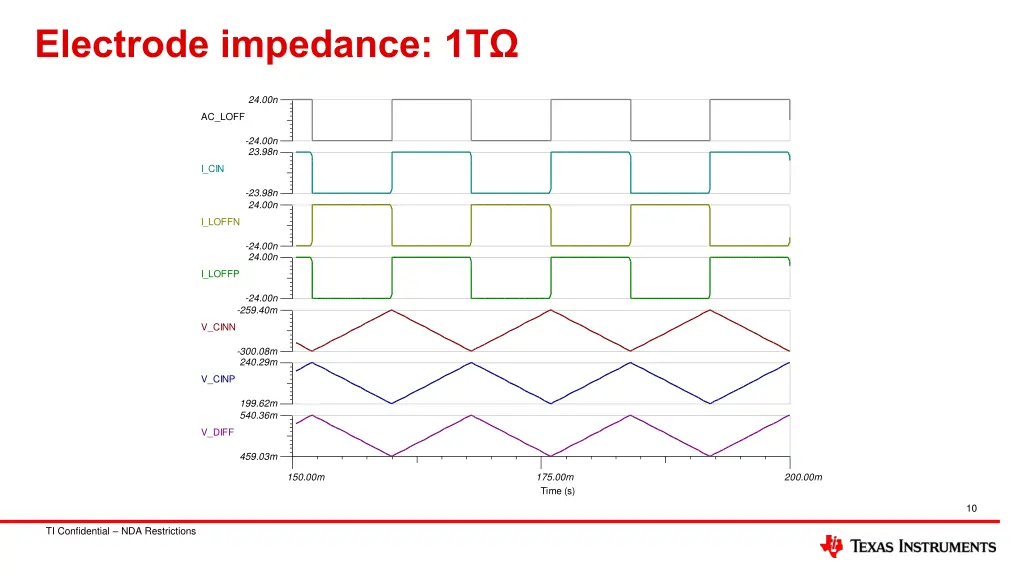

Electrode impedance: 1T 24.00n AC_LOFF -24.00n 23.98n I_CIN -23.98n 24.00n I_LOFFN -24.00n 24.00n I_LOFFP -24.00n -259.40m V_CINN -300.08m 240.29m V_CINP 199.62m 540.36m V_DIFF 459.03m 150.00m 175.00m 200.00m Time (s) 10 TI Confidential NDA Restrictions
