1. Chapter 6: Interrupt Programming in Pico Raspberry Pi Pico Interfacing and Programming with MicroPython www.MicroDigitalEd.com

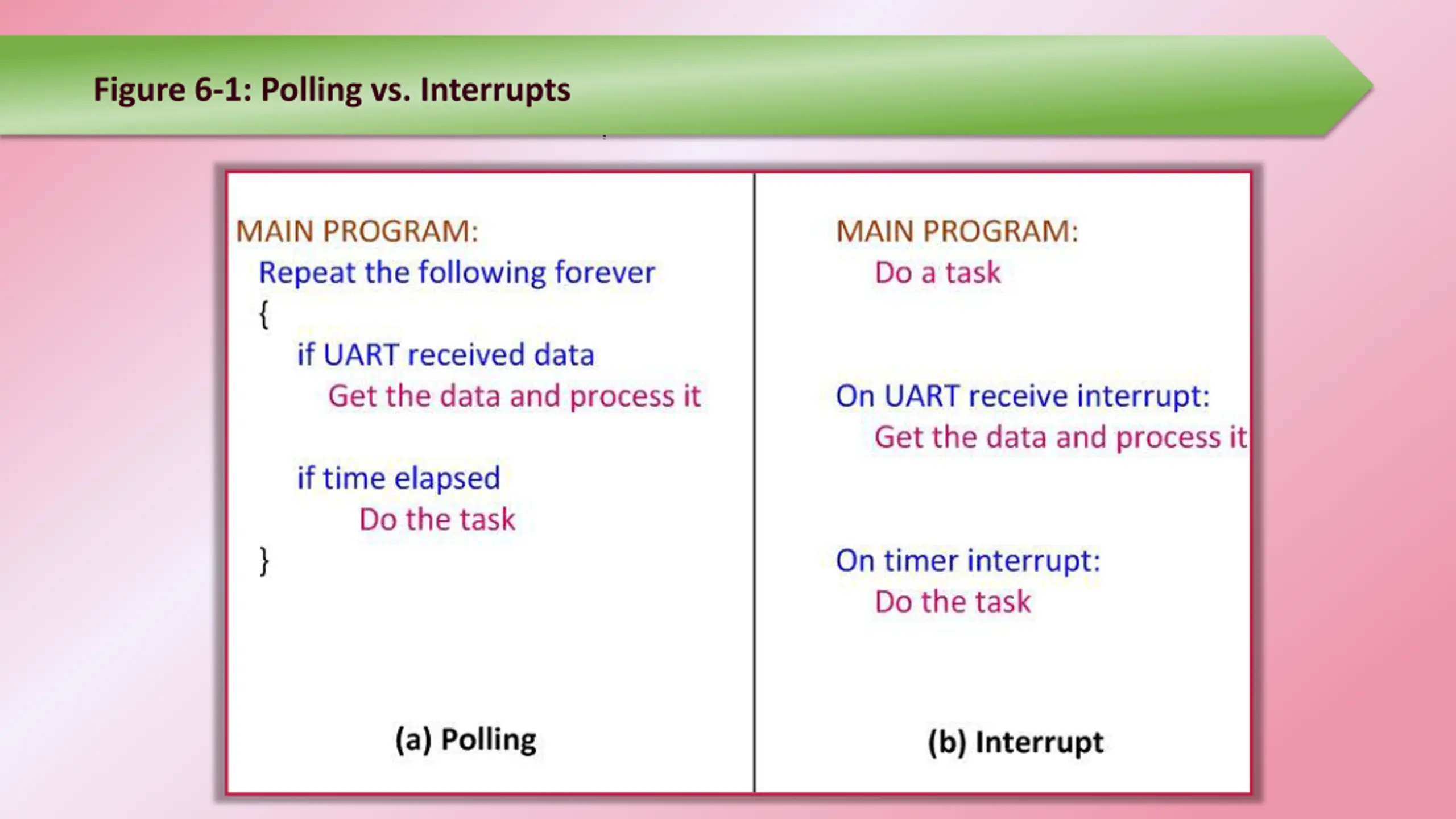

2. Figure 6-1: Polling vs. Interrupts

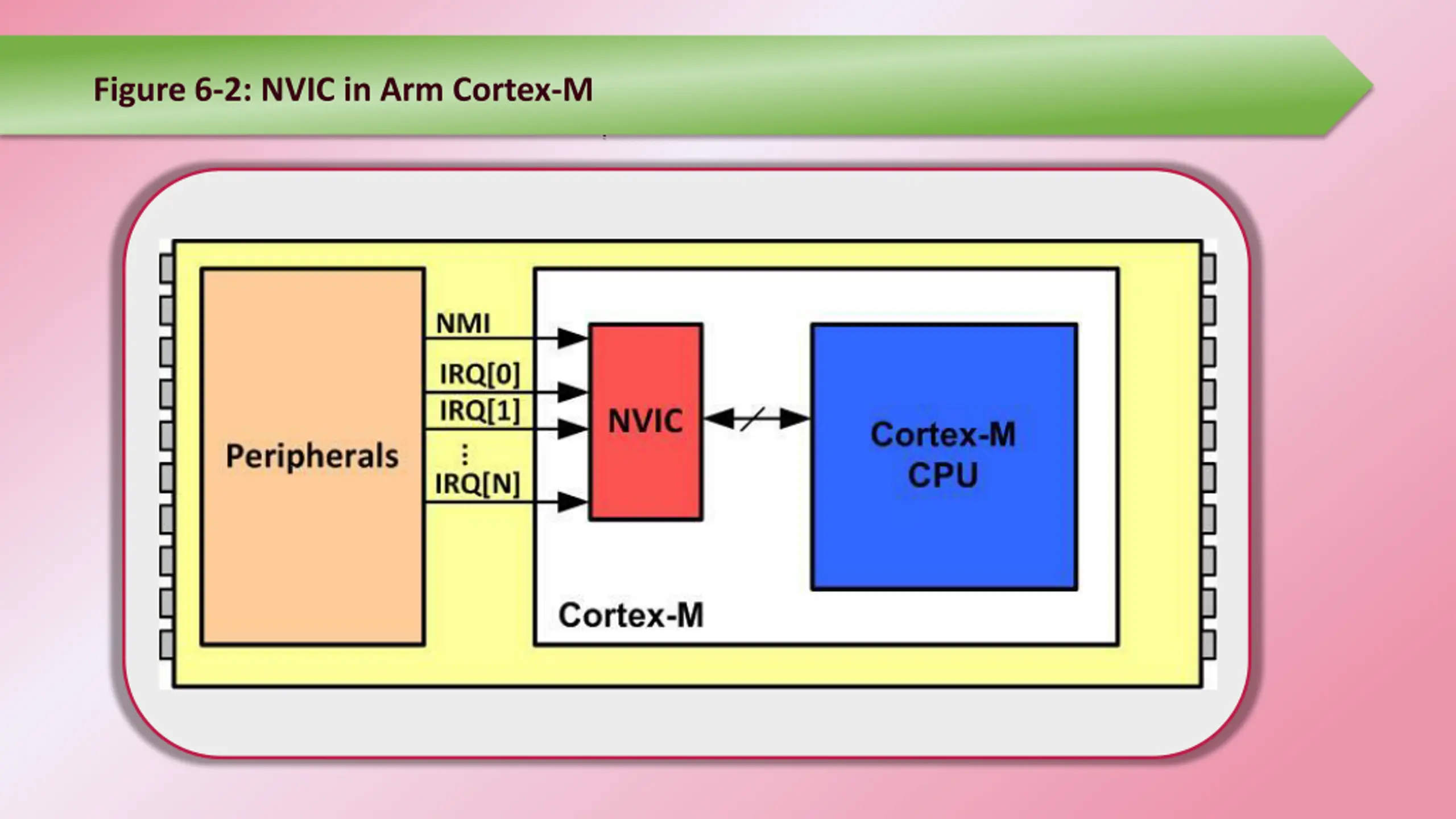

3. Figure 6-2: NVIC in Arm Cortex-M

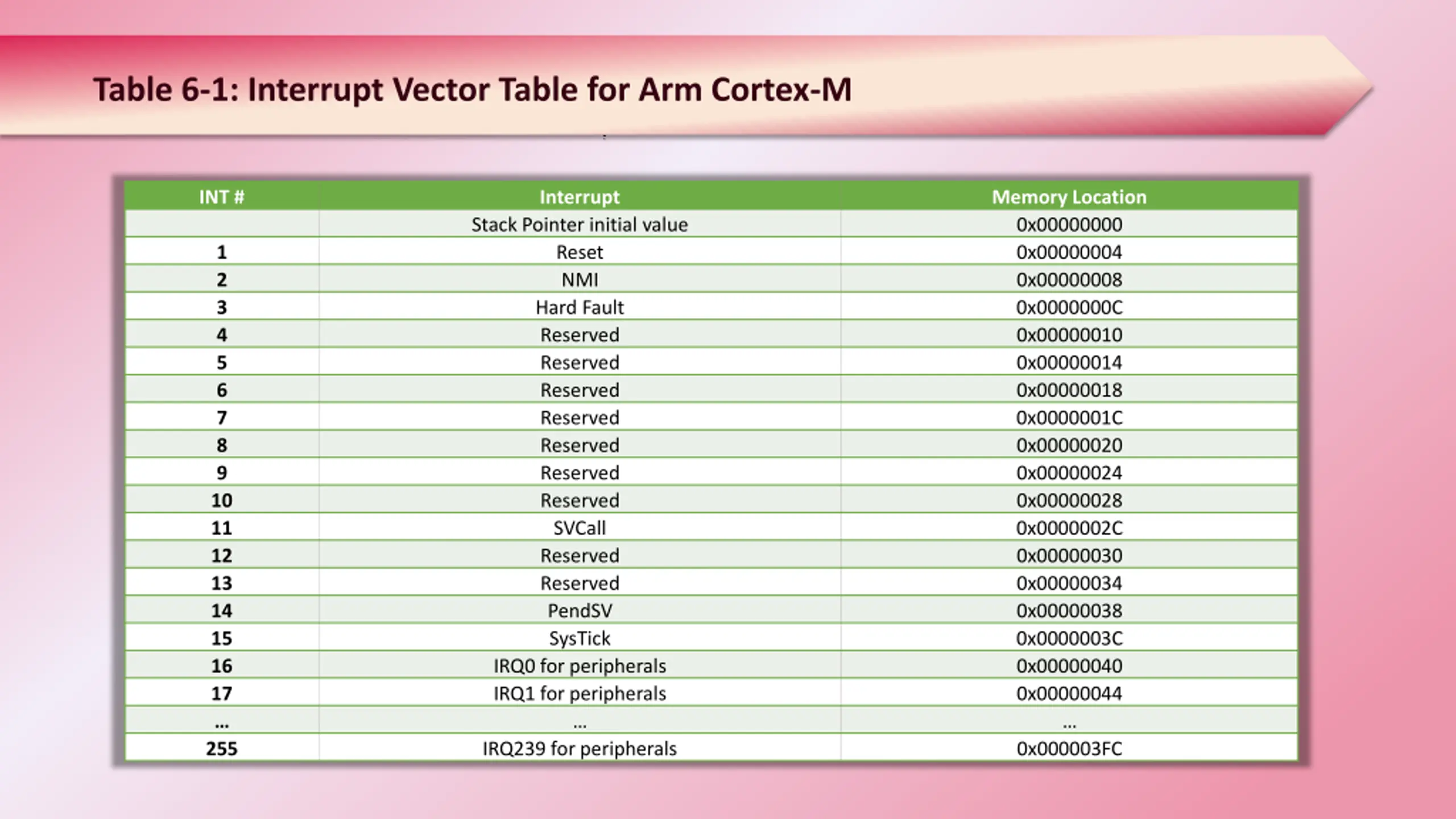

4. Table 6-1: Interrupt Vector Table for Arm Cortex-M INT # Interrupt Memory Location 0x00000000 0x00000004 0x00000008 0x0000000C 0x00000010 0x00000014 0x00000018 0x0000001C 0x00000020 0x00000024 0x00000028 0x0000002C 0x00000030 0x00000034 0x00000038 0x0000003C 0x00000040 0x00000044 0x000003FC Stack Pointer initial value Reset NMI Hard Fault Reserved Reserved Reserved Reserved Reserved Reserved Reserved SVCall Reserved Reserved PendSV SysTick IRQ0 for peripherals IRQ1 for peripherals IRQ239 for peripherals 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 255

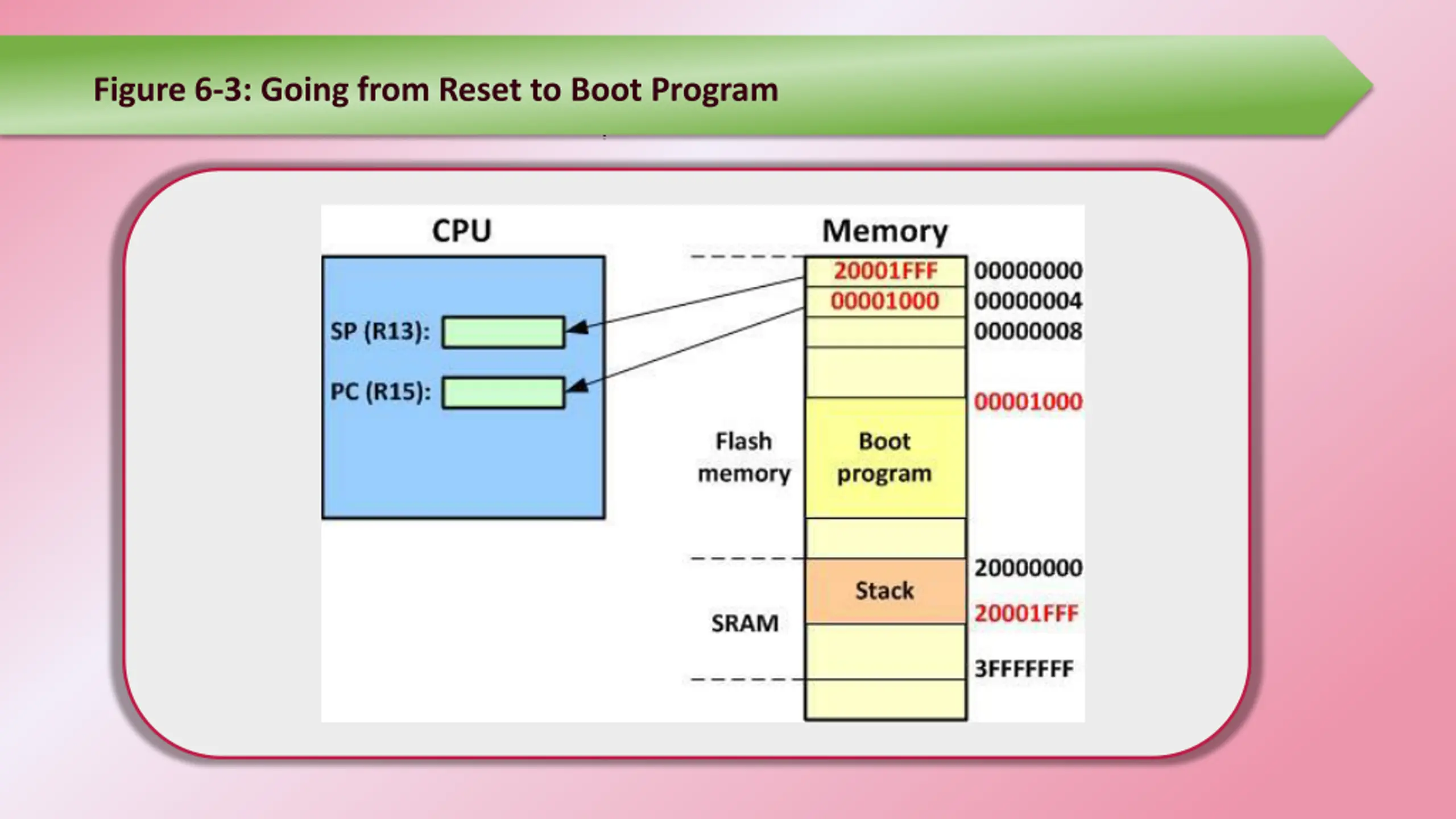

5. Figure 6-3: Going from Reset to Boot Program

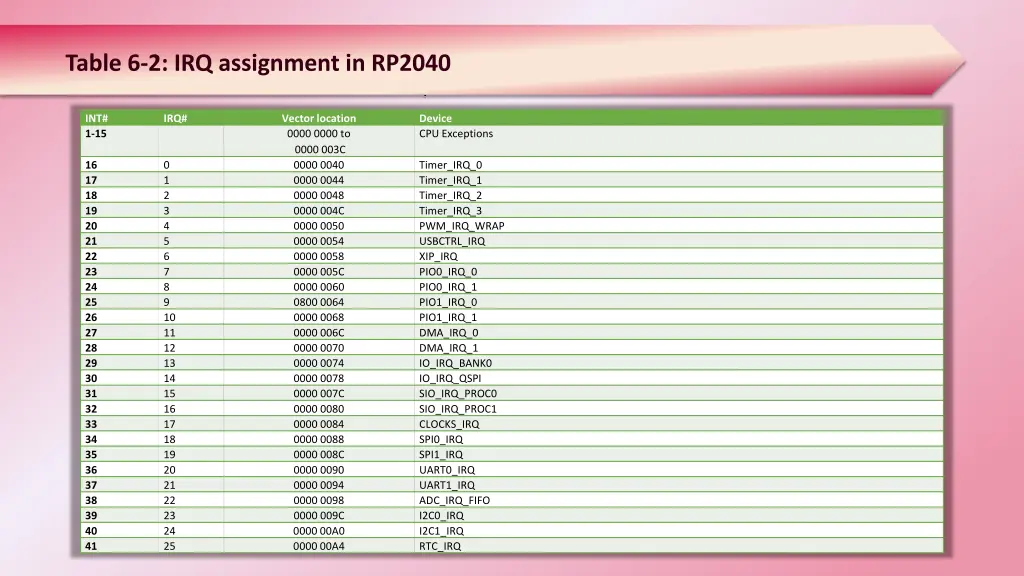

6. Table 6-2: IRQ assignment in RP2040 INT# 1-15 IRQ# Vector location 0000 0000 to 0000 003C 0000 0040 0000 0044 0000 0048 0000 004C 0000 0050 0000 0054 0000 0058 0000 005C 0000 0060 0800 0064 0000 0068 0000 006C 0000 0070 0000 0074 0000 0078 0000 007C 0000 0080 0000 0084 0000 0088 0000 008C 0000 0090 0000 0094 0000 0098 0000 009C 0000 00A0 0000 00A4 Device CPU Exceptions 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 Timer_IRQ_0 Timer_IRQ_1 Timer_IRQ_2 Timer_IRQ_3 PWM_IRQ_WRAP USBCTRL_IRQ XIP_IRQ PIO0_IRQ_0 PIO0_IRQ_1 PIO1_IRQ_0 PIO1_IRQ_1 DMA_IRQ_0 DMA_IRQ_1 IO_IRQ_BANK0 IO_IRQ_QSPI SIO_IRQ_PROC0 SIO_IRQ_PROC1 CLOCKS_IRQ SPI0_IRQ SPI1_IRQ UART0_IRQ UART1_IRQ ADC_IRQ_FIFO I2C0_IRQ I2C1_IRQ RTC_IRQ

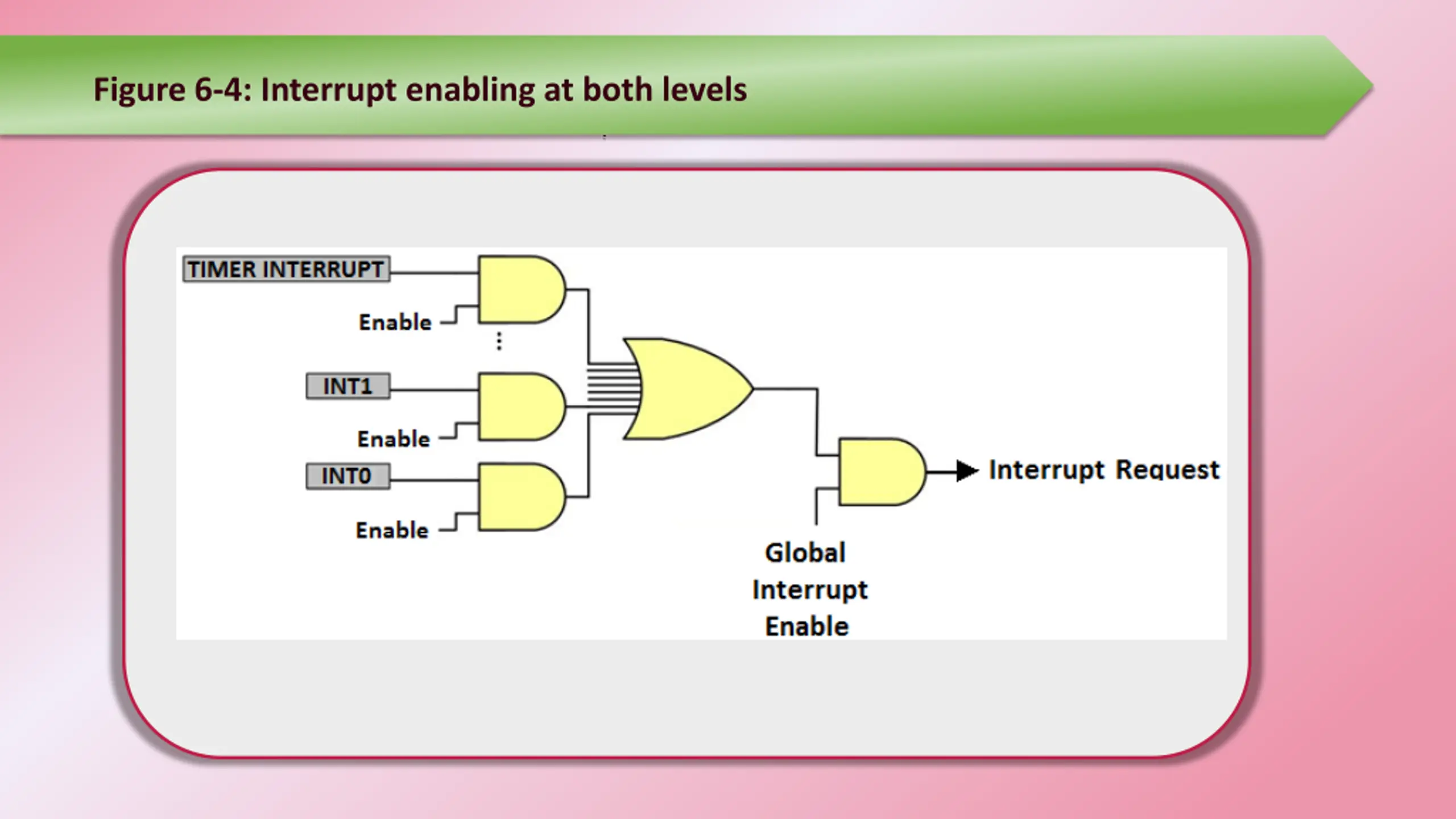

7. Figure 6-4: Interrupt enabling at both levels

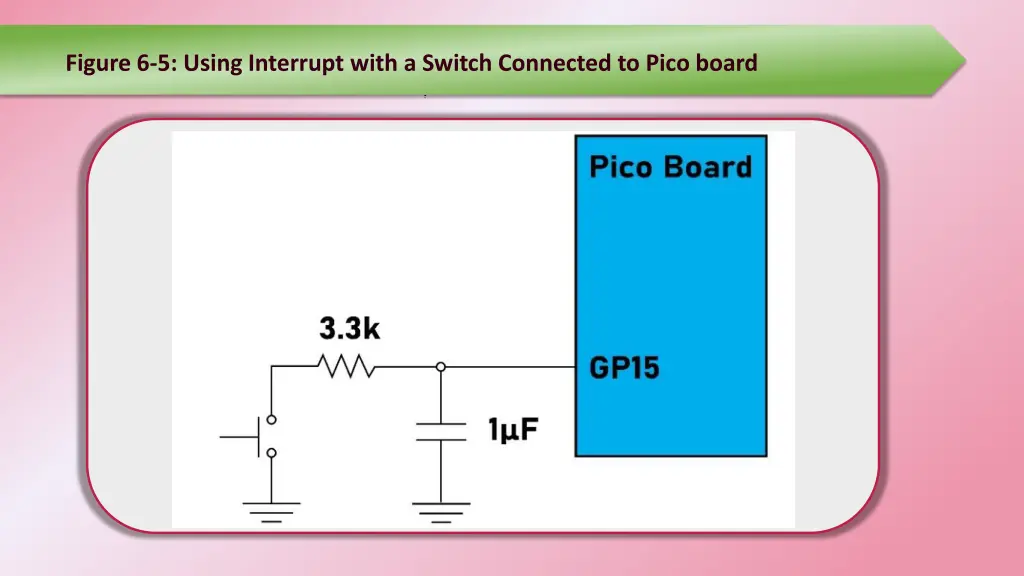

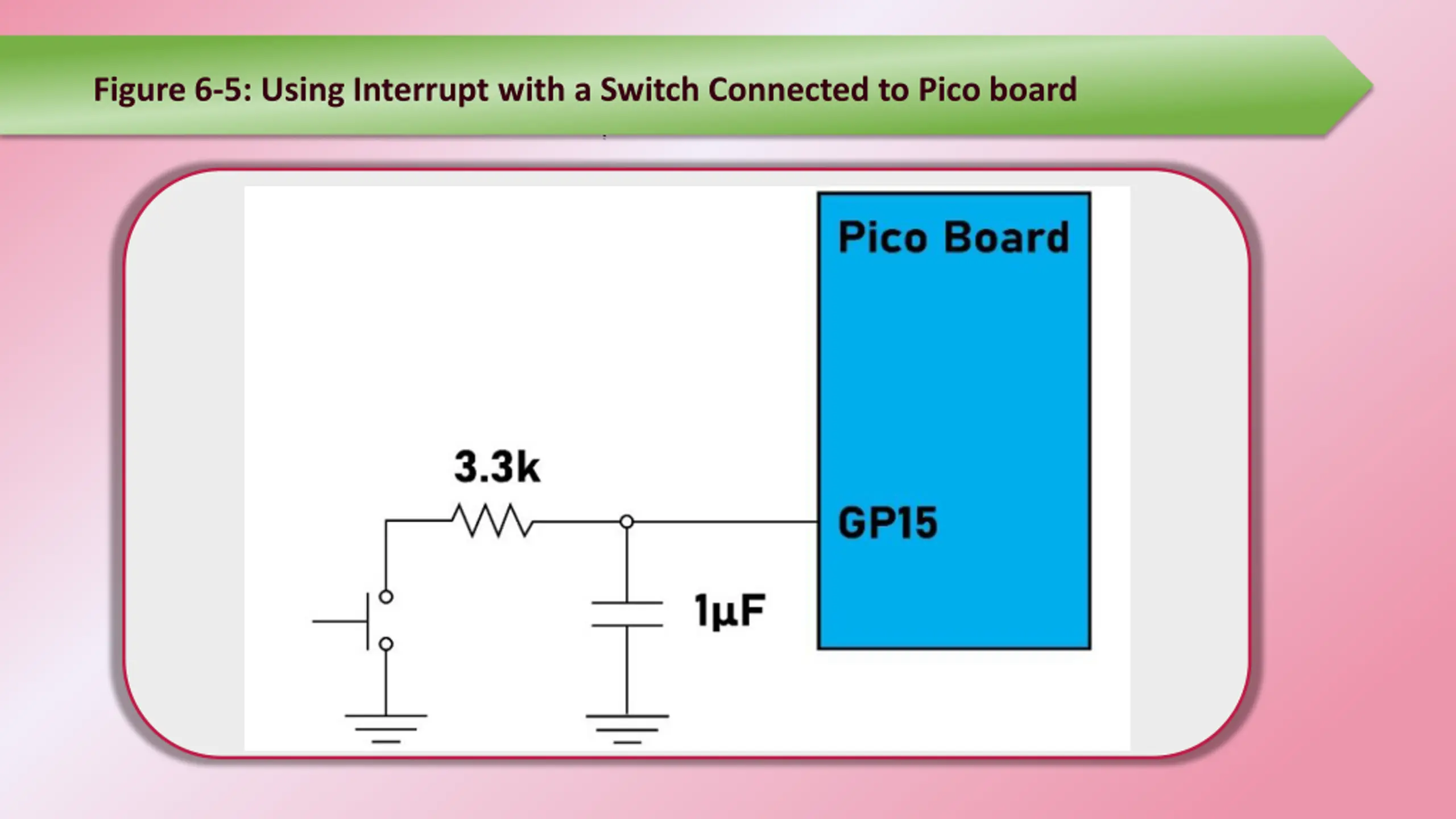

8. Figure 6-5: Using Interrupt with a Switch Connected to Pico board

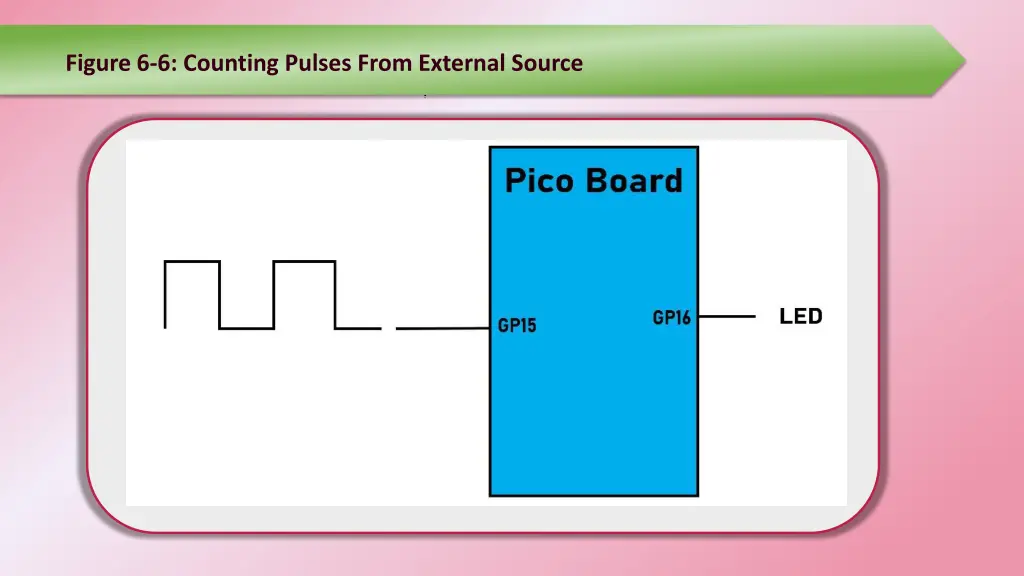

9. Figure 6-6: Counting Pulses From External Source

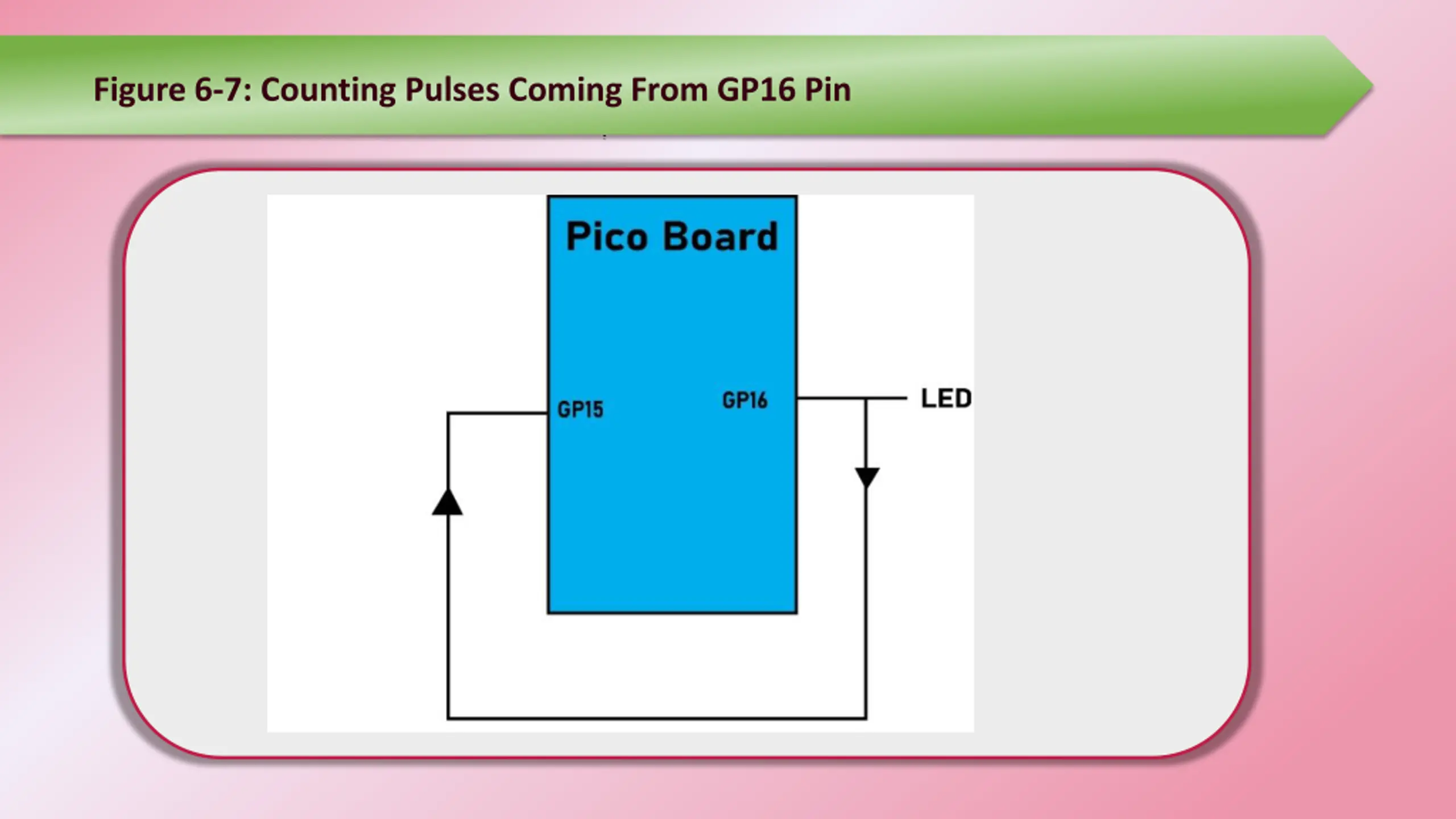

10. Figure 6-7: Counting Pulses Coming From GP16 Pin

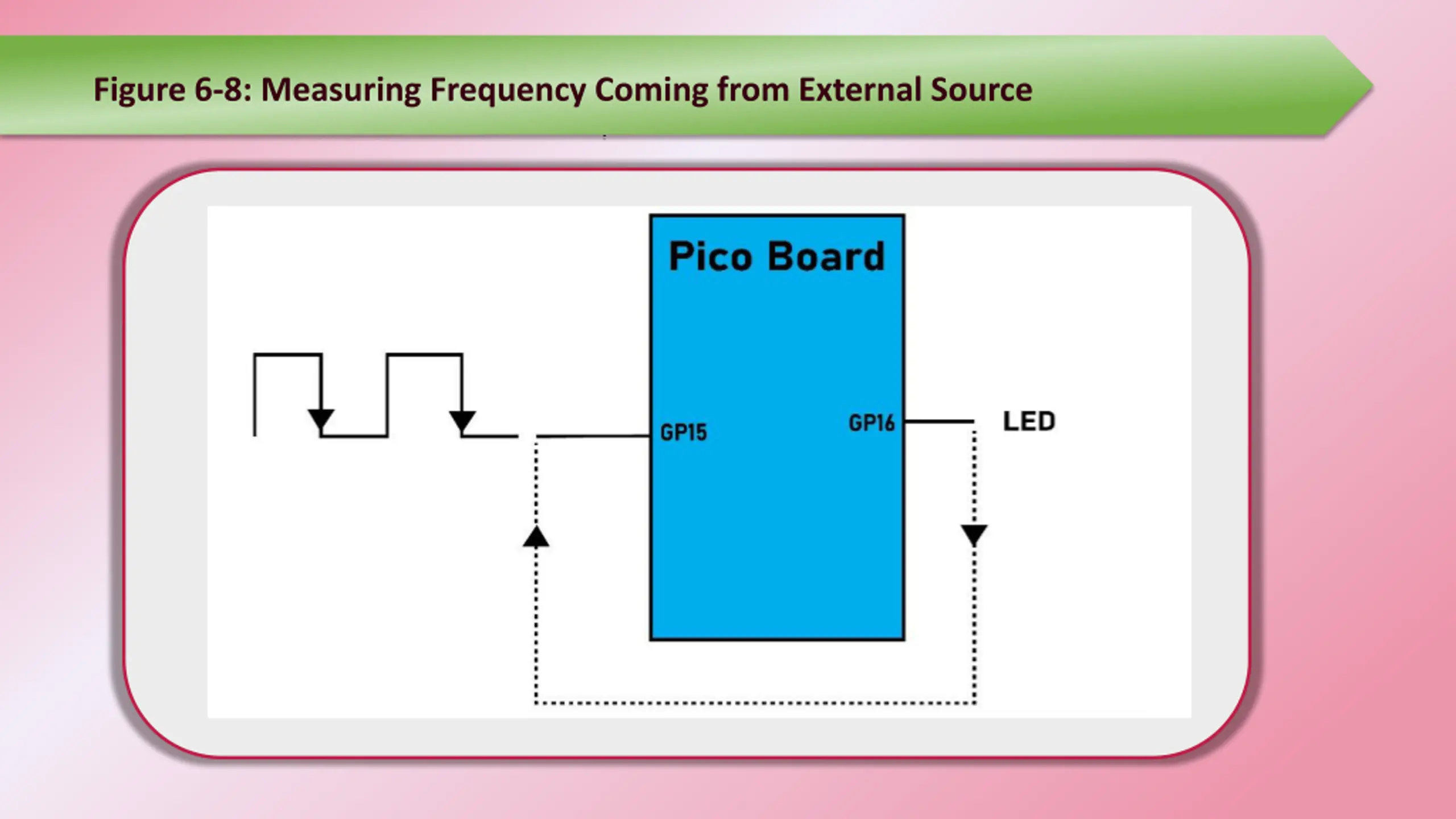

11. Figure 6-8: Measuring Frequency Coming from External Source

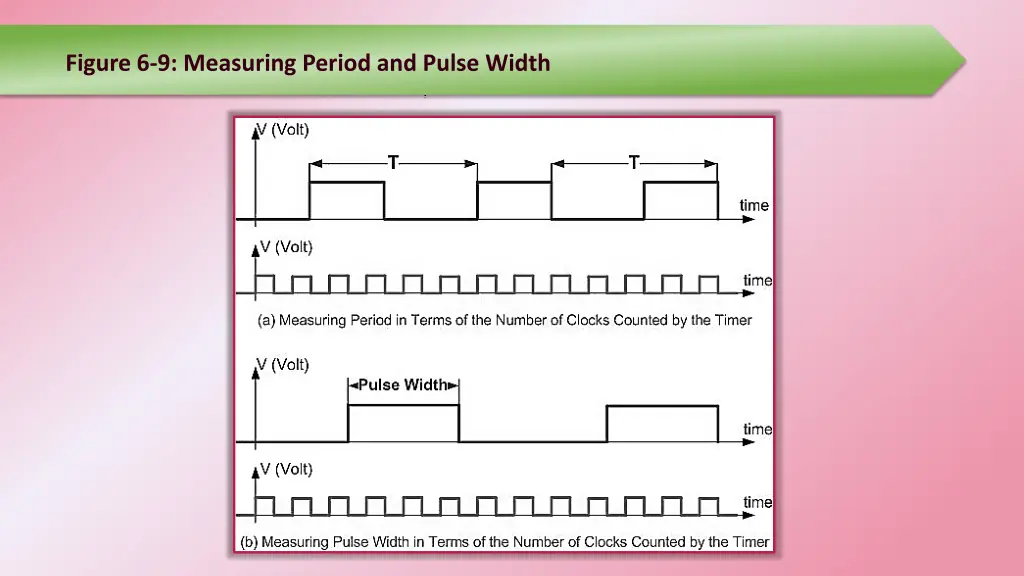

12. Figure 6-9: Measuring Period and Pulse Width
