ITERATIVE METHODS Prepared by, Dr. L. Benedict Michael Raj Associate Professor Department of Mathematics, St. Joseph s College(Autonomous), Trichy

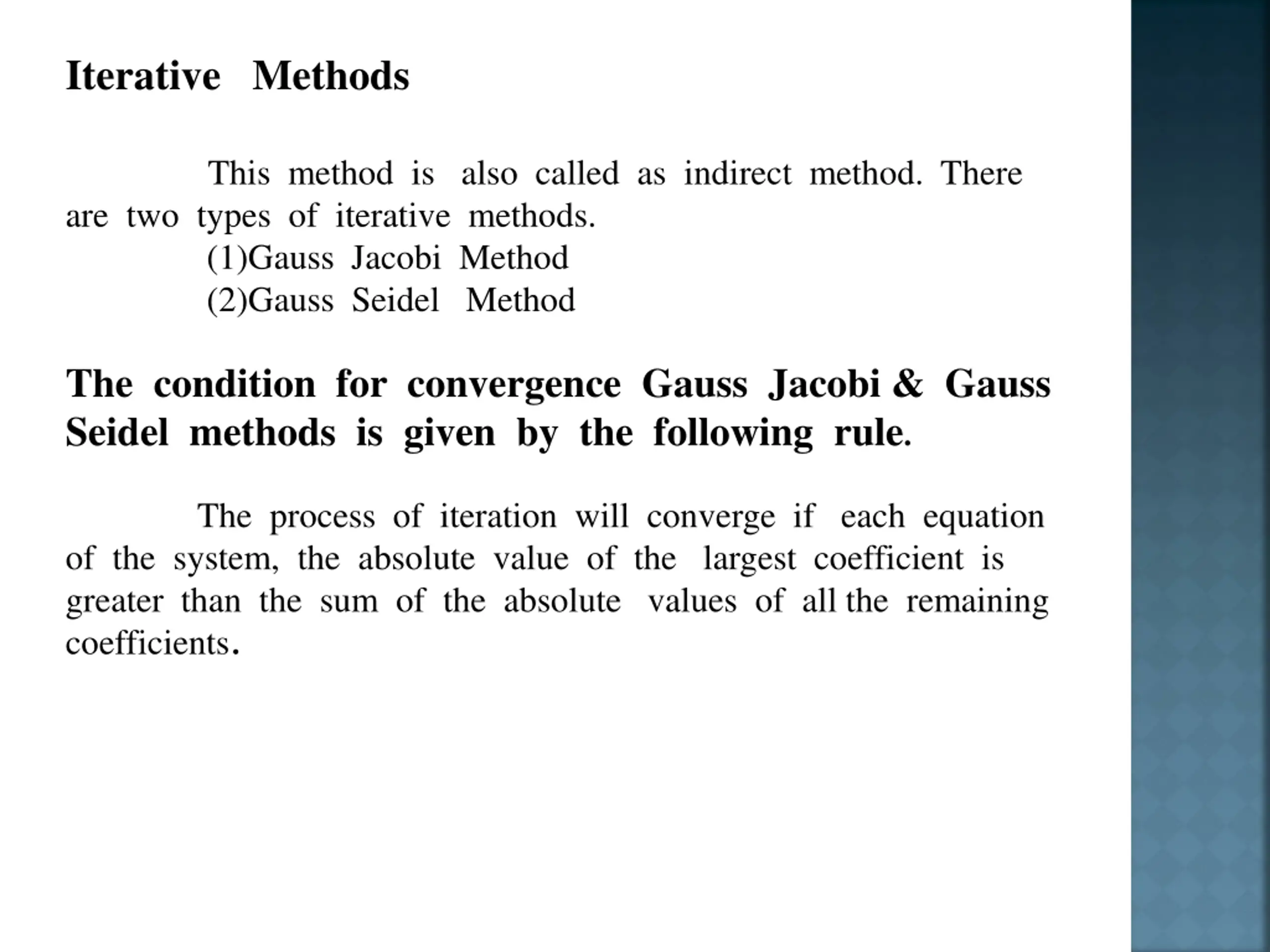

Iterative Methods This method is also called as indirect method. There are two types of iterative methods. (1)Gauss Jacobi Method (2)Gauss Seidel Method The condition for convergence Gauss Jacobi & Gauss Seidel methods is given by the following rule. of the system, the absolute value of the largest coefficient is greater than the sum of the absolute values of all the remaining coefficients. The process of iteration will converge if each equation

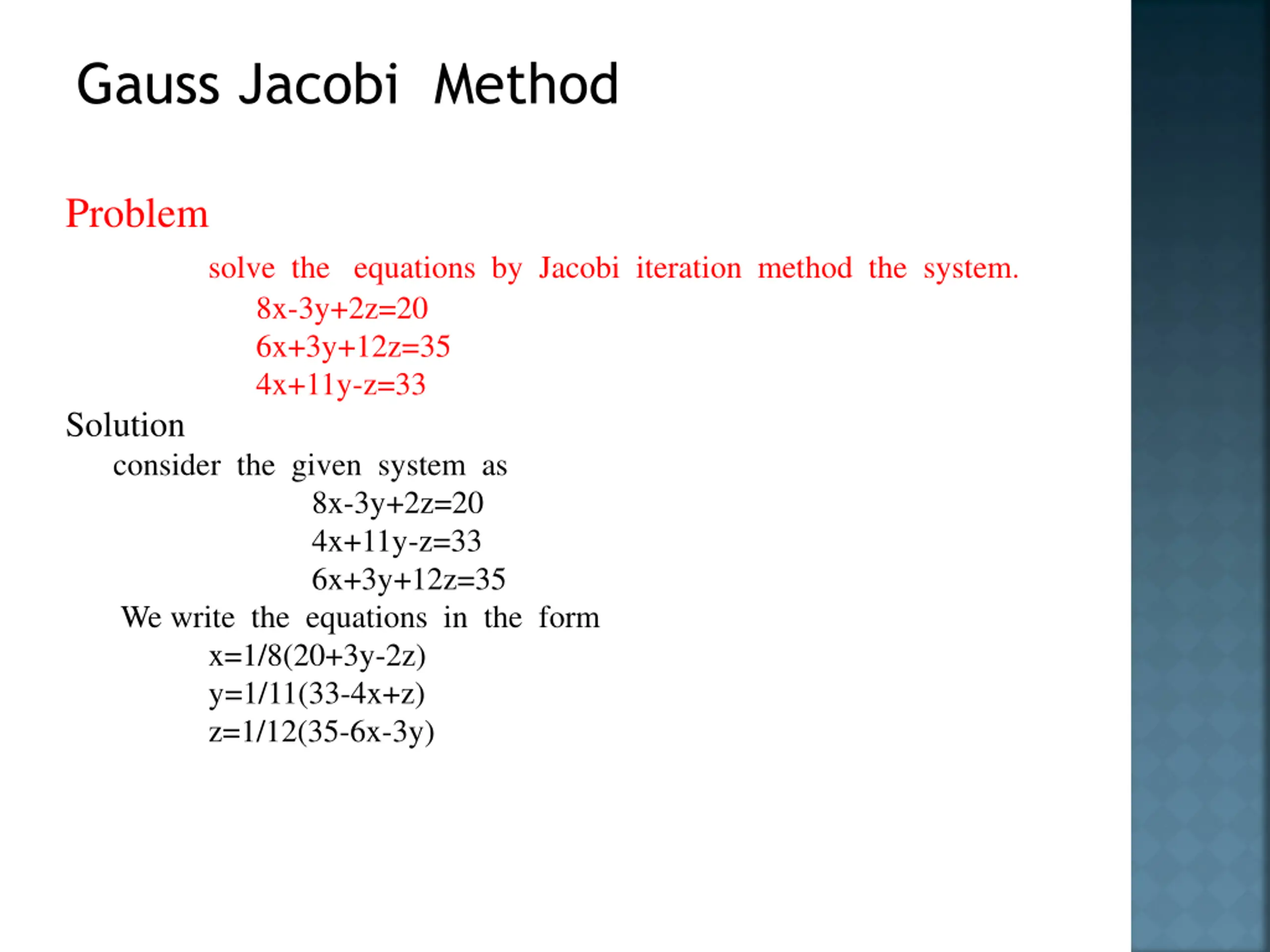

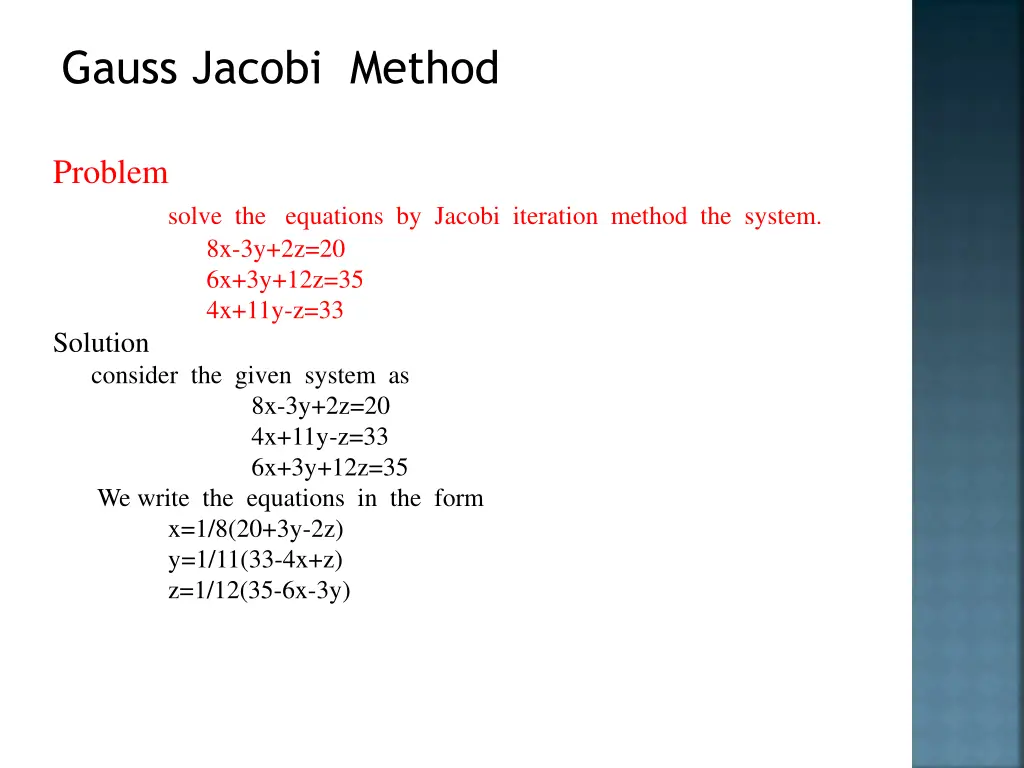

Gauss Jacobi Method Problem Solution consider the given system as We write the equations in the form x=1/8(20+3y-2z) y=1/11(33-4x+z) z=1/12(35-6x-3y) solve the equations by Jacobi iteration method the system. 8x-3y+2z=20 6x+3y+12z=35 4x+11y-z=33 8x-3y+2z=20 4x+11y-z=33 6x+3y+12z=35

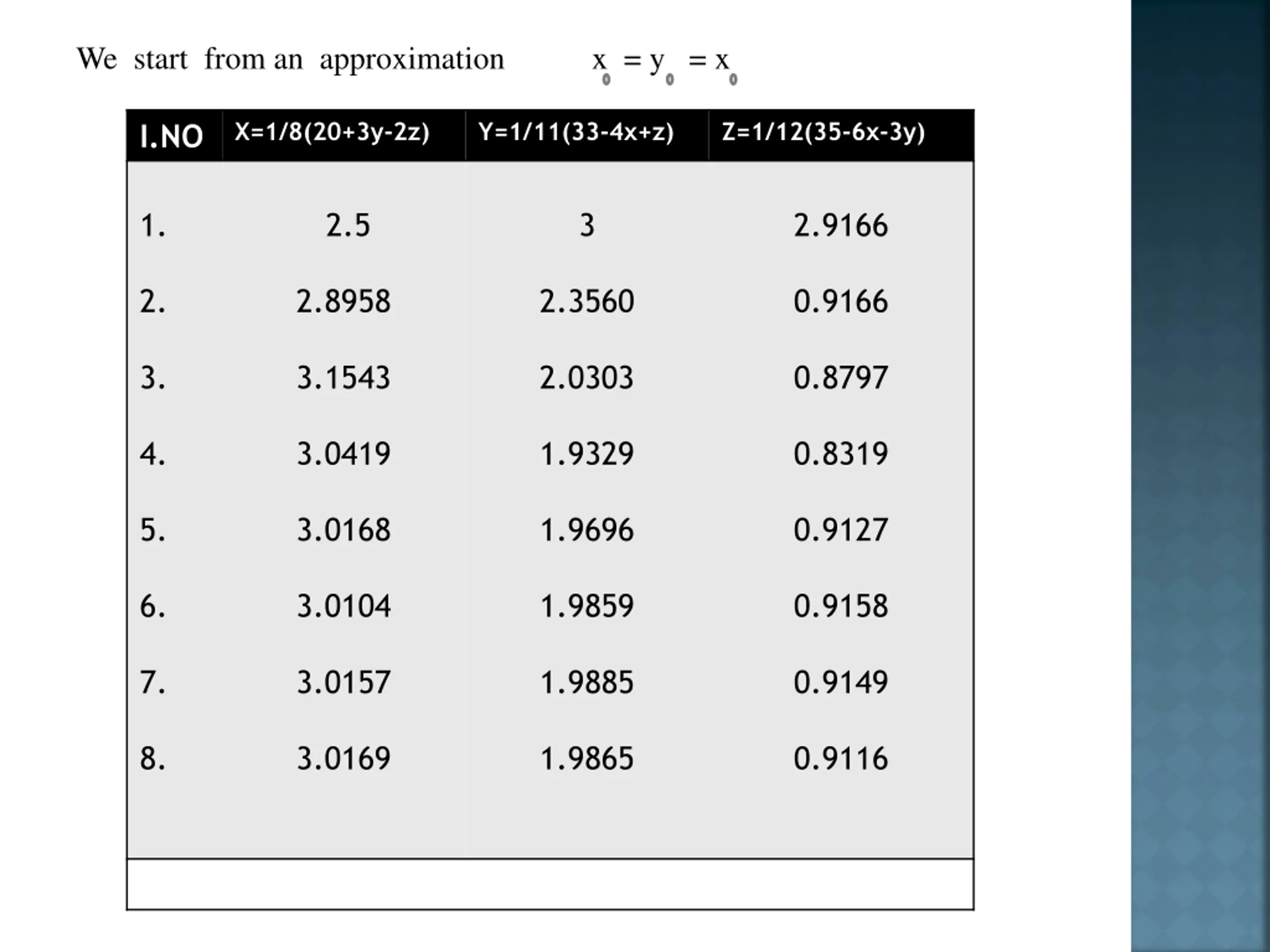

We start from an approximation x = y = x X=1/8(20+3y-2z) Y=1/11(33-4x+z) Z=1/12(35-6x-3y) I.NO 1. 2.5 3 2.9166 2. 2.8958 2.3560 0.9166 3. 3.1543 2.0303 0.8797 4. 3.0419 1.9329 0.8319 5. 3.0168 1.9696 0.9127 6. 3.0104 1.9859 0.9158 7. 3.0157 1.9885 0.9149 8. 3.0169 1.9865 0.9116

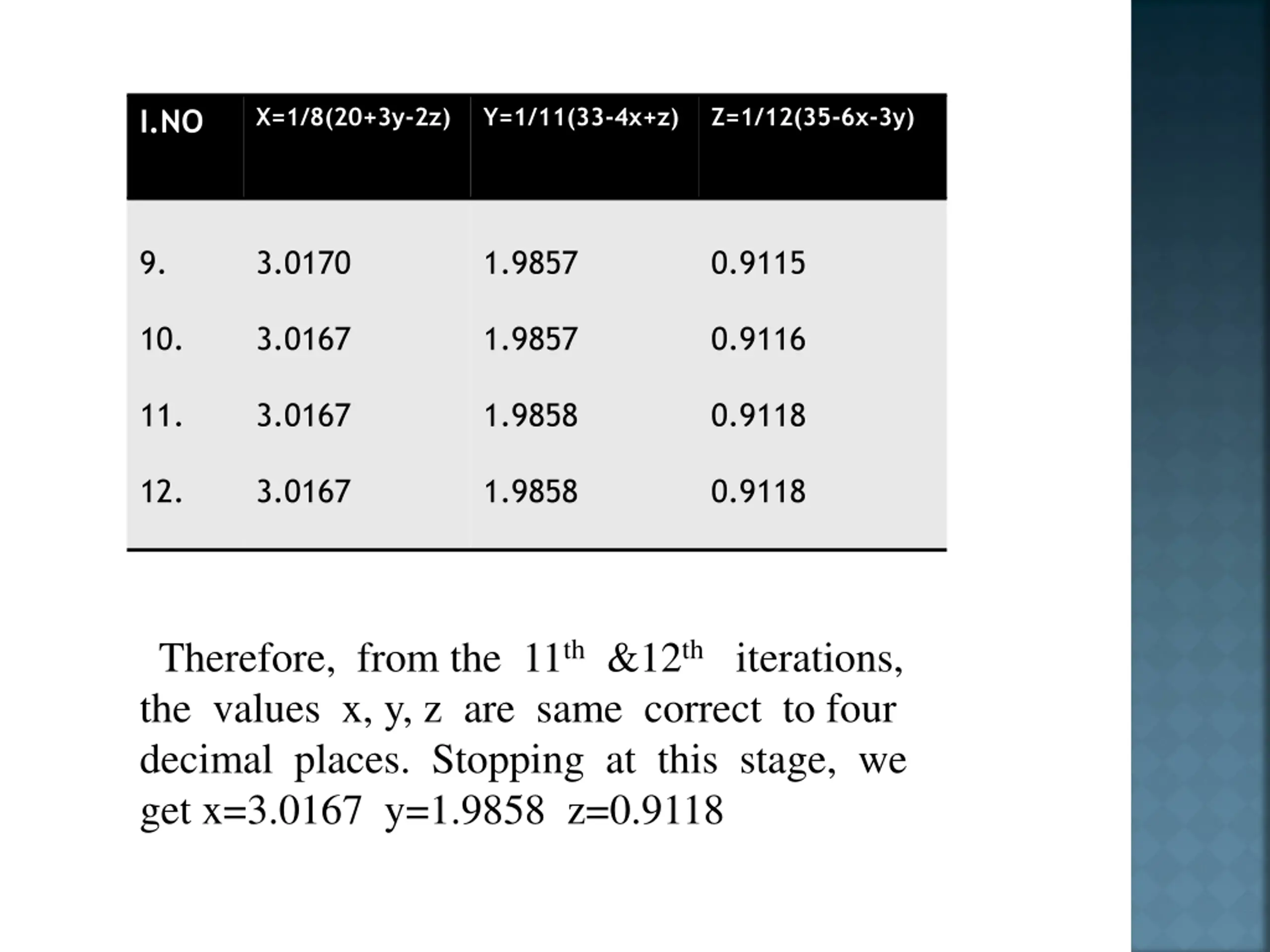

X=1/8(20+3y-2z) Y=1/11(33-4x+z) Z=1/12(35-6x-3y) I.NO 9. 3.0170 1.9857 0.9115 10. 3.0167 1.9857 0.9116 11. 3.0167 1.9858 0.9118 12. 3.0167 1.9858 0.9118 Therefore, from the 11th &12th iterations, the values x, y, z are same correct to four decimal places. Stopping at this stage, we get x=3.0167 y=1.9858 z=0.9118

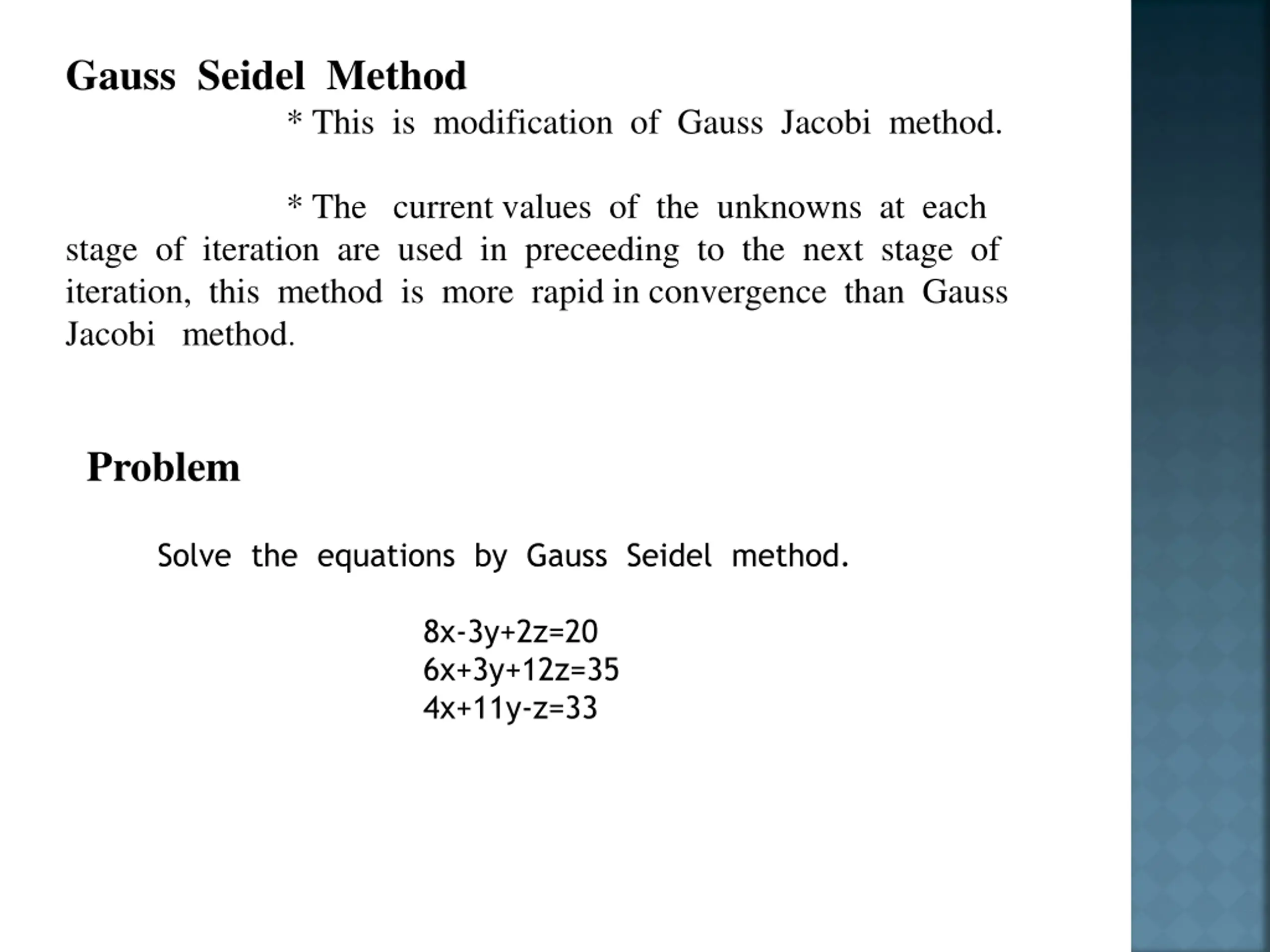

Gauss Seidel Method stage of iteration are used in preceeding to the next stage of iteration, this method is more rapid in convergence than Gauss Jacobi method. * This is modification of Gauss Jacobi method. * The current values of the unknowns at each Problem Solve the equations by Gauss Seidel method. 8x-3y+2z=20 6x+3y+12z=35 4x+11y-z=33

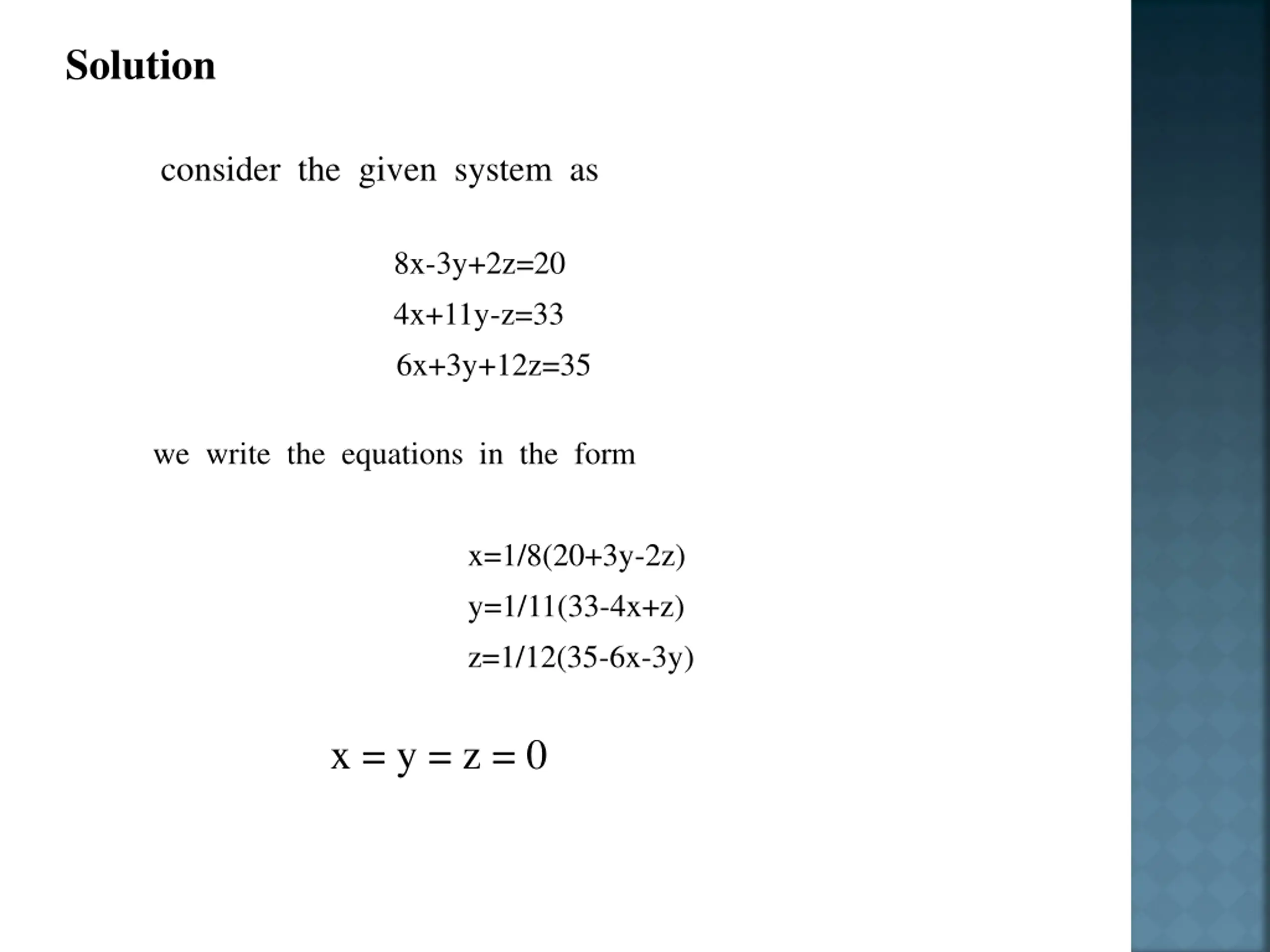

Solution consider the given system as 8x-3y+2z=20 4x+11y-z=33 6x+3y+12z=35 we write the equations in the form x=1/8(20+3y-2z) y=1/11(33-4x+z) z=1/12(35-6x-3y) x = y = z = 0

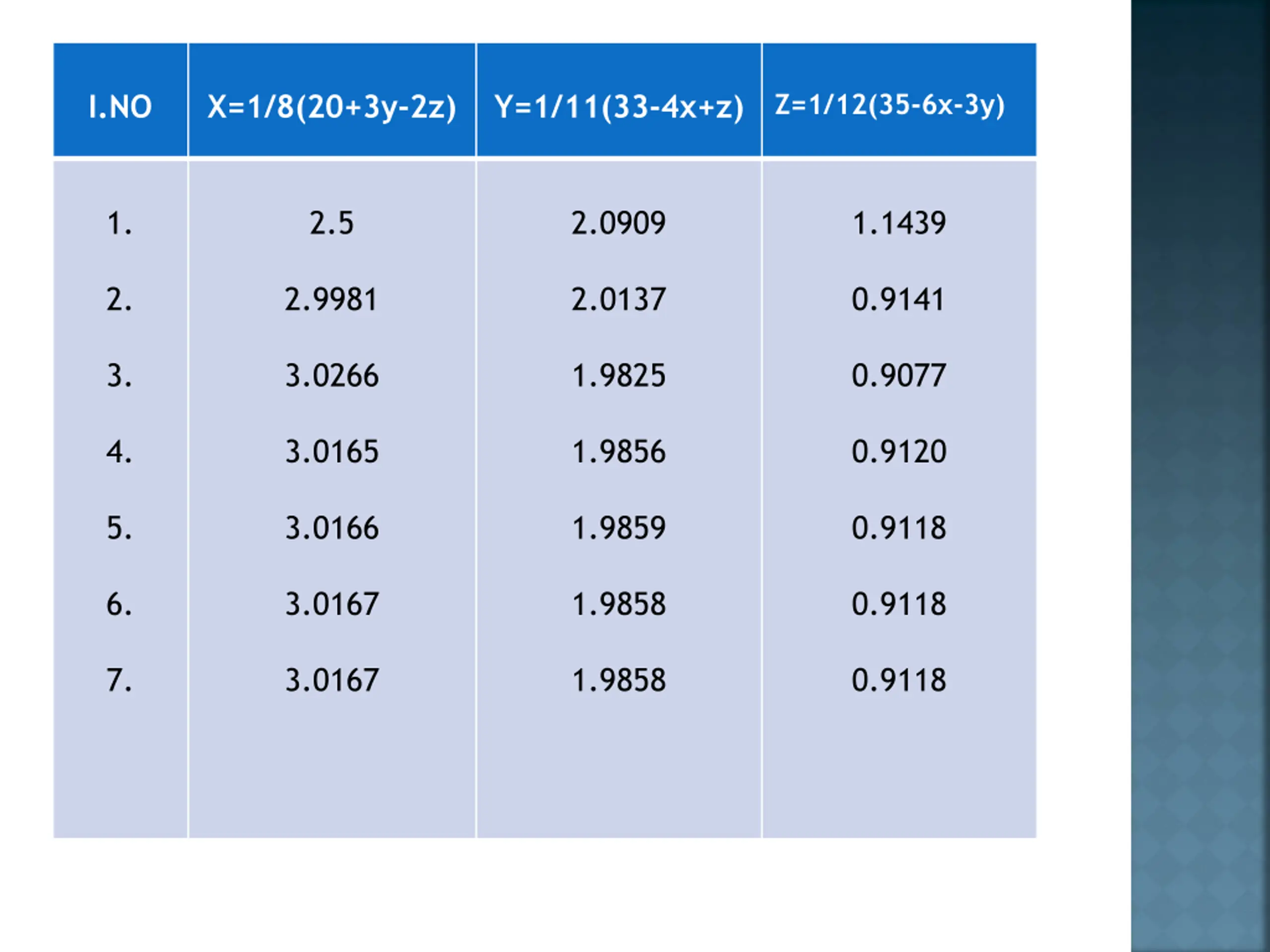

Z=1/12(35-6x-3y) I.NO X=1/8(20+3y-2z) Y=1/11(33-4x+z) 1. 2.5 2.0909 1.1439 2. 2.9981 2.0137 0.9141 3. 3.0266 1.9825 0.9077 4. 3.0165 1.9856 0.9120 5. 3.0166 1.9859 0.9118 6. 3.0167 1.9858 0.9118 7. 3.0167 1.9858 0.9118

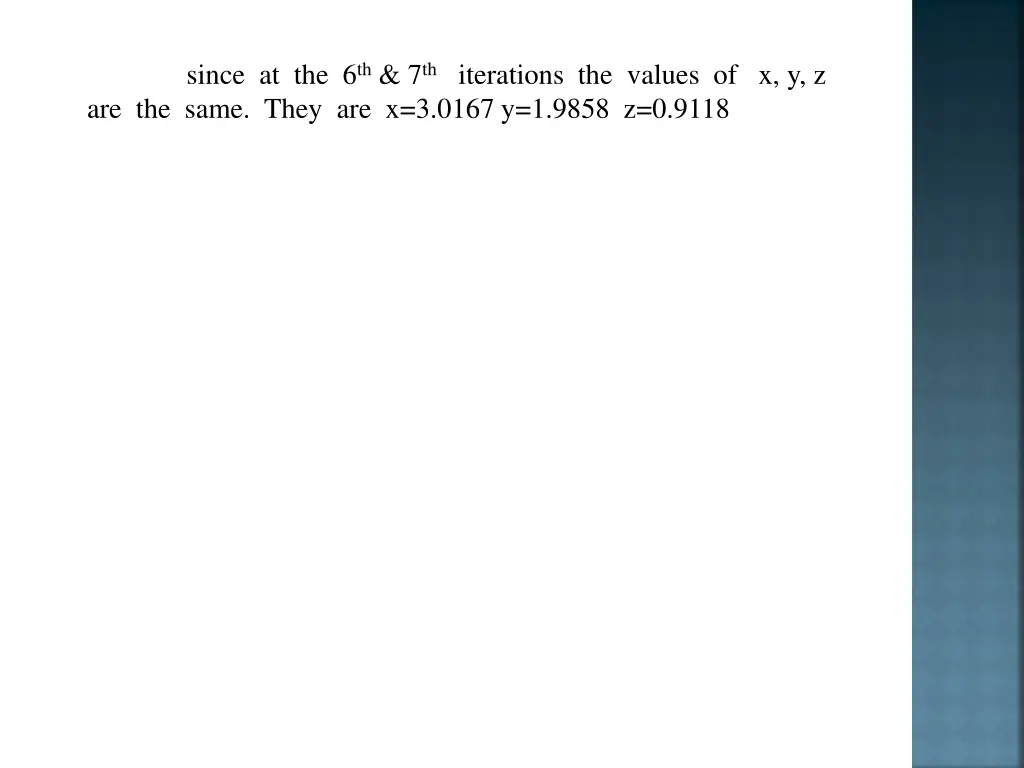

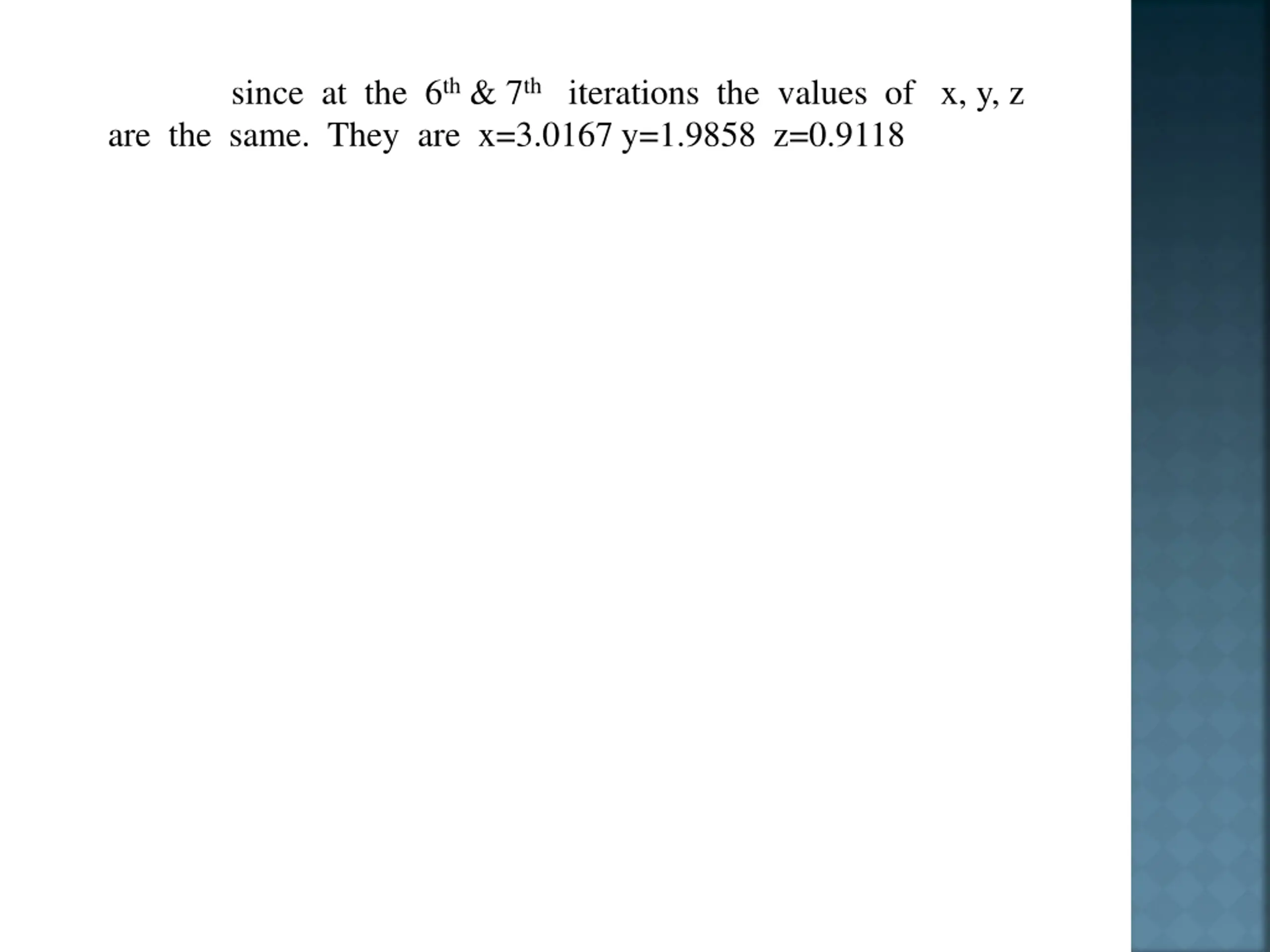

since at the 6th & 7th iterations the values of x, y, z are the same. They are x=3.0167 y=1.9858 z=0.9118
