AL-Mustaqbal University College COMPUTER APPLICATIONS: MATLAB Dr. Mayas Aljibawi 1
Lecture Number 2 2D plotting 2

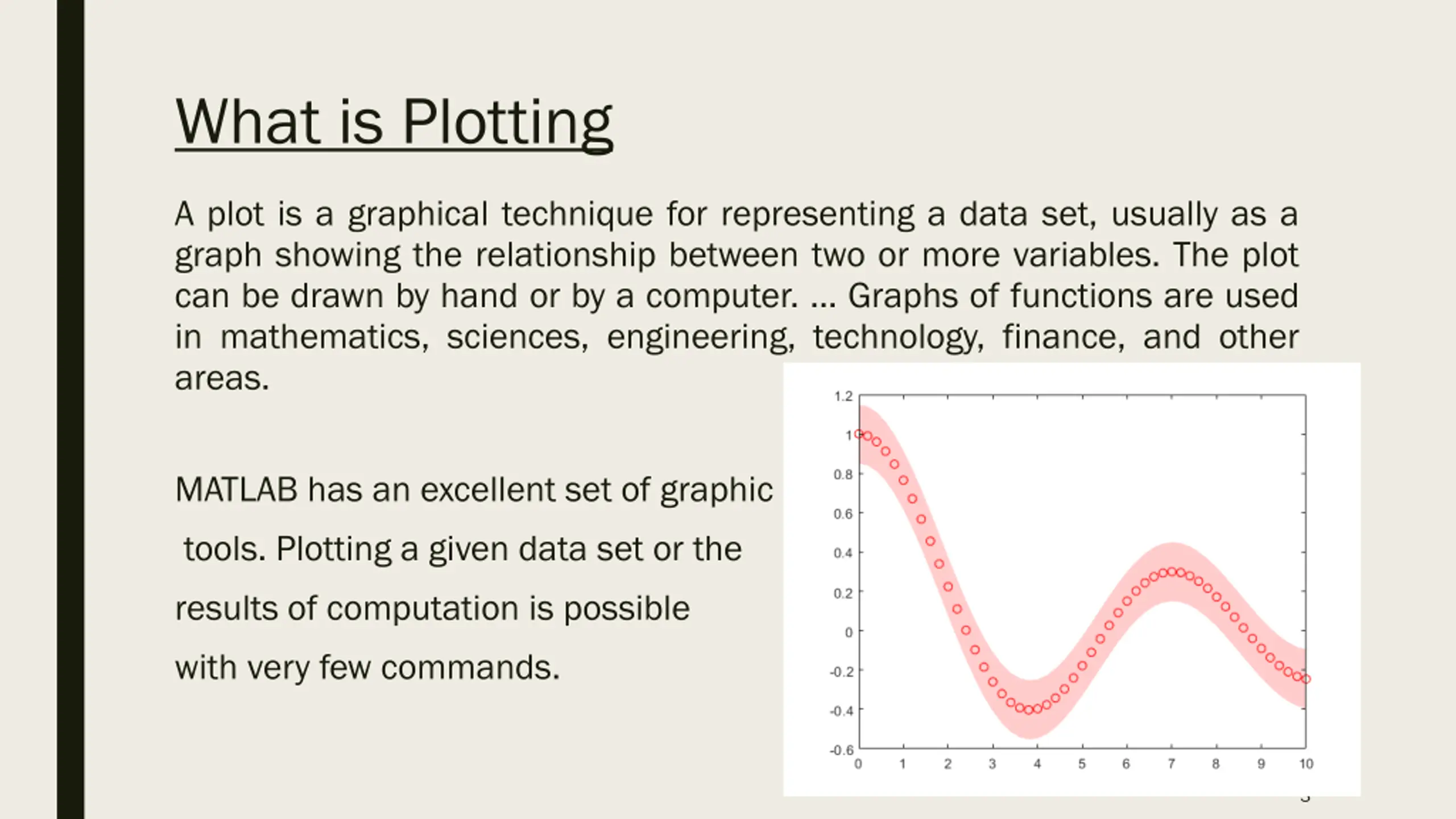

What is Plotting A plot is a graphical technique for representing a data set, usually as a graph showing the relationship between two or more variables. The plot can be drawn by hand or by a computer. ... Graphs of functions are used in mathematics, sciences, engineering, technology, finance, and other areas. MATLAB has an excellent set of graphic tools. Plotting a given data set or the results of computation is possible with very few commands. 3

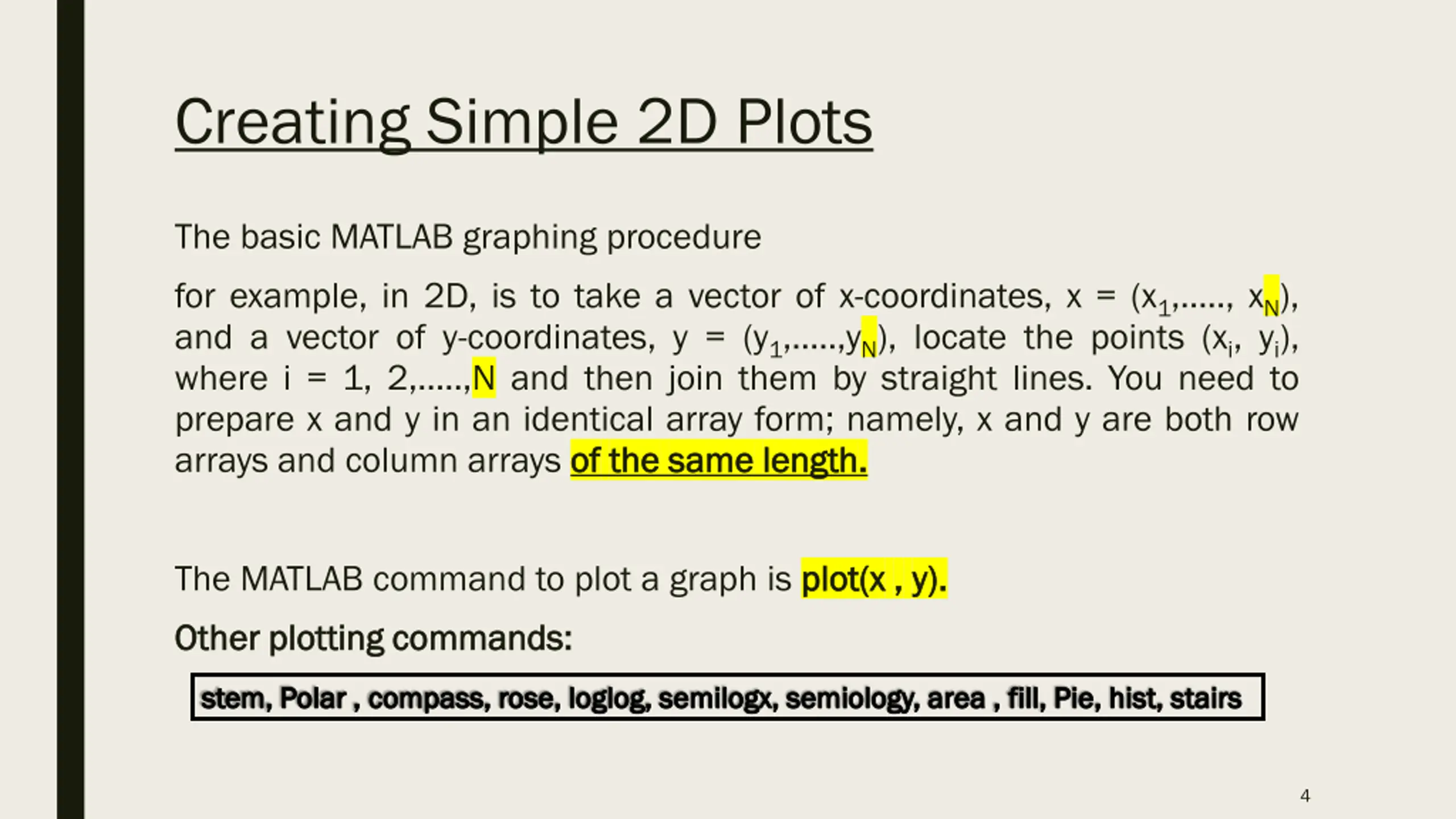

Creating Simple 2D Plots The basic MATLAB graphing procedure for example, in 2D, is to take a vector of x-coordinates, x = (x1, .., xN), and a vector of y-coordinates, y = (y1, ..,yN), locate the points (xi, yi), where i = 1, 2, ..,N and then join them by straight lines. You need to prepare x and y in an identical array form; namely, x and y are both row arrays and column arrays of of the the same same length length. . The MATLAB command to plot a graph is plot(x Other Other plotting plotting commands commands: : plot(x , , y) y). . stem, Polar , compass, rose, loglog, semilogx, semiology, area stem, Polar , compass, rose, loglog, semilogx, semiology, area , fill, Pie, hist, stairs , fill, Pie, hist, stairs 4

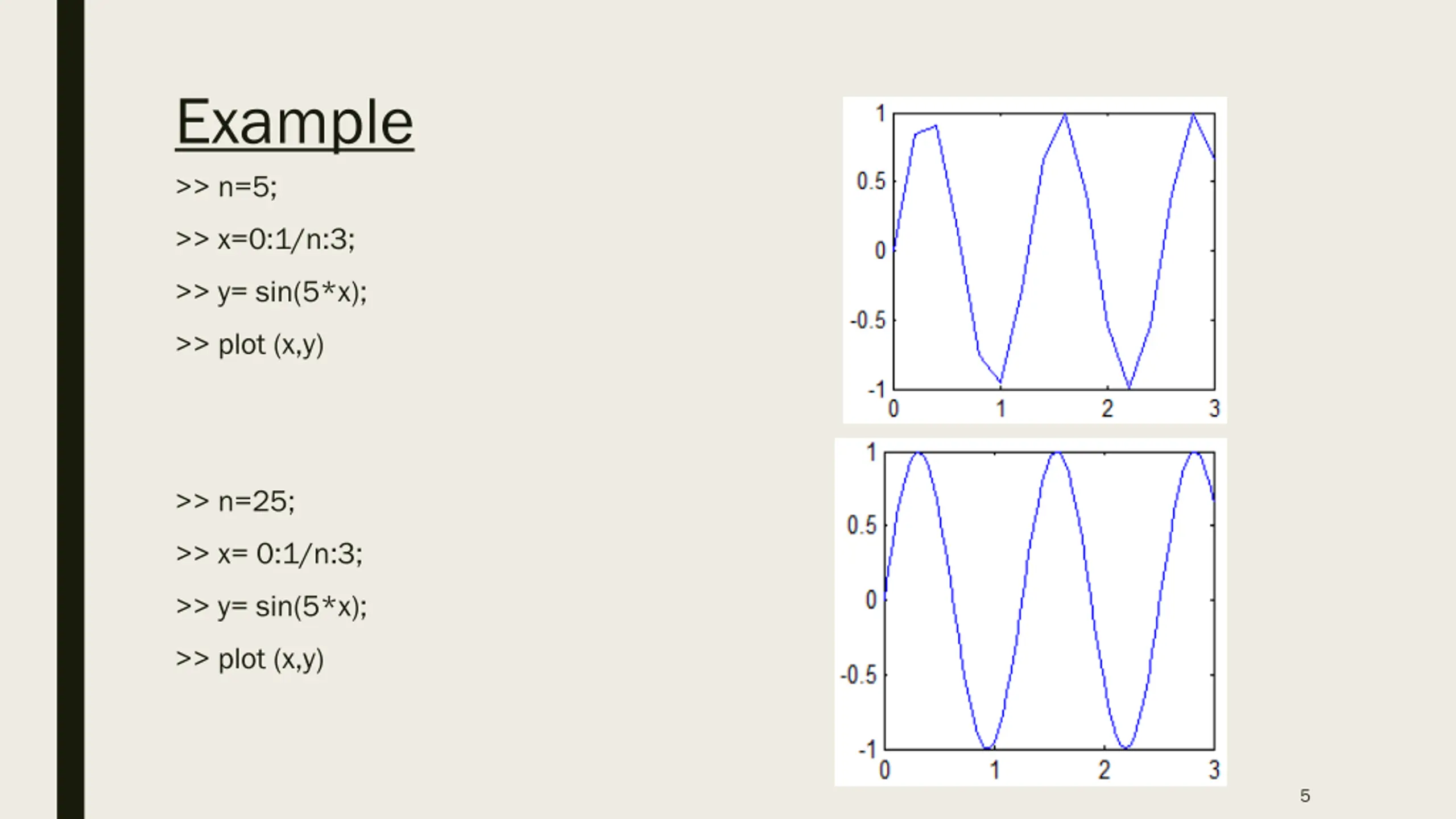

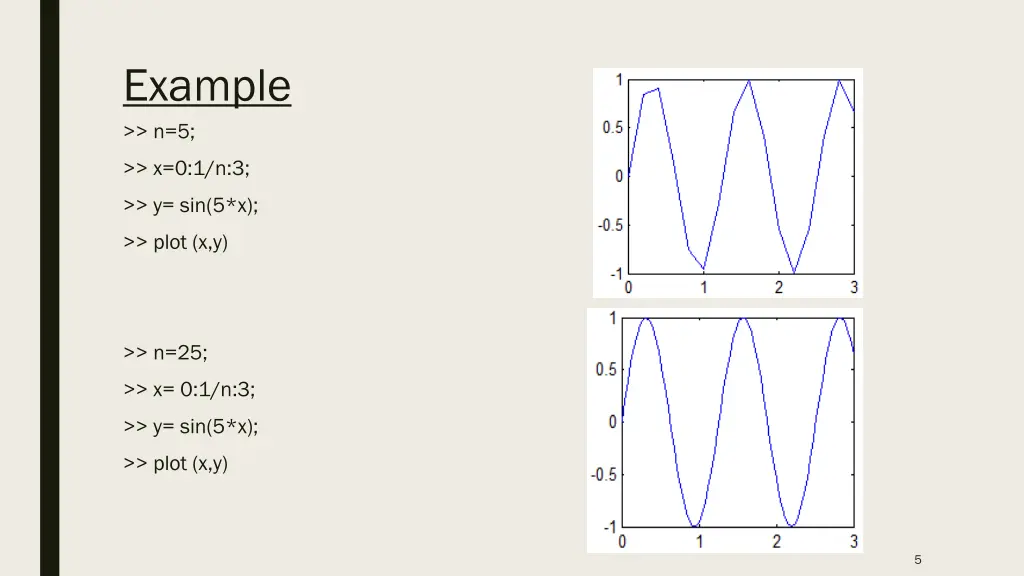

Example >> n=5; >> x=0:1/n:3; >> y= sin(5*x); >> plot (x,y) >> n=25; >> x= 0:1/n:3; >> y= sin(5*x); >> plot (x,y) 5

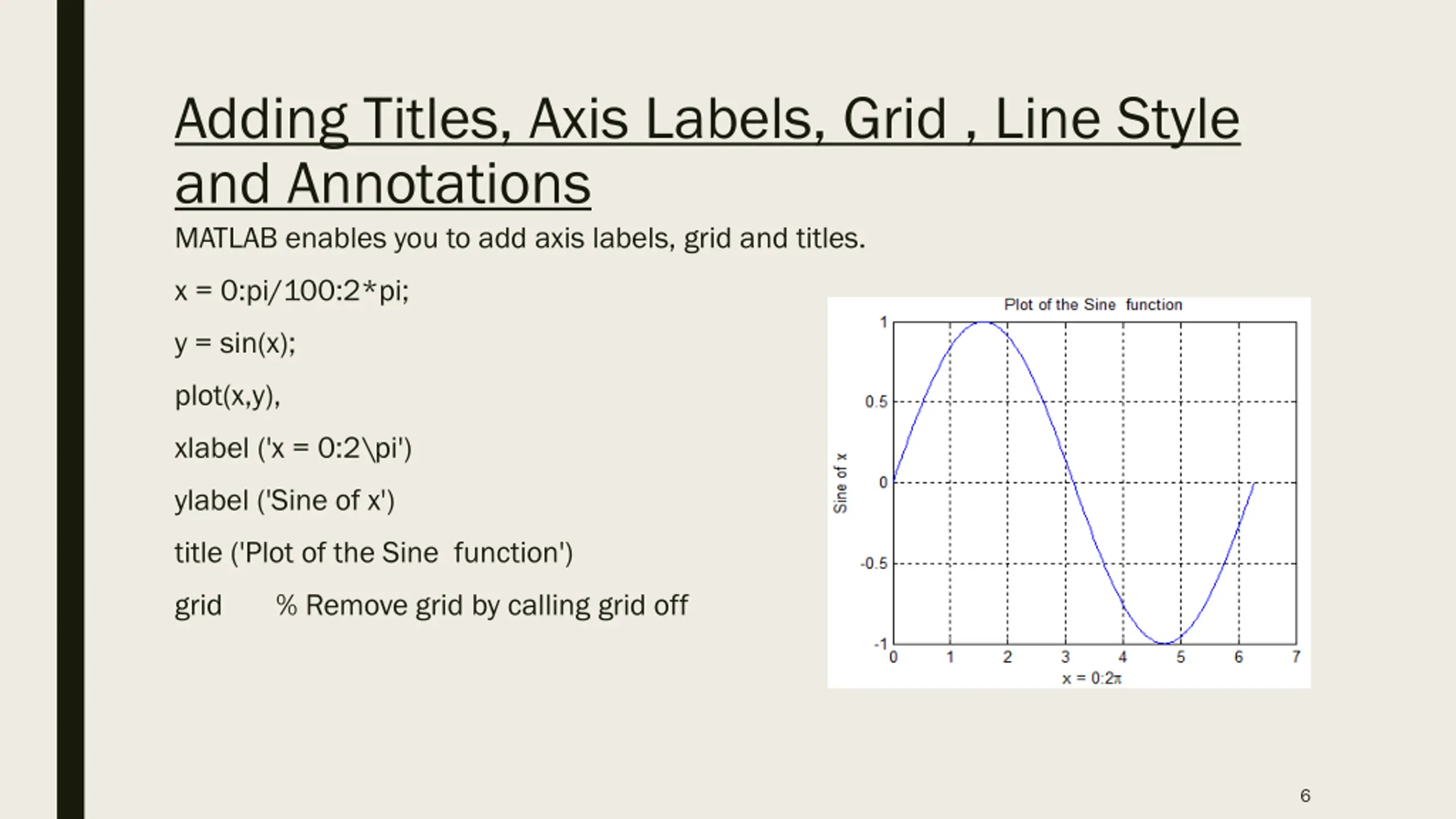

Adding Titles, Axis Labels, Grid , Line Style and Annotations MATLAB enables you to add axis labels, grid and titles. x = 0:pi/100:2*pi; y = sin(x); plot(x,y), xlabel ('x = 0:2\pi') ylabel ('Sine of x') title ('Plot of the Sine function') grid % Remove grid by calling grid off 6

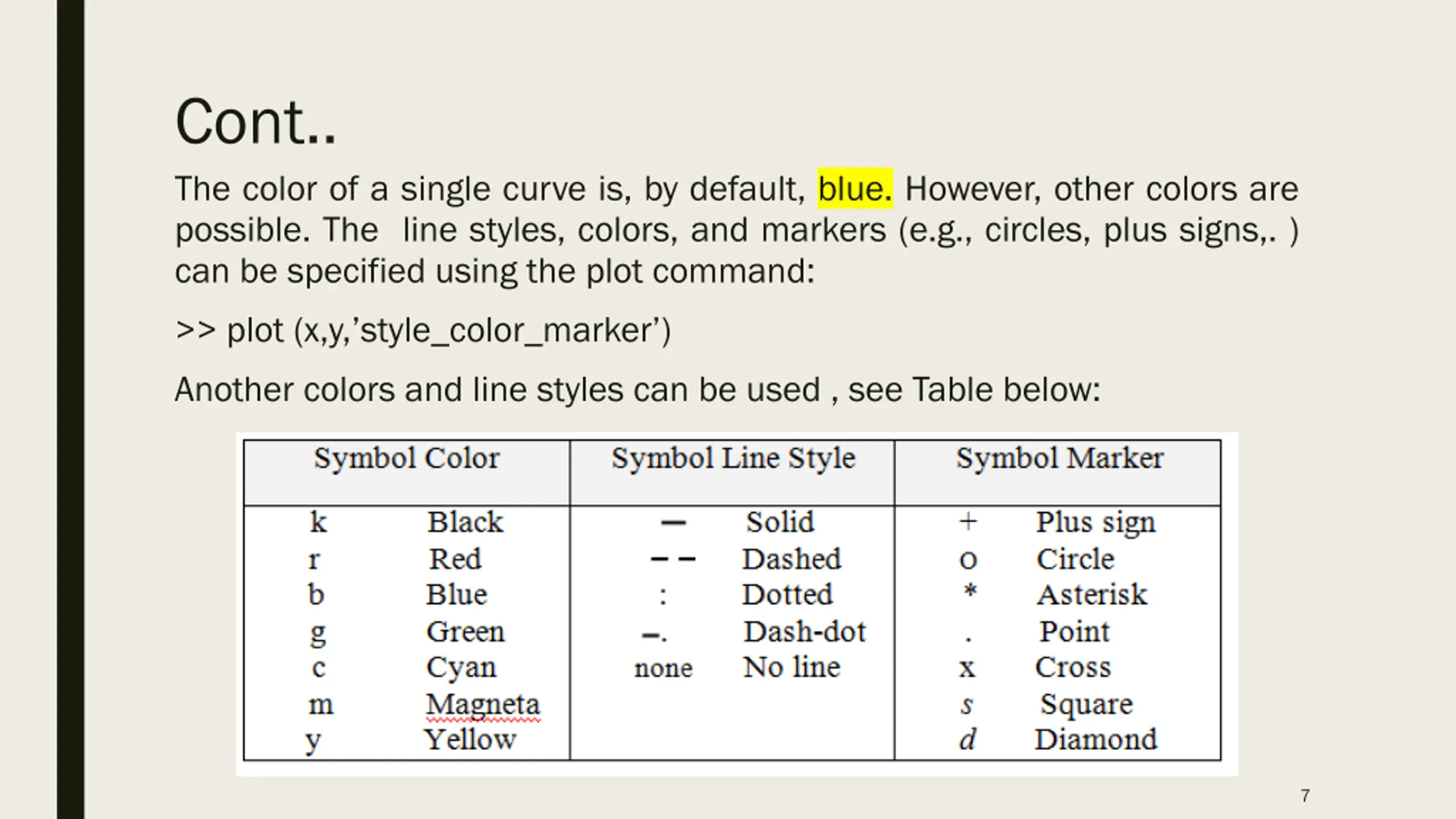

Cont.. The color of a single curve is, by default, blue. However, other colors are possible. The line styles, colors, and markers (e.g., circles, plus signs,. ) can be specified using the plot command: >> plot (x,y, style_color_marker ) Another colors and line styles can be used , see Table below: 7

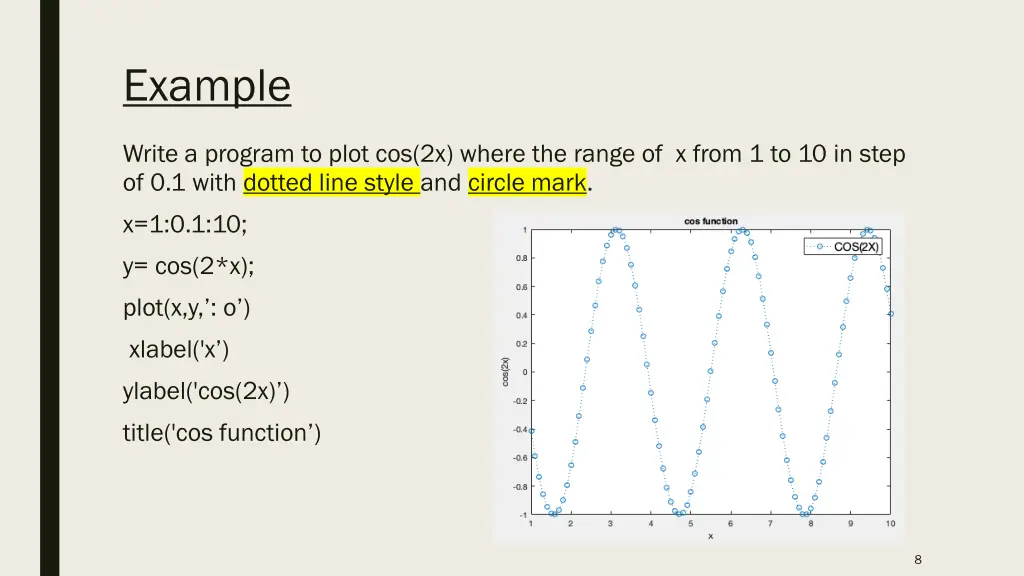

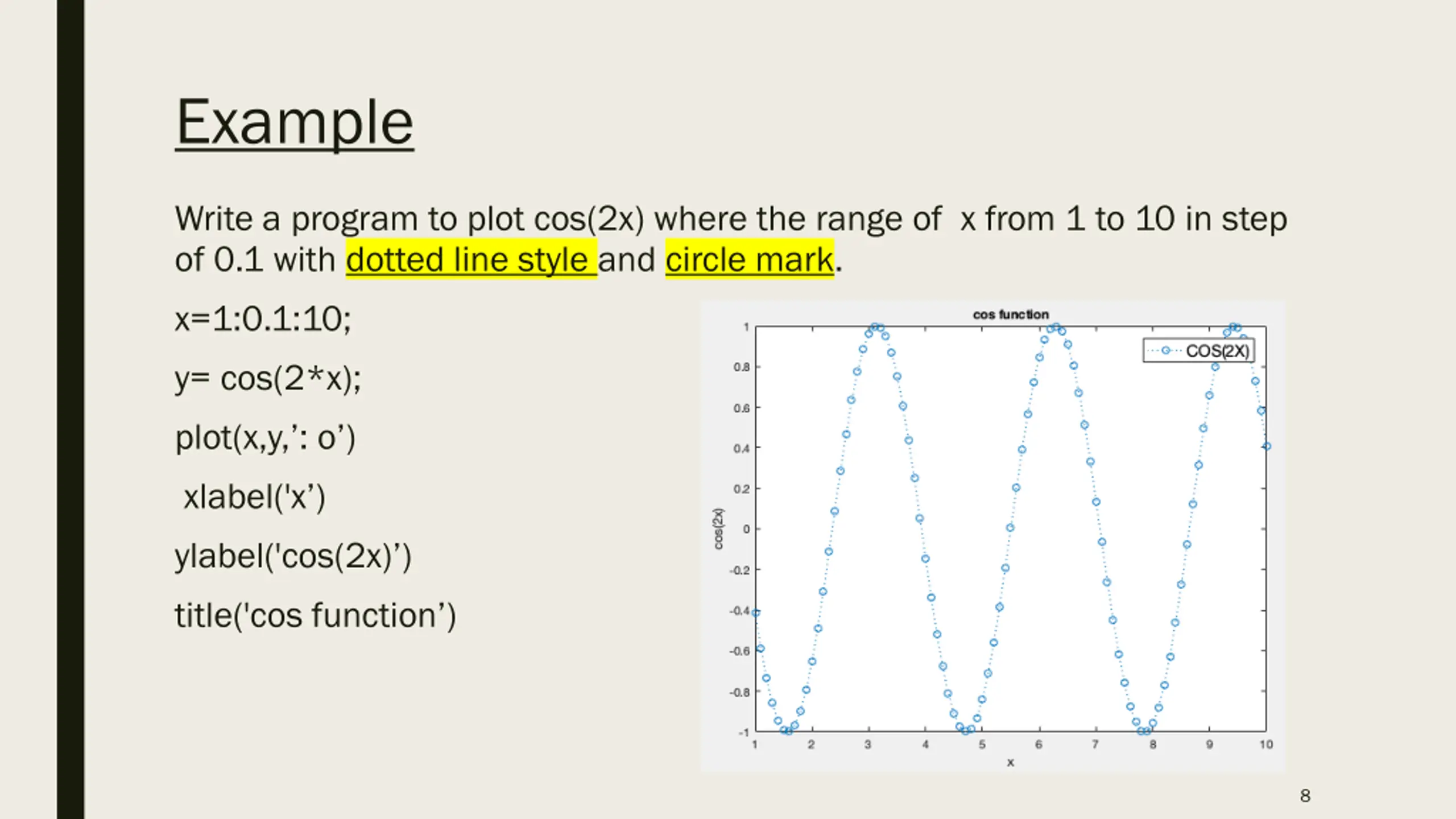

Example Write a program to plot cos(2x) where the range of x from 1 to 10 in step of 0.1 with dotted line style and circle mark. x=1:0.1:10; y= cos(2*x); plot(x,y, : o ) xlabel('x ) ylabel('cos(2x) ) title('cos function ) 8

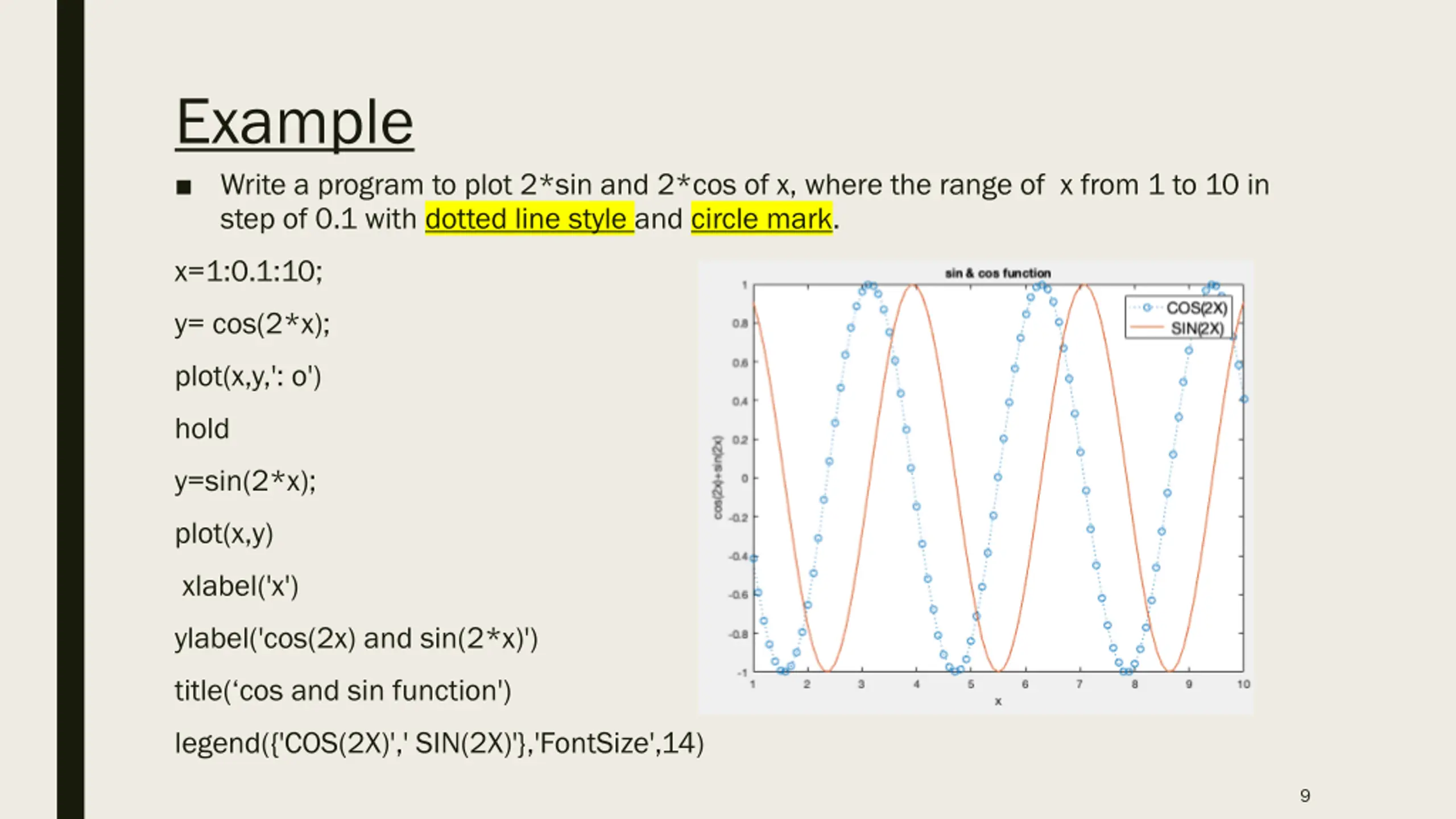

Example Write a program to plot 2*sin and 2*cos of x, where the range of x from 1 to 10 in step of 0.1 with dotted line style and circle mark. x=1:0.1:10; y= cos(2*x); plot(x,y,': o') hold y=sin(2*x); plot(x,y) xlabel('x') ylabel('cos(2x) and sin(2*x)') title( cos and sin function') legend({'COS(2X)',' SIN(2X)'},'FontSize',14) 9
