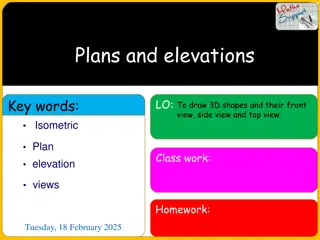

Plans and elevations Key words: Isometric LO: To draw 3D shapes and their front view, side view and top view. Plan Class work: elevation views Homework: Tuesday, 18 February 2025

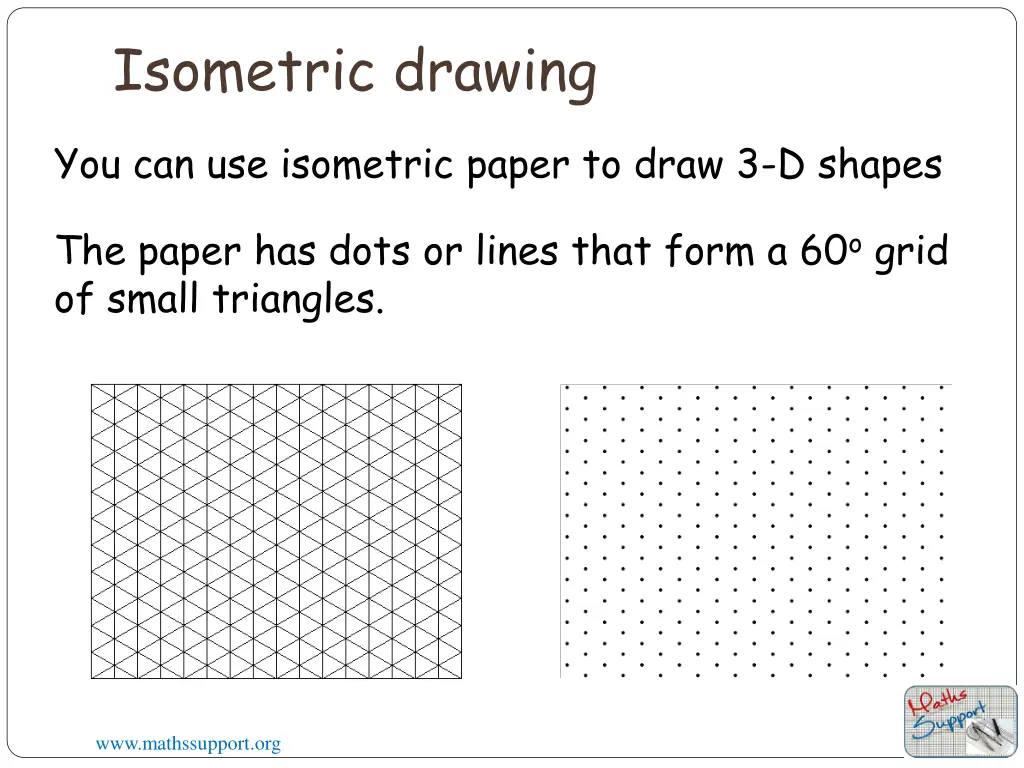

Isometric drawing You can use isometric paper to draw 3-D shapes The paper has dots or lines that form a 60o grid of small triangles. www.mathssupport.org

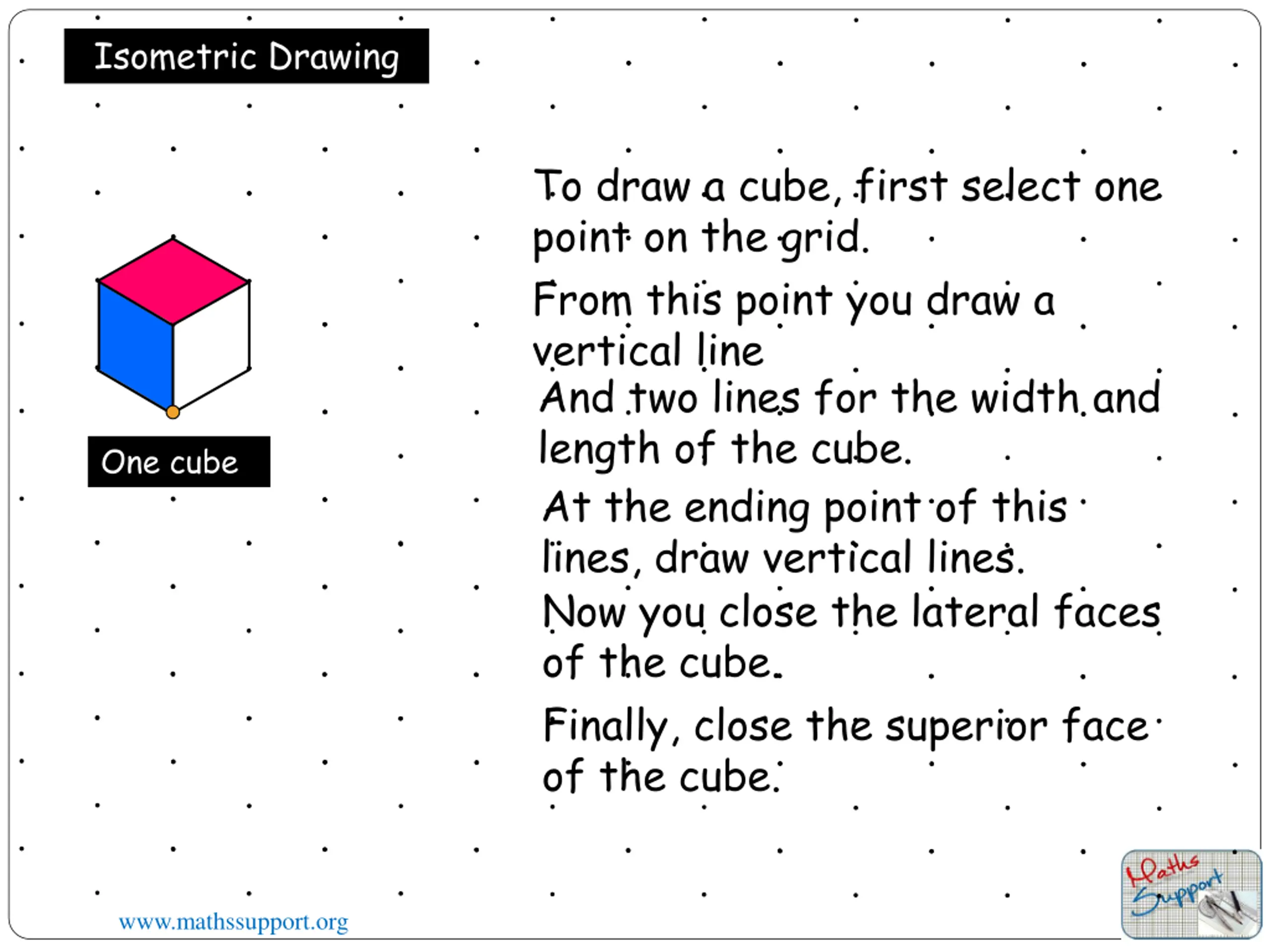

Isometric Drawing To draw a cube, first select one point on the grid. From this point you draw a vertical line And two lines for the width and length of the cube. At the ending point of this lines, draw vertical lines. Now you close the lateral faces of the cube. Finally, close the superior face of the cube. One cube www.mathssupport.org

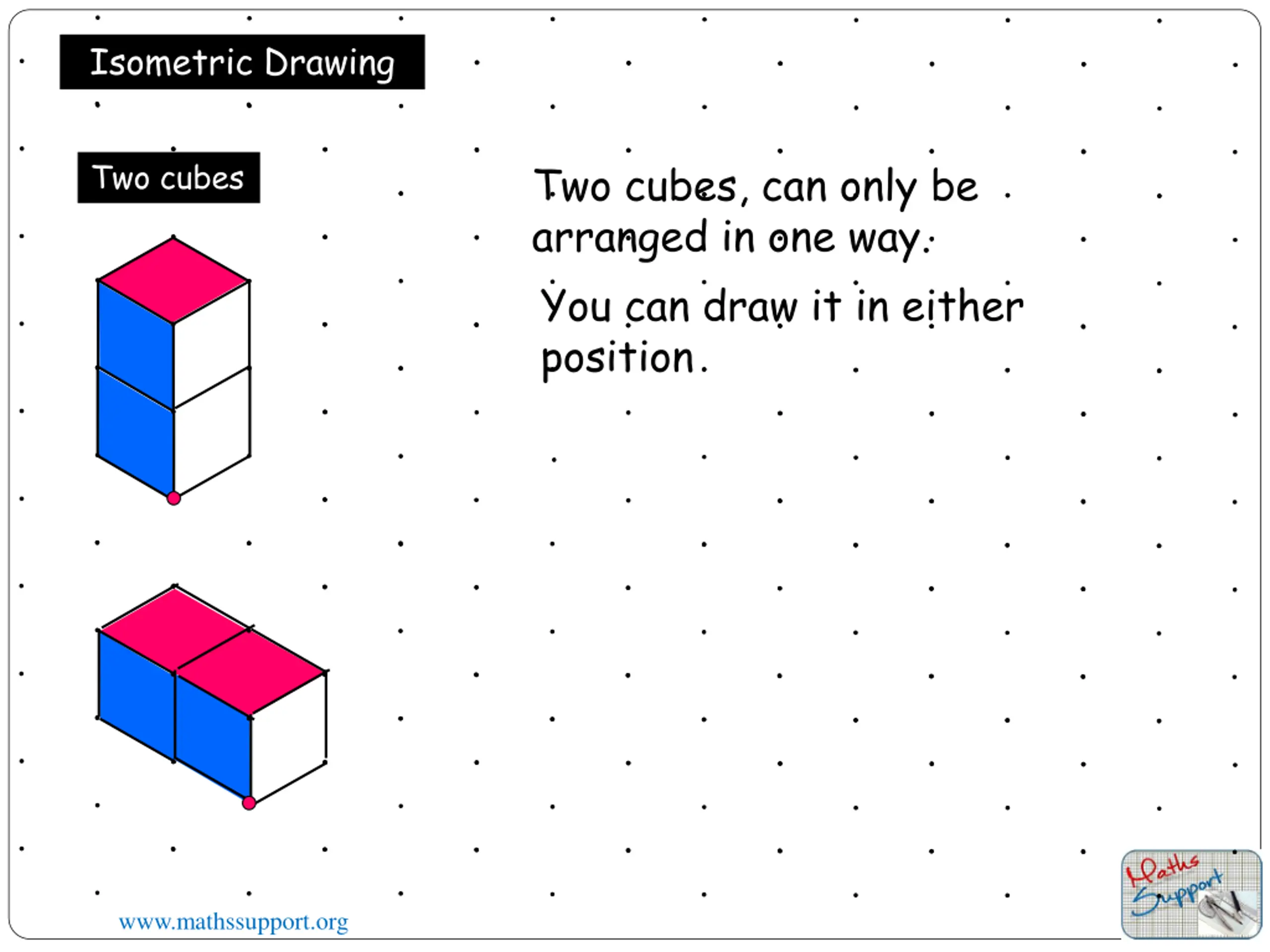

Isometric Drawing Two cubes Two cubes, can only be arranged in one way. You can draw it in either position www.mathssupport.org

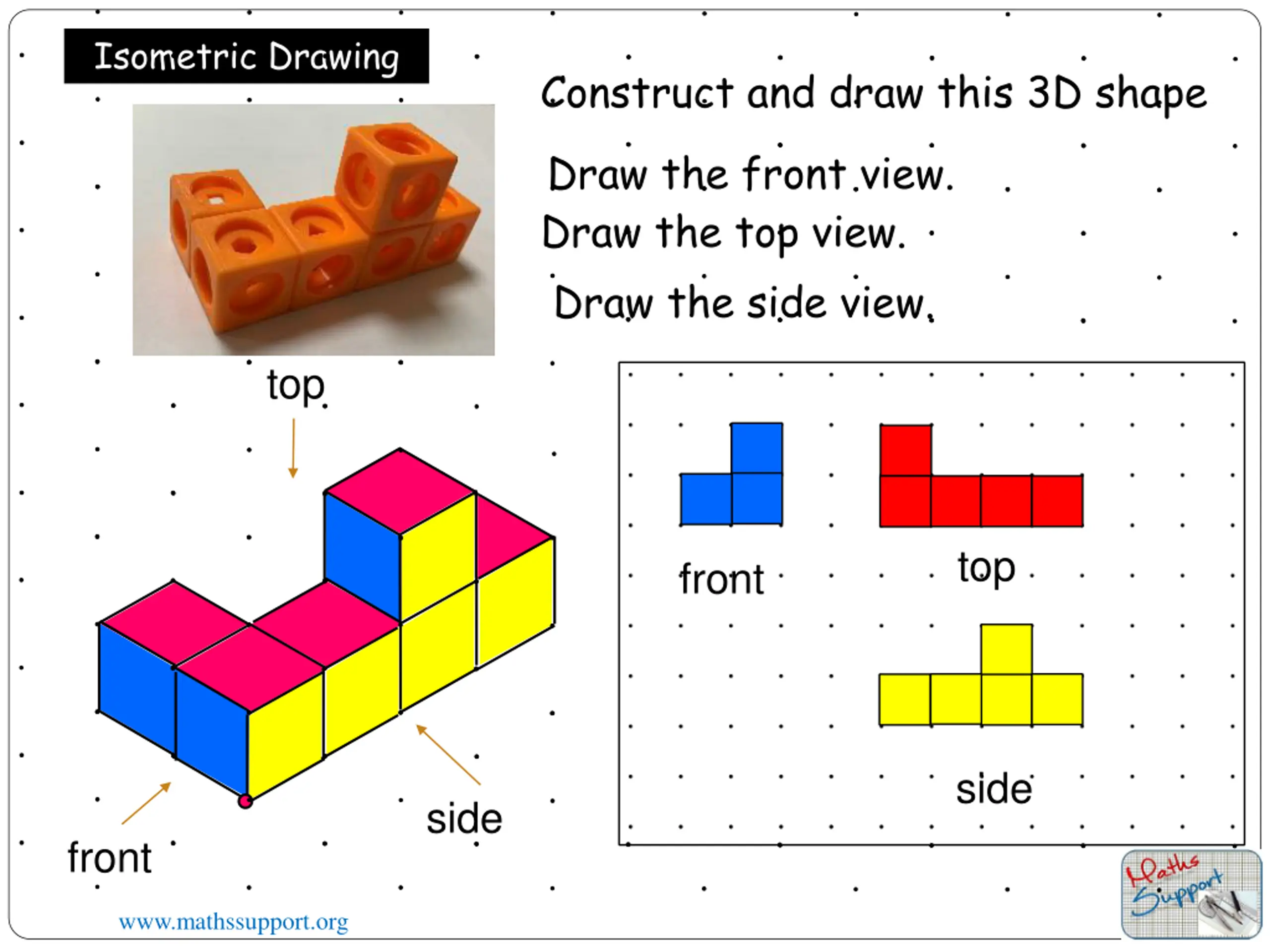

Isometric Drawing Construct and draw this 3D shape Draw the front view. Draw the top view. Draw the side view. top top front side side front www.mathssupport.org

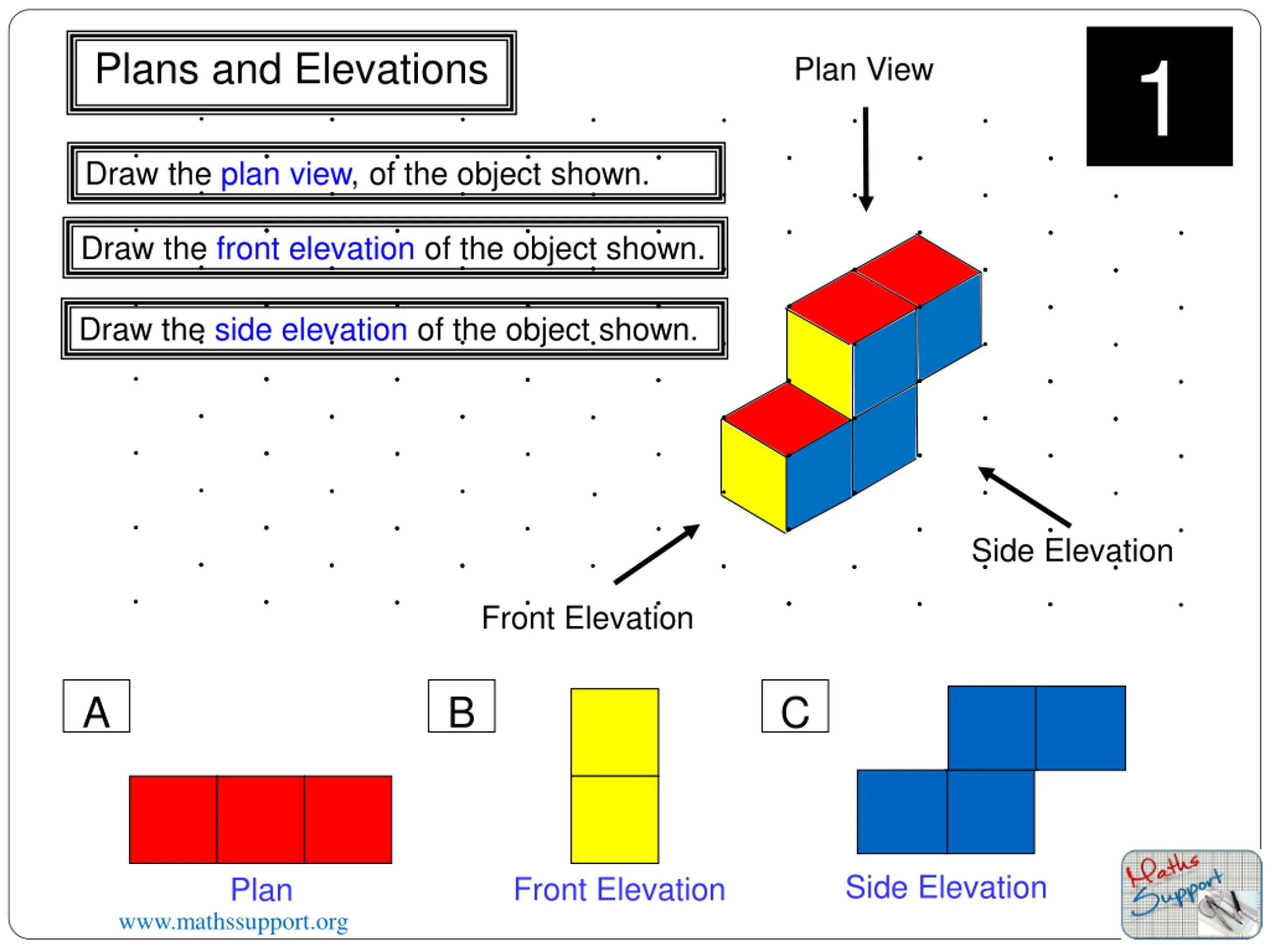

1 Plans and Elevations Plan View Draw the plan view, of the object shown. Draw the front elevation of the object shown. Draw the side elevation of the object shown. Side Elevation Front Elevation A B C Cubes Side Elevation Front Elevation Plan www.mathssupport.org

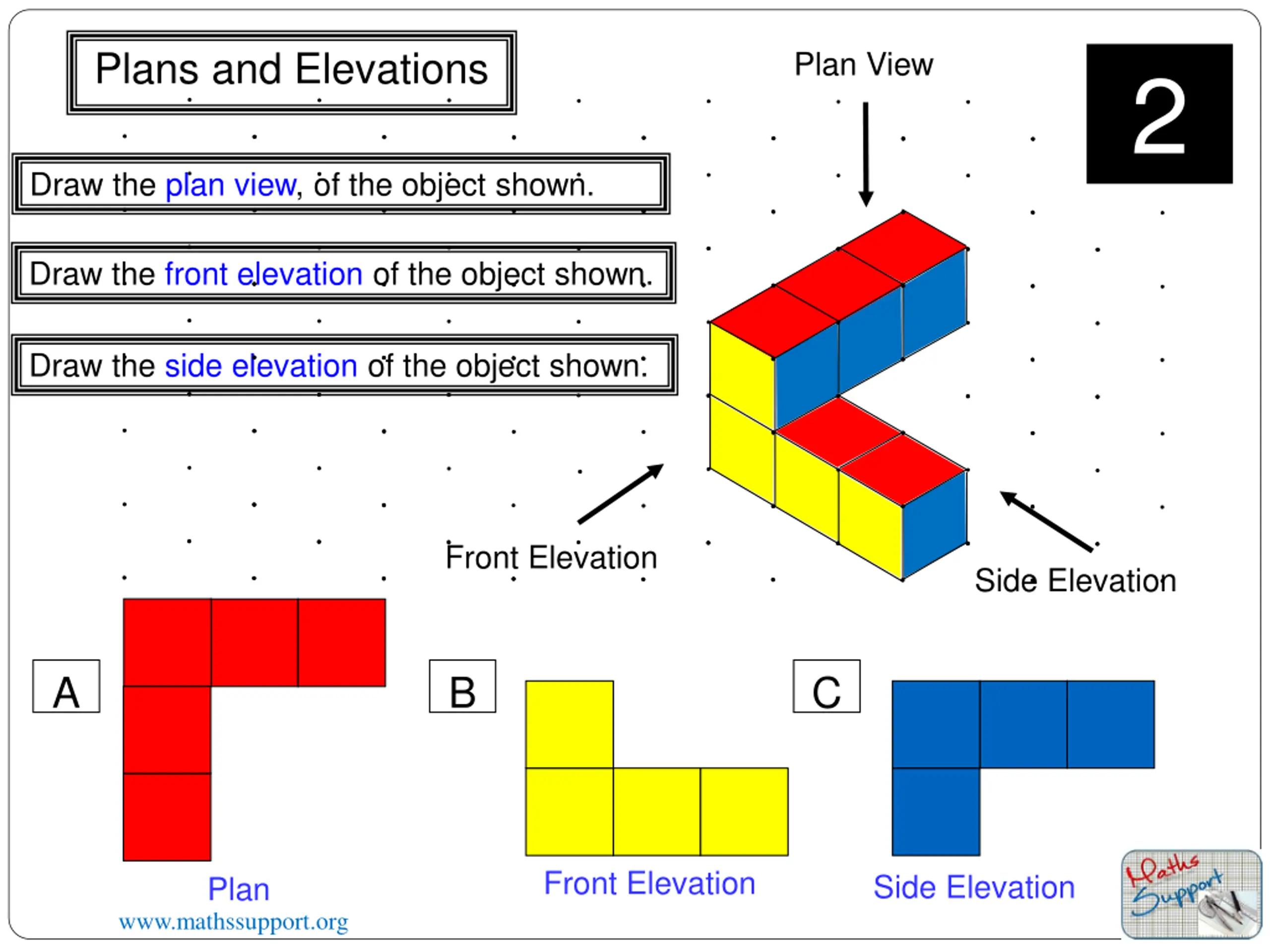

Plans and Elevations Plan View 2 Draw the plan view, of the object shown. Draw the front elevation of the object shown. Draw the side elevation of the object shown. Front Elevation Side Elevation B C A Front Elevation Side Elevation Plan www.mathssupport.org

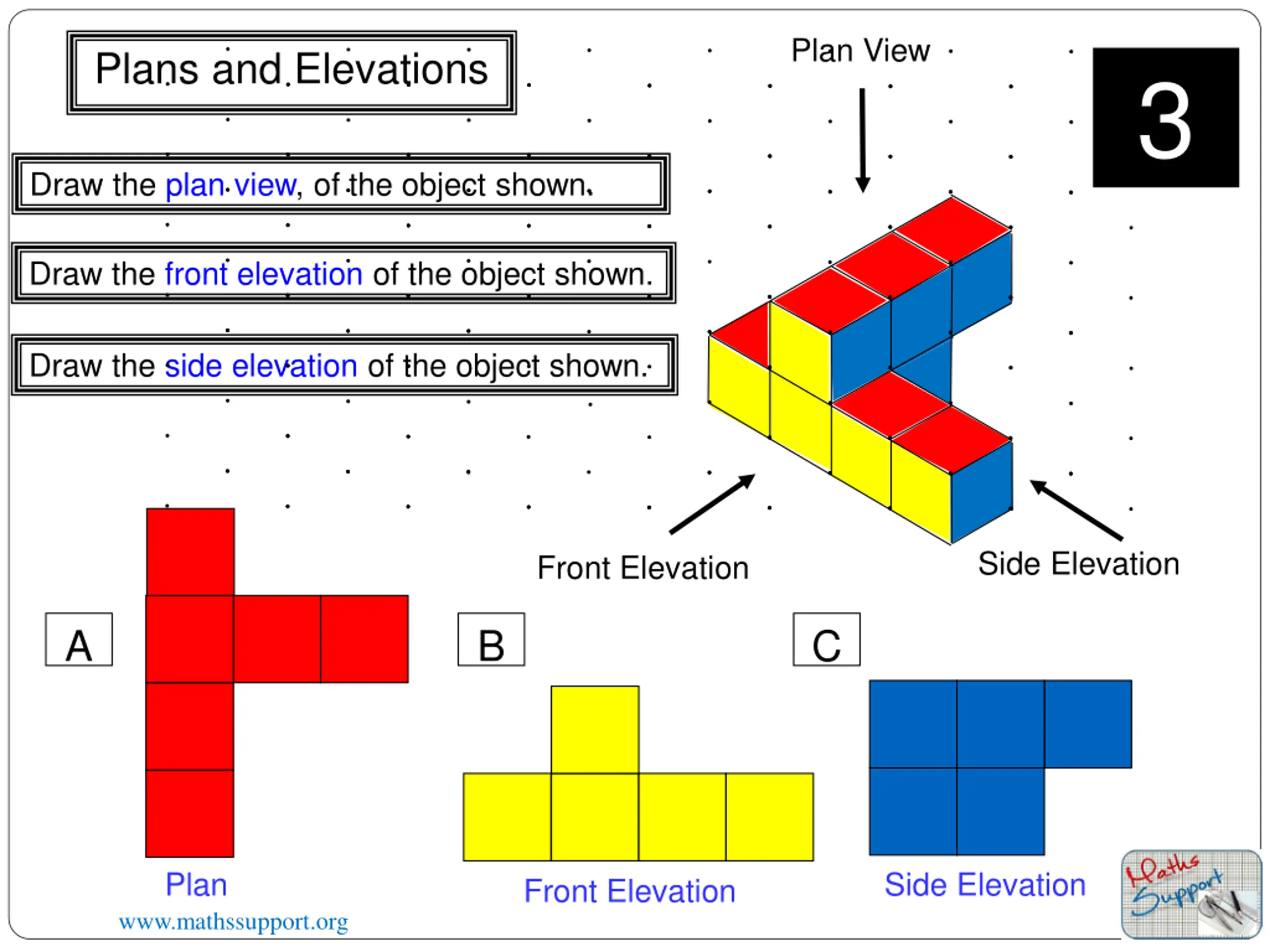

Plan View Plans and Elevations 3 Draw the plan view, of the object shown. Draw the front elevation of the object shown. Draw the side elevation of the object shown. Side Elevation Front Elevation A B C Plan Side Elevation Front Elevation www.mathssupport.org

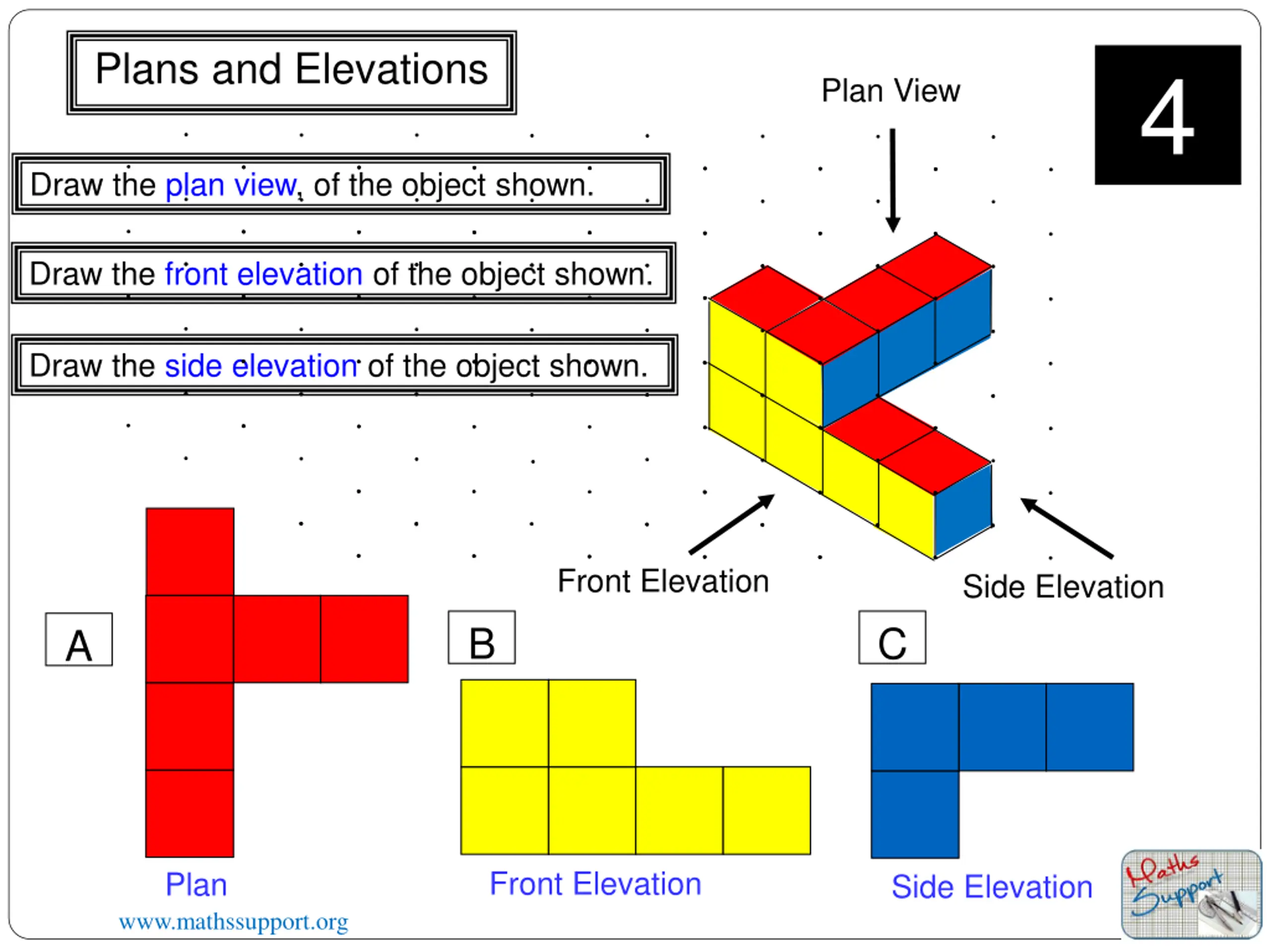

Plans and Elevations 4 Plan View Draw the plan view, of the object shown. Draw the front elevation of the object shown. Draw the side elevation of the object shown. Front Elevation Side Elevation B C A Front Elevation Plan Side Elevation www.mathssupport.org

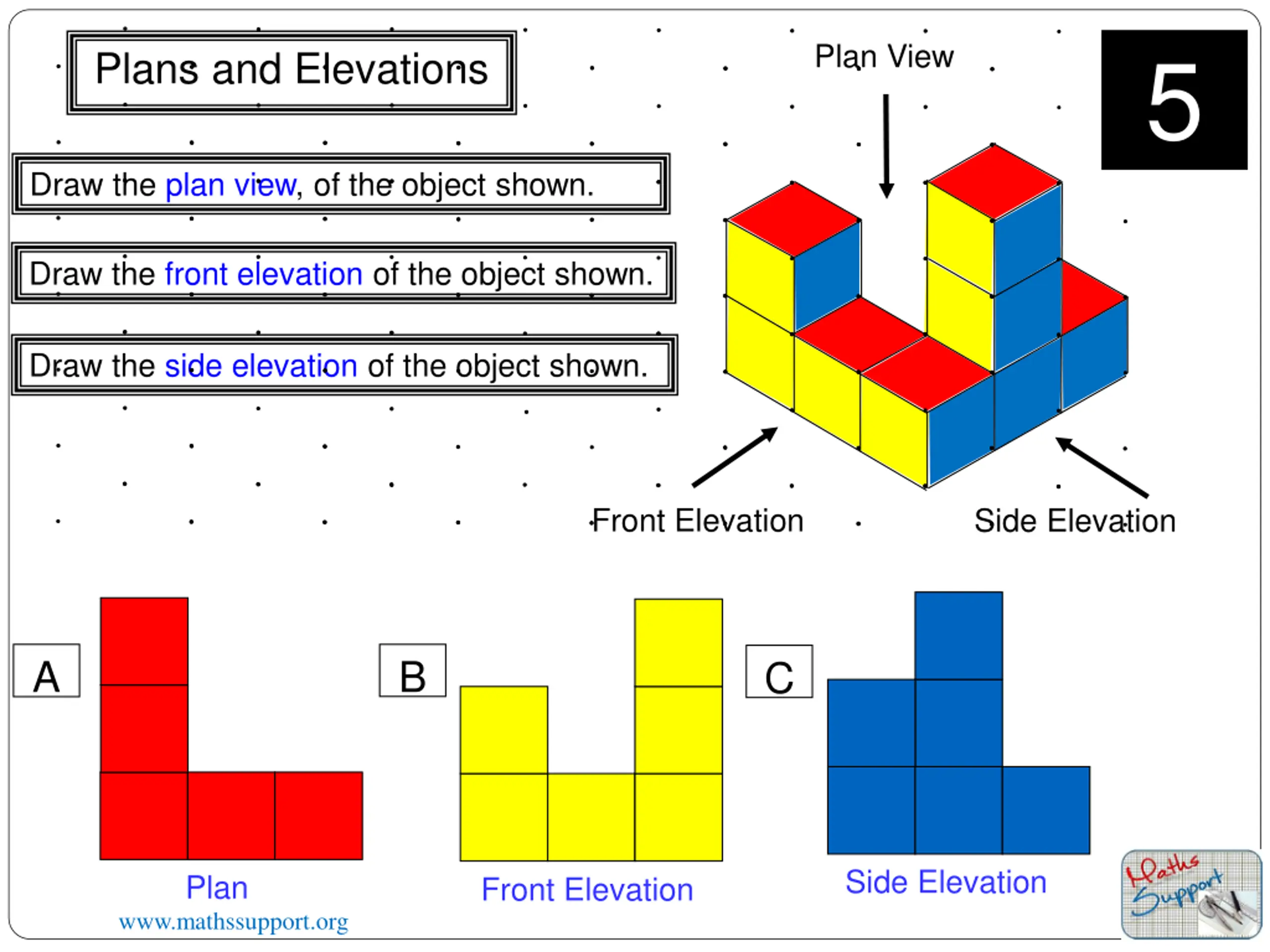

Plan View 5 Plans and Elevations Draw the plan view, of the object shown. Draw the front elevation of the object shown. Draw the side elevation of the object shown. Front Elevation Side Elevation B A C Side Elevation Plan Front Elevation www.mathssupport.org

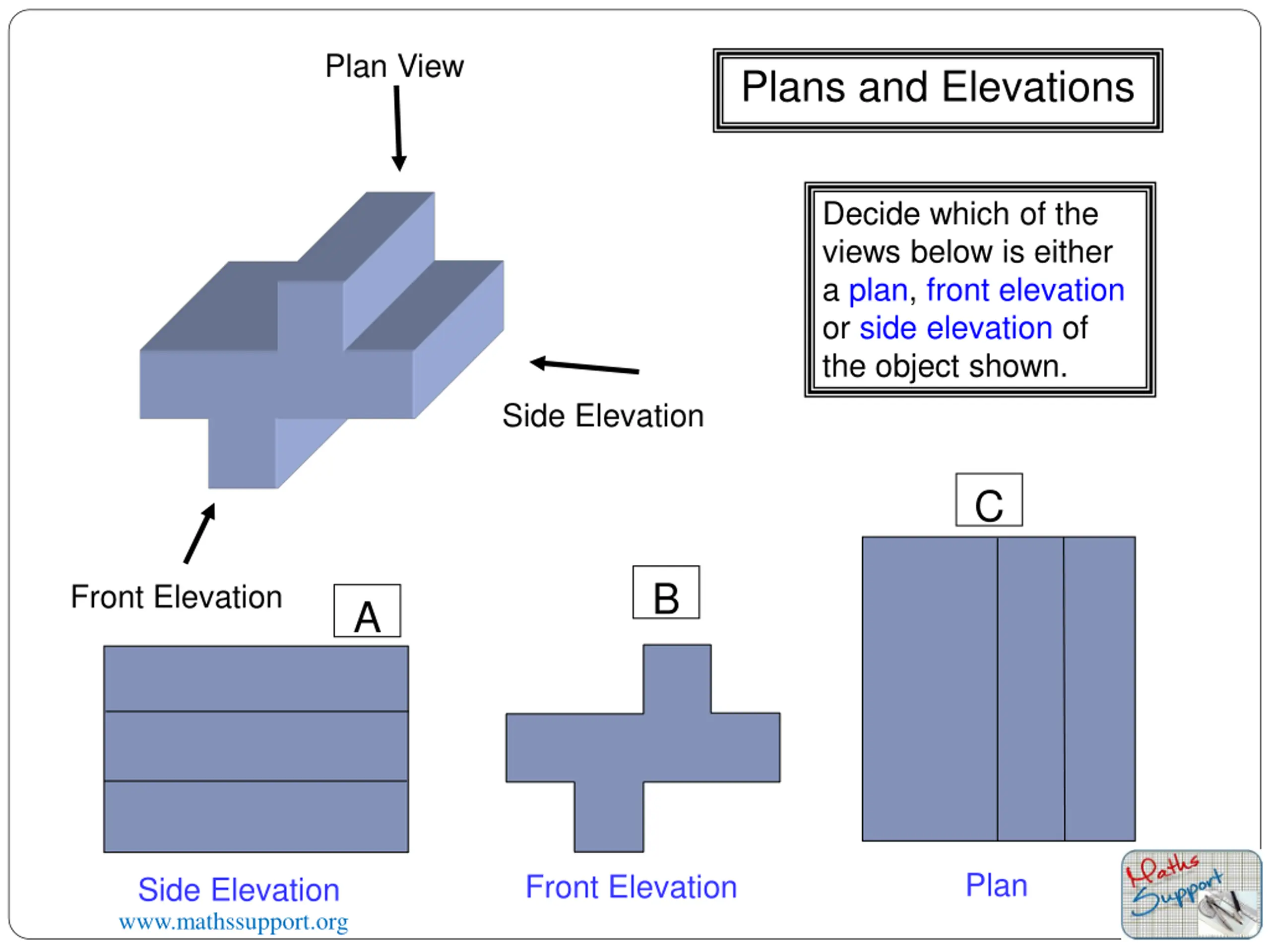

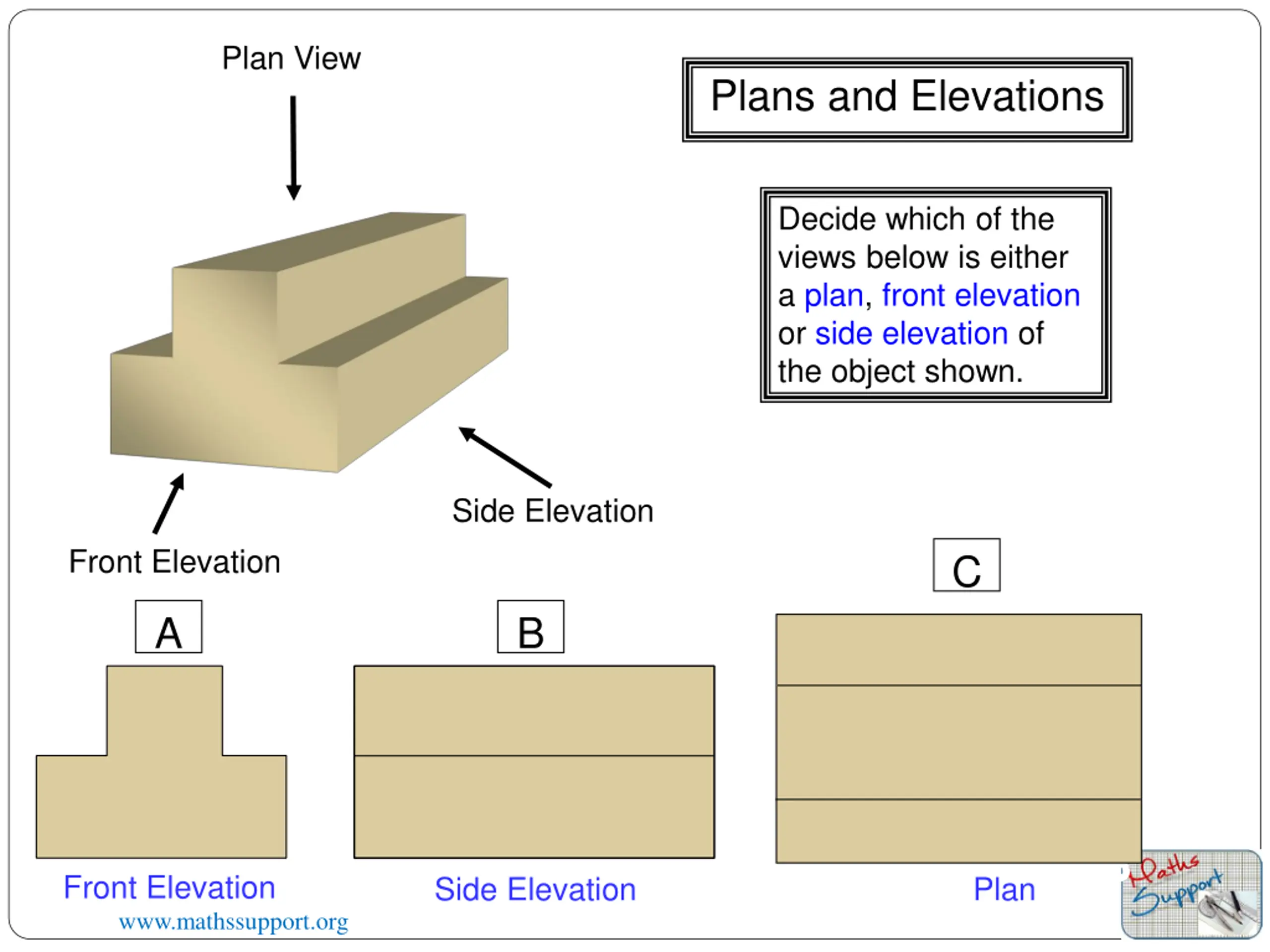

Plan View Plans and Elevations Decide which of the views below is either a plan, front elevation or side elevation of the object shown. Side Elevation Front Elevation C A B Prisms Plan Front Elevation Side Elevation www.mathssupport.org

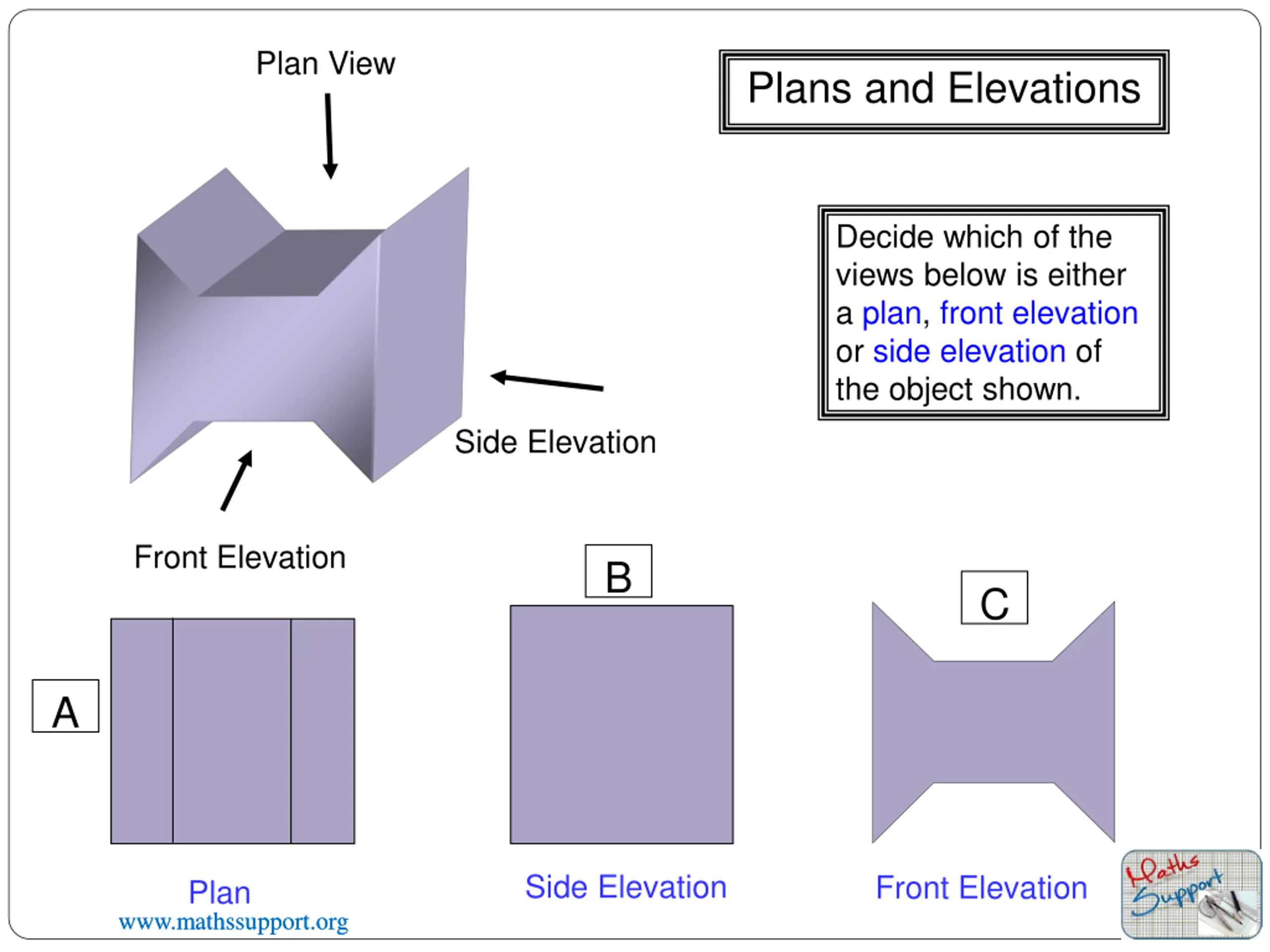

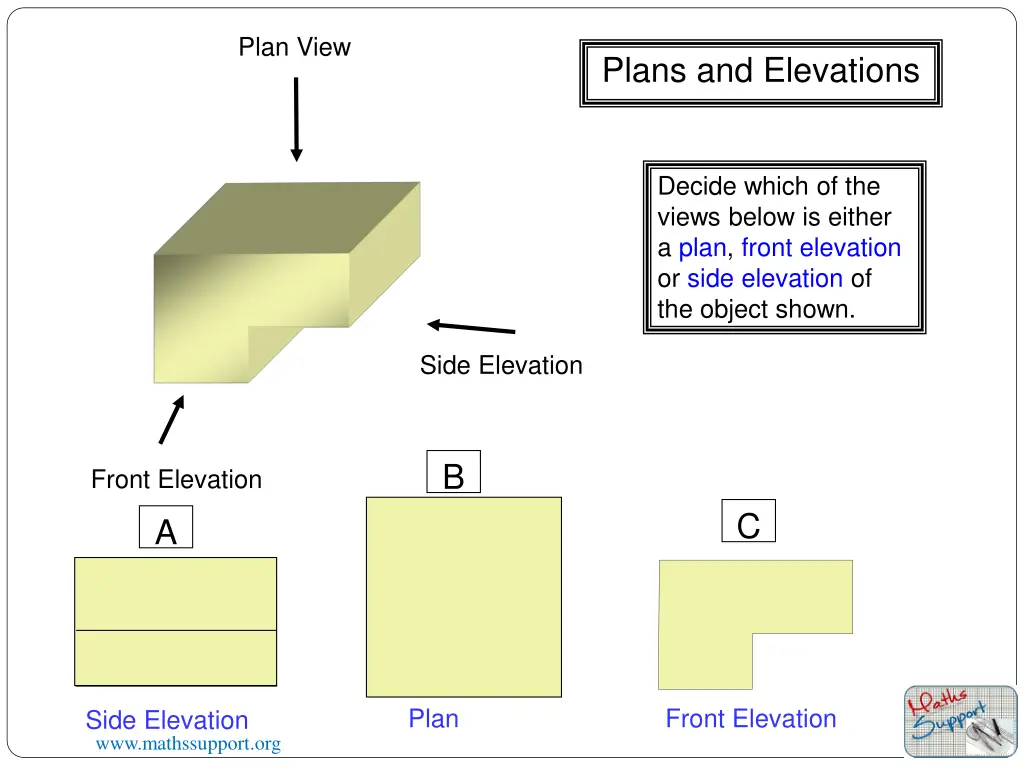

Plan View Plans and Elevations Decide which of the views below is either a plan, front elevation or side elevation of the object shown. Side Elevation B Front Elevation C A Plan Front Elevation Side Elevation www.mathssupport.org
Plan View Plans and Elevations Decide which of the views below is either a plan, front elevation or side elevation of the object shown. Side Elevation C B Front Elevation A Plan Front Elevation Side Elevation www.mathssupport.org

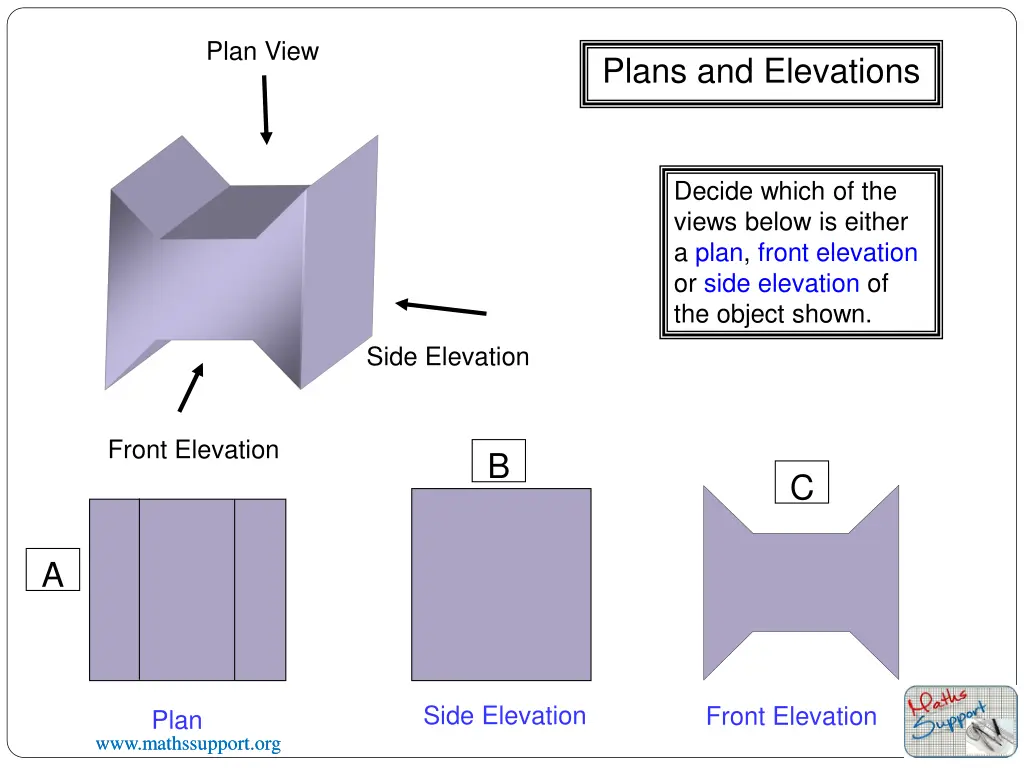

Plan View Plans and Elevations Decide which of the views below is either a plan, front elevation or side elevation of the object shown. Side Elevation Front Elevation B C A Side Elevation Front Elevation Plan www.mathssupport.org www.mathssupport.org
